1. Hints, Allegations andThings
Left Unsaid
Speaker(s): Kim Oppalfens #ECMDay2015

2. HINTS, ALLEGATIONSANDTHINGS LEFTUNSAID
#ECMDay2015
Introduction: Kim Oppalfens
• 10 years ConfigMgr Mvp
• Consultant OSCC
• Kim.oppalfens@oscc.be
• SCUG member
• Self-proclaimed quiet shy guy
• Wmiguy blog http://scug.be/thewmiguy
• The Wmi Guy twitter http://twitter.com/thewmiguy
• Quizmaster Extra-Ordinaire
• Owner of the Technet Library search providers
http://www.oscc.be/tn-library-searchpage

3. HINTS, ALLEGATIONSANDTHINGS LEFTUNSAID
Agenda
#ECMDay2015
 Session history
 Bing Maps integration (T)
 IP Range boundaries (H)
 URL Rewrite & DFS + Dedup for Definitive MediaLib (H)
 Software Update fallback to Microsoft (A)
 Collection updating details (T)
 Using ConfigMgr support center log viewer (T)
 When time permits UI++ (H)

4. HINTS, ALLEGATIONSANDTHINGS LEFTUNSAID
Bing Maps integration
#ECMDay2015
• Monitoring workspace
• Site Hierarchy
• Configure view settings
• Enter GPS coordinates
• Open geographical view

5. HINTS, ALLEGATIONSANDTHINGS LEFTUNSAID
Bing Maps integration
#ECMDay2015

6. HINTS, ALLEGATIONSANDTHINGS LEFTUNSAID
Boundaries
AD Site
IP RangeIP Subnet

7. HINTS, ALLEGATIONSANDTHINGS LEFTUNSAID
The problems with boundaries
IP Subnet
• Cannot use “Super-nets”
• Based on Subnet/Network
ID
• Are subjective
– Subnet IDs are based on
IP Address + Subnet Mask
AD Site
• “Converted” to IP Subnet IDs
– 192.168.14.0/23 = 192.168.14.0
• Cannot use “Super-nets”
• Workgroup clients aren’t part
of an AD Site

8. HINTS, ALLEGATIONSANDTHINGS LEFTUNSAID
Why Subnet IDs are Evil
Classful
• IP Address:10.0.151.17
– Subnet ID: 10.0.0.0
– Subnet Mask: 255.0.0.0
• Subnet ID: 192.168.18.0
– Subnet Mask: 255.255.255.0
– Valid IPs: 192.168.18.1 –
192.168.18.254
Classless Internet Domain
Routing (CIDR)
• IP Address:10.0.151.17
– Subnet ID: ?
– Subnet Mask: ?
• Subnet ID: 192.168.18.0
– Subnet Mask: ?
– Valid IPs: 192.168.18.1 – ?

9. HINTS, ALLEGATIONSANDTHINGS LEFTUNSAID
Super-net example

10. HINTS, ALLEGATIONSANDTHINGS LEFTUNSAID
Discovery example

11. HINTS, ALLEGATIONSANDTHINGS LEFTUNSAID

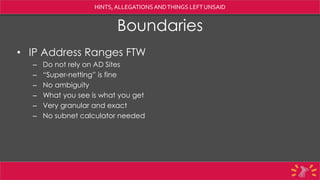

Boundaries
• IP Address Ranges FTW
– Do not rely on AD Sites
– “Super-netting” is fine
– No ambiguity
– What you see is what you get
– Very granular and exact
– No subnet calculator needed

12. HINTS, ALLEGATIONSANDTHINGS LEFTUNSAID
DFS + Dedup
• All content in ConfigMgr 2012 R2 needs to be on
UNC path
– Enforce CM07 best practice
• UNC path != SiteServer share
• Use DFS over DNS alias aka CNAME
• Add Dedup to save on storage
– Add filesystem role service
– Configure in server manager ui
#ECMDay2015

13. HINTS, ALLEGATIONSANDTHINGS LEFTUNSAID
URL Rewrite
 Download URL Rewrite and install it
(http://www.iis.net/downloads/micr
osoft/url-rewrite)
 Open IIS and navigate to the
servernode
 Select URL Re-write, add a new rule
 Use url pattern maching ^$
 Use {HTTP_HOST} condition pattern
matching
 Action redirect to
/CMApplicationCatalog
 Action type 301 permanent
 Create DNS Cname record
#ECMDay2015

14. HINTS, ALLEGATIONSANDTHINGS LEFTUNSAID
Software Update fallback to Microsoft
#ECMDay2015
 New SP1 feature
 If software updates are not available on the preferred
distribution point or remote distribution point, download
content from Microsoft updates.
 Fully works as designed != works as most people think

15. HINTS, ALLEGATIONSANDTHINGS LEFTUNSAID
COLLECTION UPDATING DETAILS
(1)
#ECMDay2015
 Collection updating & Collection limiting

16. HINTS, ALLEGATIONSANDTHINGS LEFTUNSAID
Collection updating details (2)
#ECMDay2015
 Collection updating & Include collections
 Primary evaluator
 Express evaluation
 Single evaluation
 Auxiliary evaluation

17. HINTS, ALLEGATIONSANDTHINGS LEFTUNSAID
COLLECTION UPDATING DETAILS
(3)
#ECMDay2015
 Collection updating & Exclude collections

18. HINTS, ALLEGATIONSANDTHINGS LEFTUNSAID
COLLECTION UPDATING DETAILS
(4)
#ECMDay2015
 Collection updating & Include + Exclude collections

19. HINTS, ALLEGATIONSANDTHINGS LEFTUNSAID
Collection updating details (5)
#ECMDay2015
 Collection updating & Direct membership vs Query based
membership
 Select * from sms_r_system where netbiosname in
(‘hostname1’,’hostname2’)

20. HINTS, ALLEGATIONSANDTHINGS LEFTUNSAID
Using ConfigMgr support center log
viewer
#ECMDay2015
 PS C:Program Files (x86)Configuration Manager Support
Center> .CMLogViewer.exe 'configmgr01e$Program
FilesSMS_CC
 MlogsInventoryAgent.log','ConfigMgr01e$program
filesMicrosoft Configuration ManagerLogsdataldr.log',
'v:SMS_CC
 MLogsMP_Hinv.log', 'w:sms_ccmlogsmp_hinv.log'

21. HINTS, ALLEGATIONSANDTHINGS LEFTUNSAID
UI++
#ECMDay2015
 Display info to interactive user
 Solicit feedback from interactive user
 Choose apps to install
 List of variables to use throughout the tasksequence
 Populate regkeys using regwrite
 Populate wmi
 http://blog.configmgrftw.com/uiplusplus/
