Migrating a Drupal site from versions 6/7 to 8 requires analysis of the existing site, documentation of the process, and testing a virtual preview before migration. The migration is executed using Drush commands or the Migrate Upgrade module UI, and involves configuring and running individual migrations in dependency order. Potential issues include unsupported modules and field mappings that require changes post-migration. Collaboration with support is recommended for complex sites.

1. Preparing to Migrate
D6/7 to D8

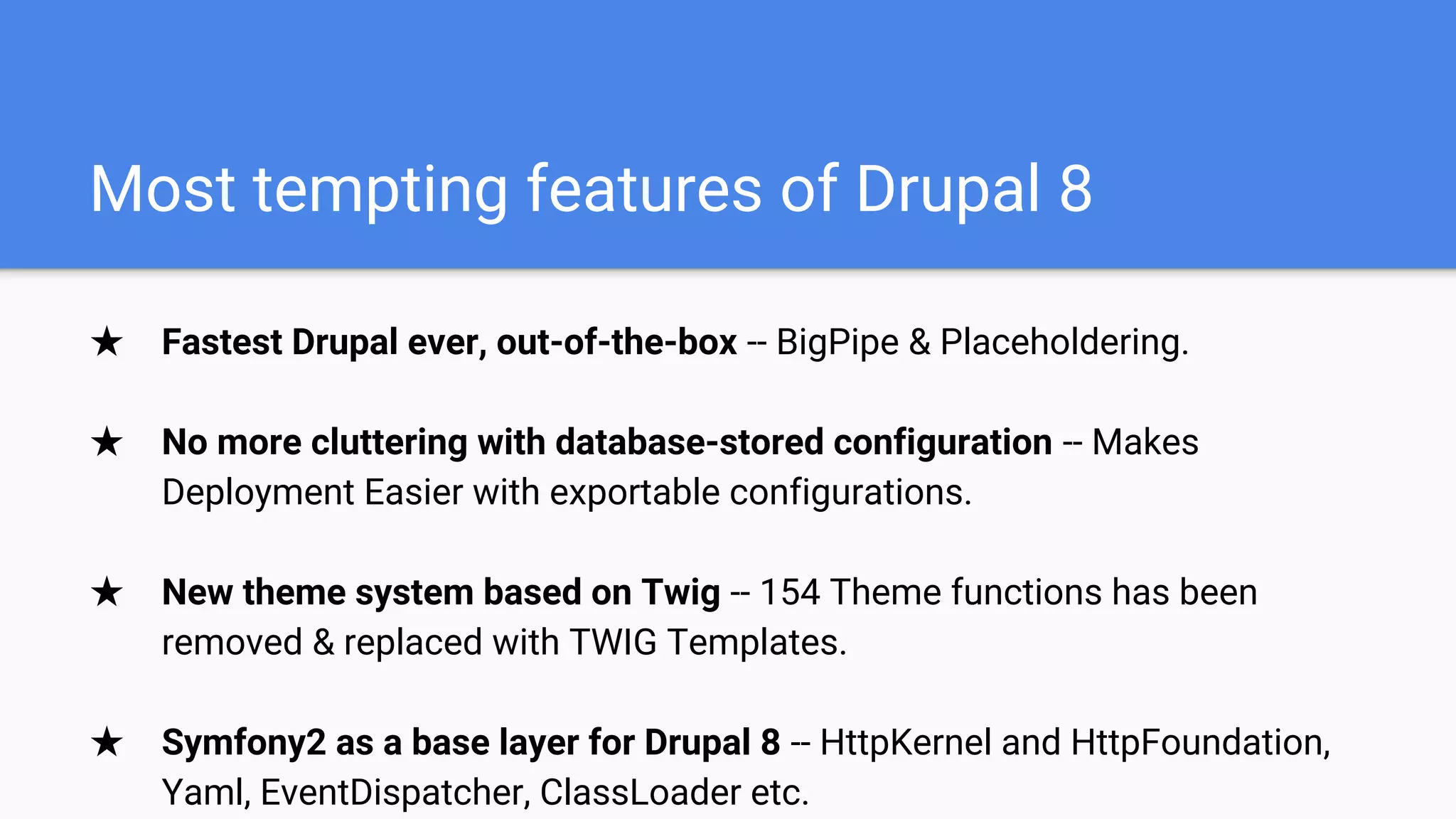

2. Most tempting features of Drupal 8
★ Fastest Drupal ever, out-of-the-box -- BigPipe & Placeholdering.
★ No more cluttering with database-storedconfiguration -- Makes
Deployment Easier with exportable configurations.
★ New theme system based on Twig -- 154 Theme functions has been
removed & replaced with TWIGTemplates.
★ Symfony2 as a base layer for Drupal 8 -- HttpKernel and HttpFoundation,
Yaml, EventDispatcher, ClassLoader etc.

4. Importance of Analysis & ForeSeeking
★ Update Status(Drupal 5) / Upgrade Status must be used for analysis.
★ Ink is better than the best memory - Documentation
★ A virtual view/workflow of Migrated Website
before migration - Fore Seeking

5. Modules Porting Tracker
Status of the Top 100 Contributed Modules for Drupal 8
★ 19 projects are incore.
★ 16 projects have an available non-developmentrelease.
★ 37 projects have an available developmentrelease.
★ 28 projects have no availableD8 release.
https://contribkanban.com/board/contrib_tracker

6. Can we suggest Drupal 8 right away :
★ for an existing SIMPLEproject? -YES-
★ for an existing COMPLEXproject? -NO-
★ for a NEWproject? -YES-

7. Migration Support from Drupal:
The system for upgrading Drupal sites has
been completely re-written for Drupal8

8. Support for Drupal 6 & Drupal 7 to Drupal 8
★ Drupal 6: core + CCK+ Link+ Email + Phone + ImageCache modules.
★ Drupal 7: only content, users, taxonomy, blocks, menus, filter formats.
More support for Drupal 7 to Drupal 8 is coming soon.

9. Migrations that are not yet supported :
★ Views (Drupal 6 & Drupal7)
★ Multilingual content (i18n Module Drupal 6& Drupal 7)
★ Node, user, entity references (Drupal6)
Currently, contributed modules are required to run migrations to Drupal 8

10. Known Issues with the Drupal 6/7-> 8
Drupal 6 to Drupal8
★ Node Types : Default configuration in D6 was to create Story and Page content types but in
Drupal 8 the default types are Article and Basic Page (which has a machine name 'page' just like
in D6).
★ URLAliases : When migrating url aliases for a language that is not enabled on the new Drupal 8.
★ Menu UI :The menu_primary_links_source and menu_secondary_links_source variablesare not
migrated, because they do not have counterparts in Drupal 8.

11. Known Issues with the Drupal 6/7-> 8
Drupal 6 to Drupal8
★ Profile categories : Fields grouped by the Profile module in D6 will not be grouped in D8.
★ Profile field (list selection) : The "allowed values" setting of the resulting field in D8 will be a
combination of all selected user values and the current allowed values in D6.
★ Date formats : Only the default, short, medium and long formats are migrated. All other formats
default to the fallback format and need to be reconfigured after migration.
★ Text/Input formats : It will be replaced by a null filter which simply displays an empty string.The
PHP filter is not supported in Drupal 8 core -- it's very bad practice

12. Known Issues with the Drupal 6/7-> 8
Drupal 6 to Drupal8
★ Views :Views are not yetmigrated.
★ Aggregator Categories : Drupal 8 no longer has the concept of aggregator categories and
therefore they're not migrated toD8.
★ Allowed protocols : Drupal 8 now stores the protocols in "filter_protocols" container parameter,
so in case you had changed the variable "filter_allowed_protocols", enter it into your services.yml
file.

13. Known Issues with the Drupal 6/7-> 8
Drupal 7 to Drupal8
★ Blocked IPs : The id column from Drupal 7's ban_ip table is not migrated.
★ Menu UI :The menu_primary_links_source and menu_secondary_links_sourcevariables not
migrated, because they do not have counterparts in Drupal 8.
★ PHP Code : It will be replaced with filter_null, which simply displays an empty string. PHP code is
not supported in Drupal 8 core -- it's very bad practice.
★ Views : Views are notyet migrated.

14. A Brief description about Drupal8
Migration API

15. Drupal 8 Migration API
Migration is an Extract, Transform, Load (ETL) process.For historical reasons,
in the Drupal migration tool:
★ the extract phase is called "source" - Source Plugins,
★ the transform phase is called "process" - Process Plugins,
★ the load phase is called "destination" - Destination Plugins,
★ Migration configuration entities - (IDs,Configs & dependencies) ,
★ Migration manifests - drush migrate-manifest provides a list of
migrations.

16. Migration-Related Modules
and Plugins

17. Migration-Related Core Modules
Drupal 8 is shipped with 2 CORE Modules that provides API for Migration
★ Migrate : This Drupal core module provides the underlying API for migrating configuration and
content to Drupal8.
★ Migrate Drupal : This Drupal core module provides the classes specifically needed to migrate
configuration and content from a Drupal site to Drupal 8.
Why 2 Core Modules for Migration ?

18. Migration-Related Contributed Modules
★ Drupal Upgrade (migrate_upgrade) : The Drupal Upgrade contributed module provides the tools
necessary for performing an upgrade from Drupal 6 or Drupal 7 to Drupal 8 —both a simple user
interface (at /upgrade) as well as drush commands. There is on-going work to get the UI moved
to Drupalcore.
★ Migrate Plus : The Migrate Plus contributed module provides optional enhancements, including
groups and prepareRow events, to the core Migrate API.
★ Migrate Tools : Part of the Migrate Plus project, this module provides optional drush and UI
tools formanaging your migrations.
★ Migration plugins : Migration plugins for each core module are located within each module's
directory. For example, the migration classes that handle taxonomy vocabularies and terms are
located in the core taxonomy module.

19. Executing a Migration

20. Executing a Drupal 6/7 to Drupal 8 upgrade
Prerequisites:
★ PHP 5.5.9 or greater.
★ Install Drush8.x
★ A Drupal 6 or Drupal 7 site database (it is not recommended to run migrations against a
production database; make a copy) Source should be Localised.
★ The very latest version ofDrupal 8.
★ Having the Migrate Upgrade module downloaded & enabled, which will turn on all the various
dependencies (migrate_upgrade, migrate_drupal,migrate).
★ Write permissions for Drush to the config directory. Example sudo chmod-R a+w
sites/default/files/config_*/active

21. Most important note on Migrating to D8
★ This is different than the way the Migrate worked in Drupal 7 and earlier
versions
★ Note that you do not have to create all the content types and fields
manually before running thisupgrade!
★ The Migrate module will create them as a part of the migration process.

22. How to use D8Migrate ? There are 2 Ways
#1 Using the Migrate Upgrade Module UI
★ It is Easier but risky as it's still under heavy development, so things may break. There is support
team available for migration in case any critical issues.
★ After Installing the Migrate Upgrade module, go to Drupal 8 site's /upgrade page.
★ Now, You will see the home screen with Help Texts.

25. #2 Using Drush
★ Migrate Upgrade module is shipped with drush commands
Drush command : drush migrate-upgrade --legacy-db-url=mysql://user:password@server/db --
legacy-root=http://localhost/drupal6 .
★ To Add more flavours to Migration, We have Migrate Tools Module which is a part of Migrate
Plus Module. Migrate Tools provides more drush commands.
Drush Commands : drush migrate-status (ms) and drush migrate-import (mi)
★ drush migrate-upgrade has 2 set of process

26. Using Drush Migrate Upgrade &Tools
★ It will generate migrations for your site, based on migrate_drupal's migration templates and your
configured source site. For instance, the d6_book migration is only created if the Book module is
enabled on both your Drupal 6 and Drupal 8 sites.
★ It executes every created migration, in dependencyorder.
★ To have more Control on this Drush Command ,Migrate tools comes into play.(--configure-
only).
You have to pass --configure-only option to the drush command
drush migrate-upgrade --legacy-db-url=mysql://user:password@server/db --legacy-root=http:
//localhost/drupal6 --configure-onlyoption.

27. Using Drush Migrate Upgrade &Tools
★ If you run drush migrate-status (ms), a huge list of migrations will appear.
★ You can review then selectively execute the migrations by using the following drush commands
#1 drush migrate-import {migrationname}
#2 drush migrate-import--all
Note : If you are not able to see the migrated fields in Edit Page as well as in View Page
Check the “Manage Form Display” in each content type and change the fields settings and for
view page you can change it “Manage Display” Tab

28. Brushing up on Drush & DrupalConsole
Drush :The Swiss Army Knife for Drupal (More Robust)

29. Drupal Console
Drupal Console :Sports the modern Symfony Console component, that
provides a new object-oriented interface for command line tools, exposing the
power of the Symfony framework to script developers. Which is better for
Drupal 8. Generates Code & RunsTesting.
Drupal 8 development will get improved and it can be streamlined well, when
Drush is used with Drupal Console for D8 development.
http://drupalconsole.com/
