1. #D8CX
Kate Marshalkina & Konstantin Komelin
DrupalCamp Kyiv 2013 Start Here
Upgrade your modules
to Drupal 8

2. A Little More About Us
2
DrupalCamp Kyiv 2013
[Moscow, Russia]
• UI Cache Clear module author
• Contributor to several modules
• Web developer at Licel LLC
[Saint Petersburg, Russia]
• Author of Yandex.Metrics, Pinned Site
• Contributor to modules and themes
• Co-organizer of Drupal Community in St. Petersburg
• Individual web developer, trainer and consultant
Kate Marshalkina kalabro
Konstantin Komelin KKomelin

3. What is Drupal 8?
3
DrupalCamp Kyiv 2013
Drupal 8
≠

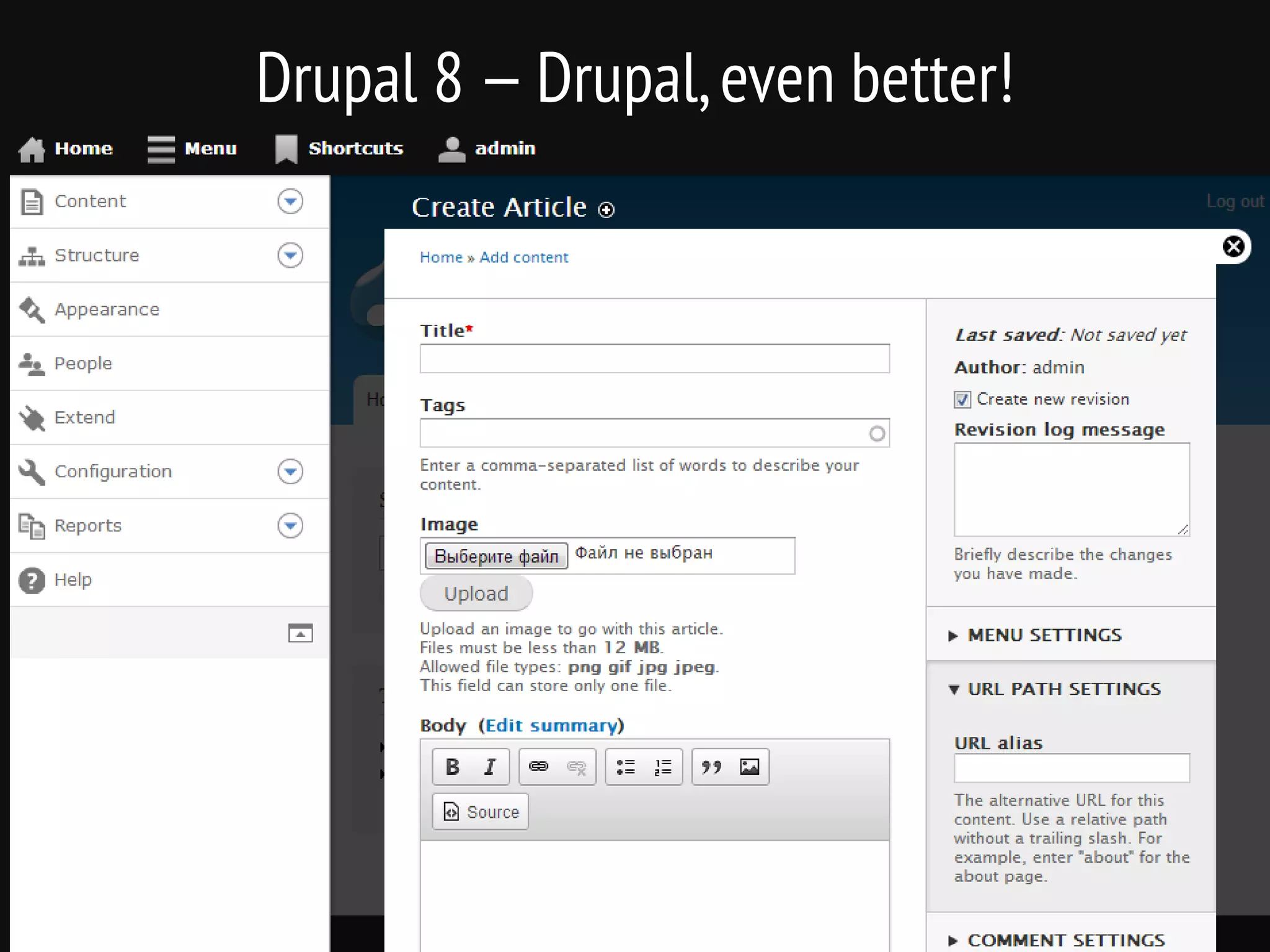

4. LOREM IPSUM DOLOREM COMPANY Insert You Tagline Here
Drupal 8 — Drupal,even better!
4

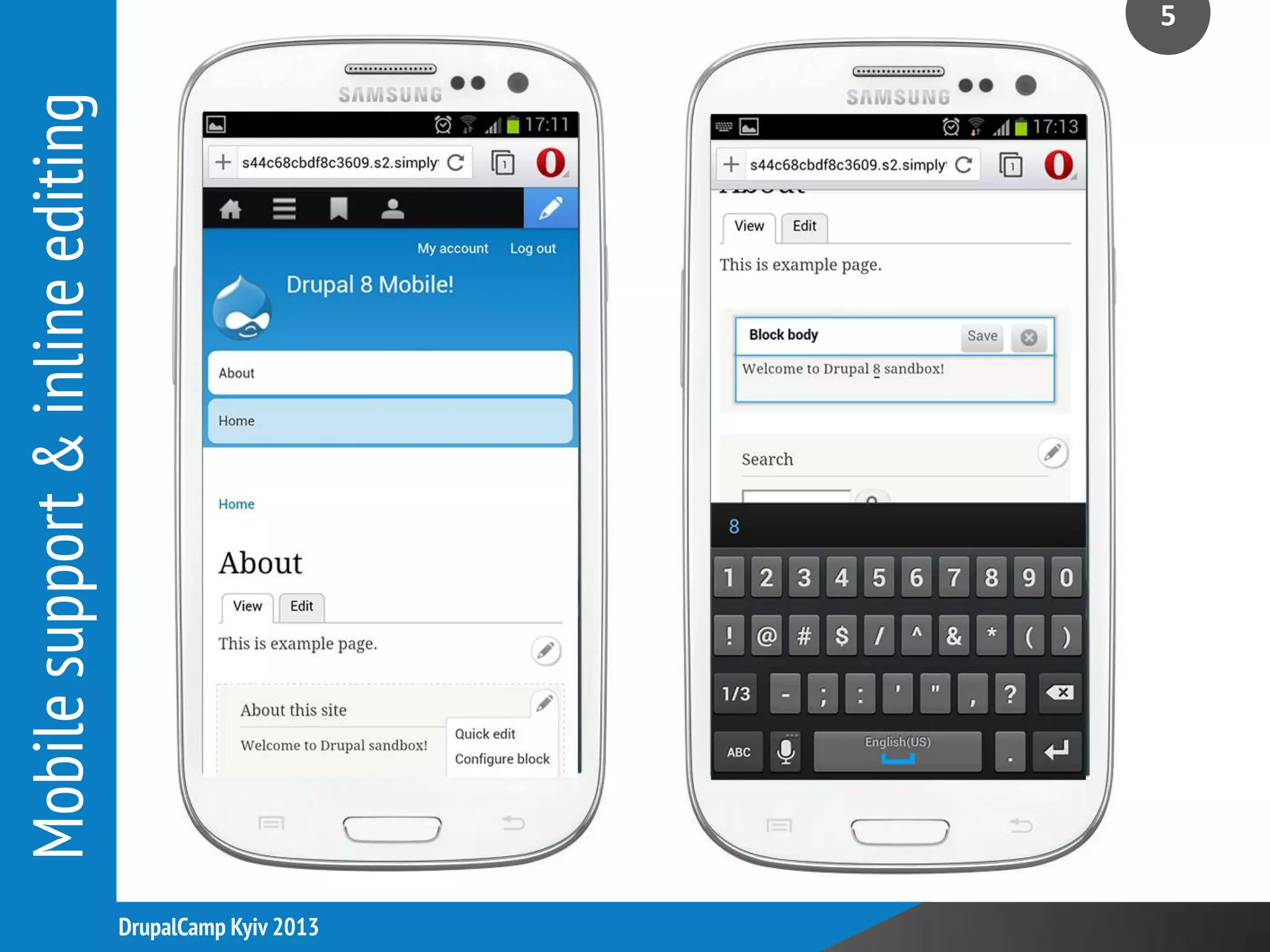

5. Mobilesupport&inlineediting
5
DrupalCamp Kyiv 2013

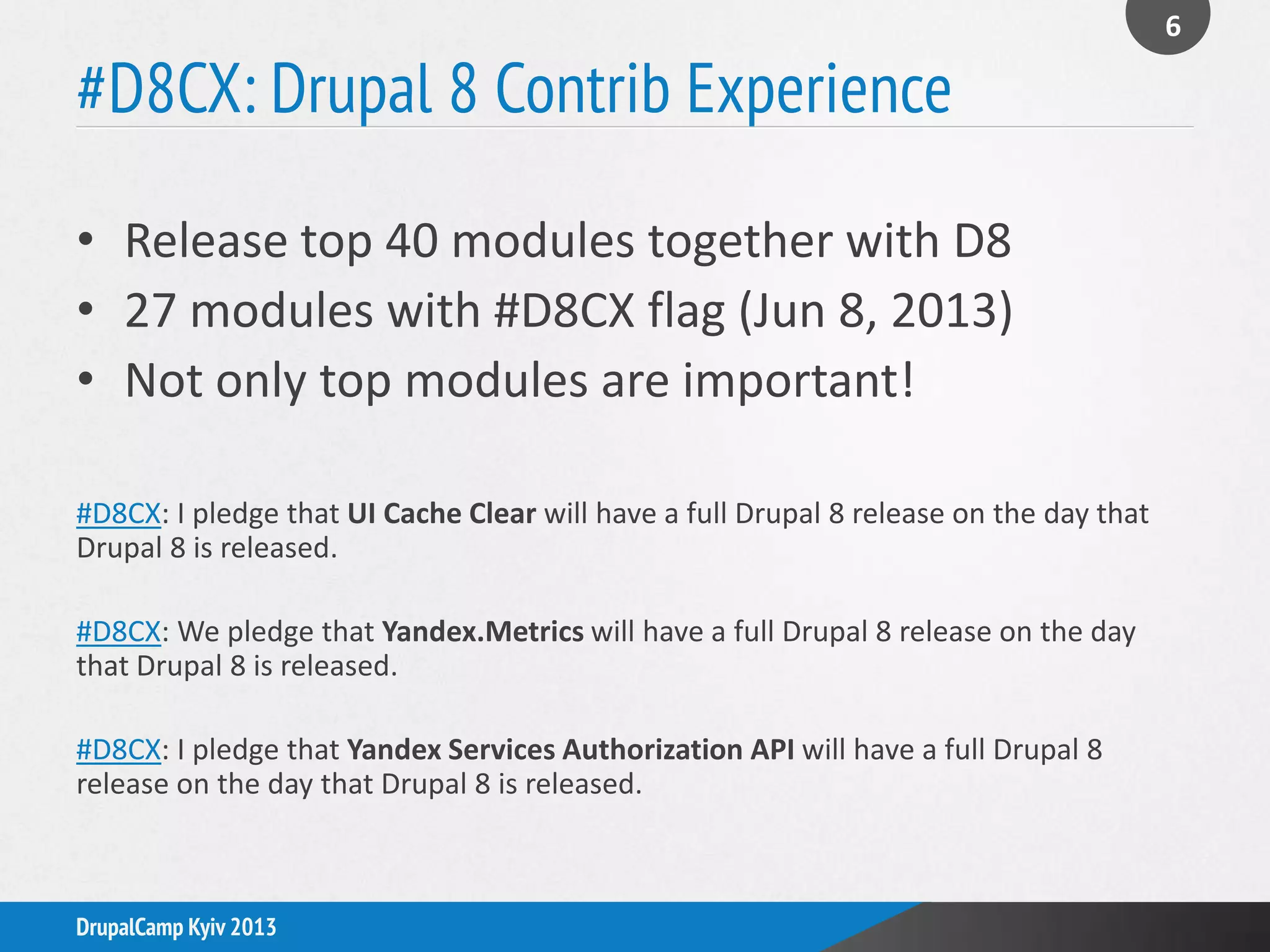

6. #D8CX: Drupal 8 Contrib Experience
• Release top 40 modules together with D8
• 27 modules with #D8CX flag (Jun 8, 2013)
• Not only top modules are important!
#D8CX: I pledge that UI Cache Clear will have a full Drupal 8 release on the day that
Drupal 8 is released.
#D8CX: We pledge that Yandex.Metrics will have a full Drupal 8 release on the day
that Drupal 8 is released.
#D8CX: I pledge that Yandex Services Authorization API will have a full Drupal 8
release on the day that Drupal 8 is released.
6
DrupalCamp Kyiv 2013

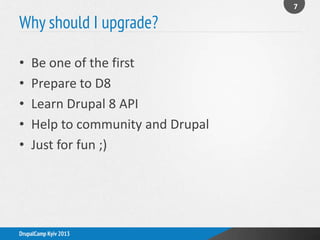

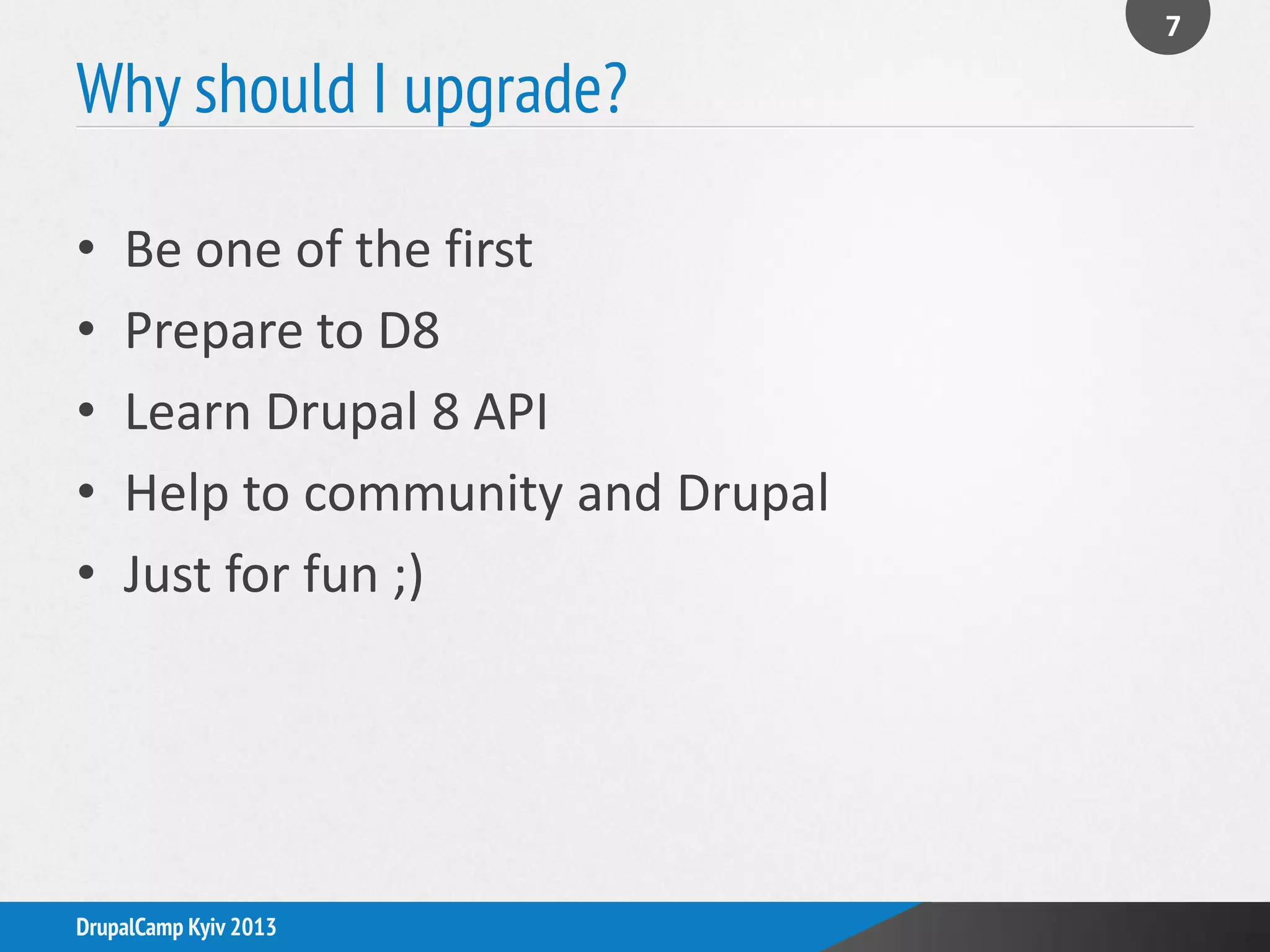

7. Why should I upgrade?
7
DrupalCamp Kyiv 2013
• Be one of the first
• Prepare to D8
• Learn Drupal 8 API
• Help to community and Drupal
• Just for fun ;)

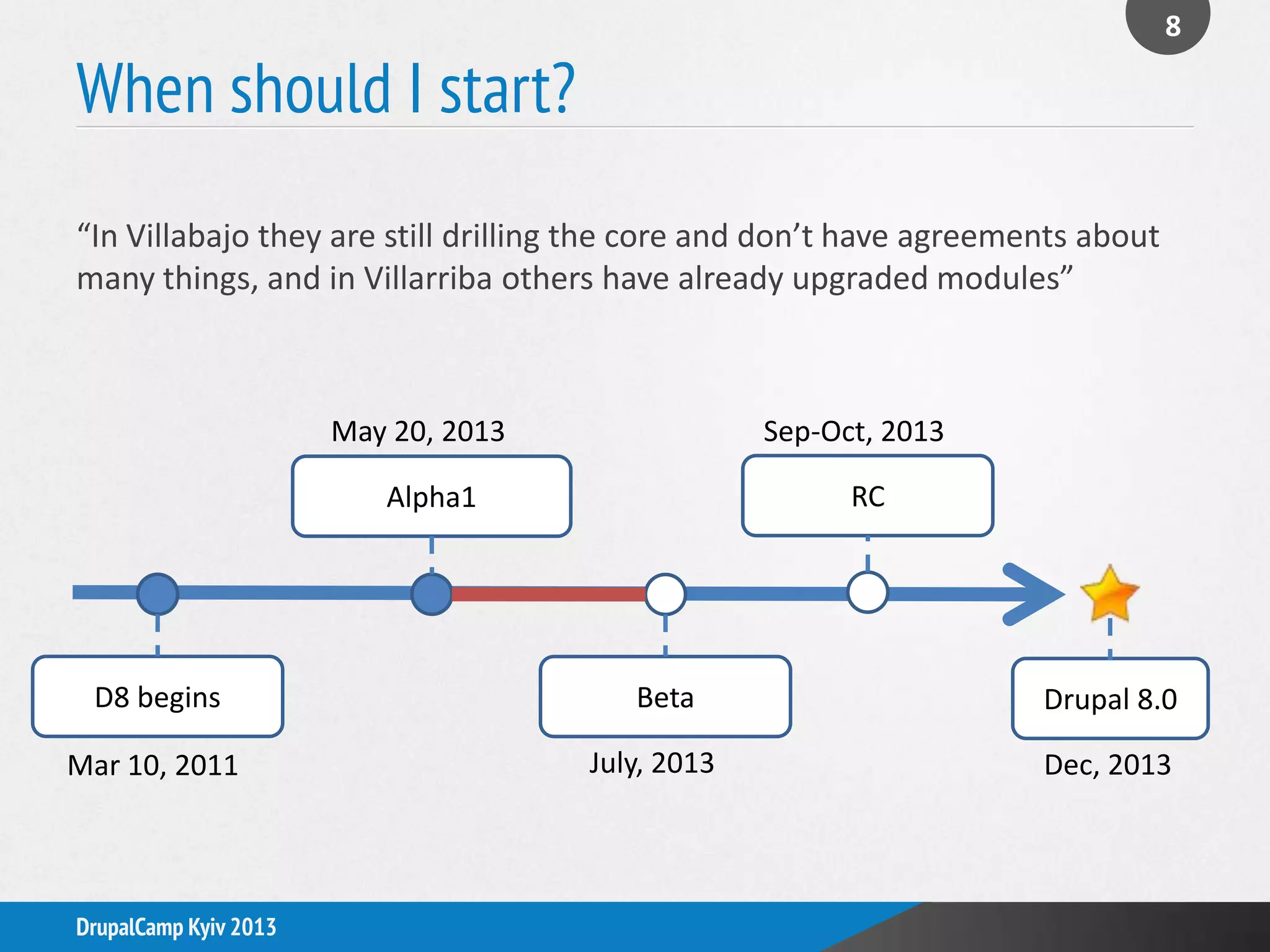

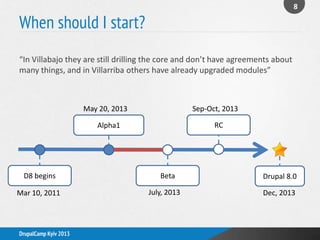

8. When should I start?
8
DrupalCamp Kyiv 2013
“In Villabajo they are still drilling the core and don’t have agreements about
many things, and in Villarriba others have already upgraded modules”
D8 begins
Mar 10, 2011
Alpha1 RC
Dec, 2013
Beta
May 20, 2013
Drupal 8.0
Sep-Oct, 2013
July, 2013

9. Our examples>
DrupalCamp Kyiv 2013

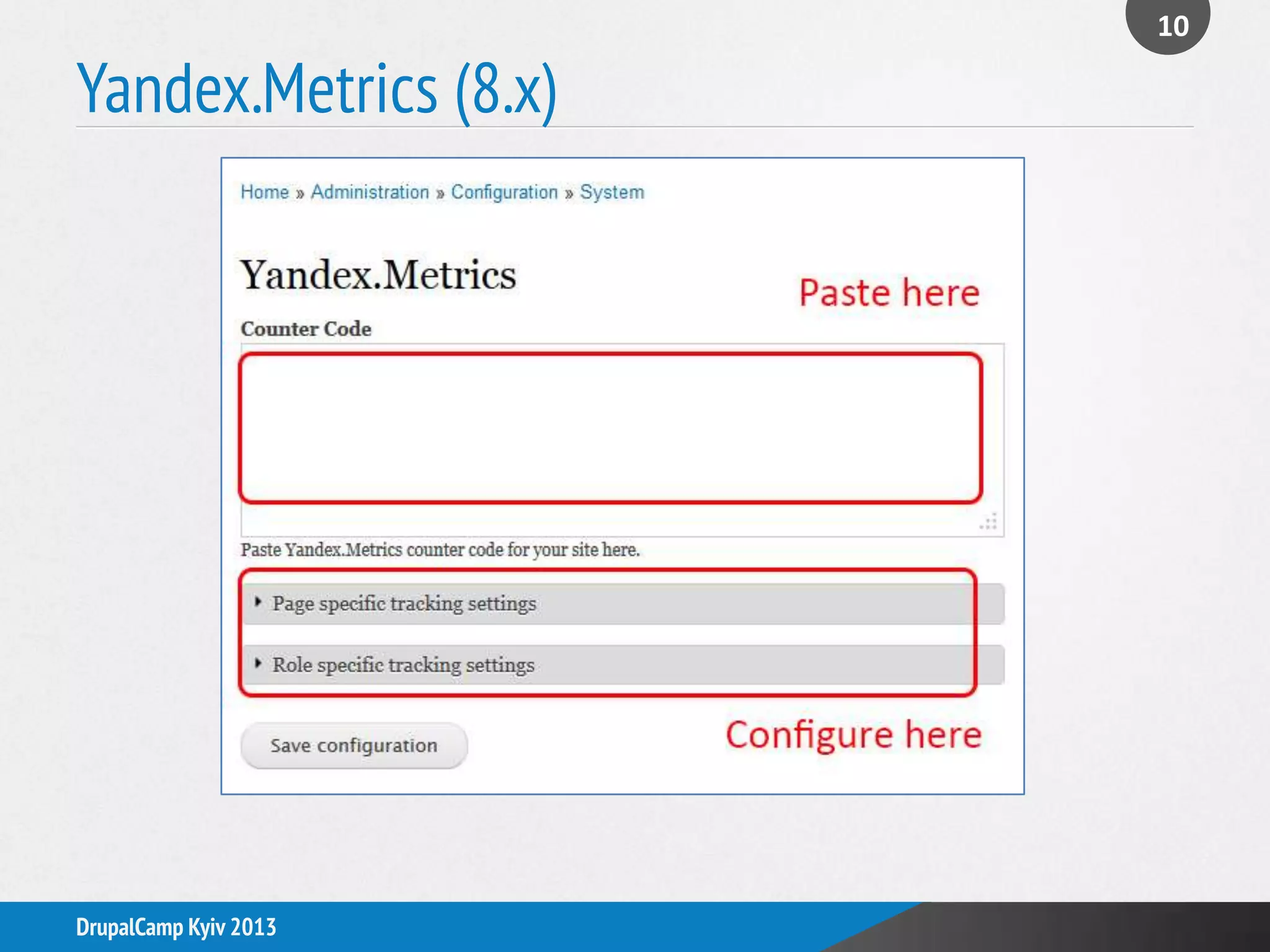

10. Yandex.Metrics (8.x)
10
DrupalCamp Kyiv 2013

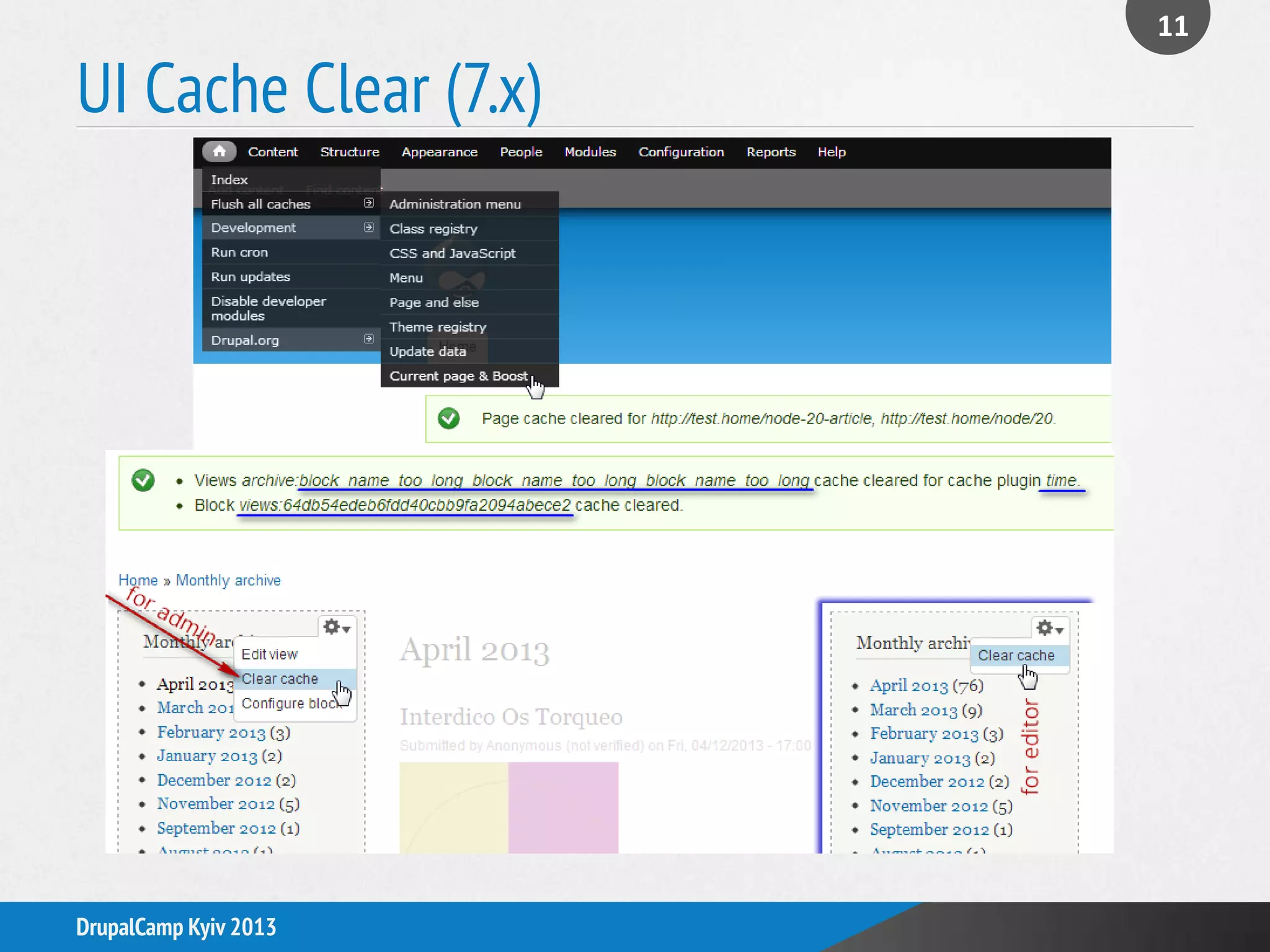

11. UI Cache Clear (7.x)
11
DrupalCamp Kyiv 2013

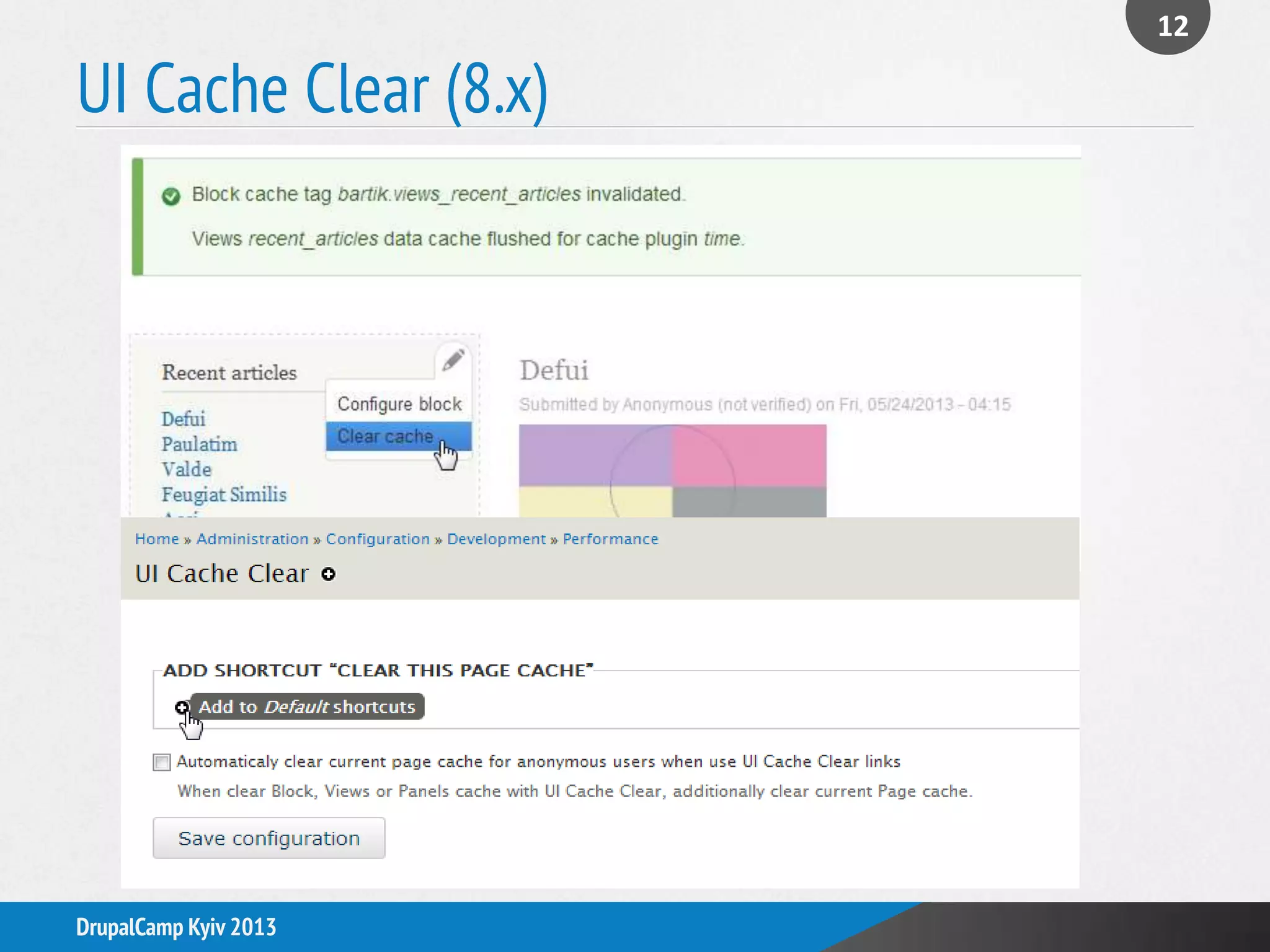

12. UI Cache Clear (8.x)
12
DrupalCamp Kyiv 2013

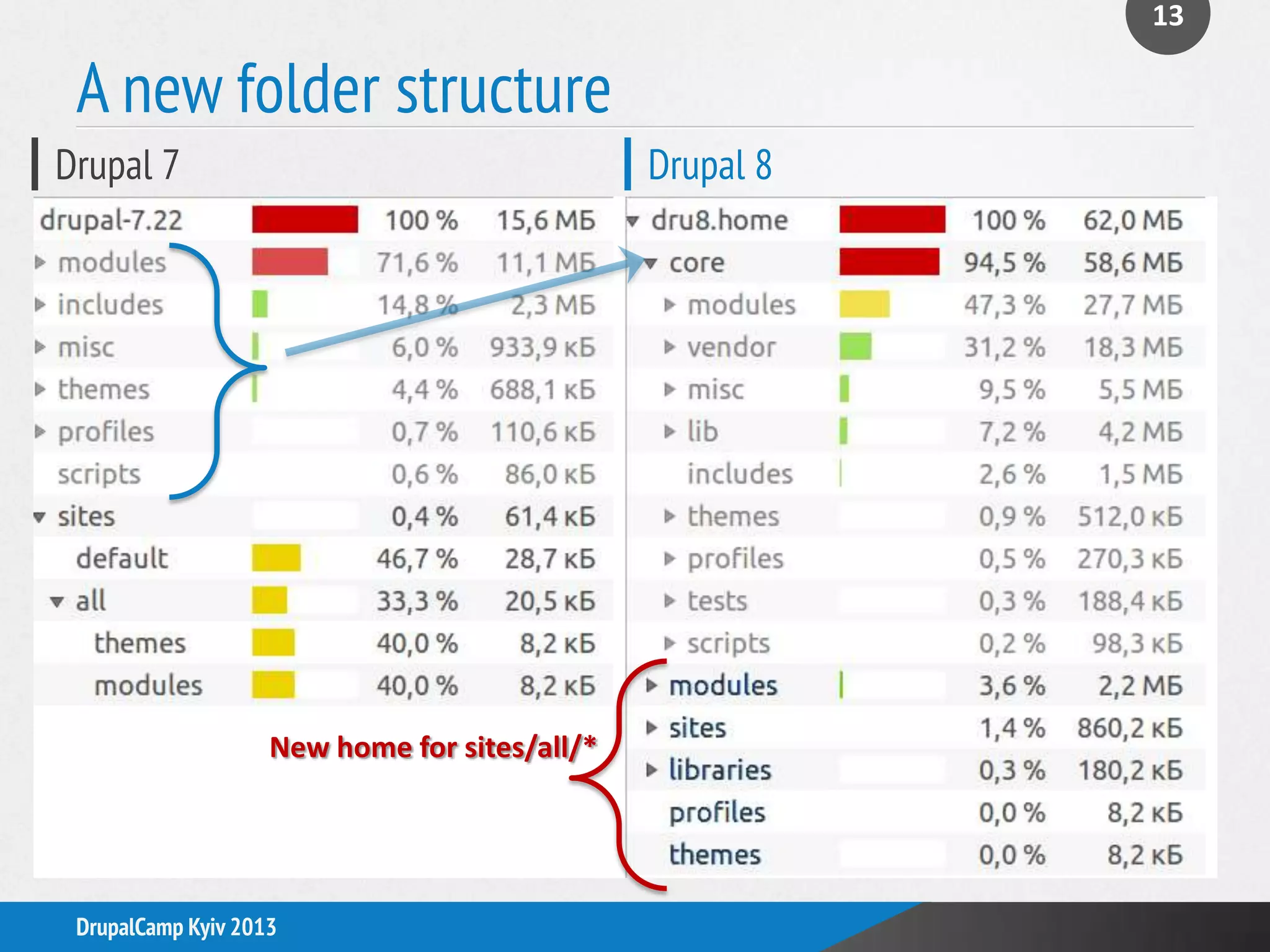

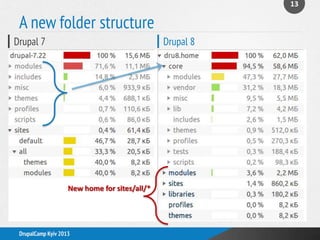

13. 13
DrupalCamp Kyiv 2013
New home for sites/all/*
Drupal 7 Drupal 8
A new folder structure

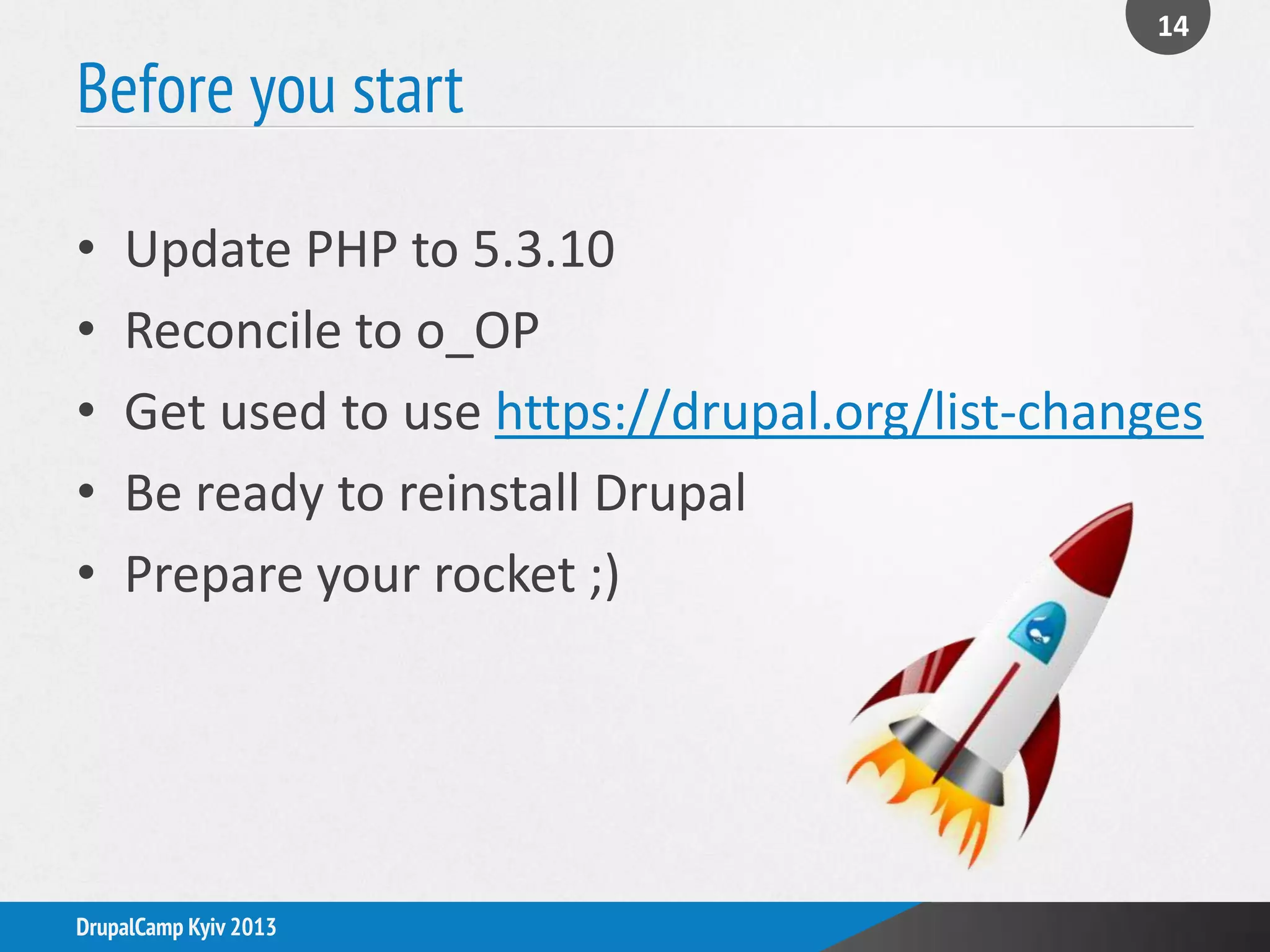

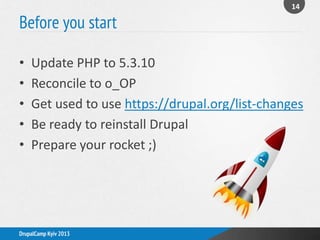

14. Before you start
14
DrupalCamp Kyiv 2013
• Update PHP to 5.3.10
• Reconcile to o_OP
• Get used to use https://drupal.org/list-changes
• Be ready to reinstall Drupal
• Prepare your rocket ;)

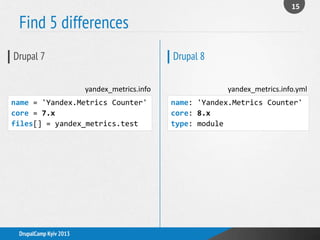

15. Find 5 differences
15
DrupalCamp Kyiv 2013
Drupal 7 Drupal 8
name = 'Yandex.Metrics Counter'
core = 7.x
files[] = yandex_metrics.test
name: 'Yandex.Metrics Counter'
core: 8.x
type: module
yandex_metrics.info yandex_metrics.info.yml

16. 16
Hurray!
We’ve just upgraded the module!
Thanks for coming!
Goodbye :-P

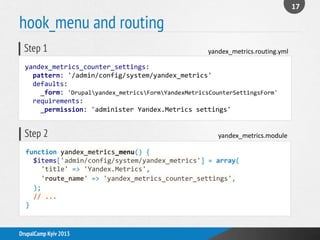

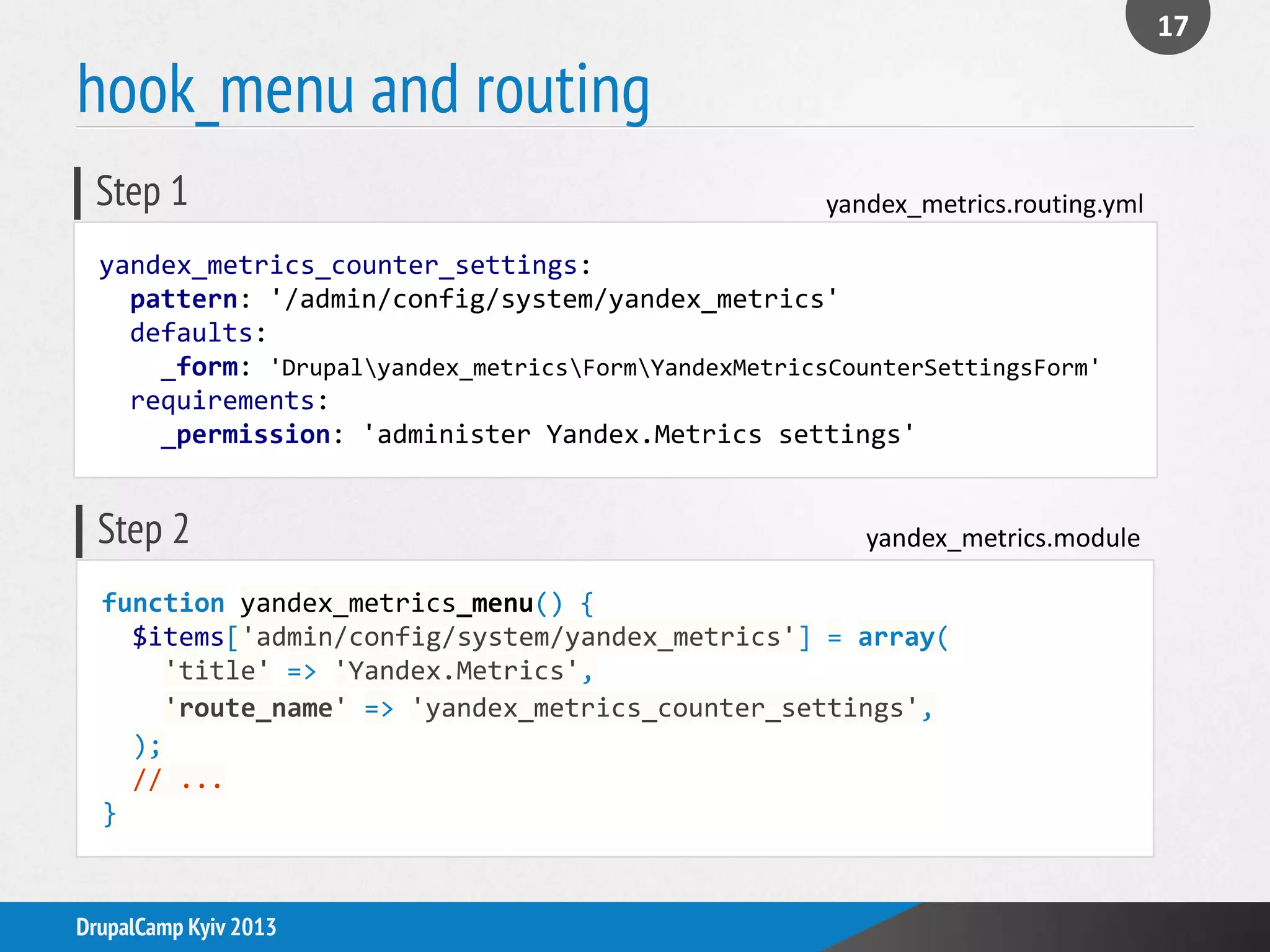

17. hook_menu and routing
17
DrupalCamp Kyiv 2013
function yandex_metrics_menu() {
$items['admin/config/system/yandex_metrics'] = array(
'title' => 'Yandex.Metrics',
'route_name' => 'yandex_metrics_counter_settings',
);
// ...
}
yandex_metrics.moduleStep 2
yandex_metrics_counter_settings:
pattern: '/admin/config/system/yandex_metrics'
defaults:
_form: 'Drupalyandex_metricsFormYandexMetricsCounterSettingsForm'
requirements:
_permission: 'administer Yandex.Metrics settings'
yandex_metrics.routing.ymlStep 1

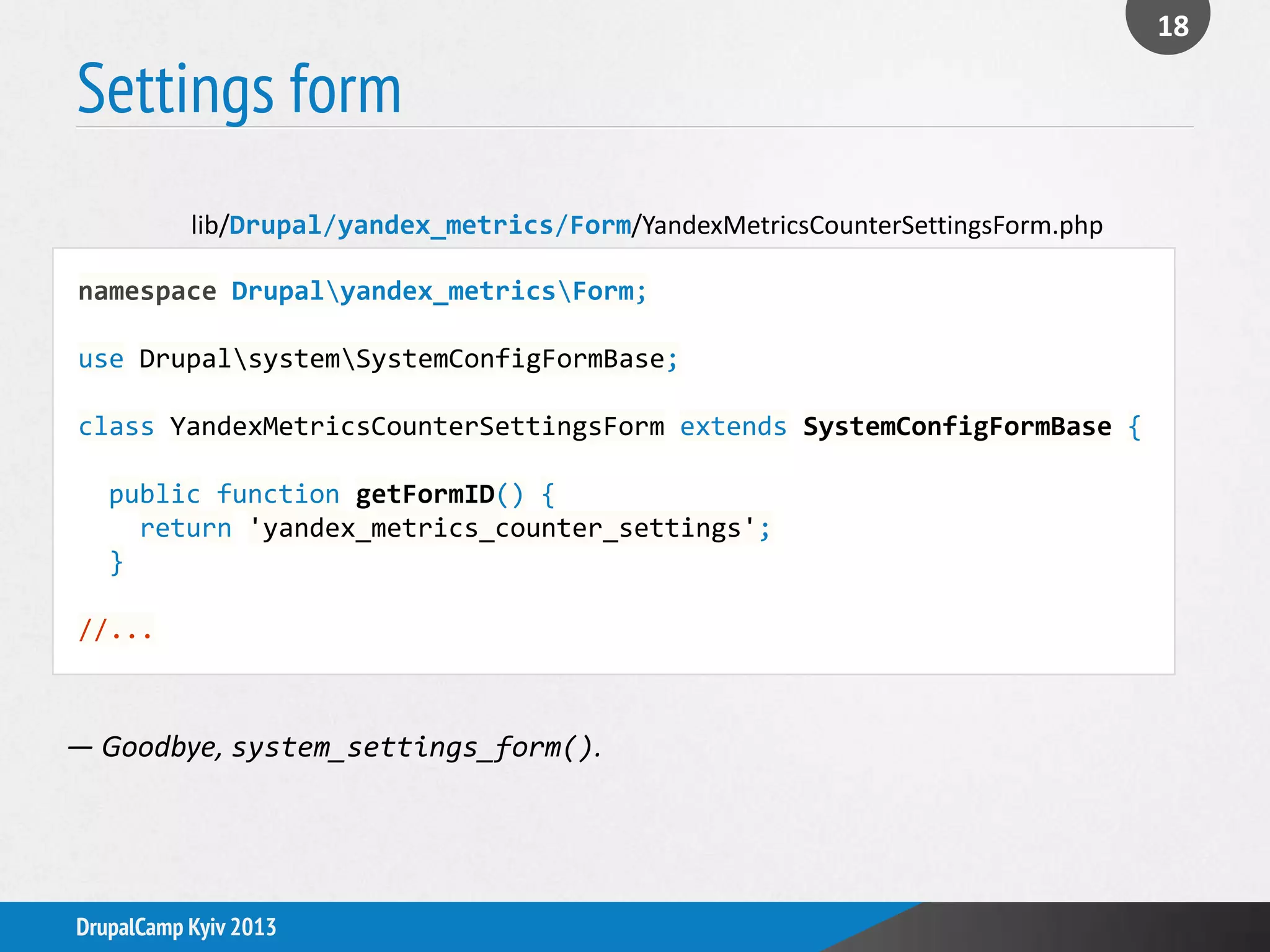

18. Settings form
18
DrupalCamp Kyiv 2013
namespace Drupalyandex_metricsForm;
use DrupalsystemSystemConfigFormBase;
class YandexMetricsCounterSettingsForm extends SystemConfigFormBase {
public function getFormID() {
return 'yandex_metrics_counter_settings';
}
//...
lib/Drupal/yandex_metrics/Form/YandexMetricsCounterSettingsForm.php
— Goodbye, system_settings_form().

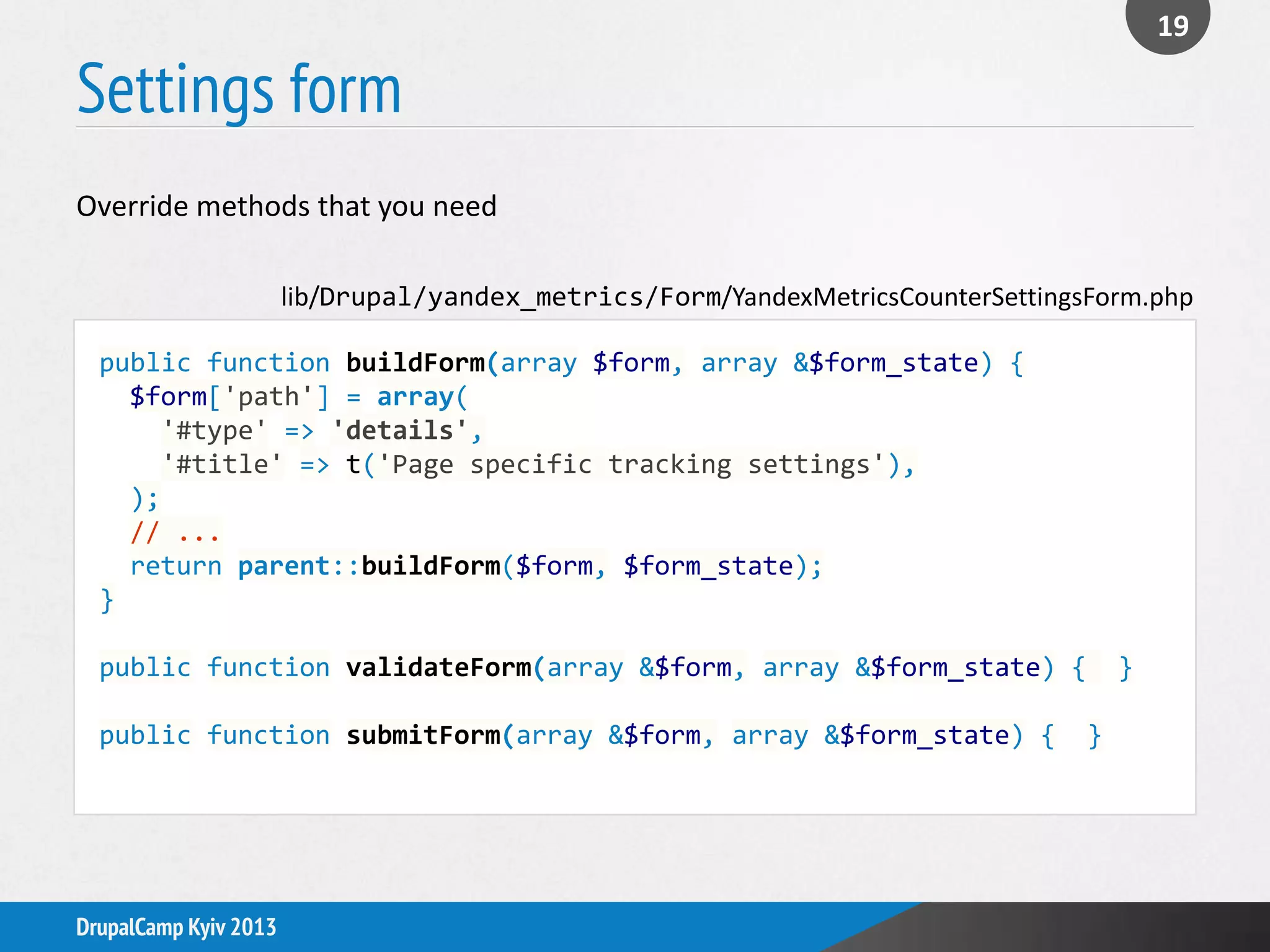

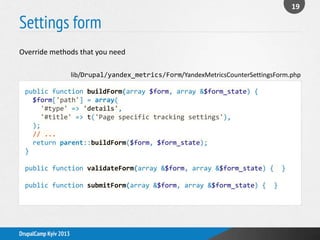

19. Settings form
19
DrupalCamp Kyiv 2013
public function buildForm(array $form, array &$form_state) {
$form['path'] = array(
'#type' => 'details',
'#title' => t('Page specific tracking settings'),
);
// ...
return parent::buildForm($form, $form_state);
}
public function validateForm(array &$form, array &$form_state) { }
public function submitForm(array &$form, array &$form_state) { }
lib/Drupal/yandex_metrics/Form/YandexMetricsCounterSettingsForm.php
Override methods that you need

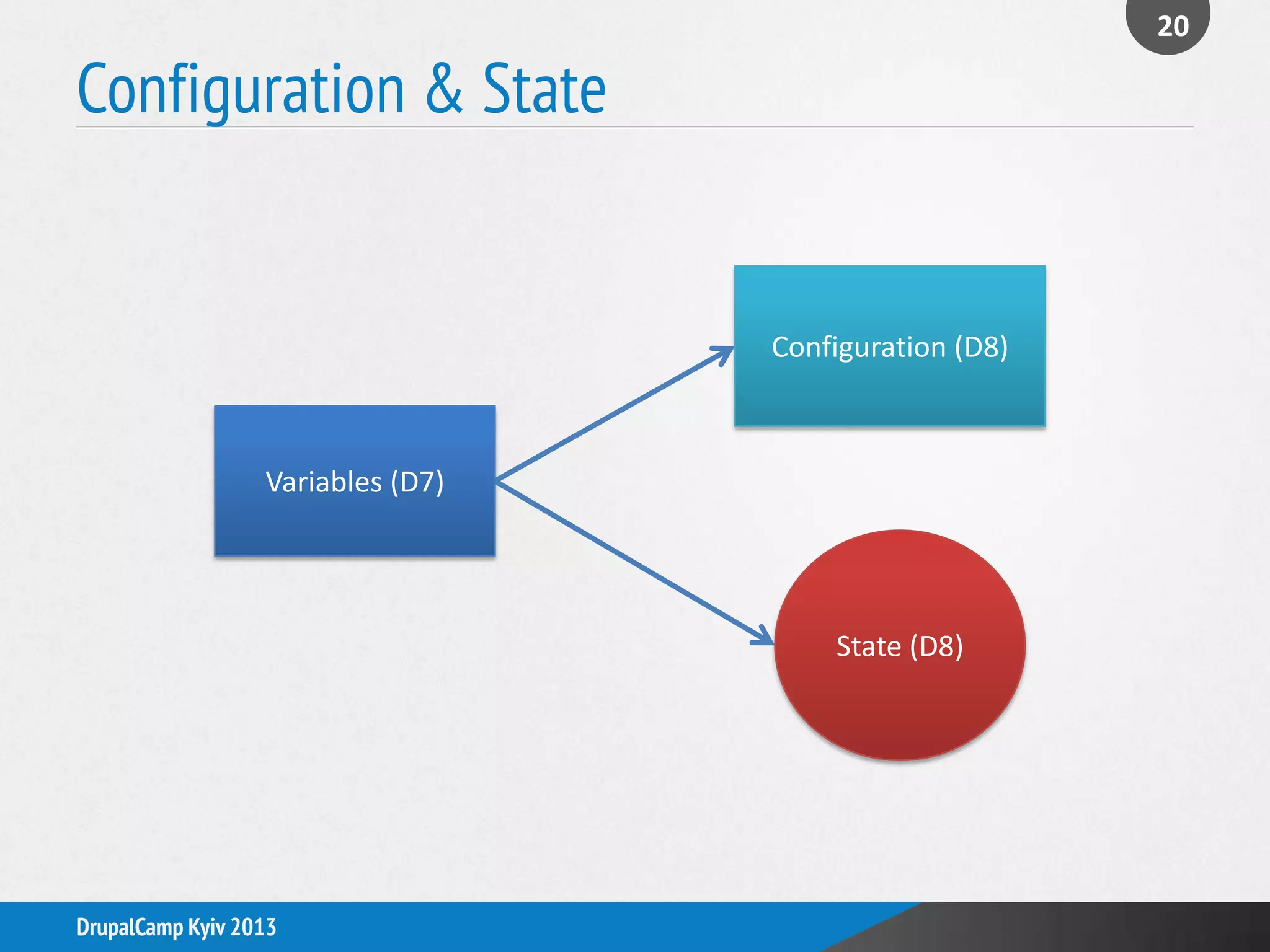

20. Configuration & State
20
DrupalCamp Kyiv 2013
Variables (D7)
Configuration (D8)
State (D8)

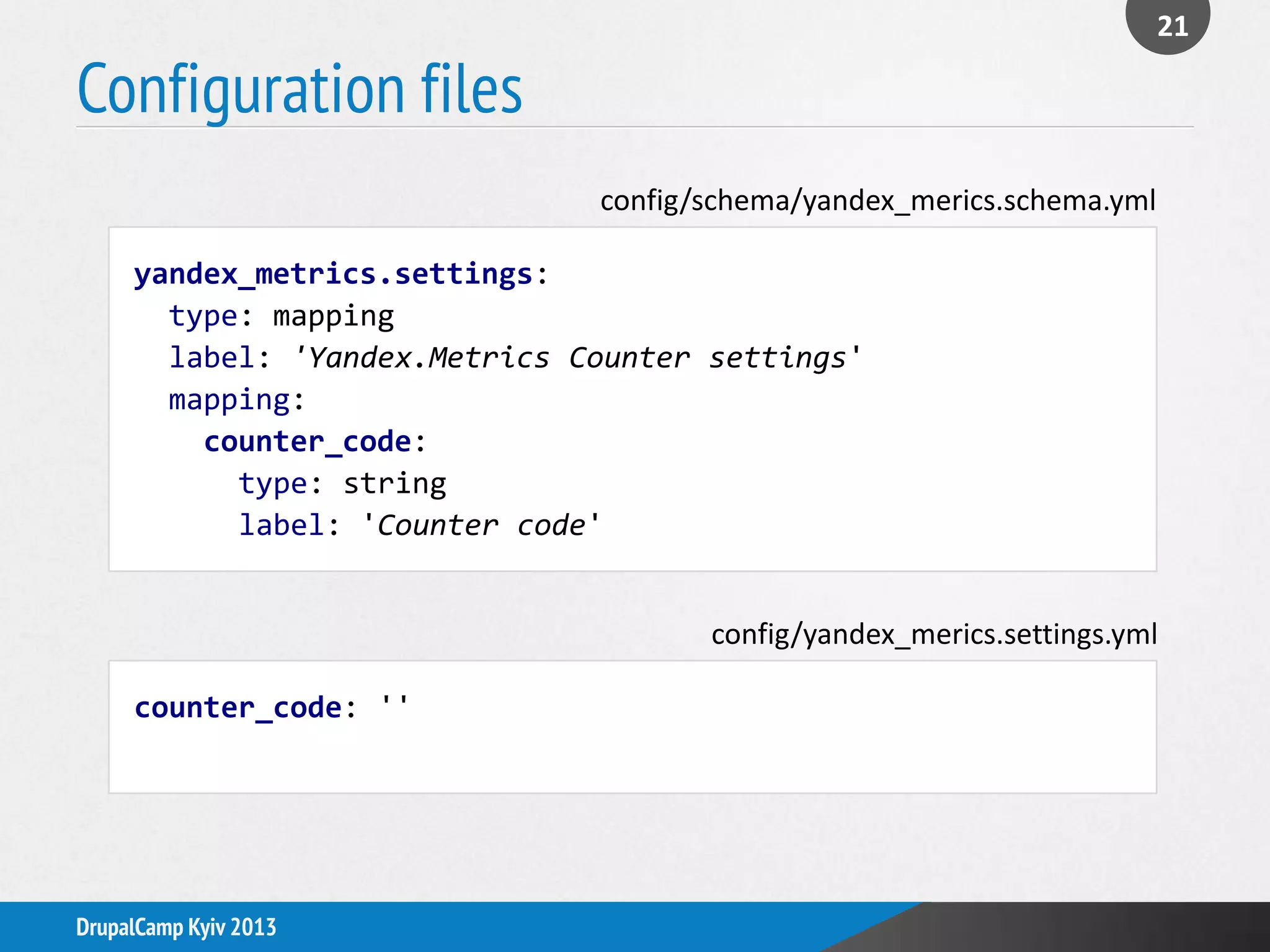

21. Configuration files
21
DrupalCamp Kyiv 2013
yandex_metrics.settings:
type: mapping
label: 'Yandex.Metrics Counter settings'
mapping:
counter_code:
type: string
label: 'Counter code'
config/schema/yandex_merics.schema.yml
counter_code: ''
config/yandex_merics.settings.yml

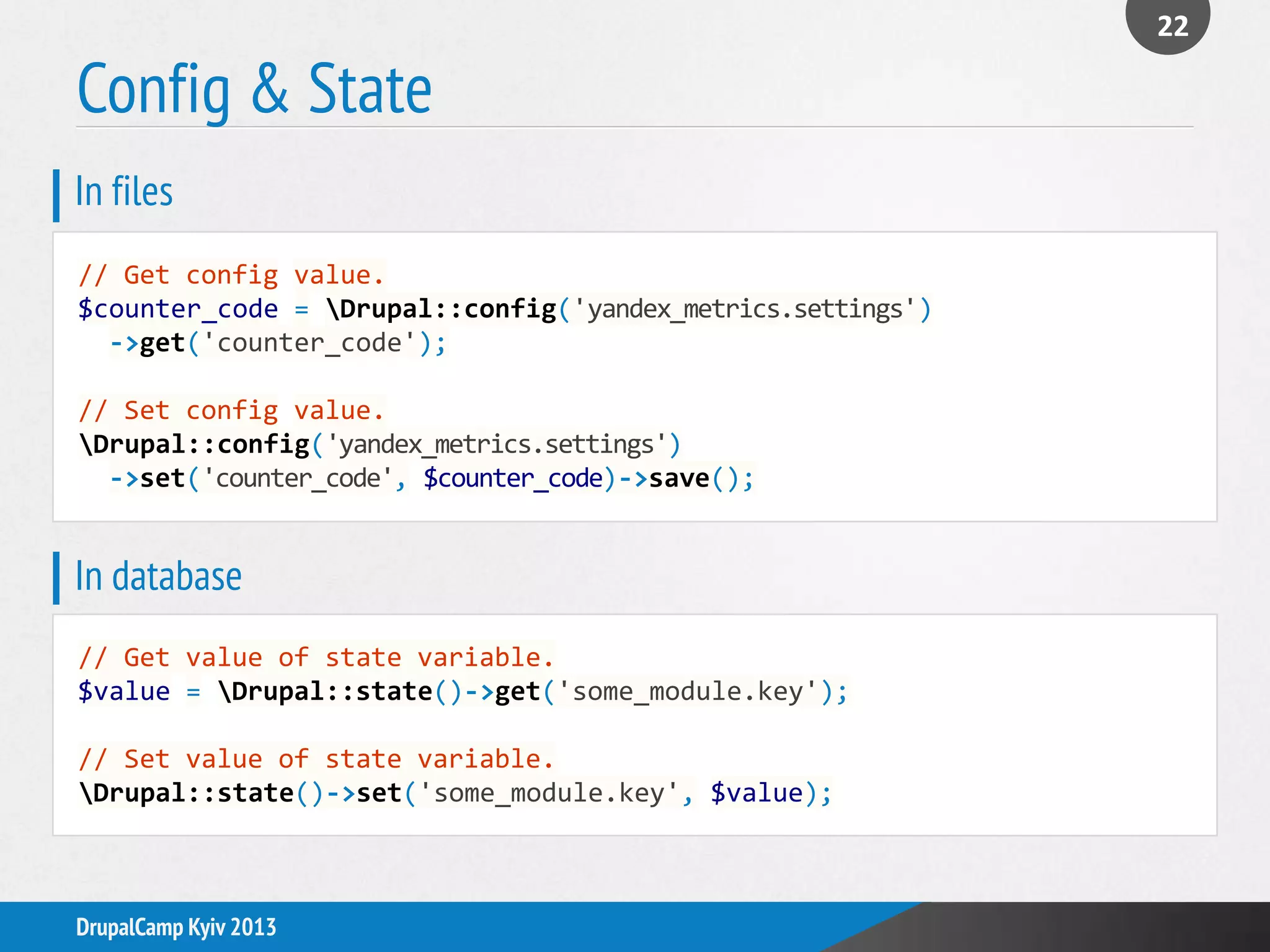

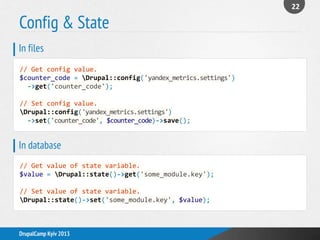

22. Config & State
22
DrupalCamp Kyiv 2013
// Get config value.
$counter_code = Drupal::config('yandex_metrics.settings')
->get('counter_code');
// Set config value.
Drupal::config('yandex_metrics.settings')
->set('counter_code', $counter_code)->save();
In files
// Get value of state variable.
$value = Drupal::state()->get('some_module.key');
// Set value of state variable.
Drupal::state()->set('some_module.key', $value);
In database

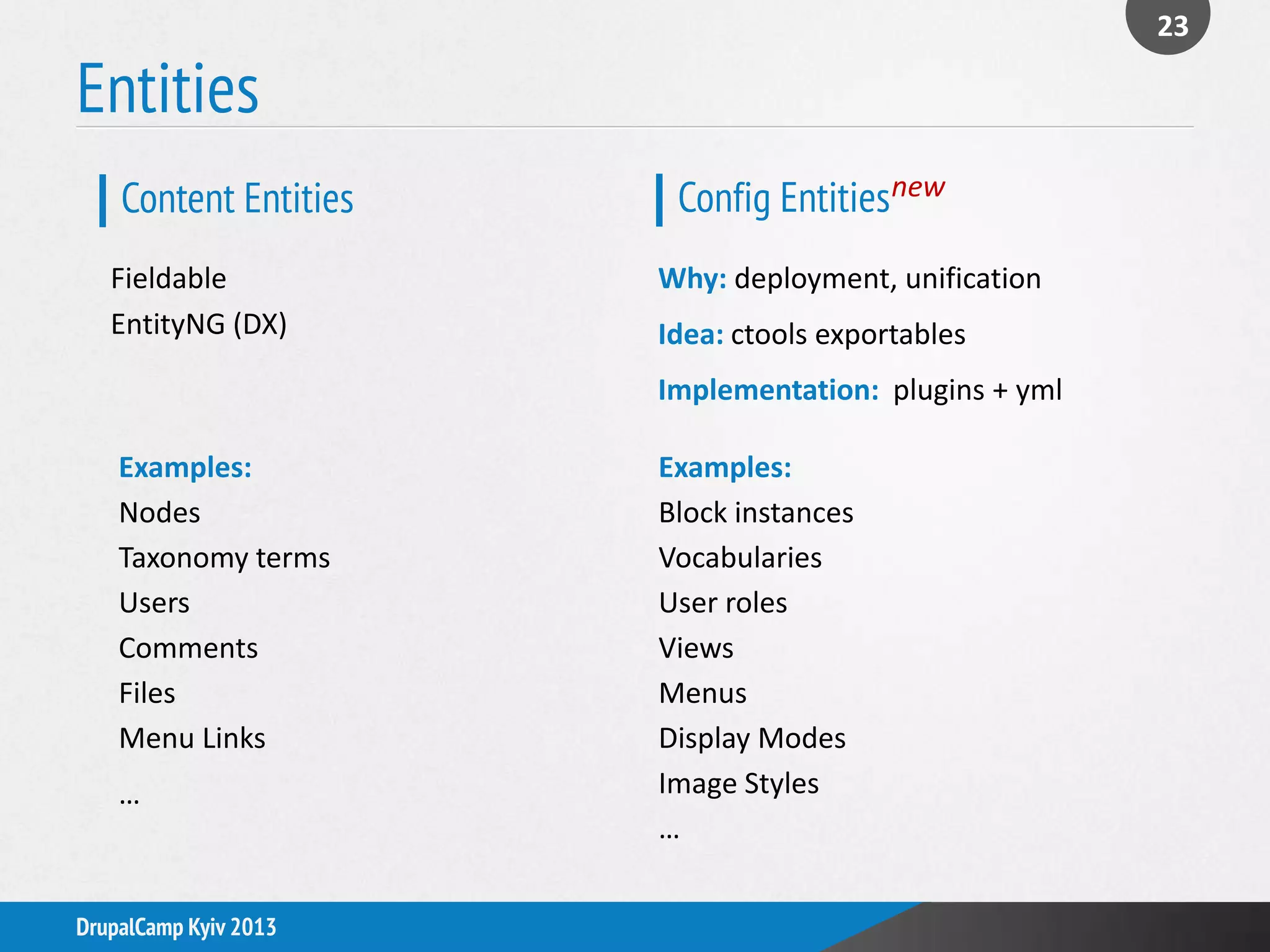

23. Entities
23
DrupalCamp Kyiv 2013
Fieldable
EntityNG (DX)
Why: deployment, unification
Idea: ctools exportables
Implementation: plugins + yml
new
Content Entities Config Entities
Examples:
Nodes
Taxonomy terms
Users
Comments
Files
Menu Links
…
Examples:
Block instances
Vocabularies
User roles
Views
Menus
Display Modes
Image Styles
…

24. >
DrupalCamp Kyiv 2013
To be continued…

25. #D8CX
Kate Marshalkina & Konstantin Komelin
DrupalCamp Kyiv 2013 Continue Here
Upgrade your modules
to Drupal 8
Part 2

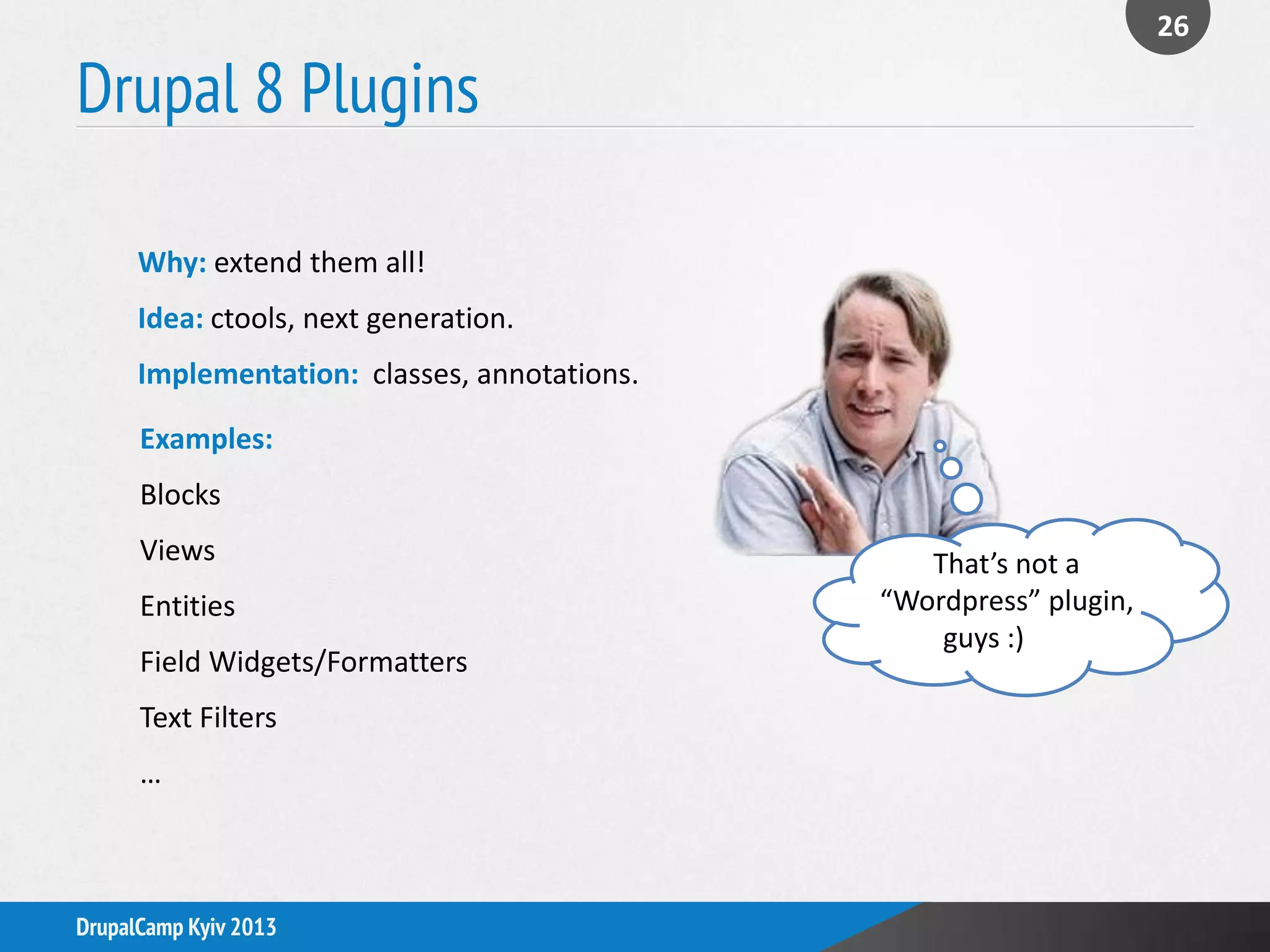

26. Drupal 8 Plugins
26
DrupalCamp Kyiv 2013
Why: extend them all!
Idea: ctools, next generation.
Implementation: classes, annotations.
Examples:
Blocks
Views
Entities
Field Widgets/Formatters
Text Filters
…
That’s not a
“Wordpress” plugin,
guys :)

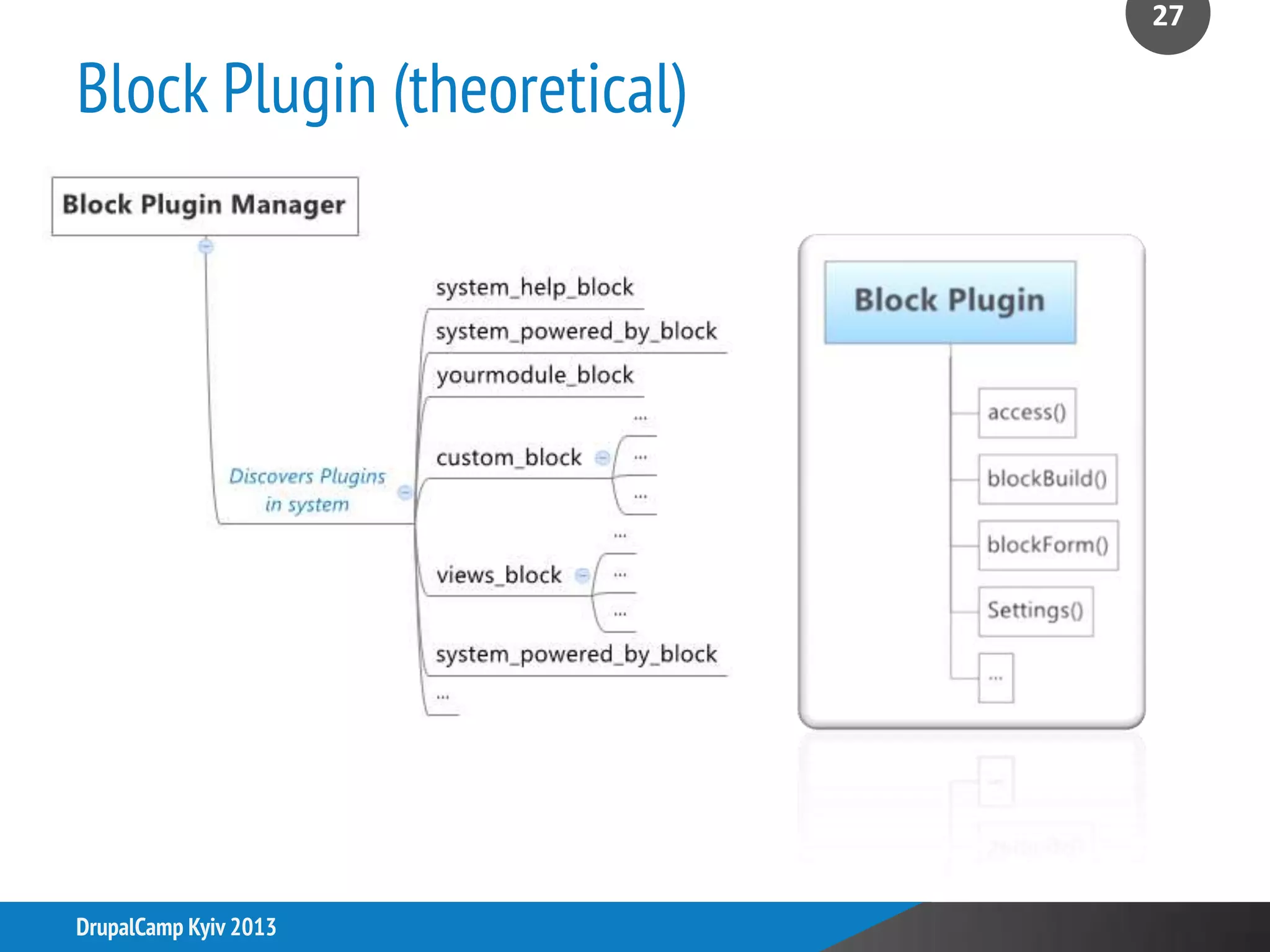

27. Block Plugin (theoretical)
27
DrupalCamp Kyiv 2013

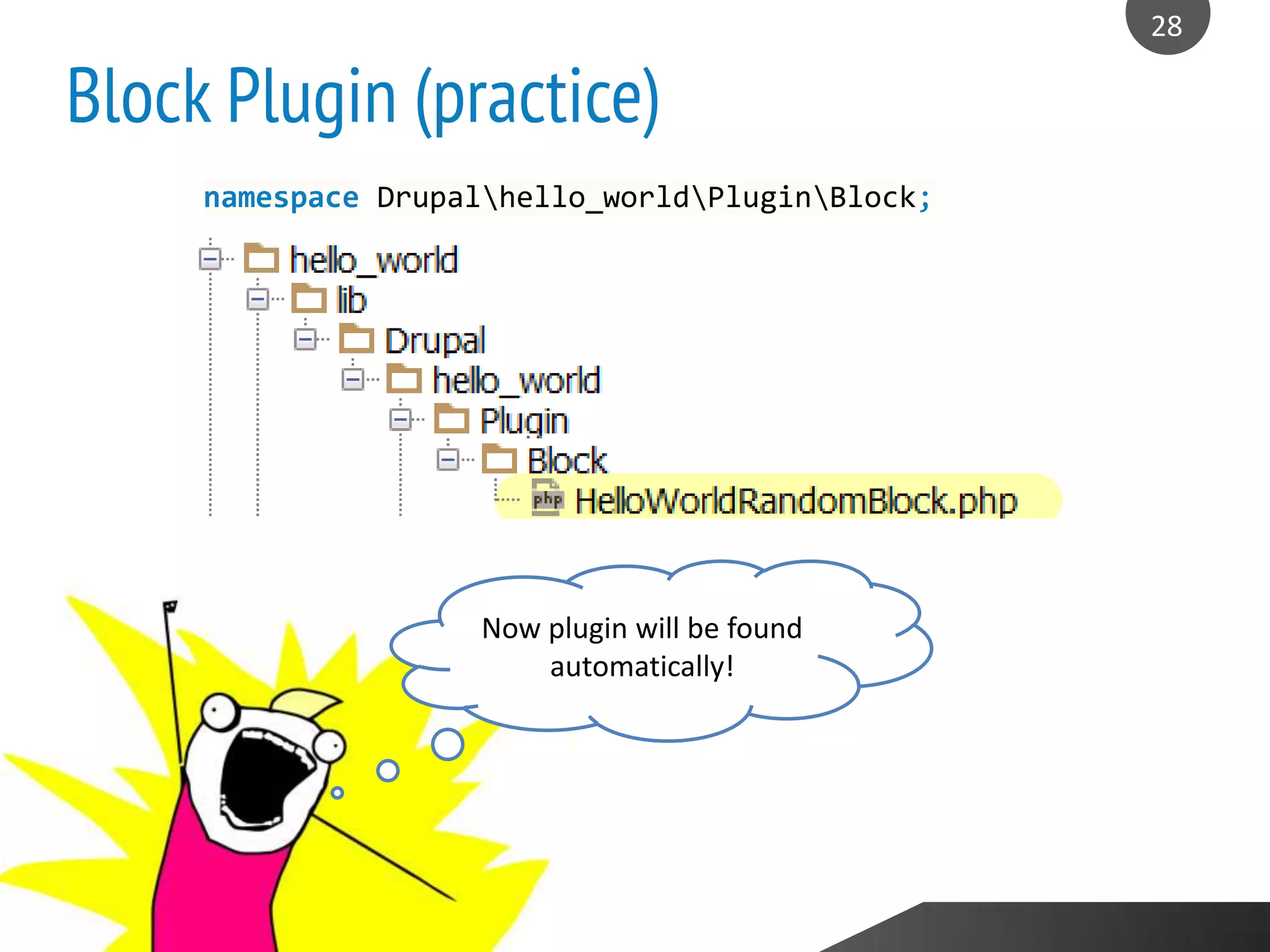

28. Block Plugin (practice)
28
LOREM IPSUM DOLOREM COMPANY Insert You Tagline Here
28
namespace Drupalhello_worldPluginBlock;
Now plugin will be found
automatically!

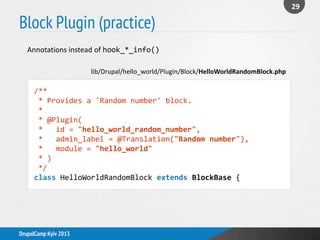

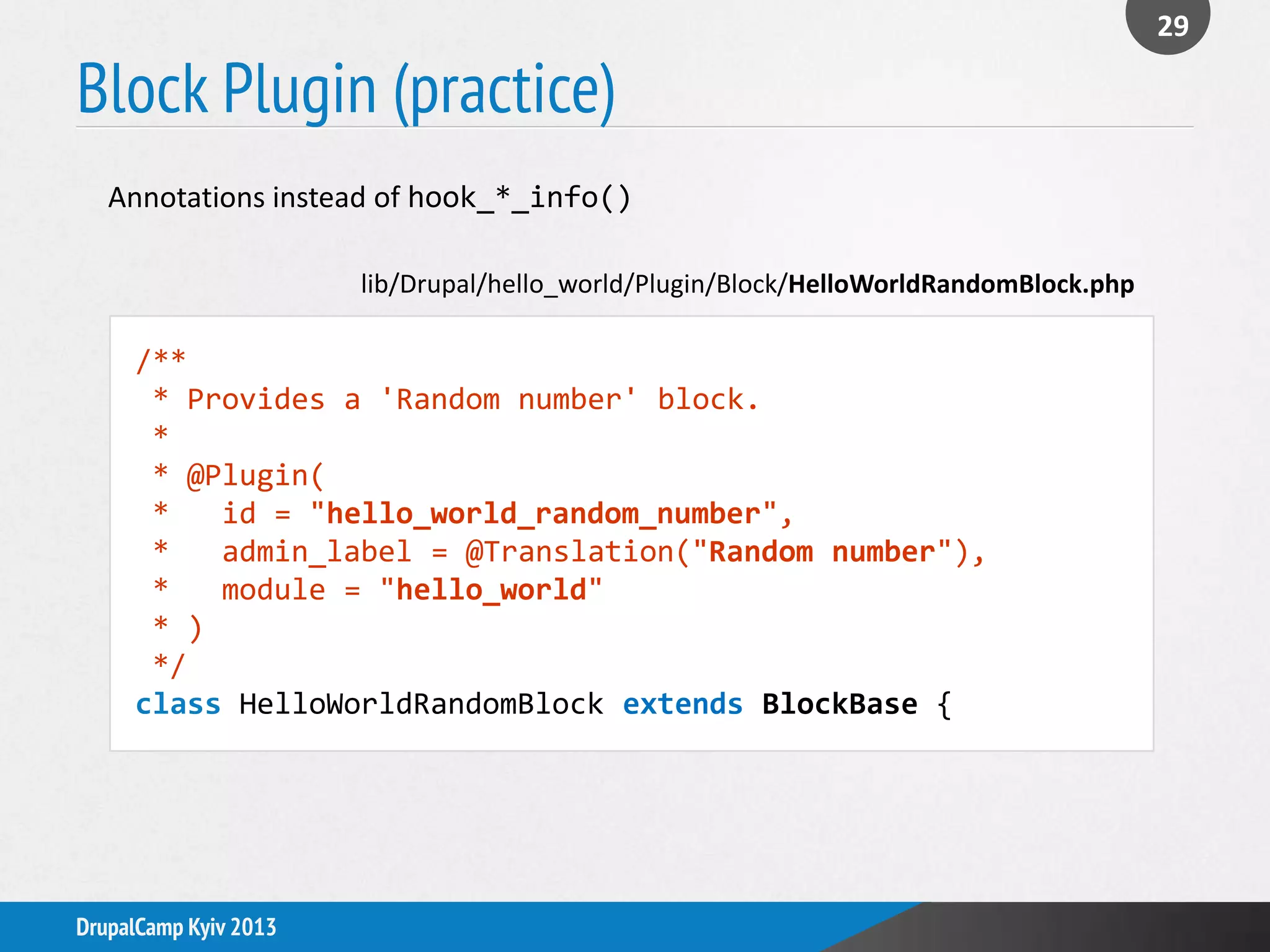

29. Block Plugin (practice)
29
DrupalCamp Kyiv 2013
Annotations instead of hook_*_info()
/**
* Provides a 'Random number' block.
*
* @Plugin(
* id = "hello_world_random_number",
* admin_label = @Translation("Random number"),
* module = "hello_world"
* )
*/
class HelloWorldRandomBlock extends BlockBase {
lib/Drupal/hello_world/Plugin/Block/HelloWorldRandomBlock.php

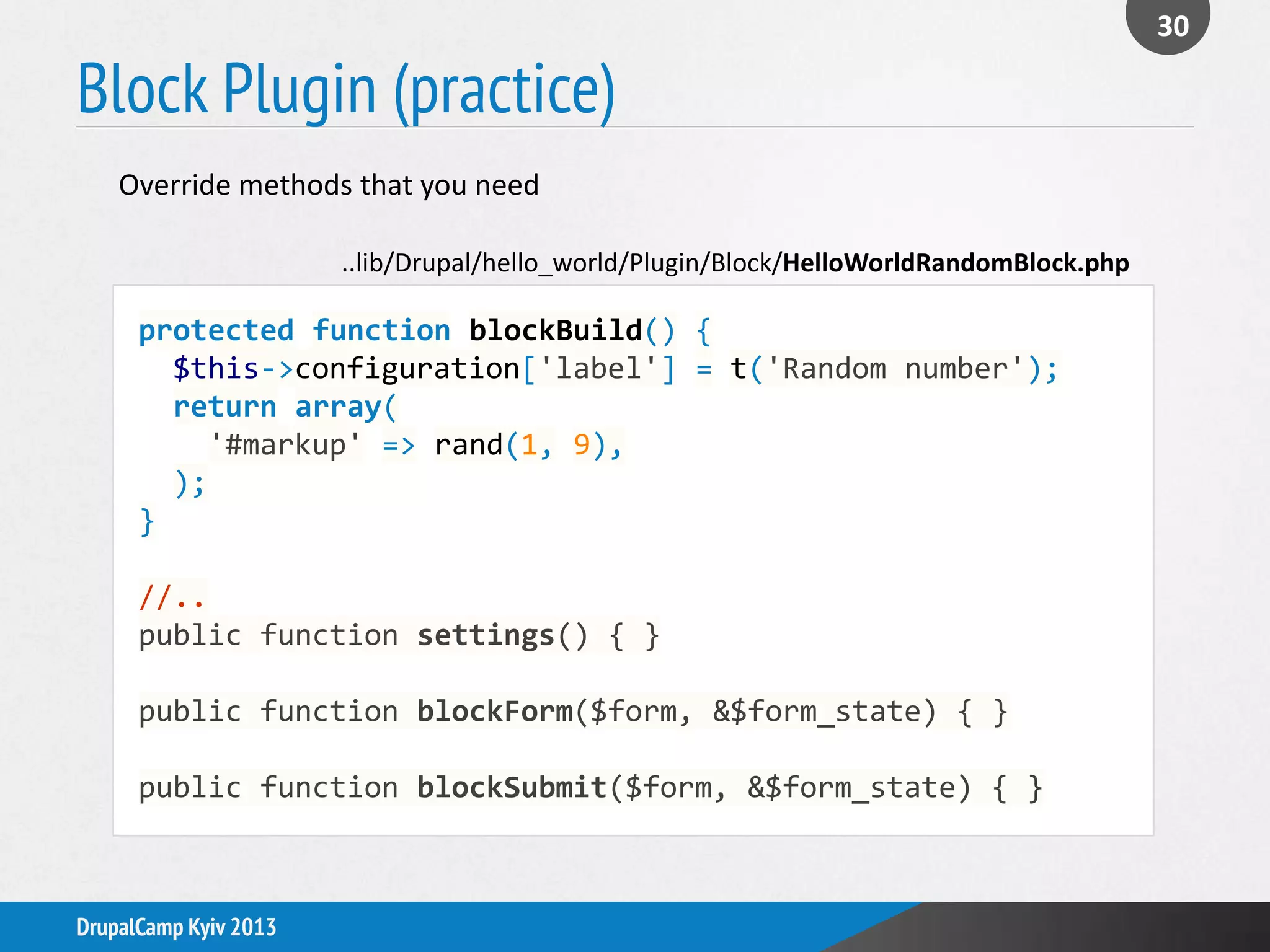

30. Block Plugin (practice)
30
DrupalCamp Kyiv 2013
Override methods that you need
protected function blockBuild() {
$this->configuration['label'] = t('Random number');
return array(
'#markup' => rand(1, 9),
);
}
//..
public function settings() { }
public function blockForm($form, &$form_state) { }
public function blockSubmit($form, &$form_state) { }
..lib/Drupal/hello_world/Plugin/Block/HelloWorldRandomBlock.php

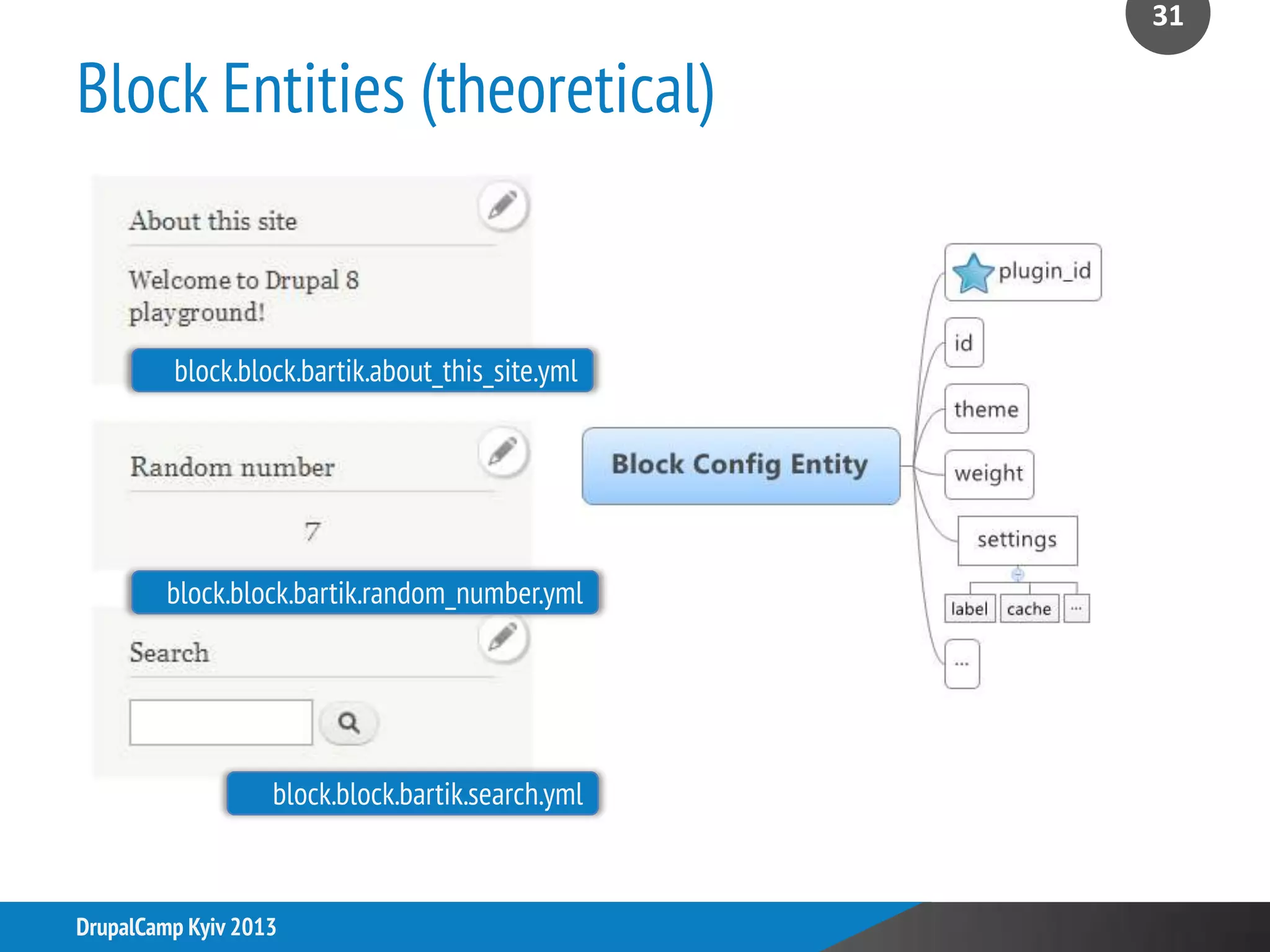

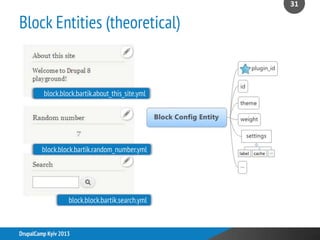

31. Block Entities (theoretical)
31
DrupalCamp Kyiv 2013
block.block.bartik.search.yml
block.block.bartik.about_this_site.yml
block.block.bartik.random_number.yml

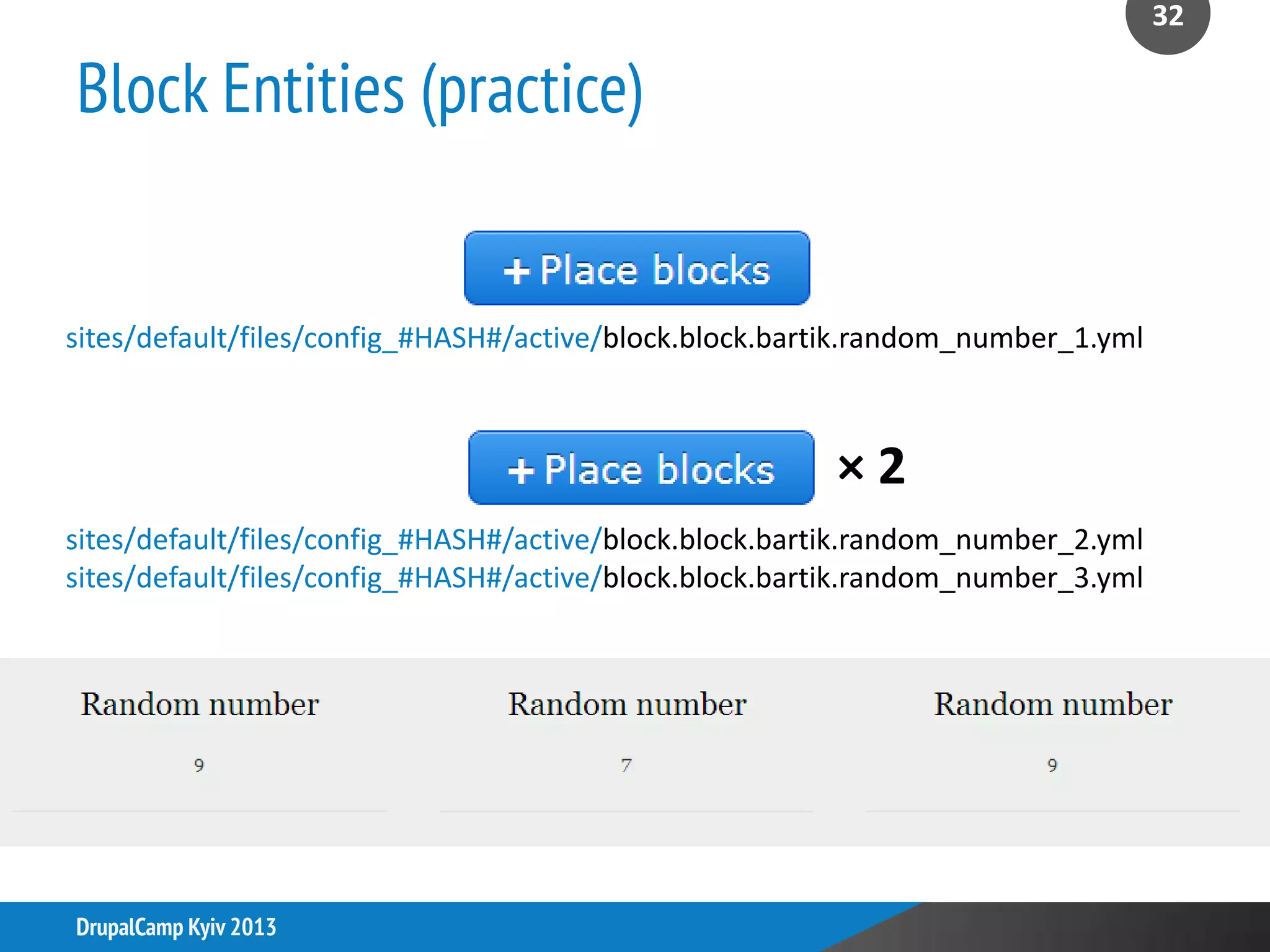

32. Block Entities (practice)
32
DrupalCamp Kyiv 2013
sites/default/files/config_#HASH#/active/block.block.bartik.random_number_1.yml
× 2
sites/default/files/config_#HASH#/active/block.block.bartik.random_number_2.yml
sites/default/files/config_#HASH#/active/block.block.bartik.random_number_3.yml

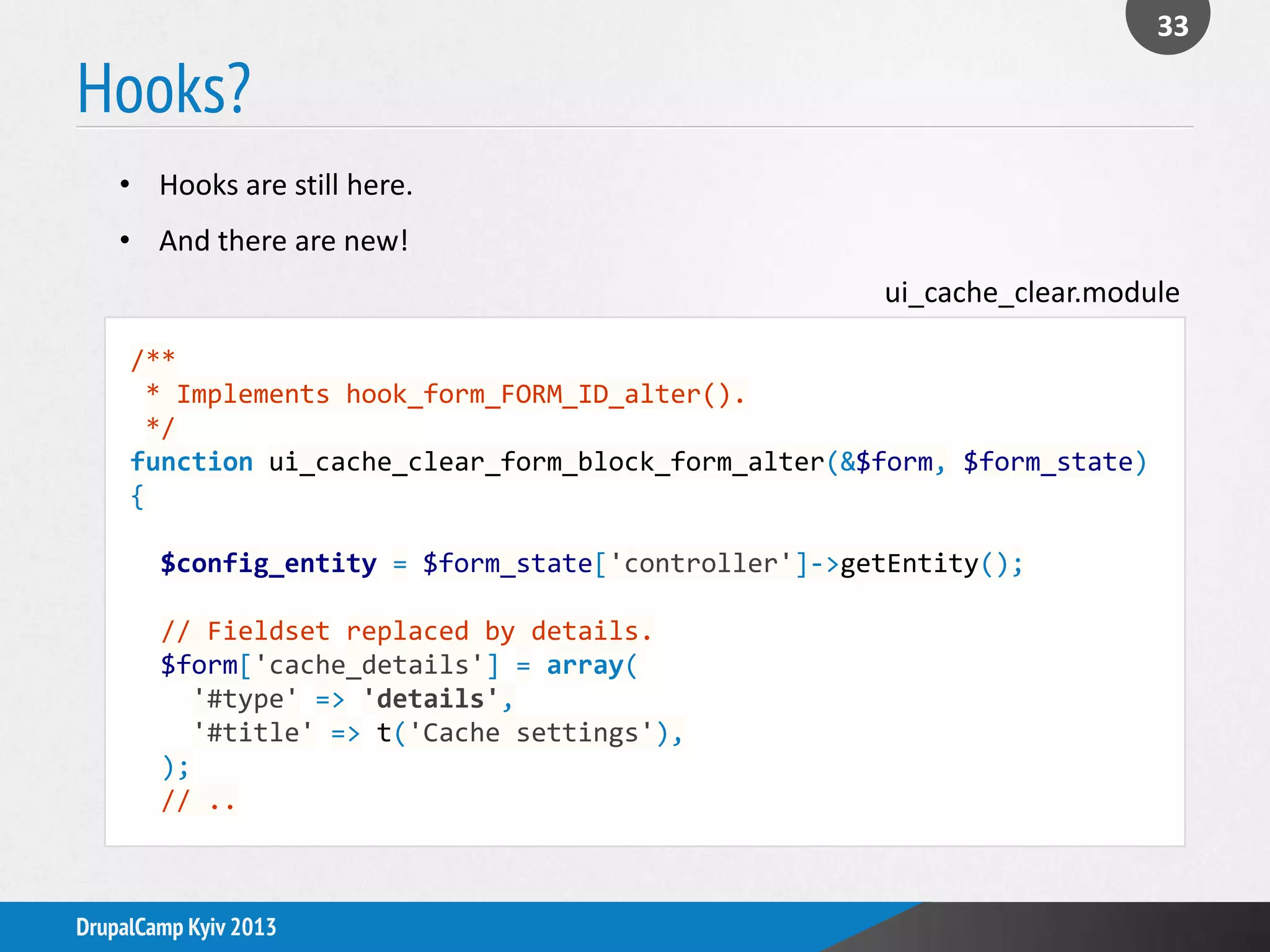

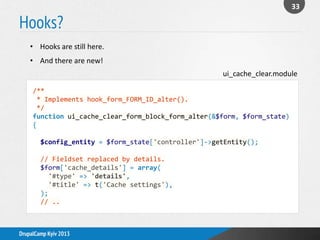

33. Hooks?
33
DrupalCamp Kyiv 2013
/**
* Implements hook_form_FORM_ID_alter().
*/
function ui_cache_clear_form_block_form_alter(&$form, $form_state)
{
$config_entity = $form_state['controller']->getEntity();
// Fieldset replaced by details.
$form['cache_details'] = array(
'#type' => 'details',
'#title' => t('Cache settings'),
);
// ..
• Hooks are still here.
• And there are new!
ui_cache_clear.module

34. >
DrupalCamp Kyiv 2013
Views

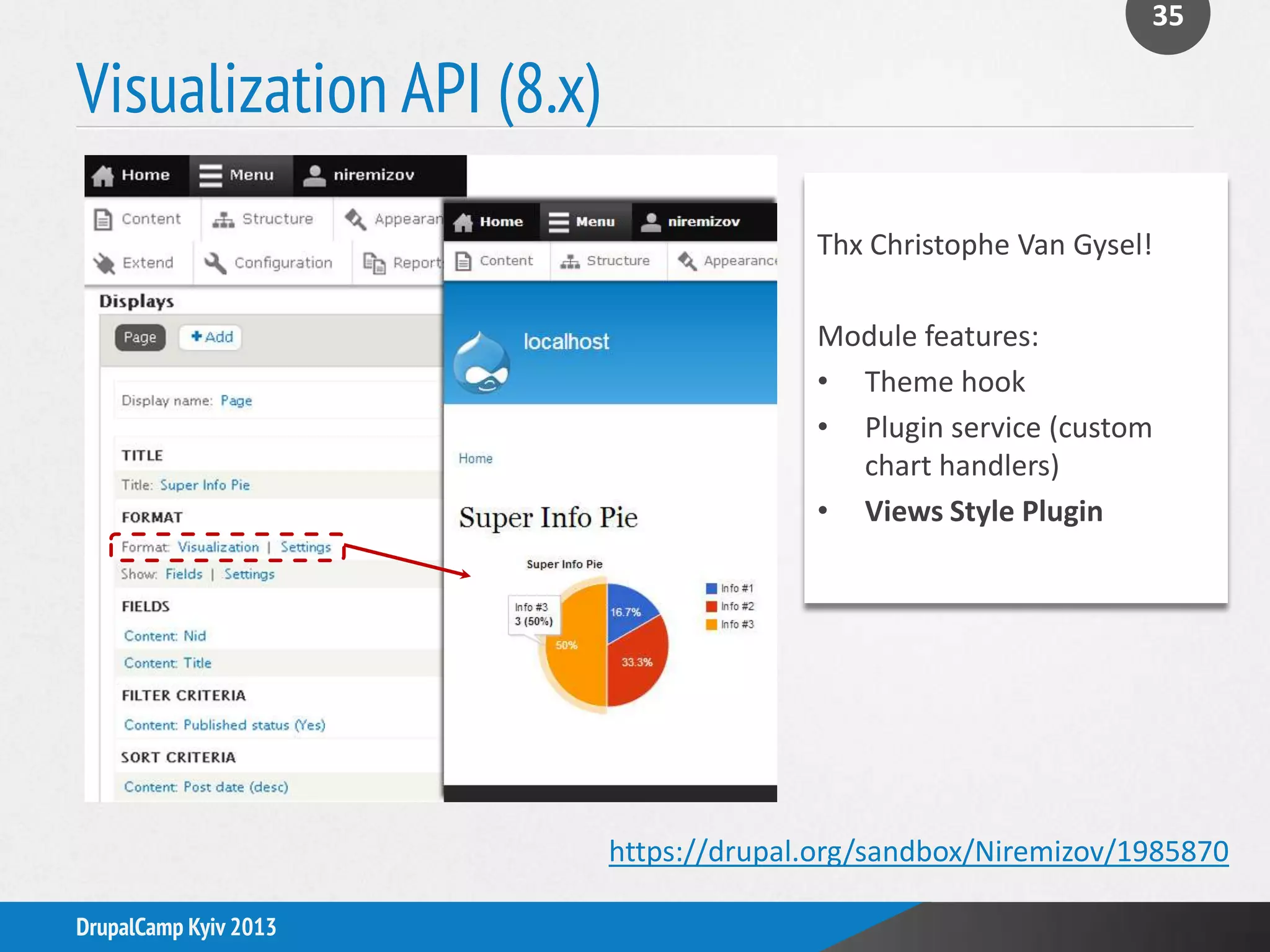

35. Visualization API (8.x)
35
DrupalCamp Kyiv 2013
https://drupal.org/sandbox/Niremizov/1985870
Thx Christophe Van Gysel!
Module features:
• Theme hook
• Plugin service (custom
chart handlers)
• Views Style Plugin

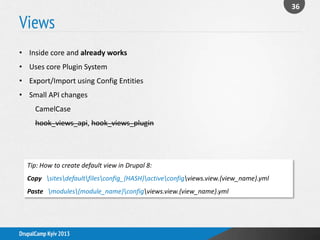

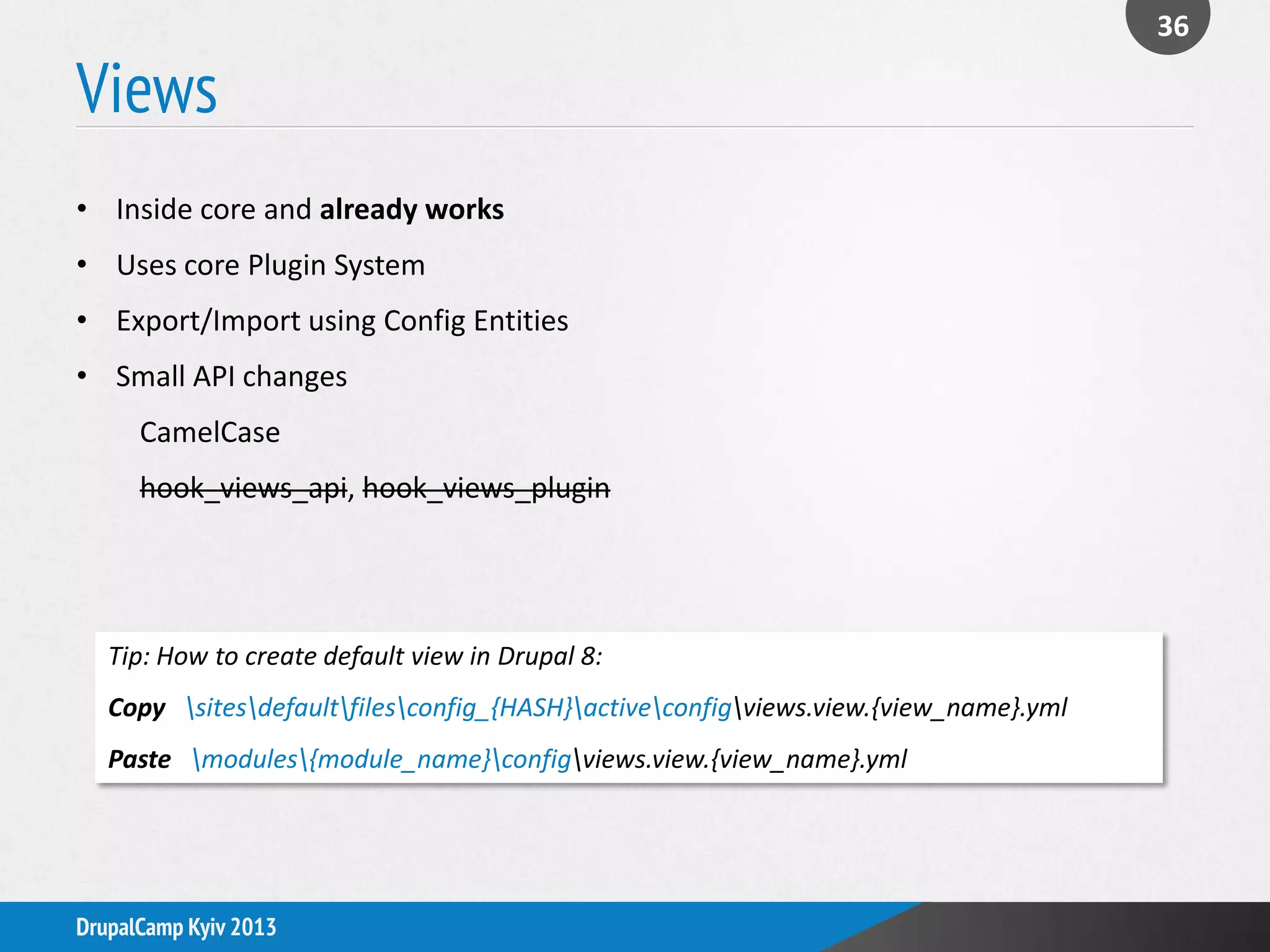

36. Views
36
DrupalCamp Kyiv 2013
• Inside core and already works
• Uses core Plugin System
• Export/Import using Config Entities
• Small API changes
CamelCase
hook_views_api, hook_views_plugin
Tip: How to create default view in Drupal 8:
Copy sitesdefaultfilesconfig_{HASH}activeconfigviews.view.{view_name}.yml
Paste modules{module_name}configviews.view.{view_name}.yml

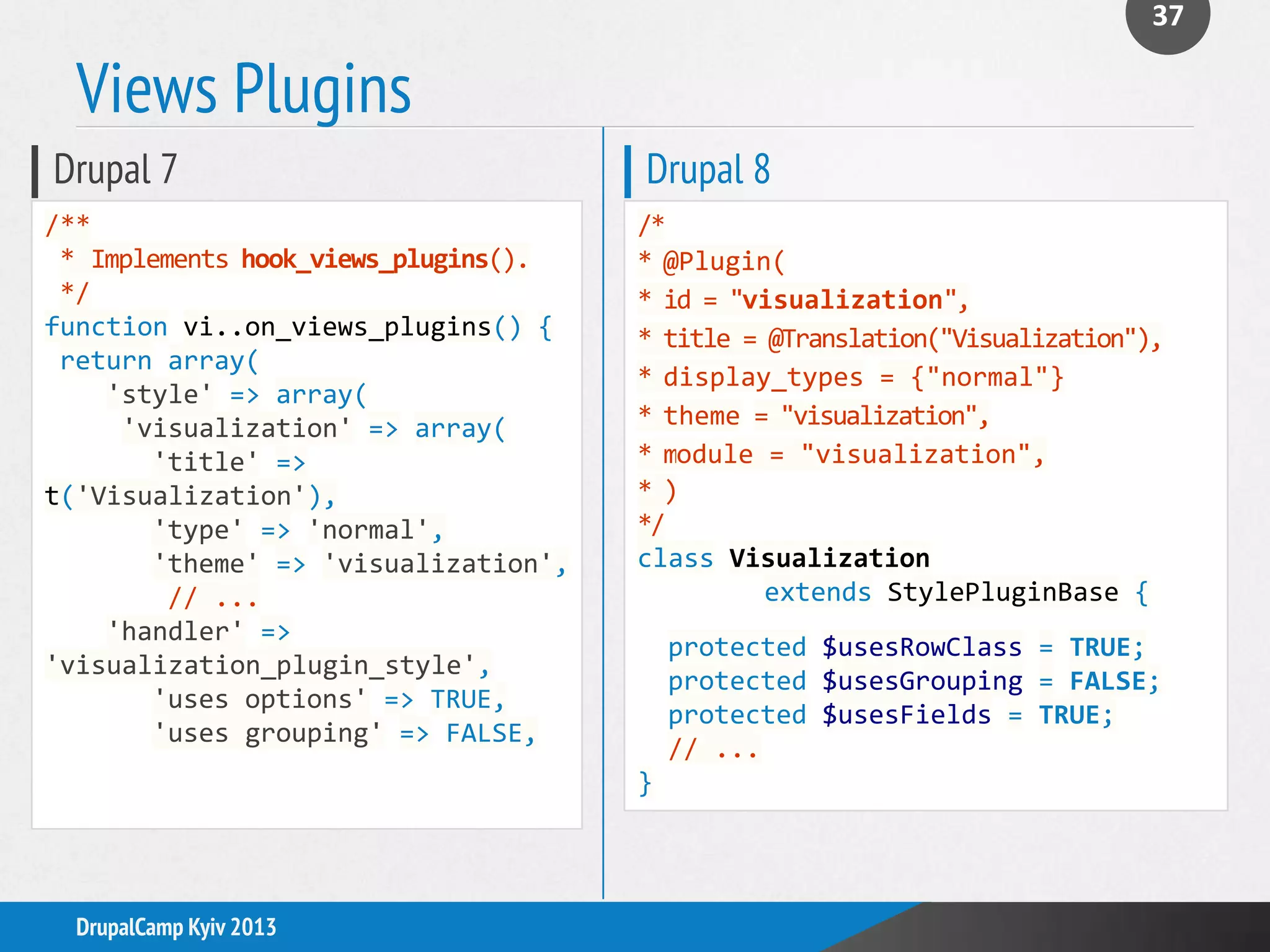

37. Views Plugins
37
Drupal 7 Drupal 8
/**
* Implements hook_views_plugins().
*/
function vi..on_views_plugins() {
return array(
'style' => array(
'visualization' => array(
'title' =>
t('Visualization'),
'type' => 'normal',
'theme' => 'visualization',
// ...
'handler' =>
'visualization_plugin_style',
'uses options' => TRUE,
'uses grouping' => FALSE,
/*
* @Plugin(
* id = "visualization",
* title = @Translation("Visualization"),
* display_types = {"normal"}
* theme = "visualization",
* module = "visualization",
* )
*/
class Visualization
extends StylePluginBase {
protected $usesRowClass = TRUE;
protected $usesGrouping = FALSE;
protected $usesFields = TRUE;
// ...
}
DrupalCamp Kyiv 2013

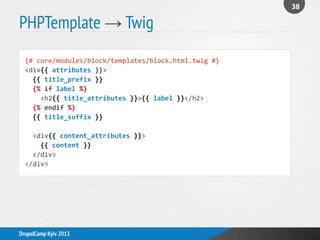

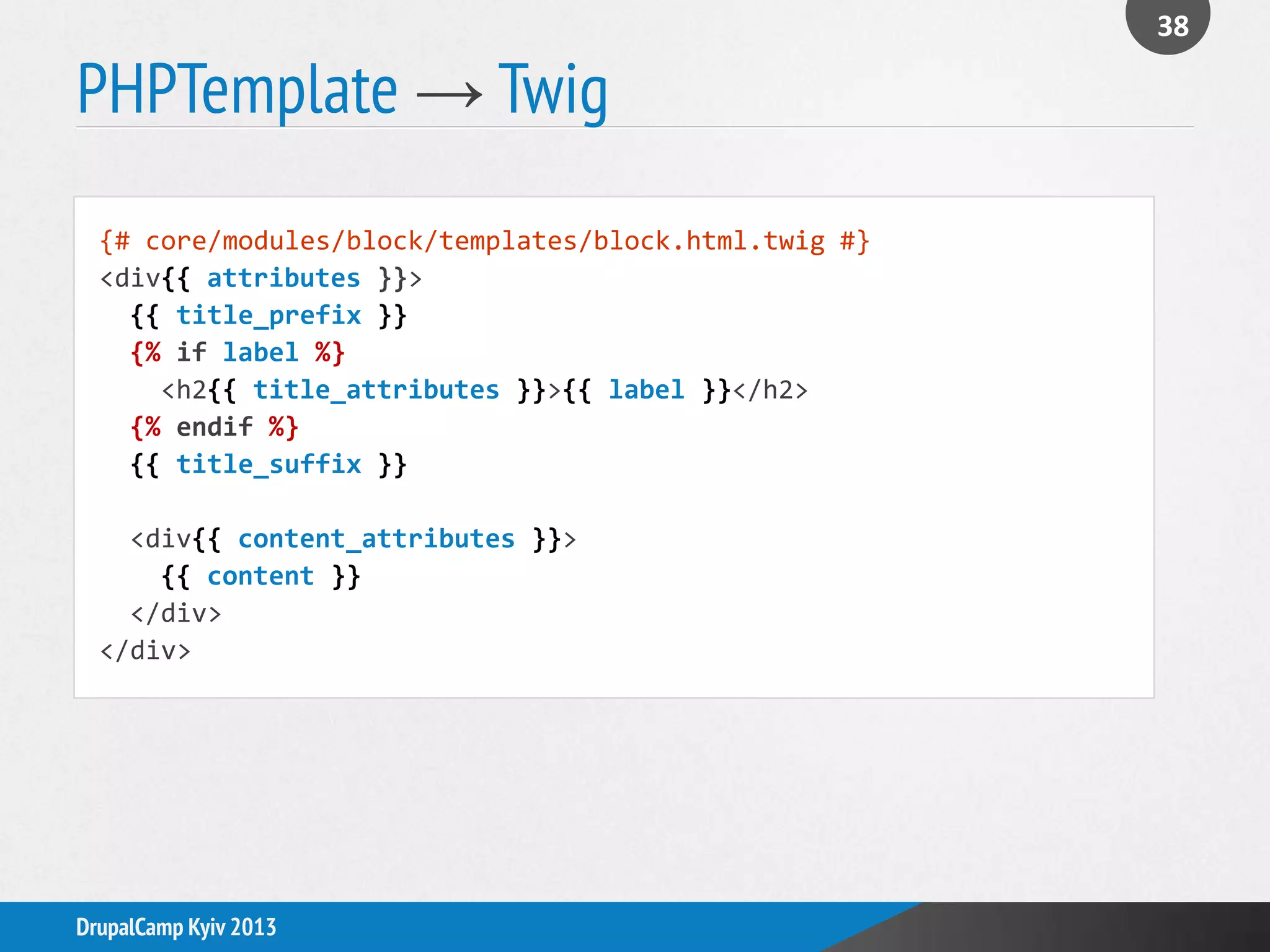

38. PHPTemplate → Twig
38
DrupalCamp Kyiv 2013
{# core/modules/block/templates/block.html.twig #}
<div{{ attributes }}>
{{ title_prefix }}
{% if label %}
<h2{{ title_attributes }}>{{ label }}</h2>
{% endif %}
{{ title_suffix }}
<div{{ content_attributes }}>
{{ content }}
</div>
</div>

39. DrupalCamp Kyiv 2013
KEEP CALM
AND
CLEAR CACHE
And Drupal 8 says:
— “Fatal error: Call to undefined function cache_clear_all()”

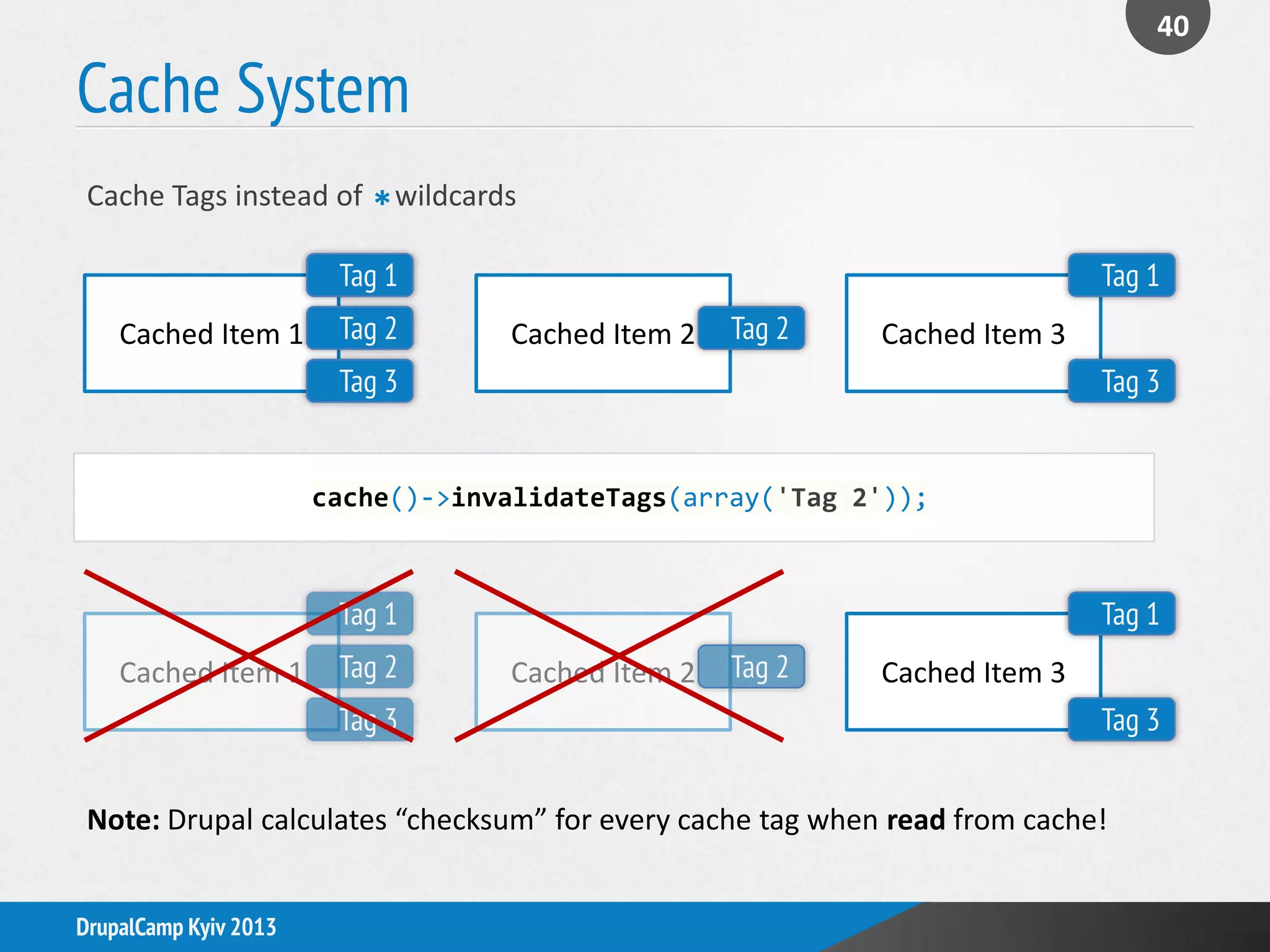

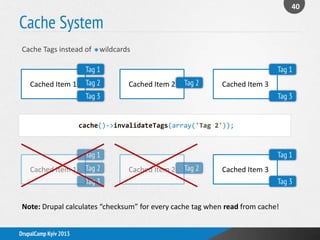

40. Cache System
Cache Tags instead of wildcards
DrupalCamp Kyiv 2013
Cached Item 1
Tag 1
Tag 2
Tag 3
Cached Item 2 Tag 2 Cached Item 3
Tag 1
Tag 3
cache()->invalidateTags(array('Tag 2'));
Cached Item 3
Tag 1
Tag 3
Cached Item 1
Tag 1
Tag 2
Tag 3
Cached Item 2 Tag 2
*
Note: Drupal calculates “checksum” for every cache tag when read from cache!
40

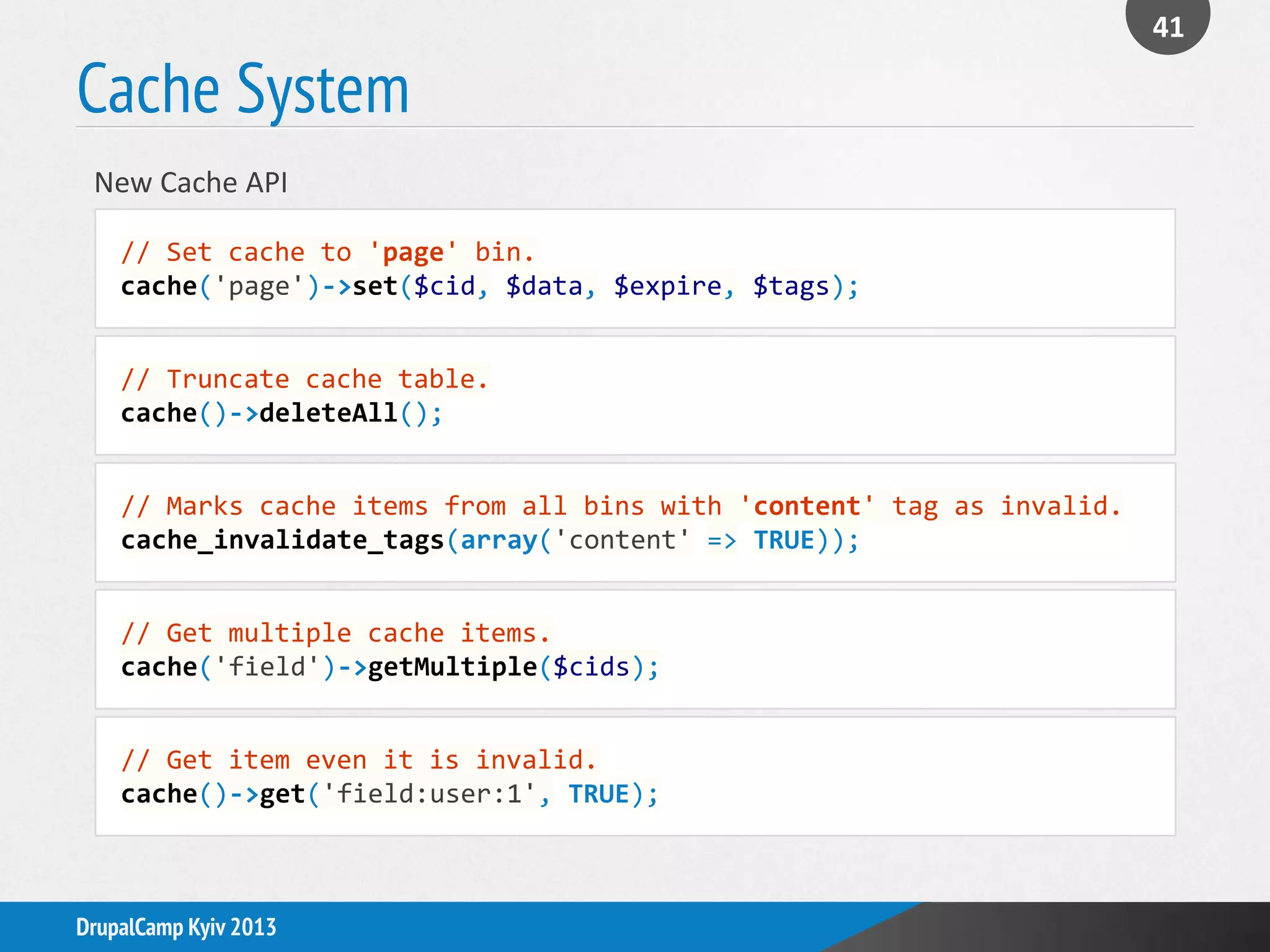

41. Cache System
41
DrupalCamp Kyiv 2013
// Set cache to 'page' bin.
cache('page')->set($cid, $data, $expire, $tags);
New Cache API
// Truncate cache table.
cache()->deleteAll();
// Marks cache items from all bins with 'content' tag as invalid.
cache_invalidate_tags(array('content' => TRUE));
// Get multiple cache items.
cache('field')->getMultiple($cids);
// Get item even it is invalid.
cache()->get('field:user:1', TRUE);

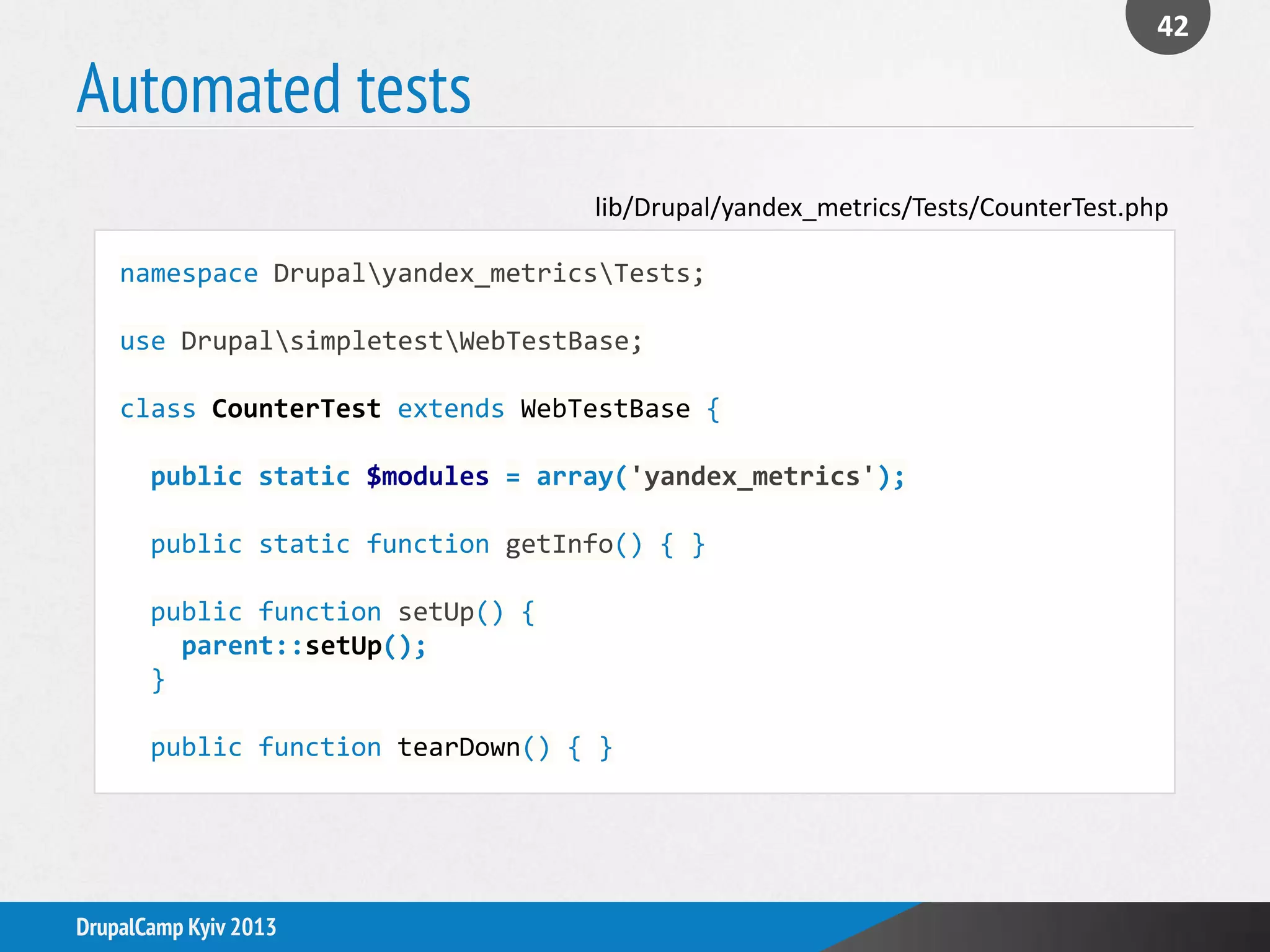

42. Automated tests
42
DrupalCamp Kyiv 2013
namespace Drupalyandex_metricsTests;
use DrupalsimpletestWebTestBase;
class CounterTest extends WebTestBase {
public static $modules = array('yandex_metrics');
public static function getInfo() { }
public function setUp() {
parent::setUp();
}
public function tearDown() { }
lib/Drupal/yandex_metrics/Tests/CounterTest.php

43. Join #D8CX!
Upgrade your module to Drupal 8 or help others!+
DrupalCamp Kyiv 2013

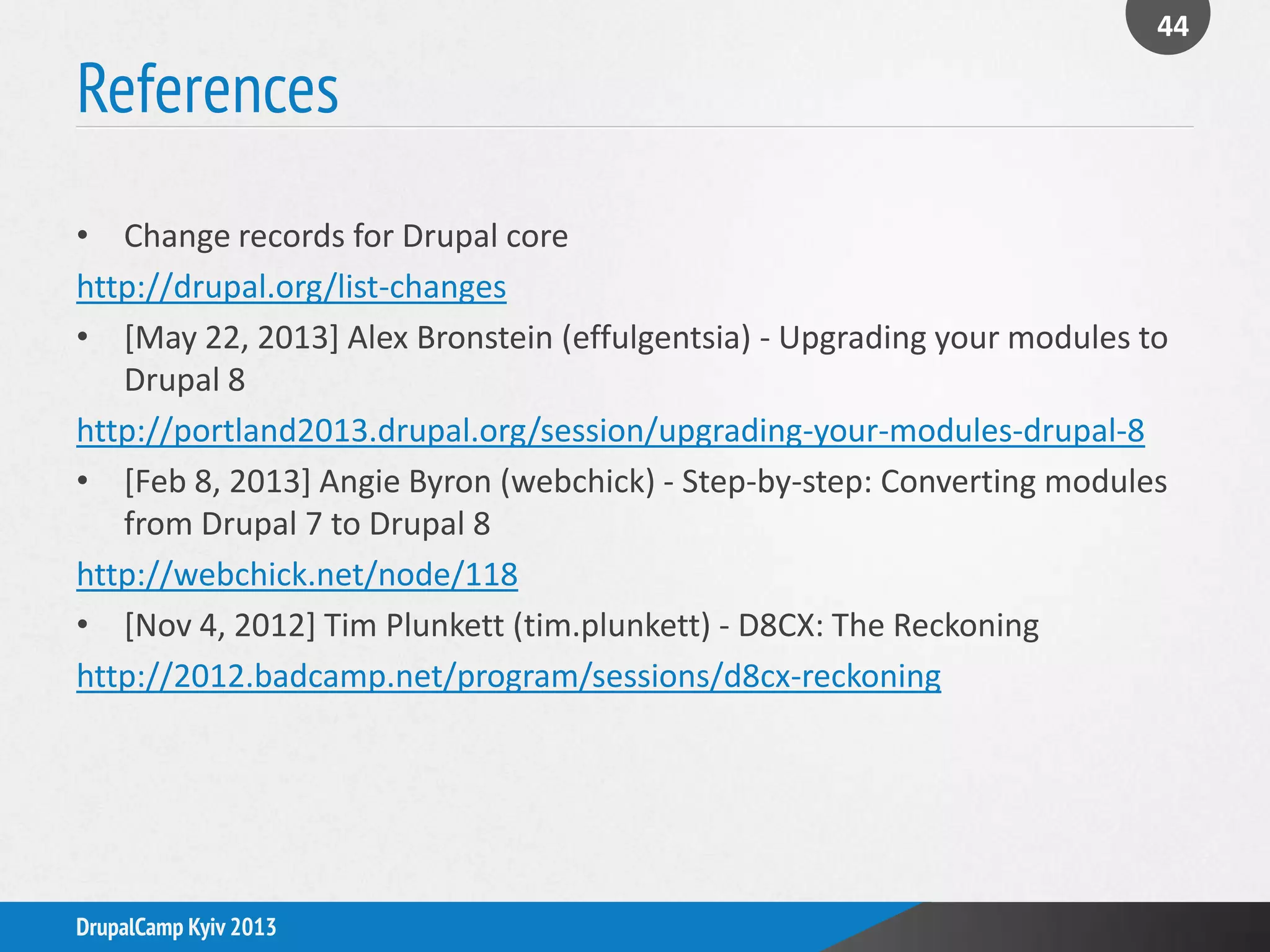

44. References
44
DrupalCamp Kyiv 2013
• Change records for Drupal core
http://drupal.org/list-changes
• [May 22, 2013] Alex Bronstein (effulgentsia) - Upgrading your modules to
Drupal 8
http://portland2013.drupal.org/session/upgrading-your-modules-drupal-8
• [Feb 8, 2013] Angie Byron (webchick) - Step-by-step: Converting modules
from Drupal 7 to Drupal 8
http://webchick.net/node/118
• [Nov 4, 2012] Tim Plunkett (tim.plunkett) - D8CX: The Reckoning
http://2012.badcamp.net/program/sessions/d8cx-reckoning

45. !
DrupalCamp Kyiv 2013
Thank you for your attention!
Konstantin Komelin
@KKomelin
konstantin@komelin.com
Kate Marshalkina
@kalabro
marshalkina@licel.ru
