Dot matrix printers
•Download as PPTX, PDF•
0 likes•52 views

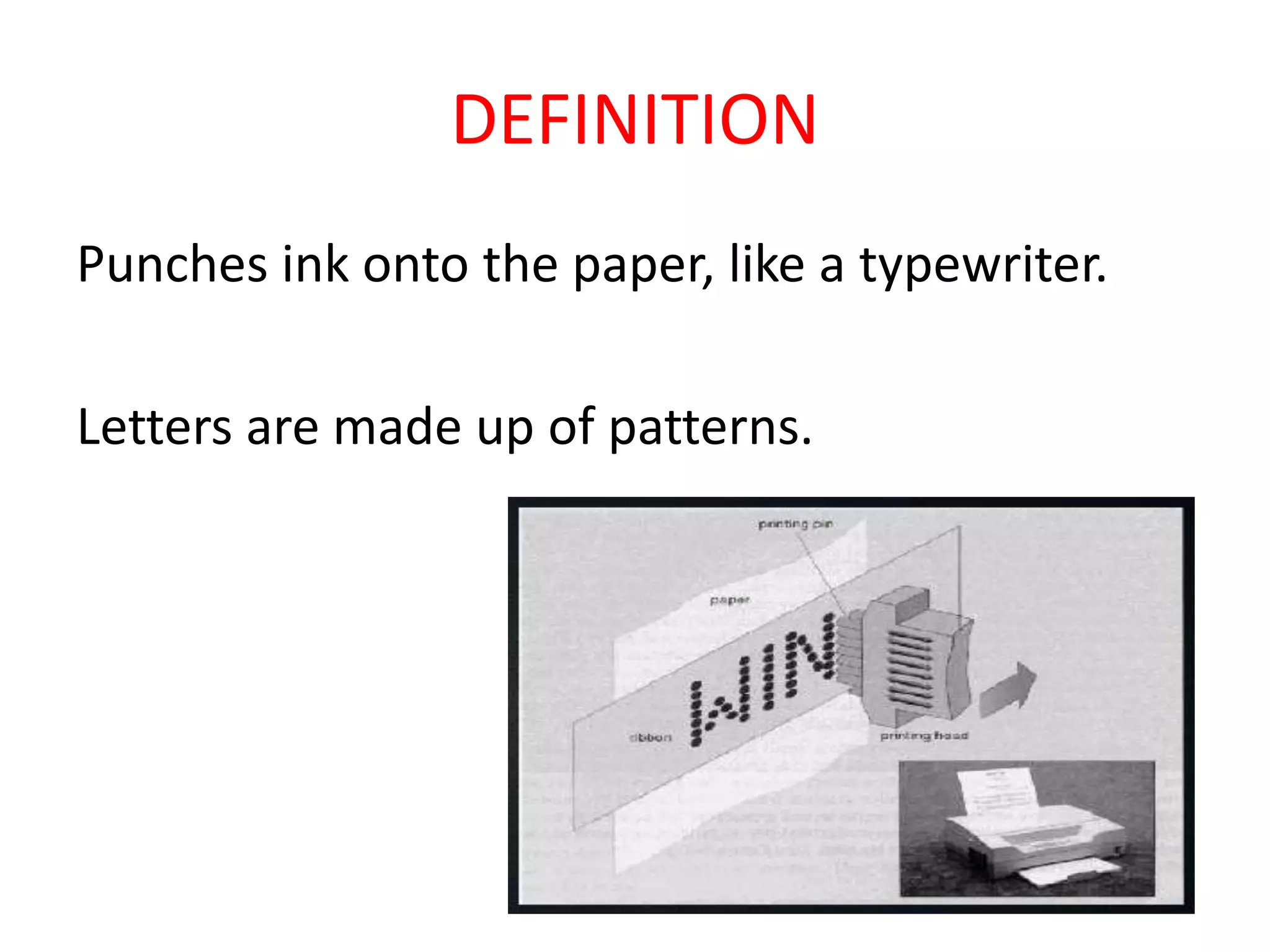

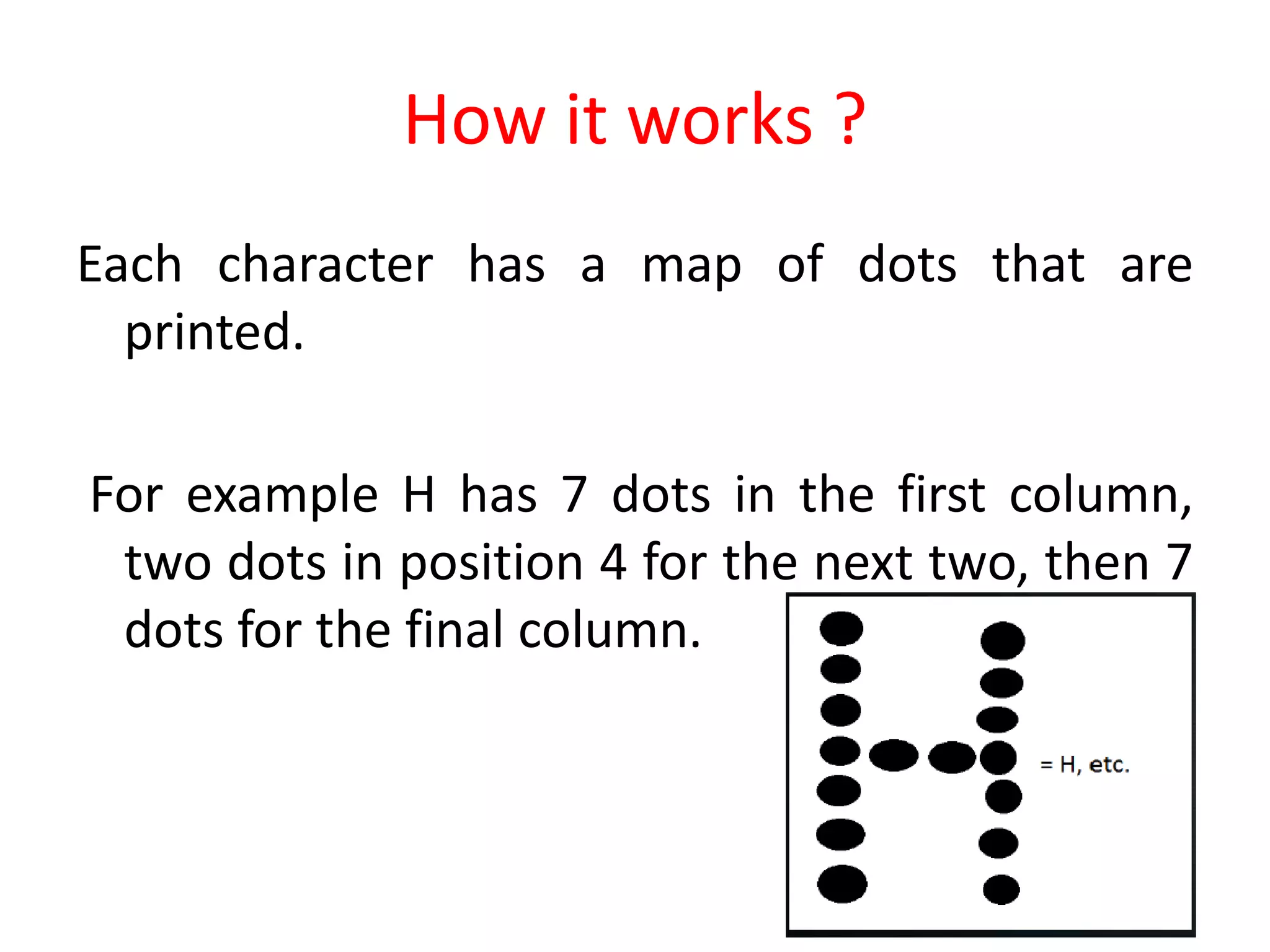

Dot matrix printers print characters by punching dots in a pattern onto paper like a typewriter. Each character is made up of a specific dot pattern, with letters like H having 7 dots in the first column, 2 in the fourth column, and 7 in the last column. While dot matrix printers are the cheapest per page for printing, they have cons of only printing one character at a time, very low resolution, and poor printing speed.
