DocumentDB is a NoSQL database built for the cloud that provides elasticity, high availability, and familiar concepts from SQL. It stores data in JSON documents with advanced querying capabilities. DocumentDB supports features like SQL, stored procedures, triggers, and user-defined functions. The .NET SDK provides ways to interact with DocumentDB resources via a client to perform operations like queries, indexing, users and permissions, and transactions.

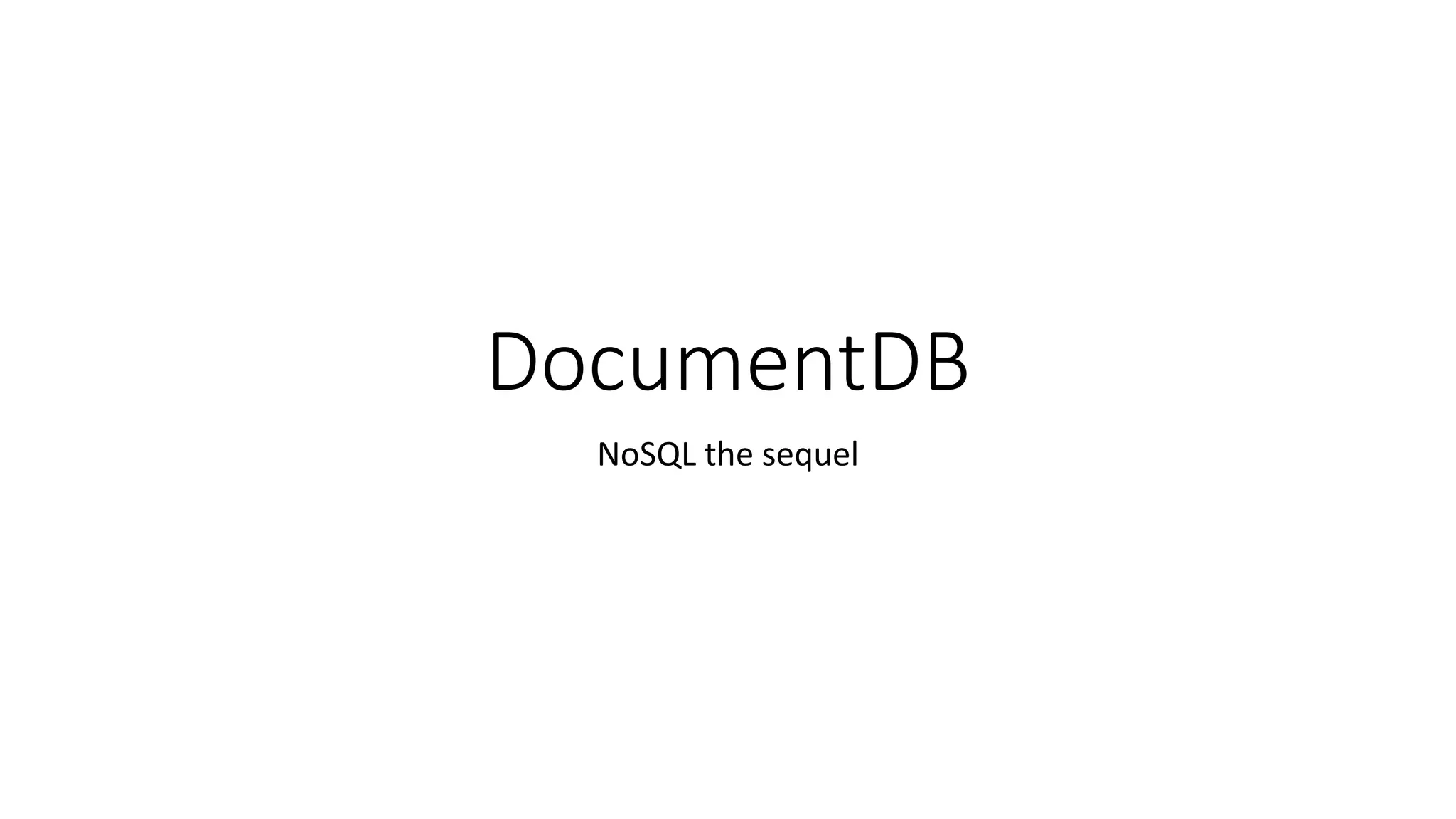

1. DocumentDB
NoSQL the sequel

2. Hvem er jeg?
christian@dotnetnerd.dk
www.dotnetnerd.dk
@dotnetnerd

3. Agenda
• Hvor passer DocumentDB ind?
• Arkitektur
• Tooling
• REST API / SDK’er

4. Data på Azure
• SQL
• Storage (blob, table, file, queue)
• Redis Cache
• Search
• DocumentDB

5. Dokumentdatabaser
• Ingen schema
• Json
• Nestede komplekse datastrukturer
• Advancerede query muligheder
• Matcher godt med objektmodeller

6. Hvordan adskiller DocumentDB sig?
• Bygget til cloud
• Elasticitet
• High availability
• Velkendte begreber fra SQL
• SQL
• Stored procedures
• Triggers
• User-defined functions

7. Ressourcer

8. {Json}
Property User settable or system
generated?
Purpose
_rid System generated System generated, unique
and hierarchical identifier of
the resource.
_etag System generated etag of the resource
required for optimistic
concurrency control.
_ts System generated Last updated timestamp of
the resource.
_self System generated Unique addressable URI of
the resource.
id User settable User defined unique name
of the resource.

9. Datatyper
• Json.NET serializer
• Datoer som ISO 8601 string

10. Database

11. Brugere og rettigheder
• Account administrators
• Read-only administrators
• Database users and permissions
• Manuelt styre adgang til resources
• All / read
var docUser = new User { Id = "mobileuser" };
docUser = await client.CreateUserAsync(database.SelfLink, docUser);
var docPermission = new Permission
{
PermissionMode = PermissionMode.Read,
ResourceLink = documentCollection.SelfLink,
Id = "readperm"
};
docPermission = await client.CreatePermissionAsync(docUser.SelfLink, docPermission);
FeedResponse<Permission> permFeed = await client.ReadPermissionFeedAsync(docUser.SelfLink);
List<Permission> permList = new List<Permission>();
foreach (Permission perm in permFeed)
{
permList.Add(perm);
}
DocumentClient userClient = new DocumentClient(new Uri(endpointUrl),permList);

12. Consistency levels
• Strong – quorum writes og reads. Forespørgsler er fuldt konsistente.
• Bounded Staleness – write order er konsistent. Reads må være bagud
med et specificeret antal operationer (eller tid i sekunder).
• Session - write order og reads er konsistente inden for en client
session.
• Eventual – reads må være ude af sekvens, eg., nogle reads ser
muligvis ikke de seneste ændringer

13. Collections
• Container til Json dokumenter
• En collection kan indeholde forskellige typer dokumenter
• Sharding og fan-out queries
• Skaleringsenhed for transaktioner og queries
• Konfigurerbar indexering

14. Indexing
• Automatic
• Kan slås fra (kun query på id og selflink)
• Query med FeedOptions.EnableScanInQuery
• Tilføj eller fjern enkelte dokumenter (whitelist/blacklist)
client.CreateDocumentAsync(defaultCollection.SelfLink,
new { Name = ”Christian", isSpeaking = true },
new RequestOptions
{
IndexingDirective = IndexingDirective.Include
}
);

15. Indexing modes
• Consistent
• Lazy (= eventual consistency level)
var defaultCollection = new DocumentCollection { Name ="defaultCollection" };
defaultCollection.IndexingPolicy.Automatic = true;
// Set IndexingMode to Lazy for bulk import/read heavy collections.
defaultCollection.IndexingPolicy.IndexingMode = IndexingMode.Lazy;
defaultCollection = await client.CreateDocumentCollectionAsync(database.SelfLink,defaultCollection);

16. Skalering og pris
• Capacity units
• SSD storage og throughput

17. Tools
• Azure Portal
• DocumentDBStudio (github)
• Visual Studio (roadmap)
• Azure DocumentDB Data
Migration Tool (github)
• Json
• MongoDB
• SQL Server
• CSV

18. REST API
VALUE OF THE _SELF DESCRIPTION
/dbs Feed of databases under a database account.
/dbs/{_rid-db}
Database with the unique id property with
the value {_rid-db}.
/dbs/{_rid-db}/colls/ Feed of collections under a database.
/dbs/{_rid-db}/colls/{_rid-coll}
Collection with the unique id property with
the value {_rid-coll}.
/dbs/{_rid-db}/users/ Feed of users under a database.
/dbs/{_rid-db}/users/{_rid-user}
User with the unique id property with the
value {_rid-user}.
/dbs/{_rid-db}/users/{_rid-user}/permissions Feed of permissions under a database.
/dbs/{_rid-db}/users/{_rid-
user}/permissions/{_rid-permission}
Permission with the unique id property with
the value {_rid-permission}.
POST https://mydb.documents.azure.com/dbs/XP0mAA==/colls/XP0mAJ3H-AA=/docs HTTP/1.1
x-ms-documentdb-isquery: True
x-ms-date: Mon, 18 Aug 2014 13:05:49 GMT
authorization: type%3dmaster%26ver%3d1.0%26sig%3dkOU%2bBn2vkvIlHypfE8AA5fulpn8zKjLwdrxBqyg0YGQ%3d
x-ms-version: 2014-08-21
Accept: application/json
Content-Type: application/query+json
Host: mydb.documents.azure.com
Content-Length: 50
{
query: "SELECT * FROM root WHERE (root.Person.id = 'Jens')",
parameters: []
}

19. SDK’er
• Dokumentation og samples:
• http://azure.microsoft.com/da-dk/documentation/services/documentdb
• https://code.msdn.microsoft.com/windowsazure/Azure-DocumentDB-NET-Code-6b3da8af
• .NET (Nuget)
• LINQ
• Java
• Python
• Node
• JavaScript (database)

20. .NET SDK
• Nuget
• Client
• Database
• Collection
• Selflinks

21. Performance
• Én client i applikationens levetid
• Cache selflinks
• Call client.OpenAsync()
• ConnectionMode (gateway/direct)
• Protocol (https/tcp)
new DocumentClient(new Uri(MyEndPointUrl), MyAuthorizationKey, new ConnectionPolicy()
{
ConnectionMode = ConnectionMode.Direct,
ConnectionProtocol = Protocol.Tcp
});

22. Queries
• SQL
• Parameters
• LINQ
• Forskellige typer i samme collection
• Ingen Skip, Top, Count…
SELECT
f.id AS familyName,
c.givenName AS childGivenName,
c.firstName AS childFirstName,
p.givenName AS petName
FROM Families f
JOIN c IN f.children
JOIN p IN c.pets
WHERE p.givenName = "King"

23. User-defined functions
• JavaScript
• Opret som ressource
• Brug fra Queries
var udf = new UserDefinedFunction
{
Id = "myUdf",
Body = udfBody,
};
await client.CreateUserDefinedFunctionAsync(colSelfLink, udf);

24. Triggers
• JavaScript
• Opret som ressource
• Specificeres ved operation
var triggerId = "myTrigger";
Trigger trigger = new Trigger
{
Id = triggerId,
Body = triggerBody,
TriggerOperation = TriggerOperation.Create,
TriggerType = TriggerType.Post //Pre or Post
};
await client.CreateTriggerAsync(colSelfLink, trigger);
var requestOptions = new RequestOptions {
PostTriggerInclude = new List<string> { triggerId }
};
await client.CreateDocumentAsync(colSelfLink, myDocument,
requestOptions);

25. Stored procedures
• JavaScript
• Opret som ressource
• Execute
• Tidsgrænse
await _client.CreateStoredProcedureAsync(colSelfLink,
new StoredProcedure()
{
Id = "mySproc",
Body = sprocBody
});
var sproc = _client.CreateStoredProcedureQuery(colSelfLink)
.ToList().Single(sp => sp.Id == "mySproc");
var sprocResponse =
await _client.ExecuteStoredProcedureAsync<int>(sproc.SelfLink, objData);

26. Transaktioner
• Dybt integrerede i javascript modellen
• Funktion = ACID transaktion med snapshot isolation
• Exception => rollback

27. Takeaways
• Dokumentdatabaser
• Forståelse for arkitekturen
• Overblik over tooling og sdk’er
• Mod på at bruge DocumentDB
