This document provides information on Mirakote 340-1AB, a two component water based epoxy floor coating. It protects concrete from moisture, stains, grease and cracks while providing a seamless, impervious surface. The system includes a primer coat and two finish coats. Product data and application instructions are provided for the primer and finish coats. Calculations demonstrate how to determine material quantities needed for a given floor area.

1. Mirakote 340-1AB
Two Component Water Based Epoxy Floor Coating
MIRACON (M) SDN BHD

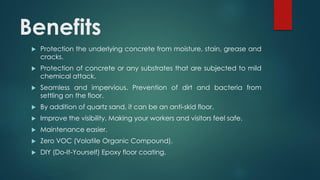

2. Benefits
 Protection the underlying concrete from moisture, stain, grease and
cracks.
 Protection of concrete or any substrates that are subjected to mild
chemical attack.
 Seamless and impervious. Prevention of dirt and bacteria from
settling on the floor.
 By addition of quartz sand, it can be an anti-skid floor.
 Improve the visibility. Making your workers and visitors feel safe.
 Maintenance easier.
 Zero VOC (Volatile Organic Compound).
 DIY (Do-It-Yourself) Epoxy floor coating.

3. System Illustration
Base coat - Primer 5145AB
First coat - Mirakote 340-1AB
Finishing coat - Mirakote 340-1AB

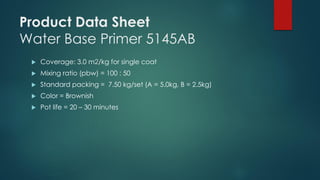

4. Product Data Sheet
Water Base Primer 5145AB
 Coverage: 3.0 m2/kg for single coat
 Mixing ratio (pbw) = 100 : 50
 Standard packing = 7.50 kg/set (A = 5.0kg, B = 2.5kg)
 Color = Brownish
 Pot life = 20 – 30 minutes

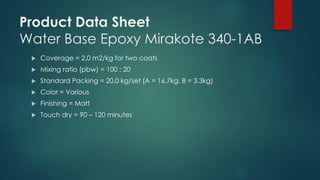

5. Product Data Sheet
Water Base Epoxy Mirakote 340-1AB
 Coverage = 2.0 m2/kg for two coats
 Mixing ratio (pbw) = 100 : 20
 Standard Packing = 20.0 kg/set (A = 16.7kg, B = 3.3kg)
 Color = Various
 Finishing = Matt
 Touch dry = 90 – 120 minutes

6. Basic Calculation
Quantity of Primer 5145AB :
 Example: 1,000 meter squares
 Primer 5145AB required = 1,000 m2 ÷ 3.0 m2/kg
= 333.3 kg
+ 10% of wastage = 366.7 kg
Standard packing size of Primer 5145AB is 7.5kg/set. Thus,
approximately 49 sets of primer 5145AB is required.

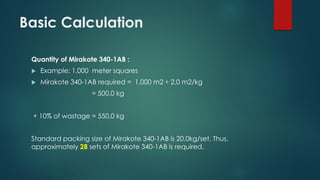

7. Basic Calculation
Quantity of Mirakote 340-1AB :
 Example: 1,000 meter squares
 Mirakote 340-1AB required = 1,000 m2 ÷ 2.0 m2/kg
= 500.0 kg
+ 10% of wastage = 550.0 kg
Standard packing size of Mirakote 340-1AB is 20.0kg/set. Thus,
approximately 28 sets of Mirakote 340-1AB is required.

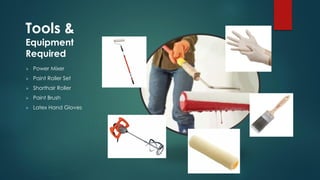

8. Tools &
Equipment
Required
 Power Mixer
 Paint Roller Set
 Shorthair Roller
 Paint Brush
 Latex Hand Gloves

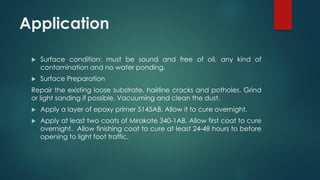

9. Application
 Surface condition: must be sound and free of oil, any kind of
contamination and no water ponding.
 Surface Preparation
Repair the existing loose substrate, hairline cracks and potholes. Grind
or light sanding if possible. Vacuuming and clean the dust.
 Apply a layer of epoxy primer 5145AB. Allow it to cure overnight.
 Apply at least two coats of Mirakote 340-1AB. Allow first coat to cure
overnight. Allow finishing coat to cure at least 24-48 hours to before
opening to light foot traffic.

11. Call: 03 - 8941 9918
Email: sales@miracon.com.my

12. Thank You
Prepared by: Michael Pong
