1. Distributed Realtime Computation using
By Saurabh Minni

2. Who am I
Saurabh Minni also on the web as @the100rabh
Yet another developer in Bangalore
I just love tinkering with different technologies
Currently working as Technical Architect at Near
Been part of planning for Barcamp Bangalore since 2007
Author of Apache Kafka Cookbook - https://www.
packtpub.com/big-data-and-business-intelligence/apache-
kafka-cookbook

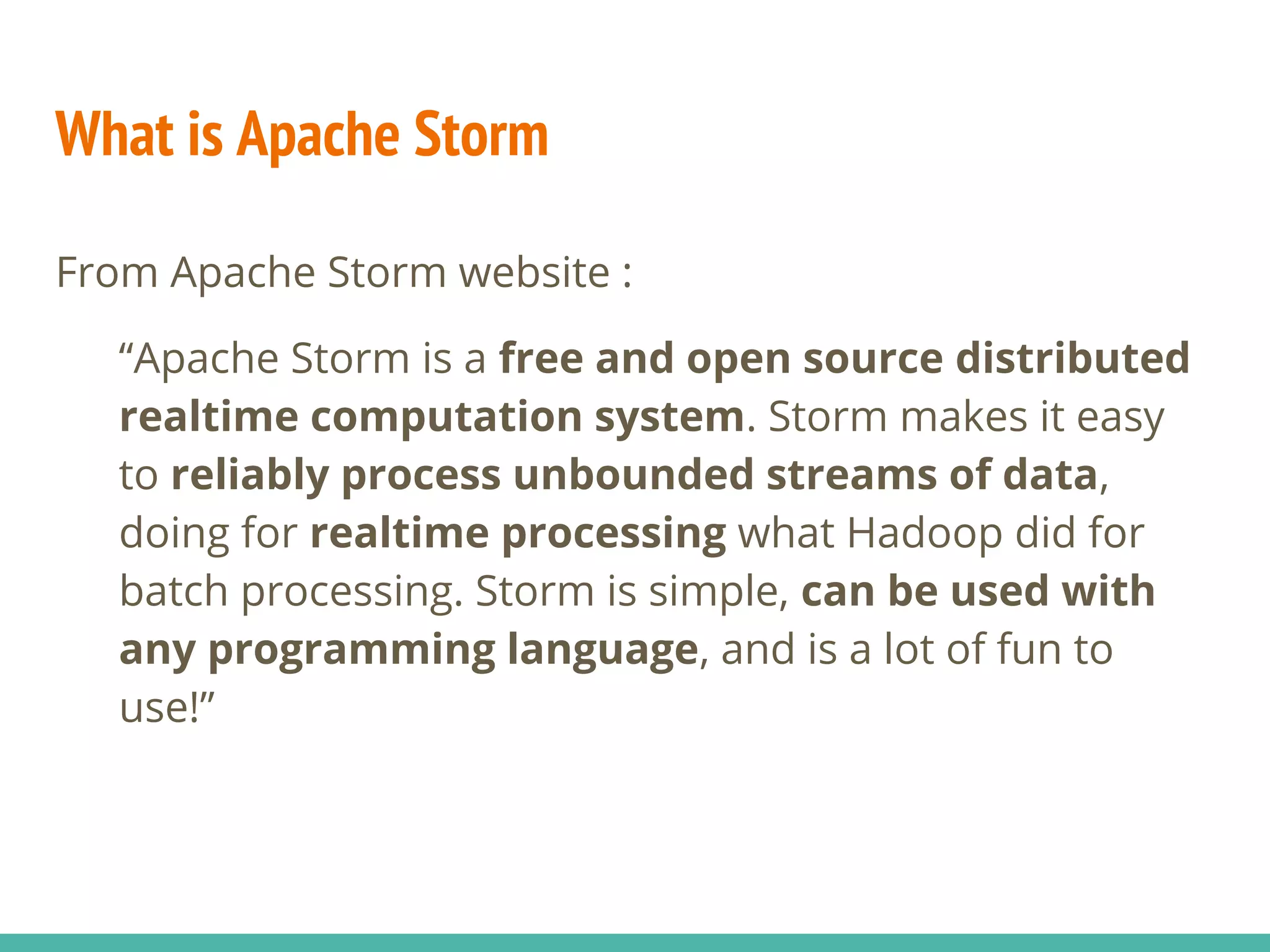

3. What is Apache Storm
From Apache Storm website :
“Apache Storm is a free and open source distributed
realtime computation system. Storm makes it easy
to reliably process unbounded streams of data,
doing for realtime processing what Hadoop did for
batch processing. Storm is simple, can be used with
any programming language, and is a lot of fun to
use!”

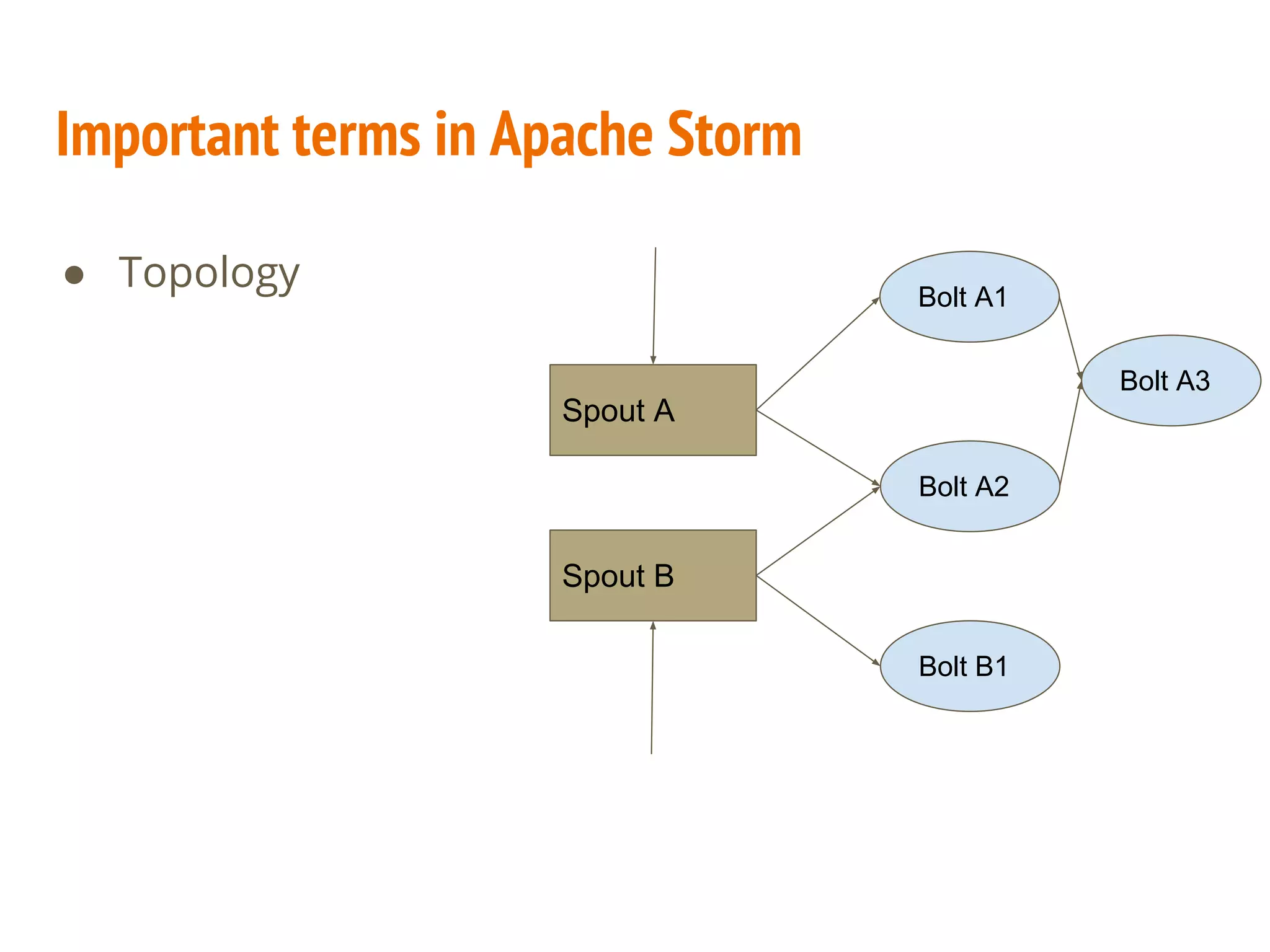

4. Important terms in Apache Storm
● Topology
Spout A
Spout B
Bolt A2
Bolt A1
Bolt B1
Bolt A3

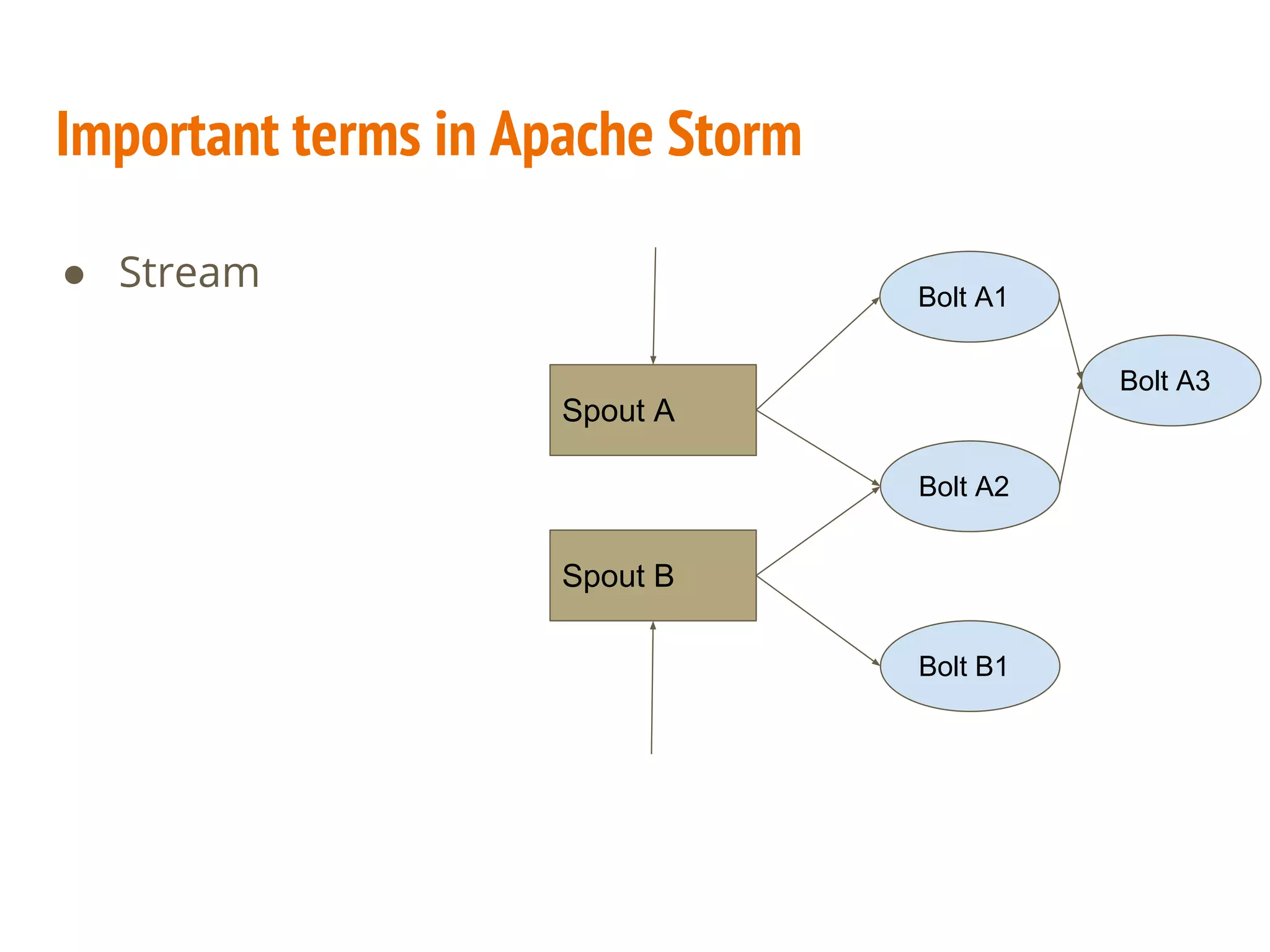

5. Important terms in Apache Storm
● Stream
Spout A
Spout B
Bolt A2
Bolt A1
Bolt B1
Bolt A3

6. Important terms in Apache Storm
● Spout
Spout A
Spout B
Bolt A2
Bolt A1
Bolt B1
Bolt A3

7. Important terms in Apache Storm
● Bolt
Spout A
Spout B
Bolt A2
Bolt A1
Bolt B1
Bolt A3

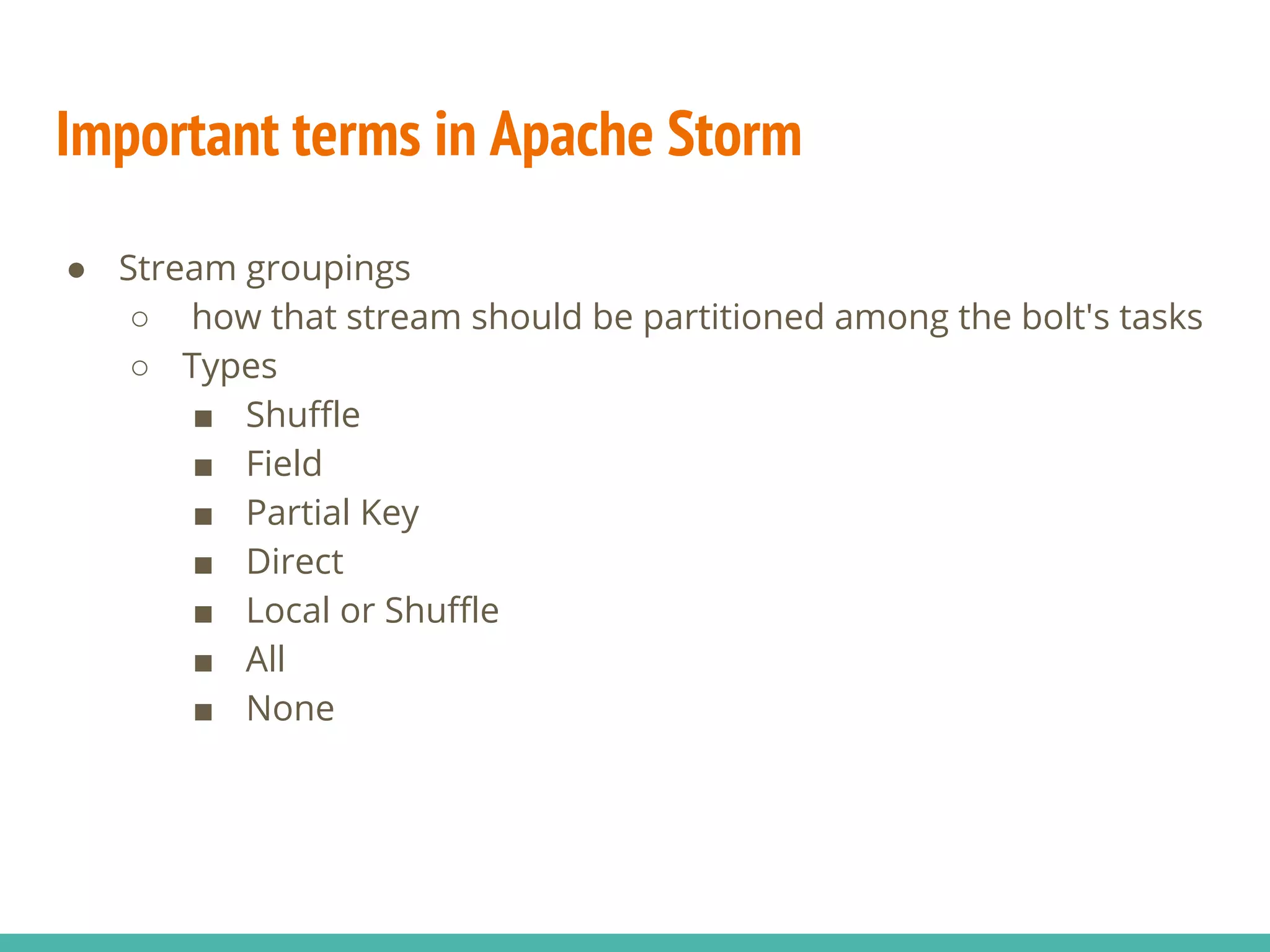

8. Important terms in Apache Storm
● Stream groupings
○ how that stream should be partitioned among the bolt's tasks
○ Types
■ Shuffle
■ Field
■ Partial Key
■ Direct
■ Local or Shuffle
■ All
■ None

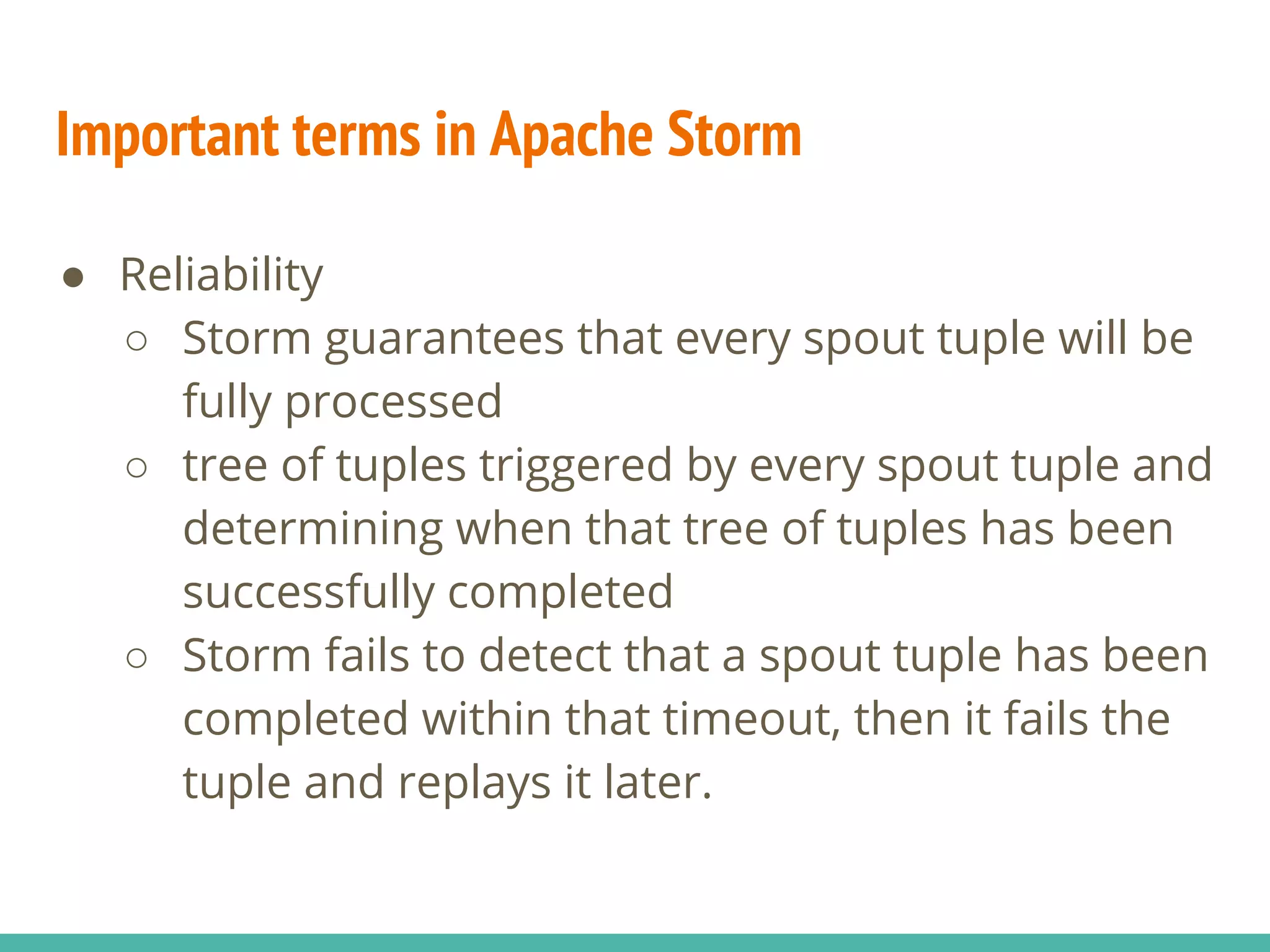

9. Important terms in Apache Storm
● Reliability
○ Storm guarantees that every spout tuple will be
fully processed
○ tree of tuples triggered by every spout tuple and
determining when that tree of tuples has been
successfully completed
○ Storm fails to detect that a spout tuple has been
completed within that timeout, then it fails the
tuple and replays it later.

10. Important terms in Apache Storm

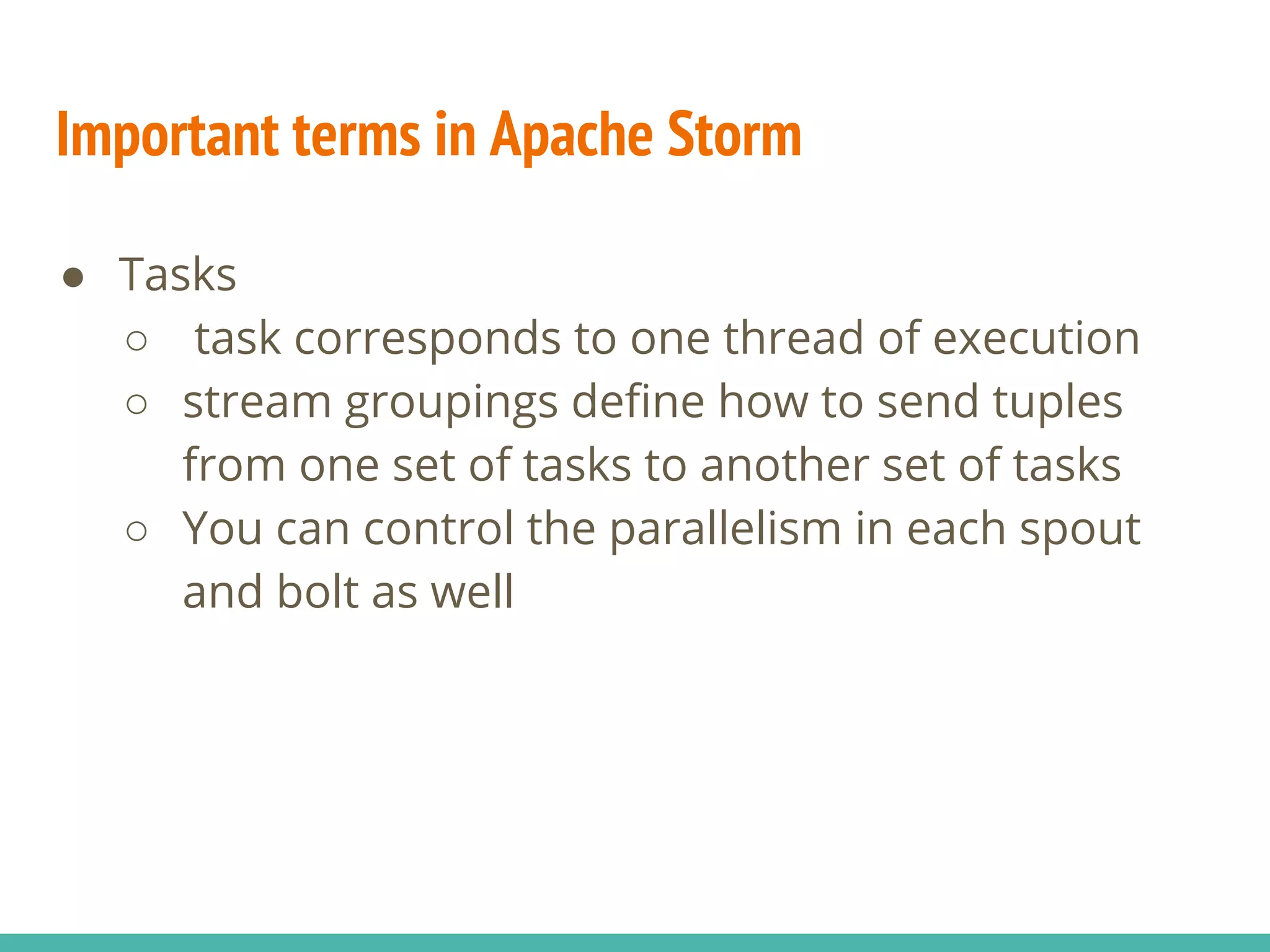

● Tasks
○ task corresponds to one thread of execution
○ stream groupings define how to send tuples
from one set of tasks to another set of tasks
○ You can control the parallelism in each spout
and bolt as well

11. Important terms in Apache Storm
● Workers
○ Each worker process is a physical JVM
○ executes a subset of all the tasks for the
topology
○ Storm tries to spread the tasks evenly across all
the workers.

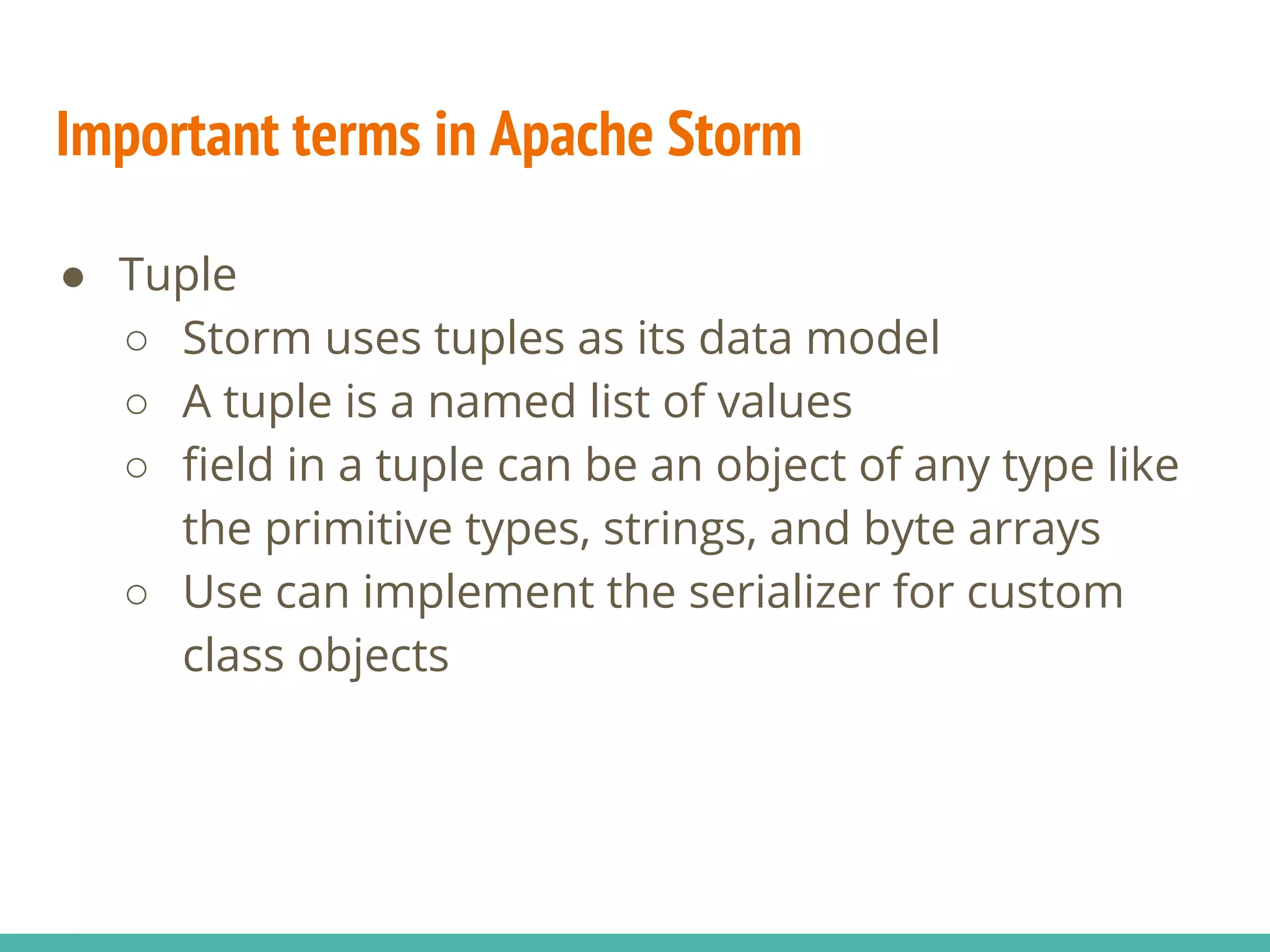

12. Important terms in Apache Storm
● Tuple
○ Storm uses tuples as its data model
○ A tuple is a named list of values
○ field in a tuple can be an object of any type like
the primitive types, strings, and byte arrays
○ Use can implement the serializer for custom
class objects

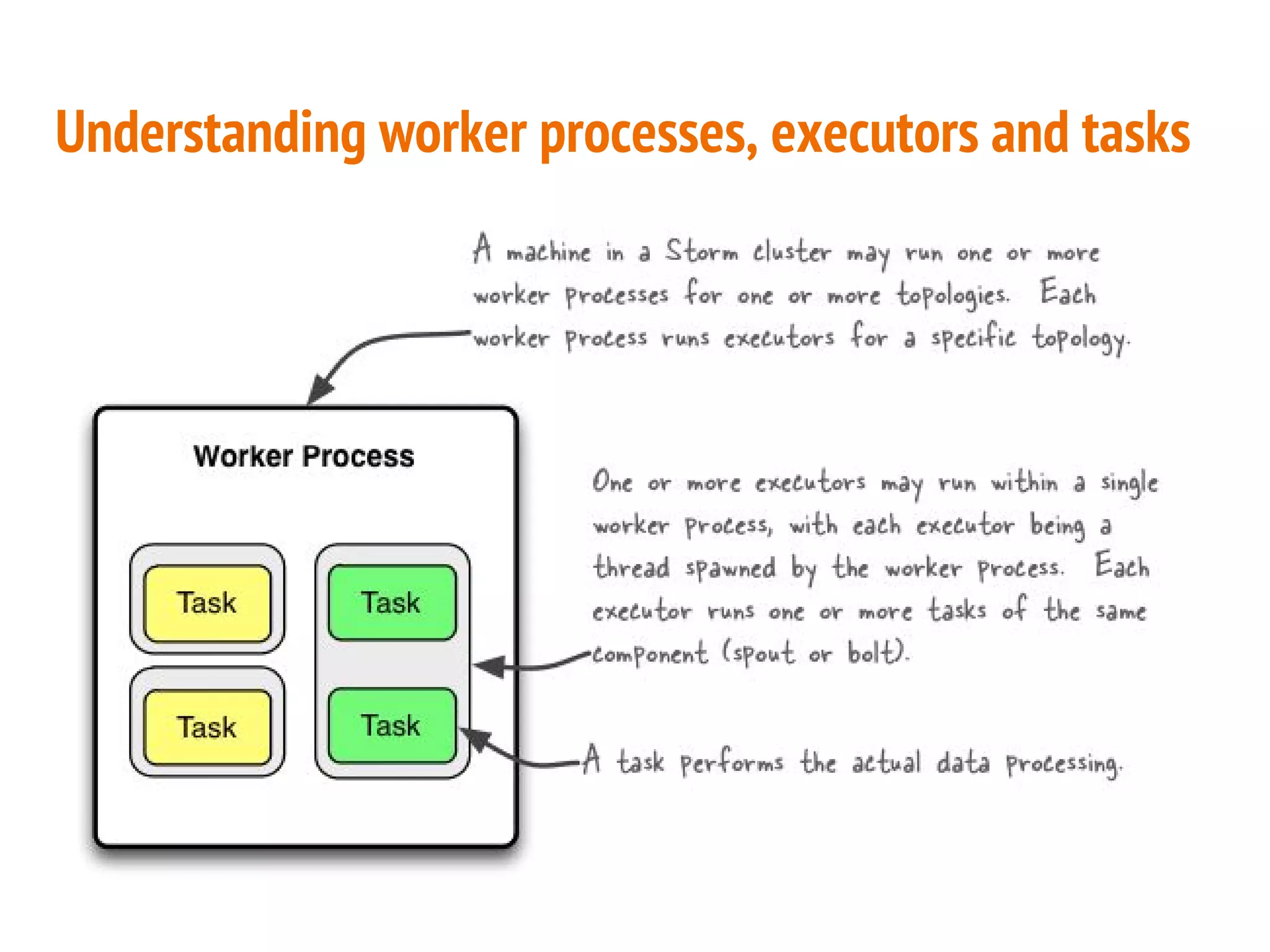

13. Understanding worker processes, executors and tasks

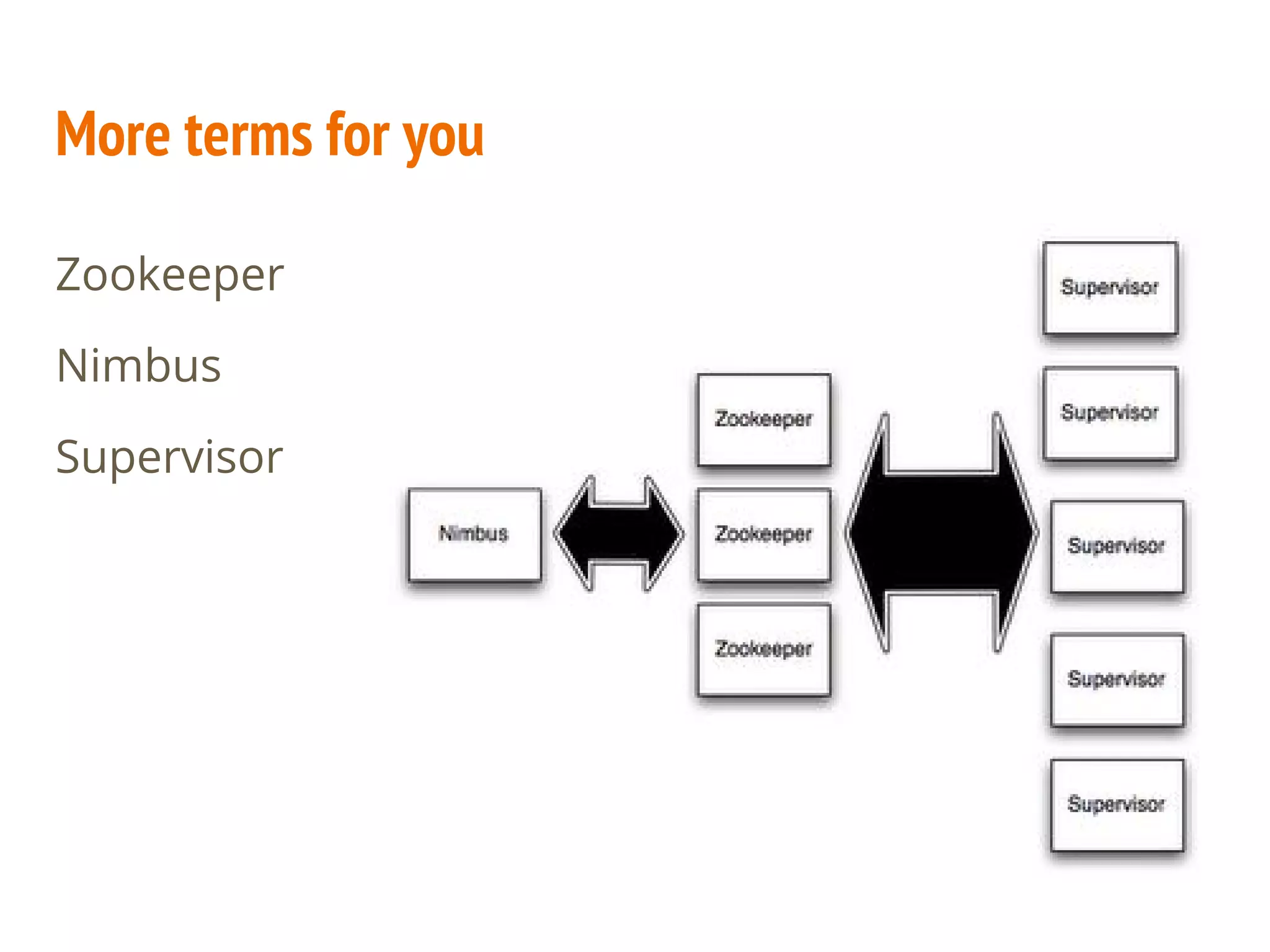

14. More terms for you
Zookeeper
Nimbus
Supervisor

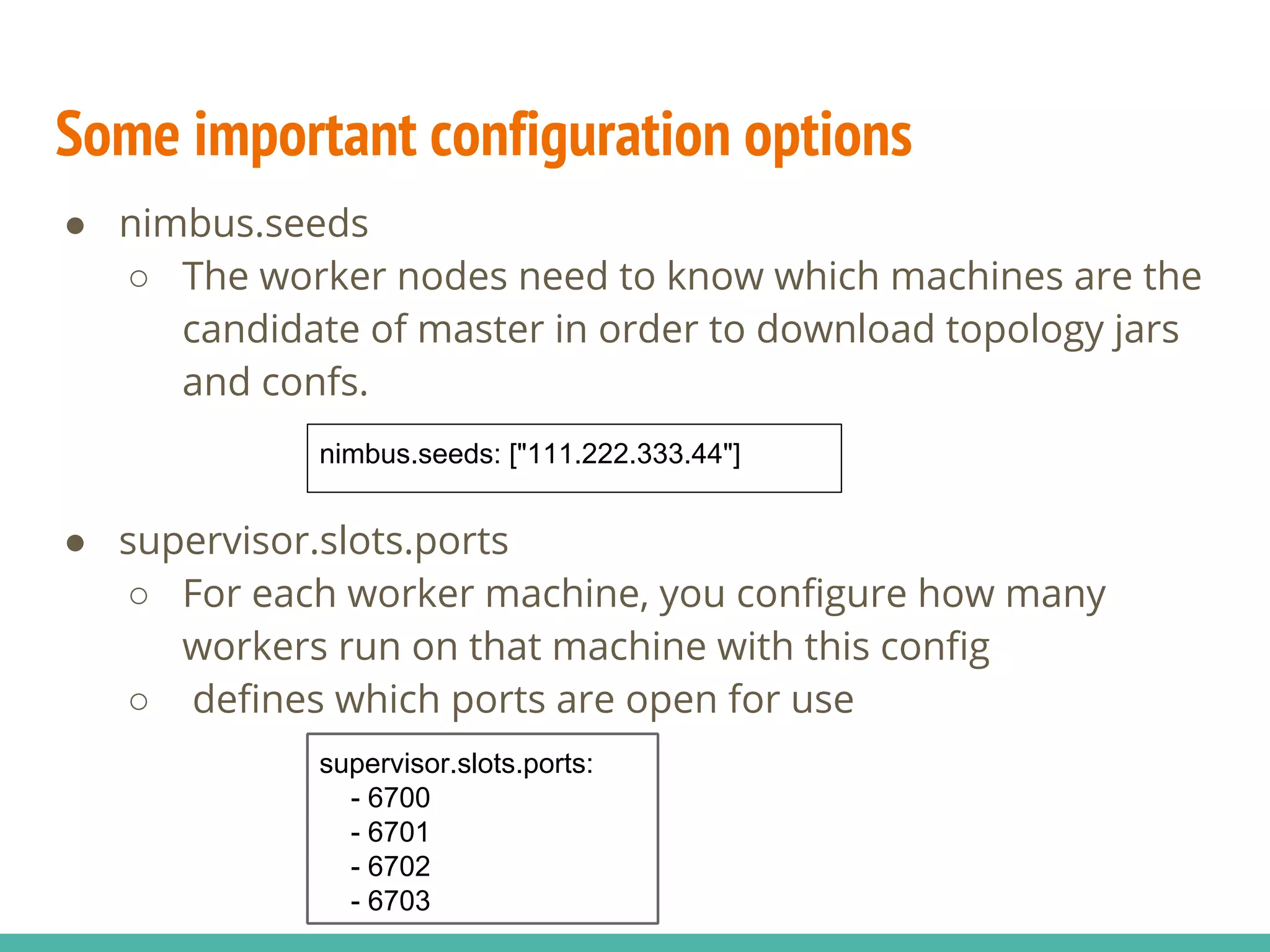

15. Some important configuration options
● nimbus.seeds
○ The worker nodes need to know which machines are the
candidate of master in order to download topology jars
and confs.
● supervisor.slots.ports
○ For each worker machine, you configure how many
workers run on that machine with this config
○ defines which ports are open for use
supervisor.slots.ports:
- 6700
- 6701
- 6702
- 6703
nimbus.seeds: ["111.222.333.44"]

16. Show me the
Code

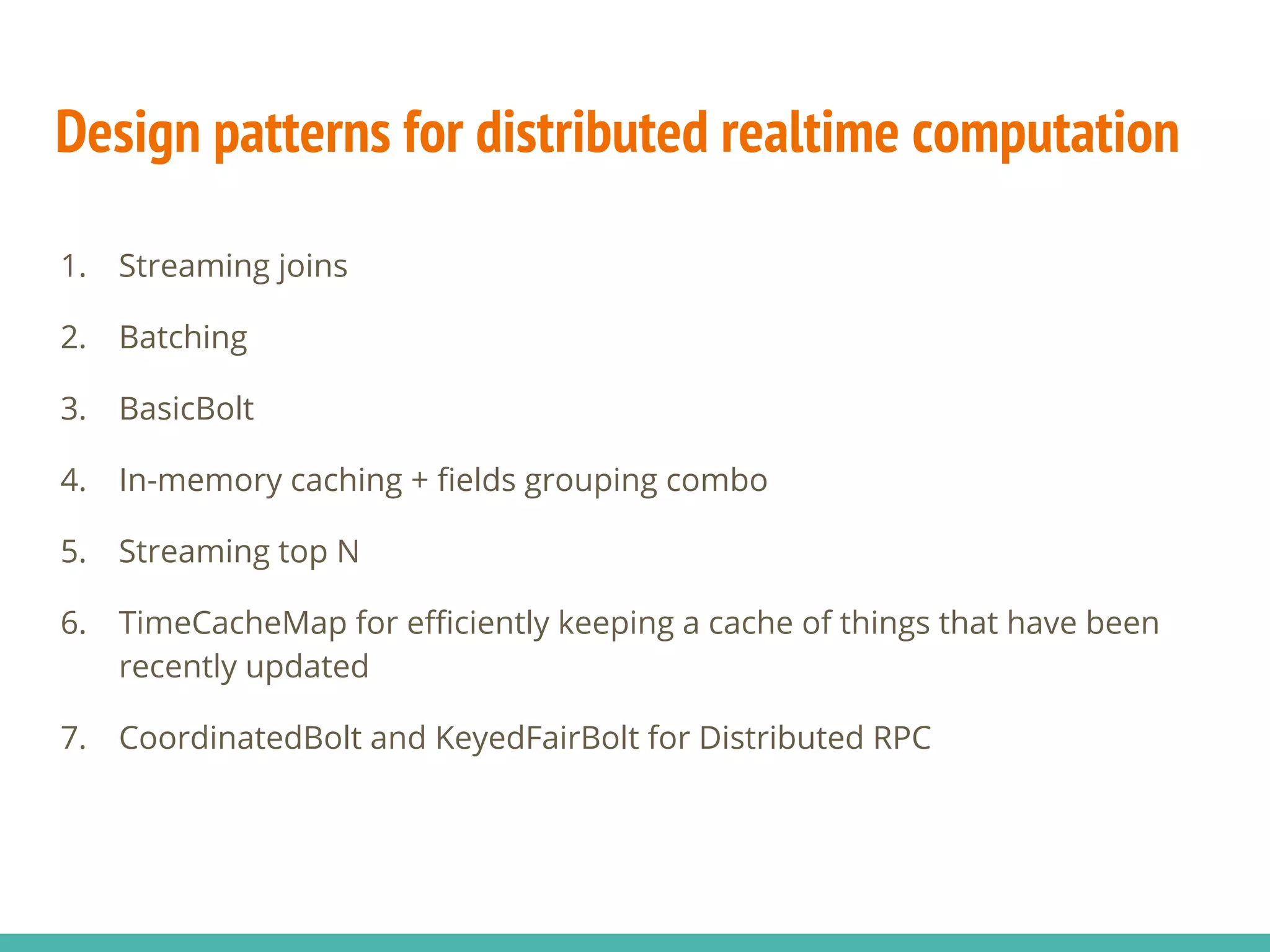

17. Design patterns for distributed realtime computation
1. Streaming joins
2. Batching
3. BasicBolt
4. In-memory caching + fields grouping combo
5. Streaming top N
6. TimeCacheMap for efficiently keeping a cache of things that have been
recently updated
7. CoordinatedBolt and KeyedFairBolt for Distributed RPC

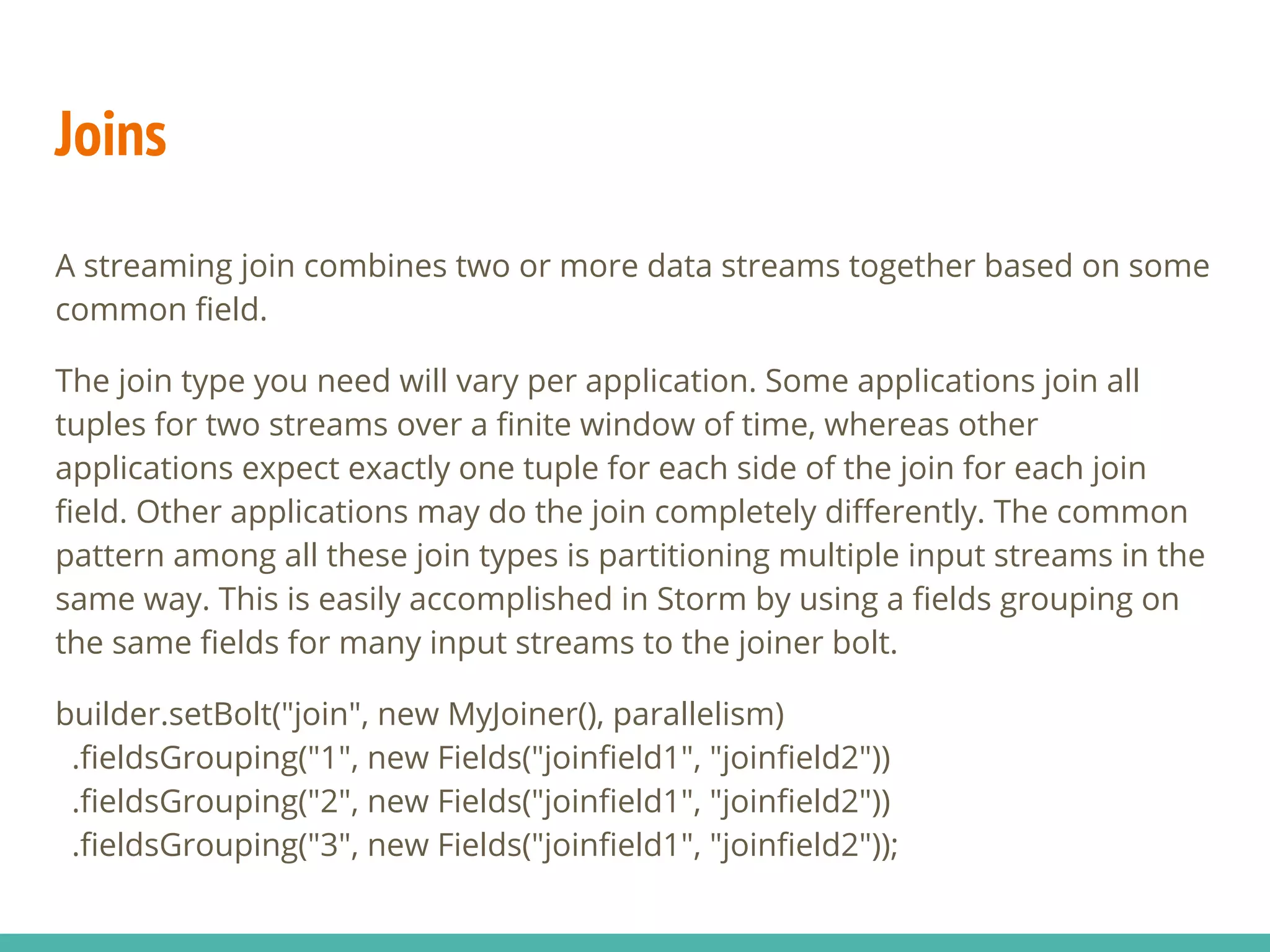

18. Joins
A streaming join combines two or more data streams together based on some
common field.
The join type you need will vary per application. Some applications join all
tuples for two streams over a finite window of time, whereas other
applications expect exactly one tuple for each side of the join for each join
field. Other applications may do the join completely differently. The common
pattern among all these join types is partitioning multiple input streams in the
same way. This is easily accomplished in Storm by using a fields grouping on
the same fields for many input streams to the joiner bolt.
builder.setBolt("join", new MyJoiner(), parallelism)
.fieldsGrouping("1", new Fields("joinfield1", "joinfield2"))
.fieldsGrouping("2", new Fields("joinfield1", "joinfield2"))
.fieldsGrouping("3", new Fields("joinfield1", "joinfield2"));

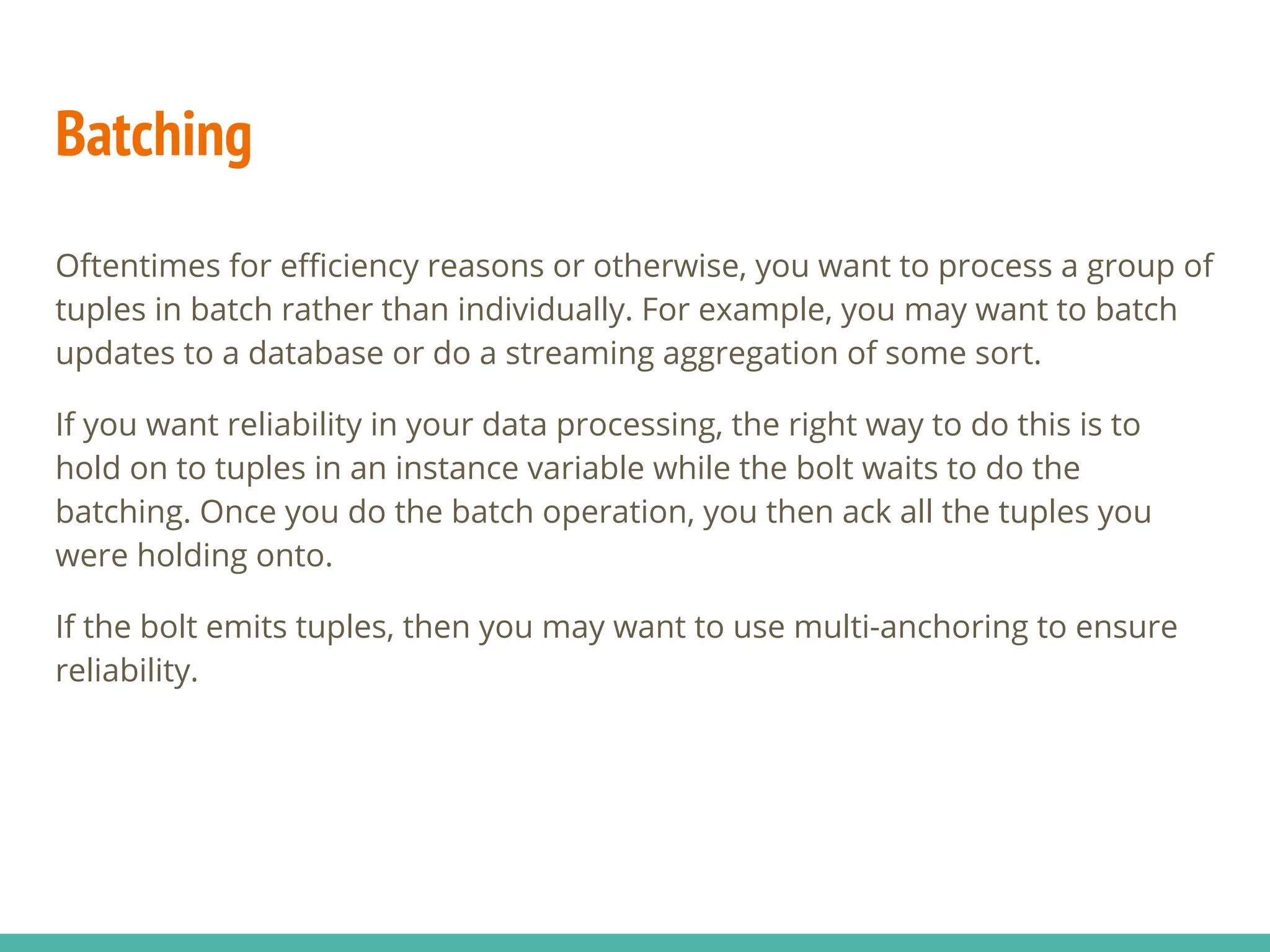

19. Batching
Oftentimes for efficiency reasons or otherwise, you want to process a group of
tuples in batch rather than individually. For example, you may want to batch
updates to a database or do a streaming aggregation of some sort.
If you want reliability in your data processing, the right way to do this is to
hold on to tuples in an instance variable while the bolt waits to do the
batching. Once you do the batch operation, you then ack all the tuples you
were holding onto.
If the bolt emits tuples, then you may want to use multi-anchoring to ensure
reliability.

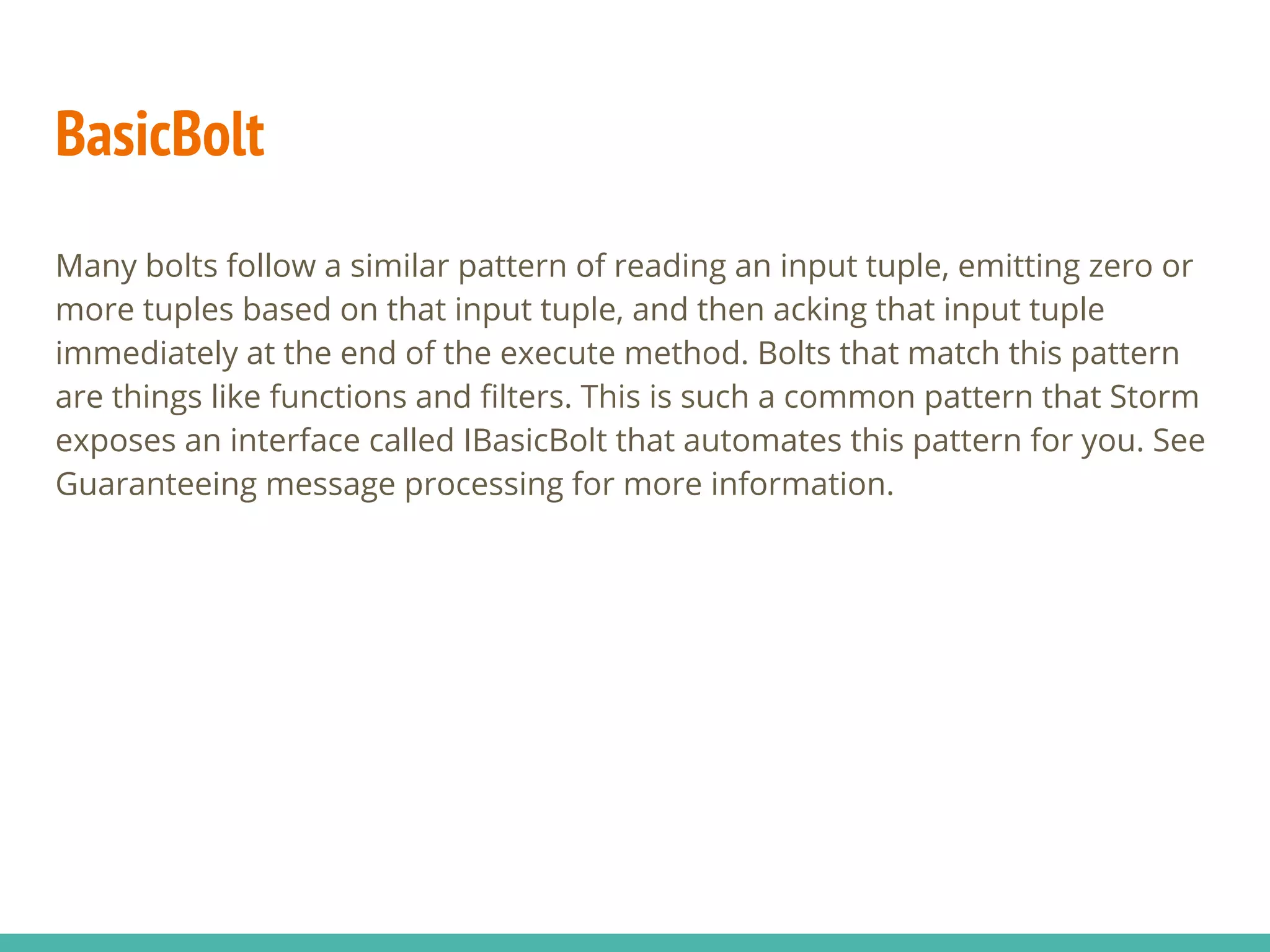

20. BasicBolt
Many bolts follow a similar pattern of reading an input tuple, emitting zero or
more tuples based on that input tuple, and then acking that input tuple
immediately at the end of the execute method. Bolts that match this pattern
are things like functions and filters. This is such a common pattern that Storm
exposes an interface called IBasicBolt that automates this pattern for you. See
Guaranteeing message processing for more information.

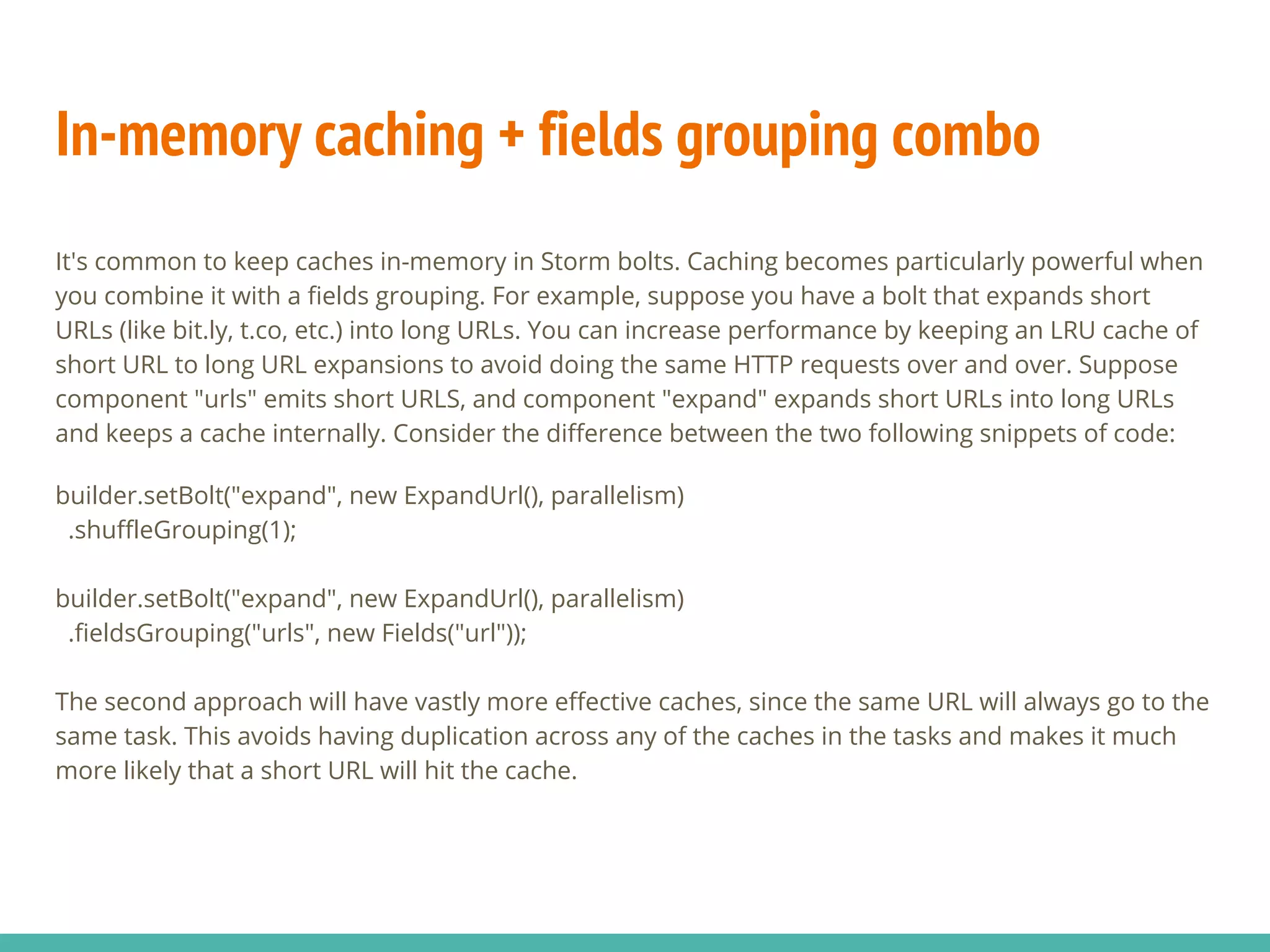

21. In-memory caching + fields grouping combo
It's common to keep caches in-memory in Storm bolts. Caching becomes particularly powerful when
you combine it with a fields grouping. For example, suppose you have a bolt that expands short
URLs (like bit.ly, t.co, etc.) into long URLs. You can increase performance by keeping an LRU cache of
short URL to long URL expansions to avoid doing the same HTTP requests over and over. Suppose
component "urls" emits short URLS, and component "expand" expands short URLs into long URLs
and keeps a cache internally. Consider the difference between the two following snippets of code:
builder.setBolt("expand", new ExpandUrl(), parallelism)
.shuffleGrouping(1);
builder.setBolt("expand", new ExpandUrl(), parallelism)
.fieldsGrouping("urls", new Fields("url"));
The second approach will have vastly more effective caches, since the same URL will always go to the
same task. This avoids having duplication across any of the caches in the tasks and makes it much
more likely that a short URL will hit the cache.

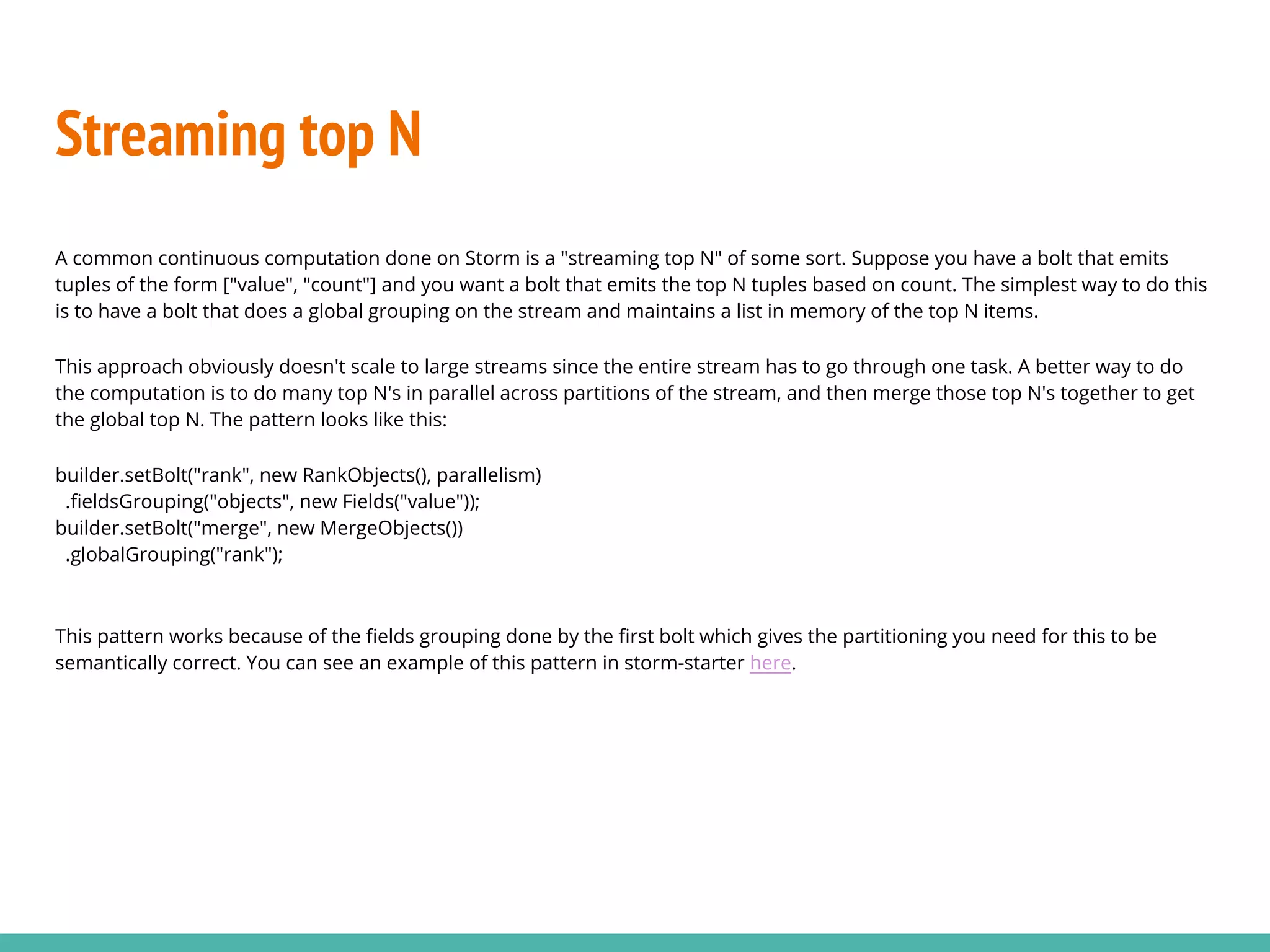

22. Streaming top N
A common continuous computation done on Storm is a "streaming top N" of some sort. Suppose you have a bolt that emits
tuples of the form ["value", "count"] and you want a bolt that emits the top N tuples based on count. The simplest way to do this
is to have a bolt that does a global grouping on the stream and maintains a list in memory of the top N items.
This approach obviously doesn't scale to large streams since the entire stream has to go through one task. A better way to do
the computation is to do many top N's in parallel across partitions of the stream, and then merge those top N's together to get
the global top N. The pattern looks like this:
builder.setBolt("rank", new RankObjects(), parallelism)
.fieldsGrouping("objects", new Fields("value"));
builder.setBolt("merge", new MergeObjects())
.globalGrouping("rank");
This pattern works because of the fields grouping done by the first bolt which gives the partitioning you need for this to be
semantically correct. You can see an example of this pattern in storm-starter here.

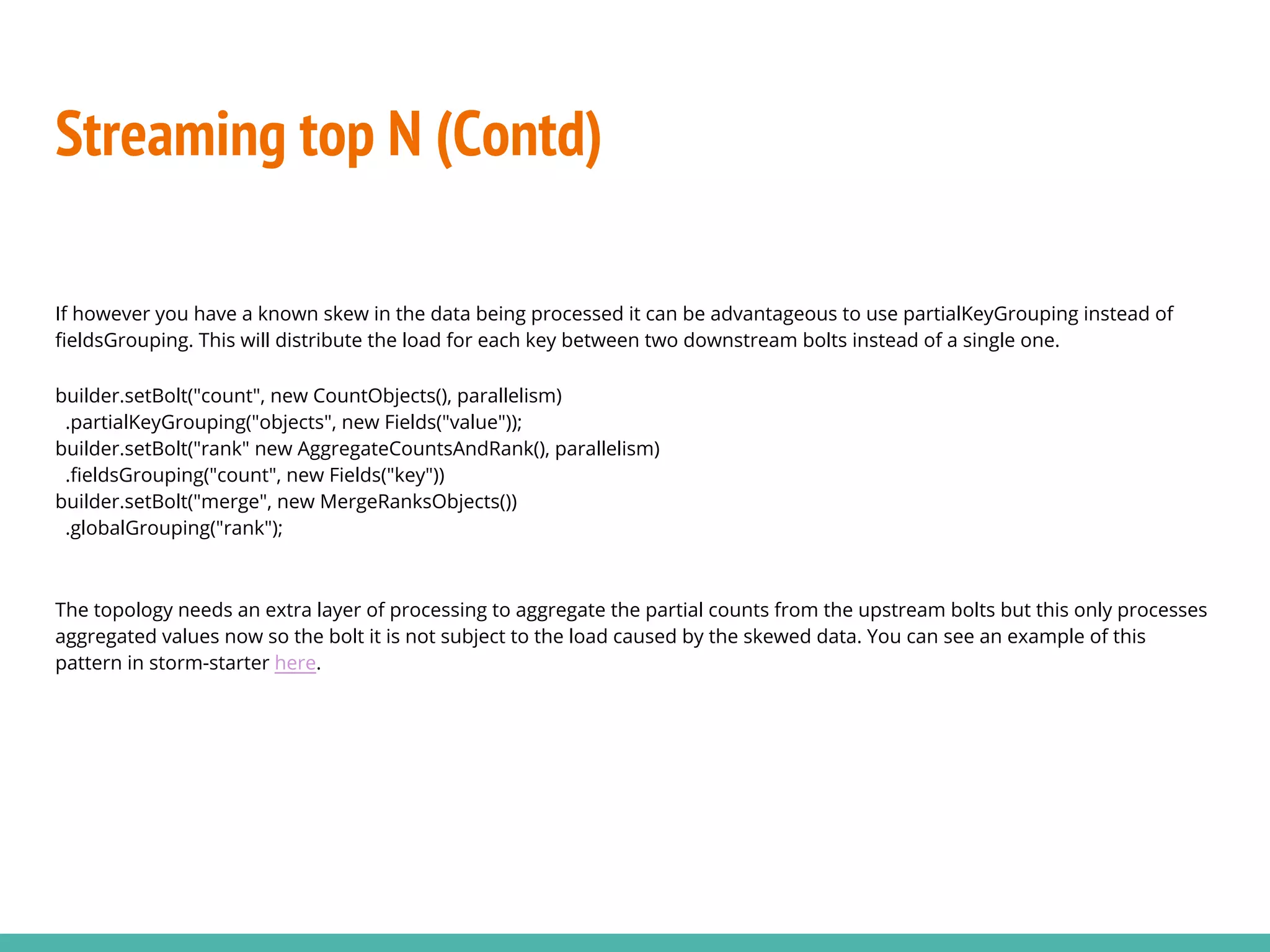

23. Streaming top N (Contd)
If however you have a known skew in the data being processed it can be advantageous to use partialKeyGrouping instead of
fieldsGrouping. This will distribute the load for each key between two downstream bolts instead of a single one.
builder.setBolt("count", new CountObjects(), parallelism)
.partialKeyGrouping("objects", new Fields("value"));
builder.setBolt("rank" new AggregateCountsAndRank(), parallelism)
.fieldsGrouping("count", new Fields("key"))
builder.setBolt("merge", new MergeRanksObjects())
.globalGrouping("rank");
The topology needs an extra layer of processing to aggregate the partial counts from the upstream bolts but this only processes
aggregated values now so the bolt it is not subject to the load caused by the skewed data. You can see an example of this
pattern in storm-starter here.

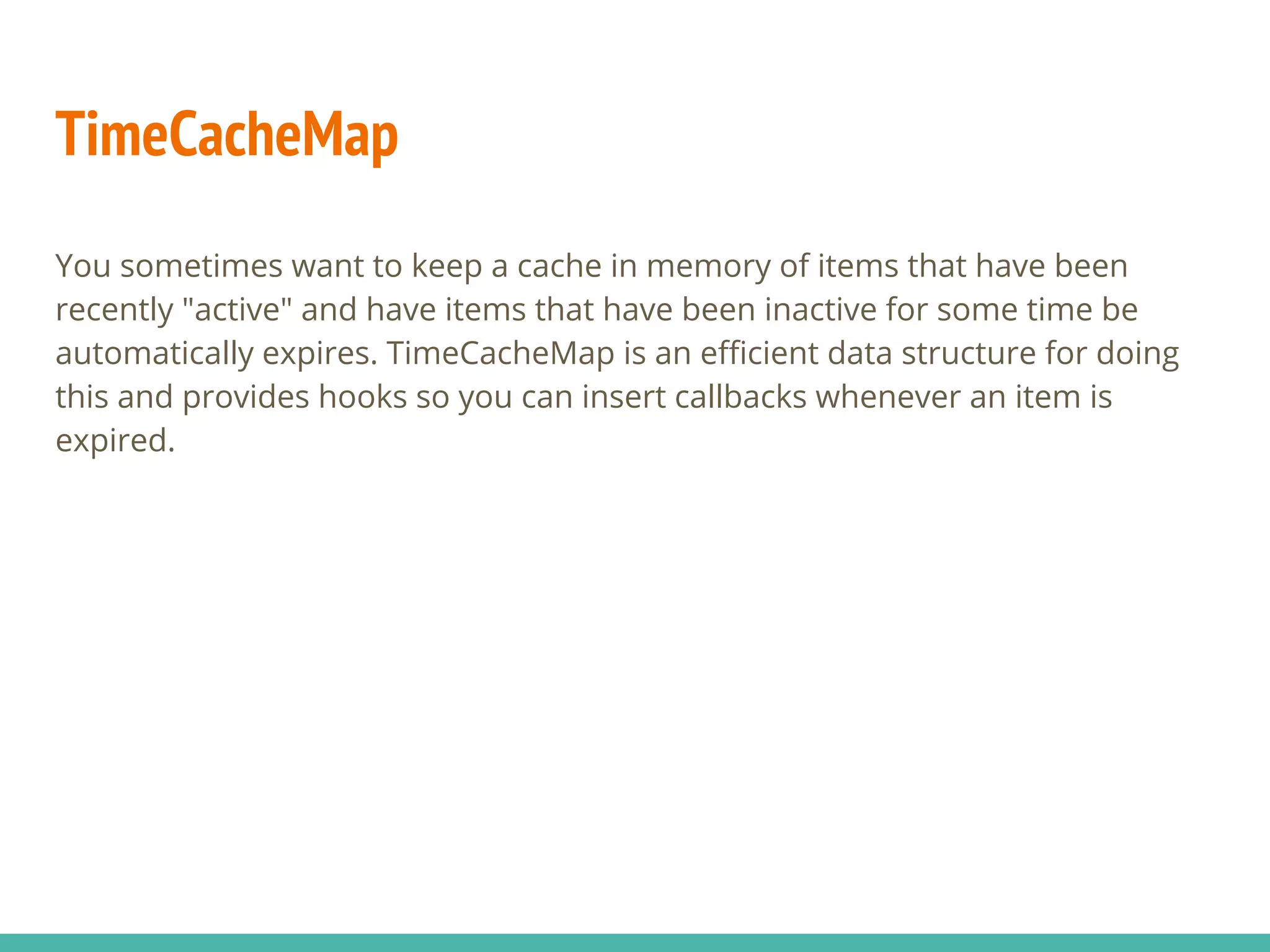

24. TimeCacheMap
You sometimes want to keep a cache in memory of items that have been
recently "active" and have items that have been inactive for some time be
automatically expires. TimeCacheMap is an efficient data structure for doing
this and provides hooks so you can insert callbacks whenever an item is
expired.

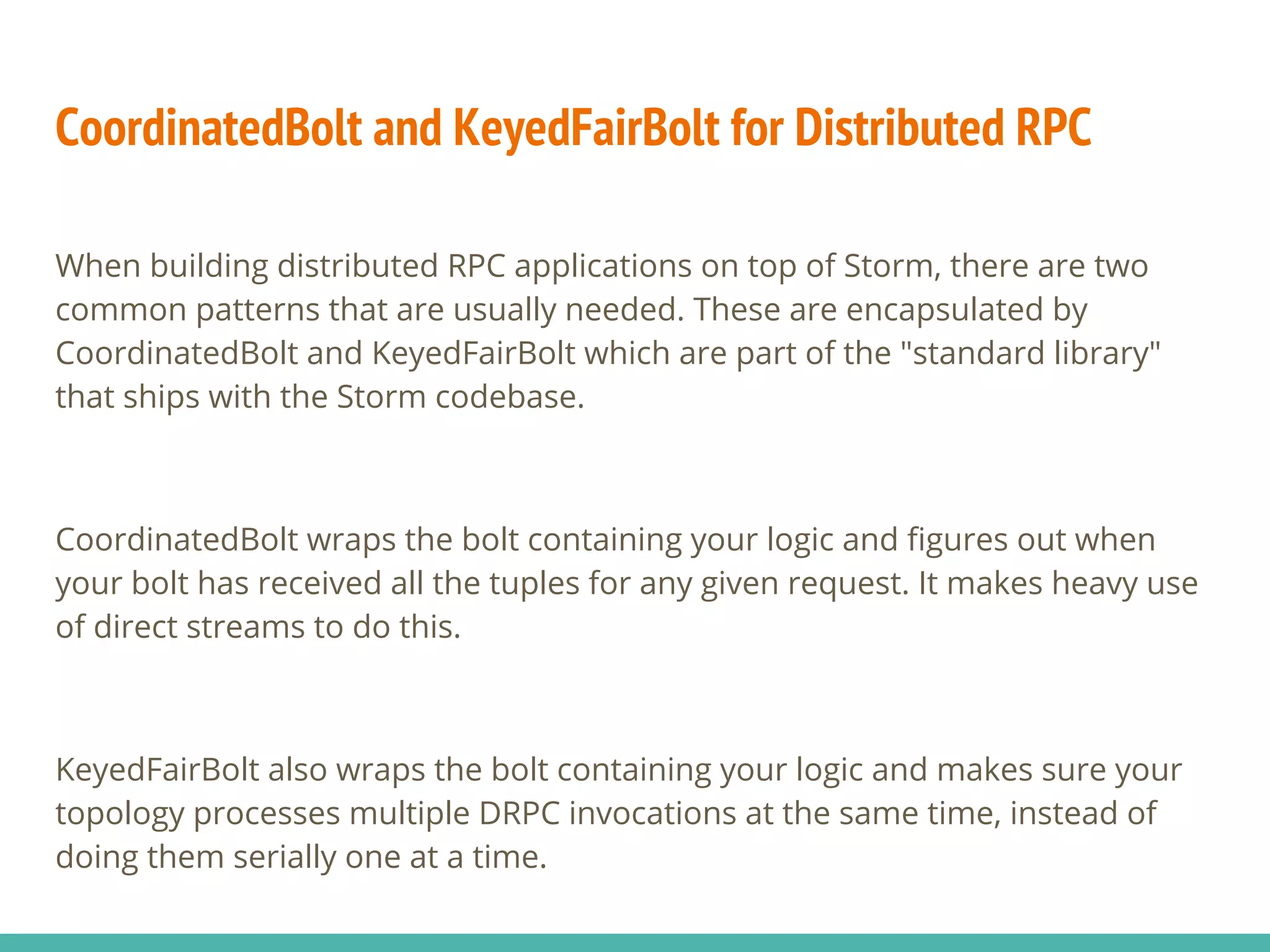

25. CoordinatedBolt and KeyedFairBolt for Distributed RPC
When building distributed RPC applications on top of Storm, there are two
common patterns that are usually needed. These are encapsulated by
CoordinatedBolt and KeyedFairBolt which are part of the "standard library"
that ships with the Storm codebase.
CoordinatedBolt wraps the bolt containing your logic and figures out when
your bolt has received all the tuples for any given request. It makes heavy use
of direct streams to do this.
KeyedFairBolt also wraps the bolt containing your logic and makes sure your
topology processes multiple DRPC invocations at the same time, instead of
doing them serially one at a time.
