1. Distributed DASH Dataset
Stefan Lederer, Christopher Müller, Christian Timmerer,
Cyril Concolato, Jean Le Feuvre, and Karel Fliegel
Alpen-Adria-Universität Klagenfurt (AAU) Faculty of Technical Sciences (TEWI) Department of Information
Technology (ITEC) Multimedia Communication (MMC) Sensory Experience Lab (SELab)
http://research.timmerer.com http://blog.timmerer.com
http://dash.itec.aau.at/mailto:christian.timmerer@itec.uni-klu.ac.at
ACM Multimedia Systems
28th February, 2013
Acknowledgments. This work was supported in part by the EC in the context of the ALICANTE (FP7-ICT-248652) and SocialSensor (FP7-ICT- 287975) projects and partly
performed in the Lakeside Labs research cluster at AAU. Special thanks to the Red Bull Media House for providing us the Red Bull Playstreets video. They own the rights of the
content but the usage for scientific purposes is permitted. This work was also supported in part by the French-funded project AUSTRAL (DGCIS FUI13). This work was partially
supported by the COST IC1003 QUALINET, by the Czech-funded project COST CZ LD12018 MOVERIQ and by the grant of the Czech Science Foundation No. P102/10/1320.
3. Dynamic Adaptive Streaming over HTTP
• In a nutshell … Adaptation logic is within the
client, not normatively specified
by the standard, subject to
research and development
Christian Timmerer and Carsten Griwodz. 2012. Dynamic adaptive streaming over HTTP: from content creation to consumption. In
Proceedings of the 20th ACM international conference on Multimedia (MM '12). ACM, New York, NY, USA, 1533-1534.
DOI=10.1145/2393347.2396553 http://doi.acm.org/10.1145/2393347.2396553
http://www.slideshare.net/christian.timmerer/dynamic-adaptive-streaming-over-http-from-content-creation-to-consumption
Feb 28, 2013 ACM MMSys 2013 3
4. Why a (distributed) DASH dataset?
• … to enable an objective comparison of evaluation results across different
client implementations
– E.g.: MMSys dataset track, QUALINET database
Lederer, S., Mueller, C., and Timmerer, C. 2012. Dynamic adaptive streaming over HTTP dataset. In
Proceedings of the 3rd Multimedia Systems Conference (MMSys '12). ACM, New York, NY, USA, 89-94.
DOI=http://doi.acm.org/10.1145/2155555.2155570
• Why distributed?
– DASH allows to pull segments from multiple sources/sites
– Signaled through multiple BaseURL elements within the XML-based
Media Presentation Description (MPD)
– Allows for a real-world evaluation of DASH clients that perform bitstream
switching between multiple sites
– E.g., to simulate switching between multiple Content Distribution Networks
(CDNs)
• Additionally, we provide a mechanism to mirror the DASH content to
further sites
– Join this activity, everyone is invited – get involved in and exited about DASH!
Feb 28, 2013 ACM MMSys 2013 4
5. DASH and multiple BaseURLs
• BaseURL
– URL indicating a location that can be used to request the different segments
needed for the presentation
– Optional element, can be present multiple times at multiple levels in the XML
hierarchy of the MPD
– Optional attributes: serviceLocation and byteRange
Feb 28, 2013 ACM MMSys 2013 5

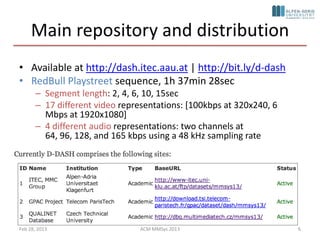

6. Main repository and distribution
• Available at http://dash.itec.aau.at | http://bit.ly/d-dash
• RedBull Playstreet sequence, 1h 37min 28sec
– Segment length: 2, 4, 6, 10, 15sec
– 17 different video representations: [100kbps at 320x240, 6
Mbps at 1920x1080]
– 4 different audio representations: two channels at
64, 96, 128, and 165 kbps using a 48 kHz sampling rate
Feb 28, 2013 ACM MMSys 2013 6
7. Add your site to the D-DASH dataset
• Create a mirror of the dataset:
– Copy the dataset to your server and provide HTTP-access to it. The dataset has a size of
approx. 85 GB and can be downloaded from our servers:
FTP: ftp://ftp-itec.uni-klu.ac.at/pub/datasets/mmsys13/
HTTP: http://www-itec.uni-klu.ac.at/ftp/datasets/mmsys13/
– It is recommended to create a job, e.g., via wget, to keep the mirror up-to-date and the get
latest MPDs also on your site. This can be done via the the following command line:
wget -m -nH –cut-dirs=3 ftp://ftp-itec.uni-klu.ac.at/pub/datasets/mmsys13/
• Register the mirror of the dataset:
– Please register your site so that we can validate your dataset copy and add your site to the
MPDs of the dataset
– Please use our registration form at:
http://www-itec.uni-klu.ac.at/dash/ddash/register.html
• You are part of D-DASH!
– After the registration we check your dataset mirror and you will be notified by us. Your site will
be added to the MPDs in our dataset repository and mirrored to all other sites.
– Furthermore your site will be integrated in our MPD-generation service
Feb 28, 2013 ACM MMSys 2013 7
8. MPD update process
Method 1
• MPDs of the dataset are updated in the main repository
– If new mirrors have been added and verified
– If an existing mirror gets inactive
• These MPDs are replicated but its the responsibility of the
site owners
Method 2
• MPD generation service (PHP script) which provides the
most up-to-date MPDs based on our mirror database
– http://www-itec.uni-
klu.ac.at/dash/ddash/mpdGenerator.php?segmentlength={2, 4,
6, 10, 15}&type={full, URLTemplate}
Feb 28, 2013 ACM MMSys 2013 8
9. What can you do with this dataset?

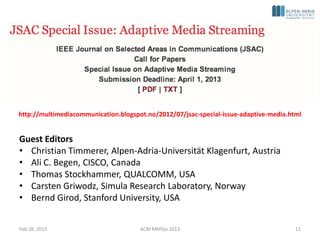

• Work on a paper! E.g., for QoMEX’13 (submission deadline
Mar. 6/20), JSAC Special Issue (Apr. 1), PV’13 (June), or
MMSys’14 (Sep. 16)
• Bootstrap problem
– When retrieving an MPD with multiple BaseURLs, with which
BaseURL to start a DASH session?
– Finding the “best” BaseURL to use may influence the start-up
delay and, thus, Quality of Experience
• Bandwidth fluctuations during a DASH session
– Switch to another BaseURL (which one?) or select another
representation within the same BaseURL
• Live streaming with multiple BaseURL – well, that’s another
story!
• You may use “Commute Path Bandwidth Traces from 3G
Networks: Analysis and Applications” from Riiser et al.
Feb 28, 2013 ACM MMSys 2013 9

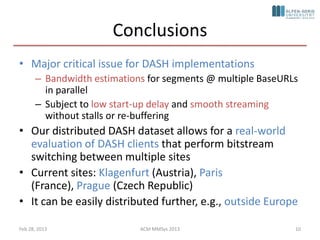

10. Conclusions
• Major critical issue for DASH implementations
– Bandwidth estimations for segments @ multiple BaseURLs
in parallel
– Subject to low start-up delay and smooth streaming
without stalls or re-buffering
• Our distributed DASH dataset allows for a real-world
evaluation of DASH clients that perform bitstream
switching between multiple sites
• Current sites: Klagenfurt (Austria), Paris
(France), Prague (Czech Republic)
• It can be easily distributed further, e.g., outside Europe
Feb 28, 2013 ACM MMSys 2013 10
