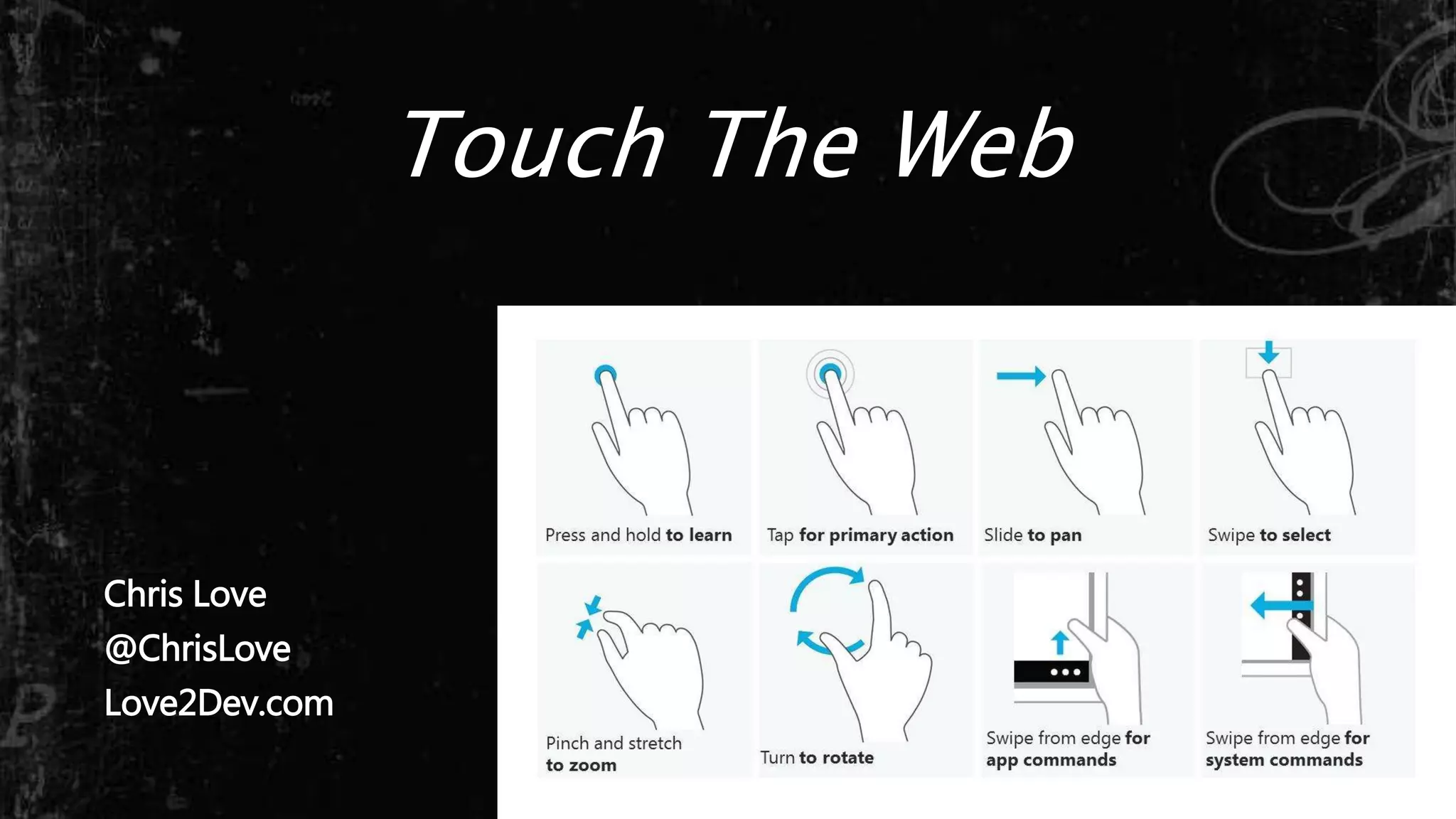

1. Touch The Web
Chris Love
@ChrisLove
Love2Dev.com

2. Who Am I
• ASP.NET MVP
• ASP Insider
• Internet Explorer User Agent
• Author
• Speaker
• Tweaker, Lover of Web, JavaScript, CSS & HTML5
• @ChrisLove
• Love2Dev.com

3. High Performance Single Page Web
Applications
• Responsive Design
• Touch
• Mobile First
• SPA
• Extensible, Scalable Architecture
• Web Build and Workflow
• Goes Really Fast!
• ~395 Pages
• 20 Chapters
• $9.99 http://amzn.to/1a55L89

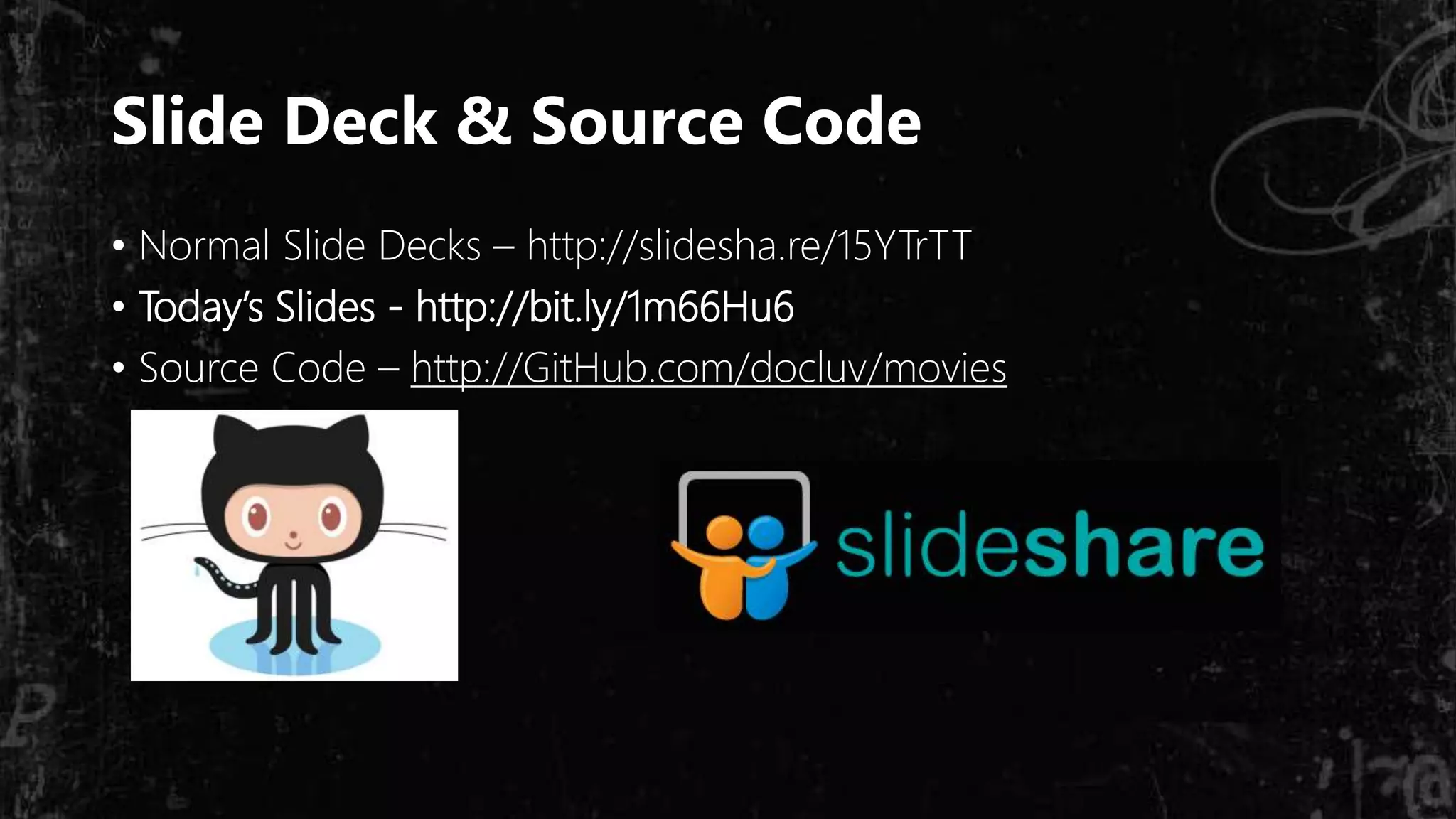

4. Slide Deck & Source Code
• Normal Slide Decks – http://slidesha.re/15YTrTT
• Today’s Slides - http://bit.ly/1m66Hu6
• Source Code – http://GitHub.com/docluv/movies

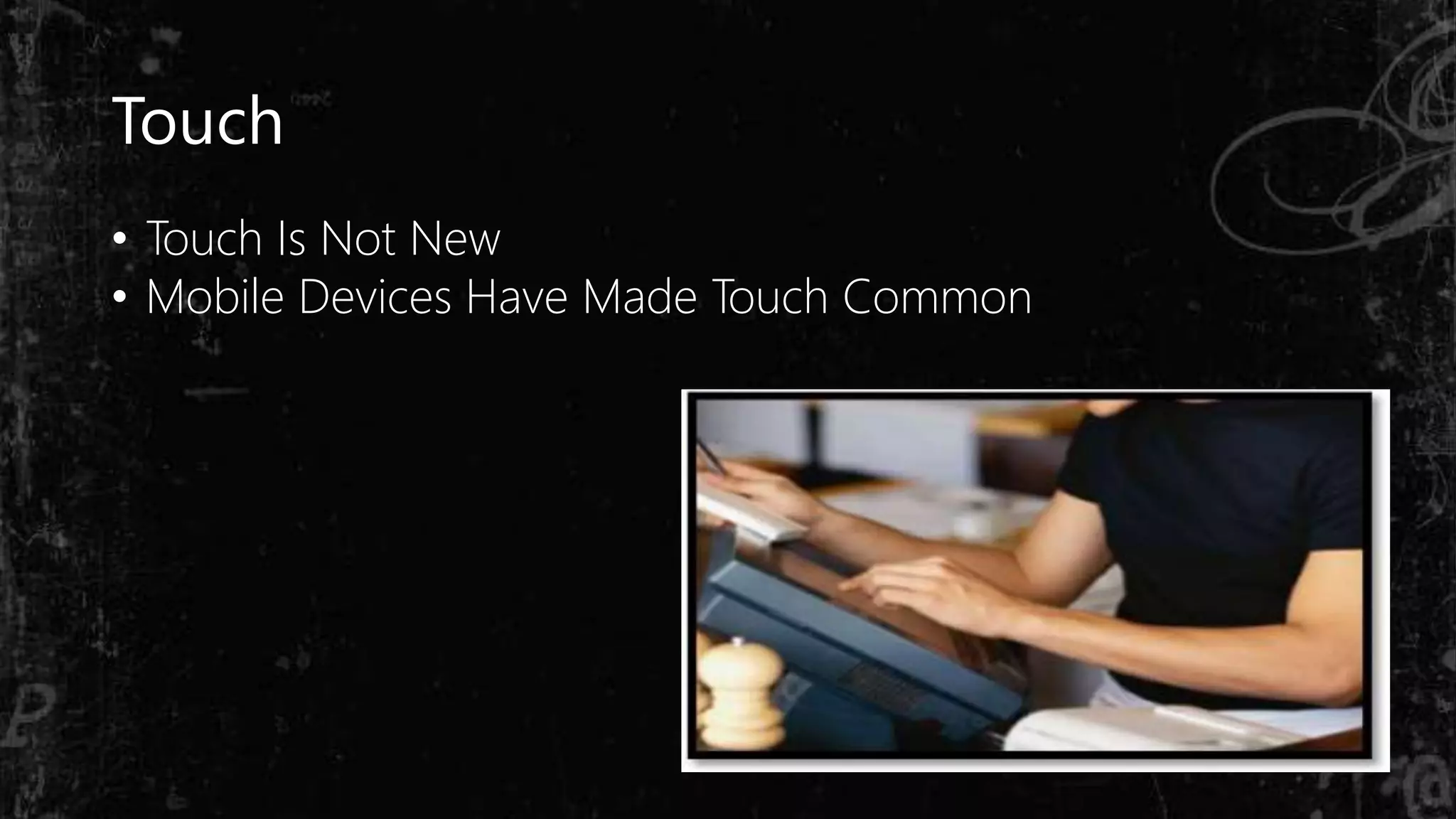

5. Touch
• Touch Is Not New
• Mobile Devices Have Made Touch Common

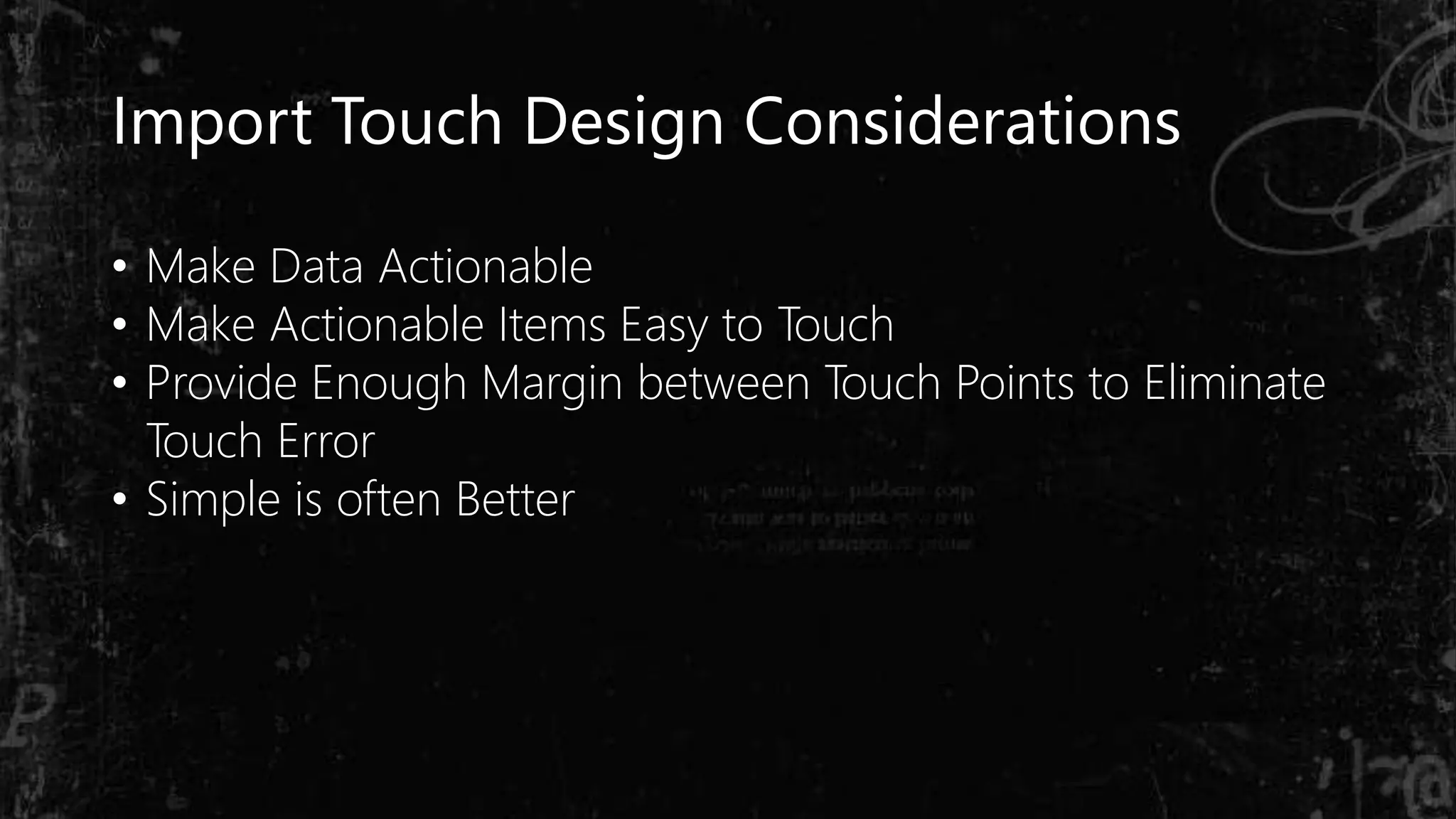

6. Import Touch Design Considerations
• Make Data Actionable
• Make Actionable Items Easy to Touch
• Provide Enough Margin between Touch Points to Eliminate
Touch Error
• Simple is often Better

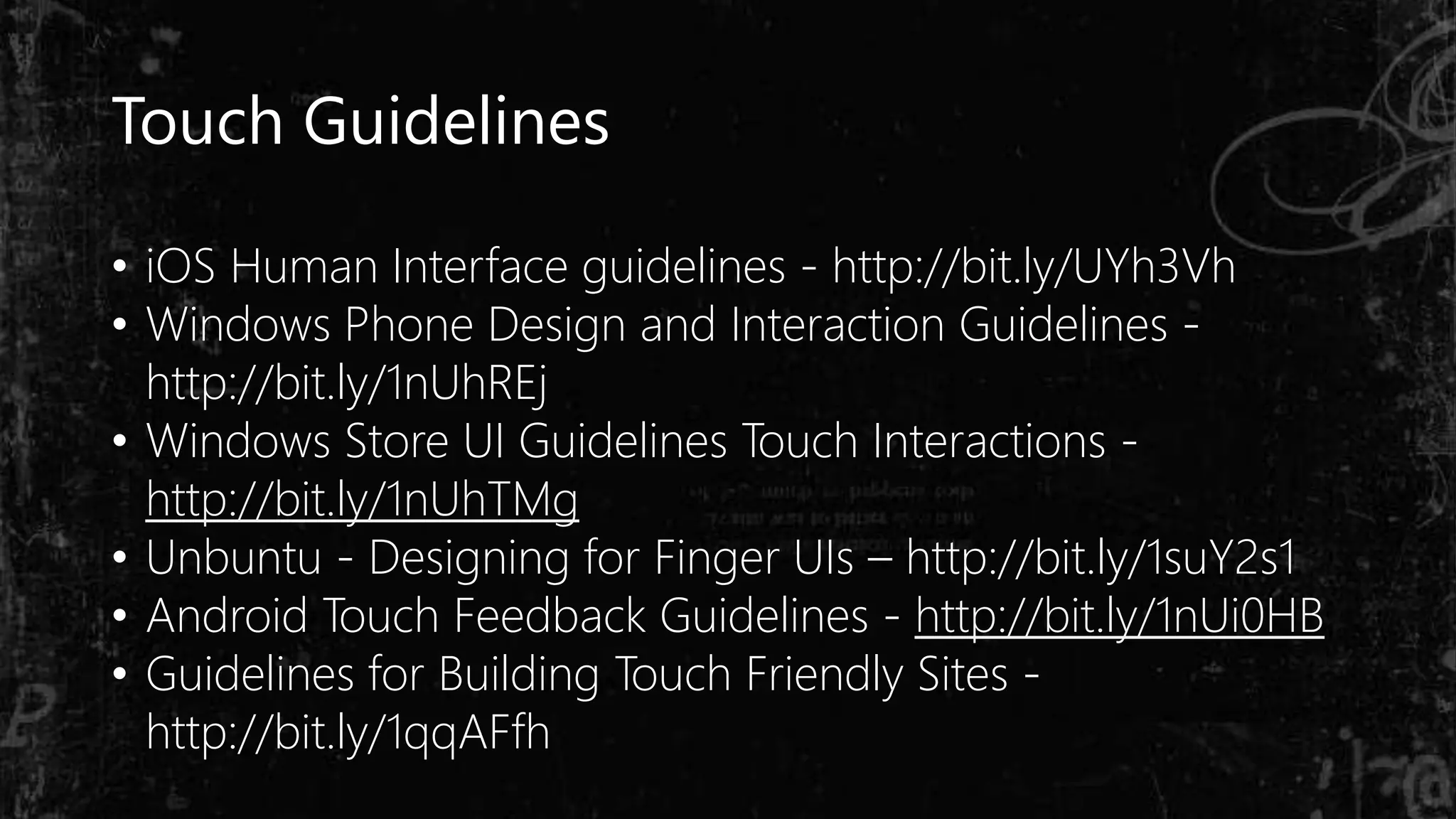

7. Touch Guidelines
• iOS Human Interface guidelines - http://bit.ly/UYh3Vh
• Windows Phone Design and Interaction Guidelines -
http://bit.ly/1nUhREj
• Windows Store UI Guidelines Touch Interactions -
http://bit.ly/1nUhTMg
• Unbuntu - Designing for Finger UIs – http://bit.ly/1suY2s1
• Android Touch Feedback Guidelines - http://bit.ly/1nUi0HB
• Guidelines for Building Touch Friendly Sites -
http://bit.ly/1qqAFfh

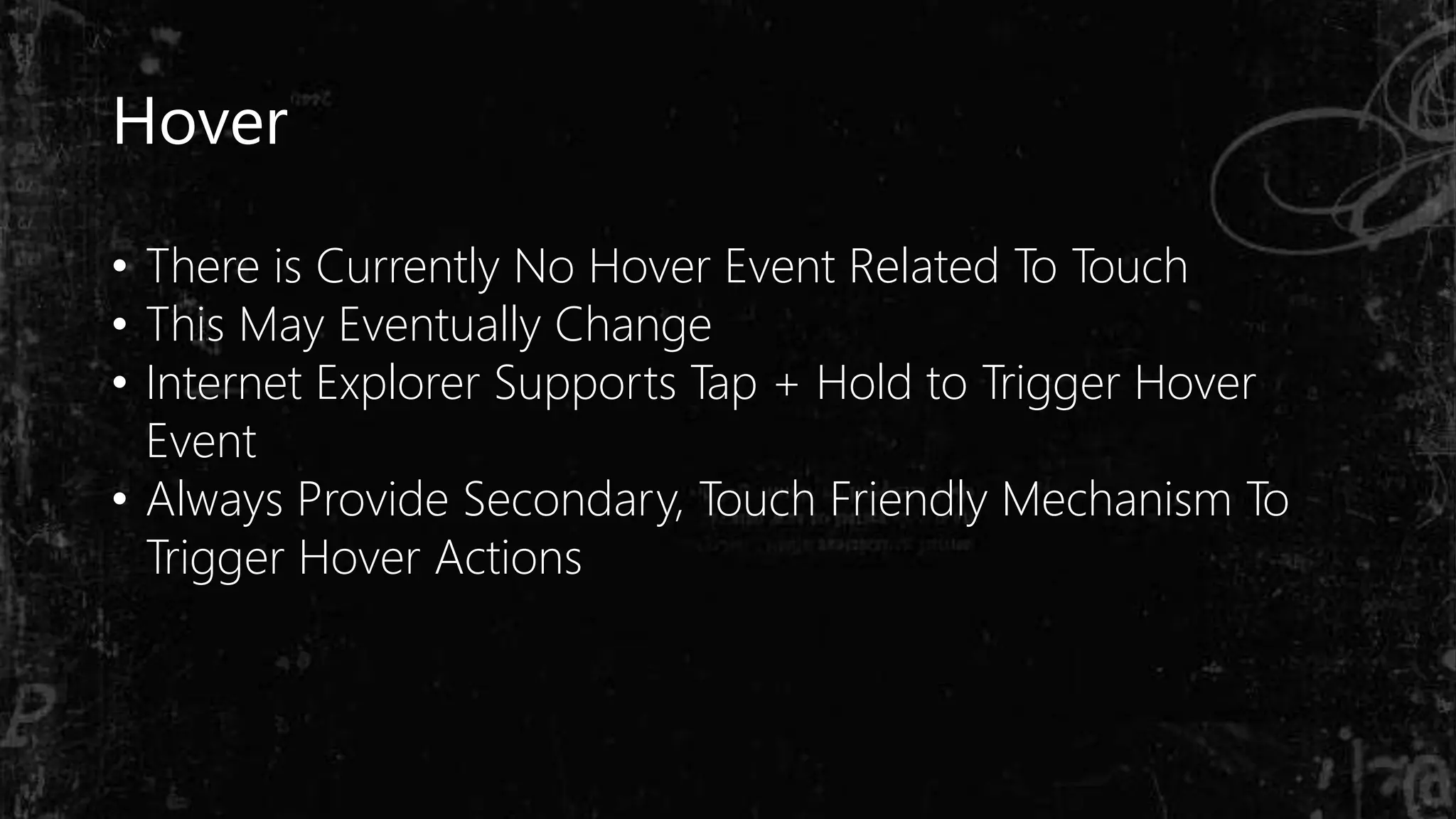

8. Hover
• There is Currently No Hover Event Related To Touch
• This May Eventually Change
• Internet Explorer Supports Tap + Hold to Trigger Hover
Event
• Always Provide Secondary, Touch Friendly Mechanism To
Trigger Hover Actions

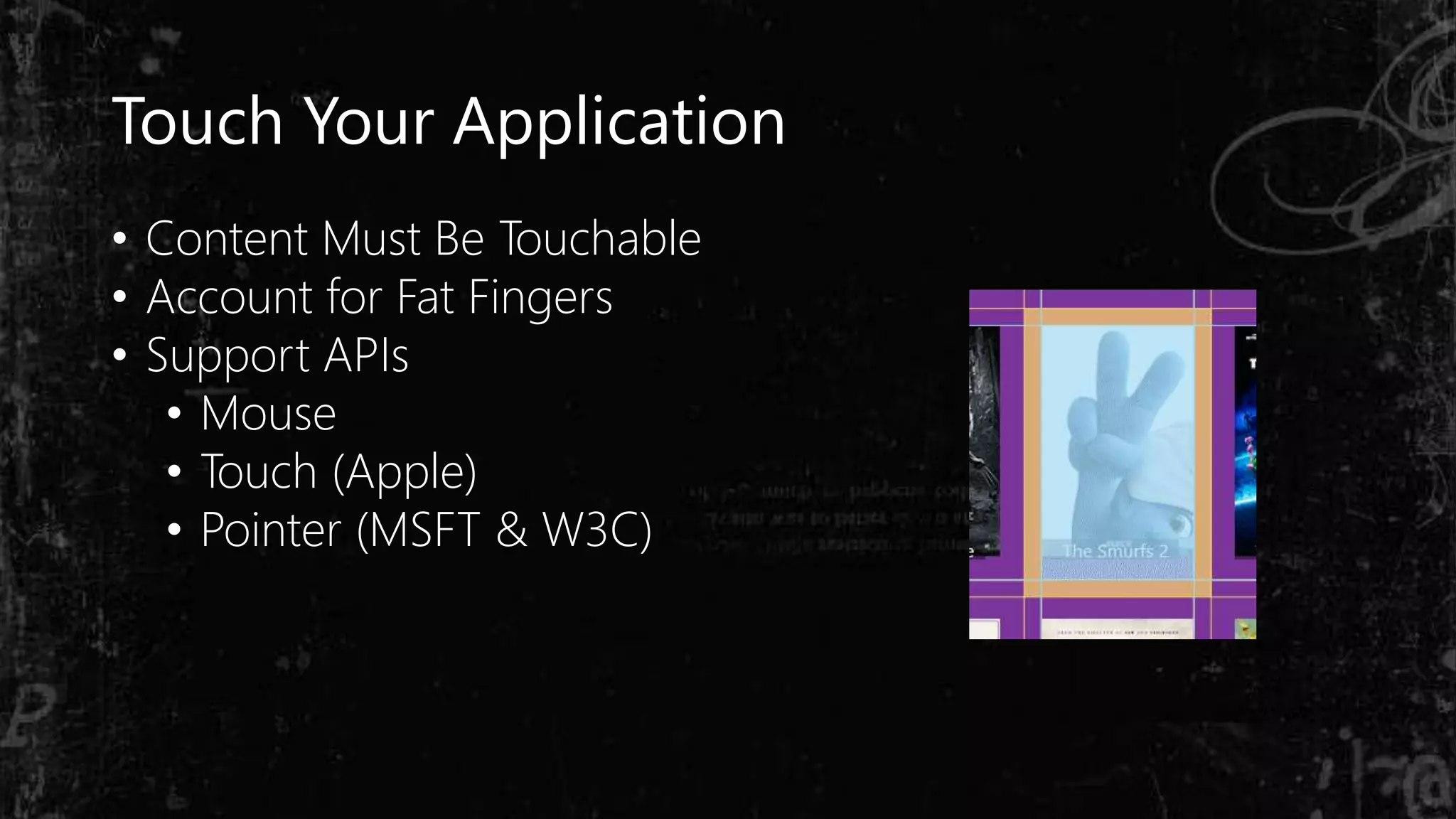

9. Touch Your Application
• Content Must Be Touchable
• Account for Fat Fingers
• Support APIs
• Mouse
• Touch (Apple)
• Pointer (MSFT & W3C)

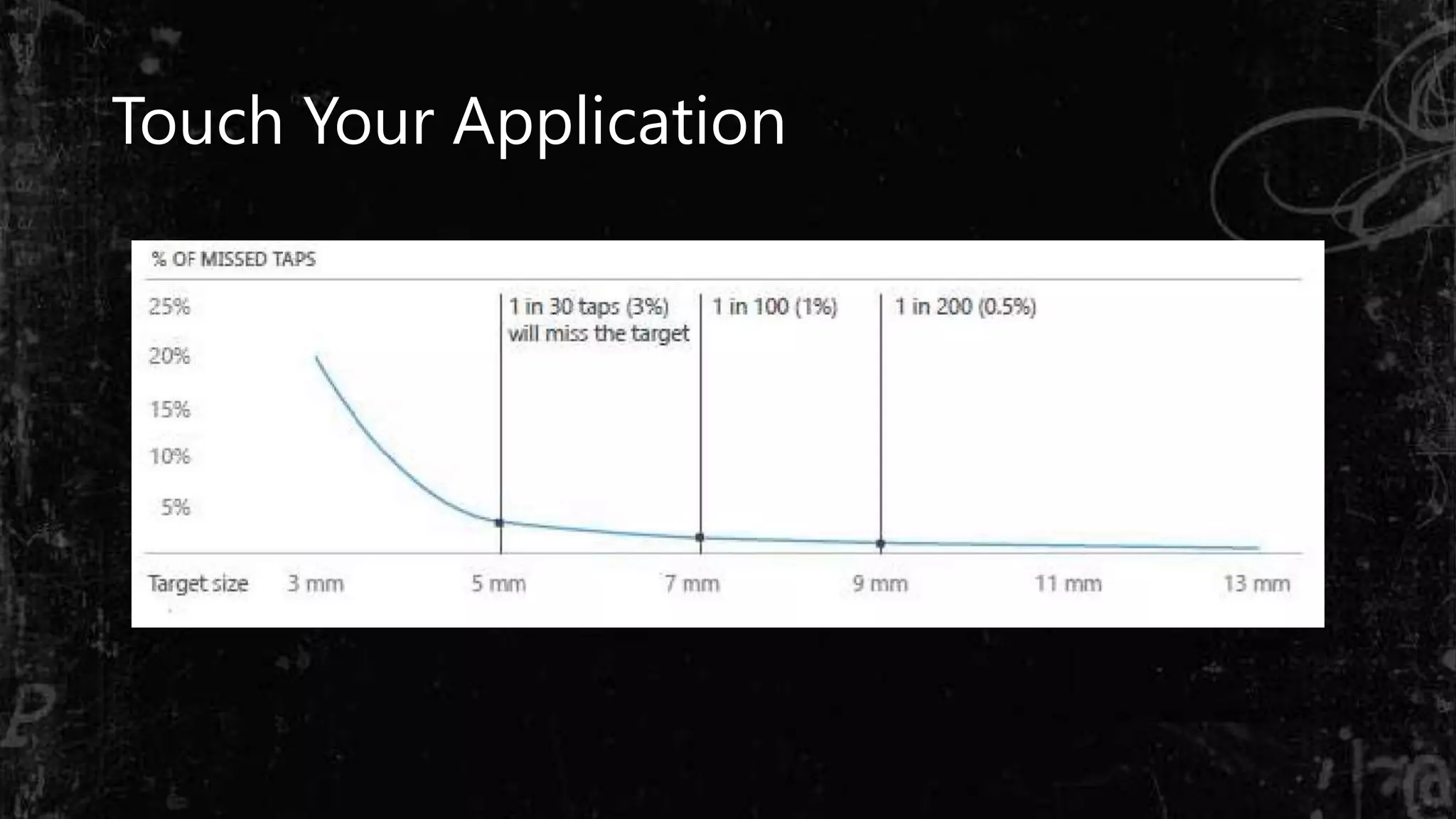

10. Touch Your Application

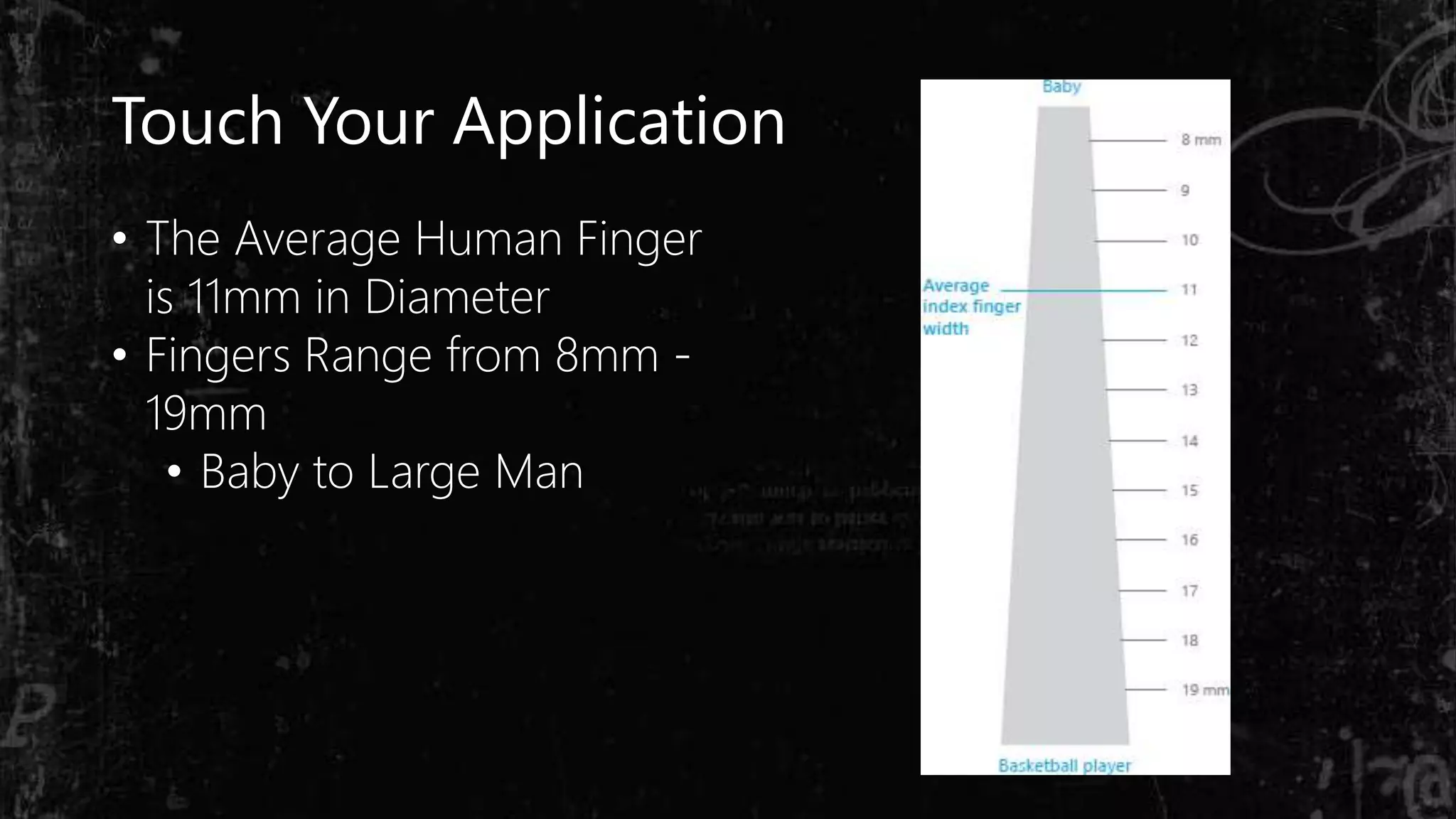

11. Touch Your Application
• The Average Human Finger
is 11mm in Diameter
• Fingers Range from 8mm -
19mm
• Baby to Large Man

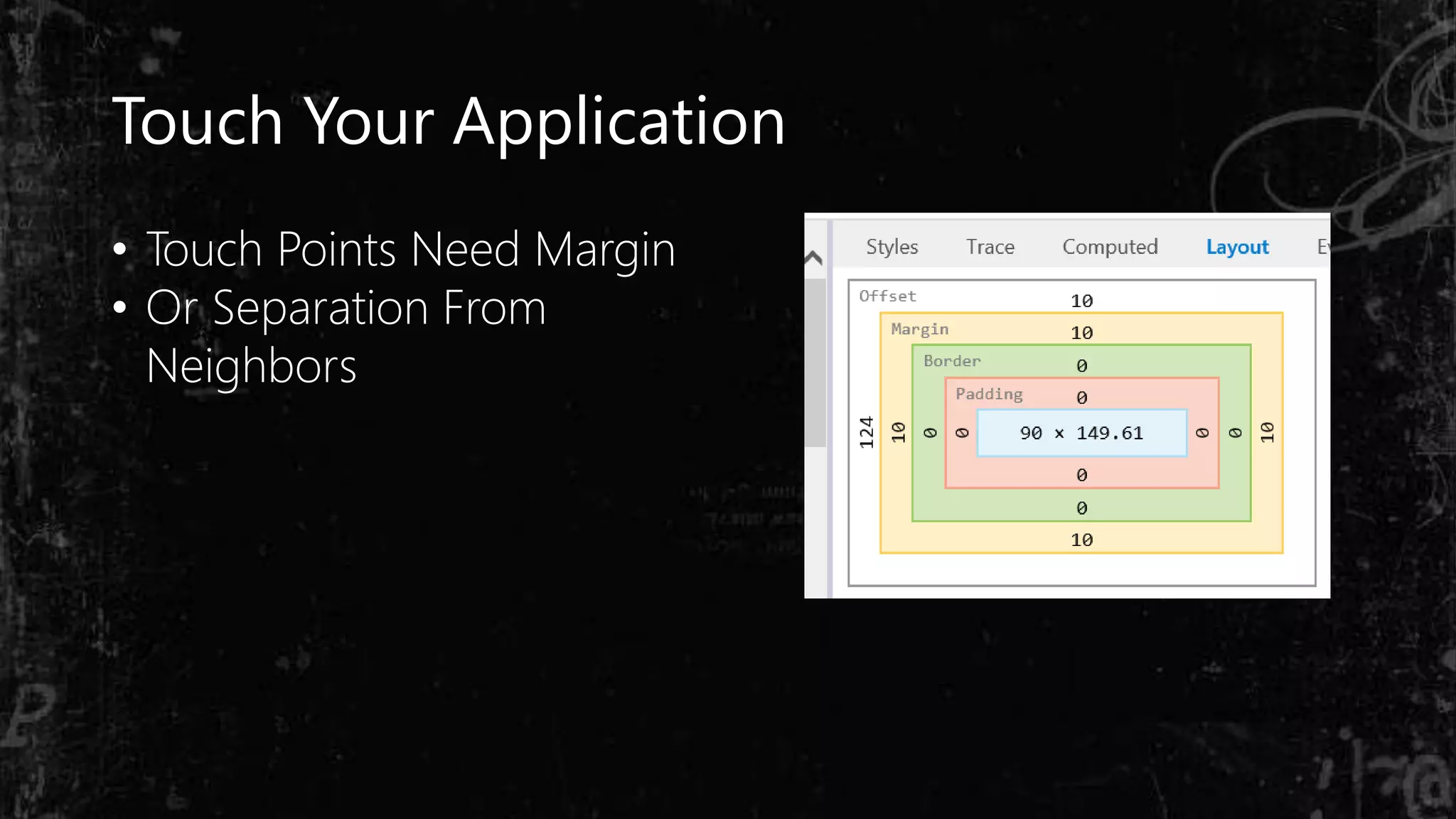

12. Touch Your Application
• Touch Points Need Margin
• Or Separation From
Neighbors

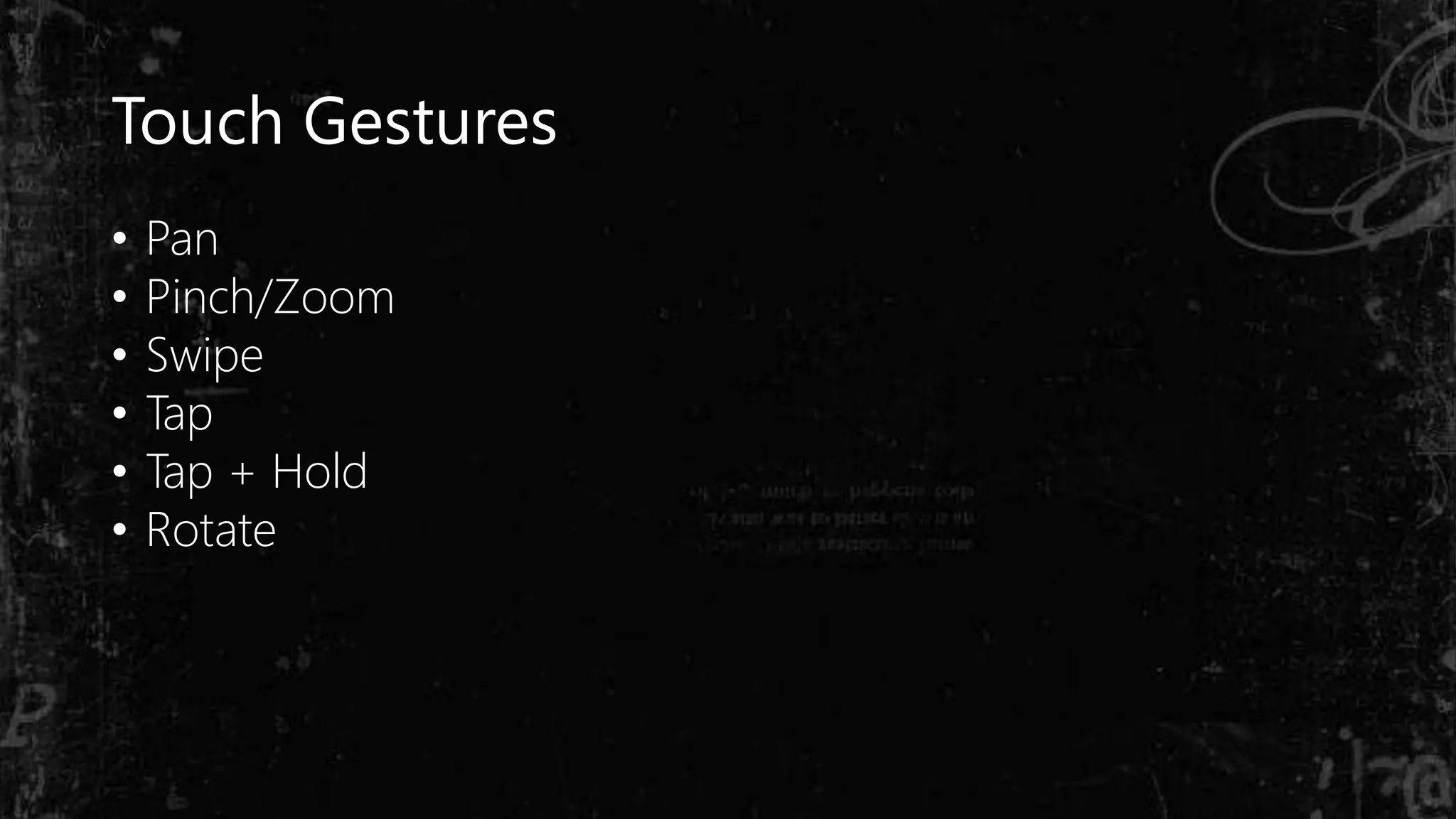

13. Touch Gestures
• Pan
• Pinch/Zoom
• Swipe
• Tap
• Tap + Hold
• Rotate

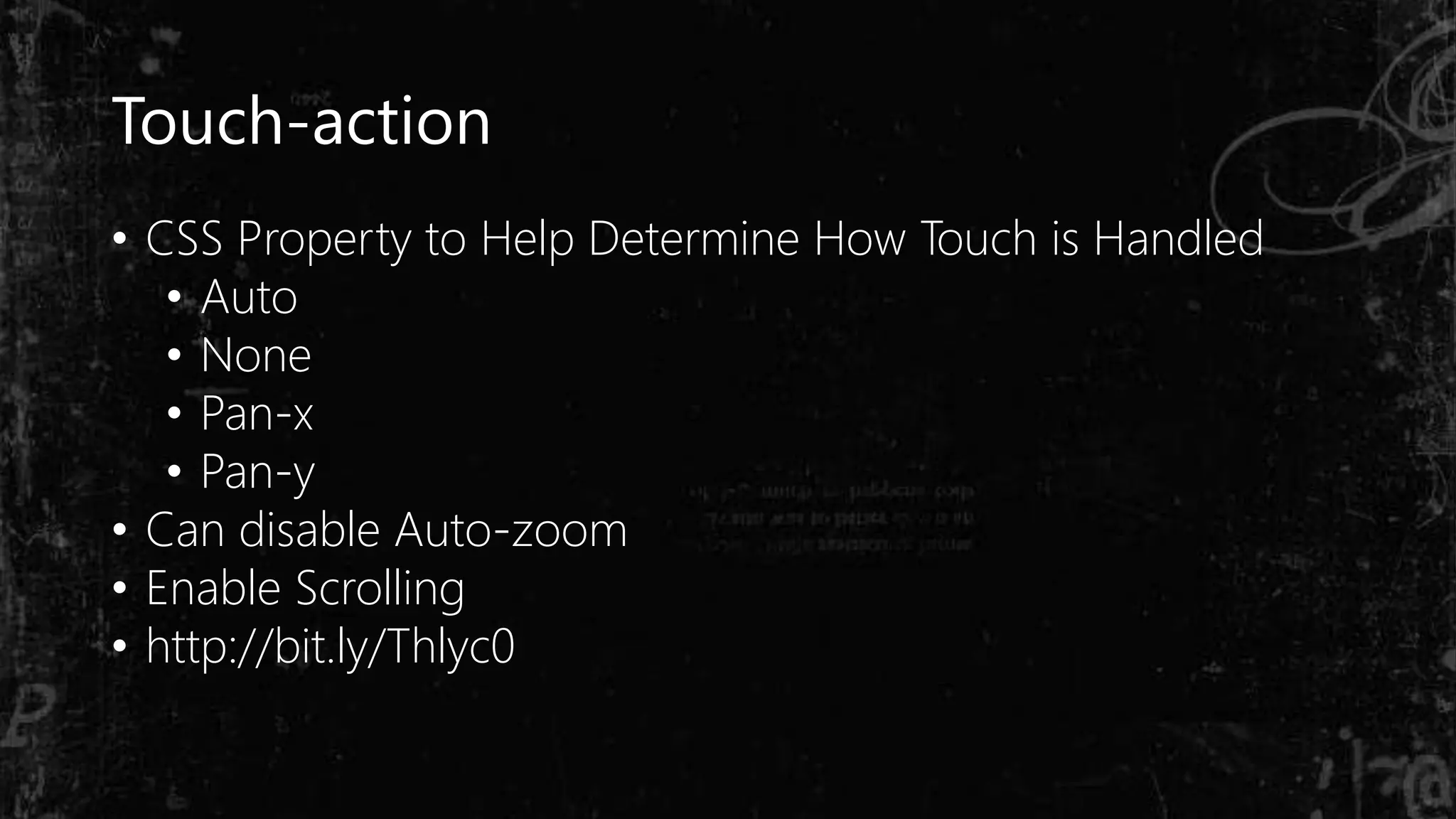

14. Touch-action
• CSS Property to Help Determine How Touch is Handled
• Auto
• None
• Pan-x
• Pan-y
• Can disable Auto-zoom
• Enable Scrolling
• http://bit.ly/Thlyc0

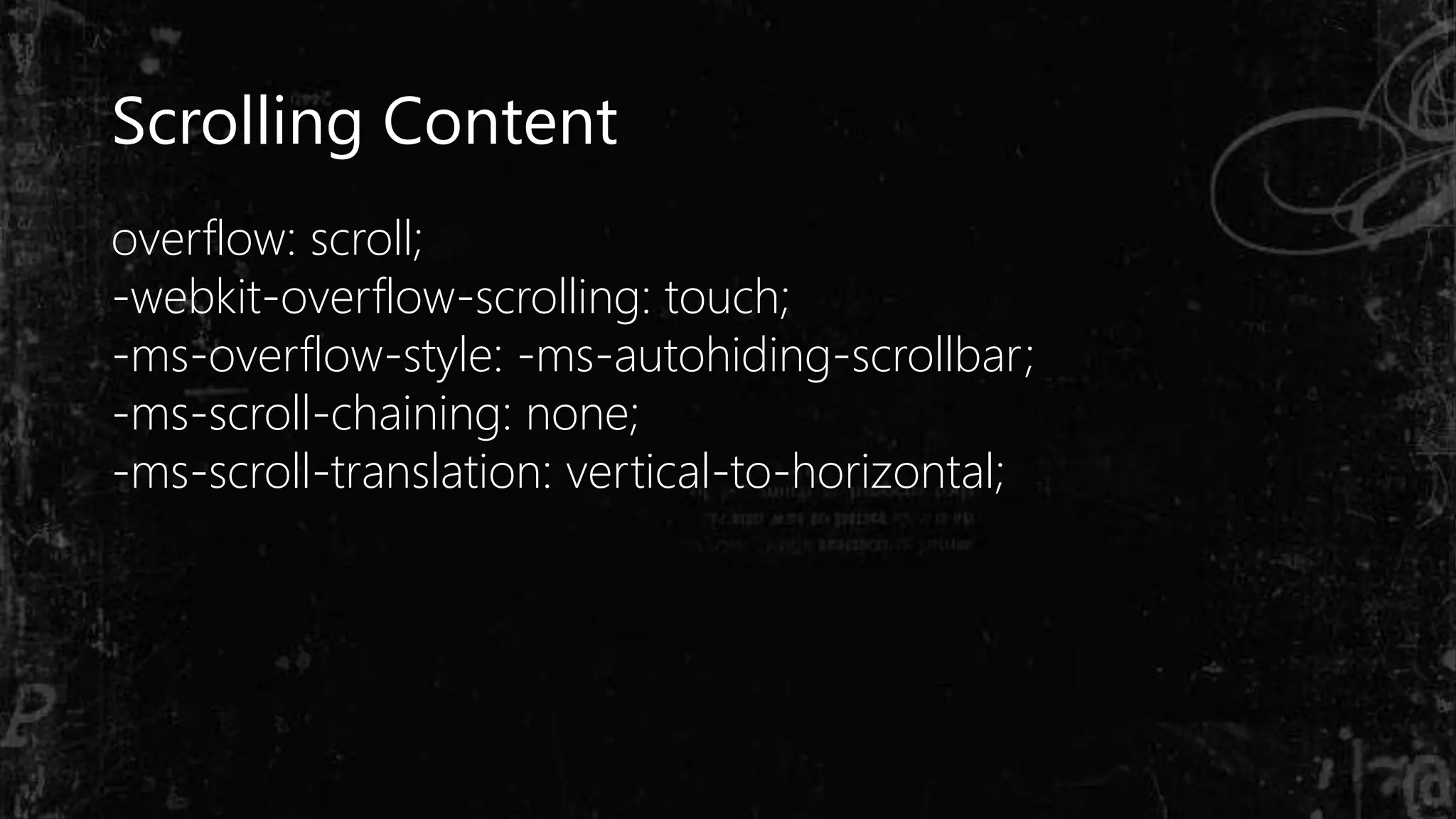

15. Scrolling Content
overflow: scroll;
-webkit-overflow-scrolling: touch;
-ms-overflow-style: -ms-autohiding-scrollbar;
-ms-scroll-chaining: none;
-ms-scroll-translation: vertical-to-horizontal;

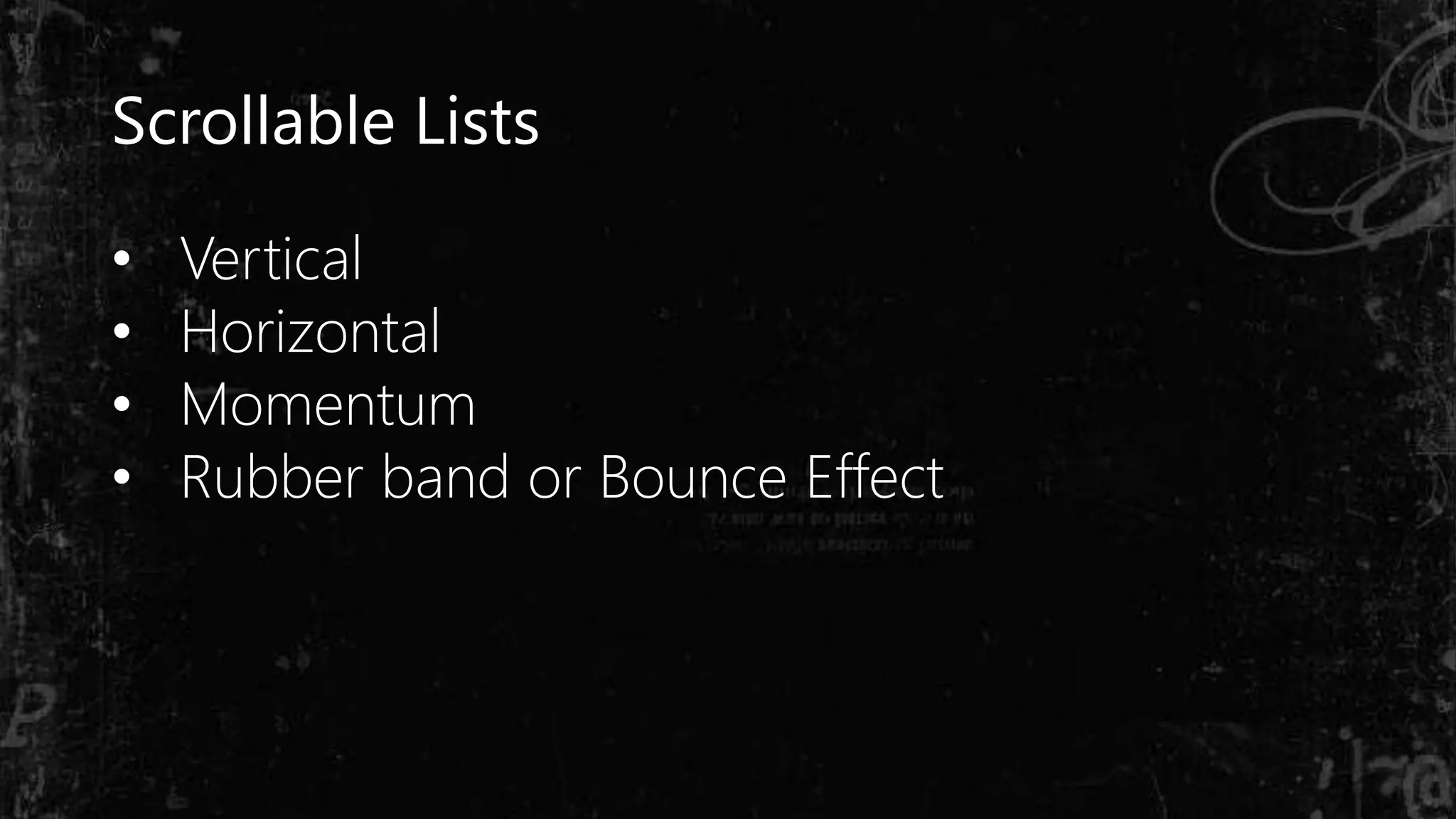

16. Scrollable Lists
• Vertical
• Horizontal
• Momentum
• Rubber band or Bounce Effect

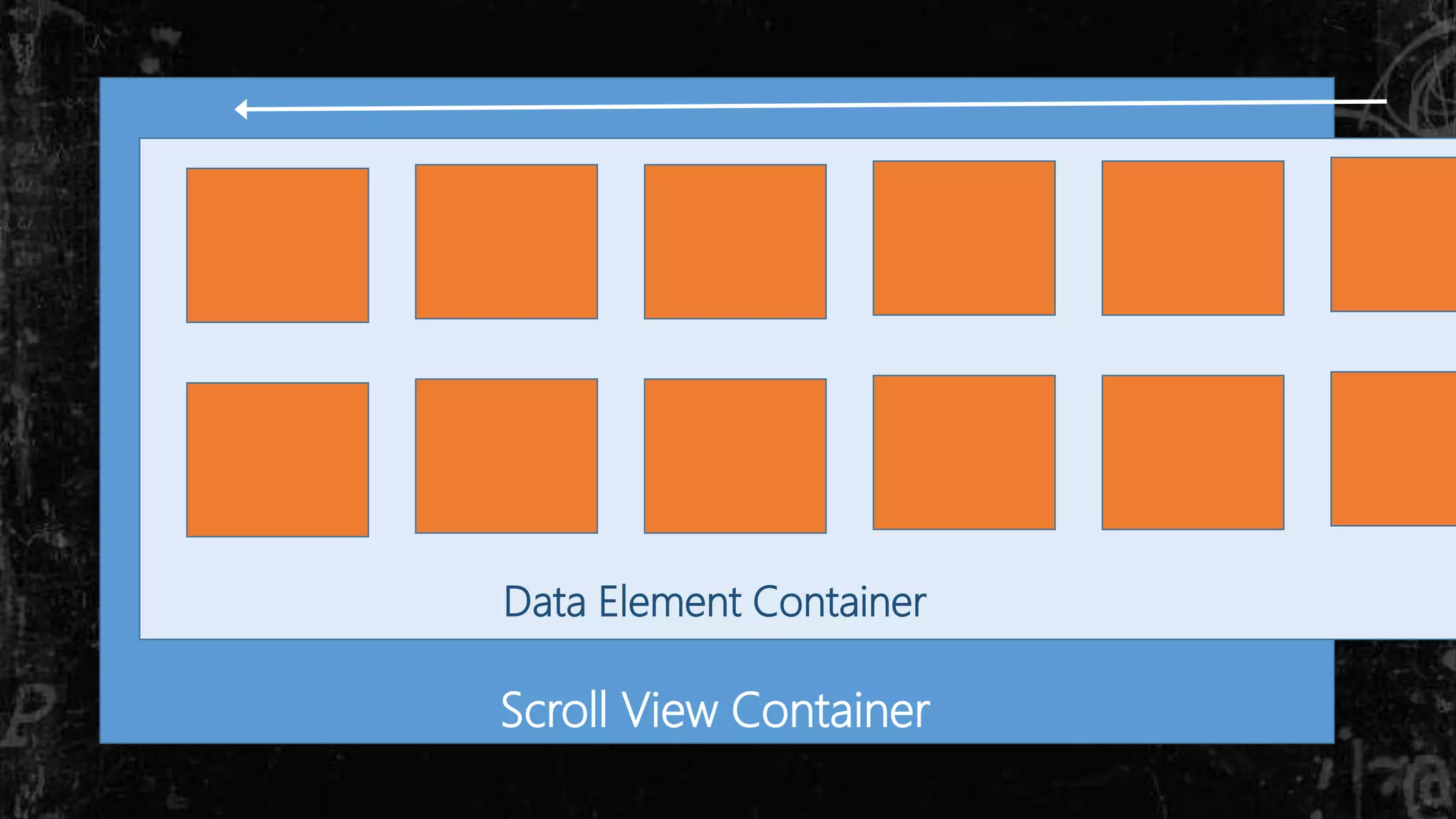

17. Scroll View Container
Data Element Container

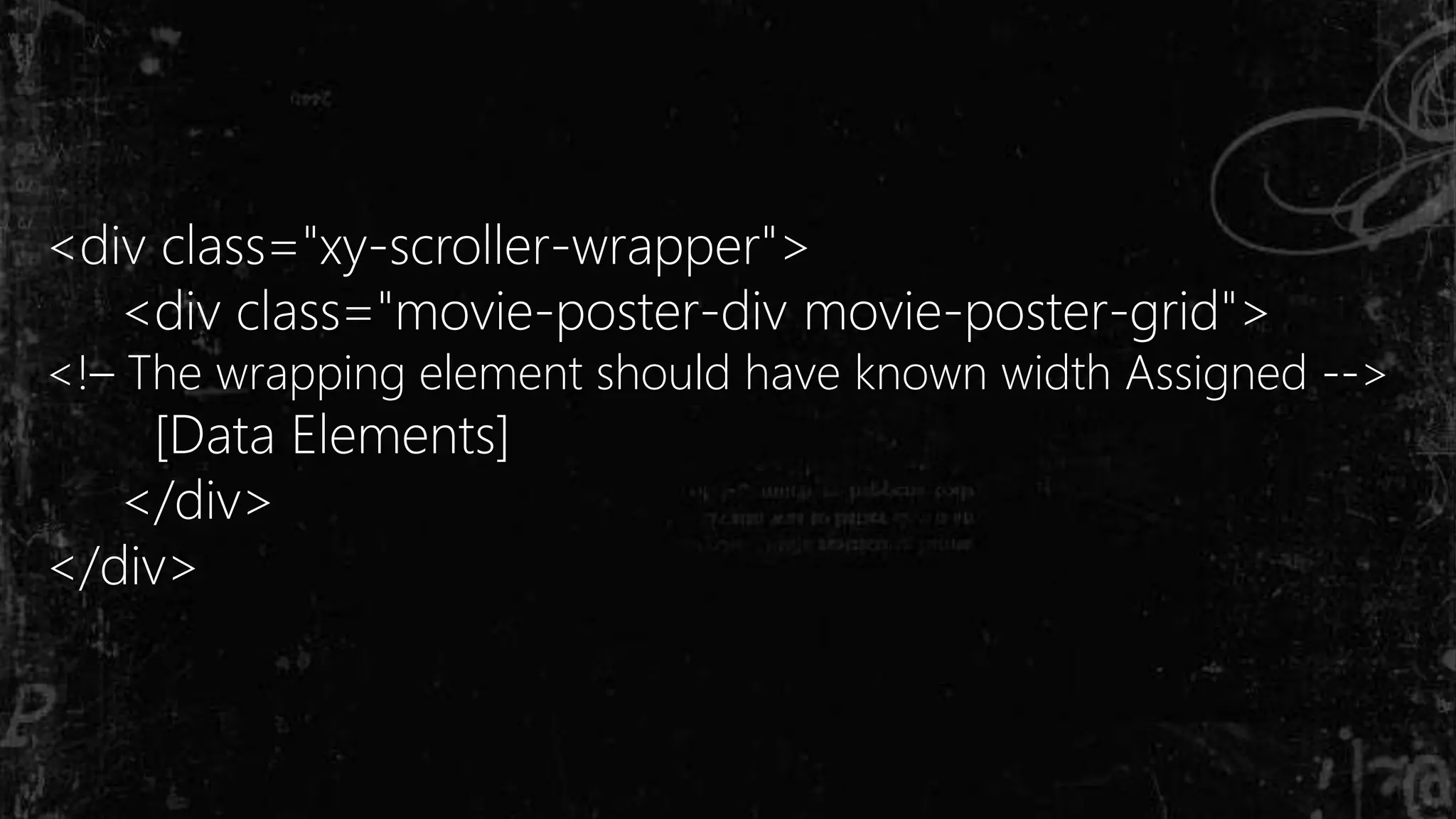

18. <div class="xy-scroller-wrapper">
<div class="movie-poster-div movie-poster-grid">
<!– The wrapping element should have known width Assigned -->
[Data Elements]
</div>
</div>

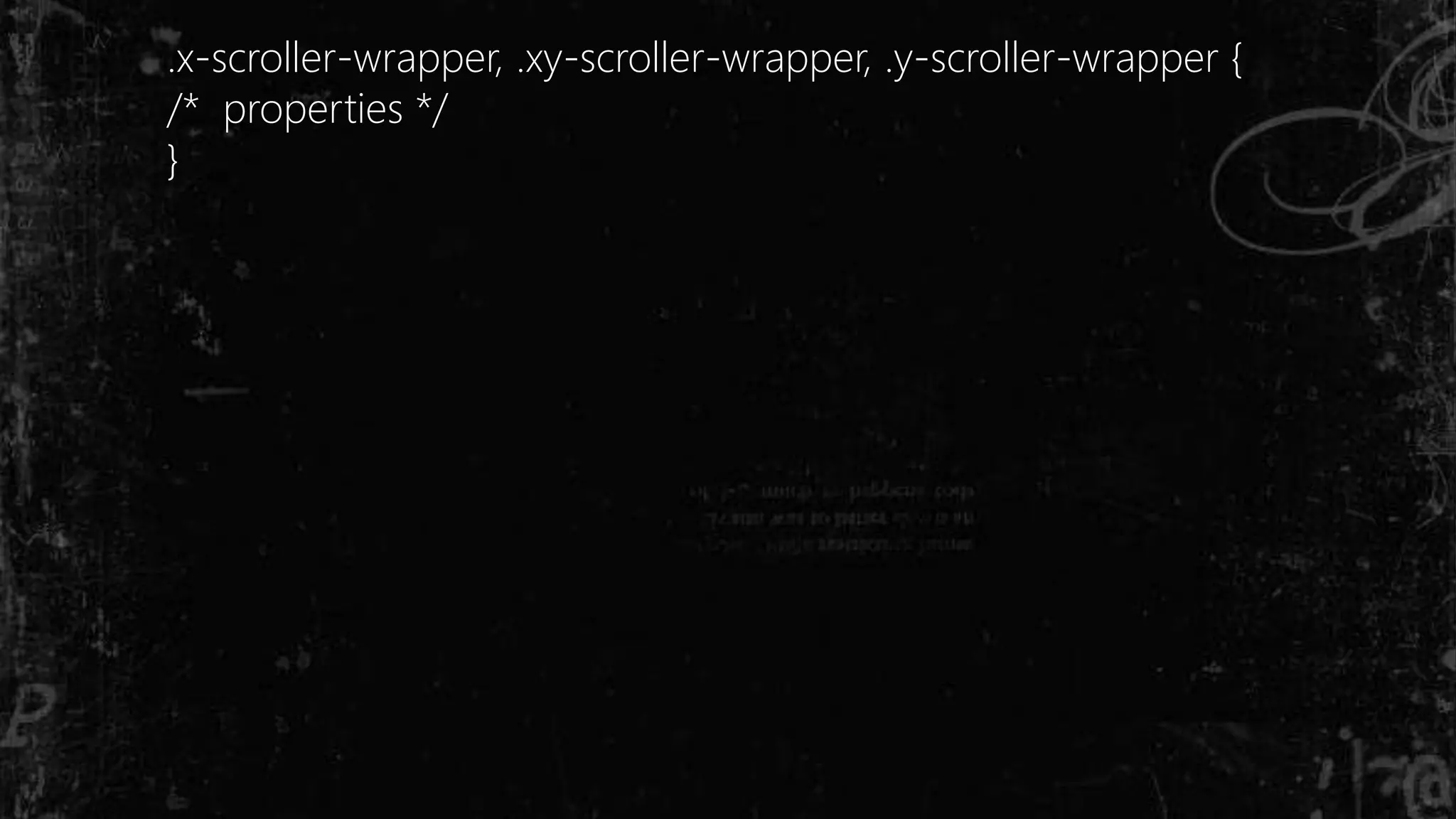

19. .x-scroller-wrapper, .xy-scroller-wrapper, .y-scroller-wrapper {
/* properties */
}

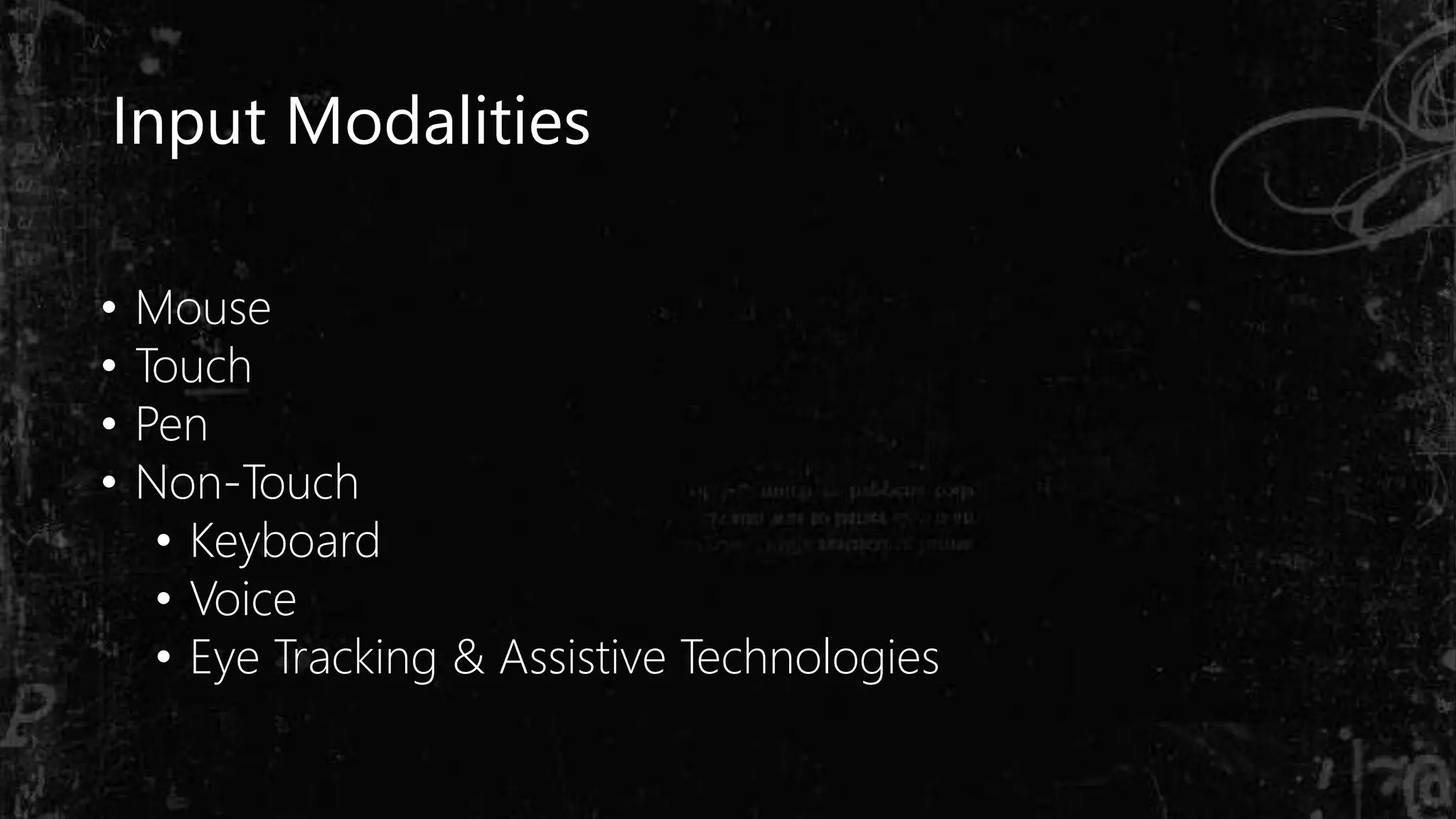

20. Input Modalities
• Mouse
• Touch
• Pen
• Non-Touch
• Keyboard
• Voice
• Eye Tracking & Assistive Technologies

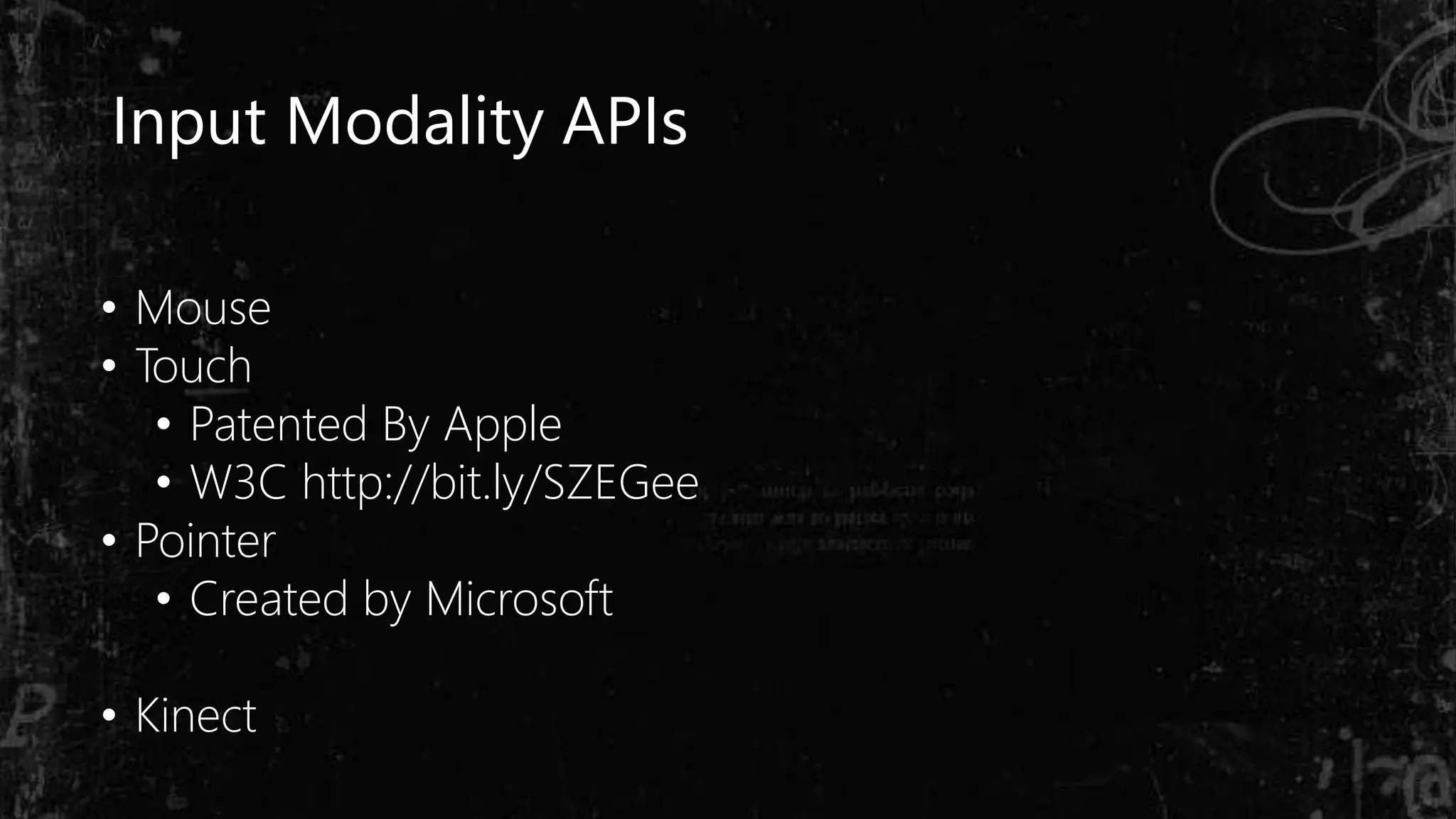

21. Input Modality APIs
• Mouse
• Touch
• Patented By Apple
• W3C http://bit.ly/SZEGee
• Pointer
• Created by Microsoft
• Kinect

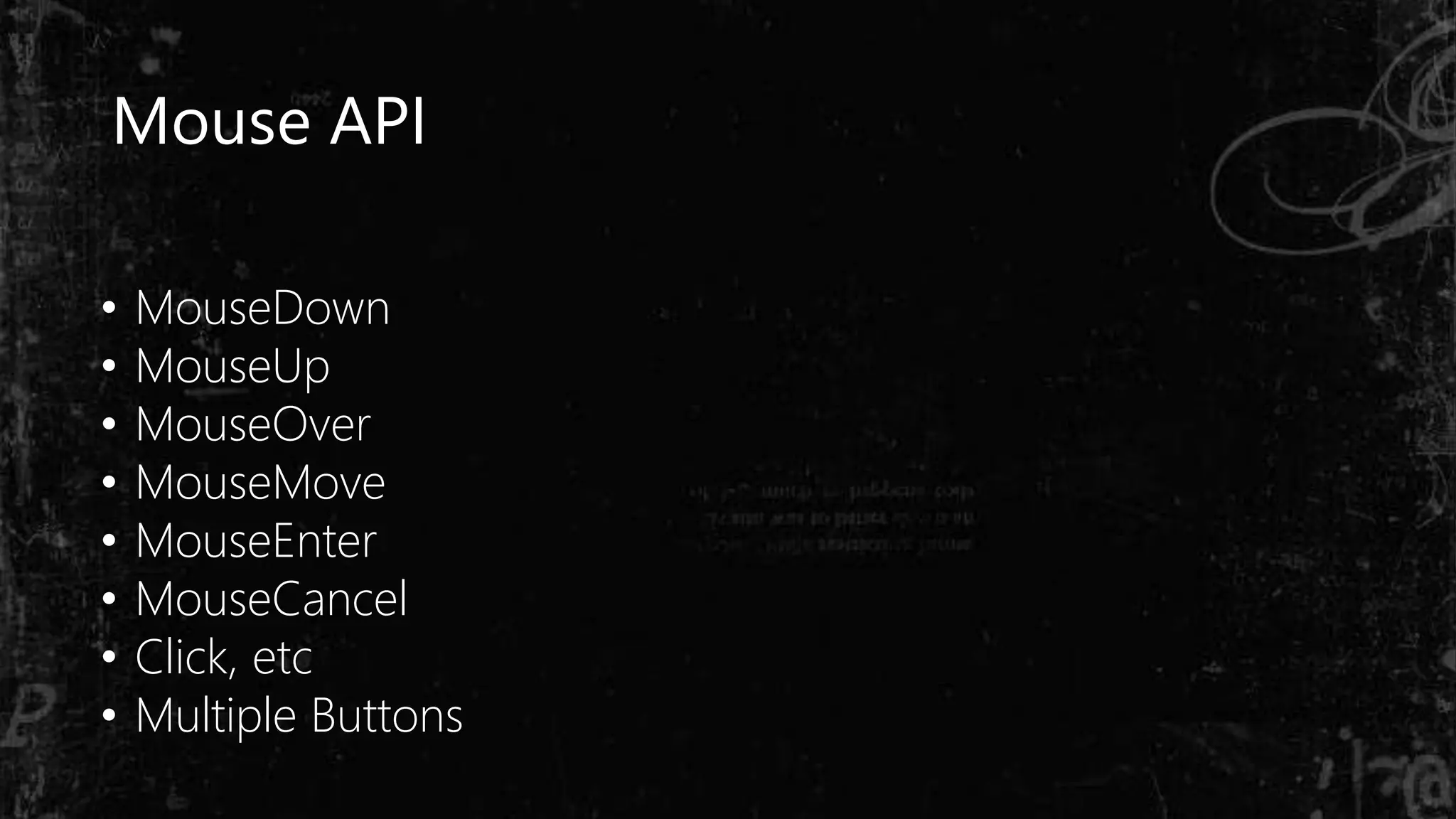

22. Mouse API
• MouseDown
• MouseUp
• MouseOver
• MouseMove
• MouseEnter
• MouseCancel
• Click, etc
• Multiple Buttons

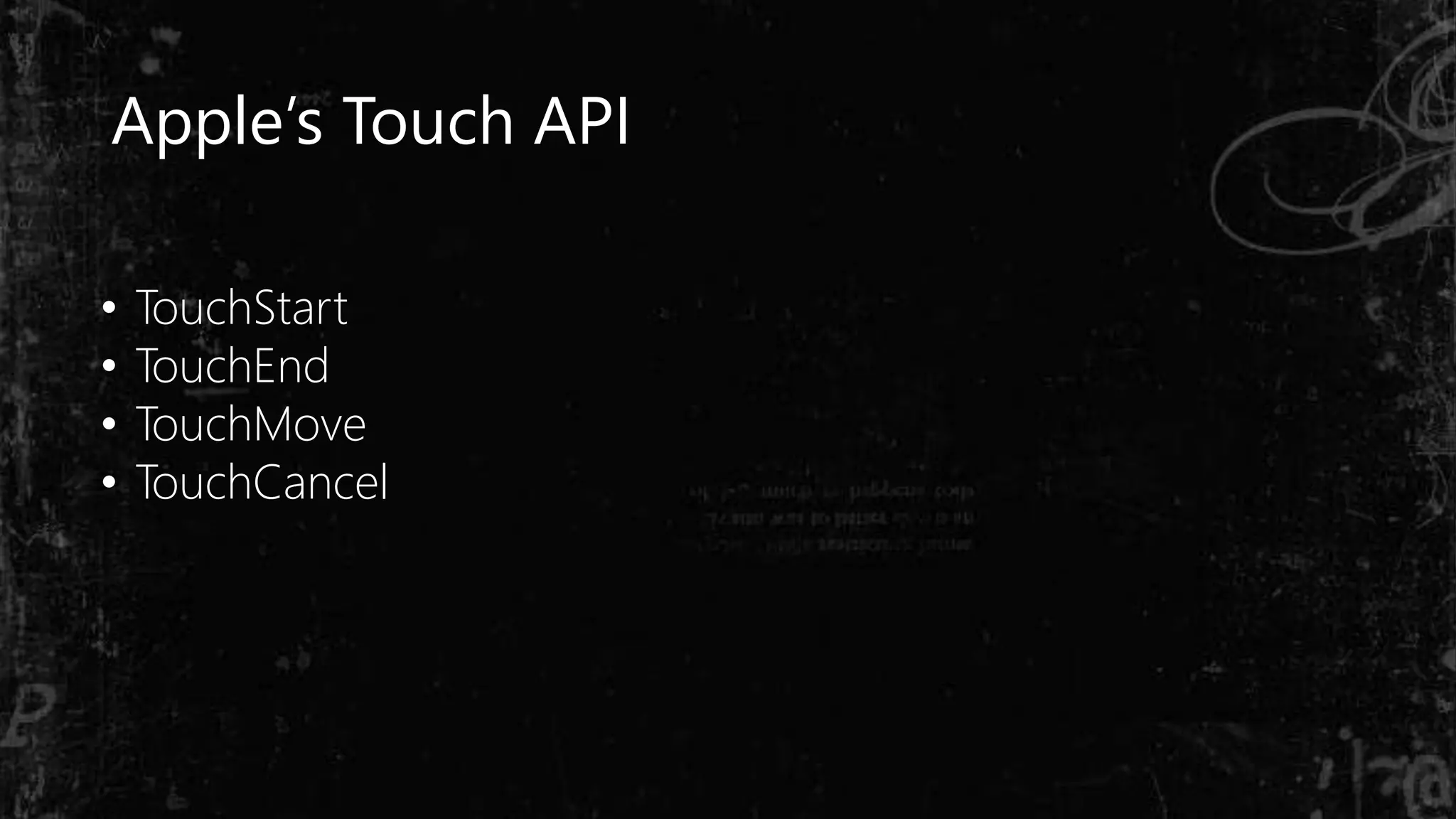

23. Apple’s Touch API
• TouchStart
• TouchEnd
• TouchMove
• TouchCancel

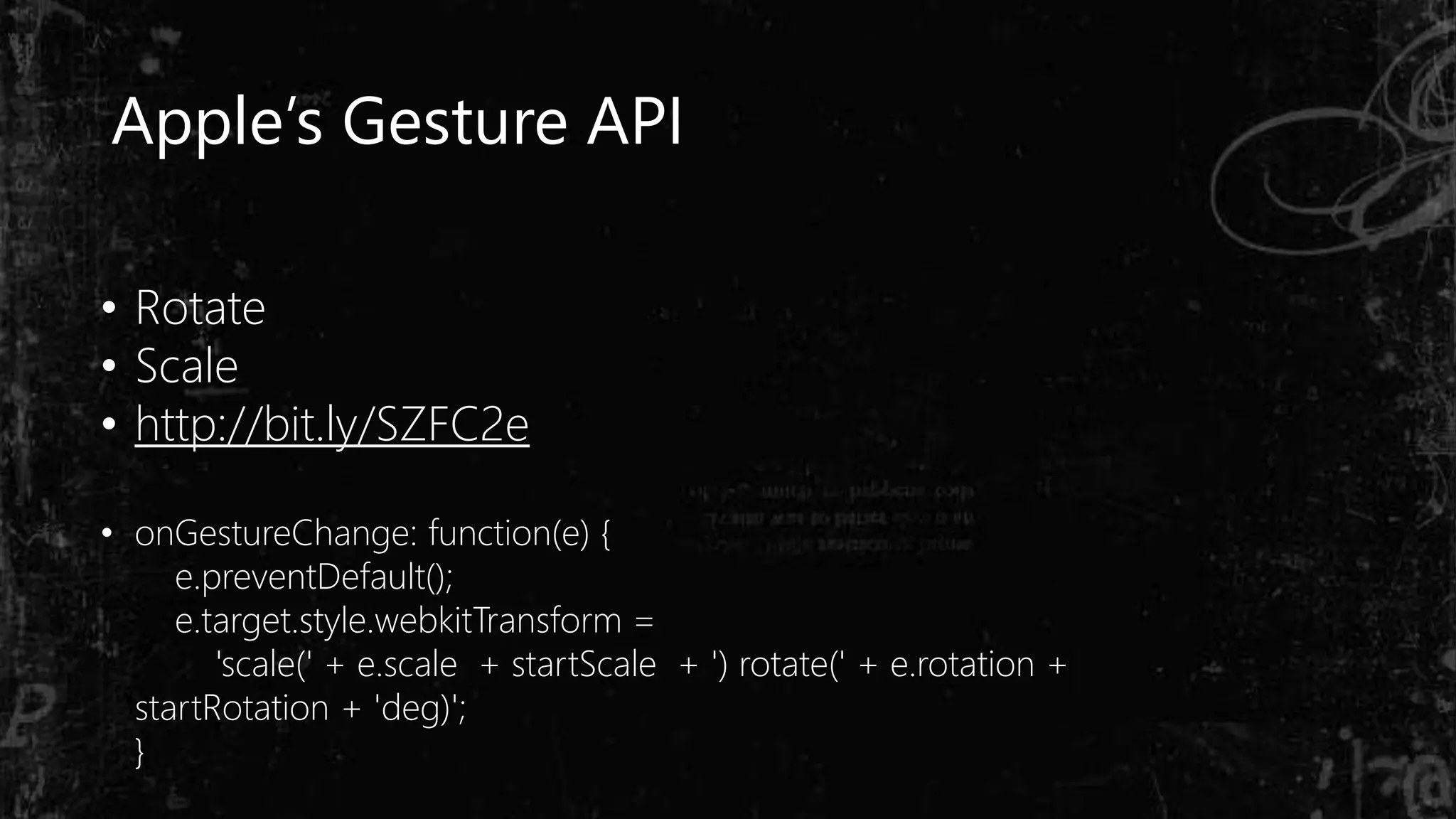

24. Apple’s Gesture API
• Rotate
• Scale
• http://bit.ly/SZFC2e
• onGestureChange: function(e) {
e.preventDefault();
e.target.style.webkitTransform =
'scale(' + e.scale + startScale + ') rotate(' + e.rotation +
startRotation + 'deg)';
}

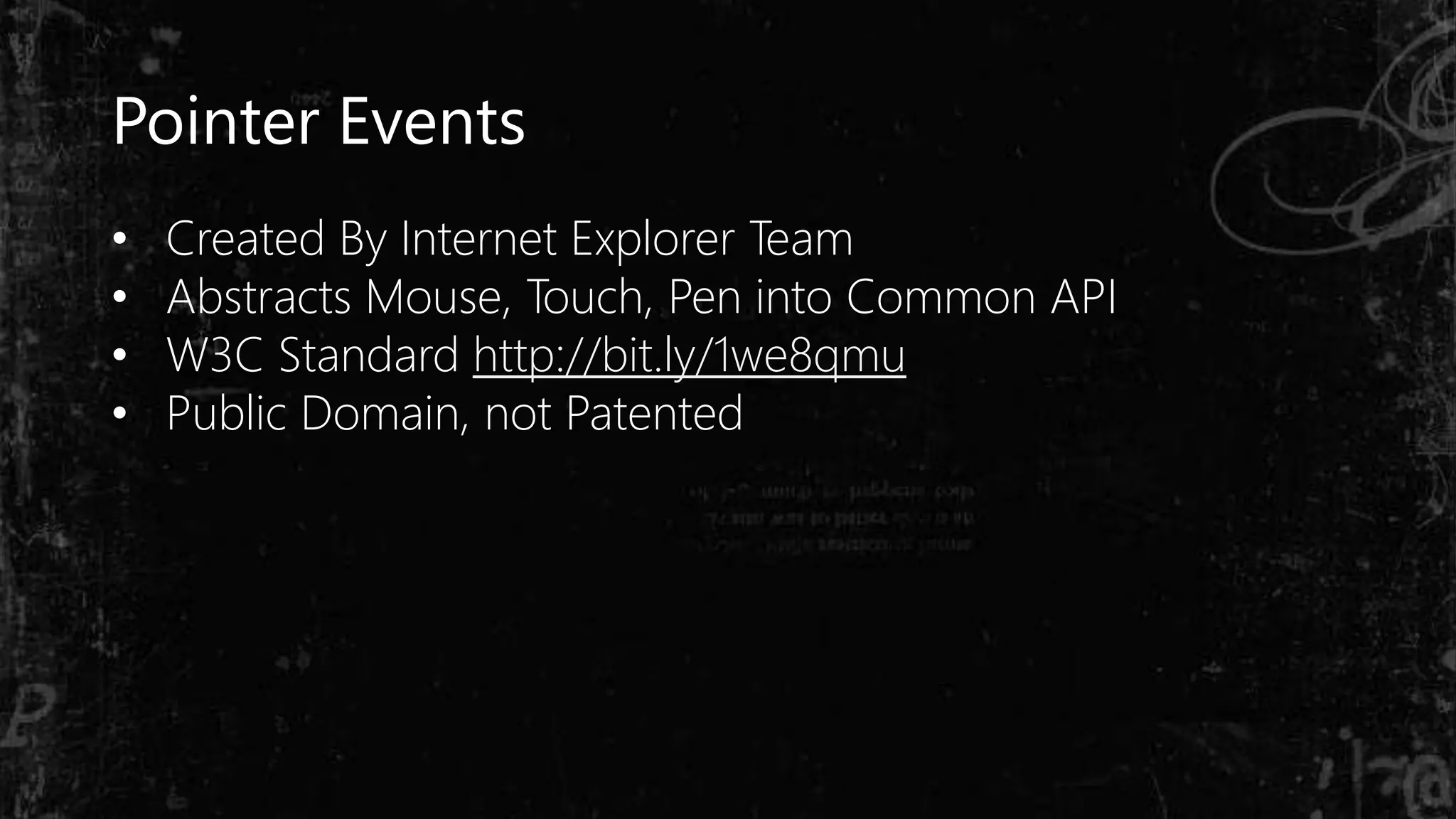

25. Pointer Events
• Created By Internet Explorer Team
• Abstracts Mouse, Touch, Pen into Common API
• W3C Standard http://bit.ly/1we8qmu
• Public Domain, not Patented

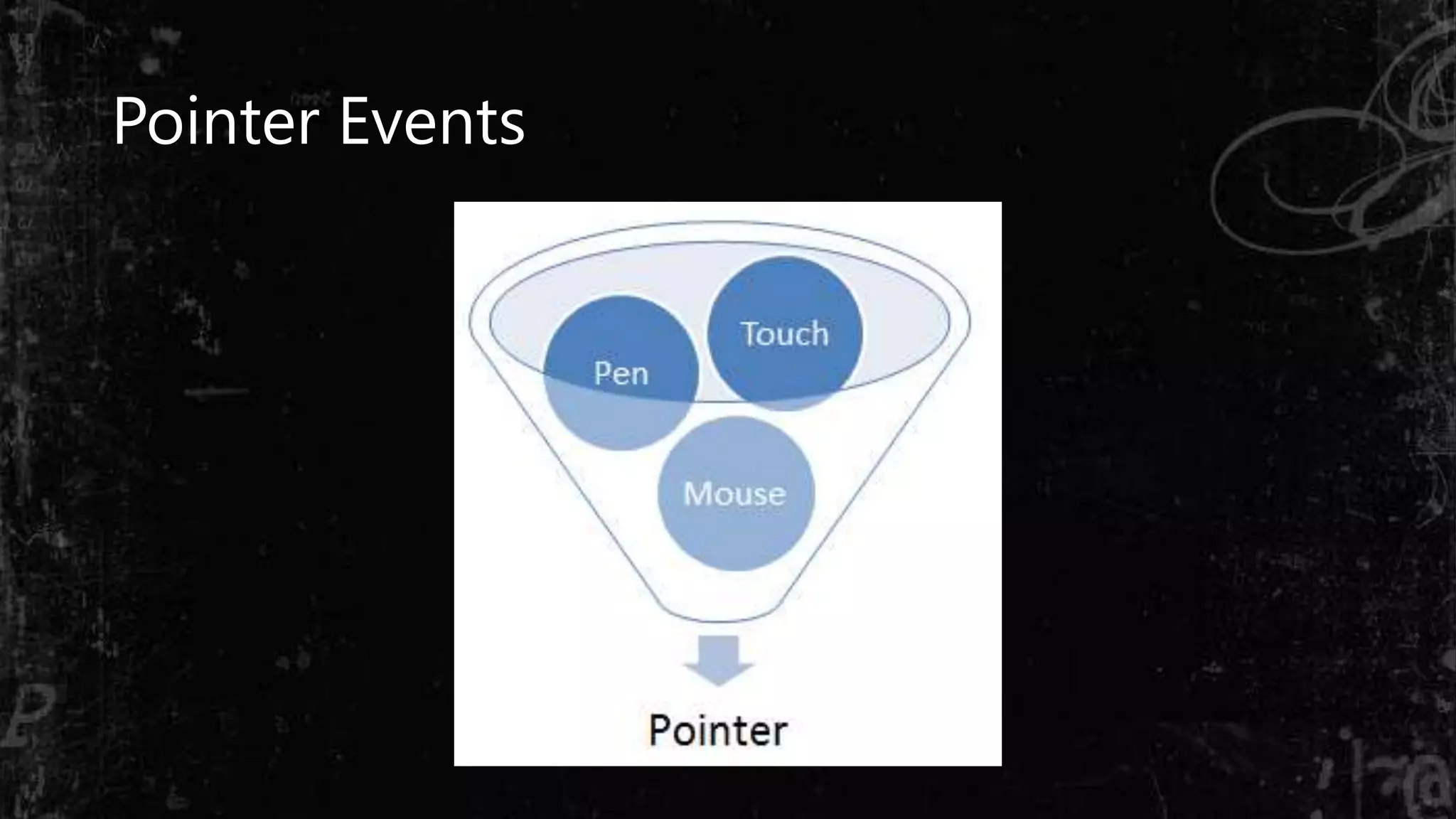

26. Pointer Events

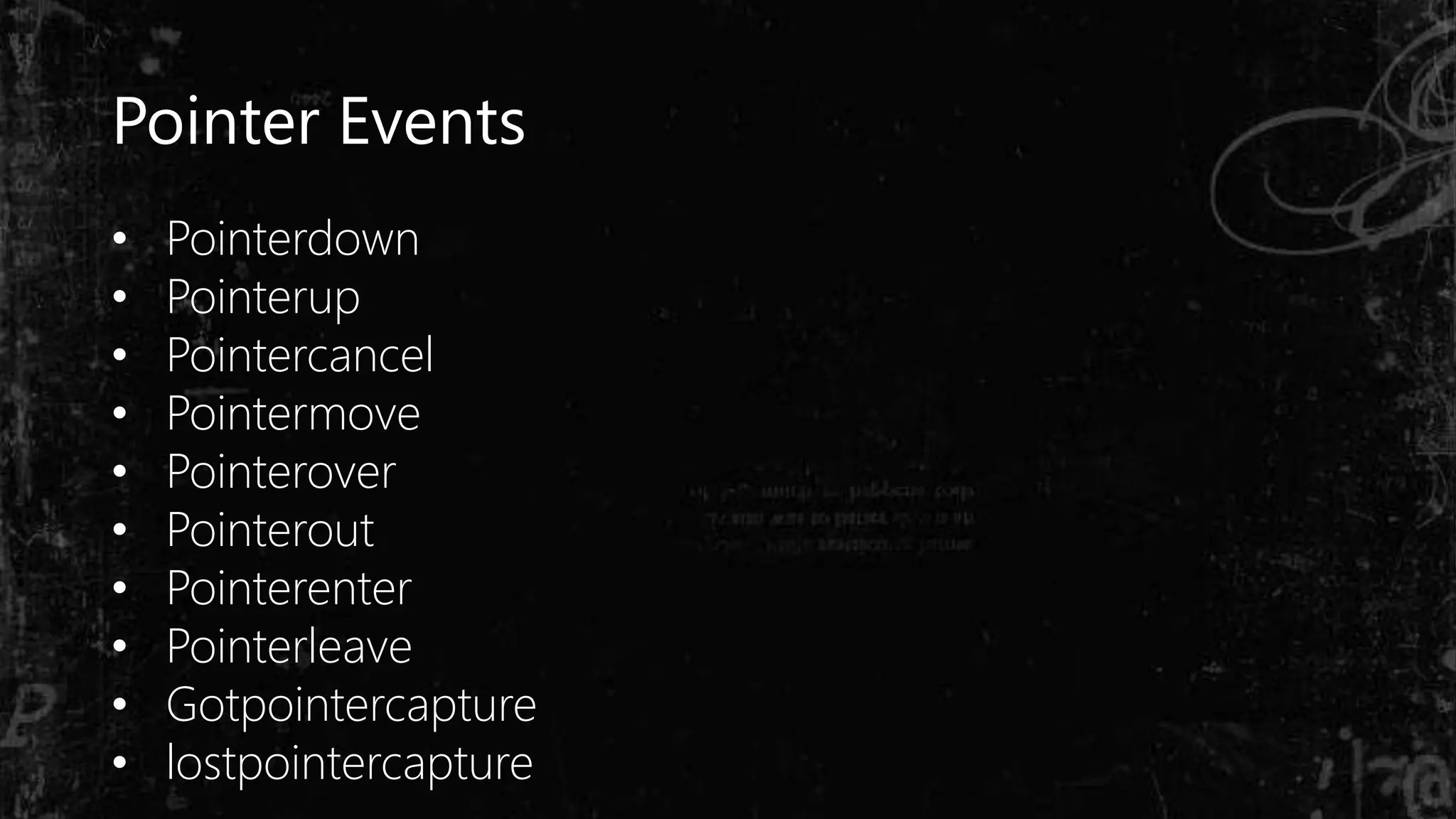

27. Pointer Events
• Pointerdown
• Pointerup
• Pointercancel
• Pointermove
• Pointerover
• Pointerout
• Pointerenter
• Pointerleave
• Gotpointercapture
• lostpointercapture

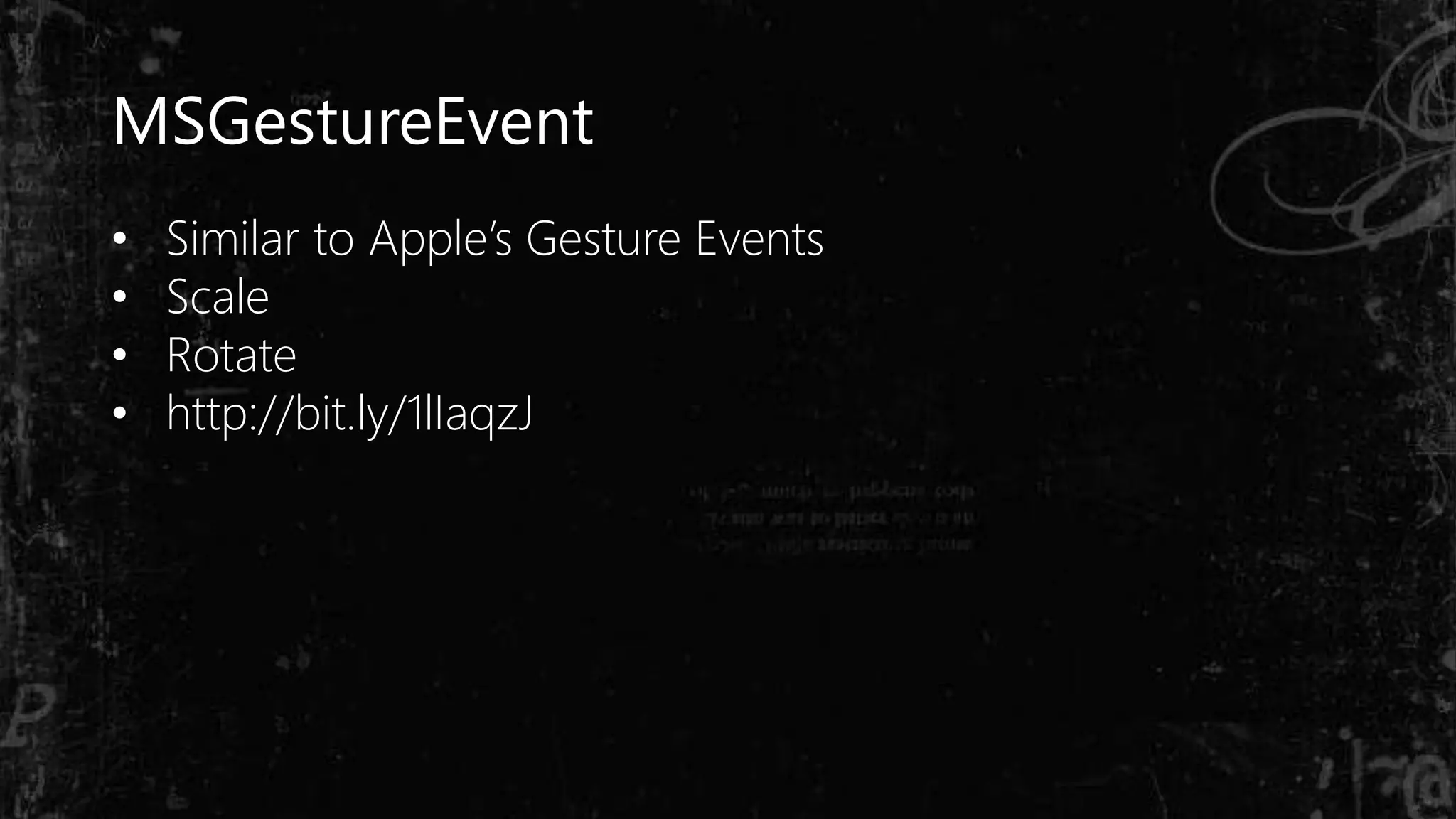

28. MSGestureEvent
• Similar to Apple’s Gesture Events
• Scale
• Rotate
• http://bit.ly/1lIaqzJ

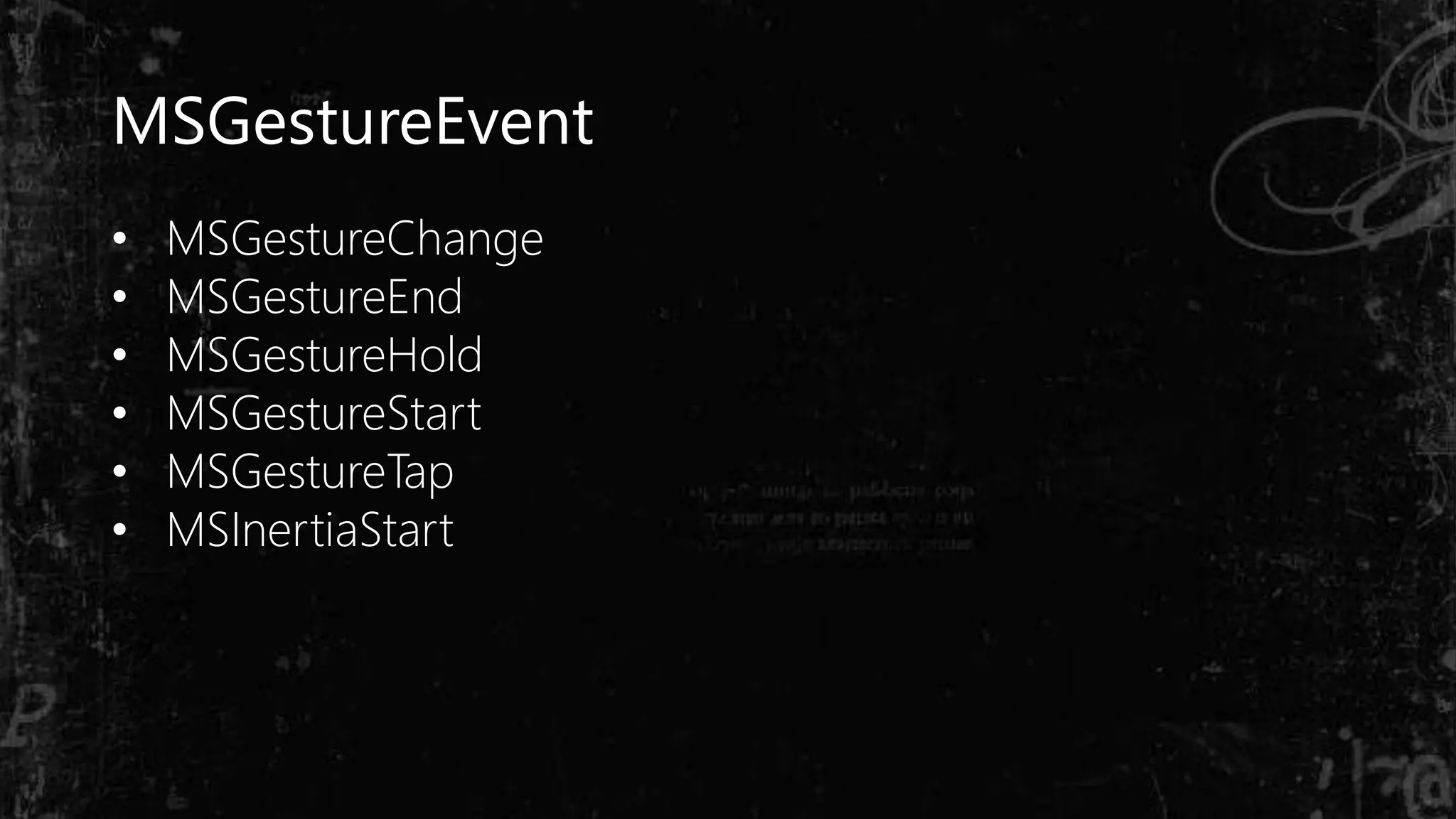

29. MSGestureEvent
• MSGestureChange
• MSGestureEnd
• MSGestureHold
• MSGestureStart
• MSGestureTap
• MSInertiaStart

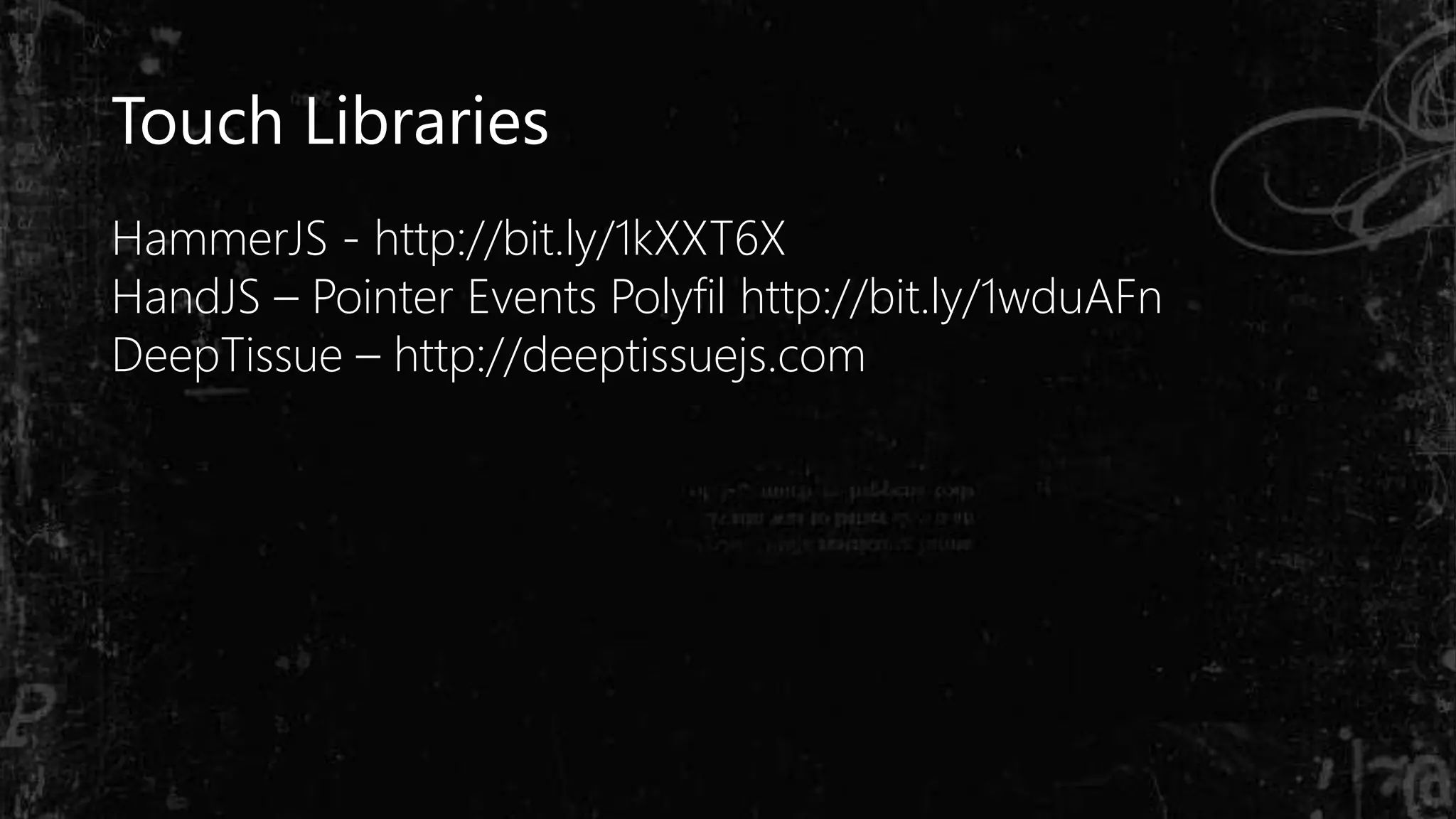

30. Touch Libraries
HammerJS - http://bit.ly/1kXXT6X
HandJS – Pointer Events Polyfil http://bit.ly/1wduAFn
DeepTissue – http://deeptissuejs.com

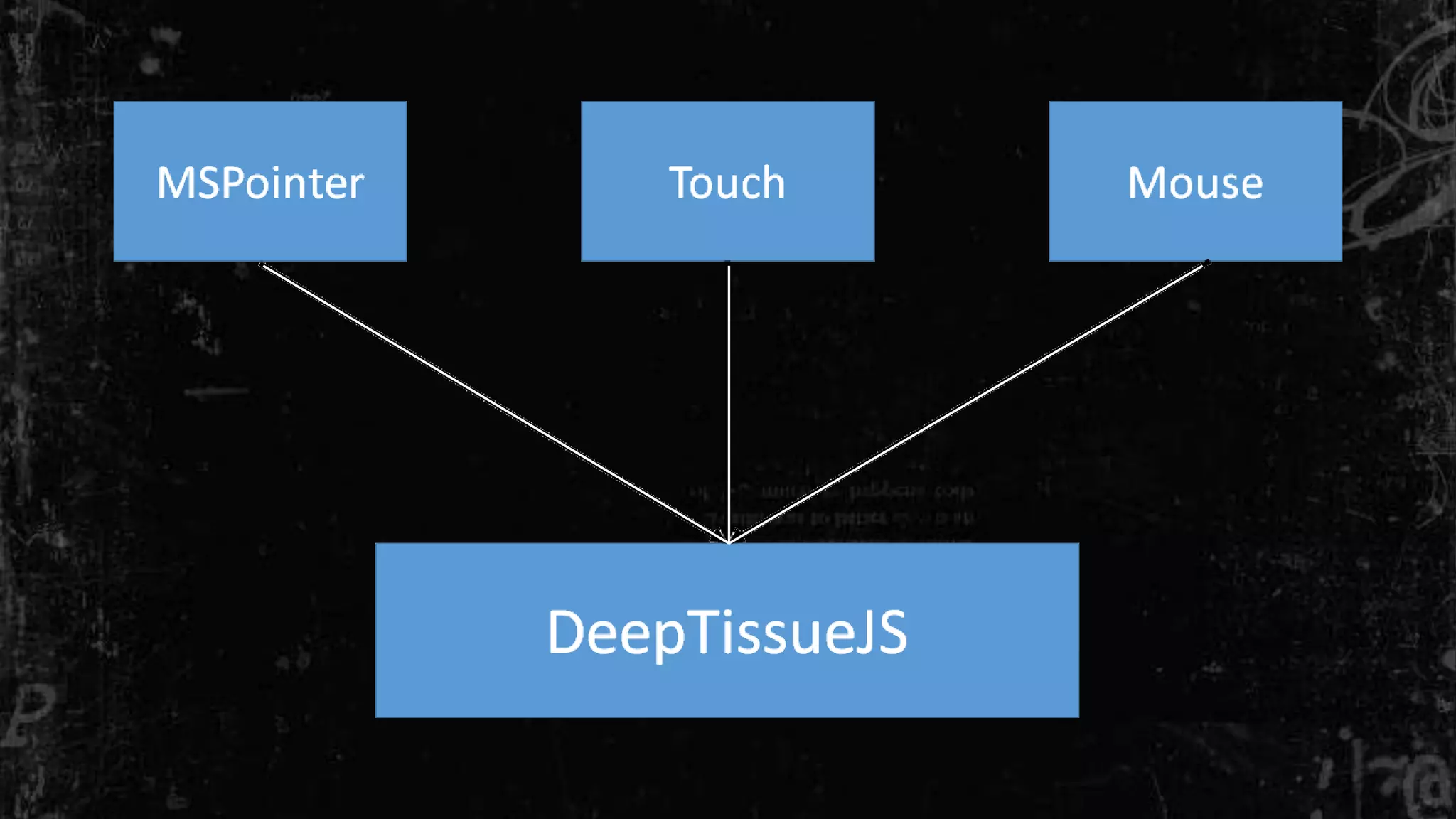

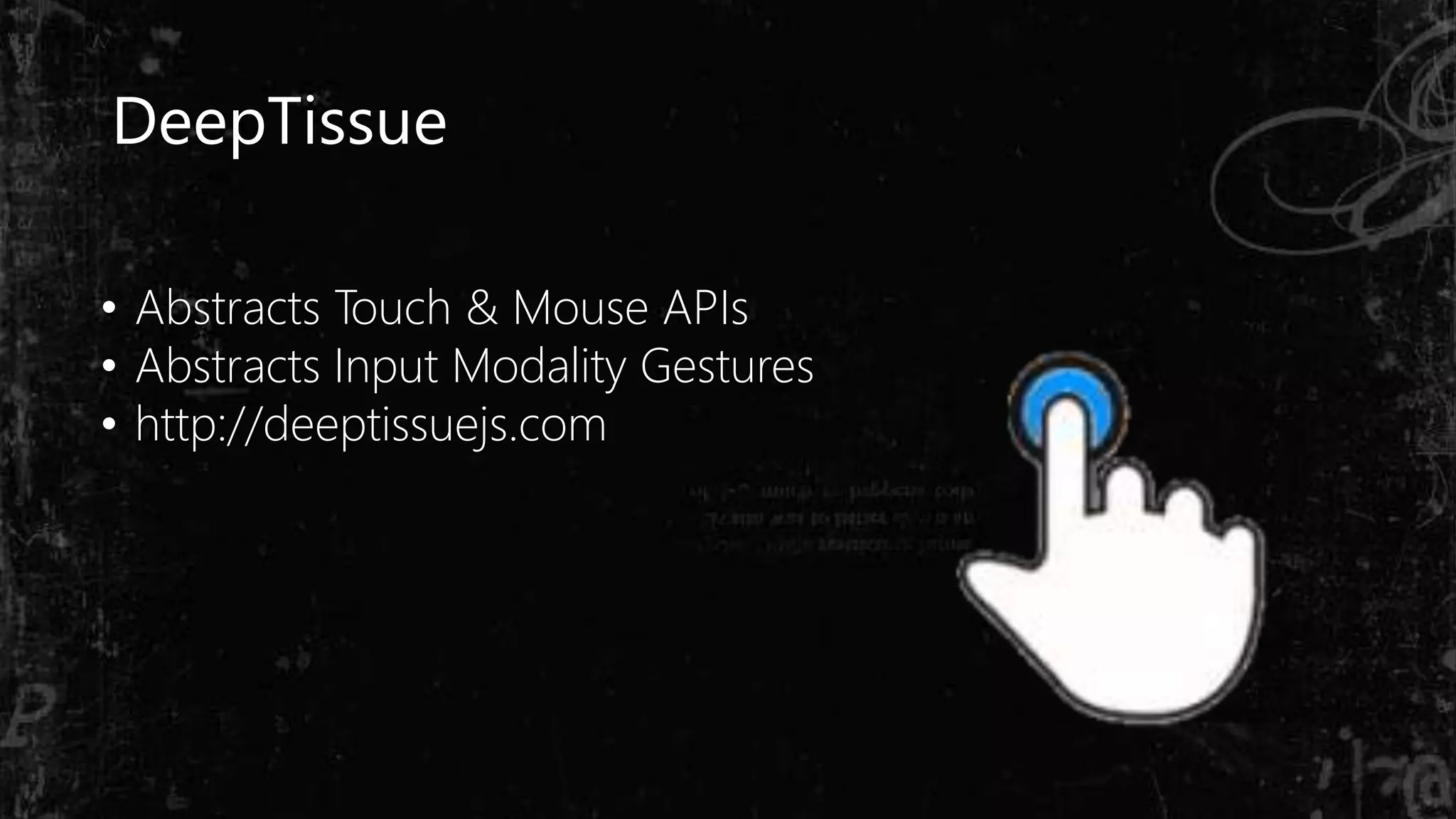

31. DeepTissue
• Abstracts Touch & Mouse APIs
• Abstracts Input Modality Gestures
• http://deeptissuejs.com

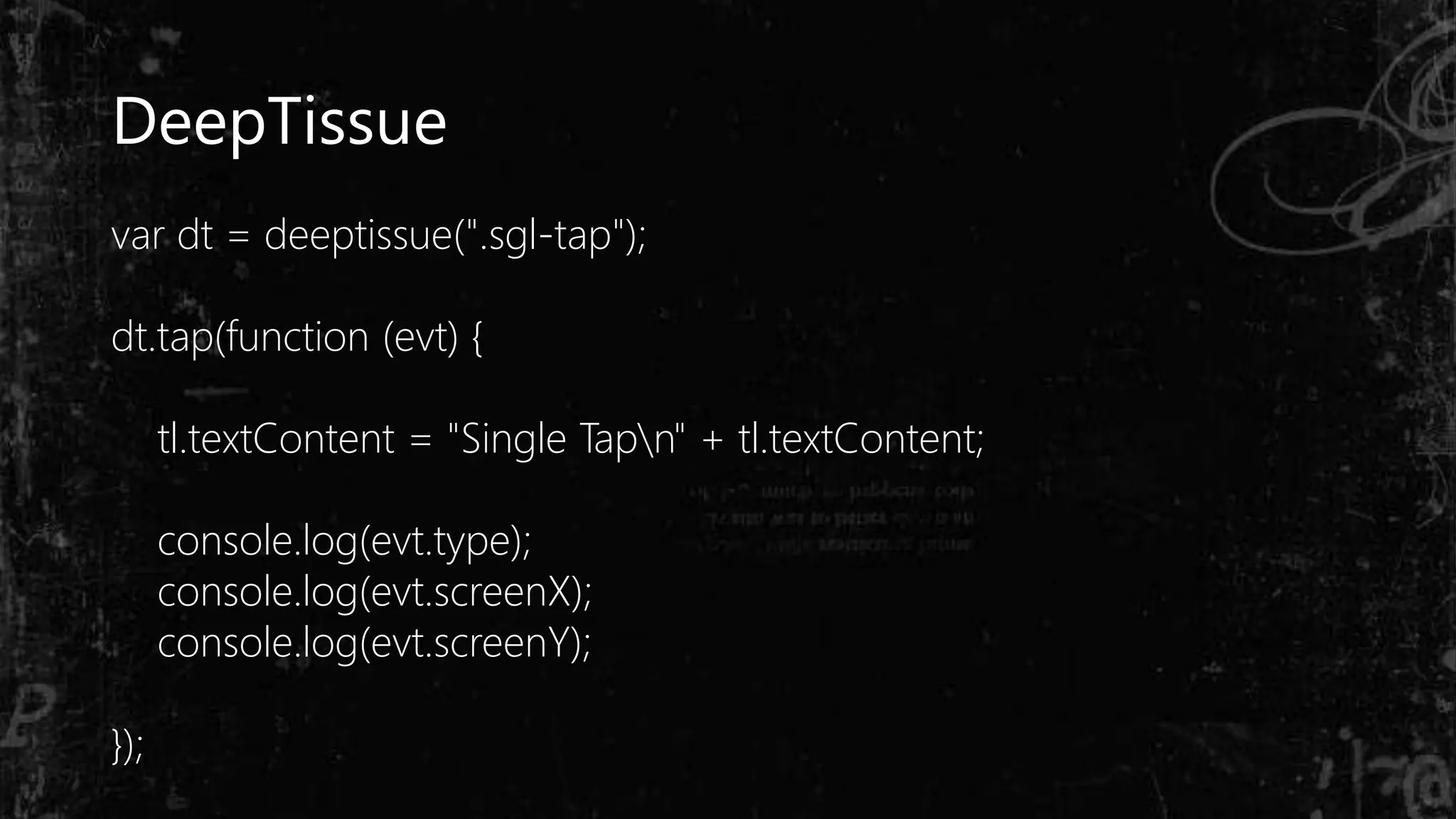

32. DeepTissue
var dt = deeptissue(".sgl-tap");
dt.tap(function (evt) {
tl.textContent = "Single Tapn" + tl.textContent;
console.log(evt.type);
console.log(evt.screenX);
console.log(evt.screenY);
});

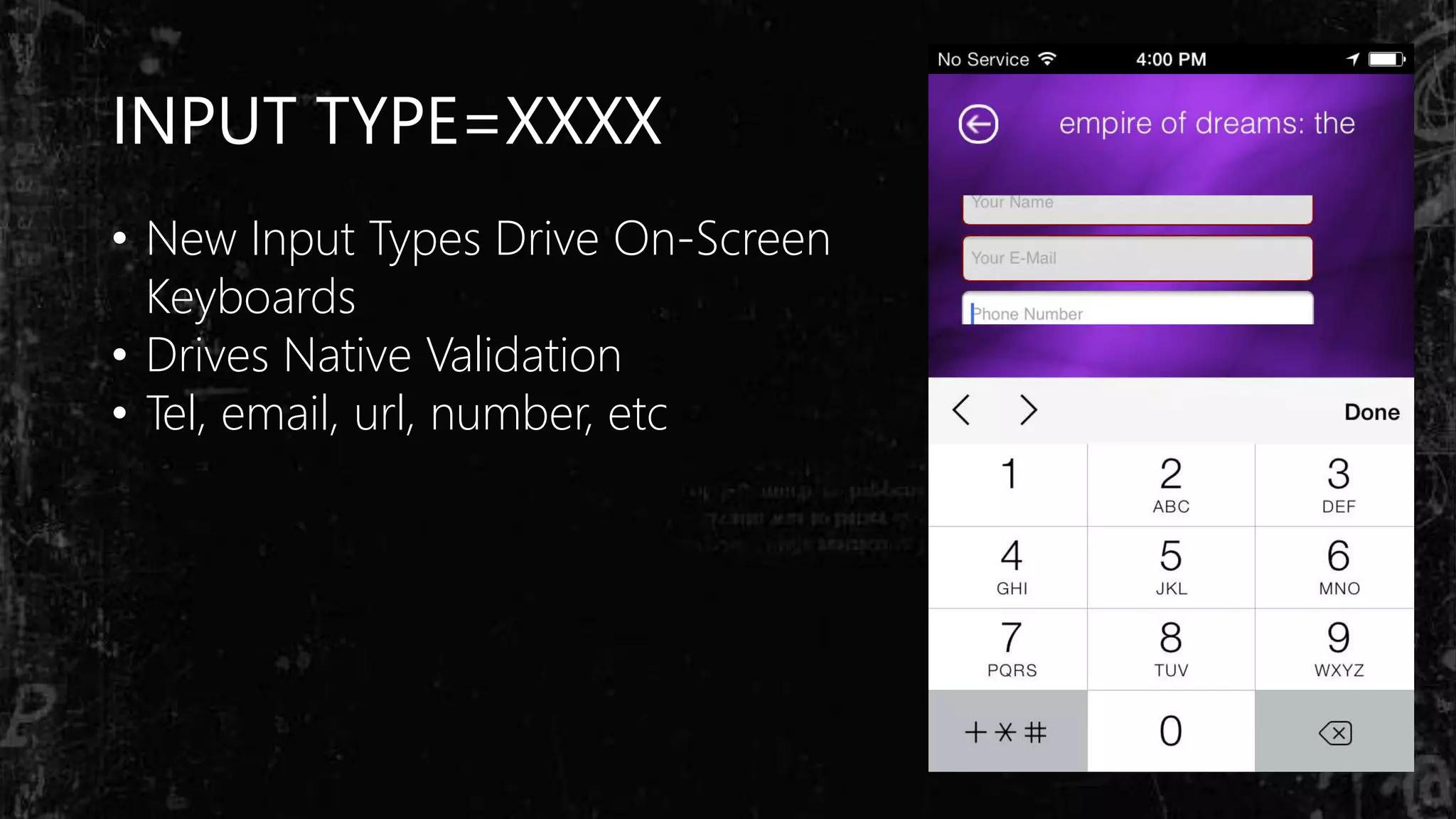

34. INPUT TYPE=XXXX
• New Input Types Drive On-Screen
Keyboards
• Drives Native Validation
• Tel, email, url, number, etc

35. High Performance Single Page Web
Applications
• Responsive Design
• Touch
• Mobile First
• SPA
• Extensible, Scalable Architecture
• Web Build and Workflow
• Goes Really Fast!
• ~395 Pages
• 20 Chapters
• $9.99 http://amzn.to/1a55L89
