Chapter 12:
Distributed DBMS
Reliability
Presented by (Team7):
Yashika Tamang
Spencer Riner
1
CSCI 5533:Distributed Information System
Chapter 12: Distributed DBMS Reliability

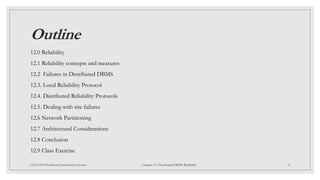

Outline
12.0 Reliability
12.1 Reliability concepts and measures
12.2 Failures in Distributed DBMS
12.3. Local Reliability Protocol
12.4. Distributed Reliability Protocols
12.5. Dealing with site failures
12.6 Network Partitioning
12.7 Architectural Considerations
12.8 Conclusion

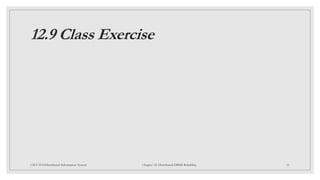

12.9 Class Exercise
2
CSCI 5533:Distributed Information System Chapter 12: Distributed DBMS Reliability

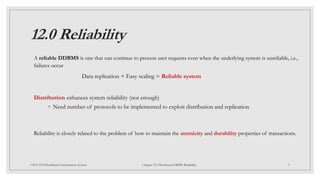

12.0 Reliability
A reliable DDBMS is one that can continue to process user requests even when the underlying system is unreliable, i.e.,
failures occur
Data replication + Easy scaling = Reliable system
Distribution enhances system reliability (not enough)
◦ Need number of protocols to be implemented to exploit distribution and replication
Reliability is closely related to the problem of how to maintain the atomicity and durability properties of transactions.
3

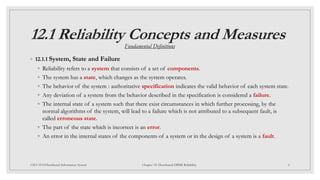

12.1 Reliability Concepts and Measures
◦ 12.1.1 System, State and Failure
◦ Reliability refers to a system that consists of a set of components.
◦ The system has a state, which changes as the system operates.
◦ The behavior of the system : authoritative specification indicates the valid behavior of each system state.
◦ Any deviation of a system from the behavior described in the specification is considered a failure.
◦ The internal state of a system such that there exist circumstances in which further processing, by the
normal algorithms of the system, will lead to a failure which is not attributed to a subsequent fault, is
called erroneous state.
◦ The part of the state which is incorrect is an error.
◦ An error in the internal states of the components of a system or in the design of a system is a fault.
4
Fundamental Definitions

(contd..)
5

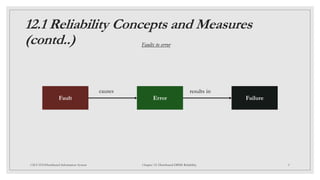

Fault Failure
Error
causes results in
Faults to error

(contd..)
6

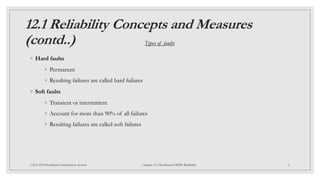

◦ Hard faults
◦ Permanent
◦ Resulting failures are called hard failures
◦ Soft faults
◦ Transient or intermittent
◦ Account for more than 90% of all failures
◦ Resulting failures are called soft failures
Types of faults

(contd..)
7

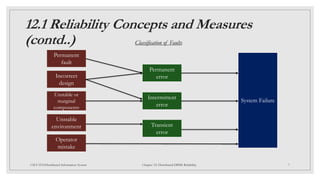

Classification of Faults
Permanent
fault
Incorrect
design
Unstable or
marginal
components
Operator
mistake
Transient
error
Intermittent
error
Permanent
error
System Failure
Unstable
environment

(contd..)

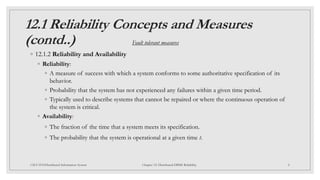

◦ 12.1.2 Reliability and Availability
◦ Reliability:
◦ A measure of success with which a system conforms to some authoritative specification of its
behavior.
◦ Probability that the system has not experienced any failures within a given time period.
◦ Typically used to describe systems that cannot be repaired or where the continuous operation of
the system is critical.
◦ Availability:
◦ The fraction of the time that a system meets its specification.
◦ The probability that the system is operational at a given time t.
8
Fault tolerant measures

(contd..)

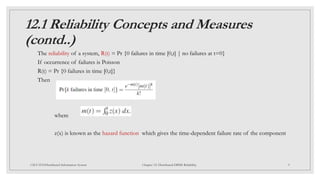

The reliability of a system, R(t) = Pr {0 failures in time [0,t] | no failures at t=0}
If occurrence of failures is Poisson
R(t) = Pr {0 failures in time [0,t]}
Then
where
z(x) is known as the hazard function which gives the time-dependent failure rate of the component
9

(contd..)

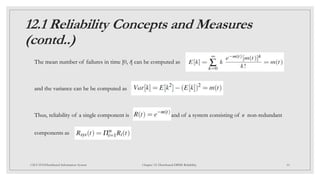

The mean number of failures in time [0, t] can be computed as
and the variance can be be computed as
Thus, reliability of a single component is and of a system consisting of n non-redundant
components as
10

(contd..)
◦ Availability, A(t), refers to the probability that the system is operational according to its specification at a
given point in time t. Several failures may have occurred prior to time t, but if they have all been repaired, the
system is available at time t.
Availability refers to the systems that can be repaired
Assumptions:
◦ Poisson failures with rate 
◦ Repair time is exponentially distributed with mean 1/μ
Then, steady-state availability
11

(contd..)
o12.1.3 Mean time between Failures/Mean time to Repair
o MTBF
Mean Time Between Failures
o MTTR
Mean Time To Repair
o Using these two metrics, the steady-state availability of a system with exponential failure and repair rates can
be specified as
12

(contd..)

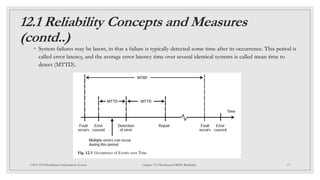

◦ System failures may be latent, in that a failure is typically detected some time after its occurrence. This period is
called error latency, and the average error latency time over several identical systems is called mean time to
detect (MTTD).
13

12.2 Failures in Distributed DBMS
◦ Transaction failures
◦ Reasons : error in the transaction, potential deadlock etc.
◦ Approach to handle such failures is to abort the transaction.
◦ Site (system) failures
◦ Reasons : Hardware or software failures
◦ Results in loss of main memory, processor failure or power supply, failed site becomes unreachable from
other sites
◦ Total failure and partial failure
14
Types of Failures

12.2 Failures in Distributed DBMS (contd..)

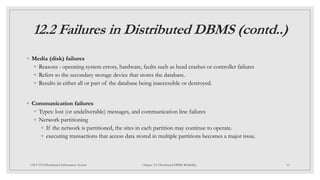

◦ Media (disk) failures
◦ Reasons : operating system errors, hardware, faults such as head crashes or controller failures
◦ Refers to the secondary storage device that stores the database.
◦ Results in either all or part of the database being inaccessible or destroyed.
◦ Communication failures
◦ Types: lost (or undeliverable) messages, and communication line failures
◦ Network partitioning
◦ If the network is partitioned, the sites in each partition may continue to operate.
◦ executing transactions that access data stored in multiple partitions becomes a major issue.
15

12.3 Local Reliability Protocols
◦ LRM (Local Recovery Manager)
◦ The execution of the commands such as begin_transaction, read, write, commit and abort to maintain the
atomicity and durability properties of the transactions.
◦ 12.3.1 Architectural considerations
◦ Volatile storage
◦ Consists of the main memory of the computer system (RAM).
◦ The database kept in volatile storage is volatile database.
◦ Stable storage
◦ Database is permanently stored in the secondary storage.
◦ Resilient to failures, hence less frequent failures.
◦ The database kept in volatile storage is stable database.
16
Functions of LRM

12.3 Local Reliability Protocols (contd..)
17
Main Memory
Local Recovery
Manager
Database Buffer
Manager
Volatile
Database
Stable
Database
Secondary
storage
Read Write
Write Read
Fetch,
Flush

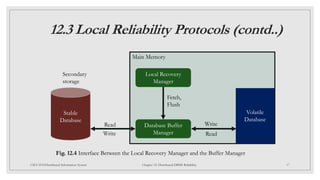

Fig. 12.4 Interface Between the Local Recovery Manager and the Buffer Manager

(contd..)

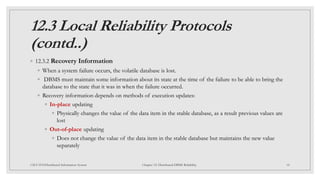

◦ 12.3.2 Recovery Information
◦ When a system failure occurs, the volatile database is lost.
◦ DBMS must maintain some information about its state at the time of the failure to be able to bring the
database to the state that it was in when the failure occurred.
◦ Recovery information depends on methods of execution updates:
◦ In-place updating
◦ Physically changes the value of the data item in the stable database, as a result previous values are
lost
◦ Out-of-place updating
◦ Does not change the value of the data item in the stable database but maintains the new value
separately
18

In-place update recovery information
19
Database log
Update
information
Old stable
database
New stable
database
Fig. 12.5 Update Operation Execution

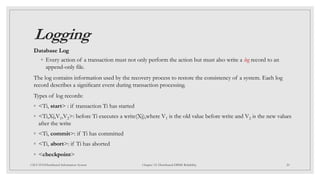

Logging
Database Log
◦ Every action of a transaction must not only perform the action but must also write a log record to an
append-only file.
The log contains information used by the recovery process to restore the consistency of a system. Each log
record describes a signiﬁcant event during transaction processing.
Types of log records:
◦ <Ti, start> : if transaction Ti has started
◦ <Ti,Xj,V1,V2>: before Ti executes a write(Xj),where V1 is the old value before write and V2 is the new values
after the write
◦ <Ti, commit>: if Ti has committed
◦ <Ti, abort>: if Ti has aborted
◦ <checkpoint>
20

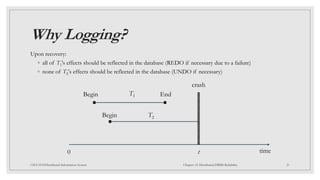

Why Logging?
Upon recovery:
◦ all of T1's effects should be reflected in the database (REDO if necessary due to a failure)
◦ none of T2's effects should be reflected in the database (UNDO if necessary)
CSCI 5533:Distributed Information System Chapter 12: Distributed DBMS Reliability 21
0 t time
crash
T1
Begin End
Begin T2

(contd..)
22
Database log
REDO
Old stable
database state
New stable
database state
Fig. 12.6 REDO action

(contd..)
23

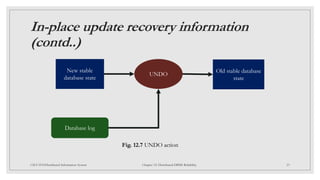

Fig. 12.7 UNDO action
Database log
UNDO
New stable
database state
Old stable database
state

Example for in-place update
◦ Example: Consider the transactions T0 and T1 (T0 executes before T1) and the following initial values:
A=1000, B=2000, and C=700
◦ T0: Possible order of actual outputs to the log file and the DB:
◦ T1:
24
Read(A)
A=A-50
Write(A)
Read(B)
B=B+50
Write(B)
Read(C)
C=C-100
Write(C)
<T0,start>
<T0,A,1000,950>
<T0,B,2000,2050>
<T0,commit>
<T1,start>
<T1,C,700,600>
<T1,commit>
A=950
B=2050
C=600
Log DB

Example continued..
◦ Consider the log after some system crashes and the corresponding recovery actions
(a) undo(T0): B is restored to 2000 and A to 1000
(b) Undo(T1) and redo(T0): C is restored to 700, and then A and B are set to 950 and 2050, respectively
(c) Redo(T0) and redo T1(): And B are set to 950 and 2050, respectively; then C is set to 600
25
(a) <T0,start>
<T0,A,1000,950>
<T0,B,2000,2050>
(b) <T0,start>
<T0,A,1000,950>
<T0,B,2000,2050>
<T0,commit>
<T1,start>
<T1,C,700,600)
(c) <T0,start>
<T0,A,1000,950>
<T0,B,2000,2050>
<T0,commit>
<T1,start>
<T1,C,700,600)
<T1,commit>

When to write log records into the stable
store?
Assume a transaction T updates a page P
◦ Fortunate case
◦ System writes P in stable database
◦ System updates stable log for this update
◦ SYSTEM FAILURE OCCURS!... (before T commits)
We can recover (undo) by restoring P to its old state by using the log
◦ Unfortunate case
◦ System writes P in stable database
◦ SYSTEM FAILURE OCCURS!... (before stable log is updated)
We cannot recover from this failure because there is no log record to restore the old value.
◦ Solution: Write-Ahead Log (WAL) protocol
26

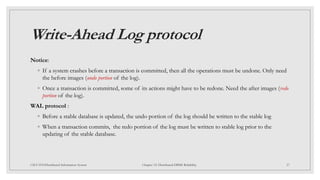

Write-Ahead Log protocol
Notice:
◦ If a system crashes before a transaction is committed, then all the operations must be undone. Only need
the before images (undo portion of the log).
◦ Once a transaction is committed, some of its actions might have to be redone. Need the after images (redo
portion of the log).
WAL protocol :
◦ Before a stable database is updated, the undo portion of the log should be written to the stable log
◦ When a transaction commits, the redo portion of the log must be written to stable log prior to the
updating of the stable database.
27

Out-of-place update recovery
information
Shadowing
◦ When an update occurs, don't change the old page, but create a shadow page with the new values and
write it into the stable database.
◦ Update the access paths so that subsequent accesses are to the new shadow page.
◦ The old page retained for recovery.
Differential files
◦ For each file F maintain
◦ a read only part FR
◦ a differential file consisting of insertions part DF+ and deletions part DF-
◦ Thus, F = (FR  DF+) – DF-
◦ Updates treated as delete old value, insert new value
28

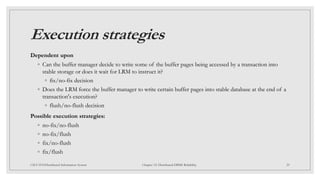

Execution strategies
Dependent upon
◦ Can the buffer manager decide to write some of the buffer pages being accessed by a transaction into
stable storage or does it wait for LRM to instruct it?
◦ fix/no-fix decision
◦ Does the LRM force the buffer manager to write certain buffer pages into stable database at the end of a
transaction's execution?
◦ flush/no-flush decision
Possible execution strategies:
◦ no-fix/no-flush
◦ no-fix/flush
◦ fix/no-flush
◦ fix/flush
29

No-fix/No-flush
Abort
◦ Buffer manager may have written some of the updated pages into stable database
◦ LRM performs transaction undo (or partial undo)
Commit
◦ LRM writes an “end_of_transaction” record into the log.
Recover
◦ For those transactions that have both a “begin_transaction” and an “end_of_transaction” record in the log, a
partial redo is initiated by LRM
◦ For those transactions that only have a “begin_transaction” in the log, a global undo is executed by LRM
30

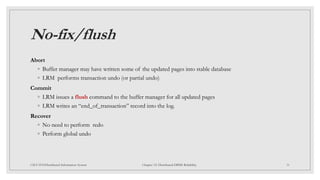

No-fix/flush
Abort
◦ Buffer manager may have written some of the updated pages into stable database
◦ LRM performs transaction undo (or partial undo)
Commit
◦ LRM issues a flush command to the buffer manager for all updated pages
Recover
◦ No need to perform redo
◦ Perform global undo
31

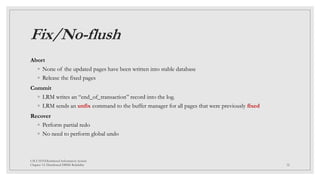

Fix/No-flush
Abort
◦ None of the updated pages have been written into stable database
◦ Release the fixed pages
Commit
◦ LRM sends an unfix command to the buffer manager for all pages that were previously fixed
Recover
◦ Perform partial redo
◦ No need to perform global undo
CSCI 5533:Distributed Information System
Chapter 12: Distributed DBMS Reliability 32

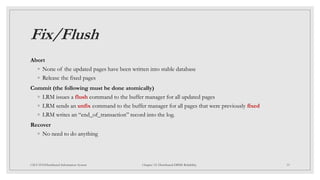

Fix/Flush
Abort
◦ None of the updated pages have been written into stable database
◦ Release the fixed pages
Commit (the following must be done atomically)
◦ LRM issues a flush command to the buffer manager for all updated pages
◦ LRM sends an unfix command to the buffer manager for all pages that were previously fixed
Recover
◦ No need to do anything
33

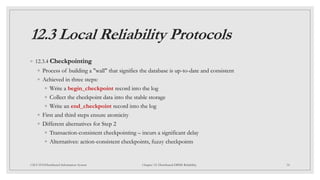

◦ 12.3.4 Checkpointing
◦ Process of building a "wall" that signifies the database is up-to-date and consistent
◦ Achieved in three steps:
◦ Write a begin_checkpoint record into the log
◦ Collect the checkpoint data into the stable storage
◦ Write an end_checkpoint record into the log
◦ First and third steps ensure atomicity
◦ Different alternatives for Step 2
◦ Transaction-consistent checkpointing – incurs a significant delay
◦ Alternatives: action-consistent checkpoints, fuzzy checkpoints
34

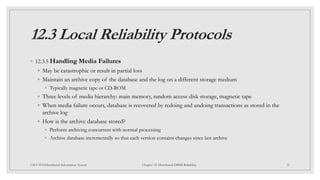

◦ 12.3.5 Handling Media Failures
◦ May be catastrophic or result in partial loss
◦ Maintain an archive copy of the database and the log on a different storage medium
◦ Typically magnetic tape or CD-ROM
◦ Three levels of media hierarchy: main memory, random access disk storage, magnetic tape
◦ When media failure occurs, database is recovered by redoing and undoing transactions as stored in the
archive log
◦ How is the archive database stored?
◦ Perform archiving concurrent with normal processing
◦ Archive database incrementally so that each version contains changes since last archive
35

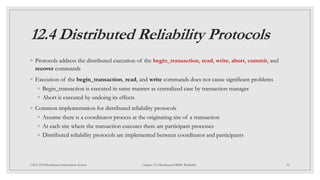

12.4 Distributed Reliability Protocols
◦ Protocols address the distributed execution of the begin_transaction, read, write, abort, commit, and
recover commands
◦ Execution of the begin_transaction, read, and write commands does not cause significant problems
◦ Begin_transaction is executed in same manner as centralized case by transaction manager
◦ Abort is executed by undoing its effects
◦ Common implementation for distributed reliability protocols
◦ Assume there is a coordinator process at the originating site of a transaction
◦ At each site where the transaction executes there are participant processes
◦ Distributed reliability protocols are implemented between coordinator and participants
36

◦ 12.4.1 Components of Distributed Reliability Protocols
◦ Reliability techniques consist of commit, termination, and recovery protocols
◦ Commit and recover commands executed differently in a distributed DBMS than centralized
◦ Termination protocols are unique to distributed systems
◦ Termination vs. recovery protocols
◦ Opposite faces of recovery problem
◦ Given a site failure, termination protocols address how the operational sites deal with the failure
◦ Recovery protocols address procedure the process at the failed site must go through to recover its state
◦ Commit protocols must maintain atomicity of distributed transactions
◦ Ideally recovery protocols are independent – no need to consult other sites to terminate transaction
37

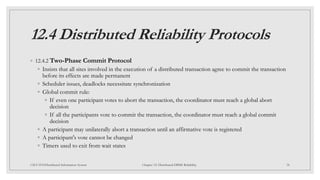

◦ 12.4.2 Two-Phase Commit Protocol
◦ Insists that all sites involved in the execution of a distributed transaction agree to commit the transaction
before its effects are made permanent
◦ Scheduler issues, deadlocks necessitate synchronization
◦ Global commit rule:
◦ If even one participant votes to abort the transaction, the coordinator must reach a global abort
decision
◦ If all the participants vote to commit the transaction, the coordinator must reach a global commit
decision
◦ A participant may unilaterally abort a transaction until an affirmative vote is registered
◦ A participant's vote cannot be changed
◦ Timers used to exit from wait states
38

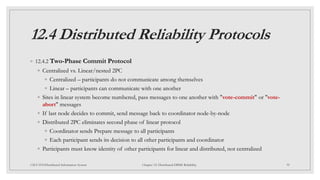

◦ 12.4.2 Two-Phase Commit Protocol
◦ Centralized vs. Linear/nested 2PC
◦ Centralized – participants do not communicate among themselves
◦ Linear – participants can communicate with one another
◦ Sites in linear system become numbered, pass messages to one another with "vote-commit" or "vote-
abort" messages
◦ If last node decides to commit, send message back to coordinator node-by-node
◦ Distributed 2PC eliminates second phase of linear protocol
◦ Coordinator sends Prepare message to all participants
◦ Each participant sends its decision to all other participants and coordinator
◦ Participants must know identity of other participants for linear and distributed, not centralized
39

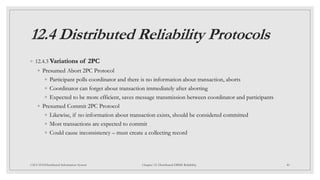

◦ 12.4.3 Variations of 2PC
◦ Presumed Abort 2PC Protocol
◦ Participant polls coordinator and there is no information about transaction, aborts
◦ Coordinator can forget about transaction immediately after aborting
◦ Expected to be more efficient, saves message transmission between coordinator and participants
◦ Presumed Commit 2PC Protocol
◦ Likewise, if no information about transaction exists, should be considered committed
◦ Most transactions are expected to commit
◦ Could cause inconsistency – must create a collecting record
40

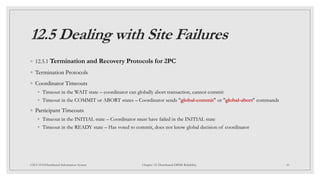

12.5 Dealing with Site Failures
◦ 12.5.1 Termination and Recovery Protocols for 2PC
◦ Termination Protocols
◦ Coordinator Timeouts
◦ Timeout in the WAIT state – coordinator can globally abort transaction, cannot commit
◦ Timeout in the COMMIT or ABORT states – Coordinator sends "global-commit" or "global-abort" commands
◦ Participant Timeouts
◦ Timeout in the INITIAL state – Coordinator must have failed in the INITIAL state
◦ Timeout in the READY state – Has voted to commit, does not know global decision of coordinator
41

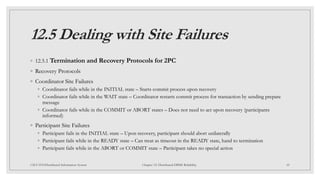

◦ Recovery Protocols
◦ Coordinator Site Failures
◦ Coordinator fails while in the INITIAL state – Starts commit process upon recovery
◦ Coordinator fails while in the WAIT state – Coordinator restarts commit process for transaction by sending prepare
message
◦ Coordinator fails while in the COMMIT or ABORT states – Does not need to act upon recovery (participants
informed)
◦ Participant Site Failures
◦ Participant fails in the INITIAL state – Upon recovery, participant should abort unilaterally
◦ Participant fails while in the READY state – Can treat as timeout in the READY state, hand to termination
◦ Participant fails while in the ABORT or COMMIT state – Participant takes no special action
42

◦ 12.5.2 Three-Phase Commit Protocol
◦ Designed as a non-blocking protocol
◦ To be non-blocking, state transition diagram must contain neither of the following:
◦ No state that is "adjacent" to both a commit and an abort state
◦ No non-committable state that is "adjacent" to a commit state
◦ Adjacency refers to ability to go from one state to another with a single transition
◦ To make 2PC non-blocking, add another state between WAIT/READY and COMMIT states that serves as a buffer
◦ Three phases:
◦ INITIAL to WAIT/READY
◦ WAIT/READY to ABORT or PRECOMMIT
◦ PRECOMMIT to COMMIT
43

◦ Termination Protocols
◦ Coordinator Timeouts
◦ Timeout in the WAIT state – coordinator can globally abort transaction, cannot commit
◦ Timeout in the PRECOMMIT state – Coordinator sends prepare-to-commit message, globally commits to operational
participants
◦ Timeout in the COMMIT or ABORT states – Can follow termination protocol
◦ Participant Timeouts
◦ Timeout in the INITIAL state – Coordinator must have failed in the INITIAL state
◦ Timeout in the READY state – Has voted to commit, elects new coordinator
◦ Timeout in the PRECOMMIT state – Handled identically to timeout in READY state
44

◦ Recovery Protocols
◦ Coordinator Site Failures
◦ Coordinator fails while in the INITIAL state – Starts commit process upon recovery
◦ Coordinator fails while in the WAIT state – Coordinator restarts commit process for transaction by sending prepare
message
◦ Coordinator fails while in the COMMIT or ABORT states – Does not need to act upon recovery (participants
informed)
◦ Participant Site Failures
◦ Participant fails in the INITIAL state – Upon recovery, participant should abort unilaterally
◦ Participant fails while in the READY state – Can treat as timeout in the READY state, hand to termination
◦ Participant fails while in the ABORT or COMMIT state – Participant takes no special action
45

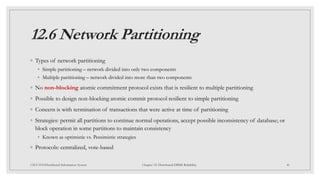

◦ Types of network partitioning
◦ Simple partitioning – network divided into only two components
◦ Multiple partitioning – network divided into more than two components
◦ No non-blocking atomic commitment protocol exists that is resilient to multiple partitioning
◦ Possible to design non-blocking atomic commit protocol resilient to simple partitioning
◦ Concern is with termination of transactions that were active at time of partitioning
◦ Strategies: permit all partitions to continue normal operations, accept possible inconsistency of database; or
block operation in some partitions to maintain consistency
◦ Known as optimistic vs. Pessimistic strategies
◦ Protocols: centralized, vote-based
46

◦ 12.6.1 Centralized Protocols
◦ Based on centralized concurrency control algorithms from Ch. 11
◦ Permit the operation of the partition that contains the central site
◦ Manages the lock tables
◦ Dependent on concurrency control mechanism employed by DDBMS
◦ Expect each site to be able to differentiate network partitioning properly
47

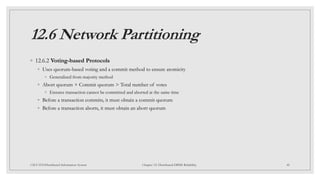

◦ 12.6.2 Voting-based Protocols
◦ Uses quorum-based voting and a commit method to ensure atomicity
◦ Generalized from majority method
◦ Abort quorum + Commit quorum > Total number of votes
◦ Ensures transaction cannot be committed and aborted at the same time
◦ Before a transaction commits, it must obtain a commit quorum
◦ Before a transaction aborts, it must obtain an abort quorum
48

12.7 Architectural Considerations
◦ Up until this point, discussion has been abstract
◦ Execution depends heavily on:
◦ A highly-detailed model of the architecture
◦ The recovery procedures that the local recovery manager implements
◦ Confine architectural discussion to:
◦ Implementation of the coordinator and participant concepts within the framework of the transaction manager
◦ The coordinator's access to the database log
◦ The changes that need to be made in the local recovery manager operations
49

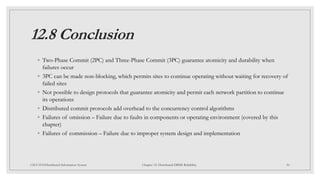

12.8 Conclusion
◦ Two-Phase Commit (2PC) and Three-Phase Commit (3PC) guarantee atomicity and durability when
failures occur
◦ 3PC can be made non-blocking, which permits sites to continue operating without waiting for recovery of
failed sites
◦ Not possible to design protocols that guarantee atomicity and permit each network partition to continue
its operations
◦ Distributed commit protocols add overhead to the concurrency control algorithms
◦ Failures of omission – Failure due to faults in components or operating environment (covered by this
chapter)
◦ Failures of commission – Failure due to improper system design and implementation
50

12.9 Class Exercise
51

DIS_Ch12_RinereTamang_revB (1).pptx

More Related Content

What's hot

Similar to DIS_Ch12_RinereTamang_revB (1).pptx

Recently uploaded

DIS_Ch12_RinereTamang_revB (1).pptx

Editor's Notes
