Dilli Haat is a public space in Delhi that aims to recreate the atmosphere of traditional Indian bazaars. It contains approximately 100 craft stalls, two food courts, an amphitheater, and other amenities. The buildings are constructed with exposed brick and stone in the local vernacular style, with green roofs irrigated by recycled water. The landscaping utilizes a variety of trees, shrubs, and plants arranged purposefully to provide shade and beautify the space. The selection of materials and design of Dilli Haat maximize energy efficiency while maintaining an intimate scale that complements the crafts sold.

1. PRITAMPURA

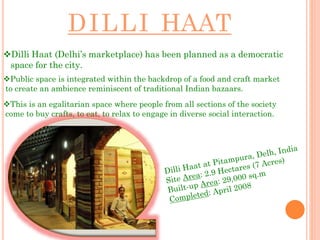

2. DILLI HAAT
Dilli Haat (Delhi’s marketplace) has been planned as a democratic
space for the city.
Public space is integrated within the backdrop of a food and craft market
to create an ambience reminiscent of traditional Indian bazaars.
This is an egalitarian space where people from all sections of the society
come to buy crafts, to eat, to relax to engage in diverse social interaction.

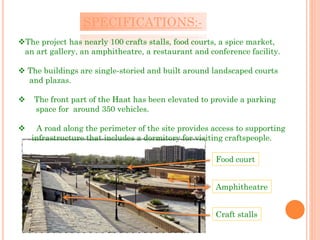

4. SPECIFICATIONS:-
The project has nearly 100 crafts stalls, food courts, a spice market,
an art gallery, an amphitheatre, a restaurant and conference facility.
 The buildings are single-storied and built around landscaped courts
and plazas.
 The front part of the Haat has been elevated to provide a parking
space for around 350 vehicles.
 A road along the perimeter of the site provides access to supporting
infrastructure that includes a dormitory for visiting craftspeople.
Food court
Amphitheatre
Craft stalls

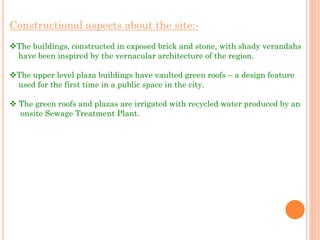

5. Constructional aspects about the site:-
The buildings, constructed in exposed brick and stone, with shady verandahs
have been inspired by the vernacular architecture of the region.
The upper level plaza buildings have vaulted green roofs – a design feature
used for the first time in a public space in the city.
 The green roofs and plazas are irrigated with recycled water produced by an
onsite Sewage Treatment Plant.

6. Material selection :-
The selection of material, construction and layout was made to maximize
thermal efficiency and minimize energy consumption.
Nearly all areas are illuminated by natural daylight and are naturally
ventilated.
The brick and stone used in the project have been sourced from the surrounding
region.
 Materials were selected for their durability and enduring qualities.
 The building vocabulary has been kept understated and the scale intimate
to ensure that the buildings do not overwhelm the crafts being sold.

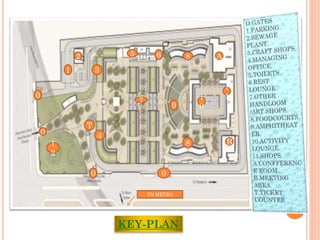

7. 9
1
0
1
1
A8
8 B
4
3
7
5 62
1
1
2
TO METRO
0
T
0
0
0
KEY-PLAN

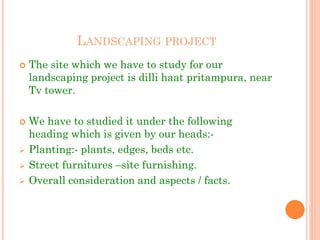

8. LANDSCAPING PROJECT
 The site which we have to study for our
landscaping project is dilli haat pritampura, near
Tv tower.
 We have to studied it under the following
heading which is given by our heads:-
 Planting:- plants, edges, beds etc.
 Street furnitures –site furnishing.
 Overall consideration and aspects / facts.

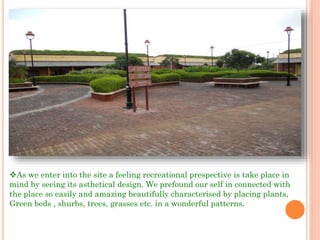

9. As we enter into the site a feeling recreational prespective is take place in
mind by seeing its asthetical design. We prefound our self in connected with
the place so easily and amazing beautifully characterised by placing plants,
Green beds , shurbs, trees, grasses etc. in a wonderful patterns.

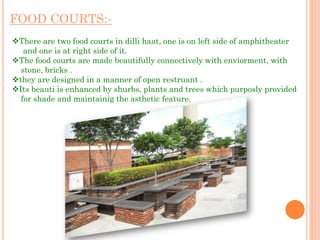

10. FOOD COURTS:-
There are two food courts in dilli haat, one is on left side of amphitheater
and one is at right side of it.
The food courts are made beautifully connectively with enviorment, with
stone, bricks .
they are designed in a manner of open restruant .
Its beauti is enhanced by shurbs, plants and trees which purposly provided
for shade and maintainig the asthetic feature.

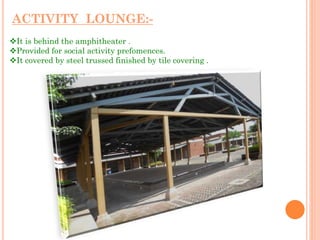

11. ACTIVITY LOUNGE:-
It is behind the amphitheater .
Provided for social activity prefomences.
It covered by steel trussed finished by tile covering .

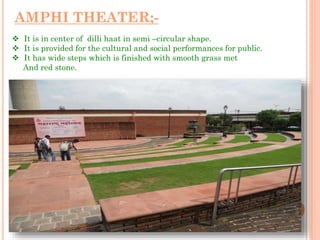

12. AMPHI THEATER;-
 It is in center of dilli haat in semi –circular shape.
 It is provided for the cultural and social performances for public.
 It has wide steps which is finished with smooth grass met
And red stone.

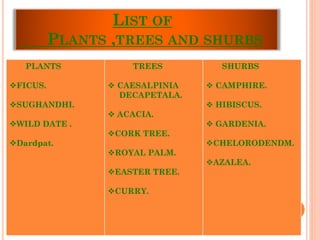

13. LIST OF
PLANTS ,TREES AND SHURBS
PLANTS
FICUS.
SUGHANDHI.
WILD DATE .
Dardpat.
TREES
 CAESALPINIA
DECAPETALA.
 ACACIA.
CORK TREE.
ROYAL PALM.
EASTER TREE.
CURRY.
SHURBS
 CAMPHIRE.
 HIBISCUS.
 GARDENIA.
CHELORODENDM.
AZALEA.

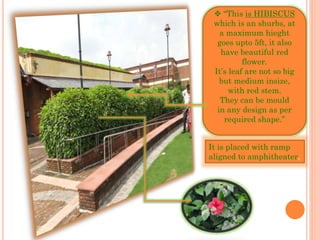

14.  “This is HIBISCUS
which is an shurbs, at
a maximum hieght
goes upto 5ft, it also
have beautiful red
flower.
It’s leaf are not so big
but medium insize,
with red stem.
They can be mould
in any design as per
required shape.”
It is placed with ramp
aligned to amphitheater.

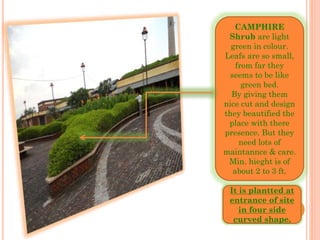

15. CAMPHIRE
Shrub are light
green in colour.
Leafs are so small,
from far they
seems to be like
green bed.
By giving them
nice cut and design
they beautified the
place with there
presence. But they
need lots of
maintannce & care.
Min. hieght is of
about 2 to 3 ft.
It is plantted at
entrance of site
in four side
curved shape.

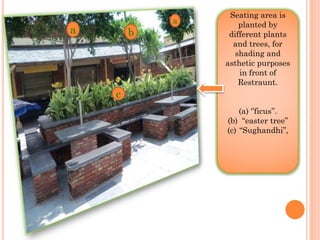

16. Seating area is
planted by
different plants
and trees, for
shading and
asthetic purposes
in front of
Restraunt.
(a) ‘’ficus’’.
(b) “easter tree”
(c) “Sughandhi”,
c
a
a
b

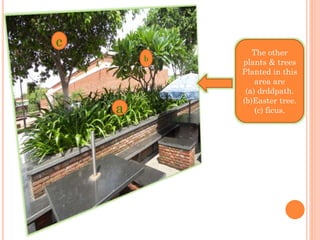

17. The other
plants & trees
Planted in this
area are
(a) drddpath.
(b)Easter tree.
(c) ficus.a
c
b

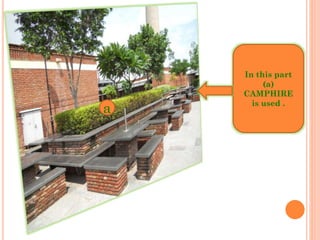

18. In this part
(a)
CAMPHIRE
is used .
a

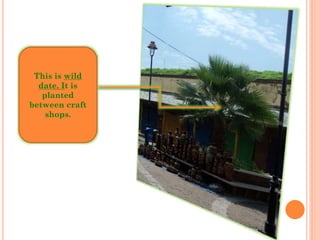

19. This is wild
date. It is
planted
between craft
shops.

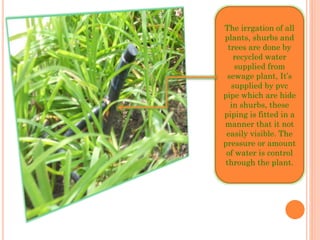

20. The irrgation of all
plants, shurbs and
trees are done by
recycled water
supplied from
sewage plant, It’s
supplied by pvc
pipe which are hide
in shurbs, these
piping is fitted in a
manner that it not
easily visible. The
pressure or amount
of water is control
through the plant.

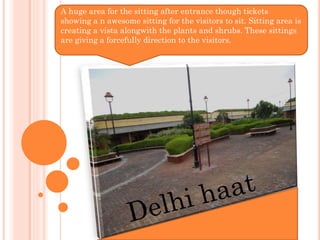

22. A huge area for the sitting after entrance though tickets
showing a n awesome sitting for the visitors to sit. Sitting area is
creating a vista alongwith the plants and shrubs. These sittings
are giving a forcefully direction to the visitors.

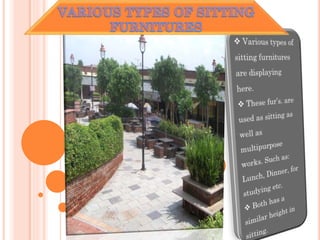

24. 1
2

29. a
b
c
d
f
e
