1. Project Feasibility Report
on
Diagnostic Centre
Prakhar Amule (MT14IND016)
Academic session - 2014-2015
Mechanical Engineering Department
Visvesvaraya National Institute of Technology, Nagpur
1

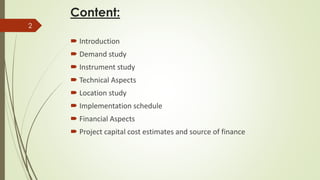

2. Content:
 Introduction
 Demand study
 Instrument study
 Technical Aspects
 Location study
 Implementation schedule
 Financial Aspects
 Project capital cost estimates and source of finance
2

3. Introduction
 Diagnostic Centre is a place that offers diagnostic
services to the medical profession or general public.
 Nowadays it is observed that number of patients are
increasing who needs full-fledged diagnostic centre.
 This project basically covers opening of diagnostic
centre which will include Pathology and Radiology.
3

4. 4

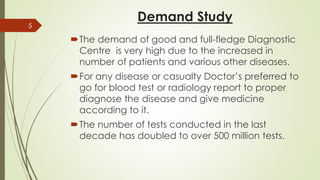

5. Demand Study
The demand of good and full-fledge Diagnostic
Centre is very high due to the increased in
number of patients and various other diseases.
For any disease or casualty Doctor’s preferred to
go for blood test or radiology report to proper
diagnose the disease and give medicine
according to it.
The number of tests conducted in the last
decade has doubled to over 500 million tests.
5

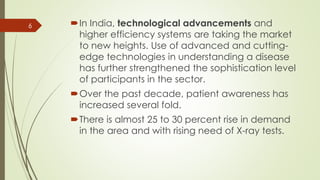

6. In India, technological advancements and
higher efficiency systems are taking the market
to new heights. Use of advanced and cutting-
edge technologies in understanding a disease
has further strengthened the sophistication level
of participants in the sector.
Over the past decade, patient awareness has
increased several fold.
There is almost 25 to 30 percent rise in demand
in the area and with rising need of X-ray tests.
6

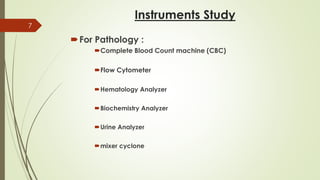

7. Instruments Study
For Pathology :
Complete Blood Count machine (CBC)
Flow Cytometer
Hematology Analyzer
Biochemistry Analyzer
Urine Analyzer
mixer cyclone
7

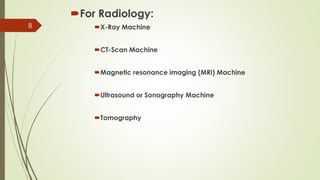

8. For Radiology:
X-Ray Machine
CT-Scan Machine
Magnetic resonance imaging (MRI) Machine
Ultrasound or Sonography Machine
Tomography
8

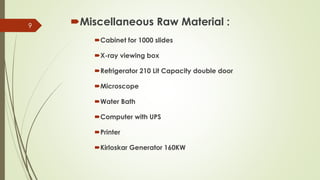

9. Miscellaneous Raw Material :
Cabinet for 1000 slides
X-ray viewing box
Refrigerator 210 Lit Capacity double door
Microscope
Water Bath
Computer with UPS
Printer
Kirloskar Generator 160KW
9

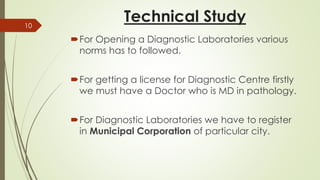

10. Technical Study
For Opening a Diagnostic Laboratories various
norms has to followed.
For getting a license for Diagnostic Centre firstly
we must have a Doctor who is MD in pathology.
For Diagnostic Laboratories we have to register
in Municipal Corporation of particular city.
10

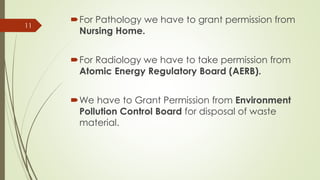

11. For Pathology we have to grant permission from
Nursing Home.
For Radiology we have to take permission from
Atomic Energy Regulatory Board (AERB).
We have to Grant Permission from Environment
Pollution Control Board for disposal of waste
material.
11

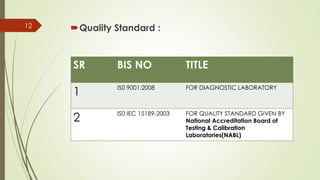

12. Quality Standard :12
SR BIS NO TITLE
1 IS0 9001:2008 FOR DIAGNOSTIC LABORATORY
2 IS0 IEC 15189-2003 FOR QUALITY STANDARD GIVEN BY
National Accreditation Board of
Testing & Calibration
Laboratories(NABL)

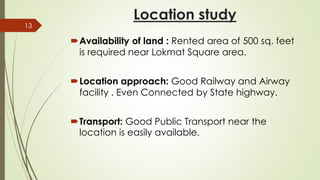

13. Location study
Availability of land : Rented area of 500 sq. feet
is required near Lokmat Square area.
Location approach: Good Railway and Airway
facility . Even Connected by State highway.
Transport: Good Public Transport near the
location is easily available.
13

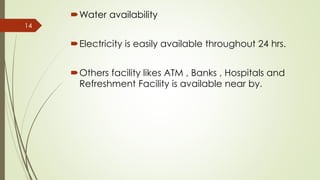

14. Water availability
Electricity is easily available throughout 24 hrs.
Others facility likes ATM , Banks , Hospitals and
Refreshment Facility is available near by.
14

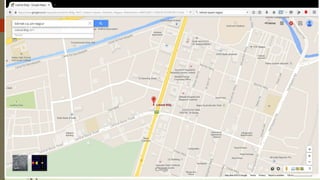

15. 15

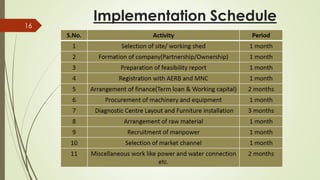

16. Implementation Schedule16

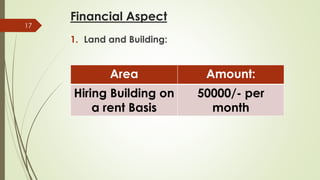

17. Financial Aspect
1. Land and Building:
17
Area Amount:
Hiring Building on
a rent Basis
50000/- per
month

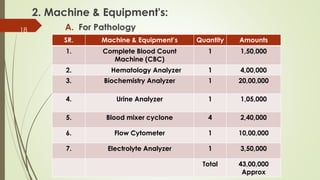

18. 2. Machine & Equipment's:
A. For Pathology18
SR. Machine & Equipment’s Quantity Amounts
1. Complete Blood Count
Machine (CBC)
1 1,50,000
2. Hematology Analyzer 1 4,00,000
3. Biochemistry Analyzer 1 20,00,000
4. Urine Analyzer 1 1,05,000
5. Blood mixer cyclone 4 2,40,000
6. Flow Cytometer 1 10,00,000
7. Electrolyte Analyzer 1 3,50,000
Total 43,00,000
Approx

19. B. For Radiology:
19
SR. Machine & Equipment’s Quantity Amounts
1. X-Ray Machine 1 40,00,000
2. CT-Scan Machine 1 50,00,000
3. Magnetic resonance imaging
(MRI) Machine
1 1,80,00,000
4. Tomography Machine 1 20,00,000
5. Sonography Machine 2 12,00,000
Total 3,02,00,000

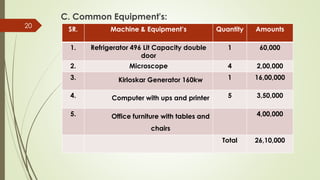

20. C. Common Equipment's:
20
SR. Machine & Equipment’s Quantity Amounts
1. Refrigerator 496 Lit Capacity double
door
1 60,000
2. Microscope 4 2,00,000
3. Kirloskar Generator 160kw 1 16,00,000
4. Computer with ups and printer 5 3,50,000
5. Office furniture with tables and
chairs
4,00,000
Total 26,10,000

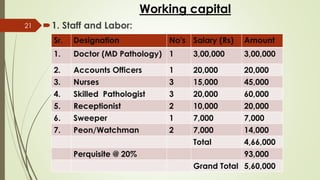

21. Working capital
1. Staff and Labor:21
Sr. Designation No's Salary (Rs) Amount
1. Doctor (MD Pathology) 1 3,00,000 3,00,000
2. Accounts Officers 1 20,000 20,000
3. Nurses 3 15,000 45,000
4. Skilled Pathologist 3 20,000 60,000
5. Receptionist 2 10,000 20,000
6. Sweeper 1 7,000 7,000
7. Peon/Watchman 2 7,000 14,000
Total 4,66,000
Perquisite @ 20% 93,000
Grand Total 5,60,000

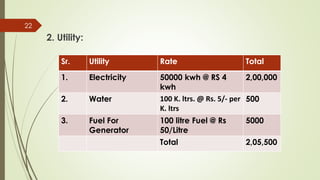

22. 2. Utility:
22
Sr. Utility Rate Total
1. Electricity 50000 kwh @ RS 4
kwh
2,00,000
2. Water 100 K. ltrs. @ Rs. 5/- per
K. ltrs
500
3. Fuel For
Generator
100 litre Fuel @ Rs
50/Litre
5000
Total 2,05,500

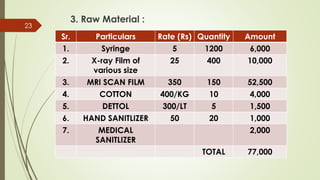

23. 3. Raw Material :
23
Sr. Particulars Rate (Rs) Quantity Amount
1. Syringe 5 1200 6,000
2. X-ray Film of
various size
25 400 10,000
3. MRI SCAN FILM 350 150 52,500
4. COTTON 400/KG 10 4,000
5. DETTOL 300/LT 5 1,500
6. HAND SANITLIZER 50 20 1,000
7. MEDICAL
SANITLIZER
2,000
TOTAL 77,000

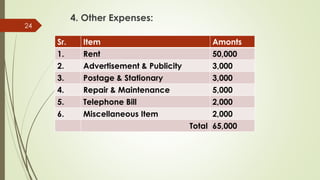

24. 4. Other Expenses:
24
Sr. Item Amonts
1. Rent 50,000
2. Advertisement & Publicity 3,000
3. Postage & Stationary 3,000
4. Repair & Maintenance 5,000
5. Telephone Bill 2,000
6. Miscellaneous Item 2,000
Total 65,000

25. TOTAL EXPENSES:
 For Machinery And Equipment's:
25
Sr Amounts
1. For Pathology 43,00,000
2. For Radiology 3,02,00,000
3. Common Equipment's 26,10,000
Total 37,110,000
Total Approx. 37,200,000

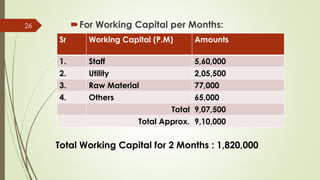

26. For Working Capital per Months:26
Sr Working Capital (P.M) Amounts
1. Staff 5,60,000
2. Utility 2,05,500
3. Raw Material 77,000
4. Others 65,000
Total 9,07,500
Total Approx. 9,10,000
Total Working Capital for 2 Months : 1,820,000

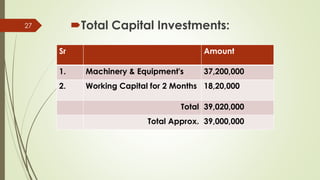

27. Total Capital Investments:27
Sr Amount
1. Machinery & Equipment's 37,200,000
2. Working Capital for 2 Months 18,20,000
Total 39,020,000
Total Approx. 39,000,000

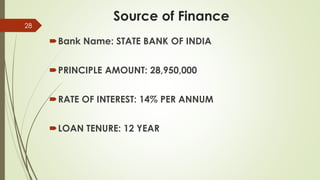

28. Source of Finance
Bank Name: STATE BANK OF INDIA
PRINCIPLE AMOUNT: 28,950,000
RATE OF INTEREST: 14% PER ANNUM
LOAN TENURE: 12 YEAR
28

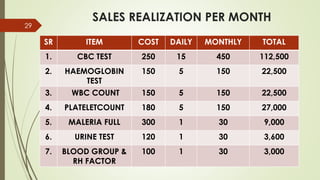

29. SALES REALIZATION PER MONTH
SR ITEM COST DAILY MONTHLY TOTAL
1. CBC TEST 250 15 450 112,500
2. HAEMOGLOBIN
TEST
150 5 150 22,500
3. WBC COUNT 150 5 150 22,500
4. PLATELETCOUNT 180 5 150 27,000
5. MALERIA FULL 300 1 30 9,000
6. URINE TEST 120 1 30 3,600
7. BLOOD GROUP &
RH FACTOR
100 1 30 3,000
29

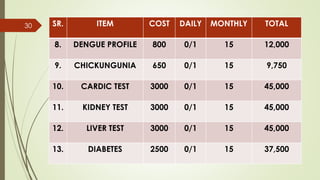

30. SR. ITEM COST DAILY MONTHLY TOTAL
8. DENGUE PROFILE 800 0/1 15 12,000
9. CHICKUNGUNIA 650 0/1 15 9,750
10. CARDIC TEST 3000 0/1 15 45,000
11. KIDNEY TEST 3000 0/1 15 45,000
12. LIVER TEST 3000 0/1 15 45,000
13. DIABETES 2500 0/1 15 37,500
30

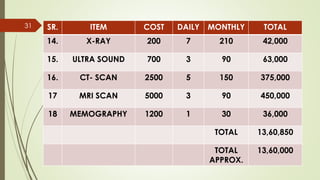

31. SR. ITEM COST DAILY MONTHLY TOTAL
14. X-RAY 200 7 210 42,000
15. ULTRA SOUND 700 3 90 63,000
16. CT- SCAN 2500 5 150 375,000
17 MRI SCAN 5000 3 90 450,000
18 MEMOGRAPHY 1200 1 30 36,000
TOTAL 13,60,850
TOTAL
APPROX.
13,60,000
31

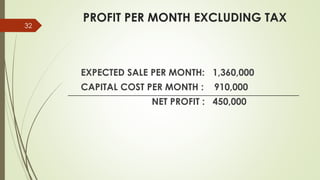

32. PROFIT PER MONTH EXCLUDING TAX
EXPECTED SALE PER MONTH: 1,360,000
CAPITAL COST PER MONTH : 910,000
NET PROFIT : 450,000
32

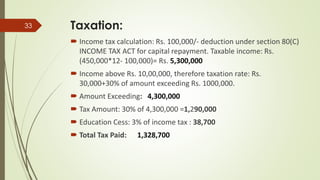

33. Taxation:
 Income tax calculation: Rs. 100,000/- deduction under section 80(C)
INCOME TAX ACT for capital repayment. Taxable income: Rs.
(450,000*12- 100,000)= Rs. 5,300,000
 Income above Rs. 10,00,000, therefore taxation rate: Rs.
30,000+30% of amount exceeding Rs. 1000,000.
 Amount Exceeding: 4,300,000
 Tax Amount: 30% of 4,300,000 =1,290,000
 Education Cess: 3% of income tax : 38,700
 Total Tax Paid: 1,328,700
33

34. PROFIT:
TOTAL ANNUAL PROFIT : 4071,300
MONTHLY PROFIT : 3,39,000
34

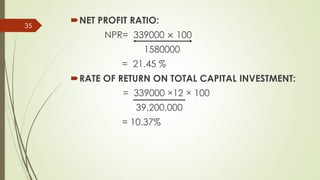

35. NET PROFIT RATIO:
NPR= 339000 × 100
1580000
= 21.45 %
RATE OF RETURN ON TOTAL CAPITAL INVESTMENT:
= 339000 ×12 × 100
39,200,000
= 10.37%
35

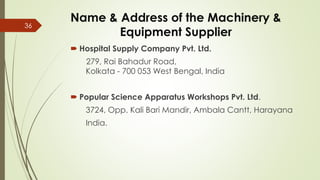

36. Name & Address of the Machinery &
Equipment Supplier
 Hospital Supply Company Pvt. Ltd.
279, Rai Bahadur Road,
Kolkata - 700 053 West Bengal, India
 Popular Science Apparatus Workshops Pvt. Ltd.
3724, Opp. Kali Bari Mandir, Ambala Cantt, Harayana
India.
36
