Tests and Testability: Apex Structure and Strategy

Tests and Testability
Apex Structure and Strategy
Stephen Willcock, FinancialForce.com, Director of Product Innovation
@stephenwillcock

All about FinancialForce.com
Revolutionizing the Back Office
#1 Accounting, Billing and PSA Apps on the Salesforce platform

▪ Native apps
▪ San Francisco HQ, 595 Market St
▪ R&D in San Francisco, Harrogate UK, and Granada ES
▪ We are hiring! Meet us at Rehab!

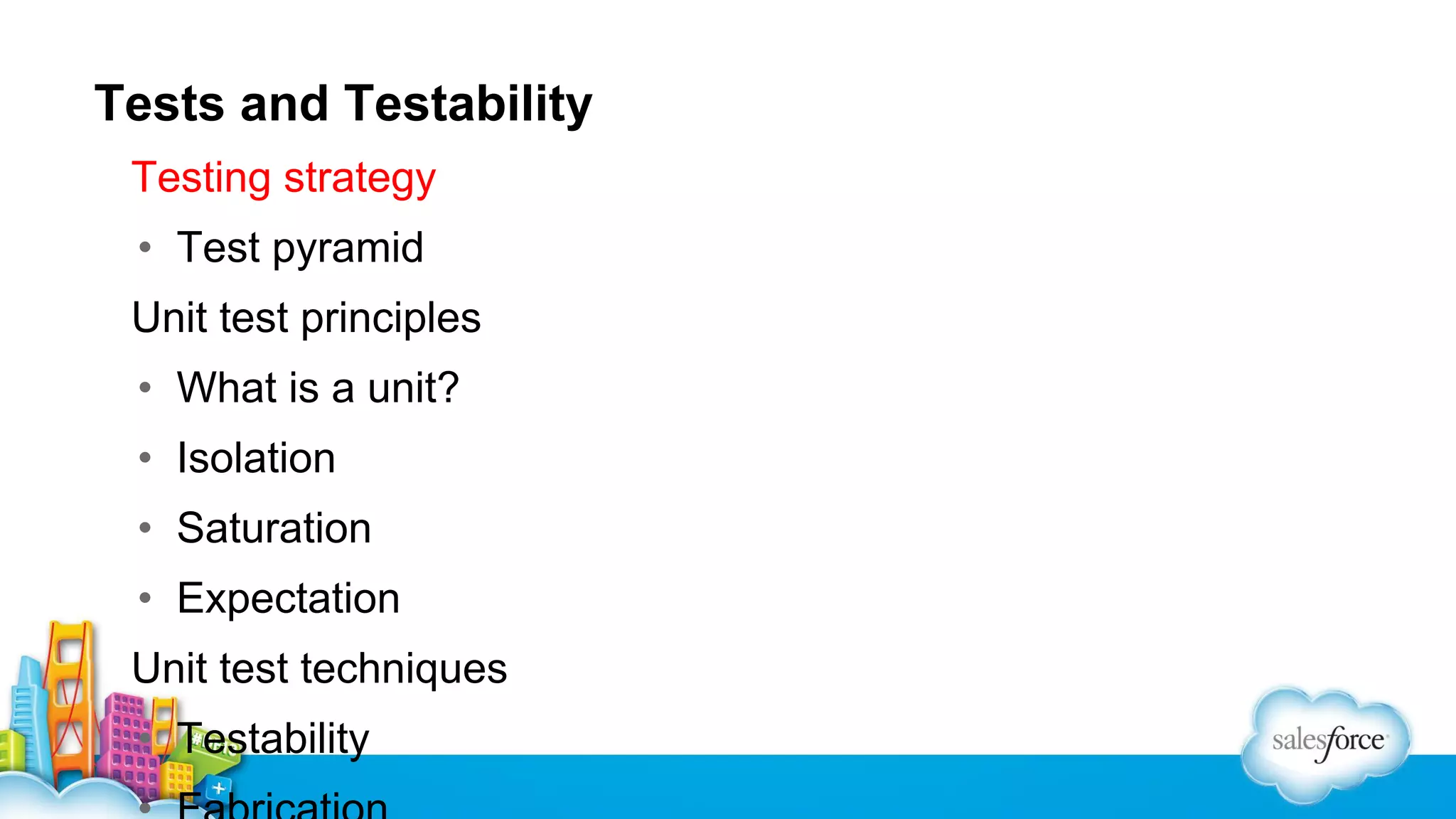

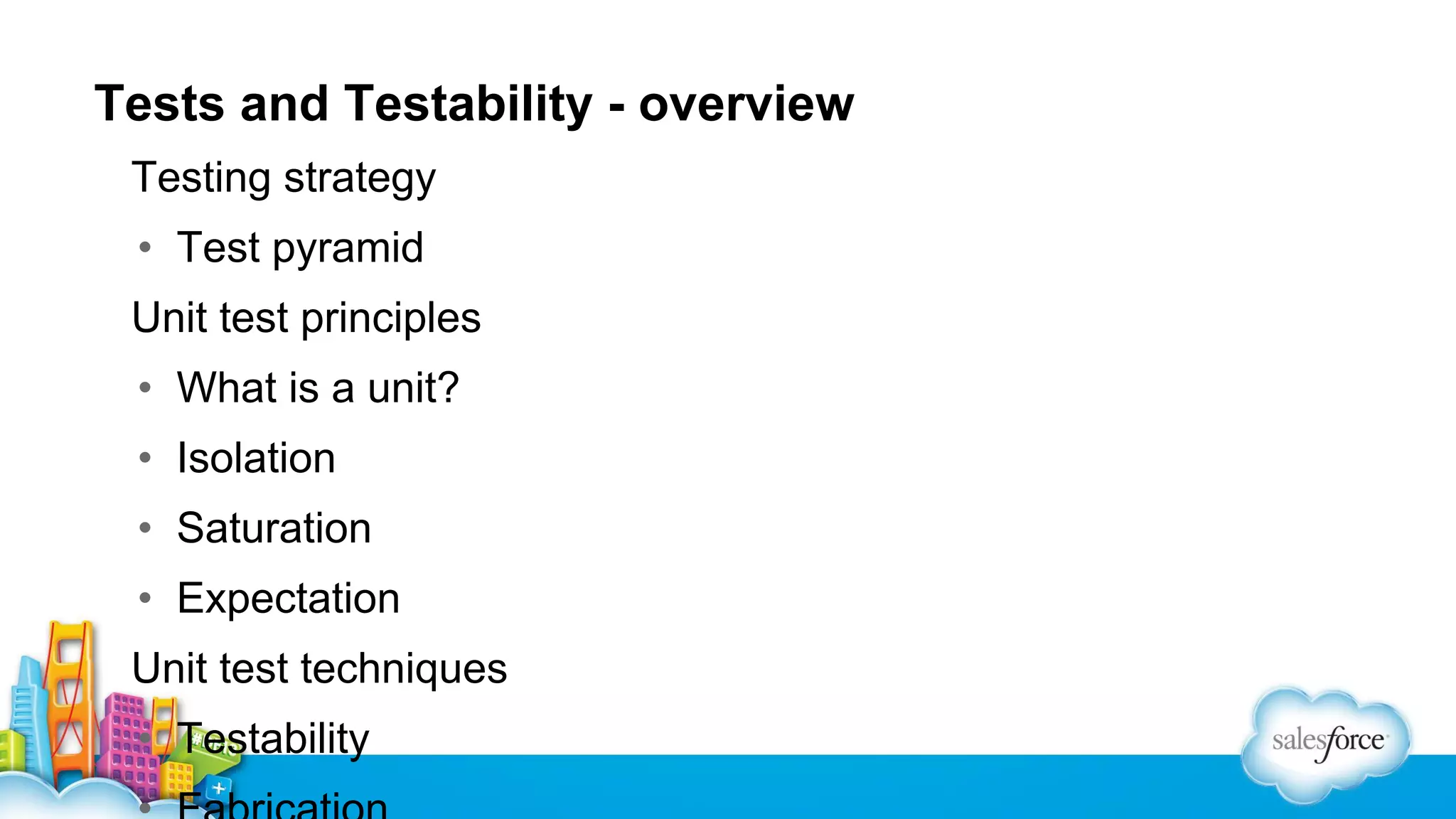

Tests and Testability - overview
Testing strategy
• Test pyramid
Unit test principles
• What is a unit?
• Isolation
• Saturation
• Expectation
Unit test techniques
• Testability

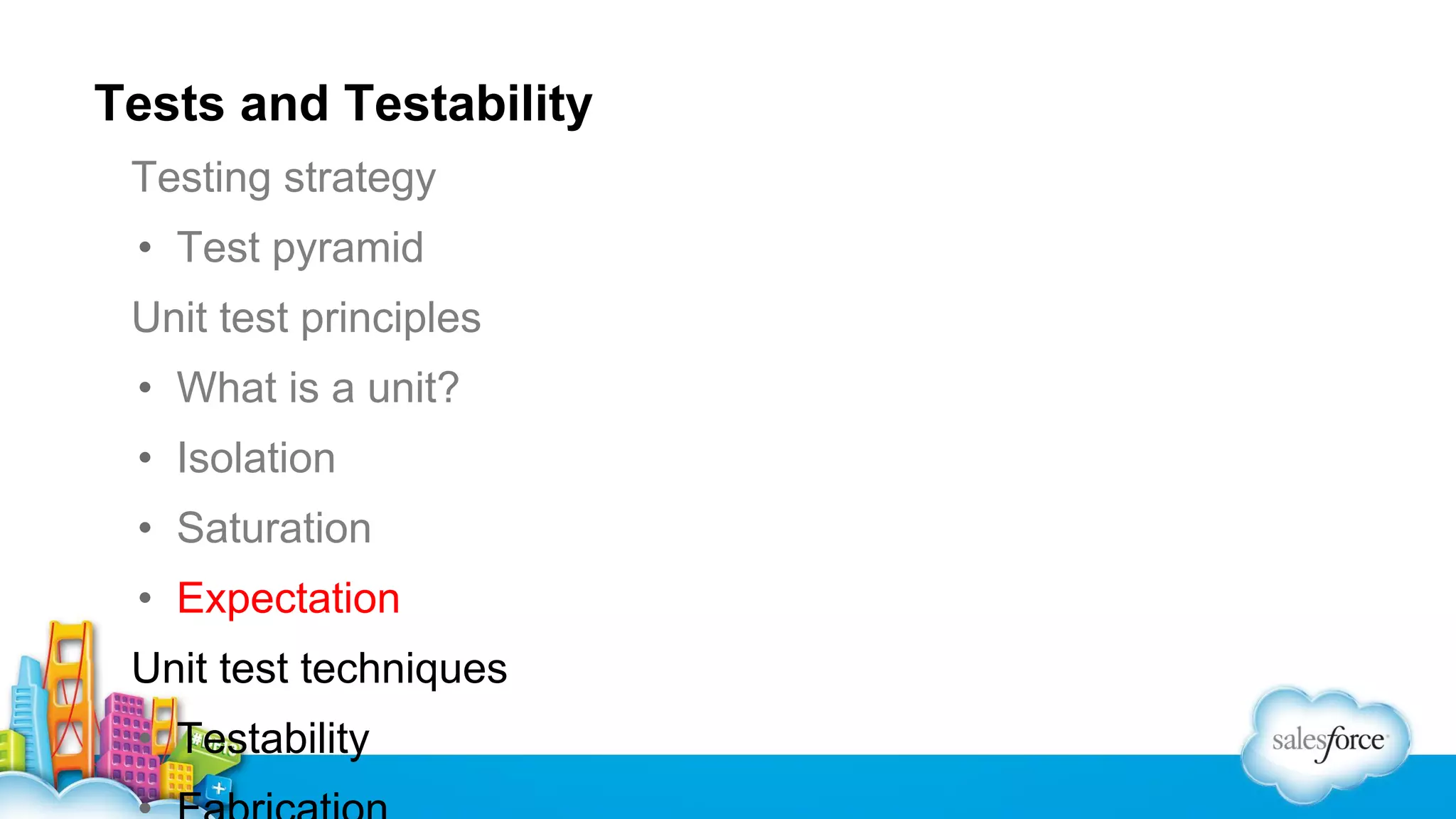

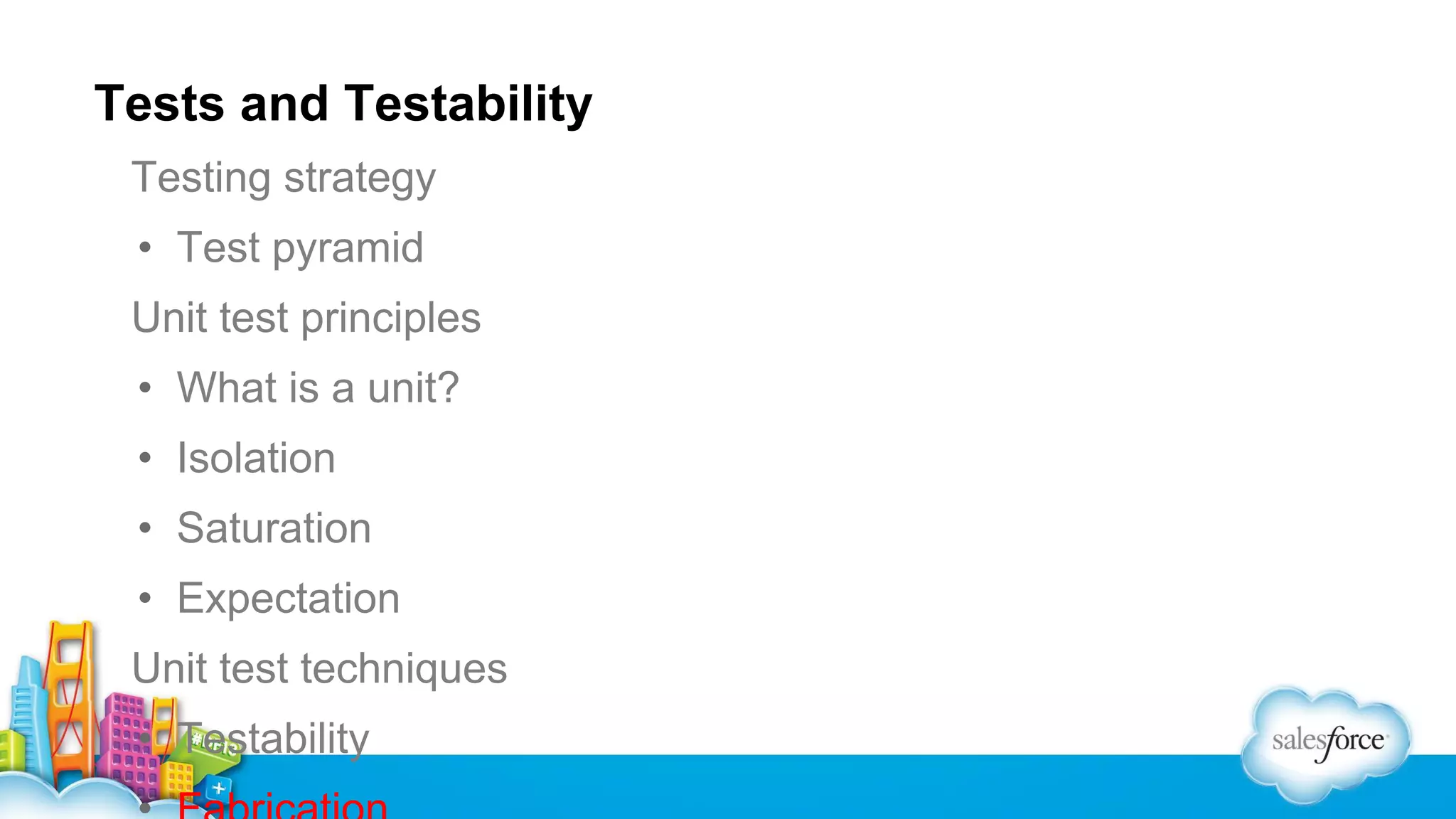

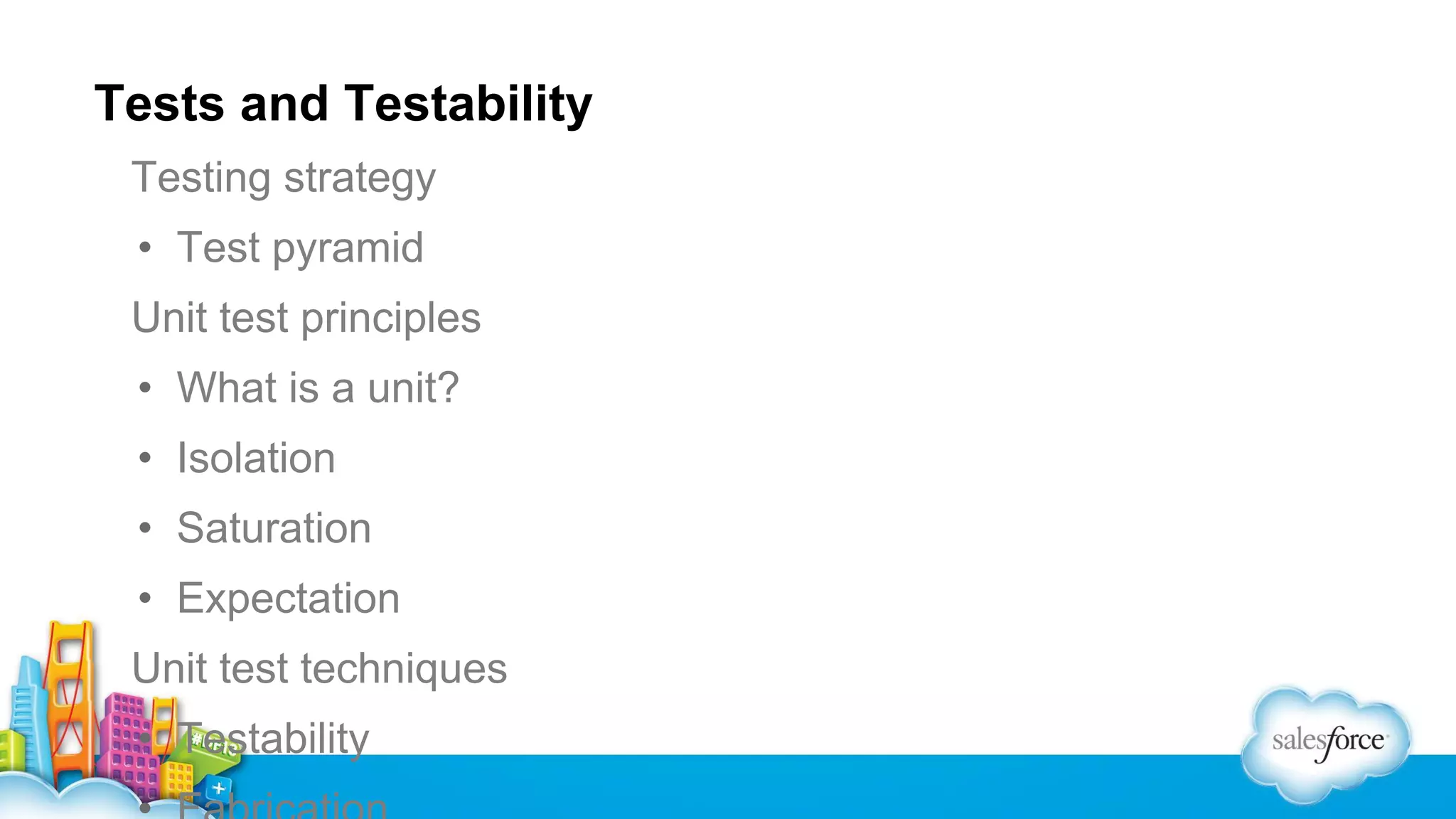

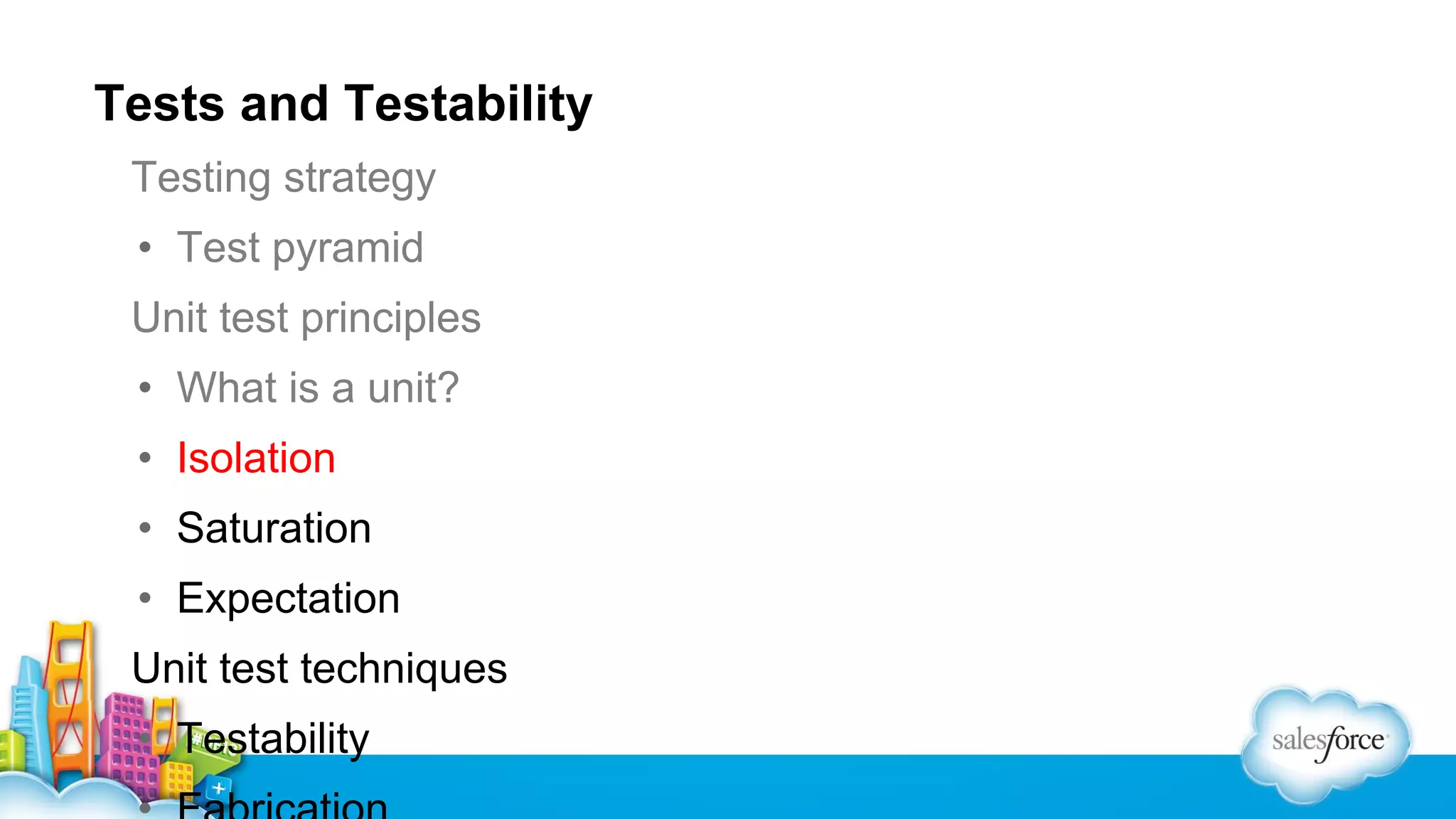

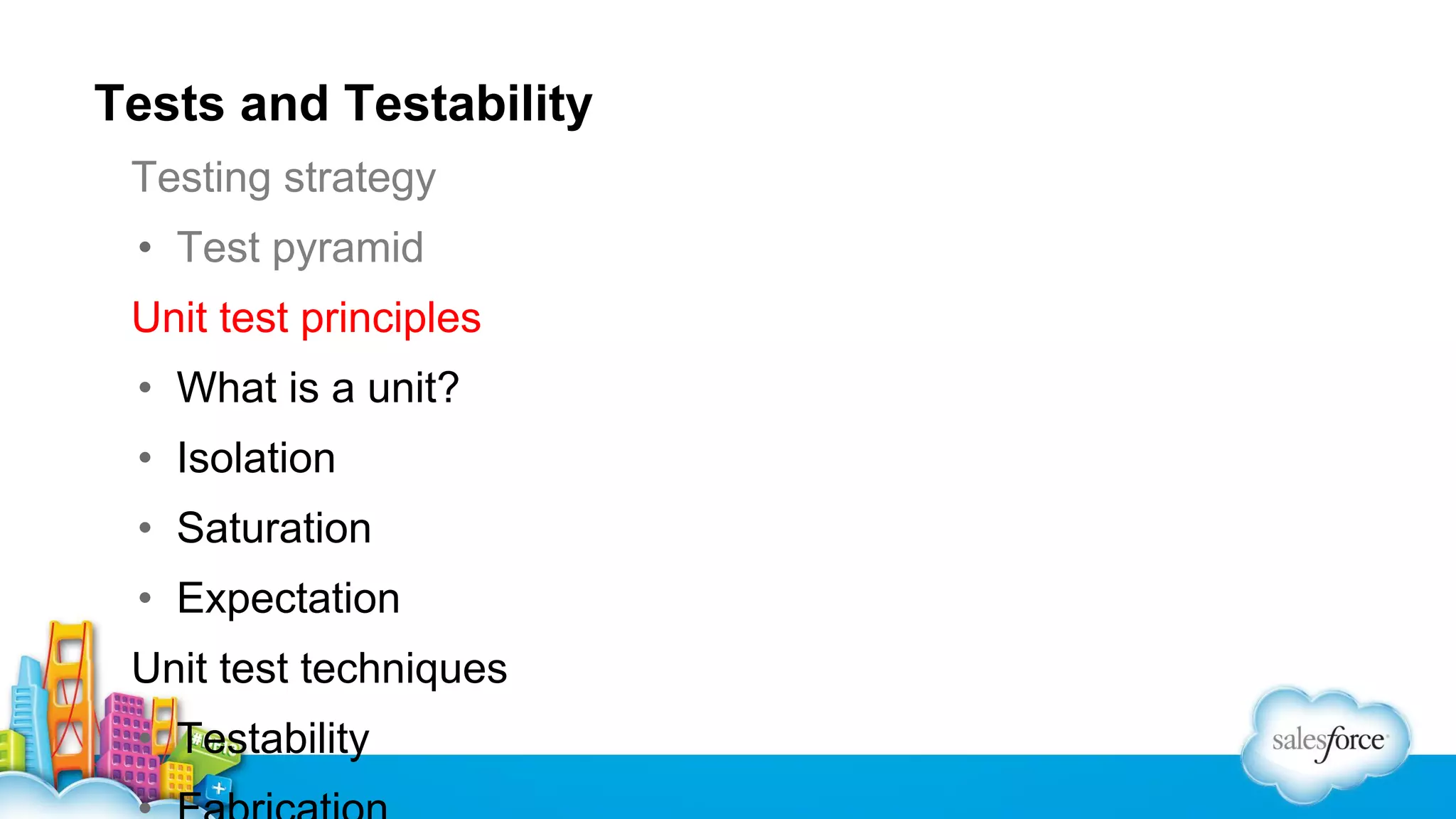

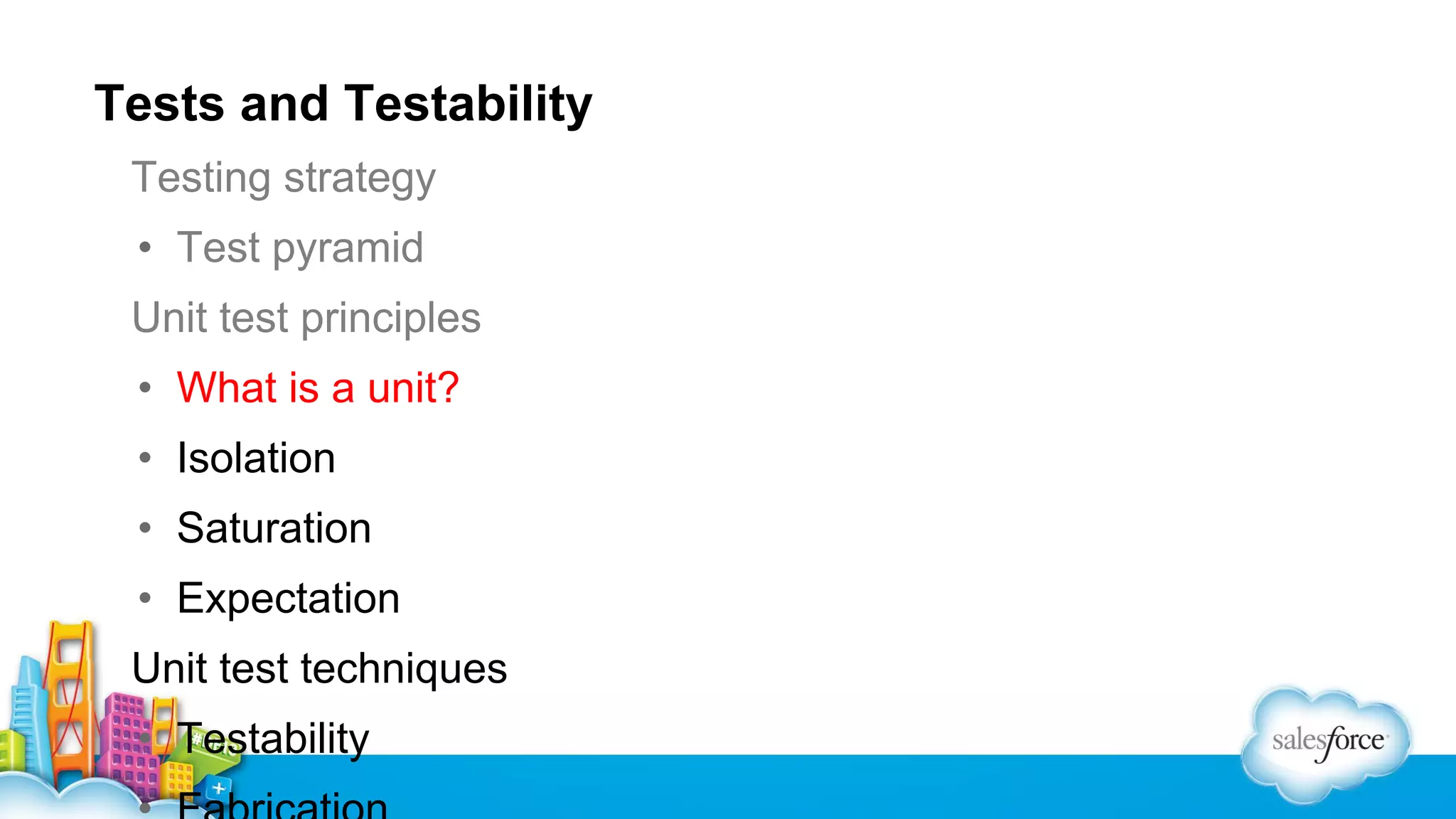

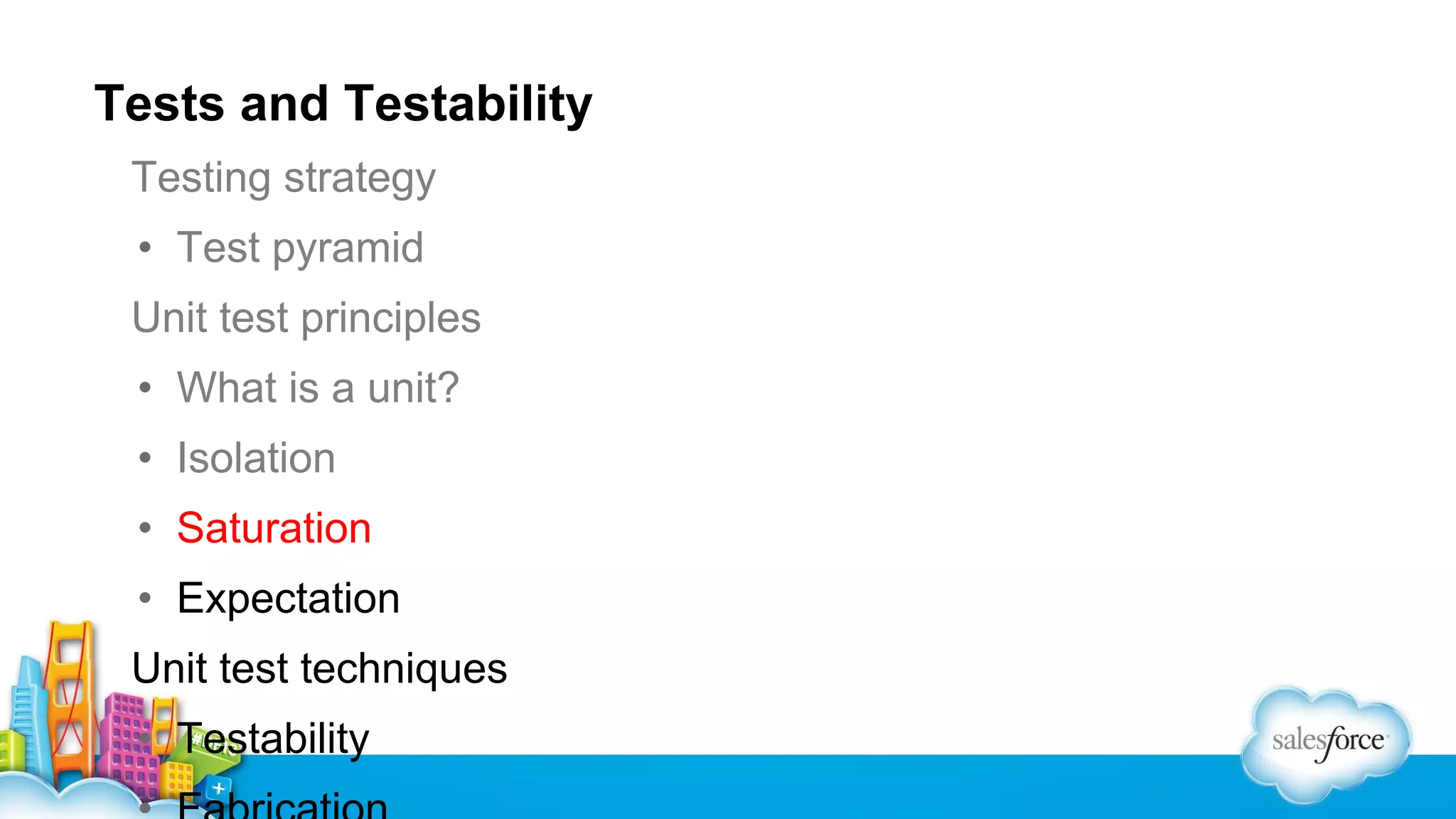

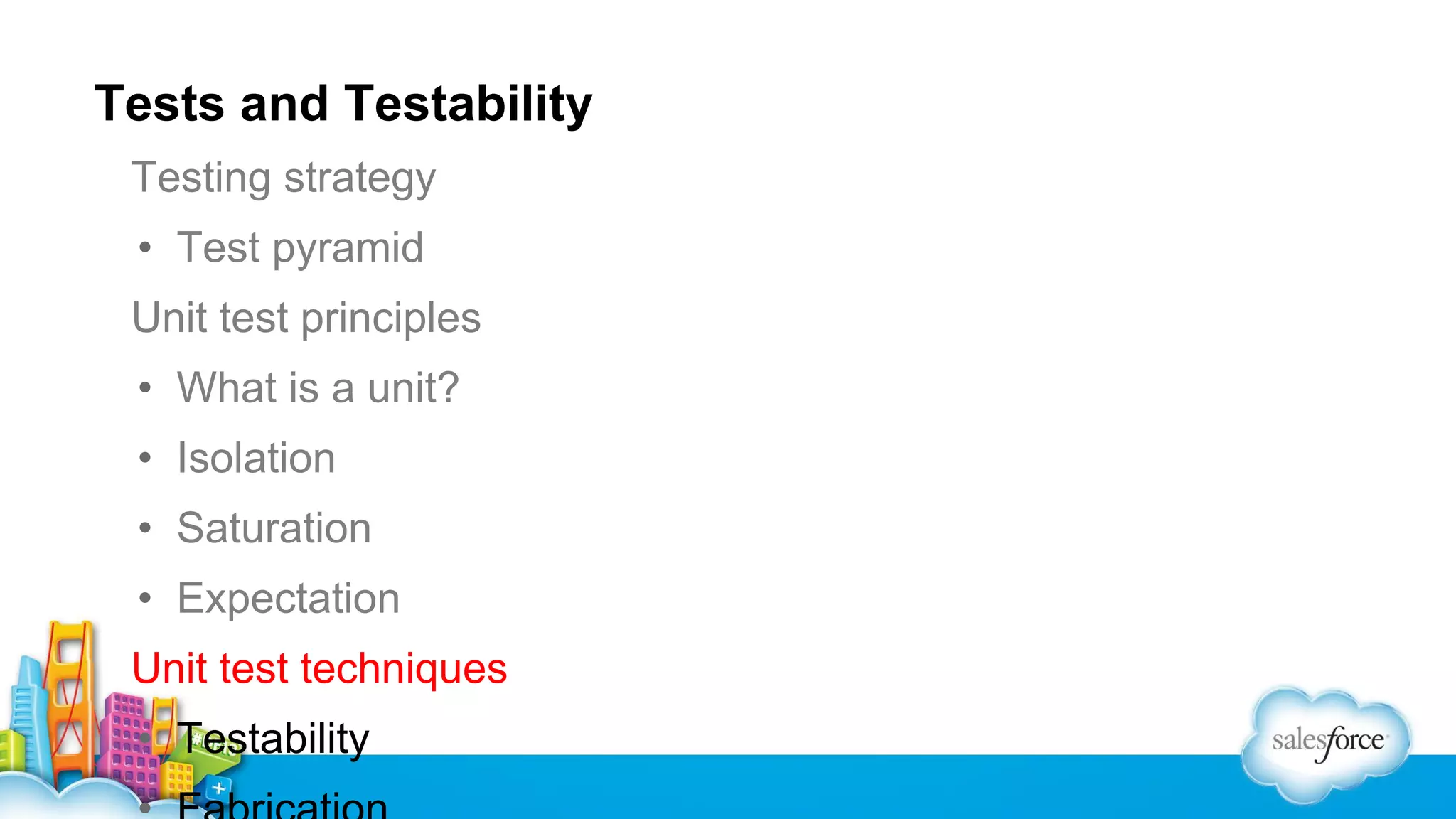

Tests and Testability
Testing strategy
• Test pyramid
Unit test principles
• What is a unit?
• Isolation
• Saturation
• Expectation
Unit test techniques
• Testability

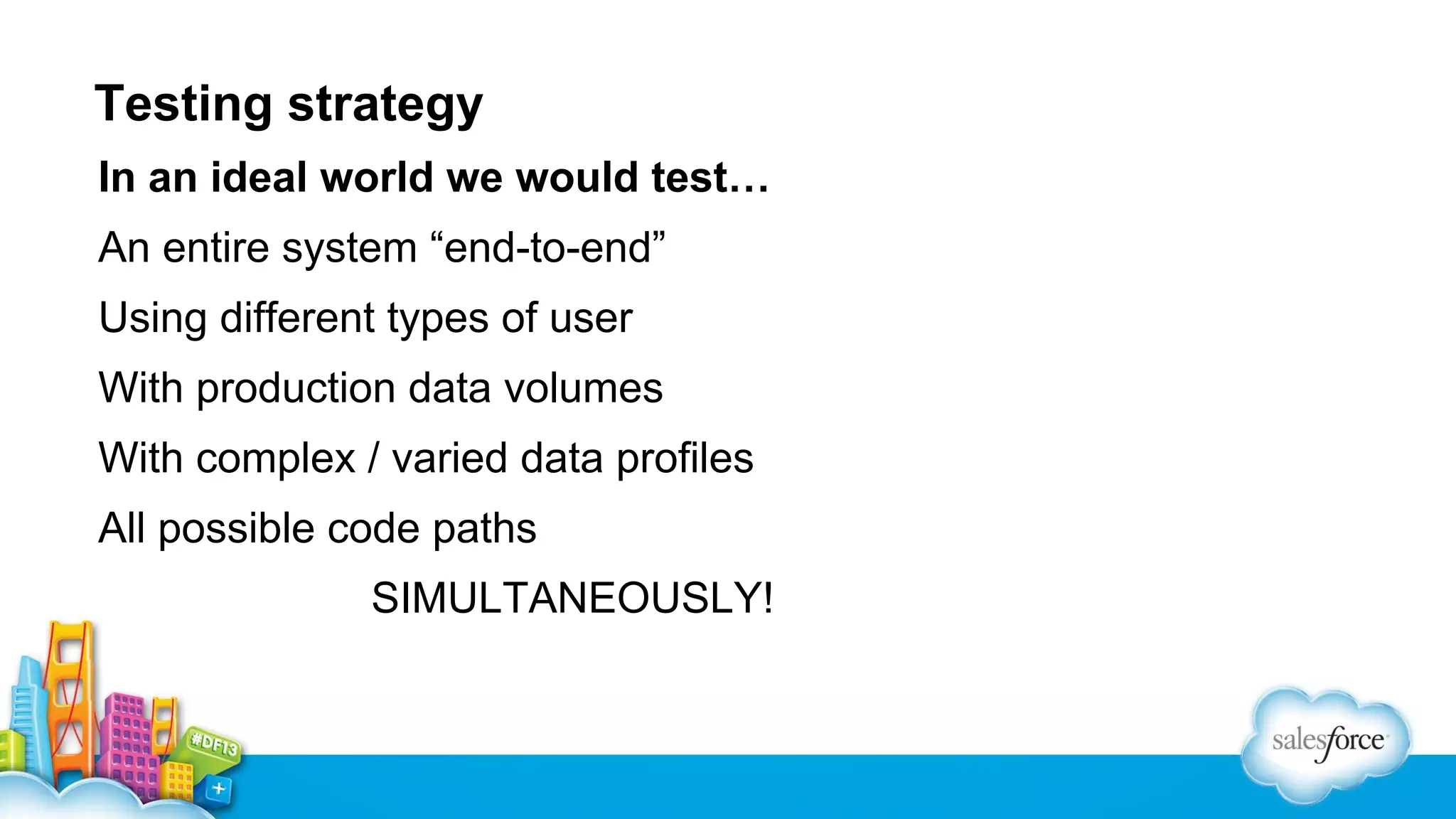

Testing strategy
In an ideal world we would test…
An entire system “end-to-end”
Using different types of user
With production data volumes
With complex / varied data profiles
All possible code paths
SIMULTANEOUSLY!

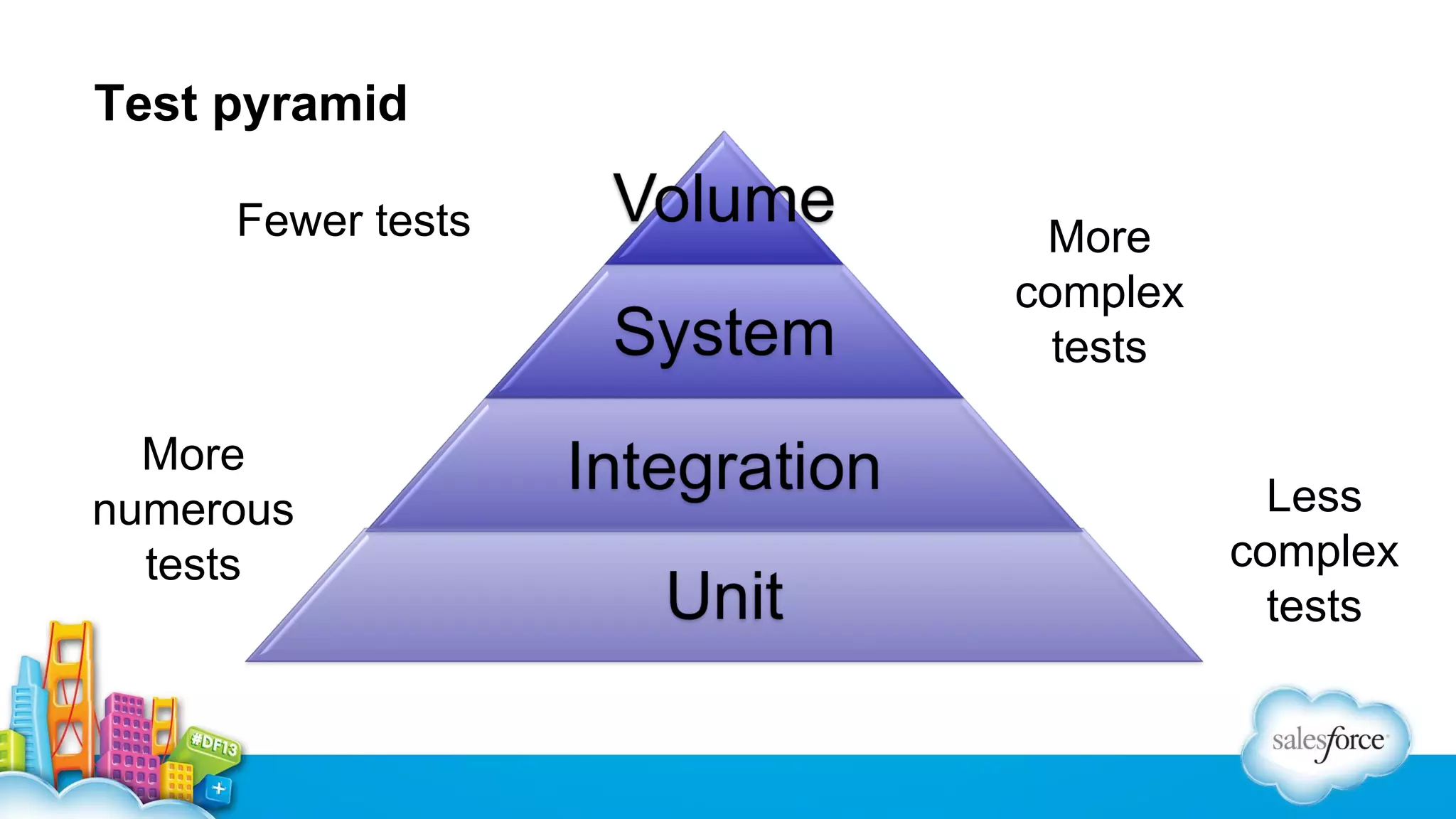

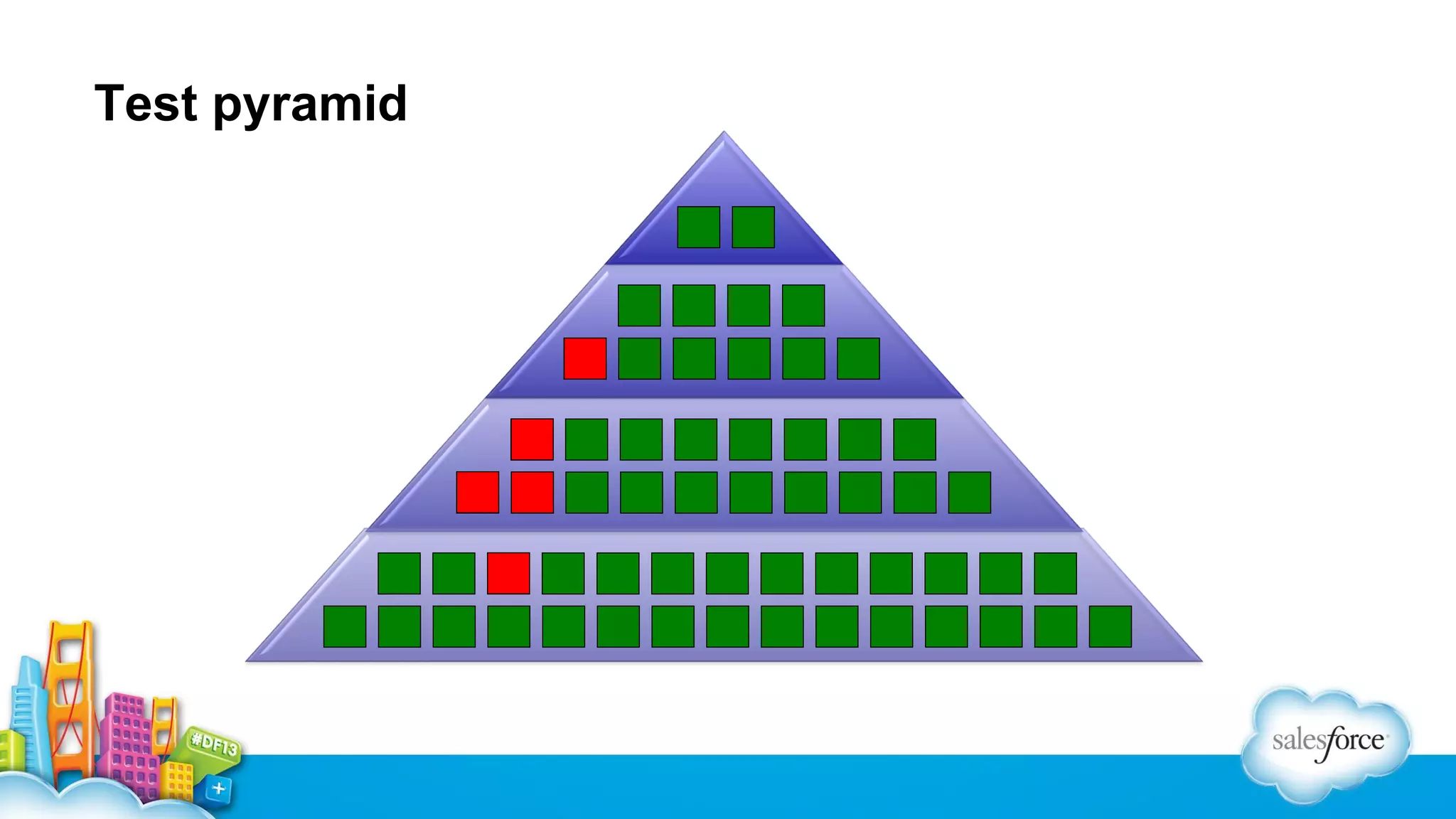

Test pyramid
Fewer tests

More
numerous
tests

More
complex
tests
Less
complex
tests

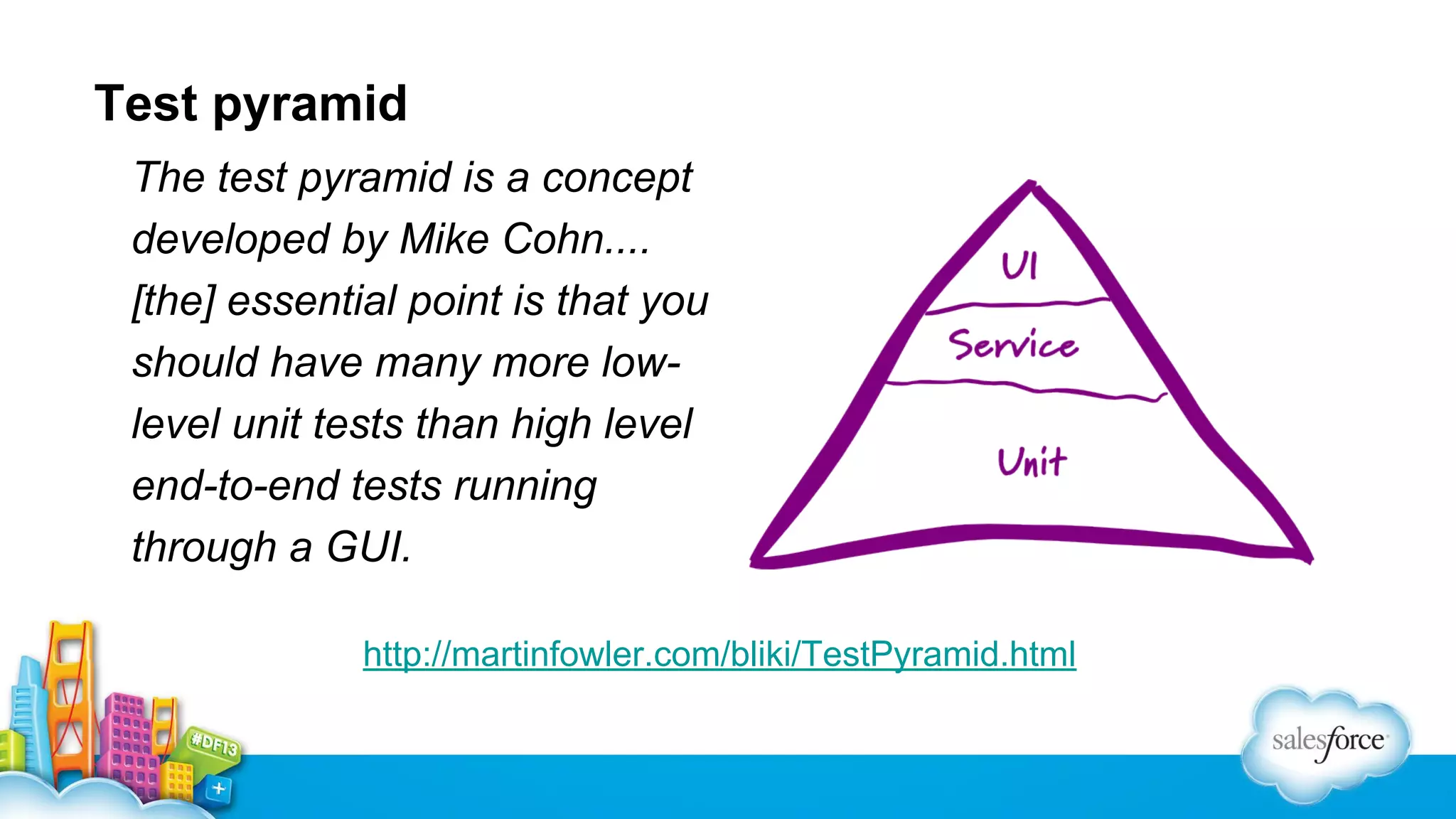

Test pyramid
The test pyramid is a concept
developed by Mike Cohn....
[the] essential point is that you
should have many more lowlevel unit tests than high level
end-to-end tests running
through a GUI.
http://martinfowler.com/bliki/TestPyramid.html

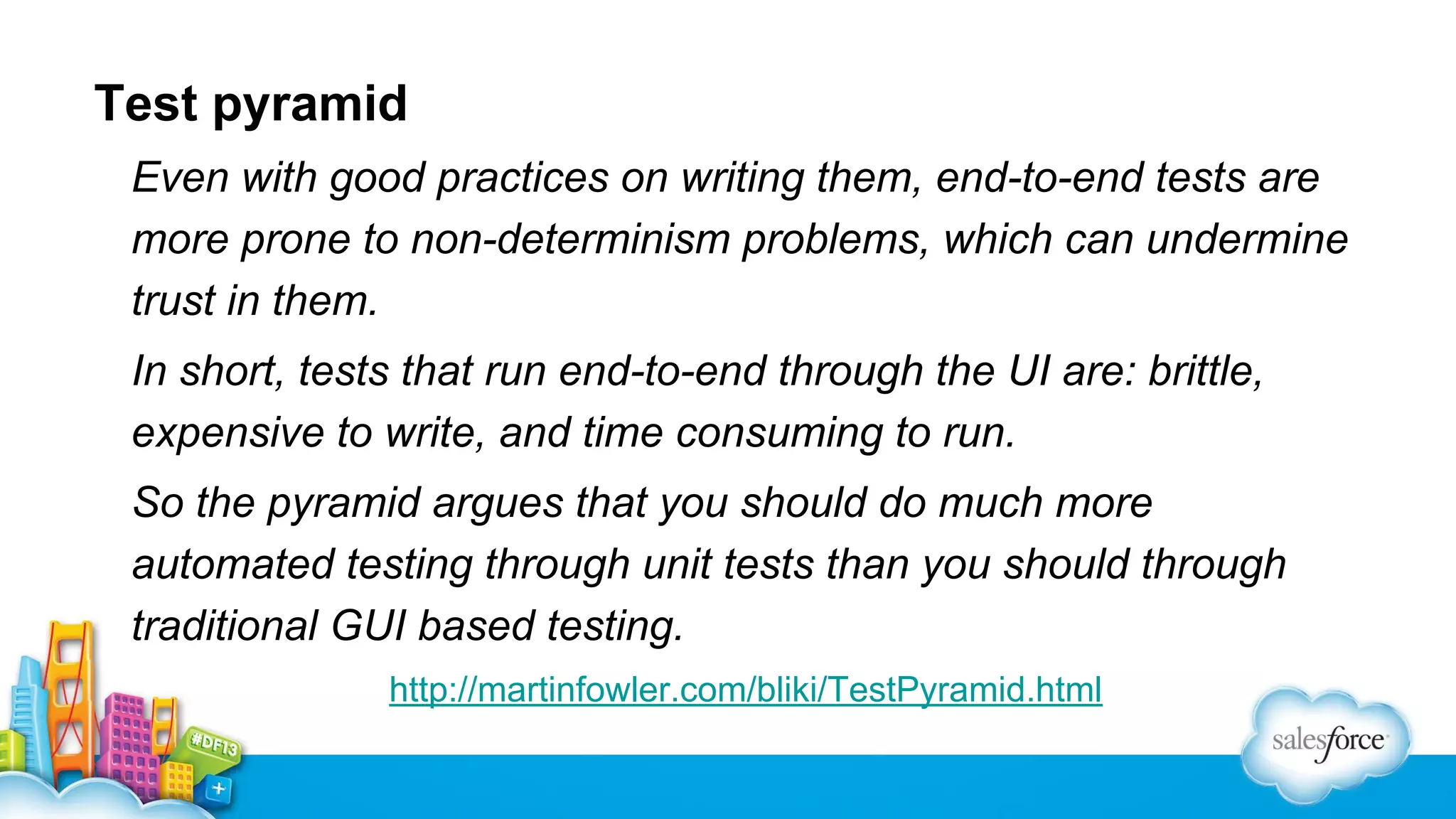

Test pyramid
Even with good practices on writing them, end-to-end tests are
more prone to non-determinism problems, which can undermine
trust in them.
In short, tests that run end-to-end through the UI are: brittle,
expensive to write, and time consuming to run.
So the pyramid argues that you should do much more
automated testing through unit tests than you should through
traditional GUI based testing.
http://martinfowler.com/bliki/TestPyramid.html

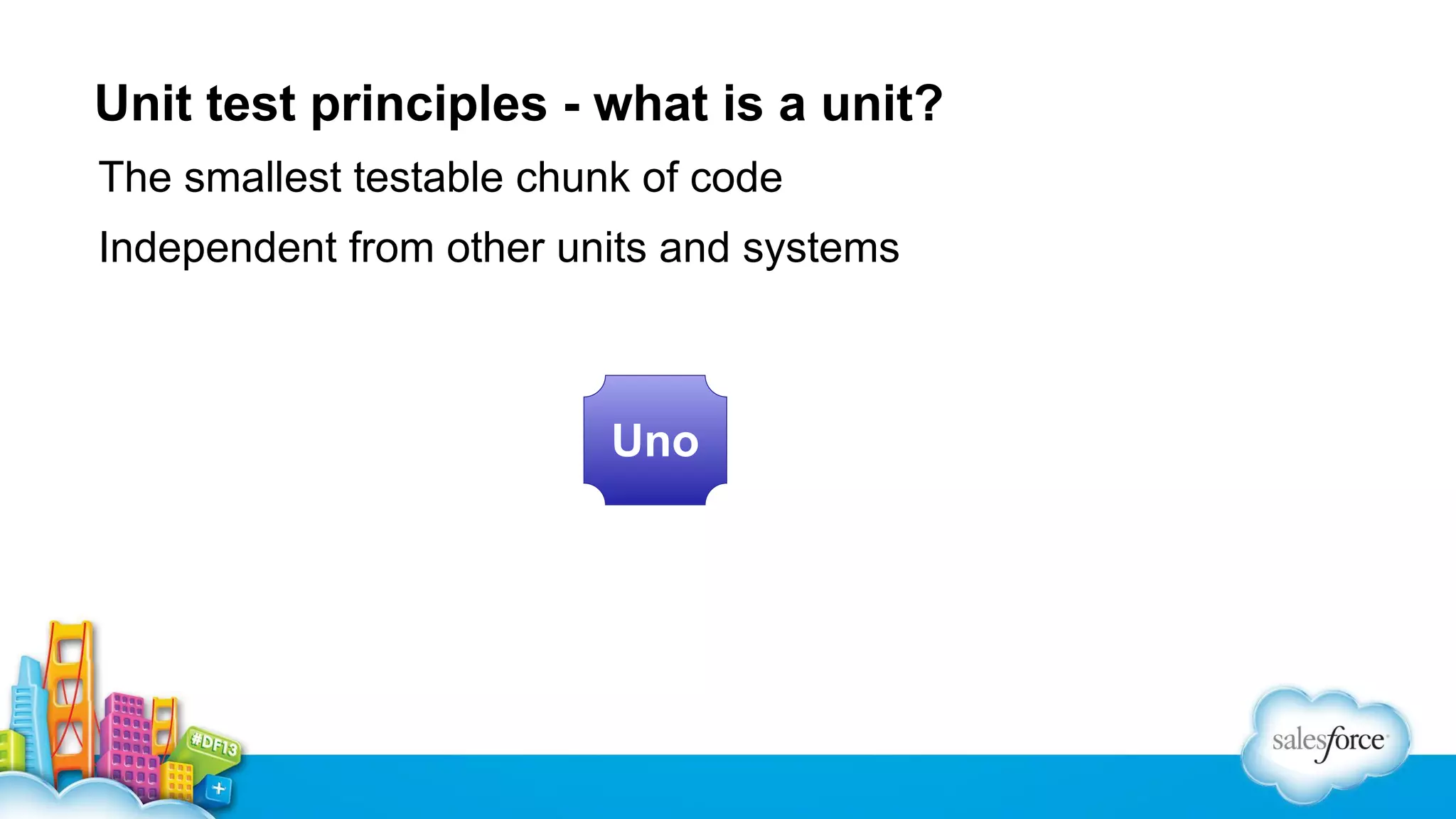

Unit test principles - what is a unit?
The smallest testable chunk of code
Independent from other units and systems

Uno

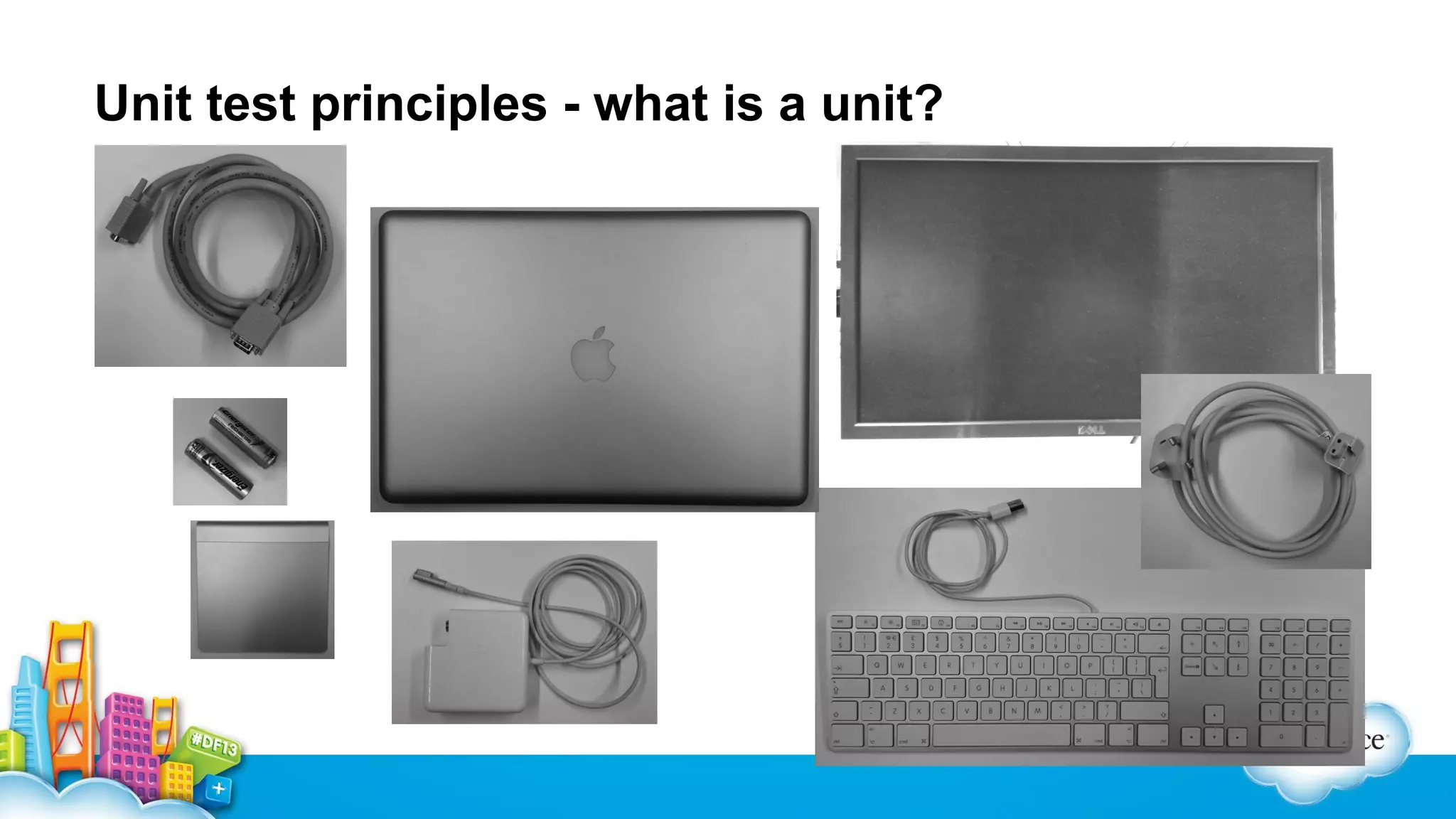

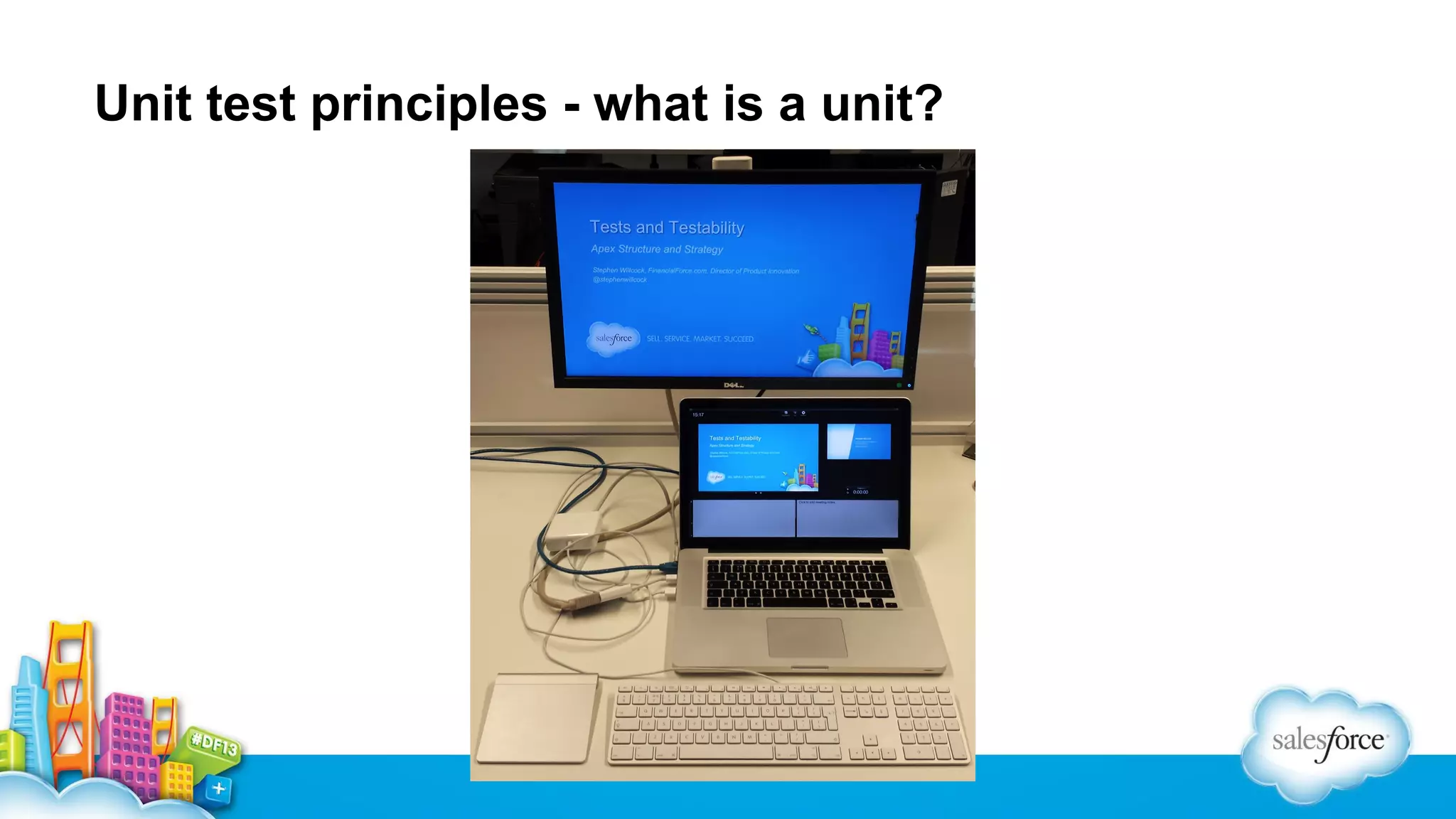

Unit test principles - what is a unit?

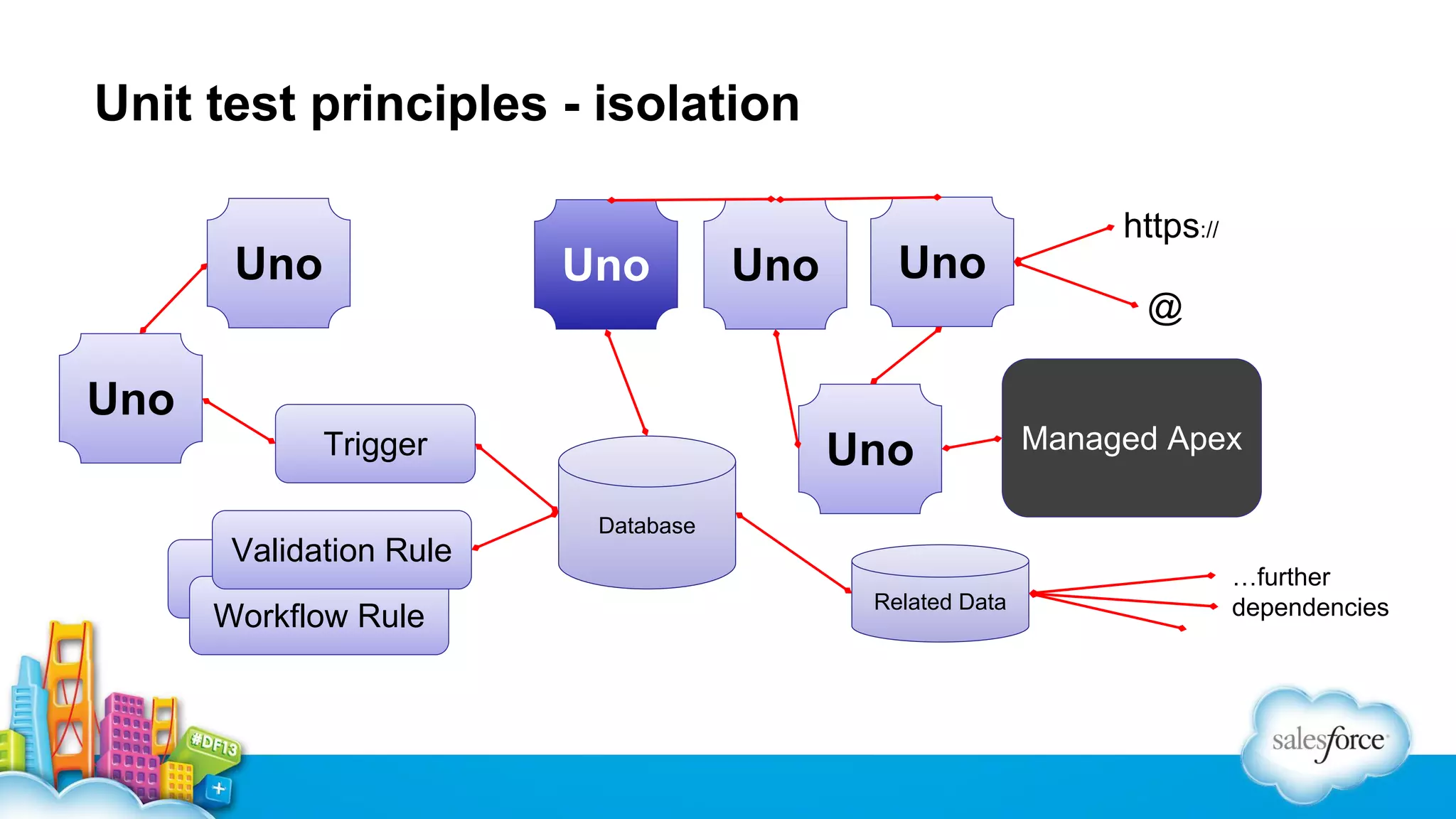

Unit test principles - isolation
https://

Uno

Uno

Uno

Uno
@

Uno
Trigger
Validation Rule
Workflow Rule

Uno

Managed Apex

Database
Related Data

…further
dependencies

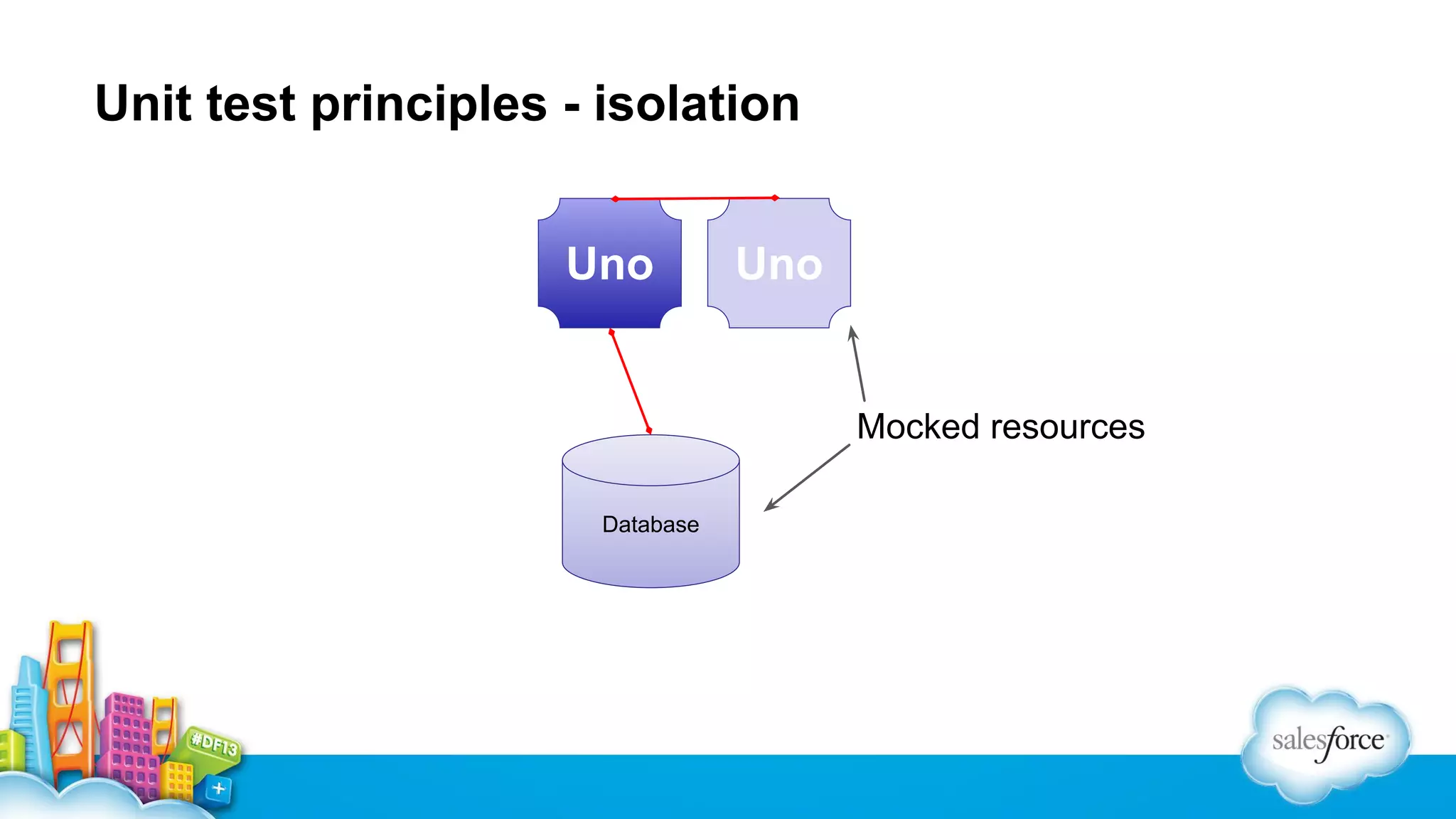

Unit test principles - isolation
Uno

Uno

Mocked resources
Database

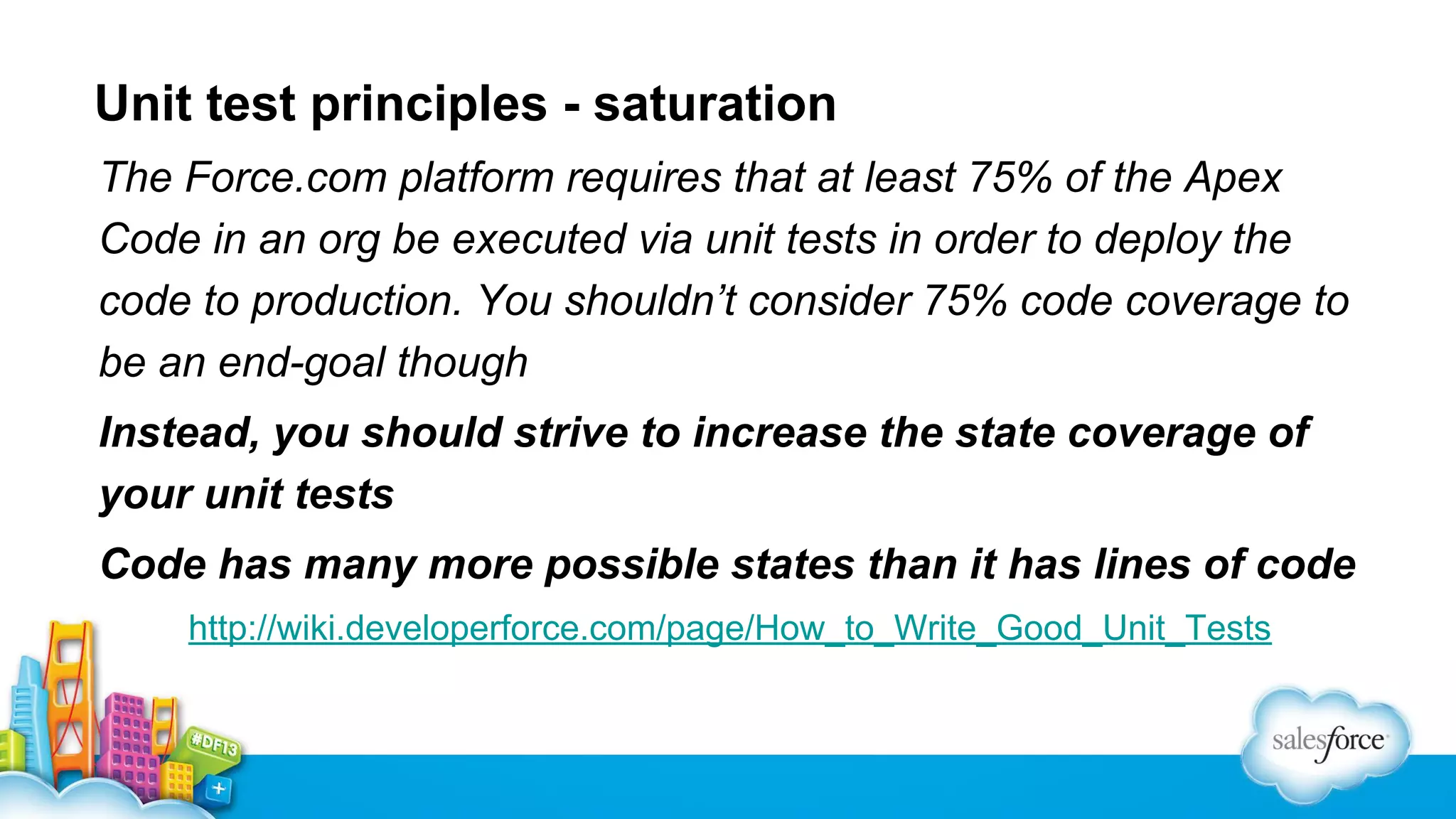

Unit test principles - saturation
The Force.com platform requires that at least 75% of the Apex
Code in an org be executed via unit tests in order to deploy the
code to production. You shouldn’t consider 75% code coverage to
be an end-goal though
Instead, you should strive to increase the state coverage of
your unit tests
Code has many more possible states than it has lines of code
http://wiki.developerforce.com/page/How_to_Write_Good_Unit_Tests

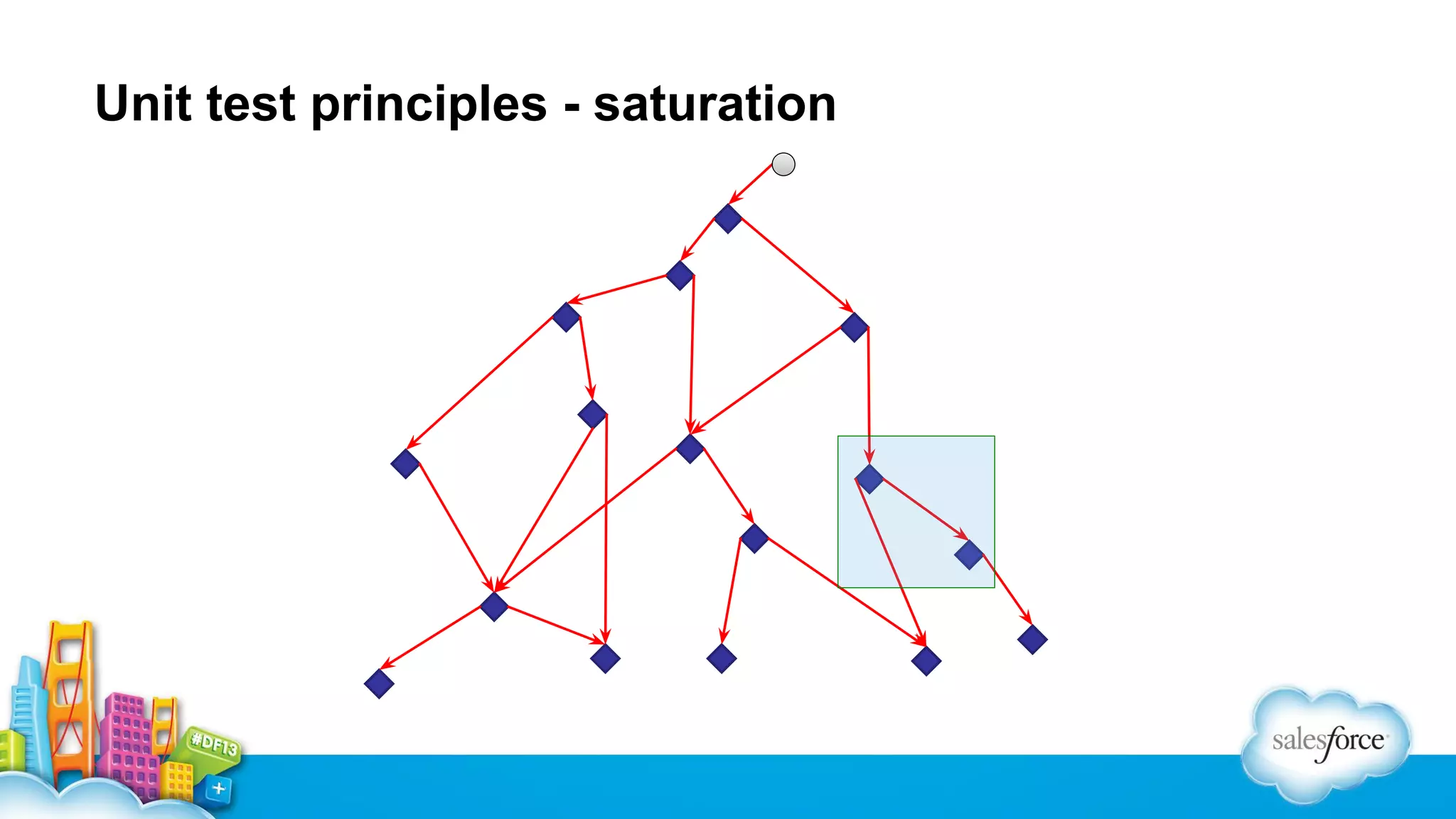

Unit test principles - saturation

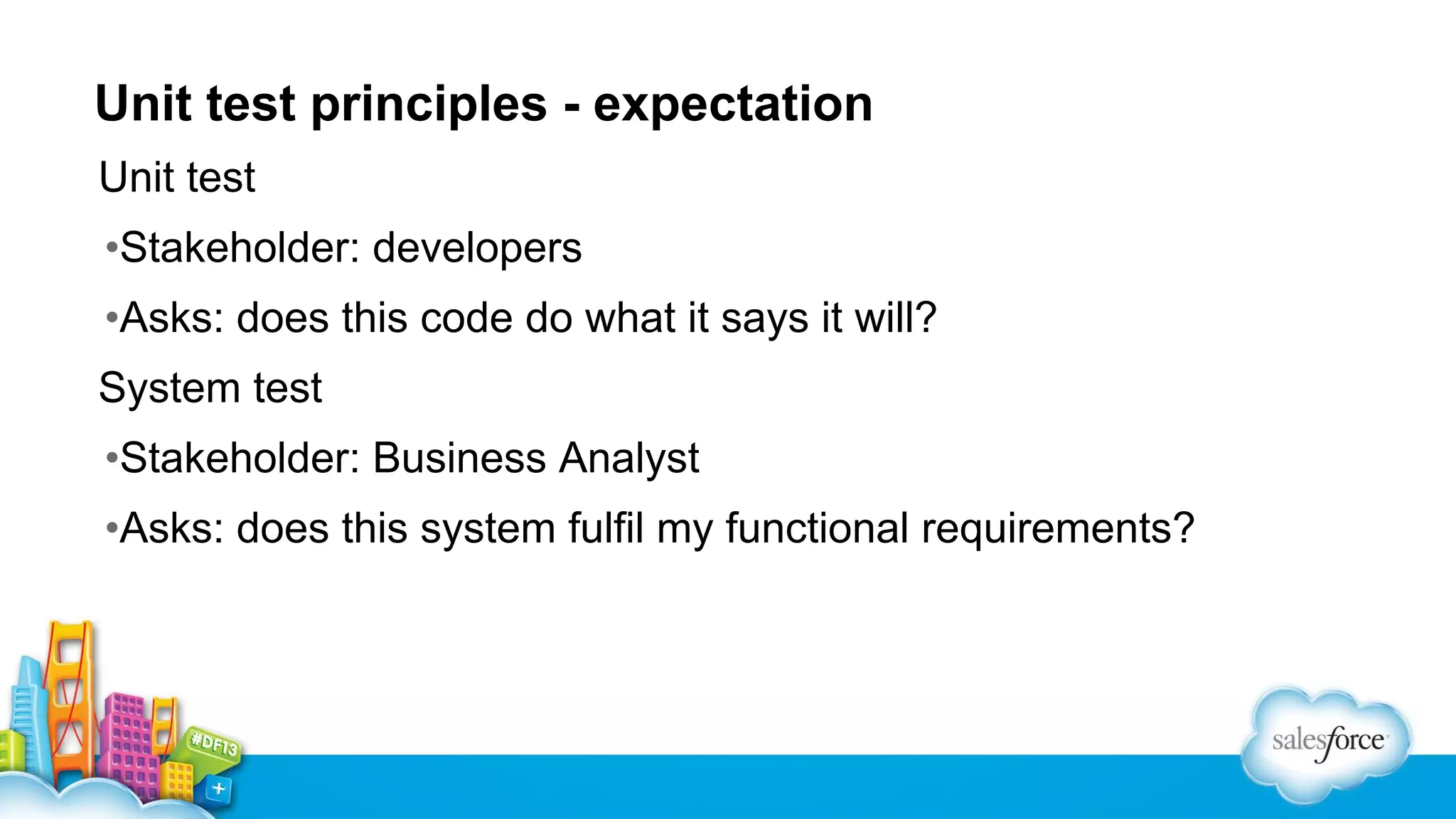

Unit test principles - expectation
Unit test
•Stakeholder: developers
•Asks: does this code do what it says it will?
System test
•Stakeholder: Business Analyst
•Asks: does this system fulfil my functional requirements?

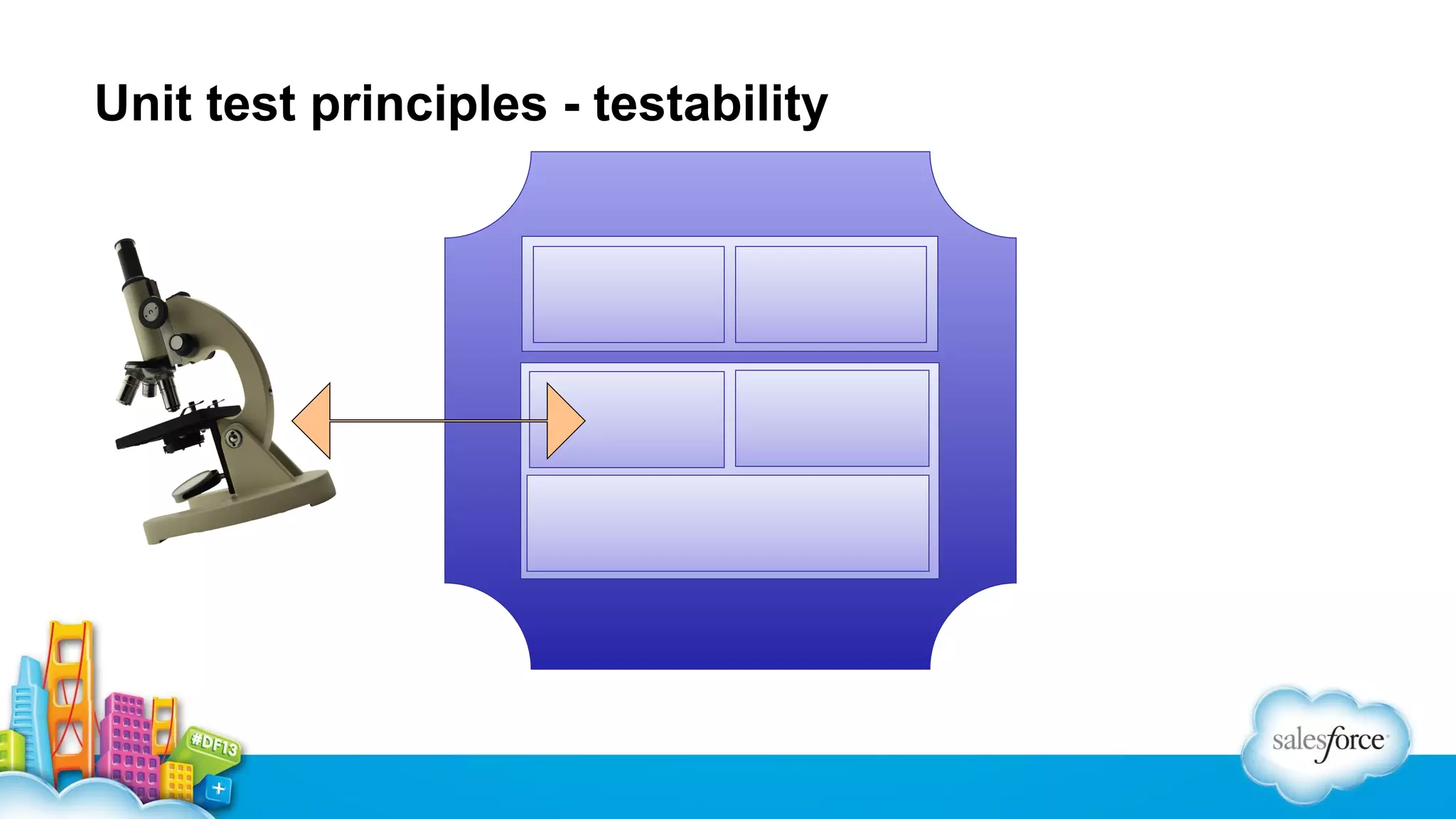

Unit test principles - testability

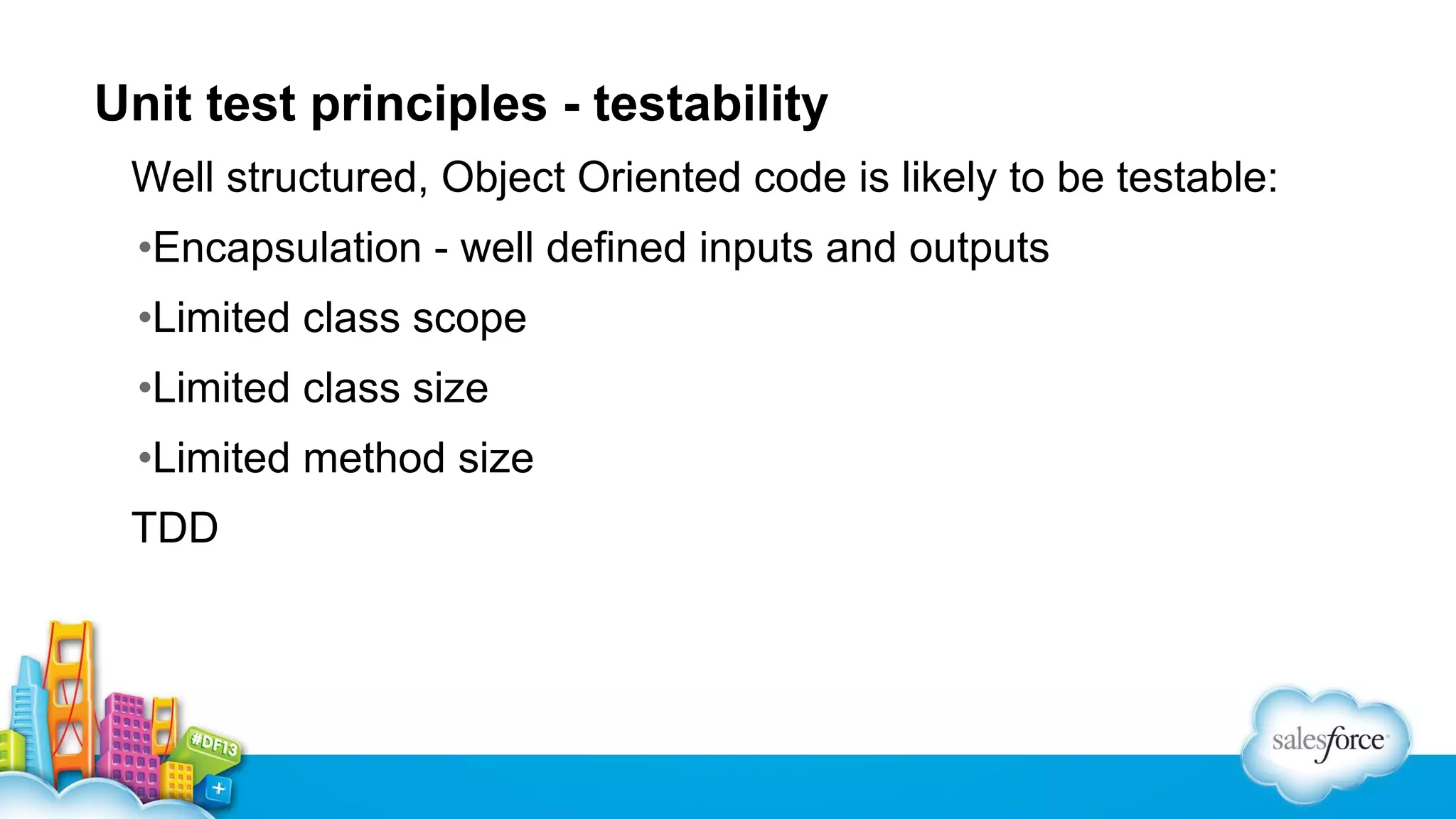

Unit test principles - testability
Well structured, Object Oriented code is likely to be testable:
•Encapsulation - well defined inputs and outputs
•Limited class scope
•Limited class size
•Limited method size
TDD

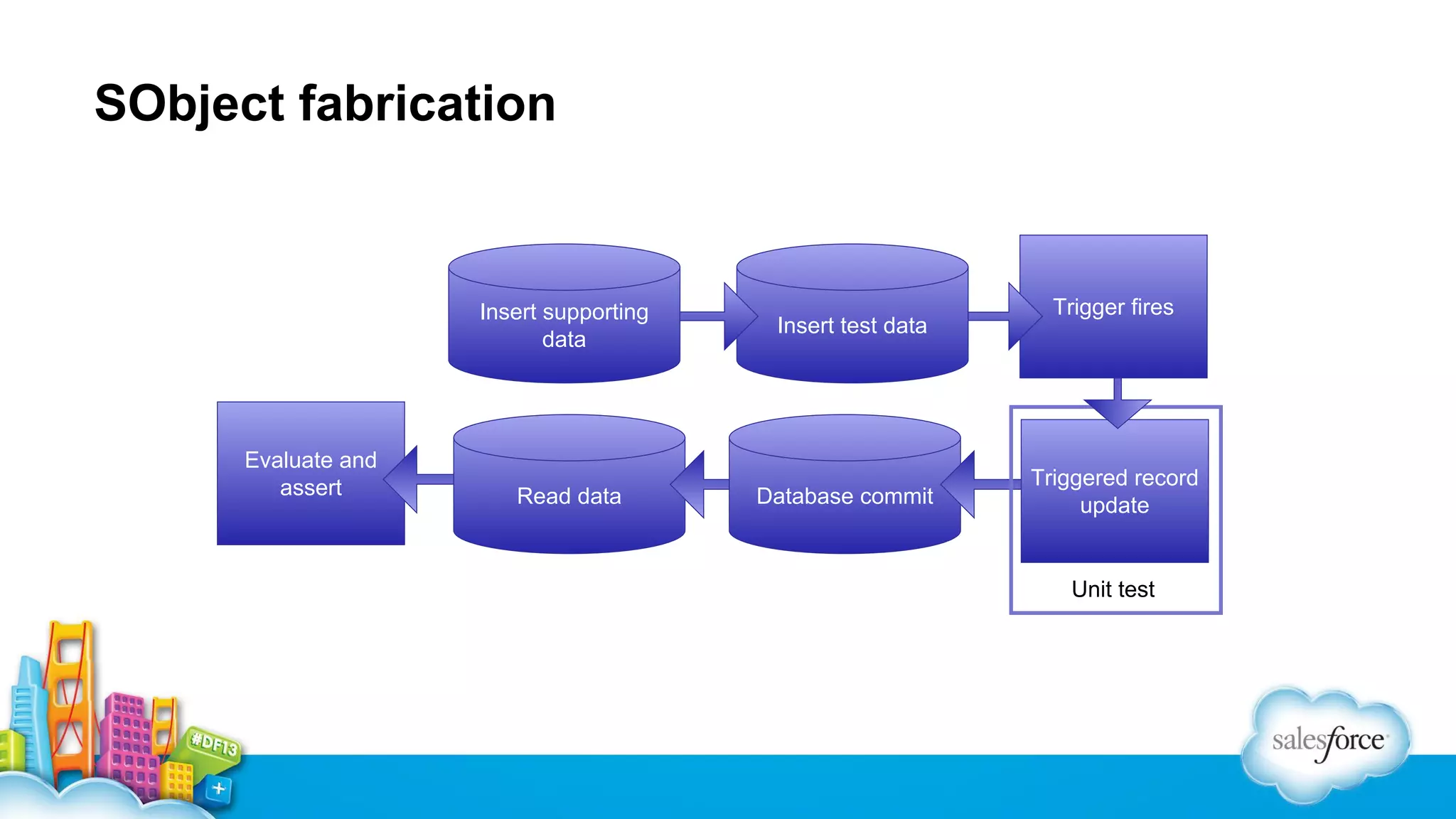

SObject fabrication

Insert supporting
data

Evaluate and
assert

Read data

Insert test data

Database commit

Trigger fires

Triggered record
update

Unit test

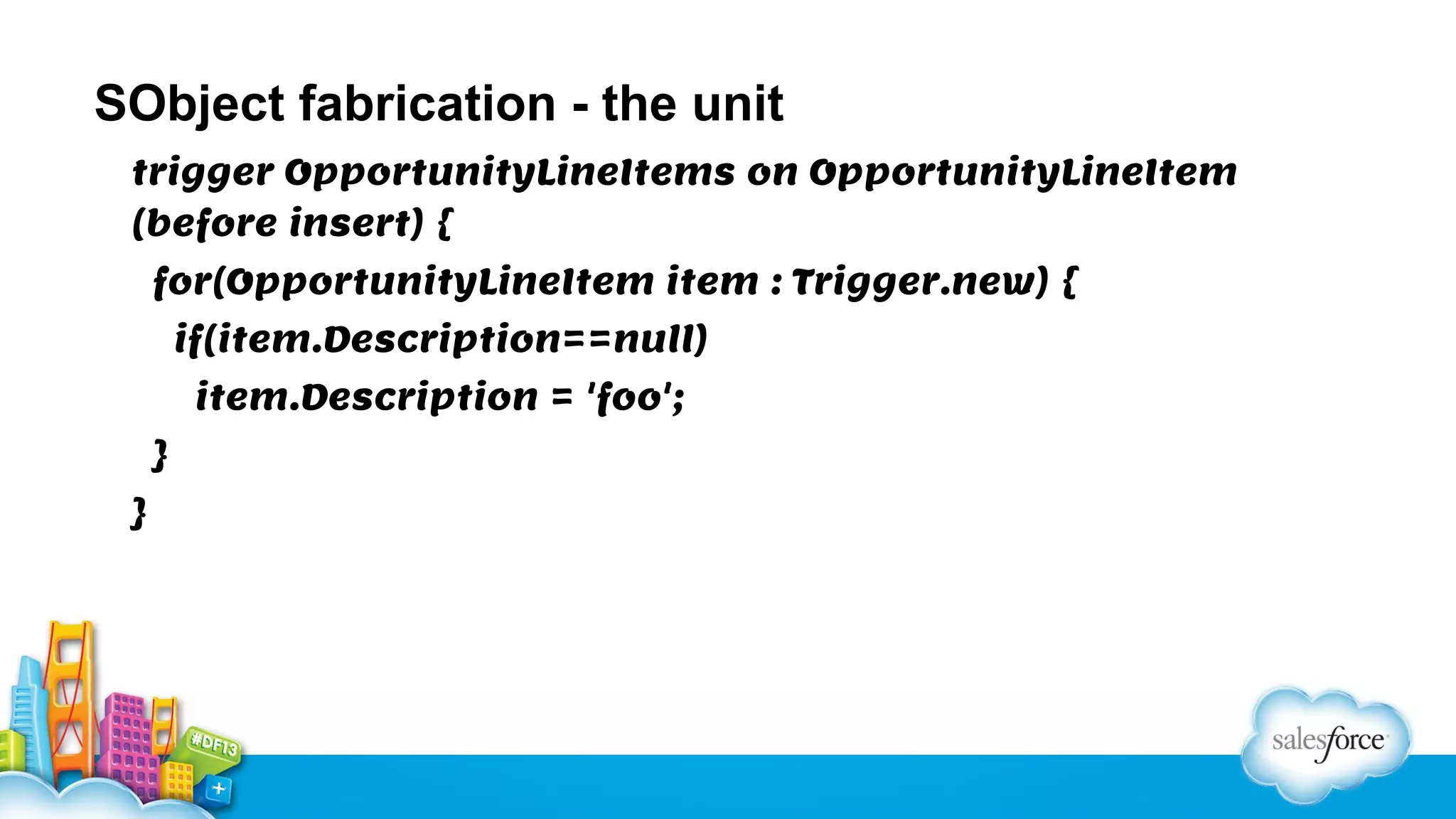

SObject fabrication - the unit
trigger OpportunityLineItems on OpportunityLineItem
(before insert) {
for(OpportunityLineItem item : Trigger.new) {
if(item.Description==null)
item.Description = 'foo';
}
}

SObject fabrication - the test

AccountId
StageName
OpportunityLineItem oli = new OpportunityLineItem (
insert new
CloseDate
Description=null );
Opportunity
insert oli;

insert new
oli = [select Description from OpportunityLineItem where
Account
OpportunityId
id=:oli.Id];
UnitPrice
Quantity
insert new
insert new
system.assertEquals('foo',oli.Description);
PricebookEntryId
PricebookEntry
Product2

Select Id from
Pricebook2

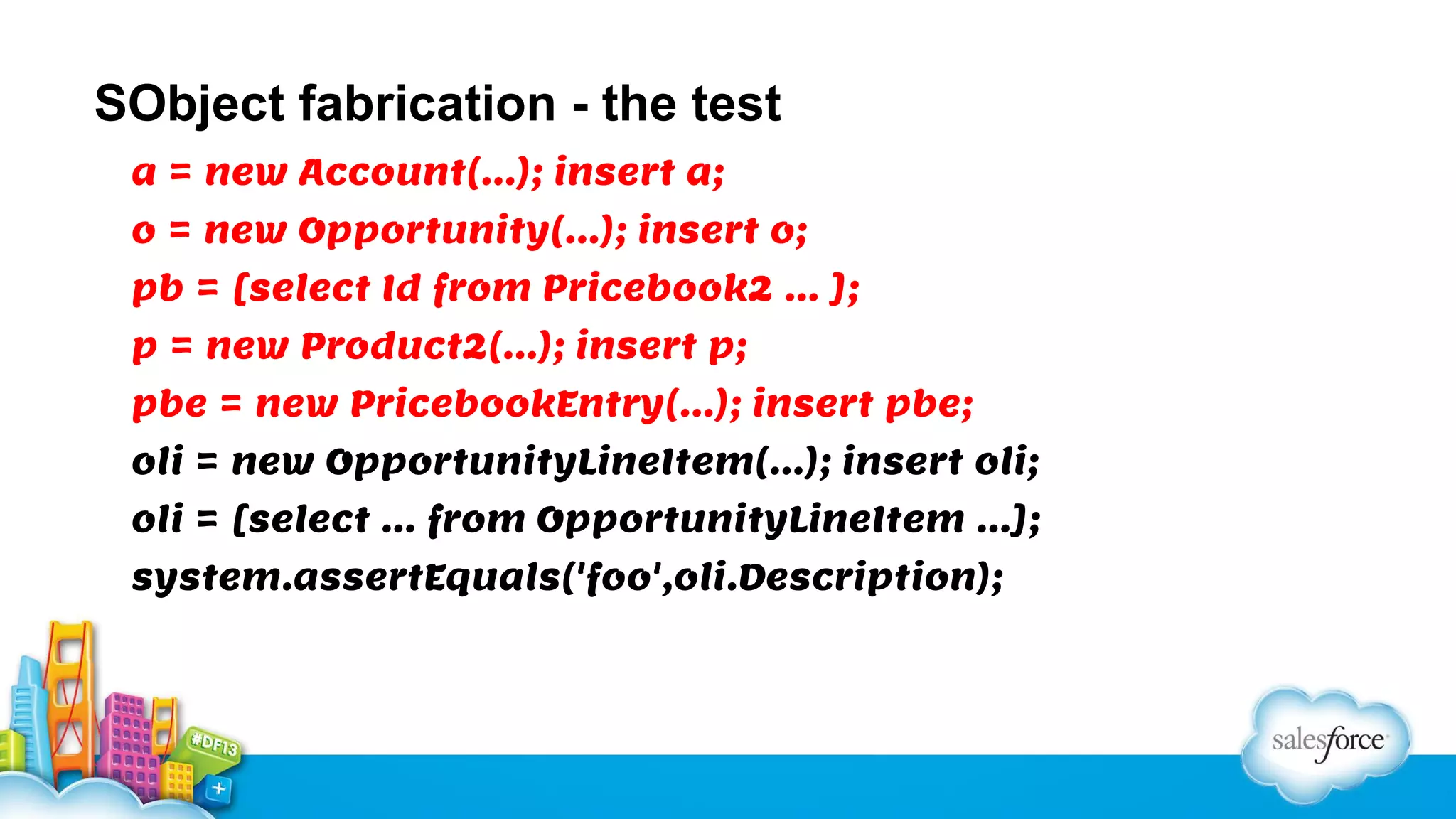

SObject fabrication - the test
a = new Account(…); insert a;
o = new Opportunity(…); insert o;
pb = [select Id from Pricebook2 … ];
p = new Product2(…); insert p;
pbe = new PricebookEntry(…); insert pbe;
oli = new OpportunityLineItem(…); insert oli;
oli = [select … from OpportunityLineItem …];

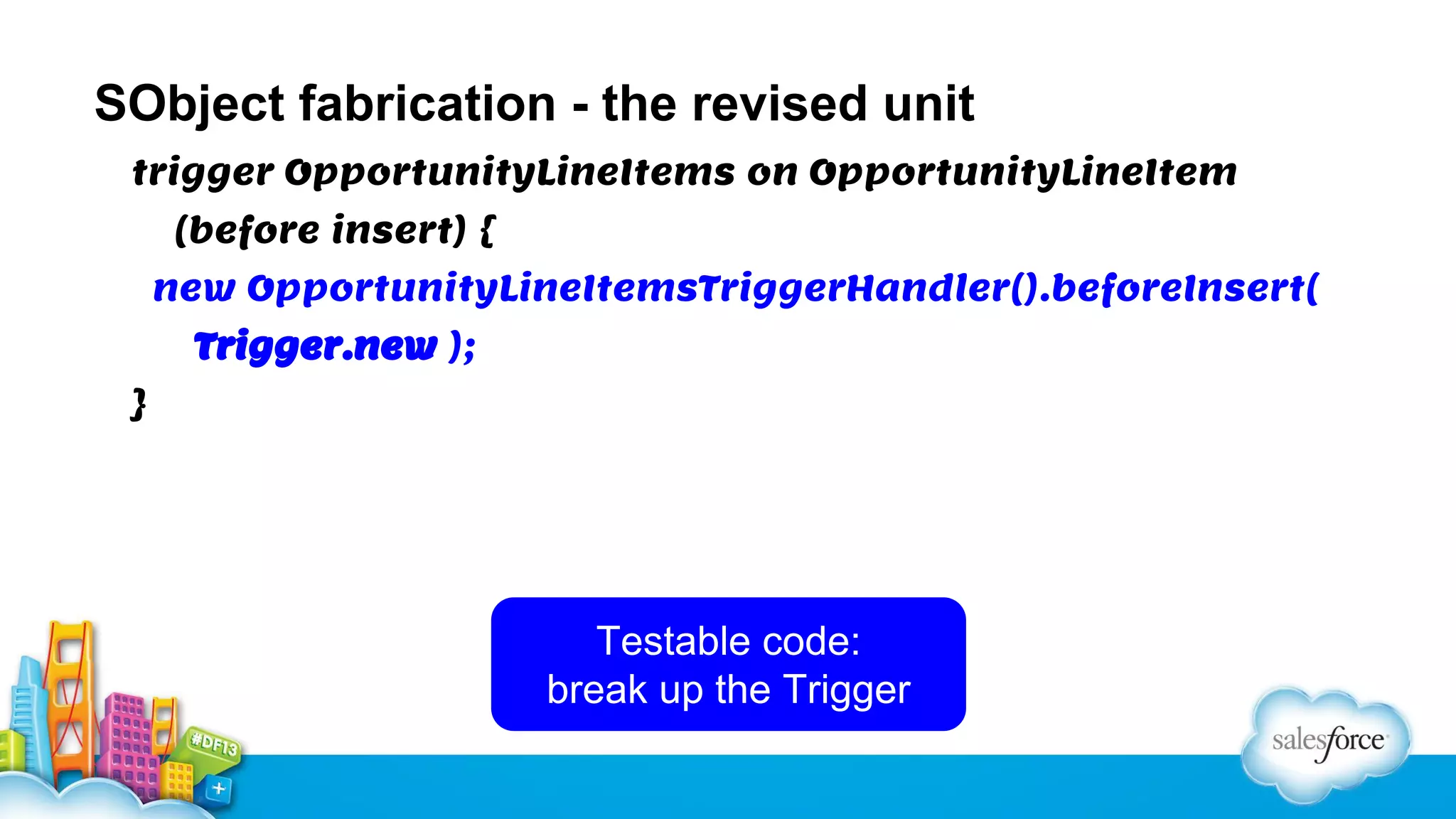

SObject fabrication - the revised unit
trigger OpportunityLineItems on OpportunityLineItem
(before insert) {
new OpportunityLineItemsTriggerHandler().beforeInsert(
Trigger.new );
}

Testable code:
break up the Trigger

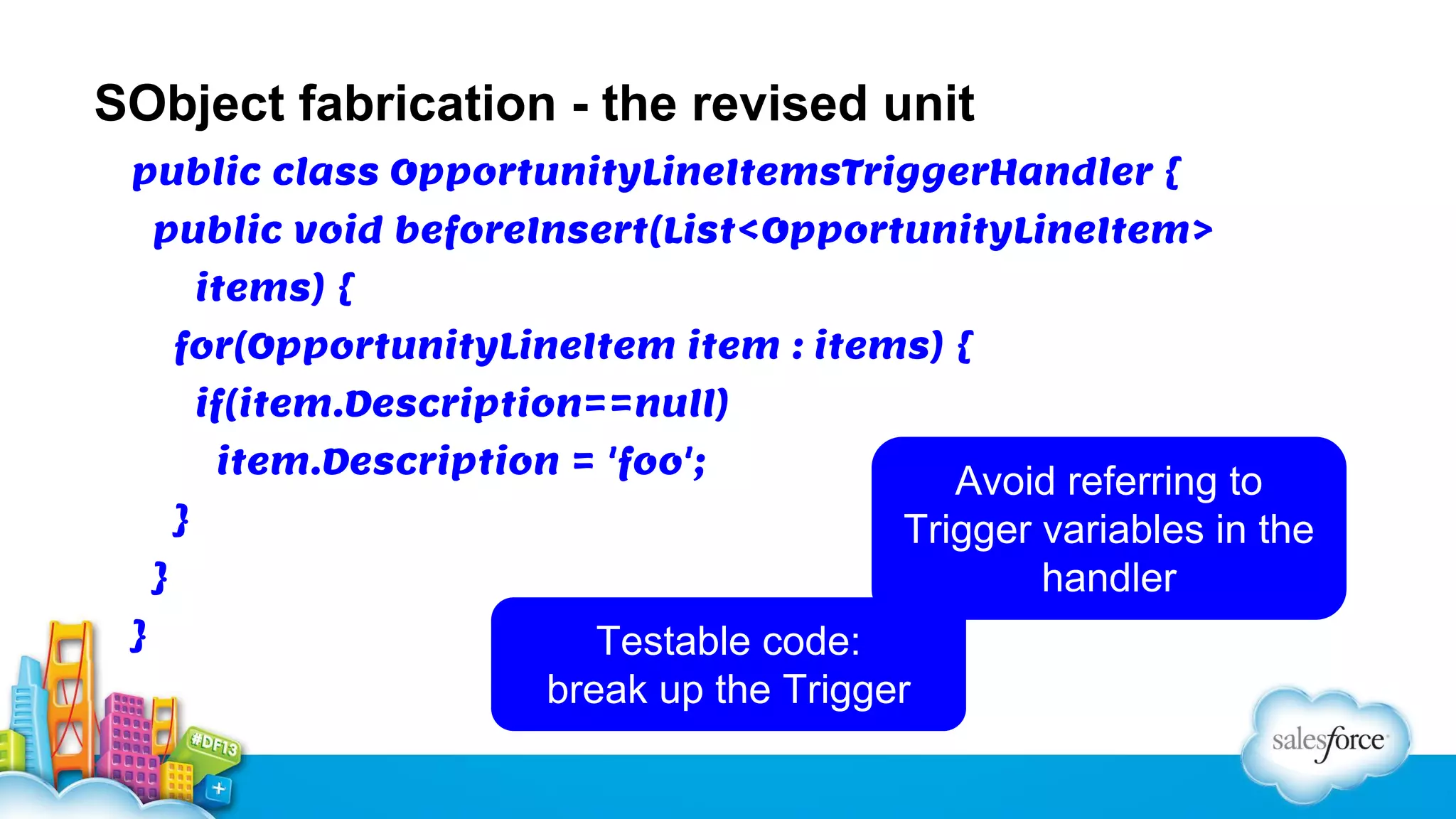

SObject fabrication - the revised unit
public class OpportunityLineItemsTriggerHandler {
public void beforeInsert(List<OpportunityLineItem>
items) {
for(OpportunityLineItem item : items) {
if(item.Description==null)
item.Description = 'foo';
}
}
}

Avoid referring to
Trigger variables in the
handler

Testable code:
break up the Trigger

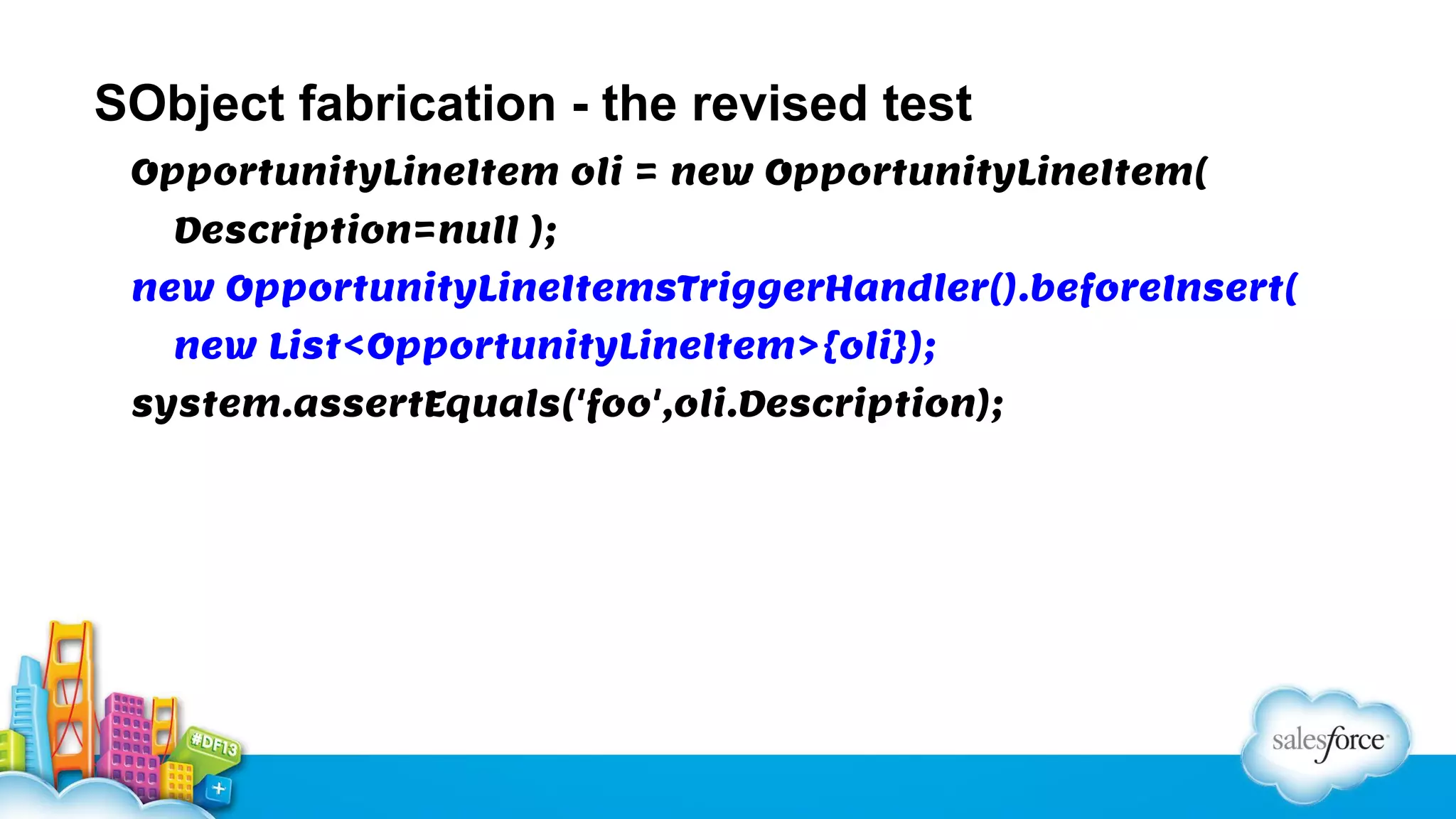

SObject fabrication - the revised test
OpportunityLineItem oli = new OpportunityLineItem(
Description=null );
new OpportunityLineItemsTriggerHandler().beforeInsert(
new List<OpportunityLineItem>{oli});

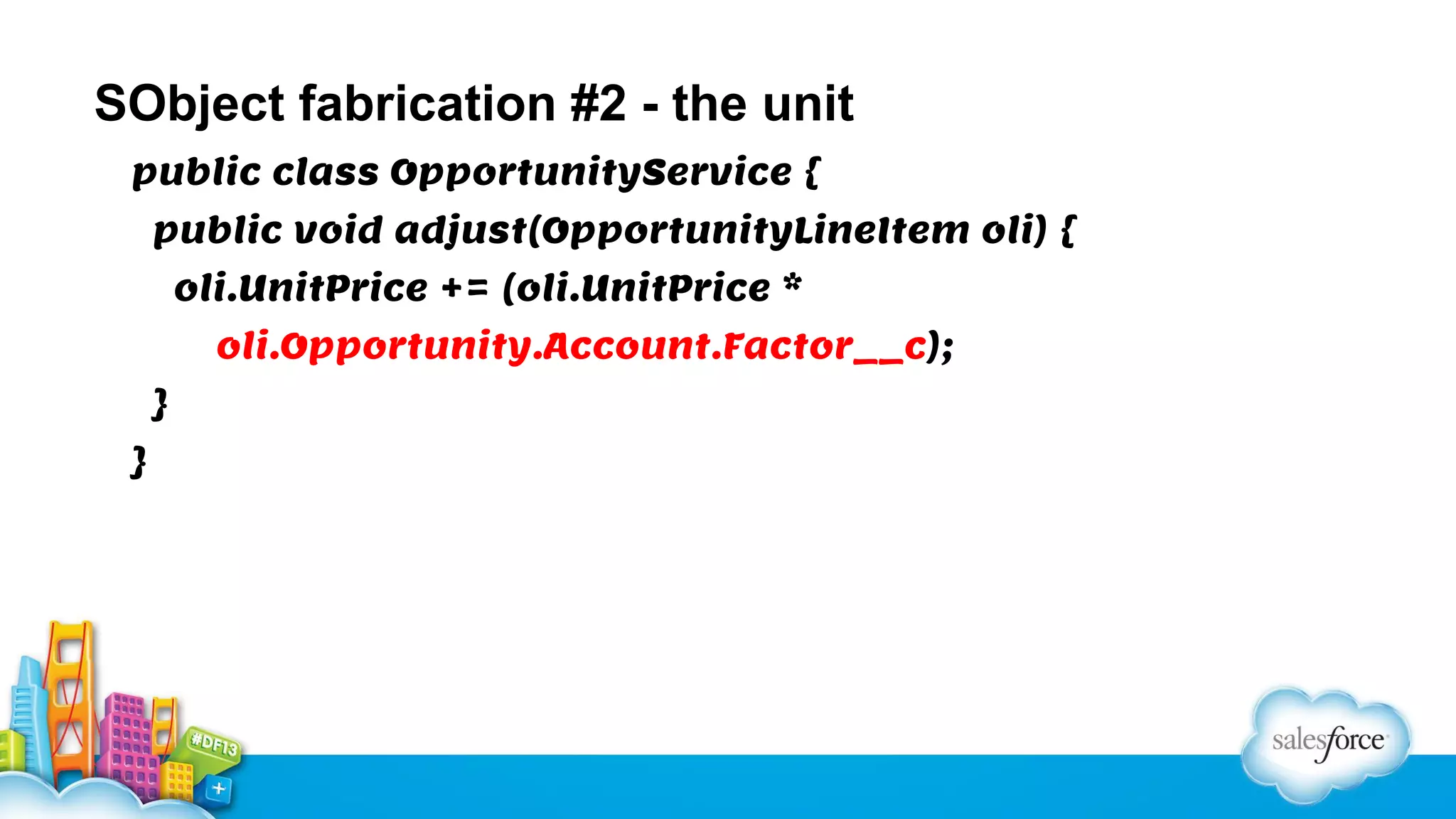

SObject fabrication #2 - the unit
public class OpportunityService {
public void adjust(OpportunityLineItem oli) {
oli.UnitPrice += (oli.UnitPrice *
oli.Opportunity.Account.Factor__c);
}
}

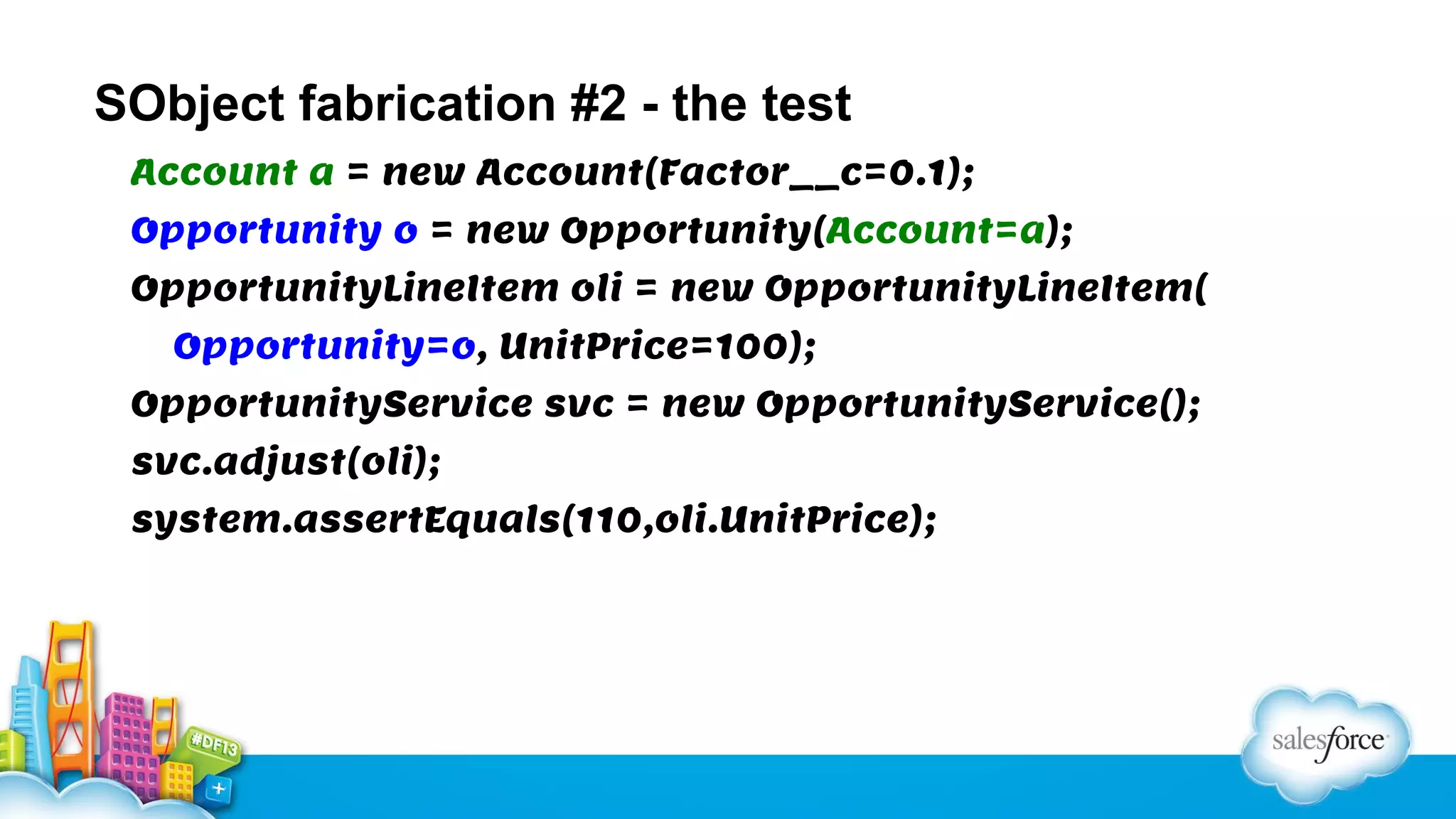

SObject fabrication #2 - the test
Account a = new Account(Factor__c=0.1);
Opportunity o = new Opportunity(Account=a);
OpportunityLineItem oli = new OpportunityLineItem(
Opportunity=o, UnitPrice=100);
OpportunityService svc = new OpportunityService();
svc.adjust(oli);
system.assertEquals(110,oli.UnitPrice);

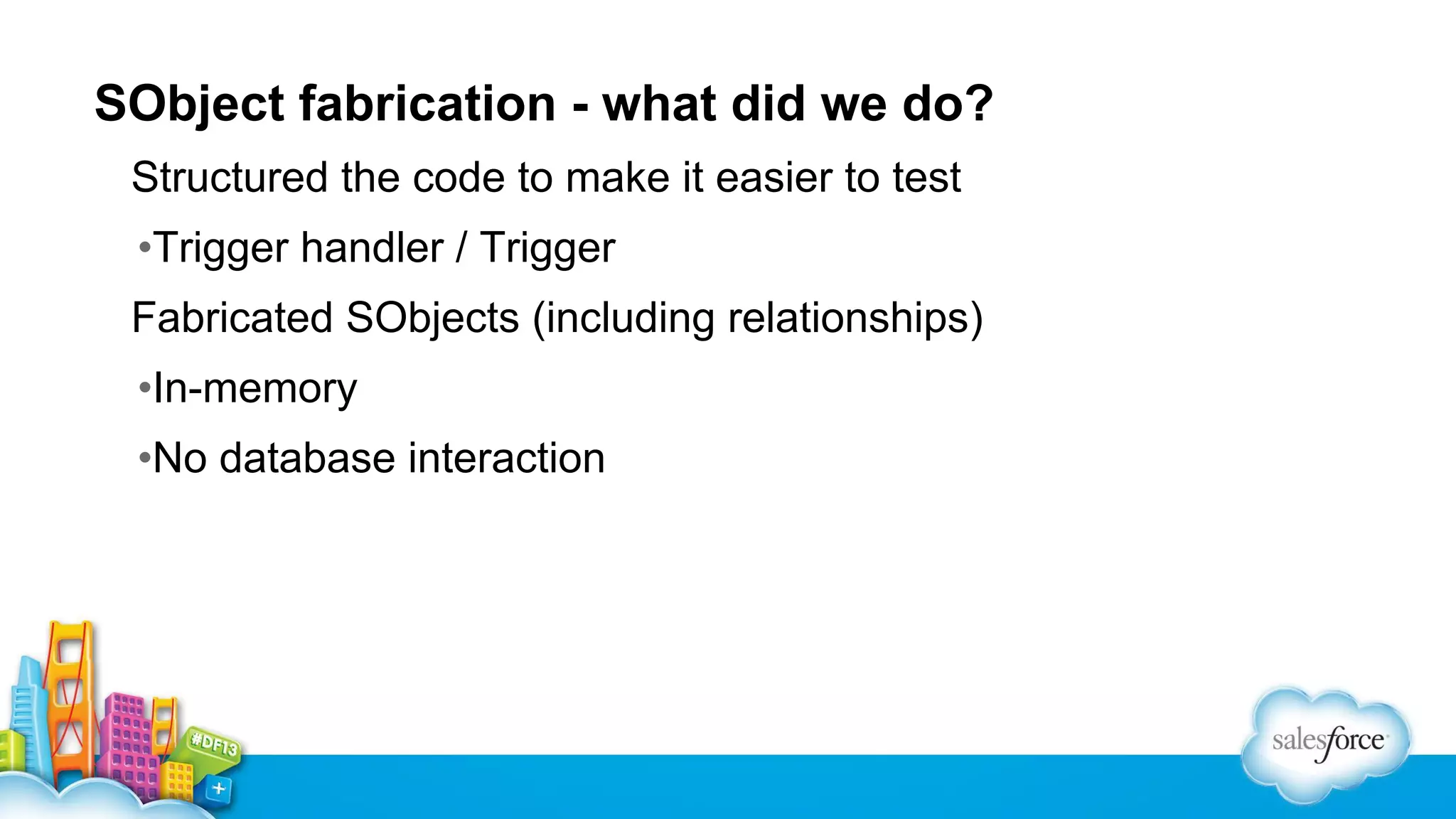

SObject fabrication - what did we do?
Structured the code to make it easier to test
•Trigger handler / Trigger
Fabricated SObjects (including relationships)
•In-memory
•No database interaction

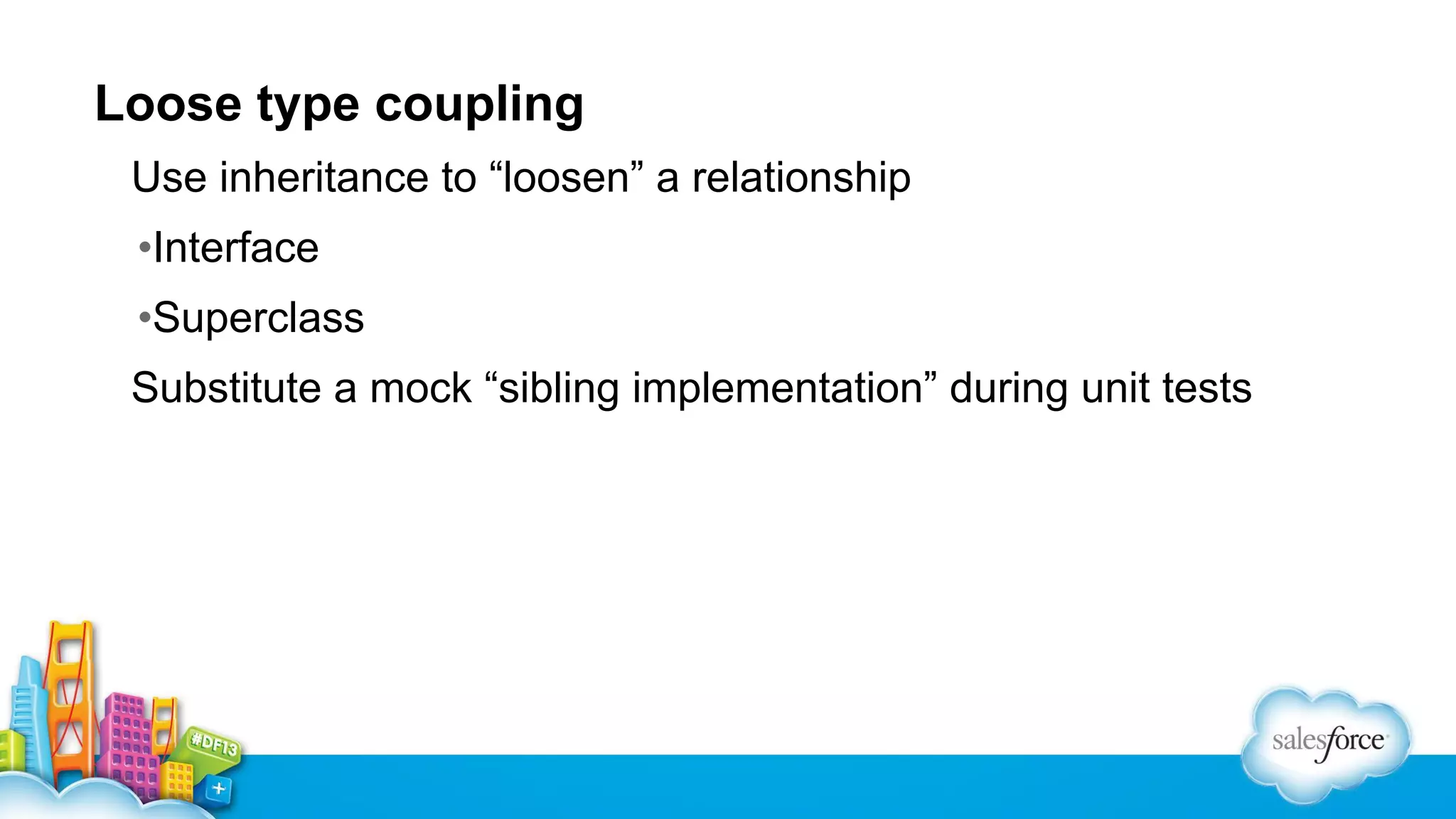

Loose type coupling
Use inheritance to “loosen” a relationship
•Interface
•Superclass
Substitute a mock “sibling implementation” during unit tests

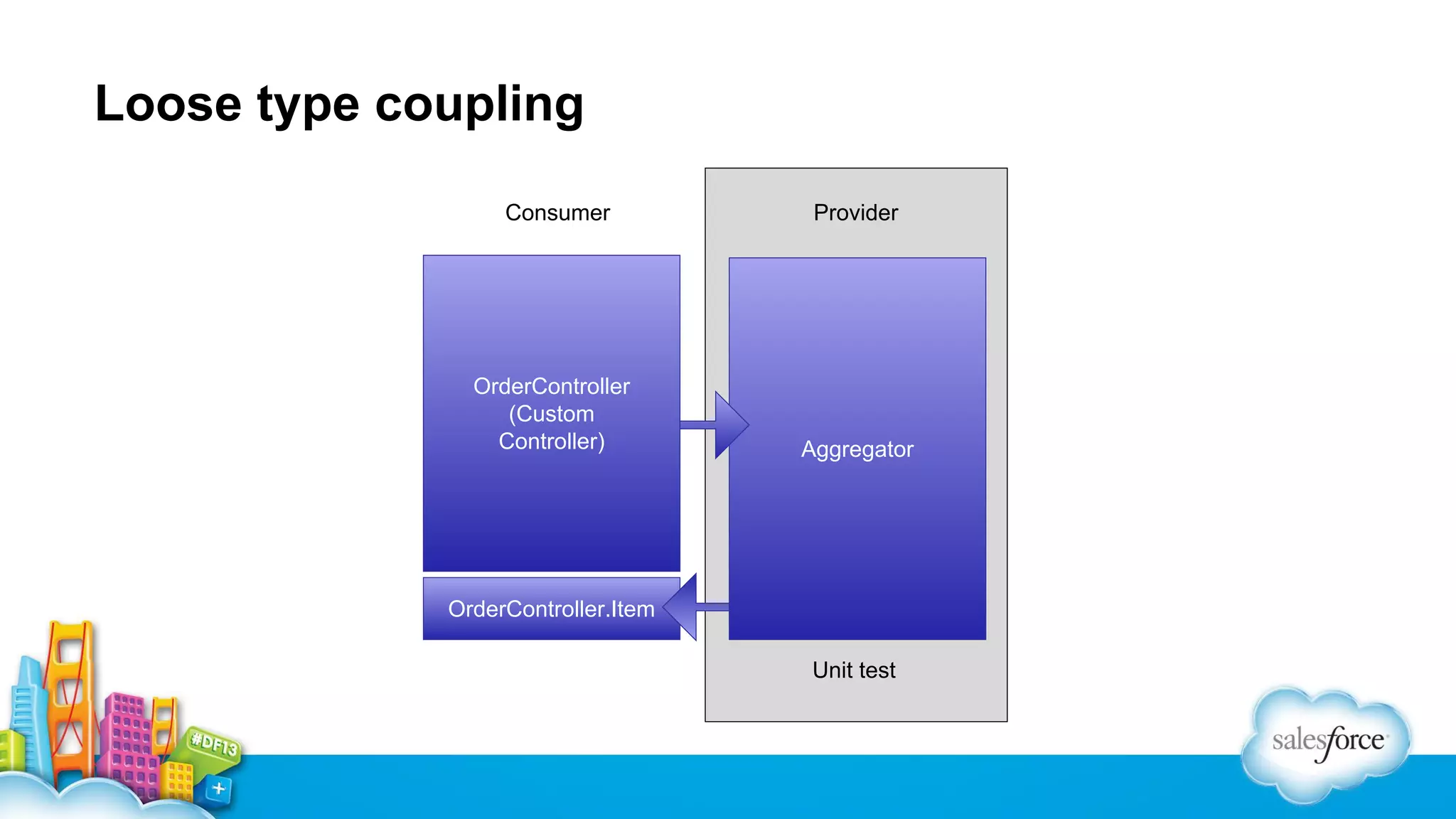

Loose type coupling
Consumer

Provider

OrderController
(Custom
Controller)

Aggregator

OrderController.Item
Unit test

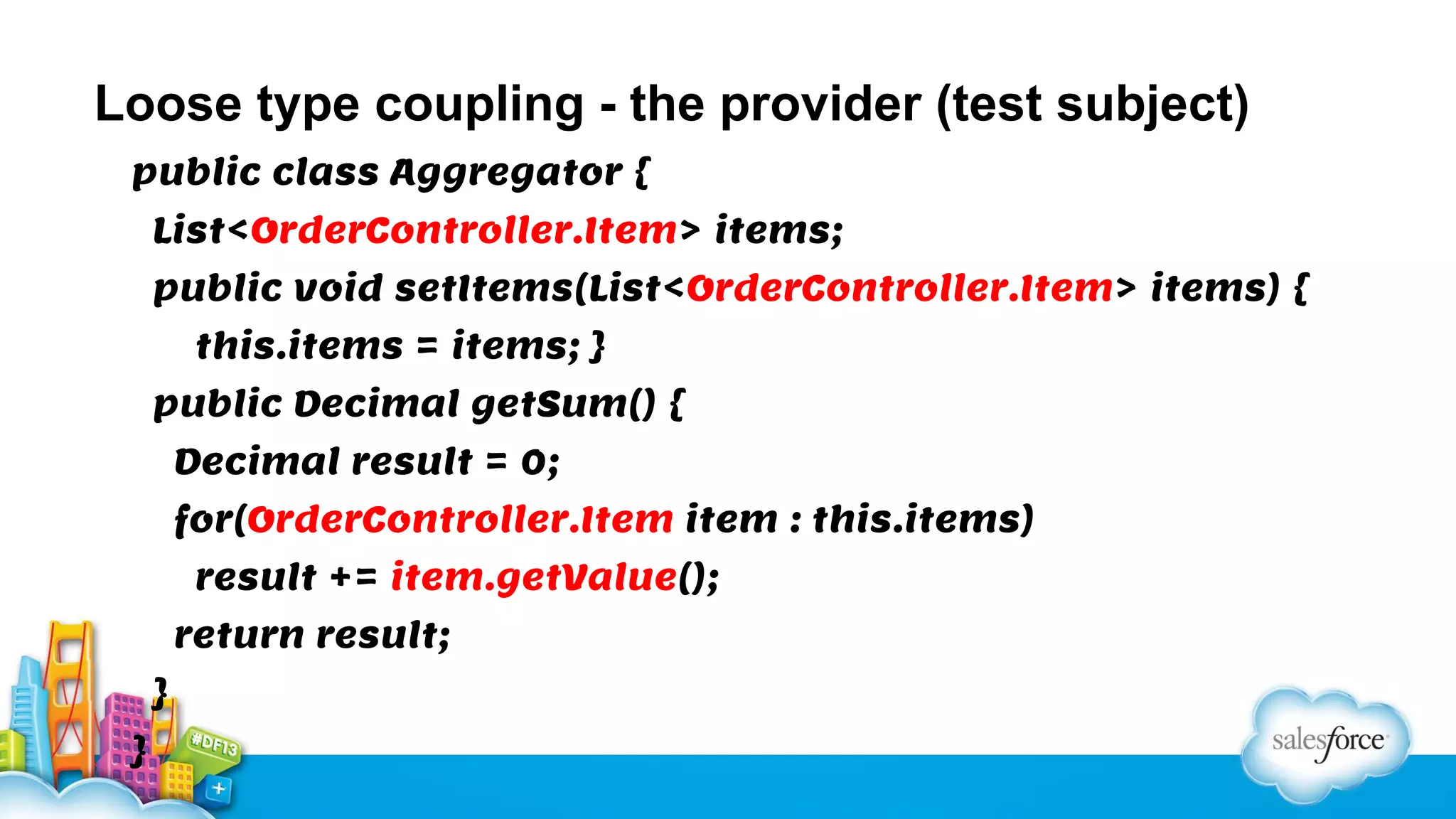

Loose type coupling - the provider (test subject)
public class Aggregator {
List<OrderController.Item> items;
public void setItems(List<OrderController.Item> items) {
this.items = items; }
public Decimal getSum() {
Decimal result = 0;
for(OrderController.Item item : this.items)
result += item.getValue();
return result;
}
}

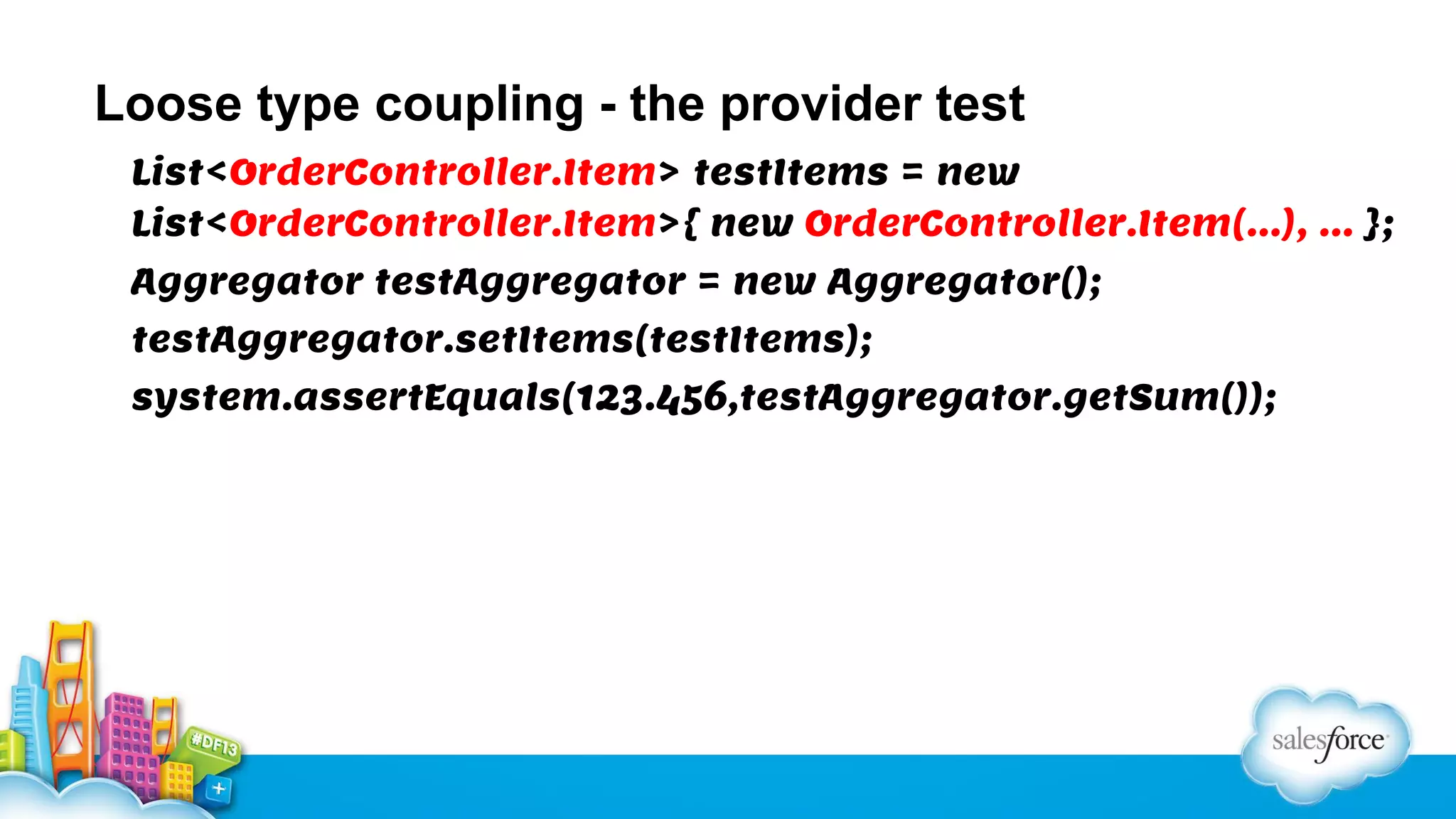

Loose type coupling - the provider test
List<OrderController.Item> testItems = new
List<OrderController.Item>{ new OrderController.Item(…), … };
Aggregator testAggregator = new Aggregator();
testAggregator.setItems(testItems);
system.assertEquals(123.456,testAggregator.getSum());

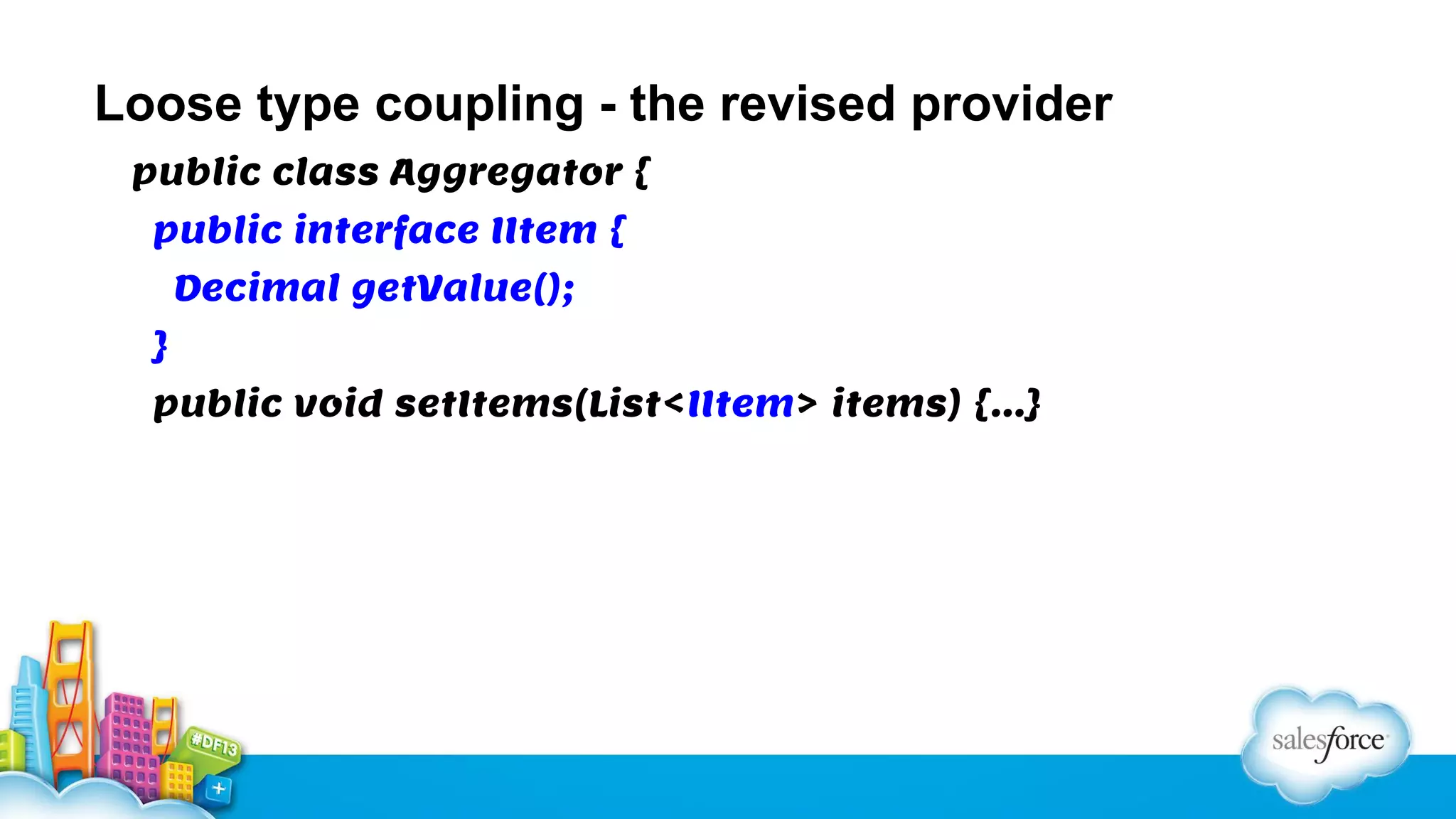

Loose type coupling - the revised provider
public class Aggregator {
public interface IItem {
Decimal getValue();
}
public void setItems(List<IItem> items) {…}

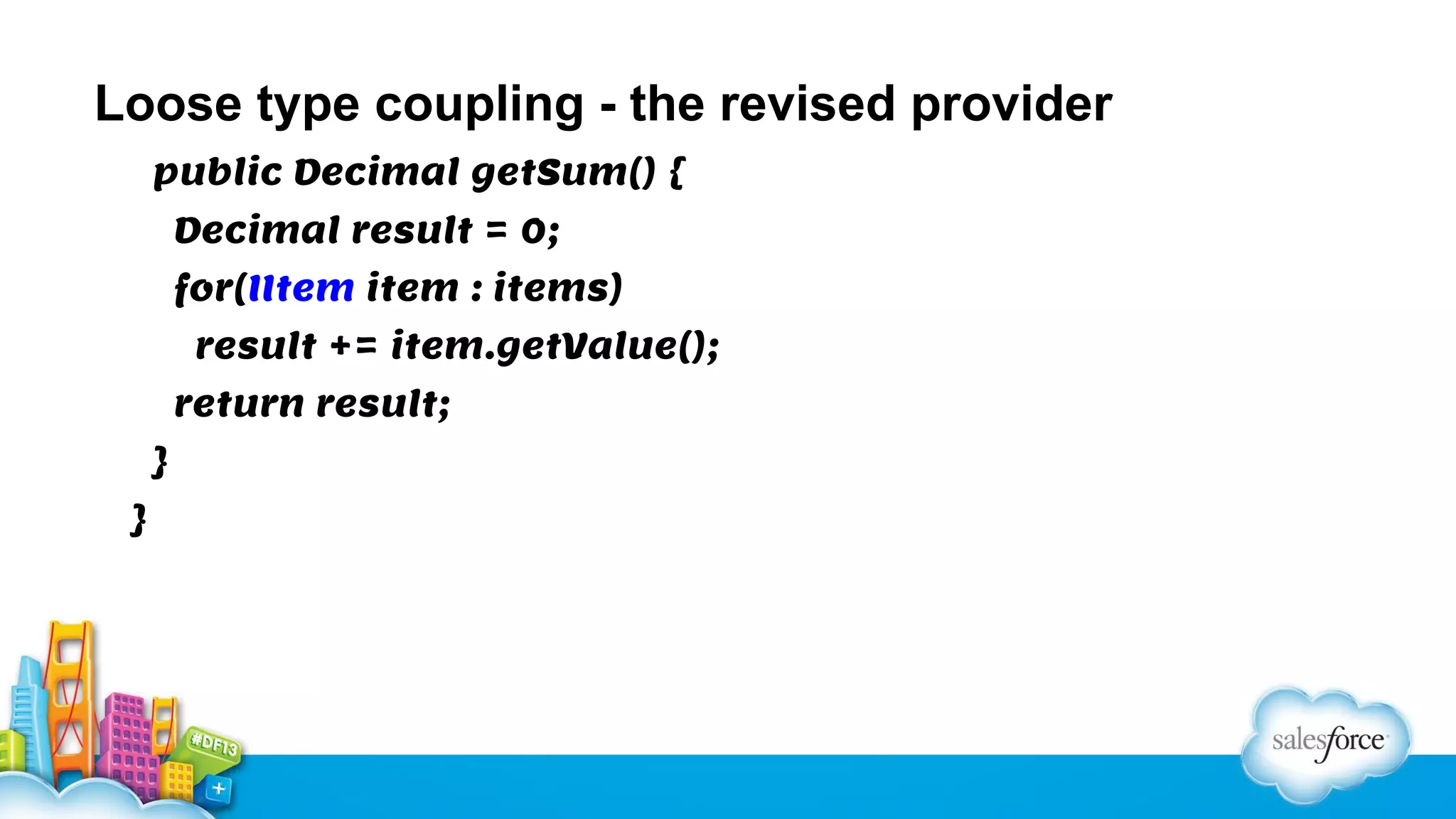

Loose type coupling - the revised provider
public Decimal getSum() {
Decimal result = 0;
for(IItem item : items)
result += item.getValue();
return result;
}
}

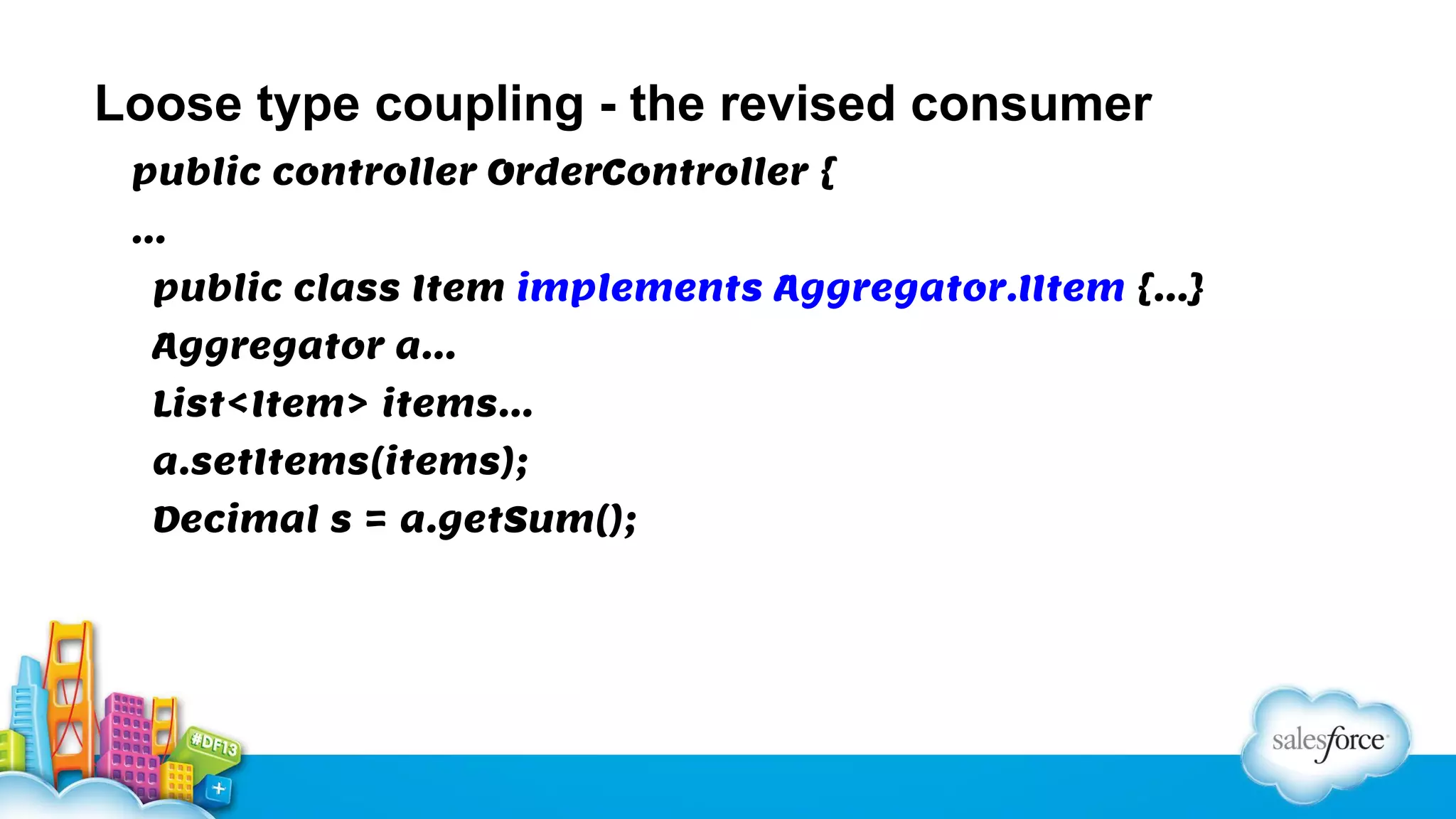

Loose type coupling - the revised consumer
public controller OrderController {
…
public class Item implements Aggregator.IItem {…}
Aggregator a…
List<Item> items…
a.setItems(items);
Decimal s = a.getSum();

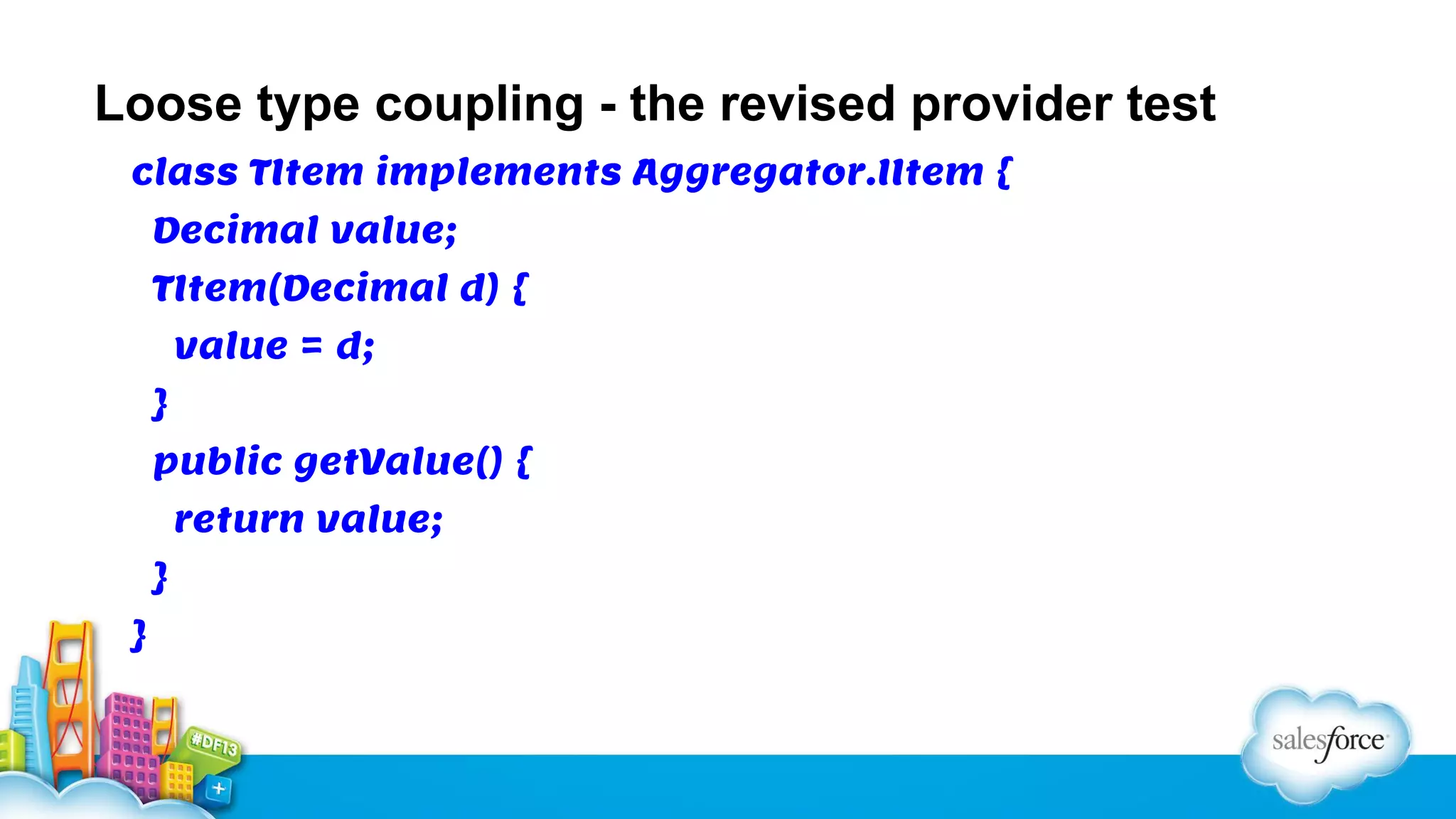

Loose type coupling - the revised provider test
class TItem implements Aggregator.IItem {
Decimal value;
TItem(Decimal d) {
value = d;
}
public getValue() {
return value;
}
}

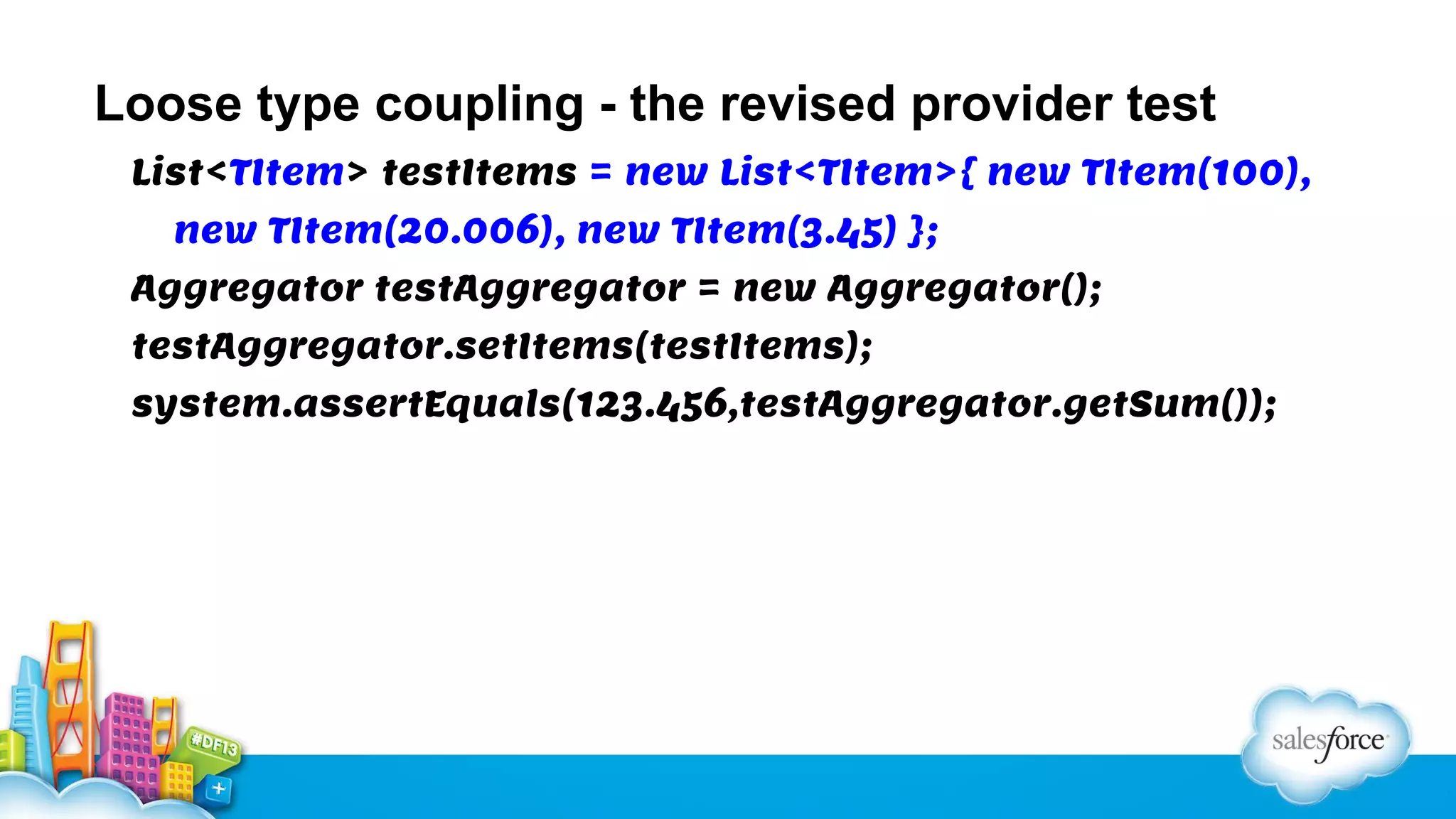

Loose type coupling - the revised provider test
List<TItem> testItems = new List<TItem>{ new TItem(100),
new TItem(20.006), new TItem(3.45) };
Aggregator testAggregator = new Aggregator();
testAggregator.setItems(testItems);
system.assertEquals(123.456,testAggregator.getSum());

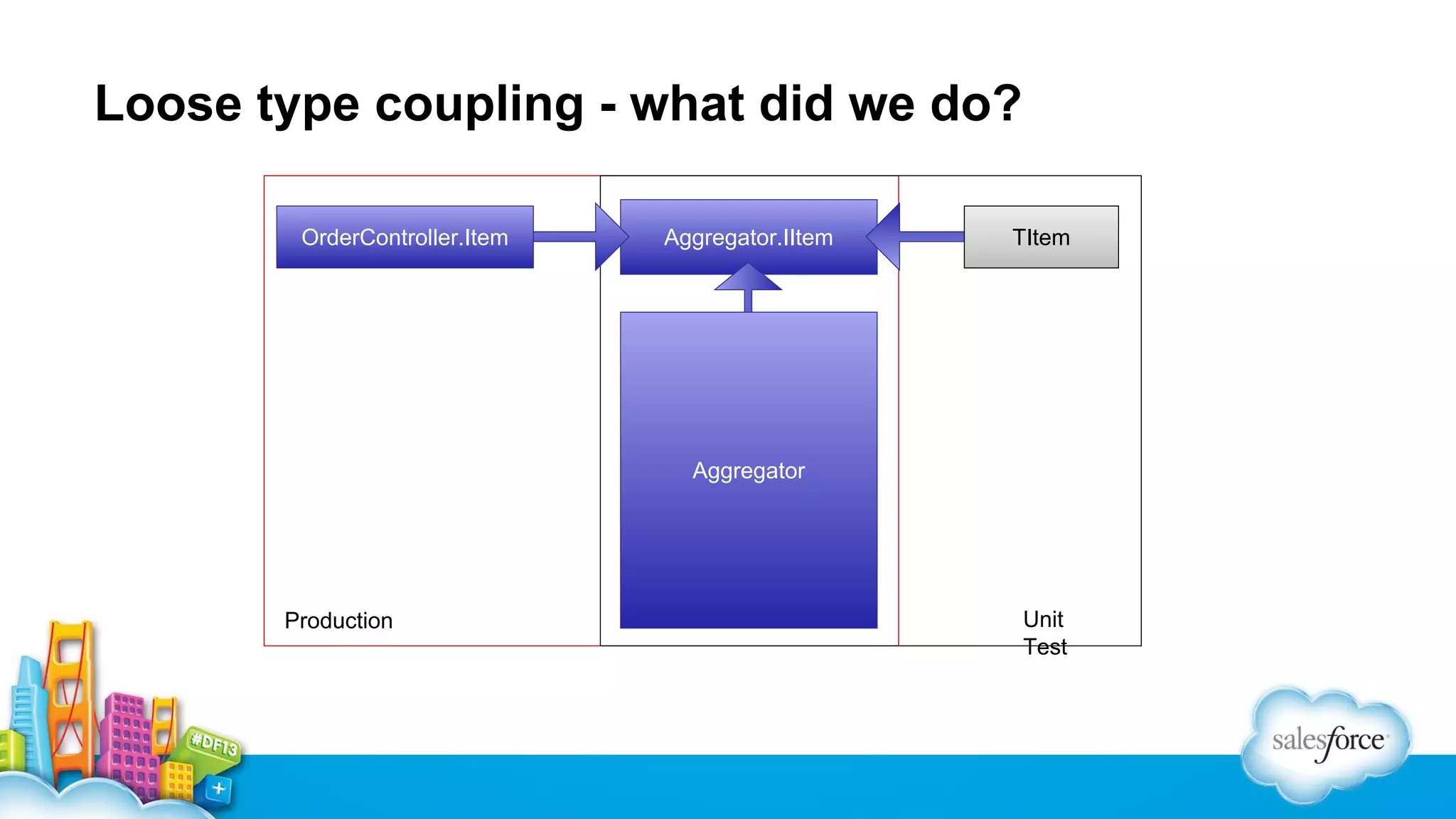

Loose type coupling - what did we do?
OrderController.Item

Aggregator.IItem

TItem

Aggregator

Production

Unit
Test

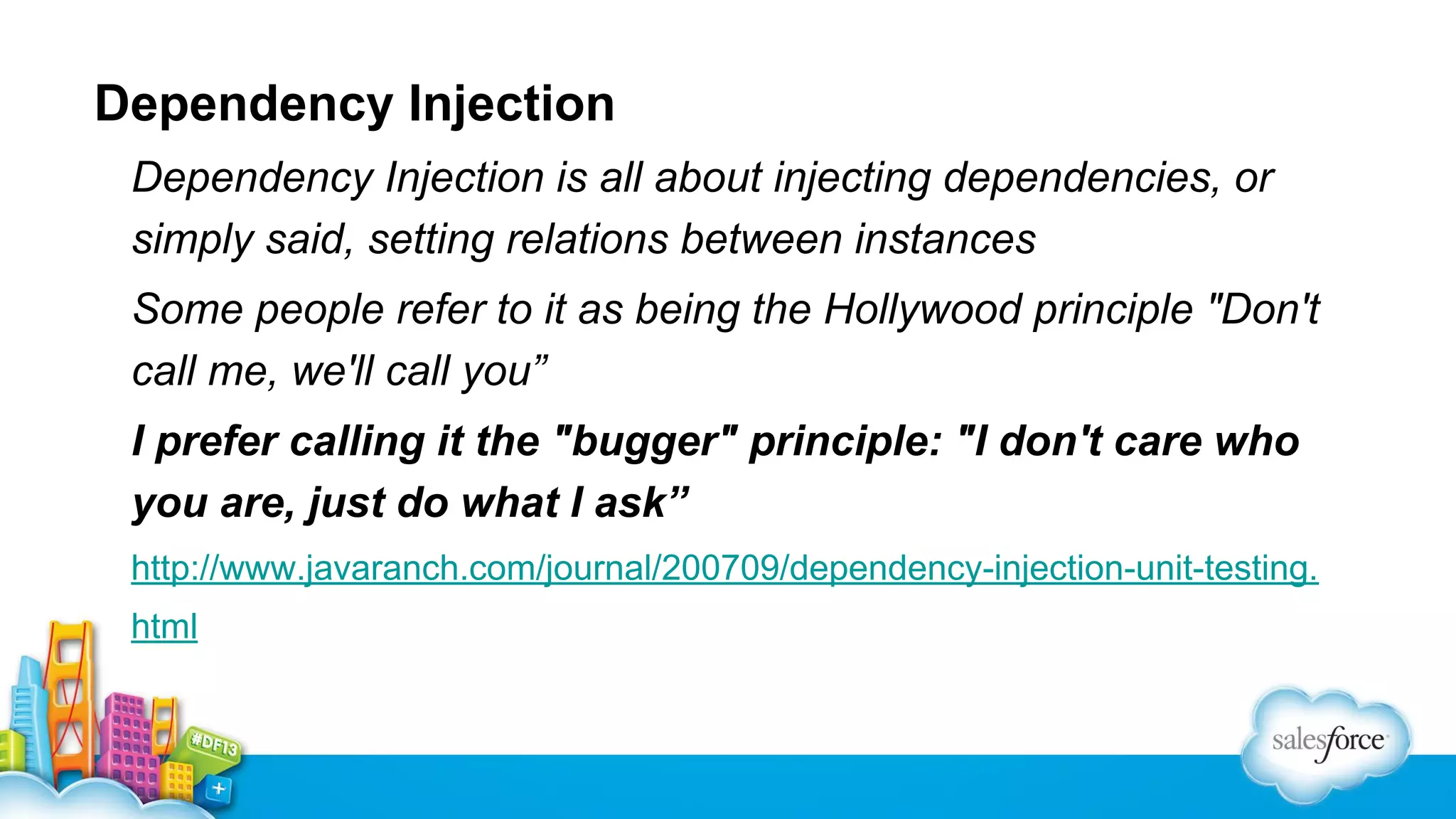

Dependency Injection
Dependency Injection is all about injecting dependencies, or
simply said, setting relations between instances
Some people refer to it as being the Hollywood principle "Don't
call me, we'll call you”
I prefer calling it the "bugger" principle: "I don't care who
you are, just do what I ask”
http://www.javaranch.com/journal/200709/dependency-injection-unit-testing.
html

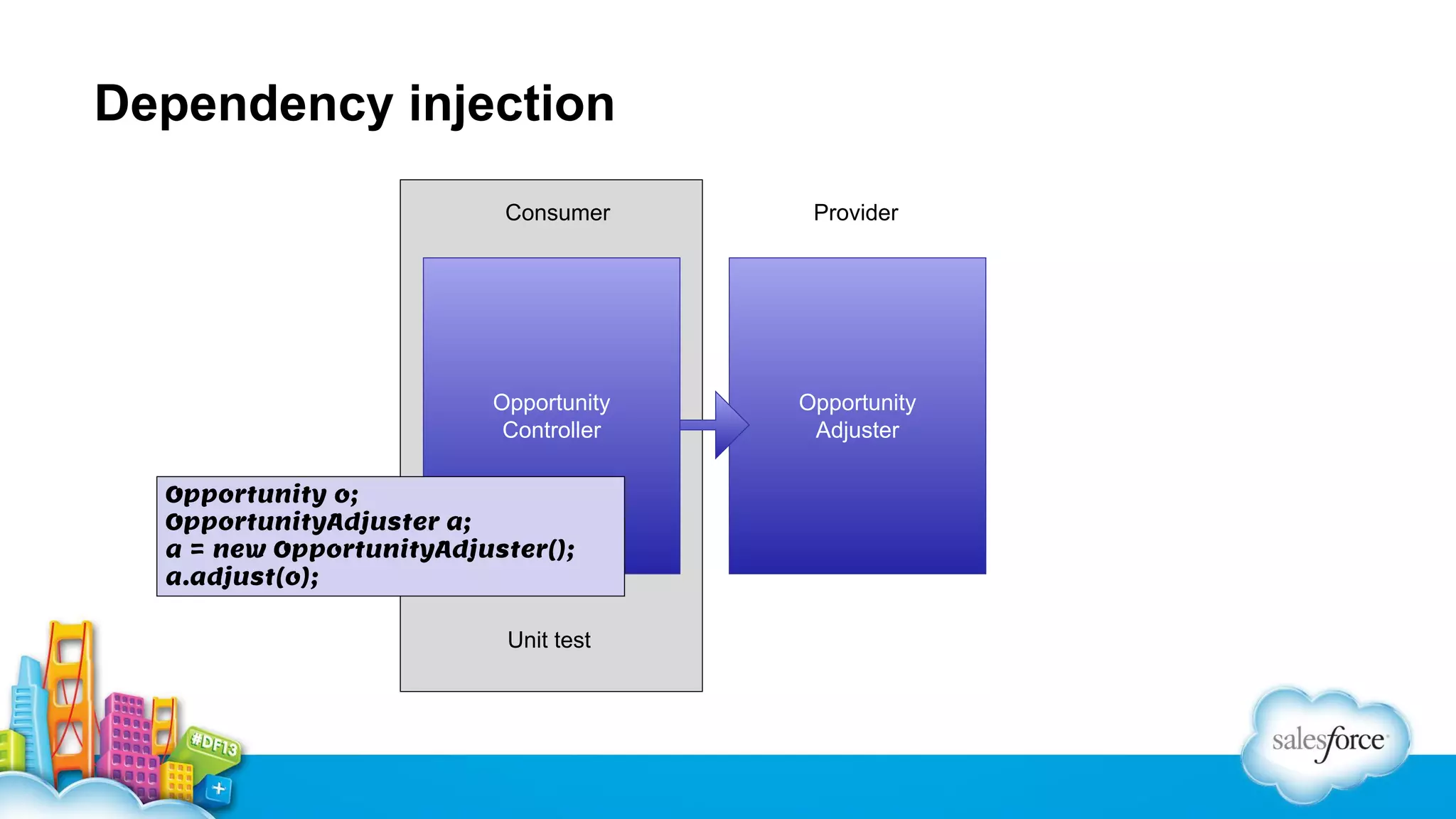

Dependency injection
Consumer

Provider

Opportunity
Controller

Opportunity
Adjuster

Opportunity o;
OpportunityAdjuster a;
a = new OpportunityAdjuster();
a.adjust(o);
Unit test

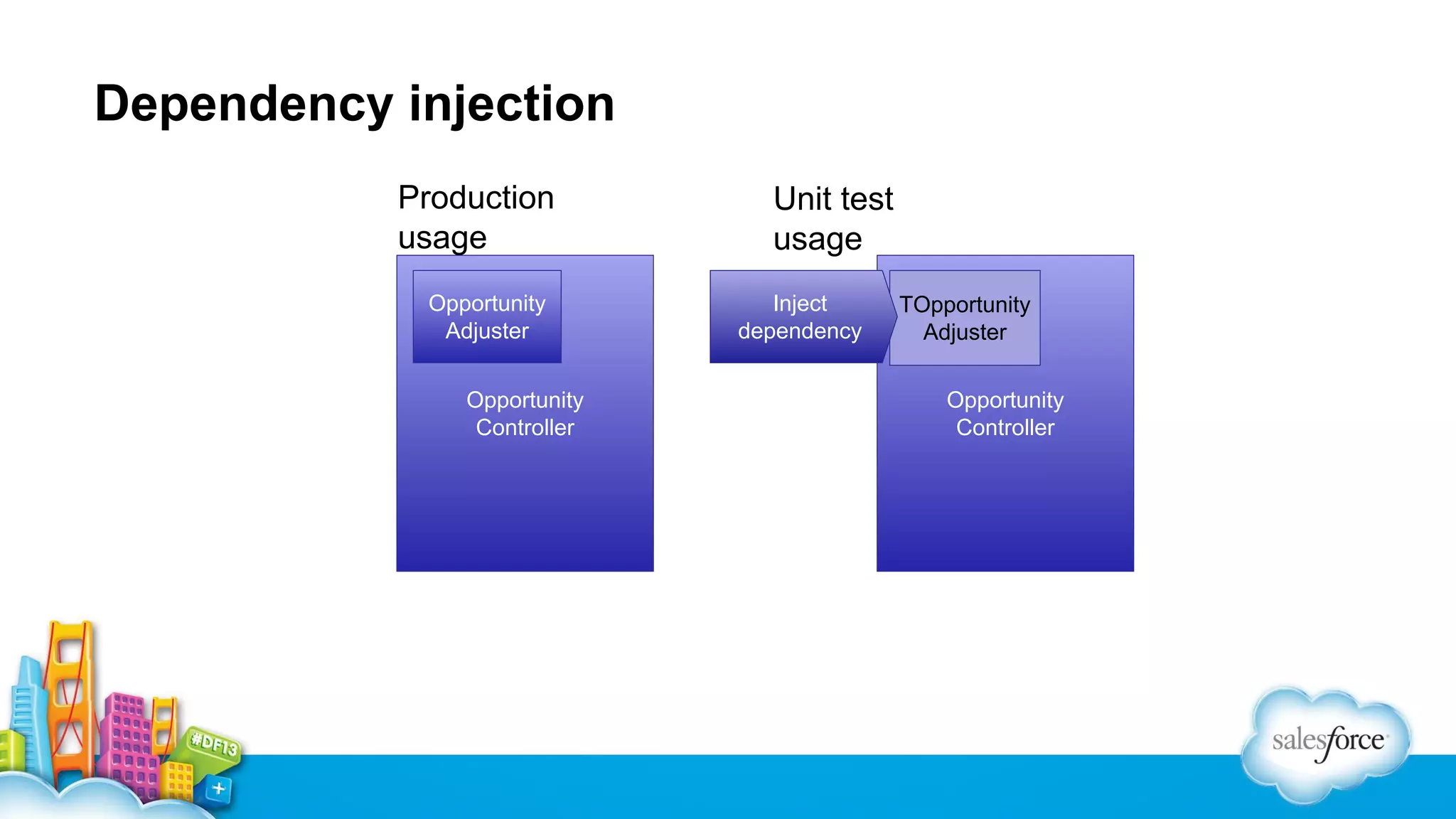

Dependency injection
Production
usage
Opportunity
Adjuster
Opportunity
Controller

Unit test
usage
Inject
dependency

TOpportunity
Adjuster
Opportunity
Controller

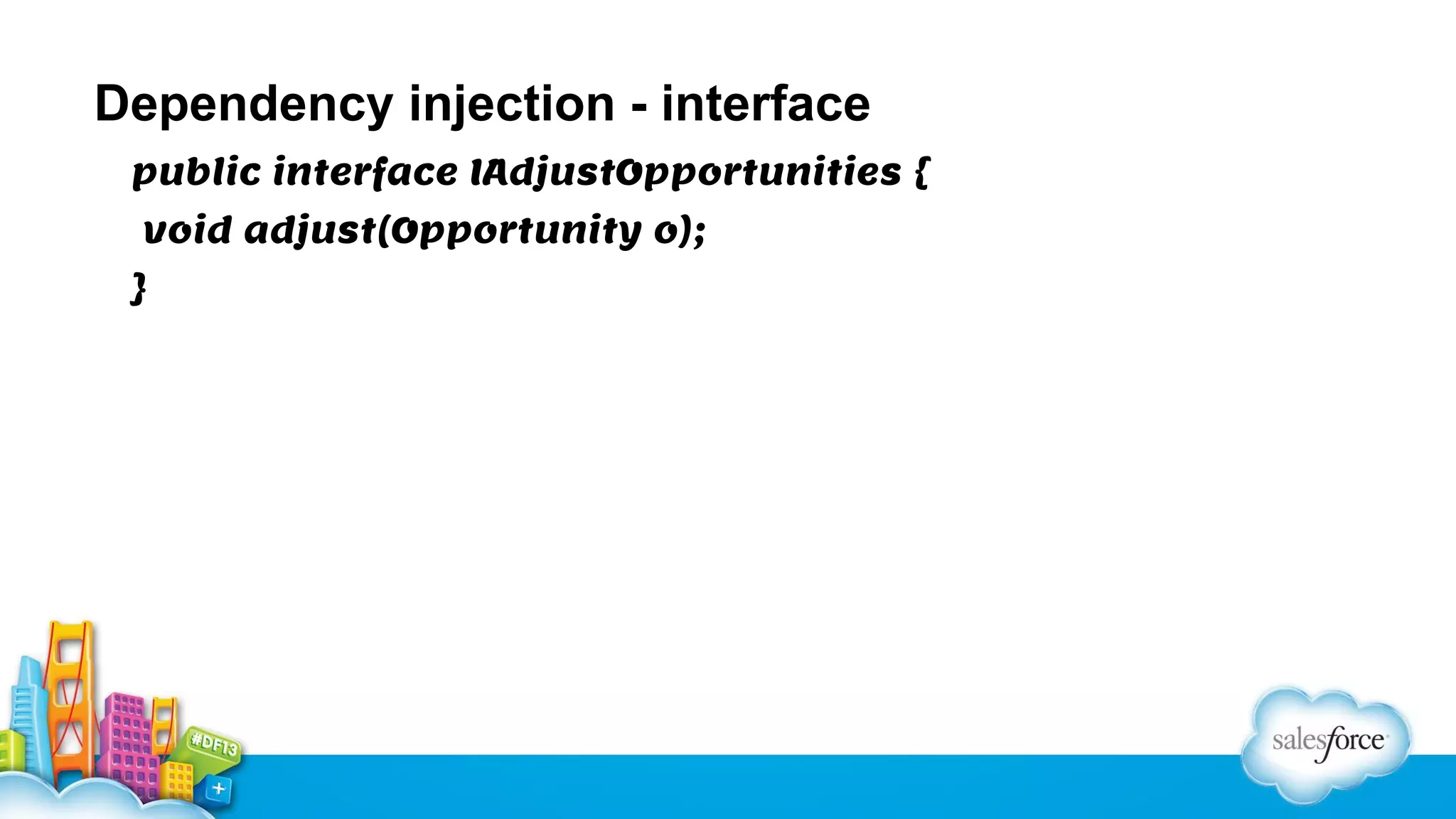

Dependency injection - interface
public interface IAdjustOpportunities {
void adjust(Opportunity o);
}

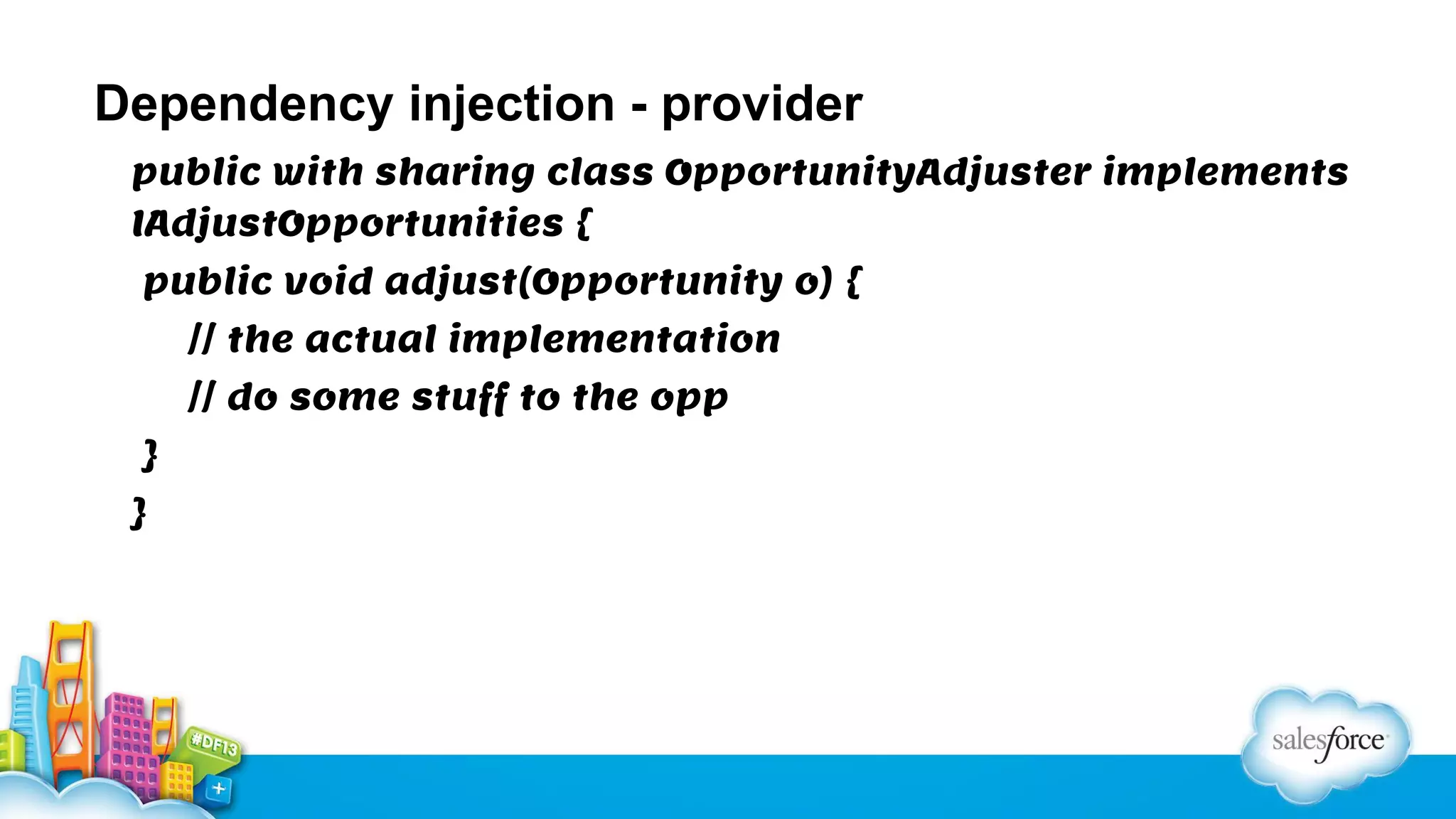

Dependency injection - provider
public with sharing class OpportunityAdjuster implements
IAdjustOpportunities {
public void adjust(Opportunity o) {
// the actual implementation
// do some stuff to the opp
}
}

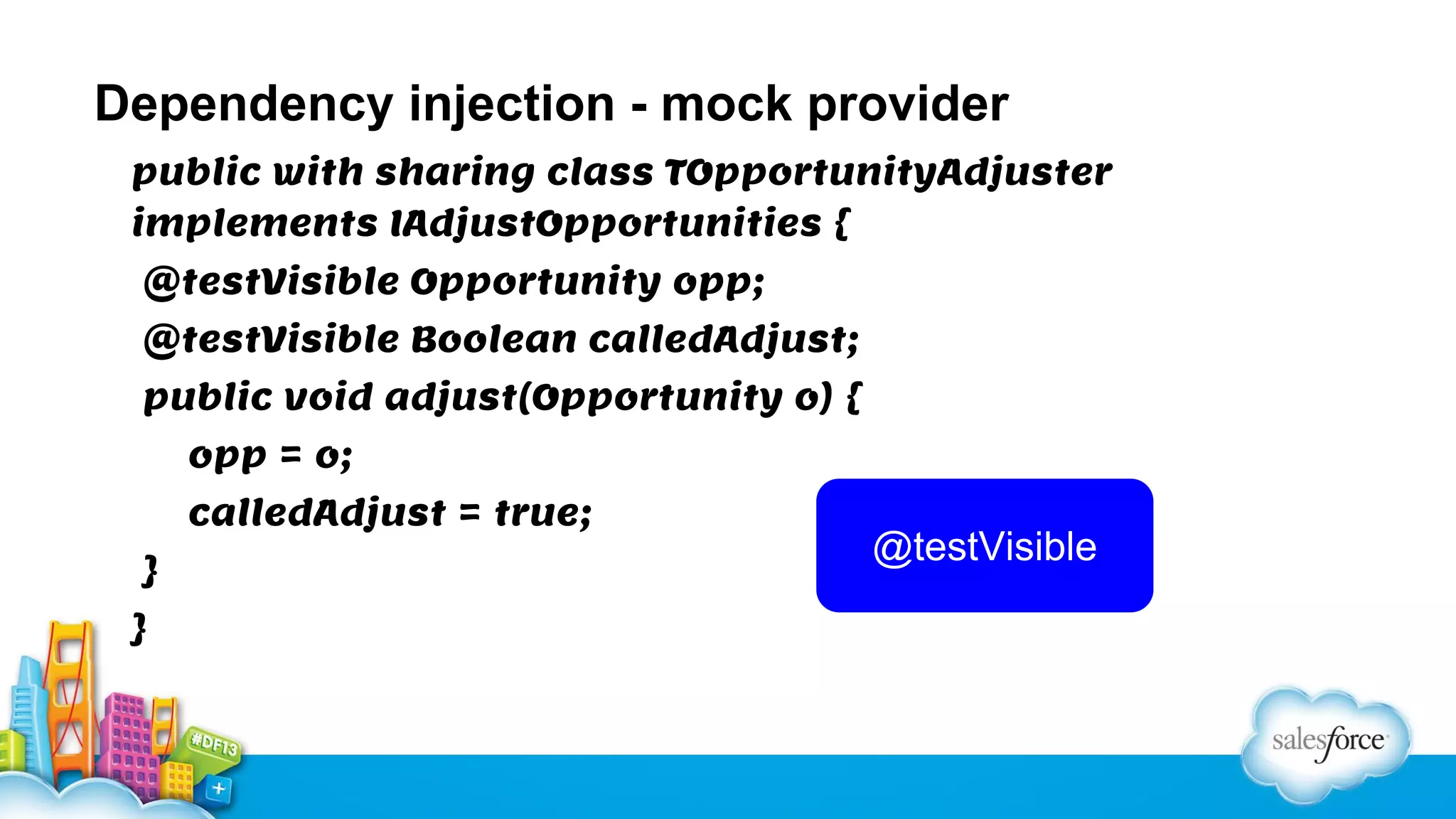

Dependency injection - mock provider
public with sharing class TOpportunityAdjuster
implements IAdjustOpportunities {
@testVisible Opportunity opp;
@testVisible Boolean calledAdjust;
public void adjust(Opportunity o) {
opp = o;
calledAdjust = true;
}
}

@testVisible

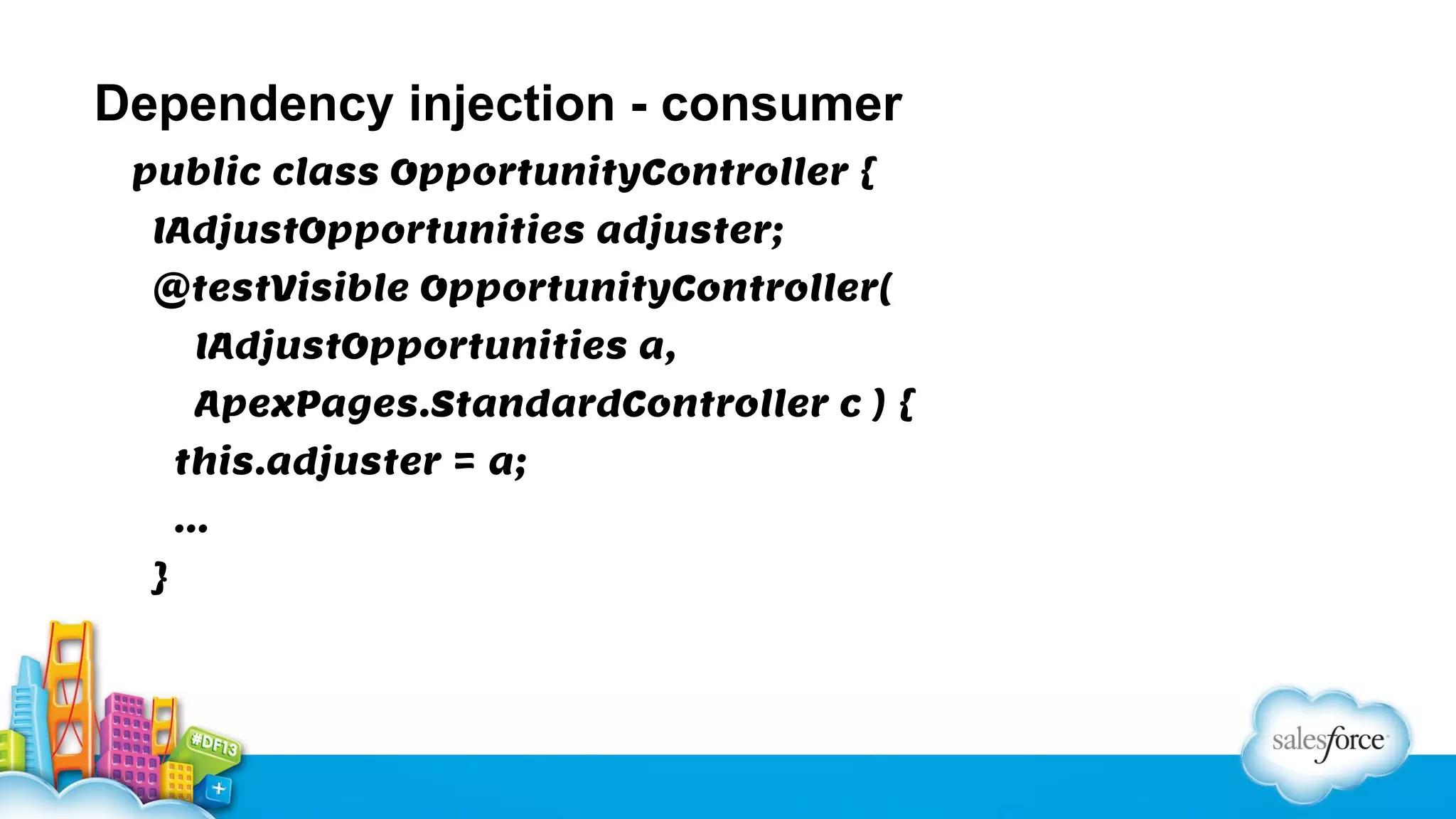

Dependency injection - consumer
public class OpportunityController {
IAdjustOpportunities adjuster;
@testVisible OpportunityController(
IAdjustOpportunities a,
ApexPages.StandardController c ) {
this.adjuster = a;
…
}

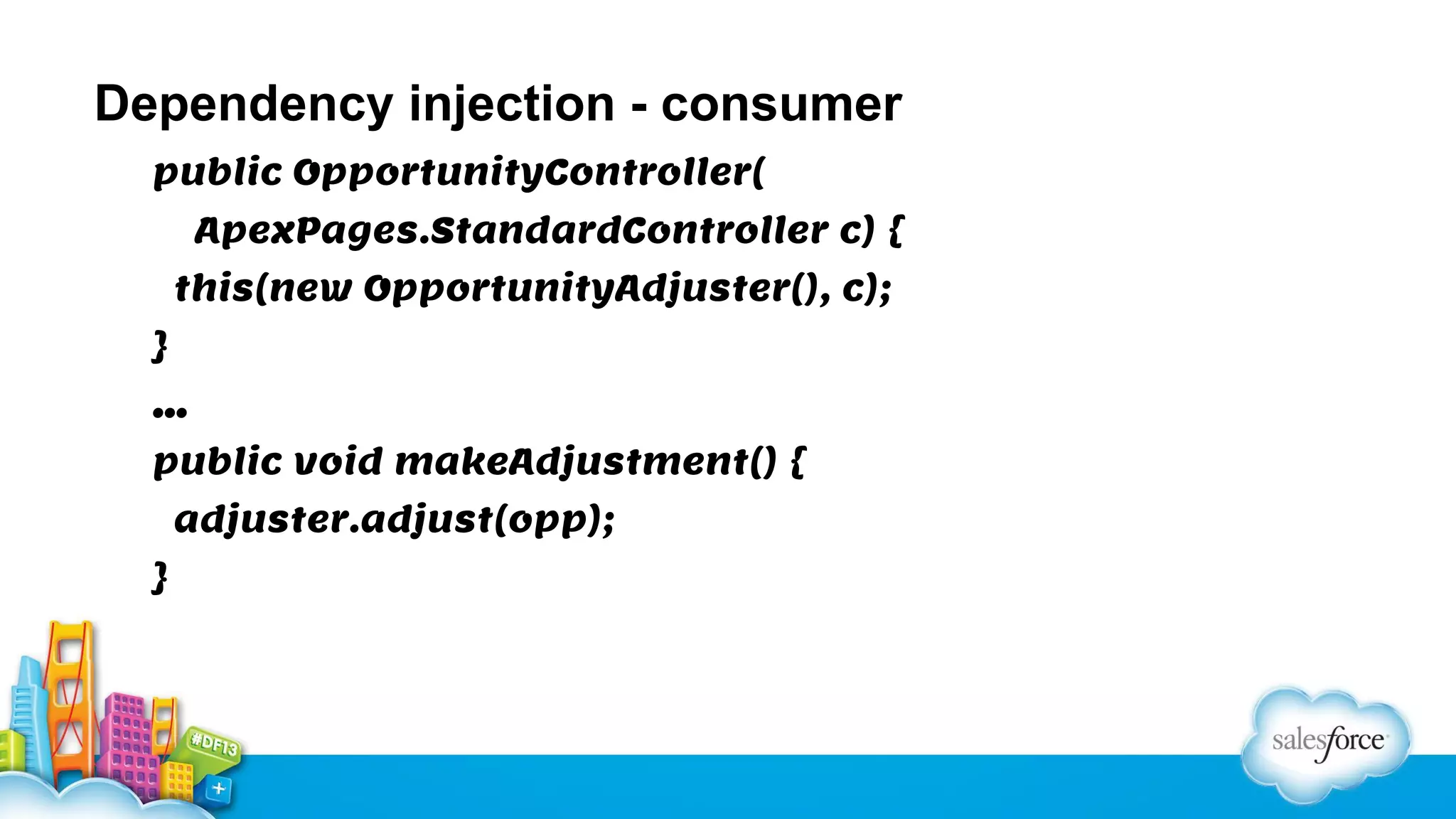

Dependency injection - consumer
public OpportunityController(
ApexPages.StandardController c) {
this(new OpportunityAdjuster(), c);
}
…
public void makeAdjustment() {
adjuster.adjust(opp);
}

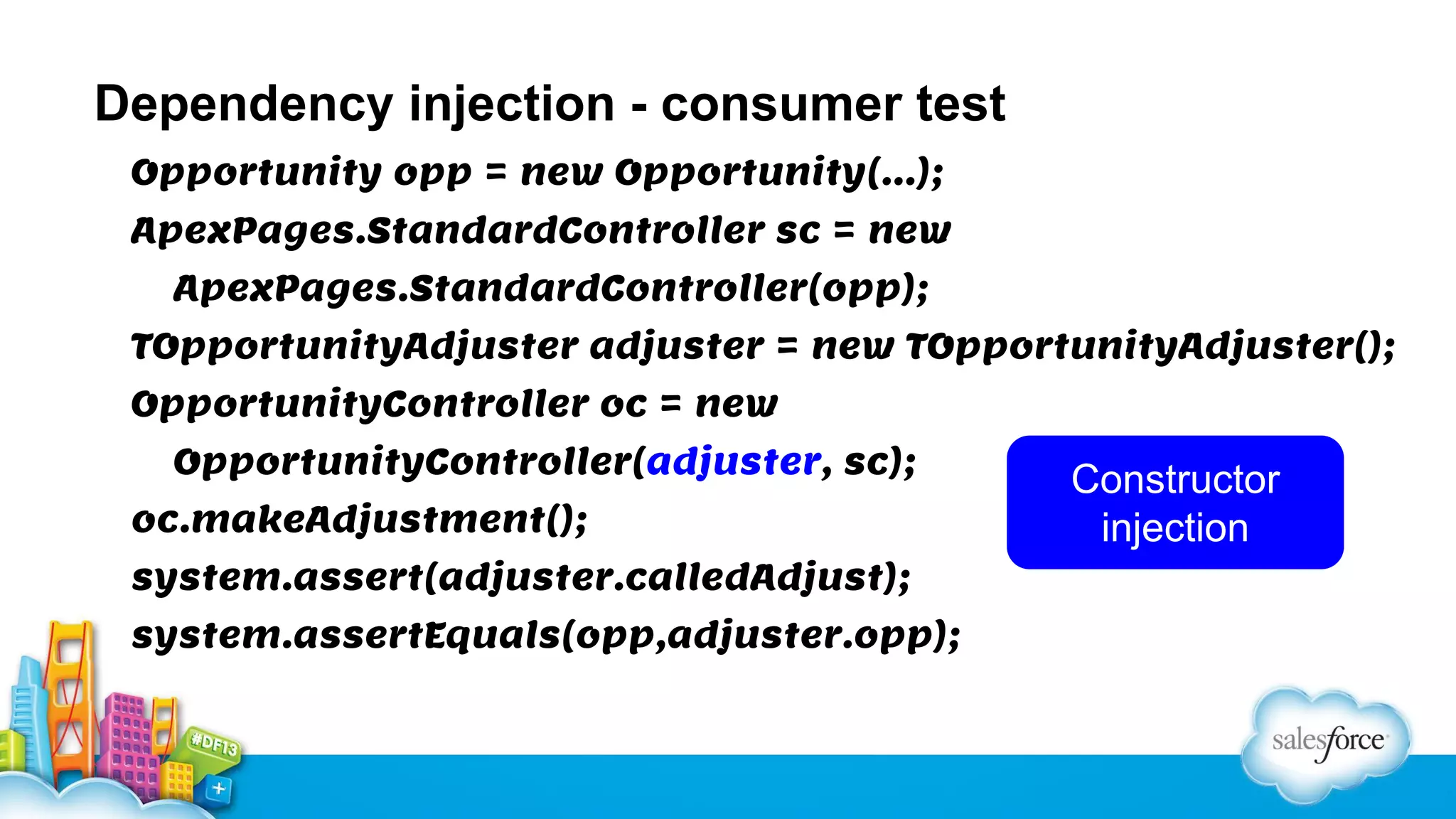

Dependency injection - consumer test
Opportunity opp = new Opportunity(…);
ApexPages.StandardController sc = new
ApexPages.StandardController(opp);
TOpportunityAdjuster adjuster = new TOpportunityAdjuster();
OpportunityController oc = new
OpportunityController(adjuster, sc);
oc.makeAdjustment();
system.assert(adjuster.calledAdjust);
system.assertEquals(opp,adjuster.opp);

Constructor
injection

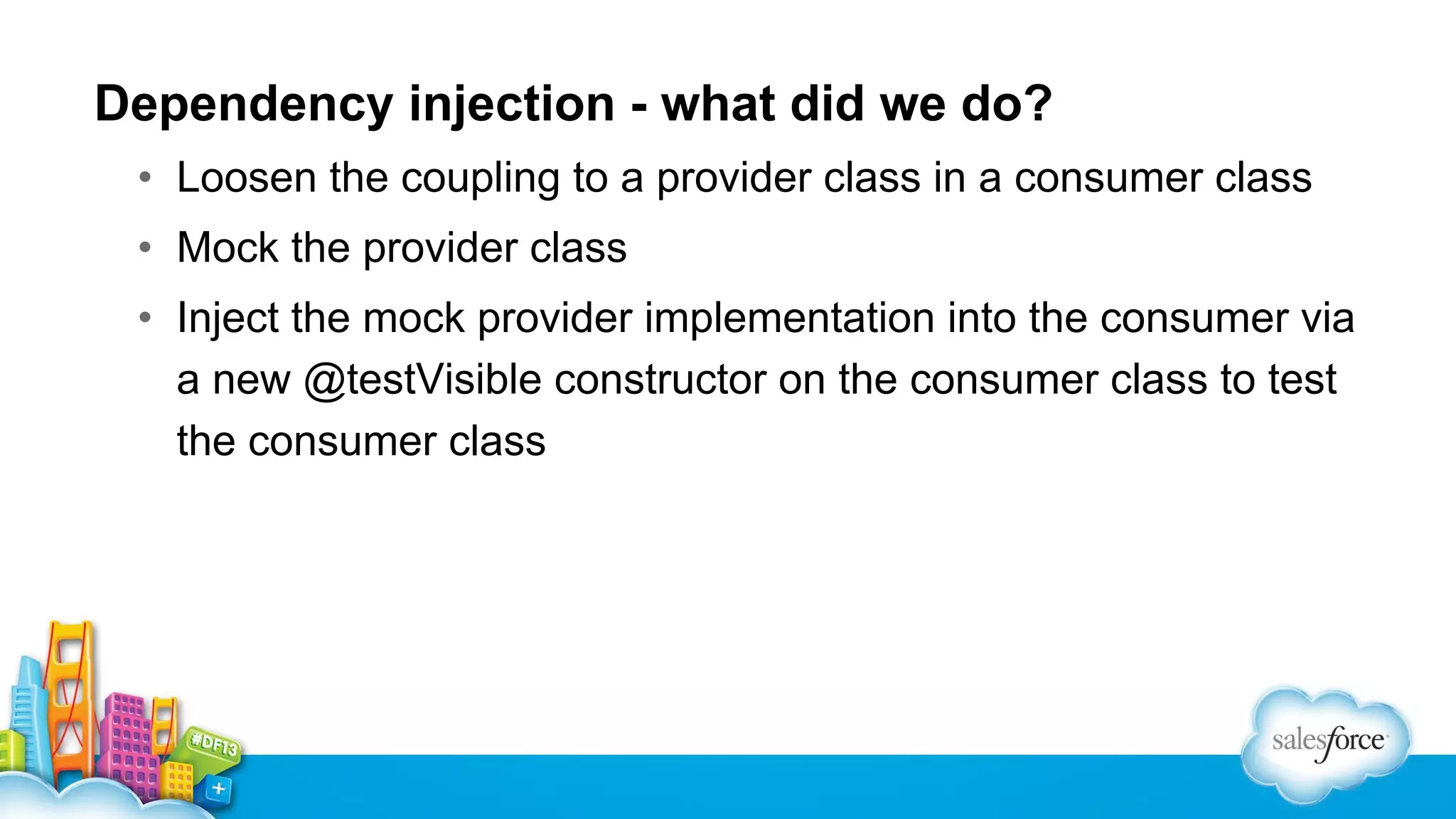

Dependency injection - what did we do?
• Loosen the coupling to a provider class in a consumer class
• Mock the provider class
• Inject the mock provider implementation into the consumer via
a new @testVisible constructor on the consumer class to test
the consumer class

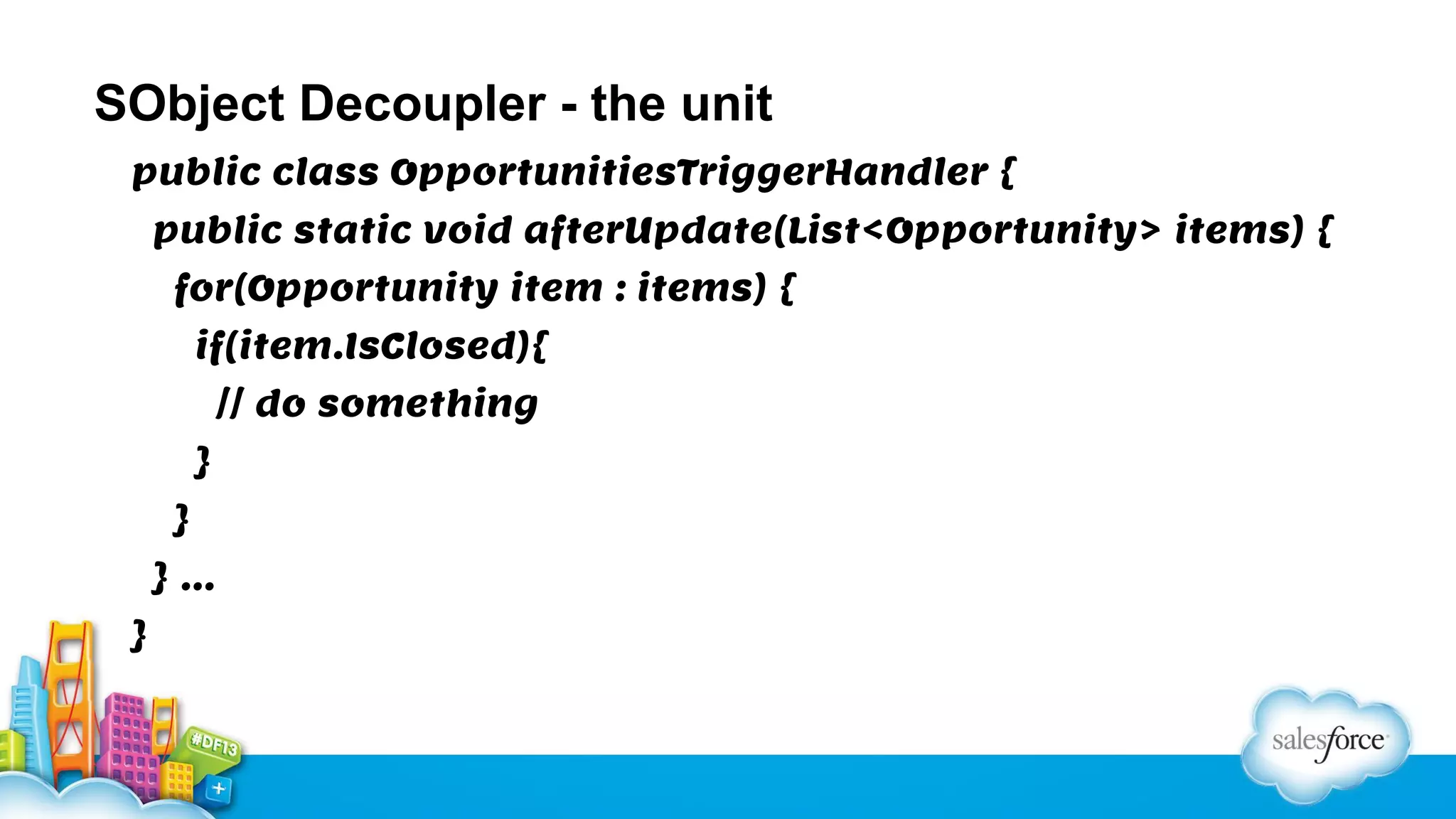

SObject Decoupler - the unit
public class OpportunitiesTriggerHandler {
public static void afterUpdate(List<Opportunity> items) {
for(Opportunity item : items) {
if(item.IsClosed){
// do something
}
}
}…
}

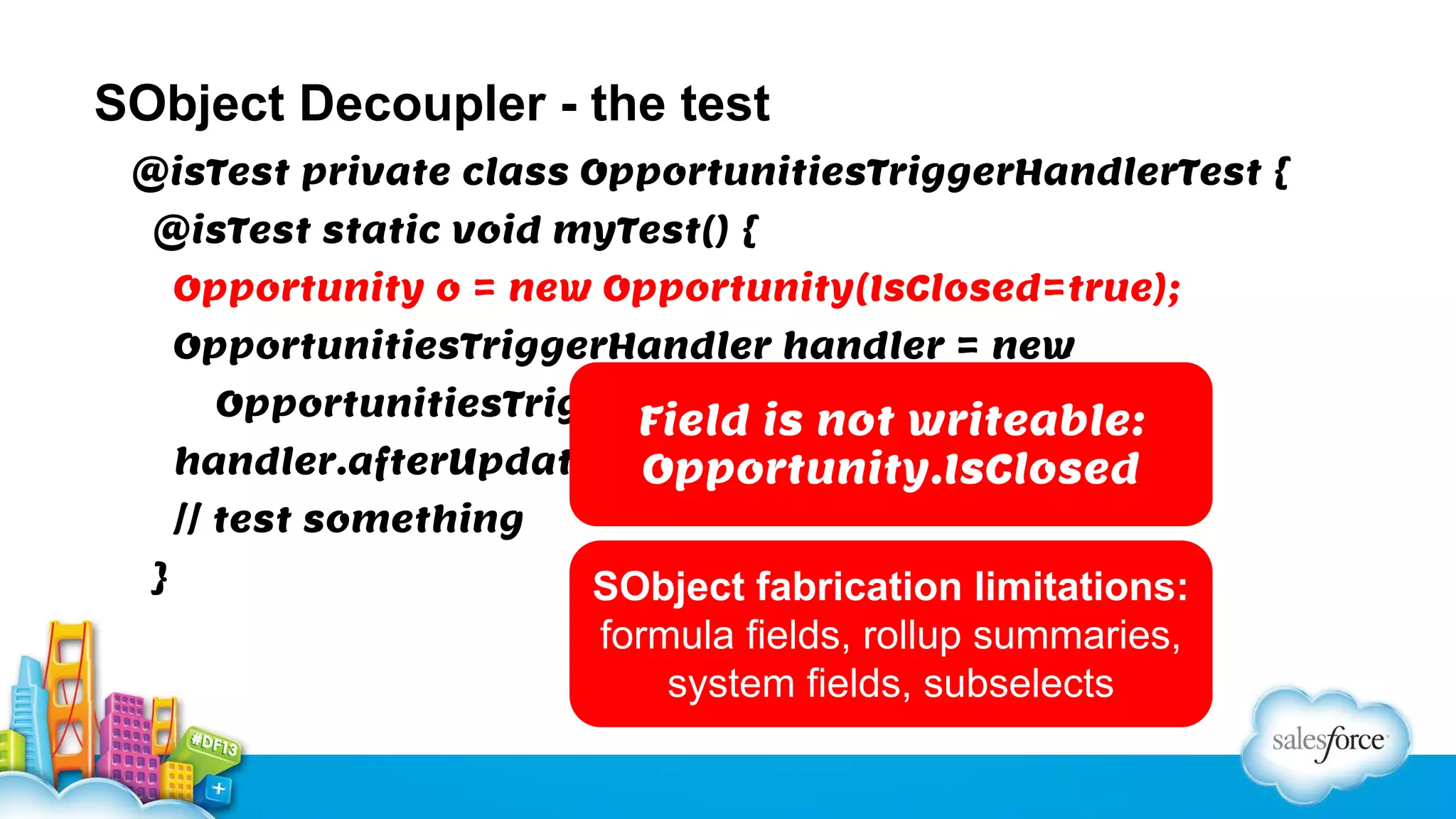

SObject Decoupler - the test
@isTest private class OpportunitiesTriggerHandlerTest {
@isTest static void myTest() {
Opportunity o = new Opportunity(IsClosed=true);
OpportunitiesTriggerHandler handler = new
OpportunitiesTriggerHandler();

Field is not writeable:
handler.afterUpdate(new List<Opportunity>{o});
Opportunity.IsClosed
// test something
}

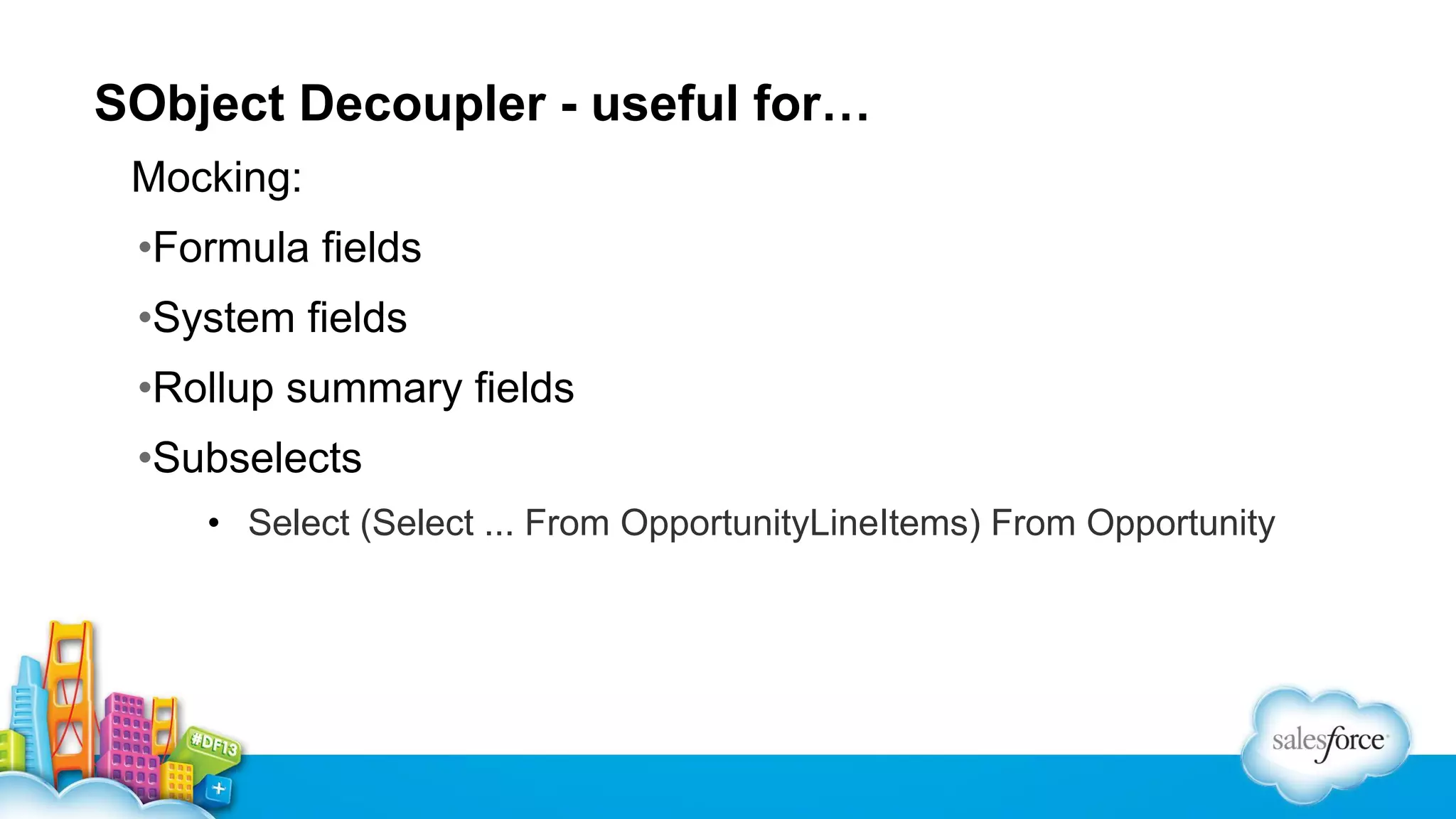

SObject fabrication limitations:
formula fields, rollup summaries,
system fields, subselects

SObject Decoupler - the decoupler
public virtual class OpportunityDecoupler {
public virtual Boolean getIsClosed( Opportunity o ) {
return o.IsClosed;
}
}

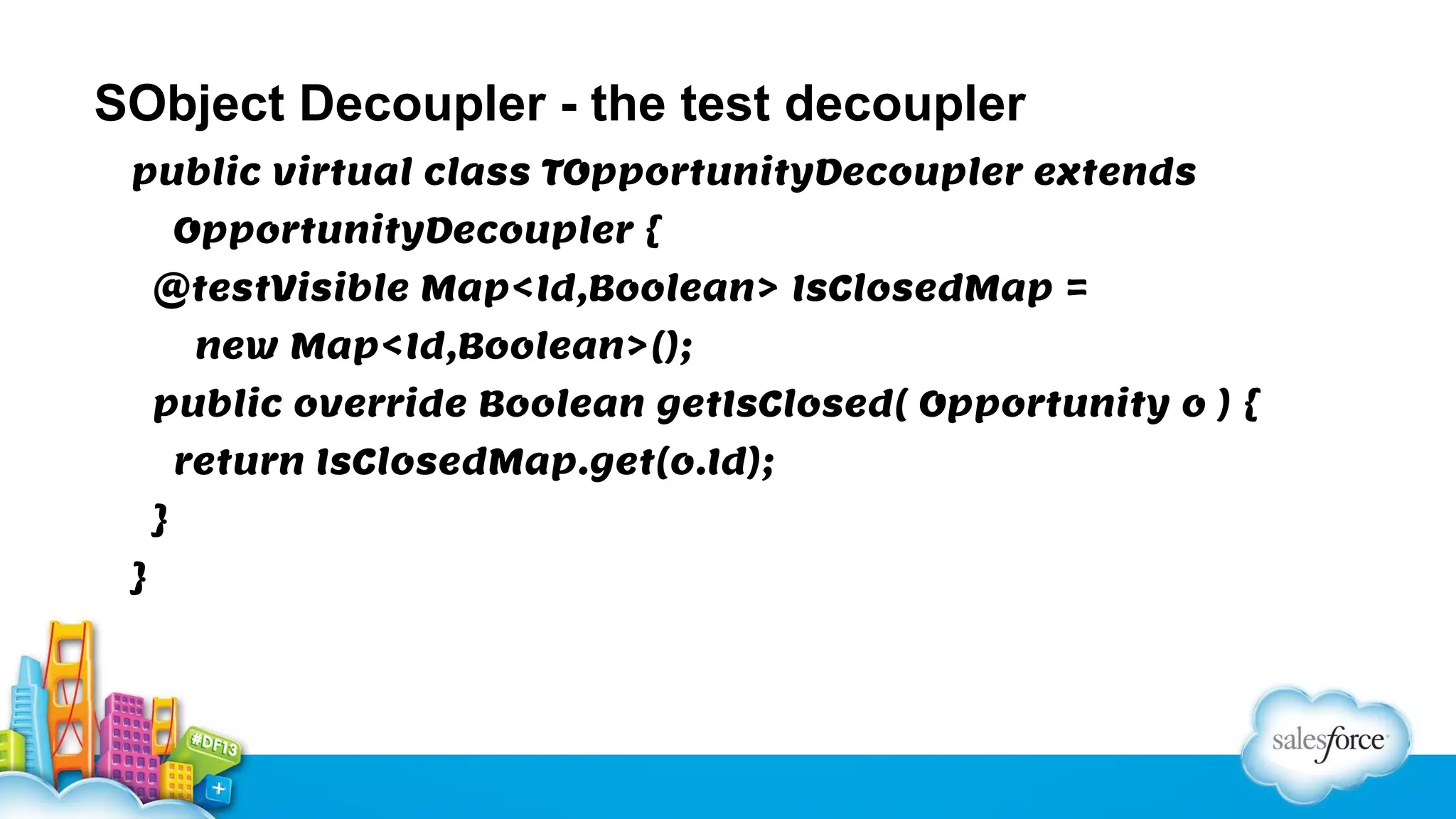

SObject Decoupler - the test decoupler
public virtual class TOpportunityDecoupler extends
OpportunityDecoupler {
@testVisible Map<Id,Boolean> IsClosedMap =
new Map<Id,Boolean>();
public override Boolean getIsClosed( Opportunity o ) {
return IsClosedMap.get(o.Id);
}
}

SObject Decoupler - the revised unit
OpportunityDecoupler decoupler;
@testVisible OpportunitiesTriggerHandler(
OpportunityDecoupler od ) {
this.decoupler = od;
}
public OpportunitiesTriggerHandler() {
this(new OpportunityDecoupler());
}

Constructor
injection

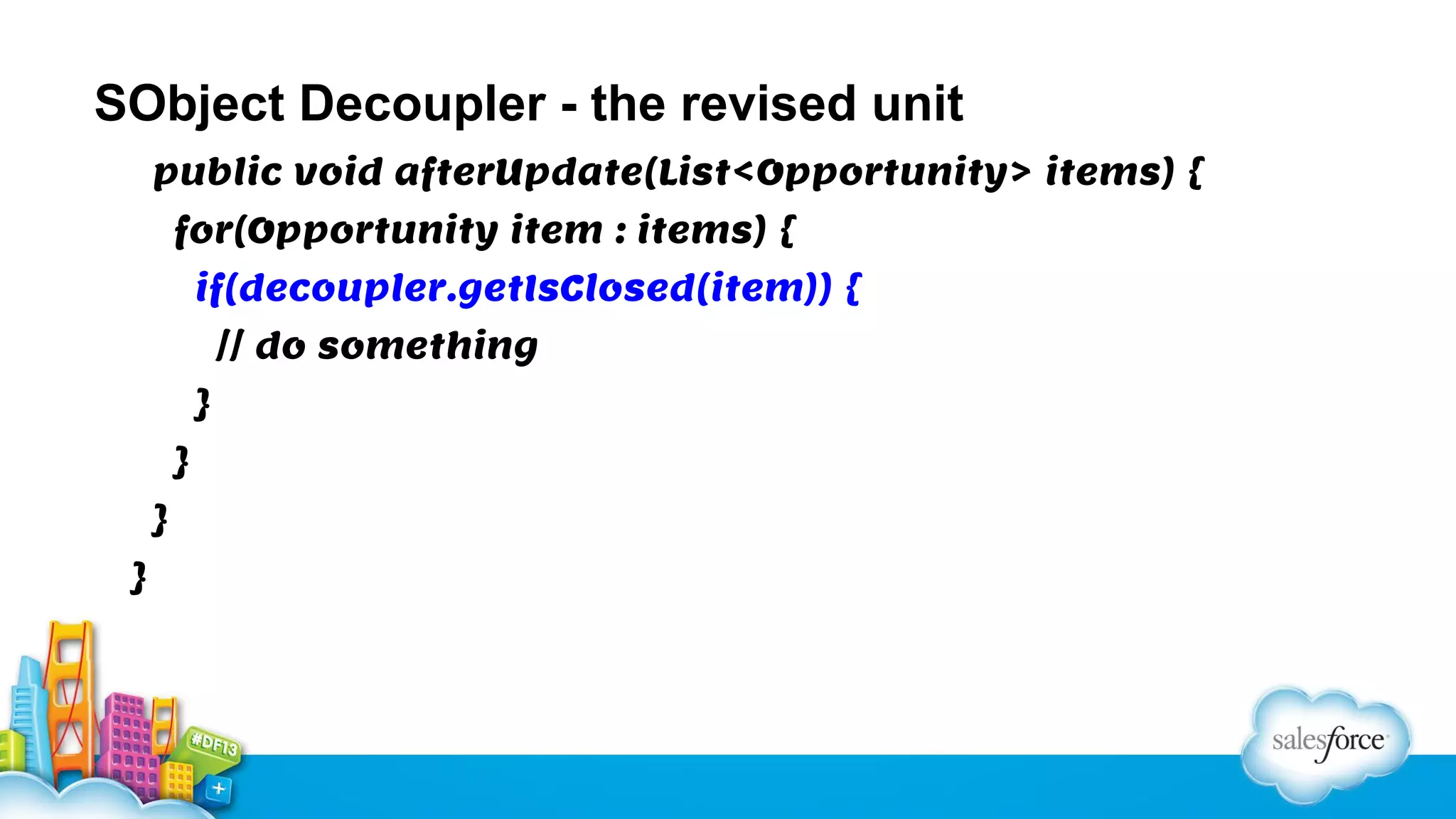

SObject Decoupler - the revised unit
public void afterUpdate(List<Opportunity> items) {
for(Opportunity item : items) {
if(decoupler.getIsClosed(item)) {
// do something
}
}
}
}

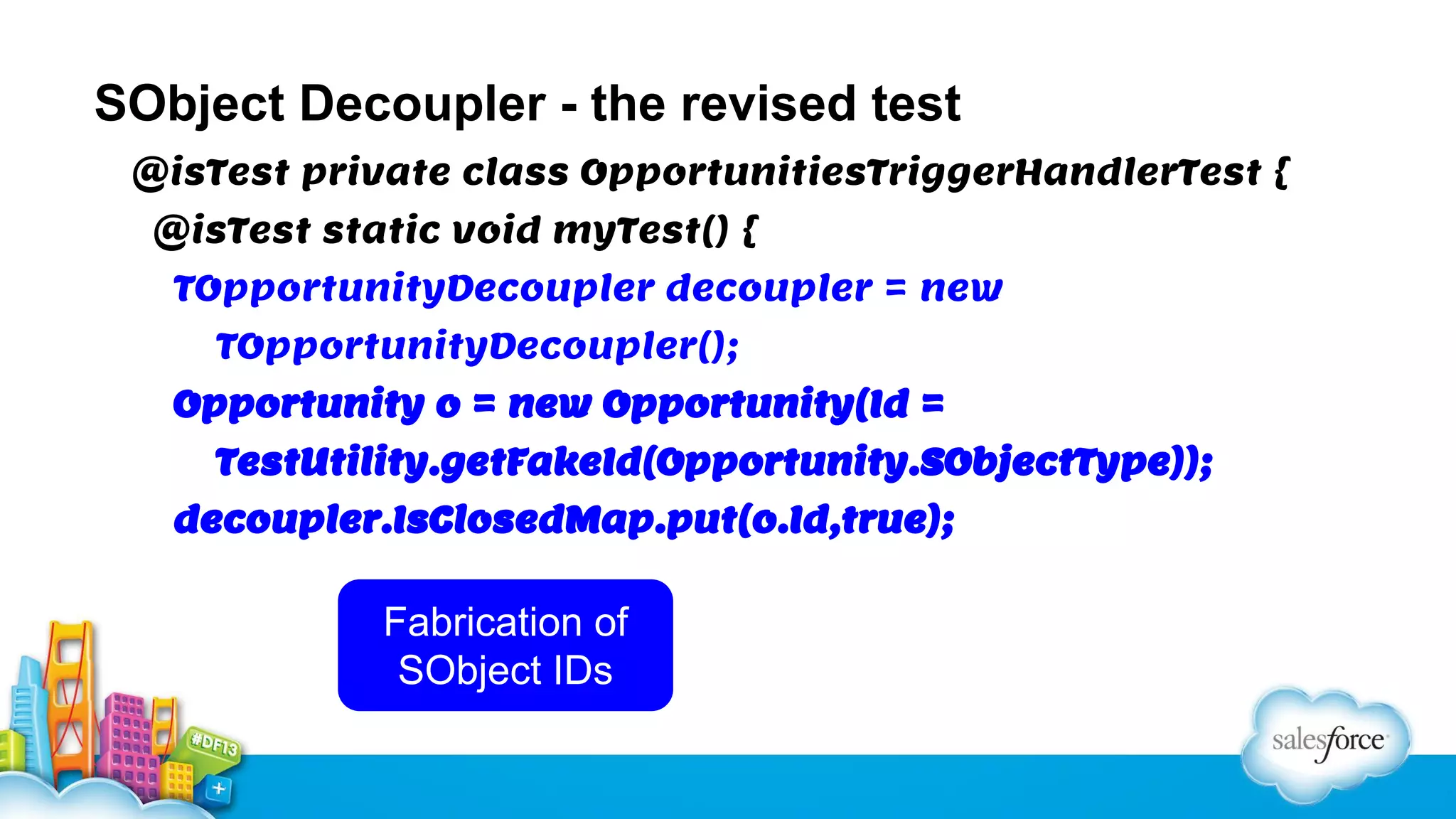

SObject Decoupler - the revised test
@isTest private class OpportunitiesTriggerHandlerTest {
@isTest static void myTest() {
TOpportunityDecoupler decoupler = new
TOpportunityDecoupler();
Opportunity o = new Opportunity(Id =
TestUtility.getFakeId(Opportunity.SObjectType));
decoupler.IsClosedMap.put(o.Id,true);

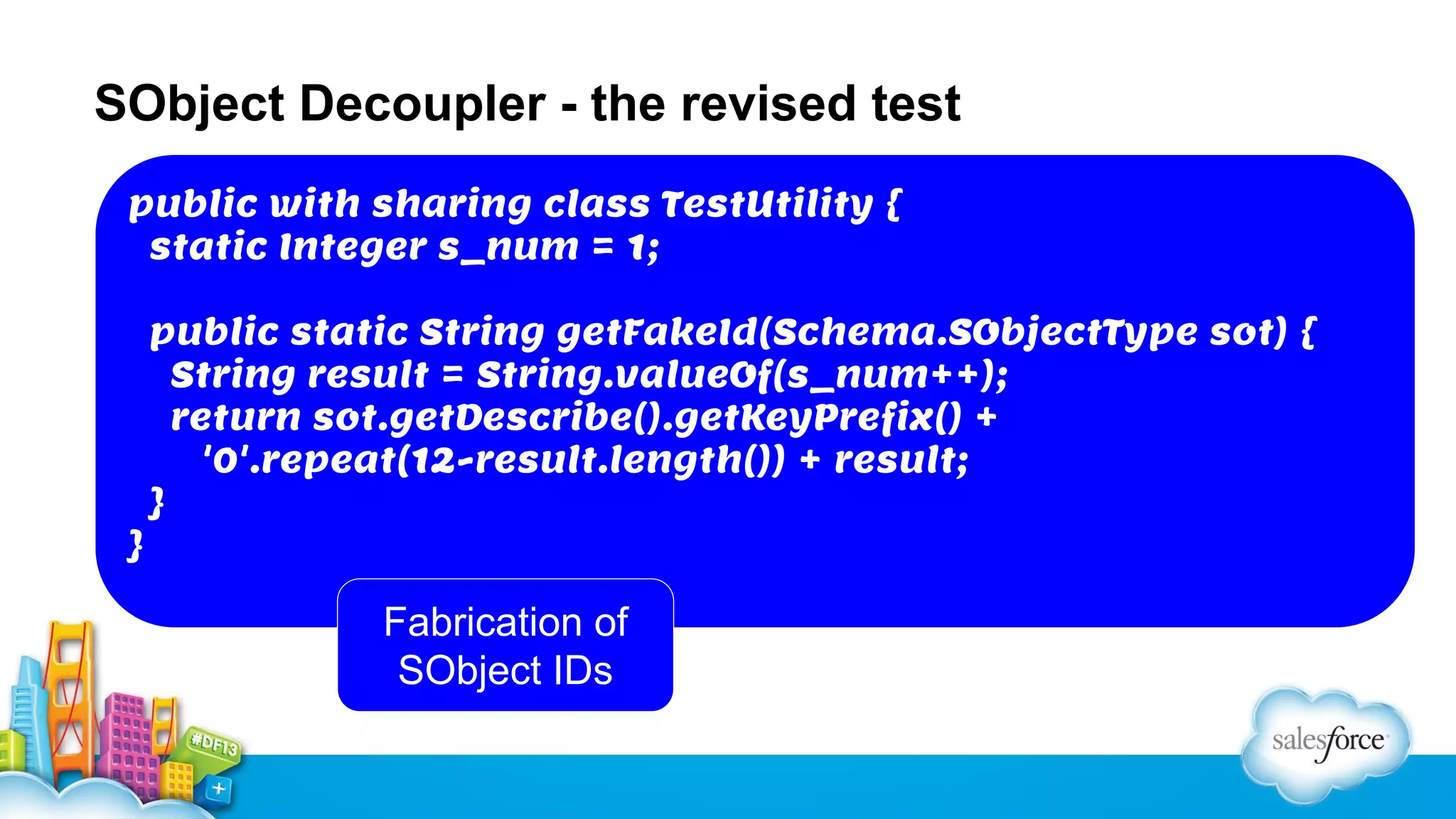

Fabrication of
SObject IDs

public with sharing class TestUtility {
static Integer s_num = 1;

}

public static String getFakeId(Schema.SObjectType sot) {
String result = String.valueOf(s_num++);
return sot.getDescribe().getKeyPrefix() +
'0'.repeat(12-result.length()) + result;
}

Fabrication of
SObject IDs

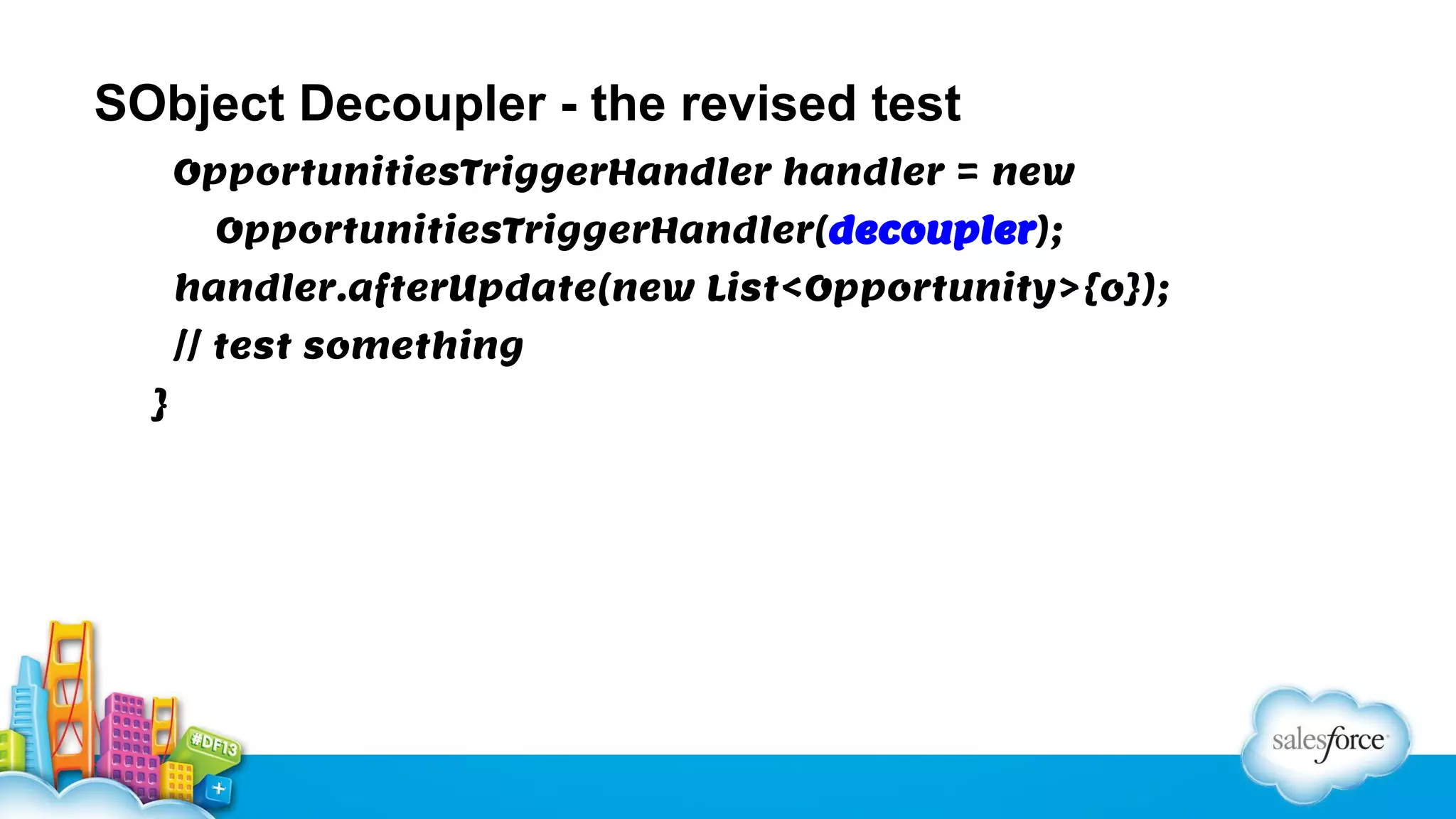

OpportunitiesTriggerHandler handler = new
OpportunitiesTriggerHandler(decoupler);
handler.afterUpdate(new List<Opportunity>{o});
// test something
}

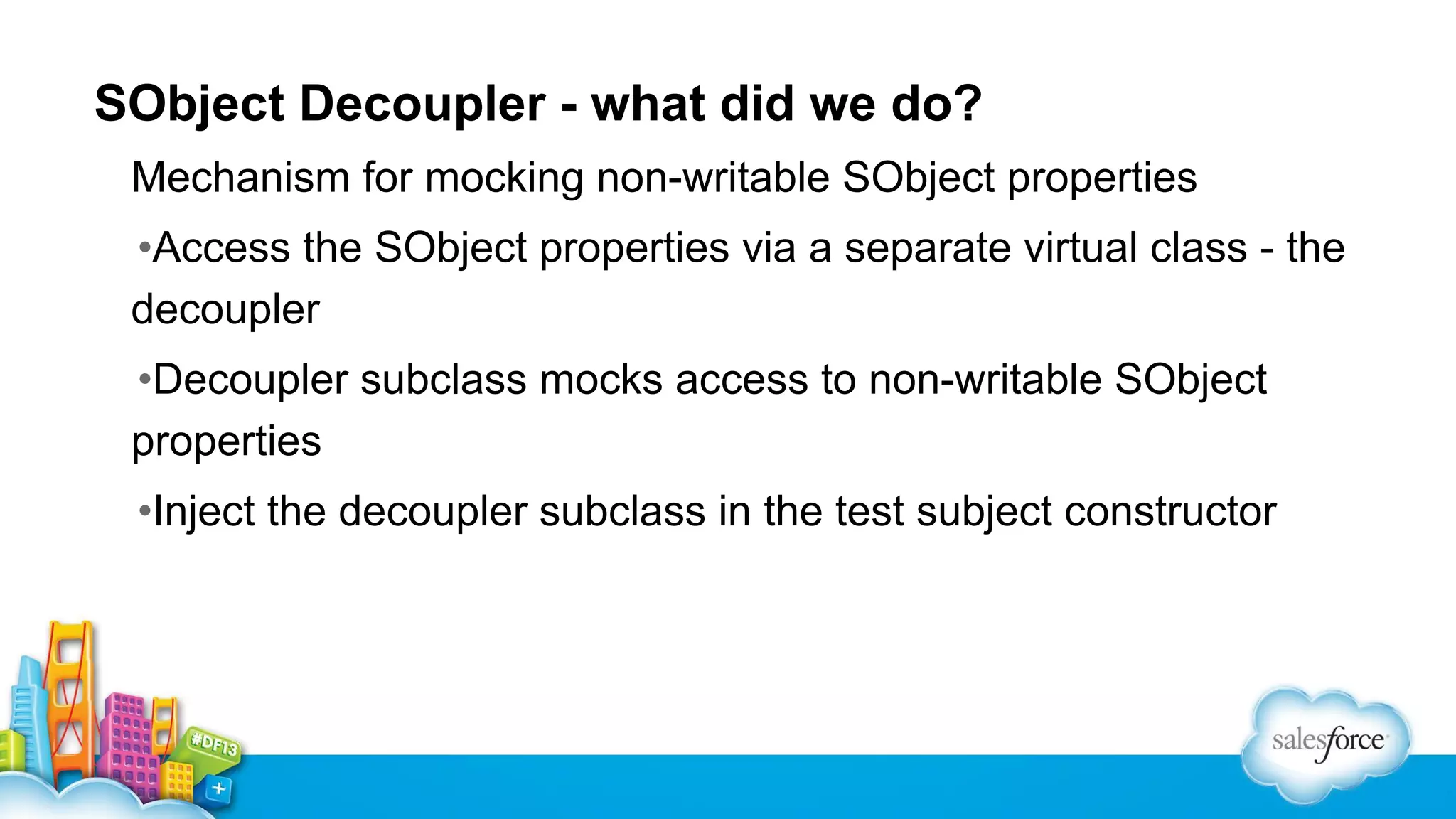

SObject Decoupler - what did we do?
Mechanism for mocking non-writable SObject properties
•Access the SObject properties via a separate virtual class - the
decoupler
•Decoupler subclass mocks access to non-writable SObject
properties
•Inject the decoupler subclass in the test subject constructor

SObject Decoupler - useful for…
Mocking:
•Formula fields
•System fields
•Rollup summary fields
•Subselects
• Select (Select ... From OpportunityLineItems) From Opportunity

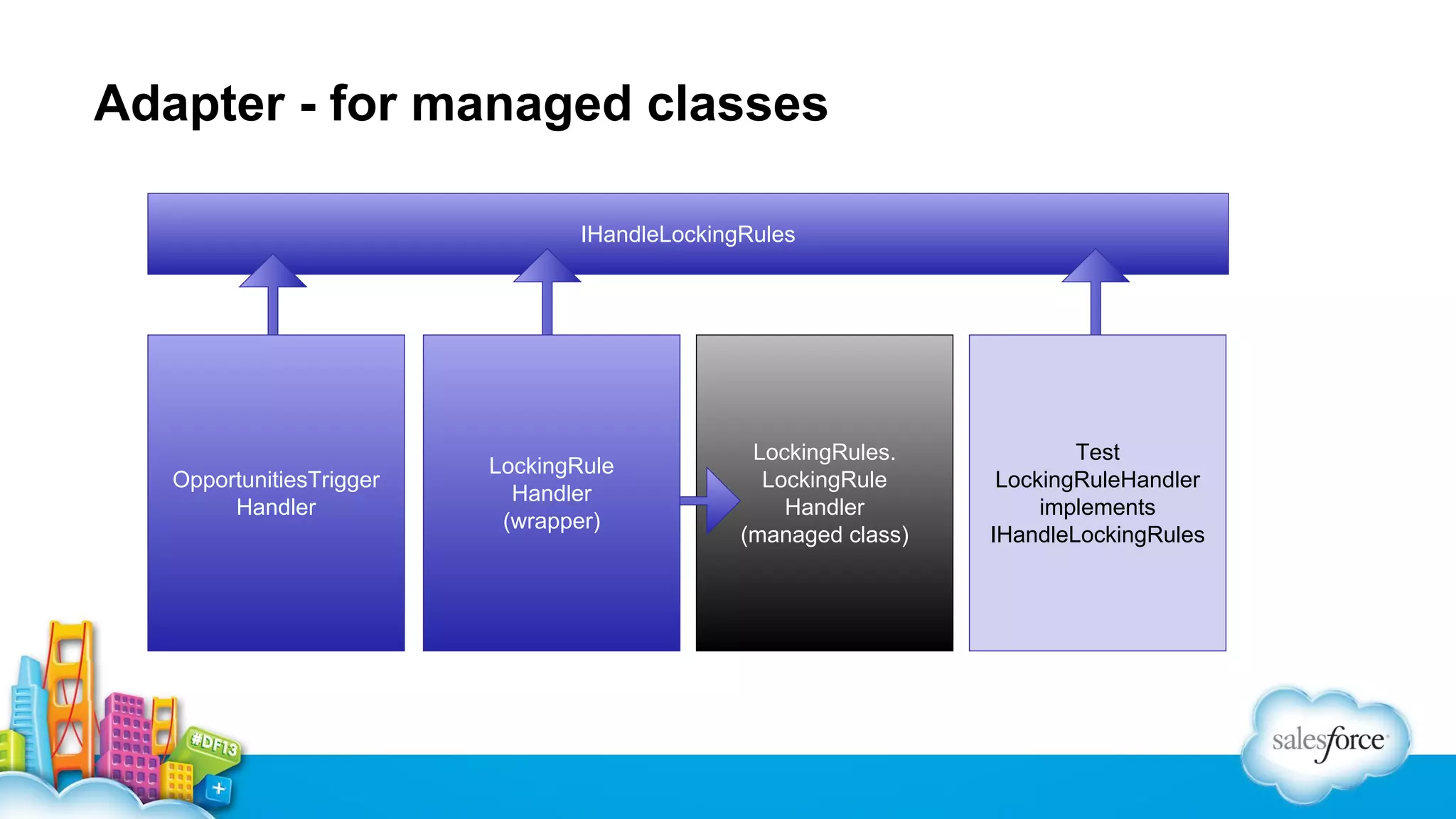

Adapter - for managed classes
IHandleLockingRules

OpportunitiesTrigger
Handler

LockingRule
Handler
(wrapper)

LockingRules.
LockingRule
Handler
(managed class)

Test
LockingRuleHandler
implements
IHandleLockingRules

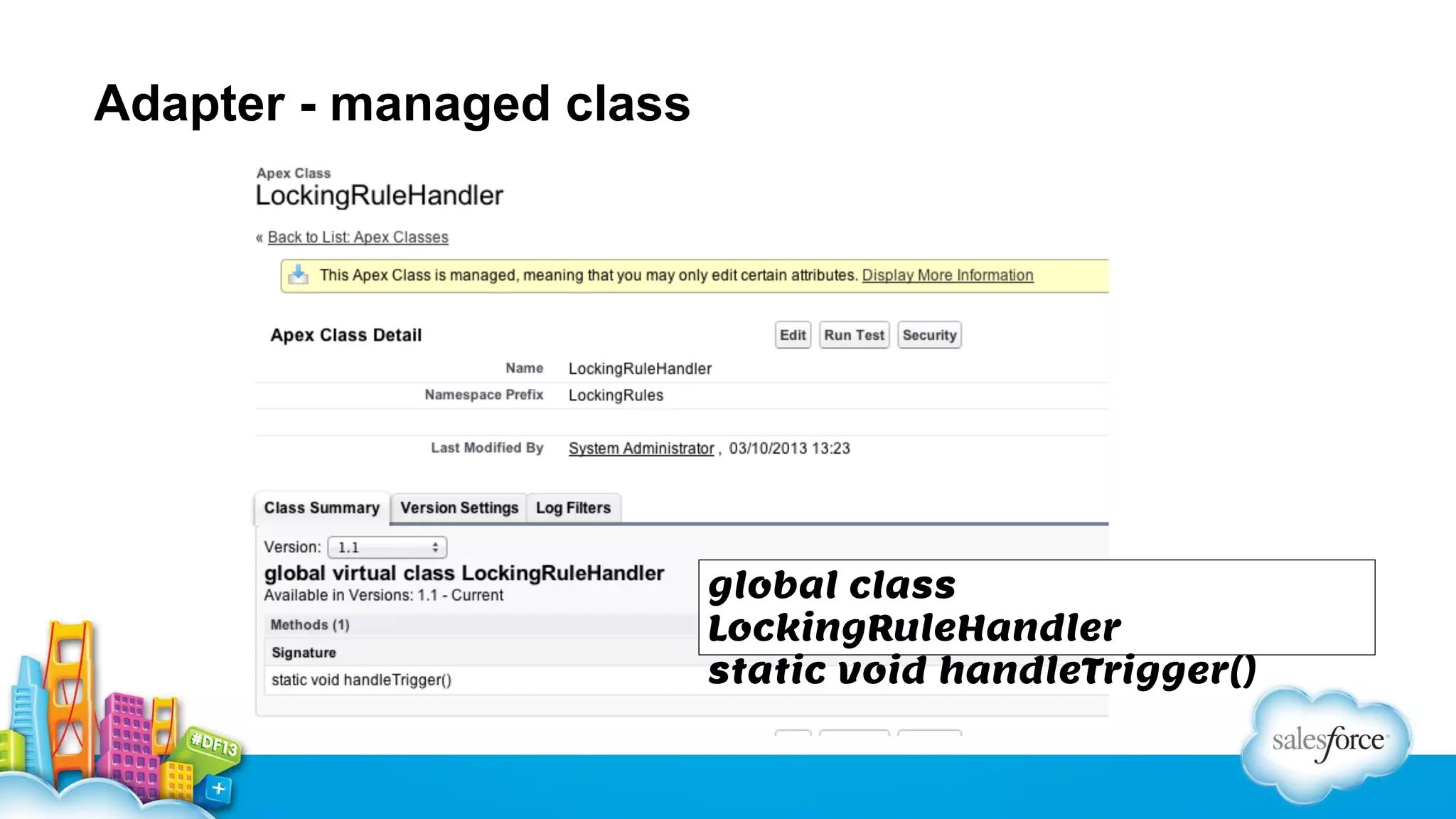

Adapter - managed class

global class
LockingRuleHandler
static void handleTrigger()

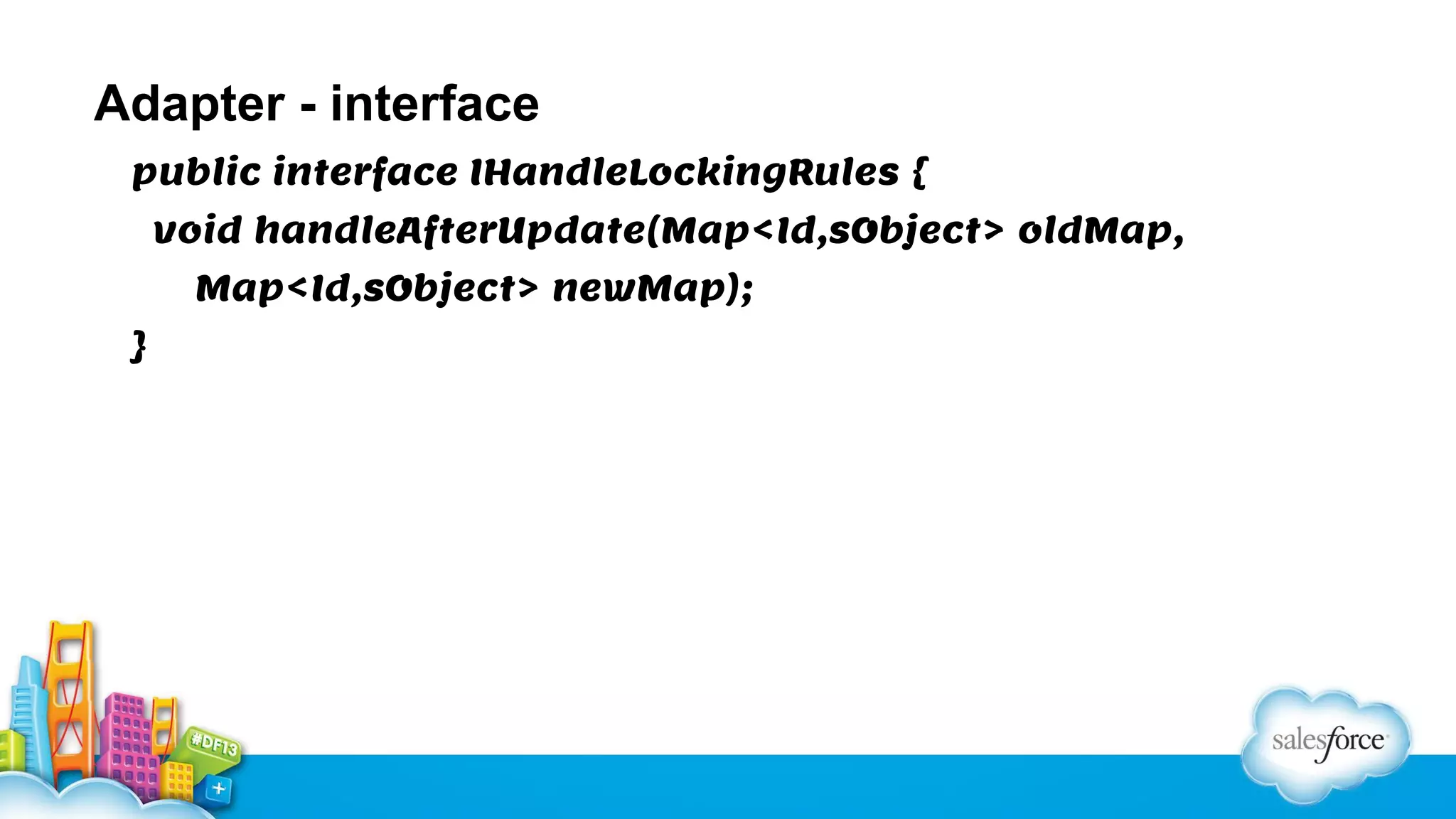

Adapter - interface
public interface IHandleLockingRules {
void handleAfterUpdate(Map<Id,sObject> oldMap,
Map<Id,sObject> newMap);
}

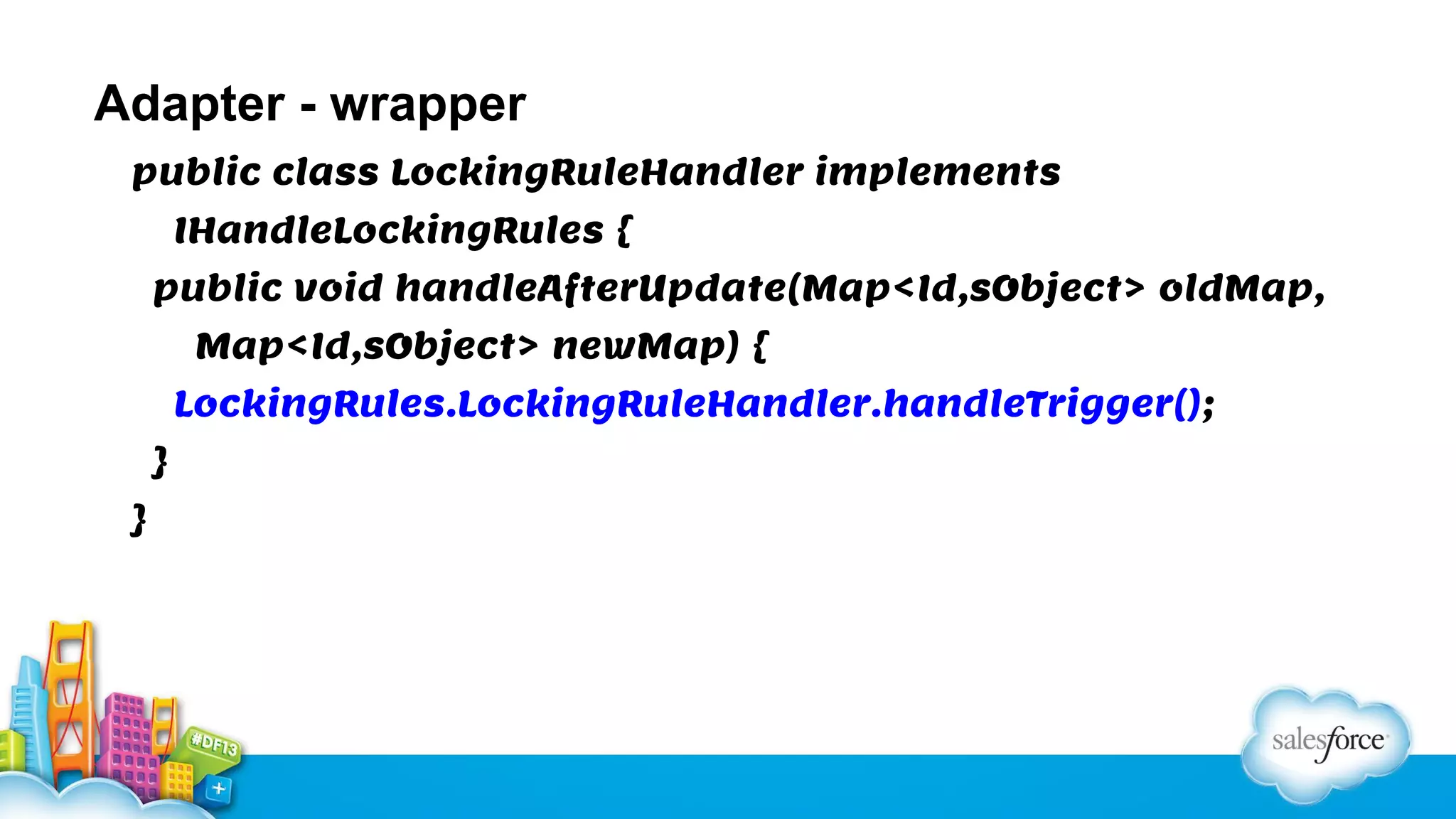

Adapter - wrapper
public class LockingRuleHandler implements
IHandleLockingRules {
public void handleAfterUpdate(Map<Id,sObject> oldMap,
Map<Id,sObject> newMap) {
LockingRules.LockingRuleHandler.handleTrigger();
}
}

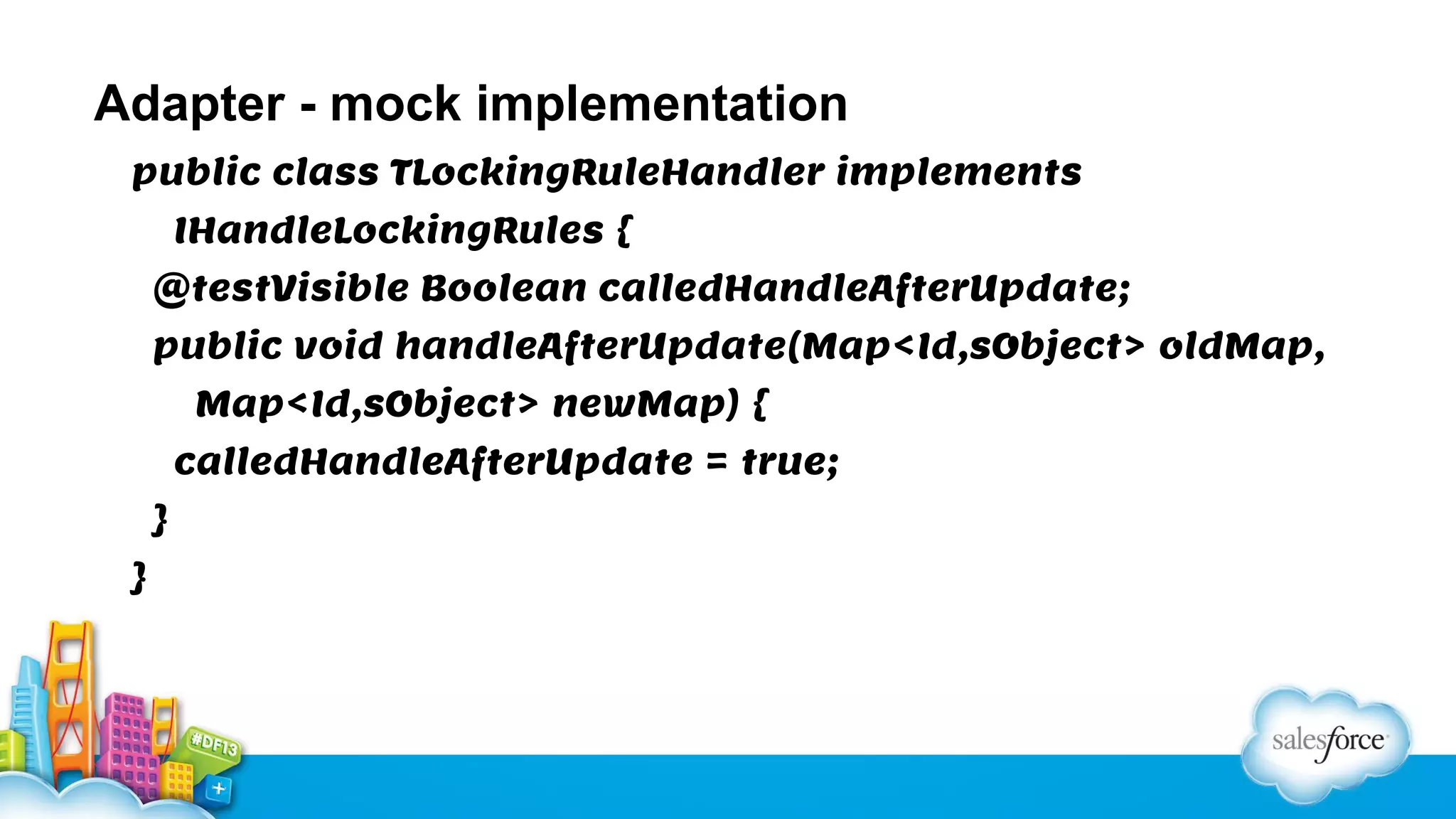

Adapter - mock implementation
public class TLockingRuleHandler implements
IHandleLockingRules {
@testVisible Boolean calledHandleAfterUpdate;
calledHandleAfterUpdate = true;
}
}

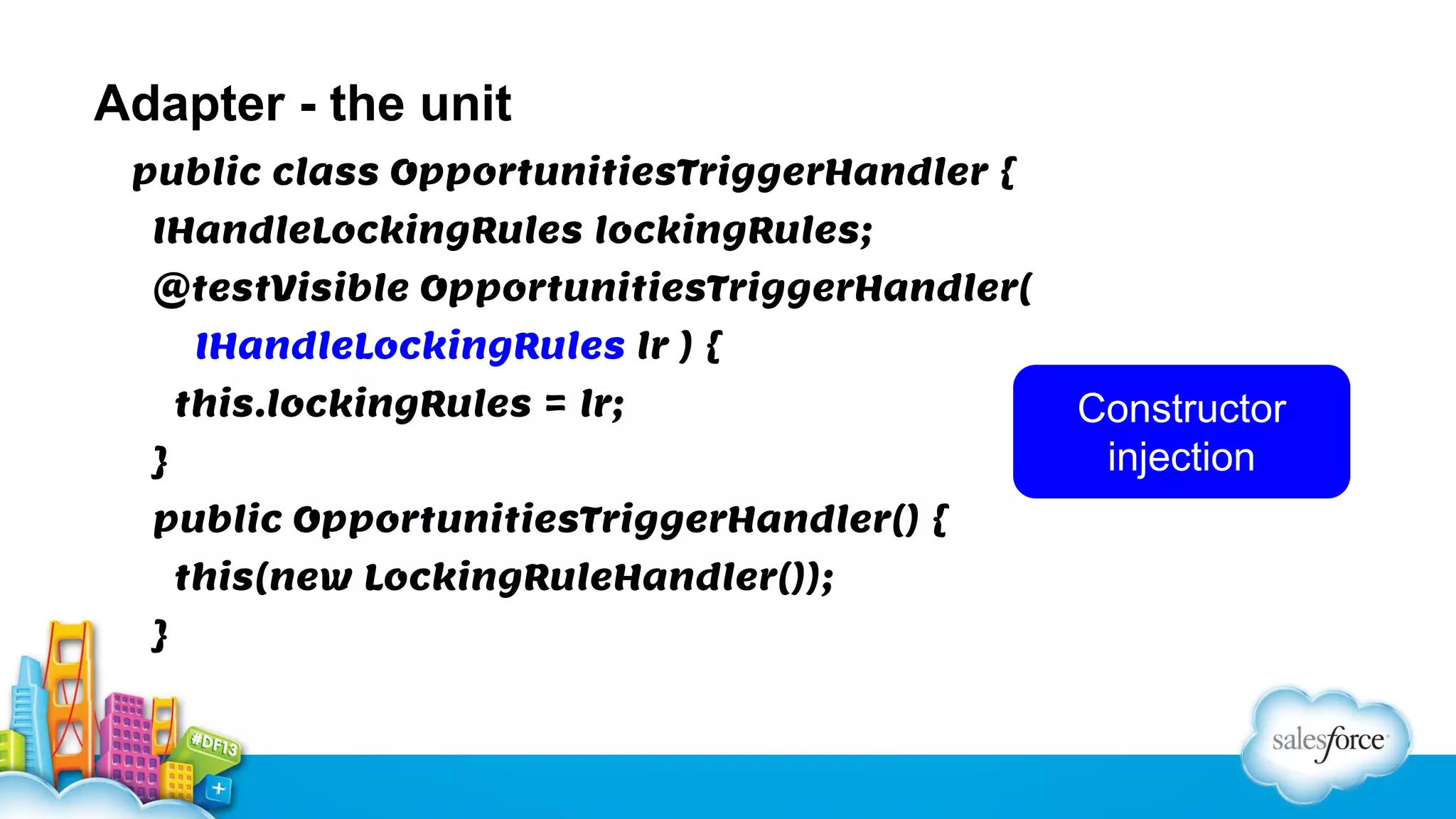

Adapter - the unit
IHandleLockingRules lockingRules;
@testVisible OpportunitiesTriggerHandler(
IHandleLockingRules lr ) {
this.lockingRules = lr;
}
public OpportunitiesTriggerHandler() {
this(new LockingRuleHandler());
}

Constructor
injection

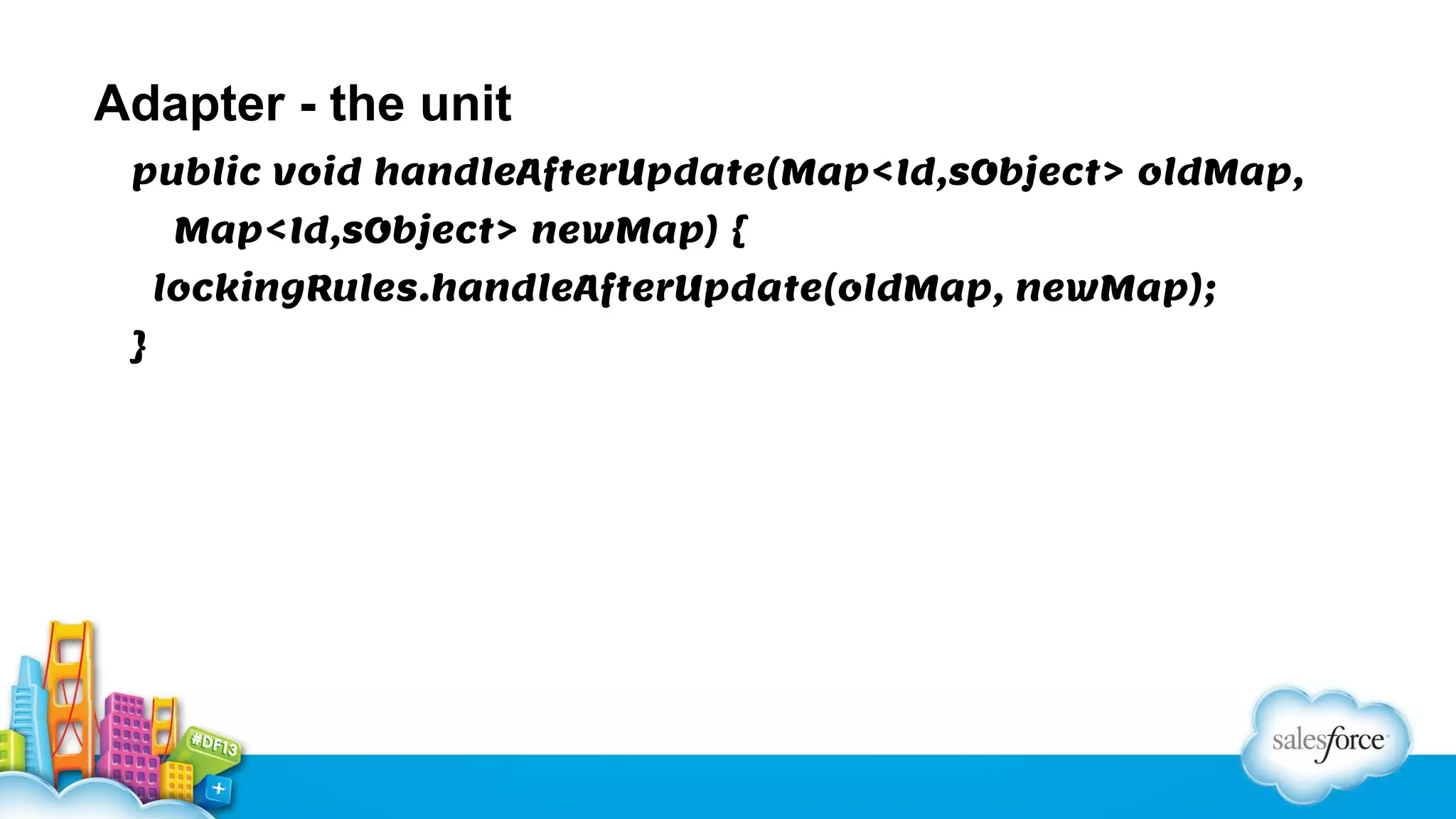

Adapter - the unit
lockingRules.handleAfterUpdate(oldMap, newMap);
}

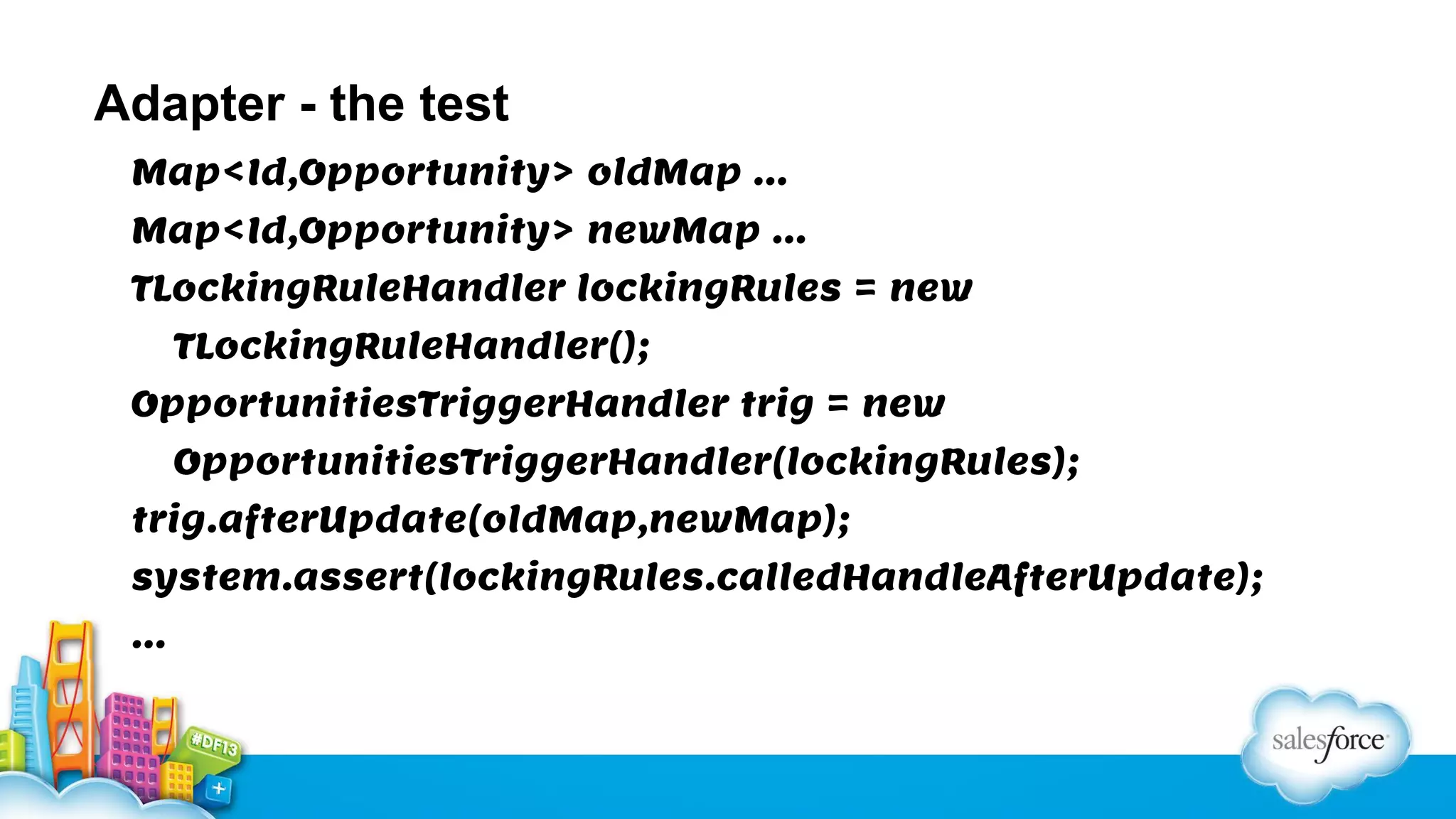

Adapter - the test
Map<Id,Opportunity> oldMap …
Map<Id,Opportunity> newMap …
TLockingRuleHandler lockingRules = new
TLockingRuleHandler();
OpportunitiesTriggerHandler trig = new
OpportunitiesTriggerHandler(lockingRules);
trig.afterUpdate(oldMap,newMap);
system.assert(lockingRules.calledHandleAfterUpdate);
…

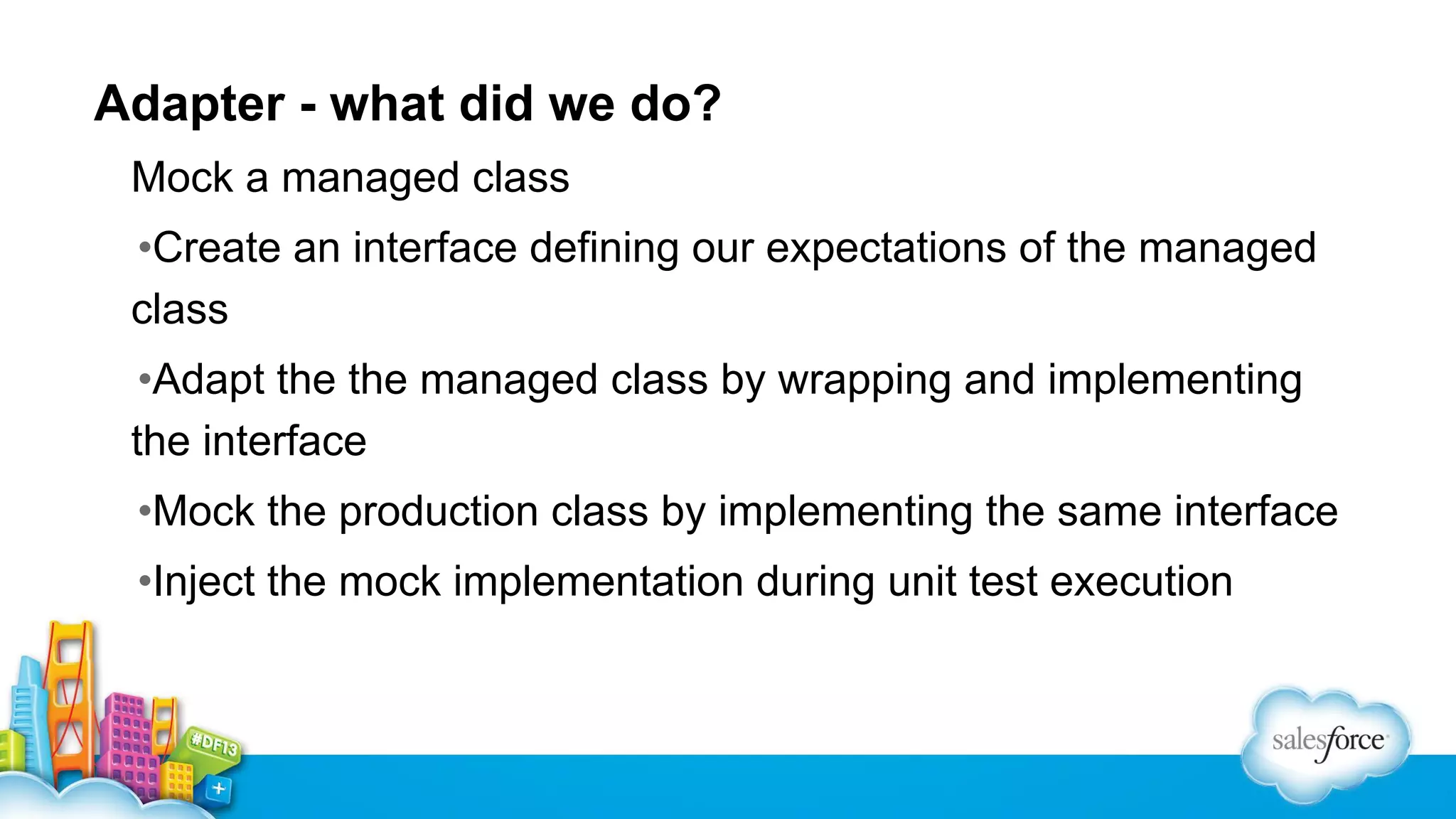

Adapter - what did we do?
Mock a managed class
•Create an interface defining our expectations of the managed
class
•Adapt the the managed class by wrapping and implementing
the interface
•Mock the production class by implementing the same interface
•Inject the mock implementation during unit test execution

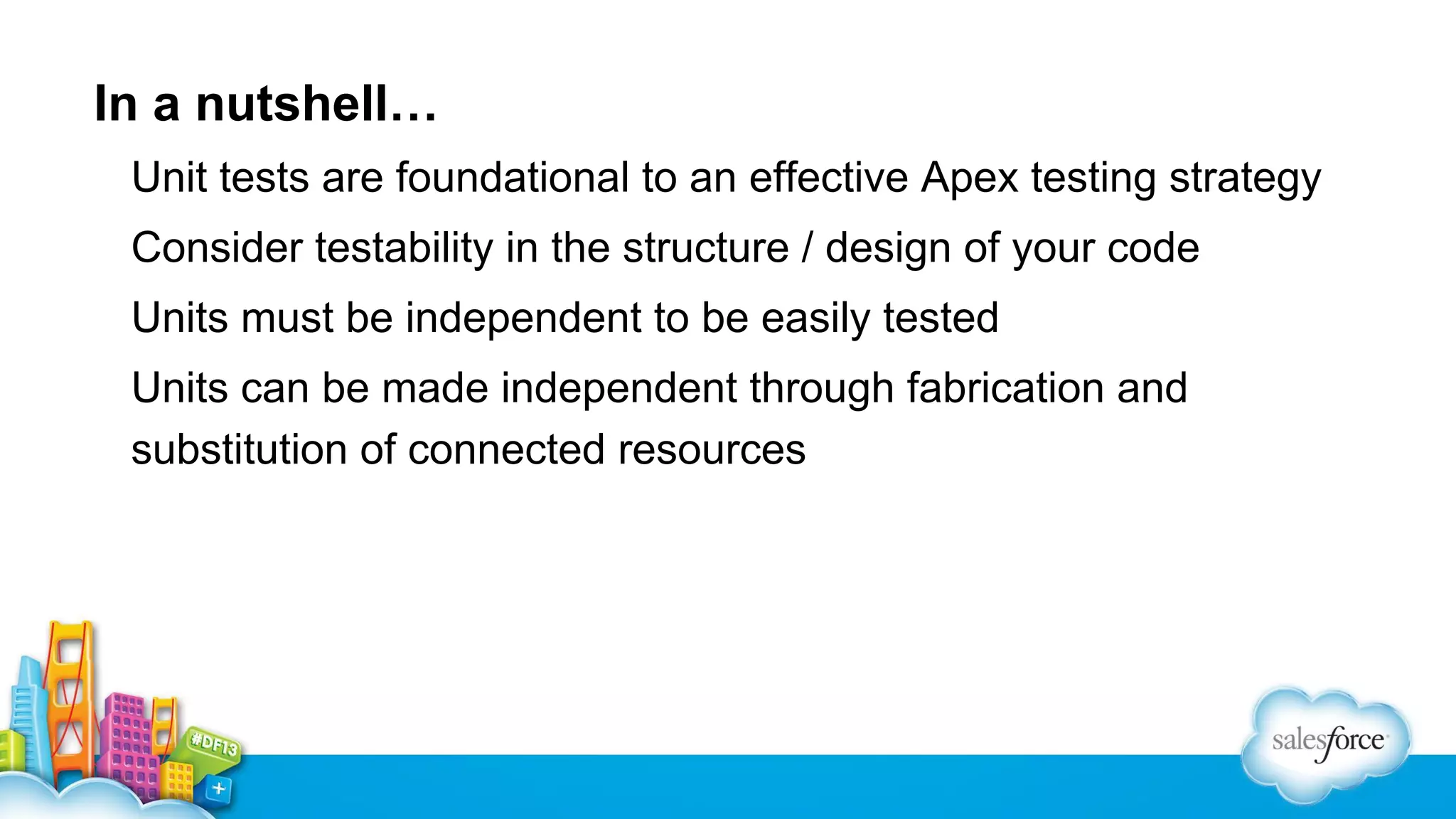

In a nutshell…
Unit tests are foundational to an effective Apex testing strategy
Consider testability in the structure / design of your code
Units must be independent to be easily tested
Units can be made independent through fabrication and
substitution of connected resources

Going forward…
Tests and Testability on foobarforce.com
Sample code on Github
@stephenwillcock

Stephen Willcock
Director of Product
Innovation at FinancialForce.
com
@stephenwillcock

Tests and Testability: Apex Structure and Strategy

Tests and Testability: Apex Structure and Strategy

More Related Content

What's hot

Similar to Tests and Testability: Apex Structure and Strategy

More from Salesforce Developers

Recently uploaded

Tests and Testability: Apex Structure and Strategy
