1. UNIT TESTING, TDD & ATDD
Arnon Axelrod, E4D Solutions

2. ©ArnonAxelrod,E4DSolutionsLtd.
ABOUT ME

3. ©ArnonAxelrod,E4DSolutionsLtd.
ABOUT YOU
 Position: Dev, Test, Product, Management, other?
 TDD/Unit testing experience

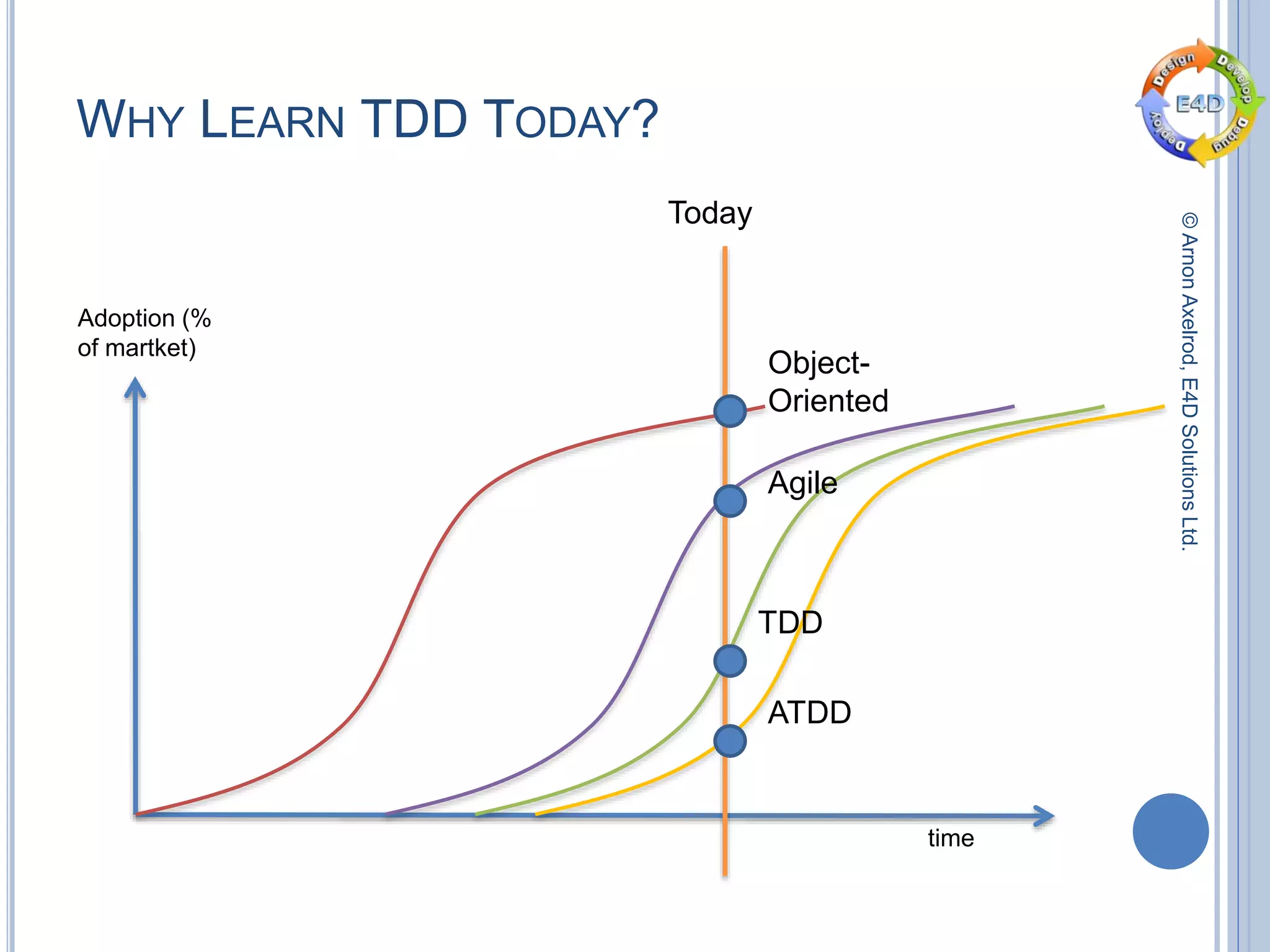

4. ©ArnonAxelrod,E4DSolutionsLtd.
WHY LEARN TDD TODAY?
Adoption (%
of martket)
time
Today
ATDD
TDD
Agile
Object-
Oriented

5. ©ArnonAxelrod,E4DSolutionsLtd.
Photo by: Stuart Miles
TDD?!

6. ©ArnonAxelrod,E4DSolutionsLtd.

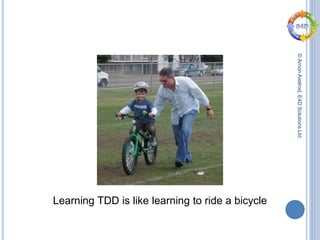

Learning TDD is like learning to ride a bicycle

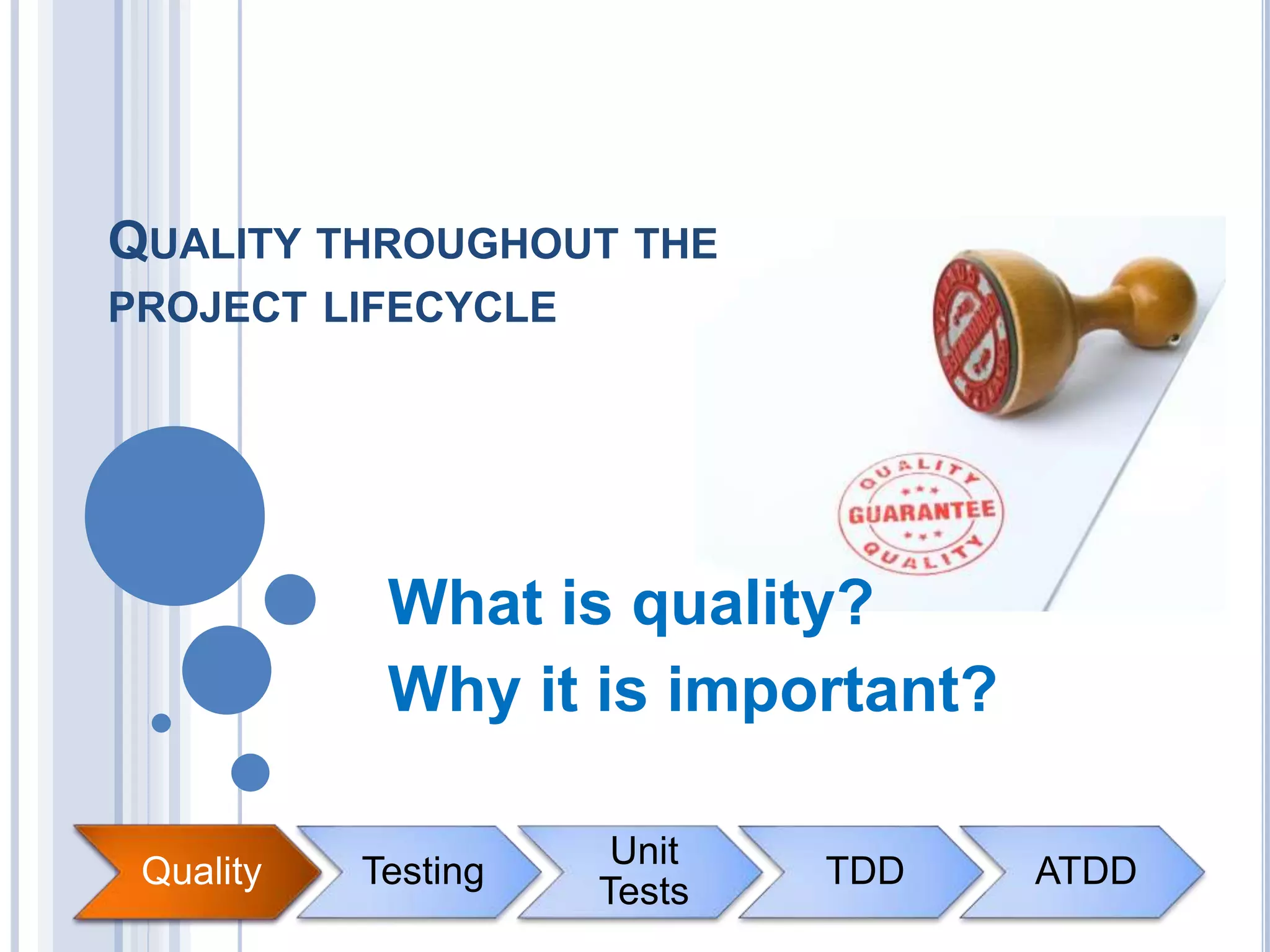

7. Quality Testing
Unit
Tests
TDD ATDD
QUALITY THROUGHOUT THE
PROJECT LIFECYCLE
What is quality?
Why it is important?
Quality

8. ©ArnonAxelrod,E4DSolutionsLtd.

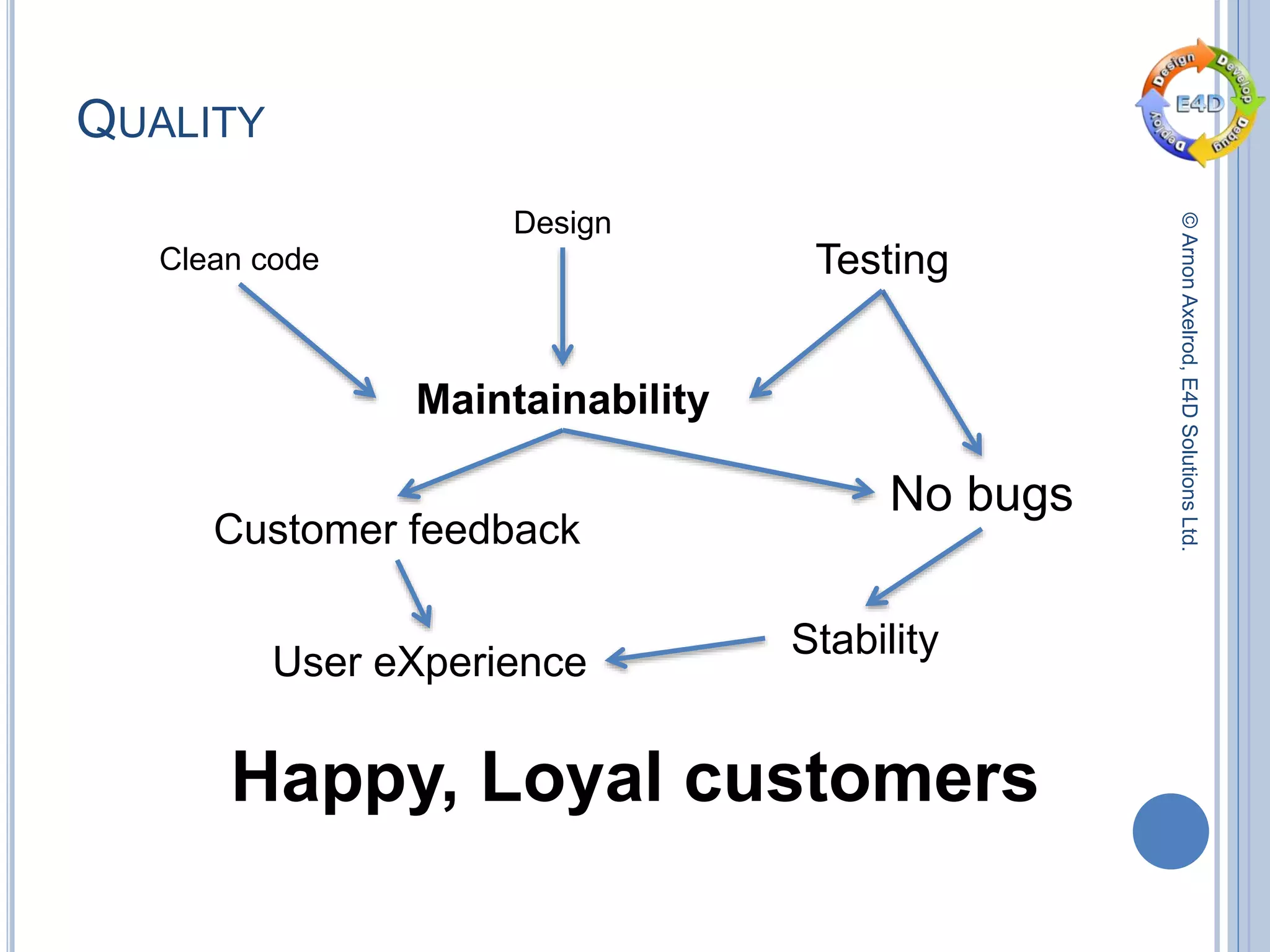

QUALITY
No bugs
Stability
Testing
Design
Happy, Loyal customers
User eXperience
Clean code
Maintainability
Customer feedback

9. ©ArnonAxelrod,E4DSolutionsLtd.

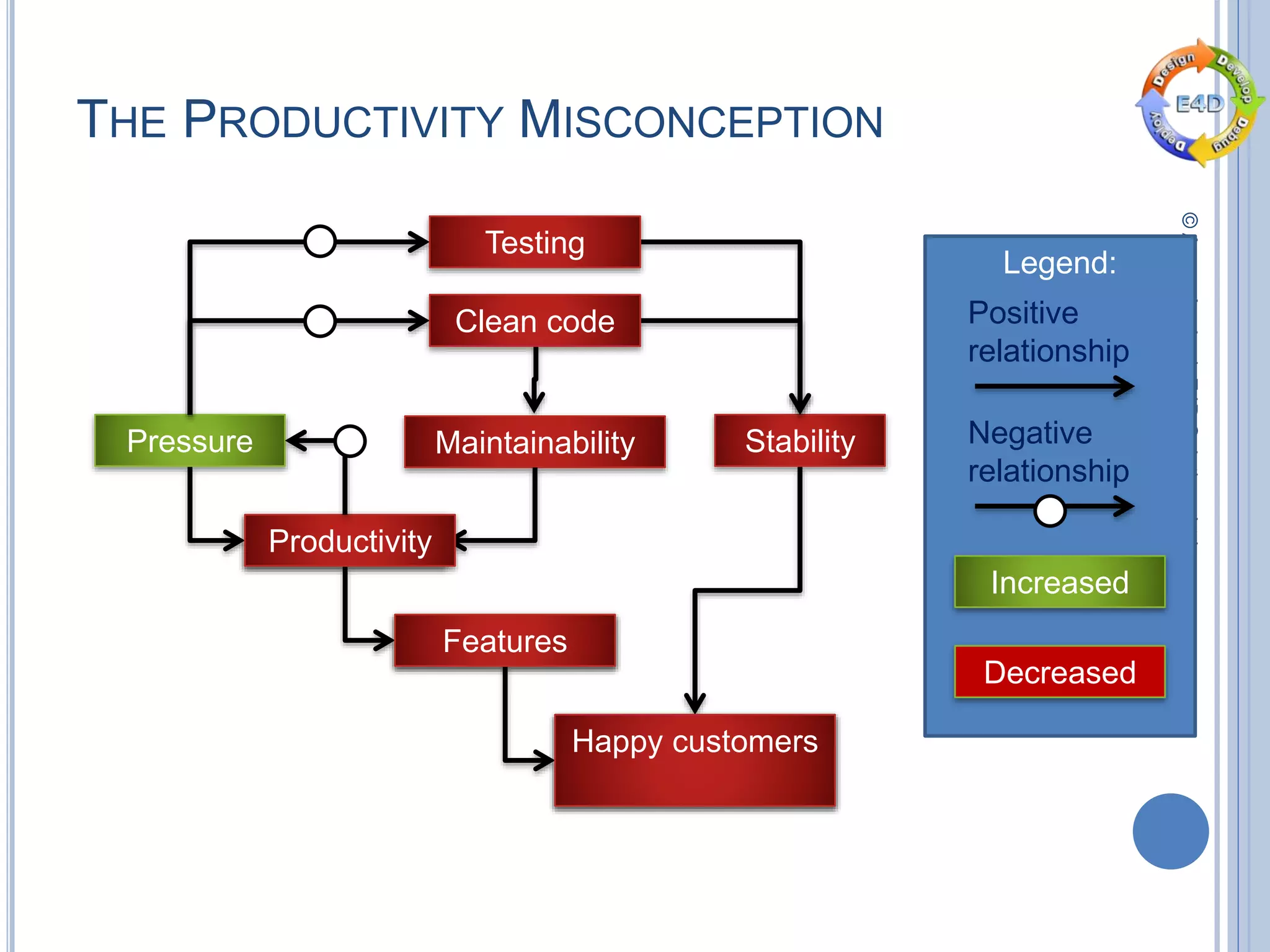

THE PRODUCTIVITY MISCONCEPTION
Productivity
Features
Happy customers
MaintainabilityPressure
Legend:
Positive
relationship
Negative
relationship
Increased
Decreased
Productivity
Features
Happy customers
Stability
Clean code
Testing

10. ©ArnonAxelrod,E4DSolutionsLtd.
THE PRODUCTIVITY MISCONCEPTION
Productivity
Features
Happy customers
MaintainabilityPressure
Legend:
Positive
relationship
Negative
relationship
Increased
Decreased
Stability
Clean code
Testing

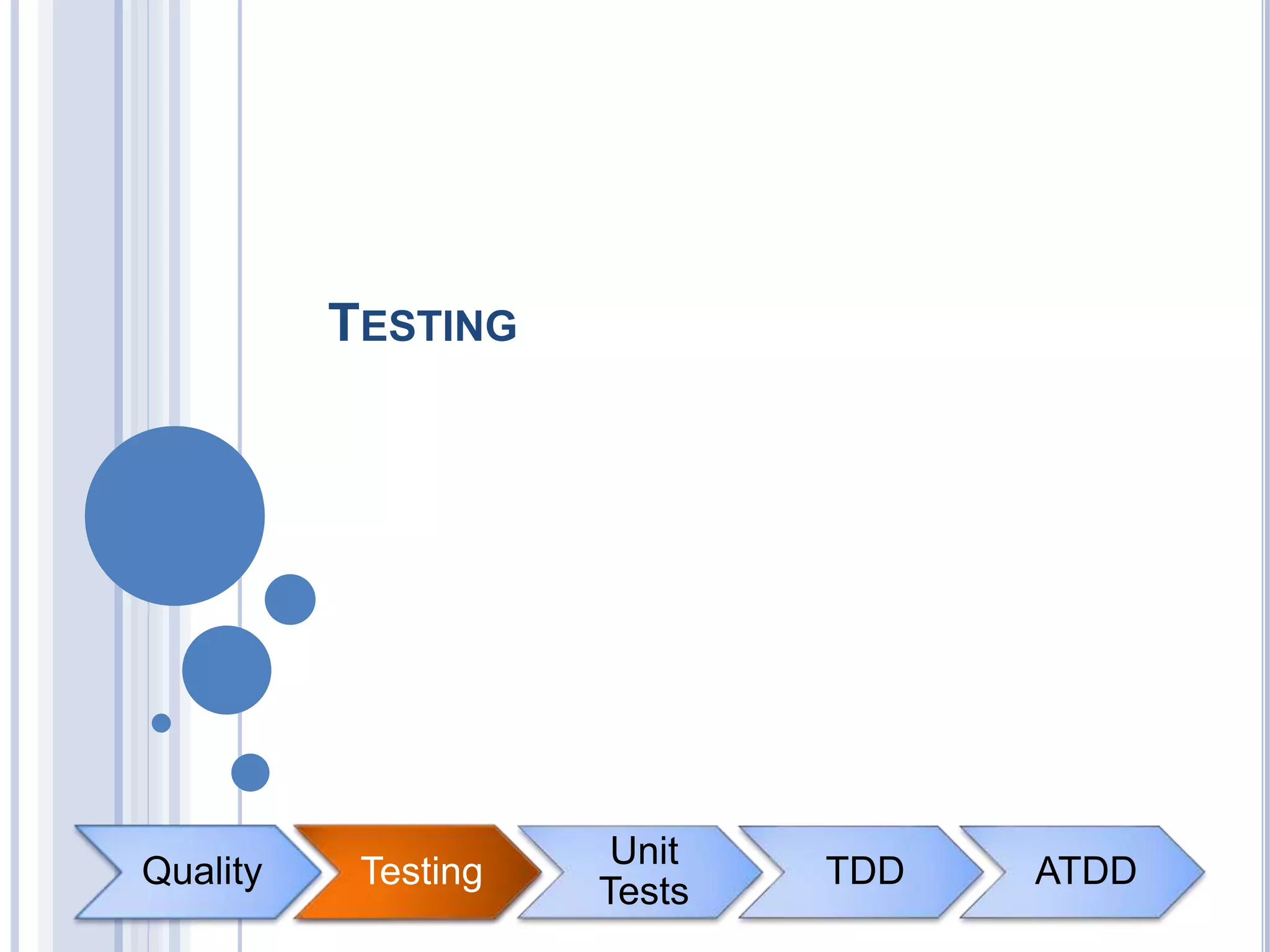

11. Quality Testing
Unit
Tests
TDD ATDD
TESTING
Testing

12. ©ArnonAxelrod,E4DSolutionsLtd.

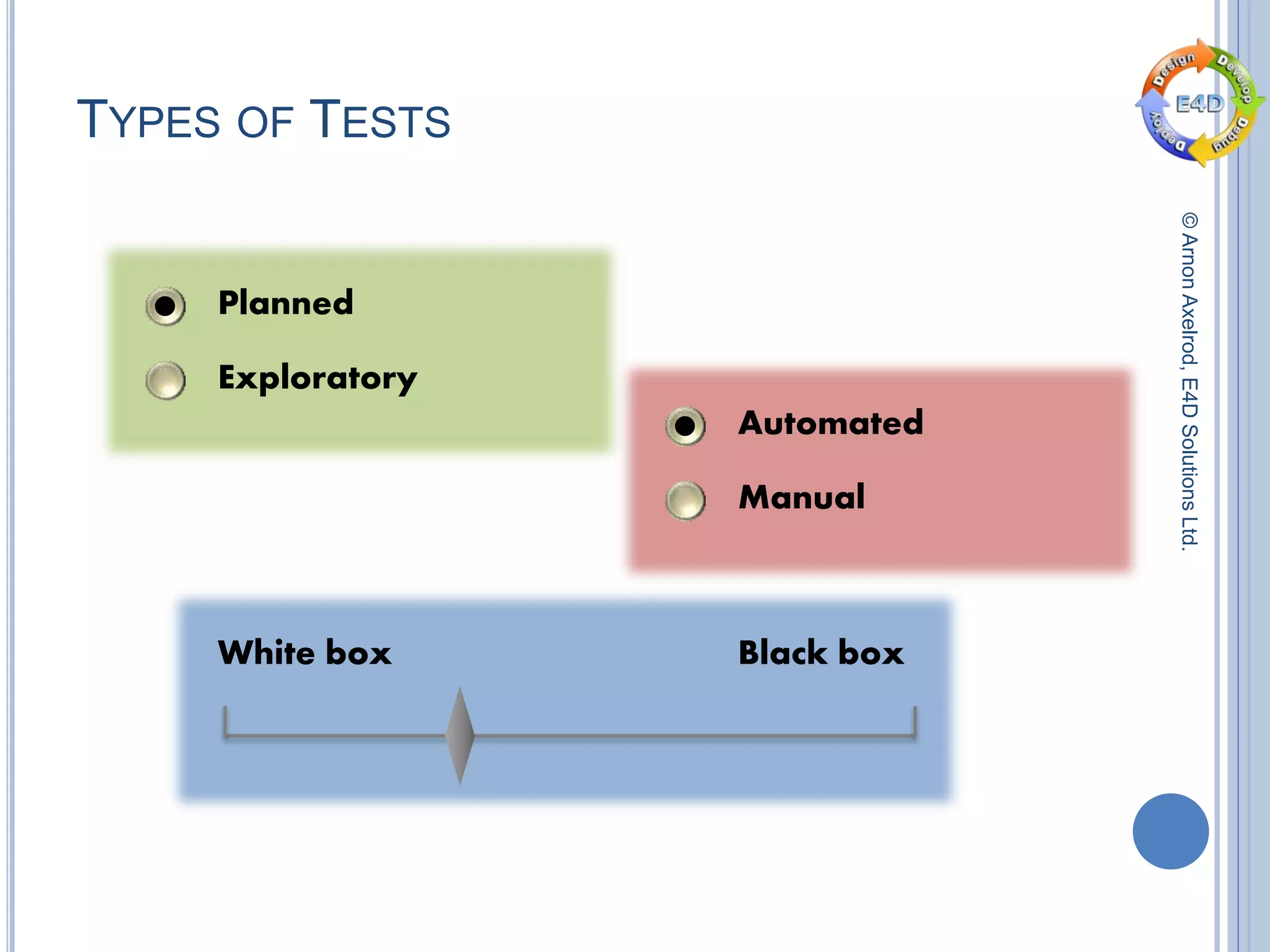

TYPES OF TESTS
Exploratory
Planned
Manual
Automated
White box Black box

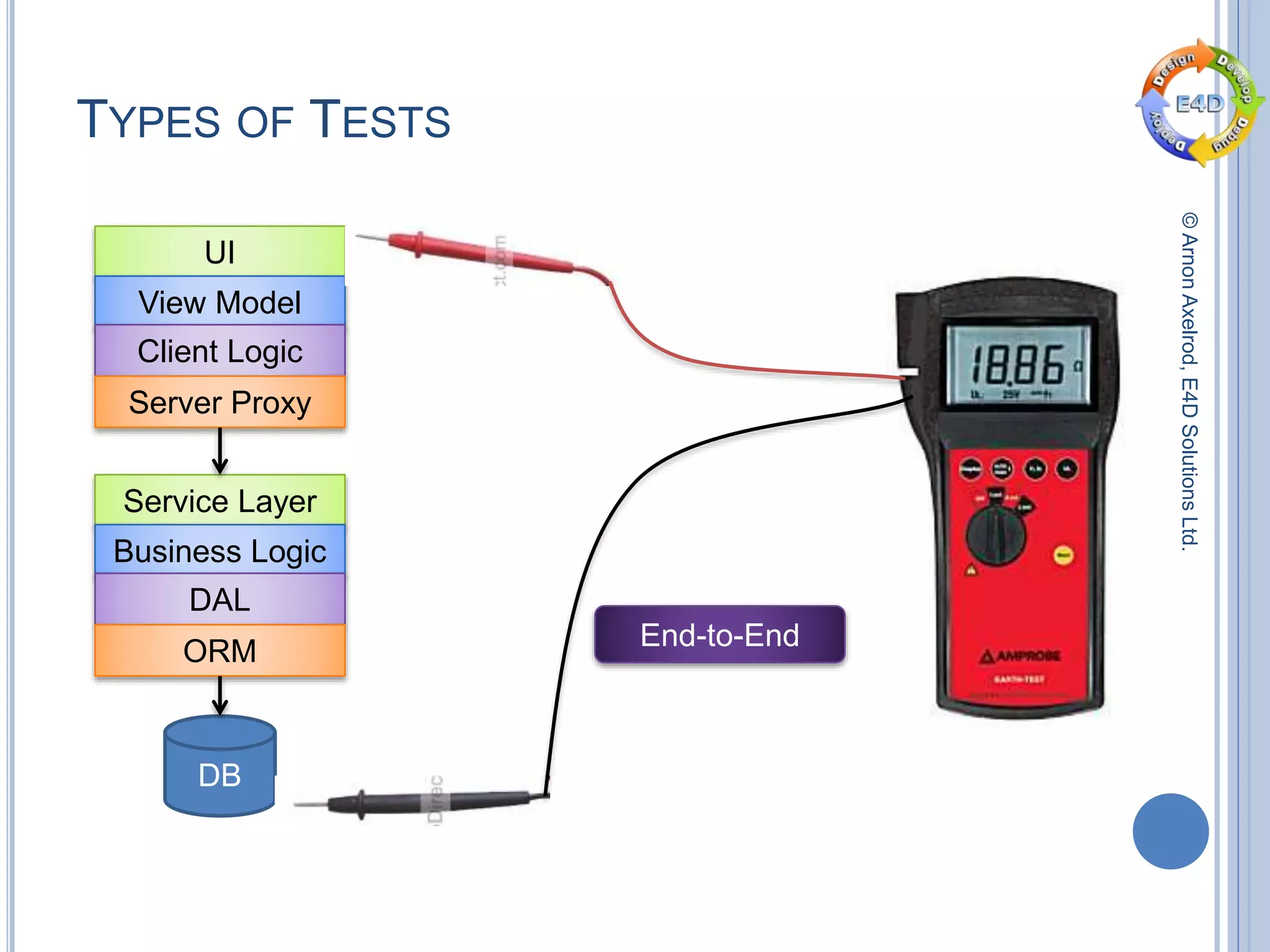

13. ©ArnonAxelrod,E4DSolutionsLtd.
TYPES OF TESTS
UI
View Model
Client Logic
Server Proxy
Service Layer
Business Logic
DAL
ORM
DB
End-to-End

14. ©ArnonAxelrod,E4DSolutionsLtd.

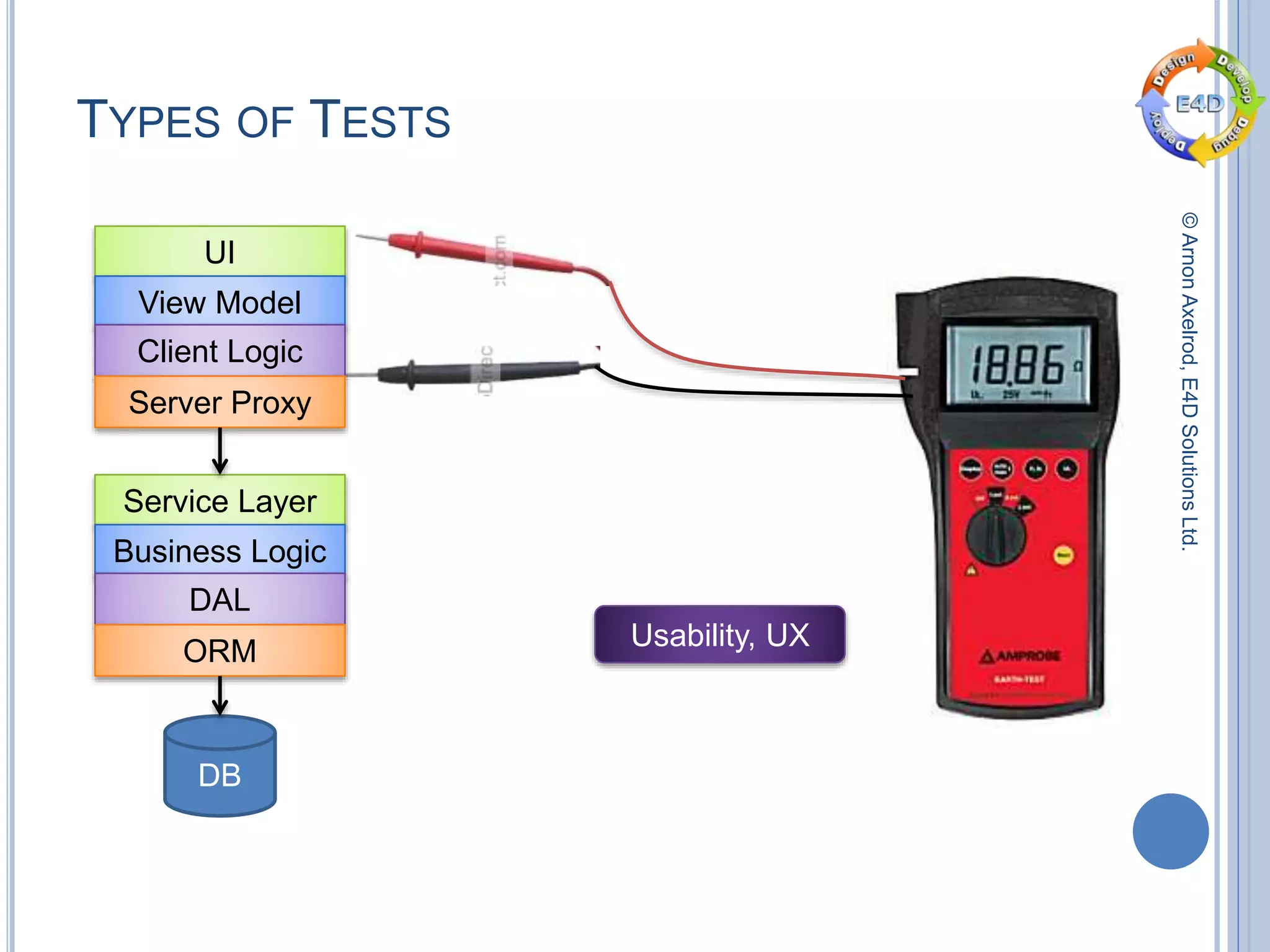

TYPES OF TESTS
UI
View Model
Client Logic
Server Proxy
Service Layer
Business Logic
DAL
ORM
DB
Usability, UX

15. ©ArnonAxelrod,E4DSolutionsLtd.
TYPES OF TESTS
UI
View Model
Client Logic
Server Proxy
Service Layer
Business Logic
DAL
ORM
DB
Integration

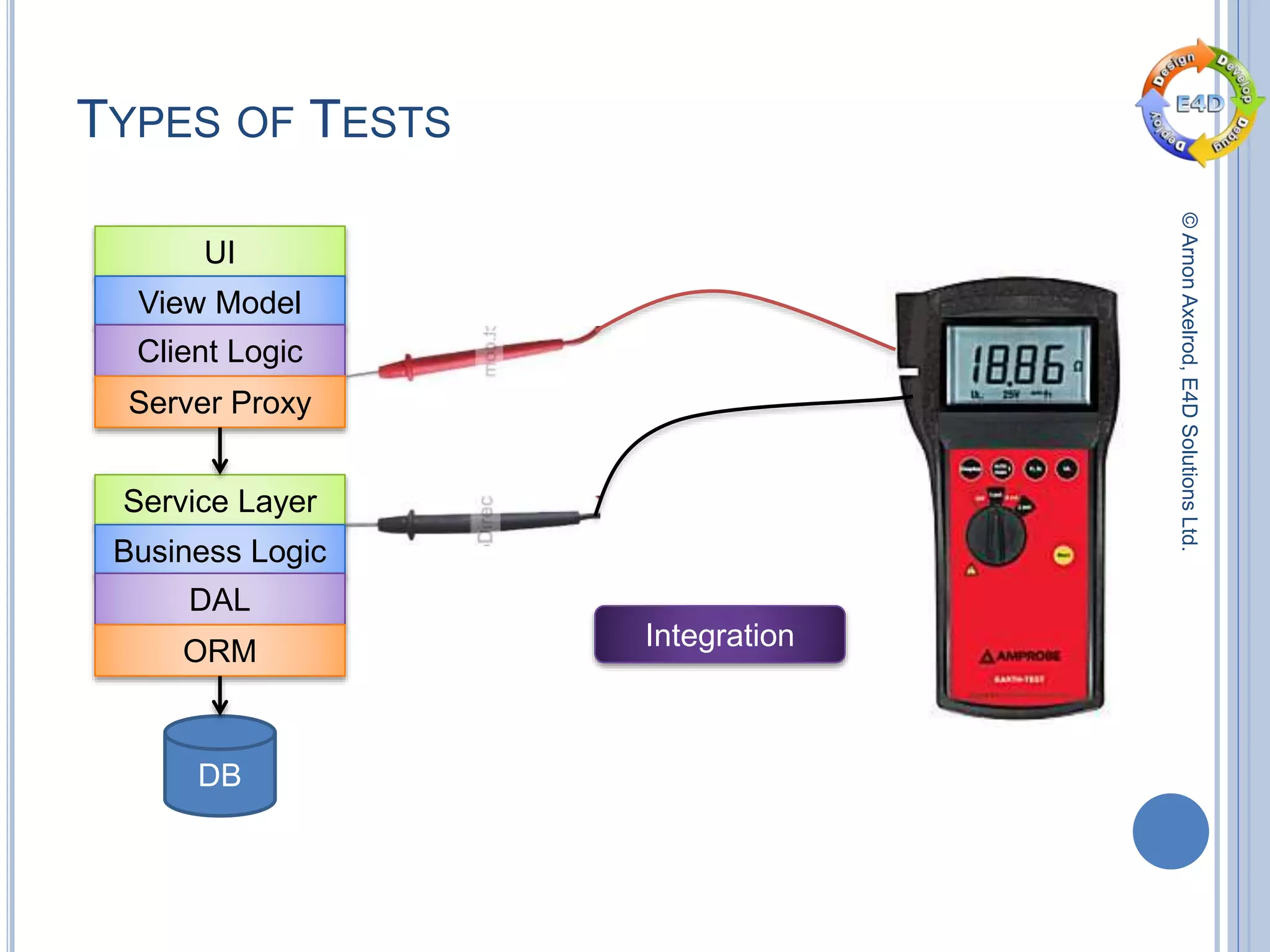

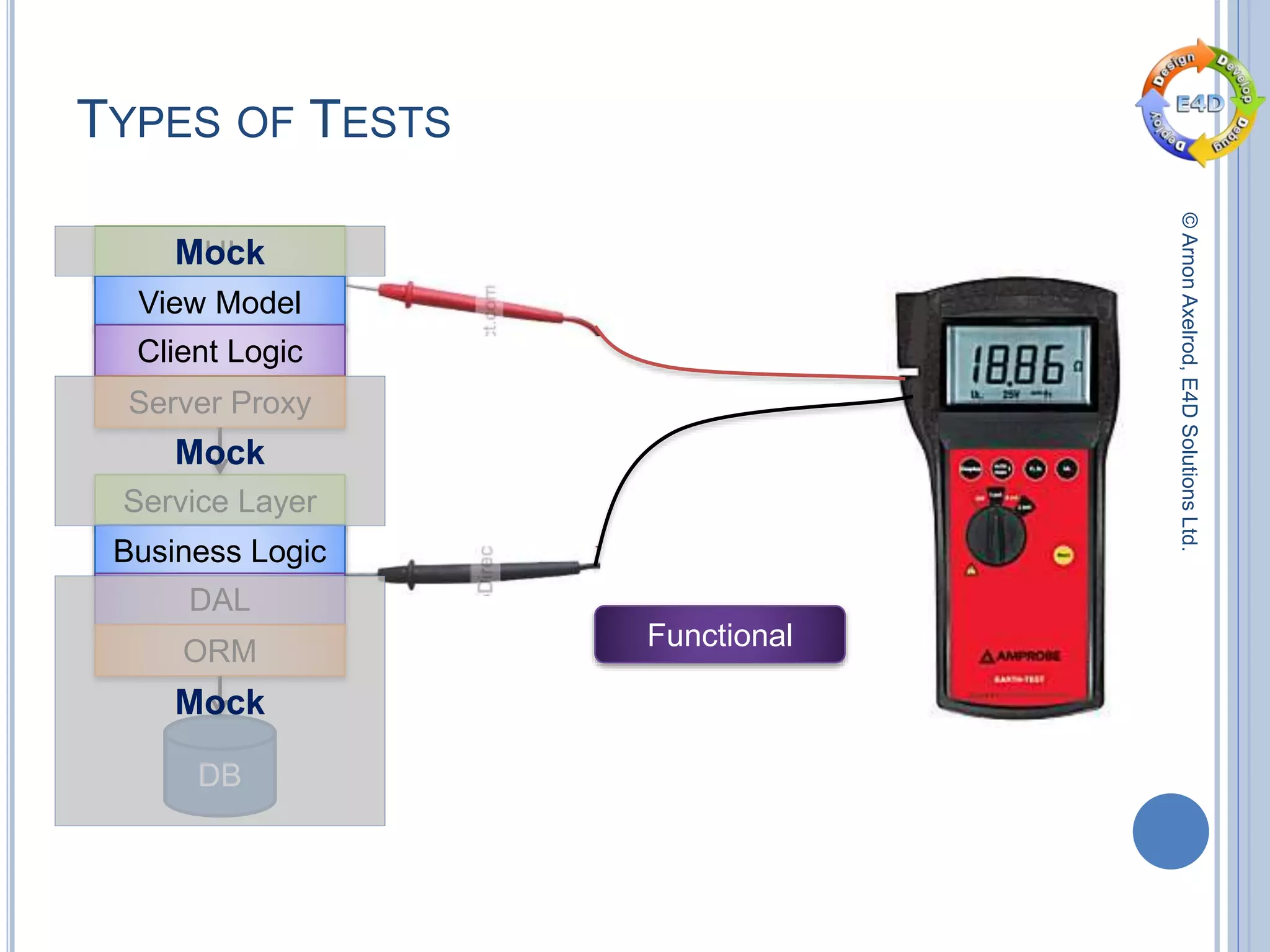

16. ©ArnonAxelrod,E4DSolutionsLtd.
TYPES OF TESTS
UI
View Model
Client Logic
Server Proxy
Service Layer
Business Logic
DAL
ORM
DB
Functional
Mock
Mock
Mock

17. ©ArnonAxelrod,E4DSolutionsLtd.

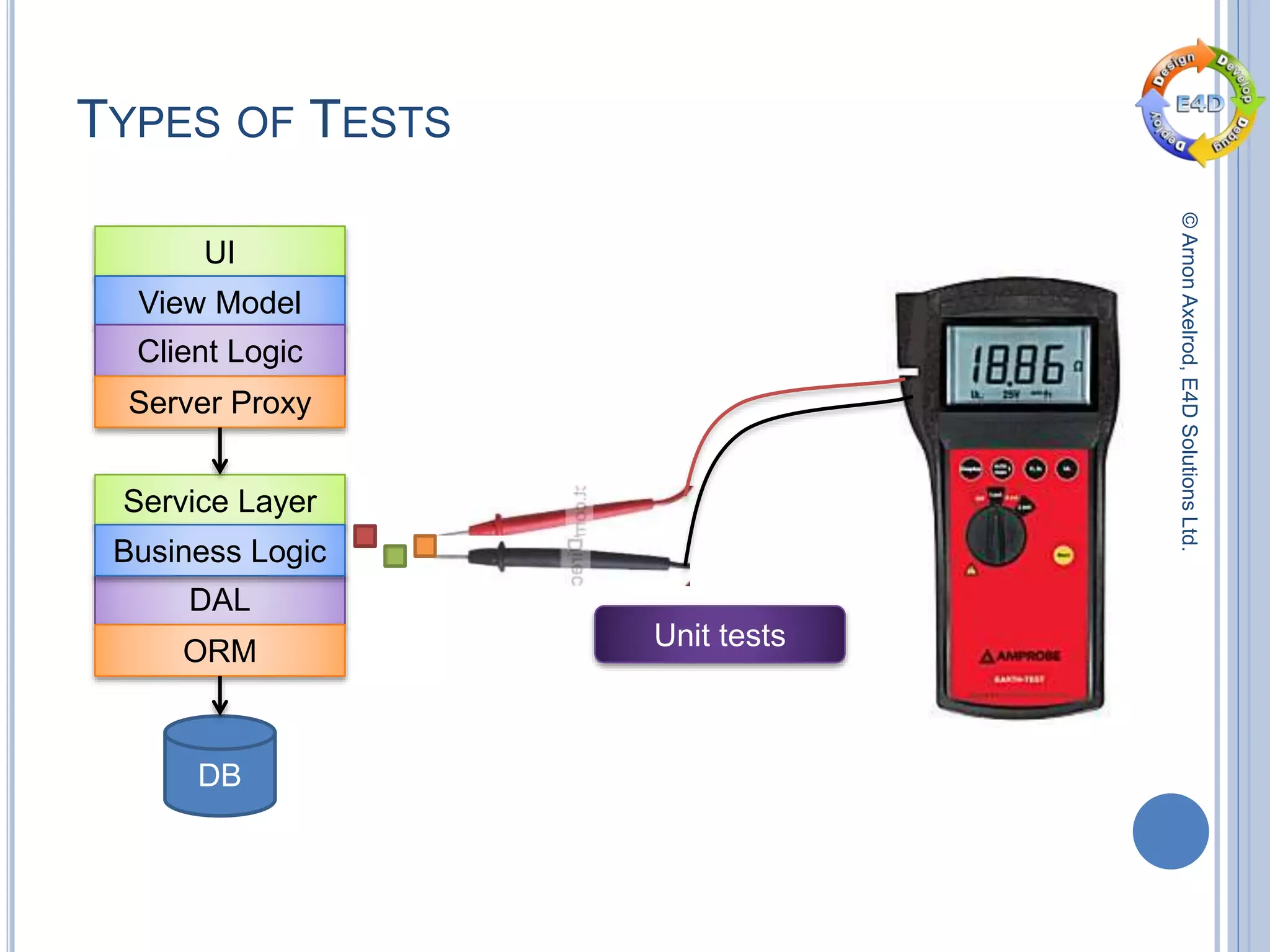

TYPES OF TESTS
UI
View Model
Client Logic
Server Proxy
Service Layer
DAL
ORM
DB
Unit tests
Business Logic

18. ©ArnonAxelrod,E4DSolutionsLtd.

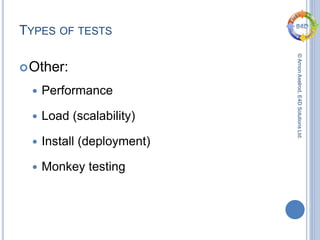

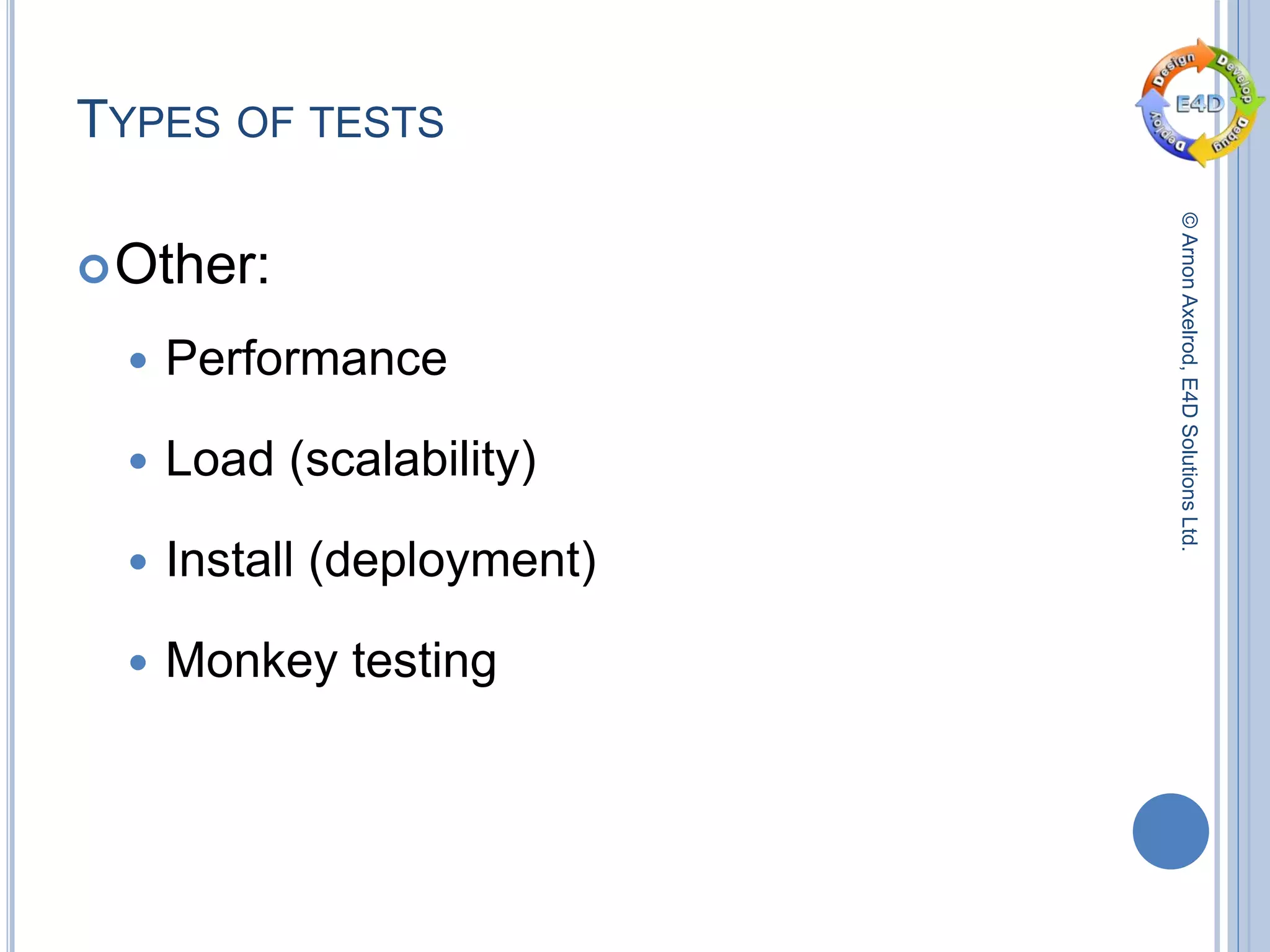

TYPES OF TESTS
Other:
 Performance
 Load (scalability)
 Install (deployment)
 Monkey testing

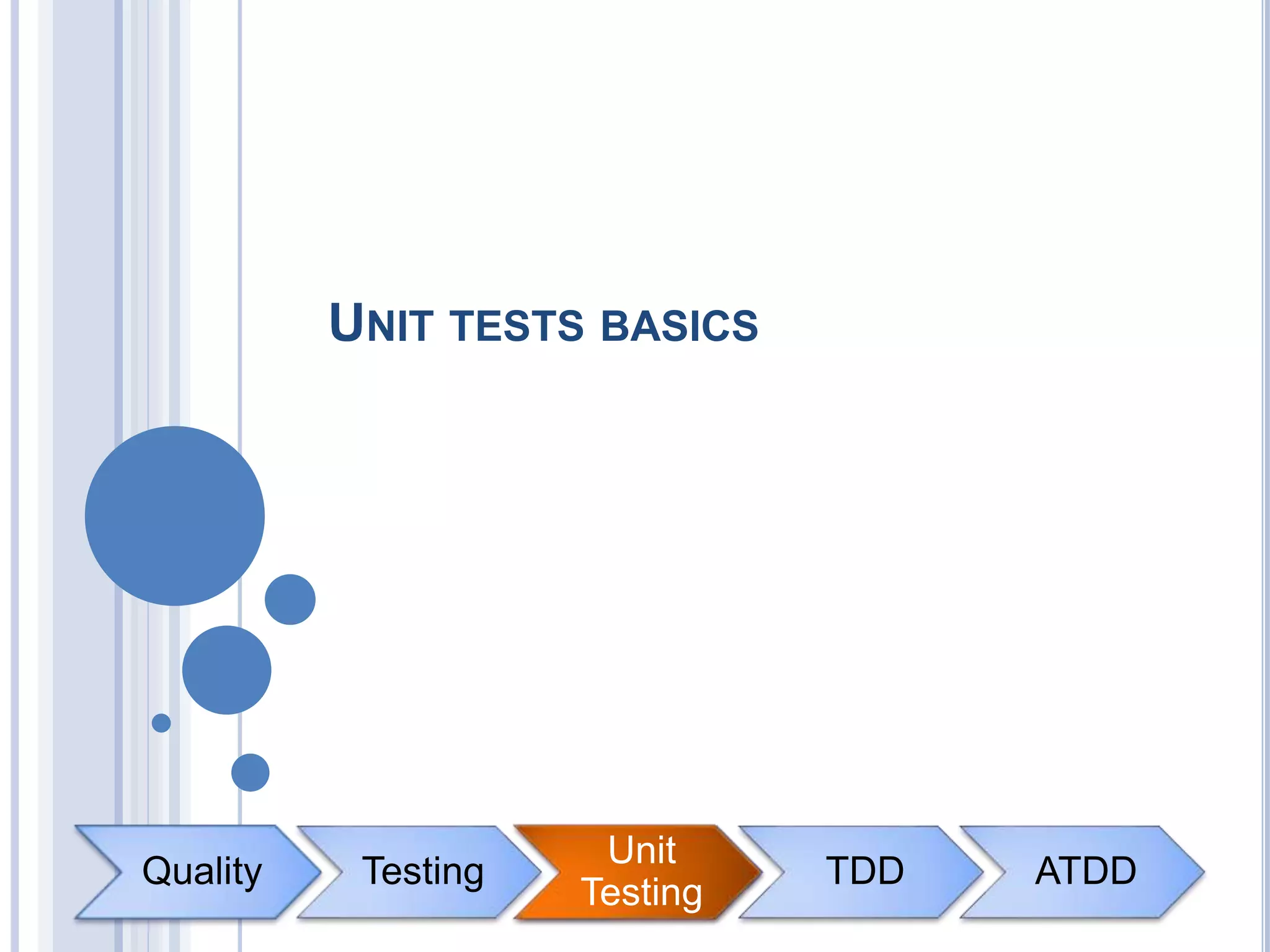

19. Quality Testing
Unit
Tests
TDD ATDD
UNIT TESTS BASICS
Unit
Testing

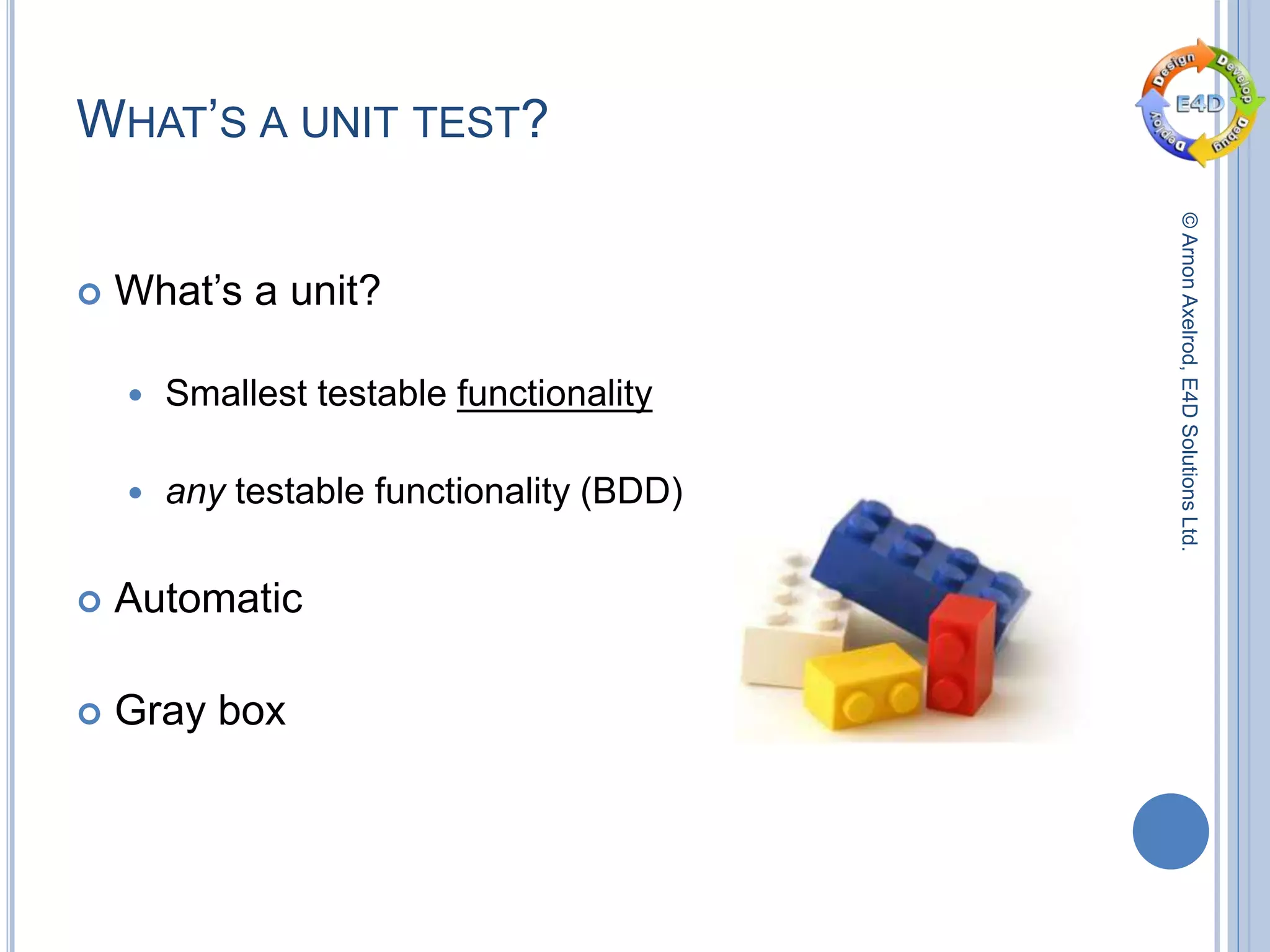

20. ©ArnonAxelrod,E4DSolutionsLtd.
WHAT’S A UNIT TEST?
 What’s a unit?
 Smallest testable functionality
 any testable functionality (BDD)
 Automatic
 Gray box

21. ©ArnonAxelrod,E4DSolutionsLtd.

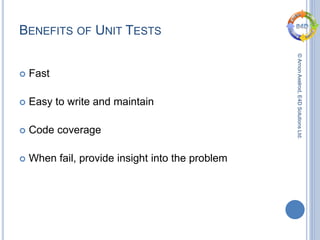

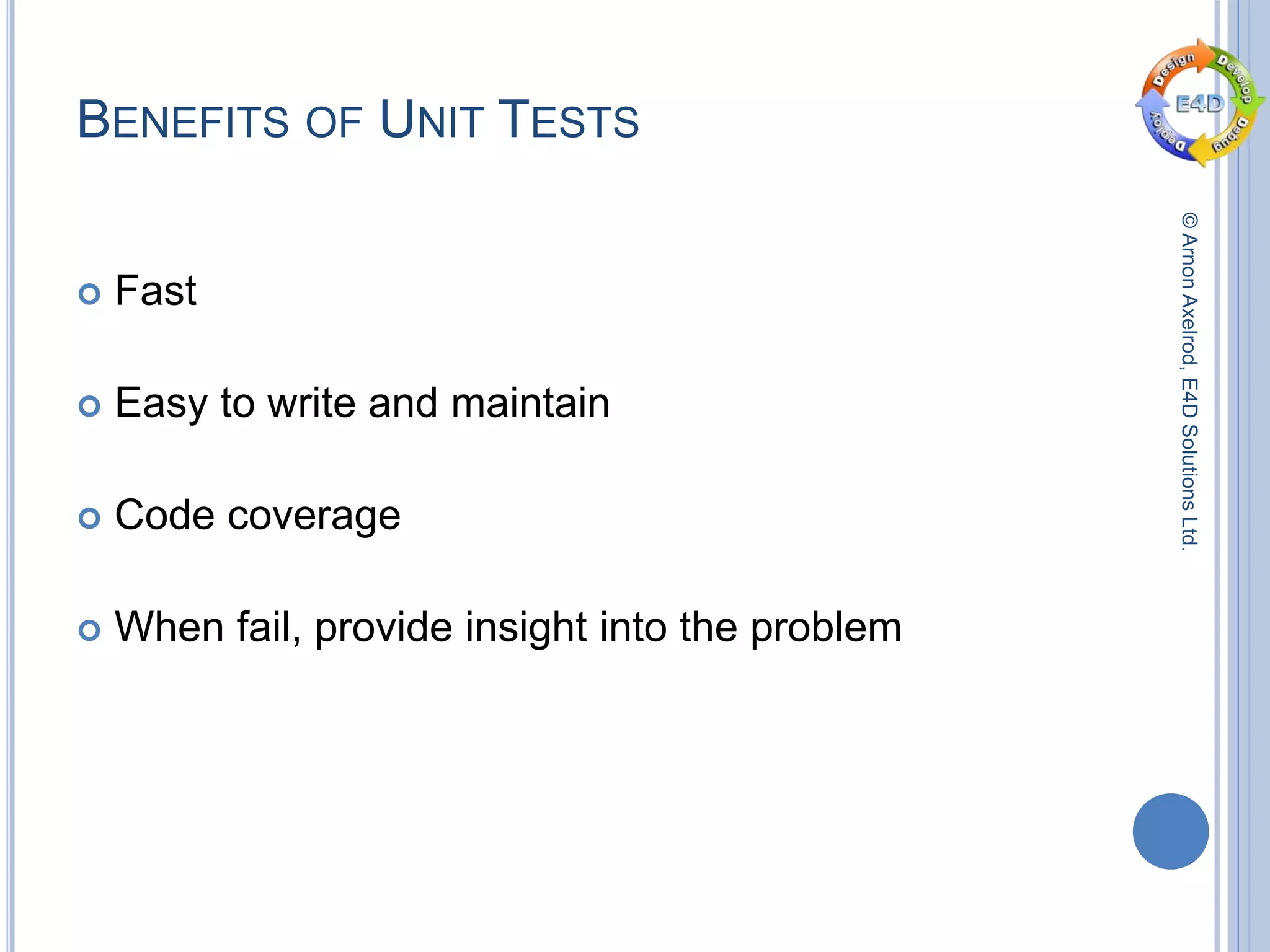

BENEFITS OF UNIT TESTS
 Fast
 Easy to write and maintain
 Code coverage
 When fail, provide insight into the problem

22. ©ArnonAxelrod,E4DSolutionsLtd.

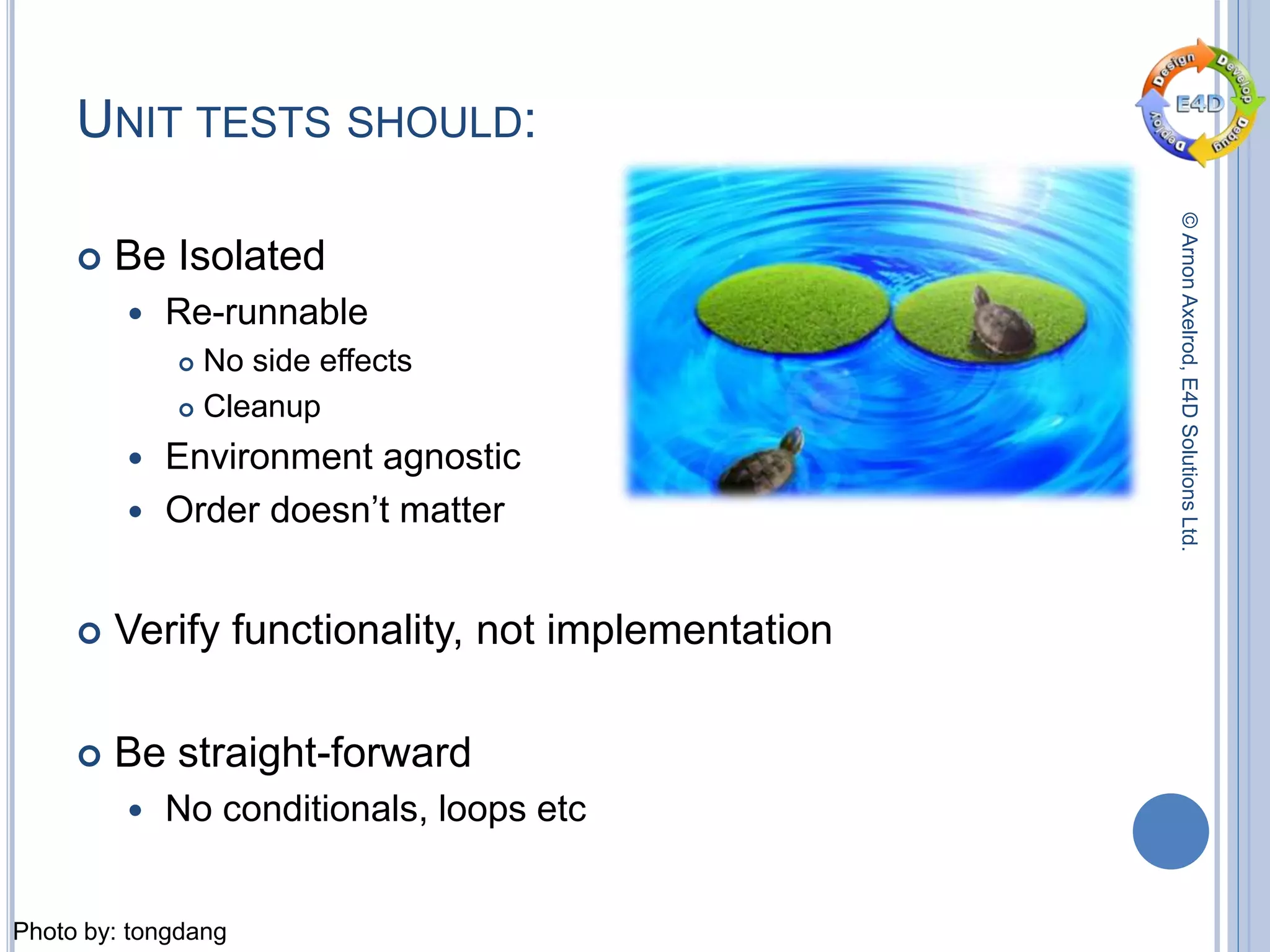

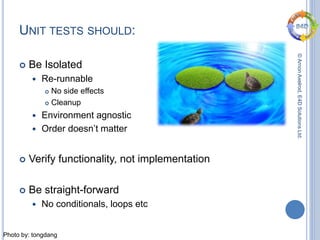

UNIT TESTS SHOULD:
 Be Isolated
 Re-runnable
 No side effects
 Cleanup
 Environment agnostic
 Order doesn’t matter
 Verify functionality, not implementation
 Be straight-forward
 No conditionals, loops etc
Photo by: tongdang

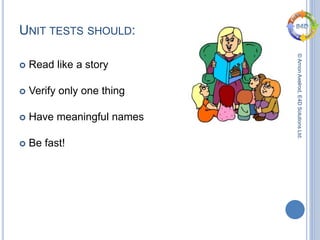

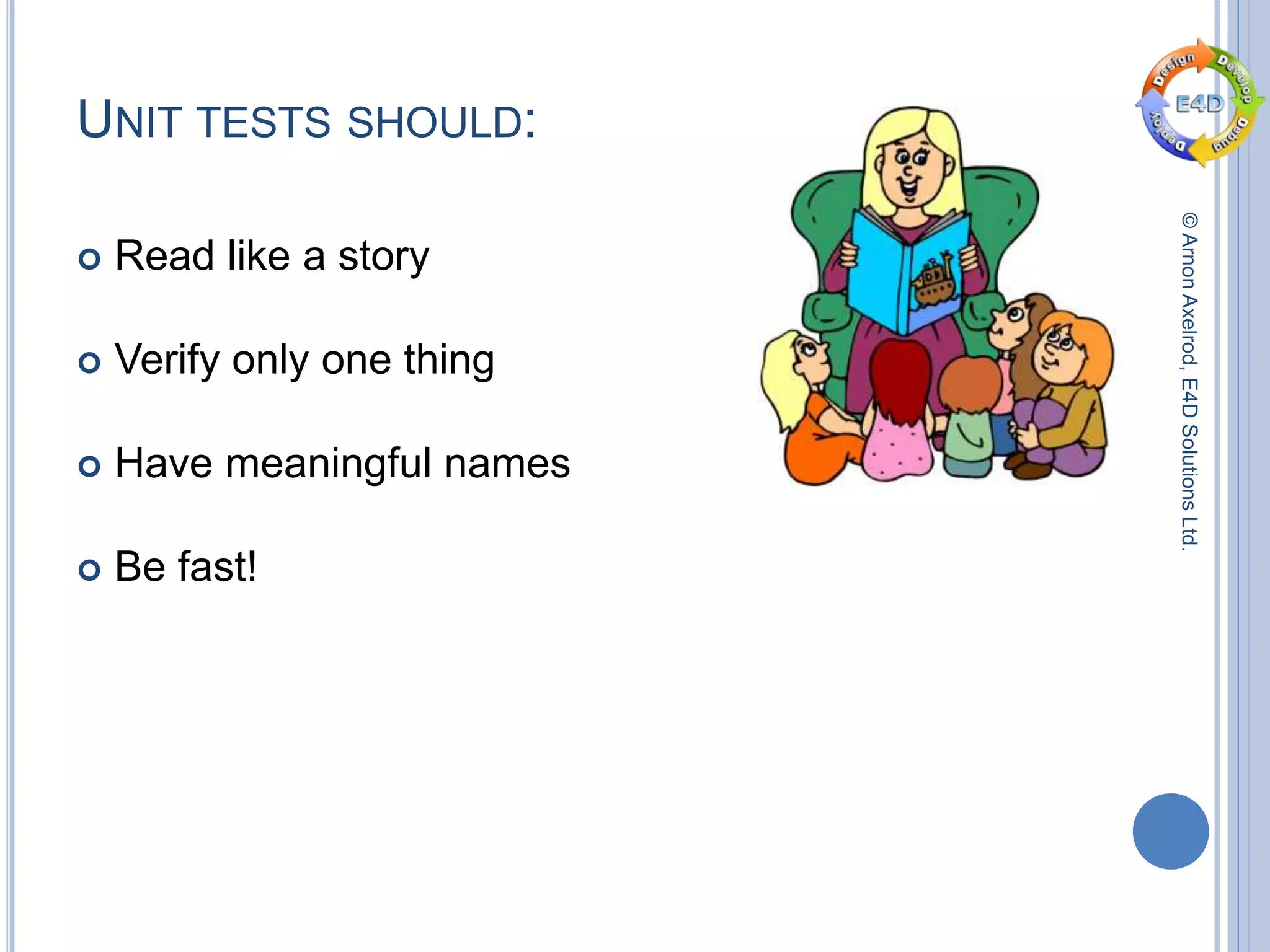

23. ©ArnonAxelrod,E4DSolutionsLtd.
UNIT TESTS SHOULD:
 Read like a story
 Verify only one thing
 Have meaningful names
 Be fast!

24. ©ArnonAxelrod,E4DSolutionsLtd.

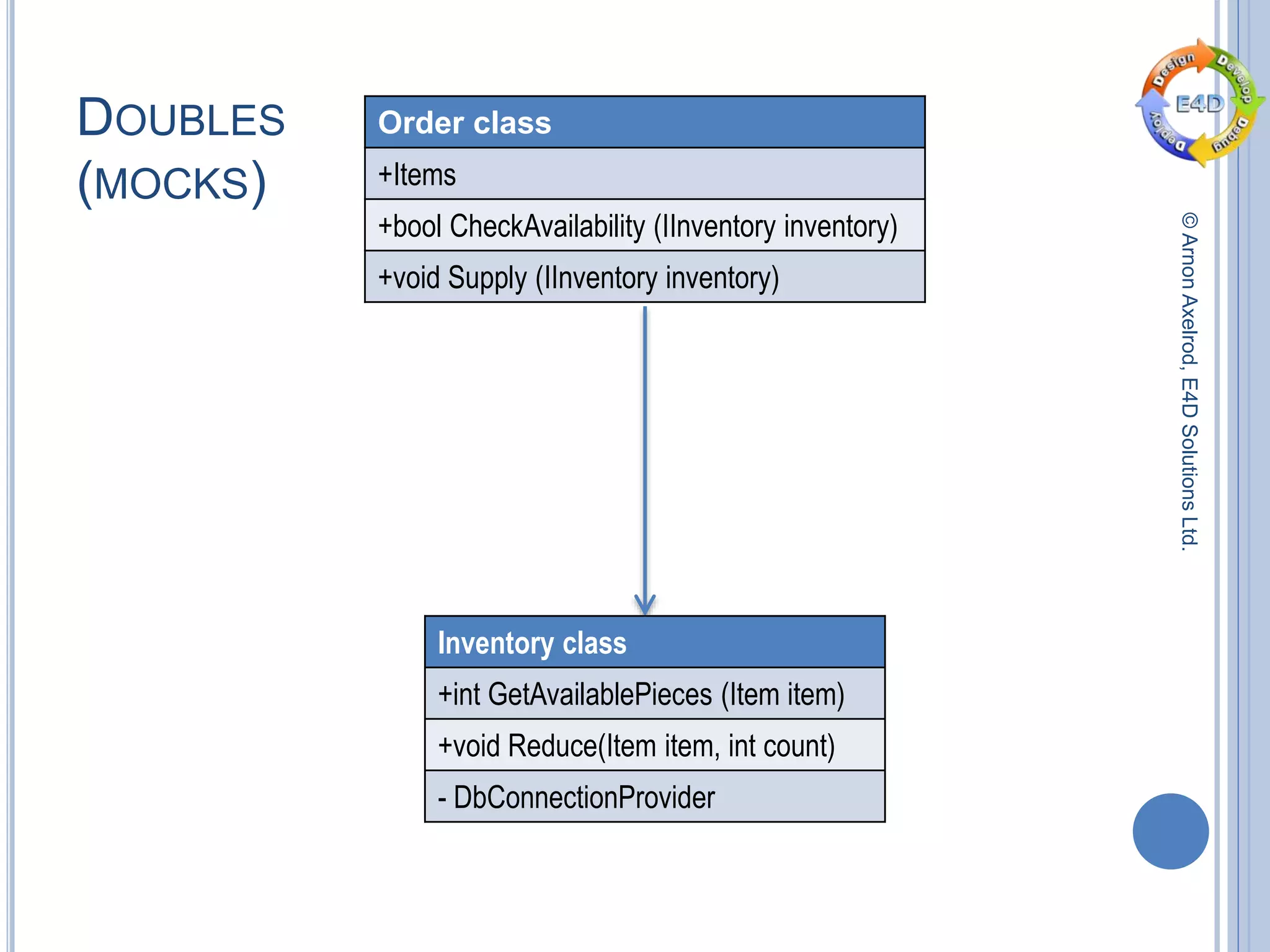

DOUBLES
(MOCKS)
Order class
+Items
+bool CheckAvailability (IInventory inventory)
+void Supply (IInventory inventory)
Inventory class
+int GetAvailablePieces (Item item)
+void Reduce(Item item, int count)
- DbConnectionProvider

25. ©ArnonAxelrod,E4DSolutionsLtd.

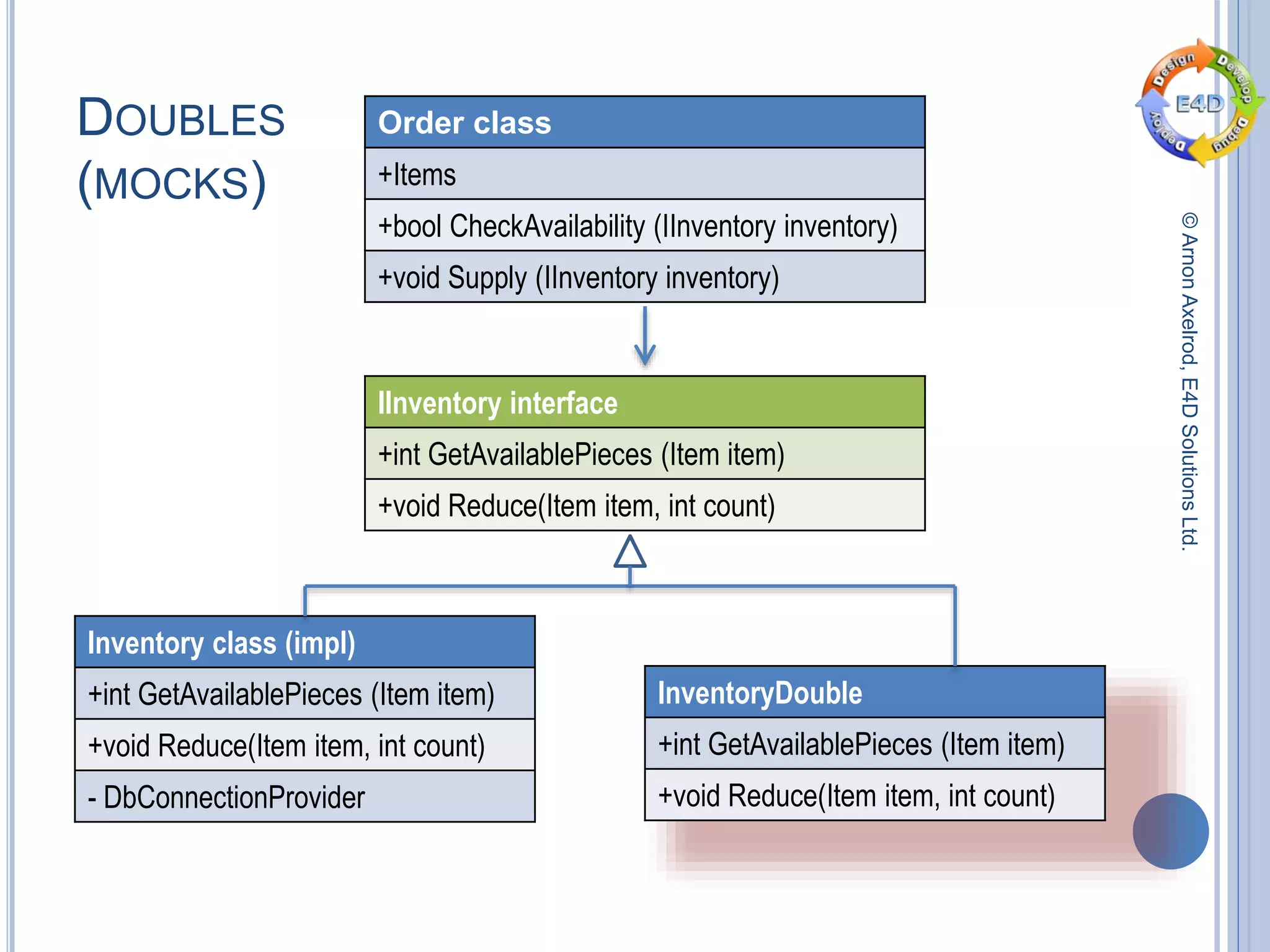

DOUBLES
(MOCKS)
Order class
+Items
+bool CheckAvailability (IInventory inventory)
+void Supply (IInventory inventory)
IInventory interface
+int GetAvailablePieces (Item item)
+void Reduce(Item item, int count)
Inventory class (impl)
+int GetAvailablePieces (Item item)
+void Reduce(Item item, int count)
- DbConnectionProvider
InventoryDouble
+int GetAvailablePieces (Item item)
+void Reduce(Item item, int count)

26. ©ArnonAxelrod,E4DSolutionsLtd.
DOUBLES...
Double
Fake
Dummy
MockStub
Detour

27. ©ArnonAxelrod,E4DSolutionsLtd.

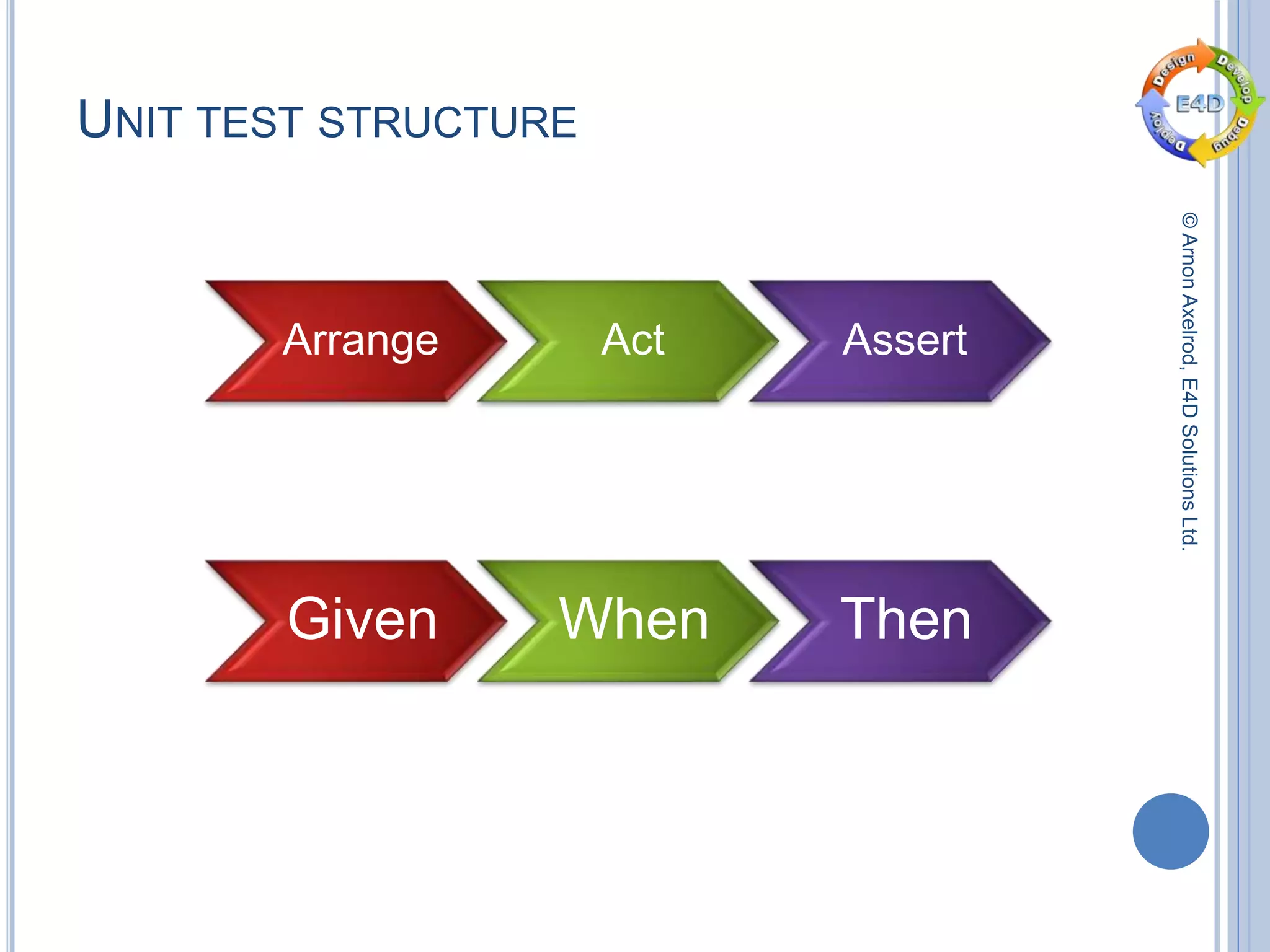

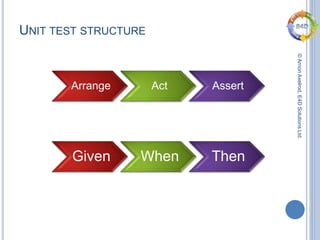

UNIT TEST STRUCTURE
Arrange Act Assert
Given When Then

28. ©ArnonAxelrod,E4DSolutionsLtd.

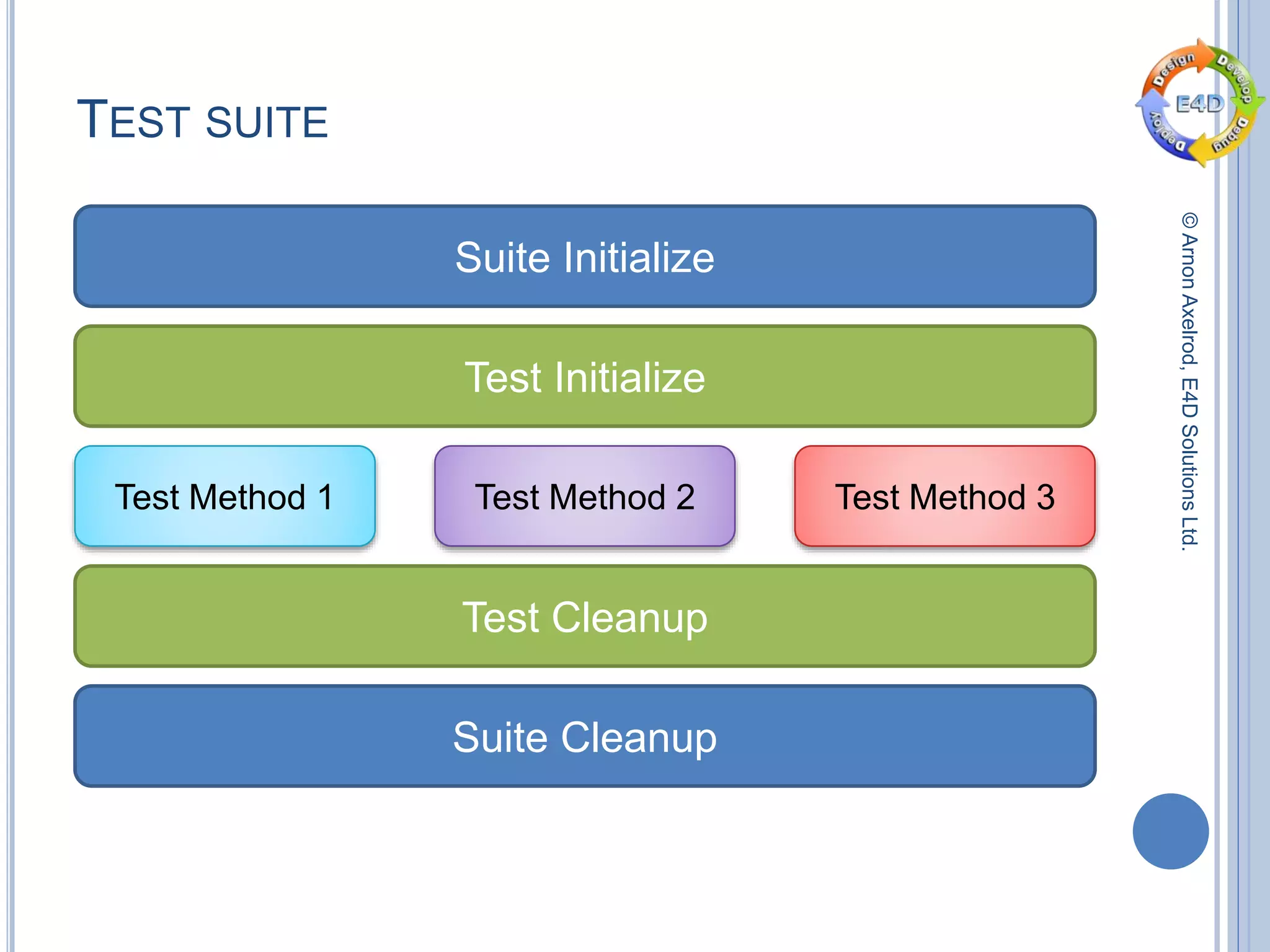

TEST SUITE
Suite Initialize
Test Initialize
Test Method 1
Test Cleanup
Suite Cleanup
Test Method 2 Test Method 3

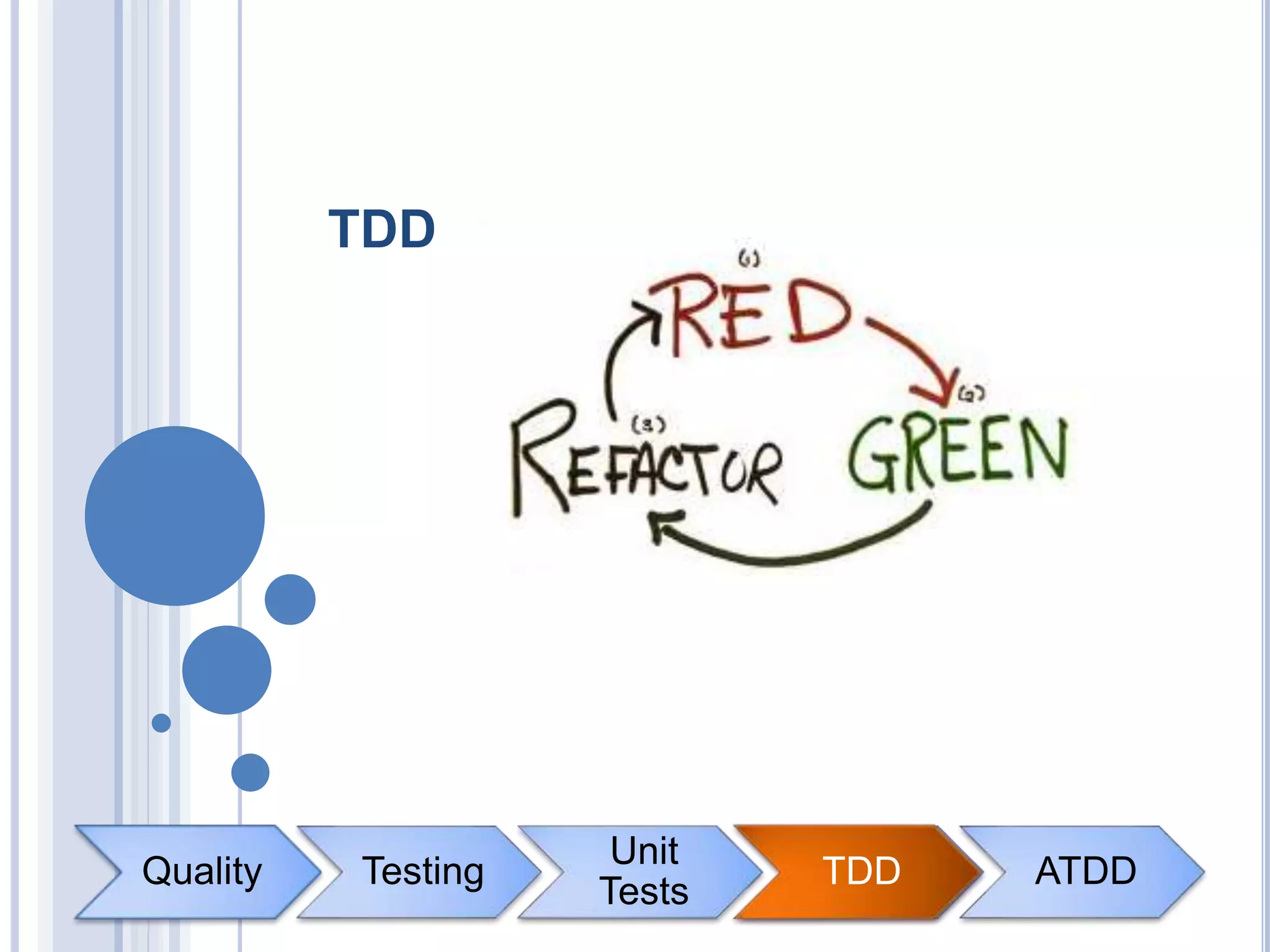

29. Quality Testing
Unit
Tests
TDD ATDDTDD
TDD

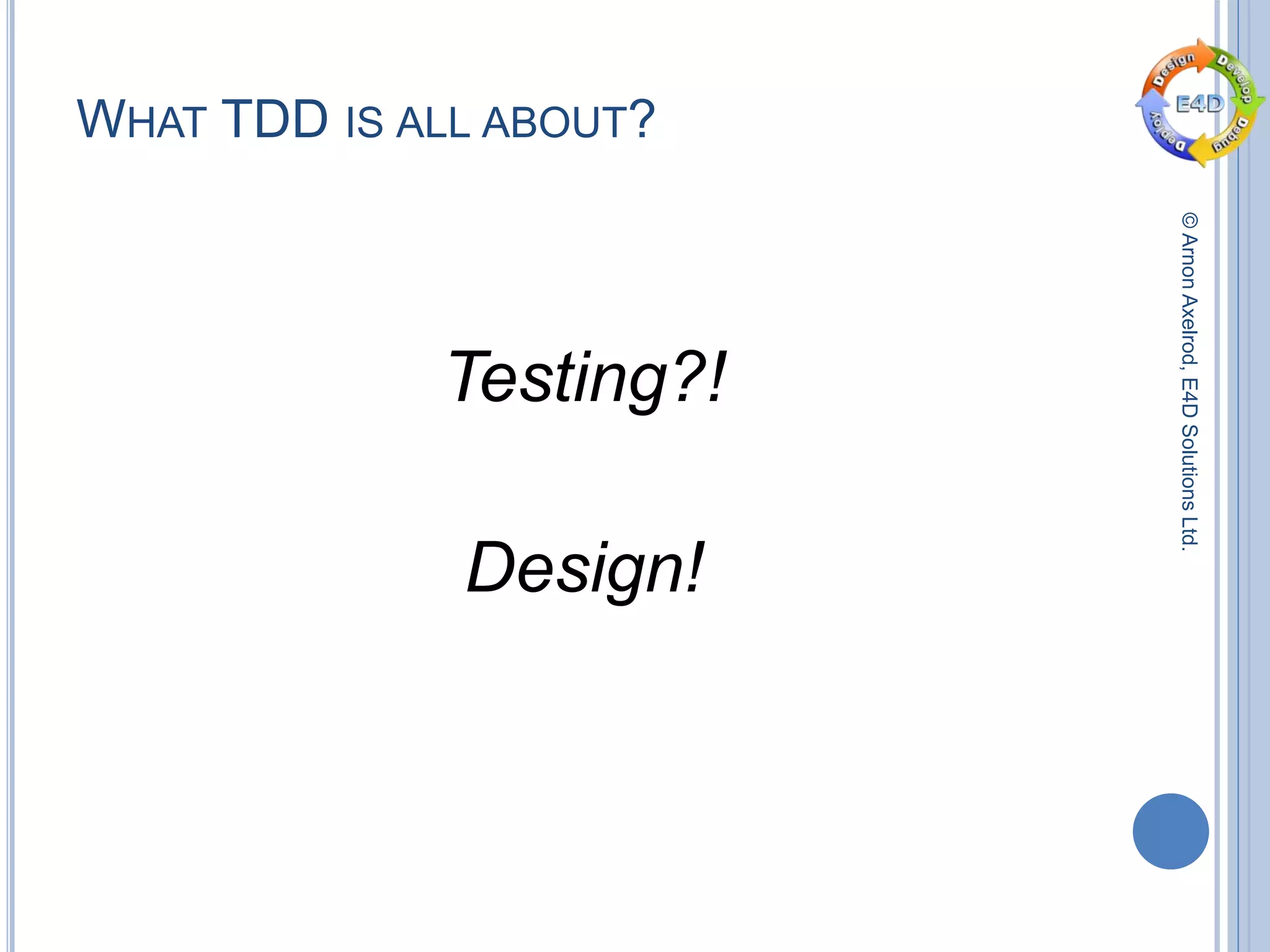

30. ©ArnonAxelrod,E4DSolutionsLtd.
WHAT TDD IS ALL ABOUT?
Testing?!
Design!

31. ©ArnonAxelrod,E4DSolutionsLtd.

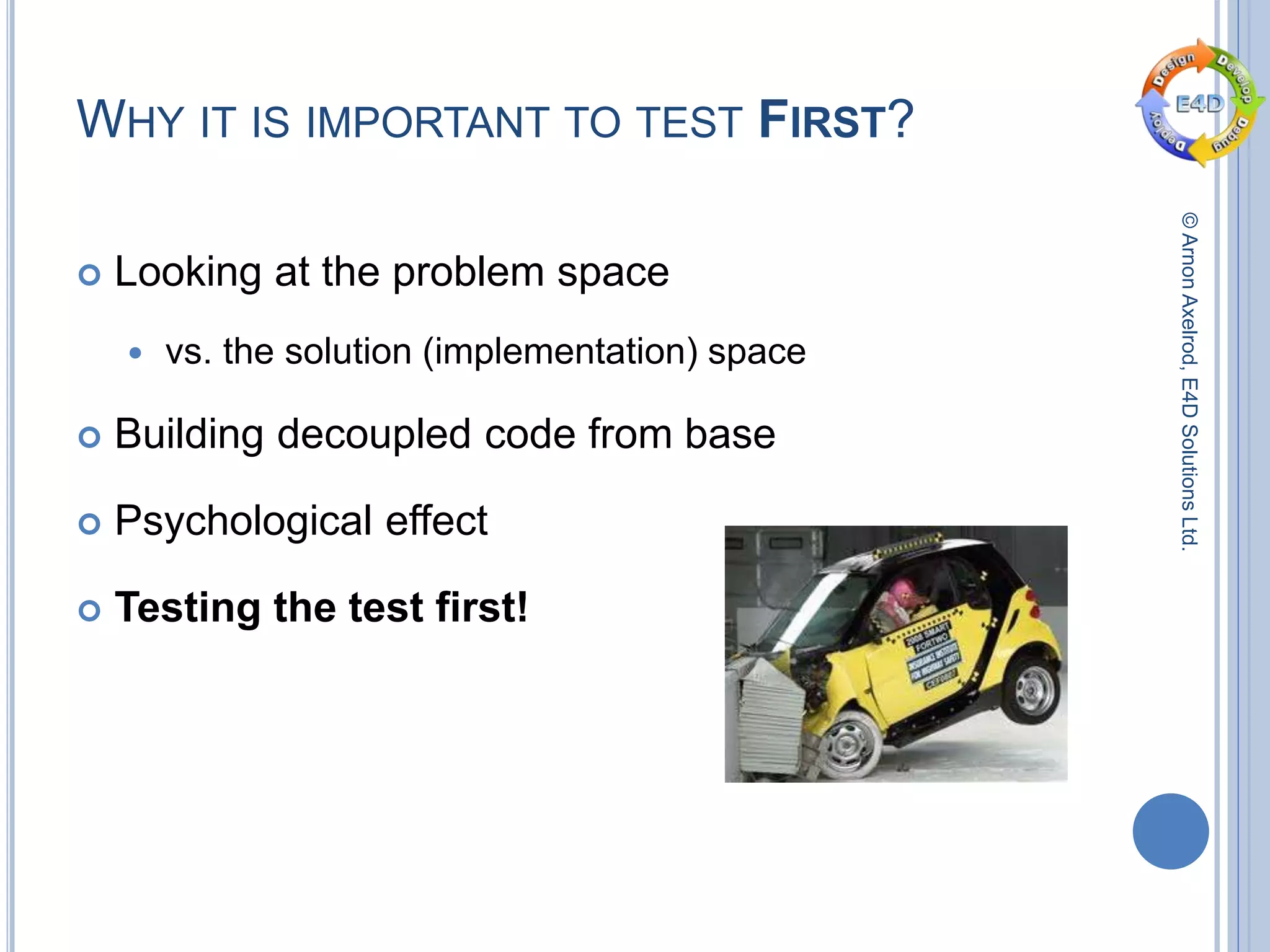

WHY IT IS IMPORTANT TO TEST FIRST?
 Looking at the problem space
 vs. the solution (implementation) space
 Building decoupled code from base
 Psychological effect
 Testing the test first!

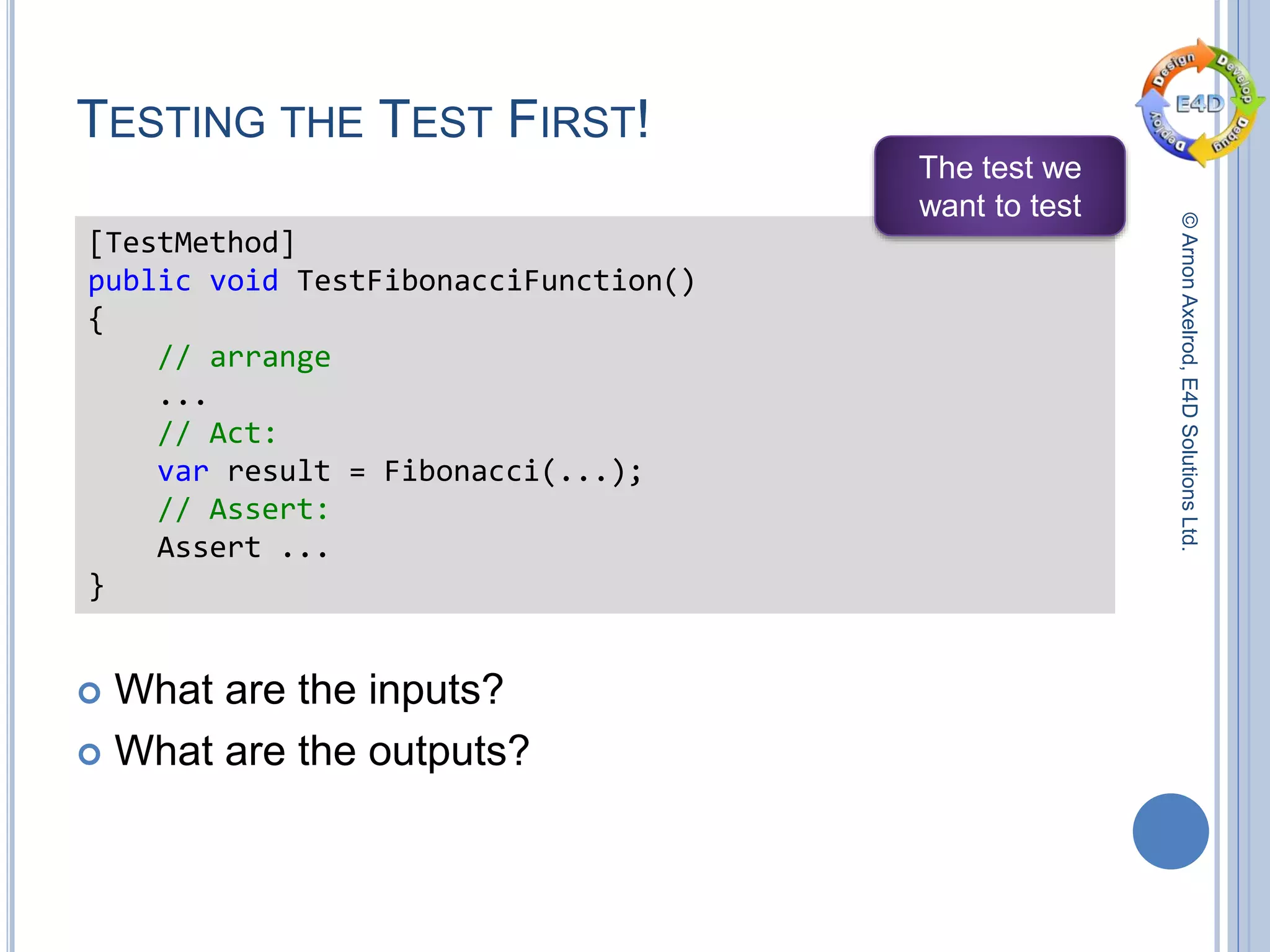

32. ©ArnonAxelrod,E4DSolutionsLtd.
TESTING THE TEST FIRST!
 What are the inputs?
 What are the outputs?
[TestMethod]
public void TestFibonacciFunction()
{
// arrange
...
// Act:
var result = Fibonacci(...);
// Assert:
Assert ...
}
The test we
want to test

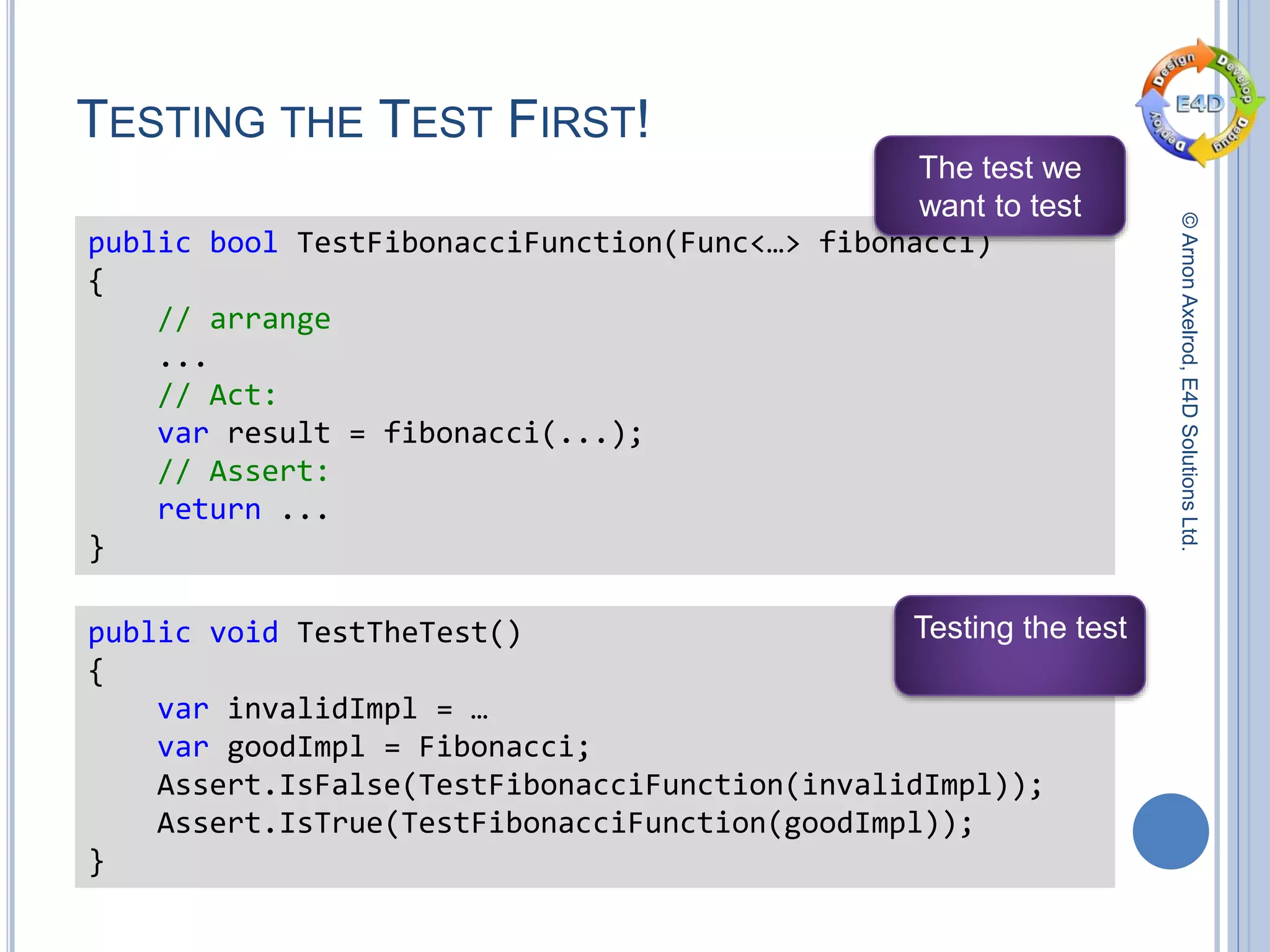

33. ©ArnonAxelrod,E4DSolutionsLtd.
TESTING THE TEST FIRST!
public bool TestFibonacciFunction(Func<…> fibonacci)
{
// arrange
...
// Act:
var result = fibonacci(...);
// Assert:
return ...
}
The test we
want to test
public void TestTheTest()
{
var invalidImpl = …
var goodImpl = Fibonacci;
Assert.IsFalse(TestFibonacciFunction(invalidImpl));
Assert.IsTrue(TestFibonacciFunction(goodImpl));
}
Testing the test

34. ©ArnonAxelrod,E4DSolutionsLtd.

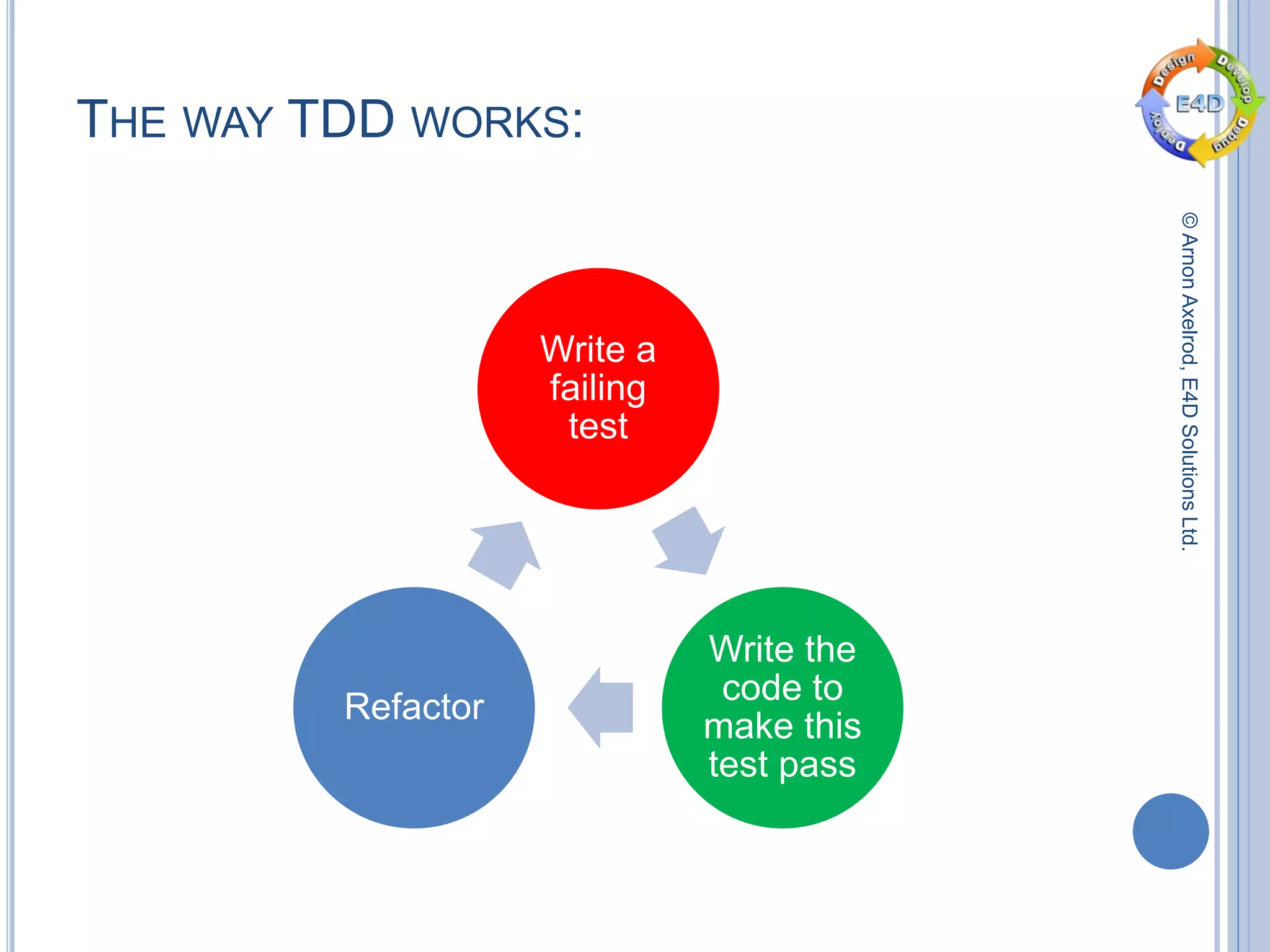

THE WAY TDD WORKS:
Write a
failing
test
Write the
code to
make this
test pass
Refactor

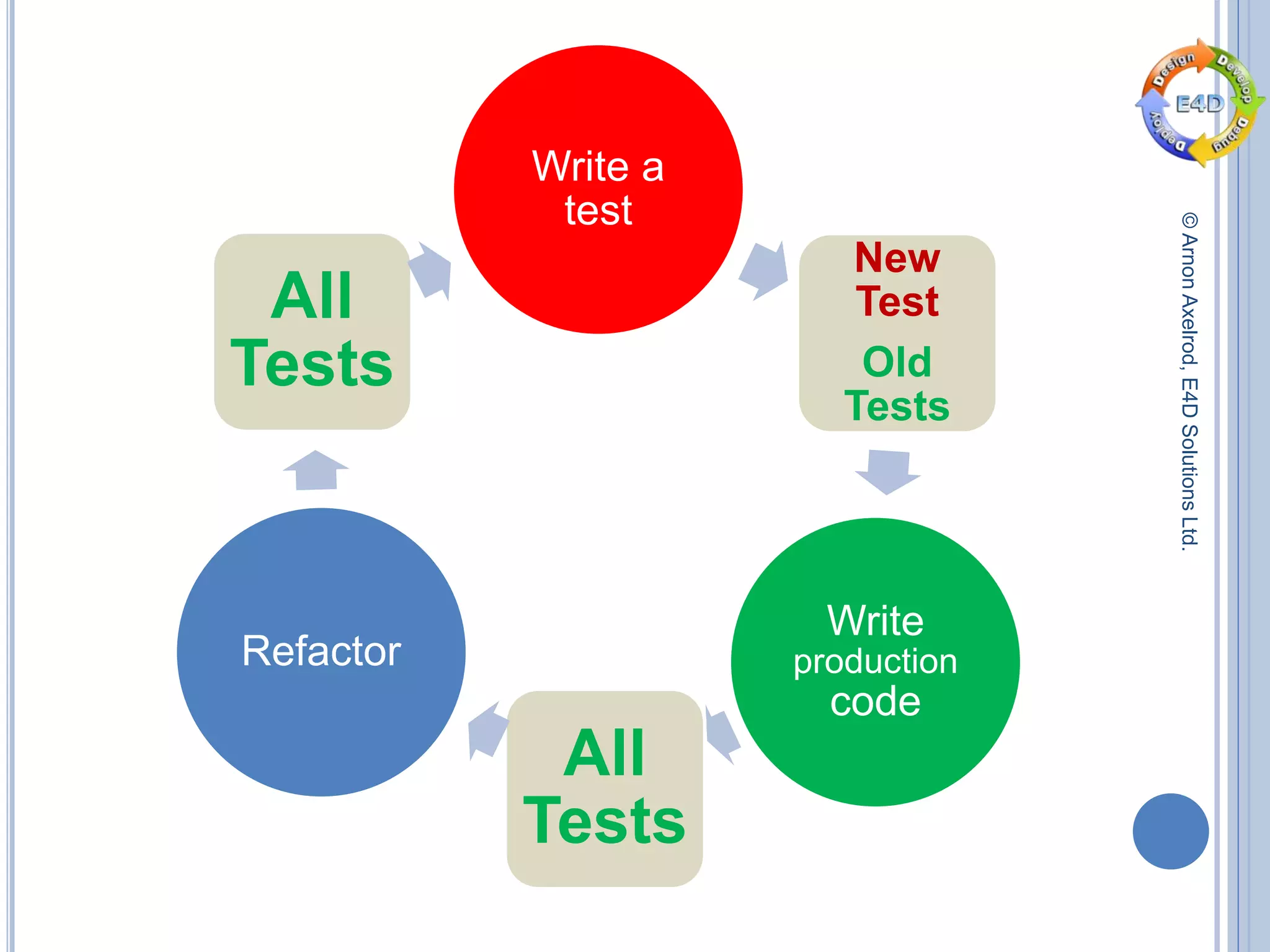

35. ©ArnonAxelrod,E4DSolutionsLtd.

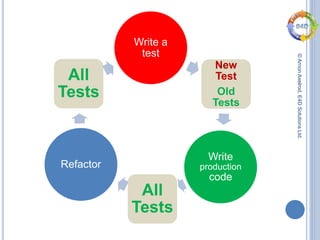

Write a
test
New
Test
Old
Tests
Write
production
code
All
Tests
Refactor
All
Tests

36. ©ArnonAxelrod,E4DSolutionsLtd.
TDD AND REFACTORING
Photo by: Chaiwat

37. ©ArnonAxelrod,E4DSolutionsLtd.
TDD AND REFACTORING
public class SomeClass
{
public SomeClass()
{
//...
}
public void Foo(int someParam)
{
// use someParam...
}
}
Initial state

38. ©ArnonAxelrod,E4DSolutionsLtd.

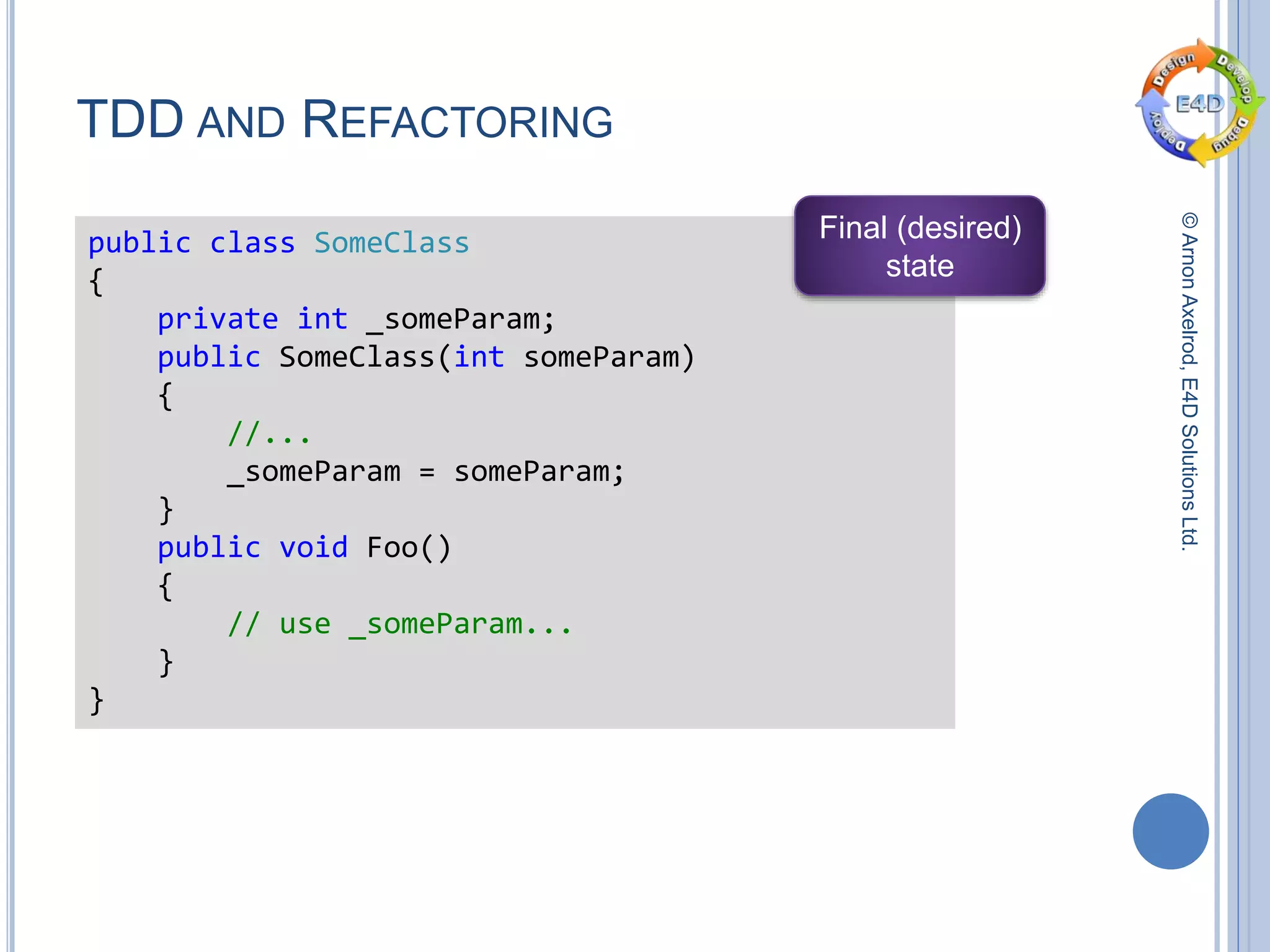

TDD AND REFACTORING
public class SomeClass
{
private int _someParam;
public SomeClass(int someParam)
{
//...
_someParam = someParam;
}
public void Foo()
{
// use _someParam...
}
}
Final (desired)
state

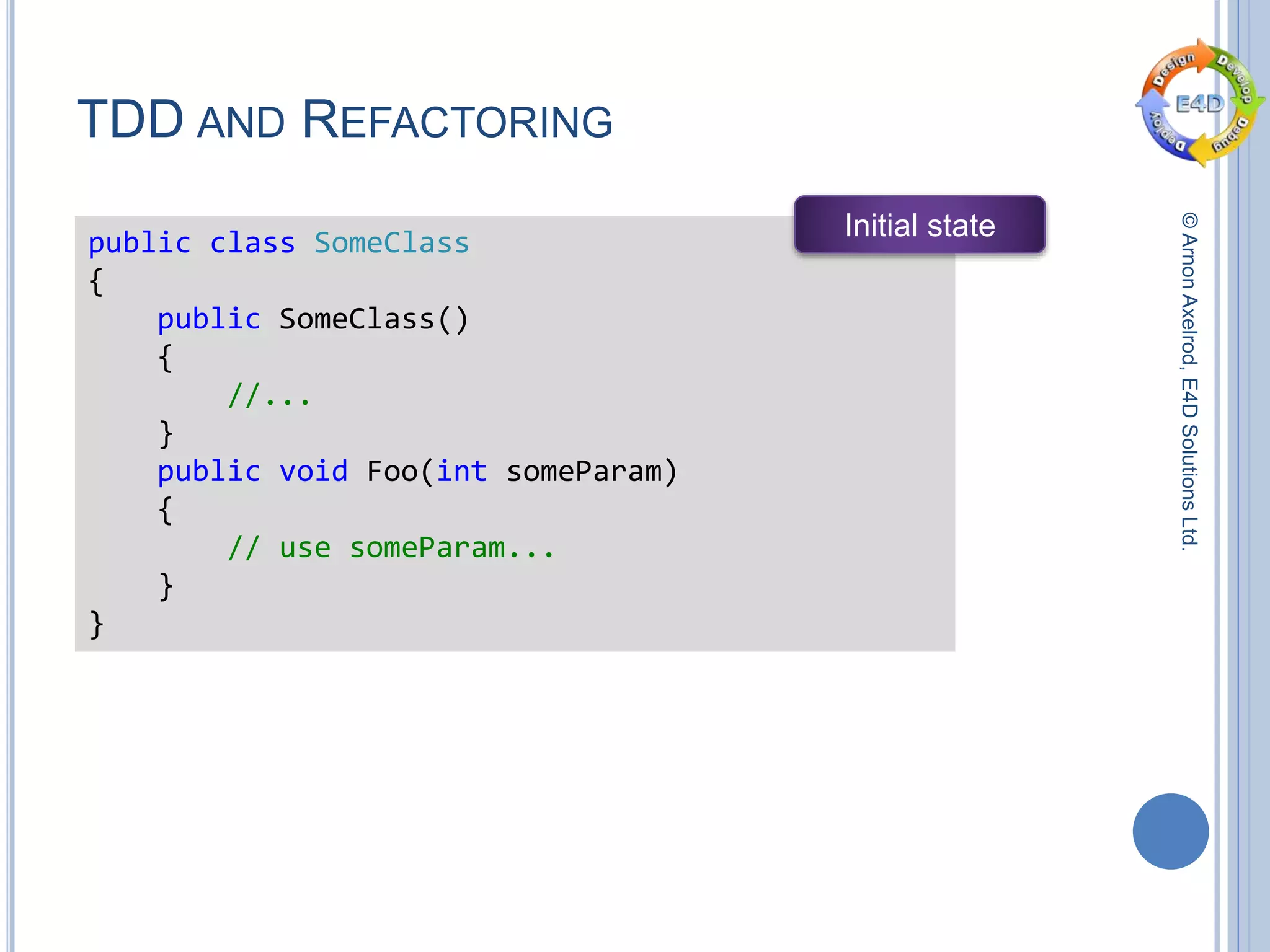

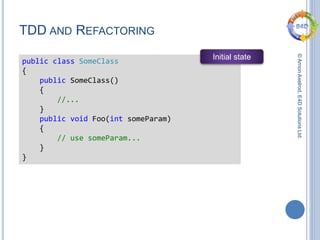

39. ©ArnonAxelrod,E4DSolutionsLtd.
TDD AND REFACTORING
public class SomeClass
{
public SomeClass()
{
//...
}
public void Foo(int someParam)
{
// use someParam...
}
}
Initial state

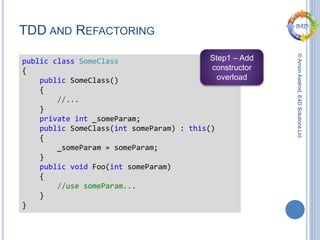

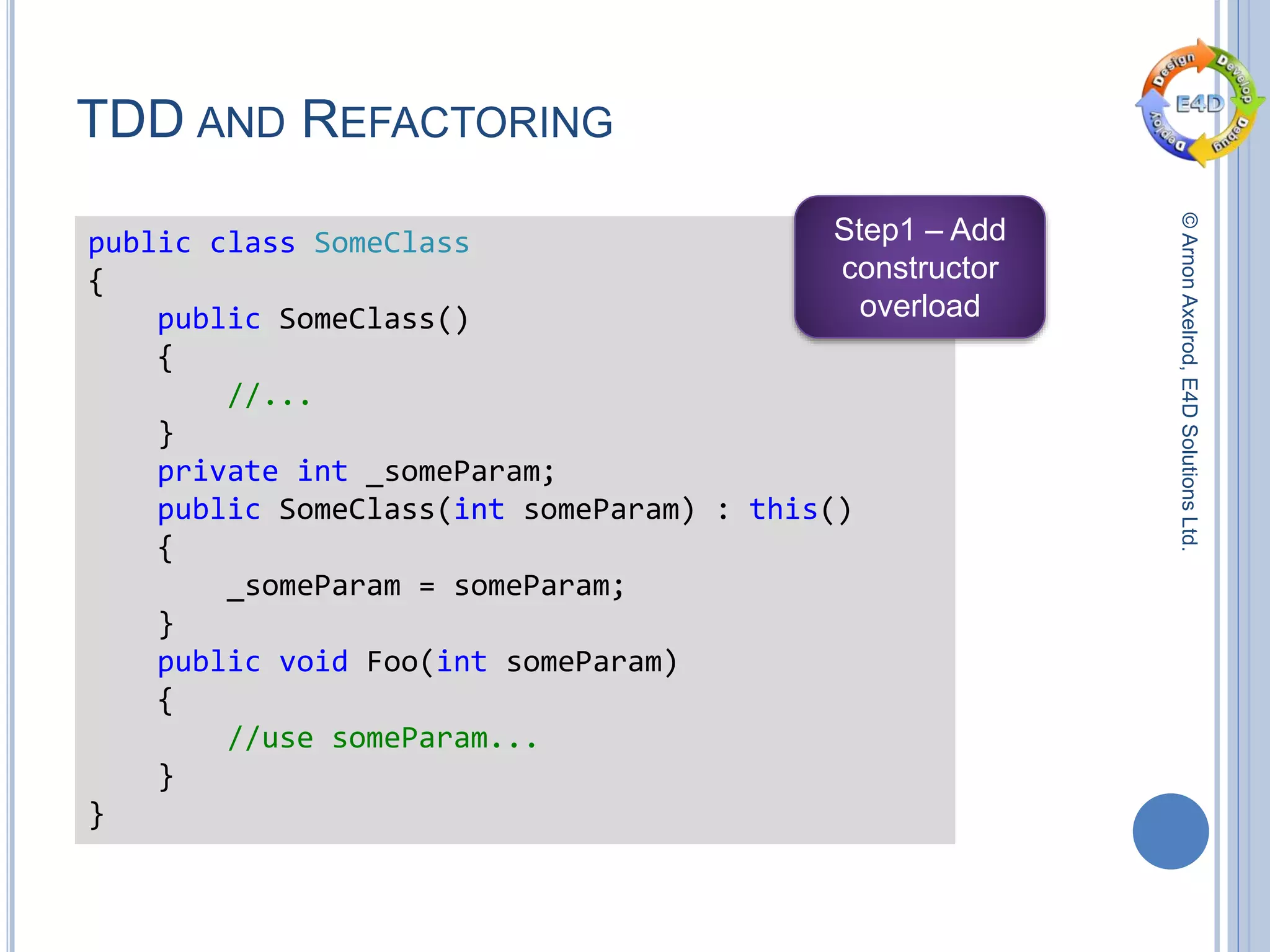

40. ©ArnonAxelrod,E4DSolutionsLtd.
TDD AND REFACTORING
public class SomeClass
{
public SomeClass()
{
//...
}
private int _someParam;
public SomeClass(int someParam) : this()
{
_someParam = someParam;
}
public void Foo(int someParam)
{
//use someParam...
}
}
Step1 – Add
constructor
overload

41. ©ArnonAxelrod,E4DSolutionsLtd.

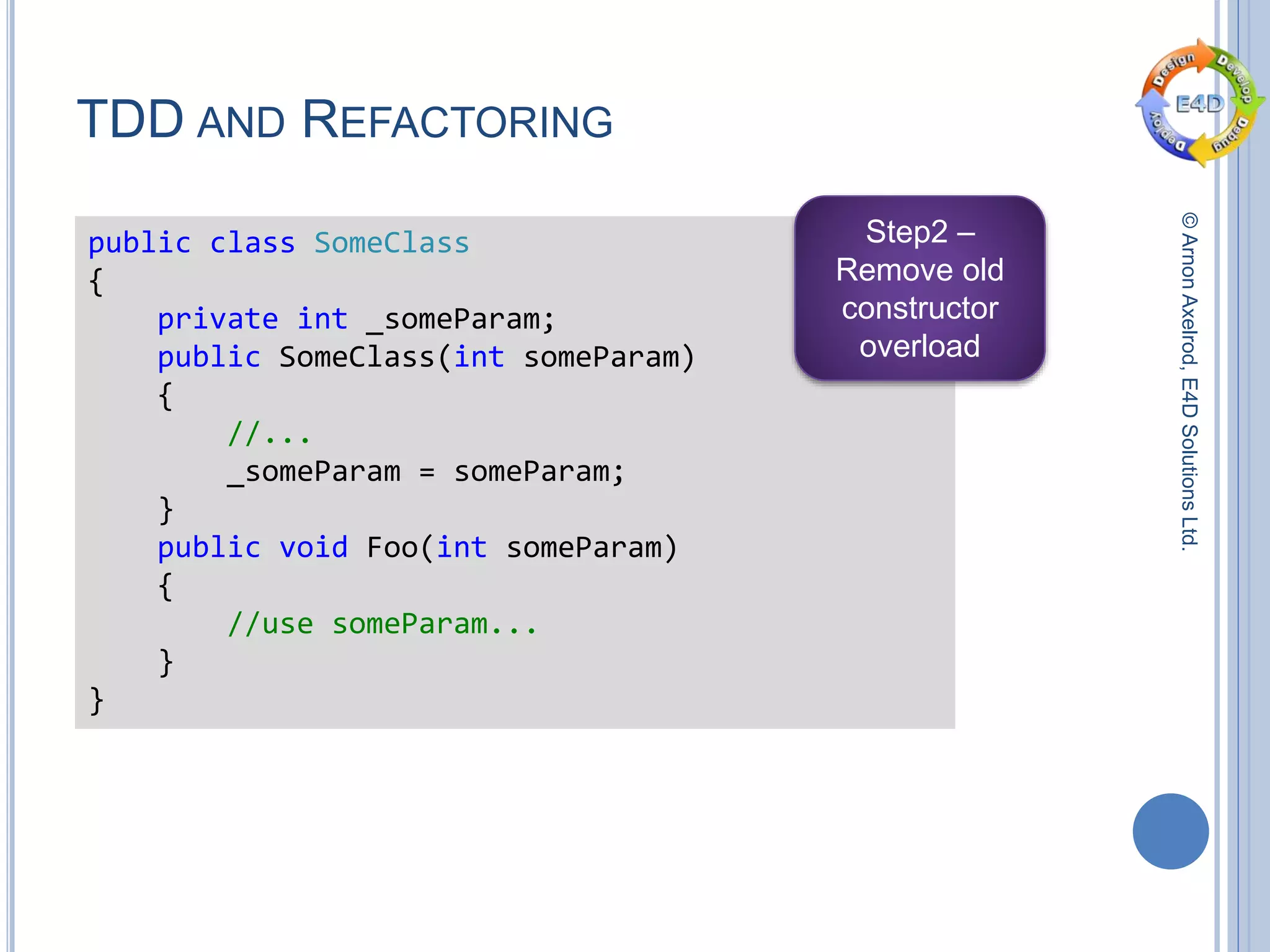

TDD AND REFACTORING
public class SomeClass
{
private int _someParam;
public SomeClass(int someParam)
{
//...
_someParam = someParam;
}
public void Foo(int someParam)
{
//use someParam...
}
}
Step2 –
Remove old
constructor
overload

42. ©ArnonAxelrod,E4DSolutionsLtd.

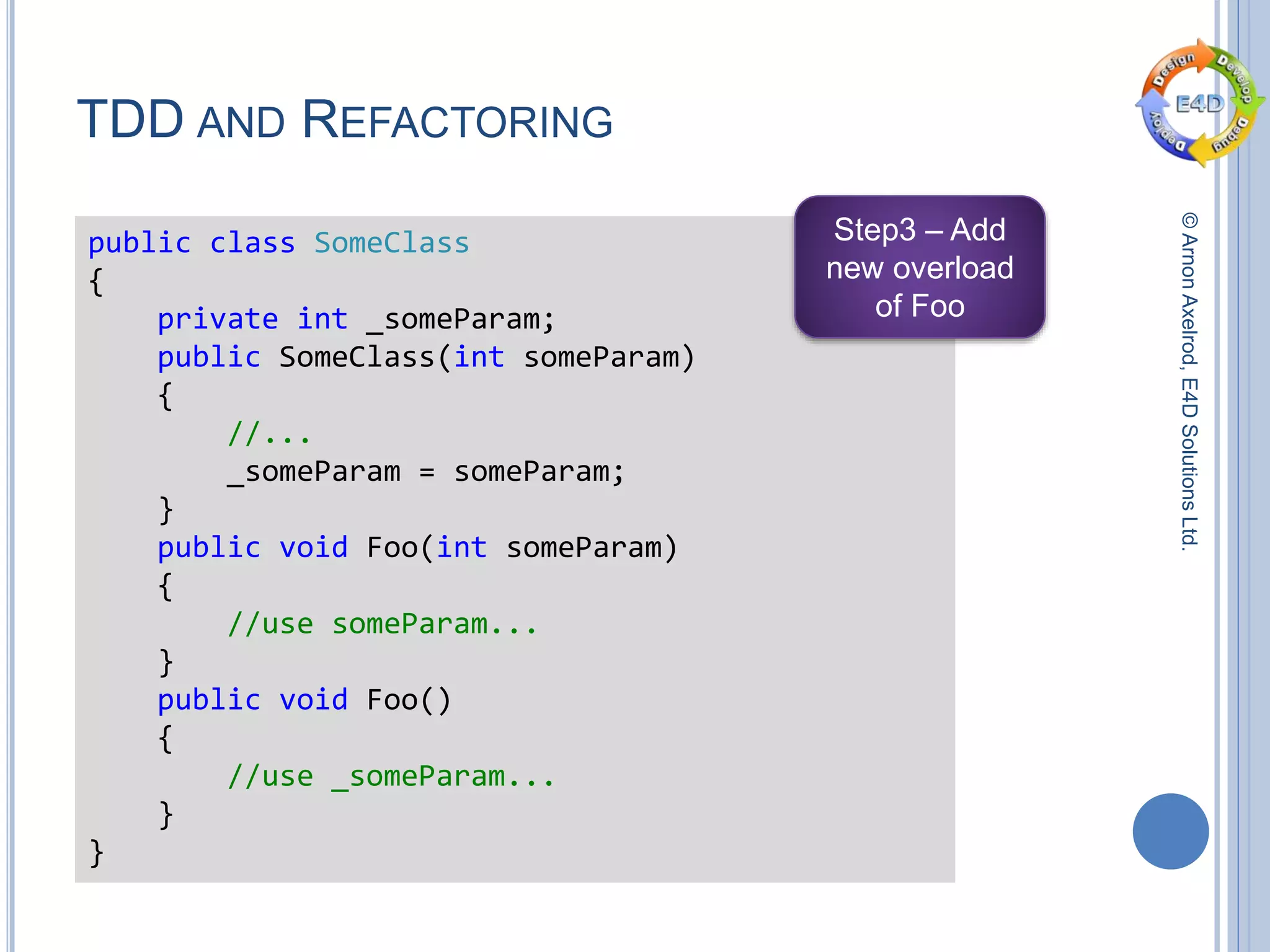

TDD AND REFACTORING
public class SomeClass
{
private int _someParam;
public SomeClass(int someParam)
{
//...
_someParam = someParam;
}
public void Foo(int someParam)
{
//use someParam...
}
public void Foo()
{
//use _someParam...
}
}
Step3 – Add
new overload
of Foo

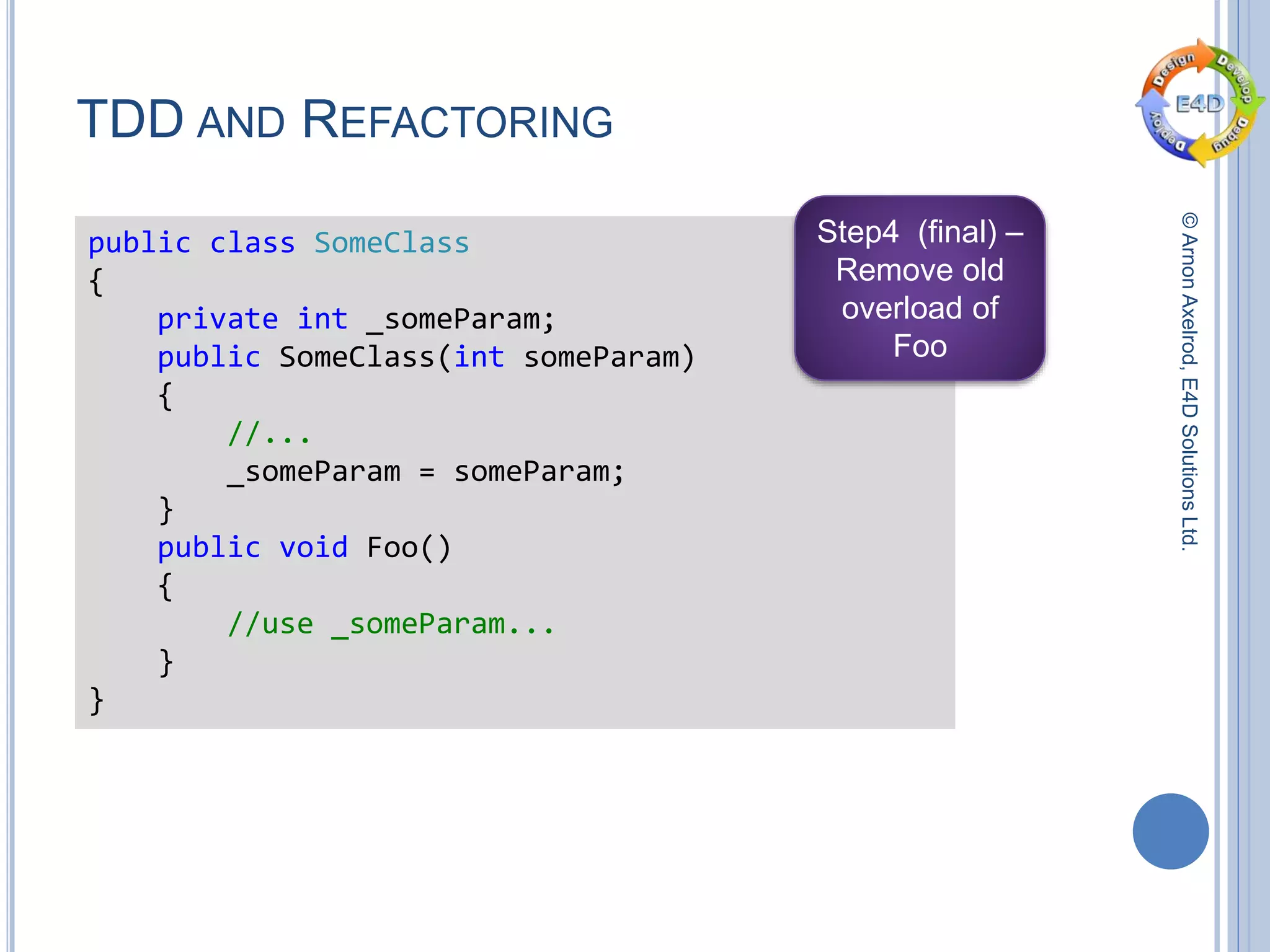

43. ©ArnonAxelrod,E4DSolutionsLtd.
TDD AND REFACTORING
public class SomeClass
{
private int _someParam;
public SomeClass(int someParam)
{
//...
_someParam = someParam;
}
public void Foo()
{
//use _someParam...
}
}
Step4 (final) –
Remove old
overload of
Foo

44. ©ArnonAxelrod,E4DSolutionsLtd.
TDD AND LEGACY CODE

45. TDD AND LEGACY CODE
Legacy code TDD (loosely-coupled)

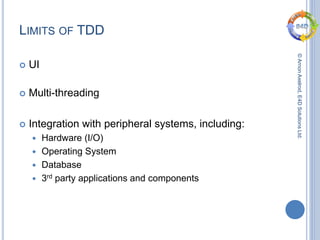

46. ©ArnonAxelrod,E4DSolutionsLtd.

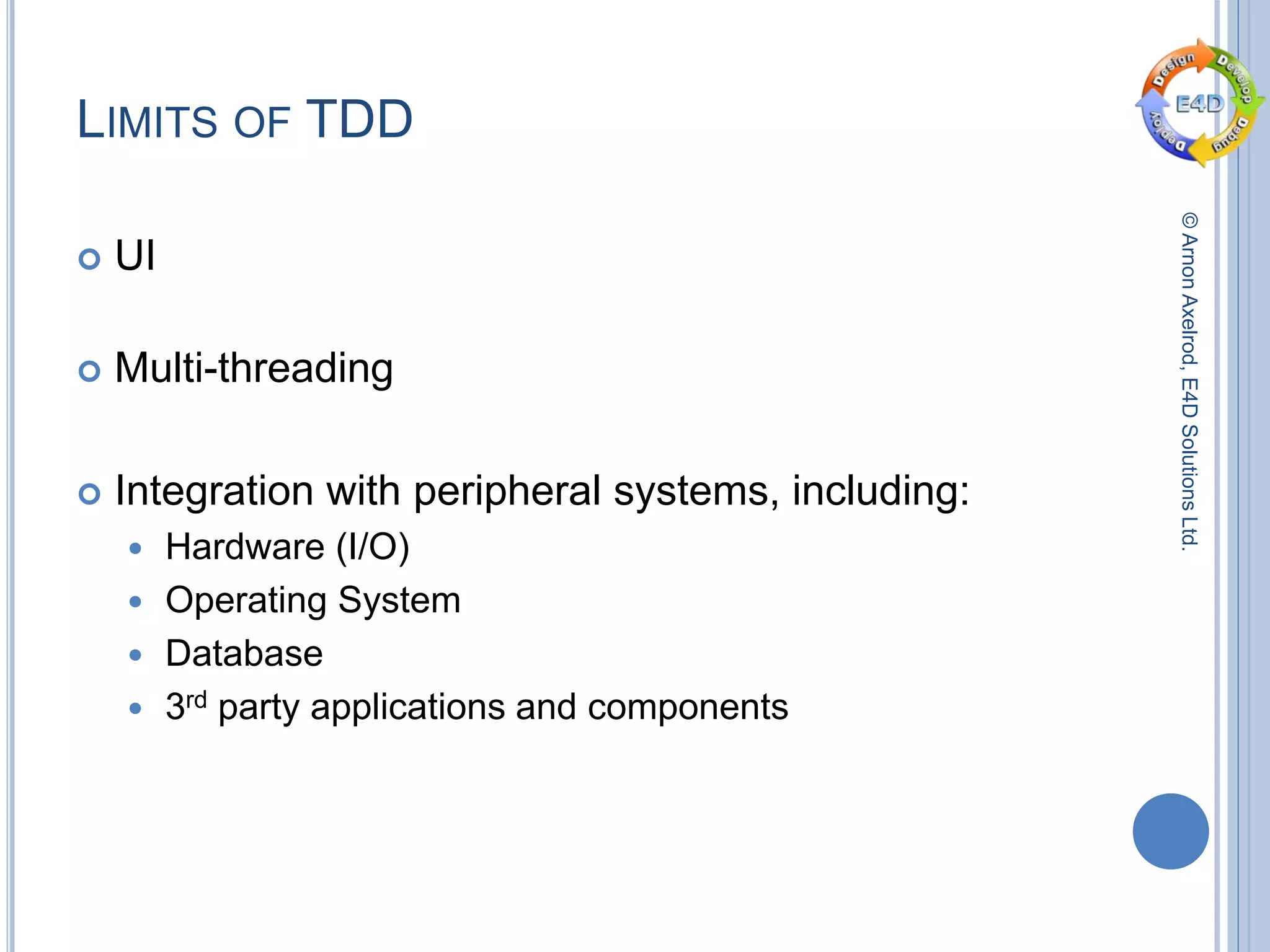

LIMITS OF TDD
 UI
 Multi-threading
 Integration with peripheral systems, including:
 Hardware (I/O)
 Operating System
 Database
 3rd party applications and components

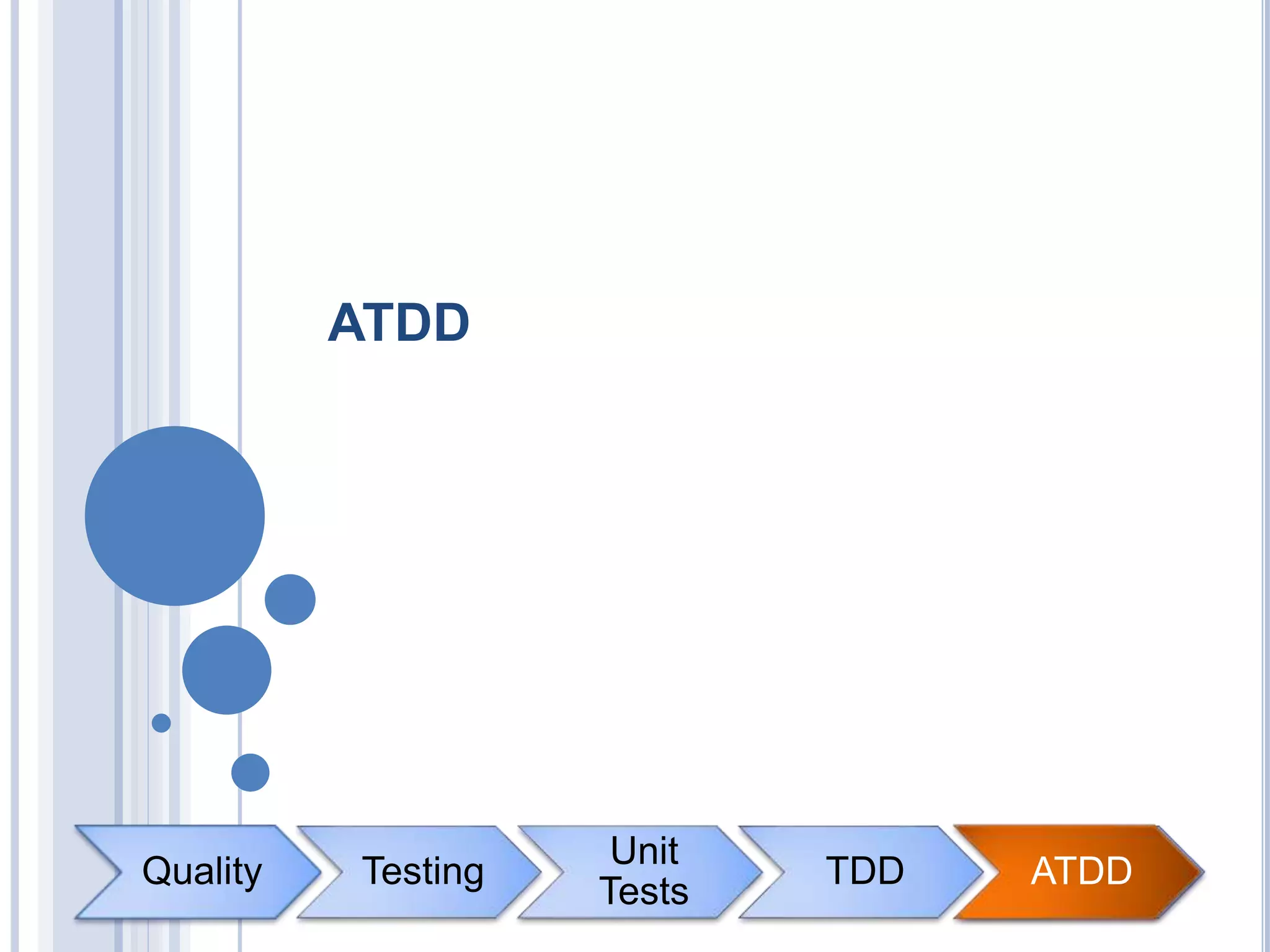

47. Quality Testing
Unit
Tests
TDD ATDD
ATDD
ATDD

48. ©ArnonAxelrod,E4DSolutionsLtd.
ATDD

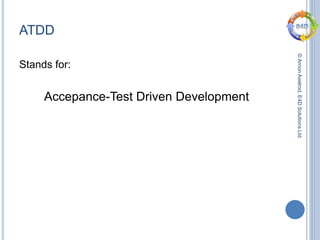

49. ©ArnonAxelrod,E4DSolutionsLtd.

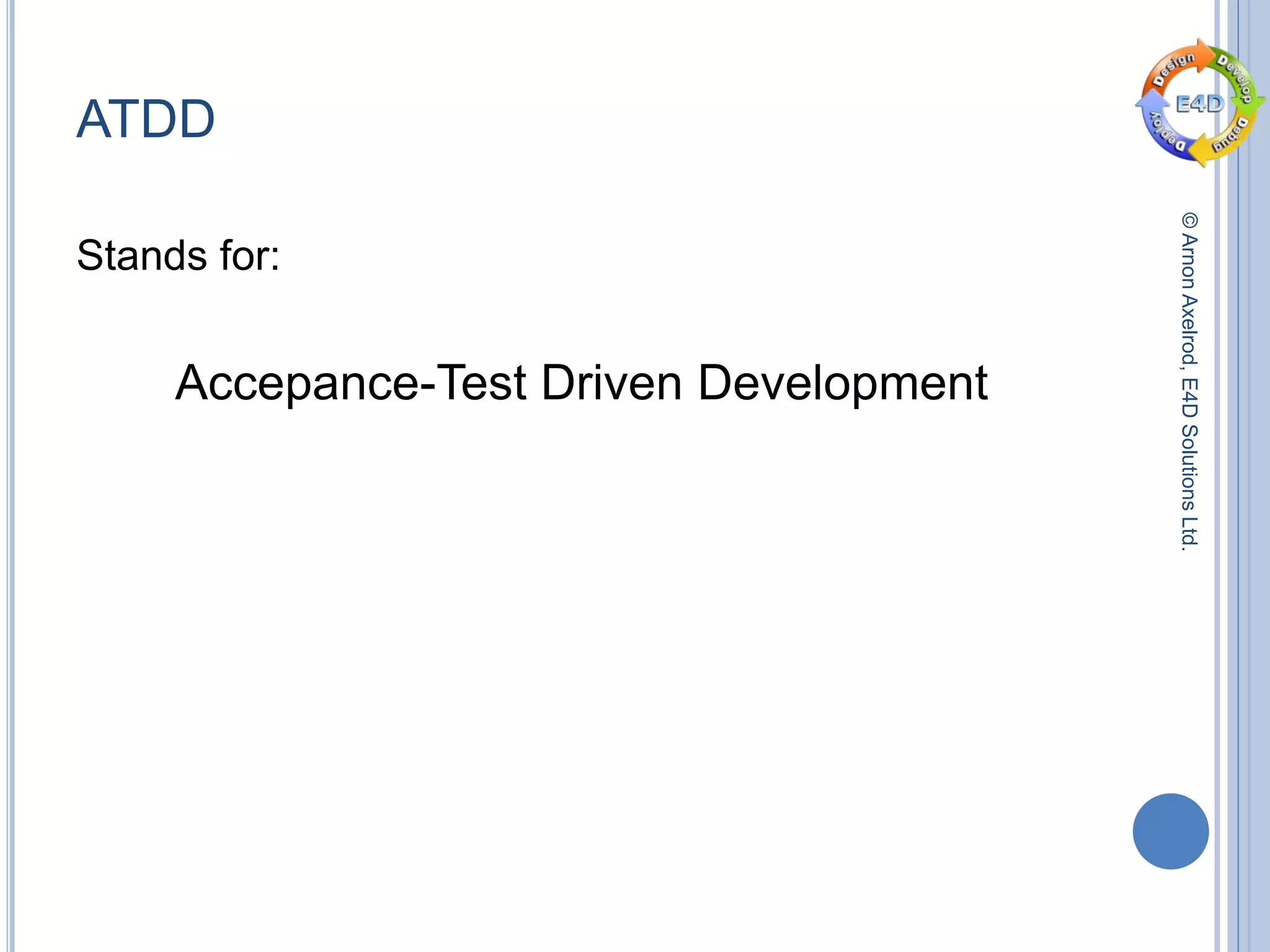

ATDD
Stands for:
Accepance-Test Driven Development

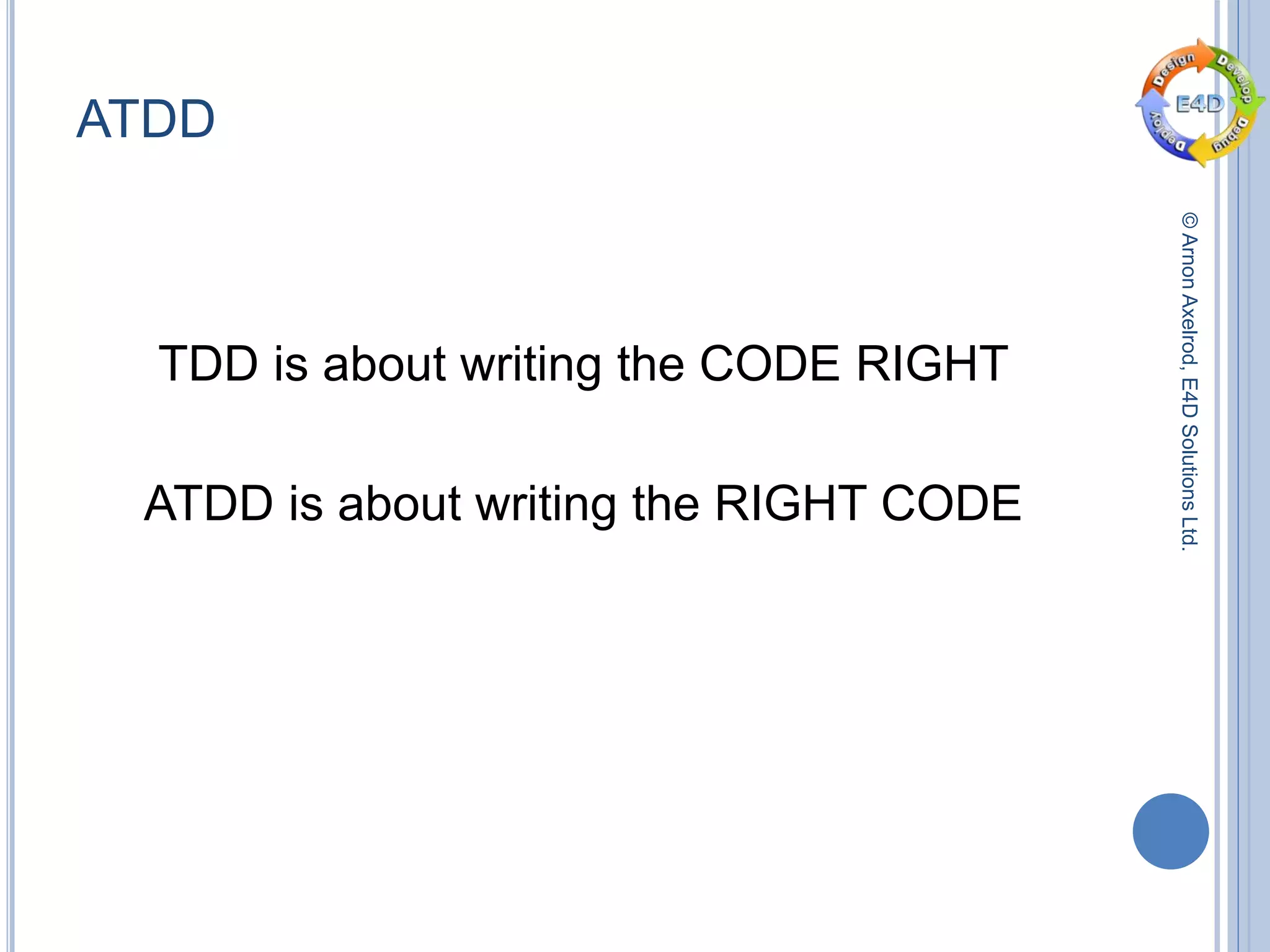

50. ©ArnonAxelrod,E4DSolutionsLtd.

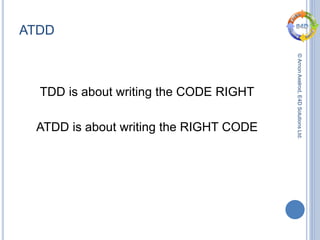

ATDD
TDD is about writing the CODE RIGHT
ATDD is about writing the RIGHT CODE

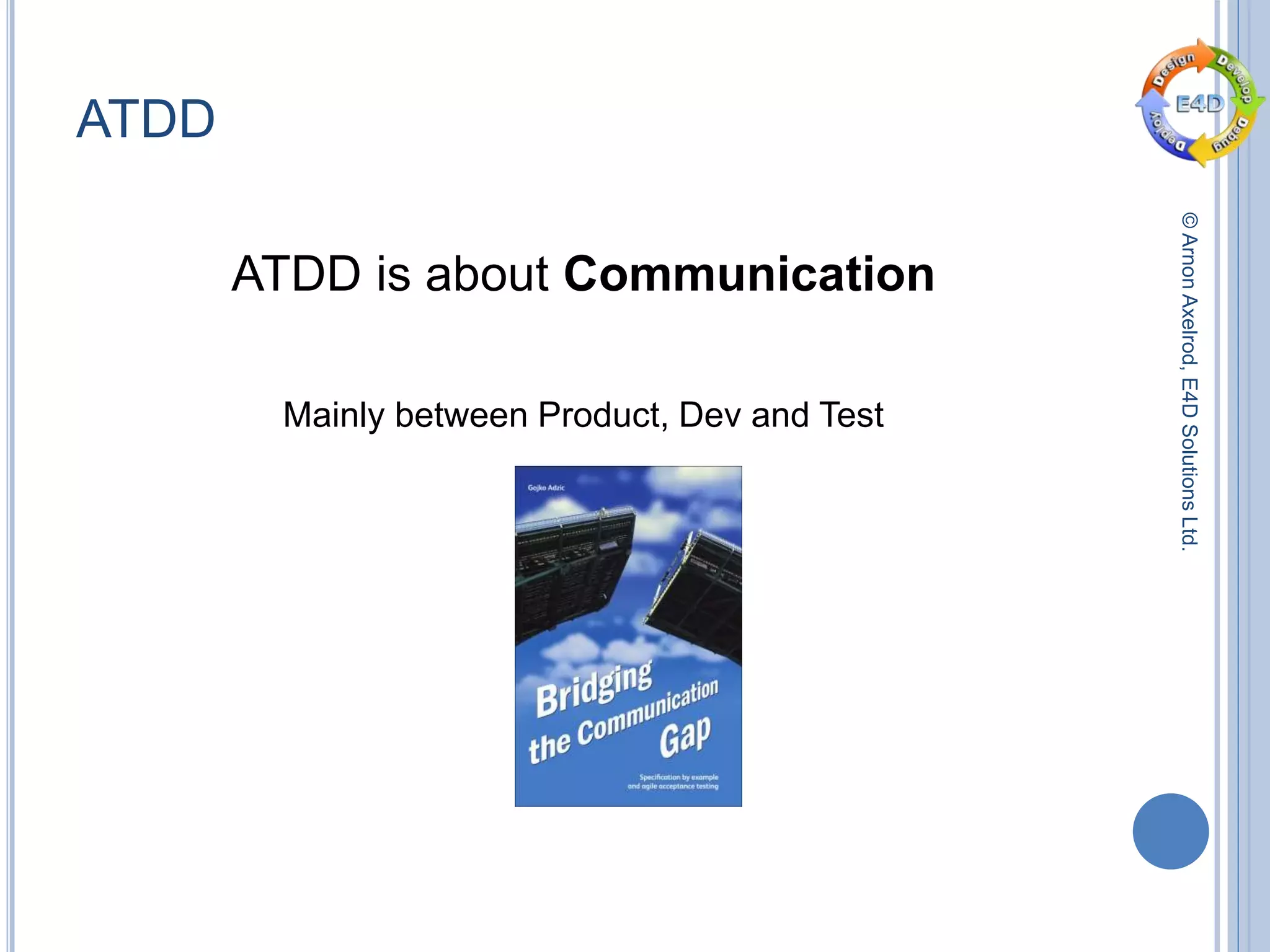

51. ©ArnonAxelrod,E4DSolutionsLtd.
ATDD
ATDD is about Communication
Mainly between Product, Dev and Test

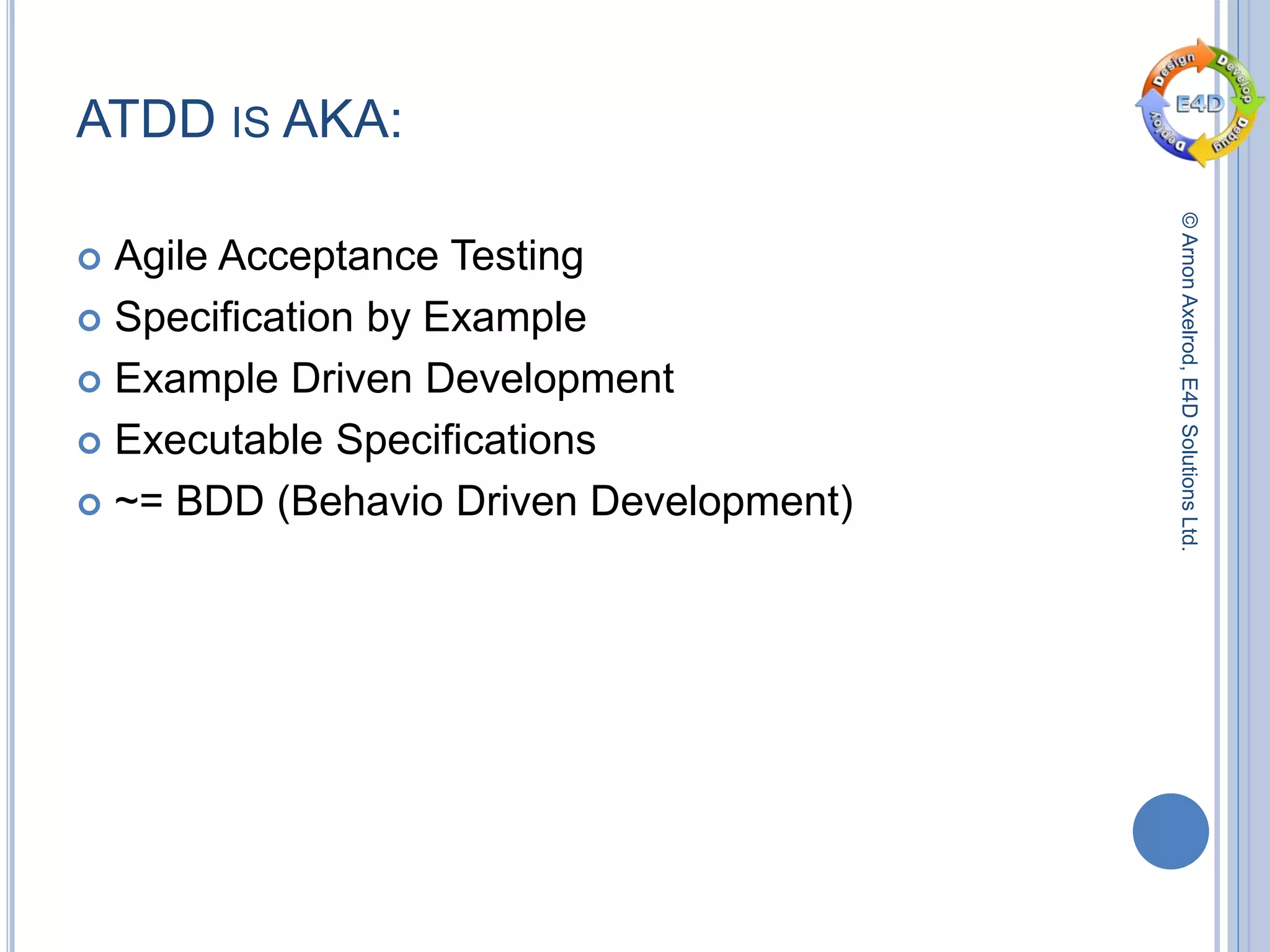

52. ©ArnonAxelrod,E4DSolutionsLtd.

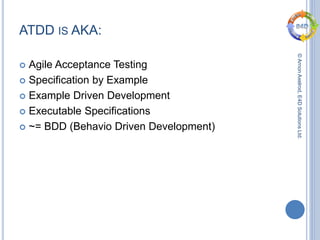

ATDD IS AKA:
 Agile Acceptance Testing
 Specification by Example
 Example Driven Development
 Executable Specifications
 ~= BDD (Behavio Driven Development)

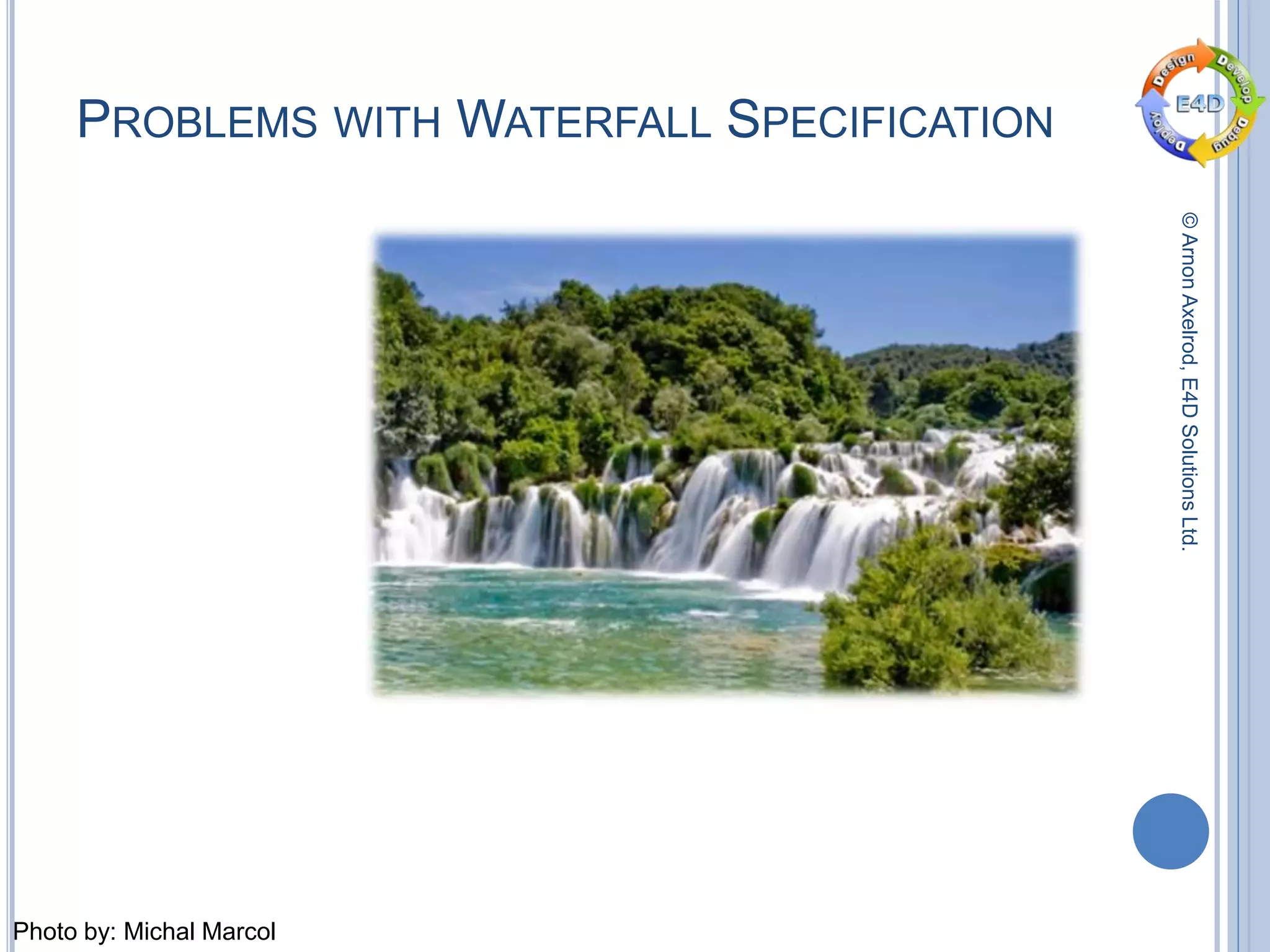

53. ©ArnonAxelrod,E4DSolutionsLtd.
PROBLEMS WITH WATERFALL SPECIFICATION
Photo by: Michal Marcol

54. ©ArnonAxelrod,E4DSolutionsLtd.
PROBLEMS WITH AGILE SPECIFICATION

55. ©ArnonAxelrod,E4DSolutionsLtd.

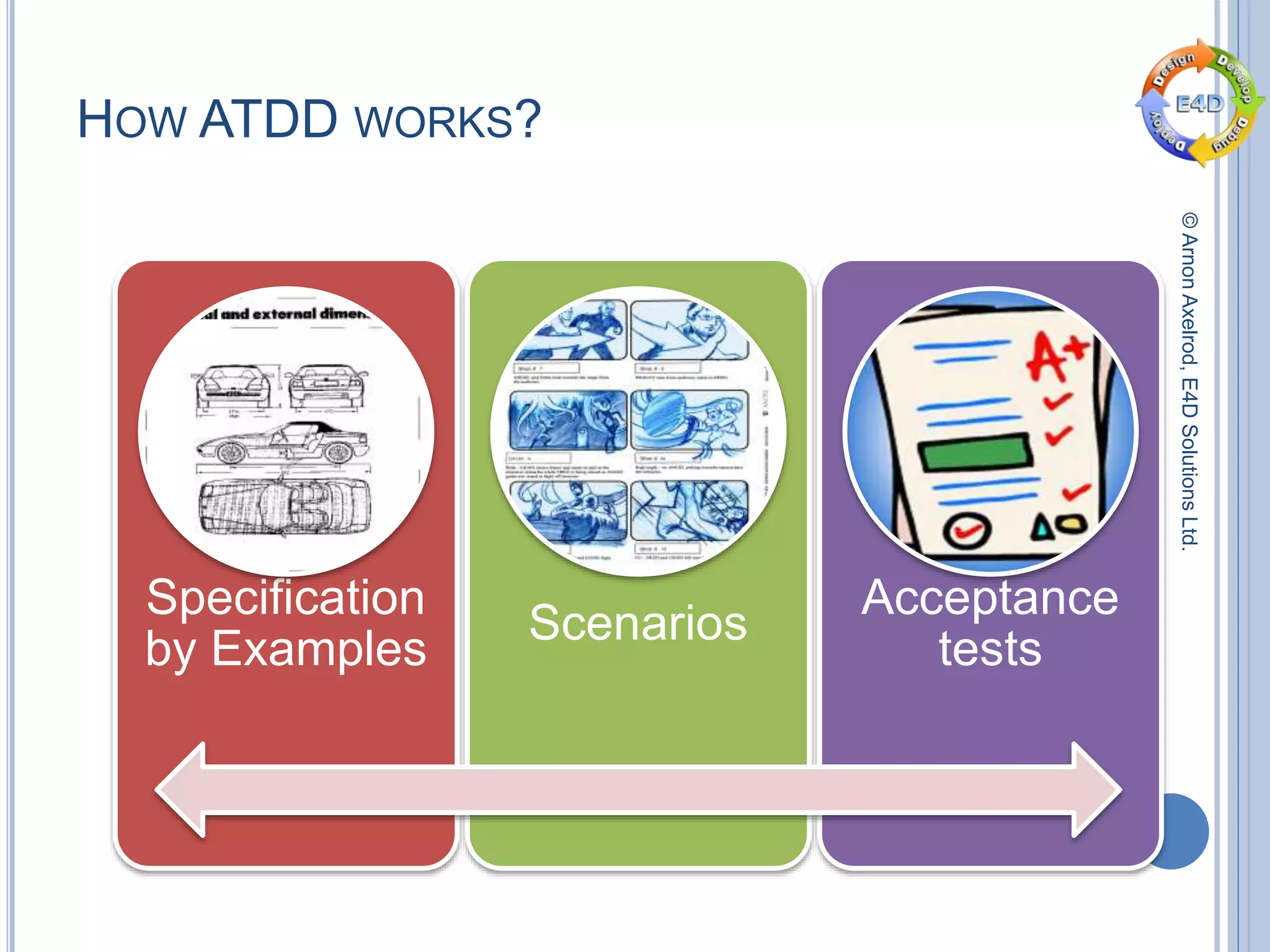

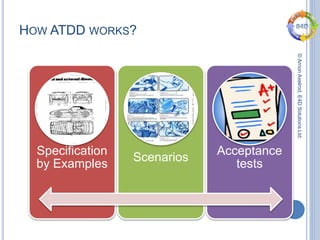

HOW ATDD WORKS?
Specification
by Examples
Scenarios
Acceptance
tests

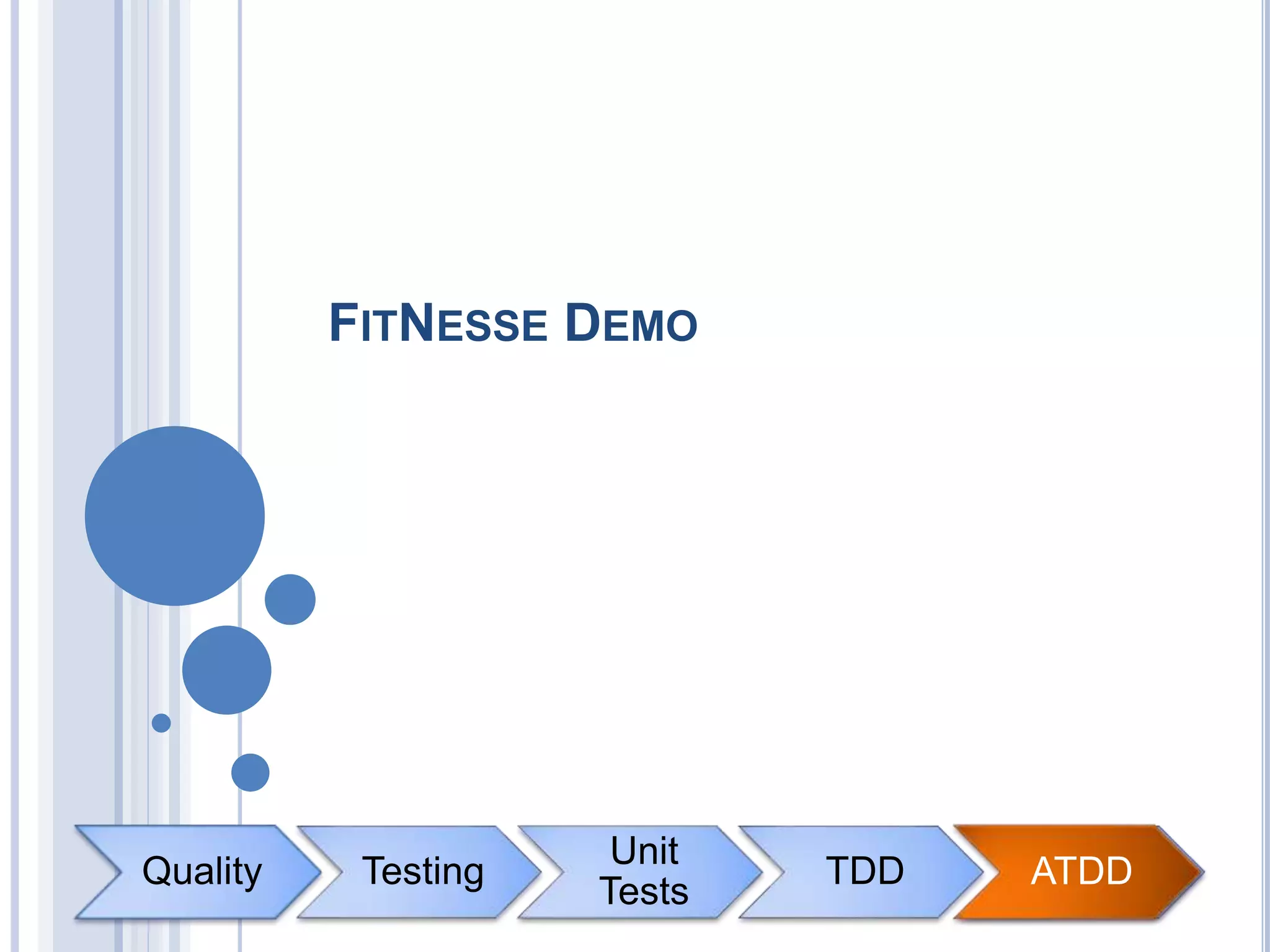

56. Quality Testing
Unit
Tests
TDD ATDD
FITNESSE DEMO
ATDD

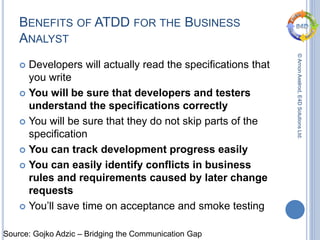

57. ©ArnonAxelrod,E4DSolutionsLtd.
BENEFITS OF ATDD FOR THE BUSINESS
ANALYST
 Developers will actually read the specifications that
you write
 You will be sure that developers and testers
understand the specifications correctly
 You will be sure that they do not skip parts of the
specification
 You can track development progress easily
 You can easily identify conflicts in business
rules and requirements caused by later change
requests
 You’ll save time on acceptance and smoke testing
Source: Gojko Adzic – Bridging the Communication Gap

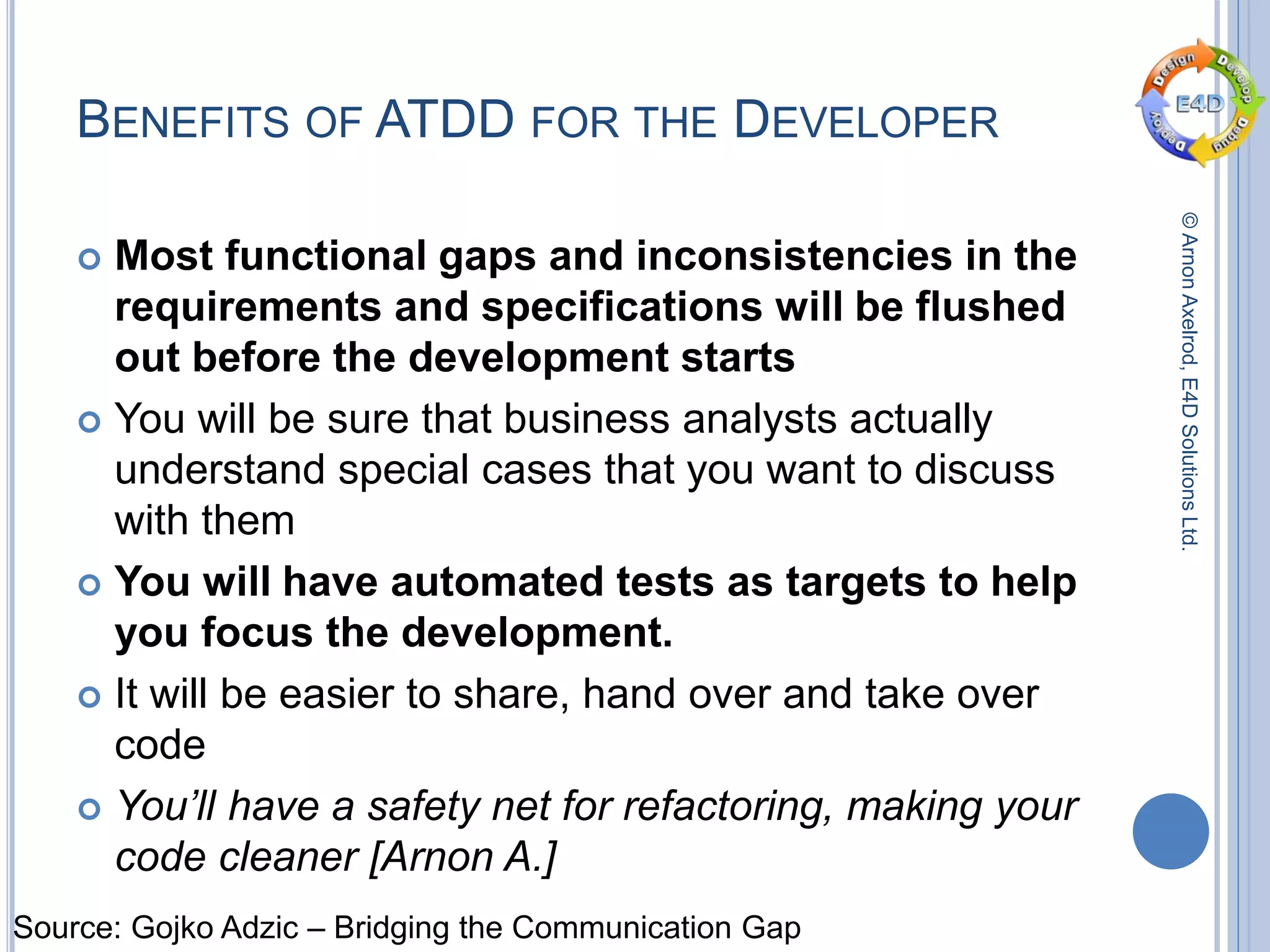

58. ©ArnonAxelrod,E4DSolutionsLtd.
BENEFITS OF ATDD FOR THE DEVELOPER
 Most functional gaps and inconsistencies in the
requirements and specifications will be flushed
out before the development starts
 You will be sure that business analysts actually
understand special cases that you want to discuss
with them
 You will have automated tests as targets to help
you focus the development.
 It will be easier to share, hand over and take over
code
 You’ll have a safety net for refactoring, making your
code cleaner [Arnon A.]
Source: Gojko Adzic – Bridging the Communication Gap

59. ©ArnonAxelrod,E4DSolutionsLtd.

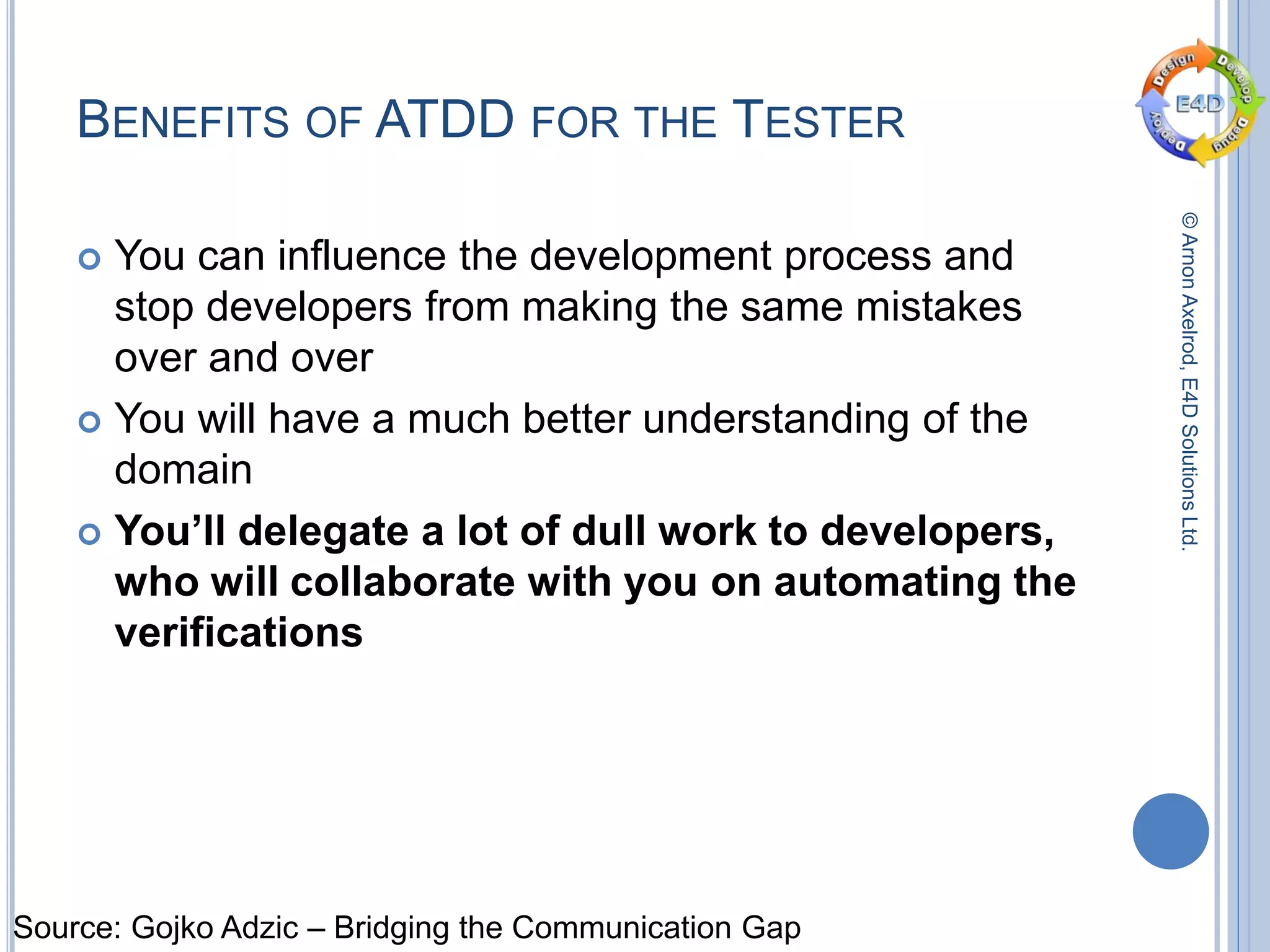

BENEFITS OF ATDD FOR THE TESTER
 You can influence the development process and
stop developers from making the same mistakes
over and over
 You will have a much better understanding of the
domain
 You’ll delegate a lot of dull work to developers,
who will collaborate with you on automating the
verifications
Source: Gojko Adzic – Bridging the Communication Gap

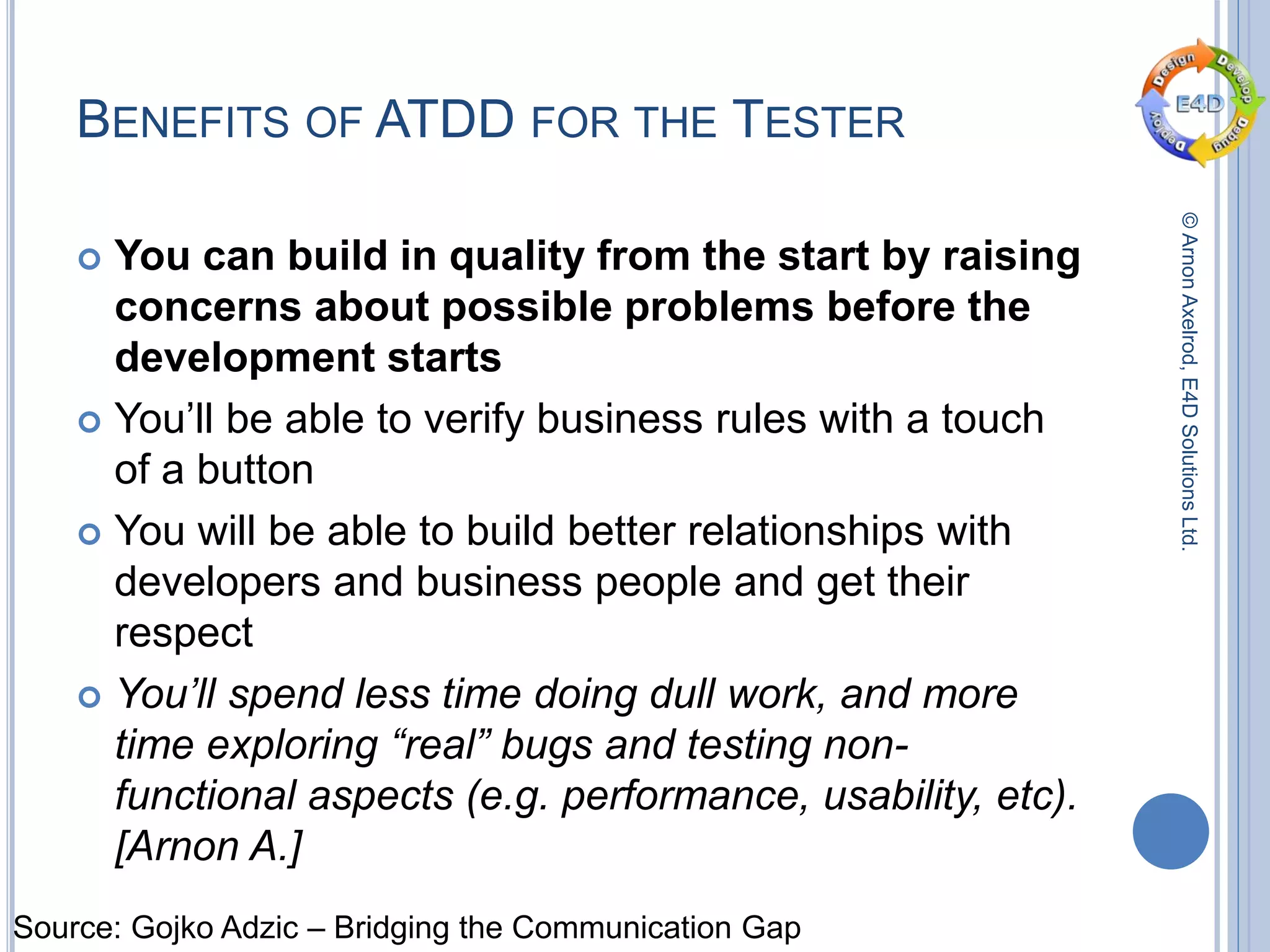

60. ©ArnonAxelrod,E4DSolutionsLtd.

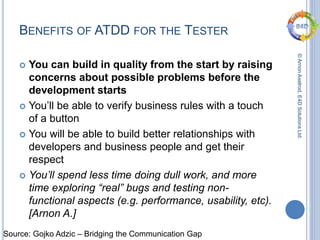

BENEFITS OF ATDD FOR THE TESTER
 You can build in quality from the start by raising
concerns about possible problems before the
development starts
 You’ll be able to verify business rules with a touch
of a button
 You will be able to build better relationships with
developers and business people and get their
respect
 You’ll spend less time doing dull work, and more
time exploring “real” bugs and testing non-
functional aspects (e.g. performance, usability, etc).
[Arnon A.]
Source: Gojko Adzic – Bridging the Communication Gap

61. Quality Testing
Unit
Tests
TDD ATDD
QUESTIONS?

62. Quality Testing
Unit
Tests
TDD ATDD
THANK YOU!
