Prepare virtual infraNote: kvm1: Running pre_boot script: virt-customize -d kvm1 --firstboot /data/shared/deploy/default/firstboot/centos7-kvm-ovs.sh
[ 0.0] Examining the guest ...
Note: kvm2: Running pre_boot script: virt-customize -d kvm2 --firstboot /data/shared/deploy/default/firstboot/centos7-kvm-ovs.sh
[ 0.0] Examining the guest ...
Note: cs1: Running pre_boot script: virt-customize -d cs1 --firstboot /data/shared/deploy/default/firstboot/centos7-cloudstack-
dev.sh
[ 0.0] Examining the guest ...
[ 10.0] Setting a random seed
[ 10.0] Installing firstboot script: [1] /data/shared/deploy/default/firstboot/centos7-kvm-ovs.sh
[ 10.0] Finishing off
Note: kvm1: Running postboot script: /data/shared/deploy/default/postboot/post_detect_reboot.sh kvm1
Note: kvm1: Waiting for the VM to boot...
[ 11.0] Setting a random seed
[ 11.0] Installing firstboot script: [1] /data/shared/deploy/default/firstboot/centos7-kvm-ovs.sh
[ 10.0] Setting a random seed
[ 10.0] Installing firstboot script: [1] /data/shared/deploy/default/firstboot/centos7-cloudstack-dev.sh
[ 11.0] Finishing off
[ 10.0] Finishing off
Note: kvm2: Running postboot script: /data/shared/deploy/default/postboot/post_detect_reboot.sh kvm2
Note: kvm2: Waiting for the VM to boot...
Note: cs1: Running postboot script: /data/shared/deploy/default/postboot/post_detect_reboot.sh cs1
Note: cs1: Waiting for the VM to boot...
Note: kvm1: Installing and configuring
Note: kvm1: This will take some time. You may send this to the background.
Note: kvm2: Installing and configuring
Note: kvm2: This will take some time. You may send this to the background.
Note: cs1: Installing and configuring
Note: cs1: This will take some time. You may send this to the background.
Note: kvm1: Rebooting
Note: kvm2: Rebooting
Note: kvm1: Ready for duty!
Note: kvm2: Ready for duty!
Note: cs1: Rebooting
Note: cs1: Ready for duty!](https://image.slidesharecdn.com/devopsdays-ams-2016-workshop-160628202438/85/DevOpsDays-Amsterdam-Cosmic-workshop-20-320.jpg)
![@remibergsma@neubauerf

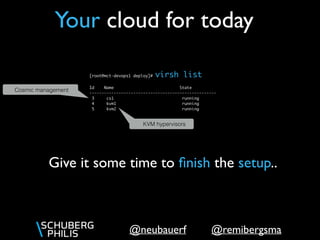

[root@mct-devops1 deploy]# virsh list
Id Name State
----------------------------------------------------
3 cs1 running
4 kvm1 running
5 kvm2 running
Your cloud for today
KVM hypervisors
Cosmic management
Give it some time to finish the setup..](https://image.slidesharecdn.com/devopsdays-ams-2016-workshop-160628202438/85/DevOpsDays-Amsterdam-Cosmic-workshop-21-320.jpg)

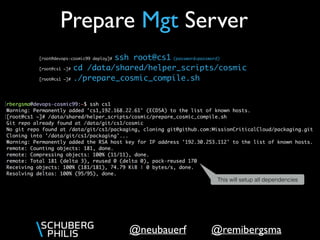

![@remibergsma@neubauerf
[root@devops-cosmic99 deploy]# ssh root@cs1 (password=password)
[root@cs1 ~]# cd /data/shared/helper_scripts/cosmic
[root@cs1 ~]# ./prepare_cosmic_compile.sh
Prepare Mgt Server
This will setup all dependencies](https://image.slidesharecdn.com/devopsdays-ams-2016-workshop-160628202438/85/DevOpsDays-Amsterdam-Cosmic-workshop-22-320.jpg)

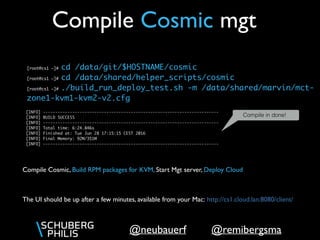

![@remibergsma@neubauerf
[root@cs1 ~]# cd /data/git/$HOSTNAME/cosmic
[root@cs1 ~]# cd /data/shared/helper_scripts/cosmic
[root@cs1 ~]# ./build_run_deploy_test.sh -m /data/shared/marvin/mct-
zone1-kvm1-kvm2-v2.cfg
Compile Cosmic mgt
Compile in done!
The UI should be up after a few minutes, available from your Mac: http://cs1.cloud.lan:8080/client/
[INFO] ------------------------------------------------------------------------
[INFO] BUILD SUCCESS
[INFO] ------------------------------------------------------------------------
[INFO] Total time: 6:24.846s
[INFO] Finished at: Tue Jun 28 17:15:15 CEST 2016
[INFO] Final Memory: 92M/351M
[INFO] ------------------------------------------------------------------------
Compile Cosmic, Build RPM packages for KVM, Start Mgt server, Deploy Cloud](https://image.slidesharecdn.com/devopsdays-ams-2016-workshop-160628202438/85/DevOpsDays-Amsterdam-Cosmic-workshop-23-320.jpg)
![@remibergsma@neubauerf

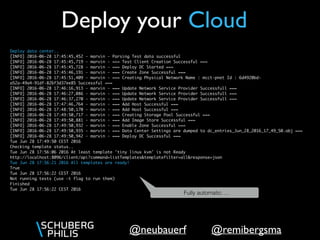

Deploy your Cloud
Deploy data center..
[INFO] 2016-06-28 17:45:45,452 - marvin - Parsing Test data successful
[INFO] 2016-06-28 17:45:45,719 - marvin - === Test Client Creation Successful ===
[INFO] 2016-06-28 17:45:45,728 - marvin - === Deploy DC Started ===
[INFO] 2016-06-28 17:45:46,191 - marvin - === Create Zone Successful ===
[INFO] 2016-06-28 17:45:51,409 - marvin - === Creating Physical Network Name : mcct-pnet Id : 6d4920bd-
a52a-49a4-91df-826f3d37ee85 Successful ===
[INFO] 2016-06-28 17:46:16,913 - marvin - === Update Network Service Provider Successfull ===
[INFO] 2016-06-28 17:46:27,086 - marvin - === Update Network Service Provider Successfull ===
[INFO] 2016-06-28 17:46:37,270 - marvin - === Update Network Service Provider Successfull ===
[INFO] 2016-06-28 17:47:46,764 - marvin - === Add Host Successful ===
[INFO] 2016-06-28 17:48:50,170 - marvin - === Add Host Successful ===
[INFO] 2016-06-28 17:49:50,717 - marvin - === Creating Storage Pool Successful ===
[INFO] 2016-06-28 17:49:50,881 - marvin - === Add Image Store Successful ===
[INFO] 2016-06-28 17:49:50,932 - marvin - === Enable Zone Successful ===
[INFO] 2016-06-28 17:49:50,935 - marvin - === Data Center Settings are dumped to dc_entries_Jun_28_2016_17_49_50.obj ===
[INFO] 2016-06-28 17:49:50,942 - marvin - === Deploy DC Successful ===
Tue Jun 28 17:49:50 CEST 2016
Checking template status..
Tue Jun 28 17:56:06 2016 At least template 'tiny linux kvm' is not Ready
http://localhost:8096/client/api?command=listTemplates&templatefilter=all&response=json
Tue Jun 28 17:56:21 2016 All templates are ready!
True
Tue Jun 28 17:56:22 CEST 2016
Not running tests (use -t flag to run them)
Finished
Tue Jun 28 17:56:22 CEST 2016
Fully automatic….](https://image.slidesharecdn.com/devopsdays-ams-2016-workshop-160628202438/85/DevOpsDays-Amsterdam-Cosmic-workshop-24-320.jpg)

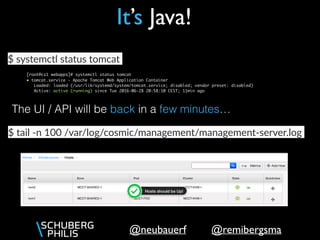

![@remibergsma@neubauerf
It’s Java!
[root@cs1 webapps]# systemctl status tomcat
● tomcat.service - Apache Tomcat Web Application Container
Loaded: loaded (/usr/lib/systemd/system/tomcat.service; disabled; vendor preset: disabled)
Active: active (running) since Tue 2016-06-28 20:58:10 CEST; 11min ago
$ systemctl status tomcat
The UI / API will be back in a few minutes…
$ tail -n 100 /var/log/cosmic/management/management-server.log](https://image.slidesharecdn.com/devopsdays-ams-2016-workshop-160628202438/85/DevOpsDays-Amsterdam-Cosmic-workshop-36-320.jpg)
![@remibergsma@neubauerf
CloudStackOps
[root@cs1 ~]# cd /data/shared/helper_scripts/cosmic
[root@cs1 cloudstack]# ./setup_cloudstackOps.sh
[root@cs1 cloudstack]# source /data/git/cs1/python_cloud/bin/activate
[root@cs1 cloudstack]# cd /data/git/cs1/cloudstackOps
[root@cs1 cloudstack]# python listVirtualMachines.py -o MCCT-KVM-1](https://image.slidesharecdn.com/devopsdays-ams-2016-workshop-160628202438/85/DevOpsDays-Amsterdam-Cosmic-workshop-47-320.jpg)
Uploaded byRemi Bergsma
DevOpsDays Amsterdam Cosmic workshop
This document provides instructions for a workshop on building a cloud with Cosmic Cloud Orchestration software. It includes information on: - Accessing the workshop environment hosted on Schuberg Philis Mission Critical Cloud - Automatically deploying the virtual infrastructure for the cloud including KVM hypervisors and a Cosmic management server - Compiling and deploying Cosmic to automatically build and deploy a cloud - Accessing the Cosmic user interface and starting a test virtual machine - Learning how to use the Cosmic API and CloudMonkey tool to manage the cloud
DevOpsDays Amsterdam Cosmic workshop
- 1. @remibergsma@neubauerf Workshop Build yourown Cloud in record time with Cosmic June 29th, 2016 Amsterdam, NL

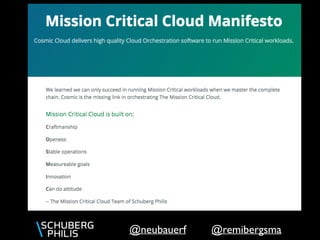

- 2. @remibergsma@neubauerf Cosmic Cloud delivershigh quality Cloud Orchestration software to run Mission Critical workloads. What is Cosmic?
- 3.
- 4.

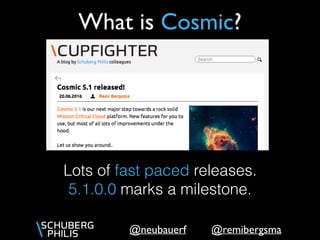

- 5. @remibergsma@neubauerf What is Cosmic? Lotsof fast paced releases. 5.1.0.0 marks a milestone.
- 6. @remibergsma@neubauerf Cosmic projects Cosmic CloudOrchestrating Software Packaging for Cosmic SystemVM template Packer builder The Bubble - easy integration testing Toolkit for The Bubble
- 7. @remibergsma@neubauerf Cloudy building blocks Tobuild a Cloud we need: - primary storage - secondary storage - zone | pod | cluster - at least 1 hypervisor
- 8. @remibergsma@neubauerf Get a copyof the slides to copy/paste the commands Getting the slides Slides are here: http://www.slideshare.net/remibergsma
- 9. @remibergsma@neubauerf Workshop environment You willget a Bubble, hosted in the Schuberg Philis Mission Critical Cloud. Remember: you can later create your very own Bubble with the provided cookbooks and scripts.

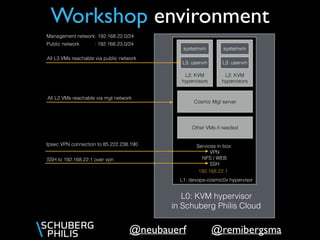

- 10. @remibergsma@neubauerf Workshop environment L0: KVMhypervisor in Schuberg Philis Cloud L1: devops-cosmic0x hypervisor L2: KVM hypervisors systemvm L3: uservm L2: KVM hypervisors systemvm L3: uservm Cosmic Mgt server Services in box: VPN NFS / WEB SSH Ipsec VPN connection to 85.222.238.190 SSH to 192.168.22.1 over vpn Management network: 192.168.22.0/24 Public network : 192.168.23.0/24 192.168.22.1 All L3 VMs reachable via public network All L2 VMs reachable via mgt network Other VMs if needed

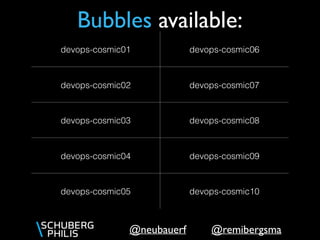

- 11. @remibergsma@neubauerf Bubbles available: devops-cosmic01 devops-cosmic06 devops-cosmic02devops-cosmic07 devops-cosmic03 devops-cosmic08 devops-cosmic04 devops-cosmic09 devops-cosmic05 devops-cosmic10

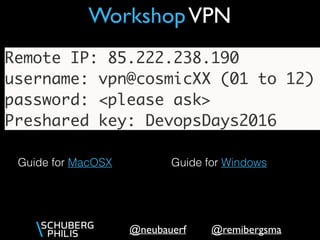

- 12. @remibergsma@neubauerf WorkshopVPN Remote IP: 85.222.238.190 username:vpn@cosmicXX (01 to 12) password: <please ask> Preshared key: DevopsDays2016 Guide for MacOSX Guide for Windows

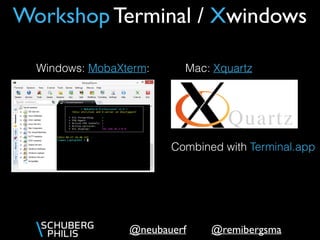

- 13. @remibergsma@neubauerf Workshop Terminal /Xwindows Windows: MobaXterm: Mac: Xquartz Combined with Terminal.app

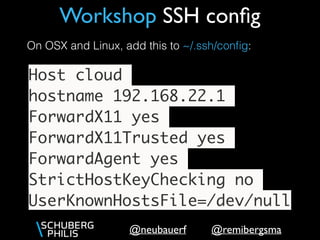

- 14. @remibergsma@neubauerf Workshop SSH config Hostcloud hostname 192.168.22.1 ForwardX11 yes ForwardX11Trusted yes ForwardAgent yes StrictHostKeyChecking no UserKnownHostsFile=/dev/null On OSX and Linux, add this to ~/.ssh/config:

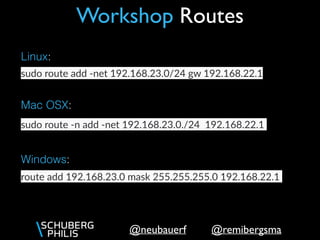

- 15. @remibergsma@neubauerf Workshop Routes sudo routeadd -net 192.168.23.0/24 gw 192.168.22.1 sudo route -n add -net 192.168.23.0./24 192.168.22.1 route add 192.168.23.0 mask 255.255.255.0 192.168.22.1 Linux: Mac OSX: Windows:
- 16.
- 17.
- 18. @remibergsma@neubauerf Automation! We’ll show yousome manual steps, that have been automated. For the fun of it, and to learn a thing or two, we’ll show you the steps ;-)
- 19. @remibergsma@neubauerf Prepare virtual infra Press<F2> for a new tab, then type: virt-manager $ /data/shared/deploy/kvm_local_deploy.py -m /data/shared/marvin/ mct-zone1-kvm1-kvm2-v2.cfg --force
- 20. @remibergsma@neubauerf Prepare virtual infraNote:kvm1: Running pre_boot script: virt-customize -d kvm1 --firstboot /data/shared/deploy/default/firstboot/centos7-kvm-ovs.sh [ 0.0] Examining the guest ... Note: kvm2: Running pre_boot script: virt-customize -d kvm2 --firstboot /data/shared/deploy/default/firstboot/centos7-kvm-ovs.sh [ 0.0] Examining the guest ... Note: cs1: Running pre_boot script: virt-customize -d cs1 --firstboot /data/shared/deploy/default/firstboot/centos7-cloudstack- dev.sh [ 0.0] Examining the guest ... [ 10.0] Setting a random seed [ 10.0] Installing firstboot script: [1] /data/shared/deploy/default/firstboot/centos7-kvm-ovs.sh [ 10.0] Finishing off Note: kvm1: Running postboot script: /data/shared/deploy/default/postboot/post_detect_reboot.sh kvm1 Note: kvm1: Waiting for the VM to boot... [ 11.0] Setting a random seed [ 11.0] Installing firstboot script: [1] /data/shared/deploy/default/firstboot/centos7-kvm-ovs.sh [ 10.0] Setting a random seed [ 10.0] Installing firstboot script: [1] /data/shared/deploy/default/firstboot/centos7-cloudstack-dev.sh [ 11.0] Finishing off [ 10.0] Finishing off Note: kvm2: Running postboot script: /data/shared/deploy/default/postboot/post_detect_reboot.sh kvm2 Note: kvm2: Waiting for the VM to boot... Note: cs1: Running postboot script: /data/shared/deploy/default/postboot/post_detect_reboot.sh cs1 Note: cs1: Waiting for the VM to boot... Note: kvm1: Installing and configuring Note: kvm1: This will take some time. You may send this to the background. Note: kvm2: Installing and configuring Note: kvm2: This will take some time. You may send this to the background. Note: cs1: Installing and configuring Note: cs1: This will take some time. You may send this to the background. Note: kvm1: Rebooting Note: kvm2: Rebooting Note: kvm1: Ready for duty! Note: kvm2: Ready for duty! Note: cs1: Rebooting Note: cs1: Ready for duty!
- 21. @remibergsma@neubauerf [root@mct-devops1 deploy]# virshlist Id Name State ---------------------------------------------------- 3 cs1 running 4 kvm1 running 5 kvm2 running Your cloud for today KVM hypervisors Cosmic management Give it some time to finish the setup..
- 22. @remibergsma@neubauerf [root@devops-cosmic99 deploy]# sshroot@cs1 (password=password) [root@cs1 ~]# cd /data/shared/helper_scripts/cosmic [root@cs1 ~]# ./prepare_cosmic_compile.sh Prepare Mgt Server This will setup all dependencies
- 23. @remibergsma@neubauerf [root@cs1 ~]# cd/data/git/$HOSTNAME/cosmic [root@cs1 ~]# cd /data/shared/helper_scripts/cosmic [root@cs1 ~]# ./build_run_deploy_test.sh -m /data/shared/marvin/mct- zone1-kvm1-kvm2-v2.cfg Compile Cosmic mgt Compile in done! The UI should be up after a few minutes, available from your Mac: http://cs1.cloud.lan:8080/client/ [INFO] ------------------------------------------------------------------------ [INFO] BUILD SUCCESS [INFO] ------------------------------------------------------------------------ [INFO] Total time: 6:24.846s [INFO] Finished at: Tue Jun 28 17:15:15 CEST 2016 [INFO] Final Memory: 92M/351M [INFO] ------------------------------------------------------------------------ Compile Cosmic, Build RPM packages for KVM, Start Mgt server, Deploy Cloud
- 24. @remibergsma@neubauerf Deploy your Cloud Deploydata center.. [INFO] 2016-06-28 17:45:45,452 - marvin - Parsing Test data successful [INFO] 2016-06-28 17:45:45,719 - marvin - === Test Client Creation Successful === [INFO] 2016-06-28 17:45:45,728 - marvin - === Deploy DC Started === [INFO] 2016-06-28 17:45:46,191 - marvin - === Create Zone Successful === [INFO] 2016-06-28 17:45:51,409 - marvin - === Creating Physical Network Name : mcct-pnet Id : 6d4920bd- a52a-49a4-91df-826f3d37ee85 Successful === [INFO] 2016-06-28 17:46:16,913 - marvin - === Update Network Service Provider Successfull === [INFO] 2016-06-28 17:46:27,086 - marvin - === Update Network Service Provider Successfull === [INFO] 2016-06-28 17:46:37,270 - marvin - === Update Network Service Provider Successfull === [INFO] 2016-06-28 17:47:46,764 - marvin - === Add Host Successful === [INFO] 2016-06-28 17:48:50,170 - marvin - === Add Host Successful === [INFO] 2016-06-28 17:49:50,717 - marvin - === Creating Storage Pool Successful === [INFO] 2016-06-28 17:49:50,881 - marvin - === Add Image Store Successful === [INFO] 2016-06-28 17:49:50,932 - marvin - === Enable Zone Successful === [INFO] 2016-06-28 17:49:50,935 - marvin - === Data Center Settings are dumped to dc_entries_Jun_28_2016_17_49_50.obj === [INFO] 2016-06-28 17:49:50,942 - marvin - === Deploy DC Successful === Tue Jun 28 17:49:50 CEST 2016 Checking template status.. Tue Jun 28 17:56:06 2016 At least template 'tiny linux kvm' is not Ready http://localhost:8096/client/api?command=listTemplates&templatefilter=all&response=json Tue Jun 28 17:56:21 2016 All templates are ready! True Tue Jun 28 17:56:22 CEST 2016 Not running tests (use -t flag to run them) Finished Tue Jun 28 17:56:22 CEST 2016 Fully automatic….

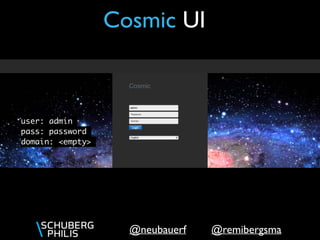

- 25. @remibergsma@neubauerf Cosmic UI user: admin pass:password domain: <empty>
- 26.

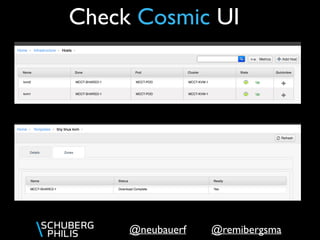

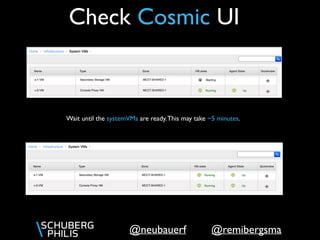

- 27. @remibergsma@neubauerf Check Cosmic UI Waituntil the systemVMs are ready.This may take ~5 minutes.
- 28.
- 29.
- 30. @remibergsma@neubauerf Templates The only template availableis ‘Tiny’, which is a very small template. It is registered without a password service. The default user/pass is root/password.

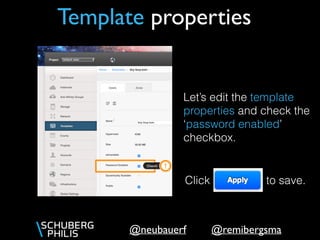

- 31. @remibergsma@neubauerf Template properties Let’s editthe template properties and check the ‘password enabled’ checkbox. Click to save.
- 32. @remibergsma@neubauerf Copy/paste to uselater on (root passwd) Random password
- 33. @remibergsma@neubauerf Console Proxy VMserves this console Accessing the console
- 34. @remibergsma@neubauerf Global settings We maywant to bump this setting to 12 We’ll show you how to make that easy..

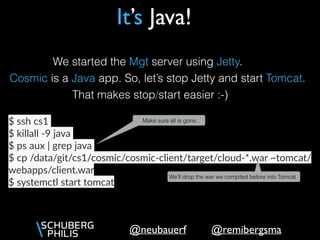

- 35. @remibergsma@neubauerf We started theMgt server using Jetty. Cosmic is a Java app. So, let’s stop Jetty and start Tomcat. That makes stop/start easier :-) $ ssh cs1 $ killall -9 java $ ps aux | grep java $ cp /data/git/cs1/cosmic/cosmic-client/target/cloud-*.war ~tomcat/ webapps/client.war $ systemctl start tomcat We’ll drop the war we compiled before into Tomcat It’s Java! Make sure all is gone..
- 36. @remibergsma@neubauerf It’s Java! [root@cs1 webapps]#systemctl status tomcat ● tomcat.service - Apache Tomcat Web Application Container Loaded: loaded (/usr/lib/systemd/system/tomcat.service; disabled; vendor preset: disabled) Active: active (running) since Tue 2016-06-28 20:58:10 CEST; 11min ago $ systemctl status tomcat The UI / API will be back in a few minutes… $ tail -n 100 /var/log/cosmic/management/management-server.log

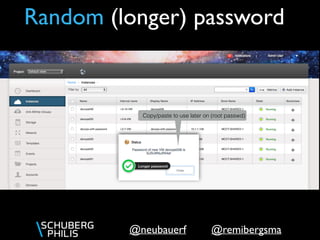

- 37. @remibergsma@neubauerf Copy/paste to uselater on (root passwd) Random (longer) password
- 38.
- 39. @remibergsma@neubauerf Forwarding a port We’llset up port forwarding Click Networking, select your network, then IP Addresses We’ll open the port in the firewall

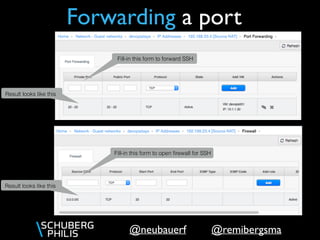

- 40. @remibergsma@neubauerf Forwarding a port Fill-inthis form to forward SSH Result looks like this Fill-in this form to open firewall for SSH Result looks like this

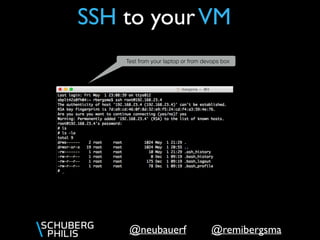

- 41. @remibergsma@neubauerf SSH to yourVM Testfrom your laptop or from devops box
- 42.

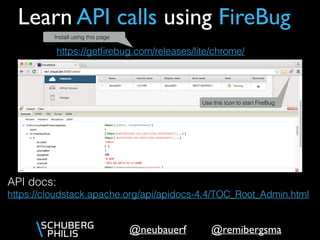

- 43. @remibergsma@neubauerf Learn API callsusing FireBug API docs: https://cloudstack.apache.org/api/apidocs-4.4/TOC_Root_Admin.html https://getfirebug.com/releases/lite/chrome/ Use this icon to start FireBug Install using this page
- 44. @remibergsma@neubauerf Play with CloudMonkey Ithas been pre-setup on your cs1 VM (local) 🐵 > set display table (local) 🐵 > list virtualmachines filter=name,state,hypervisor,templatename,instancename, count = 6 virtualmachine: +------------+---------+--------------+----------------------+----------------+ | hypervisor | state | instancename | name | templatename | +------------+---------+--------------+----------------------+----------------+ | KVM | Running | i-2-10-VM | devops006 | tiny linux kvm | | KVM | Running | i-2-8-VM | devops005 | tiny linux kvm | | KVM | Running | i-2-7-VM | devops-with-password | tiny linux kvm | | KVM | Running | i-2-6-VM | devops003 | tiny linux kvm | | KVM | Running | i-2-5-VM | devops002 | tiny linux kvm | | KVM | Running | i-2-3-VM | devops001 | tiny linux kvm | +------------+---------+--------------+----------------------+----------------+ (local) 🐵 > (local) 🐵 > list networks filter=name,networkdomain,vlan,cidr count = 1 network: +-------------+---------------+------------+------+ | cidr | networkdomain | name | vlan | +-------------+---------------+------------+------+ | 10.1.1.0/24 | cs2cloud | devopsdays | 115 | +-------------+---------------+------------+------+ (local) 🐵 >

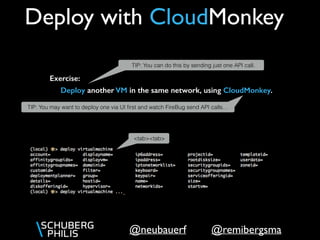

- 45. @remibergsma@neubauerf Deploy with CloudMonkey Deployanother VM in the same network, using CloudMonkey. Exercise: TIP: You may want to deploy one via UI first and watch FireBug send API calls… TIP: You can do this by sending just one API call. <tab><tab>
- 46.

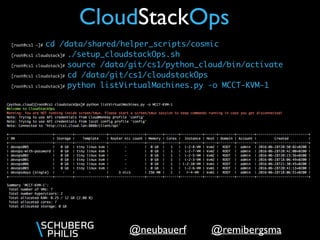

- 47. @remibergsma@neubauerf CloudStackOps [root@cs1 ~]# cd/data/shared/helper_scripts/cosmic [root@cs1 cloudstack]# ./setup_cloudstackOps.sh [root@cs1 cloudstack]# source /data/git/cs1/python_cloud/bin/activate [root@cs1 cloudstack]# cd /data/git/cs1/cloudstackOps [root@cs1 cloudstack]# python listVirtualMachines.py -o MCCT-KVM-1
- 48. @remibergsma@neubauerf More exercises Setup multipletenants Create a new network from the API Explore VPC Add another cluster to Cosmic Create HA service offering and apply it to Tiny VM What happens when a hypervisor crashes? …… Have fun!
