Developing Uniface Applications by using Standard Deployment
- 1. Deployment new style Online Seminar Michel van den Berg, Software Architect 7 January, 2015

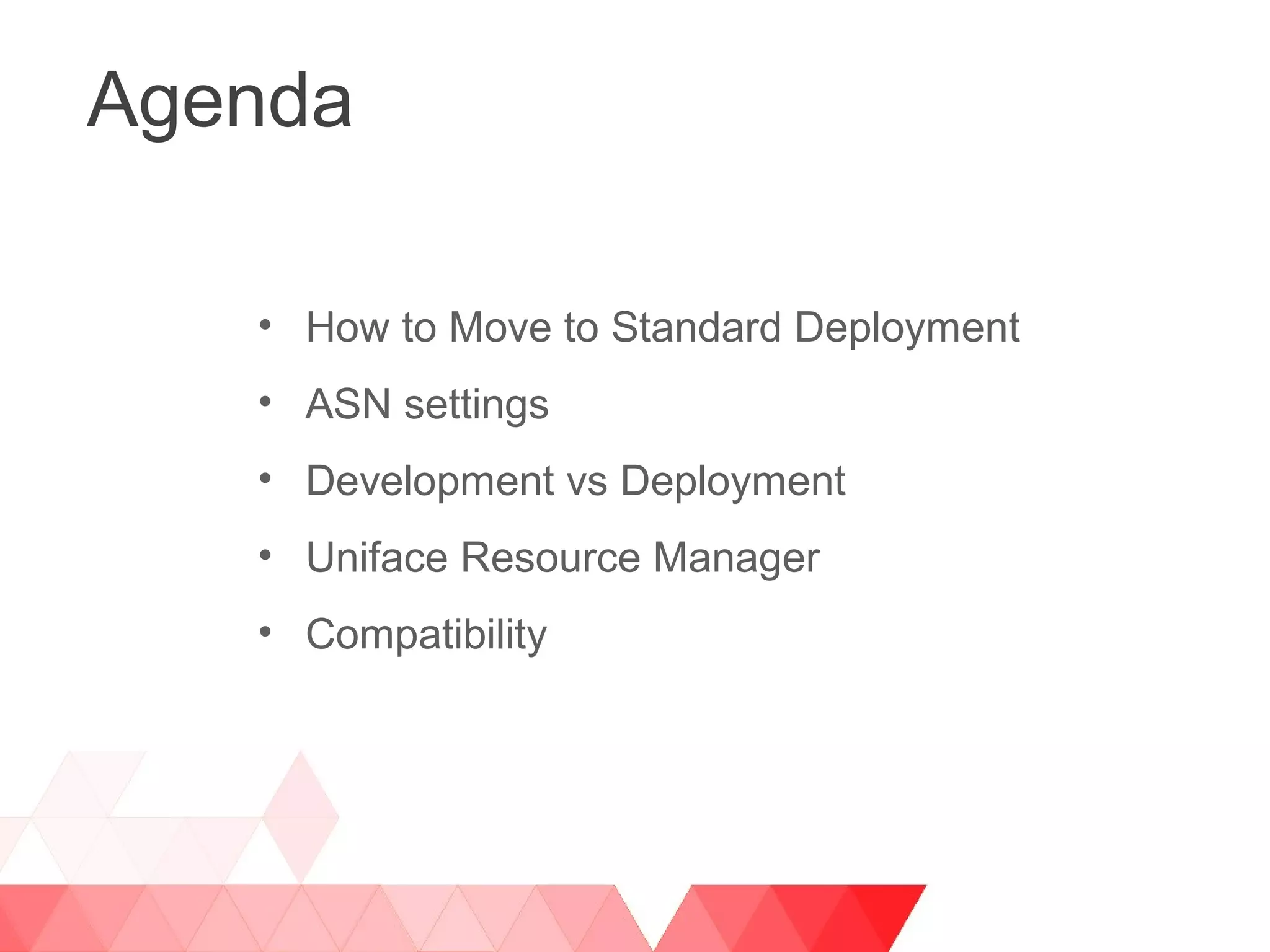

- 2. Agenda • How to Move to Standard Deployment • ASN settings • Development vs Deployment • Uniface Resource Manager • Compatibility

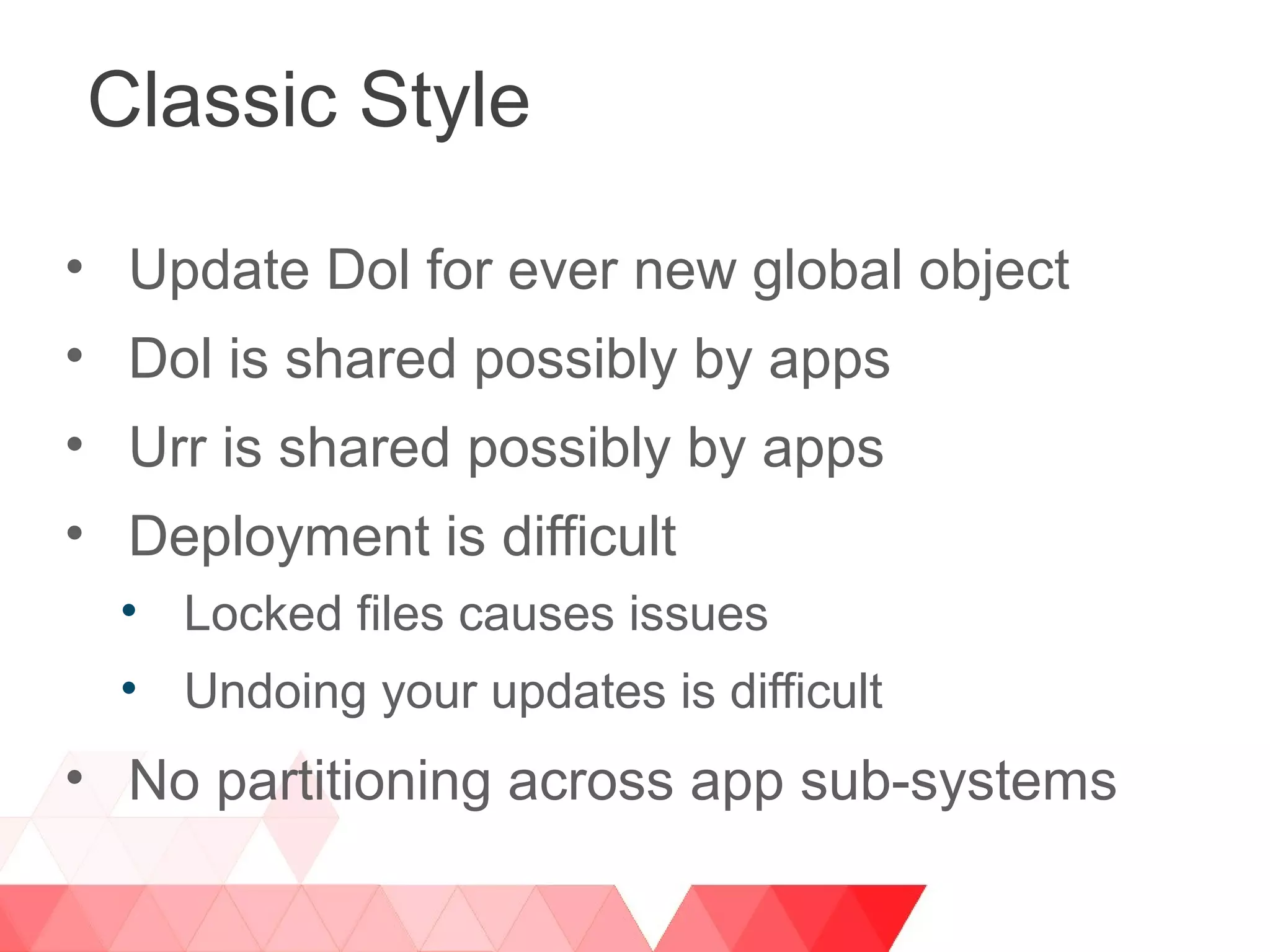

- 5. Classic Style • Update Dol for ever new global object • Dol is shared possibly by apps • Urr is shared possibly by apps • Deployment is difficult • Locked files causes issues • Undoing your updates is difficult • No partitioning across app sub-systems

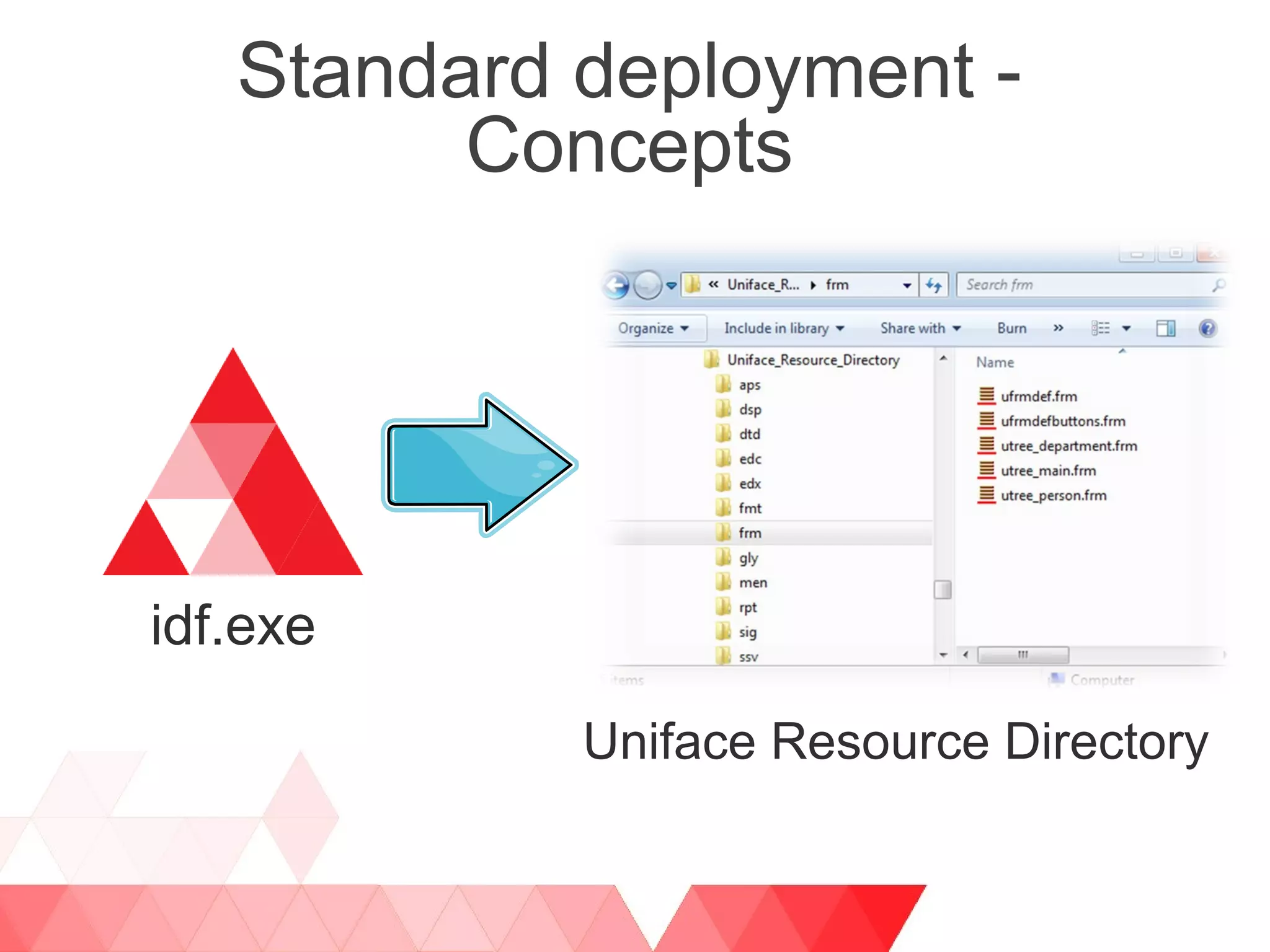

- 6. Standard deployment - Concepts Uniface Resource Directory idf.exe

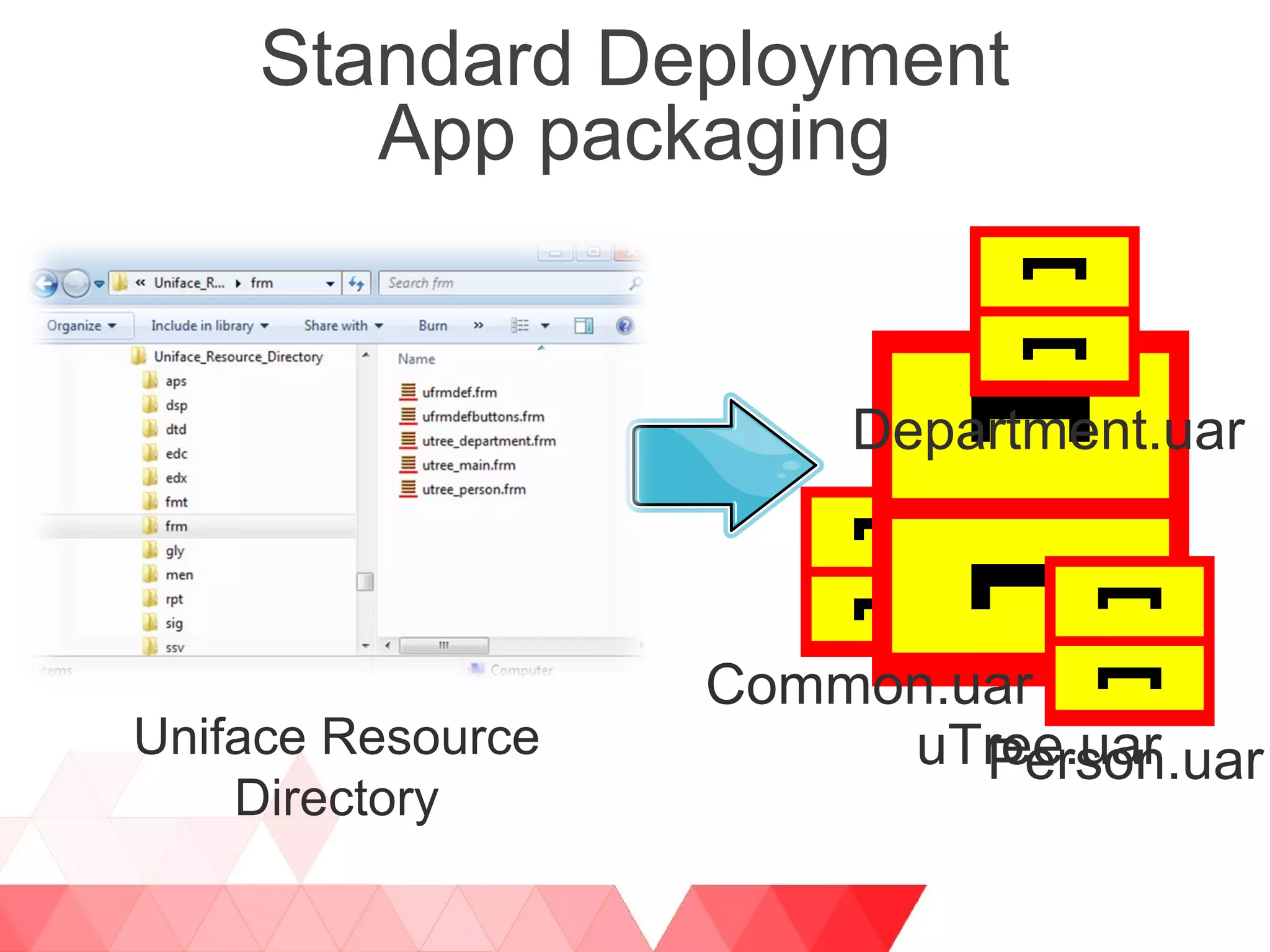

- 7. Standard Deployment App packaging uTree.uar Common.uar Person.uar Department.uar Uniface Resource Directory

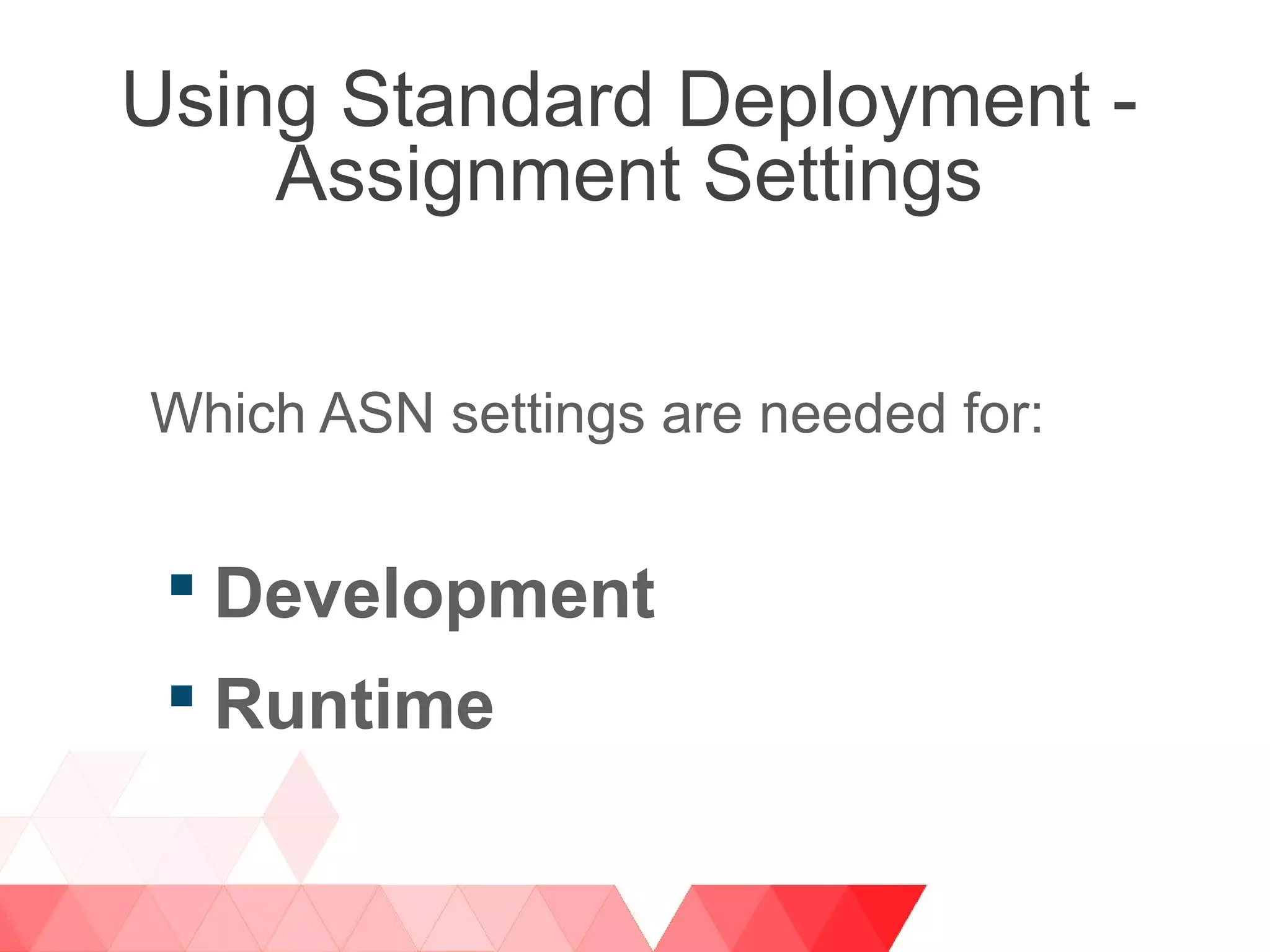

- 8. Using Standard Deployment - Assignment Settings Which ASN settings are needed for: Development Runtime

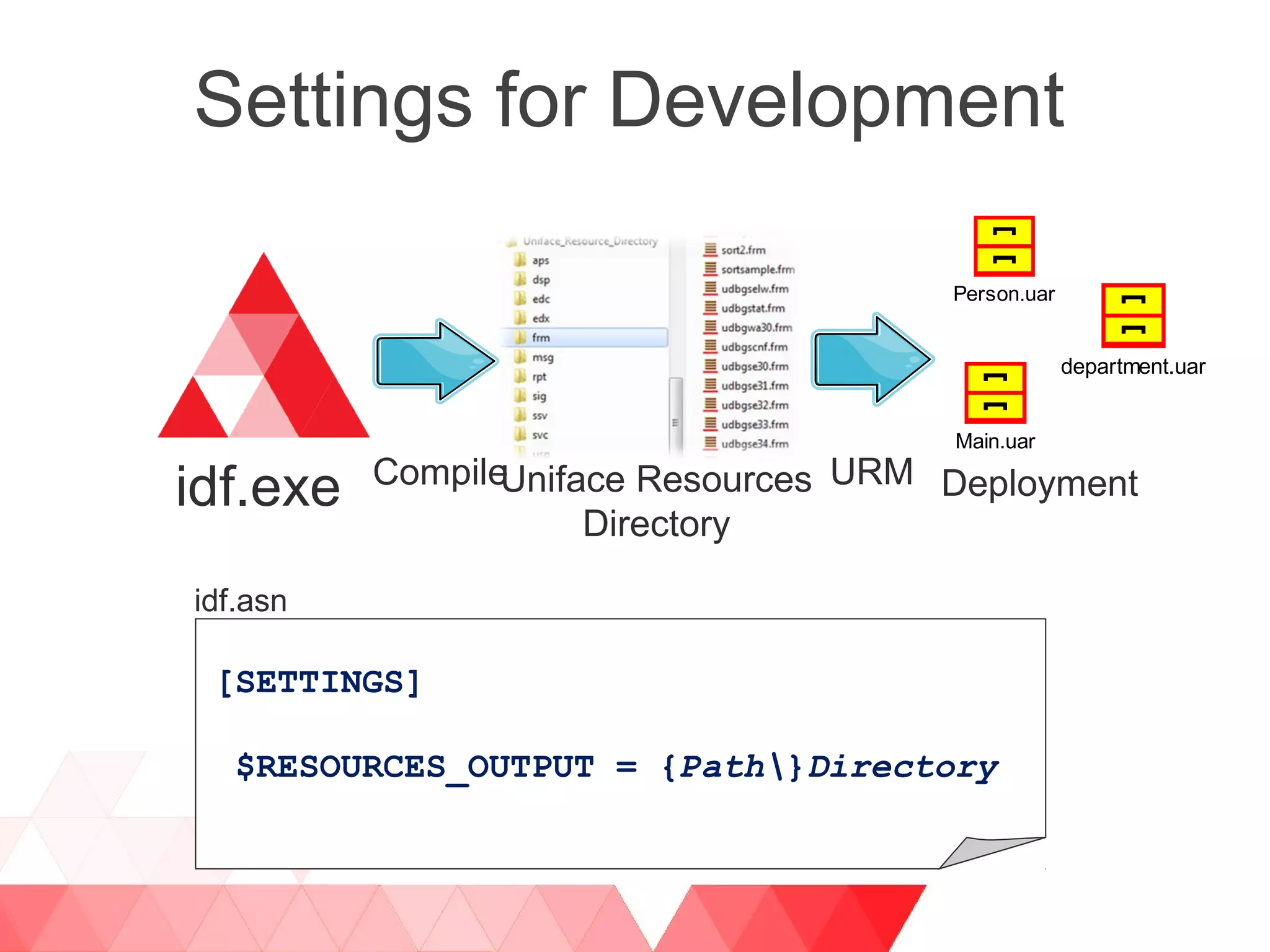

- 9. Settings for Development Person.uar idf.asn [SETTINGS] $RESOURCES_OUTPUT = {Path}Directory Main.uar CompileUniface Resources Directory Deployment department.uar URM idf.exe

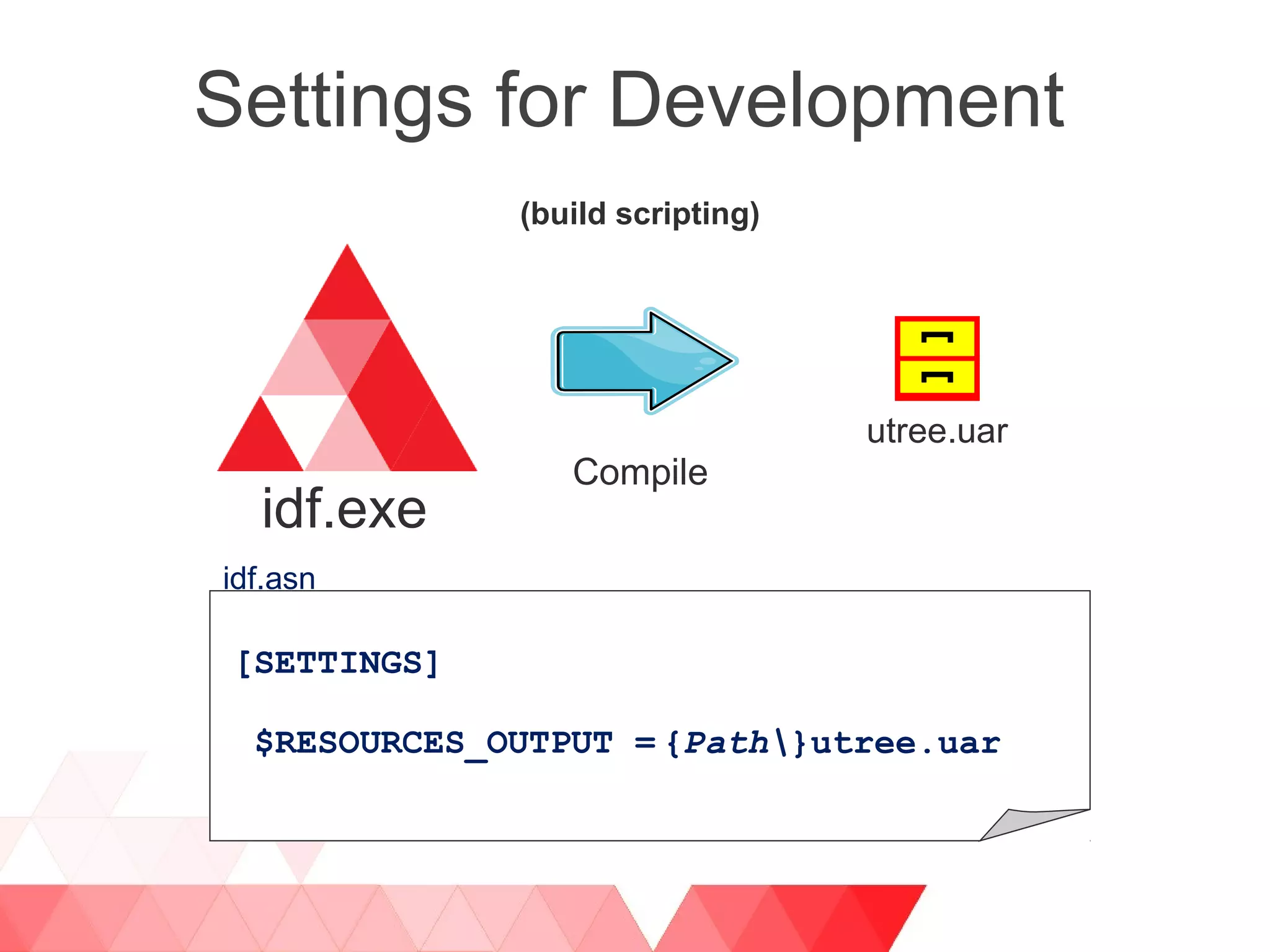

- 10. $RESOURCES_OUTPUT = (build scripting) idf.asn [SETTINGS] {Path}utree.uar utree.uar Compile idf.exe Settings for Development

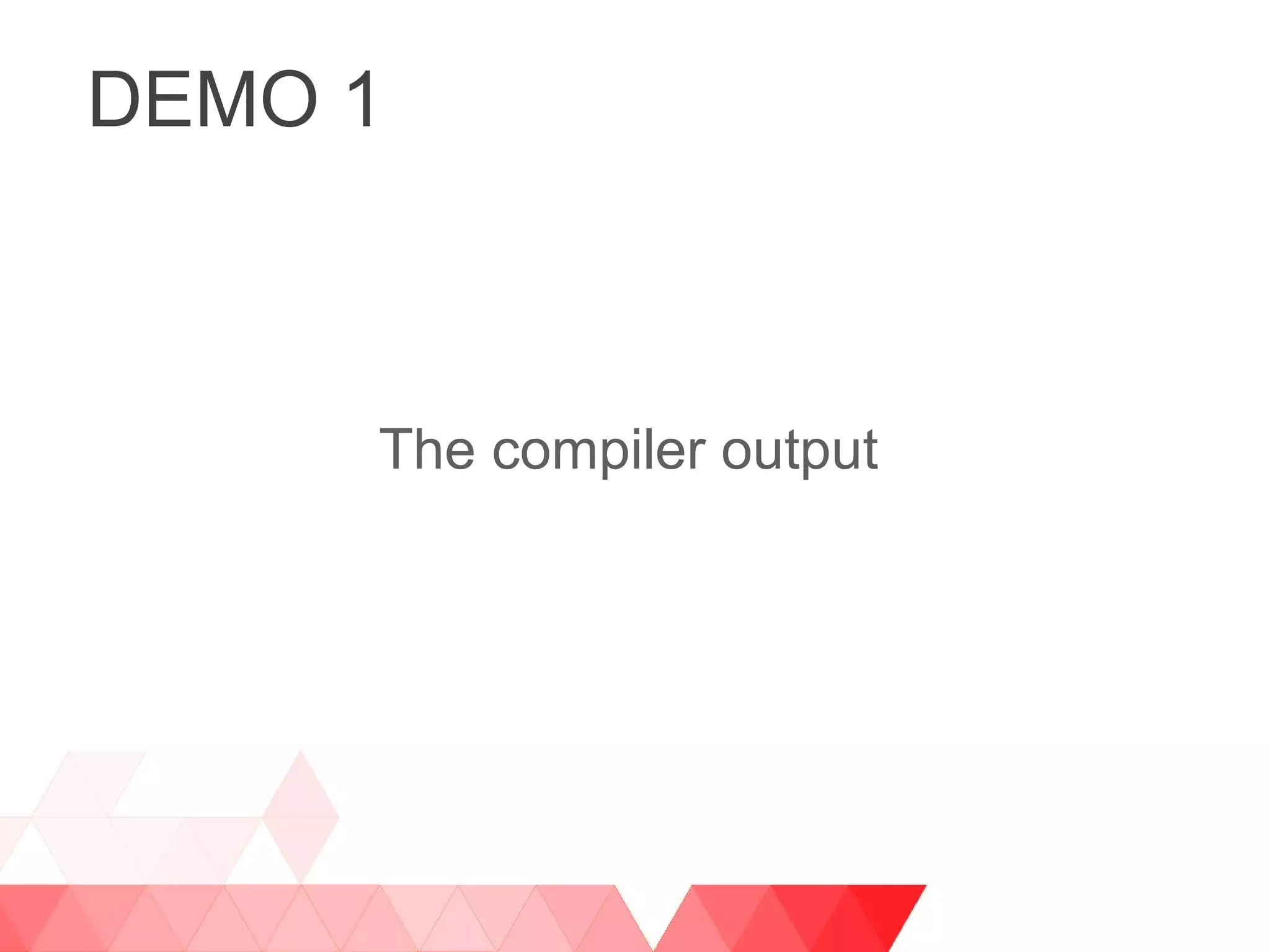

- 11. DEMO 1 The compiler output

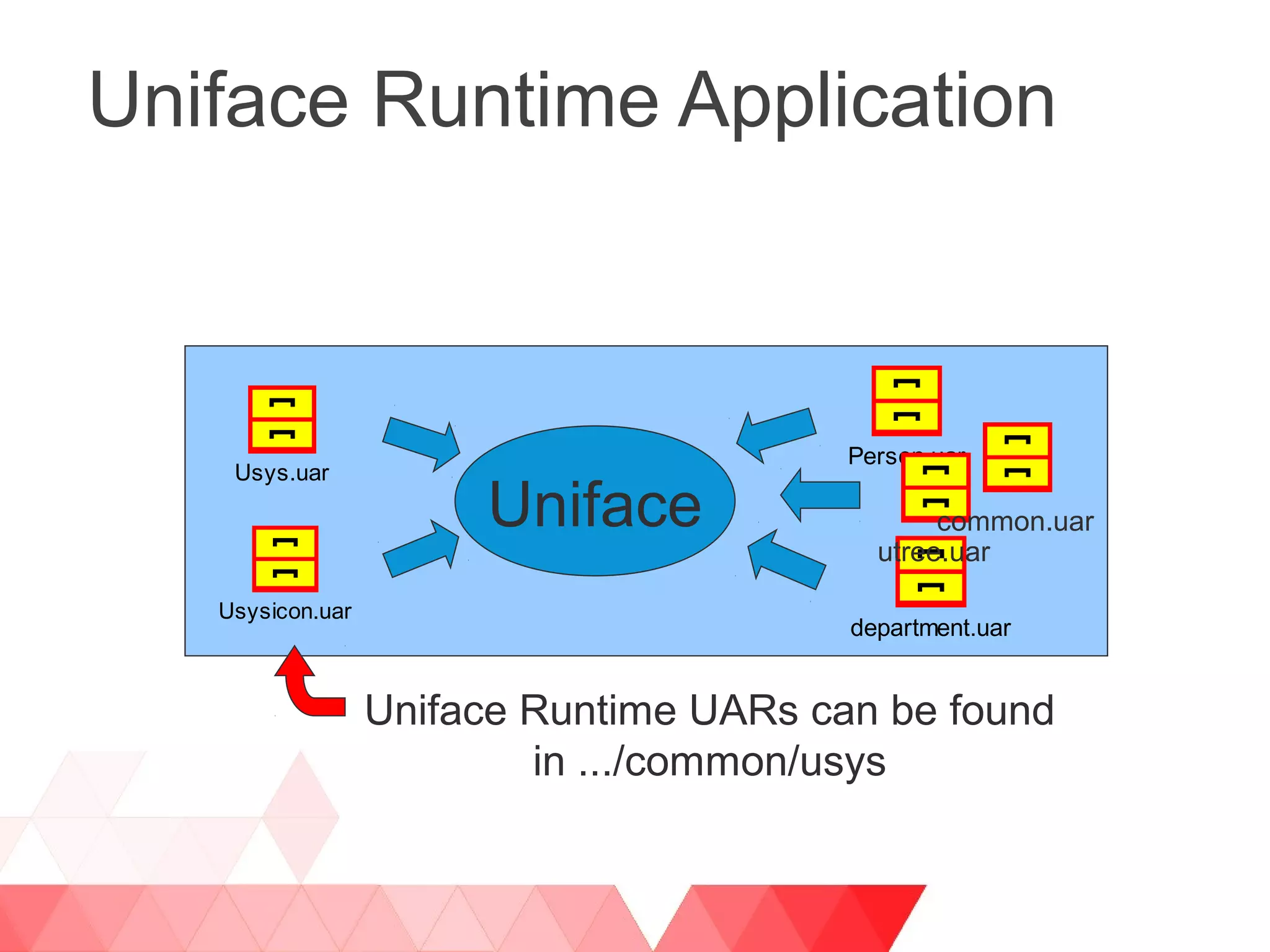

- 12. Uniface Runtime Application Uniface Usys.uar Usysicon.uar department.uar Person.uar Uniface Runtime UARs can be found in .../common/usys utree.uar common.uar

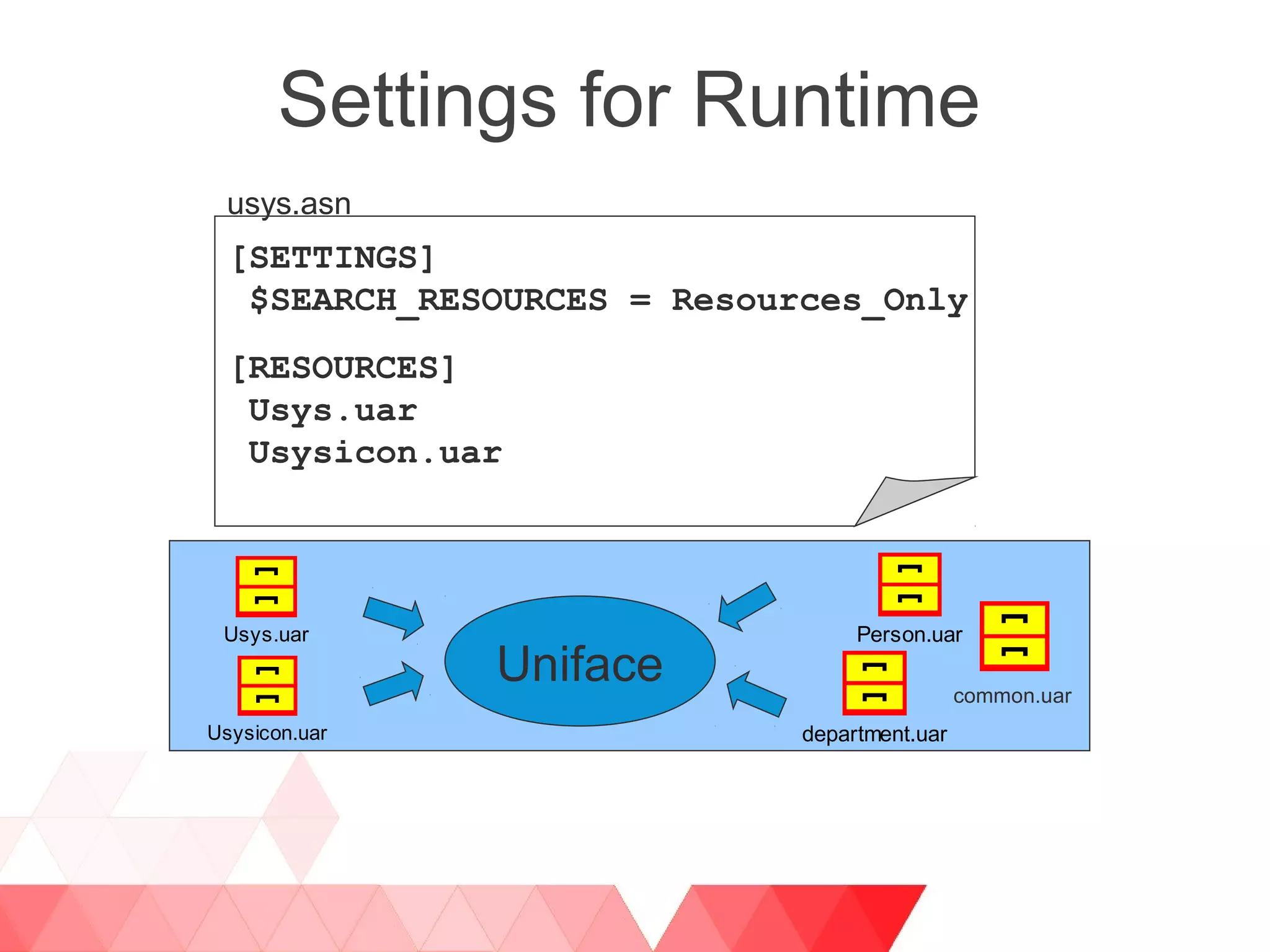

- 13. Settings for Runtime Uniface Usys.uar Usysicon.uar department.uar Person.uar [SETTINGS] $SEARCH_RESOURCES = Resources_Only usys.asn [RESOURCES] Usys.uar Usysicon.uar common.uar

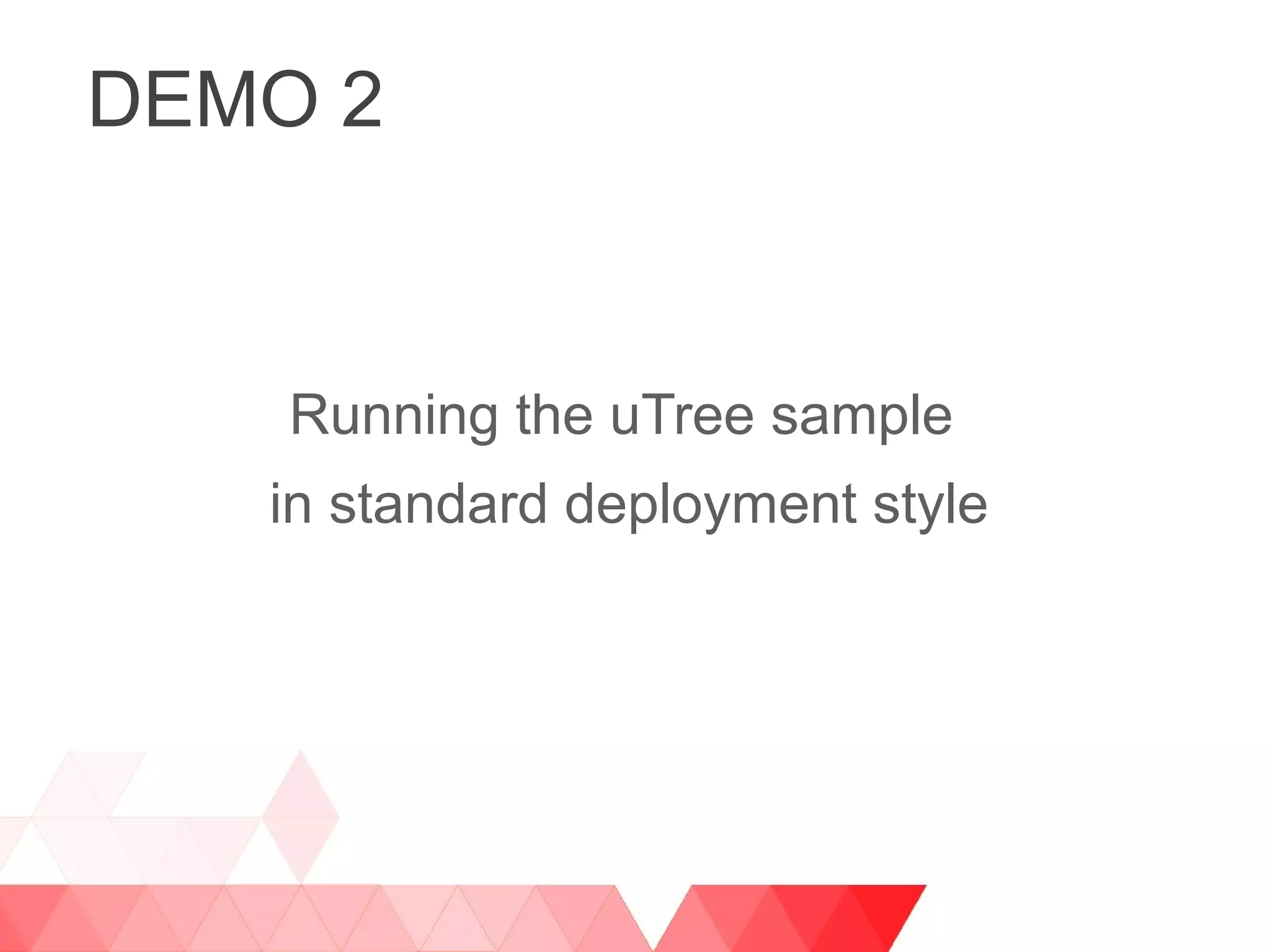

- 15. DEMO 2 Running the uTree sample in standard deployment style

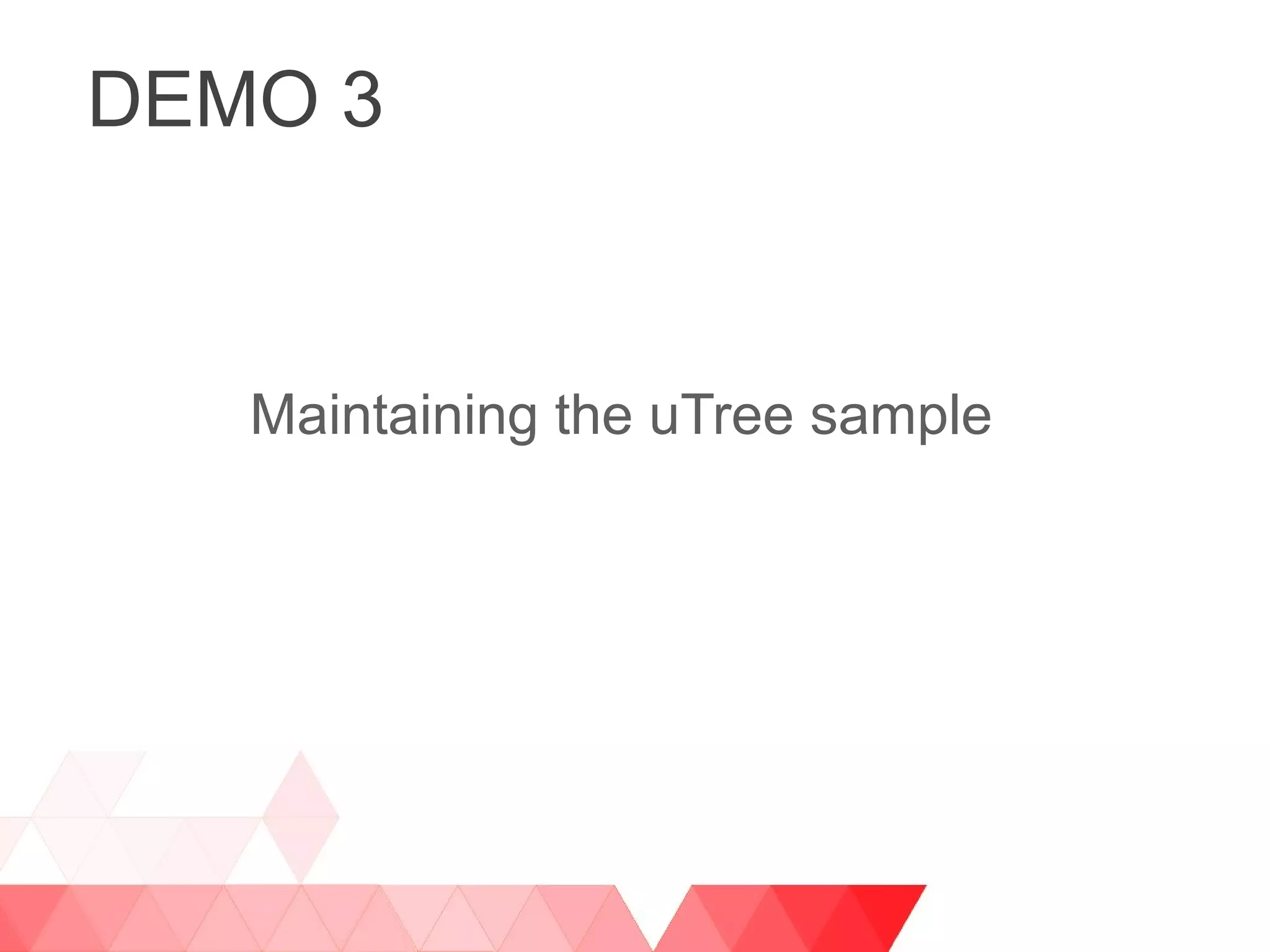

- 17. DEMO 3 Maintaining the uTree sample
- 18. IDF to standard deployment [SETTINGS] $search_descriptor DBMS_FIRST $enhanced_edit all $putmess_logfile D:builduniface9w2klogidf.log $search_resources Resources_only $resources_output Uniface_Resource_Directory [FILES] usys:*.xml usysuniface:misc*.xml usys:idf.aps usysuniface:componentsidf.aps usys:uu*.frm usysuniface:componentsuu*.frm usys:uu*.svc usysuniface:componentsuu*.svc common:uu*.frm usys:..componentsuu*.frm common:uu*.svc usys:..componentsuu*.svc common:ur*.svc usys:..componentsur*.svca [PATHS] [ENTITIES] [USER_3GL] [RESOURCES] Uniface_Resource_Directory usys:uidf.uar usys:usys.uar usys:usysicon.uar
- 19. DEMO 4 IDF setup

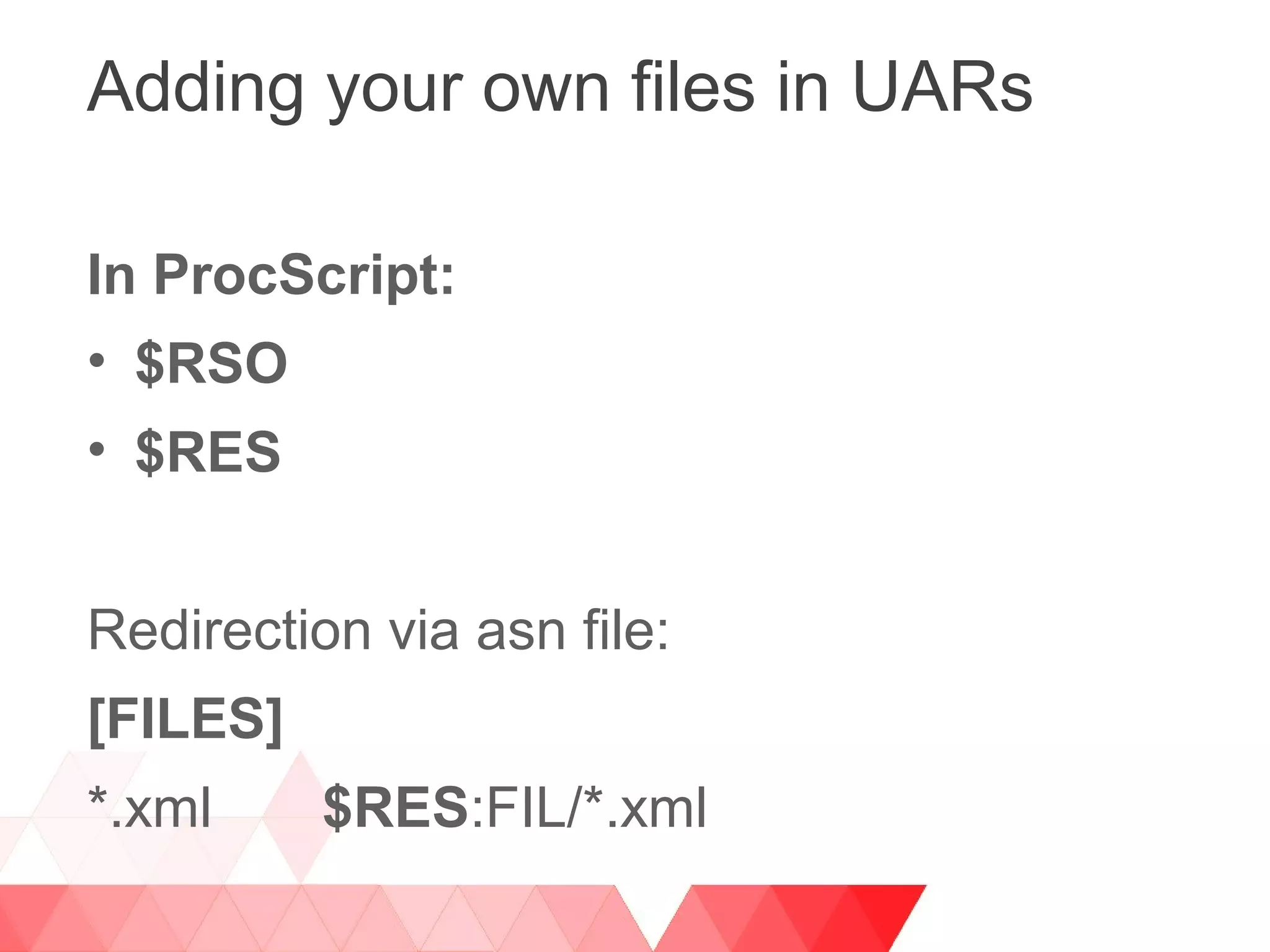

- 20. Adding your own files in UARs In ProcScript: • $RSO • $RES Redirection via asn file: [FILES] *.xml $RES:FIL/*.xml

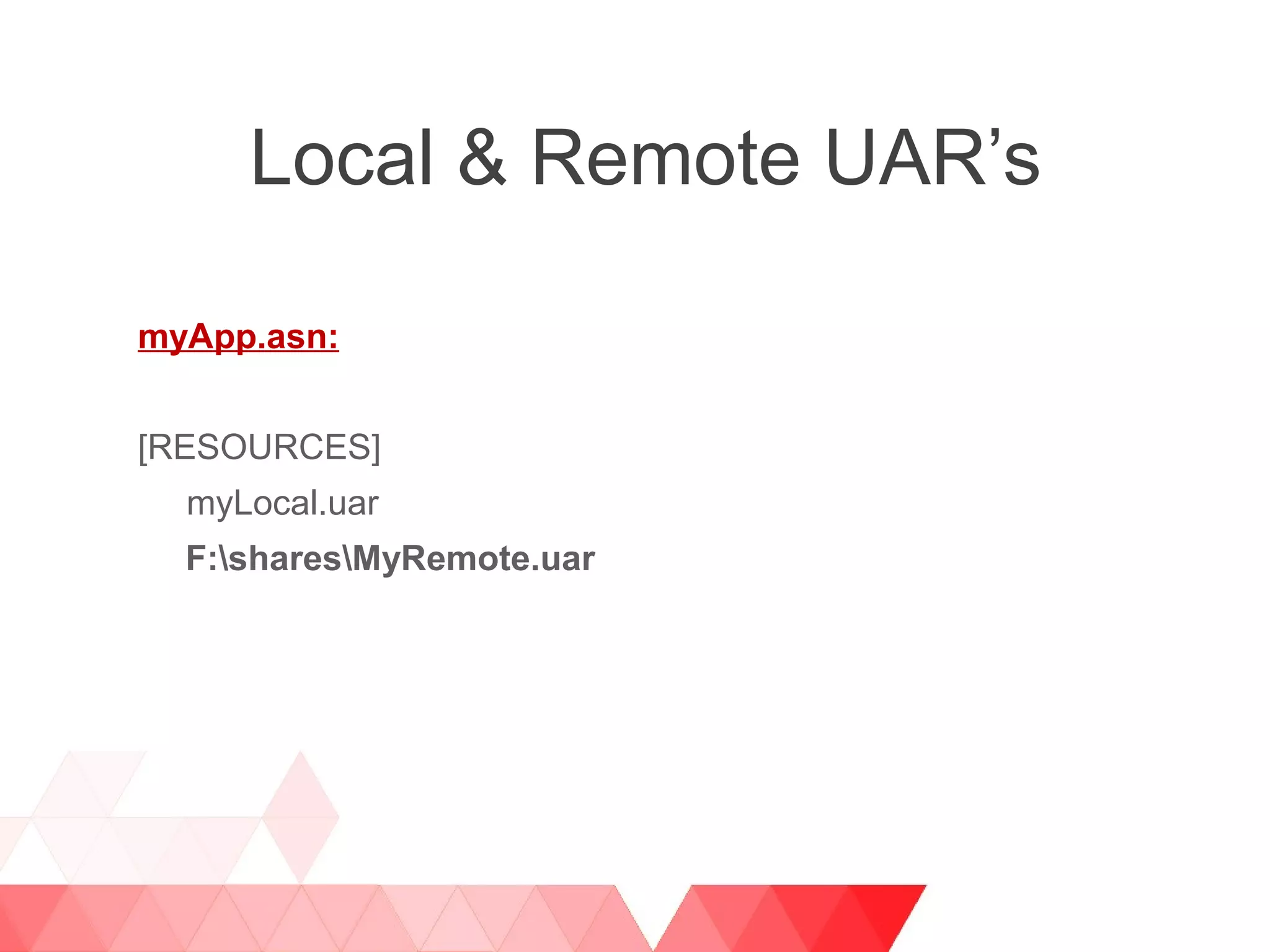

- 21. Local & Remote UAR’s myApp.asn: [RESOURCES] myLocal.uar F:sharesMyRemote.uar

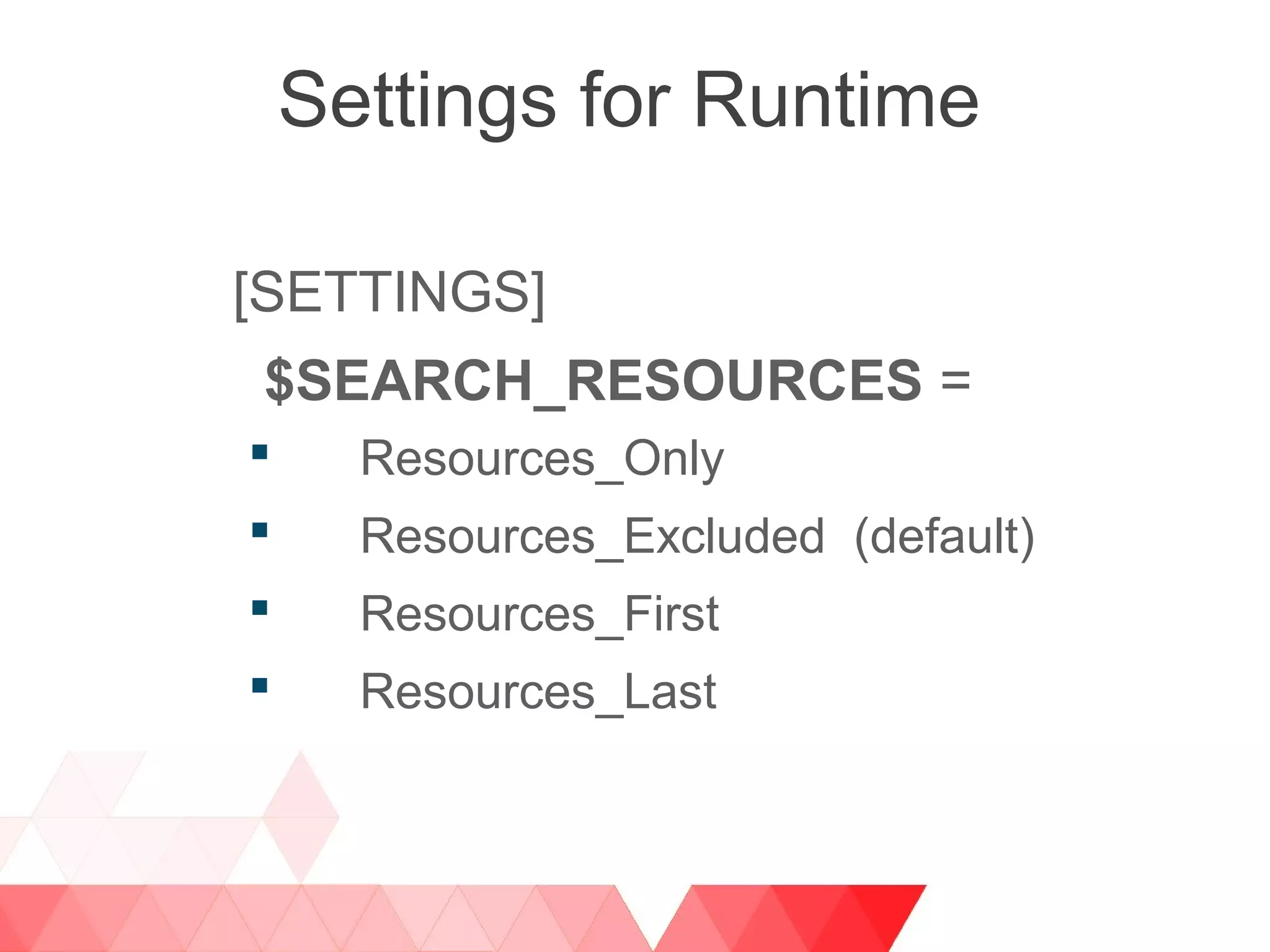

- 22. Settings for Runtime [SETTINGS] $SEARCH_RESOURCES = Resources_Only Resources_Excluded (default) Resources_First Resources_Last

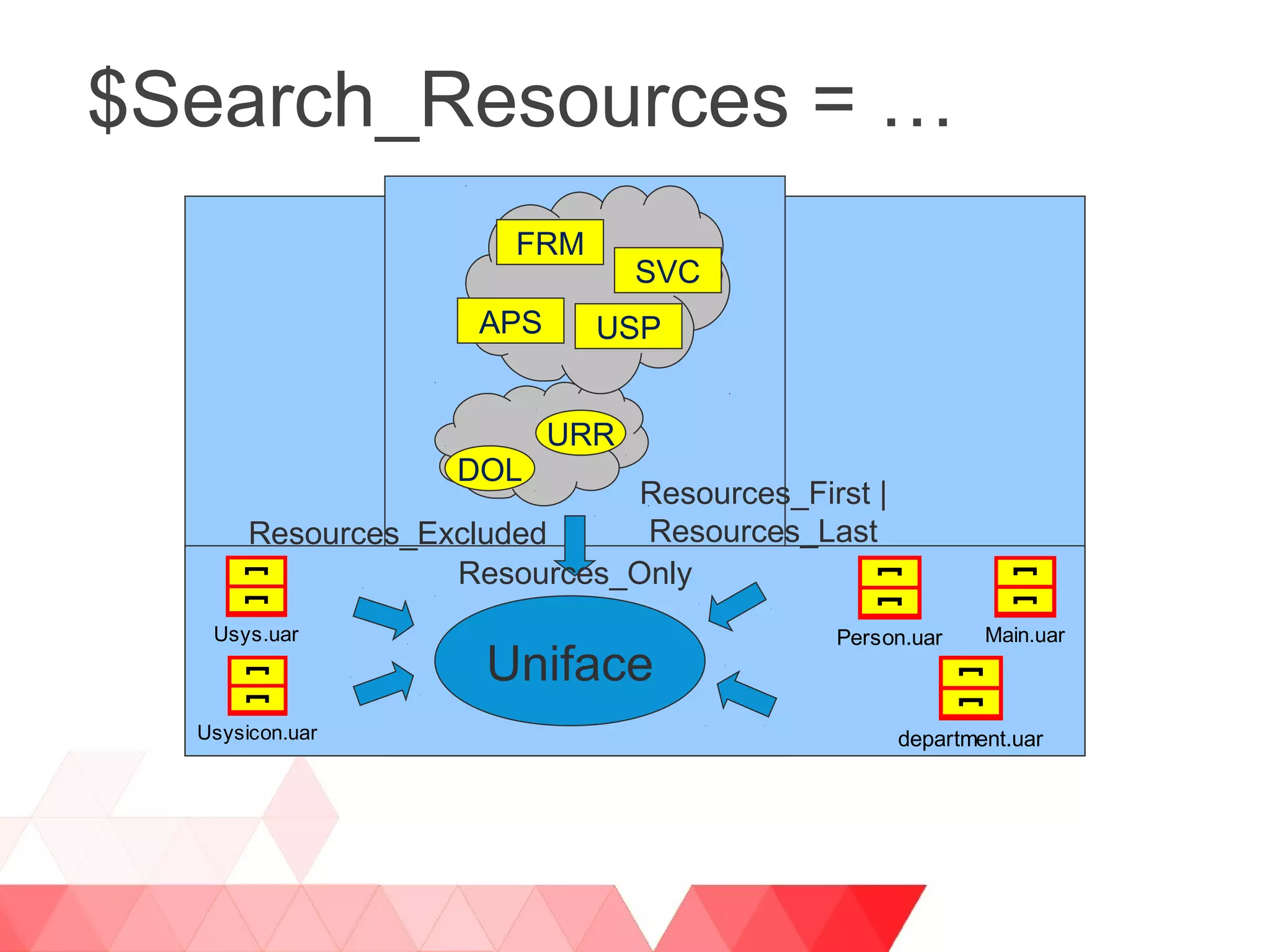

- 23. $Search_Resources = … Uniface Usys.uar Usysicon.uar department.uar Main.uarPerson.uar FRM USP SVC DOL URR APS Resources_Only Resources_Excluded Resources_First | Resources_Last

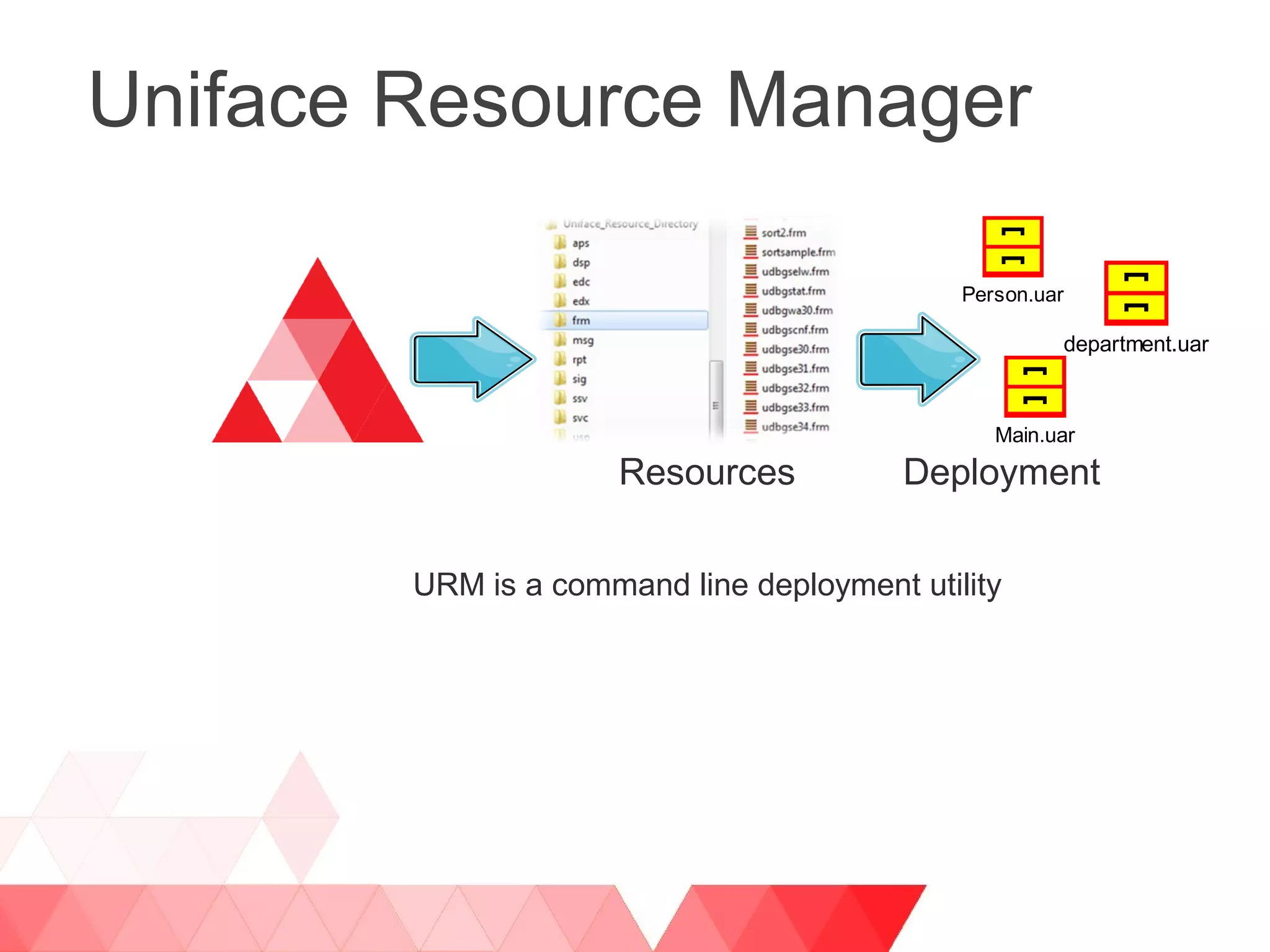

- 24. Uniface Resource Manager Person.uar Main.uar Resources Deployment department.uar URM is a command line deployment utility

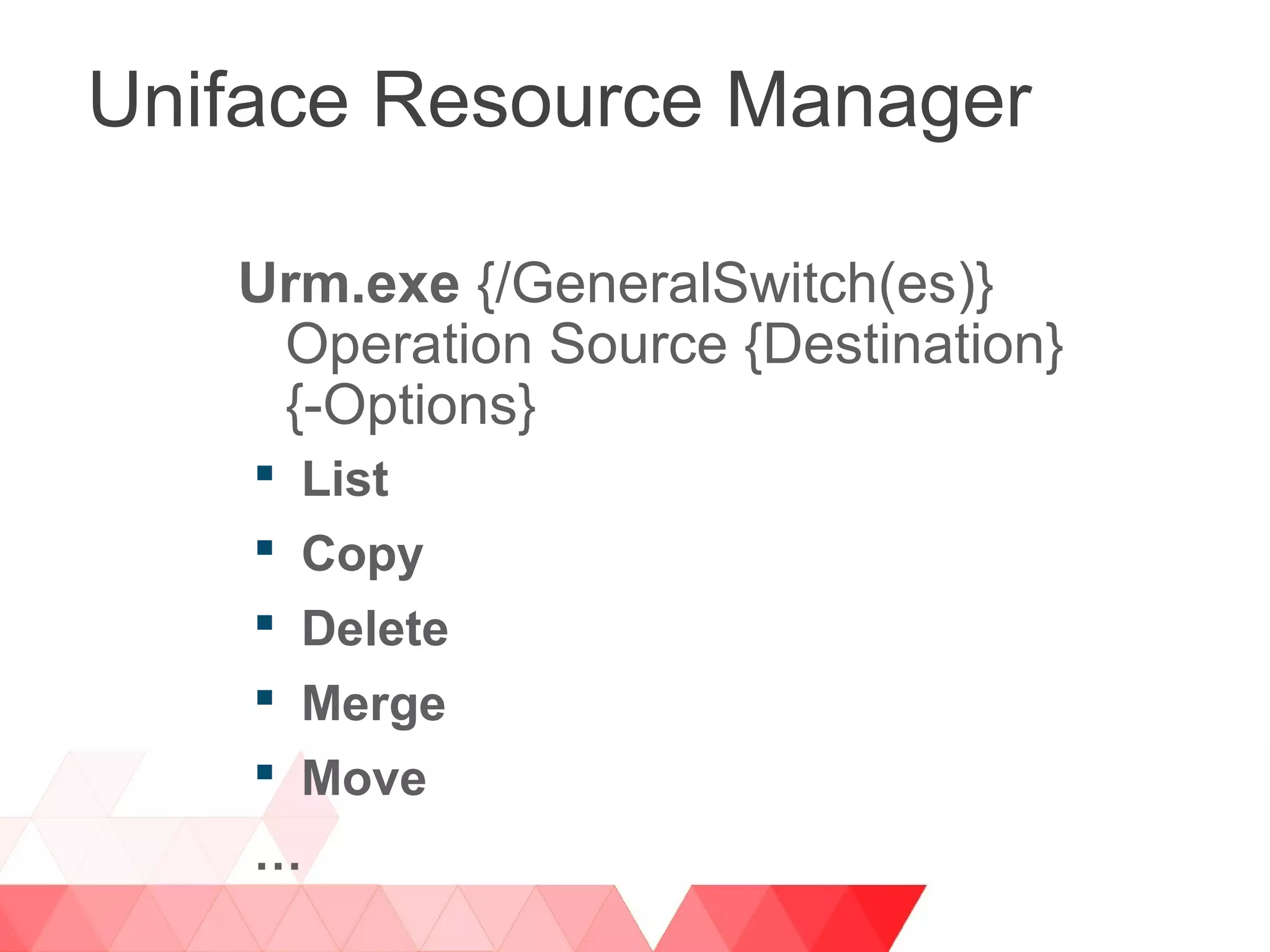

- 25. Uniface Resource Manager Urm.exe {/GeneralSwitch(es)} Operation Source {Destination} {-Options} List Copy Delete Merge Move …

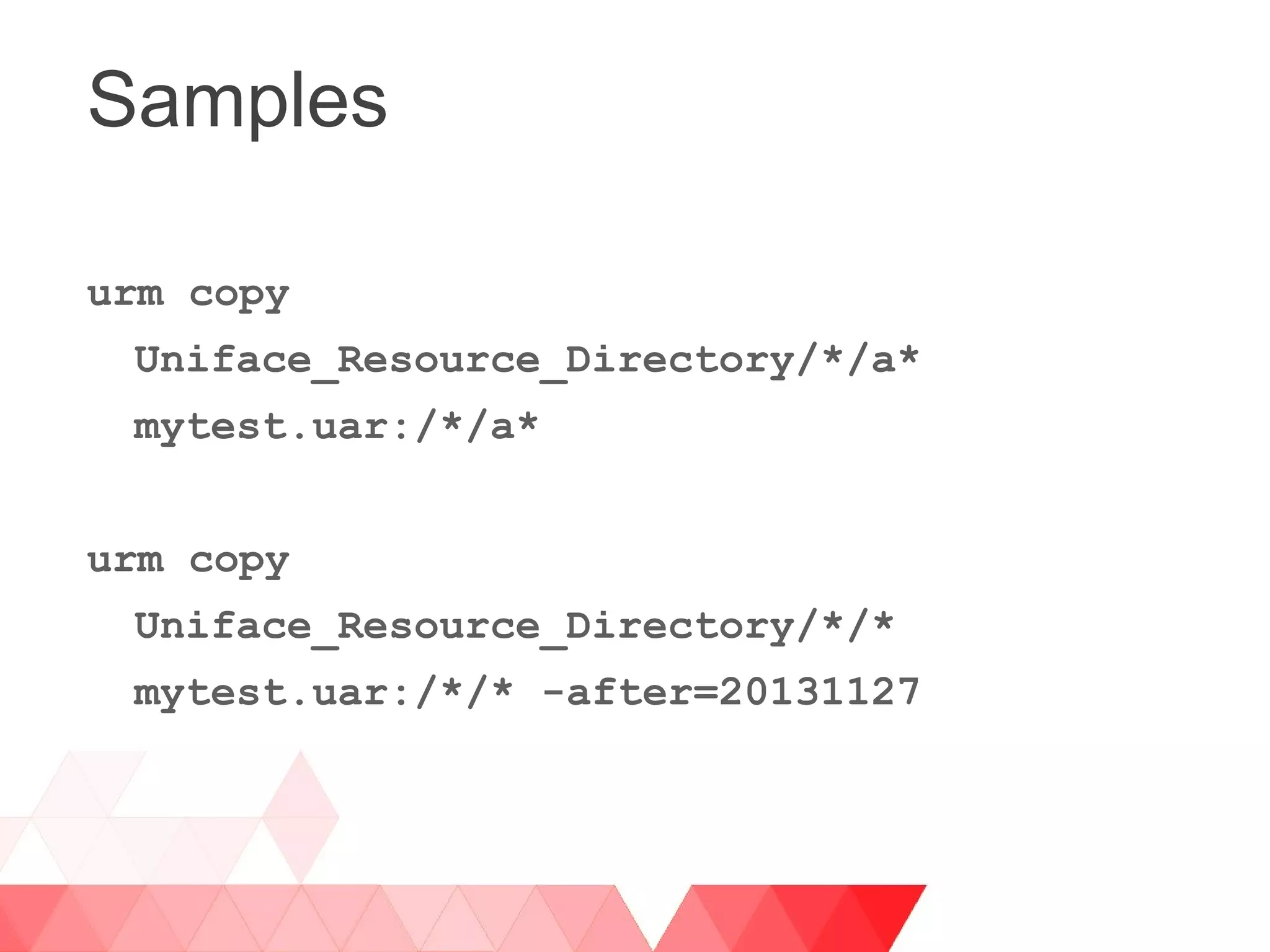

- 26. Samples urm copy Uniface_Resource_Directory/*/a* mytest.uar:/*/a* urm copy Uniface_Resource_Directory/*/* mytest.uar:/*/* -after=20131127

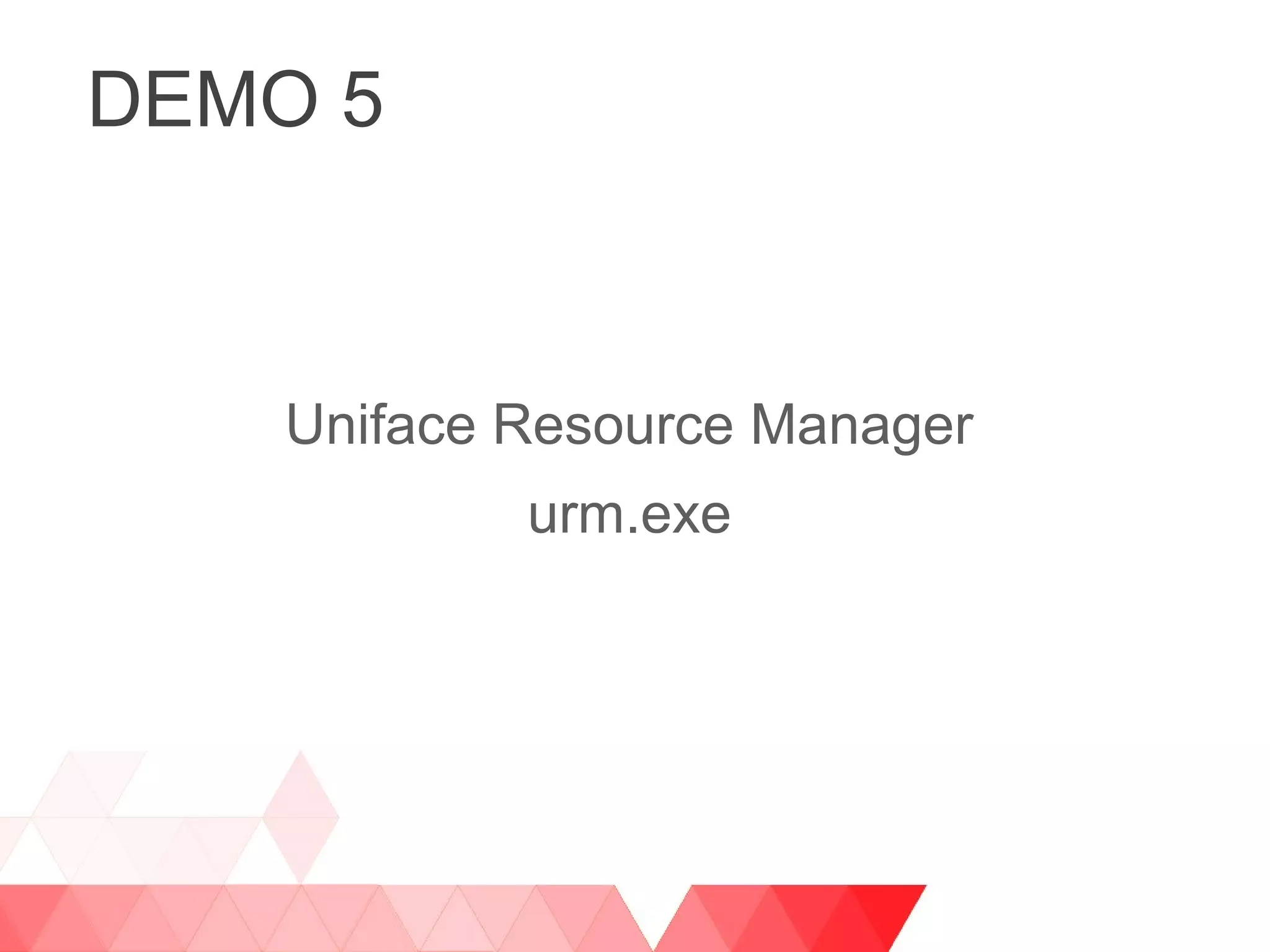

- 27. DEMO 5 Uniface Resource Manager urm.exe

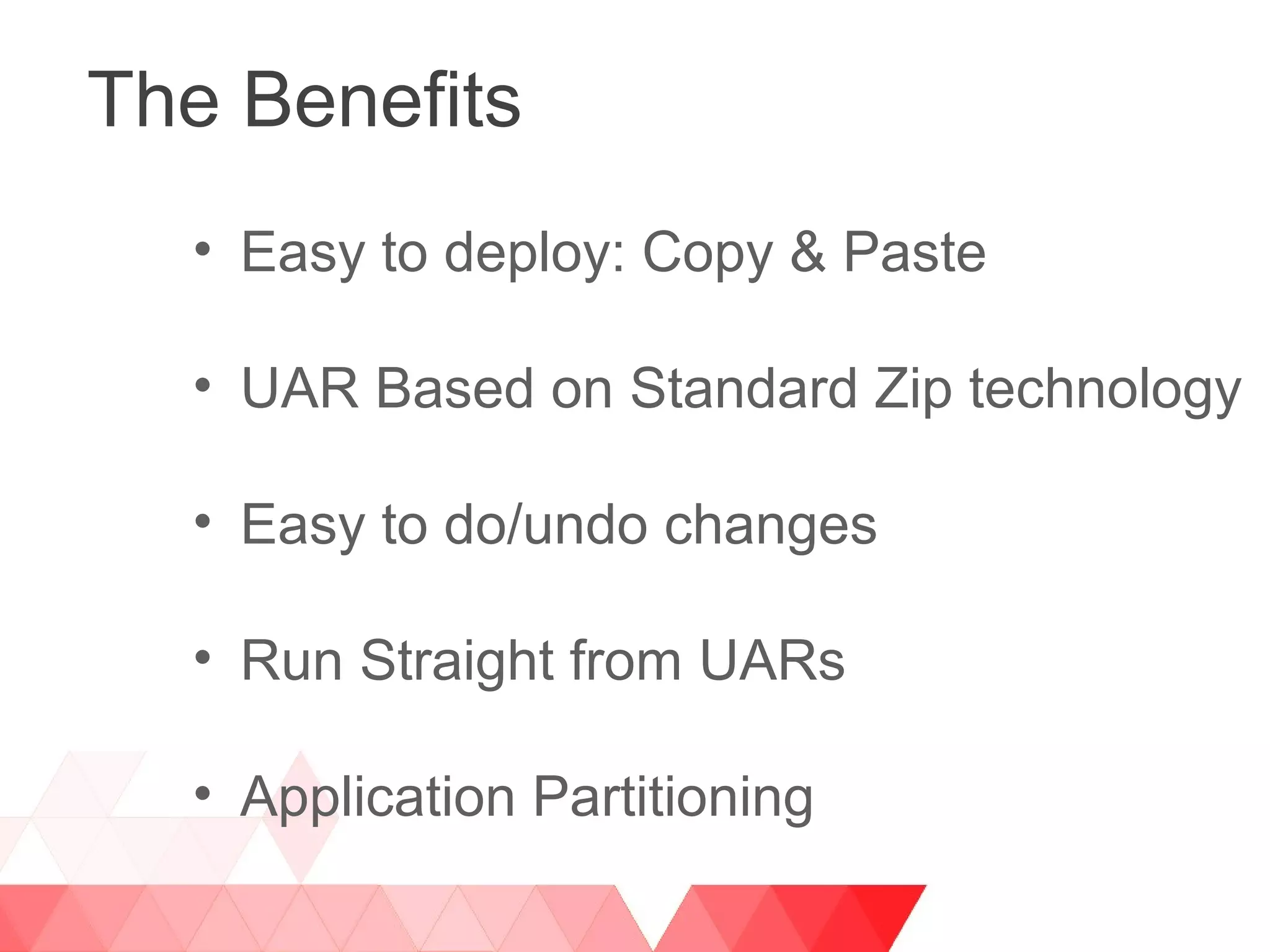

- 28. The Benefits • Easy to deploy: Copy & Paste • UAR Based on Standard Zip technology • Easy to do/undo changes • Run Straight from UARs • Application Partitioning

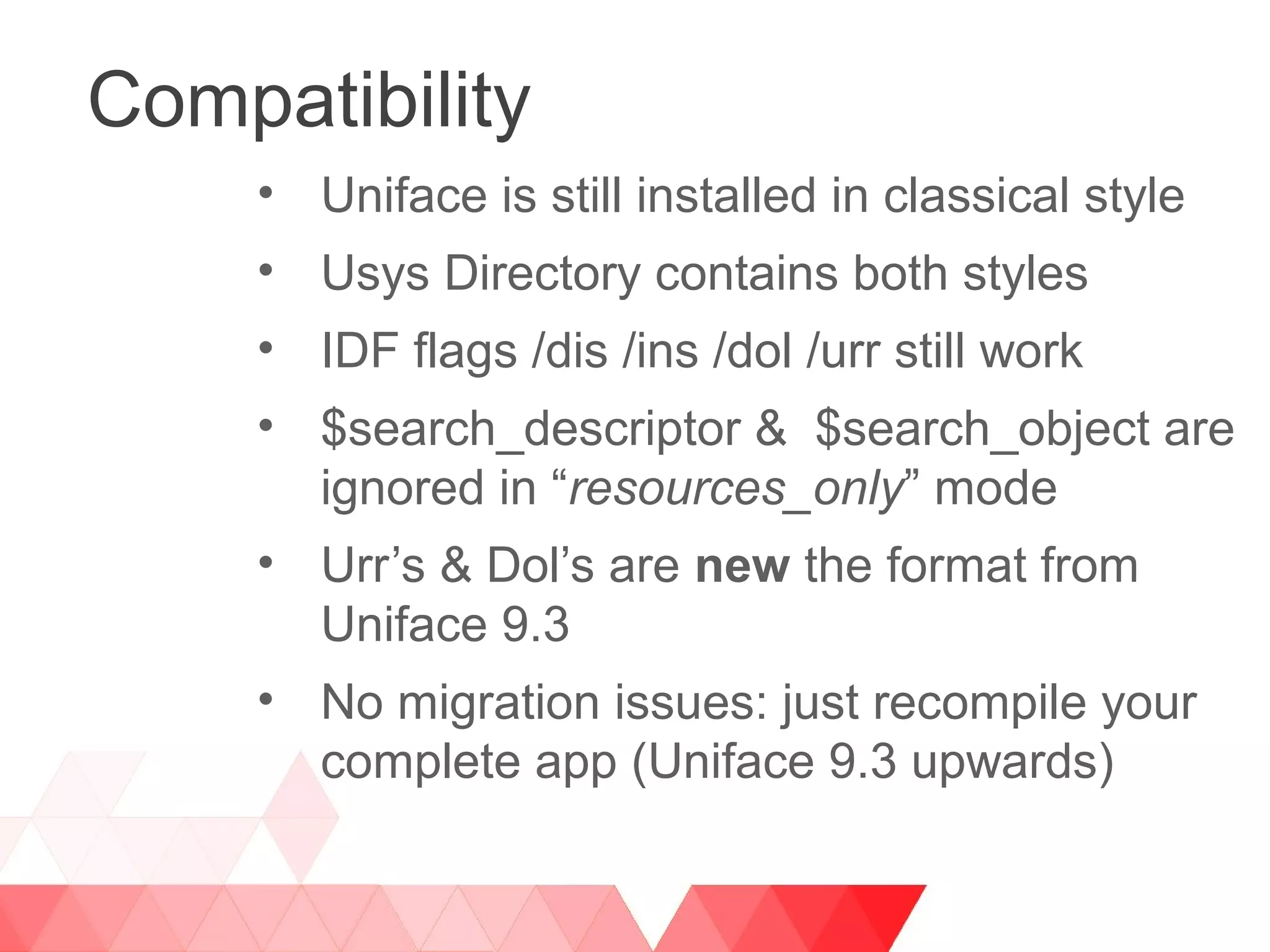

- 29. Compatibility • Uniface is still installed in classical style • Usys Directory contains both styles • IDF flags /dis /ins /dol /urr still work • $search_descriptor & $search_object are ignored in “resources_only” mode • Urr’s & Dol’s are new the format from Uniface 9.3 • No migration issues: just recompile your complete app (Uniface 9.3 upwards)

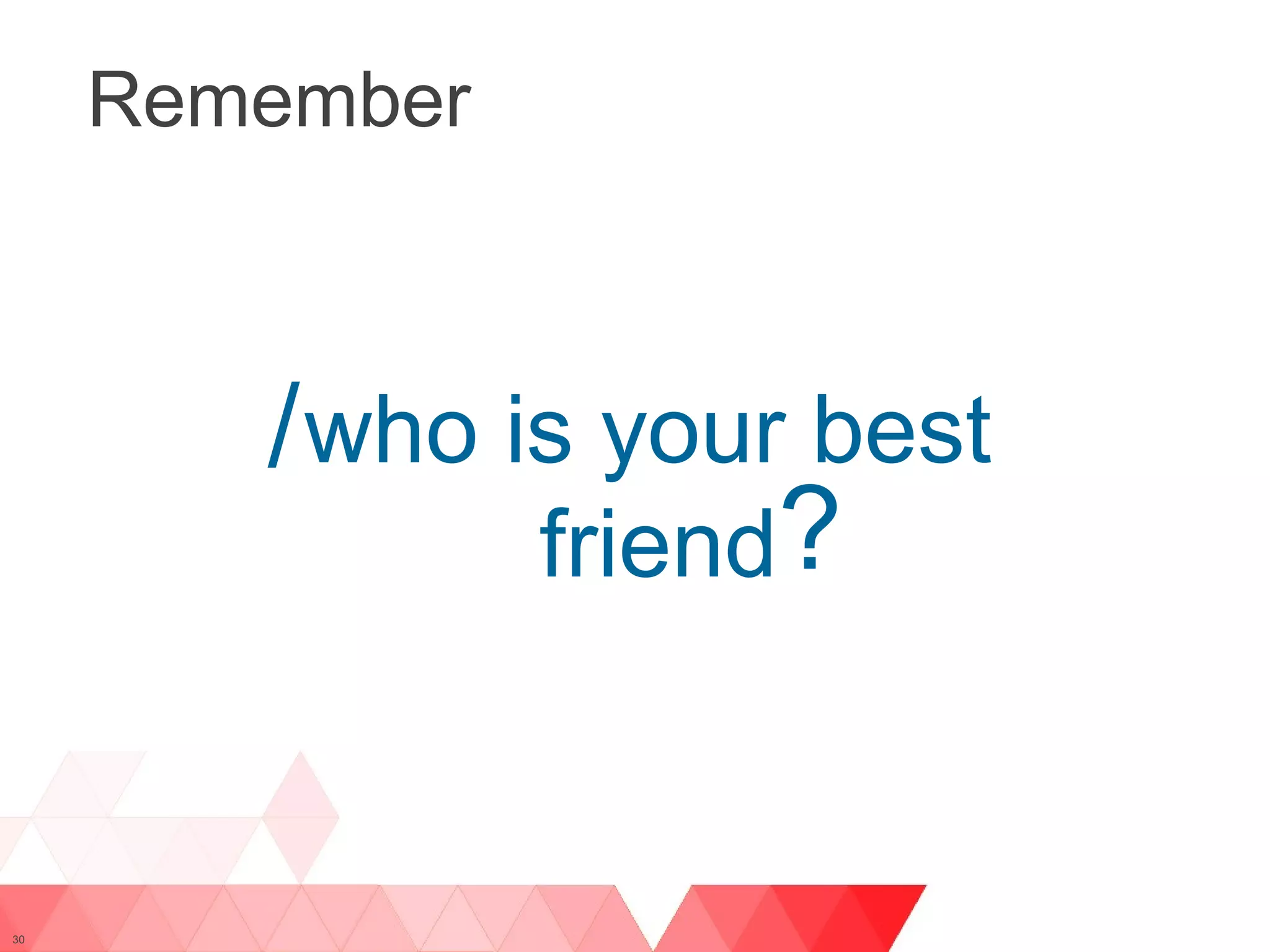

- 30. Remember who is your best friend 30 / ?

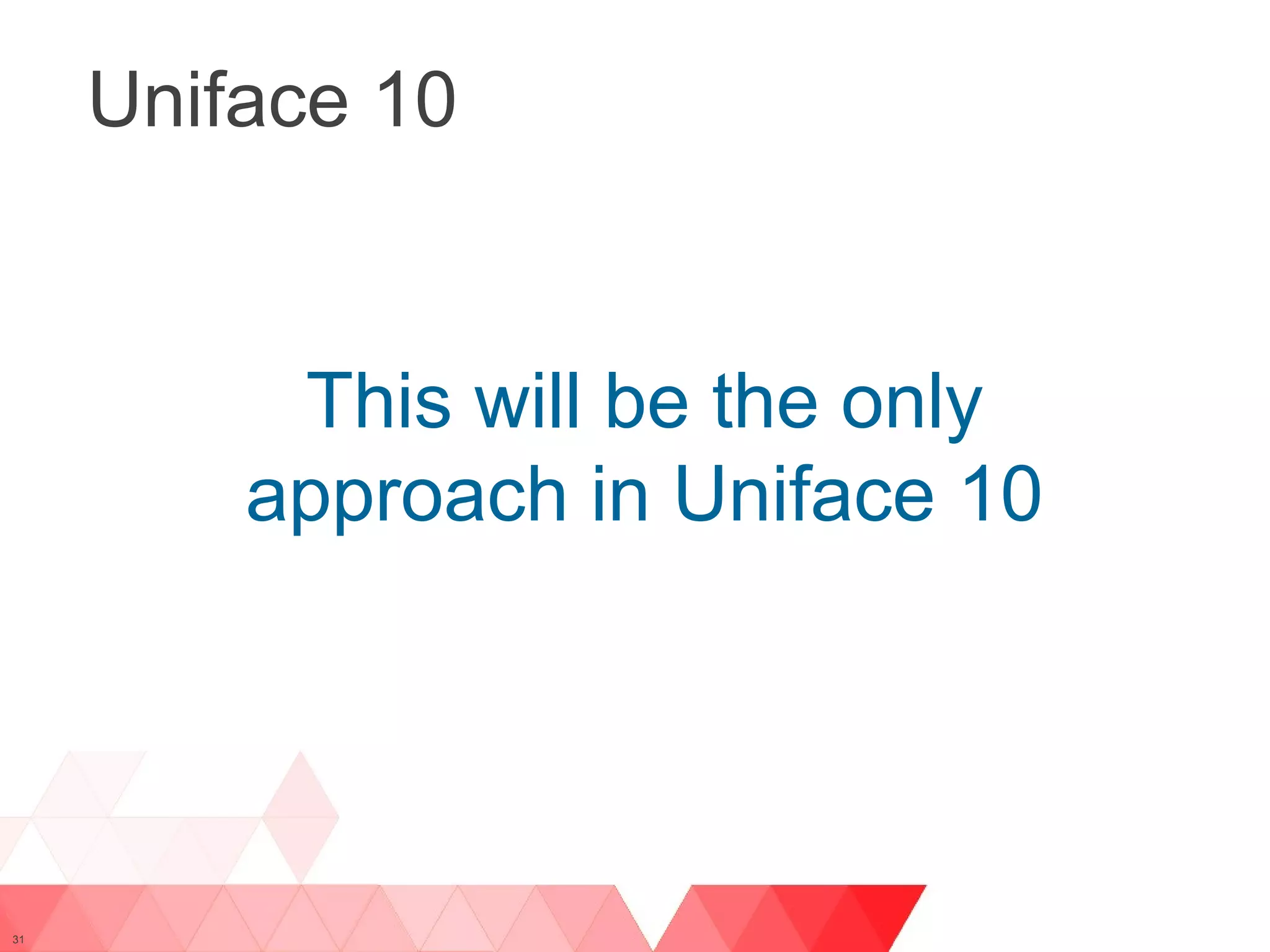

- 31. Uniface 10 31 This will be the only approach in Uniface 10
- 32. Thank you!
Editor's Notes
- How to Move to Standard Deployment What ASN settings are needed What is needed for Development and what for Deployment I will tell you about the Uniface Resource Manager command line utility And the Compatibility issues

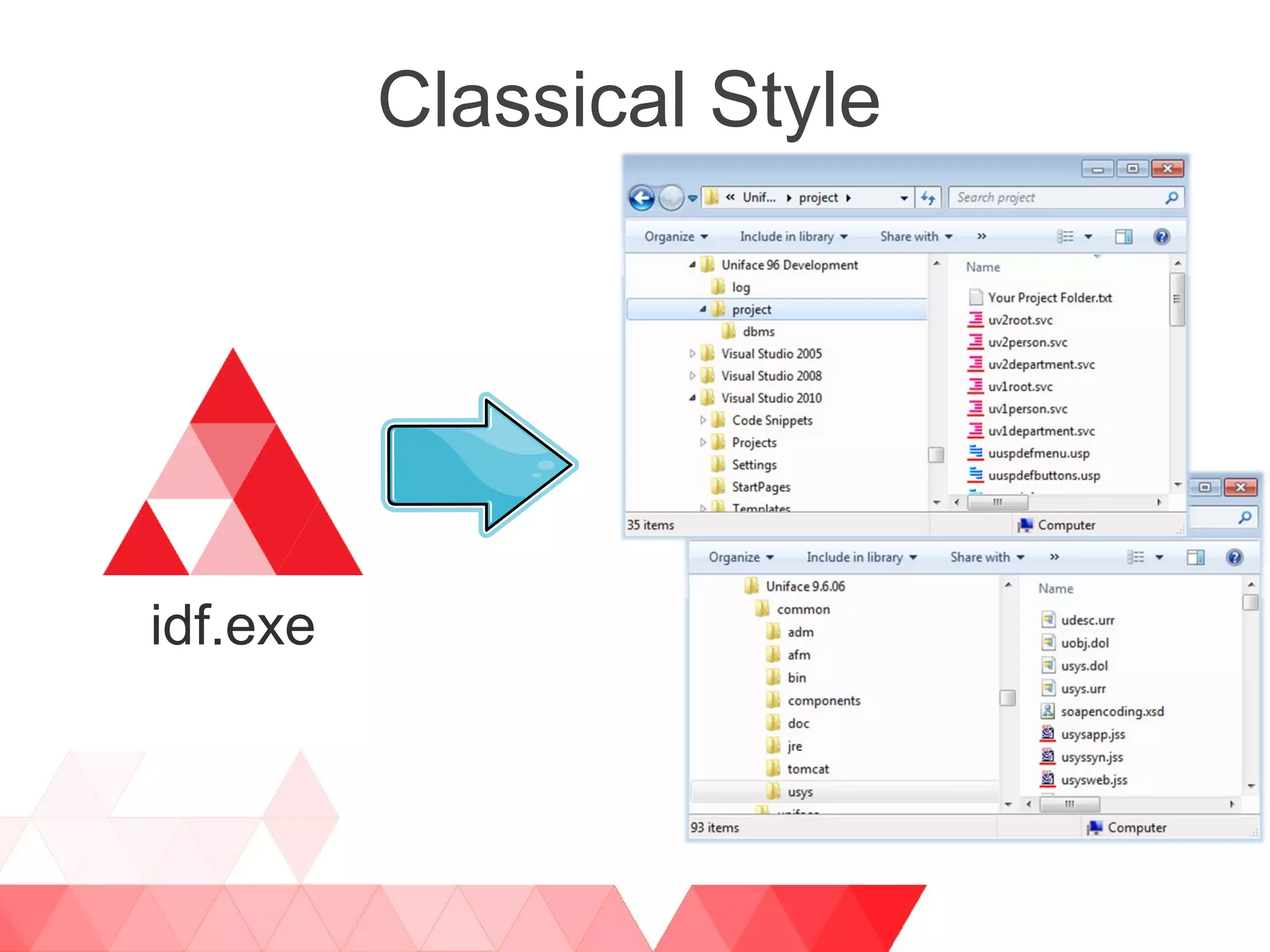

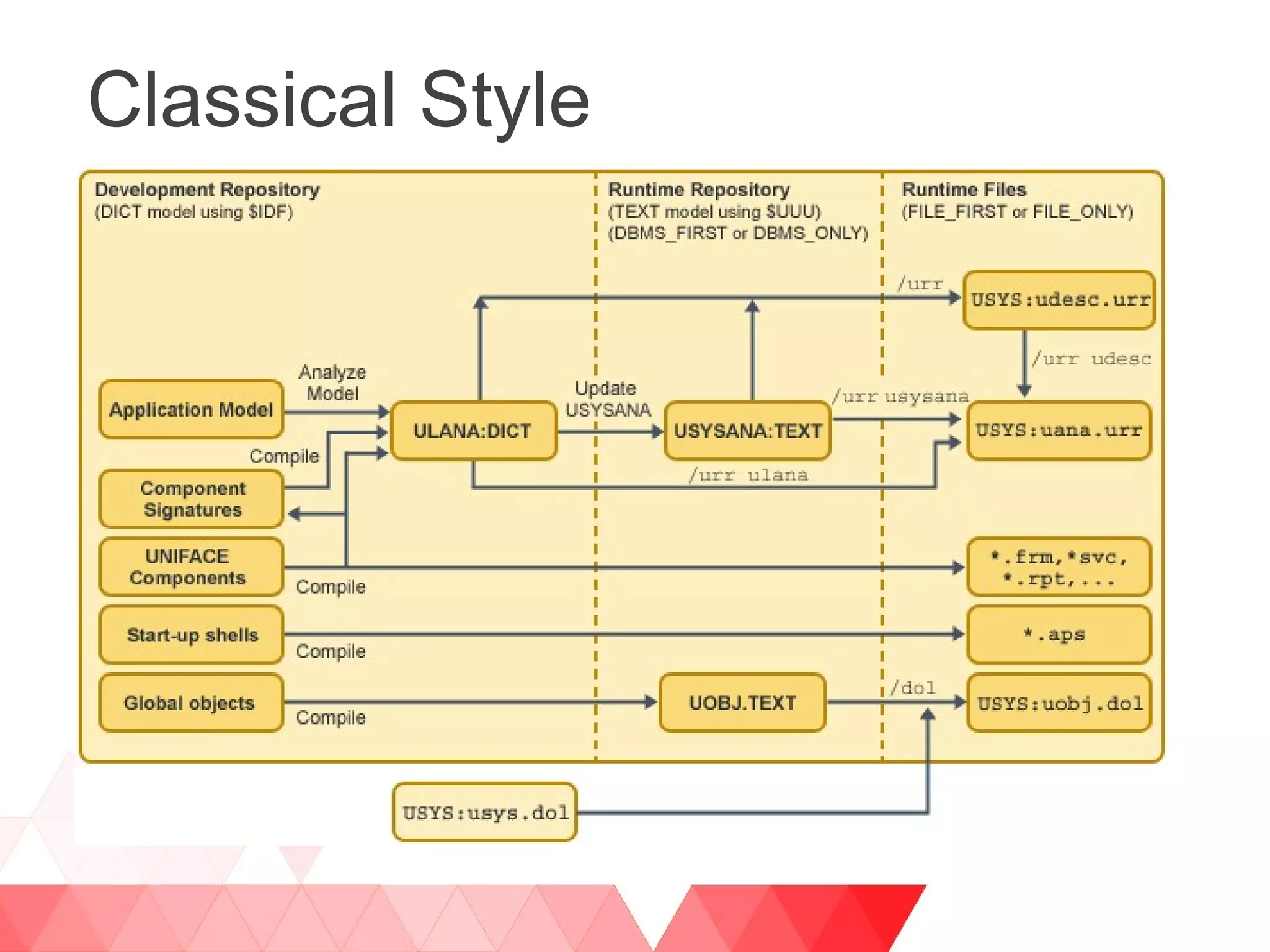

- Let’s start with this illustration . This is the classical style of the Uniface 9 development repository as it comes out of the box. This illustration shows how information flows from entities in the Development Repository to corresponding database entities in the Runtime Repository, and to files in the runtime environment. Point out: You see your Development repository your Runtime repository and your runtime Files Entity and component descriptors (signatures) are in ULANA—take occurrences from the table ULANA.DICT. (local) USYSANA—take occurrences from the table USYSANA.TEXT. (global) Global objects can be compiled to the Repository (UOBJ.TEXT) and then moved to uobj.dol, or they can be compiled to resource files on the file system. The order of reading this information can set in your idf.asn in the setting section by: URR => $SEARCH_DESCRIPTOR DOL => $SEARCH_OBJECT DOL: contains compiled global objects needed by Uniface at run time. usys.dol contains the global objects needed by Uniface itself uobj.dol contains the application-specific objects. URR udesc.urr = Entity descriptors for your local application models. uana.urr = Entity descriptors for globally available application models. For deployment, objects need to be copied into UAR files. There is no need to update uobj.dol every time you add a new global object. Storing global objects in this way makes it easier to distribute applications in a modular fashion, because global objects can be grouped into different archive files, instead of all global objects ending up in a single DOL file.
- This is an Uniface schematic picture of the classical runtime environment as you use to. So if you run the IDF with the delivered asn file settings you get dols & urrs Because of compatibility IDF is delivered in the classic style.
- The classic style has some disadvantages: You have to update your DOL for every new of changed global object. Another issue can be locking, because your DOL and URR can be shared over different apps. (clients) And if you have rollout your app changes, it is not easy to undo this changes! And the last point is that there is no partitioning possible of what you deploy. In the classic way the output of the idf is just a batch of objects. Which makes it all so difficult. Goals: New Style deployment: Simplify the distribution Make updates easier And that it is possible to partitioning to application
- The new runtime environment will be different. And will be call the standardized style. The new style also delivers the Uniface Objects. ALL objects are delivered as files in a fixed directory structure. component definition and the global object are delivered as files. Therefore in the new style you do not see dol & urr files. If you compile in the new style, nothing will be hold in the Repository/DBMS. keep in mind that this fixed structure may not be changed. Done for performance to quickly find the needed objects. And to avoid name clashes.
- From your Uniface resource directory you can create Uniface Runtime Archives. The directory Structure is compressed and Called UAR’s The UAR is not a private implementations file-structures. It is based on a ZIP standard technology Deployment utility UARs is not new in Uniface but in 9.3 it is changed! These do not have to be unpacked. You can run your apps directly from an archive file. You can run your application from a single UAR or subdivided as you wish. So you can “Partitioning’ your application
- For the standard deployment you need to add some settings. $Resources_output is the setting which switch the output of the compiler to the new style.
- Compiler output straight into a UAR Very handy if you already build your applications by script. (patches)
- I will use an Uniface Tree sample /all => show old output RESOURCES_OUTPUTUniface_Resource_Directory RESOURCES_OUTPUTutree.uar
- What about the runtime You can run directly from an archive (you do not have to unpack the UAR) What todo for the runtime: Just add the UARs in the ASN file So, No object in the dictionary, all in the directory structure. No UOBJ.TEXT or ULANA.DICT or USYSANA.TEXT No components are read from /components or /usys
- What do you have todo to set op the standardized environment. (NEW style) What I do is always set the default settings in the usys.asn Explain the picture: [resources] contains ALL information you need on runtime. Read from top down So, No object in the dictionary, all in the directory structure. No UOBJ.TEXT or ULANA.DICT or USYSANA.TEXT
- What do you have todo to set op the standardized environment. (NEW style) Explain the picture: [resources] contains ALL information you need on runtime. Read from top down So, No object in the dictionary, all in the directory structure. No UOBJ.TEXT or ULANA.DICT or USYSANA.TEXT Change of [resources] in asn. Next time a servers starts it will run with the new UARs.

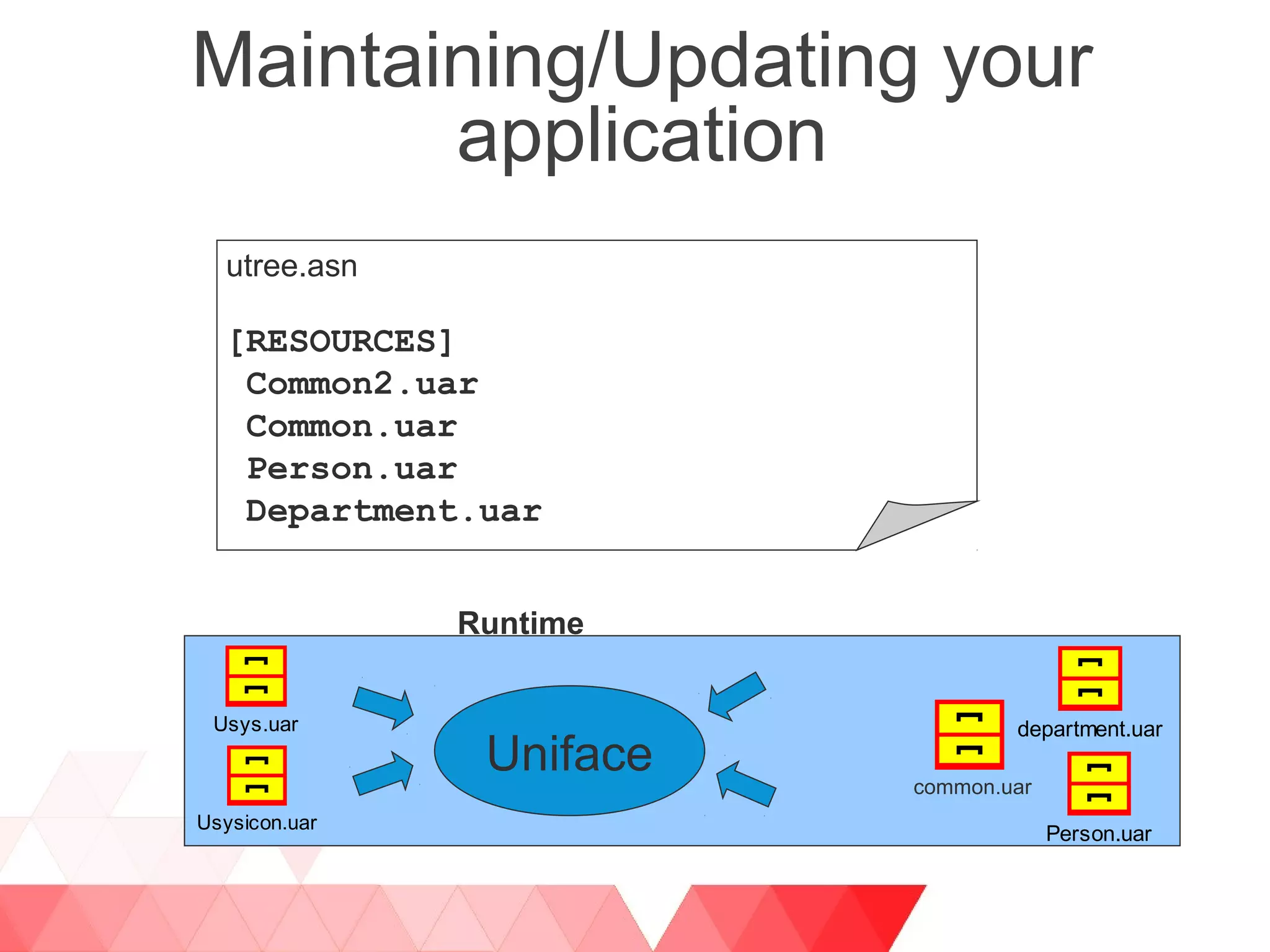

- Create / deploy a New version We will update with something like common
- For compatibility reasons we will deliver Uniface still in the old style. This will change in Uniface version 10 add Uniface_Resource_Directory to the [RESOURCES] section Emphasize that when removing, it means certain asn file lines no-longer have any effect.
- Add your own files into an UAR
- $tcp examples..
- For the runtime: You will see here 4 different settings With this switch you decide to run in old or new style OR a mixture ONLY NEW => the runtime will only run UARs Excluded => the runtime will only run in classic style (urr & dol) on UAR will be read. Via [FILES] MIX MODE => order new/old
- After this slide, add the details about the dev environment
- URM is a command line deployment utility It is to maintain UARs or to get information about their contents It runs on all Uniface Client/Server platforms
- Like WinZip Based on ASN files
- D:\build\uniface9\w2k\common\bin> urm copy ..\..\project\Uniface_Resource_Direc tory/*/* mytest.uar:/*/* -aft=20110502 Or use aft=today option
- What is in it for you: Let see step by step Deploy is just copy and past. A FIX needed, change ONLY that particular UAR You don't have to unpack the new UARs Changing the asn will automatically pick up the new uar. Change asn of a running server the next time it uses your fix You can decision what an archive contain. UAR can be used to PARTIONING your application. Can be done component based. UARs are totally flexible in storing all your Uniface objects It will be very clear what is running at the customer side, Just ask which UARs are running Standard technology you can used WinZip (open source: Zlib)
- If do decide not to use this new style of deployment. You can use everything as before. But you have to recompile all your sources!!! If you still want to use the old DOL and URR files it is still possible. The needed component for old and new style can be found in the /usys directory Keep in mind that if you running in RESOURCE_ONLY that these $search_settings are not used Old format can NOT run under 9.3
