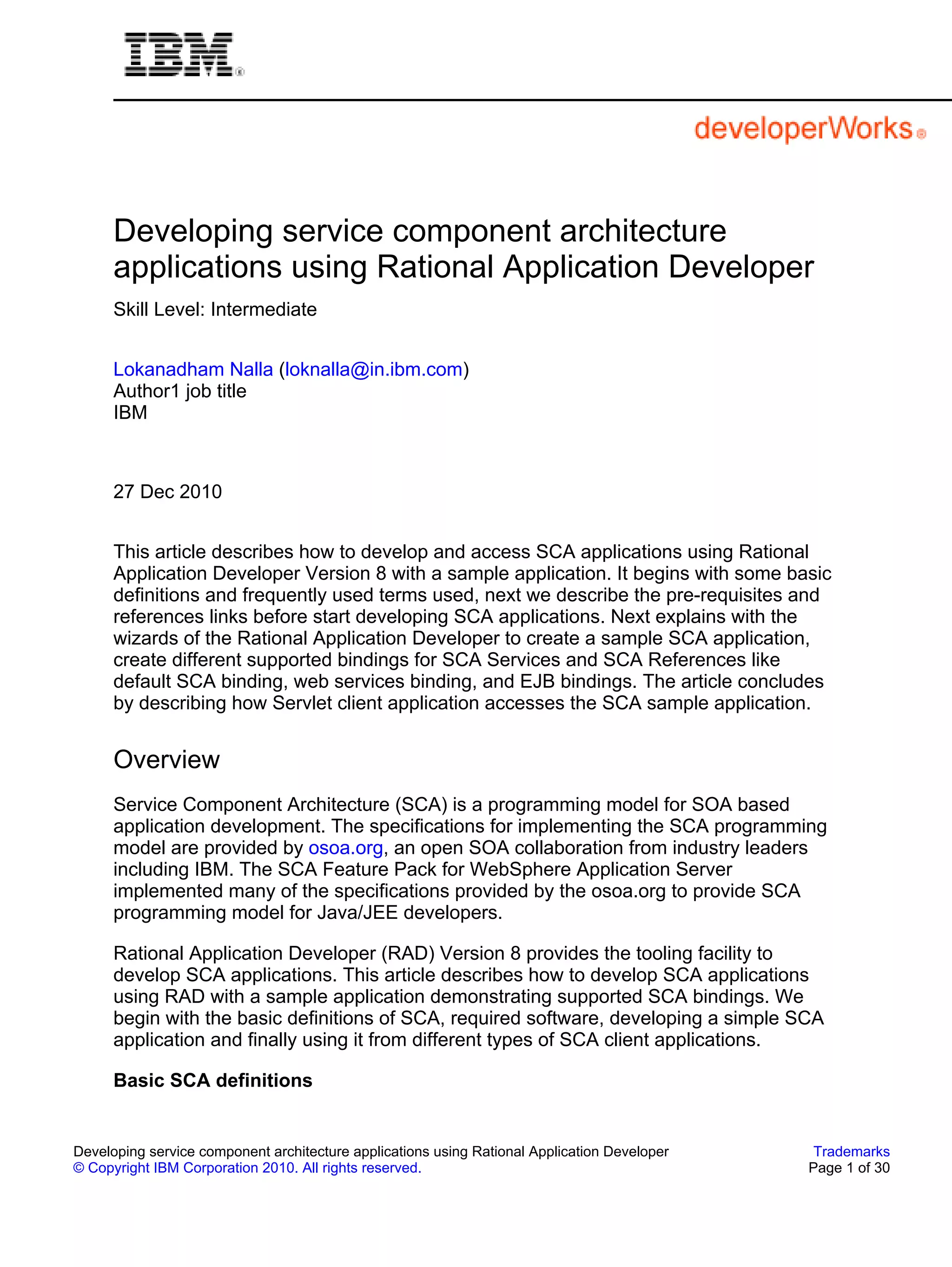

Developing service component architecture
applications using Rational Application Developer
Skill Level: Intermediate

Lokanadham Nalla (loknalla@in.ibm.com)
Author1 job title
IBM

27 Dec 2010

This article describes how to develop and access SCA applications using Rational
Application Developer Version 8 with a sample application. It begins with some basic
definitions and frequently used terms used, next we describe the pre-requisites and
references links before start developing SCA applications. Next explains with the
wizards of the Rational Application Developer to create a sample SCA application,
create different supported bindings for SCA Services and SCA References like
default SCA binding, web services binding, and EJB bindings. The article concludes
by describing how Servlet client application accesses the SCA sample application.

Overview
Service Component Architecture (SCA) is a programming model for SOA based
application development. The specifications for implementing the SCA programming
model are provided by osoa.org, an open SOA collaboration from industry leaders
including IBM. The SCA Feature Pack for WebSphere Application Server
implemented many of the specifications provided by the osoa.org to provide SCA
programming model for Java/JEE developers.

Rational Application Developer (RAD) Version 8 provides the tooling facility to
develop SCA applications. This article describes how to develop SCA applications
using RAD with a sample application demonstrating supported SCA bindings. We
begin with the basic definitions of SCA, required software, developing a simple SCA
application and finally using it from different types of SCA client applications.

Basic SCA definitions

Developing service component architecture applications using Rational Application Developer Trademarks
© Copyright IBM Corporation 2010. All rights reserved. Page 1 of 30

developerWorks® ibm.com/developerWorks

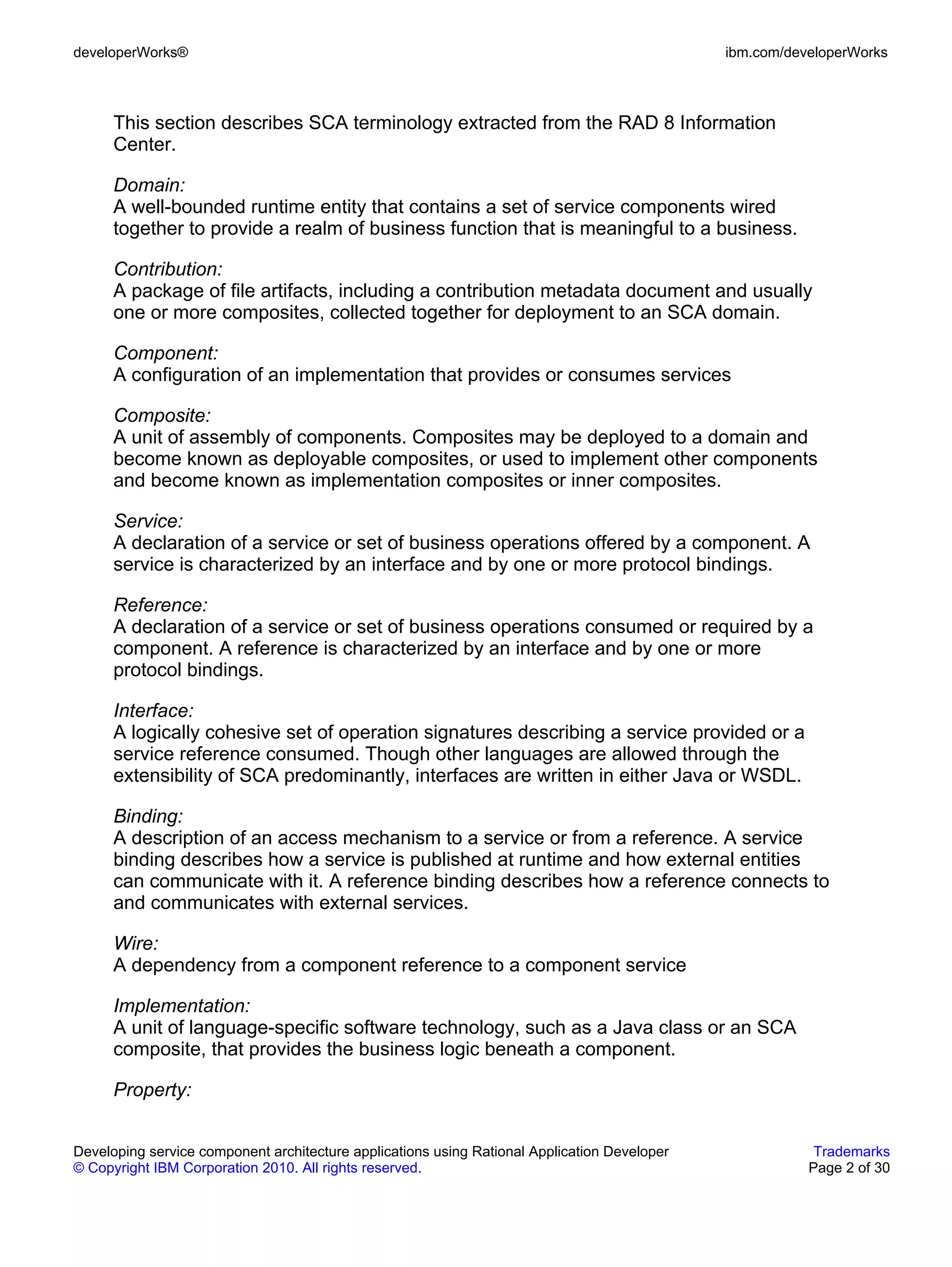

This section describes SCA terminology extracted from the RAD 8 Information
Center.

Domain:
A well-bounded runtime entity that contains a set of service components wired
together to provide a realm of business function that is meaningful to a business.

Contribution:
A package of file artifacts, including a contribution metadata document and usually
one or more composites, collected together for deployment to an SCA domain.

Component:
A configuration of an implementation that provides or consumes services

Composite:
A unit of assembly of components. Composites may be deployed to a domain and
become known as deployable composites, or used to implement other components
and become known as implementation composites or inner composites.

Service:
A declaration of a service or set of business operations offered by a component. A
service is characterized by an interface and by one or more protocol bindings.

Reference:
A declaration of a service or set of business operations consumed or required by a
component. A reference is characterized by an interface and by one or more
protocol bindings.

Interface:
A logically cohesive set of operation signatures describing a service provided or a
service reference consumed. Though other languages are allowed through the
extensibility of SCA predominantly, interfaces are written in either Java or WSDL.

Binding:
A description of an access mechanism to a service or from a reference. A service
binding describes how a service is published at runtime and how external entities
can communicate with it. A reference binding describes how a reference connects to
and communicates with external services.

Wire:
A dependency from a component reference to a component service

Implementation:
A unit of language-specific software technology, such as a Java class or an SCA
composite, that provides the business logic beneath a component.

Property:


ibm.com/developerWorks developerWorks®

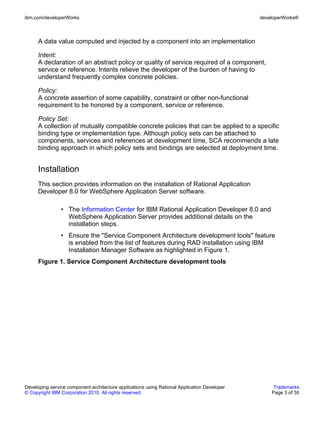

A data value computed and injected by a component into an implementation

Intent:
A declaration of an abstract policy or quality of service required of a component,
service or reference. Intents relieve the developer of the burden of having to
understand frequently complex concrete policies.

Policy:
A concrete assertion of some capability, constraint or other non-functional
requirement to be honored by a component, service or reference.

Policy Set:
A collection of mutually compatible concrete policies that can be applied to a specific
binding type or implementation type. Although policy sets can be attached to
components, services and references at development time, SCA recommends a late
binding approach in which policy sets and bindings are selected at deployment time.

Installation
This section provides information on the installation of Rational Application
Developer 8.0 for WebSphere Application Server software.

• The Information Center for IBM Rational Application Developer 8.0 and
WebSphere Application Server provides additional details on the
installation steps.

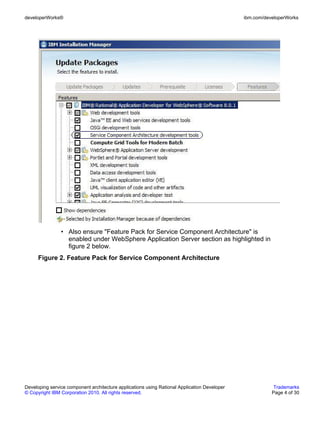

• Ensure the "Service Component Architecture development tools" feature
is enabled from the list of features during RAD installation using IBM
Installation Manager Software as highlighted in Figure 1.
Figure 1. Service Component Architecture development tools



• Also ensure "Feature Pack for Service Component Architecture" is
enabled under WebSphere Application Server section as highlighted in
figure 2 below.
Figure 2. Feature Pack for Service Component Architecture



Installing SCA Feature Pack

This section provides information on SCA Feature Pack installation if the
WebSphere Application Server is installed external to RAD.

To install the Service Component Architecture (SCA) Feature Pack, you need to
complete the instructions provided in the section, "Installing and uninstalling the
feature pack on distributed operating systems" in the WebSphere Application Server
Information Center.

Developing SCA applications using RAD
This section describes the tasks required to develop a sample SCA calculator
application using RAD wizards.

• Create SCA Project
• Create SCA Composite
• Create SCA Component



• Adding service or reference to a Component
• Apply binding to a service or reference
• Component implementation
• Create Contribution
Creating a SCA project

This section describes how to create a new SCA project using RAD wizards. From
RAD workspace, open menu options File > New > Other. Select SCA Project as
shown in Figure 3.

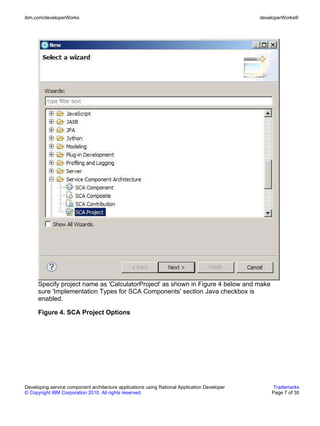

Figure 3. Create SCA Project

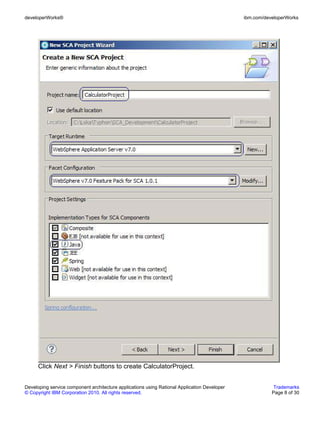

Specify project name as 'CalculatorProject' as shown in Figure 4 below and make
sure 'Implementation Types for SCA Components' section Java checkbox is
enabled.

Figure 4. SCA Project Options



Click Next > Finish buttons to create CalculatorProject.

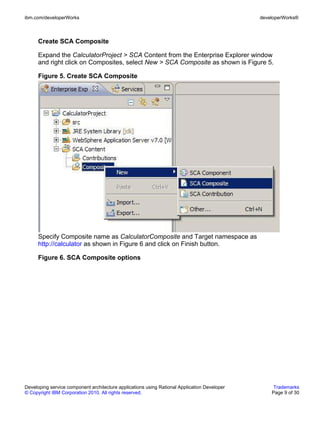

Create SCA Composite

Expand the CalculatorProject > SCA Content from the Enterprise Explorer window
and right click on Composites, select New > SCA Composite as shown is Figure 5.

Figure 5. Create SCA Composite

Specify Composite name as CalculatorComposite and Target namespace as
http://calculator as shown in Figure 6 and click on Finish button.

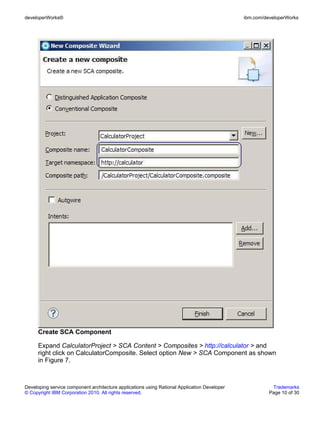

Figure 6. SCA Composite options



Create SCA Component

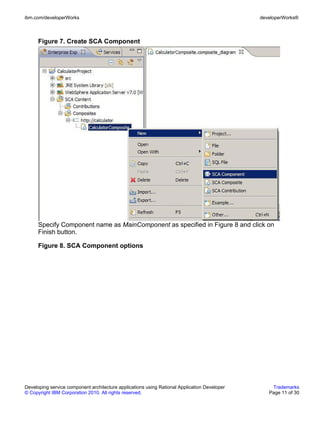

Expand CalculatorProject > SCA Content > Composites > http://calculator > and
right click on CalculatorComposite. Select option New > SCA Component as shown
in Figure 7.



Figure 7. Create SCA Component

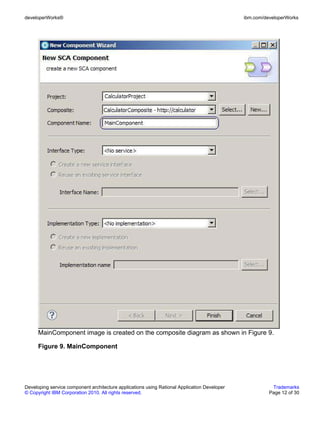

Specify Component name as MainComponent as specified in Figure 8 and click on
Finish button.

Figure 8. SCA Component options



MainComponent image is created on the composite diagram as shown in Figure 9.

Figure 9. MainComponent



Adding service or reference to a Component

Right click on the MainComponent image to create a service and a reference as
shown in Figure 10 and Figure 11. Name the service as CalculatorInterface and the
reference as addReference.

Figure 10. Adding a service

Figure 11. Adding a reference

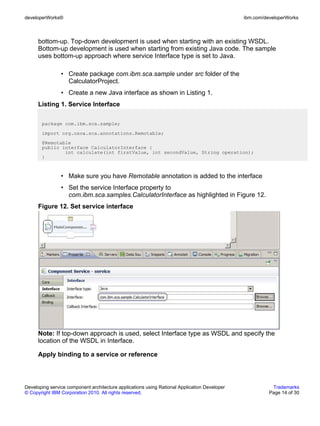

There are two approaches for SCA service implementation, top-down and



bottom-up. Top-down development is used when starting with an existing WSDL.
Bottom-up development is used when starting from existing Java code. The sample
uses bottom-up approach where service Interface type is set to Java.

• Create package com.ibm.sca.sample under src folder of the
CalculatorProject.
• Create a new Java interface as shown in Listing 1.
Listing 1. Service Interface

package com.ibm.sca.sample;
import org.osoa.sca.annotations.Remotable;
@Remotable
public interface CalculatorInterface {
int calculate(int firstValue, int secondValue, String operation);
}

• Make sure you have Remotable annotation is added to the interface
• Set the service Interface property to
com.ibm.sca.samples.CalculatorInterface as highlighted in Figure 12.
Figure 12. Set service interface

Note: If top-down approach is used, select Interface type as WSDL and specify the
location of the WSDL in Interface.

Apply binding to a service or reference

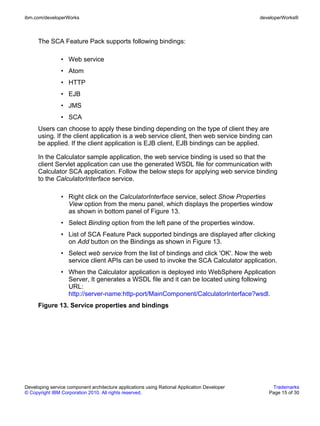

The SCA Feature Pack supports following bindings:

• Web service
• Atom
• HTTP
• EJB
• JMS
• SCA
Users can choose to apply these binding depending on the type of client they are
using. If the client application is a web service client, then web service binding can
be applied. If the client application is EJB client, EJB bindings can be applied.

In the Calculator sample application, the web service binding is used so that the
client Servlet application can use the generated WSDL file for communication with
Calculator SCA application. Follow the below steps for applying web service binding
to the CalculatorInterface service.

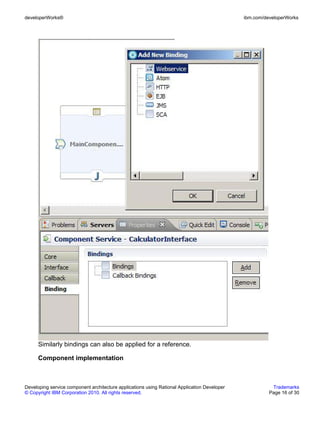

• Right click on the CalculatorInterface service, select Show Properties
View option from the menu panel, which displays the properties window
as shown in bottom panel of Figure 13.
• Select Binding option from the left pane of the properties window.
• List of SCA Feature Pack supported bindings are displayed after clicking
on Add button on the Bindings as shown in Figure 13.
• Select web service from the list of bindings and click 'OK'. Now the web
service client APIs can be used to invoke the SCA Calculator application.
• When the Calculator application is deployed into WebSphere Application
Server, It generates a WSDL file and it can be located using following
URL:
http://server-name:http-port/MainComponent/CalculatorInterface?wsdl.
Figure 13. Service properties and bindings



Similarly bindings can also be applied for a reference.

Component implementation



Right click on the MainComponent and select "Regenerate implementation" option
as shown in Figure 14.

Figure 14. Generate Implementation

• Choose Java from the list of "Implementation Type" in the next window.
• Click the Next button and observe the implementation class it is going to
be generated as highlighted in Figure 15.
• Click on the Finish button to generate the implementation class
com.ibm.sca.samples.CalculatorInterfaceImpl.

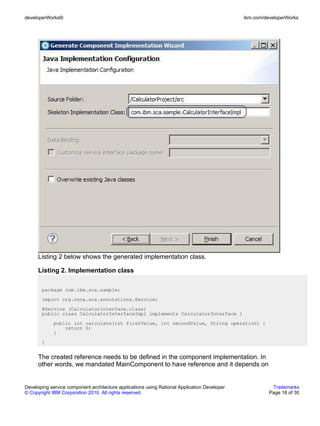

Figure 15. Implementation class configuration



Listing 2 below shows the generated implementation class.

Listing 2. Implementation class

import org.osoa.sca.annotations.Service;
@Service (CalculatorInterface.class)
public class CalculatorInterfaceImpl implements CalculatorInterface {
public int calculate(int firstValue, int secondValue, String operation) {
return 0;
}
}

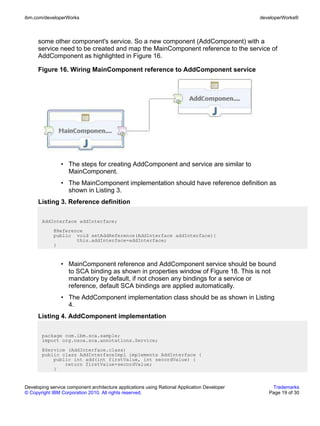

The created reference needs to be defined in the component implementation. In
other words, we mandated MainComponent to have reference and it depends on



some other component's service. So a new component (AddComponent) with a
service need to be created and map the MainComponent reference to the service of
AddComponent as highlighted in Figure 16.

Figure 16. Wiring MainComponent reference to AddComponent service

• The steps for creating AddComponent and service are similar to
MainComponent.
• The MainComponent implementation should have reference definition as
shown in Listing 3.
Listing 3. Reference definition

AddInterface addInterface;
@Reference
public void setAddReference(AddInterface addInterface){
this.addInterface=addInterface;
}

• MainComponent reference and AddComponent service should be bound
to SCA binding as shown in properties window of Figure 18. This is not
mandatory by default, if not chosen any bindings for a service or
reference, default SCA bindings are applied automatically.
• The AddComponent implementation class should be as shown in Listing
4.
Listing 4. AddComponent implementation

import org.osoa.sca.annotations.Service;
@Service (AddInterface.class)
public class AddInterfaceImpl implements AddInterface {
public int add(int firstValue, int secordValue) {
return firstValue+secordValue;
}



}

Similarly SubstractComponent, MultiplyComponent and DivisionComponent and its
services can be created and wired to the MainComponent's different references.
Upon creating all the above components, the Calculator SCA composite diagram
should look as shown in Figure 17.

Figure 17. Calculator SCA composite diagram



Create Contribution

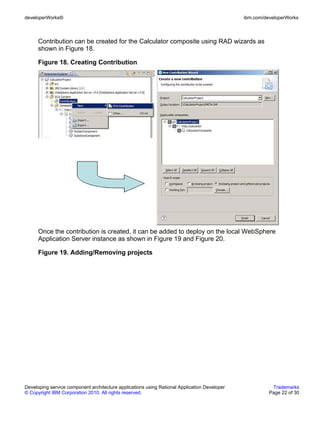

Contribution can be created for the Calculator composite using RAD wizards as
shown in Figure 18.

Figure 18. Creating Contribution

Once the contribution is created, it can be added to deploy on the local WebSphere
Application Server instance as shown in Figure 19 and Figure 20.

Figure 19. Adding/Removing projects

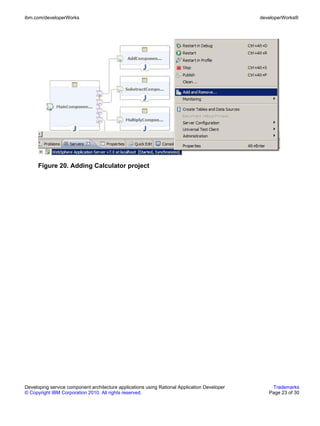

Figure 20. Adding Calculator project

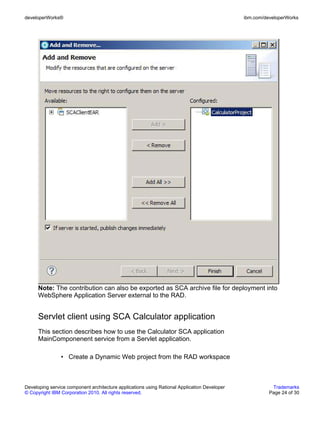

Note: The contribution can also be exported as SCA archive file for deployment into
WebSphere Application Server external to the RAD.

Servlet client using SCA Calculator application
This section describes how to use the Calculator SCA application
MainComponenent service from a Servlet application.

• Create a Dynamic Web project from the RAD workspace



• Make sure the WSDL can be located at:
http://server-name:http-port/MainComponent/CalculatorInterface?wsdl
Create the WSDL stub classes using following steps:

1. Open File > New > Other and select Web service client project.

2. Specify
http://server-name:http-port/MainComponent/CalculatorInterface?wsdl in
the service definition

3. Specify the Develop client as highlighted in Figure 21 and click Next
button.

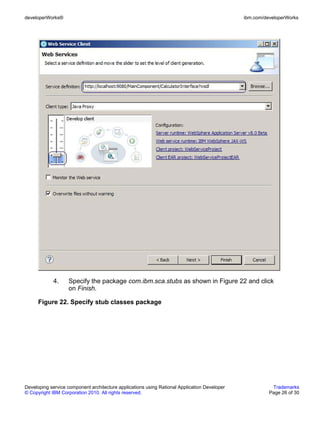

Figure 21. Web service client



4. Specify the package com.ibm.sca.stubs as shown in Figure 22 and click
on Finish.

Figure 22. Specify stub classes package



The Servlet can use the code as highlighted in Listing 5 below.

Listing 5. Web service stub APIs

import com.ibm.sca.stubs.CalculatorInterface;
import com.ibm.sca.stubs.CalculatorInterfaceService;
...
CalculatorInterfaceService service = new CalculatorInterfaceService();
CalculatorInterface ci = (CalculatorInterface) service.getCalculatorInterfacePort();
int result = ci.calculate(firstValue, secondValue, operation);

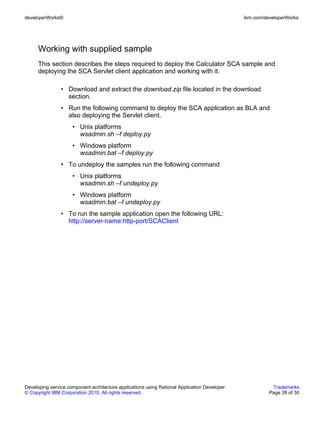

Working with supplied sample
This section describes the steps required to deploy the Calculator SCA sample and
deploying the SCA Servlet client application and working with it.

• Download and extract the download.zip file located in the download
section.
• Run the following command to deploy the SCA application as BLA and
also deploying the Servlet client.
• Unix platforms
wsadmin.sh –f deploy.py
• Windows platform
wsadmin.bat –f deploy.py
• To undeploy the samples run the following command
• Unix platforms
wsadmin.sh –f undeploy.py
• Windows platform
wsadmin.bat –f undeploy.py
• To run the sample application open the following URL:
http://server-name:http-port/SCAClient

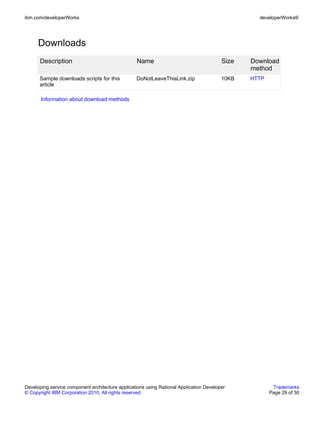

Downloads
Description Name Size Download
method
Sample downloads scripts for this DoNotLeaveThisLink.zip 10KB HTTP
article

Information about download methods



Resources
• Rational Application Developer Information Center
• Education Assistant for WebSphere Application Server V7.0 Feature Pack for
Service Component Architecture .
• "Exploring the WebSphere Application Server Feature Pack for SCA, Part 1: An
overview of the Service Component Architecture feature pack", (Dec 2008) is an
introduction to open Service Component Architecture (SCA) concepts,
objectives of the technology, and highlights of some key integration points.

About the author
Lokanadham Nalla
Lokanadham Nalla is a TXSeries Developer located in India Software
Labs, Bangalore, India with expertise in Java, J2EE and SOA
technologies.


Developing service component architecture applications using rational application developer

More Related Content

What's hot

Similar to Developing service component architecture applications using rational application developer

More from Bill Duncan

Recently uploaded

Developing service component architecture applications using rational application developer
