Extending uBuild and uDeploy with Plugins

Air Plugins
Extending and customizing
uDeploy (IBM UrbanCode Deploy)
and uBuild (IBM UrbanCode Build)

IBM Corporation ©2013
Presenting Today
Matt: Lead Developer Eric: Consulting

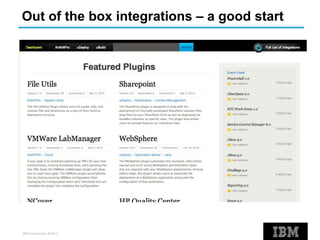

Out of the box integrations – a good start

But your team is unique

So our integrations are “Plug-ins”

Why Plugin-ins?
Make Integrating Easy

Why Plugin-ins?
Wrap existing scripts

Why Plugin-ins?
Custom Fit

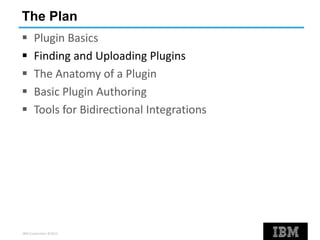

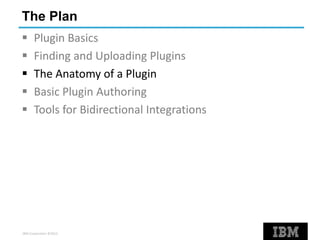

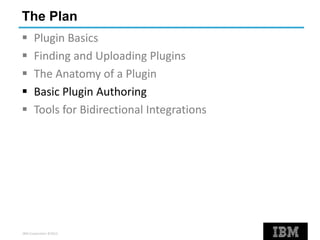

The Plan
 Plugin Basics
 Finding and Uploading Plugins
 The Anatomy of a Plugin
 Basic Plugin Authoring
 Tools for Bidirectional Integrations

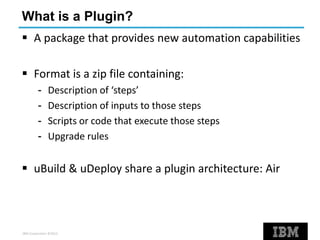

What is a Plugin?
 A package that provides new automation capabilities
 Format is a zip file containing:
- Description of ‘steps’
- Description of inputs to those steps
- Scripts or code that execute those steps
- Upgrade rules
 uBuild & uDeploy share a plugin architecture: Air

1) Go to Plugins.urbancode.com.

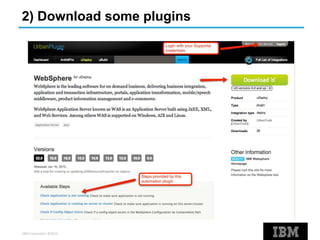

2) Download some plugins

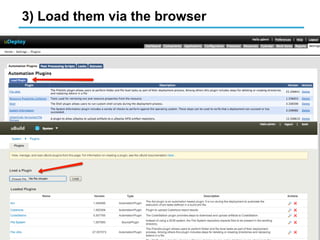

3) Load them via the browser

New steps are immediately available

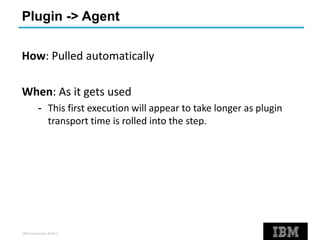

Plugin -> Agent
How: Pulled automatically
When: As it gets used
- This first execution will appear to take longer as plugin
transport time is rolled into the step.

The Anatomy of an Air Plugin
 Definition: What steps, input and how to invoke
 Upgrade Rules
 Info.xml: Versioning
 Payload: Scripts, libraries and tools that accomplish
the plugin’s goals
 Packaging: Wrap contents in a zip file

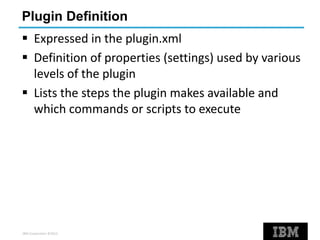

Plugin Definition
 Expressed in the plugin.xml
 Definition of properties (settings) used by various
levels of the plugin
 Lists the steps the plugin makes available and
which commands or scripts to execute

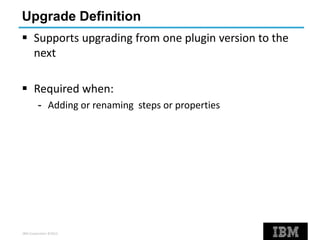

Upgrade Definition
 Supports upgrading from one plugin version to the
next
 Required when:
- Adding or renaming steps or properties

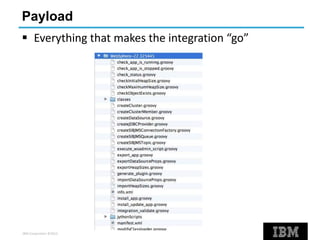

Payload
 Everything that makes the integration “go”

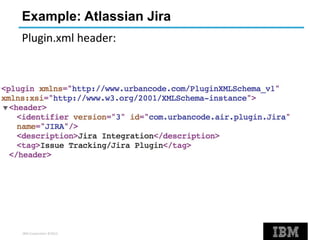

Example: Atlassian Jira
Plugin.xml header:

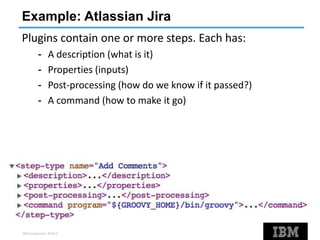

Plugins contain one or more steps. Each has:
- A description (what is it)
- Properties (inputs)
- Post-processing (how do we know if it passed?)
- A command (how to make it go)

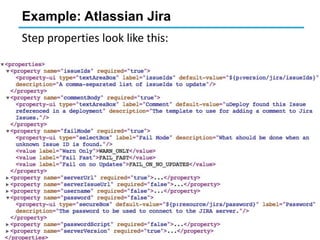

Step properties look like this:

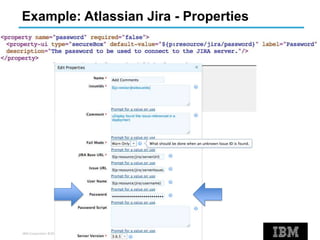

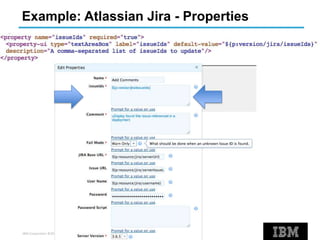

Example: Atlassian Jira - Properties

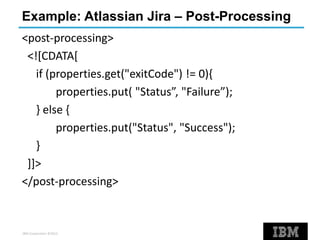

Example: Atlassian Jira – Post-Processing
<post-processing>
<![CDATA[
if (properties.get("exitCode") != 0){
properties.put( "Status”, "Failure”);
} else {
properties.put("Status", "Success");
}
]]>
</post-processing>

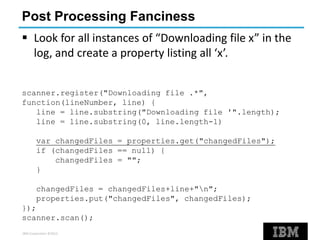

Post Processing Fanciness
 Look for all instances of “Downloading file x” in the
log, and create a property listing all ‘x’.
scanner.register("Downloading file .*",
function(lineNumber, line) {
line = line.substring("Downloading file '".length);
line = line.substring(0, line.length-1)
var changedFiles = properties.get("changedFiles");
if (changedFiles == null) {
changedFiles = "";
}
changedFiles = changedFiles+line+"n";
properties.put("changedFiles", changedFiles);
});
scanner.scan();

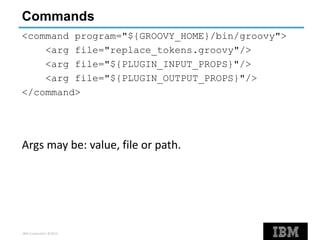

Commands
<command program="${GROOVY_HOME}/bin/groovy">
<arg file="replace_tokens.groovy"/>
<arg file="${PLUGIN_INPUT_PROPS}"/>
<arg file="${PLUGIN_OUTPUT_PROPS}"/>
</command>
Args may be: value, file or path.

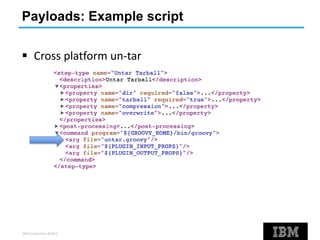

Payloads: Example script
 Cross platform un-tar

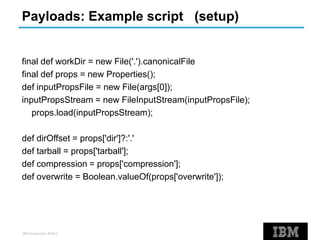

Payloads: Example script (setup)
final def workDir = new File('.').canonicalFile
final def props = new Properties();
def inputPropsFile = new File(args[0]);
inputPropsStream = new FileInputStream(inputPropsFile);
props.load(inputPropsStream);
def dirOffset = props['dir']?:'.'
def tarball = props['tarball'];
def compression = props['compression'];
def overwrite = Boolean.valueOf(props['overwrite']);

Payloads: Example script (execution)
def ant = new AntBuilder()
if (overwrite) {
ant.untar(
dest:dirOffset,
failOnEmptyArchive: 'true',
compression: compression,
overwrite: 'true',
src: tarball)
}
else {
ant.untar(
dest:dirOffset,
failOnEmptyArchive: 'true',
compression: compression,
overwrite: 'false',
src: tarball)
}

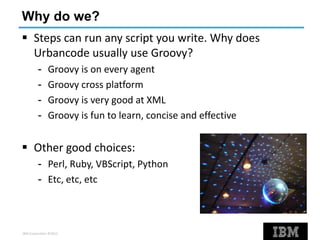

You don’t have to use Groovy

Why do we?
 Steps can run any script you write. Why does
Urbancode usually use Groovy?
- Groovy is on every agent
- Groovy cross platform
- Groovy is very good at XML
- Groovy is fun to learn, concise and effective
 Other good choices:
- Perl, Ruby, VBScript, Python
- Etc, etc, etc

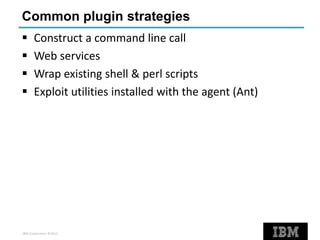

Common plugin strategies
 Construct a command line call
 Web services
 Wrap existing shell & perl scripts
 Exploit utilities installed with the agent (Ant)

uDeploy
 Post-processing
- Easily capture deployment information
 Rest services API
- 2 Wrappers: Command line and Java.

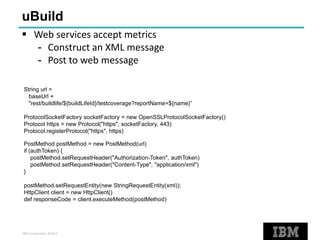

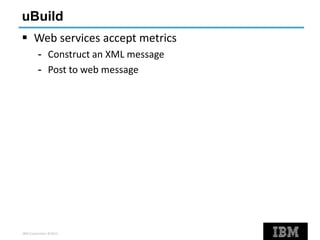

uBuild
 Web services accept metrics
- Construct an XML message
- Post to web message

uBuild
String url =
baseUrl +
"rest/buildlife/${buildLifeId}/testcoverage?reportName=${name}”
ProtocolSocketFactory socketFactory = new OpenSSLProtocolSocketFactory()
Protocol https = new Protocol("https", socketFactory, 443)
Protocol.registerProtocol("https", https)
PostMethod postMethod = new PostMethod(url)
if (authToken) {
postMethod.setRequestHeader("Authorization-Token", authToken)
postMethod.setRequestHeader("Content-Type", "application/xml")
}
postMethod.setRequestEntity(new StringRequestEntity(xml));
HttpClient client = new HttpClient()
def responseCode = client.executeMethod(postMethod)

uBuild
 Easiest to work from examples

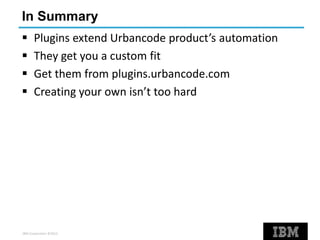

In Summary
 Plugins extend Urbancode product’s automation
 They get you a custom fit
 Get them from plugins.urbancode.com
 Creating your own isn’t too hard

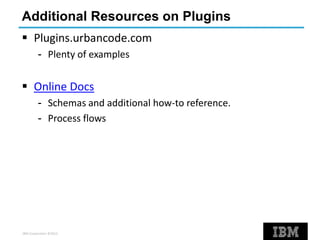

Additional Resources on Plugins
 Plugins.urbancode.com
- Plenty of examples
 Online Docs
- Schemas and additional how-to reference.
- Process flows

Q&A
