Developing Products from Moringa
- 1. FOOD PRODUCTS from MALUNGGAY (Moringaoleifera)* ARLENE I. DE ASIS. Bicol Integrated Agricultural Research Center Department of Agriculture-RFU 5 * Technology generated from an on-going DA-BAR funded project entitled “Development, On-Farm Demonstration, and Piloting of Promising Value- Adding Technologies for Export Potential and Banner Commodities of Bicol”
- 2. Other Names ofMoringa oleifera: • Malunggay (Philippines) • Benzolive tree (Haiti) • Horseradish tree (Florida) • Nebeday (Senegal) • Drumstick tree (India) Source: The Moringa Tree by Martin L. Price
- 3.
- 4. Malunggay leaf powder Foodfortificant Functional drinks Food supplement Medicine Animal feed ingredient Agribusiness potentials:

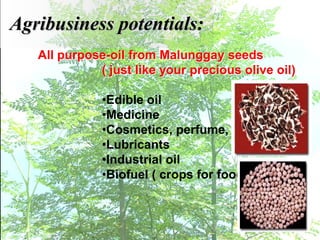

- 5. All purpose-oil fromMalunggay seeds ( just like your precious olive oil) •Edible oil •Medicine •Cosmetics, perfume, massage •Lubricants •Industrial oil •Biofuel ( crops for food vs. fuel ) Agribusiness potentials:

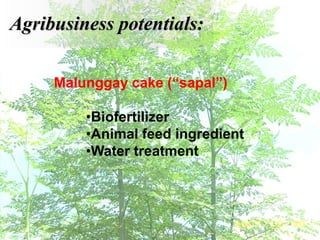

- 6. Malunggay cake (“sapal”) •Biofertilizer •Animalfeed ingredient •Water treatment Agribusiness potentials:

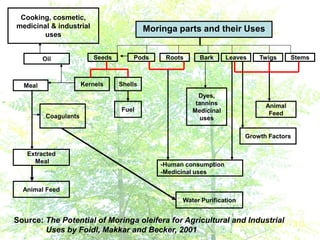

- 7. Cooking, cosmetic, medicinal &industrial uses Moringa parts and their Uses Oil Meal Coagulants Kernels Extracted Meal Animal Feed Water Purification -Human consumption -Medicinal uses Growth Factors Animal Feed Fuel Shells Seeds Pods Roots Bark Leaves Twigs Stems Dyes, tannins Medicinal uses Source: The Potential of Moringa oleifera for Agricultural and Industrial Uses by Foidl, Makkar and Becker, 2001
- 8. Nutritional Value ofLeaves and Pods Pods Leaves (Fresh) Leaf Powder Moisture (%) 86.9 75.0 7.5 Calories 26 92 205 Protein (g) 2.5 6.7 27.1 Fat (g) 0.1 1.7 2.3 Carbohydrate (g) 3.7 13.4 38.2 Fiber (g) 4.8 0.9 19.2 Minerals (g) 2.0 2.3 - Ca (mg) 30 440 2,003 Mg (mg) 24 24 368 P (mg) 110 70 204 K (mg) 259 259 1,324 Cu (mg) 3.1 1.1 0.57 Source: Moringa oleifera: Natural Nutrition for the Tropics by Lowell Fuglie
- 9. Cont. . . Pods Leaves (Fresh) Leaf Powder Fe(mg) 5.3 7 28.2 S (mg) 5.3 7 28.2 Oxalic acid (mg) 10 101 1.6% Vitamin A – B carotene (mg) 0.11 6.8 16.3 Vitamin B –choline (mg) 423 423 - Vitamin B1 – thiamin (mg) 0.05 0.21 2.64 Vitamin B2 – riboflavin (mg) 0.07 0.05 20.5 Vitamin B3 – nicotinic acid (mg) 0.2 0.8 8.2 Vitamin C – ascorbic acid (mg) 120 220 17.3 Vitamin E – tocopherol acetate (mg) - - 113 Arginine (g/16g N) 3.6 6.0 1.33% Histidine (g/16g N) 1.1 2.1 0.61% Source: Moringa oleifera: Natural Nutrition for the Tropics by Lowell Fuglie

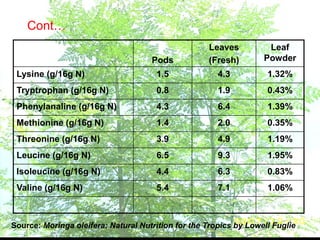

- 10. Cont… Pods Leaves (Fresh) Leaf Powder Lysine (g/16g N)1.5 4.3 1.32% Tryptrophan (g/16g N) 0.8 1.9 0.43% Phenylanaline (g/16g N) 4.3 6.4 1.39% Methionine (g/16g N) 1.4 2.0 0.35% Threonine (g/16g N) 3.9 4.9 1.19% Leucine (g/16g N) 6.5 9.3 1.95% Isoleucine (g/16g N) 4.4 6.3 0.83% Valine (g/16g N) 5.4 7.1 1.06% Source: Moringa oleifera: Natural Nutrition for the Tropics by Lowell Fuglie

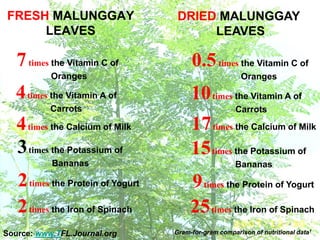

- 11. Gram-for-gram comparison ofnutritional data1 2times the Protein of Yogurt 3times the Potassium of Bananas 4times the Calcium of Milk 4times the Vitamin A of Carrots 7times the Vitamin C of Oranges Source: www.TFL.Journal.org FRESH MALUNGGAY LEAVES 2times the Iron of Spinach DRIED MALUNGGAY LEAVES 9times the Protein of Yogurt 15times the Potassium of Bananas 17times the Calcium of Milk 10times the Vitamin A of Carrots 0.5times the Vitamin C of Oranges 25times the Iron of Spinach
- 12. • Calcium (Ca) –Bones and teeth – Heart and muscle action – Reduce high blood pressure – Speeds healing process • Phosphorous (P) – Bones and teeth – Nerve function • Potassium – Muscle contraction – Acid-alkaline balance – Promotes hormone secretion – Detoxification of blood by kidney
- 13. • Iron (Fe) –Hemoglobin content of blood – Production of enzymes – Growth, energy production and immune system protection • Thiamine (Vit. B1) – Protects and help heart, muscles, brain, growth, nervous system, peristalsis, red blood count and circulation

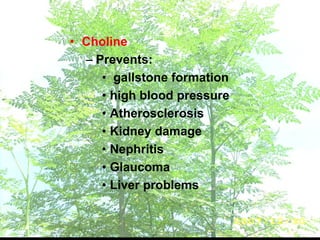

- 14. • Choline – Prevents: •gallstone formation • high blood pressure • Atherosclerosis • Kidney damage • Nephritis • Glaucoma • Liver problems
- 15. • Magnesium (Mg) –Energy production – Protein formation – Cellular replication • Vitamin C – Involved in all vital functions of the body

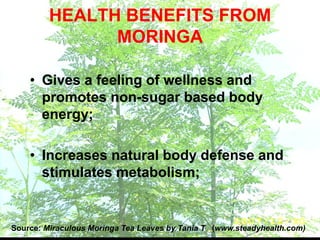

- 16. HEALTH BENEFITS FROM MORINGA •Gives a feeling of wellness and promotes non-sugar based body energy; • Increases natural body defense and stimulates metabolism; Source: Miraculous Moringa Tea Leaves by Tania T (www.steadyhealth.com)

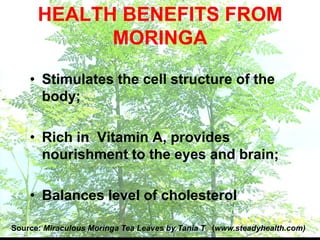

- 17. HEALTH BENEFITS FROM MORINGA •Stimulates the cell structure of the body; • Rich in Vitamin A, provides nourishment to the eyes and brain; • Balances level of cholesterol Source: Miraculous Moringa Tea Leaves by Tania T (www.steadyhealth.com)
- 18. • Balances levelof sugar; • Rich in anti-oxidants, beautifies the skin; • Improves functioning of kidney and liver; HEALTH BENEFITS FROM MORINGA Source: Miraculous Moringa Tea Leaves by Tania T (www.steadyhealth.com)
- 19. • Promotes healthydigestion; • Promotes body’s immune system; • Promotes circulatory system and controls blood pressure; HEALTH BENEFITS FROM MORINGA Source: Miraculous Moringa Tea Leaves by Tania T (www.steadyhealth.com)

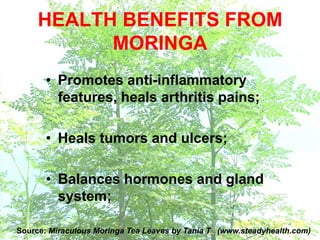

- 20. • Promotes anti-inflammatory features,heals arthritis pains; • Heals tumors and ulcers; • Balances hormones and gland system; Source: Miraculous Moringa Tea Leaves by Tania T (www.steadyhealth.com) HEALTH BENEFITS FROM MORINGA

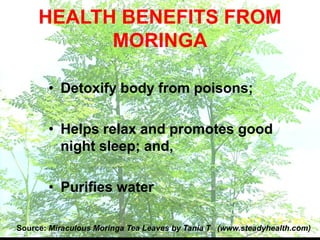

- 21. • Detoxify bodyfrom poisons; • Helps relax and promotes good night sleep; and, • Purifies water Source: Miraculous Moringa Tea Leaves by Tania T (www.steadyhealth.com) HEALTH BENEFITS FROM MORINGA

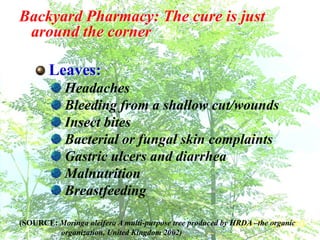

- 22. Backyard Pharmacy: Thecure is just around the corner Leaves: Headaches Bleeding from a shallow cut/wounds Insect bites Bacterial or fungal skin complaints Gastric ulcers and diarrhea Malnutrition Breastfeeding (SOURCE: Moringa oleifera A multi-purpose tree produced by HRDA –the organic organization, United Kingdom 2002)

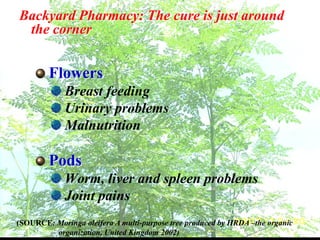

- 23. Backyard Pharmacy: Thecure is just around the corner Flowers Breast feeding Urinary problems Malnutrition Pods Worm, liver and spleen problems Joint pains (SOURCE: Moringa oleifera A multi-purpose tree produced by HRDA –the organic organization, United Kingdom 2002)

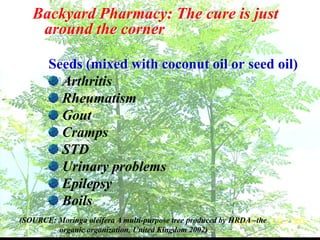

- 24. Backyard Pharmacy: Thecure is just around the corner Seeds (mixed with coconut oil or seed oil) Arthritis Rheumatism Gout Cramps STD Urinary problems Epilepsy Boils (SOURCE: Moringa oleifera A multi-purpose tree produced by HRDA –the organic organization, United Kingdom 2002)

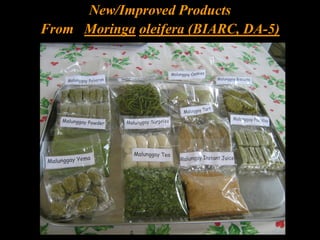

- 25. New/Improved Products From Moringaoleifera (BIARC, DA-5)

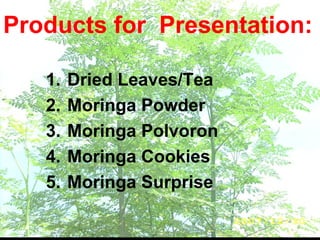

- 26. 1. Dried Leaves/Tea 2.Moringa Powder 3. Moringa Polvoron 4. Moringa Cookies 5. Moringa Surprise Products for Presentation:

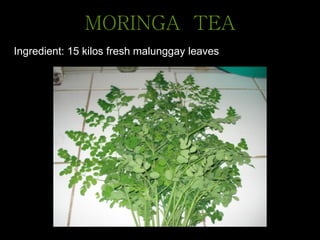

- 27. MORINGA TEA Ingredient: 15kilos fresh malunggay leaves

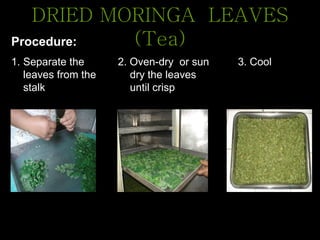

- 28. DRIED MORINGA LEAVES (Tea) 1.Separate the leaves from the stalk 2. Oven-dry or sun dry the leaves until crisp 3. Cool Procedure:

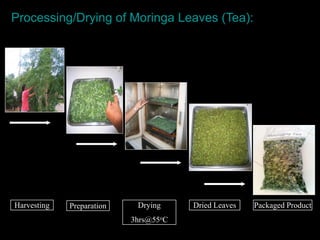

- 29. Preparation Drying 3hrs@55oC Dried LeavesPackaged ProductHarvesting Processing/Drying of Moringa Leaves (Tea):

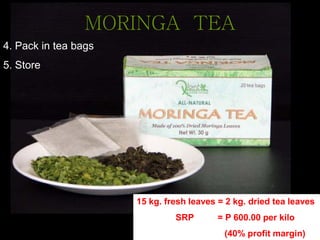

- 30. MORINGA TEA 15 kg.fresh leaves = 2 kg. dried tea leaves SRP = P 600.00 per kilo (40% profit margin) 4. Pack in tea bags 5. Store

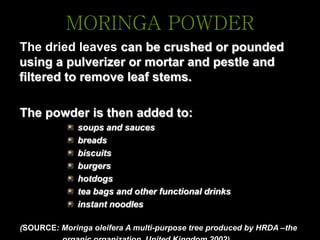

- 31. The dried leavescan be crushed or pounded using a pulverizer or mortar and pestle and filtered to remove leaf stems. The powder is then added to: soups and sauces breads biscuits burgers hotdogs tea bags and other functional drinks instant noodles (SOURCE: Moringa oleifera A multi-purpose tree produced by HRDA –the MORINGA POWDER

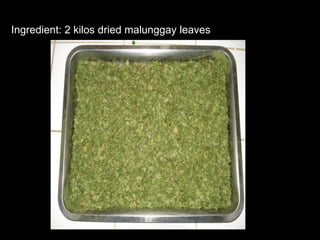

- 32. Ingredient: 2 kilosdried malunggay leaves

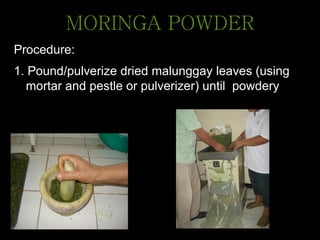

- 33. MORINGA POWDER Procedure: 1. Pound/pulverizedried malunggay leaves (using mortar and pestle or pulverizer) until powdery

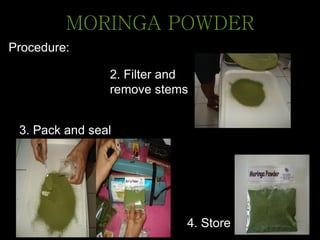

- 34. MORINGA POWDER Procedure: 4. Store 3.Pack and seal 2. Filter and remove stems
- 35. 2 kg. driedleaves = 1.6 kg. powder SRP = P 800.00 per kilo = P 40.00-50.00 per 100 grams MORINGA POWDER •soups and sauces • breads • biscuits • burgers • hotdogs •instant noodles • tea bags and other functiona

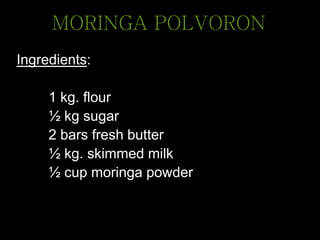

- 36. Ingredients: 1 kg. flour ½kg sugar 2 bars fresh butter ½ kg. skimmed milk ½ cup moringa powder MORINGA POLVORON

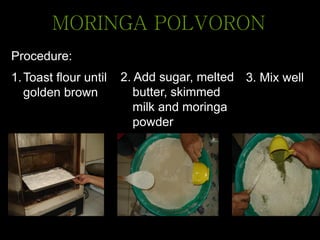

- 37. Procedure: MORINGA POLVORON 2. Addsugar, melted butter, skimmed milk and moringa powder 3. Mix well1.Toast flour until golden brown

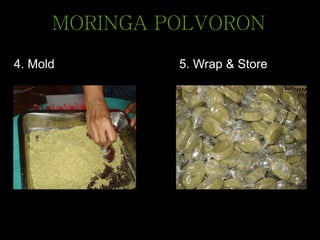

- 38. MORINGA POLVORON 5. Wrap& Store4. Mold

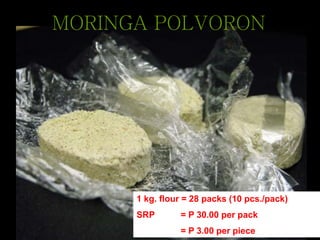

- 39. MORINGA POLVORON 1 kg.flour = 28 packs (10 pcs./pack) SRP = P 30.00 per pack = P 3.00 per piece

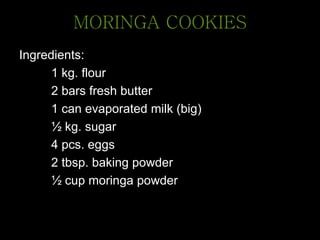

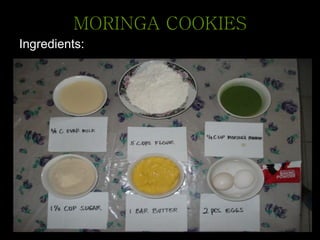

- 40. MORINGA COOKIES Ingredients: 1 kg.flour 2 bars fresh butter 1 can evaporated milk (big) ½ kg. sugar 4 pcs. eggs 2 tbsp. baking powder ½ cup moringa powder
- 41.

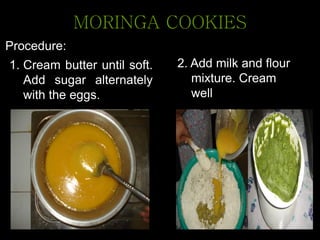

- 42. Procedure: MORINGA COOKIES 2. Addmilk and flour mixture. Cream well 1. Cream butter until soft. Add sugar alternately with the eggs.
- 43. Procedure: MORINGA COOKIES 3. Dropspoonfuls of batter into greased cookie sheets 4. Bake at 400°F for 15 minutes

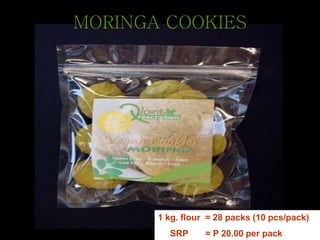

- 44. MORINGA COOKIES 1 kg.flour = 28 packs (10 pcs/pack) SRP = P 20.00 per pack
- 45. MORINGA SURPRISE Ingredients: 1 barwhite chocolate 1 can condensed milk ¼ cup moringa powder
- 46. Procedure: 1. Combine condensed milkand moringa powder and mix well. MORINGA SURPRISE 2. Cook over moderate heat until thick. Set aside.

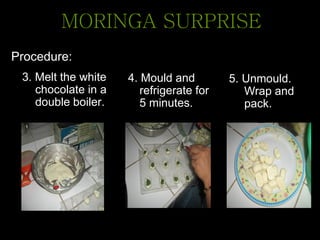

- 47. Procedure: 3. Melt thewhite chocolate in a double boiler. MORINGA SURPRISE 4. Mould and refrigerate for 5 minutes. 5. Unmould. Wrap and pack.
- 48. MORINGA SURPRISE ¼ cuppowder = 60 pcs. SRP = P 10.00 per piece

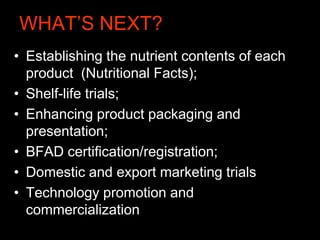

- 49. WHAT’S NEXT? • Establishingthe nutrient contents of each product (Nutritional Facts); • Shelf-life trials; • Enhancing product packaging and presentation; • BFAD certification/registration; • Domestic and export marketing trials • Technology promotion and commercialization

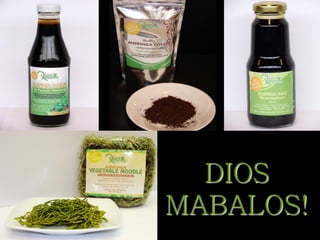

- 50.

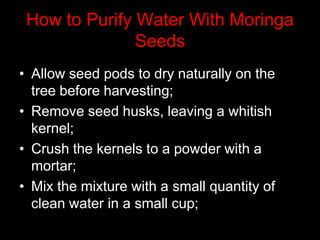

- 51. How to PurifyWater With Moringa Seeds • Allow seed pods to dry naturally on the tree before harvesting; • Remove seed husks, leaving a whitish kernel; • Crush the kernels to a powder with a mortar; • Mix the mixture with a small quantity of clean water in a small cup;

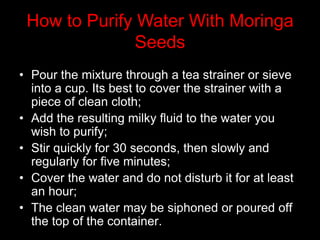

- 52. • Pour themixture through a tea strainer or sieve into a cup. Its best to cover the strainer with a piece of clean cloth; • Add the resulting milky fluid to the water you wish to purify; • Stir quickly for 30 seconds, then slowly and regularly for five minutes; • Cover the water and do not disturb it for at least an hour; • The clean water may be siphoned or poured off the top of the container. How to Purify Water With Moringa Seeds
- 53. • 50 –100 mg of ground seeds treats 1li. of water, depending on how clear the water is. • One can try experimenting with amount of seeds and stirring times to find what works for the kind of water you will purify. • The seed cake left over after extracting oil can still be used for water purification. • How to Purify Water With Moringa Seeds
- 54. MORINGA OLEIFERA SEED PROCESSINGTECHNIQUES LOW TECHNOLOGY • Suitable for households to small community water supplies. • Production of biocompost/ bio-fertilizer from sludge produced after treatment Source: Suleyman Aremu Muyibi

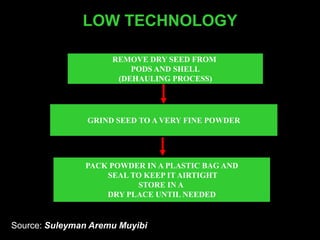

- 55. LOW TECHNOLOGY SEED PROCESSING REMOVEDRY SEED FROM PODS AND SHELL (DEHAULING PROCESS) GRIND SEED TO A VERY FINE POWDER PACK POWDER IN A PLASTIC BAG AND SEAL TO KEEP IT AIRTIGHT STORE IN A DRY PLACE UNTIL NEEDED Source: Suleyman Aremu Muyibi

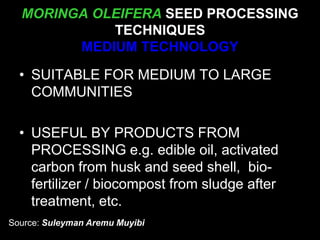

- 56. MORINGA OLEIFERA SEEDPROCESSING TECHNIQUES MEDIUM TECHNOLOGY • SUITABLE FOR MEDIUM TO LARGE COMMUNITIES • USEFUL BY PRODUCTS FROM PROCESSING e.g. edible oil, activated carbon from husk and seed shell, bio- fertilizer / biocompost from sludge after treatment, etc. Source: Suleyman Aremu Muyibi

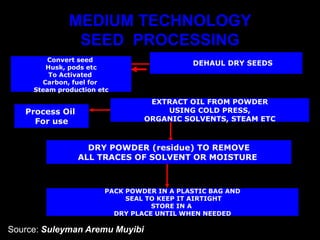

- 57. MEDIUM TECHNOLOGY SEED PROCESSING DEHAULDRY SEEDS EXTRACT OIL FROM POWDER USING COLD PRESS, ORGANIC SOLVENTS, STEAM ETC DRY POWDER (residue) TO REMOVE ALL TRACES OF SOLVENT OR MOISTURE PACK POWDER IN A PLASTIC BAG AND SEAL TO KEEP IT AIRTIGHT STORE IN A DRY PLACE UNTIL WHEN NEEDED Process Oil For use Convert seed Husk, pods etc To Activated Carbon, fuel for Steam production etc Source: Suleyman Aremu Muyibi

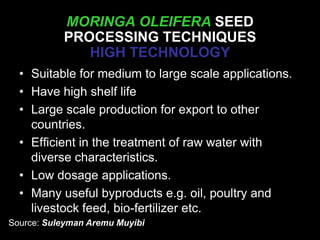

- 58. MORINGA OLEIFERA SEED PROCESSINGTECHNIQUES HIGH TECHNOLOGY SEED PROCESSING• Suitable for medium to large scale applications. • Have high shelf life • Large scale production for export to other countries. • Efficient in the treatment of raw water with diverse characteristics. • Low dosage applications. • Many useful byproducts e.g. oil, poultry and livestock feed, bio-fertilizer etc. Source: Suleyman Aremu Muyibi

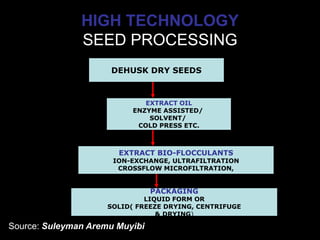

- 59. HIGH TECHNOLOGY SEED PROCESSING DEHUSKDRY SEEDS EXTRACT OIL ENZYME ASSISTED/ SOLVENT/ COLD PRESS ETC. EXTRACT BIO-FLOCCULANTS ION-EXCHANGE, ULTRAFILTRATION CROSSFLOW MICROFILTRATION, PACKAGING LIQUID FORM OR SOLID( FREEZE DRYING, CENTRIFUGE & DRYING) Source: Suleyman Aremu Muyibi
- 60. APPLICATION IN WATER TREATMENT •Household and Community Level water treatment units. • Treatment Unit operations and processes. • Manual of operation required for dosing, filter cleaning and maintenance etc. • Use Moringa oleifera seed processed with low technology COAGULATION-FLOCCULATION COAGULANT DOSING FILTRATION SLOW SAND FILTERS STORAGE AND DISTRIBUTION FOR USE SLUDGE MIXED WITH AGRO-WASTE BIOCOMPOST Source: Suleyman Aremu Muyibi
- 61. APPLICATION IN WATER TREATMENT LARGESCALE • Application areas: – Existing conventional water treatment plants with slight modifications. – New water treatment plants. – Use processed Moringa seed from medium technology or high technology. – Provide manual of operation for dosing, filter maintenance etc.

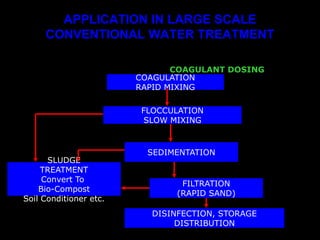

- 62. APPLICATION IN LARGESCALE CONVENTIONAL WATER TREATMENT • Existing Water Treatment Plants COAGULATION RAPID MIXING COAGULANT DOSING FLOCCULATION SLOW MIXING SEDIMENTATION FILTRATION (RAPID SAND) DISINFECTION, STORAGE DISTRIBUTION SLUDGE TREATMENT Convert To Bio-Compost Soil Conditioner etc.

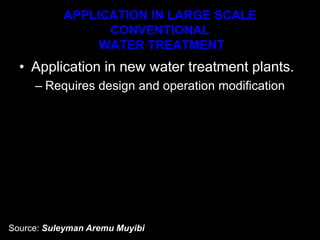

- 63. APPLICATION IN LARGESCALE CONVENTIONAL WATER TREATMENT • Application in new water treatment plants. – Requires design and operation modification Source: Suleyman Aremu Muyibi

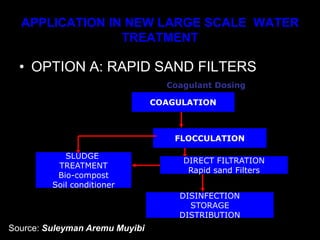

- 64. APPLICATION IN NEWLARGE SCALE WATER TREATMENT • OPTION A: RAPID SAND FILTERS Coagulant Dosing COAGULATION FLOCCULATION DIRECT FILTRATION Rapid sand Filters DISINFECTION STORAGE DISTRIBUTION SLUDGE TREATMENT Bio-compost Soil conditioner Source: Suleyman Aremu Muyibi

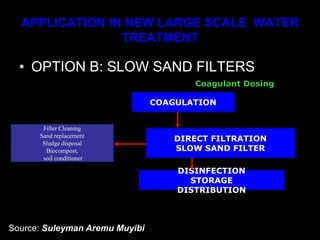

- 65. APPLICATION IN NEWLARGE SCALE WATER TREATMENT • OPTION B: SLOW SAND FILTERS COAGULATION Coagulant Dosing DIRECT FILTRATION SLOW SAND FILTER DISINFECTION STORAGE DISTRIBUTION Filter Cleaning Sand replacement Sludge disposal Biocompost, soil conditioner Source: Suleyman Aremu Muyibi

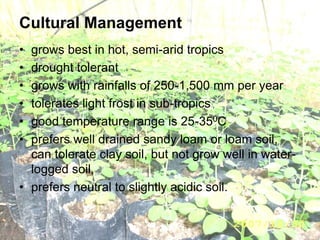

- 66. Cultural Management • growsbest in hot, semi-arid tropics • drought tolerant • grows with rainfalls of 250-1,500 mm per year • tolerates light frost in sub-tropics • good temperature range is 25-350C • prefers well drained sandy loam or loam soil, can tolerate clay soil, but not grow well in water- logged soil, • prefers neutral to slightly acidic soil.

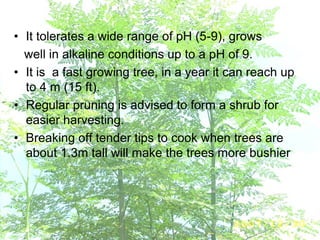

- 67. • It toleratesa wide range of pH (5-9), grows well in alkaline conditions up to a pH of 9. • It is a fast growing tree, in a year it can reach up to 4 m (15 ft). • Regular pruning is advised to form a shrub for easier harvesting. • Breaking off tender tips to cook when trees are about 1.3m tall will make the trees more bushier
- 68. Propagation. . . Malunggaycan be propagated by: seeds cuttings

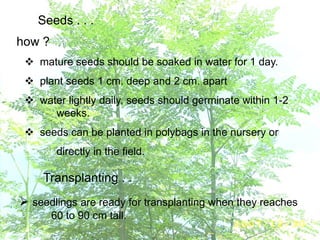

- 69. Seeds . .. how ? mature seeds should be soaked in water for 1 day. plant seeds 1 cm. deep and 2 cm. apart water lightly daily, seeds should germinate within 1-2 weeks. seeds can be planted in polybags in the nursery or directly in the field. Transplanting . . seedlings are ready for transplanting when they reaches 60 to 90 cm tall.

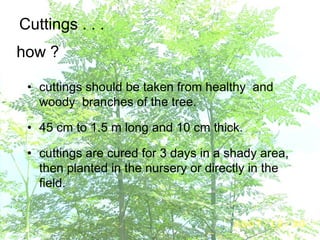

- 70. Cuttings . .. • cuttings should be taken from healthy and woody branches of the tree. • 45 cm to 1.5 m long and 10 cm thick. • cuttings are cured for 3 days in a shady area, then planted in the nursery or directly in the field. how ?

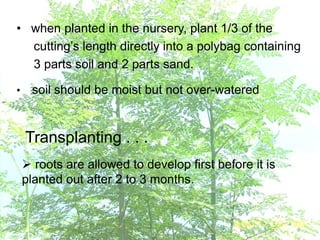

- 71. Transplanting . .. roots are allowed to develop first before it is planted out after 2 to 3 months. • when planted in the nursery, plant 1/3 of the cutting’s length directly into a polybag containing 3 parts soil and 2 parts sand. • soil should be moist but not over-watered
