Developing Custom Controls with UI5 (OpenUI5 video lecture)

Developing Custom Controls
with UI5Michael Graf, UI5 Developer

© 2014 SAP AG. All rights reserved. 2
Overview
In this lecture, we are going to develop custom controls using the UI5 extension
mechanism.
Using the following examples, we will implement two concepts of software reuse to
create our own controls on top of the UI5 framework.
Lightbox
Control Inheritance
Poll
Composite Control
Note: These controls are also referred as notepad controls because they can be
created on the fly and the process is very easy.

The extend() method is available on all controls and is used to define a new
subclass.
We will use both of the following extend() calls to create our examples.
Inherit from any UI5 control class to reuse existing functionality
sap.m.Image.extend(sName, oDefinition);
Inherit from control the base class for an entirely new control
sap.ui.core.Control.extend(sName, oDefinition);
Extending Controls

sap.ui.core.Control.extend(“MyControl", {
metadata: {
},
Properties: Represent the state of the control as simple types
Events: Allow for registering by the application and other controls
Aggregations: Hold a list of data or controls to be used in this control
Methods: Define the control‘s behavior
Renderer: Creates the HTML for the control
});
Control Structure (Schematic)

sap.ui.core.Control.extend(“MyControl”, {
metadata: {
properties: {},
events: {},
aggregations: {}
},
publicMethod: function () {}, // all methods are public
_privateMethod: function () {}, // private methods are prefixed with _
init: function () {} // called when control is instantiated
onclick: function (e) {}, // event handler
renderer: function (rm, oControl) {}
});
Control Structure (Code)

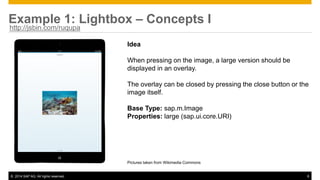

Example 1: Lightbox – Concepts I
Idea
When pressing on the image, a large version should be
displayed in an overlay.
The overlay can be closed by pressing the close button or the
image itself.
Base Type: sap.m.Image
Properties: large (sap.ui.core.URI)
Pictures taken from Wikimedia Commons
http://jsbin.com/ruqupa

Example 1: Lightbox – Concepts II
Implementation
Attach to the image‘s press event and open a dialog with a
caption and a close button.
Specialty
We can reuse the image‘s renderer and add our our
functionality as internal control methods.
When preloading the image, a busy indicator is displayed to
inform the user.
We reuse the images „alt“ property for the caption.
Pictures taken from Wikimedia Commons
http://jsbin.com/ruqupa

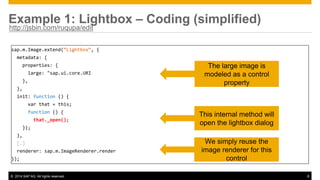

Example 1: Lightbox – Coding (simplified)
sap.m.Image.extend(“Lightbox”, {
metadata: {
properties: {
large: "sap.ui.core.URI
},
},
init: function () {
var that = this;
function () {
that._open();
});
},
[…]
renderer: sap.m.ImageRenderer.render
});
The large image is
modeled as a control
property
This internal method will
open the lightbox dialog
We simply reuse the
image renderer for this
control
http://jsbin.com/ruqupa/edit

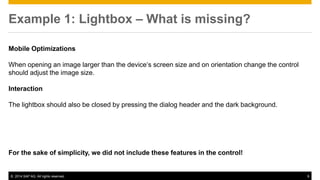

Example 1: Lightbox – What is missing?
Mobile Optimizations
When opening an image larger than the device‘s screen size and on orientation change the control
should adjust the image size.
Interaction
The lightbox should also be closed by pressing the dialog header and the dark background.
For the sake of simplicity, we did not include these features in the control!

Example 2: Poll – Concepts I
Idea
Ask the user a question.
Allow rating a value between 1-5.
Show the results of the poll after the voting.
Base Type: sap.ui.core.Control
Properties: question (string)
Events: vote()
Aggregations:
_title (sap.m.Label)
_rating (sap.m.RatingIndicator)
_meta: (sap.m.Label)
http://jsbin.com/jesox

Example 2: Poll – Concepts II
Implementation
Create a composite control with two labels and a
RatingIndicator.
Switch the control state and layout to show the
result.
Specialty
Uses hidden aggregations to manage the internal
controls.
http://jsbin.com/jesox

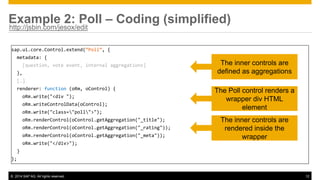

Example 2: Poll – Coding (simplified)
sap.ui.core.Control.extend(“Poll”, {
metadata: {
[question, vote event, internal aggregations]
},
[…]
renderer: function (oRm, oControl) {
oRm.write("<div ");
oRm.writeControlData(oControl);
oRm.write("class="poll">");
oRm.renderControl(oControl.getAggregation("_title");
oRm.renderControl(oControl.getAggregation("_rating"));
oRm.renderControl(oControl.getAggregation("_meta"));
oRm.write("</div>");
}
};
The inner controls are
defined as aggregations
http://jsbin.com/jesox/edit
The inner controls are
rendered inside the
wrapper
The Poll control renders a
wrapper div HTML
element

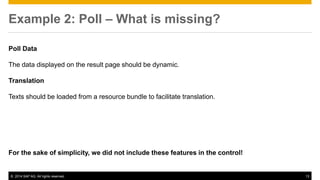

Example 2: Poll – What is missing?
Poll Data
The data displayed on the result page should be dynamic.
Translation
Texts should be loaded from a resource bundle to facilitate translation.
For the sake of simplicity, we did not include these features in the control!

Further Information
How to Develop UI5 Controls Within JavaScript
https://sapui5.hana.ondemand.com/sdk/#docs/guide/OnTheFlyControlDefinition.html
Control API Documentation
https://sapui5.hana.ondemand.com/sdk/#docs/api/symbols/sap.ui.core.Control.html
Lightbox Example
JS Bin
Poll Example
JS Bin

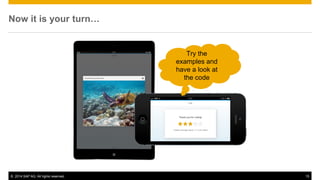

Now it is your turn…
Try the
examples and
have a look at
the code

And now it‘s quiz time
How do you define a custom control in UI5?
a)sap.ui.core.Control.extend()
b)sap.ui5.createNotpadControl()
c)sap.ui.define.custom.control()
d)sap.m.Panel.extend()
e)sap.ui.createBlackHole()
Hint: There may be multiple correct answers to this question
