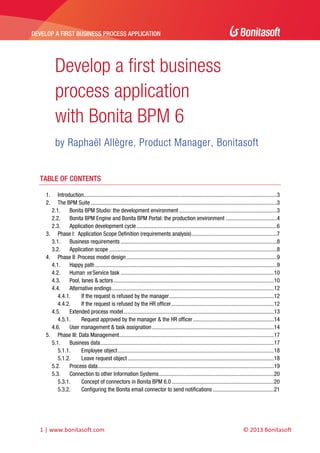

DEVELOP A FIRST BUSINESS PROCESS APPLICATION

Develop a first business
process application
with Bonita BPM 6
by Raphaël Allègre, Product Manager, Bonitasoft

TABLE OF CONTENTS
1.
2.

Introduction........................................................................................................................................3
The BPM Suite ...................................................................................................................................3
2.1. Bonita BPM Studio: the development environment .....................................................................3
2.2. Bonita BPM Engine and Bonita BPM Portal: the production environment ....................................4
2.3. Application development cycle ...................................................................................................6
3. Phase I: Application Scope Definition (requirements analysis) ............................................................7
3.1. Business requirements ..............................................................................................................8
3.2. Application scope ......................................................................................................................8
4. Phase II: Process model design ..........................................................................................................9
4.1. Happy path ................................................................................................................................9

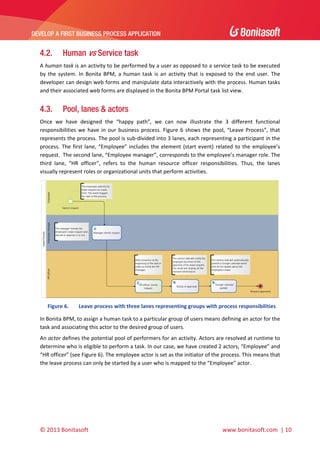

4.2. Human vs Service task ............................................................................................................10
4.3. Pool, lanes & actors .................................................................................................................10

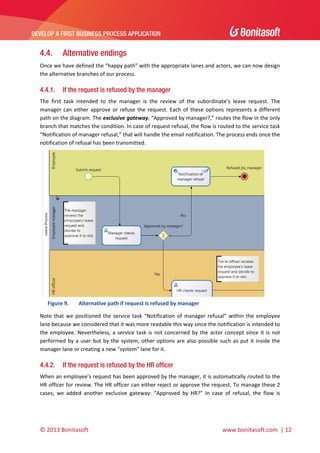

4.4. Alternative endings ..................................................................................................................12
4.4.1.
If the request is refused by the manager..........................................................................12
4.4.2.
If the request is refused by the HR officer ........................................................................12

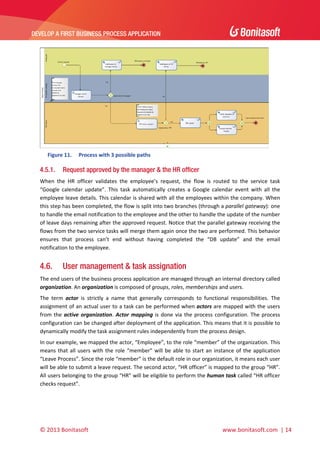

4.5. Extended process model ..........................................................................................................13
4.5.1.
Request approved by the manager & the HR officer .........................................................14
4.6. User management & task assignation ......................................................................................14

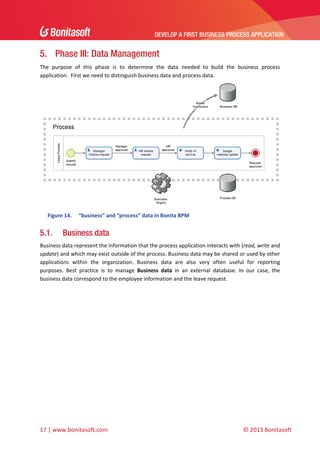

5. Phase III: Data Management .............................................................................................................17
5.1. Business data ..........................................................................................................................17
5.1.1.
Employee object ..............................................................................................................18
5.1.2.
Leave request object .......................................................................................................18

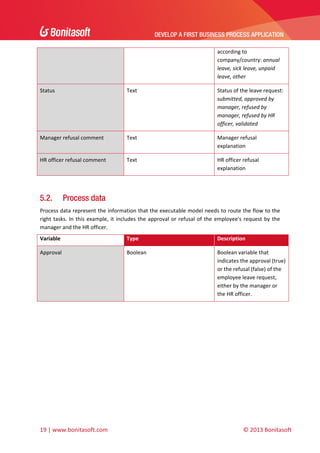

5.2. Process data ............................................................................................................................19

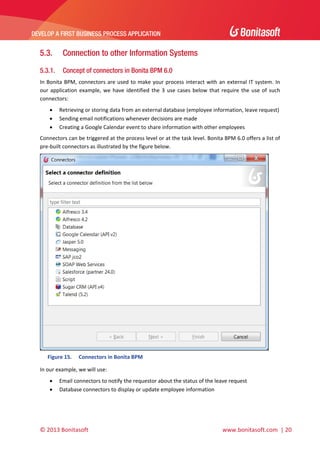

5.3. Connection to other Information Systems .................................................................................20
5.3.1.
Concept of connectors in Bonita BPM 6.0 ........................................................................20
5.3.2.

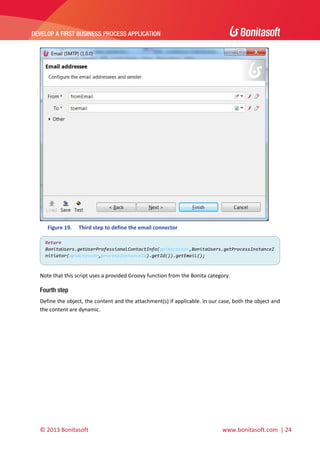

Configuring the Bonita email connector to send notifications ...........................................21

1 | www.bonitasoft.com

© 2013 Bonitasoft

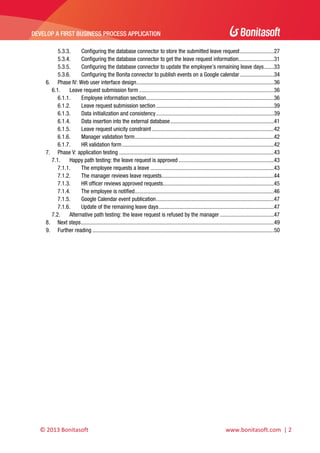

5.3.3.
Configuring the database connector to store the submitted leave request ........................27
5.3.4.
Configuring the database connector to get the leave request information.........................31
5.3.5.
Configuring the database connector to update the employee’s remaining leave days .......33
5.3.6.
Configuring the Bonita connector to publish events on a Google calendar ........................34

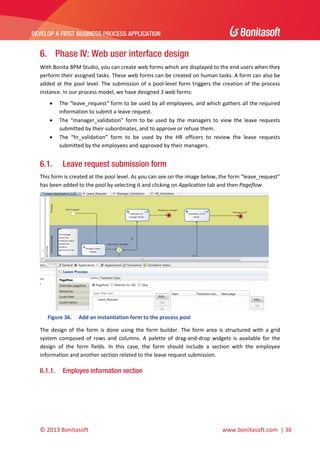

6. Phase IV: Web user interface design.................................................................................................36
6.1. Leave request submission form ...............................................................................................36
6.1.1.
Employee information section ..........................................................................................36
6.1.2.
Leave request submission section ...................................................................................39
6.1.3.
Data initialization and consistency ...................................................................................39
6.1.4.
Data insertion into the external database .........................................................................41
6.1.5.

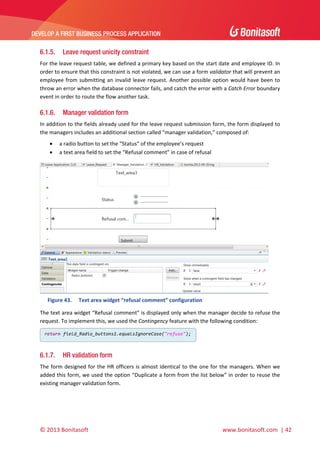

Leave request unicity constraint ......................................................................................42
6.1.6.
Manager validation form ..................................................................................................42
6.1.7.
HR validation form ...........................................................................................................42

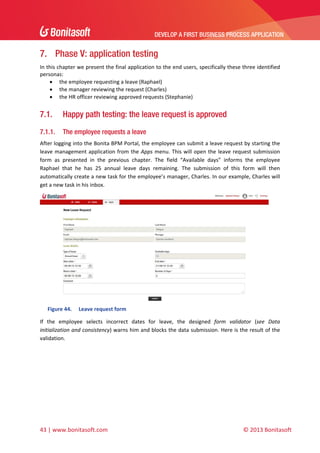

7. Phase V: application testing .............................................................................................................43
7.1. Happy path testing: the leave request is approved ...................................................................43
7.1.1.
The employee requests a leave .......................................................................................43
7.1.2.
The manager reviews leave requests ...............................................................................44
7.1.3.
HR officer reviews approved requests ..............................................................................45
7.1.4.
The employee is notified ..................................................................................................46
7.1.5.

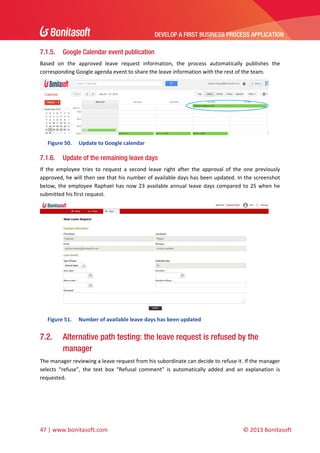

Google Calendar event publication ...................................................................................47
7.1.6.
Update of the remaining leave days .................................................................................47
7.2. Alternative path testing: the leave request is refused by the manager ......................................47
8. Next steps ........................................................................................................................................49

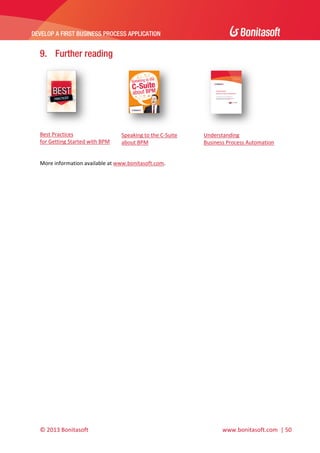

9. Further reading ................................................................................................................................50

© 2013 Bonitasoft

www.bonitasoft.com | 2


1. Introduction
Whether you are wondering how BPMN can significantly improve the efficiency of your daily
operations or whether you are wondering how to turn an existing process into an optimized
dynamic application, this paper addresses these challenges through a concrete business example:
the modeling and the automation of an employee leave management procedure. We have put
ourselves in the shoes of a project team engaged in the development of its first BPMN
implementation.
The example application is developed with Bonita BPM 6 Teamwork Subscription Edition. This
paper also gives some pointers to develop it with Bonita BPM 6 Community Edition.
Through the use of BPMN 2.0 graphical elements, we will explain how to design an executable
business process model readily understandable by all business stakeholders.
The paper covers the entire application life cycle such as the requirements analysis, the process
modeling, the design of the web user interfaces and finally the acceptance testing and deployment.
For each phase, the reader is guided with illustrations or scripts extracted from the solution. The
main development choices are explained and best practices in terms of design or performance
optimization are suggested.
The resulting application is a live prototype that can be tested by all the stakeholders. You can
install Bonita BPM and follow the example given, making modifications and customizations as
noted, to create your own first business process application with Bonita BPM. Suggestions for
further action (next steps) are given at the end of the paper.

2. The BPM Suite
2.1.

Bonita BPM Studio: the development environment

Bonita BPM Studio is a graphical environment for creating a business process application. It
contains two principle design tools: the whiteboard, for drawing the process flow diagram and
defining the detail of steps, transitions, decision points and other process elements; and the form
builder, which is used to create forms used in process web applications. Bonita BPM Studio is the
process development environment for both the business analyst and the application developer.
You can install Bonita BPM Studio on a development system, then create and test processes
without needing to deploy a production environment. Bonita BPM Studio contains an embedded,
locally deployed version of the Bonita BPM Engine, suitable for testing a process that is in
development.


© 2013 Bonitasoft

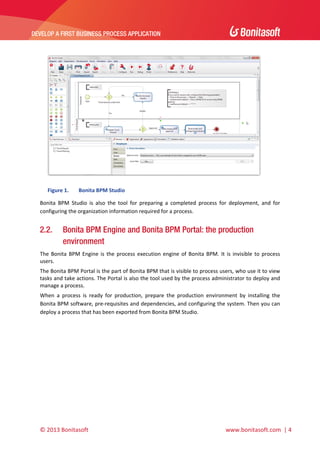

Figure 1.

Bonita BPM Studio

Bonita BPM Studio is also the tool for preparing a completed process for deployment, and for
configuring the organization information required for a process.

2.2.

Bonita BPM Engine and Bonita BPM Portal: the production
environment

The Bonita BPM Engine is the process execution engine of Bonita BPM. It is invisible to process
users.
The Bonita BPM Portal is the part of Bonita BPM that is visible to process users, who use it to view
tasks and take actions. The Portal is also the tool used by the process administrator to deploy and
manage a process.
When a process is ready for production, prepare the production environment by installing the
Bonita BPM software, pre‐requisites and dependencies, and configuring the system. Then you can
deploy a process that has been exported from Bonita BPM Studio.

© 2013 Bonitasoft

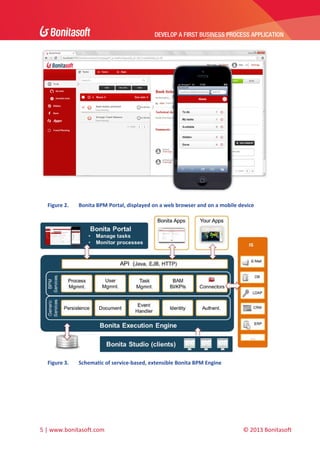

Figure 2.

Bonita BPM Portal, displayed on a web browser and on a mobile device

Figure 3.

Schematic of service‐based, extensible Bonita BPM Engine


© 2013 Bonitasoft


2.3.

Application development cycle

Application development is based on an iterative and collaborative approach.
We begin by analyzing the business requirements and defining the scope of the application, or
more specifically, the deliverables of the first iteration.

Figure 4.

The 5 phases of application development project life cycle

In each of the 5 phases of the project lifecycle, the business‐oriented or end‐user oriented people
will collaborate as much as possible with the technical people to optimize the chances of a quick
adoption of the developed application. The typical project stakeholders are the business analyst,
the developer, the end user and the testers. The role of the business analyst can often be played by
the business user (SMEs), the person who drives the needs for the process.
This paper will now follow the phases of the development lifecycle:






Application scope definition (requirements analysis)
Process model design
Data management (and connection to other Information Systems)
Web user interface (UI) design
Testing / Live demo

© 2013 Bonitasoft

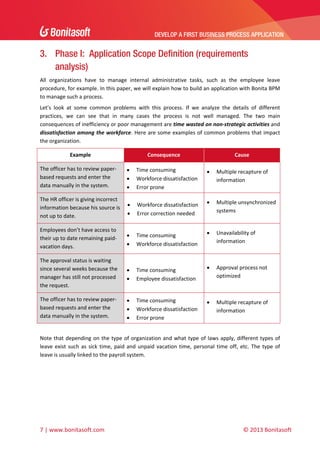

3. Phase I: Application Scope Definition (requirements
analysis)
All organizations have to manage internal administrative tasks, such as the employee leave
procedure, for example. In this paper, we will explain how to build an application with Bonita BPM
to manage such a process.
Let’s look at some common problems with this process. If we analyze the details of different
practices, we can see that in many cases the process is not well managed. The two main
consequences of inefficiency or poor management are time wasted on non‐strategic activities and
dissatisfaction among the workforce. Here are some examples of common problems that impact
the organization.
Example

Consequence




Time consuming
Workforce dissatisfaction
Error prone

The HR officer is giving incorrect
information because his source is 

not up to date.

Error correction needed

Employees don’t have access to
their up to date remaining paid‐
vacation days.




Time consuming

The approval status is waiting
since several weeks because the
manager has still not processed
the request.




Time consuming
Employee dissatisfaction

The officer has to review paper‐
based requests and enter the
data manually in the system.





Time consuming
Error prone

The officer has to review paper‐
based requests and enter the
data manually in the system.

Cause


Multiple recapture of
information



Multiple unsynchronized
systems



Unavailability of
information



Approval process not
optimized



Multiple recapture of
information

Note that depending on the type of organization and what type of laws apply, different types of
leave exist such as sick time, paid and unpaid vacation time, personal time off, etc. The type of
leave is usually linked to the payroll system.


© 2013 Bonitasoft


3.1.

Business requirements

Keeping in mind the primary business objective of improving process efficiency and increasing
employee satisfaction, here are the requirements that the first iteration of our application should
address:
1. Provide a centralized solution to manage employee leave request
2. Provide a solution appropriate for the 3 distinct user profiles: requestor, manager and HR
officer
3. Eliminate paper timesheets
4. Eliminate error‐prone manual processes
5. Automate the existing process from request submission to request information
documentation/archival
6. Share information across the company
7. Notify employees when key decisions are made

3.2.

Application scope
Business Requirements

Solution

Centralized solution to manage employee leave
request

Build an executable model to orchestrate the
business process; build a business process
application, with a web‐based interface, to
interact with end users.

Adapt the solution to the 3 distinct user profiles:
requestor, manager and HR officer

Include the 3 personas during the design of
the process model and address their
requirements at an early stage.

Eliminate paper timesheets and other error‐
prone manual processes

Design web forms within the process model in
order to manage data entries. Implement
automatic data validation rules to ensure data
integrity. Use connectors to push data to
external IT systems. In our example, the leave
request as well as all the approval steps will be
managed through a web form.

Automate the approval process

Use BPMN 2.0 graphical elements to model
the approval process relevant to your
organization. In our example, the process
model will automatically route an employee’s
leave request to the employee’s manager first
and then to the HR officer.

© 2013 Bonitasoft

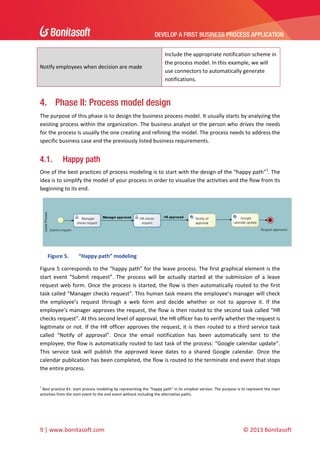

Notify employees when decision are made

Include the appropriate notification scheme in
the process model. In this example, we will
use connectors to automatically generate
notifications.

4. Phase II: Process model design
The purpose of this phase is to design the business process model. It usually starts by analyzing the
existing process within the organization. The business analyst or the person who drives the needs
for the process is usually the one creating and refining the model. The process needs to address the
specific business case and the previously listed business requirements.

4.1.

Happy path

One of the best practices of process modeling is to start with the design of the “happy path”1. The
idea is to simplify the model of your process in order to visualize the activities and the flow from its
beginning to its end.

Figure 5.

“Happy path” modeling

Figure 5 corresponds to the “happy path” for the leave process. The first graphical element is the
start event “Submit request”. The process will be actually started at the submission of a leave
request web form. Once the process is started, the flow is then automatically routed to the first
task called “Manager checks request”. This human task means the employee’s manager will check
the employee’s request through a web form and decide whether or not to approve it. If the
employee’s manager approves the request, the flow is then routed to the second task called “HR
checks request”. At this second level of approval, the HR officer has to verify whether the request is
legitimate or not. If the HR officer approves the request, it is then routed to a third service task
called “Notify of approval”. Once the email notification has been automatically sent to the
employee, the flow is automatically routed to last task of the process: “Google calendar update”.
This service task will publish the approved leave dates to a shared Google calendar. Once the
calendar publication has been completed, the flow is routed to the terminate end event that stops
the entire process.

1

Best practice #1: start process modeling by representing the “happy path” in its simplest version. The purpose is to represent the main
activities from the start event to the end event without including the alternative paths.


© 2013 Bonitasoft


4.2.

Human vs Service task

A human task is an activity to be performed by a user as opposed to a service task to be executed
by the system. In Bonita BPM, a human task is an activity that is exposed to the end user. The
developer can design web forms and manipulate data interactively with the process. Human tasks
and their associated web forms are displayed in the Bonita BPM Portal task list view.

4.3.

Pool, lanes & actors

Once we have designed the “happy path”, we can now illustrate the 3 different functional
responsibilities we have in our business process. Figure 6 shows the pool, “Leave Process”, that
represents the process. The pool is sub‐divided into 3 lanes, each representing a participant in the
process. The first lane, “Employee” includes the element (start event) related to the employee’s
request.  The second lane, “Employee manager”, corresponds to the employee’s manager role. The
third lane, “HR officer”, refers to the human resource officer responsibilities. Thus, the lanes
visually represent roles or organizational units that perform activities.

Figure 6.

Leave process with three lanes representing groups with process responsibilities

In Bonita BPM, to assign a human task to a particular group of users means defining an actor for the
task and associating this actor to the desired group of users.
An actor defines the potential pool of performers for an activity. Actors are resolved at runtime to
determine who is eligible to perform a task. In our case, we have created 2 actors, “Employee” and
“HR officer” (see Figure 6). The employee actor is set as the initiator of the process. This means that
the leave process can only be started by a user who is mapped to the “Employee” actor.

© 2013 Bonitasoft

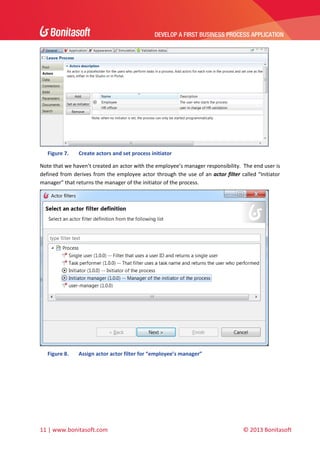

Figure 7.

Create actors and set process initiator

Note that we haven’t created an actor with the employee’s manager responsibility. The end user is
defined from derives from the employee actor through the use of an actor filter called “Initiator
manager” that returns the manager of the initiator of the process.

Figure 8.

Assign actor actor filter for “employee’s manager”


© 2013 Bonitasoft


4.4.

Alternative endings

Once we have defined the “happy path” with the appropriate lanes and actors, we can now design
the alternative branches of our process.

4.4.1.

If the request is refused by the manager

The first task intended to the manager is the review of the subordinate’s leave request. The
manager can either approve or refuse the request. Each of these options represents a different
path on the diagram. The exclusive gateway, “Approved by manager?,” routes the flow in the only
branch that matches the condition. In case of request refusal, the flow is routed to the service task
“Notification of manager refusal,” that will handle the email notification. The process ends once the
notification of refusal has been transmitted.

Figure 9.

Alternative path if request is refused by manager

Note that we positioned the service task “Notification of manager refusal” within the employee
lane because we considered that it was more readable this way since the notification is intended to
the employee. Nevertheless, a service task is not concerned by the actor concept since it is not
performed by a user but by the system, other options are also possible such as put it inside the
manager lane or creating a new “system” lane for it.

4.4.2.

If the request is refused by the HR officer

When an employee’s request has been approved by the manager, it is automatically routed to the
HR officer for review. The HR officer can either reject or approve the request. To manage these 2
cases, we added another exclusive gateway: “Approved by HR?” In case of refusal, the flow is

© 2013 Bonitasoft

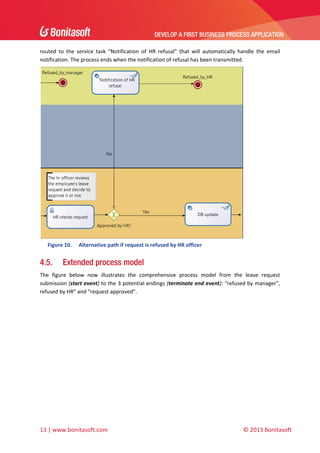

routed to the service task “Notification of HR refusal” that will automatically handle the email
notification. The process ends when the notification of refusal has been transmitted.

Figure 10.

4.5.

Alternative path if request is refused by HR officer

Extended process model

The figure below now illustrates the comprehensive process model from the leave request
submission (start event) to the 3 potential endings (terminate end event): “refused by manager”,
refused by HR” and “request approved”.


© 2013 Bonitasoft


Figure 11.

4.5.1.

Process with 3 possible paths

Request approved by the manager & the HR officer

When the HR officer validates the employee’s request, the flow is routed to the service task
“Google calendar update”. This task automatically creates a Google calendar event with all the
employee leave details. This calendar is shared with all the employees within the company. When
this step has been completed, the flow is split into two branches (through a parallel gateway): one
to handle the email notification to the employee and the other to handle the update of the number
of leave days remaining after the approved request. Notice that the parallel gateway receiving the
flows from the two service tasks will merge them again once the two are performed. This behavior
ensures that process can’t end without having completed the “DB update” and the email
notification to the employee.

4.6.

User management & task assignation

The end users of the business process application are managed through an internal directory called
organization. An organization is composed of groups, roles, memberships and users.
The term actor is strictly a name that generally corresponds to functional responsibilities. The
assignment of an actual user to a task can be performed when actors are mapped with the users
from the active organization. Actor mapping is done via the process configuration. The process
configuration can be changed after deployment of the application. This means that it is possible to
dynamically modify the task assignment rules independently from the process design.
In our example, we mapped the actor, “Employee”, to the role “member” of the organization. This
means that all users with the role “member” will be able to start an instance of the application
“Leave Process”. Since the role “member” is the default role in our organization, it means each user
will be able to submit a leave request. The second actor, “HR officer” is mapped to the group “HR”.
All users belonging to the group “HR” will be eligible to perform the human task called “HR officer
checks request”.

© 2013 Bonitasoft

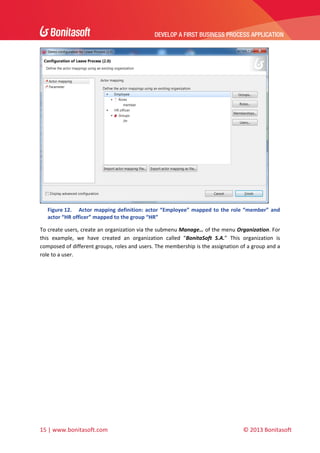

Figure 12. Actor mapping definition: actor “Employee” mapped to the role “member” and
actor “HR officer” mapped to the group “HR”
To create users, create an organization via the submenu Manage… of the menu Organization. For
this example, we have created an organization called “BonitaSoft S.A.” This organization is
composed of different groups, roles and users. The membership is the assignation of a group and a
role to a user.


© 2013 Bonitasoft

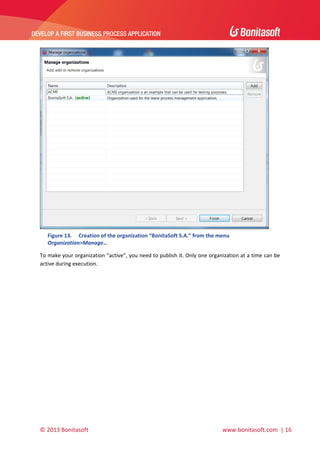

Figure 13. Creation of the organization “BonitaSoft S.A.” from the menu
Organization>Manage…
To make your organization “active”, you need to publish it. Only one organization at a time can be
active during execution.

© 2013 Bonitasoft



5. Phase III: Data Management
The purpose of this phase is to determine the data needed to build the business process
application. First we need to distinguish business data and process data.

Figure 14.

5.1.

“business” and “process” data in Bonita BPM

Business data

Business data represent the information that the process application interacts with (read, write and
update) and which may exist outside of the process. Business data may be shared or used by other
applications within the organization. Business data are also very often useful for reporting
purposes. Best practice is to manage Business data in an external database. In our case, the
business data correspond to the employee information and the leave request.


© 2013 Bonitasoft


5.1.1.

Employee object

The employee information will be summarized by the following attributes.
Variable

Type

Description

Employee ID*

Integer

Unique employee identifier

First name*

Text

Employee’s fist name

Last name*

Text

Employee’s last name

Email*

Text

Employee’s email

Manager*

Text

Employee’s manager

Available annual leaves

Numeric

Remaining days for annual
leave types

Available sick leaves

Numeric

Remaining days for sick
leave types

Bonita BPM 6.0 offers a simple directory called organization in order to manage the users. The
organization is composed of groups, roles, memberships and users (see. part User management &
task assignation). All the fields marked with a star already exist in the Bonita organization (Bonita
BPM Engine). We will then only store in the external DB, data not marked with a star plus the
Employee ID.

5.1.2.

Leave request object

The employee leave request gathers the information about the leave. The leave request will then
be stored as a table in an external database. Here is the leave request table definition:
Variable

Type

Description

Employee ID

Integer

Unique employee identifier

Start date

Date

Date of the first day of leave

End date

Date

Date of the last day of leave

Return date

Date

Date of the return day in
the company

Number of days

Numeric

Number of days off

Type of leave

Text

Type of leave available

© 2013 Bonitasoft



according to
company/country: annual
leave, sick leave, unpaid
leave, other
Status

Text

Status of the leave request:
submitted, approved by
manager, refused by
manager, refused by HR
officer, validated

Manager refusal comment

Text

Manager refusal
explanation

HR officer refusal comment

Text

HR officer refusal
explanation

5.2.

Process data

Process data represent the information that the executable model needs to route the flow to the
right tasks. In this example, it includes the approval or refusal of the employee's request by the
manager and the HR officer.
Variable

Type

Description

Approval

Boolean

Boolean variable that
indicates the approval (true)
or the refusal (false) of the
employee leave request,
either by the manager or
the HR officer.


© 2013 Bonitasoft


5.3.

Connection to other Information Systems

5.3.1.

Concept of connectors in Bonita BPM 6.0

In Bonita BPM, connectors are used to make your process interact with an external IT system. In
our application example, we have identified the 3 use cases below that require the use of such
connectors:




Retrieving or storing data from an external database (employee information, leave request)
Sending email notifications whenever decisions are made
Creating a Google Calendar event to share information with other employees

Connectors can be triggered at the process level or at the task level. Bonita BPM 6.0 offers a list of
pre‐built connectors as illustrated by the figure below.

Figure 15.

Connectors in Bonita BPM

In our example, we will use:



Email connectors to notify the requestor about the status of the leave request
Database connectors to display or update employee information

© 2013 Bonitasoft






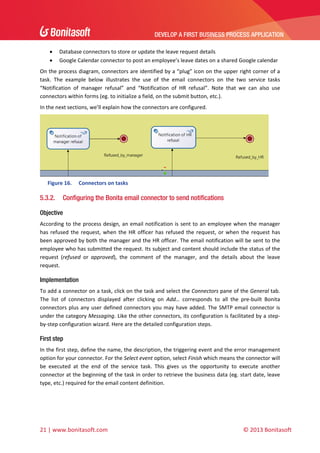

Database connectors to store or update the leave request details
Google Calendar connector to post an employee’s leave dates on a shared Google calendar

On the process diagram, connectors are identified by a “plug” icon on the upper right corner of a
task. The example below illustrates the use of the email connectors on the two service tasks
“Notification of manager refusal” and “Notification of HR refusal”. Note that we can also use
connectors within forms (eg. to initialize a field, on the submit button, etc.).
In the next sections, we’ll explain how the connectors are configured.

Figure 16.

5.3.2.

Connectors on tasks

Configuring the Bonita email connector to send notifications

Objective
According to the process design, an email notification is sent to an employee when the manager
has refused the request, when the HR officer has refused the request, or when the request has
been approved by both the manager and the HR officer. The email notification will be sent to the
employee who has submitted the request. Its subject and content should include the status of the
request (refused or approved), the comment of the manager, and the details about the leave
request.

Implementation
To add a connector on a task, click on the task and select the Connectors pane of the General tab.
The list of connectors displayed after clicking on Add… corresponds to all the pre‐built Bonita
connectors plus any user defined connectors you may have added. The SMTP email connector is
under the category Messaging. Like the other connectors, its configuration is facilitated by a step‐
by‐step configuration wizard. Here are the detailed configuration steps.

First step
In the first step, define the name, the description, the triggering event and the error management
option for your connector. For the Select event option, select Finish which means the connector will
be executed at the end of the service task. This gives us the opportunity to execute another
connector at the beginning of the task in order to retrieve the business data (eg. start date, leave
type, etc.) required for the email content definition.


© 2013 Bonitasoft

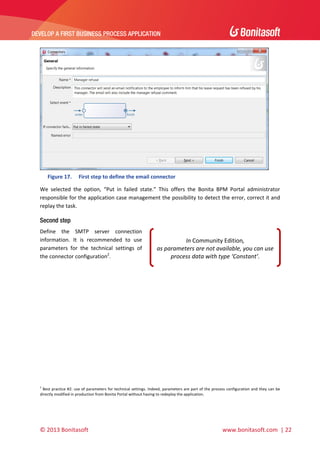

Figure 17.

First step to define the email connector

We selected the option, “Put in failed state.” This offers the Bonita BPM Portal administrator
responsible for the application case management the possibility to detect the error, correct it and
replay the task.

Second step
Define the SMTP server connection
information. It is recommended to use
parameters for the technical settings of
the connector configuration2.

In Community Edition,
as parameters are not available, you can use
process data with type ‘Constant’.

2

Best practice #2: use of parameters for technical settings. Indeed, parameters are part of the process configuration and they can be
directly modified in production from Bonita Portal without having to redeploy the application.

© 2013 Bonitasoft

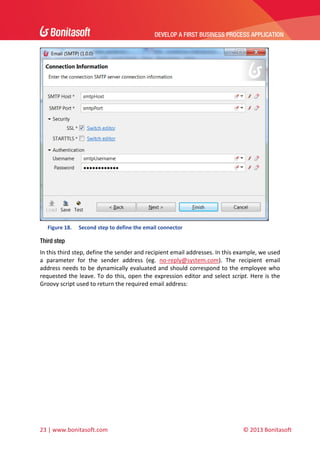

Figure 18.

Second step to define the email connector

Third step
In this third step, define the sender and recipient email addresses. In this example, we used
a parameter for the sender address (eg. no‐reply@system.com). The recipient email
address needs to be dynamically evaluated and should correspond to the employee who
requested the leave. To do this, open the expression editor and select script. Here is the
Groovy script used to return the required email address:


© 2013 Bonitasoft


Figure 19.

Third step to define the email connector

Return
BonitaUsers.getUserProfessionalContactInfo(apiAccessor,BonitaUsers.getProcessInstanceI
nitiator(apiAccessor,processInstanceId).getId()).getEmail();

Note that this script uses a provided Groovy function from the Bonita category.

Fourth step
Define the object, the content and the attachment(s) if applicable. In our case, both the object and
the content are dynamic.

© 2013 Bonitasoft

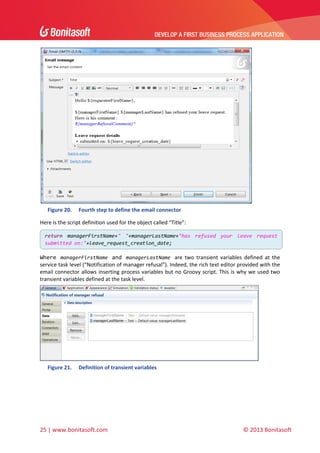

Figure 20.

Fourth step to define the email connector

Here is the script definition used for the object called “Title”:
return managerFirstName+" "+managerLastName+"has refused your leave request
submitted on:"+leave_request_creation_date;

Where managerFirstName and managerLastName are two transient variables defined at the
service task level (“Notification of manager refusal”). Indeed, the rich text editor provided with the
email connector allows inserting process variables but no Groovy script. This is why we used two
transient variables defined at the task level.

Figure 21.

Definition of transient variables


© 2013 Bonitasoft

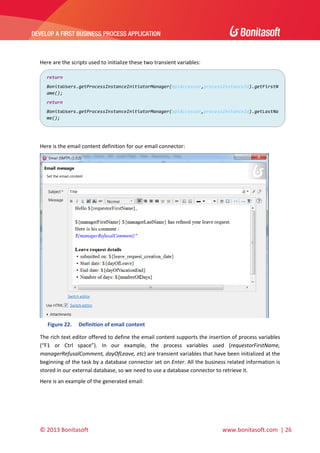

Here are the scripts used to initialize these two transient variables:
return
BonitaUsers.getProcessInstanceInitiatorManager(apiAccessor,processInstanceId).getFirstN
ame();
return
BonitaUsers.getProcessInstanceInitiatorManager(apiAccessor,processInstanceId).getLastNa
me();

Here is the email content definition for our email connector:

Figure 22.

Definition of email content

The rich text editor offered to define the email content supports the insertion of process variables
(“F1 or Ctrl space”). In our example, the process variables used (requestorFirstName,
managerRefusalComment, dayOfLeave, etc) are transient variables that have been initialized at the
beginning of the task by a database connector set on Enter. All the business related information is
stored in our external database, so we need to use a database connector to retrieve it.
Here is an example of the generated email:

© 2013 Bonitasoft

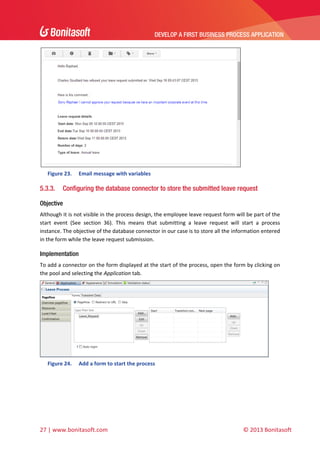

Figure 23.

5.3.3.

Email message with variables

Configuring the database connector to store the submitted leave request

Objective
Although it is not visible in the process design, the employee leave request form will be part of the
start event (See section 36). This means that submitting a leave request will start a process
instance. The objective of the database connector in our case is to store all the information entered
in the form while the leave request submission.

Implementation
To add a connector on the form displayed at the start of the process, open the form by clicking on
the pool and selecting the Application tab.

Figure 24.

Add a form to start the process


© 2013 Bonitasoft


You can then open the form (Leave_request). When the form is opened, click on the Submit button
or the form itself and select the Connectors tab in order to add the connector.

Figure 25.

Add a connector to the form

Here are the detailed configuration
steps.

as form connectors are not available, the
connector at the pool level can be used.

First step
Set the name and the description of the connector.

Figure 26.

Create a database connector

Second step
Choose between 2 options to define the SQL query. The graphical builder offers a graphical mode
to build the query. It requires you to first configure the access to your database. The other option is

© 2013 Bonitasoft

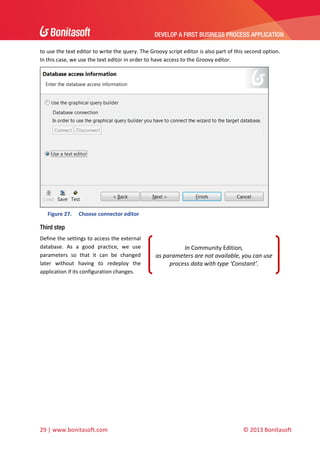

to use the text editor to write the query. The Groovy script editor is also part of this second option.
In this case, we use the text editor in order to have access to the Groovy editor.

Figure 27.

Choose connector editor

Third step
Define the settings to access the external
database. As a good practice, we use
parameters so that it can be changed
later without having to redeploy the
application if its configuration changes.

as parameters are not available, you can use
process data with type ‘Constant’.


© 2013 Bonitasoft

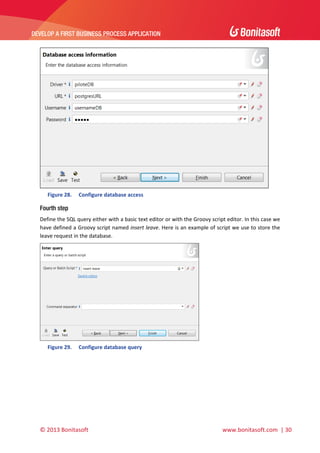

Figure 28.

Configure database access

Fourth step
Define the SQL query either with a basic text editor or with the Groovy script editor. In this case we
have defined a Groovy script named insert leave. Here is an example of script we use to store the
leave request in the database.

Figure 29.

Configure database query

© 2013 Bonitasoft



import java.text.DateFormat;
import java.text.SimpleDateFormat;
import java.util.logging.Logger;
Date request_date = new Date();
String status = "submitted";
DateFormat mySimpleDateFormat = new SimpleDateFormat("YYYY‐MM‐dd HH:mm:ss");
Logger logger=Logger.getLogger("org.bonitasoft");

String mySQL="INSERT INTO leave_request (start_date, end_date, return_date,
number_days, type_of_leave, bonita_id, submission_date, status) VALUES
('"+mySimpleDateFormat.format(field_dayOfLeave)+"',
'"+mySimpleDateFormat.format(field_Date1)+"',
'"+mySimpleDateFormat.format(field_dayOfReturn)+"', "+field_numberOfDays+",
'"+field_leave_Type+"',"+loggedUserId+",
'"+mySimpleDateFormat.format(request_date)+"', '"+status+"')";
logger.severe(mySQL);
return mySQL;

Note that we added some entries in the Bonita BPM Studio logs to display the SQL query.

5.3.4.

Configuring the database connector to get the leave request information

Objective
The objective here is to use a database connector to retrieve the employee leave request
information required to for the human task “Manager checks request.” The best practice to manage
business data required for a form is to create a custom transient data type (Java object) and
initialize it with a single database connector. This way, you will avoid impacting the form
performance with too many connectors in the forms. Also, using a transient data at the form level
will avoid storing business data in the Bonita BPM Engine database.

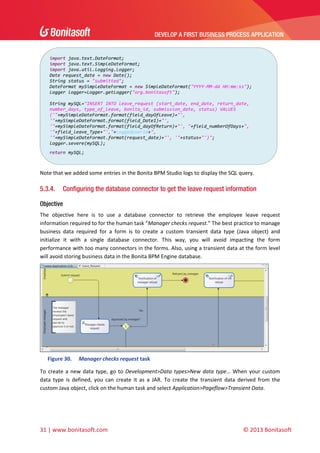

Figure 30.

Manager checks request task

To create a new data type, go to Development>Data types>New data type… When your custom
data type is defined, you can create it as a JAR. To create the transient data derived from the
custom Java object, click on the human task and select Application>Pageflow>Transient Data.


© 2013 Bonitasoft

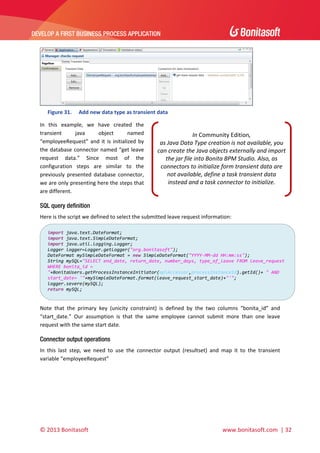

Figure 31.

Add new data type as transient data

In this example, we have created the
transient
java
object
named
“employeeRequest” and it is initialized by
the database connector named “get leave
request data.” Since most of the
configuration steps are similar to the
previously presented database connector,
we are only presenting here the steps that
are different.

as Java Data Type creation is not available, you
can create the Java objects externally and import
the jar file into Bonita BPM Studio. Also, as
connectors to initialize form transient data are
not available, define a task transient data
instead and a task connector to initialize.

SQL query definition
Here is the script we defined to select the submitted leave request information:
import java.text.DateFormat;
import java.text.SimpleDateFormat;
import java.util.logging.Logger;
Logger logger=Logger.getLogger("org.bonitasoft");
DateFormat mySimpleDateFormat = new SimpleDateFormat("YYYY‐MM‐dd HH:mm:ss");
String mySQL="SELECT end_date, return_date, number_days, type_of_leave FROM leave_request
WHERE bonita_id =
"+BonitaUsers.getProcessInstanceInitiator(apiAccessor,processInstanceId).getId()+ " AND
start_date= '"+mySimpleDateFormat.format(leave_request_start_date)+"'";
logger.severe(mySQL);
return mySQL;

Note that the primary key (unicity constraint) is defined by the two columns “bonita_id” and
“start_date.” Our assumption is that the same employee cannot submit more than one leave
request with the same start date.

Connector output operations
In this last step, we need to use the connector output (resultset) and map it to the transient
variable “employeeRequest”

© 2013 Bonitasoft

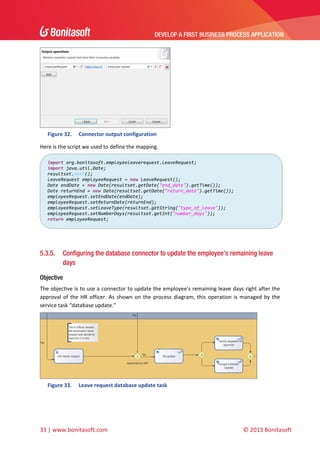

Figure 32.

Connector output configuration

Here is the script we used to define the mapping.
import org.bonitasoft.employeeleaverequest.LeaveRequest;
import java.util.Date;
resultset.next();
LeaveRequest employeeRequest = new LeaveRequest();
Date endDate = new Date(resultset.getDate("end_date").getTime());
Date returnEnd = new Date(resultset.getDate("return_date").getTime());
employeeRequest.setEndDate(endDate);
employeeRequest.setReturnDate(returnEnd);
employeeRequest.setLeaveType(resultset.getString("type_of_leave"));
employeeRequest.setNumberDays(resultset.getInt("number_days"));
return employeeRequest;

5.3.5.

Configuring the database connector to update the employee’s remaining leave
days

Objective
The objective is to use a connector to update the employee’s remaining leave days right after the
approval of the HR officer. As shown on the process diagram, this operation is managed by the
service task “database update.”

Figure 33.

Leave request database update task


© 2013 Bonitasoft

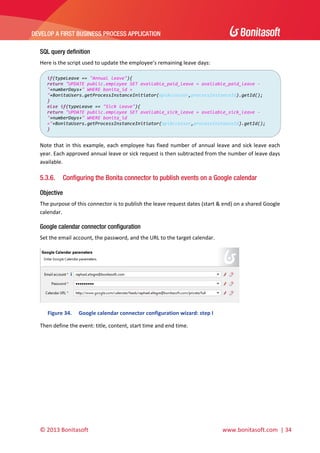

SQL query definition
Here is the script used to update the employee’s remaining leave days:
if(typeLeave == "Annual leave"){
return "UPDATE public.employee SET available_paid_leave = available_paid_leave ‐
"+numberDays+" WHERE bonita_id =
"+BonitaUsers.getProcessInstanceInitiator(apiAccessor,processInstanceId).getId();
}
else if(typeLeave == "Sick leave"){
return "UPDATE public.employee SET available_sick_leave = available_sick_leave ‐
"+numberDays+" WHERE bonita_id
="+BonitaUsers.getProcessInstanceInitiator(apiAccessor,processInstanceId).getId();
}

Note that in this example, each employee has fixed number of annual leave and sick leave each
year. Each approved annual leave or sick request is then subtracted from the number of leave days
available.

5.3.6.

Configuring the Bonita connector to publish events on a Google calendar

Objective
The purpose of this connector is to publish the leave request dates (start & end) on a shared Google
calendar.

Google calendar connector configuration
Set the email account, the password, and the URL to the target calendar.

Figure 34.

Google calendar connector configuration wizard: step I

Then define the event: title, content, start time and end time.

© 2013 Bonitasoft

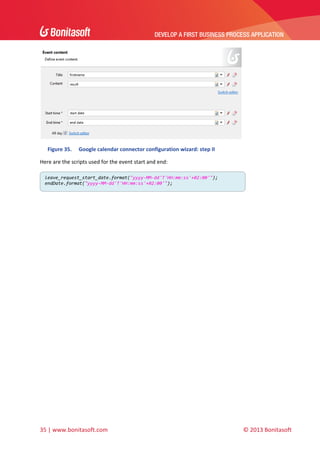

Figure 35.

Google calendar connector configuration wizard: step II

Here are the scripts used for the event start and end:
leave_request_start_date.format("yyyy‐MM‐dd'T'HH:mm:ss'+02:00'");
endDate.format("yyyy‐MM‐dd'T'HH:mm:ss'+02:00'");


© 2013 Bonitasoft


6. Phase IV: Web user interface design
With Bonita BPM Studio, you can create web forms which are displayed to the end users when they
perform their assigned tasks. These web forms can be created on human tasks. A form can also be
added at the pool level. The submission of a pool‐level form triggers the creation of the process
instance. In our process model, we have designed 3 web forms:




6.1.

The “leave_request” form to be used by all employees, and which gathers all the required
information to submit a leave request.
The “manager_validation” form to be used by the managers to view the leave requests
submitted by their subordinates, and to approve or refuse them.
The “hr_validation” form to be used by the HR officers to review the leave requests
submitted by the employees and approved by their managers.

Leave request submission form

This form is created at the pool level. As you can see on the image below, the form “leave_request”
has been added to the pool by selecting it and clicking on Application tab and then Pageflow.

Figure 36.

Add an instantiation form to the process pool

The design of the form is done using the form builder. The form area is structured with a grid
system composed of rows and columns. A palette of drag‐and‐drop widgets is available for the
design of the form fields. In this case, the form should include a section with the employee
information and another section related to the leave request submission.

6.1.1.

Employee information section

© 2013 Bonitasoft

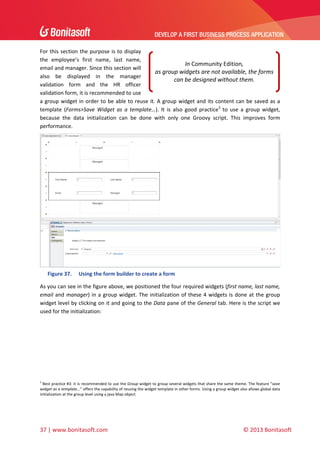

For this section the purpose is to display
the employee’s first name, last name,
email and manager. Since this section will
as group widgets are not available, the forms
also be displayed in the manager
can be designed without them.
validation form and the HR officer
validation form, it is recommended to use
a group widget in order to be able to reuse it. A group widget and its content can be saved as a
template (Forms>Save Widget as a template…). It is also good practice3 to use a group widget,
because the data initialization can be done with only one Groovy script. This improves form
performance.

Figure 37.

Using the form builder to create a form

As you can see in the figure above, we positioned the four required widgets (first name, last name,
email and manager) in a group widget. The initialization of these 4 widgets is done at the group
widget level by clicking on it and going to the Data pane of the General tab. Here is the script we
used for the initialization:

3

Best practice #3: it is recommended to use the Group widget to group several widgets that share the same theme. The feature “save
widget as a template…” offers the capability of reusing the widget template in other forms. Using a group widget also allows global data
initialization at the group level using a java Map object.


© 2013 Bonitasoft

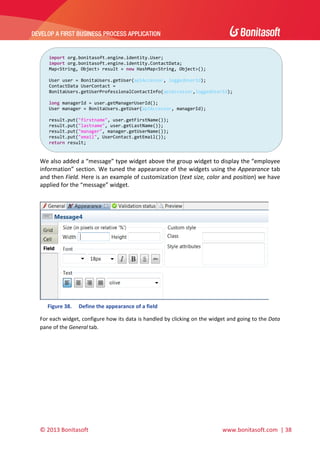

import org.bonitasoft.engine.identity.User;
import org.bonitasoft.engine.identity.ContactData;
Map<String, Object> result = new HashMap<String, Object>();

User user = BonitaUsers.getUser(apiAccessor, loggedUserId);
ContactData UserContact =
BonitaUsers.getUserProfessionalContactInfo(apiAccessor,loggedUserId);

long managerId = user.getManagerUserId();
User manager = BonitaUsers.getUser(apiAccessor, managerId);

result.put("firstname", user.getFirstName());
result.put("lastname", user.getLastName());
result.put("manager", manager.getUserName());
result.put("email", UserContact.getEmail());
return result;

We also added a “message” type widget above the group widget to display the “employee
information” section. We tuned the appearance of the widgets using the Appearance tab
and then Field. Here is an example of customization (text size, color and position) we have
applied for the “message” widget.

Figure 38.

Define the appearance of a field

For each widget, configure how its data is handled by clicking on the widget and going to the Data
pane of the General tab.

© 2013 Bonitasoft

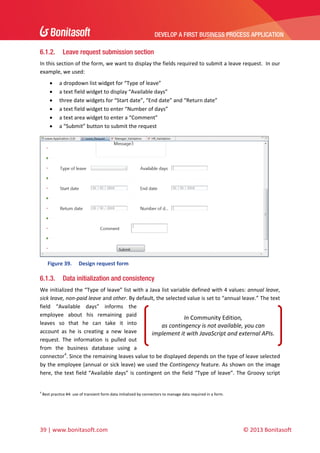

6.1.2.

Leave request submission section

In this section of the form, we want to display the fields required to submit a leave request.  In our
example, we used:







a dropdown list widget for “Type of leave”
a text field widget to display “Available days”
three date widgets for “Start date”, “End date” and “Return date”
a text field widget to enter “Number of days”
a text area widget to enter a “Comment”
a “Submit” button to submit the request

Figure 39.

6.1.3.

Design request form

Data initialization and consistency

We initialized the “Type of leave” list with a Java list variable defined with 4 values: annual leave,
sick leave, non‐paid leave and other. By default, the selected value is set to “annual leave.” The text
field “Available days” informs the
employee about his remaining paid
leaves so that he can take it into
as contingency is not available, you can
account as he is creating a new leave
implement it with JavaScript and external APIs.
request. The information is pulled out
from the business database using a
connector4. Since the remaining leaves value to be displayed depends on the type of leave selected
by the employee (annual or sick leave) we used the Contingency feature. As shown on the image
here, the text field “Available days” is contingent on the field “Type of leave”. The Groovy script

4

Best practice #4: use of transient form data initialized by connectors to manage data required in a form.


© 2013 Bonitasoft

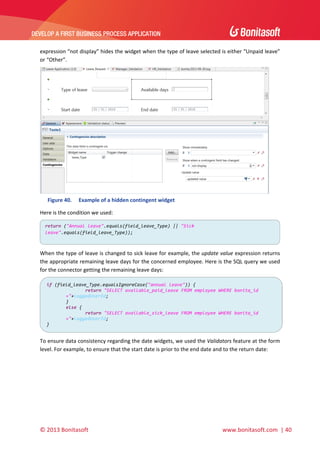

expression “not display” hides the widget when the type of leave selected is either “Unpaid leave”
or “Other”.

Figure 40.

Example of a hidden contingent widget

Here is the condition we used:
return ("Annual leave".equals(field_leave_Type) || "Sick
leave".equals(field_leave_Type));

When the type of leave is changed to sick leave for example, the update value expression returns
the appropriate remaining leave days for the concerned employee. Here is the SQL query we used
for the connector getting the remaining leave days:
if (field_leave_Type.equalsIgnoreCase("annual leave")) {

return "SELECT available_paid_leave FROM employee WHERE bonita_id
="+loggedUserId;
}
else {
return "SELECT available_sick_leave FROM employee WHERE bonita_id
="+loggedUserId;
}

To ensure data consistency regarding the date widgets, we used the Validators feature at the form
level. For example, to ensure that the start date is prior to the end date and to the return date:

© 2013 Bonitasoft

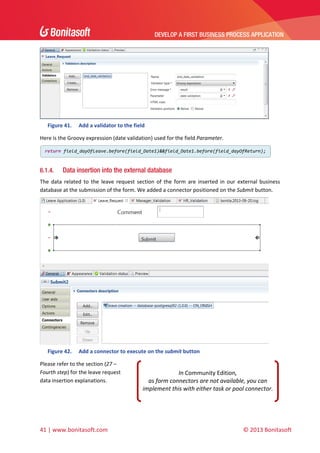

Figure 41.

Add a validator to the field

Here is the Groovy expression (date validation) used for the field Parameter.
return field_dayOfLeave.before(field_Date1)&&field_Date1.before(field_dayOfReturn);

6.1.4.

Data insertion into the external database

The data related to the leave request section of the form are inserted in our external business
database at the submission of the form. We added a connector positioned on the Submit button.

Figure 42.

Add a connector to execute on the submit button

Please refer to the section (27 –
Fourth step) for the leave request
data insertion explanations.


as form connectors are not available, you can
implement this with either task or pool connector.

© 2013 Bonitasoft


6.1.5.

Leave request unicity constraint

For the leave request table, we defined a primary key based on the start date and employee ID. In
order to ensure that this constraint is not violated, we can use a form validator that will prevent an
employee from submitting an invalid leave request. Another possible option would have been to
throw an error when the database connector fails, and catch the error with a Catch Error boundary
event in order to route the flow another task.

6.1.6.

Manager validation form

In addition to the fields already used for the leave request submission form, the form displayed to
the managers includes an additional section called “manager validation,” composed of:



a radio button to set the “Status” of the employee’s request
a text area field to set the “Refusal comment” in case of refusal

Figure 43.

Text area widget “refusal comment” configuration

The text area widget “Refusal comment” is displayed only when the manager decide to refuse the
request. To implement this, we used the Contingency feature with the following condition:
return field_Radio_buttons1.equalsIgnoreCase("refuse");

6.1.7.

HR validation form

The form designed for the HR officers is almost identical to the one for the managers. When we
added this form, we used the option “Duplicate a form from the list below” in order to reuse the
existing manager validation form.

© 2013 Bonitasoft



7. Phase V: application testing
In this chapter we present the final application to the end users, specifically these three identified
personas:
 the employee requesting a leave (Raphael)
 the manager reviewing the request (Charles)
 the HR officer reviewing approved requests (Stephanie)

7.1.

Happy path testing: the leave request is approved

7.1.1.

The employee requests a leave

After logging into the Bonita BPM Portal, the employee can submit a leave request by starting the
leave management application from the Apps menu. This will open the leave request submission
form as presented in the previous chapter. The field “Available days” informs the employee
Raphael that he has 25 annual leave days remaining. The submission of this form will then
automatically create a new task for the employee’s manager, Charles. In our example, Charles will
get a new task in his inbox.

Figure 44.

Leave request form

If the employee selects incorrect dates for leave, the designed form validator (see Data
initialization and consistency) warns him and blocks the data submission. Here is the result of the
validation.


© 2013 Bonitasoft

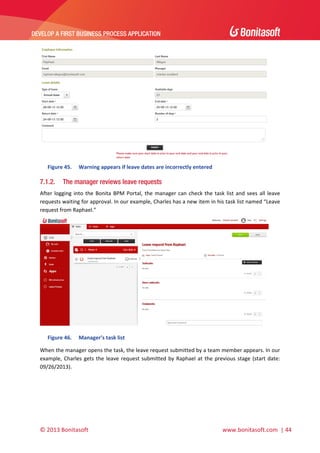

Figure 45.

7.1.2.

Warning appears if leave dates are incorrectly entered

The manager reviews leave requests

After logging into the Bonita BPM Portal, the manager can check the task list and sees all leave
requests waiting for approval. In our example, Charles has a new item in his task list named “Leave
request from Raphael.”

Figure 46.

Manager’s task list

When the manager opens the task, the leave request submitted by a team member appears. In our
example, Charles gets the leave request submitted by Raphael at the previous stage (start date:
09/26/2013).

© 2013 Bonitasoft

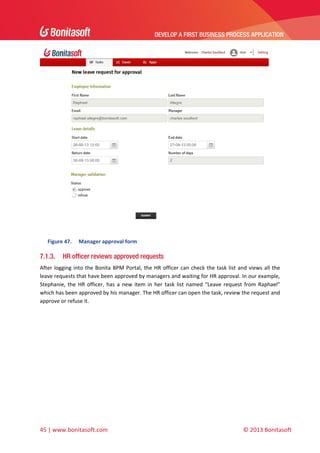

Figure 47.

7.1.3.

Manager approval form

HR officer reviews approved requests

After logging into the Bonita BPM Portal, the HR officer can check the task list and views all the
leave requests that have been approved by managers and waiting for HR approval. In our example,
Stephanie, the HR officer, has a new item in her task list named “Leave request from Raphael”
which has been approved by his manager. The HR officer can open the task, review the request and
approve or refuse it.


© 2013 Bonitasoft

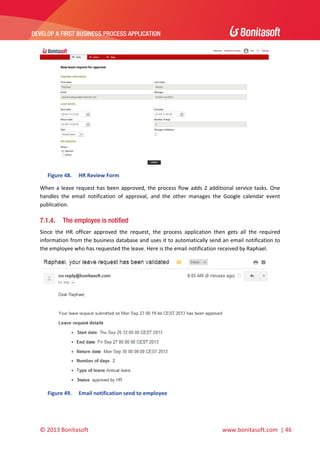

Figure 48.

HR Review Form

When a leave request has been approved, the process flow adds 2 additional service tasks. One
handles the email notification of approval, and the other manages the Google calendar event
publication.

7.1.4.

The employee is notified

Since the HR officer approved the request, the process application then gets all the required
information from the business database and uses it to automatically send an email notification to
the employee who has requested the leave. Here is the email notification received by Raphael.

Figure 49.

Email notification send to employee

© 2013 Bonitasoft



7.1.5.

Google Calendar event publication

Based on the approved leave request information, the process automatically publishes the
corresponding Google agenda event to share the leave information with the rest of the team.

Figure 50.

7.1.6.

Update to Google calendar

Update of the remaining leave days

If the employee tries to request a second leave right after the approval of the one previously
approved, he will then see that his number of available days has been updated. In the screenshot
below, the employee Raphael has now 23 available annual leave days compared to 25 when he
submitted his first request.

Figure 51.

7.2.

Number of available leave days has been updated

Alternative path testing: the leave request is refused by the
manager

The manager reviewing a leave request from his subordinate can decide to refuse it. If the manager
selects “refuse”, the text box “Refusal comment” is automatically added and an explanation is
requested.


© 2013 Bonitasoft

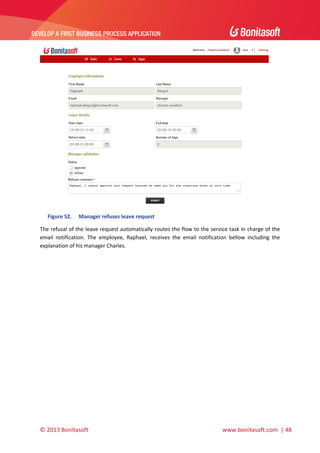

Figure 52.

Manager refuses leave request

The refusal of the leave request automatically routes the flow to the service task in charge of the
email notification. The employee, Raphael, receives the email notification bellow including the
explanation of his manager Charles.

© 2013 Bonitasoft



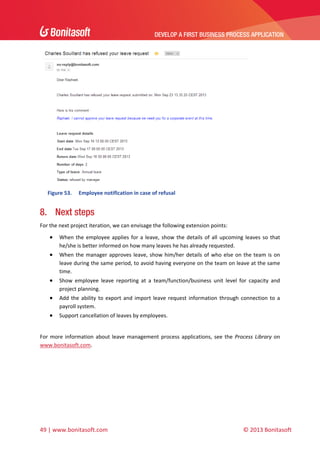

Figure 53.

Employee notification in case of refusal

8. Next steps
For the next project iteration, we can envisage the following extension points:



When the employee applies for a leave, show the details of all upcoming leaves so that
he/she is better informed on how many leaves he has already requested.



When the manager approves leave, show him/her details of who else on the team is on
leave during the same period, to avoid having everyone on the team on leave at the same
time.



Show employee leave reporting at a team/function/business unit level for capacity and
project planning.



Add the ability to export and import leave request information through connection to a
payroll system.



Support cancellation of leaves by employees.

For more information about leave management process applications, see the Process Library on
www.bonitasoft.com.


© 2013 Bonitasoft


9. Further reading

Best Practices
for Getting Started with BPM

Speaking to the C‐Suite
about BPM

Understanding
Business Process Automation

More information available at www.bonitasoft.com.

© 2013 Bonitasoft


HEADQUARTERS
GRENOBLE, FRANCE
32, rue Gustave Eiffel
38000 Grenoble

EMEA, ASIA & LATIN AMERICA
PARIS, FRANCE
73‐77, rue de Sèvres
92100 Boulogne‐Billancourt

NORTH AMERICA
SAN FRANCISCO, USA
51 Federal St. Suite 305
San Francisco, CA 94107


© 2013 Bonitasoft

Develop a first business process application

More Related Content

What's hot

Viewers also liked

Similar to Develop a first business process application

More from Bonitasoft

Recently uploaded

Develop a first business process application
