1. © 2009 IBM Corporation
Conversational Internet:
A natural language interface for webpages
Dale Lane – IBM United Kingdom
14 May 2013
dale.lane@uk.ibm.com

2. © 2012 IBM Corporation2

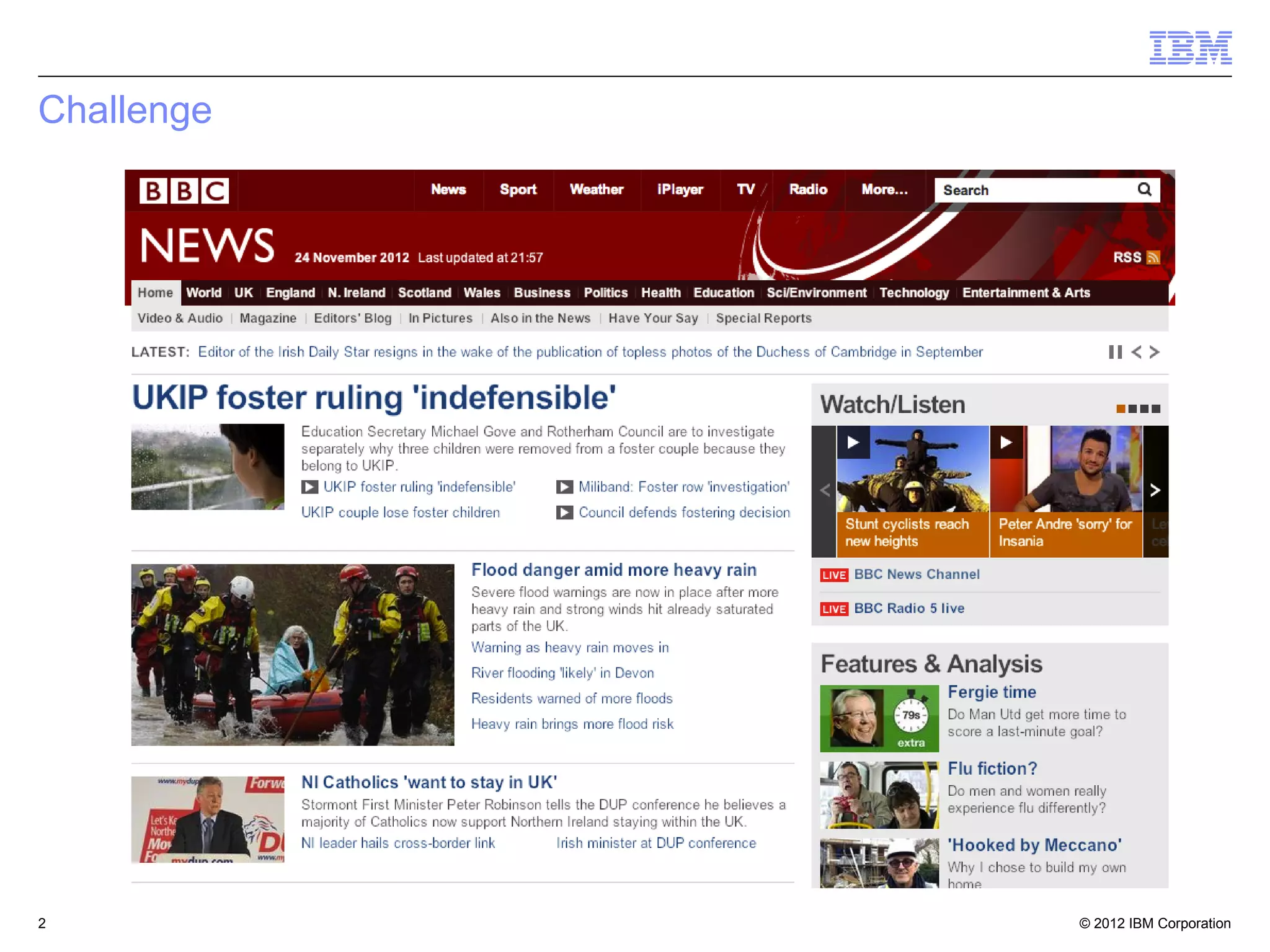

Challenge

3. © 2012 IBM Corporation3

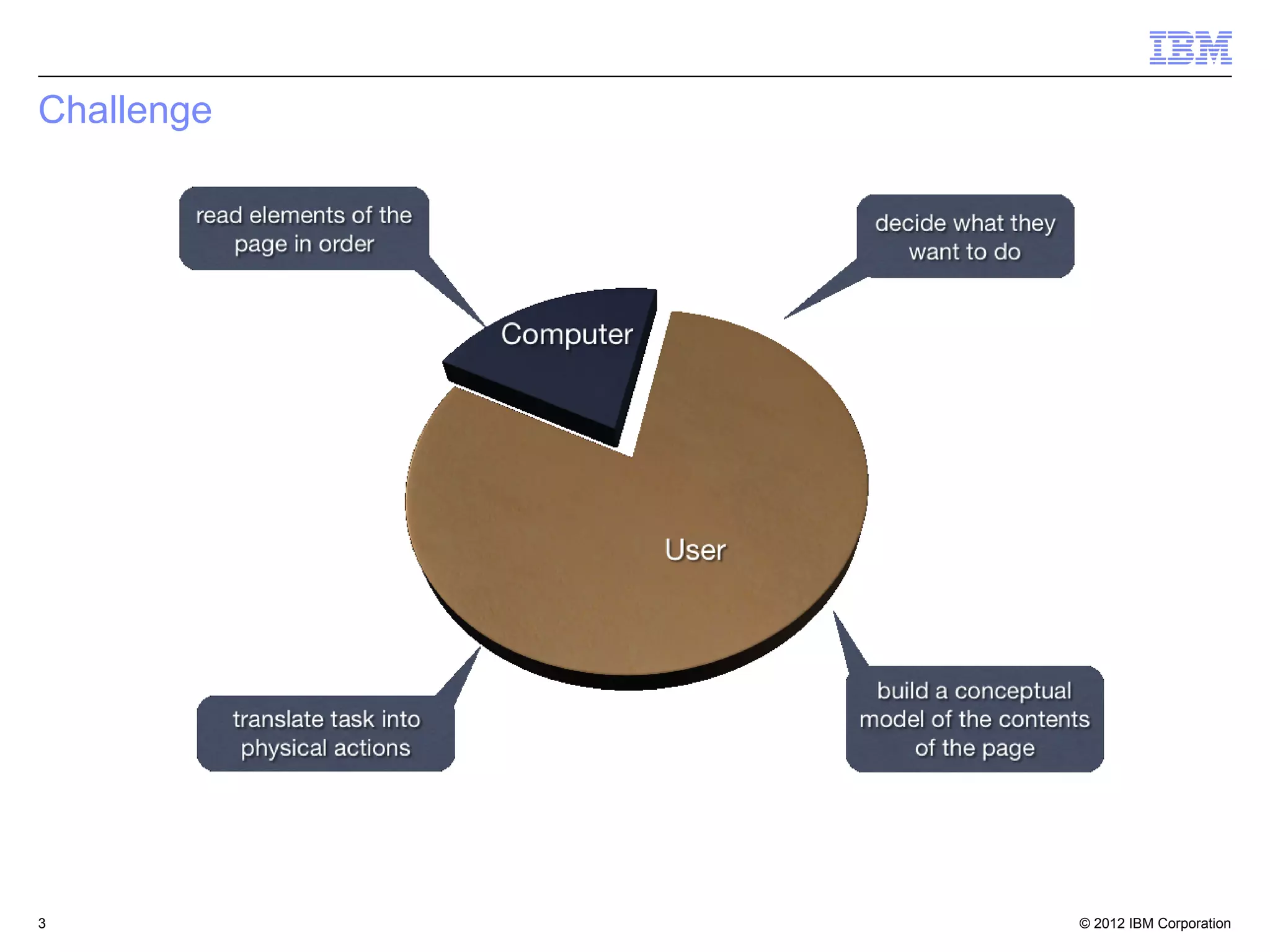

Challenge

4. © 2012 IBM Corporation4

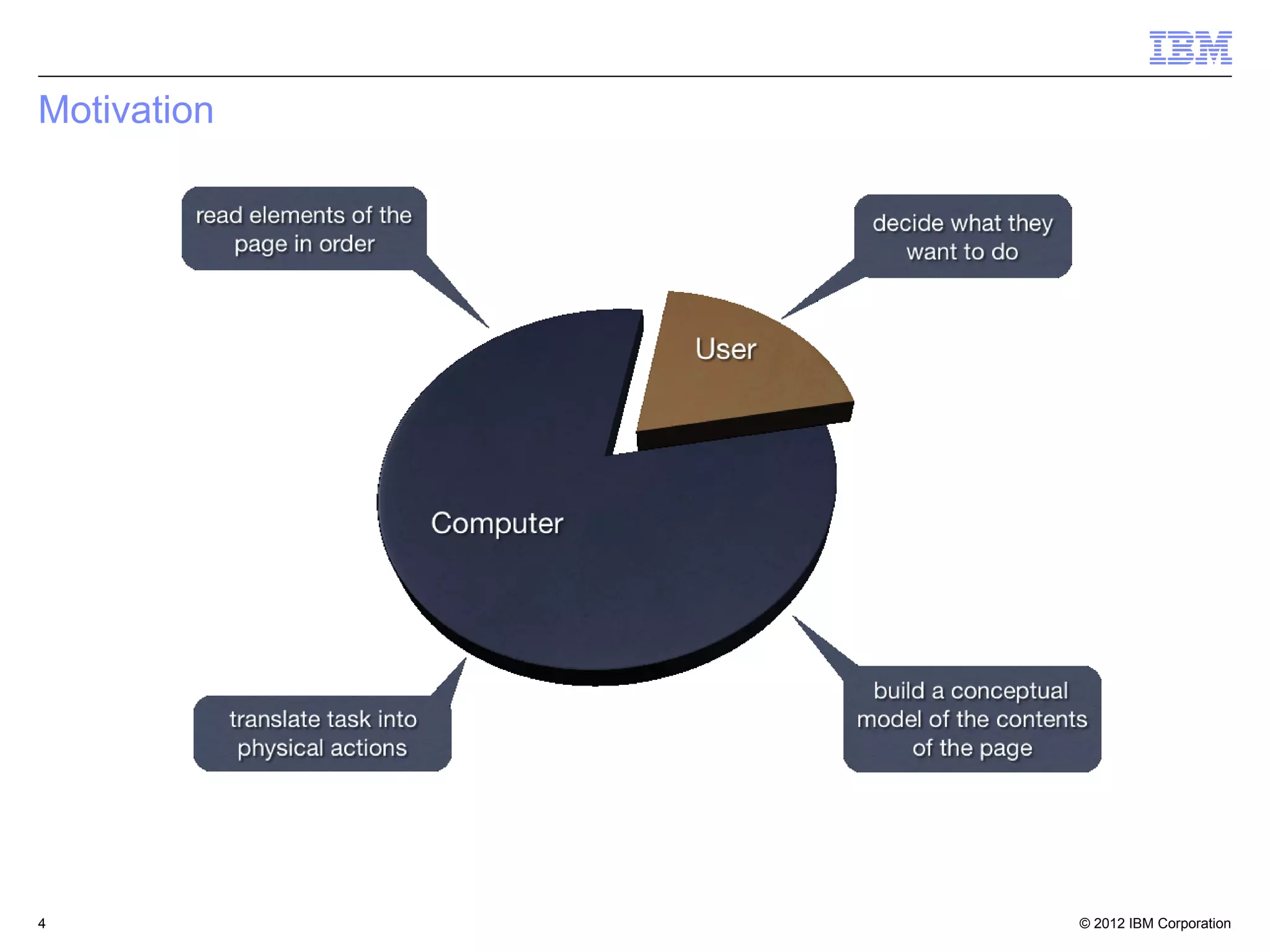

Motivation

5. © 2012 IBM Corporation5
Understanding the page : Identifying type

6. © 2012 IBM Corporation6
Understanding the page : Identifying navigation options

7. © 2012 IBM Corporation7

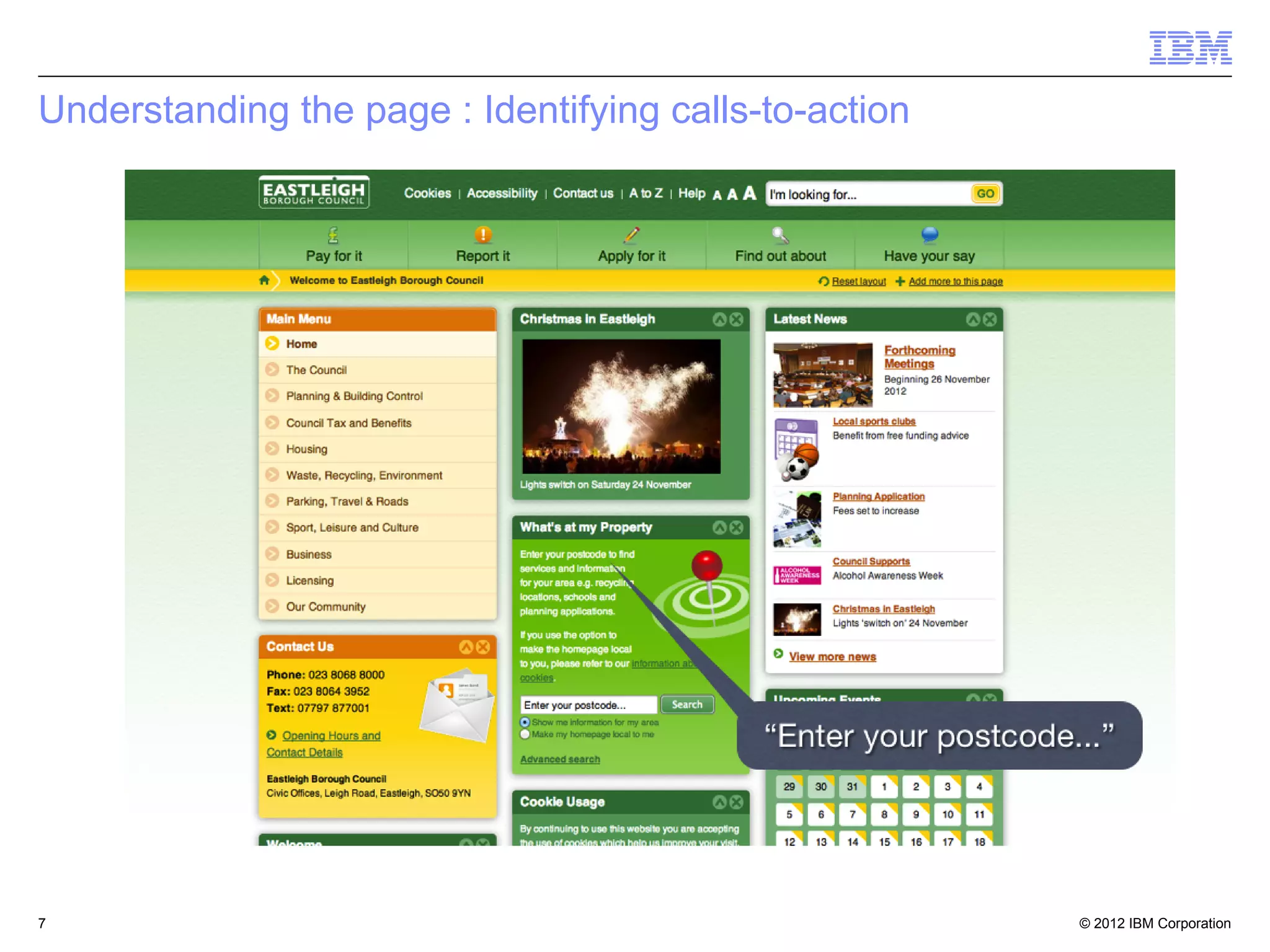

Understanding the page : Identifying calls-to-action

8. © 2012 IBM Corporation8
Understanding the user : Retrieving information

9. © 2012 IBM Corporation9
Understanding the user : Mouse actions

10. © 2012 IBM Corporation10
Understanding the user : Mouse actions

11. © 2012 IBM Corporation11

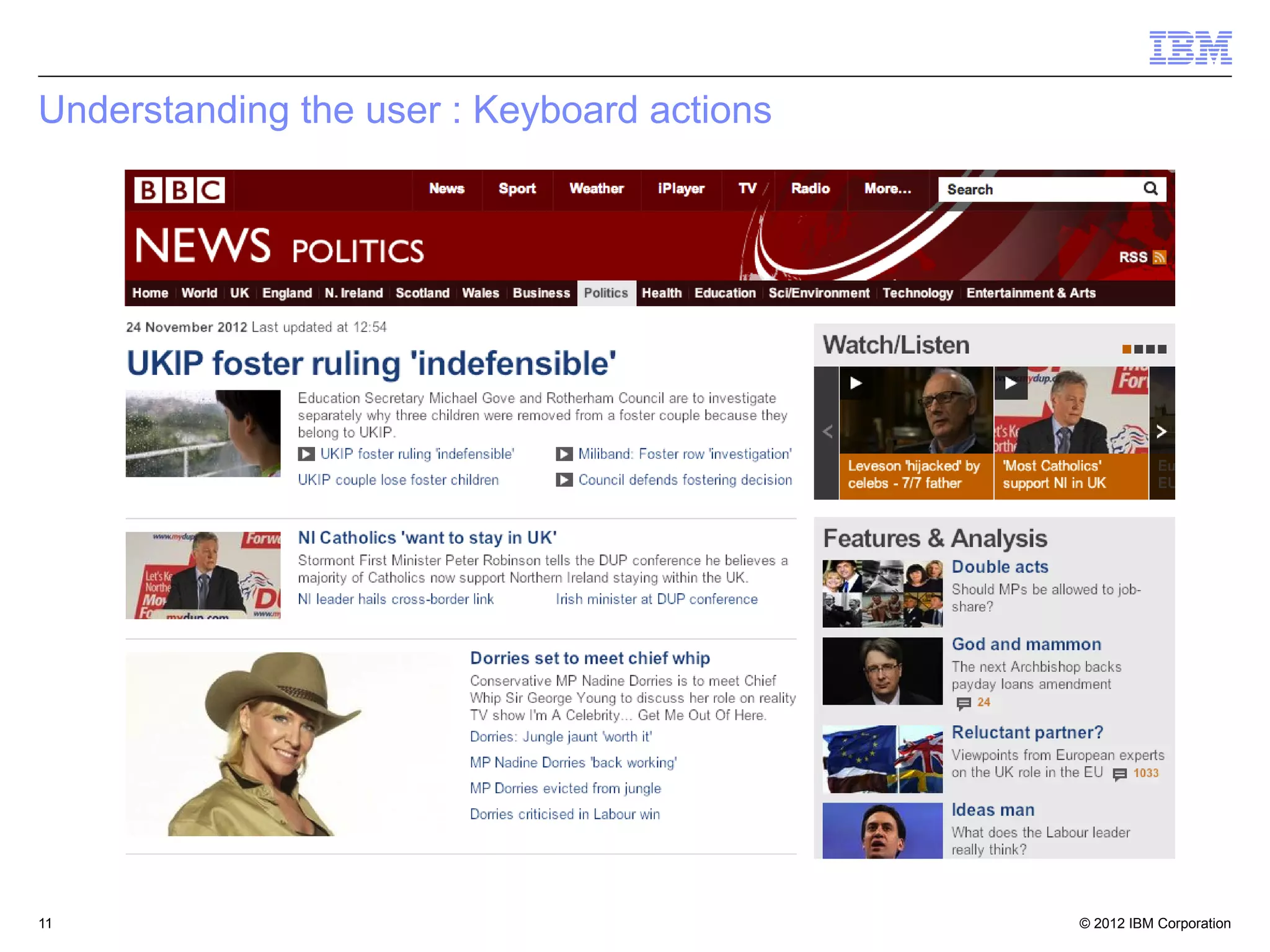

Understanding the user : Keyboard actions

12. © 2012 IBM Corporation12

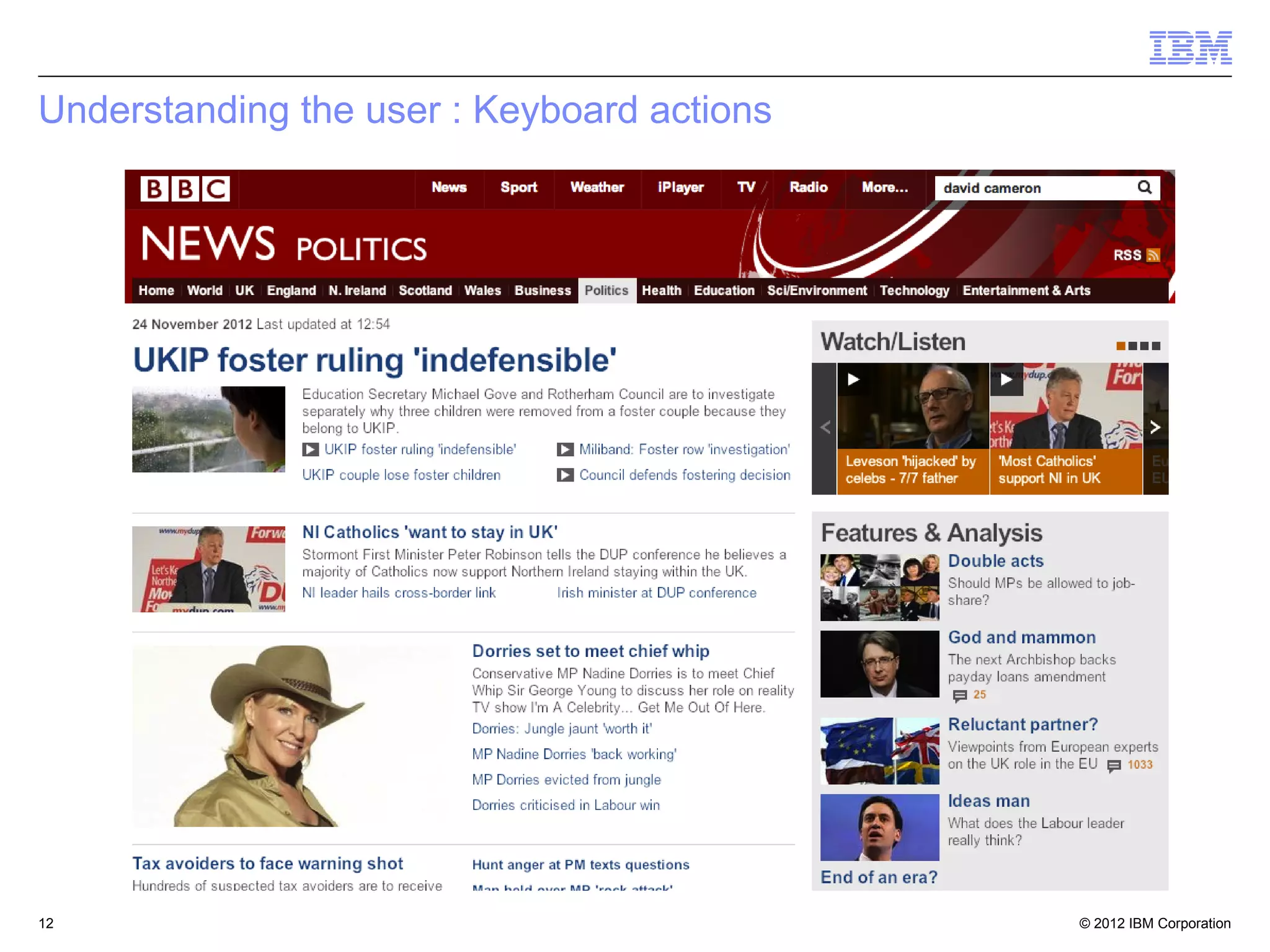

Understanding the user : Keyboard actions

13. © 2012 IBM Corporation13

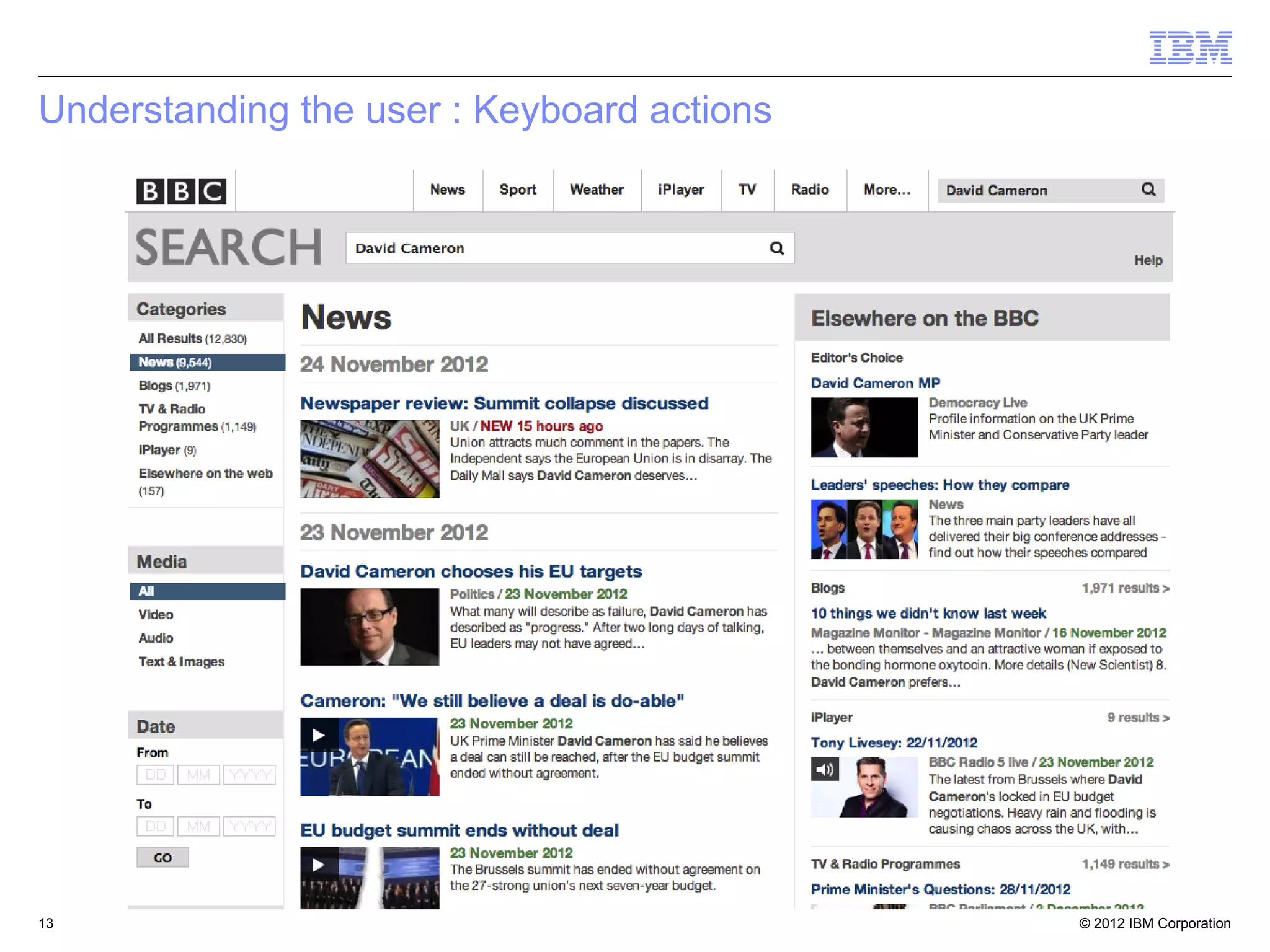

Understanding the user : Keyboard actions

14. © 2012 IBM Corporation14
Conversational Internet
 Presenting an early-stage prototype being developed to explore the potential for
question answering as an alternative approach to screen-readers for retrieving
information from web pages
 Architecture and approach inspired by active area of research and development in
question answering on a knowledge derived from a corpus of documents
(Ferucci, Lally, Chu-Carroll, et al)
http://ieeexplore.ieee.org/xpl/tocresult.jsp?isnumber=6177717

15. © 2012 IBM Corporation15

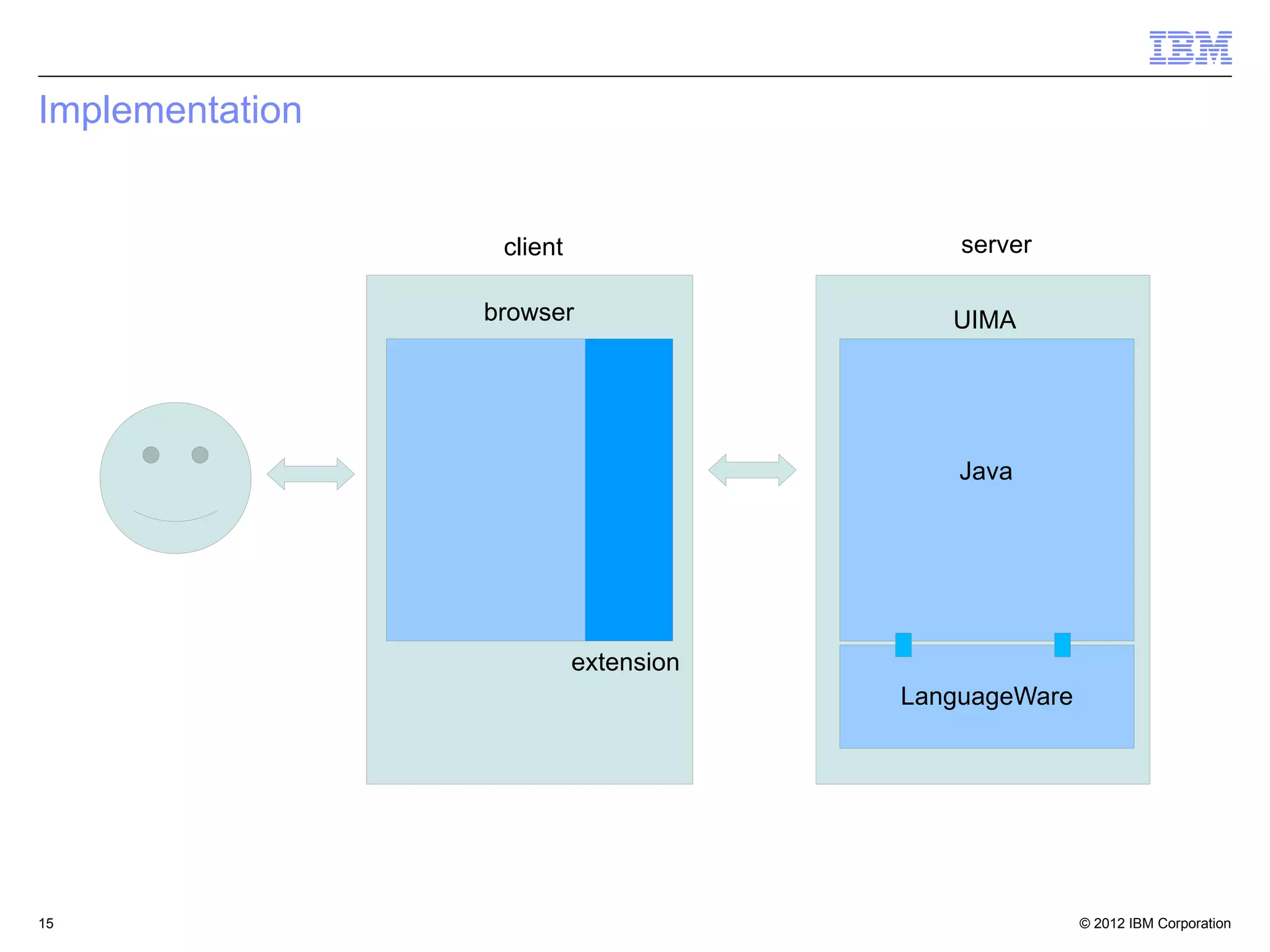

Implementation
browser
extension
UIMA
LanguageWare
Java
client server

16. © 2012 IBM Corporation16

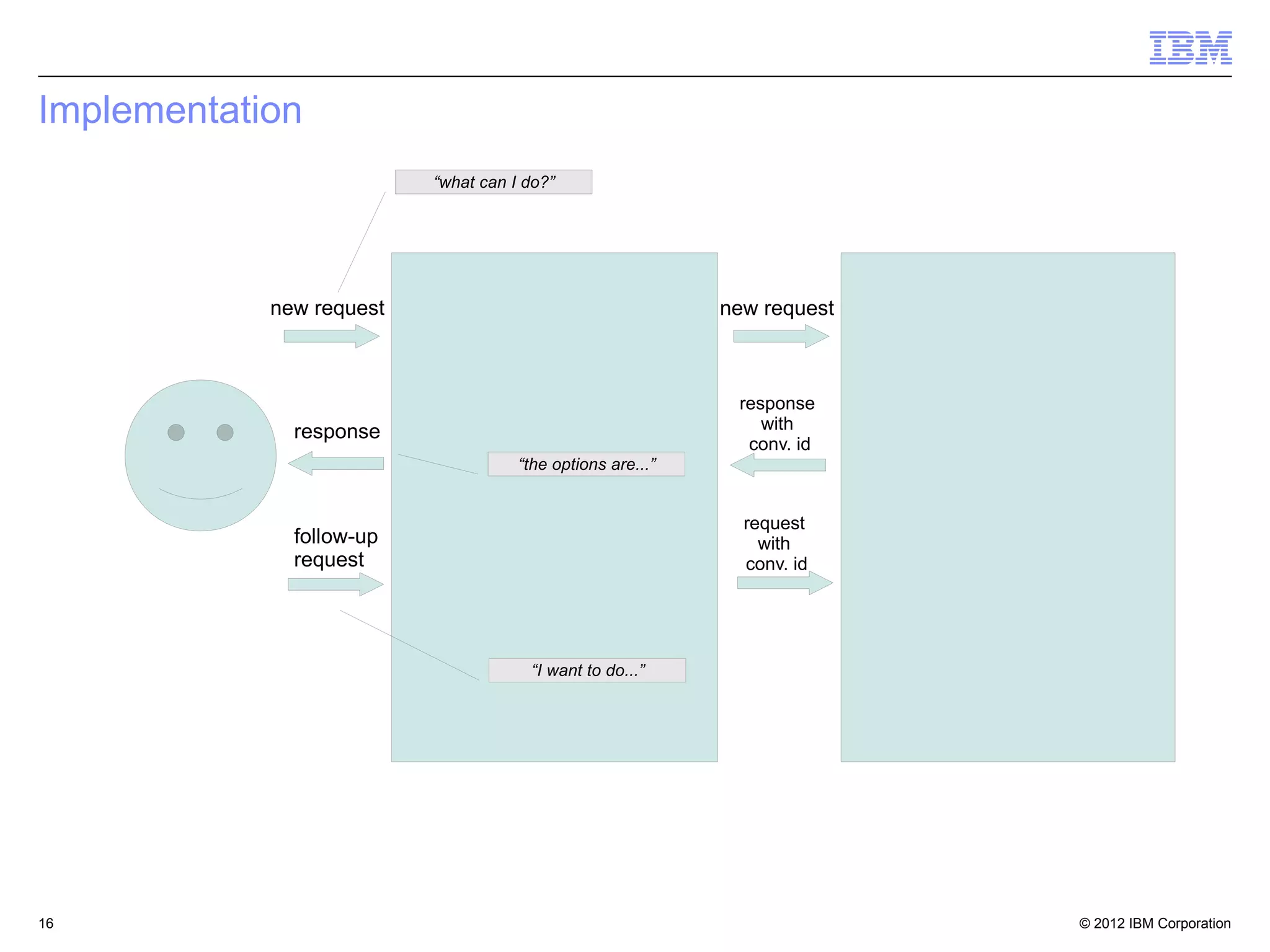

Implementation
new request new request
response
with
conv. id
response
follow-up
request
request
with
conv. id
“what can I do?”
“the options are...”
“I want to do...”

17. © 2012 IBM Corporation17

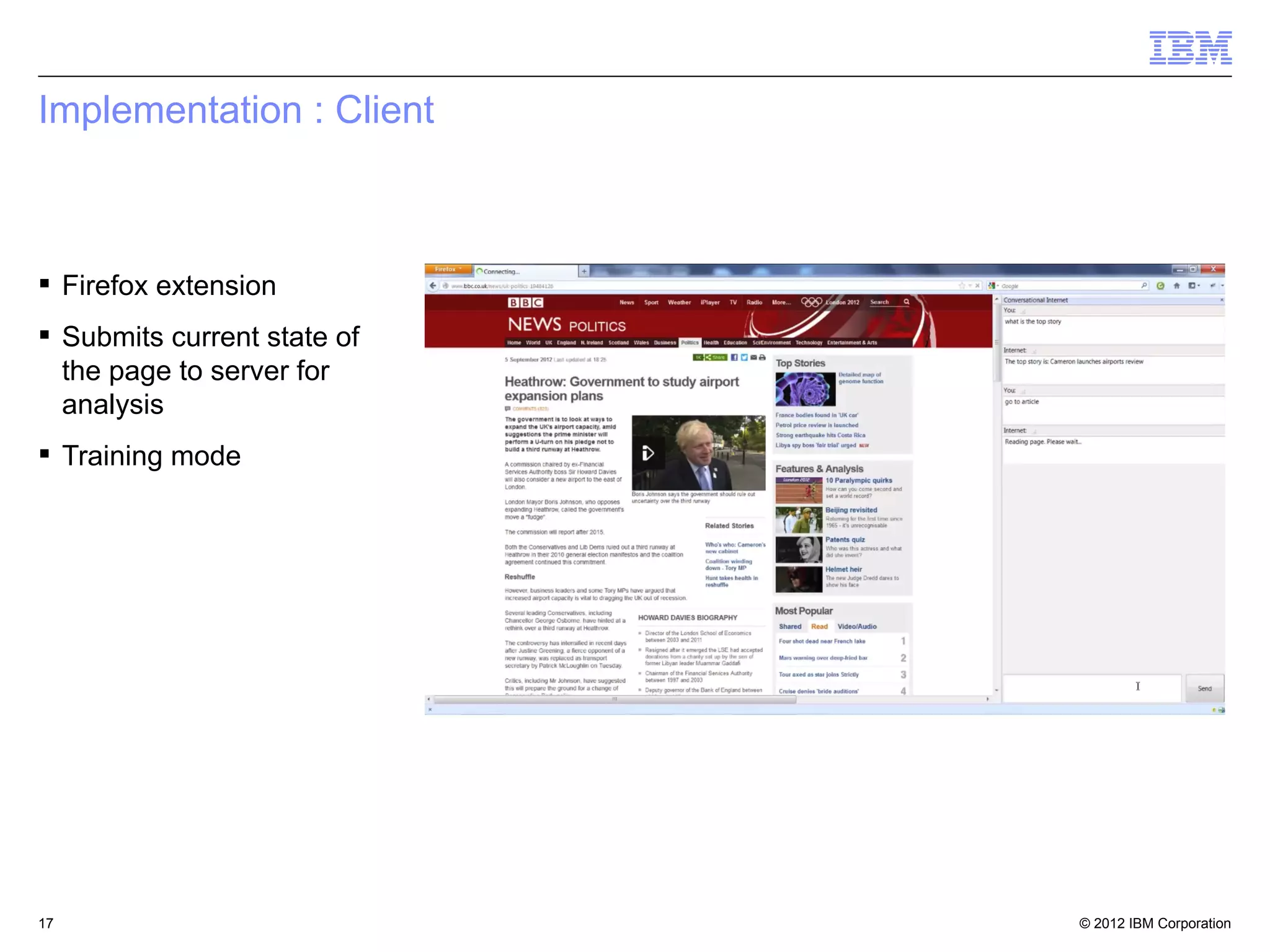

Implementation : Client
 Firefox extension
 Submits current state of
the page to server for
analysis
 Training mode

18. © 2012 IBM Corporation18

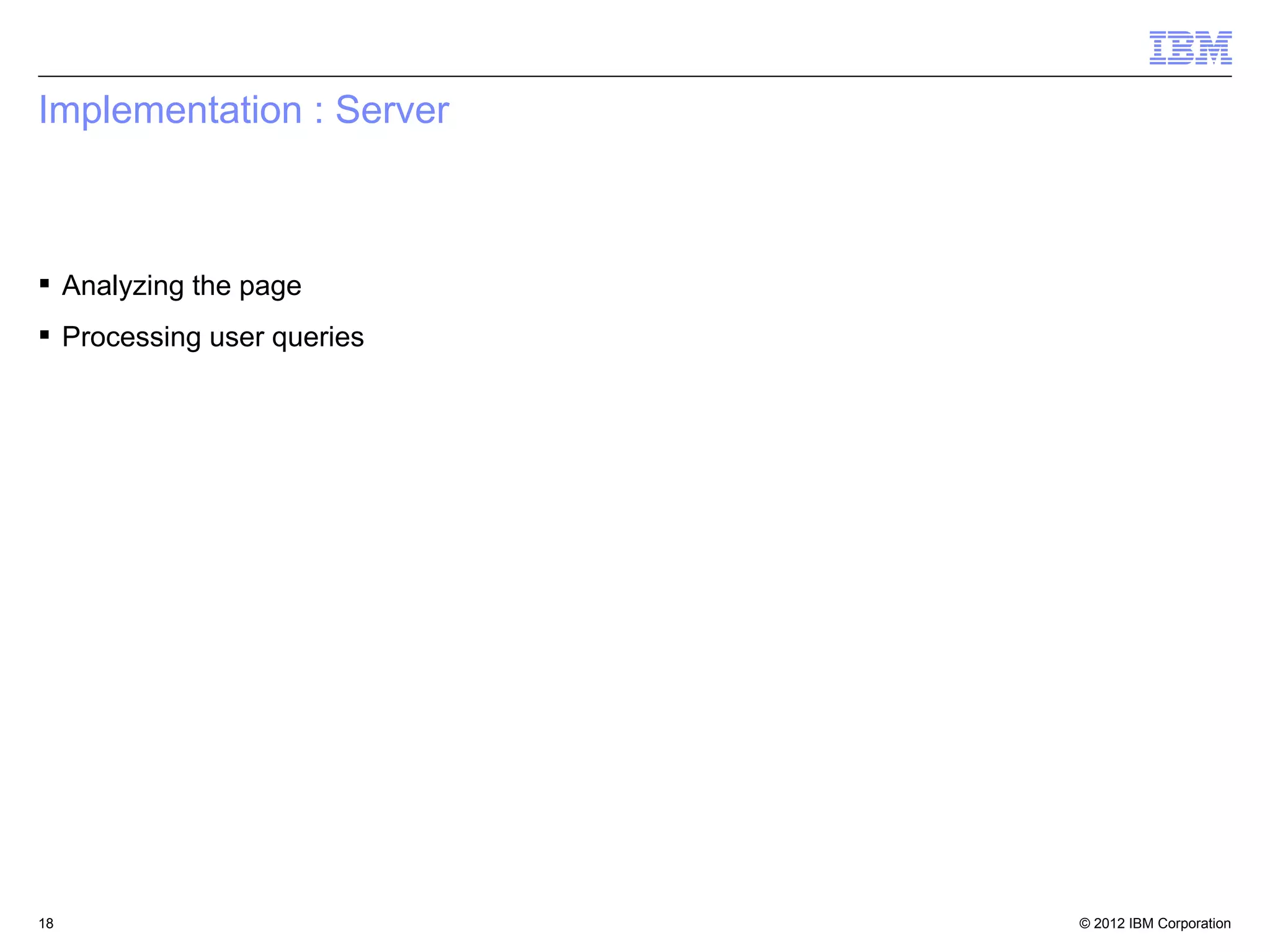

Implementation : Server
 Analyzing the page
 Processing user queries

19. © 2012 IBM Corporation19
Implementation : Server : Understanding the page

20. © 2012 IBM Corporation20

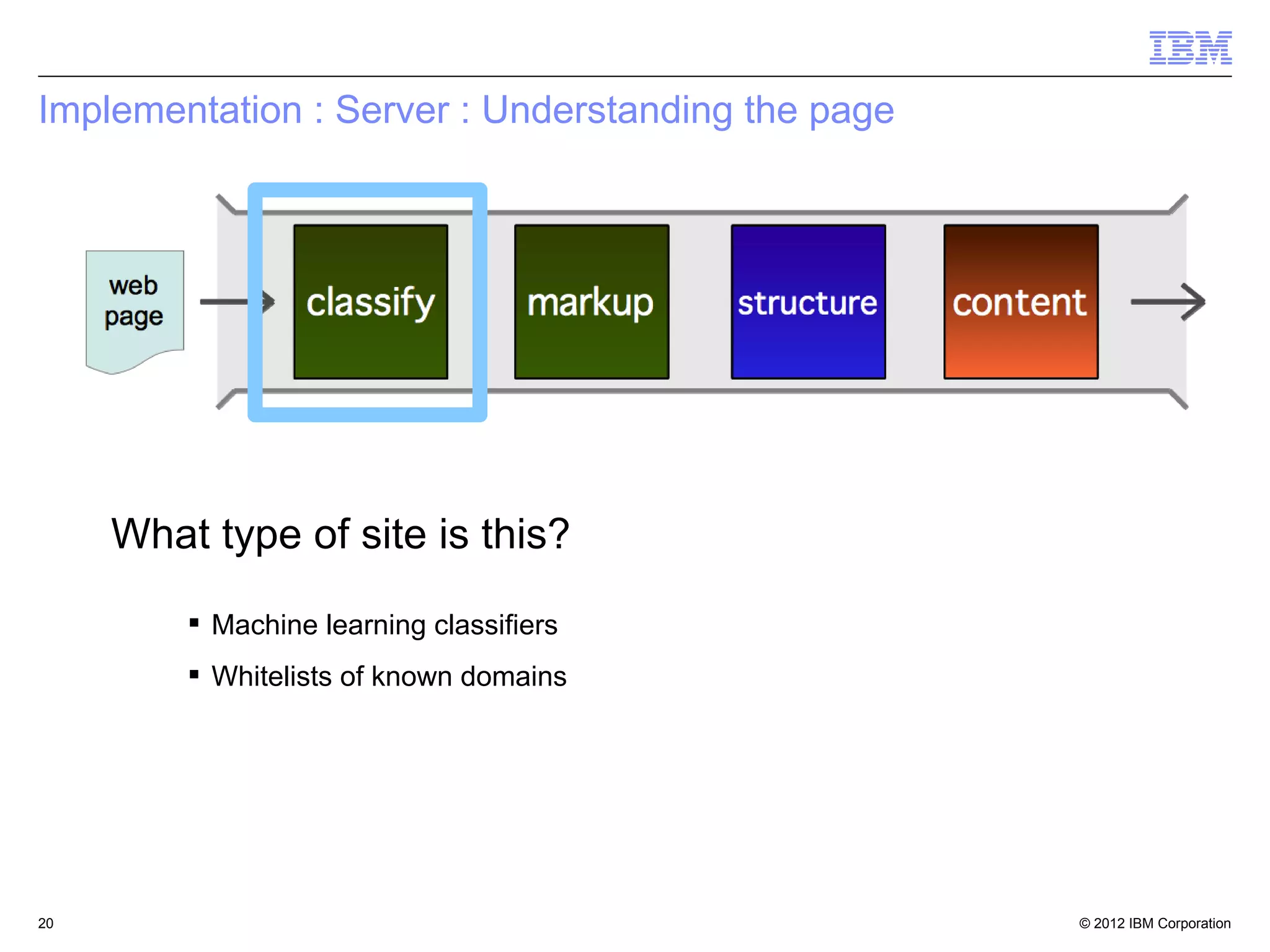

Implementation : Server : Understanding the page
What type of site is this?
 Machine learning classifiers
 Whitelists of known domains

21. © 2012 IBM Corporation21
Implementation : Server : Understanding the page
What can we infer from markup used?
 Semantic tags
 ARIA
 CSS class names

22. © 2012 IBM Corporation22

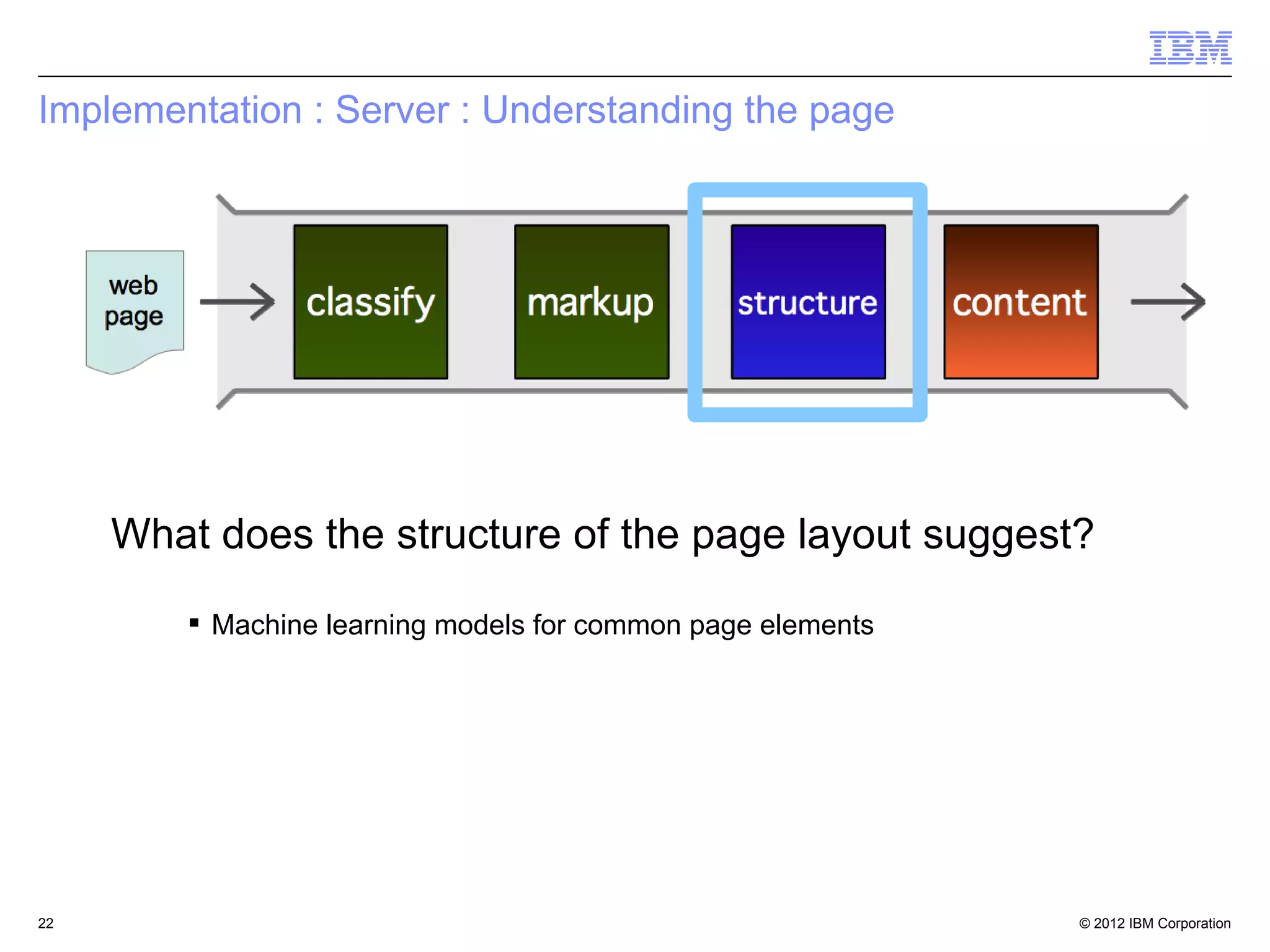

Implementation : Server : Understanding the page
What does the structure of the page layout suggest?
 Machine learning models for common page elements

23. © 2012 IBM Corporation23

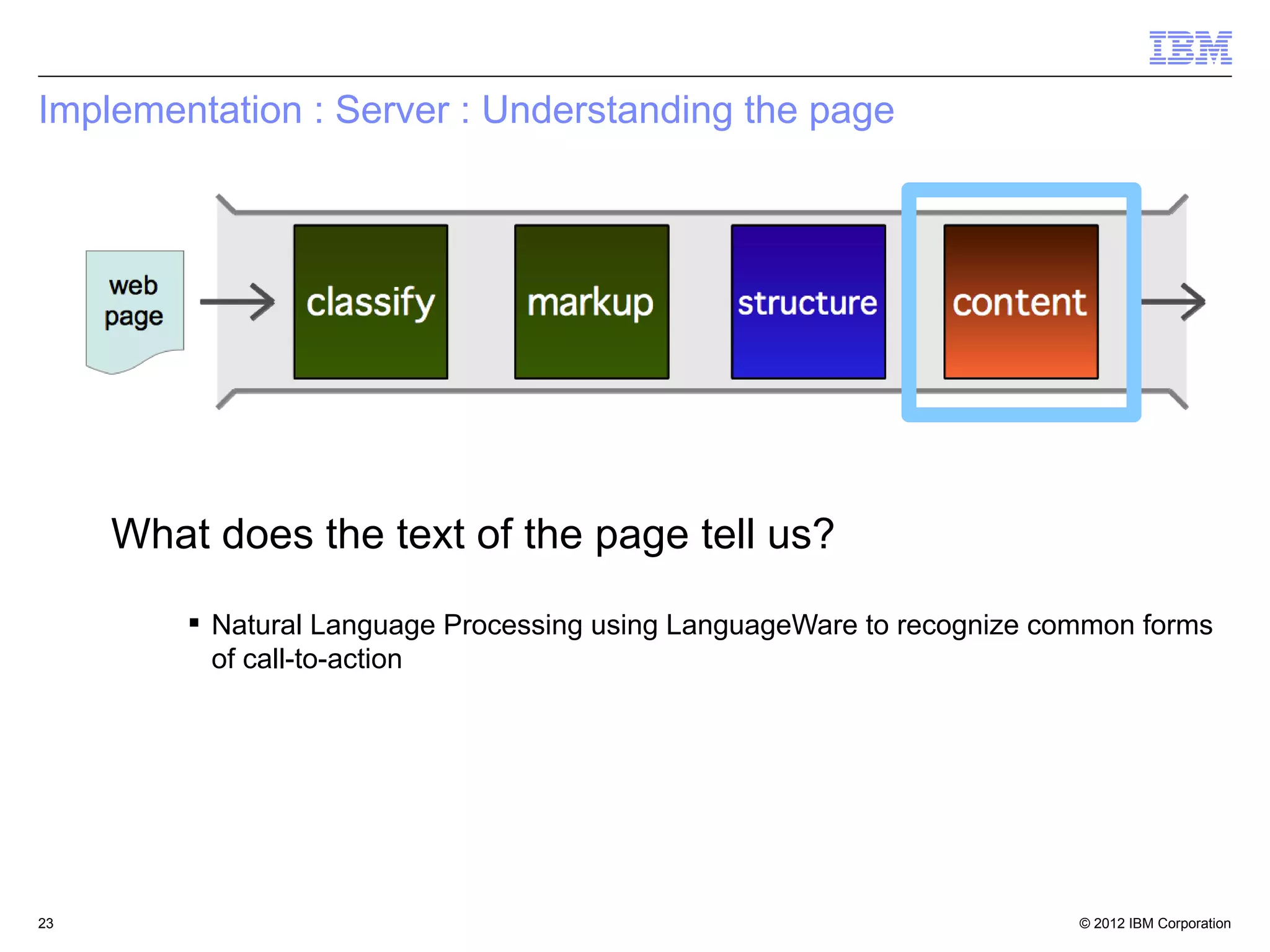

Implementation : Server : Understanding the page
What does the text of the page tell us?
 Natural Language Processing using LanguageWare to recognize common forms
of call-to-action

24. © 2012 IBM Corporation24

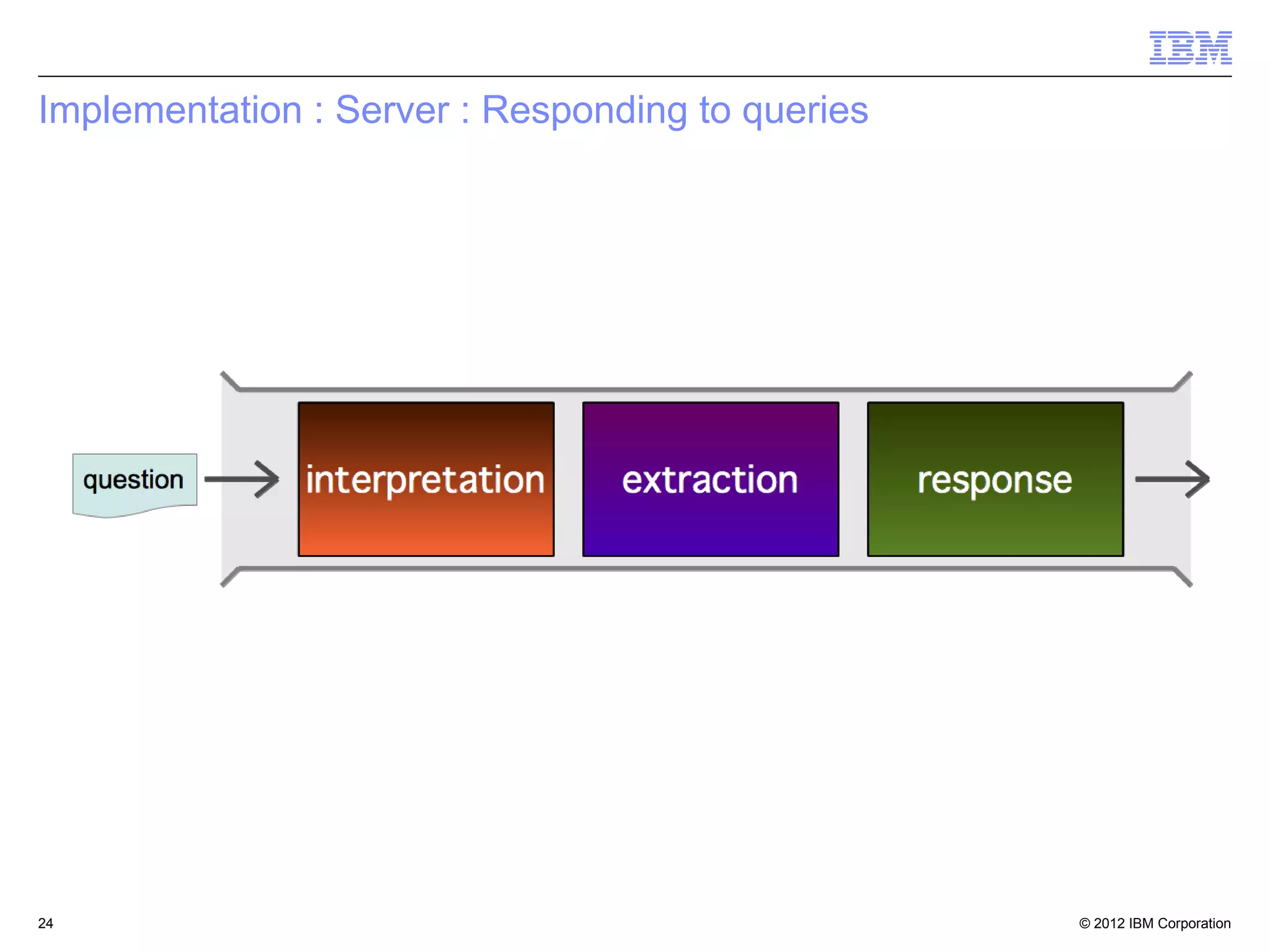

Implementation : Server : Responding to queries

25. © 2012 IBM Corporation25

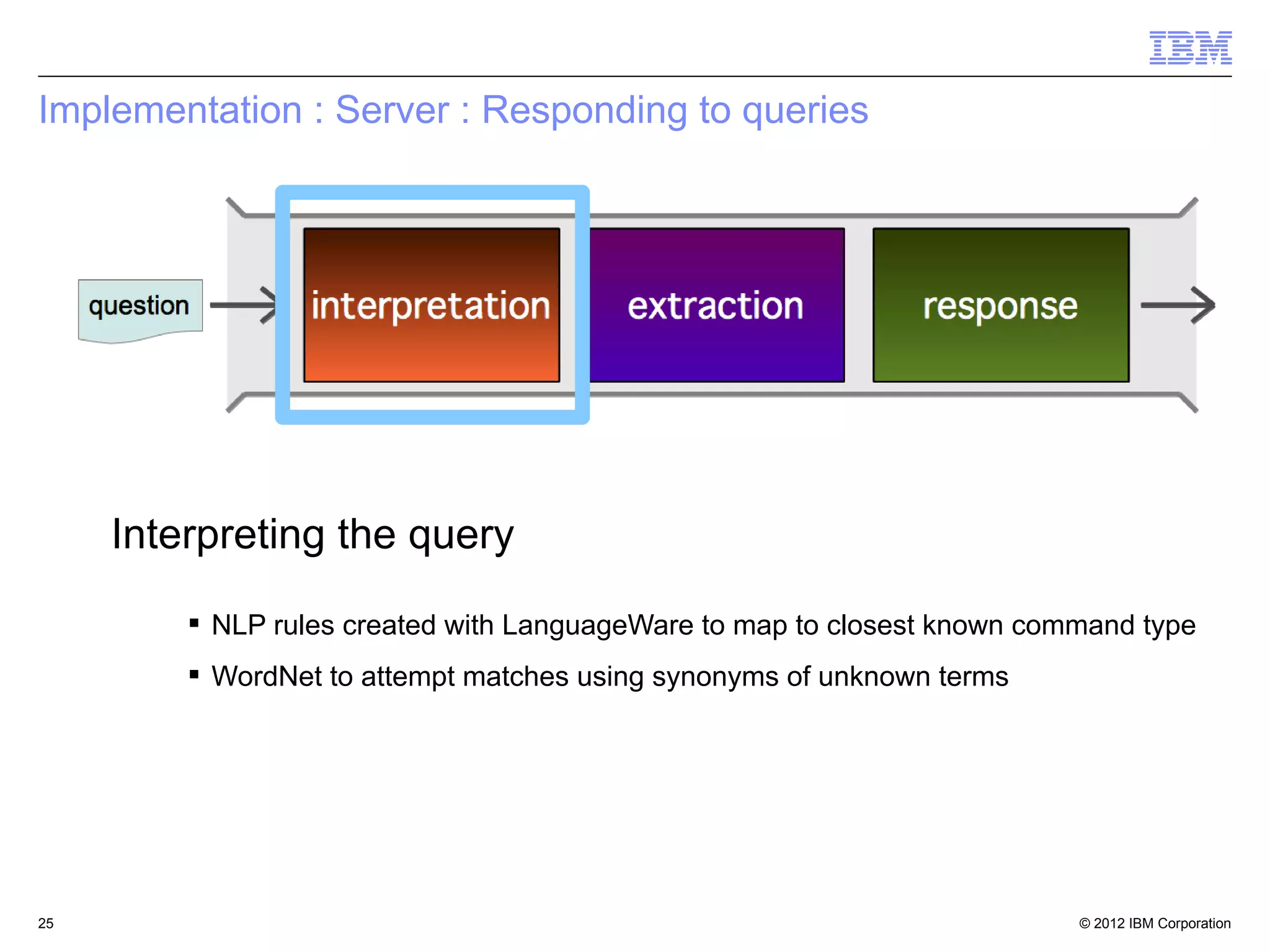

Implementation : Server : Responding to queries
Interpreting the query
 NLP rules created with LanguageWare to map to closest known command type
 WordNet to attempt matches using synonyms of unknown terms

26. © 2012 IBM Corporation26

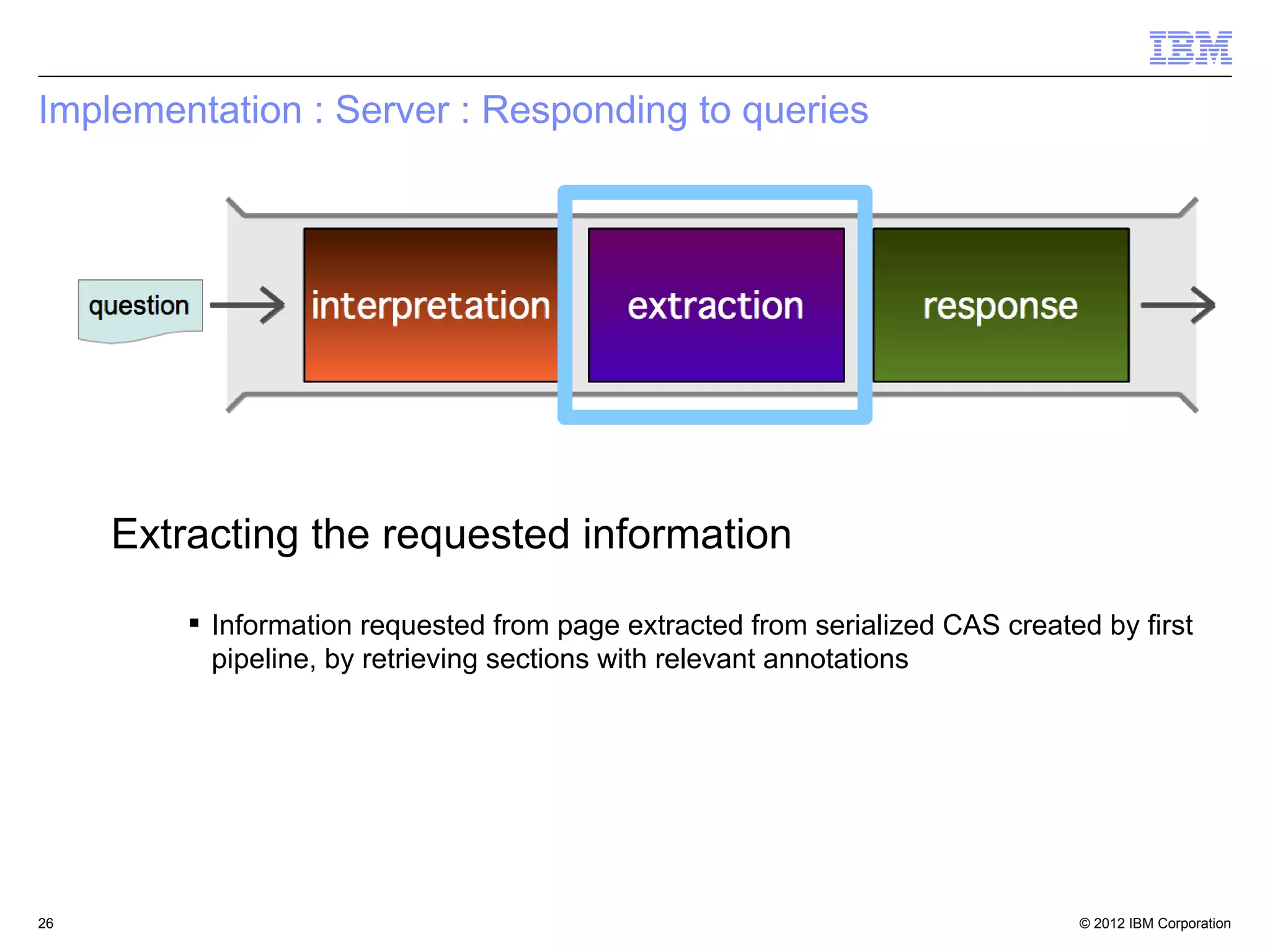

Implementation : Server : Responding to queries
Extracting the requested information
 Information requested from page extracted from serialized CAS created by first
pipeline, by retrieving sections with relevant annotations

27. © 2012 IBM Corporation27

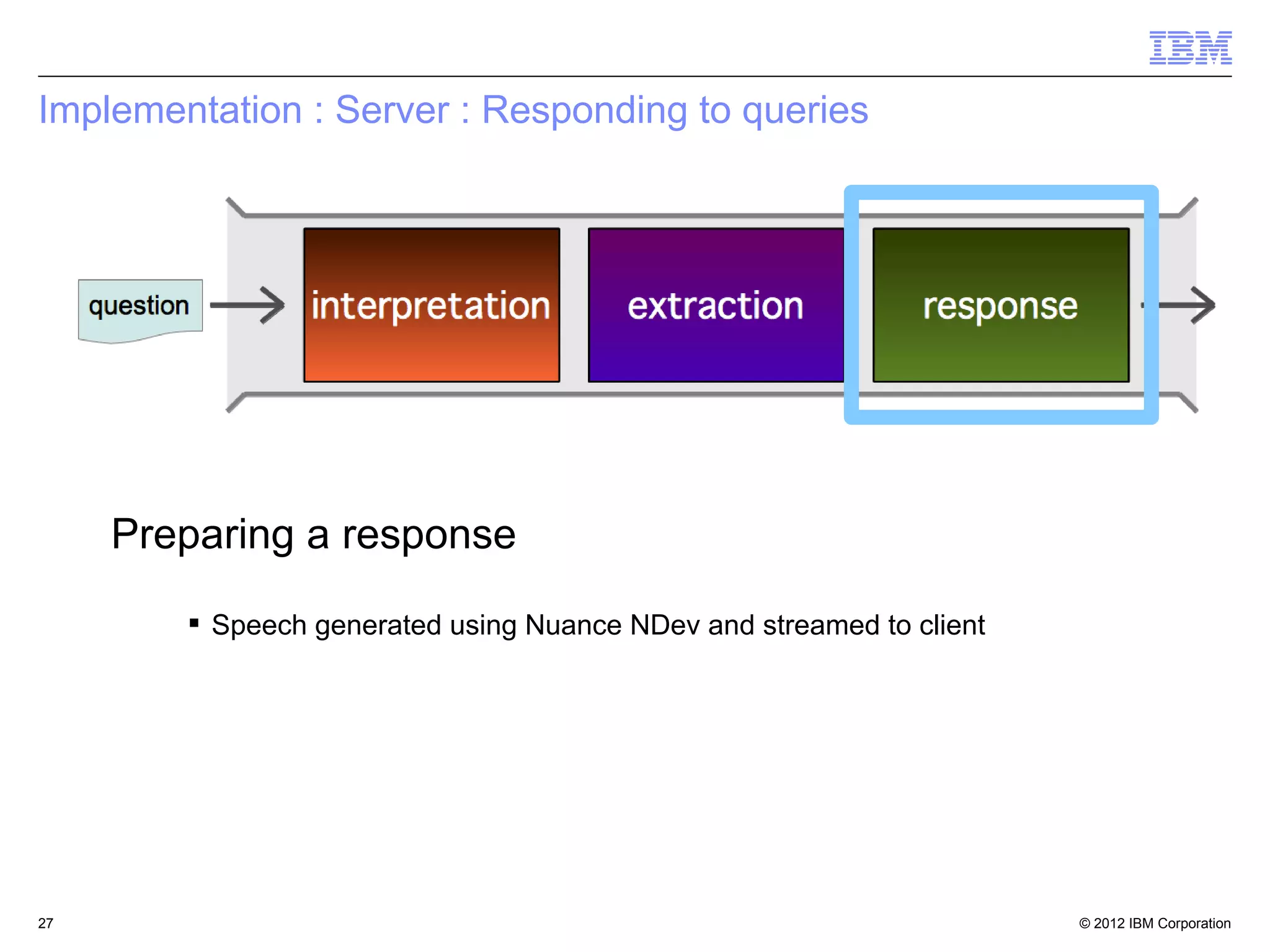

Implementation : Server : Responding to queries
Preparing a response
 Speech generated using Nuance NDev and streamed to client

28. © 2012 IBM Corporation28

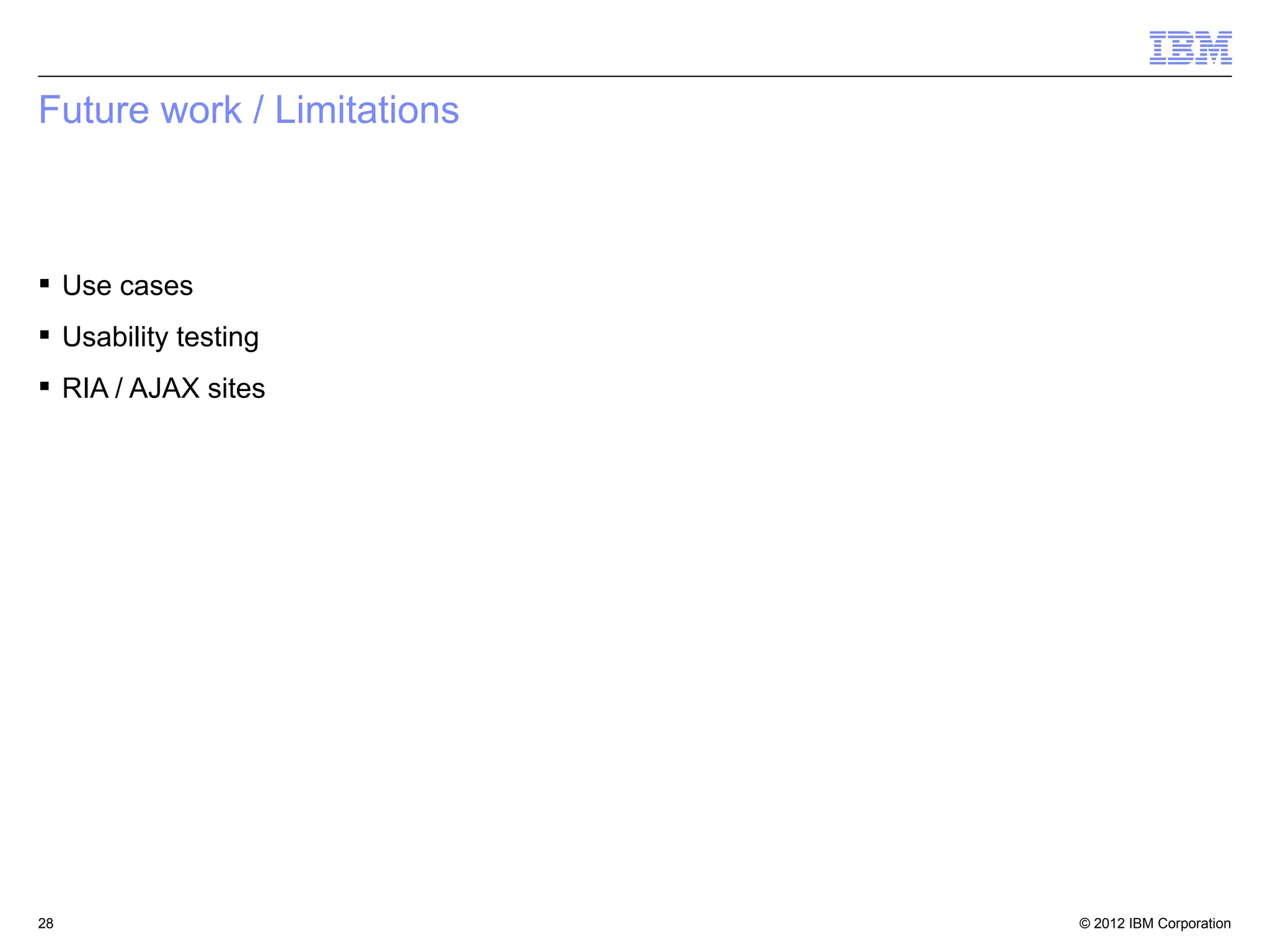

Future work / Limitations
 Use cases
 Usability testing
 RIA / AJAX sites

29. © 2012 IBM Corporation29

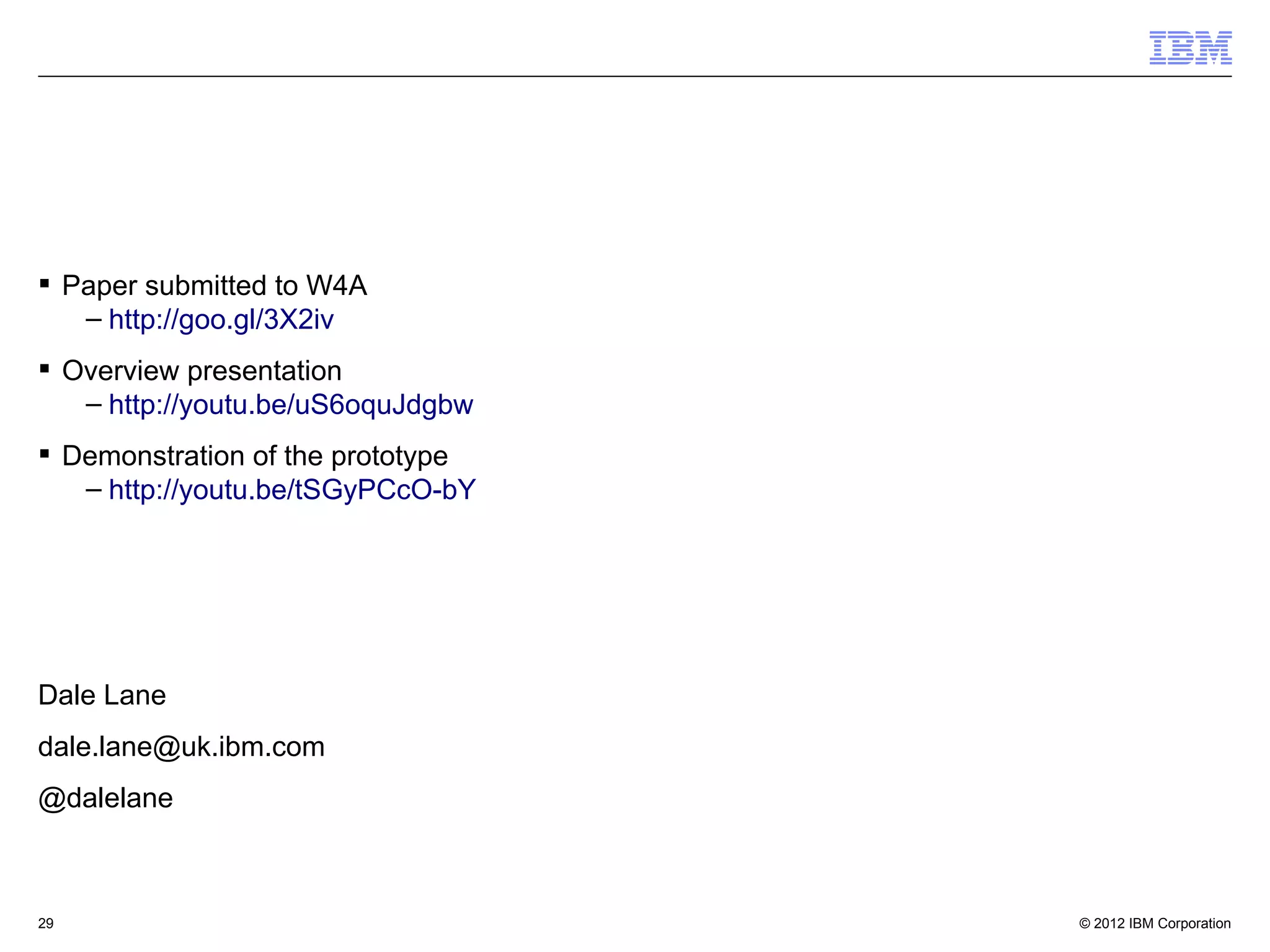

 Paper submitted to W4A
– http://goo.gl/3X2iv
 Overview presentation
– http://youtu.be/uS6oquJdgbw
 Demonstration of the prototype
– http://youtu.be/tSGyPCcO-bY
Dale Lane
dale.lane@uk.ibm.com
@dalelane
