This document discusses deploying secure backups to the cloud using a simple solution that syncs data from on-premises or cloud storage to other cloud storage locations. The proposed solution uses a Linux appliance with rsync, s3cmd, and traffic control tools to back up file servers, databases, and large S3 buckets. It allows controlling bandwidth, monitoring backups, and restoring data without impacting existing infrastructure or requiring additional hardware.

1. How do we
Deploy a secure backup
to the Cloud
Lahav Savir, lahavs@emind.co

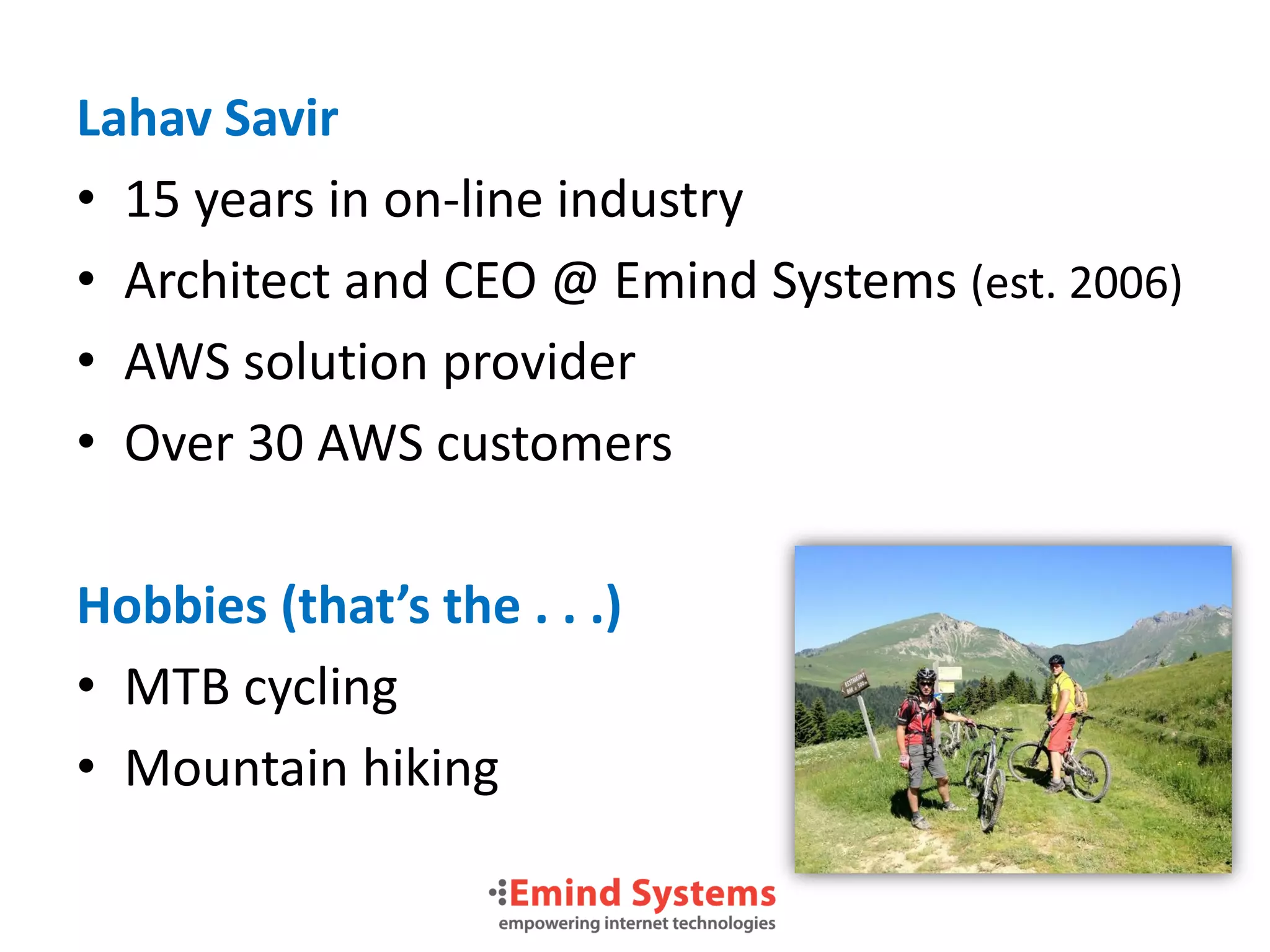

2. Lahav Savir
• 15 years in on-line industry
• Architect and CEO @ Emind Systems (est. 2006)
• AWS solution provider
• Over 30 AWS customers
Hobbies (that’s the . . .)
• MTB cycling
• Mountain hiking

3. Backup scenarios
On premises to off-site On the cloud to other site
• File servers • File servers
• Backup files • Large data volumes
• Data base dumps • Data base dumps
archiving • Large S3 buckets
• Disaster recovery

4. Storage scenarios
Storage appliances Disks & Servers
• NFS • Windows shares
• CIFS • Linux exports
• Linux servers
• Sun exports

5. Requirements
Backup
• Keep a replica of the data off-site
• Keep history of the data for X previous months
• Secure transfer
• Encryption of data sets
• Large files
• Delta transfer
Deployment
• Don’t impact existing setup
• Don’t install any SW on servers
• No additional hardware

6. Few more . . .
• Control bandwidth throughput
• Visibility and monitoring
• Simplicity
• Keep the costs down
– License
– Traffic
– Storage

7. Alternatives
• Windows • Storage built-in
– Virtual drive to S3 integration tos3
– Sync application – No monitoring
– Cygwin / delta copy – No visibility to status
– No bandwidth control
• Linux – No feedback
– s3fs (fuse)
– s3cmd

8. Simple solution
• Sync Manager
– Linux appliance
– cifs-utils
– rsync
– s3cmd
– tc (traffic controller)
– net-snmp
– curl

9. Sync Configuration
• rsync (filer to filer)
rsync;/filer/data1/; sync@192.168.61.130:/data1/{A}
rsync;/filer/data2/; sync@porticor_vpd:/data2
• s3 (filer to s3 with / without VPD)
s3;/var/www/wordpress/;s3://bucket1/wordpress-{d}/;-
-no-delete-removed
s3;/mnt/srv1/;s3://bucket2/

10. Bandwidth control
• Tag user traffic
iptables -t mangle -A OUTPUT -m owner --uid-owner $SYNCMGR_UID -j MARK
--set-mark 0x1
• Create root qdisc for eth0
$TC qdisc add dev $IF root handle 1: htb default 30
• Add a class (bucket) with bandwidth restrictions
$TC class add dev $IF parent 1: classid 1:2 htb rate $MAXRATE
• Then add a filter to force packets through the class
$TC filter add dev $IF protocol ip parent 1:0 prio 1 handle 1 fw
classid 1:2
Tip: use iftop to see it in action

11. Monitoring
## SNMP params
SNMPTRAP=true
SNMPTRAP_HOST=nms_server
SNMPTRAP_PORT=162
SNMPTRAP_COMMUNITY=public
SNMPTRAP_OID=.1.3.6.1.4.1.39731.2101
## support_router
SUPPRTR_NOTIF=true
SUPPRTR_PROJECT="SupportDispatcher“
SUPPRTR_SYNCMGR_CLIENT=Emind
SUPPRTR_BASEURL=https://support.emind.co/support_router/public/api.php
## snmpd.conf
rocommunity public
# send all Emind Enterprise ID requests to the subagent
pass .1.3.6.1.4.1.39731 /usr/local/emind/snmp_subagent

12. Cloud backup hosts
• ec2 instance (Linux server)
– EBS volumes
• s3 buckets
• Porticor VPB
– EBS volumes
– S3 proxy

13. Hosting on the cloud
• Public cloud
– Instance behind security groups with SSH keys
• VPC
– Instance behind VPN
• AWS VPN Gateway
• IPSec with CheckPoint in the VPC
• IPSec with Swan in the VPC
• SSL VPN with OpenVPN in the VPC

14. Restoring
• rsync back from storage
rsync ; sync@192.168.61.130:/data1/{A} ; /filer/data1/
• 3scmd
s3cmd get s3://bucket2/file /path/to/restore/file

15. Summary
• Simple and open solution
• No impact on customer infrastructure
• No additional HW required
• Control with full visibility
• Fully integrated with NMS
• Reliable
• Secure

16. AWS Tips
• Don’t forget to set AWS console to MFA
• Setup a VPN to your AWS server
• No public SSH
• Monitor traffic coming into your servers
• Multi-region / AZ for high availability
• Use ec2 tools
• Backup backup backup . . .

17. Questions ???
Thank you,
Mail me: lahavs@emind.co
Lahav Savir
