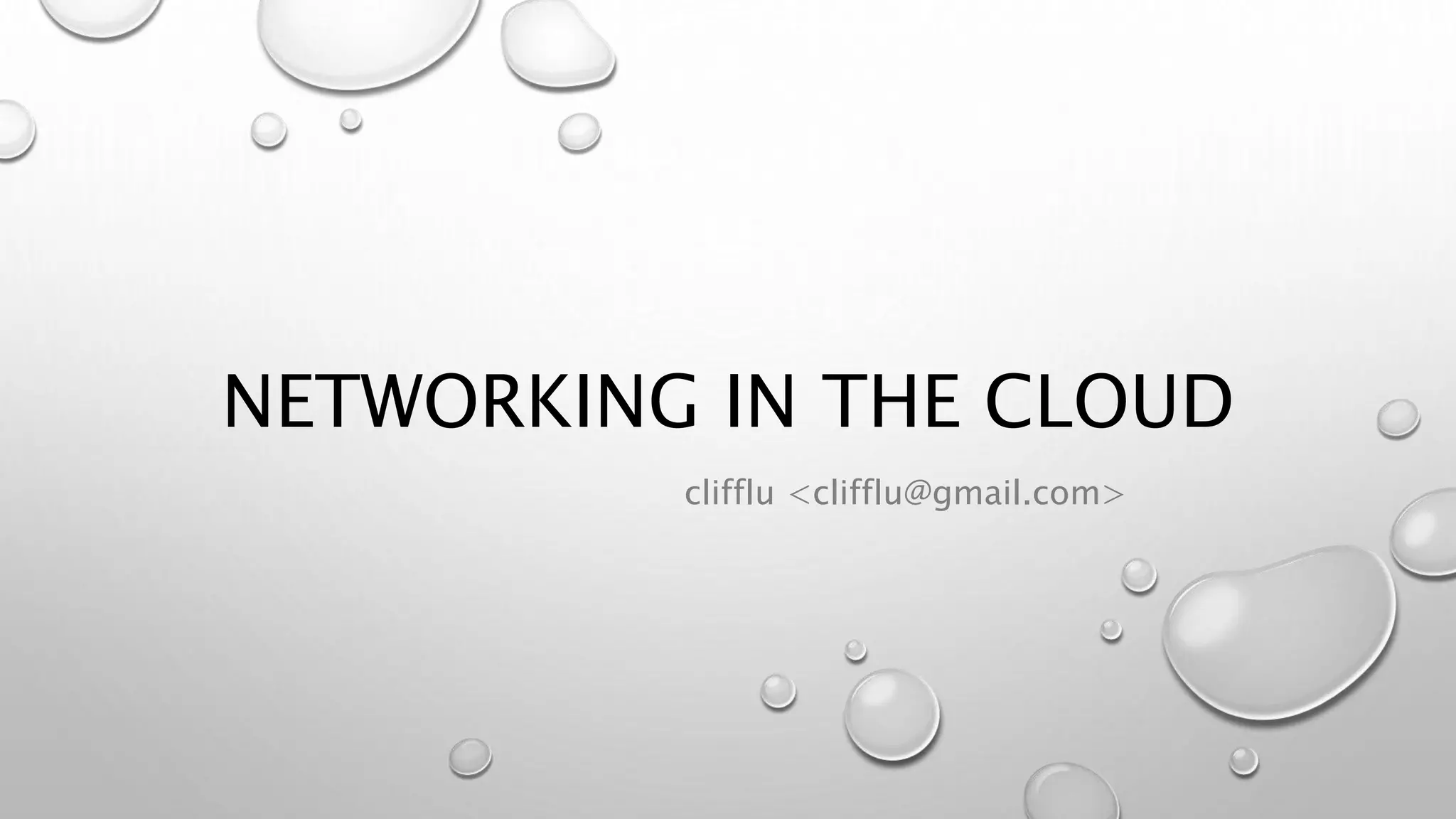

1. NETWORKING IN THE CLOUD
clifflu <clifflu@gmail.com>

2. ABOUT ME
• 呂昭寬`CLIFFLU`
TREND MICRO DCS
• USING AWS SINCE ’09 AS
FULL-STACK WEB DEV(OPS)
• HTTP://BLOG.CLIFFLU.NET
• BADMINTON / BASEBALL

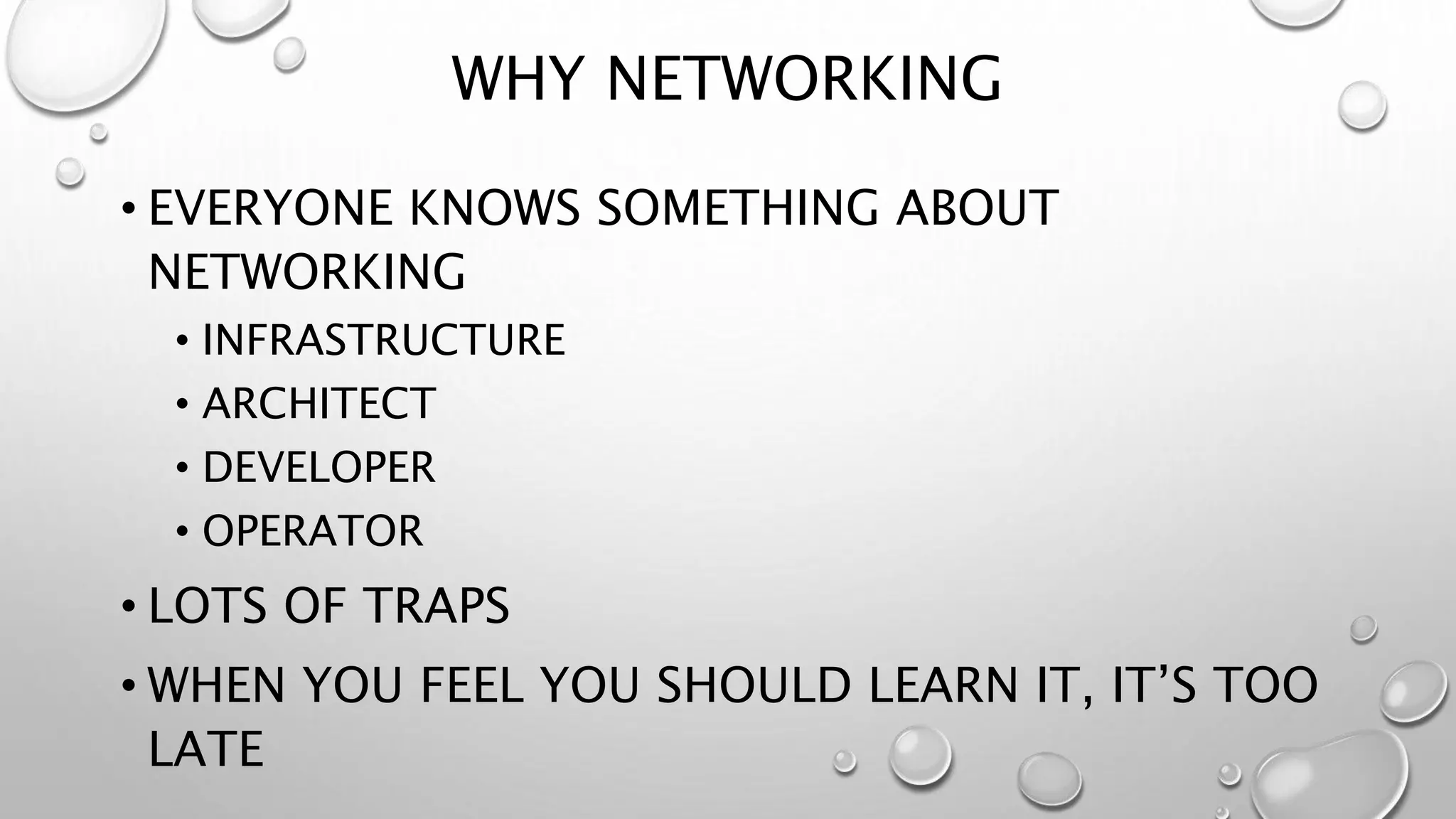

3. WHY NETWORKING
• EVERYONE KNOWS SOMETHING ABOUT
NETWORKING
• INFRASTRUCTURE
• ARCHITECT
• DEVELOPER
• OPERATOR
• LOTS OF TRAPS
• WHEN YOU FEEL YOU SHOULD LEARN IT, IT’S TOO
LATE

4. FIREWALL

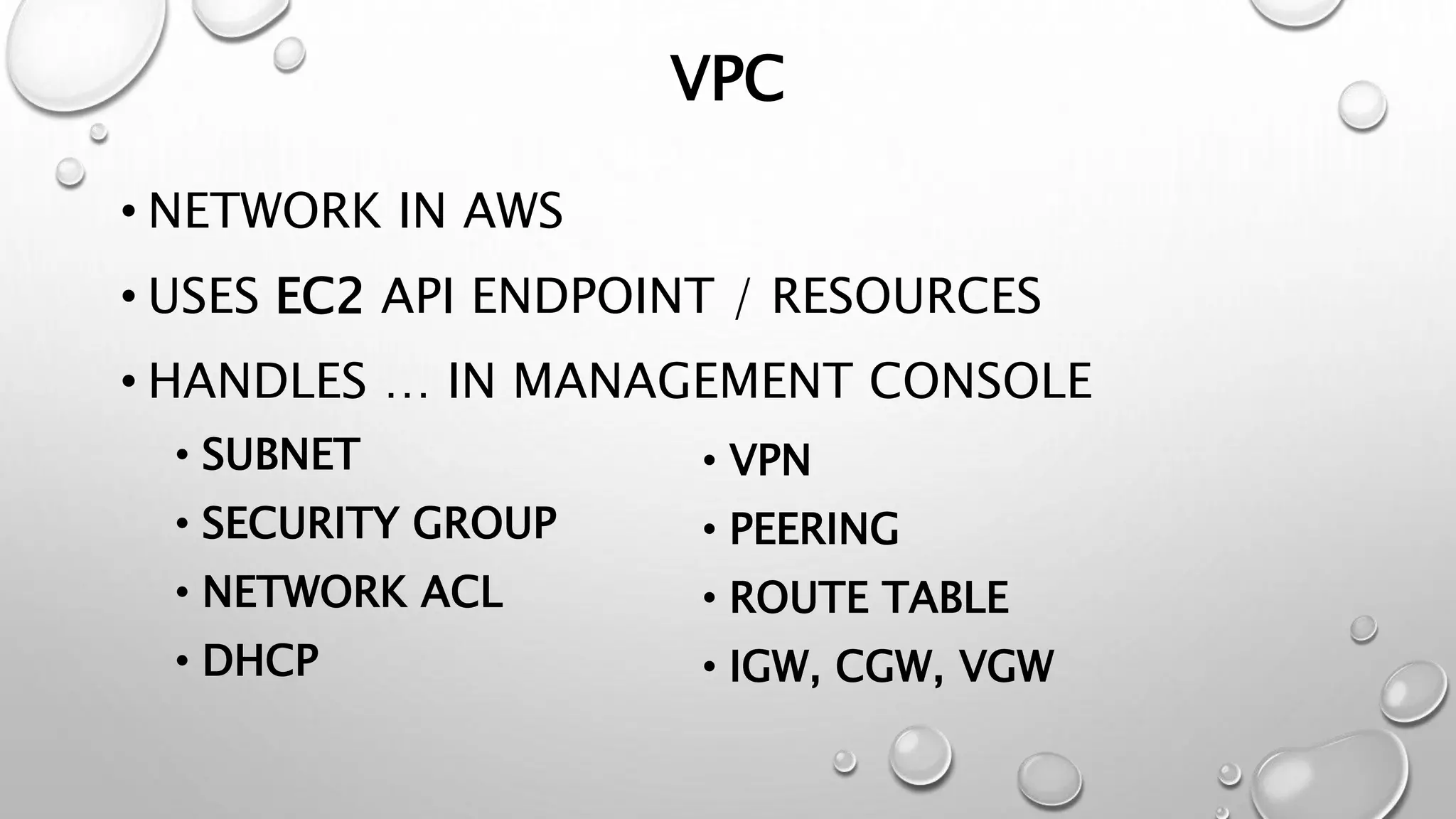

5. VPC
• NETWORK IN AWS
• USES EC2 API ENDPOINT / RESOURCES
• HANDLES … IN MANAGEMENT CONSOLE
• SUBNET
• SECURITY GROUP
• NETWORK ACL
• DHCP
• VPN
• PEERING
• ROUTE TABLE
• IGW, CGW, VGW

6. VPC: SECURITY GROUP
• L4 FIREWALL, (TCP) STATEFUL
• DEFAULT DENY
• ALLOW RULES ONLY
• AWS CREATES DEFAULT OUTBOUND RULE
• ALLOW ALL EGRESS

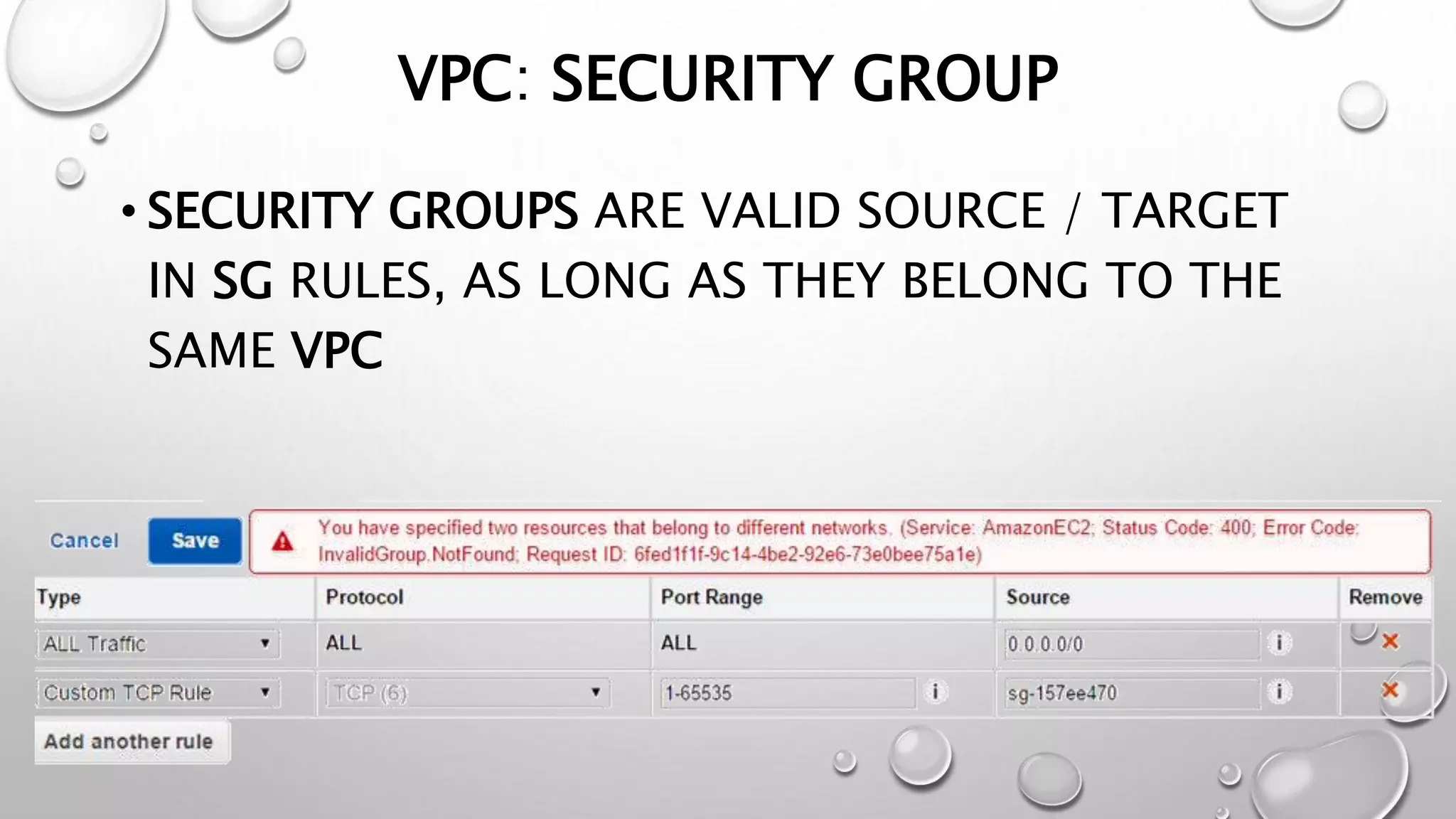

7. VPC: SECURITY GROUP
• SECURITY GROUPS ARE VALID SOURCE / TARGET
IN SG RULES, AS LONG AS THEY BELONG TO THE
SAME VPC

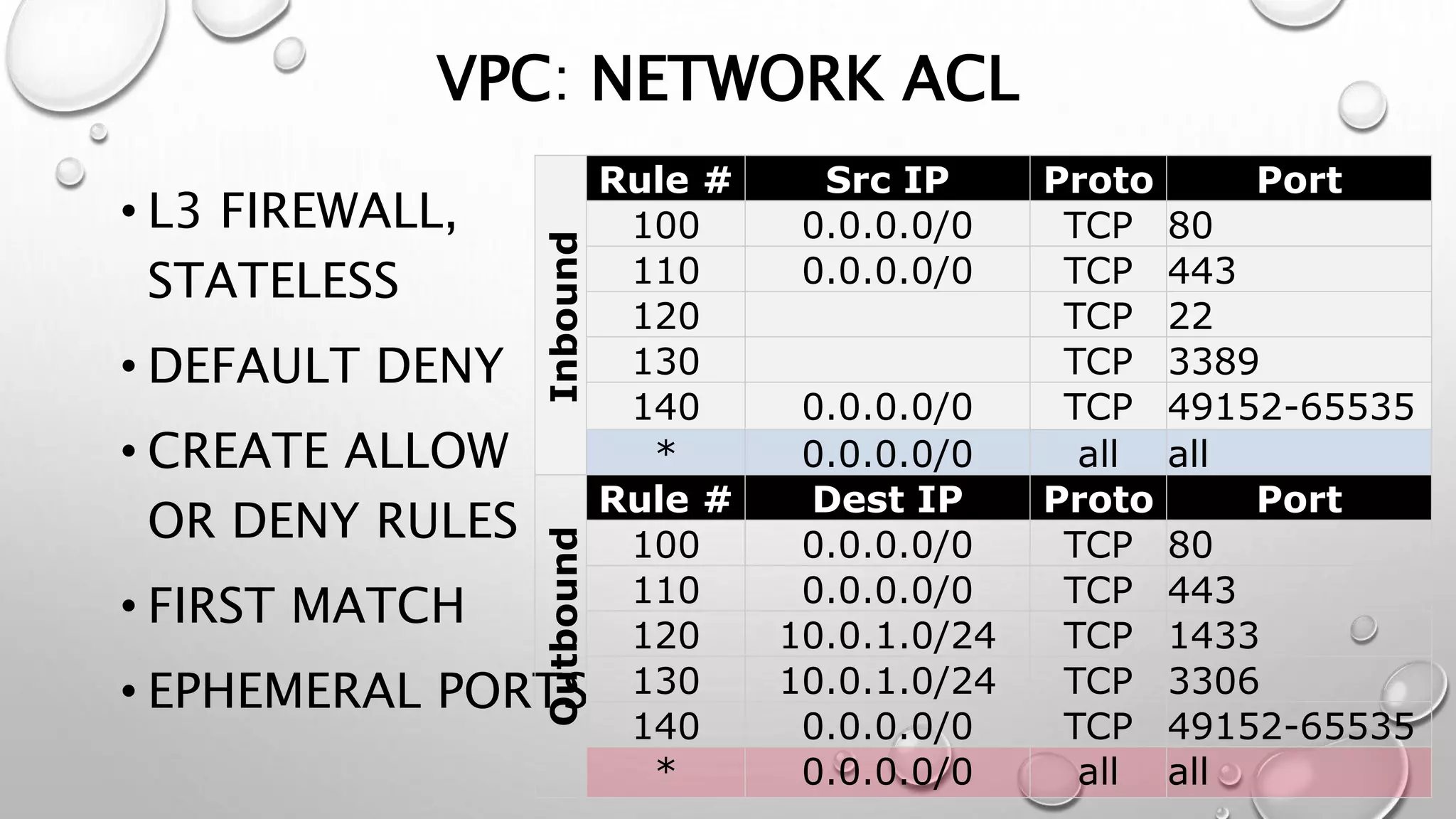

8. VPC: NETWORK ACL
• L3 FIREWALL,
STATELESS
• DEFAULT DENY
• CREATE ALLOW
OR DENY RULES
• FIRST MATCH
• EPHEMERAL PORTS
Rule # Src IP Proto Port
100 0.0.0.0/0 TCP 80
110 0.0.0.0/0 TCP 443
120 TCP 22
130 TCP 3389
140 0.0.0.0/0 TCP 49152-65535
* 0.0.0.0/0 all all
Rule # Dest IP Proto Port
100 0.0.0.0/0 TCP 80
110 0.0.0.0/0 TCP 443
120 10.0.1.0/24 TCP 1433
130 10.0.1.0/24 TCP 3306
140 0.0.0.0/0 TCP 49152-65535
* 0.0.0.0/0 all all
Outbound Inbound

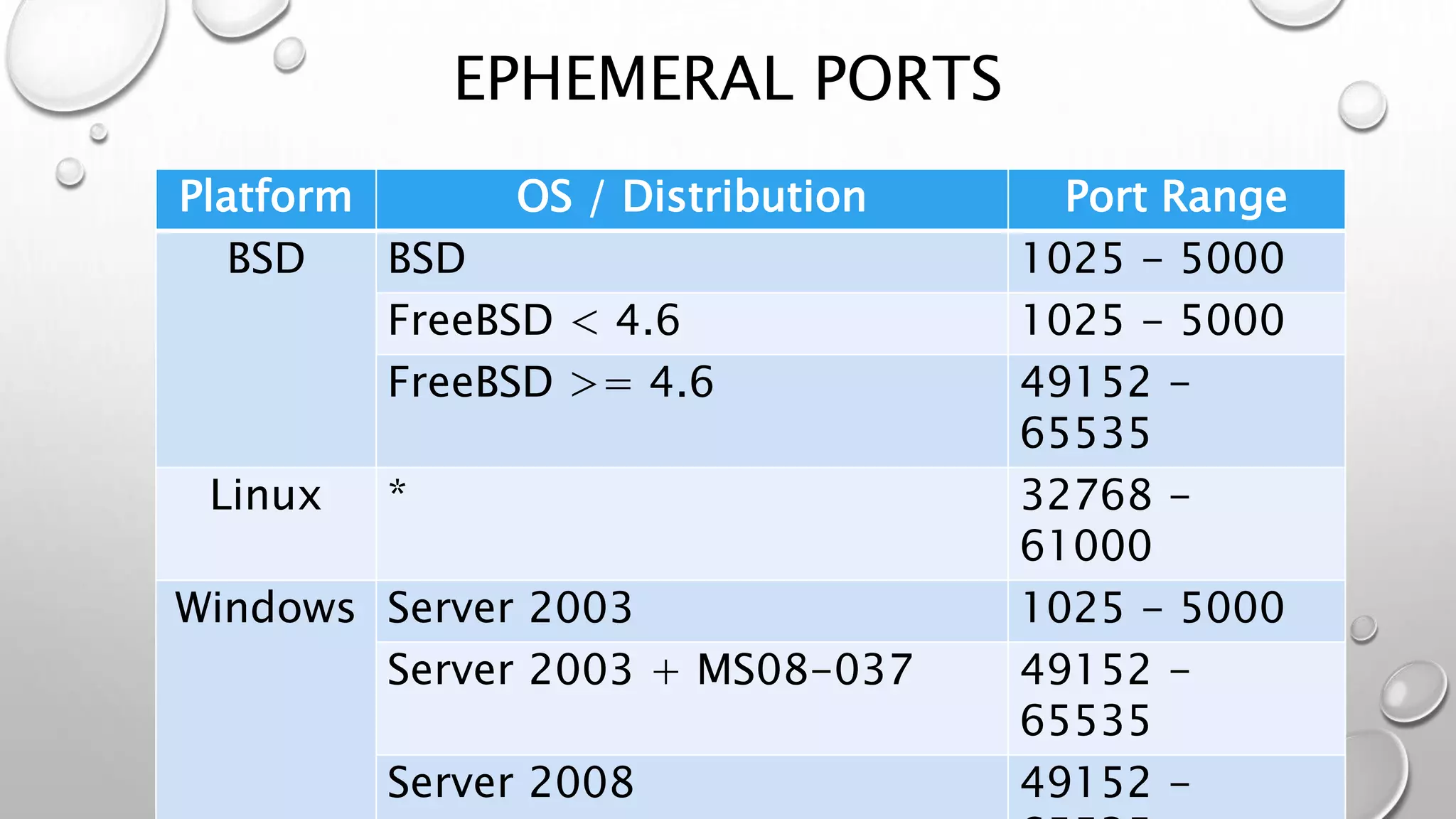

9. EPHEMERAL PORTS
Platform OS / Distribution Port Range
BSD BSD 1025 - 5000
FreeBSD < 4.6 1025 - 5000
FreeBSD >= 4.6 49152 -
65535
Linux * 32768 -
61000
Windows Server 2003 1025 - 5000
Server 2003 + MS08-037 49152 -
65535
Server 2008 49152 -
65535

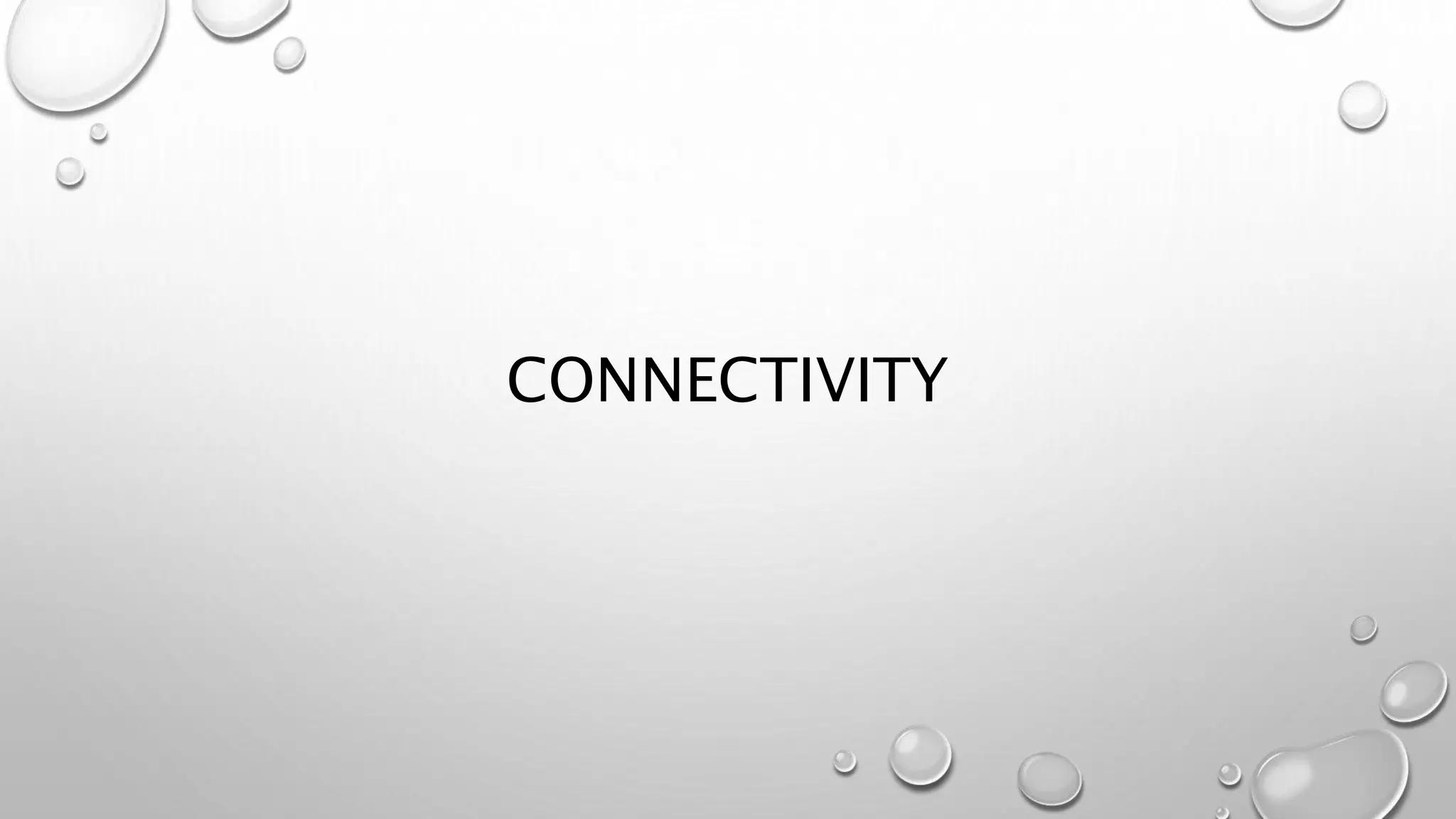

10. CONNECTIVITY

11. DIRECT CONNECT (DX)
• DEDICATED CONNECTION
• GUARANTEED BANDWIDTH & LATENCY
• PAY
• ISP FOR THE LINE
• AWS FOR
• PORT
• OUTBOUND TRAFFIC (AWS  DATACENTER)
• OUTBOUND TO INTERNET (DATACENTER – DX  INTERNET)

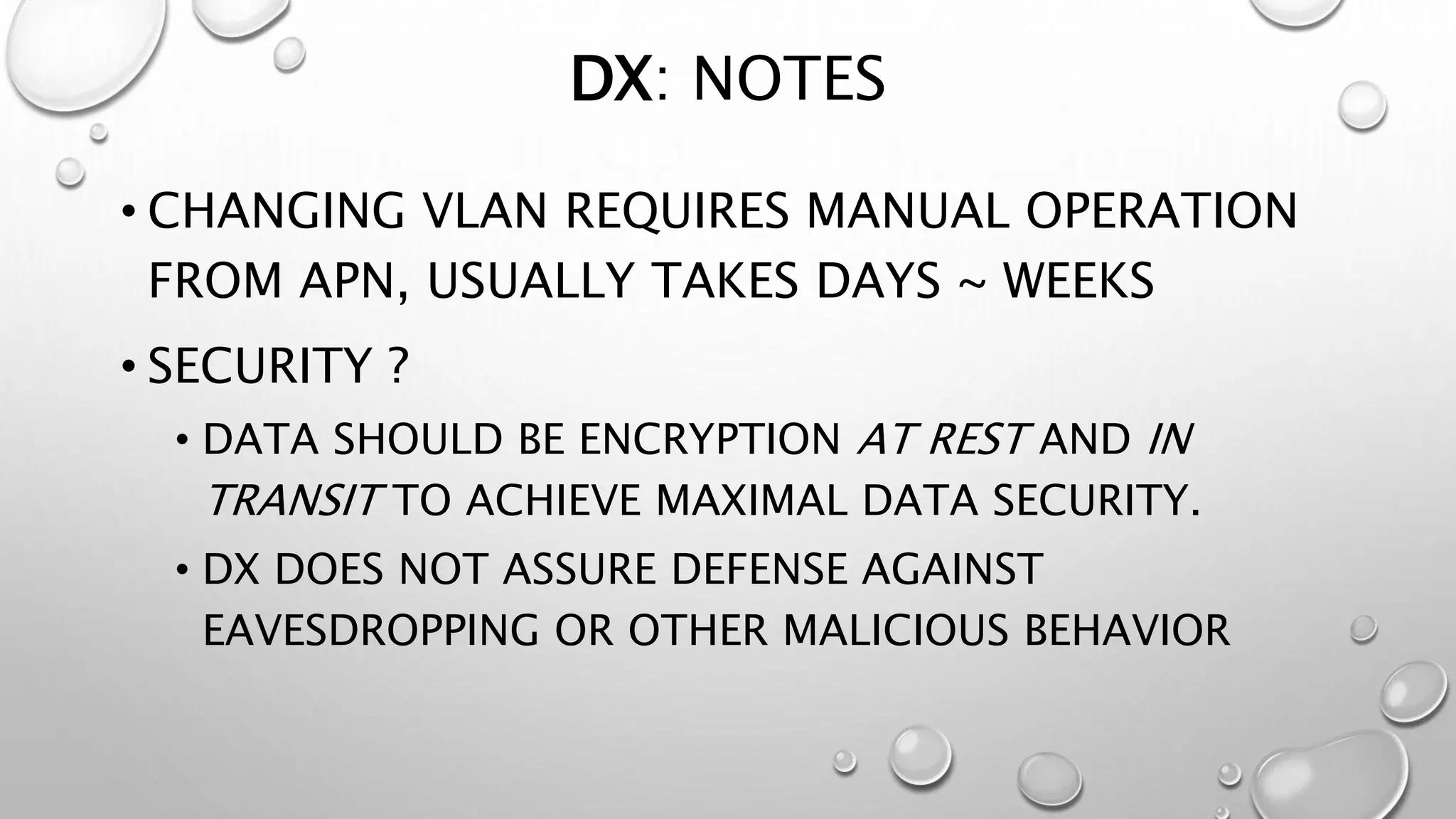

12. DX: NOTES
• CHANGING VLAN REQUIRES MANUAL OPERATION
FROM APN, USUALLY TAKES DAYS ~ WEEKS
• SECURITY ?
• DATA SHOULD BE ENCRYPTION AT REST AND IN
TRANSIT TO ACHIEVE MAXIMAL DATA SECURITY.
• DX DOES NOT ASSURE DEFENSE AGAINST
EAVESDROPPING OR OTHER MALICIOUS BEHAVIOR

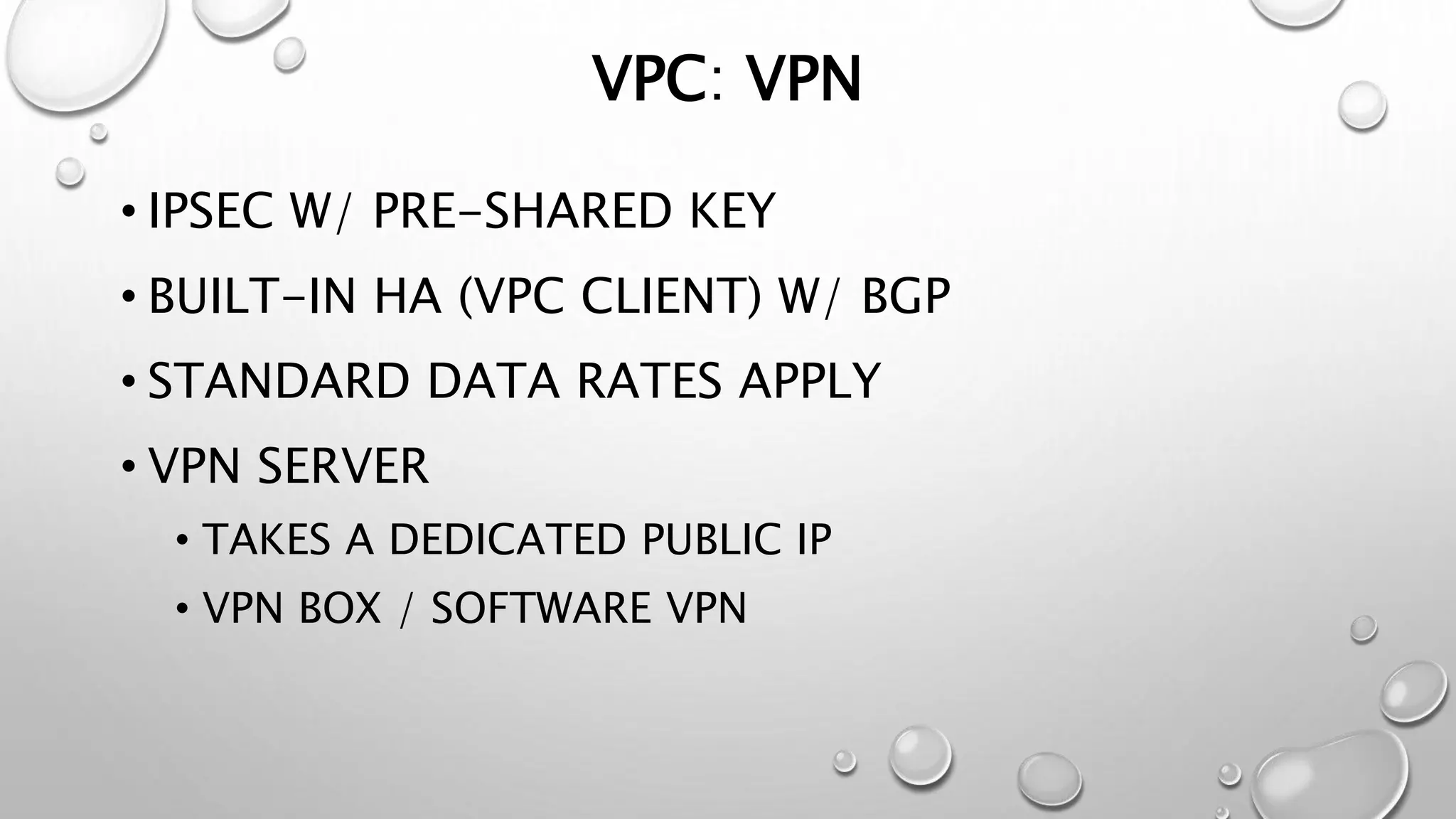

13. VPC: VPN
• IPSEC W/ PRE-SHARED KEY
• BUILT-IN HA (VPC CLIENT) W/ BGP
• STANDARD DATA RATES APPLY
• VPN SERVER
• TAKES A DEDICATED PUBLIC IP
• VPN BOX / SOFTWARE VPN

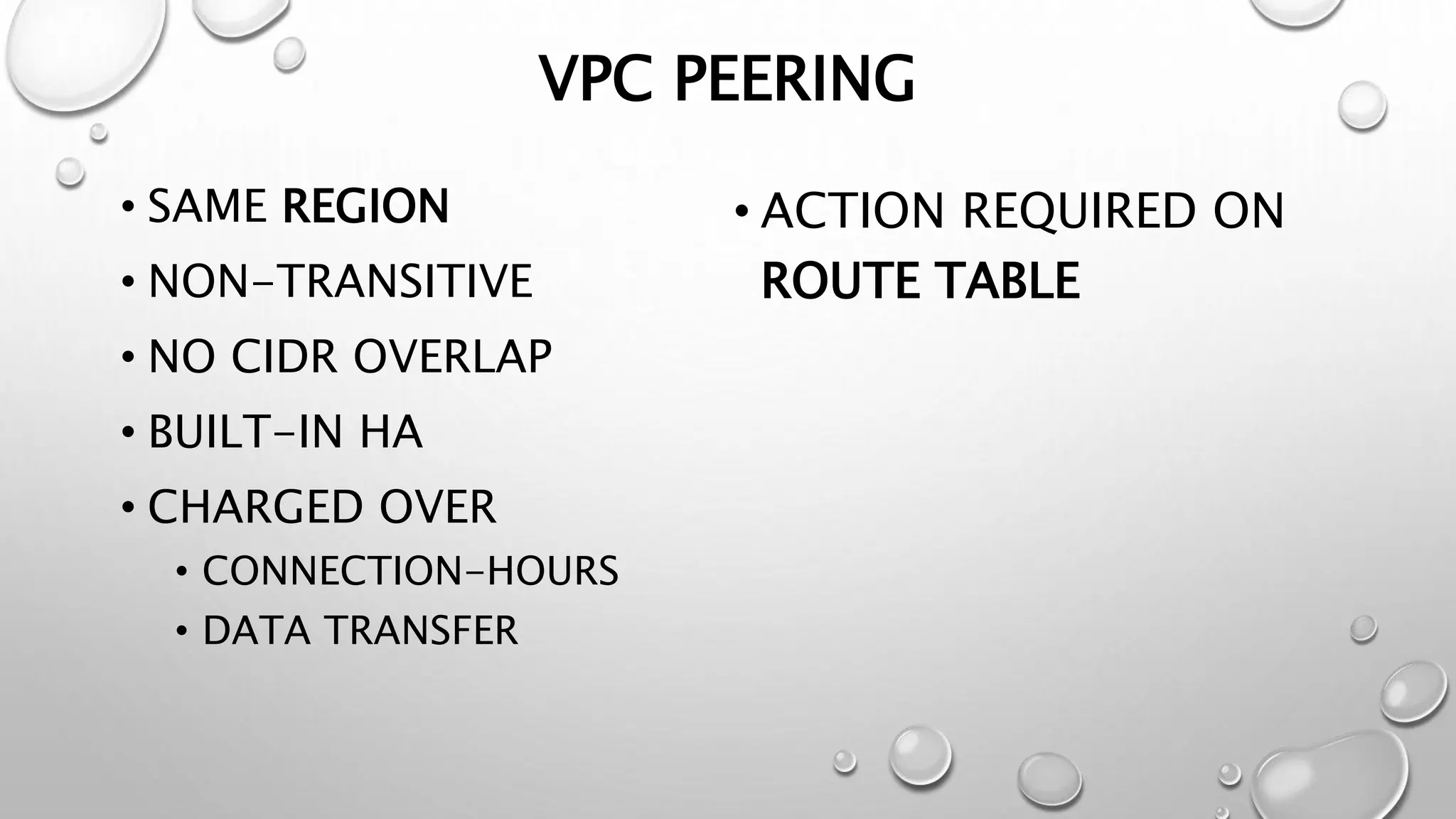

14. VPC PEERING
• SAME REGION
• NON-TRANSITIVE
• NO CIDR OVERLAP
• BUILT-IN HA
• CHARGED OVER
• CONNECTION-HOURS
• DATA TRANSFER
• ACTION REQUIRED ON
ROUTE TABLE

15. ROUTING

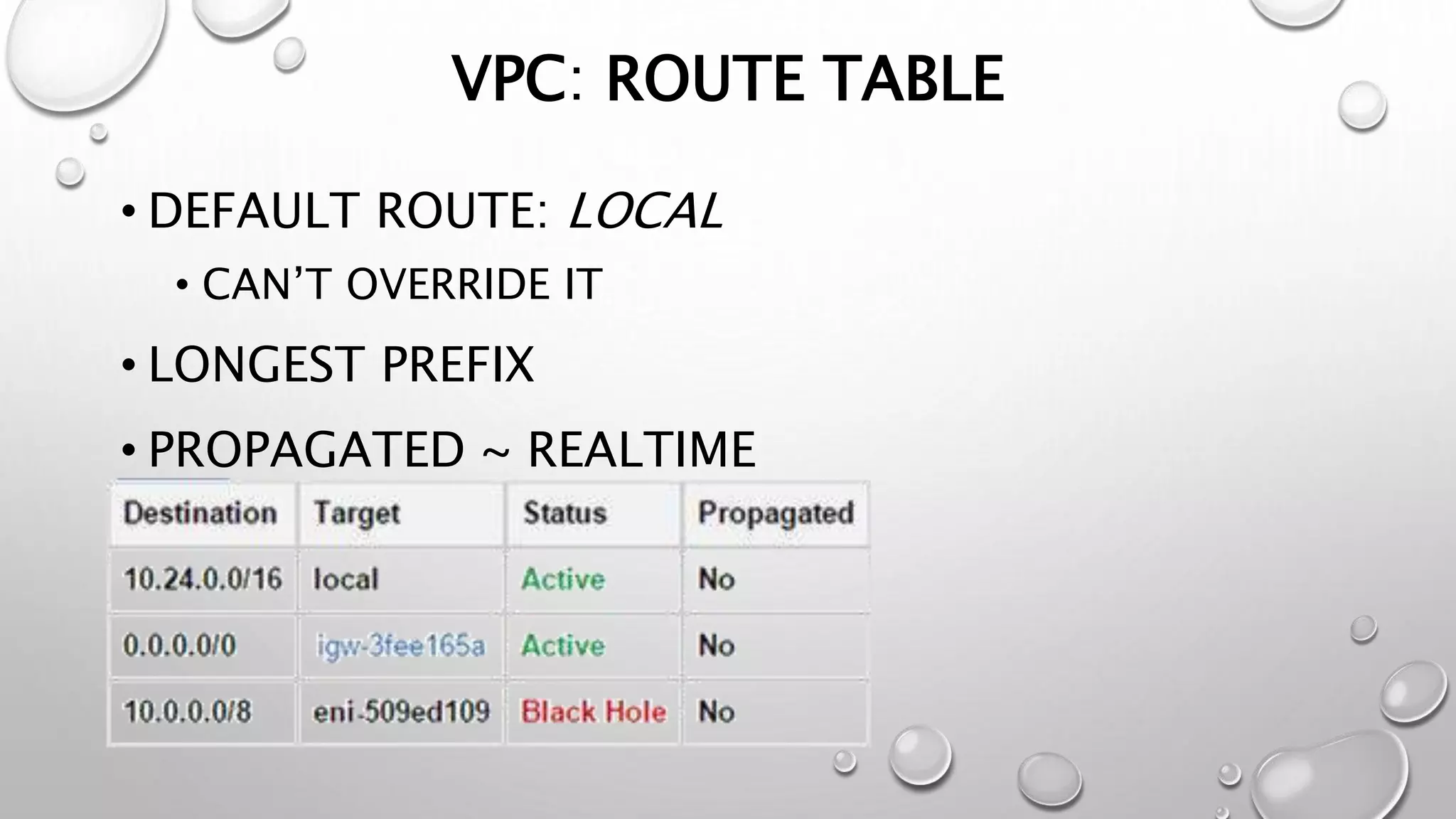

16. VPC: ROUTE TABLE
• DEFAULT ROUTE: LOCAL
• CAN’T OVERRIDE IT
• LONGEST PREFIX
• PROPAGATED ~ REALTIME

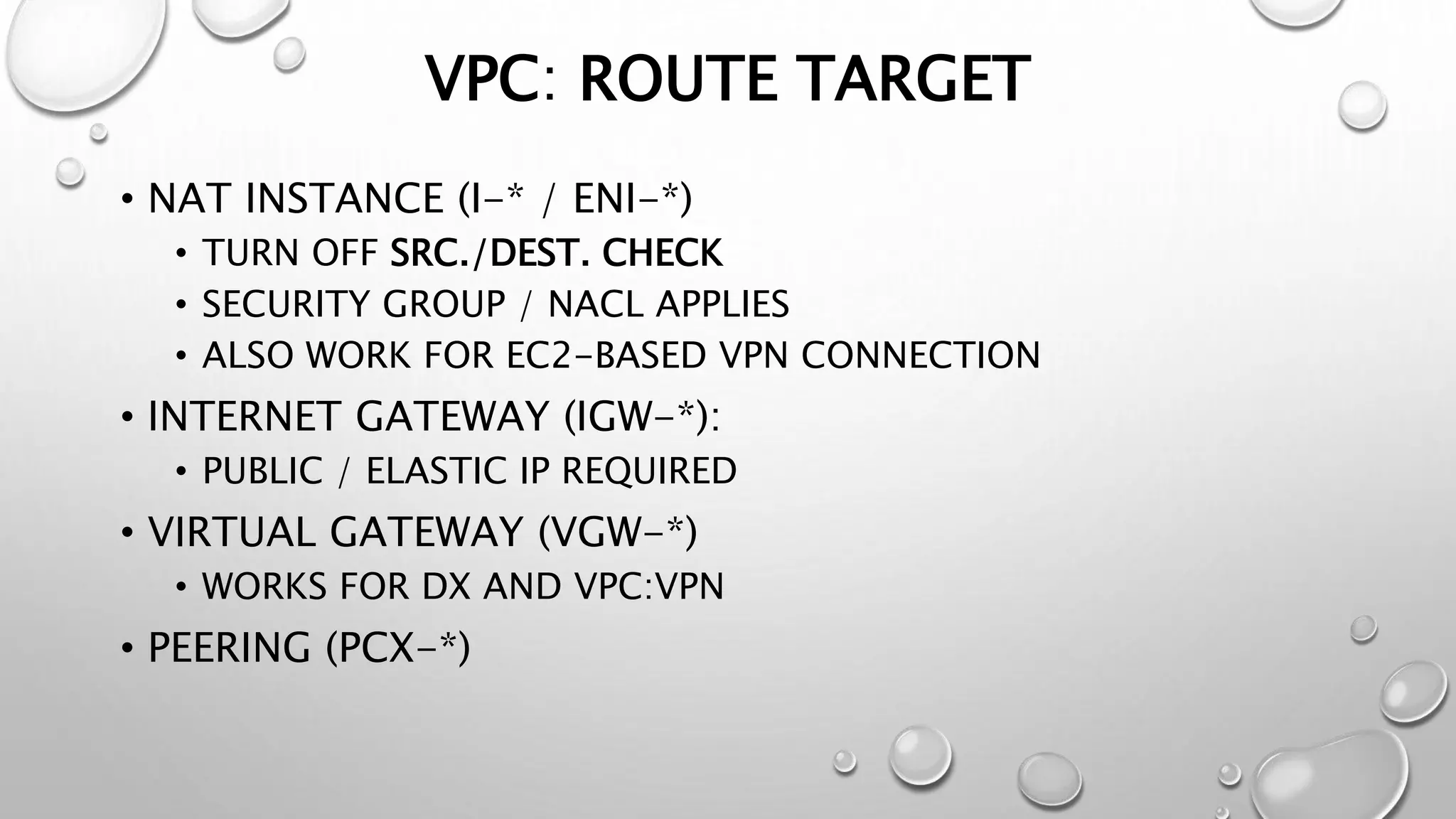

17. VPC: ROUTE TARGET
• NAT INSTANCE (I-* / ENI-*)
• TURN OFF SRC./DEST. CHECK
• SECURITY GROUP / NACL APPLIES
• ALSO WORK FOR EC2-BASED VPN CONNECTION
• INTERNET GATEWAY (IGW-*):
• PUBLIC / ELASTIC IP REQUIRED
• VIRTUAL GATEWAY (VGW-*)
• WORKS FOR DX AND VPC:VPN
• PEERING (PCX-*)

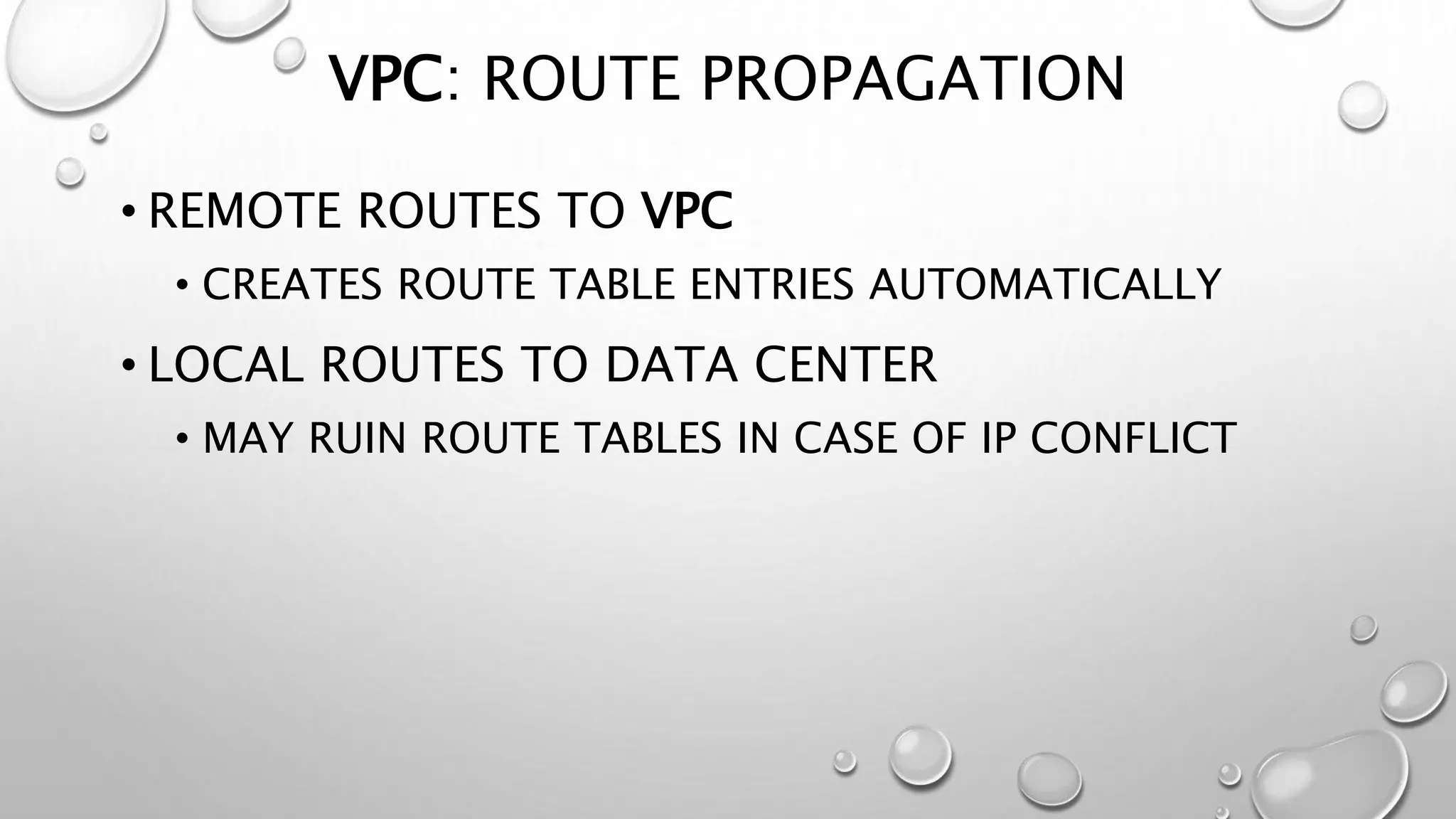

18. VPC: ROUTE PROPAGATION
• REMOTE ROUTES TO VPC
• CREATES ROUTE TABLE ENTRIES AUTOMATICALLY
• LOCAL ROUTES TO DATA CENTER
• MAY RUIN ROUTE TABLES IN CASE OF IP CONFLICT

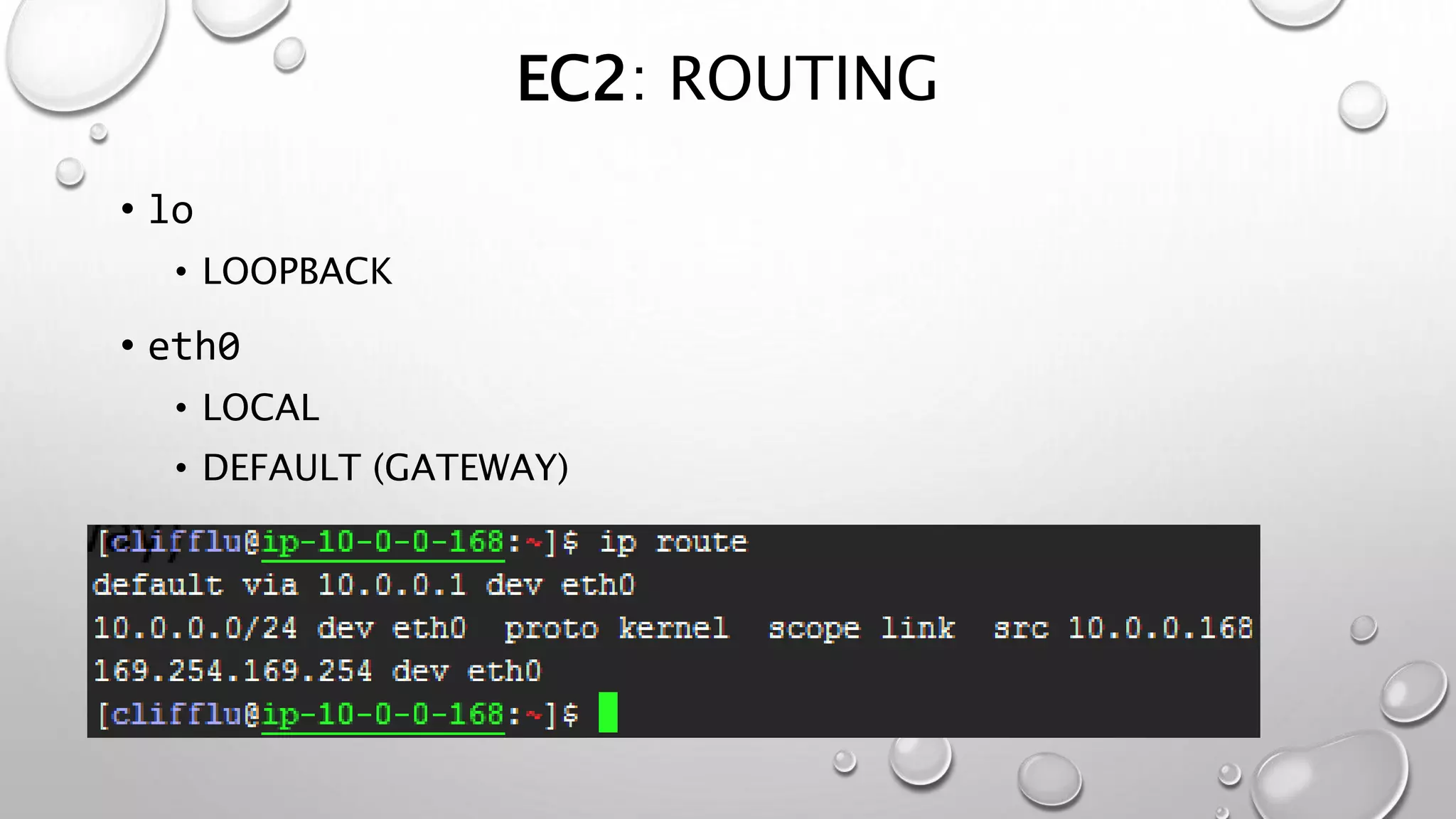

19. EC2: ROUTING
• lo
• LOOPBACK
• eth0
• LOCAL
• DEFAULT (GATEWAY)

20. EC2: NETWORK TRICKS
• MULTIPLE ENI
• AS LONG AS THEY BELONG TO THE SAME AZ
• SG APPLIES TO ENI, NOT EC2
• SECONDARY PRIVATE IP
• CONFIGURE OVER MANAGEMENT CONSOLE / API
• ENABLE IN EC2
• ifconfig eth0:0 [SECONDARY_IP] netmask [NETMASK]

21. OTHER TRICKS
• NAT
• SNAT
• DNAT (PORT FORWARDING)
• TUNNELING

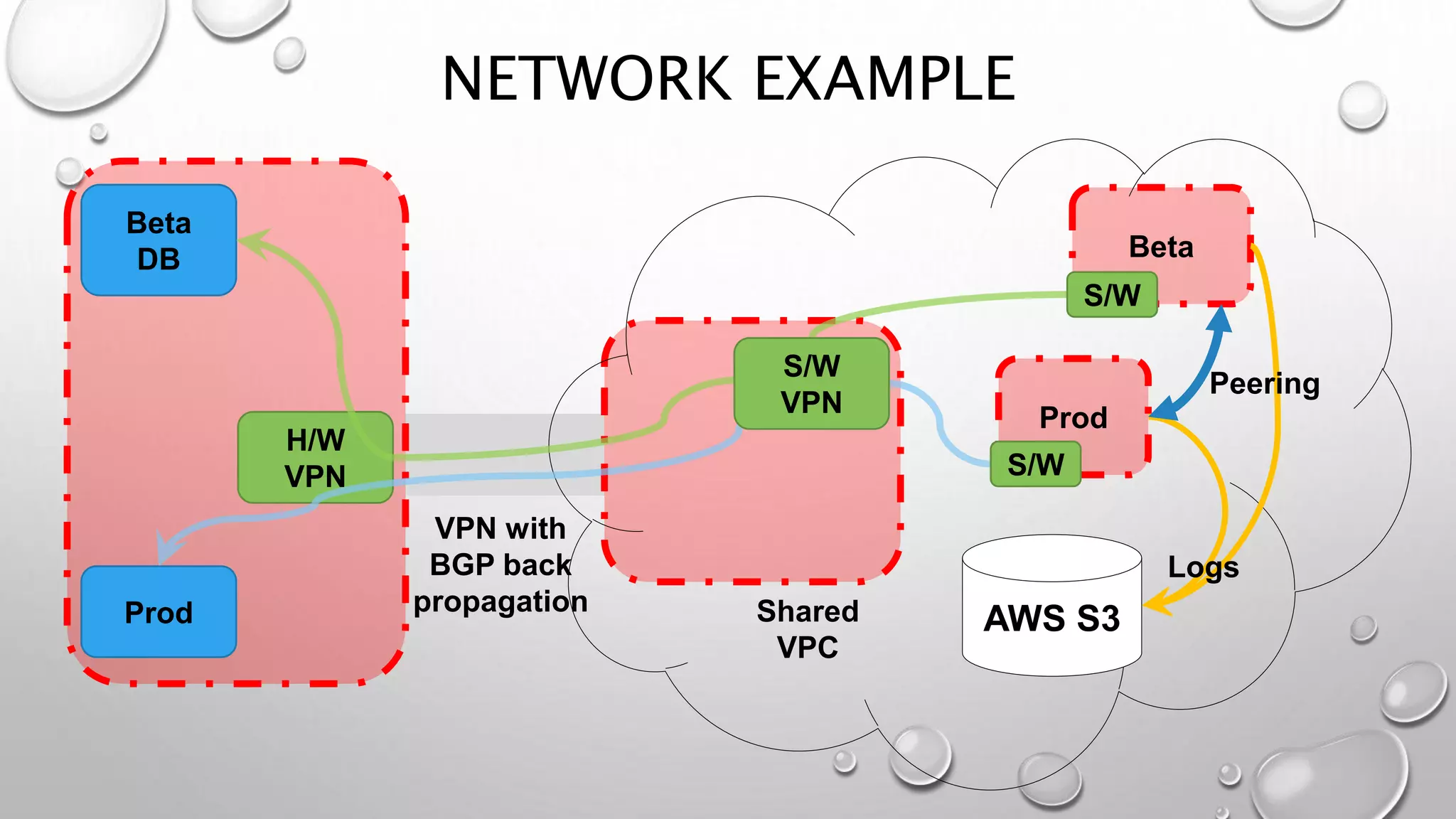

22. NETWORK EXAMPLE
VPN with
BGP back
propagation
Beta
DB
Prod Shared
VPC
H/W
VPN
Beta
Prod
AWS S3
Logs
S/W
VPN
S/W
S/W
Peering
