Deploying containers on Heterogeneous IOT devices by Daniel Bruzual
This document discusses deploying containers on heterogeneous IoT devices using Docker Swarm. It covers initializing a Swarm on IoT devices with different host OS, architectures and sensors. It also discusses using multi-stage Dockerfiles to create compact container images, deploying applications across devices using labels and constraints, and future work including device mounting and secure provisioning.
More Related Content
Similar to Deploying containers on Heterogeneous IOT devices by Daniel Bruzual
Deploying containers on Heterogeneous IOT devices by Daniel Bruzual
- 1. Deploying Containers on HeterogeneousIoT Devices Daniel Bruzual Researcher at Aalto University
- 2. what it isand why it matters IoT and Fog Computing
- 7. • Distributed applications • Provisioning •Networking Docker Swarm
- 8. • Heterogeneous ○ HostOS ○ Architecture ○ Sensors • Resource-constrained IoT Devices
- 9. • Leader: docker swarminit • Copy tokens: docker swarm join-token worker • Other nodes: docker swarm join -token <token> <IP:PORT> Creating a Swarm Business as usual

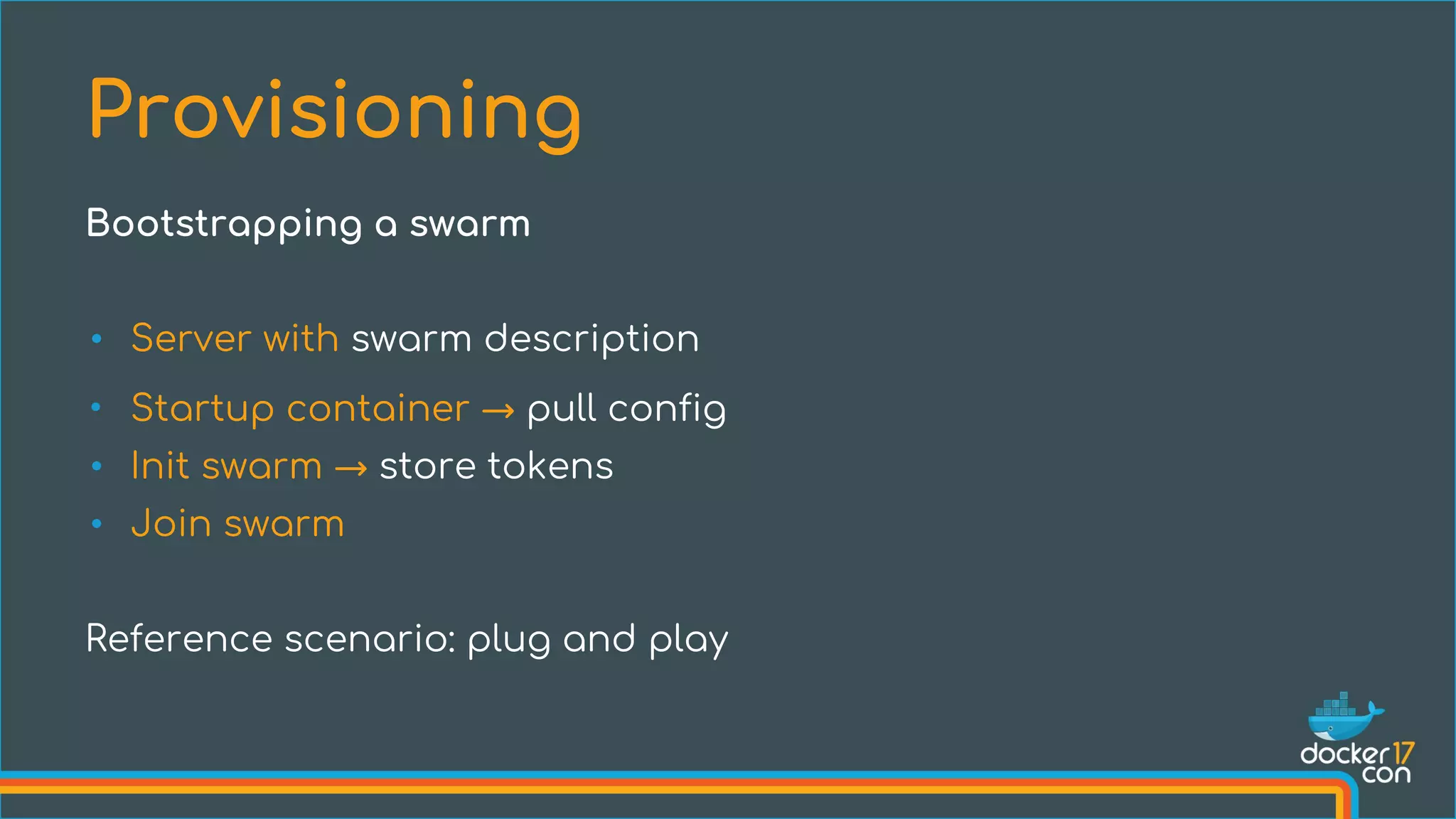

- 10. • Server withswarm description • Startup container → pull config • Init swarm → store tokens • Join swarm Reference scenario: plug and play Provisioning Bootstrapping a swarm
- 11. • Leave outthe clutter • Limited storage • Save bandwidth Compact Images Multi-stage builds
- 12. FROM golang:1.8 asbuild WORKDIR /go/src/humidity-sensor COPY main.go ./ RUN CGO_ENABLED=0 GOOS=linux GOARCH=amd64 go build -a -tags netgo -ldflags '-extldflags "-static"' -installsuffix cgo -o app . FROM scratch COPY --from=build /go/src/humidity-sensor/app /humidity COPY --from=build /etc/ssl/certs/ /etc/ssl/certs CMD ["/humidity"] Multi-Stage Dockerfile

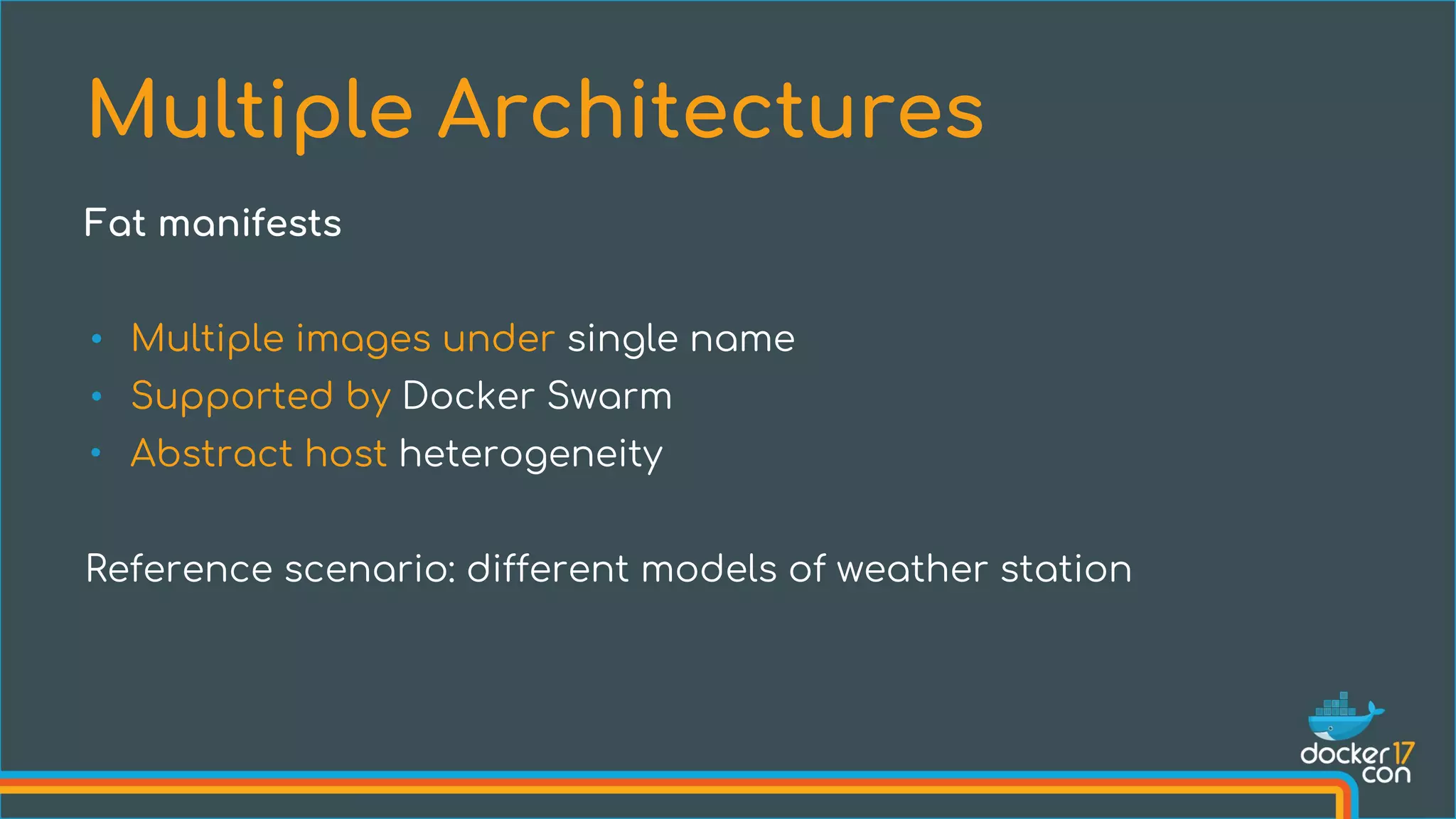

- 13. • Multiple imagesunder single name • Supported by Docker Swarm • Abstract host heterogeneity Reference scenario: different models of weather station Multiple Architectures Fat manifests

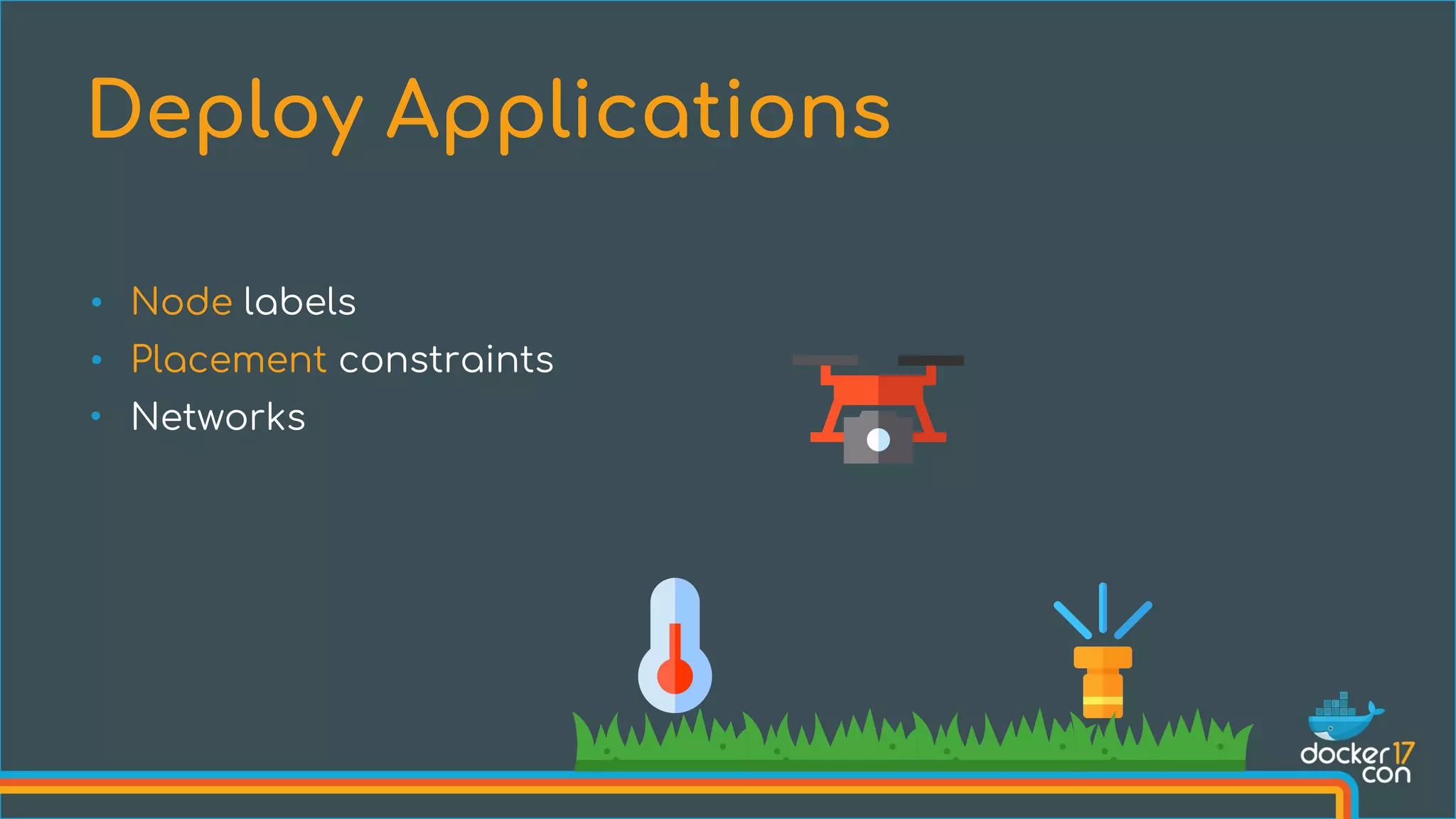

- 14. • Node labels •Placement constraints • Networks Deploy Applications
- 15. dan@farm $ dockerservice create --constraint ‘node.labels.device==thermometer’ --mode global temp-monitor temp-monitor Deploy Applications device = thermometer model = DS18B20 device = sprinkler

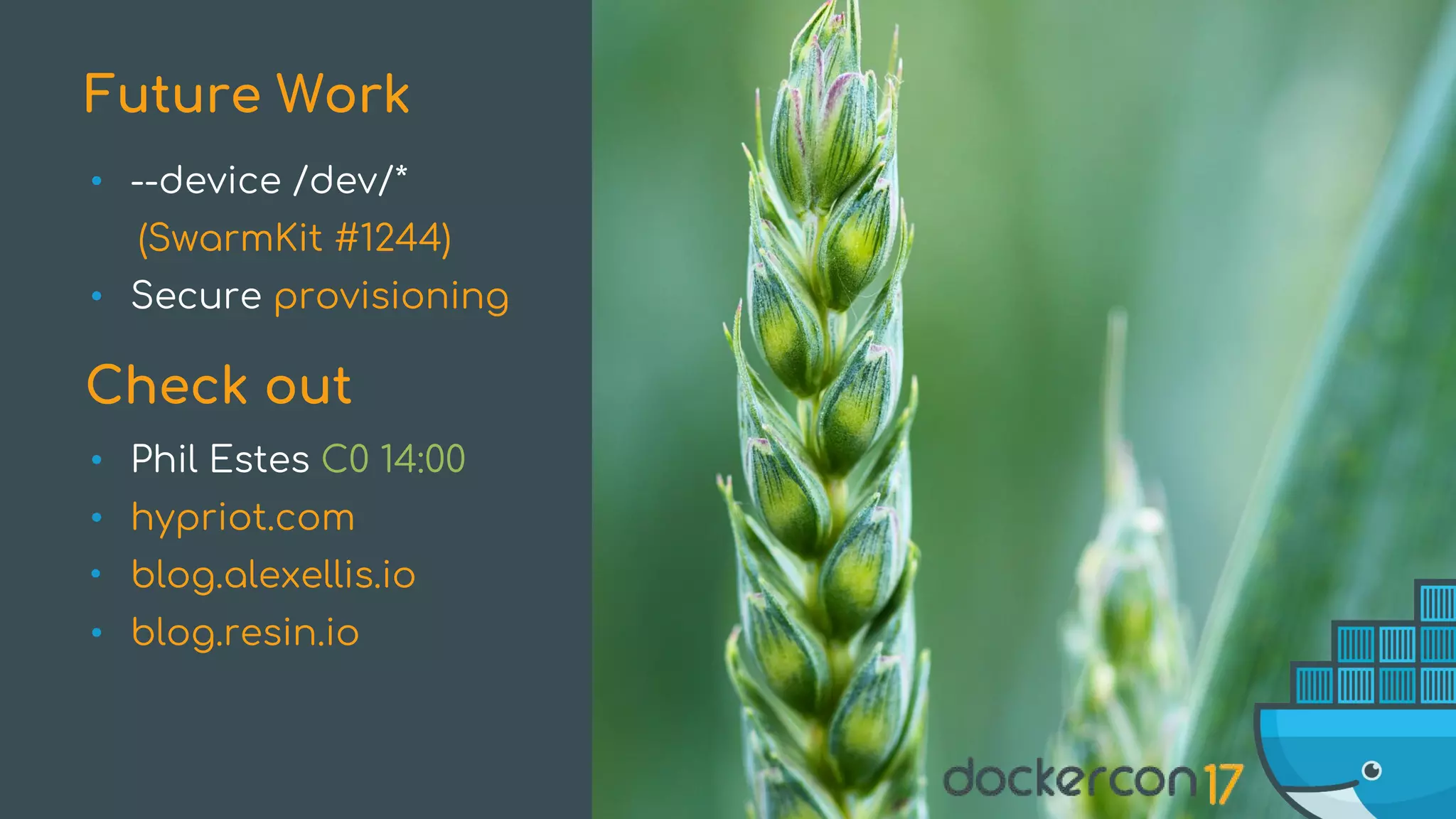

- 16. • --device /dev/* (SwarmKit#1244) • Secure provisioning Future Work Check out • Phil Estes C0 14:00 • hypriot.com • blog.alexellis.io • blog.resin.io
- 17. Thank You! Find meon Hallway track! @danbruzual #dockercon
