This document discusses how to deploy .NET applications with TFS Build including: - Deploying web applications to Azure or IIS using TFS build and Azure publishing - Deploying SQL Server databases using database projects - Deploying click-once applications and NuGet packages from TFS builds It provides demonstrations of deploying to Azure, IIS, databases, and publishing NuGet packages and emphasizes the value of continuous deployment and testing for fast failure detection.

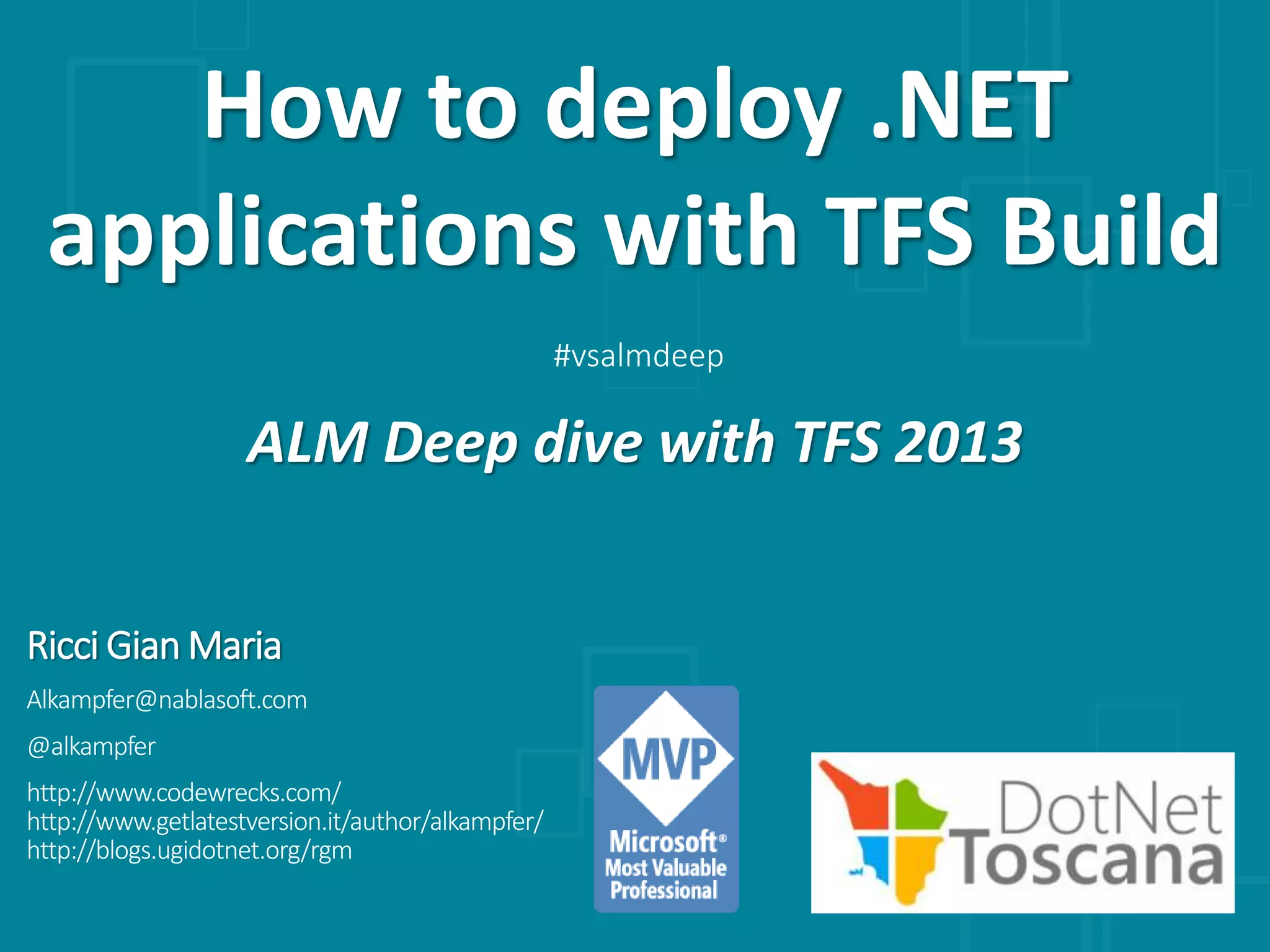

1. Ricci Gian Maria
Alkampfer@nablasoft.com
@alkampfer
http://www.codewrecks.com/
http://www.getlatestversion.it/author/alkampfer/
http://blogs.ugidotnet.org/rgm
How to deploy .NET
applications with TFS Build
ALM Deep dive with TFS 2013
#vsalmdeep

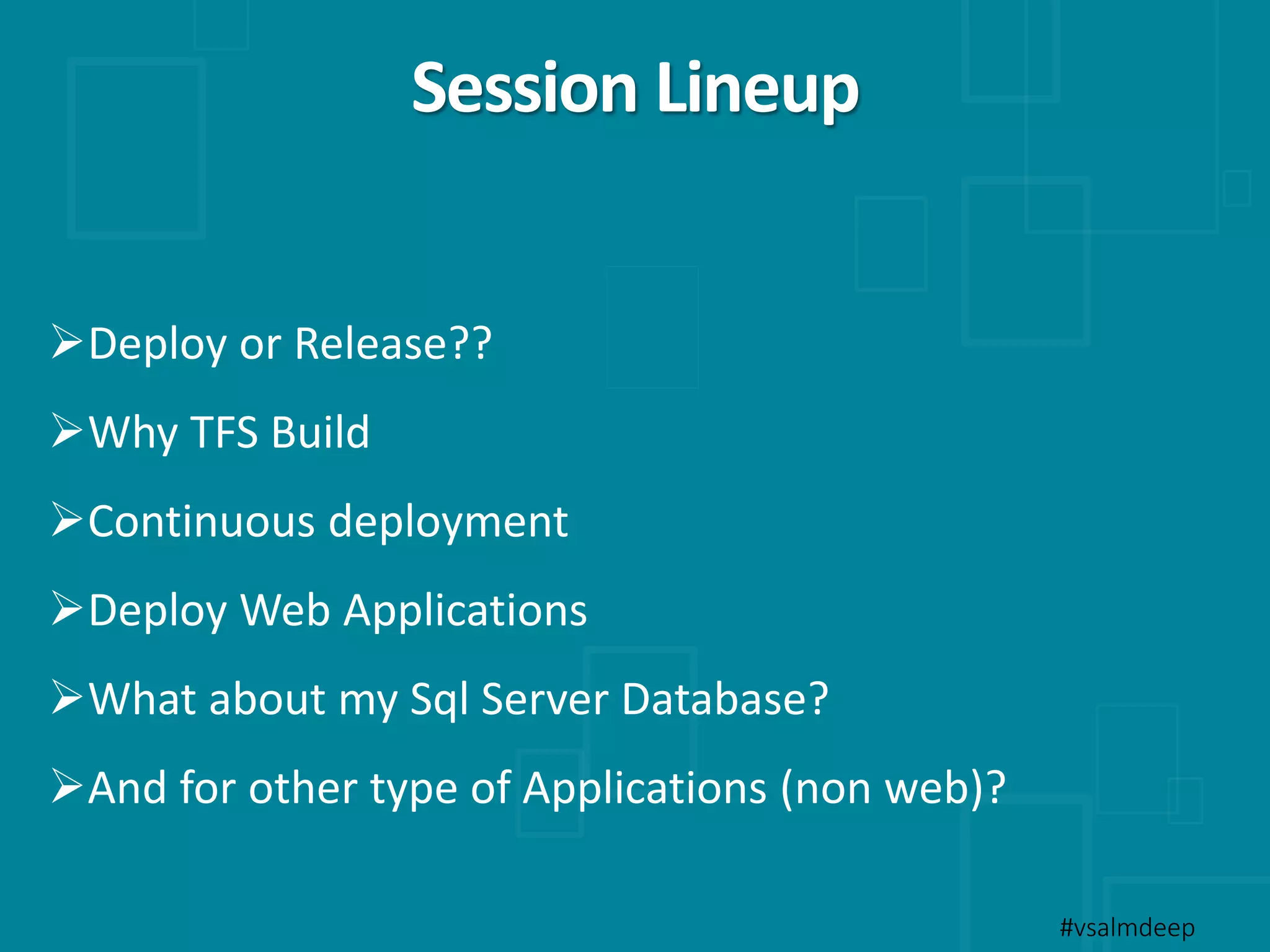

2. Session Lineup
Deploy or Release??
Why TFS Build
Continuous deployment
Deploy Web Applications
What about my Sql Server Database?
And for other type of Applications (non web)?
#vsalmdeep

3. Event Sponsor
#vsalmdeep

4. Deploy or Release?
#vsalmdeep
 Deploy
 The act of installing software in a set of computers
 Does not requires accounting or ownership
 Release
 The act of making software available downstream
 Monitored and repeatable process
 Multi-stage process

5. Why continuous deployment?
#vsalmdeep
 No error made by manual procedures
 Is a good deploy documentation
 Consistent
 Repetable
 Automated
 Verified and testable

6. TFS Build or….
#vsalmdeep
TFS
Build
Agent Environment

7. Release Management?
#vsalmdeep
TFS Build Package
RM

8. Why using Build?
#vsalmdeep
 Pro
 No additional cost or license
 Simpler to setup
 Already in place for CI
 Cons
 Lesser pre-built actions
 Does not support pipelines
 Push process instead of pull process

9. What is behind Azure publising?
#vsalmdeep
 Lots of options
 We will focus on VSO/TFS integration

10. DEMO
Deploy to Azure Web Site
#vsalmdeep

11. What is behind Azure publising?
#vsalmdeep

12. What is behind Azure publising?
#vsalmdeep
VSO/TFS Build
agent
Azure Web
Site

13. Why Vso and not Git/dropbox/…?
#vsalmdeep
 Automatic trigger (scheduled, each check-in, gated
check-in, etc)
 Fully extensible as every build
 Centralized log
 Binary in Drop folder
 Publishing of Symbol Source
 Integrated with all TFS World (es: feedback tool)

14. What about on-premise?
#vsalmdeep
 All combinations of infrastructure are possible
 VSO + Elastic Build + Azure site (default)
 VSO + Build on premise + Azure Web Site
 TFS and Build on premise + Azure Web Site
 VSO + Build on premise + local IIS web site
 TFS and Build on premise + local IIS web site

15. DEMO
Change build to publish to IIS
#vsalmdeep

16. What about my sql server DB?
#vsalmdeep
 Sql Server (and all SQL) bring some pain for deploy
 Store latest schema changes with code (source
controlled)
 Verify new schema is valid before deployment
 Update an existing database with latest schema
without touching data
 Deploy the schema even if someone had made
manual changes from last deploy
 Deploy some static data in certain tables
 Ensure some test data for test environments

17. Database projects to the rescue
#vsalmdeep
 A db project uniforms database development to
normal code development
 A single project in visual studio
 Compile to Data-tier application and Deployable
Build agent
DAC

18. DEMO
Deploy with Database projects
#vsalmdeep

19. Fail as soon as possible
#vsalmdeep
 Minimize time from when a bug is introduced in code
to the time this bug is discovered
 Fail as soon as possible
 You need automatic testing
 Unit test
 Integration test
 Performance test
 User acceptance test
 etc

20. What to test?
#vsalmdeep
 Integration, performance, acceptance test need full
test environments
 Continuous deployment helps to keep these
environments aligned with latest bits
 You can run Automatic Tests against these
environments to immediately detect problems in
software.

21. DEMO
Build – deploy – performance test with TFS and
VS web performance tests
#vsalmdeep

22. Click-once
#vsalmdeep
 Standard desktop application can be published with
click once
 Build should be customized at least in two points
 Before the build takes place
 generate assembly file number incrementally
 After the build takes place
 publish click once application locally in the build
server
 Use mage.exe to modify publish (optional)
 Move published file in the definitive location

23. DEMO
Deploy click once application using console
application
#vsalmdeep

24. Nuget packages
#vsalmdeep
 Private or public nugget servers are exceptional to
share common dll
 Build should be customized at least in two points
 Before the build takes place
 generate assembly file number incrementally
 After the build takes place
 Generate nuget packages on the build server
 Push packages to the nuget server

25. TFS 2013 new workflow
#vsalmdeep
 Simplified Workflow
 Easily customizable
 Extensible out-of-the-box with scripts (es PowerShell)

26. DEMO
Publish nuget packages with new TFS 2013
build workflow and powershell
#vsalmdeep

27. Questions?
?
#vsalmdeep
