The document discusses continuous integration and delivery for machine learning models. It describes wrapping machine learning code into Docker containers to allow for parameterized training. It also discusses deploying models using Kubernetes operators and packaging models as services to run on customer infrastructure for training and serving. The goal is to establish best practices for continuous training, testing, and deployment of machine learning models.

1. FullStack Developers Israel
CONTINUOS OPERATIONS
DEEP LEARNING | HAGGAI PHILIP ZAGURY

2. Tikal Knowledge
TIKAL INTRO
WHO WE ARE ?
▸ Tikal helps ISV’s in Israel & abroad in their technological
challenges.
▸ Our Engineers are Fullstack Developers with expertise in
Android, DevOps, Java, JS, Python, ML
▸ We are passionate about technology and specialise in
OpenSource technologies.
▸ Our Tech and Group leaders help establish & enhance
existing software teams with innovative & creative
thinking.
https://www.meetup.com/full-stack-developer-il/

3. FullStack Developers Israel
SELF INTRODUCTION
▸ My open thinking and open techniques
ideology is driven by Open Source
technologies and the collaborative manner
defining my M.O.
▸ My solution driven approach is strongly
based on hands-on and deep understanding
of Operating Systems, Applications stacks
and Software languages, Networking, Cloud
in general and today more an more Cloud
Native solutions.
▸ Technologies:
▸ Linux { just pick a flavour …}
▸ *Scripting
▸ Git
▸ Python/Go
▸ Cloud { public/private/hybrid }
▸ Docker
▸ Kubernetes
HAGGAI PHILIP ZAGURY - DEVOPS ARCHITECT AND GROUP TECH LEAD

4. FullStack Developers Israel
THE STORY …
MACHINE LEARNING | CONTINUOUS OPERATIONS

5. FullStack Developers Israel
MACHINE LEARNING | CONTINUOUS OPERATIONS

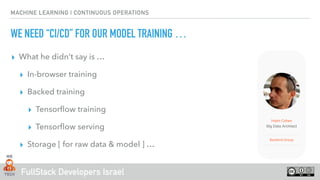

WE NEED “CI/CD” FOR OUR MODEL TRAINING …
▸ What he didn’t say is …
▸ In-browser training
▸ Backed training
▸ Tensorflow training
▸ Tensorflow serving
▸ Storage [ for raw data & model ] …

6. FullStack Developers Israel
MACHINE LEARNING | CONTINUOUS OPERATIONS

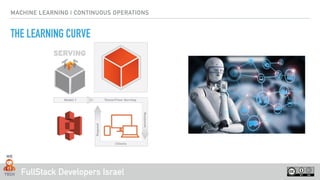

THE LEARNING CURVE

7. FullStack Developers Israel
MACHINE LEARNING | CONTINUOUS OPERATIONS

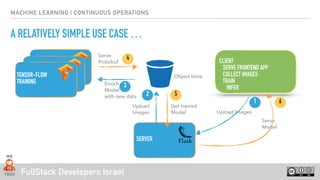

A RELATIVELY SIMPLE USE CASE …
TENSOR-FLOW
TRAINING
Server
SERVER
CLIENT
- SERVE FRONTEND APP
- COLLECT IMAGES
- TRAIN
-INFER
Upload Images
Serve
Model
Get trained
Model
Enrich
Model
with new data
Upload
Images
Serve
Protobuf
Object store
1
2
3
4
5
6

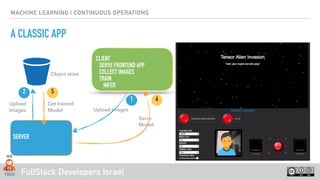

8. FullStack Developers Israel
MACHINE LEARNING | CONTINUOUS OPERATIONS
A CLASSIC APP
SERVER
CLIENT
- SERVE FRONTEND APP
- COLLECT IMAGES
- TRAIN
-INFER
Upload Images
Serve
Model
Get trained
Model
Upload
Images
Object store
1
2 5
6

9. FullStack Developers Israel
MACHINE LEARNING | CONTINUOUS OPERATIONS
MODEL TRAINING …
‣ If your using a pre-trained model - it’s no different
than using a backend / an api endpoint !
‣ Training processes are complex and require
Infrastructure As A Service & On demand
‣ Scalability
‣ faster Time to Market vs. faster results
‣ Scaling costs …

10. FullStack Developers Israel
MACHINE LEARNING | CONTINUOUS OPERATIONS

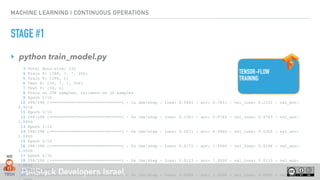

STAGE #1
‣ python train_model.py
3 Total data size: 332
4 Train X: (298, 7, 7, 256)
5 Train Y: (298, 2)
6 Test X: (34, 7, 7, 256)
7 Test Y: (34, 2)
8 Train on 298 samples, validate on 34 samples
9 Epoch 1/10
10 298/298 [==============================] - 1s 3ms/step - loss: 0.5061 - acc: 0.7651 - val_loss: 0.2331 - val_acc:
0.9118
11 Epoch 2/10
12 298/298 [==============================] - 0s 1ms/step - loss: 0.1361 - acc: 0.9765 - val_loss: 0.0763 - val_acc:
1.0000
13 Epoch 3/10
14 298/298 [==============================] - 0s 1ms/step - loss: 0.0471 - acc: 0.9966 - val_loss: 0.0365 - val_acc:
1.0000
15 Epoch 4/10
16 298/298 [==============================] - 0s 1ms/step - loss: 0.0172 - acc: 1.0000 - val_loss: 0.0196 - val_acc:
1.0000
17 Epoch 5/10
18 298/298 [==============================] - 0s 1ms/step - loss: 0.0123 - acc: 1.0000 - val_loss: 0.0113 - val_acc:
1.0000
19 Epoch 6/10
20 298/298 [==============================] - 0s 1ms/step - loss: 0.0065 - acc: 1.0000 - val_loss: 0.0080 - val_acc:
TENSOR-FLOW
TRAINING

11. FullStack Developers Israel
MACHINE LEARNING | CONTINUOUS OPERATIONS

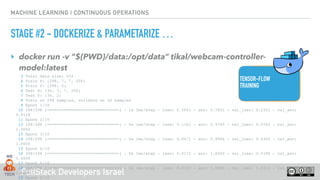

STAGE #2 - DOCKERIZE & PARAMETARIZE …
‣ docker run -v “${PWD}/data:/opt/data” tikal/webcam-controller-
model:latest
TENSOR-FLOW
TRAINING
3 Total data size: 332
4 Train X: (298, 7, 7, 256)
5 Train Y: (298, 2)
6 Test X: (34, 7, 7, 256)
7 Test Y: (34, 2)
8 Train on 298 samples, validate on 34 samples
9 Epoch 1/10
10 298/298 [==============================] - 1s 3ms/step - loss: 0.5061 - acc: 0.7651 - val_loss: 0.2331 - val_acc:
0.9118
11 Epoch 2/10
12 298/298 [==============================] - 0s 1ms/step - loss: 0.1361 - acc: 0.9765 - val_loss: 0.0763 - val_acc:
1.0000
13 Epoch 3/10
14 298/298 [==============================] - 0s 1ms/step - loss: 0.0471 - acc: 0.9966 - val_loss: 0.0365 - val_acc:
1.0000
15 Epoch 4/10
16 298/298 [==============================] - 0s 1ms/step - loss: 0.0172 - acc: 1.0000 - val_loss: 0.0196 - val_acc:
1.0000
17 Epoch 5/10
18 298/298 [==============================] - 0s 1ms/step - loss: 0.0123 - acc: 1.0000 - val_loss: 0.0113 - val_acc:
1.0000
19 Epoch 6/10

12. FullStack Developers Israel
MACHINE LEARNING | CONTINUOUS OPERATIONS

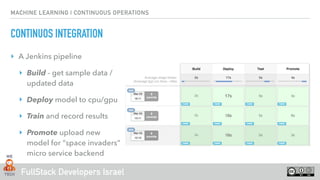

CONTINUOS INTEGRATION
‣ A Jenkins pipeline
‣ Build - get sample data /
updated data
‣ Deploy model to cpu/gpu
‣ Train and record results
‣ Promote upload new
model for “space invaders”
micro service backend

13. FullStack Developers Israel
MACHINE LEARNING | CONTINUOUS OPERATIONS

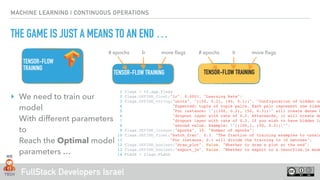

THE GAME IS JUST A MEANS TO AN END …
TENSOR-FLOW TRAINING
TENSOR-FLOW
TRAINING
# epochs lr more flags
1 flags = tf.app.flags
2 flags.DEFINE_float("lr", 0.0001, "Learning Rate")
3 flags.DEFINE_string("units", "((50, 0.2), (40, 0.1))", "Configuration of hidden un
4 "Expected: tuple of tuple pairs. Each pair represent one hidde
5 "For instance: "((100, 0.2), (50, 0.3))" will create dense h
6 "dropout layer with rate of 0.2. Afterwards, it will create de
7 "dropout layer with rate of 0.3. If you wish to have hidden la
8 "second value. Example: "((100,), (50, 0.3))"")
9 flags.DEFINE_integer("epochs", 10, "Number of epochs")
10 flags.DEFINE_float("batch_frac", 0.3, "The fraction of training examples to consid
11 "For instance, 0.1 will divide the training to 10 batches")
12 flags.DEFINE_boolean("draw_plot", False, "Whether to draw a plot at the end")
13 flags.DEFINE_boolean("export_js", False, "Whether to export to a tenorflow.js mode
14 FLAGS = flags.FLAGS
TENSOR-FLOW TRAINING
# epochs lr more flags
‣ We need to train our
model
With different parameters
to
Reach the Optimal model
parameters …

14. FullStack Developers Israel
MACHINE LEARNING | CONTINUOUS OPERATIONS
SACALING / MULTIPLEXING … TENSORFLOW SUPPORTS MULTI-PART / DISTRIBUTED FLOWS
‣ Running the same model with
different parameters in order to
choose the most efficient vs most
accurate vs cost affective pipeline !
‣ most efficient #of epochs /
params
https://www.tensorflow.org/performance/datasets_performance

15. FullStack Developers Israel
MACHINE LEARNING | CONTINUOUS OPERATIONS

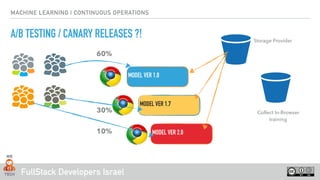

A/B TESTING / CANARY RELEASES ?!
MODEL VER 1.0
MODEL VER 1.7
MODEL VER 2.0
Storage Provider
60%
30%
10%
Collect In-Browser
training

16. FullStack Developers Israel
MACHINE LEARNING | CONTINUOUS OPERATIONS
TRANSLATION …
▸ A flexible training model
▸ Parametarized flow
▸ Model Testing
▸ Promotion mechanism
▸ Data Import and preprocessing
▸ Post Processing

17. FullStack Developers IL
REQUIREMENTS DRIVEN
SOLUTION(S)

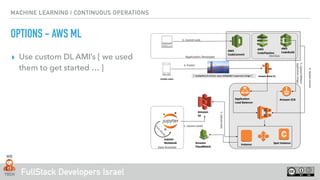

18. FullStack Developers Israel
MACHINE LEARNING | CONTINUOUS OPERATIONS
OPTIONS - AWS ML
▸ Use custom DL AMI’s [ we used
them to get started … ]

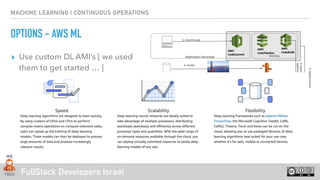

19. FullStack Developers Israel
MACHINE LEARNING | CONTINUOUS OPERATIONS
OPTIONS - AWS ML
▸ Use custom DL AMI’s [ we used
them to get started … ]

20. FullStack Developers Israel
MACHINE LEARNING | CONTINUOUS OPERATIONS
OPTIONS - AWS ML

21. FullStack Developers Israel
MACHINE LEARNING | CONTINUOUS OPERATIONS
OPTIONS - GCP ML/DL
▸ Assume you develop in the
cloud / on the cloud
▸ Consume C/G/Tpu’s
constantly
▸ Adjust your workflow to
Google Patterns (which isn’t
a bad thing …)

22. FullStack Developers Israel
MACHINE LEARNING | CONTINUOUS OPERATIONS

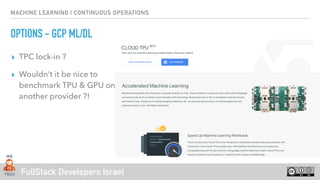

OPTIONS - GCP ML/DL
▸ TPC lock-in ?
▸ Wouldn’t it be nice to
benchmark TPU & GPU on
another provider ?!

23. FullStack Developers Israel
MACHINE LEARNING | CONTINUOUS OPERATIONS
OPTIONS - AZURE ML/DL

24. FullStack Developers Israel
IT’S ALL ABOUT THE PIPELINE / WORKFLOW

25. FullStack Developers Israel
TEXT
IT’S ALL ABOUT THE PIPELINE / WORKFLOW
‣ You might be able to make this work …
‣ But !

26. FullStack Developers Israel
MACHINE LEARNING | CONTINUOUS OPERATIONS
THERES A PATTERN HERE …
IDE
Model Serving
Model Storage
Parameter injectionParameterized training
Training Orchestrator
1
2
3
4
5
6

27. FullStack Developers Israel
MACHINE LEARNING | CONTINUOUS OPERATIONS
STAGE #3 - ADJUST OUR DOCKERIZED APP TO MY VENDOR …
‣ docker run -v “${PWD}/data:/opt/data” tikal/webcam-controller-
model:latest
TENSOR-FLOW
TRAINING
3 Total data size: 332
4 Train X: (298, 7, 7, 256)
5 Train Y: (298, 2)
6 Test X: (34, 7, 7, 256)
7 Test Y: (34, 2)
8 Train on 298 samples, validate on 34 samples
9 Epoch 1/10
10 298/298 [==============================] - 1s 3ms/step - loss: 0.5061 - acc: 0.7651 - val_loss: 0.2331 - val_acc:
0.9118
11 Epoch 2/10
12 298/298 [==============================] - 0s 1ms/step - loss: 0.1361 - acc: 0.9765 - val_loss: 0.0763 - val_acc:
1.0000
13 Epoch 3/10
14 298/298 [==============================] - 0s 1ms/step - loss: 0.0471 - acc: 0.9966 - val_loss: 0.0365 - val_acc:
1.0000
15 Epoch 4/10
16 298/298 [==============================] - 0s 1ms/step - loss: 0.0172 - acc: 1.0000 - val_loss: 0.0196 - val_acc:
1.0000
17 Epoch 5/10
18 298/298 [==============================] - 0s 1ms/step - loss: 0.0123 - acc: 1.0000 - val_loss: 0.0113 - val_acc:
1.0000
19 Epoch 6/10

28. FullStack Developers Israel
MACHINE LEARNING | CONTINUOUS OPERATIONS

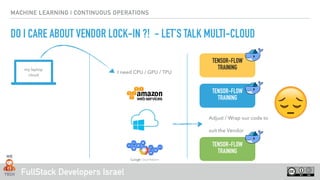

DO I CARE ABOUT VENDOR LOCK-IN ?! - LET’S TALK MULTI-CLOUD
my laptop
cloud
I need CPU / GPU / TPU
Adjust / Wrap our code to
suit the Vendor
TENSOR-FLOW
TRAINING
TENSOR-FLOW
TRAINING
TENSOR-FLOW
TRAINING

29. FullStack Developers Israel
MACHINE LEARNING | CONTINUOUS OPERATIONS

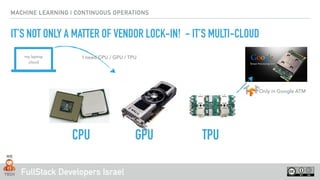

IT’S NOT ONLY A MATTER OF VENDOR LOCK-IN! - IT’S MULTI-CLOUD
Only in Google ATM
CPU GPU TPU
my laptop
cloud
I need CPU / GPU / TPU

30. FullStack Developers Israel
OPERATORS

31. FullStack Developers Israel
MACHINE LEARNING | CONTINUOUS OPERATIONS

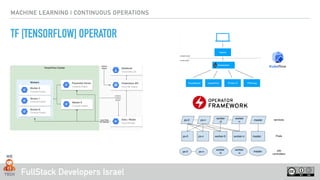

TF [TENSORFLOW] OPERATOR

32. FullStack Developers Israel
MACHINE LEARNING | CONTINUOUS OPERATIONS

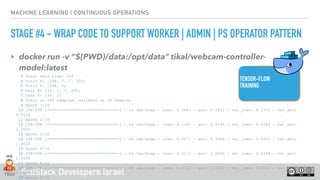

STAGE #4 - WRAP CODE TO SUPPORT WORKER | ADMIN | PS OPERATOR PATTERN
‣ docker run -v “${PWD}/data:/opt/data” tikal/webcam-controller-
model:latest
TENSOR-FLOW
TRAINING
3 Total data size: 332
4 Train X: (298, 7, 7, 256)
5 Train Y: (298, 2)
6 Test X: (34, 7, 7, 256)
7 Test Y: (34, 2)
8 Train on 298 samples, validate on 34 samples
9 Epoch 1/10
10 298/298 [==============================] - 1s 3ms/step - loss: 0.5061 - acc: 0.7651 - val_loss: 0.2331 - val_acc:
0.9118
11 Epoch 2/10
12 298/298 [==============================] - 0s 1ms/step - loss: 0.1361 - acc: 0.9765 - val_loss: 0.0763 - val_acc:
1.0000
13 Epoch 3/10
14 298/298 [==============================] - 0s 1ms/step - loss: 0.0471 - acc: 0.9966 - val_loss: 0.0365 - val_acc:
1.0000
15 Epoch 4/10
16 298/298 [==============================] - 0s 1ms/step - loss: 0.0172 - acc: 1.0000 - val_loss: 0.0196 - val_acc:
1.0000
17 Epoch 5/10
18 298/298 [==============================] - 0s 1ms/step - loss: 0.0123 - acc: 1.0000 - val_loss: 0.0113 - val_acc:
1.0000
19 Epoch 6/10

33. FullStack Developers Israel
MACHINE LEARNING | CONTINUOUS OPERATIONS

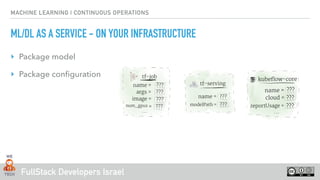

ML/DL AS A SERVICE - ON YOUR INFRASTRUCTURE
‣ Package model
‣ Package configuration

34. FullStack Developers Israel
MACHINE LEARNING | CONTINUOUS OPERATIONS

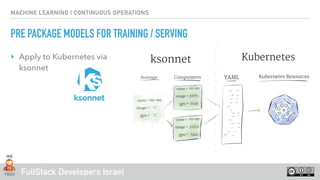

PRE PACKAGE MODELS FOR TRAINING / SERVING
‣ Apply to Kubernetes via
ksonnet

35. FullStack Developers Israel
MACHINE LEARNING | CONTINUOUS OPERATIONS

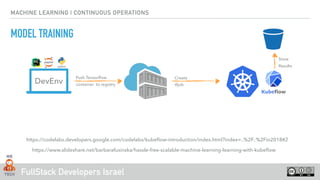

MODEL TRAINING
DevEnv
Push Tensorflow
container to registry
Create
tfjob
https://www.slideshare.net/barbarafusinska/hassle-free-scalable-machine-learning-learning-with-kubeflow
https://codelabs.developers.google.com/codelabs/kubeflow-introduction/index.html?index=..%2F..%2Fio2018#2
Store
Results

36. FullStack Developers Israel
MACHINE LEARNING | CONTINUOUS OPERATIONS

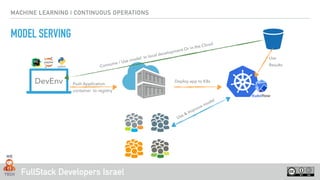

MODEL SERVING
DevEnv
Consume / Use model In local development Or in the Cloud
Deploy app to K8s
Use
Results
Push Application
container to registry
Use & Improve model

37. FullStack Developers Israel
MACHINE LEARNING | CONTINUOUS OPERATIONS

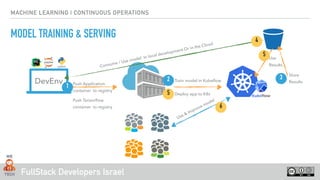

MODEL TRAINING & SERVING
DevEnv
Consume / Use model In local development Or in the Cloud
Deploy app to K8s
Use
Results
Push Application
container to registry
Use & Improve modelPush Tensorflow
container to registry
1
2 3
4
Train model in Kubeflow
Store
Results
5
6
5

38. FullStack Developers Israel
MACHINE LEARNING | CONTINUOUS OPERATIONS
A/B TESTING
DevEnv
Consume / Use model In local development Or in the Cloud
Deploy app to K8s
Use
Results
Push Application
container to registry
Use & Improve model
Push Tensorflow
container to registry
1
2 3
4
Train model in Kubeflow
Store
Results
5
6
5
Use Ambassador for
A/B testing 7

39. FullStack Developers Israel
MACHINE LEARNING | CONTINUOUS OPERATIONS

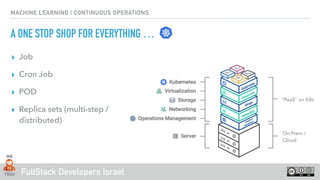

A ONE STOP SHOP FOR EVERYTHING …
On Prem /
Cloud
“PaaS" on K8s
▸ Job
▸ Cron Job
▸ POD
▸ Replica sets (multi-step /
distributed)

40. FullStack Developers Israel
MACHINE LEARNING | CONTINUOUS OPERATIONS
TFJOB CRD - CUSTOM RESOURCE DEFINITION
hagzag@model-tarining 👉 kubectl get tfjob
NAME AGE
wcm 1d

41. FullStack Developers Israel
MACHINE LEARNING | CONTINUOUS OPERATIONS

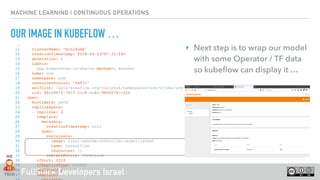

OUR IMAGE IN KUBEFLOW …
…
11 clusterName: “minikube"
12 creationTimestamp: 2018-06-23T07:31:54Z
13 generation: 1
14 labels:
15 app.kubernetes.io/deploy-manager: ksonnet
16 name: wcm
17 namespace: wcm
18 resourceVersion: "94971"
19 selfLink: /apis/kubeflow.org/v1alpha1/namespaces/wcm/tfjobs/wcm
20 uid: 80ab9472-76b7-11e8-be6d-0800279cc216
21 spec:
22 RuntimeId: werb
23 replicaSpecs:
24 - replicas: 3
25 template:
26 metadata:
27 creationTimestamp: null
28 spec:
29 containers:
30 - image: tikal/webcam-controller-model:latest
31 name: tensorflow
32 resources: {}
33 restartPolicy: OnFailure
34 tfPort: 2222
35 tfReplicaType: WORKER
36 - replicas: 2
37 template:
‣ Next step is to wrap our model
with some Operator / TF data
so kubeflow can display it …

42. FullStack Developers Israel
MACHINE LEARNING | CONTINUOUS OPERATIONS

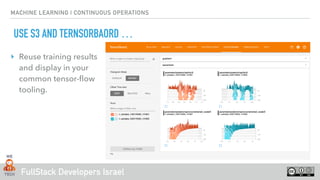

USE S3 AND TERNSORBAORD …
‣ Reuse training results
and display in your
common tensor-flow
tooling.

43. FullStack Developers Israel
MACHINE LEARNING | CONTINUOUS OPERATIONS
WANT MORE
‣ Demo model -> https://github.com/tikalk/
webcam-controller-model
‣ Kubeflow - the main “engine” kubeflow.io
‣ It also supports other tools …
https://github.com/dwhitena/
kubeflow_pachyderm
‣ https://github.com/SeldonIO/seldon-core

44. FullStack Developers Israel
MACHINE LEARNING | CONTINUOUS OPERATIONS

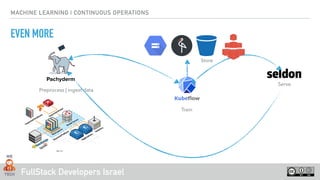

EVEN MORE
Preprocess | ingest data
Serve
Train
Store

45. FullStack Developers Israel
