Debugging of (C)Python applications

Debugging of
(C)Python applications
June the 20th, KharkivPy
Roman Podoliaka (@amd4ever)
http://bit.ly/1LpjXGL

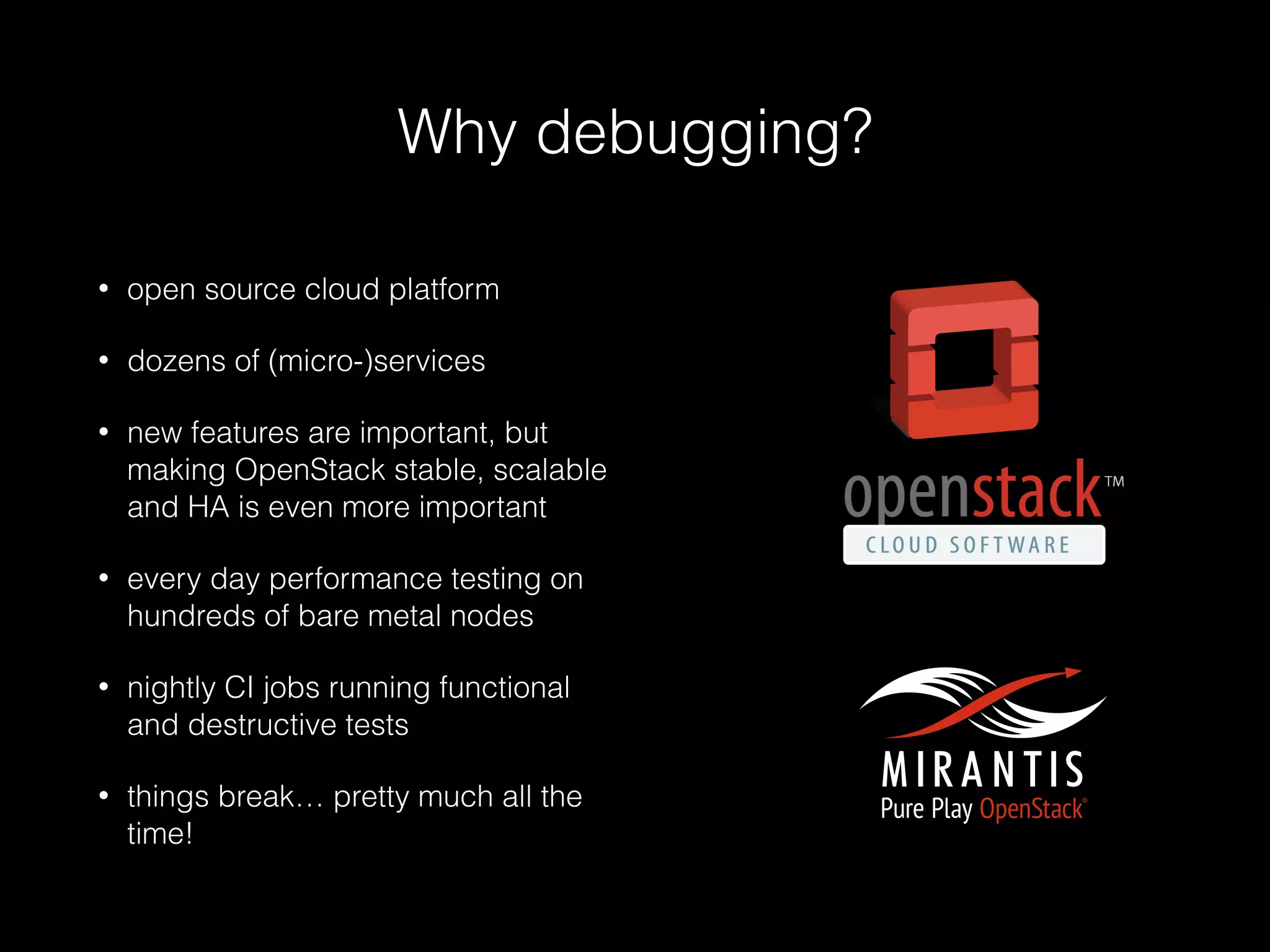

Why debugging?
• open source cloud platform
• dozens of (micro-)services
• new features are important, but
making OpenStack stable, scalable
and HA is even more important
• every day performance testing on
hundreds of bare metal nodes
• nightly CI jobs running functional
and destructive tests
• things break… pretty much all the
time!

Typical environment
• CentOS 6 or Ubuntu 14.04
• CPython 2.6 or 2.7
• eventlet-based concurrency model for Python
services
• MySQL (Galera), memcache [, MongoDB]
• RabbitMQ

Credits
• “Debugging Python applications in Production”
by Vladimir Kirillov (https://www.youtube.com/
watch?v=F9FHIghn_Vk)
• Brendan Gregg’s Blog (http://
www.brendangregg.com/blog/index.html)

printf() debugging: python-memcache
def _get_server(self, key):
if isinstance(key, tuple):
serverhash, key = key
else:
serverhash = serverHashFunction(key)
if not self.buckets:
return None, None
for i in range(Client._SERVER_RETRIES):
server = self.buckets[serverhash % len(self.buckets)]
if server.connect():
# print("(using server %s)" % server,)
return server, key
serverhash = serverHashFunction(str(serverhash) + str(i))
return None, None

printf() debugging: just don’t do that!
• the most primitive way of introspection at runtime
• either always enabled or explicitly commented in
the code
• limited to stdout/stderror streams
• information is only (barely) usable for developers
• pollutes the code when committed to VCS
repositories

Logging: basics
import logging
FORMAT = "%(asctime)-15s %(clientip)s %(user)-8s %(message)s"
logging.basicConfig(format=FORMAT)
d = {'clientip': '192.168.0.1', 'user': 'fbloggs'}
logging.warning("Protocol problem: %s", "connection reset", extra=d)
2006-02-08 22:20:02,165 192.168.0.1 fbloggs Protocol problem: connection reset

Logging: log levels
if is_pid_cmdline_correct(pid, conffile.split('/')[-1]):
try:
_execute('kill', '-HUP', pid, run_as_root=True)
_add_dnsmasq_accept_rules(dev)
return
except Exception as exc:
LOG.error(_LE('kill -HUP dnsmasq threw %s'), exc)
else:
LOG.debug('Pid %d is stale, relaunching dnsmasq', pid)
Level Numeric value
CRITICAL 50
ERROR 40
WARNING 30
INFO 20
DEBUG 10
NOTSET 0

Logging: log records propagation
import logging
LOG = logging.getLogger('sqlalchemy.orm')
...
LOG.debug('Instance changed state from `%(prev_state)s` to `%(new_state)s`',
prev_state=prev_state, new_state=new_state)
sqlalchemy.orm -> sqlalchemy -> (root)

Logging: context matters
cfg.StrOpt('logging_context_format_string',
default='%(asctime)s.%(msecs)03d %(process)d %(levelname)s '
'%(name)s [%(request_id)s %(user_identity)s] '
‘%(instance)s%(message)s’)
2015-06-10 12:42:00.765 27516 INFO nova.osapi_compute.wsgi.server [req-58f233ab-
f2b6-452f-b4fe-0c781ce8f8d0 None] 192.168.0.1 "GET /v2/
fc7f78f1c53d4443976514d2fd16e5cb/images/det
ail HTTP/1.1" status: 200 len: 905 time: 0.1043971
2015-06-10 12:41:57.004 2760 AUDIT nova.virt.block_device
[req-209db629-0d06-4f81-92ad-b910f1a72b36 None] [instance: a0d1c6ef-1fa8-46f9-a19d-
f8fb7d2df6a2] Booting with volume 8bad9533-9d6f-4be8-939d-b7a28a536a1a at /dev/vda

Logging: log processing
• logs are collected from different sources and parsed
(Logstash)
• then they are imported into a full-text search system
(ElasticSearch)
• Web UI is used for providing easy access to results and
querying (Kibana)

Logging: log processing
title: Kernel Neighbour table overflow
query: >
filename:kernel.log
AND level:warning
AND message:neighbour AND message:overflow
title: Neutron Skipping router removal
query: >
filename:neutron-l3-agent.log
AND location:neutron.agent.l3_agent
AND message:skipping AND message:removal
title: Neutron OVS lib errors and warnings
query: >
filename:neutron-openvswitch-agent.log
AND location:neutron.agent.linux.ovs_lib
AND level:(error OR warning)
title: Neutron race condition at subnet deletion
query: >
filename:neutron
AND level:trace
AND message:AttributeError

Logging: summary
• useful for both developers and operators
• developers define verbosity by the means of
logging levels
• configurable handlers (file, syslog, network, etc)
• advanced tooling for log processing / monitoring

Logging: useful links
• General info: https://docs.python.org/3.3/howto/
logging.html#logging-howto
• Adding contextual information: https://
docs.python.org/2/howto/logging-
cookbook.html#adding-contextual-information-to-
your-logging-output
• Logstash/ElasticSearch/Kibana: http://
www.logstash.net/docs/1.4.2/tutorials/getting-
started-with-logstash

pdb: basics
def _binary_search(arr, left, right, key):
if left == right:
return -1
middle = left + (right - left) / 2
if key == arr[middle]:
return middle
elif key > arr[middle]:
return _binary_search(arr, middle, right, key)
else:
return _binary_search(arr, left, middle, key)
def binary_search(arr, key):
return _binary_search(arr, 0, len(arr), key)
l = list(range(10))
assert binary_search(l, 5) == 5
assert binary_search(l, 10) == -1
assert binary_search(l, -5) == -1

pdb: basics
Romans-MacBook-Air:03-pdb malor$ python -m pdb basics.py
> /Users/malor/Dropbox/talks/kharkivpy-debugging/examples/03-pdb/
basics.py(1)<module>()
-> def _binary_search(arr, left, right, key):
(Pdb) break binary_search
Breakpoint 1 at /Users/malor/Dropbox/talks/kharkivpy-debugging/examples/03-pdb/
basics.py:15
(Pdb) continue
basics.py(16)binary_search()
-> return _binary_search(arr, 0, len(arr), key)
(Pdb) args
arr = [0, 1, 2, 3, 4, 5, 6, 7, 8, 9]
key = 5
(Pdb) step
--Call--
basics.py(1)_binary_search()
(Pdb) next
-> if left == right:

pdb: basics
(Pdb) list
1 def _binary_search(arr, left, right, key):
2 -> if left == right:
3 return -1
4
5 middle = left + (right - left) / 2
6
7 if key == arr[middle]:
8 return middle
9 elif key > arr[middle]:
10 return _binary_search(arr, middle, right, key)
11 else:
(Pdb) where
/System/Library/Frameworks/Python.framework/Versions/2.7/lib/python2.7/
bdb.py(400)run()
-> exec cmd in globals, locals
<string>(1)<module>()
/Users/malor/Dropbox/talks/kharkivpy-debugging/examples/03-pdb/
-> assert binary_search(l, 5) == 5
-> if left == right:

pdb: post-mortem debugging
Romans-MacBook-Air:03-pdb malor$ python -m pdb basics.py
(Pdb) continue
Traceback (most recent call last):
File "/System/Library/Frameworks/Python.framework/Versions/2.7/lib/python2.7/
pdb.py", line 1314, in main
pdb._runscript(mainpyfile)
pdb.py", line 1233, in _runscript
self.run(statement)
bdb.py", line 400, in run
exec cmd in globals, locals
File "<string>", line 1, in <module>
File "basics.py", line 1, in <module>
def _binary_search(arr, left, right, key):
File "basics.py", line 16, in binary_search
return _binary_search(arr, 0, len(arr), key)
…
RuntimeError: maximum recursion depth exceeded
Uncaught exception. Entering post mortem debugging
Running 'cont' or 'step' will restart the program
-> return _binary_search(arr, middle, right, key)
py.test --pdb
nosetest --pdb -s
. . .

pdb: commands
(Pdb) break
Num Type Disp Enb Where
1 breakpoint keep yes at /Users/malor/Dropbox/talks/kharkivpy-debugging/
examples/03-pdb/basics.py:15
breakpoint already hit 2 times
(Pdb) commands 1
(com) args
(com) where
(com) end
(Pdb) continue
arr = [0, 1, 2, 3, 4, 5, 6, 7, 8, 9]
key = 5
/System/Library/Frameworks/Python.framework/Versions/2.7/lib/python2.7/
bdb.py(400)run()
-> exec cmd in globals, locals
<string>(1)<module>()
-> assert binary_search(l, 5) == 5

pdb: conditional break points
(Pdb) break binary_search
Breakpoint 1 at /Users/malor/Dropbox/talks/kharkivpy-debugging/examples/03-pdb/
basics.py:15
(Pdb) break
Num Type Disp Enb Where
1 breakpoint keep yes at /Users/malor/Dropbox/talks/kharkivpy-debugging/
examples/03-pdb/basics.py:15
(Pdb) condition 1 key == 10
(Pdb) continue
(Pdb) args
arr = [0, 1, 2, 3, 4, 5, 6, 7, 8, 9]
key = 10

pdb: summary
• bread and butter of Python developers
• usually the easiest and the quickest way of debugging scripts/apps
• integrated with popular test runners
• greenlet-friendly
• requires stdin/stdout, thus not usable for debugging daemons or
embedded Python code (like Gimp or Blender plugins)
• not suitable for debugging of multithreaded/multiprocessing
applications
• can’t attach to a running process (if not modiﬁed in advance)

winpdb: attaching to a process
rpodolyaka@rpodolyaka-pc:~/sandbox/debugging$ rpdb2 -d search.py
A password should be set to secure debugger client-server communication.
Please type a password:r00tme
Password has been set
rpodolyaka@rpodolyaka-pc:~$ rpdb2
RPDB2 - The Remote Python Debugger, version RPDB_2_4_8,
Copyright (C) 2005-2009 Nir Aides.
> password r00tme
Password is set to: "r00tme"
> attach
Connecting to 'localhost'...
Scripts to debug on 'localhost':
pid name
--------------------------
3706 /home/rpodolyaka/sandbox/debugging/search.py
> attach 3706
> *** Attaching to debuggee...

winpdb: attaching to a process
> bp binary_search
> bl
List of breakpoints:
Id State Line Filename-Scope-Condition-Encoding
------------------------------------------------------------------------------
0 enabled 15 /home/rpodolyaka/sandbox/debugging/search.py
binary_search
> go
> *** Debuggee is waiting at break point for further commands.
> stack
Stack trace for thread 140416296978176:
Frame File Name Line Function
------------------------------------------------------------------------------
> 0 ...ndbox/debugging/search.py 15 <module>
1 ....7/dist-packages/rpdb2.py 14220 StartServer
2 ....7/dist-packages/rpdb2.py 14470 main
3 /usr/bin/rpdb2 31 <module>

winpdb: embedded debugging
def add_lease(mac, ip_address):
"""Set the IP that was assigned by the DHCP server."""
import rpdb2; rpdb2.start_embedded_debugger('r00tme')
api = network_rpcapi.NetworkAPI()
api.lease_fixed_ip(context.get_admin_context(), ip_address, CONF.host)
dnsmasq daemon forks and executes this like:
nova-dhcpbridge add AA:BB:CC:DD:EE:FF 10.0.0.2

winpdb: debugging of threads
def allocate_ips(engine, host):
while True:
with engine.begin() as conn:
result = conn.execute(
ip_addresses.select()
.where(ip_addresses.c.host.is_(None))
).first()
if result is None:
# no IPs left
break
id, address = result.id, result.address
rows = conn.execute(
ip_addresses.update()
.values(host=host)
.where(ip_addresses.c.id == id)
.where(ip_addresses.c.address == address)
)
if not rows:
# concurrent update
continue

t1 = threading.Thread(target=allocate_ips, args=(eng, 'host1'))
t1.start()
t2 = threading.Thread(target=allocate_ips, args=(eng, 'host2'))
t2.start()
t1.join()
t2.join()
> attach $PID
…
> thread
List of active threads known to the debugger:
No Tid Name State
-----------------------------------------------
0 140456866166528 MainThread waiting at break point
> 1 140456389068544 Thread-1 waiting at break point
2 140456380675840 Thread-2 waiting at break point

> thread 2
Focus was set to chosen thread.
> stack
------------------------------------------------------------------------------
> 0 /home/rpodolyaka/sa.py 30 allocate_ips
1 ...ib/python2.7/threading.py 763 run
> go
> break
> *** Debuggee is waiting at break point for further commands.
> stack
------------------------------------------------------------------------------
> 0 ...alchemy/engine/default.py 409 do_commit
1 ...sqlalchemy/engine/base.py 525 _commit_impl
2 ...sqlalchemy/engine/base.py 1364 _do_commit

winpdb: summary
• allows to debug multithreaded Python
applications
• remote debugging (which effectively means, no
stdout/stdint limitations as with pdb)
• wxWidgets-based GUI
• to attach to a running process you need to
modiﬁed it in advance (embedded debugging) or
start it with rpdb2

cProﬁle: basics
def count_freq(stream):
res = {}
for i in iter(lambda: stream.read(1), ''):
try:
res[i] += 1
except KeyError:
res[i] = 1
return res
def build_tree(stream):
queue = [Node(freq=v, symb=k) for k, v in count_freq(stream).items()]
while len(queue) > 1:
queue.sort(key=lambda k: k.freq)
first = queue.pop(0)
second = queue.pop(0)
queue.append(
Node(freq=(first.freq + second.freq), left=first, right=second)
)
return queue[0]

cProﬁle: basics
Romans-MacBook-Air:07-cprofile malor$ python -m cProfile -s cumtime huffman.py ~/
Downloads/kharkivpy-debugging.key
24868775 function calls in 14.059 seconds
Ordered by: cumulative time
ncalls tottime percall cumtime percall filename:lineno(function)
1 0.008 0.008 14.059 14.059 huffman.py:1(<module>)
1 0.001 0.001 14.051 14.051 huffman.py:33(build_tree)
1 5.029 5.029 14.035 14.035 huffman.py:23(count_freq)
12417038 3.863 0.000 9.006 0.000 huffman.py:25(<lambda>)
12417038 5.143 0.000 5.143 0.000 {method 'read' of 'file' objects}
255 0.009 0.000 0.014 0.000 {method 'sort' of 'list' objects}
32895 0.005 0.000 0.005 0.000 huffman.py:36(<lambda>)
511 0.001 0.000 0.001 0.000 huffman.py:7(__init__)
510 0.000 0.000 0.000 0.000 {method 'pop' of 'list' objects}
1 0.000 0.000 0.000 0.000 functools.py:53(total_ordering)
1 0.000 0.000 0.000 0.000 {open}
256 0.000 0.000 0.000 0.000 {len}
255 0.000 0.000 0.000 0.000 {method 'append' of 'list' objects}
1 0.000 0.000 0.000 0.000 {dir}
1 0.000 0.000 0.000 0.000 {method 'items' of 'dict' objects}
3 0.000 0.000 0.000 0.000 {setattr}
3 0.000 0.000 0.000 0.000 {getattr}
1 0.000 0.000 0.000 0.000 {max}

cProﬁle: context matters
import cProfile as profiler
import gc, pstats, time
def profile(fn):
def wrapper(*args, **kw):
elapsed, stat_loader, result = _profile(“out.prof”, fn, *args, **kw)
stats = stat_loader()
stats.sort_stats('cumulative')
stats.print_stats()
return result
return wrapper
def _profile(filename, fn, *args, **kw):
load_stats = lambda: pstats.Stats(filename)
gc.collect()
began = time.time()
profiler.runctx('result = fn(*args, **kw)', globals(), locals(),
filename=filename)
ended = time.time()
return ended - began, load_stats, locals()['result']

from werkzeug.contrib.profiler import ProfilerMiddleware
app = ProfilerMiddleware(app)

PATH: '/6e0f43cd74db46f5b95f2142fe0c9431/flavors/detail'
2732 function calls (2602 primitive calls) in 1.294 seconds
Ordered by: cumulative time
ncalls tottime percall cumtime percall filename:lineno(function)
1 0.000 0.000 1.287 1.287 /usr/lib/python2.7/dist-packages/nova/
api/compute_req_id.py:38(__call__)
2/1 0.008 0.004 1.287 1.287 /usr/lib/python2.7/dist-packages/
webob/request.py:1300(send)
2/1 0.000 0.000 1.287 1.287 /usr/lib/python2.7/dist-packages/
webob/request.py:1262(call_application)
1 0.000 0.000 1.287 1.287 /usr/lib/python2.7/dist-packages/nova/
api/openstack/__init__.py:121(__call__)
1 0.000 0.000 1.271 1.271 /usr/lib/python2.7/dist-packages/
keystonemiddleware/auth_token.py:686(__call__)
keystonemiddleware/auth_token.py:829(_validate_token)
keystonemiddleware/auth_token.py:1669(get)
keystonemiddleware/auth_token.py:1726(_cache_get)

cProfile: summary
• easy CPU profiling of Python code with low
overhead
• text/binary representation of profiling results (the
latter can be used for merging results and/or
visualisation done by external tools)
• can’t attach to a running process
• can’t profile Python interpreter-level code
(Py_EvaluateFrameEx, etc)

objgraph: basics
In [1]: import objgraph
In [2]: objgraph.show_most_common_types()
function 4530
dict 2483
tuple 1428
wrapper_descriptor 1260
weakref 981
list 911
builtin_function_or_method 897
method_descriptor 705
getset_descriptor 531
type 473

objgraph: basics
In [3]: objgraph.show_growth()
function 4530 +4530
dict 2412 +2412
tuple 1353 +1353
wrapper_descriptor 1272 +1272
weakref 985 +985
list 904 +904
builtin_function_or_method 897 +897
method_descriptor 706 +706
getset_descriptor 535 +535
type 473 +473
In [4]: objgraph.show_growth()
weakref 986 +1
list 905 +1
tuple 1354 +1

objgraph: graphs
>>> x = []
>>> y = [x, [x], {‘x’: x}]
>>> objgraph.show_refs([y], filename='sample-graph.png')

strace: tracing syscalls
rpodolyaka@rpodolyaka-pc:~$ strace -e network python sa.py
. . .
socket(PF_INET6, SOCK_STREAM, IPPROTO_IP) = 5
setsockopt(5, SOL_TCP, TCP_NODELAY, [1], 4) = 0
setsockopt(5, SOL_SOCKET, SO_KEEPALIVE, [1], 4) = 0
connect(5, {sa_family=AF_INET6, sin6_port=htons(5432), inet_pton(AF_INET6, "::1",
&sin6_addr), sin6_flowinfo=0, sin6_scope_id=0}, 28) = -1 EINPROGRESS (Operation now
in progress)
getsockopt(5, SOL_SOCKET, SO_ERROR, [0], [4]) = 0
getsockname(5, {sa_family=AF_INET6, sin6_port=htons(36894), inet_pton(AF_INET6, "::
1", &sin6_addr), sin6_flowinfo=0, sin6_scope_id=0}, [28]) = 0
sendto(5, "00010432226/", 8, MSG_NOSIGNAL, NULL, 0) = 8
recvfrom(5, "S", 16384, 0, NULL, NULL) = 1
. . .

strace: tracing syscalls
root@node-13:~# strace -p 1508 -s 4096 -tt
. . .
16:53:29.532770 epoll_wait(7, {}, 1023, 0) = 0
16:53:29.532832 epoll_wait(7, {}, 1023, 0) = 0
16:53:29.532892 epoll_wait(7, {}, 1023, 0) = 0
16:53:29.532953 epoll_wait(7, {}, 1023, 0) = 0
16:53:29.533022 epoll_wait(7, {{EPOLLIN, {u32=9, u64=39432335262744585}}}, 1023,
915) = 1
16:53:29.596409 epoll_ctl(7, EPOLL_CTL_DEL, 9, {EPOLLRDNORM|EPOLLWRBAND|EPOLLMSG|
0x28c45820, {u32=32644, u64=22396489217113988}}) = 0
16:53:29.596494 accept(9, 0x7ffe1ef32b10, [16]) = -1 EAGAIN (Resource temporarily
unavailable)
16:53:29.596638 epoll_ctl(7, EPOLL_CTL_ADD, 9, {EPOLLIN|EPOLLPRI|EPOLLERR|EPOLLHUP,
{u32=9, u64=39432335262744585}}) = 0
16:53:29.596747 epoll_wait(7, {{EPOLLIN, {u32=9, u64=39432335262744585}}}, 1023,
851) = 1
16:53:29.611852 epoll_ctl(7, EPOLL_CTL_DEL, 9, {EPOLLRDNORM|EPOLLWRBAND|EPOLLMSG|
0x28c45820, {u32=32644, u64=22396489217113988}}) = 0
16:53:29.611937 accept(9, 0x7ffe1ef32b10, [16]) = -1 EAGAIN (Resource temporarily
unavailable)
. . .

strace: summary
• allows tracing of applications interactions with `outside
world`
• points possible problems with performance (like
excessive system calls, polling of events with too
small timeout, etc)
• limited to tracing of system calls of one process and
its forks
• use cautiously on production environments as it
greatly affects performance

gdb: prerequisites
• Ubuntu/Debian:
• sudo apt-get install gdb python-dbg
• CentOS/RHEL/Fedora (separate debuginfo
package repository):
• sudo yum install gdb python-debuginfo

gdb: basics
• python-dbg is a CPython binary built with
‘--with-debug -g’ options. It’s slow and verbose
about memory management
• you can debug regular CPython processes in
production using the debug symbols shipped separately
• gdb has Python bindings to write scripts for it
• CPython is shipped with a gdb script allowing to
analyse interpreter-level stack frames to get app-level
backtraces

gdb: `hanging` app
def allocate_ips(eng, host):
while True:
with eng.begin() as conn:
row = conn.execute(
ip_addresses.select()
).fetchone()
if row is None:
break
id, address = row.id, row.address
updated_rows = conn.execute(
ip_addresses.update()
.values(host=host)
.where(ip_addresses.c.id == id)
)
if not updated_rows:
continue
t = threading.Thread(target=allocate_ips, args=(eng, 'host1'))
t.start()
t.join()

gdb: `hanging` app
rpodolyaka@rpodolyaka-pc:~$ strace -p 20267
Process 20267 attached
futex(0x7fea50000c10, FUTEX_WAIT_PRIVATE, 0, NULL
rpodolyaka@rpodolyaka-pc:~$ gdb /usr/bin/python3.4 -p 20216
(gdb) t a a frame
Thread 2 (Thread 0x7f7702c83700 (LWP 20353)):
#0 sem_timedwait () at ../nptl/sysdeps/unix/sysv/linux/x86_64/sem_timedwait.S:101
101 ../nptl/sysdeps/unix/sysv/linux/x86_64/sem_timedwait.S: No such file or
directory.
Thread 1 (Thread 0x7f770a03b700 (LWP 20350)):
#0 sem_wait () at ../nptl/sysdeps/unix/sysv/linux/x86_64/sem_wait.S:85
85 ../nptl/sysdeps/unix/sysv/linux/x86_64/sem_wait.S: No such file or directory.

gdb: `hanging` app
(gdb) t a 2 py-bt
Thread 2 (Thread 0x7f7702c83700 (LWP 20353)):
Traceback (most recent call first):
File "/usr/lib/python3.4/threading.py", line 294, in wait
gotit = waiter.acquire(True, timeout)
File "/home/rpodolyaka/venv3/lib/python3.4/site-packages/sqlalchemy/util/
queue.py", line 157, in get
self.not_empty.wait(remaining)
File "/home/rpodolyaka/venv3/lib/python3.4/site-packages/sqlalchemy/pool.py", line
1039, in _do_get
return self._pool.get(wait, self._timeout)
File "/home/rpodolyaka/venv3/lib/python3.4/site-packages/sqlalchemy/engine/
base.py", line 2037, in contextual_connect
self._wrap_pool_connect(self.pool.connect, None),
File "/home/rpodolyaka/venv3/lib/python3.4/site-packages/sqlalchemy/engine/
base.py", line 1906, in begin
conn = self.contextual_connect(close_with_result=close_with_result)
File "sa.py", line 31, in allocate_ips
with eng.begin() as conn:
File "/usr/lib/python3.4/threading.py", line 868, in run
self._target(*self._args, **self._kwargs)
File "/usr/lib/python3.4/threading.py", line 920, in _bootstrap_inner
self.run()
File "/usr/lib/python3.4/threading.py", line 888, in _bootstrap
self._bootstrap_inner()

gdb: virtualenv pitfalls
rpodolyaka@rpodolyaka-pc:~$ gdb -p 20656 # WARN: executable not passed!
(gdb) py-bt
Undefined command: "py-bt". Try "help".
(gdb) bt
#0 sem_wait () at ../nptl/sysdeps/unix/sysv/linux/x86_64/sem_wait.S:85
#1 0x00000000004cdff5 in PyThread_acquire_lock_timed ()
#2 0x0000000000522039 in ?? ()
#3 0x00000000004ee01a in PyEval_EvalFrameEx ()
#4 0x00000000004ec9fc in PyEval_EvalCodeEx ()
#5 0x00000000004f25a9 in PyEval_EvalFrameEx ()
#7 0x00000000004f25a9 in PyEval_EvalFrameEx ()
#9 0x0000000000581115 in ?? ()
#10 0x00000000005ab019 in PyRun_FileExFlags ()
#11 0x00000000005aa194 in PyRun_SimpleFileExFlags ()
#12 0x00000000004cb4cb in Py_Main ()
#13 0x00000000004ca8ef in main ()

gdb: summary
• allows to debug multithreaded applications
• allows to attach to a running process at any given moment of time
• can be used for analysing of core dumps (e.g. if we don’t want to
stop a process, or if it died unexpectedly)
• can be used for debugging of C-extensions, CFFI calls, etc
• success depends on how CPython was built and whether you
have installed debug symbols or not
• used by pyringe to provide pdb-like experience (https://
github.com/google/pyringe)

lsof: lsof -p $PID
nova-api 5910 nova mem REG 252,0 141574 3586 /lib/x86_64-linux-
gnu/libpthread-2.19.so
nova-api 5910 nova mem REG 252,0 149120 3582 /lib/x86_64-linux-
gnu/ld-2.19.so
nova-api 5910 nova mem REG 252,0 26258 52555 /usr/lib/x86_64-
linux-gnu/gconv/gconv-modules.cache
nova-api 5910 nova 0u CHR 1,3 0t0 1029 /dev/null
nova-api 5910 nova 1u CHR 136,13 0t0 16 /dev/pts/13
nova-api 5910 nova 2u CHR 136,13 0t0 16 /dev/pts/13
nova-api 5910 nova 3w REG 252,0 34967268 135756 /var/log/nova/
nova-api.log
nova-api 5910 nova 4u unix 0xffff880850b92a00 0t0 260406 socket
nova-api 5910 nova 5r FIFO 0,8 0t0 260407 pipe
nova-api 5910 nova 6w FIFO 0,8 0t0 260407 pipe
nova-api 5910 nova 7u IPv4 260408 0t0 TCP
node-13.domain.tld:8773 (LISTEN)
nova-api 5910 nova 8r CHR 1,9 0t0 1034 /dev/urandom
nova-api 5910 nova 9u IPv4 260409 0t0 TCP
node-13.domain.tld:8774 (LISTEN)
nova-api 5910 nova 10u IPv4 260420 0t0 TCP *:8775 (LISTEN)
nova-api 5910 nova 15u 0000 0,9 0 7380 anon_inode

netstat: netstat -nlap
tcp 8 0 192.168.0.16:52819 192.168.0.11:5673 ESTABLISHED
5975/python
tcp 0 0 192.168.0.16:36901 192.168.0.11:5673 ESTABLISHED
1513/python
tcp 0 0 0.0.0.0:22 0.0.0.0:* LISTEN
3042/sshd
tcp 0 0 0.0.0.0:4567 0.0.0.0:* LISTEN
13888/mysqld
tcp 0 0 0.0.0.0:25 0.0.0.0:* LISTEN
7433/master
tcp 0 0 0.0.0.0:3260 0.0.0.0:* LISTEN
19704/tgtd
tcp 0 0 192.168.0.16:35357 0.0.0.0:* LISTEN
5546/python

perf_events: perf trace
254.663 ( 0.001 ms): sshd/22802 clock_gettime(which_clock: 7, tp: 0x7ffd0e807970
) = 0
254.666 ( 0.003 ms): sshd/22802 read(fd: 14</dev/ptmx>, buf: 0x7ffd0e8038b0,
count: 16384 ) = 4095
254.672 ( 0.243 ms): chrome/11973 epoll_wait(epfd: 16, events: 0x6a6a1b73480,
maxevents: 32, timeout: 4294967295) = 1
254.678 ( 0.003 ms): chrome/11973 read(fd: 24<socket:[147806]>, buf:
0x6a6a2d5b018, count: 4096 ) = 32
254.685 ( 0.003 ms): chrome/11973 write(fd: 11<pipe:[147797]>, buf:
0x7f940dfa55e7, count: 1 ) = 1
254.688 ( 0.001 ms): chrome/11973 read(fd: 24<socket:[147806]>, buf:
0x6a6a2d5b018, count: 4096 ) = -1 EAGAIN Resource temporarily unavailable
maxevents: 32 ) = 0
maxevents: 32 ) = 0

perf_events: perf stat
Performance counter stats for 'python sa.py':
125.242831 task-clock (msec) # 0.004 CPUs utilized
945 context-switches # 0.008 M/sec
14 cpu-migrations # 0.112 K/sec
6,996 page-faults # 0.056 M/sec
408,133,256 cycles # 3.259 GHz
213,117,410 stalled-cycles-frontend # 52.22% frontend cycles idle
<not supported> stalled-cycles-backend
432,245,331 instructions # 1.06 insns per cycle
# 0.49 stalled cycles per insn
91,417,607 branches # 729.923 M/sec
3,937,108 branch-misses # 4.31% of all branches
30.130596204 seconds time elapsed

Questions?
slides: http://bit.ly/1LpjXGL
twitter: @amd4ever

Debugging of (C)Python applications

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Similar to Debugging of (C)Python applications

Similar to Debugging of (C)Python applications (20)

Recently uploaded

Recently uploaded (20)

Debugging of (C)Python applications
