1. CSE 136 - Lecture 1 (Part 1)
 Enterprise-class Web Applications
 Design and implementation Prototype
 Large scale web-based applications
 Software web-architecture
 Presented by Isaac Chu

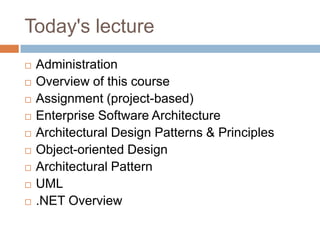

2. Today's lecture
 Administration
 Overview of this course
 Assignment (project-based)
 Enterprise Software Architecture
 Architectural Design Patterns & Principles
 Object-oriented Design
 Architectural Pattern
 UML
 .NET Overview

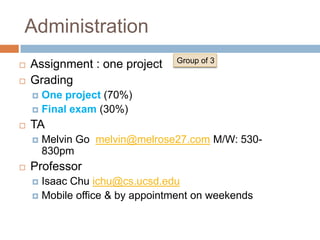

3. Administration
Group of 3
 Assignment : one project
 Grading
 One project (70%)
 Final exam (30%)
 TA
 Melvin Go melvin@melrose27.com M/W: 530-
830pm
 Professor
 Isaac Chu ichu@cs.ucsd.edu
 Mobile office & by appointment on weekends

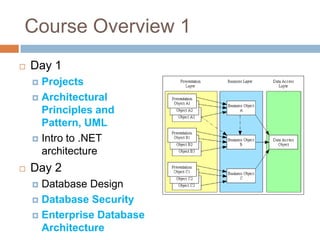

4. Course Overview 1
 Day 1
 Projects
 Architectural
Principles and
Pattern, UML
 Intro to .NET
architecture
 Day 2
 Database Design
 Database Security
 Enterprise Database
Architecture

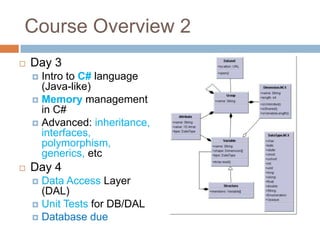

5. Course Overview 2
 Day 3
 Intro to C# language
(Java-like)
 Memory management
in C#
 Advanced: inheritance,
interfaces,
polymorphism,
generics, etc
 Day 4
 Data Access Layer
(DAL)
 Unit Tests for DB/DAL
 Database due

6. Course Overview 3
 Day 5
 Business Logic Layer
 Business Objects
 Design Patterns
 Day 6
 ServiceLayer
 BLL code security
 DAL layer + unit tests
due

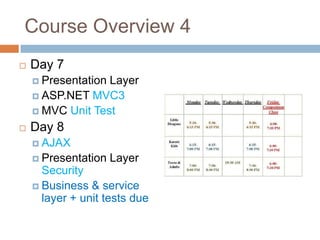

7. Course Overview 4
 Day 7
 PresentationLayer
 ASP.NET MVC3
 MVC Unit Test
 Day 8
 AJAX
 Presentation Layer
Security
 Business & service
layer + unit tests due

8. Course Overview 5
 Day 9
 More on MVC?
 Final Review
 Day 10
 Student project
presentation/demo
(project due)

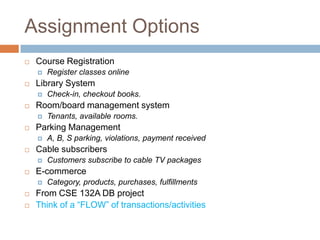

9. Assignment Options
 Course Registration
 Register classes online
 Library System
 Check-in, checkout books.
 Room/board management system
 Tenants, available rooms.
 Parking Management
 A, B, S parking, violations, payment received
 Cable subscribers
 Customers subscribe to cable TV packages
 E-commerce
 Category, products, purchases, fulfillments
 From CSE 132A DB project
 Think of a ―FLOW‖ of transactions/activities

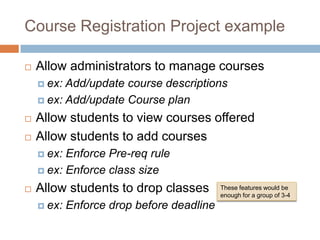

10. Course Registration Project example
 Allow administrators to manage courses
 ex: Add/update course descriptions
 ex: Add/update Course plan
 Allow students to view courses offered
 Allow students to add courses
 ex: Enforce Pre-req rule
 ex: Enforce class size
 Allow students to drop classes These features would be
enough for a group of 3-4
 ex: Enforce drop before deadline

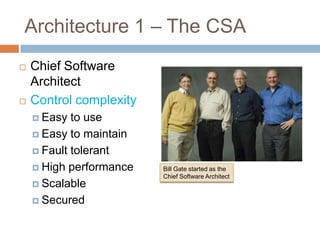

11. Architecture 1 – The CSA
 Chief Software
Architect
 Control complexity
 Easy to use
 Easy to maintain
 Fault tolerant
 High performance Bill Gate started as the
Chief Software Architect
 Scalable
 Secured

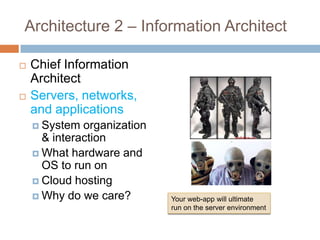

12. Architecture 2 – Information Architect
 Chief Information
Architect
 Servers, networks,
and applications
 System organization
& interaction
 What hardware and
OS to run on
 Cloud hosting
 Why do we care? Your web-app will ultimate
run on the server environment

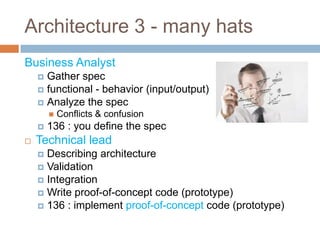

13. Architecture 3 - many hats
Business Analyst
 Gather spec
 functional - behavior (input/output)
 Analyze the spec
 Conflicts & confusion
 136 : you define the spec
 Technical lead
 Describing architecture
 Validation
 Integration
 Write proof-of-concept code (prototype)
 136 : implement proof-of-concept code (prototype)

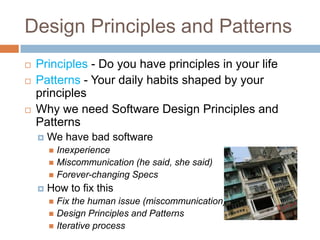

14. Design Principles and Patterns
 Principles - Do you have principles in your life
 Patterns - Your daily habits shaped by your
principles
 Why we need Software Design Principles and
Patterns
 We have bad software
 Inexperience
 Miscommunication (he said, she said)
 Forever-changing Specs
 How to fix this
 Fix the human issue (miscommunication)
 Design Principles and Patterns
 Iterative process

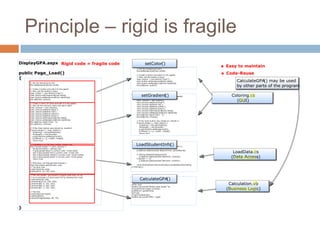

15. Principle – rigid is fragile

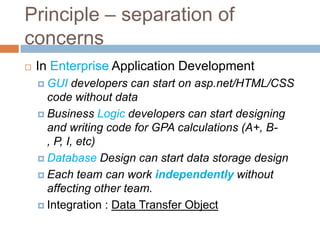

16. Principle – separation of
concerns
 In Enterprise Application Development
 GUI developers can start on asp.net/HTML/CSS
code without data
 Business Logic developers can start designing
and writing code for GPA calculations (A+, B-
, P, I, etc)
 Database Design can start data storage design
 Each team can work independently without
affecting other team.
 Integration : Data Transfer Object

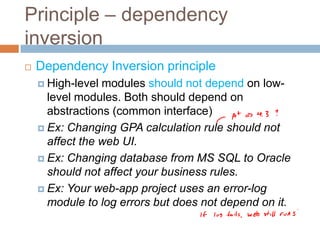

17. Principle – dependency
inversion
 Dependency Inversion principle
 High-level modules should not depend on low-
level modules. Both should depend on
abstractions (common interface)
 Ex: Changing GPA calculation rule should not
affect the web UI.
 Ex: Changing database from MS SQL to Oracle
should not affect your business rules.
 Ex: Your web-app project uses an error-log
module to log errors but does not depend on it.

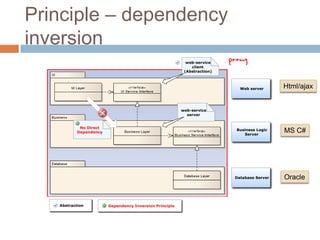

18. Principle – dependency
inversion
Html/ajax
MS C#
Oracle

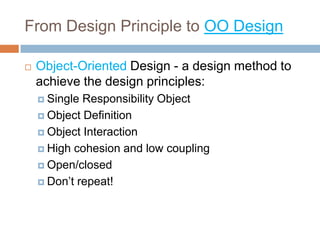

19. From Design Principle to OO Design
 Object-Oriented Design - a design method to
achieve the design principles:
 Single Responsibility Object
 Object Definition
 Object Interaction
 High cohesion and low coupling
 Open/closed
 Don’t repeat!

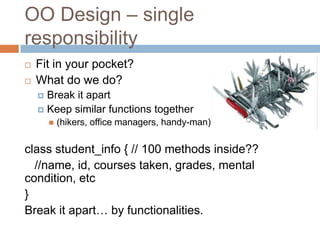

20. OO Design – single
responsibility
 Fit in your pocket?
 What do we do?
 Break it apart
 Keep similar functions together
 (hikers, office managers, handy-man)
class student_info { // 100 methods inside??
//name, id, courses taken, grades, mental
condition, etc
}
Break it apart… by functionalities.

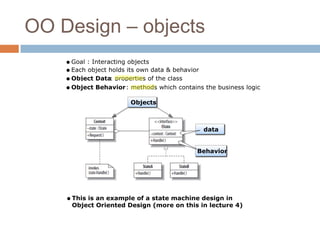

21. OO Design – objects

22. OO Design – interactions
 Find pertinent objects first: student, staff, faculty,
course, enrollment, etc.
 Low Coupling: objects need to interact and
communicate through interfaces
 Code-reuse: user wrapper class

23. OO Design – high cohesion

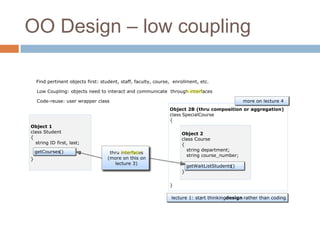

24. OO Design – low coupling

25. OO Design – open/closed
 Open/Closed principle
 Open for extension but closed for modification.
 Ex: Open for extending a new feature to
substitute an equivalent course with another for
graduation purposes.
 Enrollment.SubstituteCourse(student_id, original_cour
se_id, sub_course_id)
 Achieve this through inheritance and override
methods.
 No modification to the original class Enrollment
definition.
 Experience : more code you modify, the more
bugs you can create. Close for modification but
open for extension

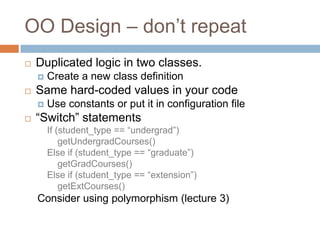

26. OO Design – don’t repeat
 Duplicated logic in two classes.
 Create a new class definition
 Same hard-coded values in your code
 Use constants or put it in configuration file
 ―Switch‖ statements
If (student_type == ―undergrad‖)
getUndergradCourses()
Else if (student_type == ―graduate‖)
getGradCourses()
Else if (student_type == ―extension‖)
getExtCourses()
Consider using polymorphism (lecture 3)

27. Transition to Design Patterns
 From basic principles to software design
patterns (lecture 5)
 Why office/cubes at work all look similar?
 Software Design Patterns
 Common good designs in software
 Exercise is a good pattern in your lifestyle
 Anti-patterns : common bad/no designs in
software
 Heavy drinking is an anti-pattern
 More on Design Pattern in lecture 5

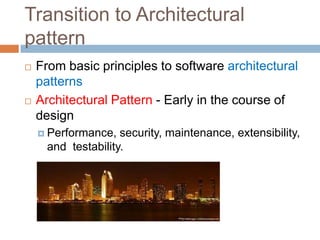

28. Transition to Architectural
pattern
 From basic principles to software architectural
patterns
 Architectural Pattern - Early in the course of
design
 Performance, security, maintenance, extensibility,
and testability.

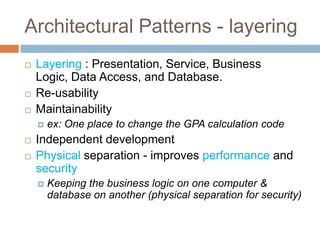

29. Architectural Patterns - layering
 Layering : Presentation, Service, Business
Logic, Data Access, and Database.
 Re-usability
 Maintainability
 ex: One place to change the GPA calculation code
 Independent development
 Physical separation - improves performance and
security
 Keeping the business logic on one computer &
database on another (physical separation for security)

30. Architectural Patterns - layering
136 will implement
this technology

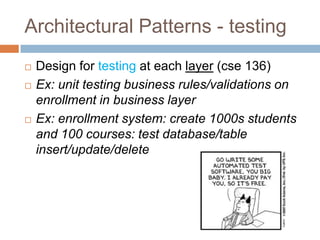

31. Architectural Patterns - testing
 Design for testing at each layer (cse 136)
 Ex: unit testing business rules/validations on
enrollment in business layer
 Ex: enrollment system: create 1000s students
and 100 courses: test database/table
insert/update/delete

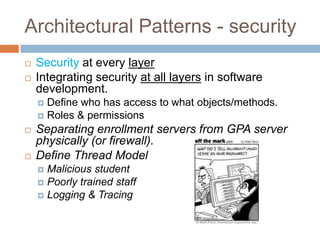

32. Architectural Patterns - security
 Security at every layer
 Integrating security at all layers in software
development.
 Define who has access to what objects/methods.
 Roles & permissions
 Separating enrollment servers from GPA server
physically (or firewall).
 Define Thread Model
 Malicious student
 Poorly trained staff
 Logging & Tracing

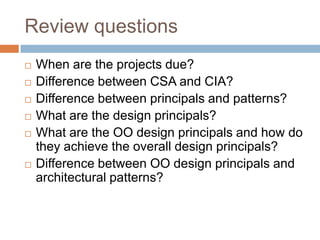

33. Review questions
 When are the projects due?
 Difference between CSA and CIA?
 Difference between principals and patterns?
 What are the design principals?
 What are the OO design principals and how do
they achieve the overall design principals?
 Difference between OO design principals and
architectural patterns?

34. Break time
 Get into a group of Three
 Exchange phone/email
 Decide on a project

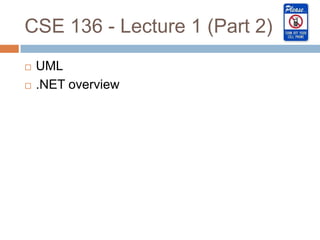

35. CSE 136 - Lecture 1 (Part 2)
 UML
 .NET overview

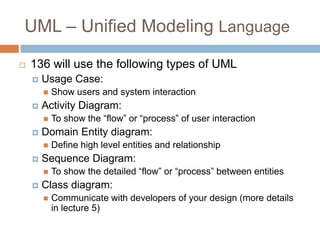

36. UML – Unified Modeling Language
 136 will use the following types of UML
 Usage Case:
 Show users and system interaction
 Activity Diagram:
 To show the ―flow‖ or ―process‖ of user interaction
 Domain Entity diagram:
 Define high level entities and relationship
 Sequence Diagram:
 To show the detailed ―flow‖ or ―process‖ between entities
 Class diagram:
 Communicate with developers of your design (more details
in lecture 5)

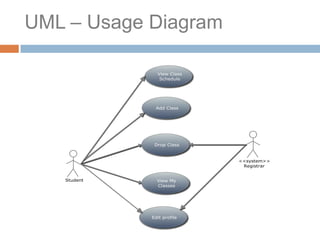

37. UML – Usage Diagram

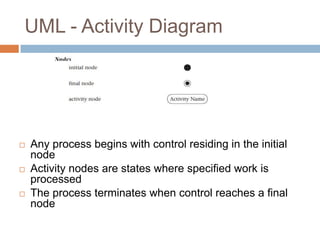

38. UML - Activity Diagram
 Any process begins with control residing in the initial
node
 Activity nodes are states where specified work is
processed
 The process terminates when control reaches a final
node

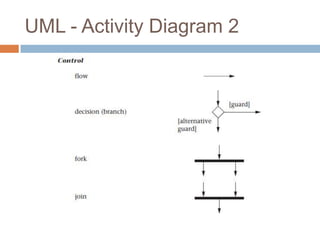

39. UML - Activity Diagram 2

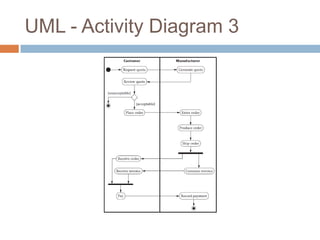

40. UML - Activity Diagram 3

41. UML - Activity Diagram 4
 Example Activities for UML
 Student dropping a class for current quarter
 Staff requesting a transcript to check for
graduation status
 Professor updating a course pre-requisites

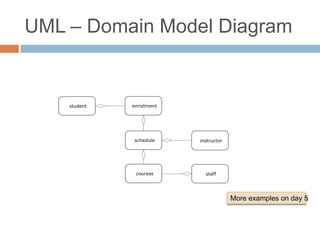

42. UML – Domain Model Diagram
More examples on day 5

43. UML - Sequence Diagram
Lead systems engineer
to define a flow/process

44. UML - Class Diagram
For developers
To understand
OO design

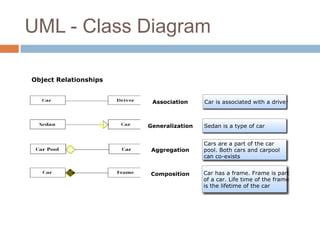

45. UML - Class Diagram

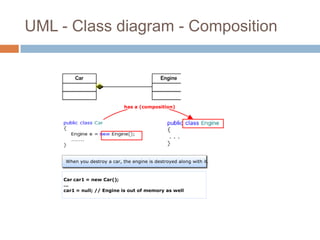

46. UML - Class diagram - Composition

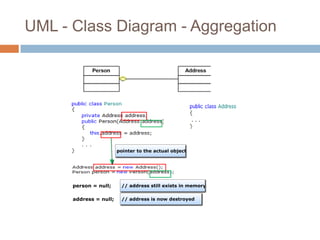

47. UML - Class Diagram - Aggregation

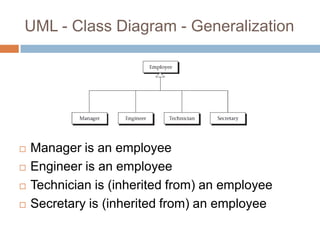

48. UML - Class Diagram - Generalization
 Manager is an employee
 Engineer is an employee
 Technician is (inherited from) an employee
 Secretary is (inherited from) an employee

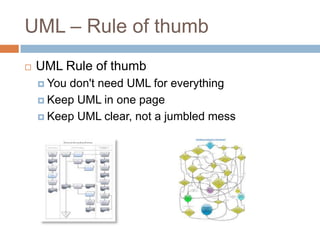

49. UML – Rule of thumb
 UML Rule of thumb
 Youdon't need UML for everything
 Keep UML in one page
 Keep UML clear, not a jumbled mess

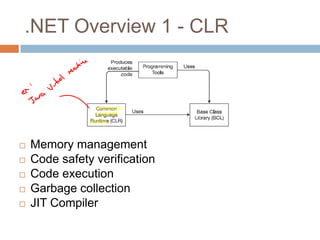

50. .NET Overview 1 - CLR
 Memory management
 Code safety verification
 Code execution
 Garbage collection
 JIT Compiler

51. .NET Overview 2 - Programming Tools
 The Visual Studio integrated development environment
 .NET-compliant compilers (e.g., C#, VB, and managed
C++)
 Debugger
 Server-side improvements, such as ASP.NET/MVC

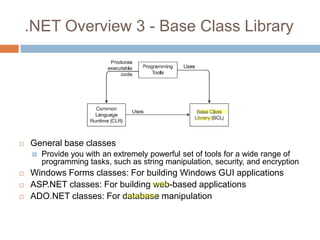

52. .NET Overview 3 - Base Class Library
 General base classes
 Provide you with an extremely powerful set of tools for a wide range of
programming tasks, such as string manipulation, security, and encryption
 Windows Forms classes: For building Windows GUI applications
 ASP.NET classes: For building web-based applications
 ADO.NET classes: For database manipulation

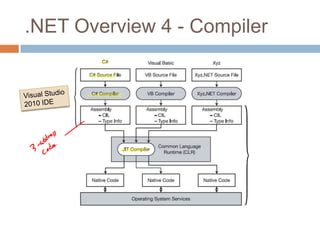

53. .NET Overview 4 - Compiler

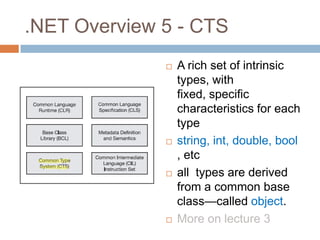

54. .NET Overview 5 - CTS
 A rich set of intrinsic
types, with
fixed, specific
characteristics for each
type
 string, int, double, bool
, etc
 all types are derived
from a common base
class—called object.
 More on lecture 3

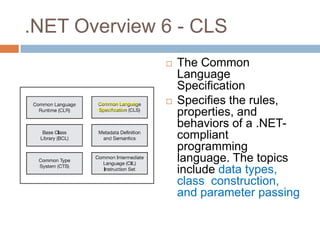

55. .NET Overview 6 - CLS
 The Common
Language
Specification
 Specifies the rules,
properties, and
behaviors of a .NET-
compliant
programming
language. The topics
include data types,
class construction,
and parameter passing

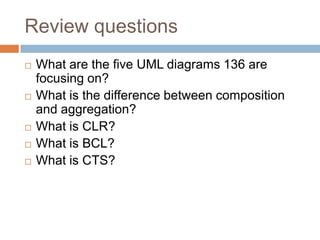

56. Review questions
 What are the five UML diagrams 136 are
focusing on?
 What is the difference between composition
and aggregation?
 What is CLR?
 What is BCL?
 What is CTS?

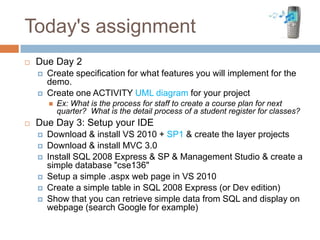

57. Today's assignment
 Due Day 2
 Create specification for what features you will implement for the
demo.
 Create one ACTIVITY UML diagram for your project
 Ex: What is the process for staff to create a course plan for next
quarter? What is the detail process of a student register for classes?
 Due Day 3: Setup your IDE
 Download & install VS 2010 + SP1 & create the layer projects
 Download & install MVC 3.0
 Install SQL 2008 Express & SP & Management Studio & create a
simple database "cse136"
 Setup a simple .aspx web page in VS 2010
 Create a simple table in SQL 2008 Express (or Dev edition)
 Show that you can retrieve simple data from SQL and display on
webpage (search Google for example)

58. References
 .NET : Architecting Applications for the
Enterprise
 UML 2.0 in a Nutshell
