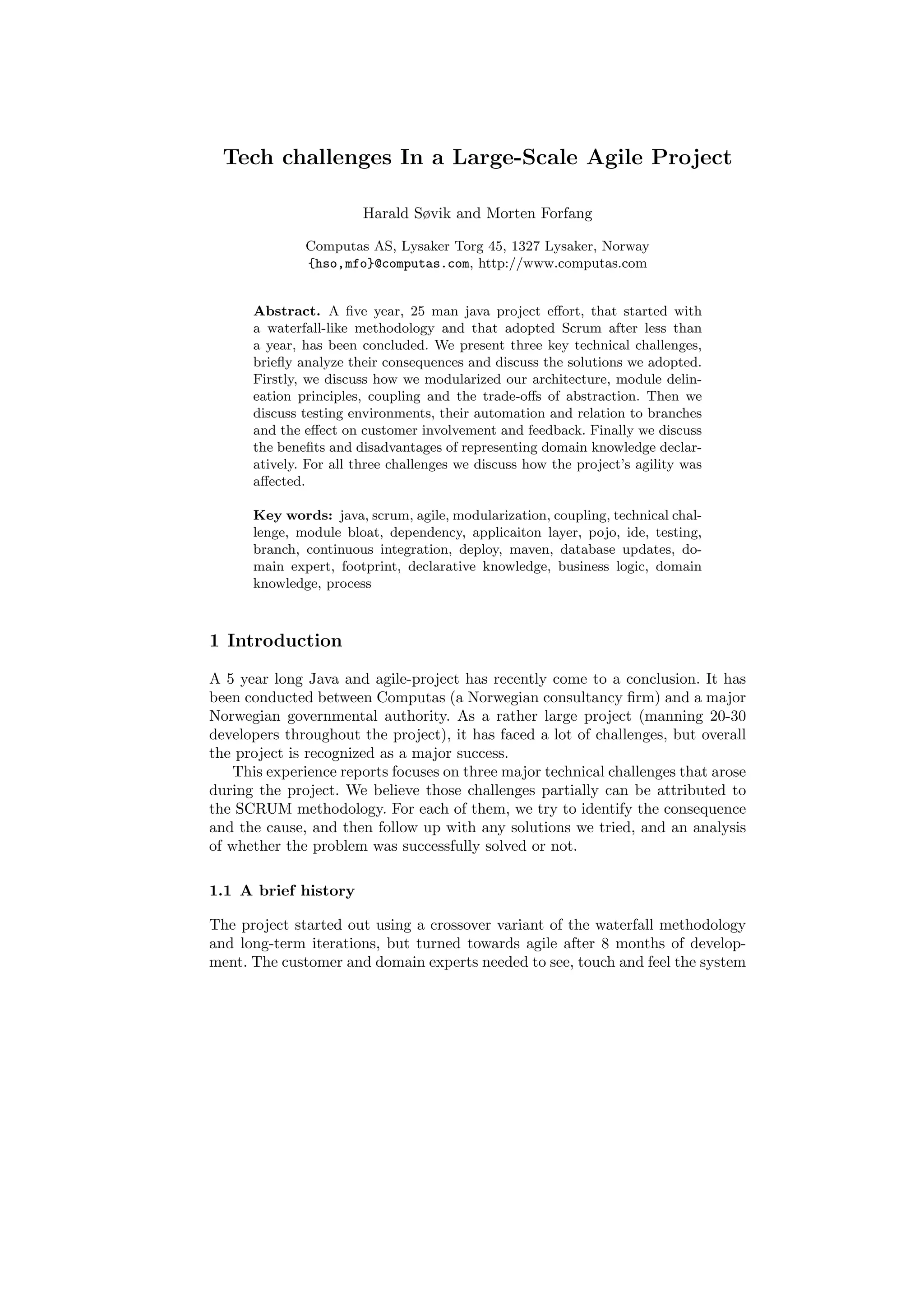

1. Tech challenges In a Large-Scale Agile Project
Harald Søvik and Morten Forfang
Computas AS, Lysaker Torg 45, 1327 Lysaker, Norway
{hso,mfo}@computas.com, http://www.computas.com
Abstract. A five year, 25 man java project effort, that started with
a waterfall-like methodology and that adopted Scrum after less than
a year, has been concluded. We present three key technical challenges,
briefly analyze their consequences and discuss the solutions we adopted.
Firstly, we discuss how we modularized our architecture, module delin-
eation principles, coupling and the trade-offs of abstraction. Then we
discuss testing environments, their automation and relation to branches
and the effect on customer involvement and feedback. Finally we discuss
the benefits and disadvantages of representing domain knowledge declar-
atively. For all three challenges we discuss how the project’s agility was
affected.
Key words: java, scrum, agile, modularization, coupling, technical chal-
lenge, module bloat, dependency, applicaiton layer, pojo, ide, testing,
branch, continuous integration, deploy, maven, database updates, do-
main expert, footprint, declarative knowledge, business logic, domain
knowledge, process
1 Introduction
A 5 year long Java and agile-project has recently come to a conclusion. It has
been conducted between Computas (a Norwegian consultancy firm) and a major
Norwegian governmental authority. As a rather large project (manning 20-30
developers throughout the project), it has faced a lot of challenges, but overall
the project is recognized as a major success.
This experience reports focuses on three major technical challenges that arose
during the project. We believe those challenges partially can be attributed to
the SCRUM methodology. For each of them, we try to identify the consequence
and the cause, and then follow up with any solutions we tried, and an analysis
of whether the problem was successfully solved or not.
1.1 A brief history
The project started out using a crossover variant of the waterfall methodology
and long-term iterations, but turned towards agile after 8 months of develop-
ment. The customer and domain experts needed to see, touch and feel the system
2. 2 Harald Søvik and Morten Forfang
being developed. A lot of them were previously not familiar with software de-
velopment. Being able to see results of their decisions quickly made them more
confident and eager.
To support parallel development, the project was organized into 4 different
teams, whereas 3 were committing to the development branch, and one team
working maintenance on the production branch. The teams were ”self sufficient”
in technical expertise - meaning that multiple programmers could be working
simultaneously on the same module or layer of the system. The teams were also
assigned a pool of domain experts suitable for the tasks they had chosen for the
next iteration.
The project were divided into 4 overall domain-centric periods, each support-
ing a specific business target. All of these focused on similar goals:
– Enable self-service or more automated customer interaction
– Reduce the number of internal databases and managed systems
– Increase data quality
– Unify business processes to ensure quality
2 Coupling and modularization
The dependency topology of a system and it’s relation to evolvability is a cur-
rent, active research field ([3]). It is predominantly argued that modularization,
low coupling and high cohesion are characteristics that enhance salient non-
functional characteristics of a system, like analyzability, integrity, changeability
and testability ([4], [7]). In this section, we explore some of the trade-offs we
have found between modularization and various forms of efficiency.
We use the terms subsystem, cohesion, coupling and framework as defined by
[6] and component and collaboration as defined by [8].
2.1 Subsystems and frameworks
The project consists of a series of core subsystems and legacy systems. In this ar-
ticle we focus on the Mats subsystem. This subsystem depends crucially on the
Framesolutions framework. The Framesolutions framework is a fairly compre-
hensive set of customizable, proprietary components that many of our projects
use. It at the same time provides core functionality on all application layers and
it provides a fairly rigid set of programming patterns. The framework is centrally
maintained separately from the project source code.
2.2 The Mats subsystem
For the purposes of this article, the The Mats subsystem features four build-time
modules; the application server, the web server, the client and a common module.
The run-time and compile-time dependencies between these are illustrated in
figure˜1.
3. Tech challenges In a Large-Scale Agile Project 3
Fig. 1. The build time and runtime dependencies between important Mats subsystem
modules.
Technologically, the two first are realized as Java enterprise archives running
on JBoss 4.2.3 servers, the client is a Java application and the common module
is a jar file included in all the other modules.
Overall, this particular way of modularizing the Mats subsystem strikes a
good balance between having increased complexity through many modules, de-
creased intra-module coupling and increased module cohesion. There are however
a couple of major ill effects:
– The common module got bloated.
– New, distinct functional areas were not handled well enough as separate col-
laborations with proper dependency management.
Let’s first briefly discuss the module bloat. On the surface of it, there are
few reasons why one shouldn’t put a piece of code or resource in the common
module. It is always present and the developer doesn’t have to think about
possible reuse. As long as the entity in question is put in common, it can always
be reused by some other module. This idea were thought to be a very good one
in a large project, and were even more so thought of when we turned agile. We
believed that an large and agile project should have a lot of supportive means
to enhance reusability. When multiple teams were working on multiple tasks, it
could be difficult to spot a candidate for reusability. But if the code was put
in the very same module, we believed the programmers could hardly overlook
the ”reusabilityness”. The idea were not very successful, and while reuse inside
a specific sub-domain (read: team) sometimes has been possible, cross-domain
(read: cross-team) reuse is virtually non-existent.
This leads to a bloated common module, lowers cohesion and heightens cou-
pling. In runtime we increase the overall footprint since the common module
is present with all the other modules. At build-time we increase the build time
4. 4 Harald Søvik and Morten Forfang
since the common module is bloated. Finally, each of the non-common modules
become unnecessarily complex since there is much in the common module that
is unwanted and unneeded by the module in question.
Now, let’s move onto dependency management for new collaborations. Given
some functionality you may choose to put this into one of the four mentioned
modules, but you cannot choose to put it in a module governed by functional
area. For example, if you are writing some web functionality from the farm
animal domain, you can choose to put the code in the web or the common
module, but there is no module that takes care of the farm animal domain.
This leads to modules being characterized by having general purpose and very
domain specific code side-by-side. Clearly this makes the modules lower their
cohesion and calls for sustained developer discipline to avoid increasing intra-
module coupling.
With the comprehensive, automatic test approach and environment in the
Mats project, we categorize the tests according to test level and domain. Char-
acterizing tests by domain alleviates the problem of discerning which functional
area a particular piece of code belongs to. This doesn’t improve module coupling,
but it makes maintenance and refactoring easier. For example:
@Test(groups = {"unit", "husdyr"},
dependsOnMethods = {"validererNyIndivid"},
expectedExceptions = IllegalArgumentException.class)
public void kanIkkeMerkesSammeDagenEllerTilbakeITid() {}
(from Mats 4.0b-SNAPSHOT depending on testng version 5.8)
Here “husdyr” (farm animal) is a category corresponding to a fairly large
functional subdomain.
2.3 Application Layer Separation
From a developer’s technical perspective we let the Mats subsystem (cf. section
2.2) be a single project. The Framesolutions framework and code pertaining to
the Integration Platform is kept apart. Modern IDE’s are getting quite good
at providing instant and global symbol search and dependency tracking1 . This
means that all the previously mentioned modules appear as one seamless whole.
The FrameSolution framework (cf. section 2.1) provides two quite powerful
mechanisms that makes the Mats subsystem (cf. section 2.2) module boundaries
easier to handle.
There is the concept of a FrameSolution Manager. Such a manager serves as
a “bridge” over a layer or between modules. The bridge may well cross physical
hosts and application servers. An example invocation from Mats is
ImportMeldingManager.getInstance().
getSisteFoerstemottakerAdresser(importoer, foersteMottaker)
1
The Mats project is predominantly using IDEA IntelliJ version 8
5. Tech challenges In a Large-Scale Agile Project 5
This code will look identical in all four Mats subsystem modules. For exam-
ple, if this code is run on the web server, it will remote call a server stub on
the application server. This code is easy for a developer to understand, quite
condensed and not far from the ideal of a POJO method invocation. There is
just this line needed, no annotation or other configuration.
There is the concept of a soft pointer that transparently deals with persistent
objects that are not “owned”, i.e. that the association between a class A and
a class B is not such that CRUD operations on one is continued on the other.
The soft pointer mechanism is together with a cache, implemented such that no
matter where in a virtual machine an instance is soft referred to, it always points
to the same, single persisted instance. This removes the burden of keeping track
of multiple editions of the same object. It furthermore makes it possible to make
intelligent, automated decisions w.r.t. persistent cascading and lazy loading.
Generally this particular configuration makes it very easy to create function-
ality covering the entire vertical stack from the GUI at the thick client or on the
web through business logic and down to the persistence or integration service
layer. The code looks surprisingly similar on all application layers. Developers
are overall very happy with this arrangement.
One would perhaps think that this great freedom results in the inter-layer
APIs to be in too great flux and that the entire subsystem architecture would
over time loose necessary integrity. Due to the rigour of the FrameSolution frame-
work (cf. section 2.1) that enforces quite strong patterns on all layers, this does
in general not happen.
There are however still some major unintended effects:
– Just looking at the code in the IDE, it is not always clear on what layer
(client, web server, application server) one is coding. Due to the powerful
Framesolution abstraction features, the code would work, but not surprisingly,
it often leads to highly resource demanding code.
– Since the entire Mats subsystem source is editable and available in the IDE,
the build time on the individual developer host becomes intolerable. The IDE’s
automatic synchronization features also take an irritating amount of time.
These unintended effects were partially handled by using a hierarchical mod-
ule structure, dividing all code into one of the Mats subsystem modules, cf.
section 2.2. However, this was not a very effective layering, since a lot of code
still resided in the common module.
Other mitigating actions were to introduce faster developer hardware (par-
ticularly SSDs) and optimizing the build procedure.
It remains a problem, and a fundamental trade-off, whether to let the devel-
oper use the powerful abstraction features of the Framesolution framework or
write more module dependent, efficient, lower level code.
2.4 Summary
Overall we’ve found that developers are quite happy with the productivity boost
they get from layer abstraction, having all the source in the IDE and the lack
6. 6 Harald Søvik and Morten Forfang
of bureaucracy when dealing with a small number of ever-present modules. We
clearly could’ve introduced more modules, stronger barriers between them or dif-
ferent delineation principles. This could’ve bought us higher and better cohesion,
and lower intra-module coupling. Chances are, we also would’ve introduced more
overhead, increased inter-module coupling and increased demands on developer
discipline.
3 Testing environments
To support the idea of agile development with domain experts, several testing
environments were accessible for the experts throughout the project. This was
introduced as early as possible so that the experts could get comfortable with
the system and the quirks of using a system that is under development.
We were working with two branches of the code (most of the time), and
both of these had a range of environments associated with them. First, the
development (”trunk”) branch was the target of all changes bound for the next
major release. Second, the maintenance branch was holding error fixes and small
changes that could be deployed to production very often.
Each of these branches had three classes of testing environments: Continuous
build [2], nightly build and manual, full-scale build. Thus, there were six different
environments to maintain at all times. We did invest heavily in infrastructure
and build automation for these environments.
3.1 Effect
Because of the wide variety of testing environments, the experts always had
an appropriate environment to carry out their testing needs. At first, it proved
a little difficult to realize how to employ this diversity, and it was frequently
necessary to remind them of in which environment it would be advisable to test a
new feature or a bug fix. After the first major release, most people got acquainted
with the idea, and became very happy with the different environments. See Table
1 for the different applications.
Continuous Nightly Manual
Development Experimental features New, stable features Production ready features
Maintenance Experimental bug fixes Stable bug fixes Regression tests
Table 1. Different testing environments
A key feature in maintaining all of these environments, was to have com-
pletely automated build- and deploy processes. It proved incredibly valuable -
both for scheduled (nightly) builds, and whenever a new feature had to be tested
immediately (continuous). To be able to automate the deploy process, it was close
7. Tech challenges In a Large-Scale Agile Project 7
to necessary gather all build steps under a single command. This was success-
fully implemented with Maven. This helped assure similar builds on multiple
platforms, i.e. different integration environments and development platforms.
3.2 Difficulties
Database structured updates proved to be difficult to automate, and were thus
handled manually. It would have been possible to automate within the applica-
tion, but the customer technicians discouraged such an approach. It was believed
that an automated handling would weaken the exhibited control over database
schema.
After spending a lot of time reimbursing the necessity of continuous testing,
many of the domain experts got used to the idea of having a environment at
hand all day and night. This notion was also backed by a stable production sys-
tem. Thus, whenever a testing environment failed to deploy correctly at night,
or a programming error lead to a critical failure of the application - the domain
experts would quickly let us know that they were inhibited from doing their work
efficiently. To counter this, the service monitoring tool used in production were
also employed to testing environments - with email and even SMS alerts. The
testing environments were subject to the same uptime requirements as produc-
tion. Of course - there were no really dramatic consequences when a fault lead
to unplanned downtime.
3.3 Conclusion
The biggest con of this approach was the impact on the development platform.
Whereas nightly deployment worked fine, frequent deployments by developers
or the continuous integration engine proved very time consuming. It is thus
our conclusion that a more flexible and dynamic approach should be available
for developers. This was partially implemented with hot code reloading tools,
like Java hotspot and JRebel. These approaches were partially successful: Many
changes were handled and deployed seamlessly, but changes to initialization code
and structurally modeled data had to be handled otherwise.
Testing environments and infrastructure is at heart of an agile project. The
ability to quickly recognize new or altered features, and give feedback to appro-
priate developers or domain experts, is a stepping stone in enabling agility.
4 Declaratively represented knowledge
A key concept in this project was Business Process Modeling: Separation between
domain knowledge and implementation. From artificial intelligence, cognitive
architecture work and knowledge modeling, the distinction between declarative
and procedural knowledge has long been deemed important [1], [5]. This idea
could be paraphrased as separating what to do from how to do it. It allows the
8. 8 Harald Søvik and Morten Forfang
domain programmers to work decoupled from the technical programmers. The
processes can be modeled and mocked and remodeled, until the ideal workflow
is reached.
A few vendors offers systems implemented this way, and Computas is per-
haps the leading supplier in Norway. We believed that this technique would fit
quite well in an agile project. It would be possible to change the behaviour of
the system without altering the technical details, and visa versa: Altering the
technical implementation without altering the business processes.
4.1 Effect
This approach presents challenges to the way a customer (and developers) man-
age software. Since the knowledge is decoupled from the program logic, it is
possible to alter the behaviour of a running program.
Thus, whenever the developers decided to refactor the business logic, or the
domain experts decided to alter the business processes, it would introduce no
overhead for the other party. And this proved to be a correct assumption. Even
though most of the business logic stayed the same once written, the business pro-
cess often changed in subsequent iterations. This made the domain experts rater
self sufficient in many questions, and made it possible to adapt to experiences
in a quick fashion.
However, we underestimated the need of technical means to handle this dis-
tinction: It should not be necessary to rebuild and redeploy such a system when
developing and testing processes. Nevertheless, developers often did so to ”ensure
correctness and consistency”.
4.2 Difficulties
It might sound trivial, but postponing to figure out how to correctly reload pro-
cess definitions at runtime reduced the development turnaround significantly.
And not to mention the developers dissatisfaction of having to wait for changes
to deploy before testing. Thus, it became clear that the application had to be de-
signed for ”hot knowledge reloading”. This challenge was solved by implementing
a re-initialization feature: Whenever process definitions or other domain defined
data did change, the developer was able to reload the definitions and start using
them right away. This feature is not used in production, but would theoreti-
cally allow process managers to alter a process in the middle of the day without
scheduling downtime and employing technical personnel.
Also, our proprietary domain modeling language (although BPEL-compliant)
were of course unsupported in any Integrated Development Environment (IDE).
The language itself has a dedicated IDE which is well implemented and very
functional for modeling purposes. But the functionality provided by our code
IDE[9] were oblivious to such data representation, and provided no development
support whatsoever. It hindsight, we should have realized the cost, and imple-
mented a support plugin for our code IDE, so that it would treat changed to
9. Tech challenges In a Large-Scale Agile Project 9
process code the same was it treated technical code. That is: provide support
for syntax highlighting, autocompletion and code deployment
4.3 Conclusion
Use of proprietary data formats can both be rewarding and expensive. One need
to be aware of the necessary level of support, and accept the cost of maintaining
such a level. Use of declarative knowledge representations is potentially a major
catalysator when dealing with domain experts, but actually implementing the
knowledge requires a high level of expertise. Also in this matter, one should be
very careful with respect to the tools one choose to use for implementation and
assist.
5 Summary
This experience report outlines three difficulties we experienced during this
project. Although the details may appear minor, the impact of improvements
was significant, because of the project size. We believe that it is incredibly im-
portant not to neglect those problems that were manageable in smaller projects,
but may scale fast in large projects, and give the developers an arena where they
can give an early warning of such challenges.
We would like to emphasize some key issues from this report:
– Abstraction and generalization should been driven by necessity and experi-
ence, not guesswork and intentions.
– Abstractions is not a substitute for decoupling and formally controlled module
interfaces.
– Treat your testing environment like a small production environment. Define
a Service Level Agreement for your domain experts and testers. Automate
everything.
– Do not underestimate the accumulated overhead caused by small problems
being ignored over a lengthy period of time.
– Do not underestimate the support that can be provided by modern day de-
velopment tools.
References
1. Brachman R. and Levesque H: Knowledge Representation and Reasoning, 1st ed.,
Morgan Kaufmann 2004, ISBN 978-1558609327
2. Fowler M.: Continuous Integration, http://www.martinfowler.com/articles/ contin-
uousIntegration.html
3. Breivold H.: SOFTWARE ARCHITECTURE EVOLUTION AND SOFTWARE
EVOLVABILITY, Malardalen University, Sweden, 2009
10. 10 Harald Søvik and Morten Forfang
4. Breivold H. et al.: ANALYZING SOFTWARE EVOLVABILITY, 32nd IEEE Inter-
national Computer Software and Applications Conference (COMPSAC), Finland
2008
5. Kendal S. and Creen M.: An Introduction to Knowledge Engineering, 1st edition,
Springer 2006, ISBN 978-1846284755
6. Lethbridge T and Laganiere R., Object-Oriented Software Engineering, 2nd ed.,
McGraw-Hill 2005, ISBN 978-0073220345
7. Pressman R: Software Engineering: A Practitioner’s Approach, 5th ed., McGraw-
Hill, ISBN 978-0073655789
8. Unified Modeling Language, version 2.x, www.uml.org
9. http://www.jetbrains.com/idea/
