1) The document discusses using Couchbase NoSQL technology to store data for social network games, which have huge concurrent requests but require low response times. 2) Traditional SQL databases have limitations for these workloads, including being centralized, rigid schemas, and unnecessary overhead. Couchbase is a distributed key-value store that keeps active data in RAM for fast access. 3) While Couchbase helps with scaling and performance, challenges remain around data modeling, concurrency control, and debugging. The document proposes an SNS Storage Engine layer and tools to address these issues.

1. Data Storage Solutions
for SNS game
Dinh Nguyen Anh Dung – P2S – G6 – VNG

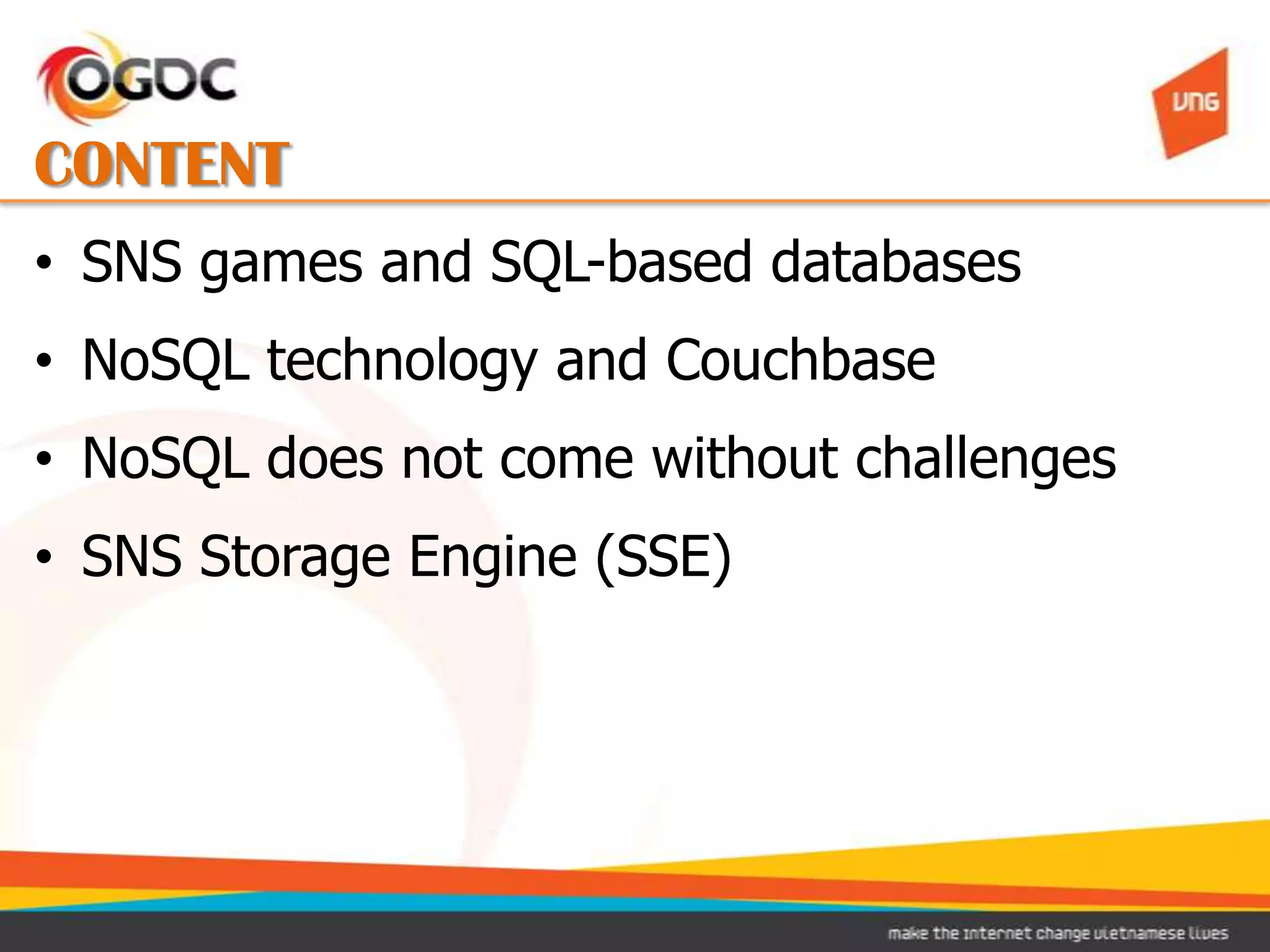

2. CONTENT
• SNS games and SQL-based databases
• NoSQL technology and Couchbase
• NoSQL does not come without challenges
• SNS Storage Engine (SSE)

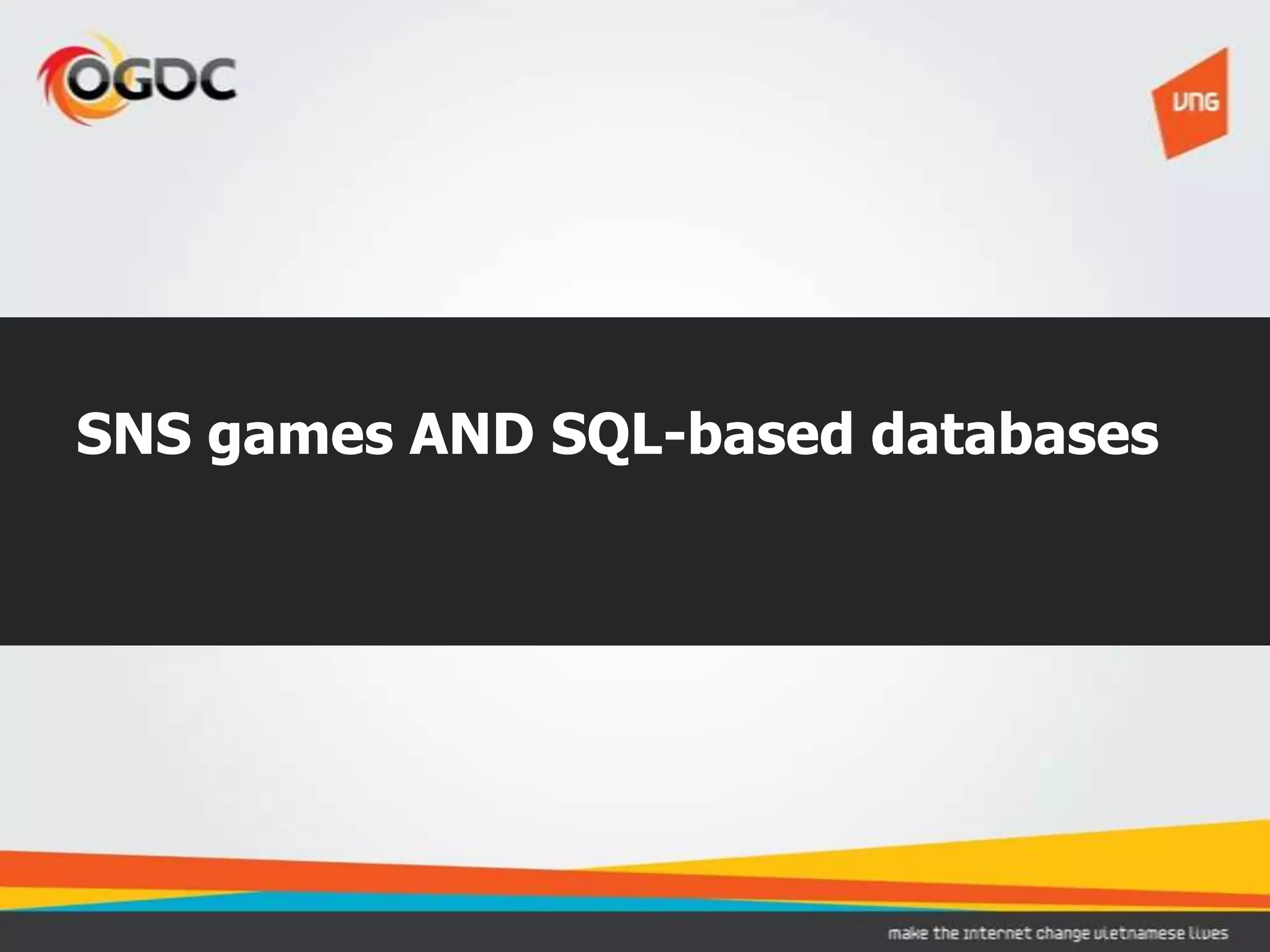

3. SNS games AND SQL-based databases

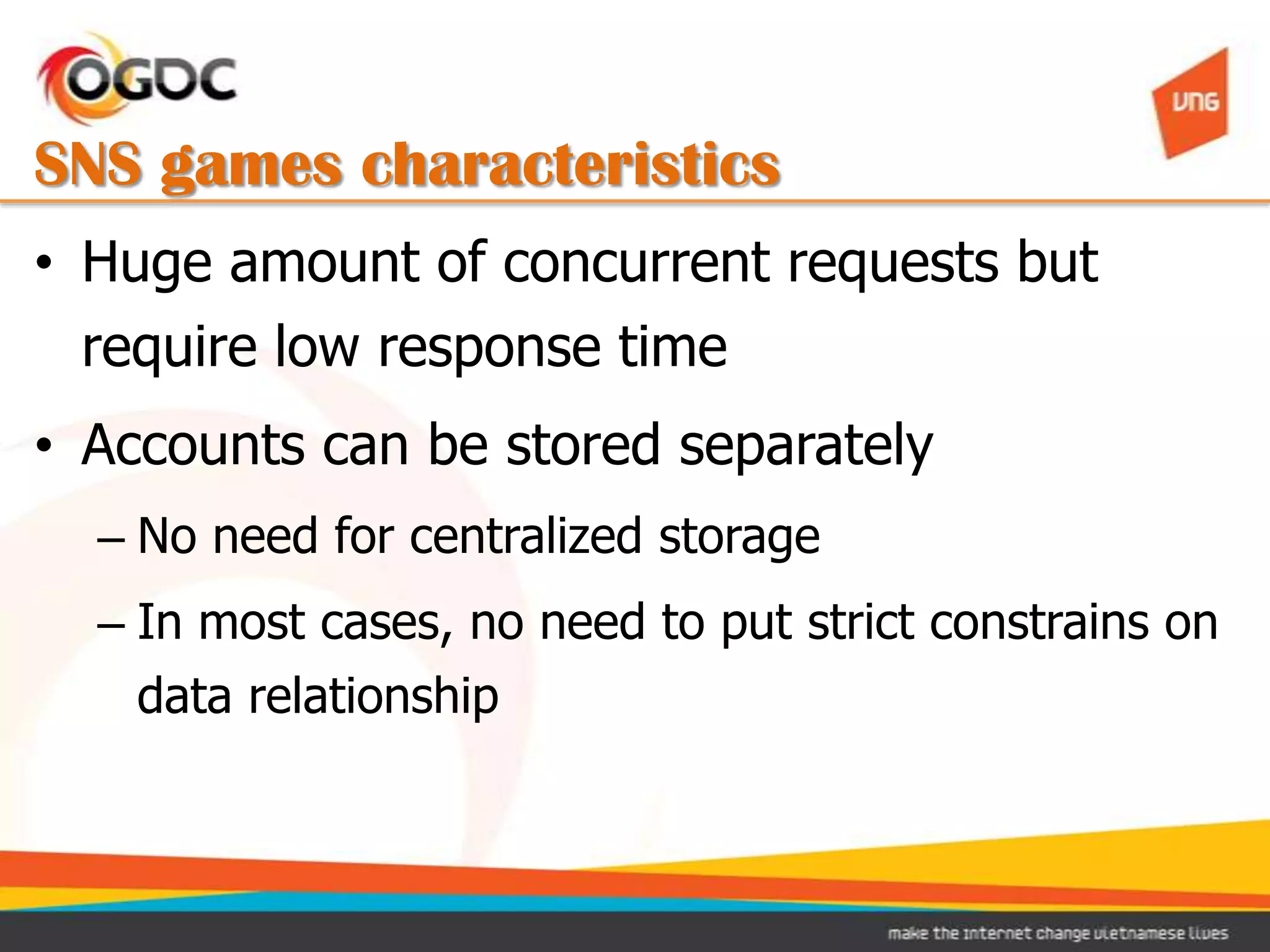

4. SNS games characteristics
• Huge amount of concurrent requests but
require low response time
• Accounts can be stored separately
– No need for centralized storage
– In most cases, no need to put strict constrains on
data relationship

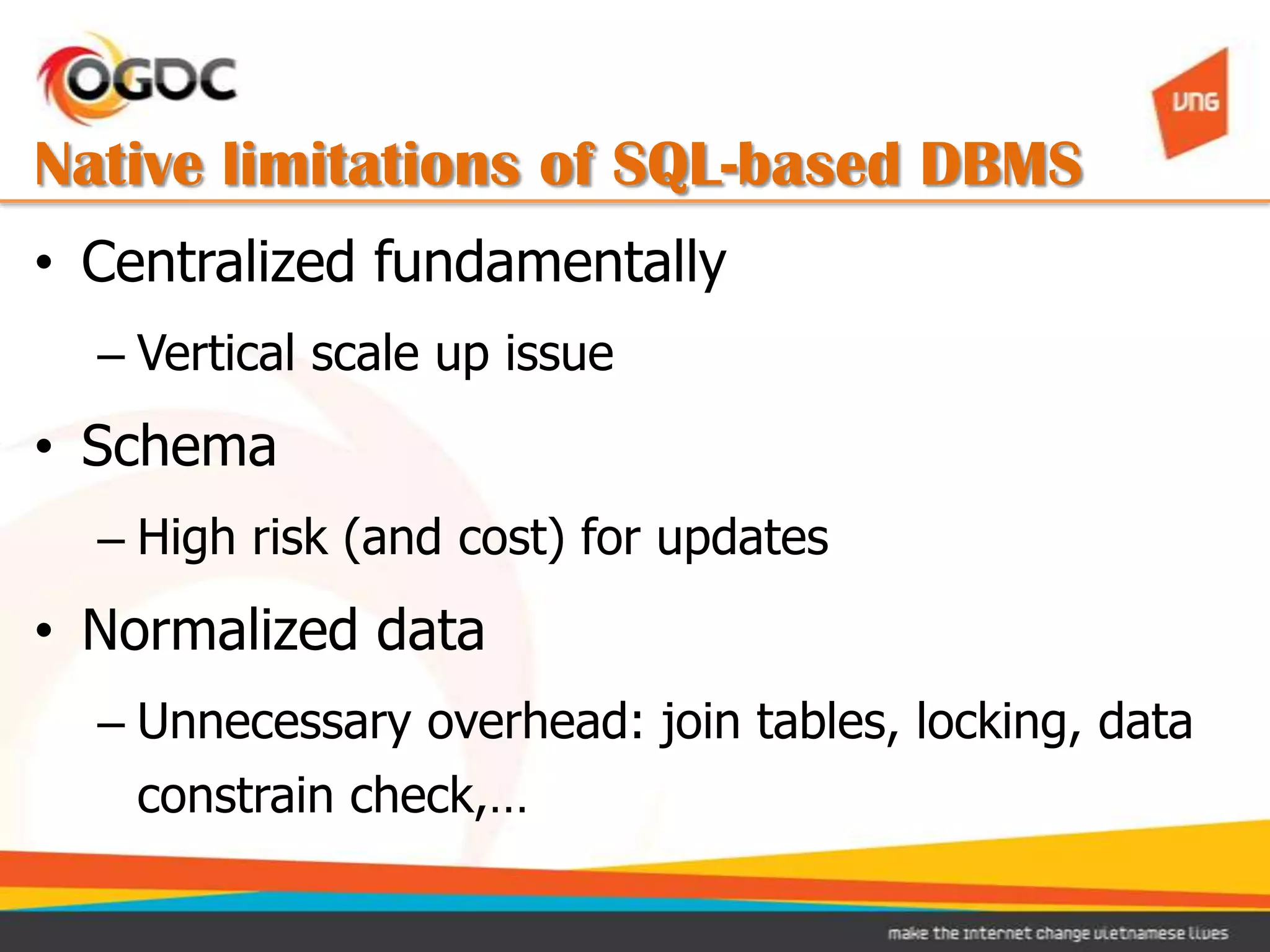

5. Native limitations of SQL-based DBMS
• Centralized fundamentally
– Vertical scale up issue
• Schema
– High risk (and cost) for updates
• Normalized data
– Unnecessary overhead: join tables, locking, data
constrain check,…

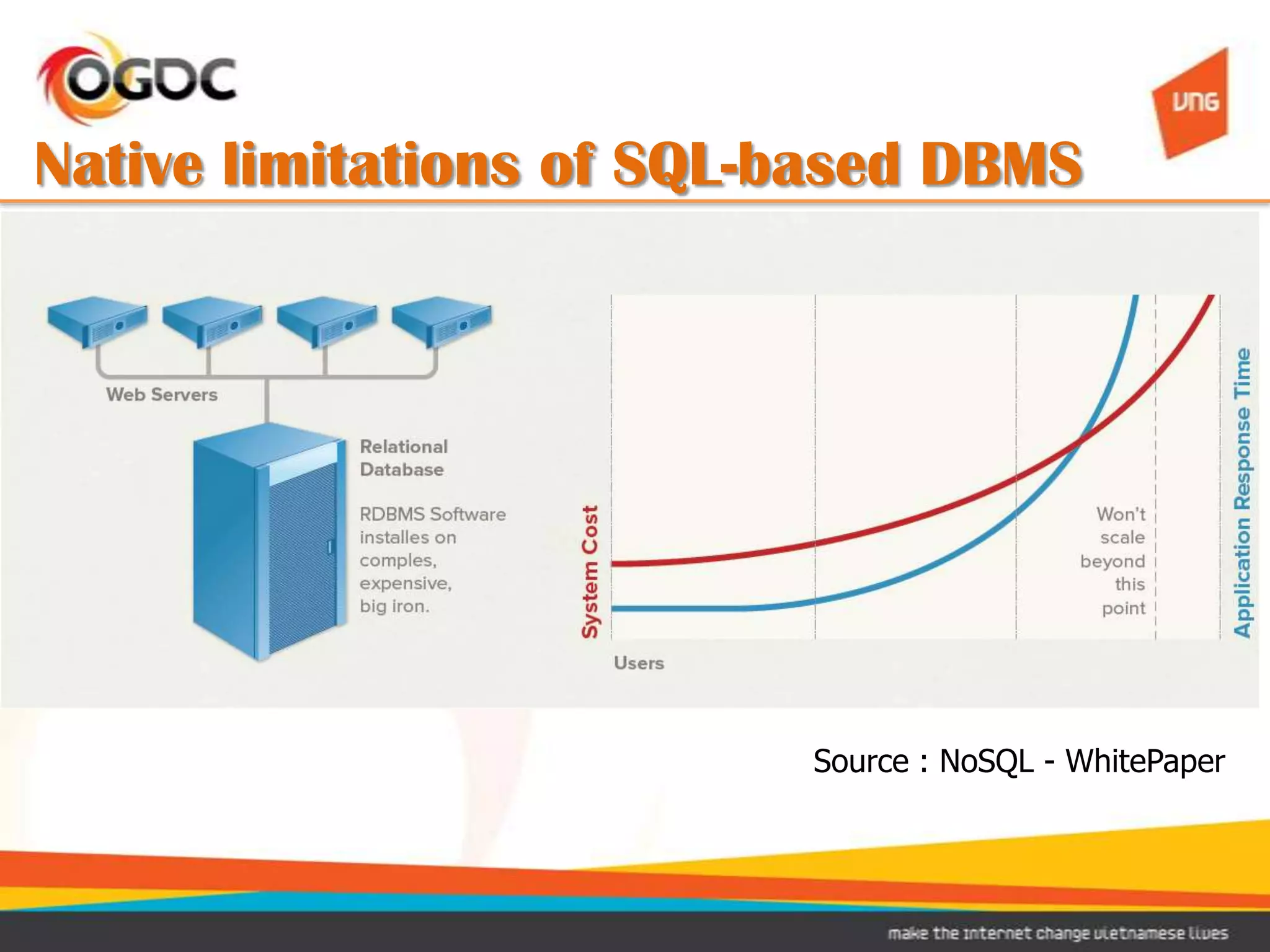

6. Native limitations of SQL-based DBMS
Source : NoSQL - WhitePaper

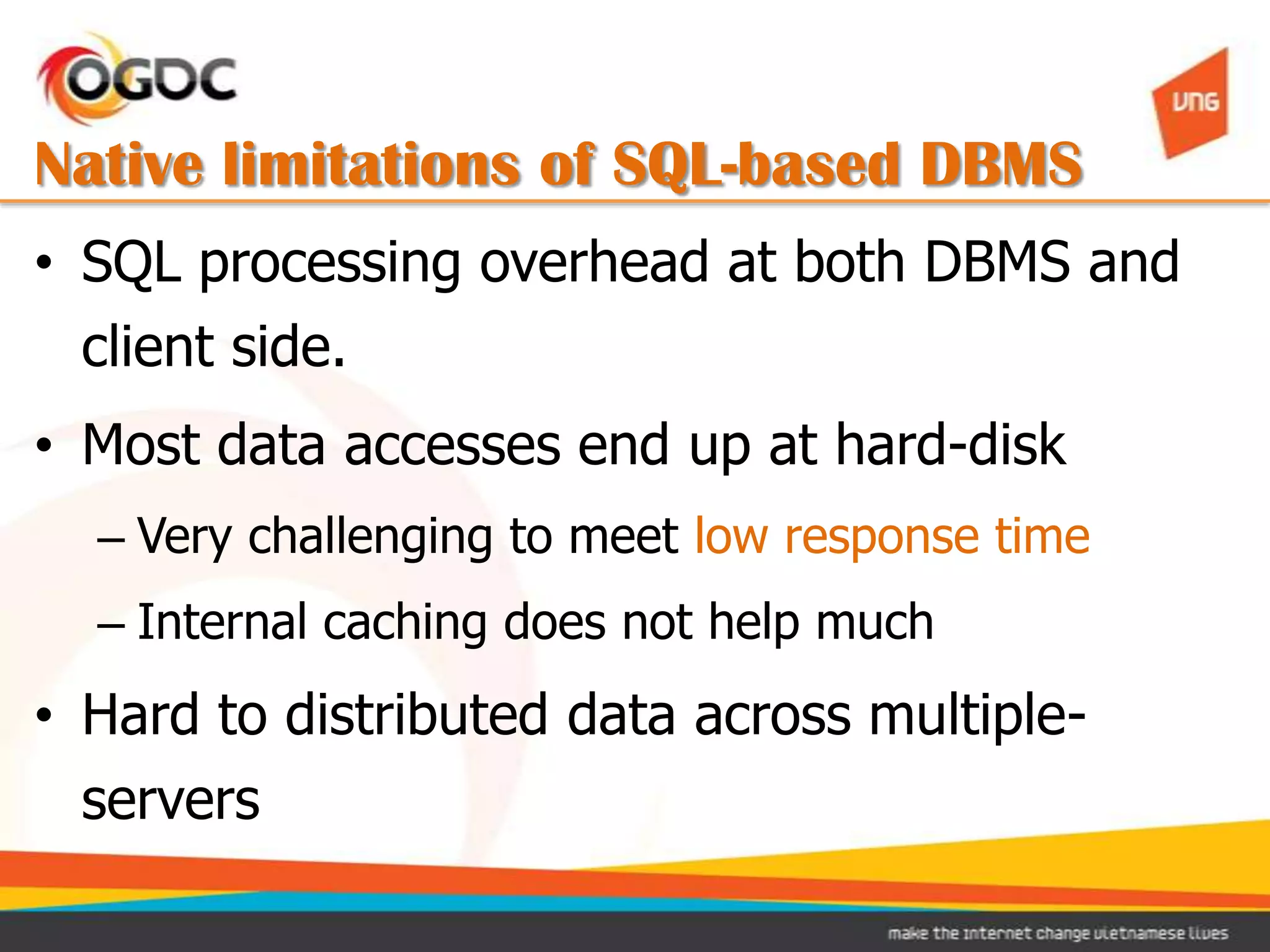

7. Native limitations of SQL-based DBMS
• SQL processing overhead at both DBMS and
client side.
• Most data accesses end up at hard-disk
– Very challenging to meet low response time
– Internal caching does not help much
• Hard to distributed data across multiple-
servers

8. NoSQL technology and Couchbase

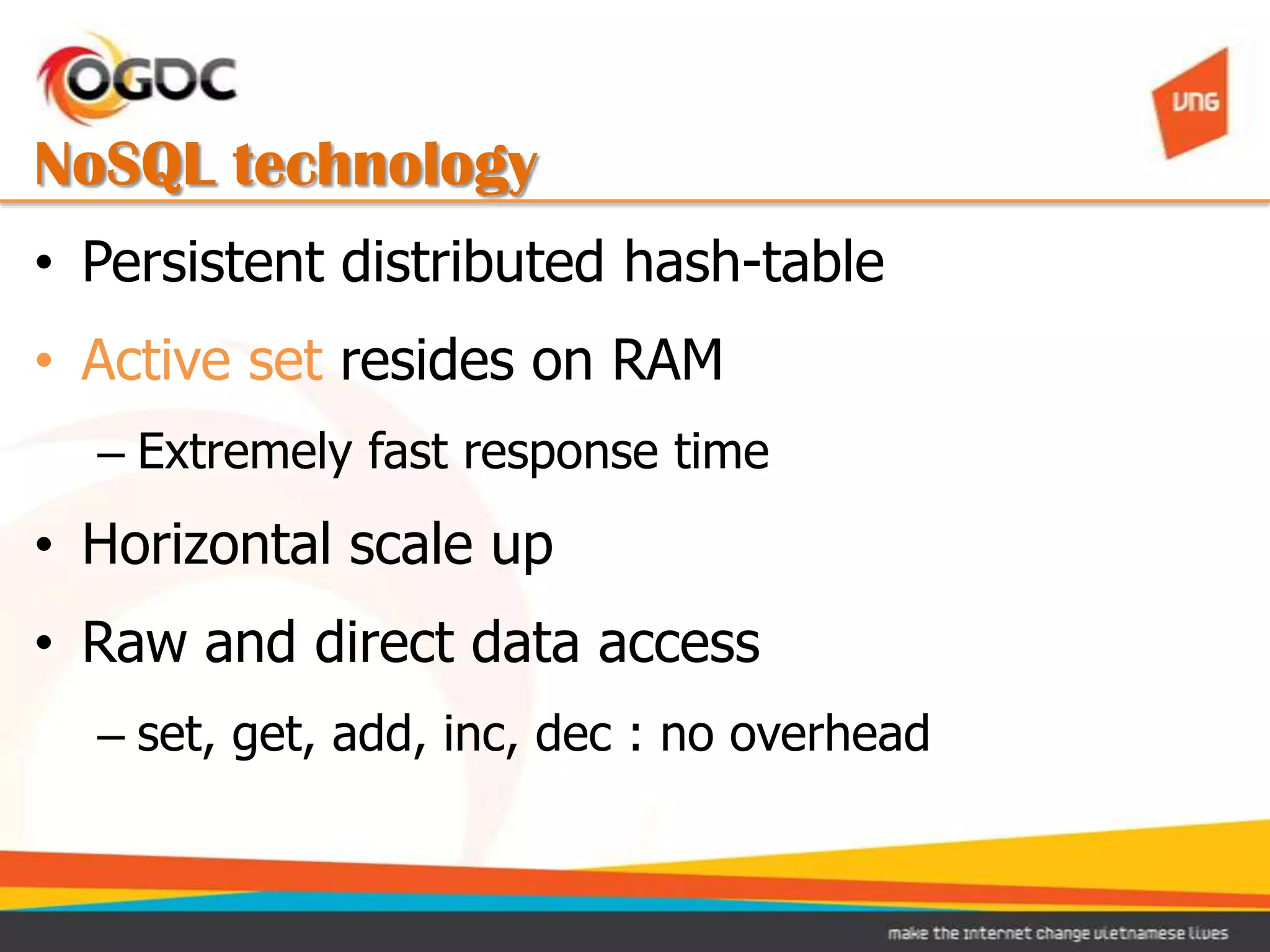

9. NoSQL technology
• Persistent distributed hash-table
• Active set resides on RAM
– Extremely fast response time
• Horizontal scale up
• Raw and direct data access
– set, get, add, inc, dec : no overhead

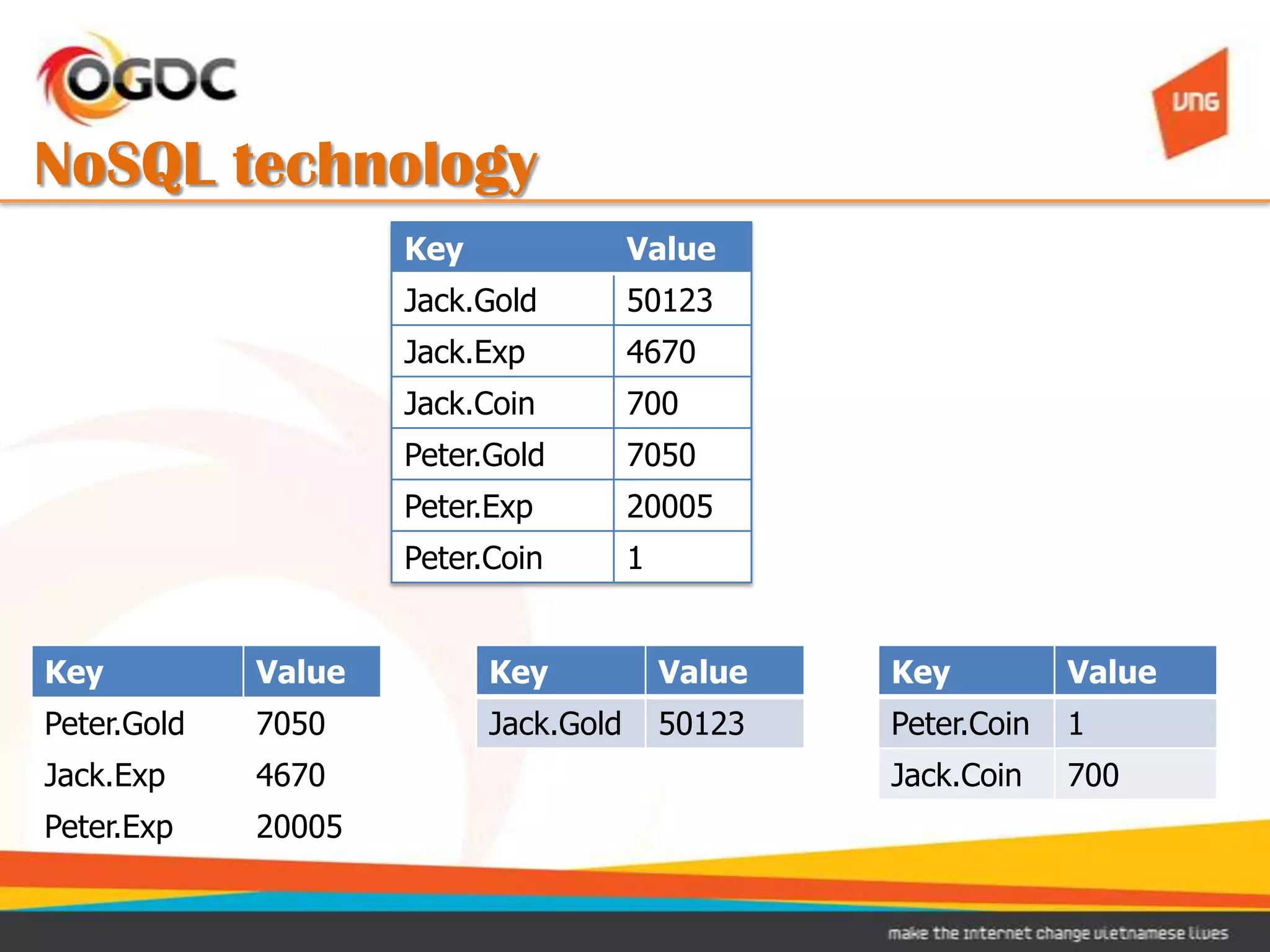

10. NoSQL technology
Key Value
Jack.Gold 50123
Jack.Exp 4670
Jack.Coin 700
Peter.Gold 7050
Peter.Exp 20005
Peter.Coin 1
Key Value Key Value Key Value
Peter.Gold 7050 Jack.Gold 50123 Peter.Coin 1
Jack.Exp 4670 Jack.Coin 700
Peter.Exp 20005

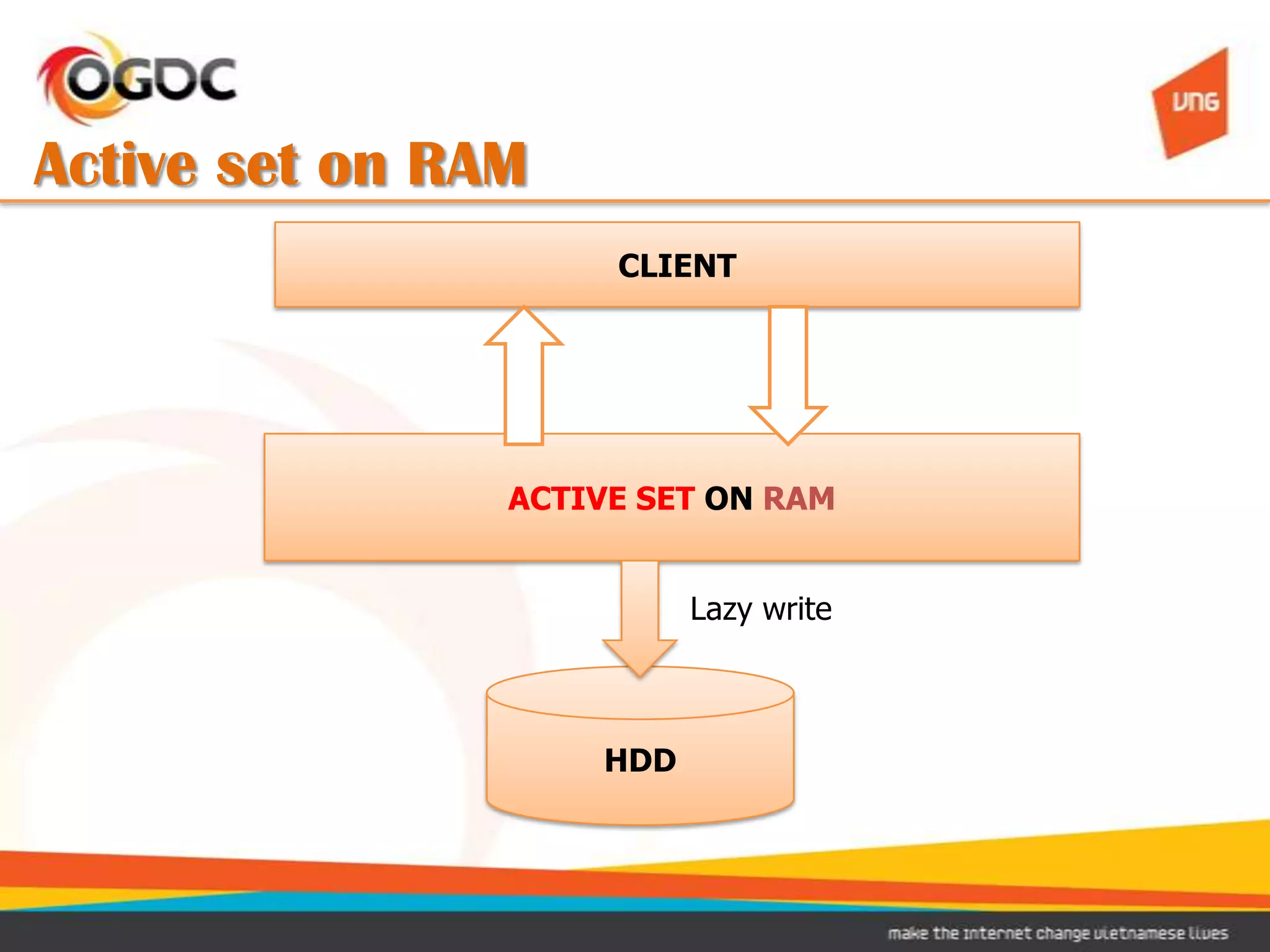

11. Active set on RAM
CLIENT
ACTIVE SET ON RAM
Lazy write
HDD

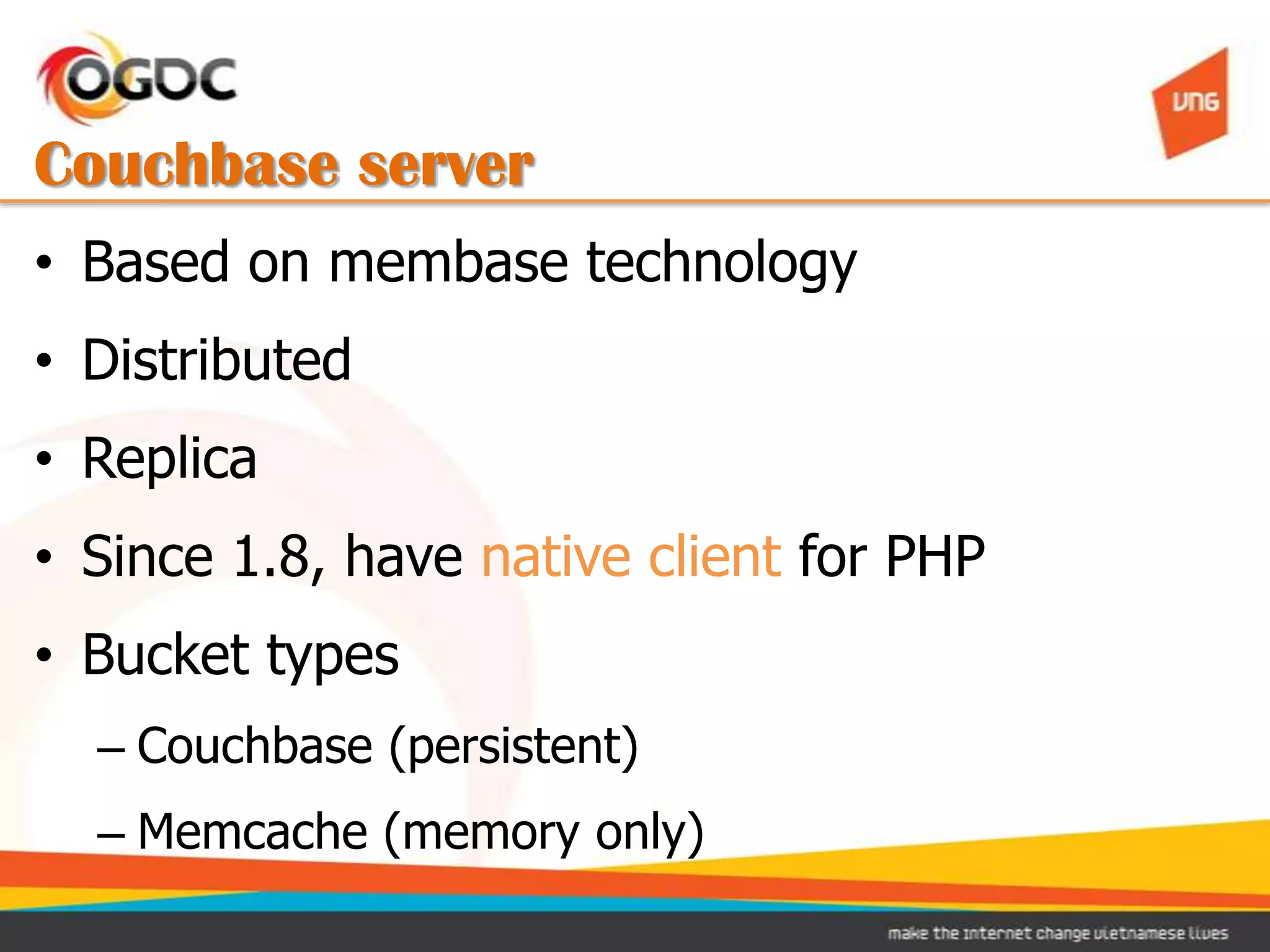

12. Couchbase server
• Based on membase technology
• Distributed
• Replica
• Since 1.8, have native client for PHP
• Bucket types
– Couchbase (persistent)
– Memcache (memory only)

13. NoSQL does not come without challenges

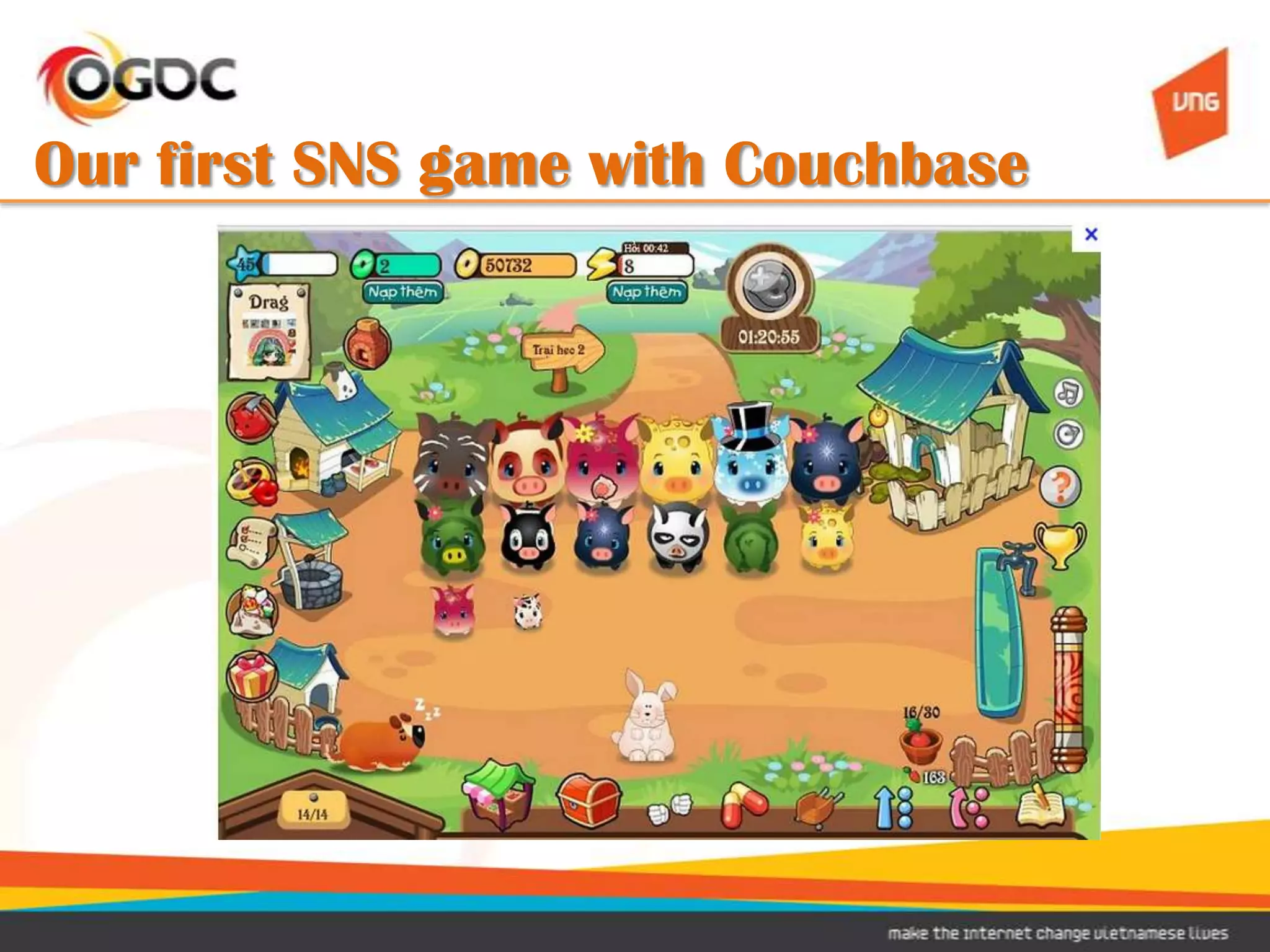

14. Our first SNS game with Couchbase

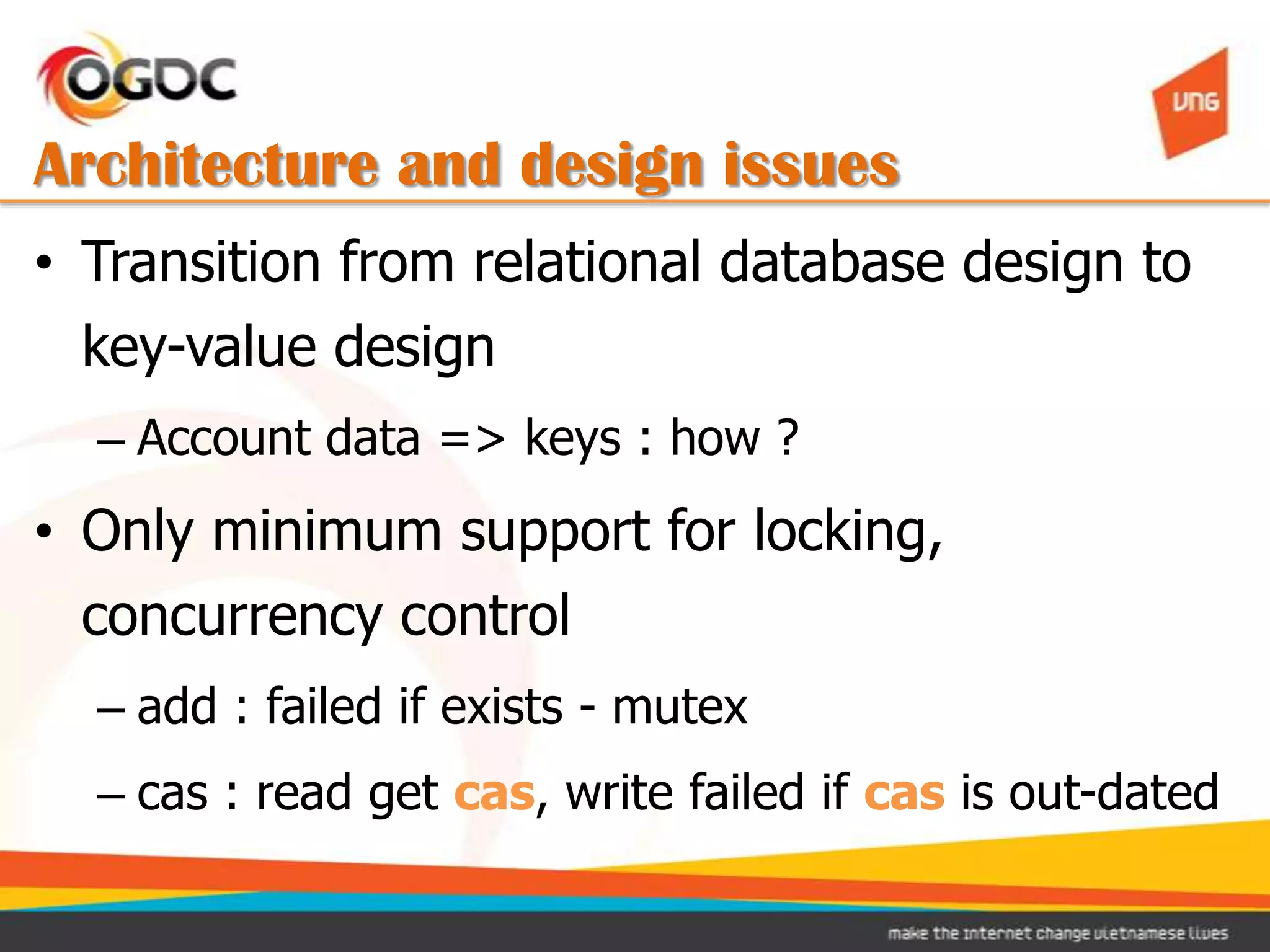

15. Architecture and design issues
• Transition from relational database design to
key-value design
– Account data => keys : how ?
• Only minimum support for locking,
concurrency control
– add : failed if exists - mutex
– cas : read get cas, write failed if cas is out-dated

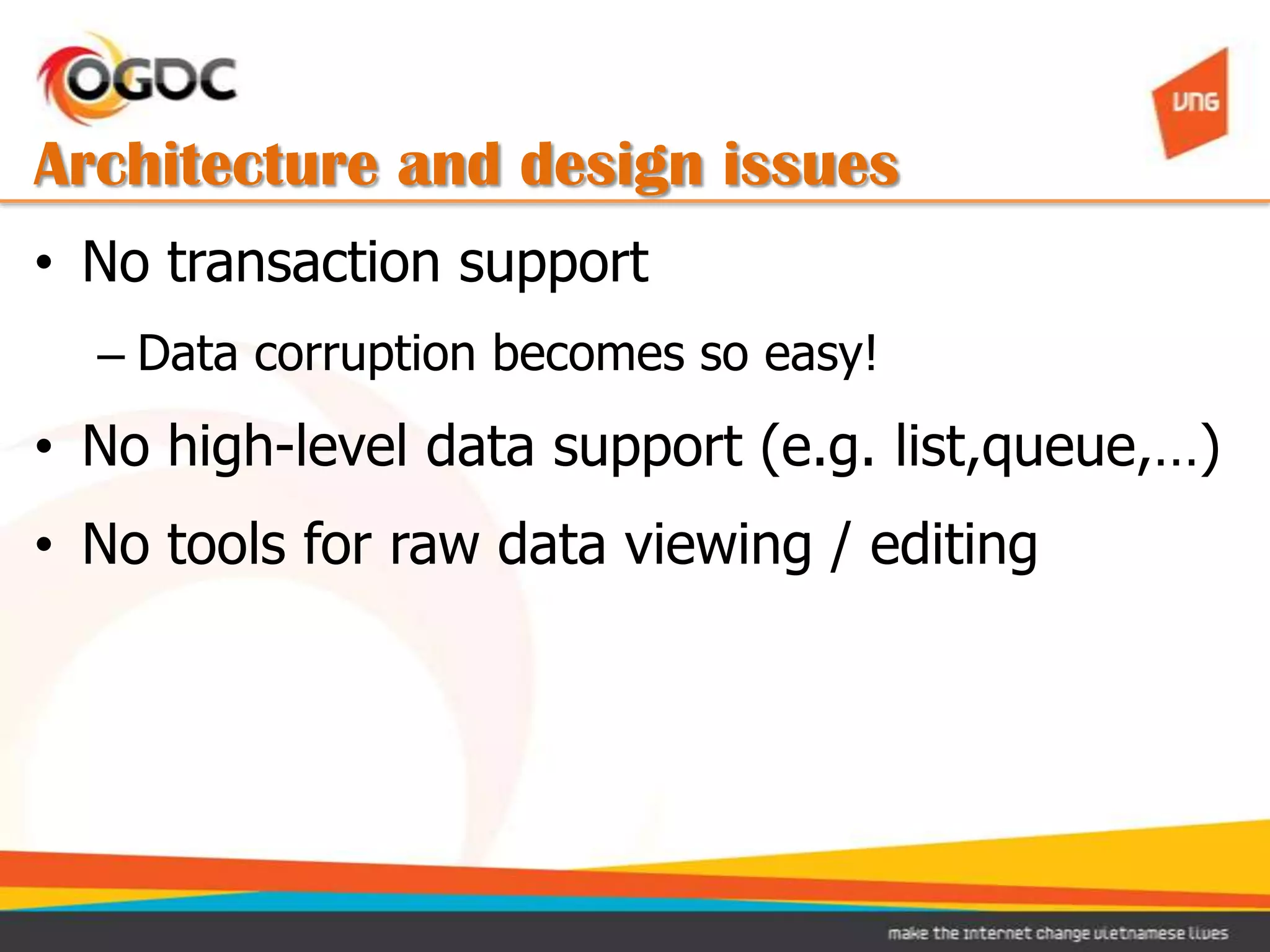

16. Architecture and design issues
• No transaction support
– Data corruption becomes so easy!
• No high-level data support (e.g. list,queue,…)
• No tools for raw data viewing / editing

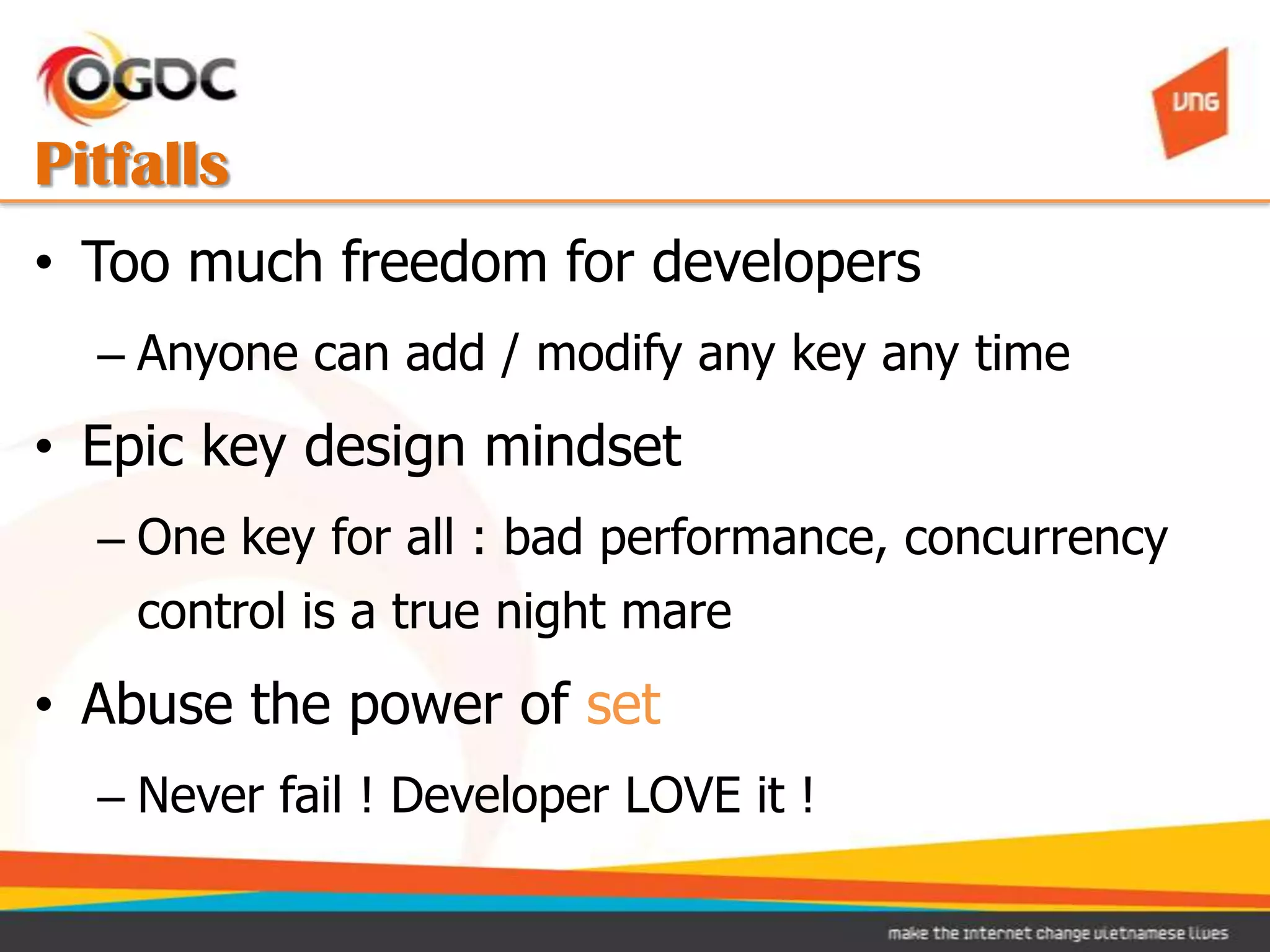

17. Pitfalls
• Too much freedom for developers
– Anyone can add / modify any key any time
• Epic key design mindset
– One key for all : bad performance, concurrency
control is a true night mare
• Abuse the power of set
– Never fail ! Developer LOVE it !

18. SSE – SNS Storage Engine

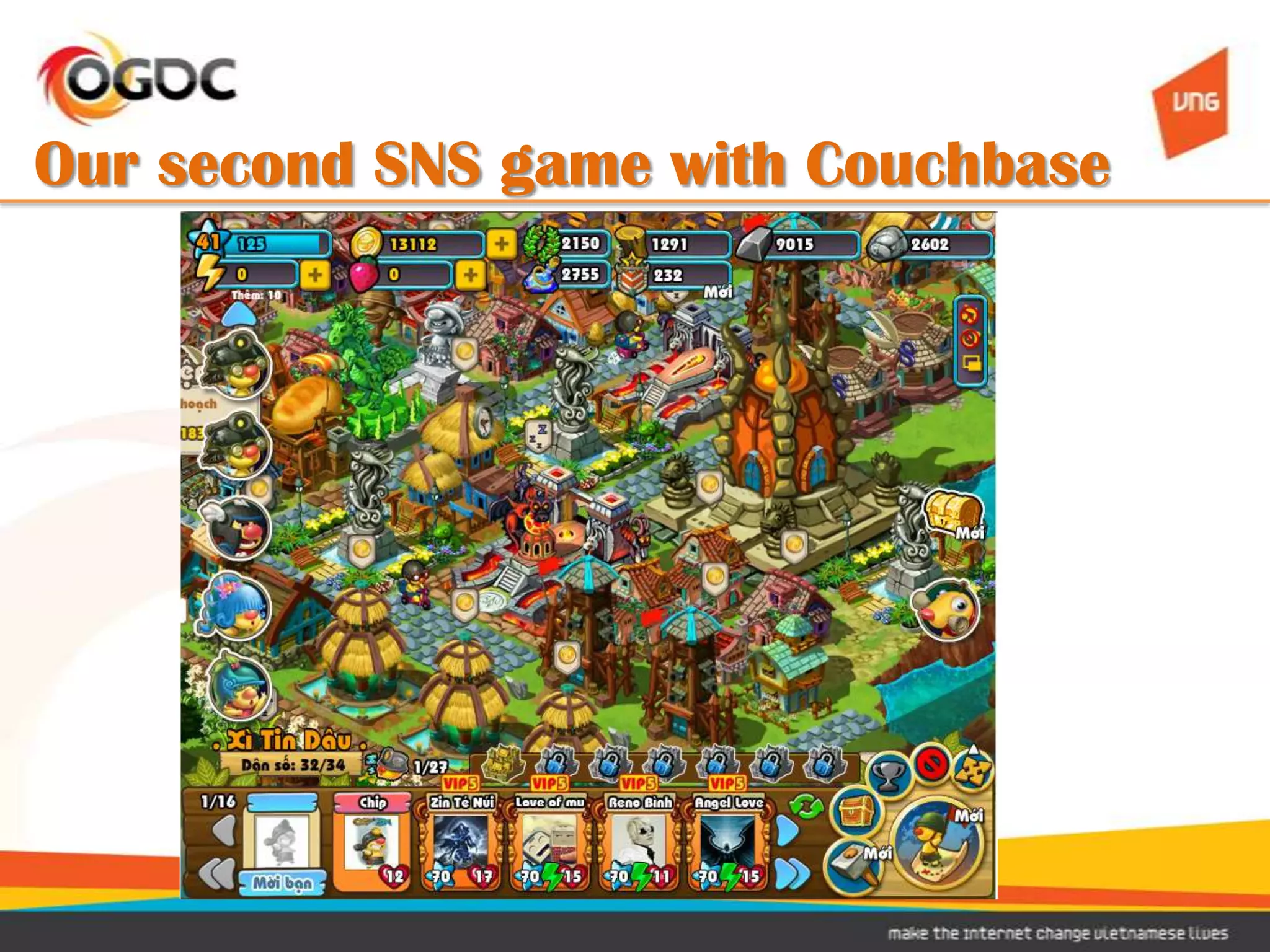

19. Our second SNS game with Couchbase

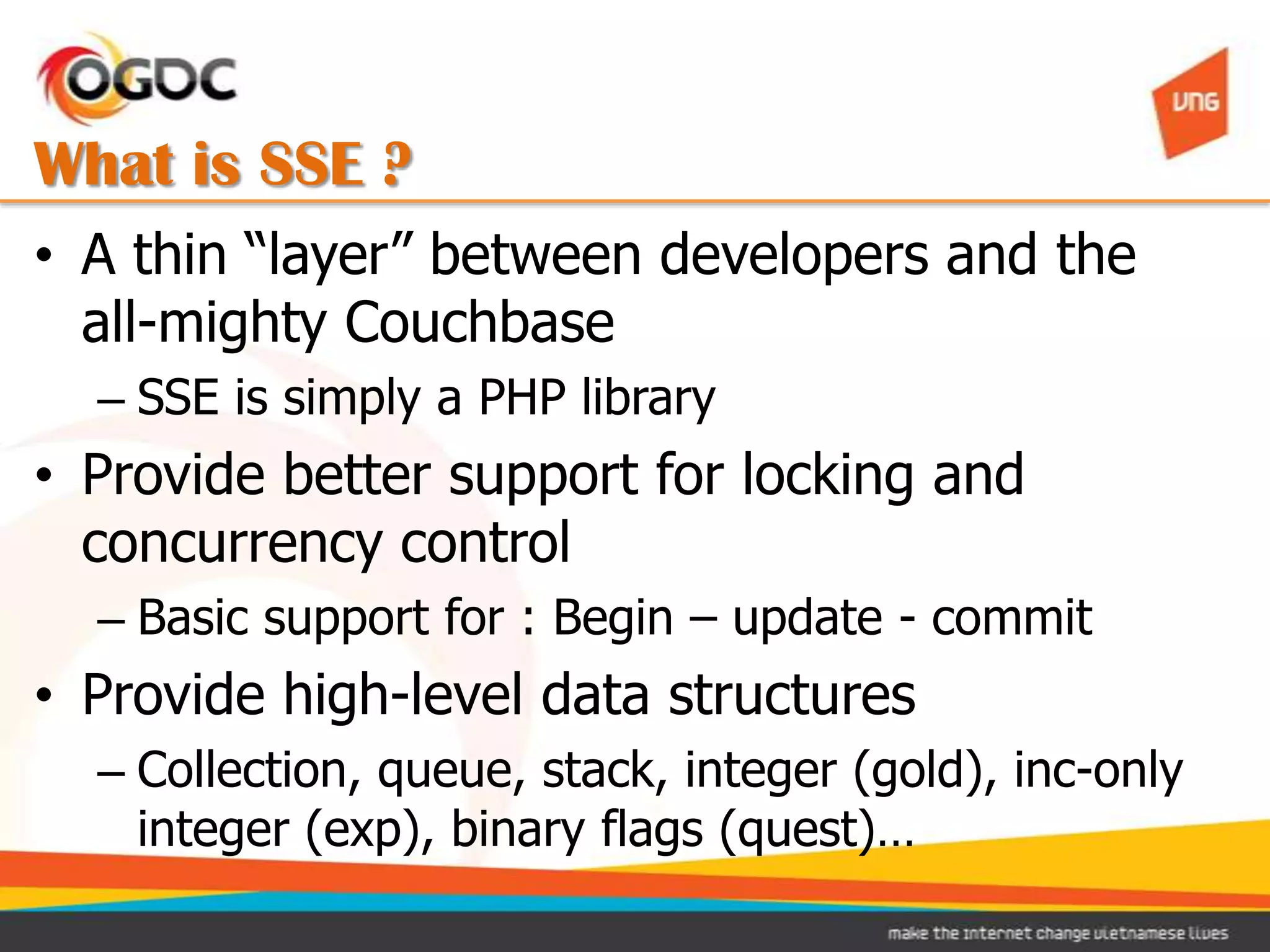

20. What is SSE ?
• A thin “layer” between developers and the
all-mighty Couchbase
– SSE is simply a PHP library
• Provide better support for locking and
concurrency control
– Basic support for : Begin – update - commit
• Provide high-level data structures
– Collection, queue, stack, integer (gold), inc-only
integer (exp), binary flags (quest)…

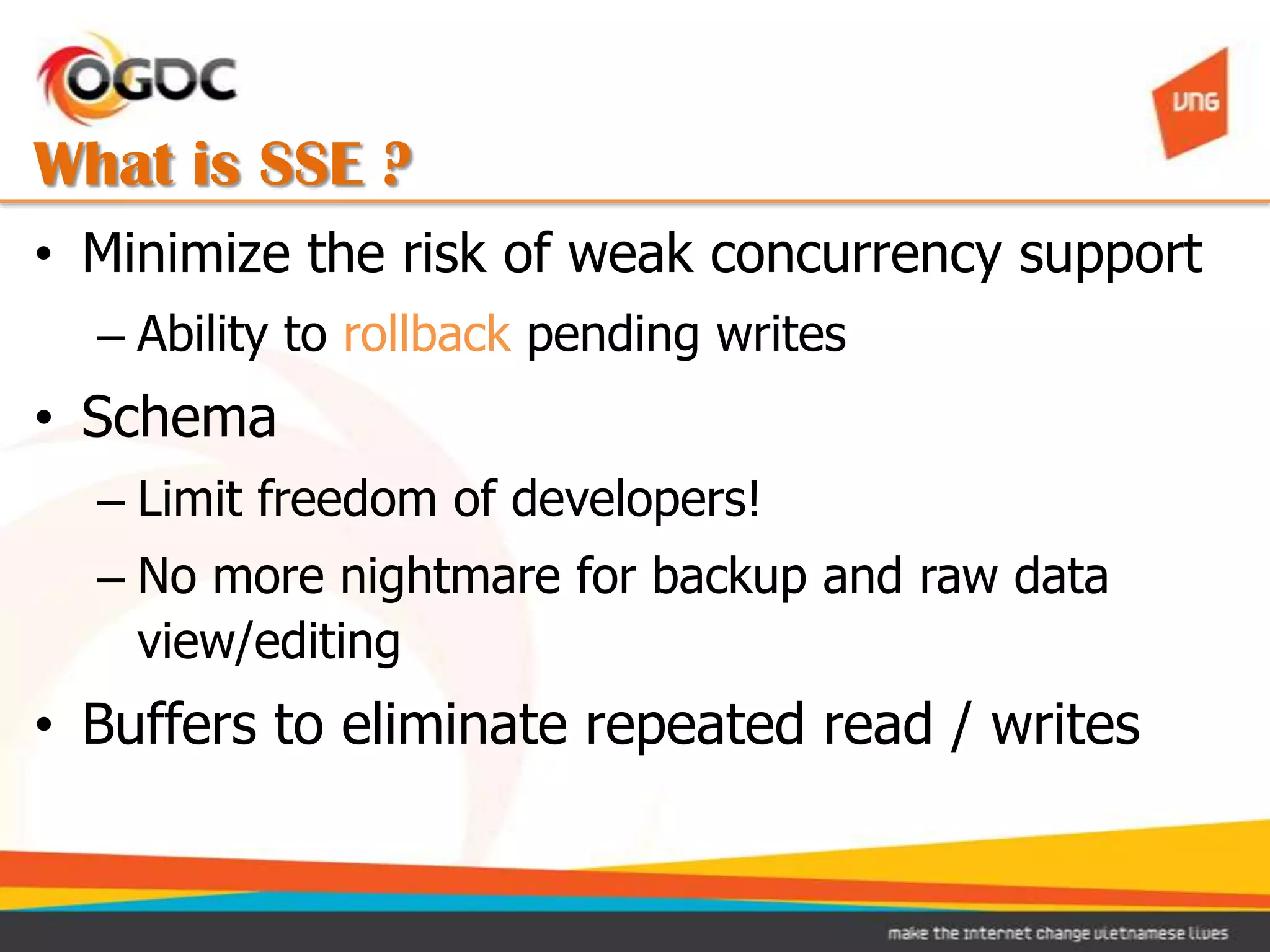

21. What is SSE ?
• Minimize the risk of weak concurrency support
– Ability to rollback pending writes
• Schema
– Limit freedom of developers!
– No more nightmare for backup and raw data
view/editing
• Buffers to eliminate repeated read / writes

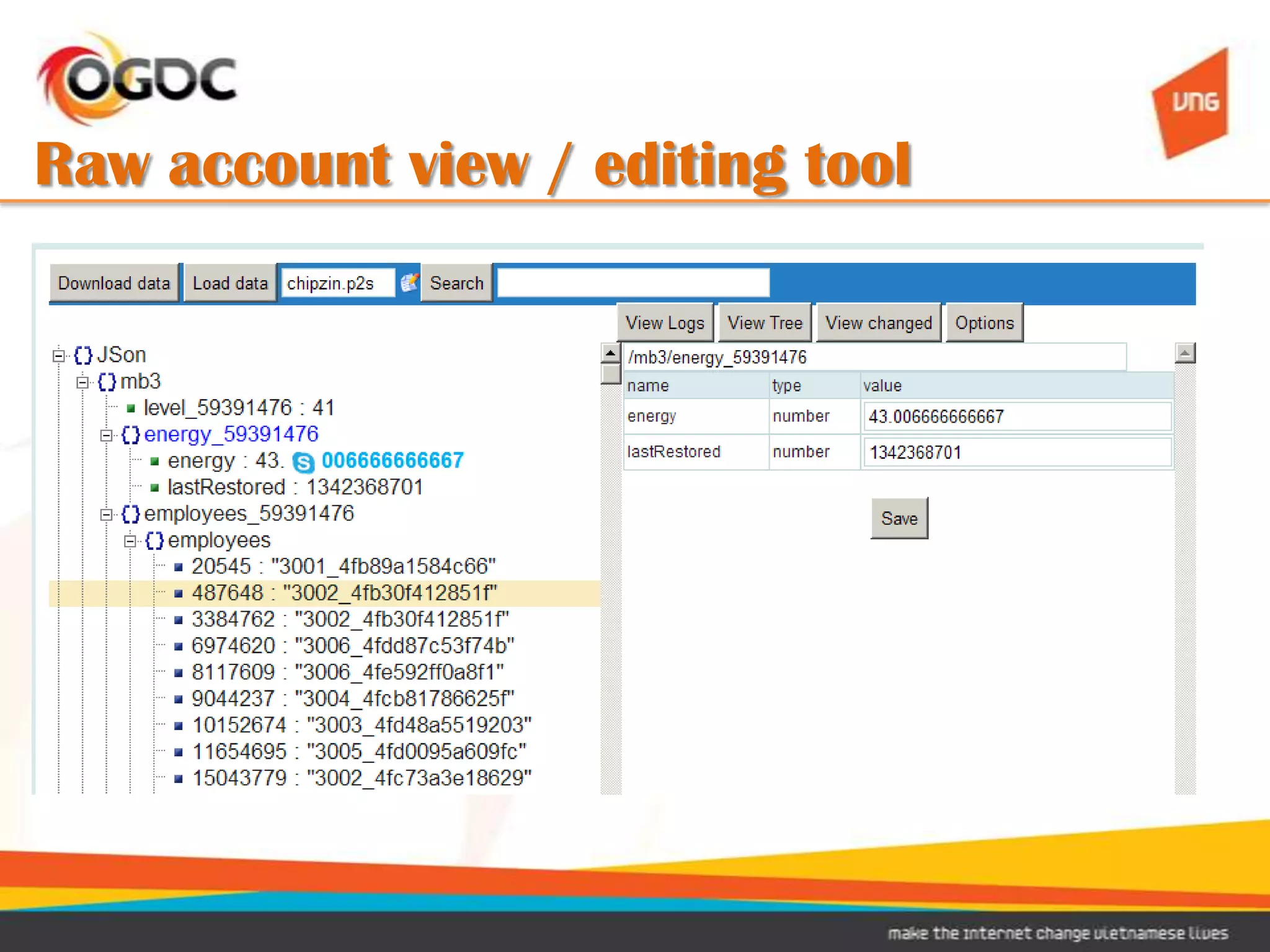

22. Raw account view / editing tool

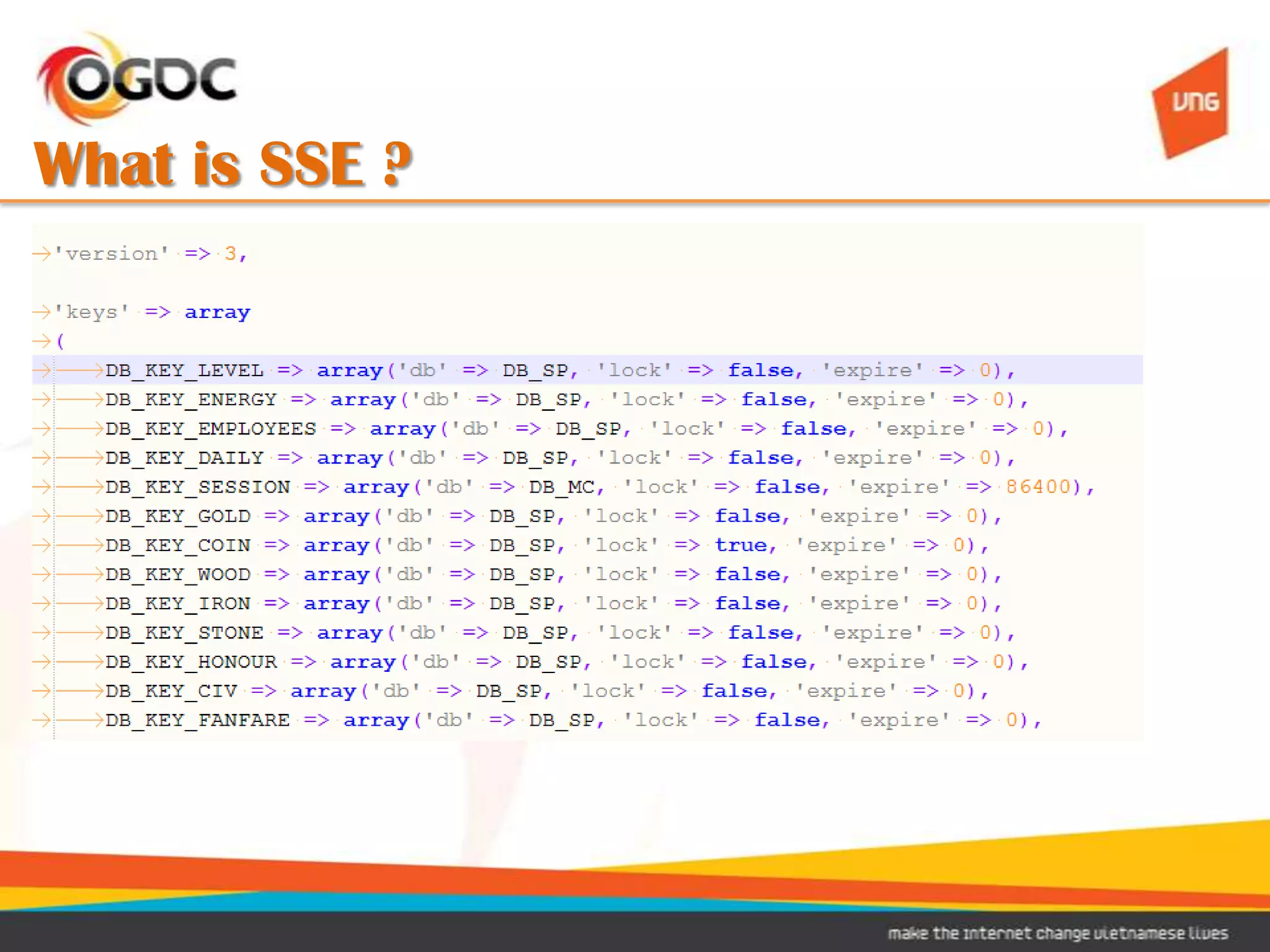

23. What is SSE ?

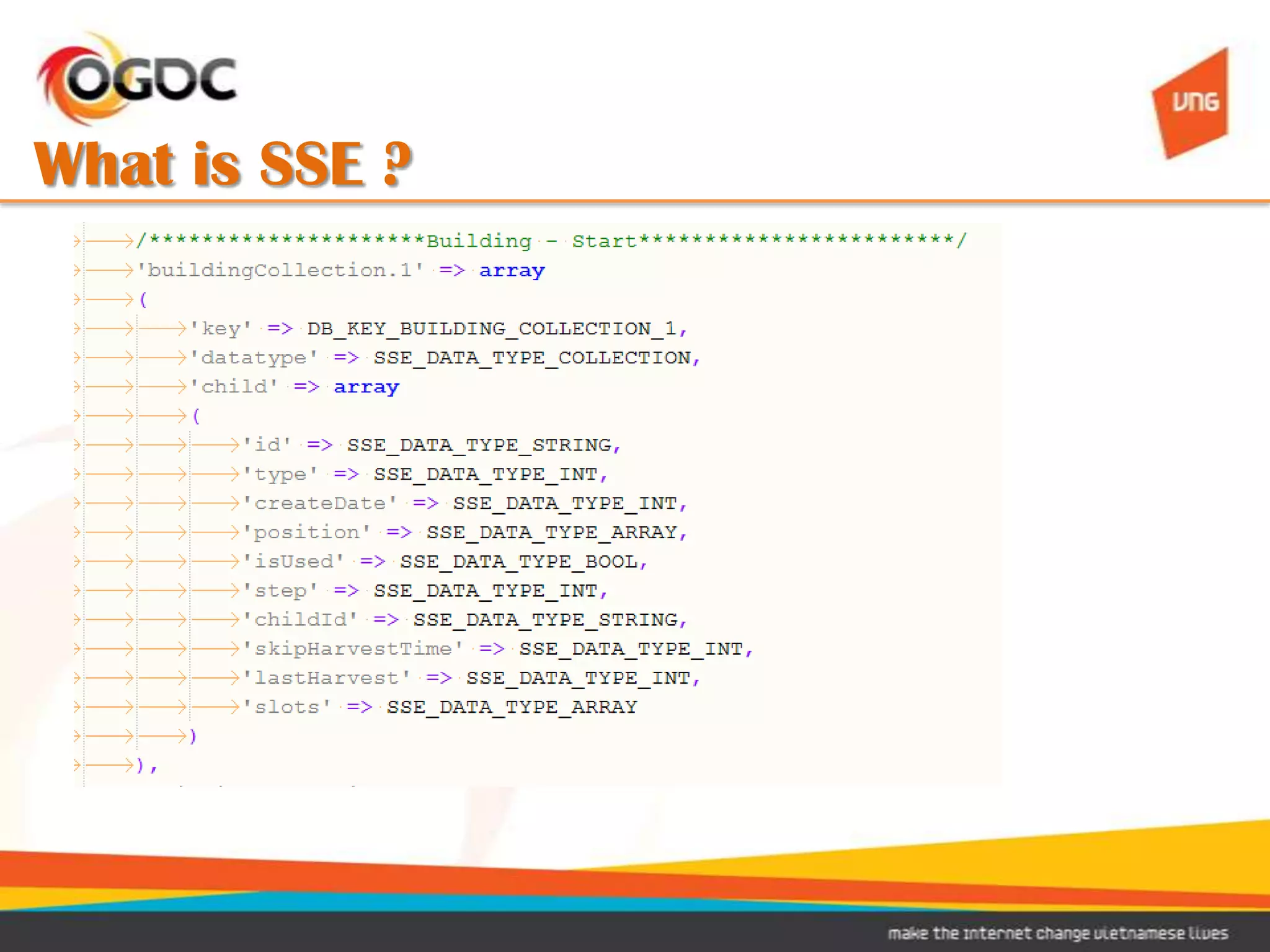

24. What is SSE ?

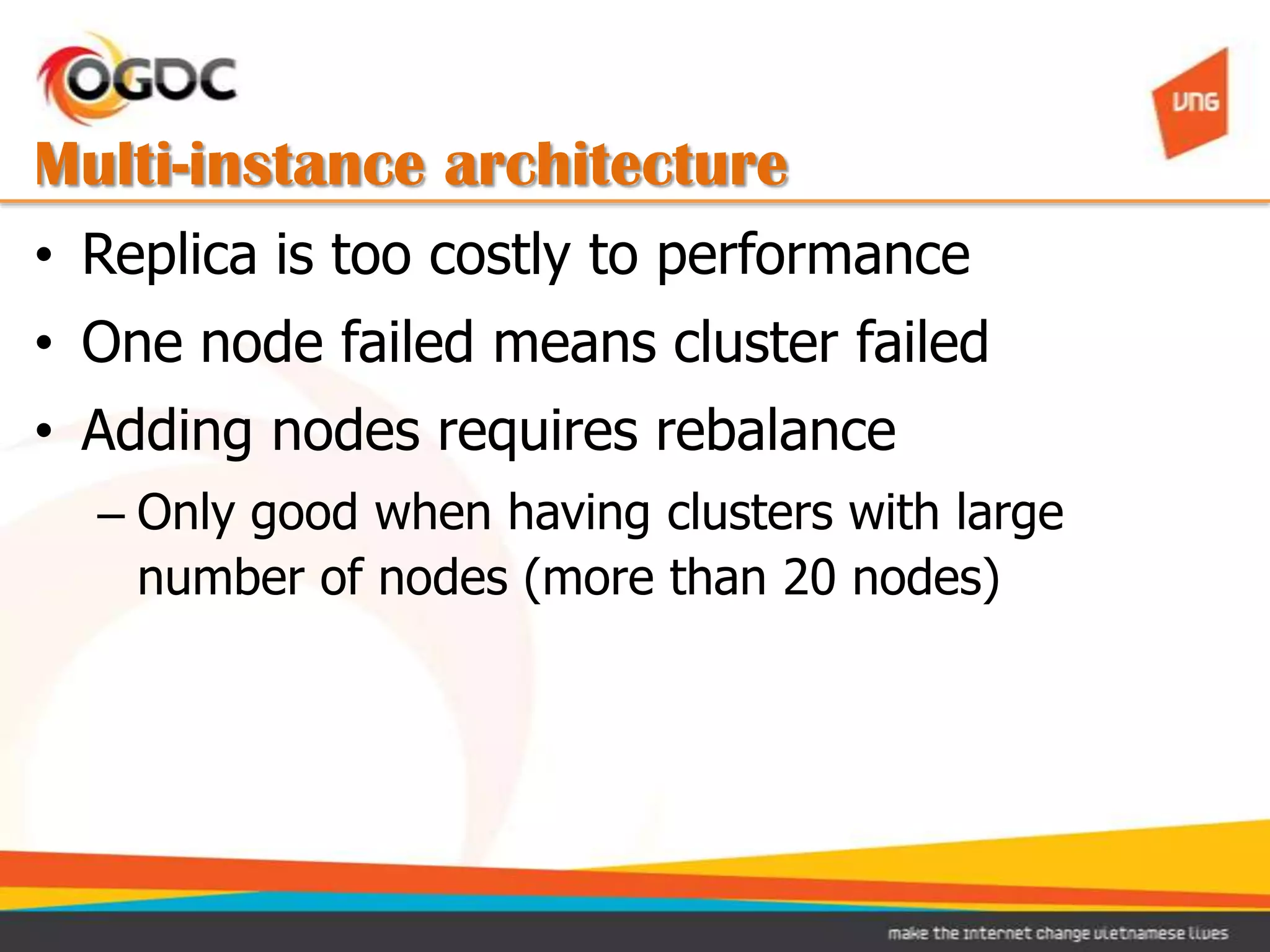

25. Multi-instance architecture
• Replica is too costly to performance
• One node failed means cluster failed
• Adding nodes requires rebalance
– Only good when having clusters with large
number of nodes (more than 20 nodes)

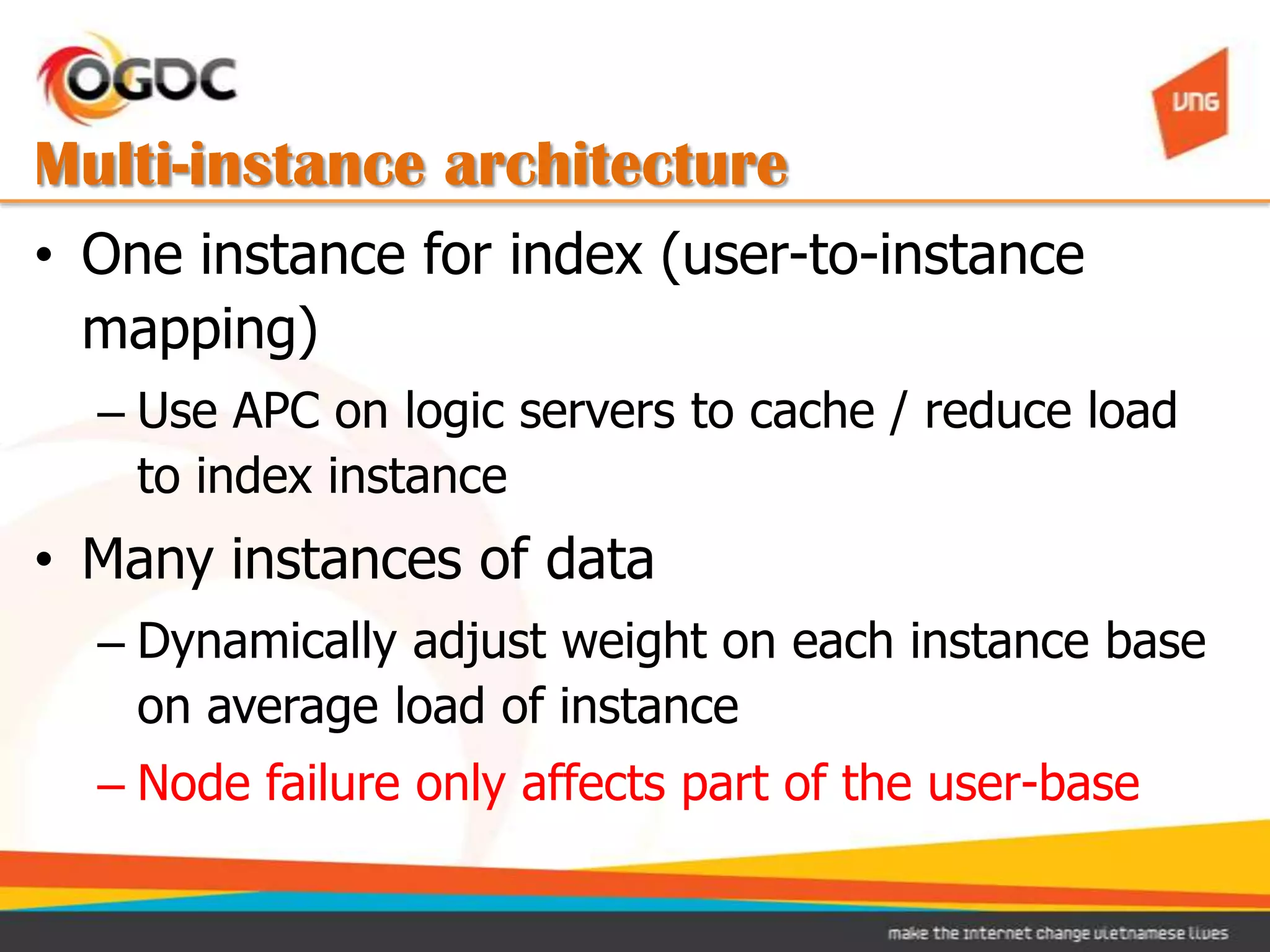

26. Multi-instance architecture
• One instance for index (user-to-instance
mapping)
– Use APC on logic servers to cache / reduce load
to index instance
• Many instances of data
– Dynamically adjust weight on each instance base
on average load of instance
– Node failure only affects part of the user-base

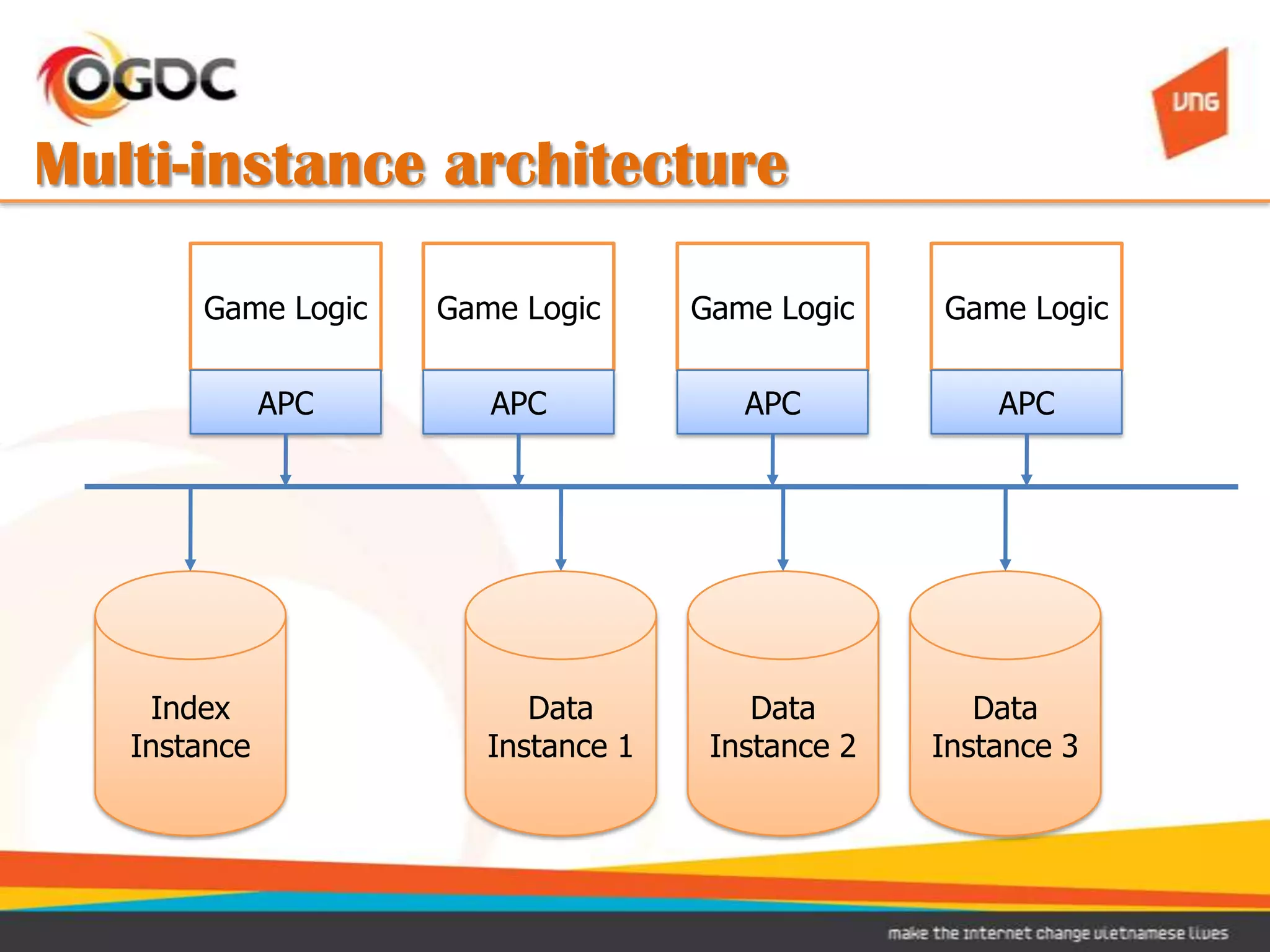

27. Multi-instance architecture
Game Logic Game Logic Game Logic Game Logic
APC APC APC APC
Index Data Data Data
Instance Instance 1 Instance 2 Instance 3

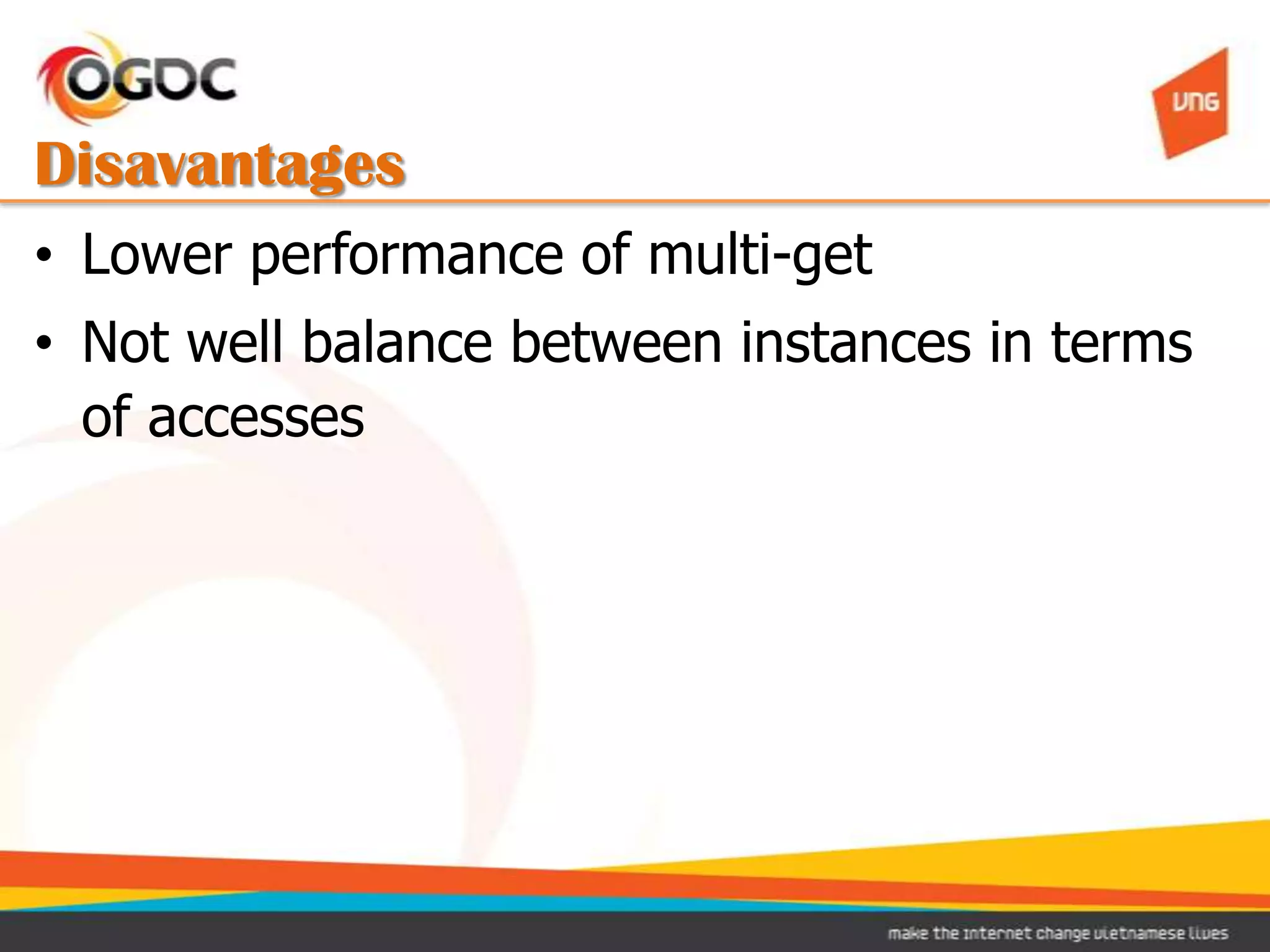

28. Disavantages
• Lower performance of multi-get
• Not well balance between instances in terms
of accesses

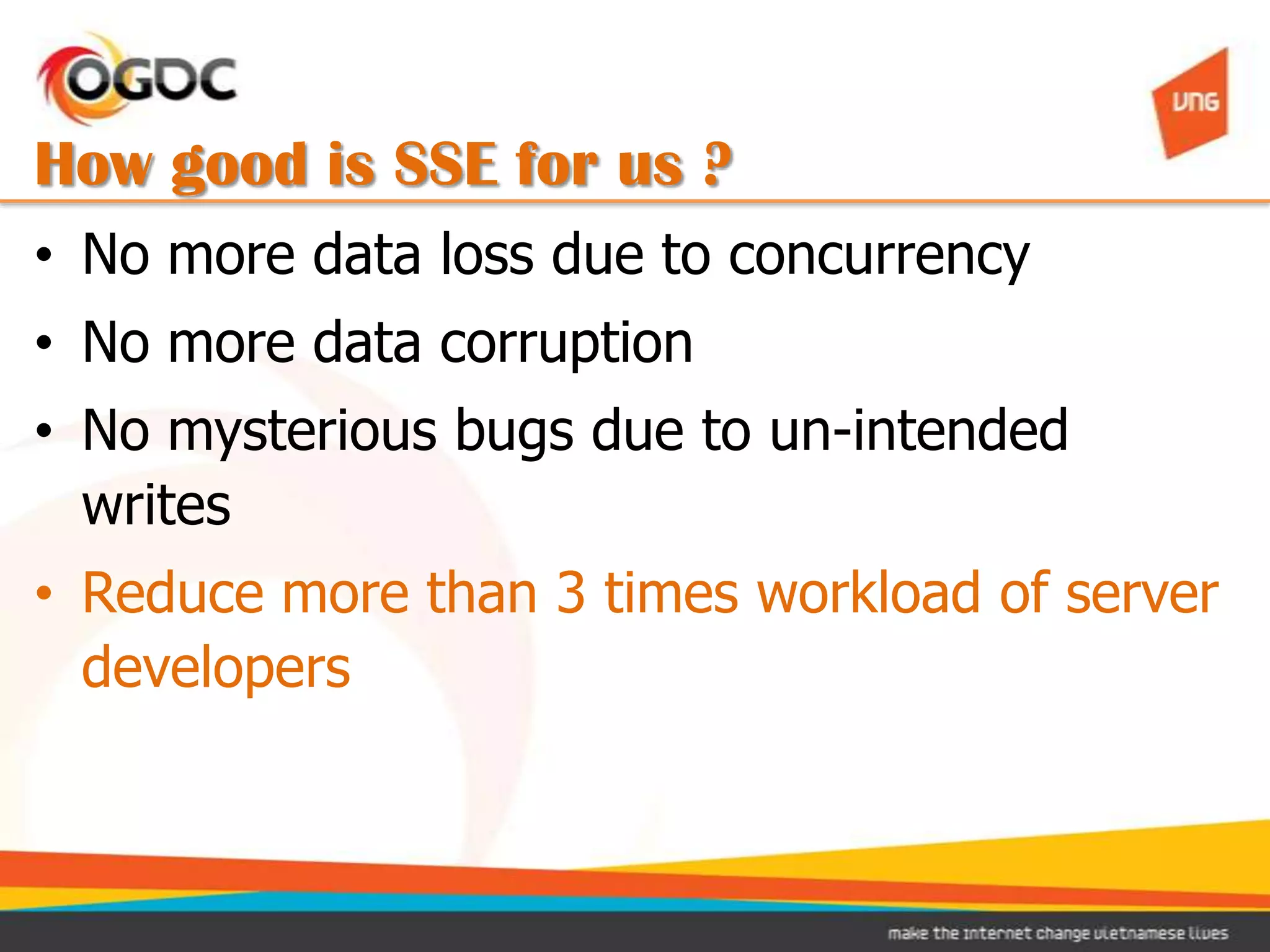

29. How good is SSE for us ?
• No more data loss due to concurrency
• No more data corruption
• No mysterious bugs due to un-intended
writes
• Reduce more than 3 times workload of server
developers
