Datasheet
ESR300
• Wireless N300 speed
• Up to 300Mbps
• Fast Ethernet wired speed and EnShare™
• Industry-standard security
The EnGenius ESR300 is a 2.4GHz wireless N300 router with a Fast Ethernet WAN port and a
built-in 4-Port Fast Ethernet switch for connecting home entertainment devices like HDTVs, Blu-ray
players, set top boxes or game consoles so they can access a family’s Internet connection. This
high-powered X-Tra Range™ pod-shaped router also includes a USB port for attaching a storage
device and sharing media content in the home or away from home to mobile devices like
smartphones or tablet and laptop PCs with EnShare™— Your personal cloud.
X-Tra range™ — The ESR300’s high transmit power capability is designed to deliver extended
range and expanded coverage so your family can connect more devices throughout your home.
The ESR300 features wireless speeds up to 300Mbps and supports several security features and
settings. This including industry standard wireless encryption, such as WPA/WPA2 (Wireless
Protected Access) to prevent unauthorized access to the home network; an advanced SPI (Stateful
Packet Inspection) firewall to block malicious software from the Internet from accessing networked
devices; MAC address filtering to grant only known computers and devices network access; and URL
filtering to block access to unwanted or offensive websites.
Users can also enable up to four separate and discrete SSIDs (Service Set Identifiers) or ways to
access the network. This gives families the ability to offer friends or visitors Internet access or access
to specific devices, like networked printers, while protecting other networked computers or hard
drives in the home that may contain private information.
This ESR300 router also employs intelligent QoS (Quality of Service) to prioritize
bandwidth-intensive applications. Think about video and gaming or bandwidth sensitive
applications like VoIP (Voice over IP) telephone calls for optimal connectivity whether over wired
or wireless connections.
Key features
EnGenius Europe | Veldzigt 28, 3454 PW De Meern, The Netherlands
0900-9434222 (0900-WIFIABC) | www.engenius-europe.com
Disclaimer: Information may be subject to changes without prior notification
https://www.linkedin.com/company/engeniuseurope
https://plus.google.com/+EngeniusEuropeBVDeMeern
https://www.youtube.com/user/engeniuseuropebv
https://twitter.com/engeniuseu
Datasheet
ESR300
Physical interface
1* 10/100Mbps WAN port
4* 10/100Mbps LAN port
1* USB 2.0 Host port
1* WPS bottom
1* Reset bottom
RF specification
Frequency band 2.4GHz
Data rate
Up to 300Mbps
Power specification
12V/1A
Wireless Specification
IEEE802.11b/g/n
Wireless band: 2.4GHz
2* Internal high performance PIFA antennas
Tx Output power: 18dBm (max.)
Frequency band: 2.412~2.472GHz, 13CH
Rx sensibility: -92dBm (max.)
Hardware specification
Dimension:
161.5 x 41.5mm (Diameter x Height)
Power adapter: 12V/1A
Wireless features
Auto channel selection
Output power control
WMM (Wireless Multimedia)
MSSID (Multiple SSID)
Software
Operation modes
Access point router/WDS
Wireless/Network
Auto channel selection
Output Power control
WMM (WiFi Multimedia)
MSSID (multiple SSID)
Security
WEP/WPA-PSK/WPA2-PSK
TKIP/AES
Hidden SSID
MAC address filtering
802.1X Authentication
DDoS
DHCP Server/Client
SPI (Stateful Packet Inspection)
NAT
Port forwarding
DMZ
Port mapping/triggering
VPN Server (PPTP/L2TP/IPSec/L2TP over IPSec)
VPN Client (PPTP/L2TP)
VPN Pass-through (PPTP/L2TP/IPSec)
Rule Based (IP Address ranges, Port Block ICMP
VPN Tunnel (Maximum 5)
QoS
IP filtering
Port filtering
DDNS
IPv6 Pass-through
MAC clone
Traffic monitor
WAN type
PPPoE
DHCP
Static IP
USB features
SAMBA
Environment & mechanical
Operating temperature: 0°C ~ 40°C
Humidity: 90% or less (non-condensing)
Storage temperature: -20°C~60°C
Humidity: 95% or less (non condensing)

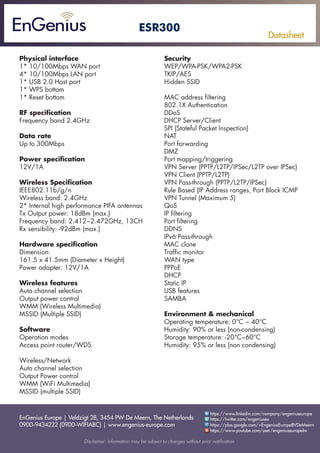

Datasheet ESR300
