The EnGenius ESR350 is a wireless N300 router that provides wireless speeds up to 300Mbps and supports several security features. It has a Gigabit WAN port for fast internet speeds and a 4-port Gigabit switch. The router also has a USB port for sharing media content on mobile devices. Key features include extended wireless range, support for up to four SSIDs, and QoS to prioritize bandwidth-intensive applications like video calls.

1. EnGenius Europe | Veldzigt 28, 3454 PW De Meern, The Netherlands
0900-9434222 (0900-WIFIABC) | www.engenius-europe.com
Disclaimer: Information may be subject to changes without prior notification
https://www.linkedin.com/company/engeniuseurope
https://plus.google.com/+EngeniusEuropeBVDeMeern
https://www.youtube.com/user/engeniuseuropebv
https://twitter.com/engeniuseu

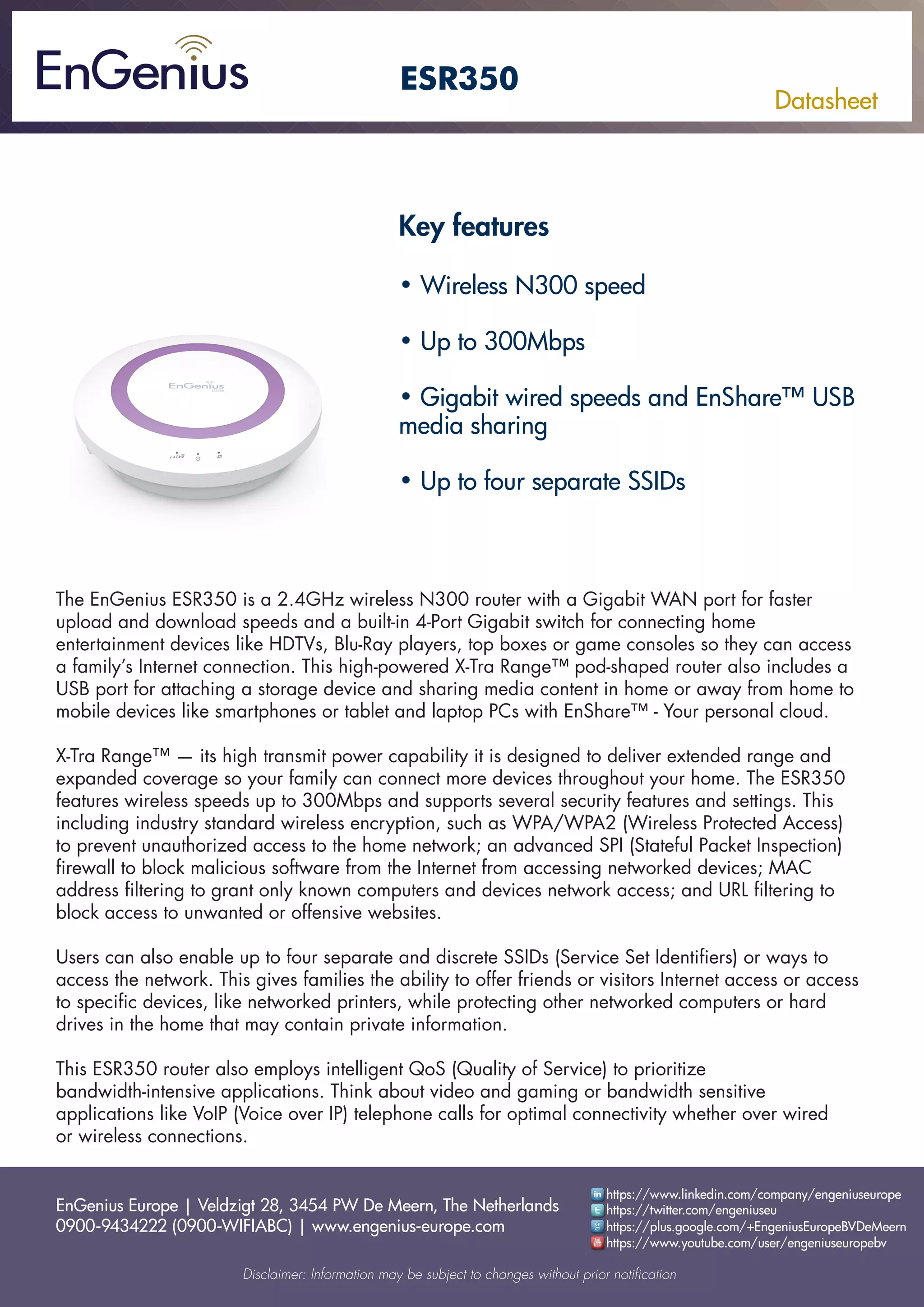

Datasheet
ESR350
• Wireless N300 speed
• Up to 300Mbps
• Gigabit wired speeds and EnShare™ USB
media sharing
• Up to four separate SSIDs
The EnGenius ESR350 is a 2.4GHz wireless N300 router with a Gigabit WAN port for faster
upload and download speeds and a built-in 4-Port Gigabit switch for connecting home
entertainment devices like HDTVs, Blu-Ray players, top boxes or game consoles so they can access
a family’s Internet connection. This high-powered X-Tra Range™ pod-shaped router also includes a
USB port for attaching a storage device and sharing media content in home or away from home to
mobile devices like smartphones or tablet and laptop PCs with EnShare™ - Your personal cloud.
X-Tra Range™ — its high transmit power capability it is designed to deliver extended range and
expanded coverage so your family can connect more devices throughout your home. The ESR350
features wireless speeds up to 300Mbps and supports several security features and settings. This
including industry standard wireless encryption, such as WPA/WPA2 (Wireless Protected Access)
to prevent unauthorized access to the home network; an advanced SPI (Stateful Packet Inspection)
firewall to block malicious software from the Internet from accessing networked devices; MAC
address filtering to grant only known computers and devices network access; and URL filtering to
block access to unwanted or offensive websites.
Users can also enable up to four separate and discrete SSIDs (Service Set Identifiers) or ways to
access the network. This gives families the ability to offer friends or visitors Internet access or access
to specific devices, like networked printers, while protecting other networked computers or hard
drives in the home that may contain private information.
This ESR350 router also employs intelligent QoS (Quality of Service) to prioritize
bandwidth-intensive applications. Think about video and gaming or bandwidth sensitive
applications like VoIP (Voice over IP) telephone calls for optimal connectivity whether over wired
or wireless connections.
Key features

2. EnGenius Europe | Veldzigt 28, 3454 PW De Meern, The Netherlands
0900-9434222 (0900-WIFIABC) | www.engenius-europe.com
Disclaimer: Information may be subject to changes without prior notification
https://www.linkedin.com/company/engeniuseurope
https://plus.google.com/+EngeniusEuropeBVDeMeern
https://www.youtube.com/user/engeniuseuropebv
https://twitter.com/engeniuseu
Datasheet
ESR350
Physical Interface
1* 10/100Mbps WAN port
4* 10/100Mbps LAN port
1* USB 2.0 Host port
1* WPS bottom
1* Reset bottom
RF specification
Frequency band 2.4GHz
Data rate
Up to 300Mbps
Power specification
12V/1A
Wireless specification
IEEE802.11b/g/n
Wireless band: 2.4GHz
2* Internal high performance PIFA antennas
Tx output power: 18dBm (MAX.)
Frequency band: 2.412~2.472GHz, 13CH
Rx sensibility: -92dBm (MAX.)
Hardware specification
Dimension
161.5 x 41.5mm (Diameter x Height)
Power adapter: 12V/1A
Wireless features
Auto channel selection
Output power control
WMM (Wireless Multimedia)
MSSID (Multiple SSID)
Software
Operation modes
Access point router/WDS
Wireless/Network
Auto channel selection
Output Power control
WMM (WiFi Multimedia)
MSSID (multiple SSID)
Security
WEP/WPA-PSK/WPA2-PSK
TKIP/AES
Hidden SSID
MAC address filtering
802.1X authentication
DDoS
DHCP Server/Client
SPI (Stateful Packet Inspection)
NAT
Port forwarding
DMZ
Port mapping/triggering
VPN Server (PPTP/L2TP/IPSec/L2TP over IPSec)
VPN Client (PPTP/L2TP)
VPN Pass-through (PPTP/L2TP/IPSec)
Rule Based (IP Address Ranges, Port Block ICMP
VPN Tunnel (Maximum 5)
QoS
IP filtering
Port filtering
DDNS
IPv6 Pass-through
MAC clone
Traffic monitor
WAN type
PPPoE
DHCP
Static IP
USB features
SAMBA
Environment & mechanical
Operating temperature: 0°C ~ 40°C
Humidity: 90% or less (non-condensing)
Storage temperature: -20°C~60°C
Humidity: 95% or less (non condensing)
