The AXIS C3003-E is a network horn speaker designed for clear remote speaking in video surveillance applications. It provides high sound pressure over long distances using a single network cable for power and audio. The speaker is outdoor-rated and has features like auto speaker test and support for major video management software.

1. www.axis.com
AXIS C3003-E
Network Horn Speaker.
Clear and simple
April 2015

2. www.axis.com

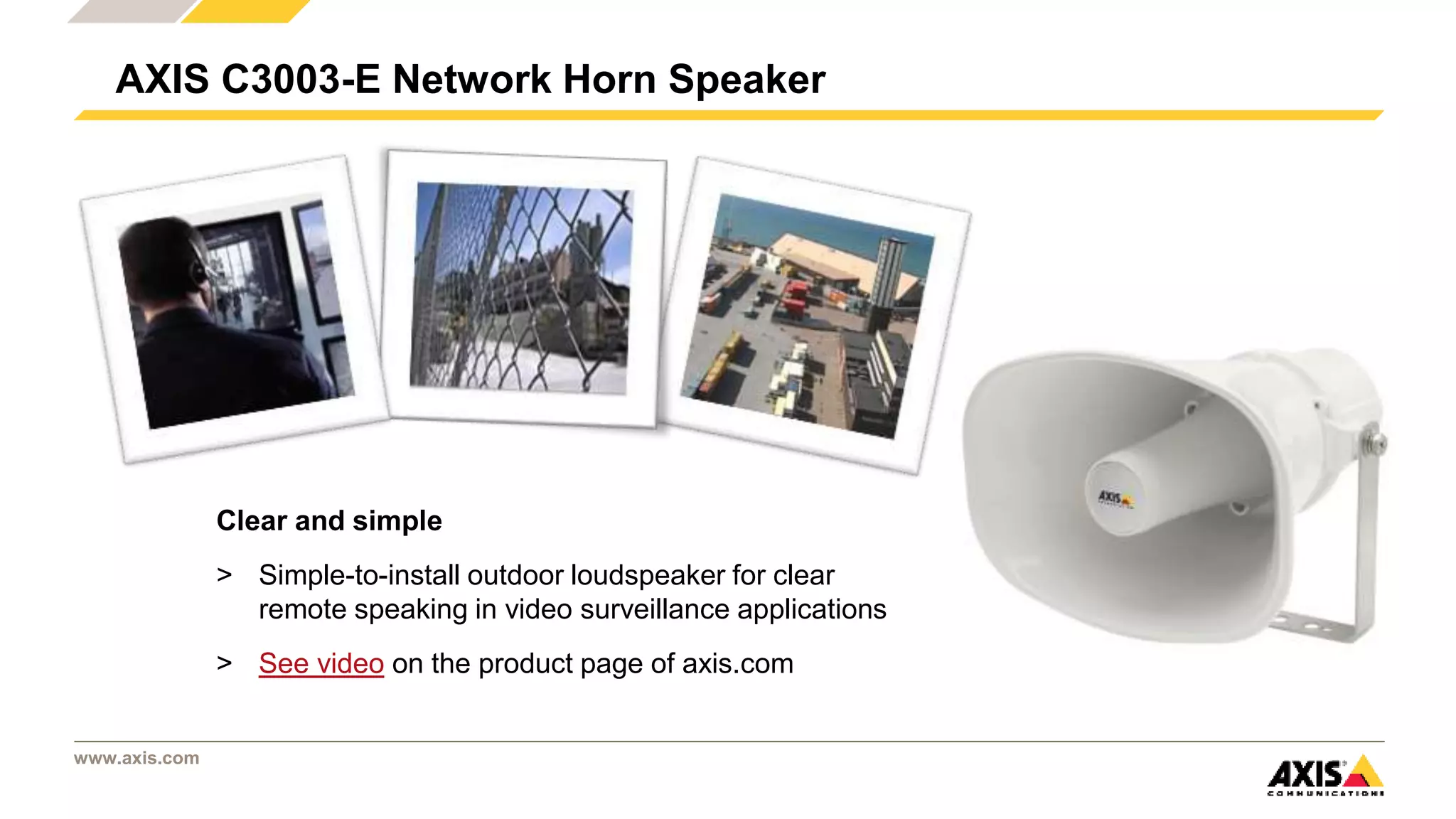

AXIS C3003-E Network Horn Speaker
Clear and simple
> Simple-to-install outdoor loudspeaker for clear
remote speaking in video surveillance applications
> See video on the product page of axis.com

3. www.axis.com
> Clear speech over long distances
– High sound pressure greater than 121 dB
> Simple installation with power and audio over
a single network cable
> Compatible with major video management software
and SIP-based VoIP systems
> Ensured reliability with Auto Speaker Test
> Outdoor-ready
> Address individual speaker from anywhere
with network connectivity
AXIS C3003-E – Clear and simple

4. www.axis.com
A speaker for remote speaking applications
> Perimeter protection
– Parking lots
– Critical infrastructure
– Construction sites
– City surveillance
> Ideal for use with video
surveillance and intelligent
video analytics
– E.g. video motion detection
and cross line detection

5. www.axis.com

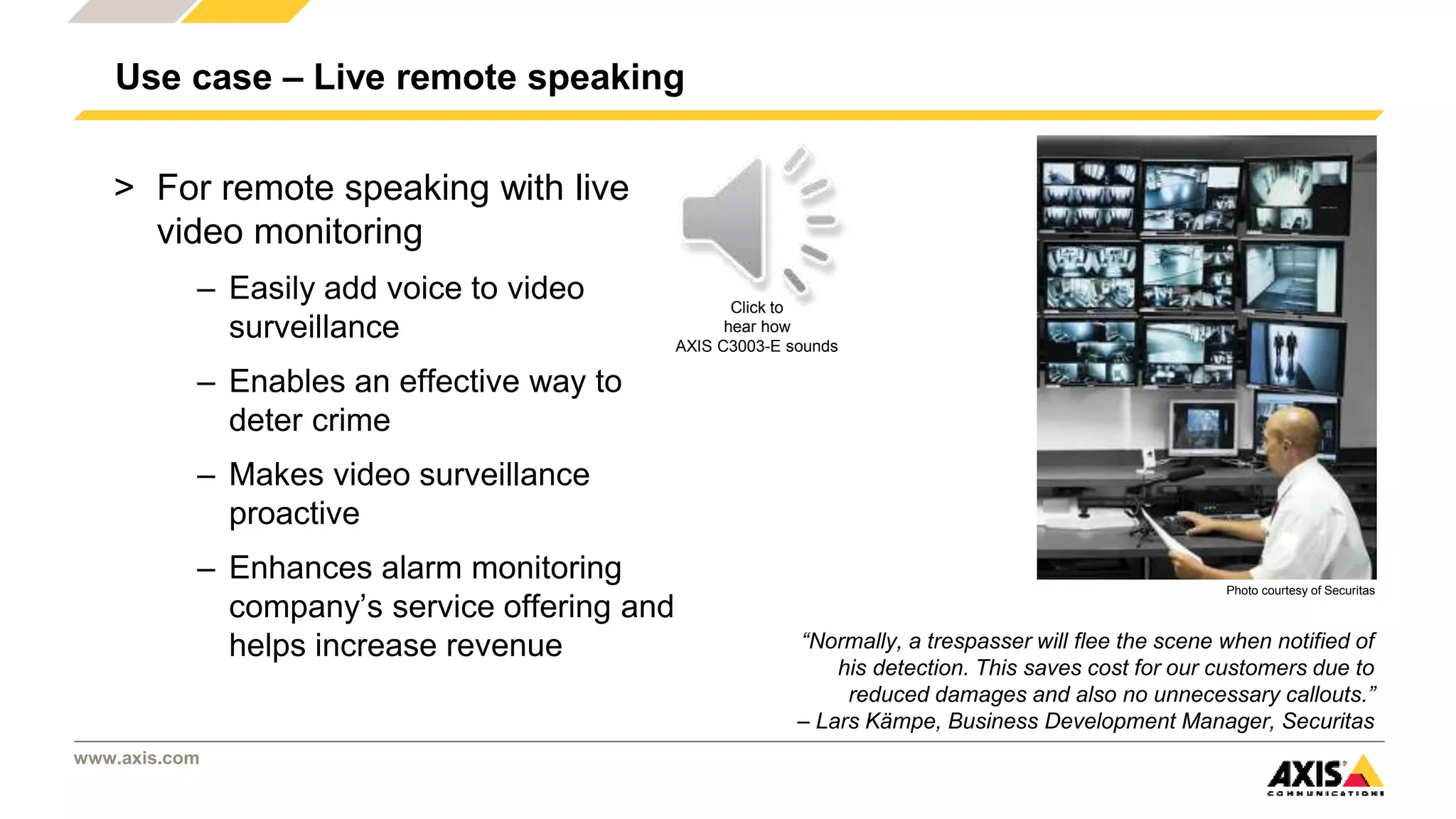

Use case – Live remote speaking
> For remote speaking with live
video monitoring
– Easily add voice to video
surveillance
– Enables an effective way to
deter crime
– Makes video surveillance
proactive
– Enhances alarm monitoring
company’s service offering and
helps increase revenue “Normally, a trespasser will flee the scene when notified of
his detection. This saves cost for our customers due to
reduced damages and also no unnecessary callouts.”
– Lars Kämpe, Business Development Manager, Securitas
Click to
hear how
AXIS C3003-E sounds
Photo courtesy of Securitas

6. www.axis.com
Use case – Playing pre-recorded audio
> Pre-recorded audio file can be played
when manually or automatically
triggered in response to an alarm
event
– When integrated as part of an event
action, AXIS C3003-E can help deter
suspicious activity in an automatic
way

7. www.axis.com
Clear message that is easily heard
> High sound pressure enables intelligible
speech up to 75 m (250 ft.)* away in outdoor
environment
– 121 dB with little power consumption
> Superior audio quality, thanks to signal
processing
> High power efficiency
– Built-in Class D amplifier
* Depends on distance and background noise

8. www.axis.com
AXIS C3003-E – Simple system design
Video management software
supporting two-way audio/
SIP-based IP telephony system
PoE switch
AXIS C3003-E
with built-in PoE-driven amplifier
Speech
Data and power
IP network

9. www.axis.com
Flexible installation with a single cable
> Self-contained unit (with signal
processing, amplifier and
speaker) for easy integration
– Can be placed anywhere
> One network cable for
communication and power (PoE)

10. www.axis.com

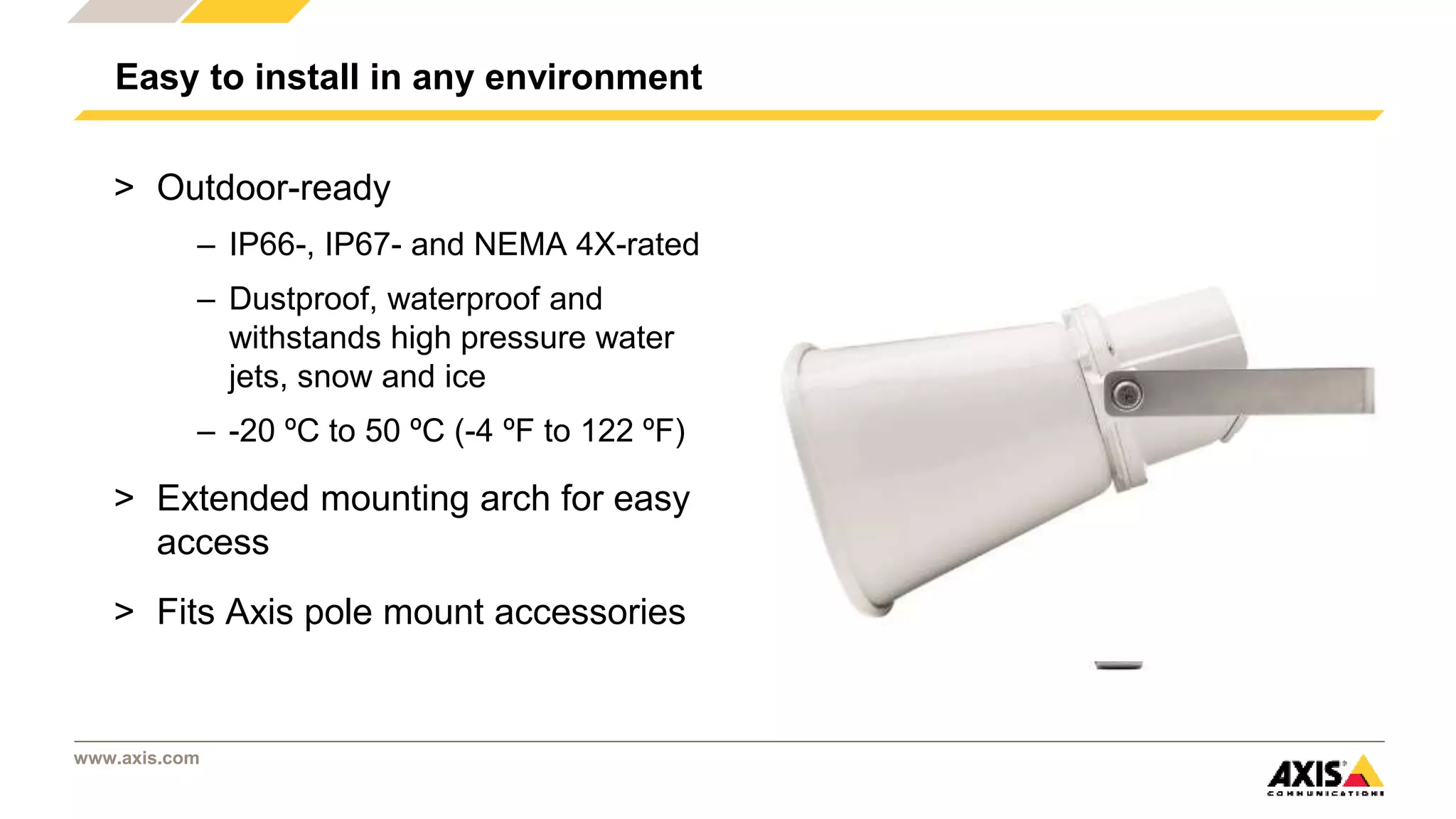

Easy to install in any environment
> Outdoor-ready
– IP66-, IP67- and NEMA 4X-rated
– Dustproof, waterproof and
withstands high pressure water
jets, snow and ice
– -20 ºC to 50 ºC (-4 ºF to 122 ºF)
> Extended mounting arch for easy
access
> Fits Axis pole mount accessories

11. www.axis.com
Easy installation feature
> Set up with a single click
– Executes test tone
to verify and calibrate speaker
– Hold to connect to cloud-based
hosted services
> Microphone for Auto Speaker Test
– Can be disconnected
One-click Connection
Connect network cable
for communication + power
Microphone for use in
Auto Speaker Test

12. www.axis.com
Smart functionalities – Enabled by network intelligence
> Supervision of system
function
– Auto Speaker Test
provides audio feedback
to ensure it is working
– Supervised connection
to every unit
– Health reporting and
logging
> Ability to address
individual speaker since
each has its own IP
address

13. www.axis.com
Smart functionalities – Ability to create events
> Auto Speaker Test can be scheduled

14. www.axis.com

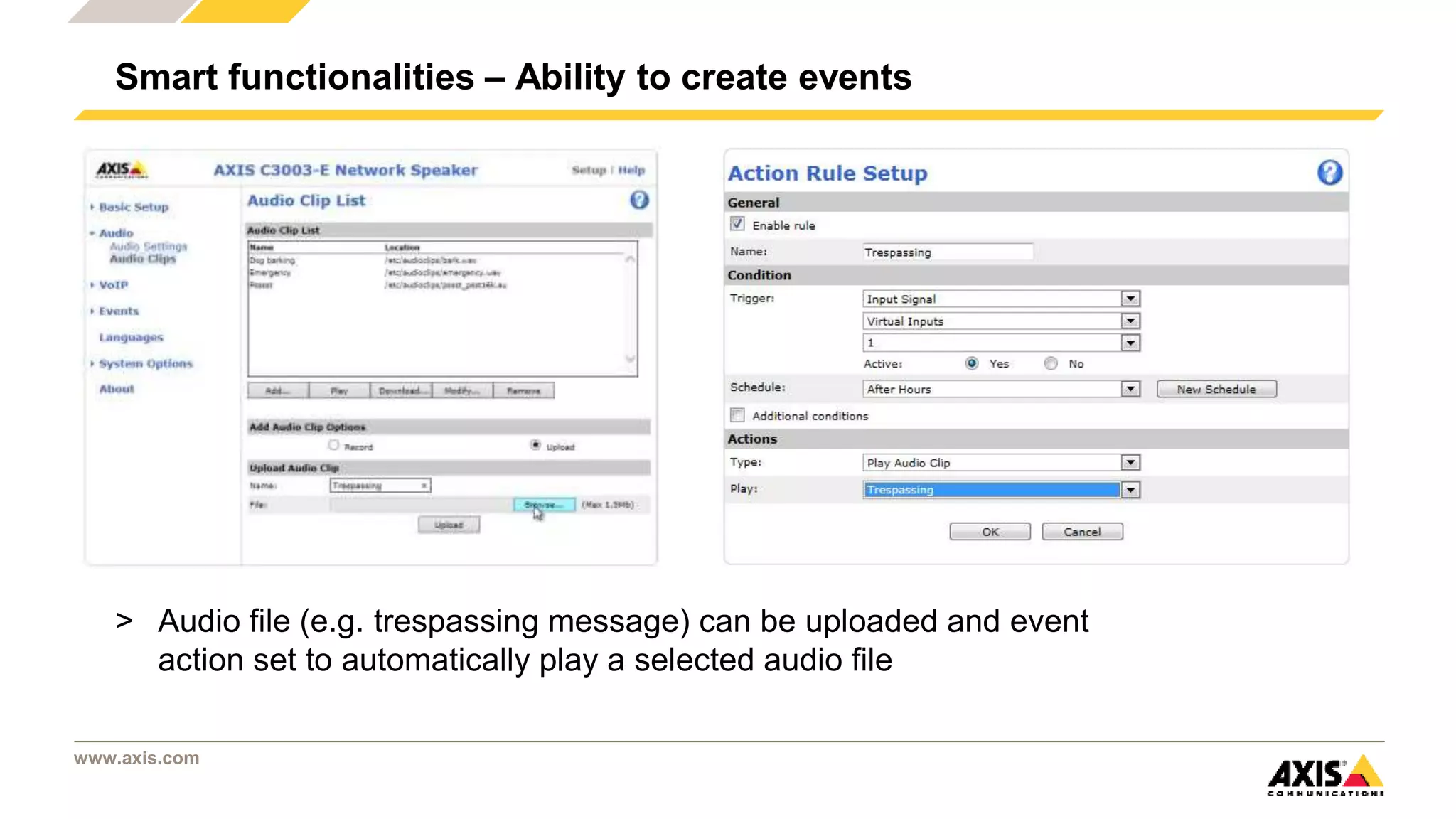

Smart functionalities – Ability to create events
> Audio file (e.g. trespassing message) can be uploaded and event
action set to automatically play a selected audio file

15. www.axis.com

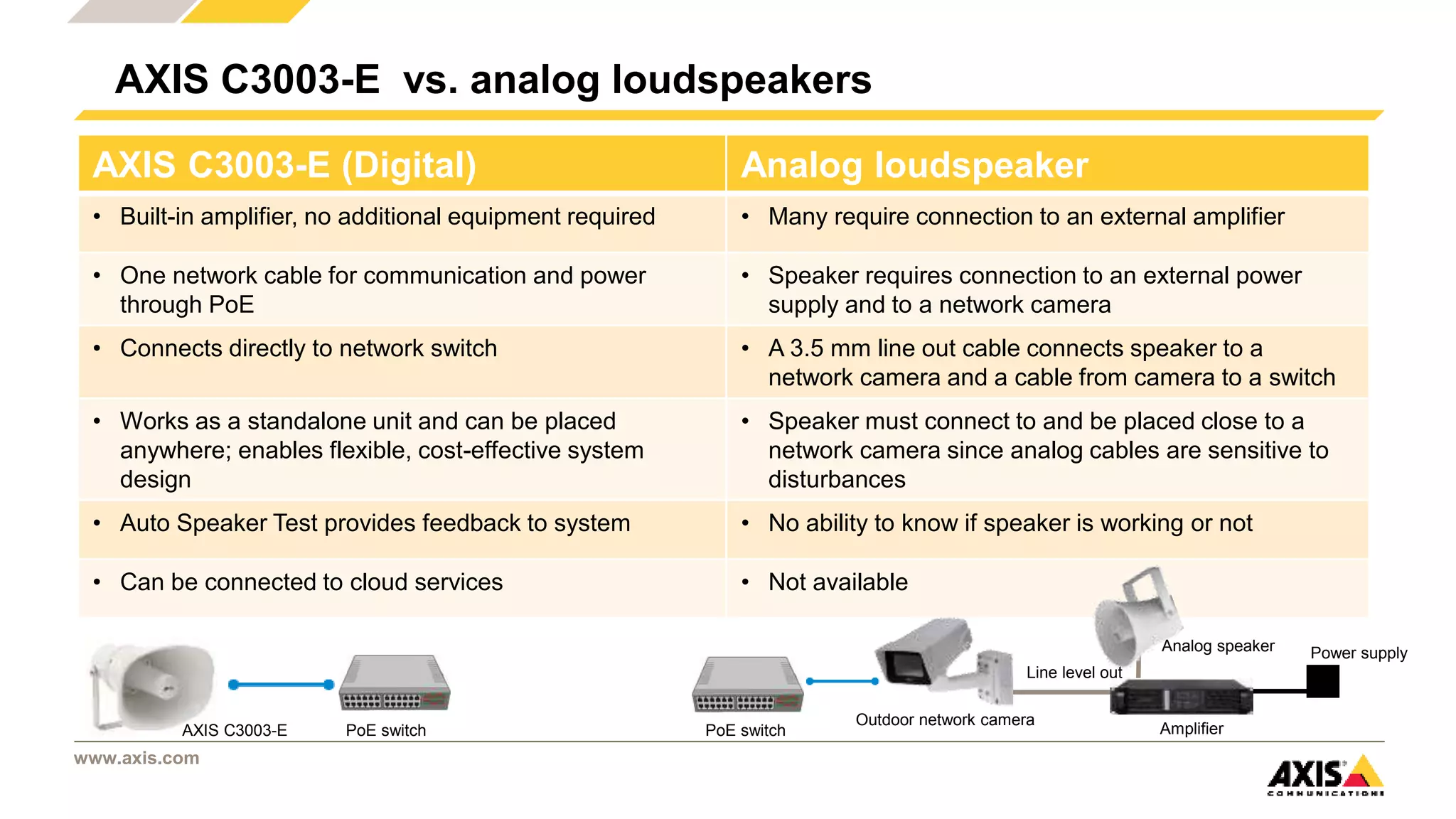

AXIS C3003-E vs. analog loudspeakers
AXIS C3003-E (Digital) Analog loudspeaker
• Built-in amplifier, no additional equipment required • Many require connection to an external amplifier
• One network cable for communication and power
through PoE
• Speaker requires connection to an external power
supply and to a network camera
• Connects directly to network switch • A 3.5 mm line out cable connects speaker to a
network camera and a cable from camera to a switch
• Works as a standalone unit and can be placed
anywhere; enables flexible, cost-effective system
design
• Speaker must connect to and be placed close to a
network camera since analog cables are sensitive to
disturbances
• Auto Speaker Test provides feedback to system • No ability to know if speaker is working or not
• Can be connected to cloud services • Not available
PoE switch
Power supply
Line level out
AmplifierPoE switch
Outdoor network camera
AXIS C3003-E
Analog speaker

16. www.axis.com
> Open Application Programming Interface (API)
for third-party integration
> Supported by video management software (VMS)
from major AXIS Application Development
Partners (ADPs) and forthcoming AXIS Camera
Station 4.20
> Supports SIP (Session Initiation Protocol) for
integration with IP telephony
– Enables remote speaking by assigning
AXIS C3003-E a regular phone number or VoIP
address
Open interfaces for easy integration with VMS and IP telephony

17. www.axis.com
> Utilize existing network infrastructure
> Power equipment with PoE
> Central power redundancy with
Uninterruptible Power Supply (UPS)
> Open API for ease of integration
General benefits of open IP solutions

18. www.axis.com
Optional accessories
> AXIS T91A47 Pole Mount
> AXIS T91C67 Pole Mount
> Cable Gland M20x1.5, RJ45
> Cable Gland A M20
> AXIS Power over Ethernet Midspans

19. www.axis.com

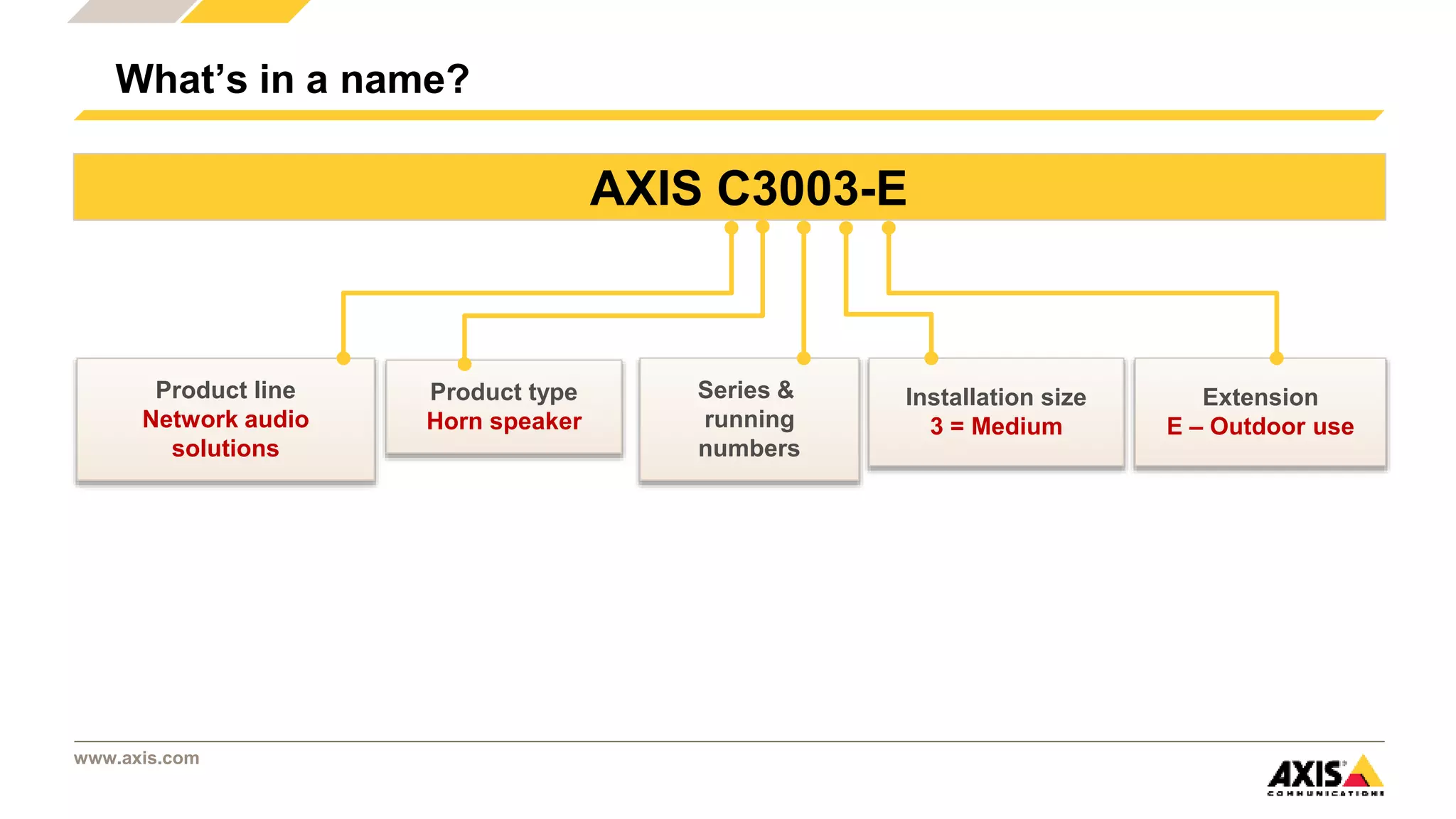

What’s in a name?
AXIS C3003-E
Product line
Network audio
solutions
Series &
running
numbers
Installation size
3 = Medium
Extension
E – Outdoor use
Product type
Horn speaker

20. www.axis.com
