The EAP600 is a dual-band concurrent ceiling mount access point offering up to 600Mbps throughput, designed for both home and small business use. It features multiple operating modes, high power transmission for extended coverage, and various security options including WPA/WPA2. The device is easy to install with a slim design that integrates well with interior spaces.

1. EnGenius Europe | Veldzigt 28, 3454 PW De Meern, The Netherlands
0900-9434222 (0900-WIFIABC) | www.engenius-europe.com
Disclaimer: Information may be subject to changes without prior notification
https://www.linkedin.com/company/engeniuseurope
https://plus.google.com/+EngeniusEuropeBVDeMeern
https://www.youtube.com/user/engeniuseuropebv
https://twitter.com/engeniuseu
Datasheet
EAP600
• Frequency band 2.4GHz + 5GHz
• 300Mbps + 300Mbps
• 4* Internal 5dBi antenna
• AP/WDS mode
The EAP600 is a wireless-11n 600Mbps (300Mbps+300Mbps) high power dual band concurrent
ceiling mount access point. It allows simultaneous operation of 2.4GHz and 5GHz wireless
network. With media-optimized performance, you can enjoy Internet surfing more smoothly, with
less lag.
Maxima 29dBm high power transmission provides extended coverage in your environment.
MSSID+VLAN settings makes your data more secure and easy to manage. Standard PoE
interoperable with 802.3af makes Internet connection more flexible.
The EAP600 designed with a slim and white color outlook, will not violate with your interior
decoration. Multiple mounting types provides user friendly installation. The EAP600 is perfect
choice in home and small business.
Key features

2. EnGenius Europe | Veldzigt 28, 3454 PW De Meern, The Netherlands
0900-9434222 (0900-WIFIABC) | www.engenius-europe.com
Disclaimer: Information may be subject to changes without prior notification
https://www.linkedin.com/company/engeniuseurope
https://plus.google.com/+EngeniusEuropeBVDeMeern
https://www.youtube.com/user/engeniuseuropebv
https://twitter.com/engeniuseu

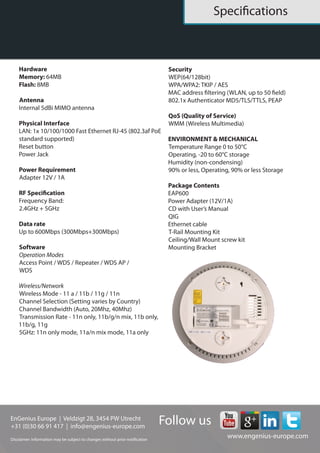

Datasheet
EAP600
Hardware
Memory: 64MB
Flash: 8MB
Antenna
4* Internal 5dBi MIMO antenna
Physical interface
LAN: 1* 10/100/1000 Gigabit
(802.3af PoE standard supported)
Reset button
Power jack
Power requirement
Adapter: 12V/1A
Frequency band
2.4GHz + 5GHz
Data rate
Up to 600Mbps (300Mbps+300Mbps)
Software
Operation modes
Access point/WDS/WDS/AP/WDS Bridge
Wireless/Network
Wireless mode - 11 a / 11b / 11g / 11n
Channel selection (Setting varies by Country)
Channel bandwidth (Auto, 20Mhz, 40Mhz)
Transmission rate - 11n only, 11b/g/n mix,
11b only, 11b/g, 11g
5GHz: 11n only mode, 11a/n mix mode,
11a only
Security
WEP (64/128bit)
WPA/WPA2: TKIP/AES
MAC address filtering (WLAN, up to 50 fields)
802.1x Authenticator MD5/TLS/TTLS, PEAP
QoS (Quality of Service)
WMM (Wireless Multimedia)
Environment & mechanical
Temperature range:
0 to 50°C - Operating
-20 to 60°C - Storage
Humidity (non-condensing):
90% or less - Operating
90% or less - Storage
Package contents
EAP600
Power adapter (12V/1A)
CD with users manual
QiG
Ethernet cable
T-Rail mounting kit
Ceiling/Wall mount screw kit
Mounting bracket
