This document compares Spark Streaming and Google DataFlow for processing streaming data from Google Pub/Sub and writing to BigQuery. Some key differences are: - DataFlow provides richer streaming concepts like event-time processing, watermarks, and session windows while Spark Streaming only supports fixed and sliding windows based on processing time. - Fault tolerance is completely handled by DataFlow and Spark Streaming requires developers to implement checkpointing and recovery. - Code reuse is limited between batch and streaming with Spark Streaming but the DataFlow SDK can call the same APIs. - DataFlow integrates better with Google Cloud services and has richer monitoring while Spark Streaming requires more integration work for deployment and operations. - Local testing is easier

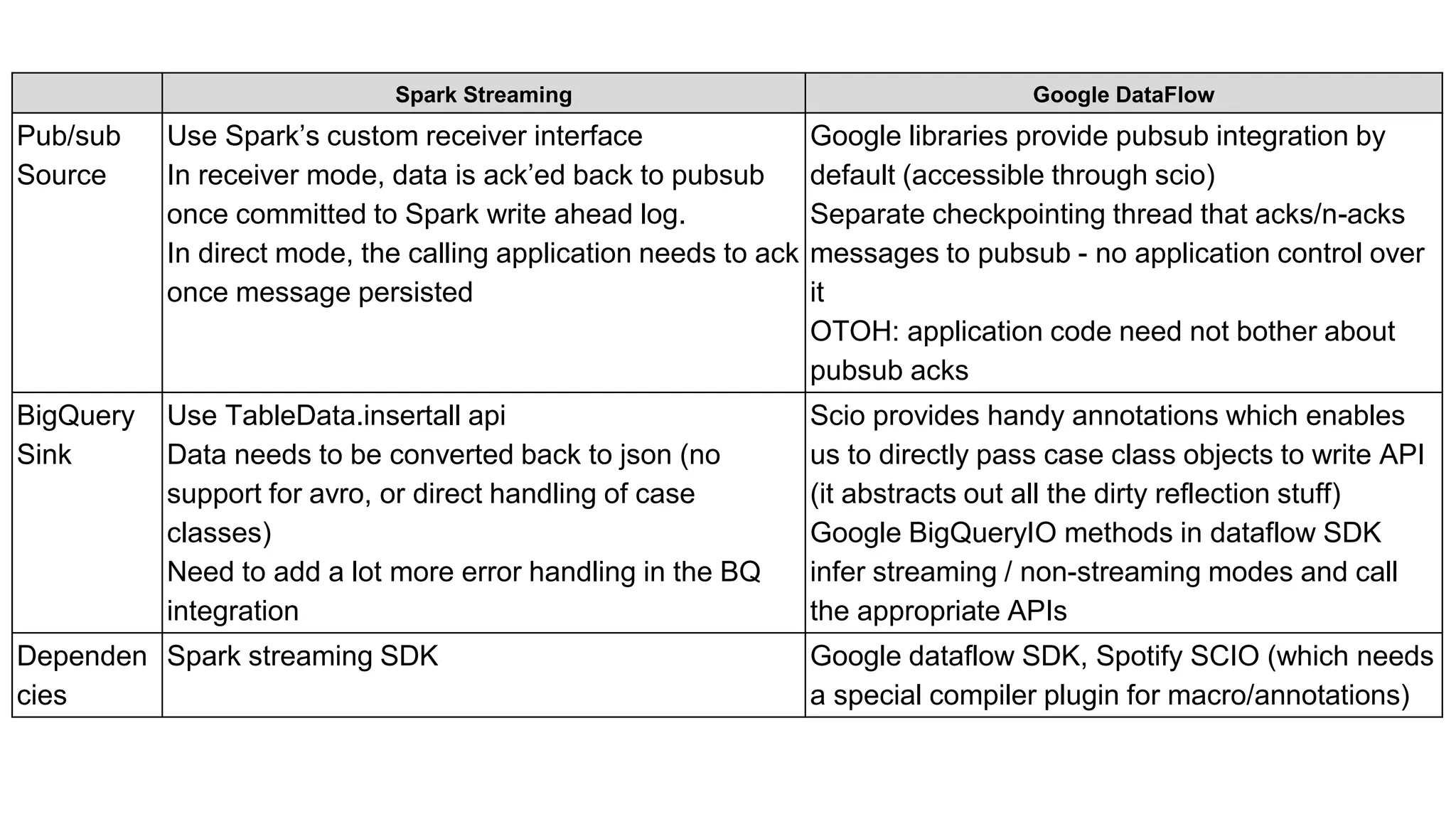

1. Spark Streaming Google DataFlow
Pub/sub
Source
Use Spark’s custom receiver interface
In receiver mode, data is ack’ed back to pubsub
once committed to Spark write ahead log.
In direct mode, the calling application needs to ack
once message persisted
Google libraries provide pubsub integration by
default (accessible through scio)
Separate checkpointing thread that acks/n-acks
messages to pubsub - no application control over
it
OTOH: application code need not bother about
pubsub acks
BigQuery
Sink
Use TableData.insertall api
Data needs to be converted back to json (no
support for avro, or direct handling of case
classes)
Need to add a lot more error handling in the BQ
integration
Scio provides handy annotations which enables
us to directly pass case class objects to write API
(it abstracts out all the dirty reflection stuff)
Google BigQueryIO methods in dataflow SDK
infer streaming / non-streaming modes and call
the appropriate APIs
Dependen
cies
Spark streaming SDK Google dataflow SDK, Spotify SCIO (which needs
a special compiler plugin for macro/annotations)

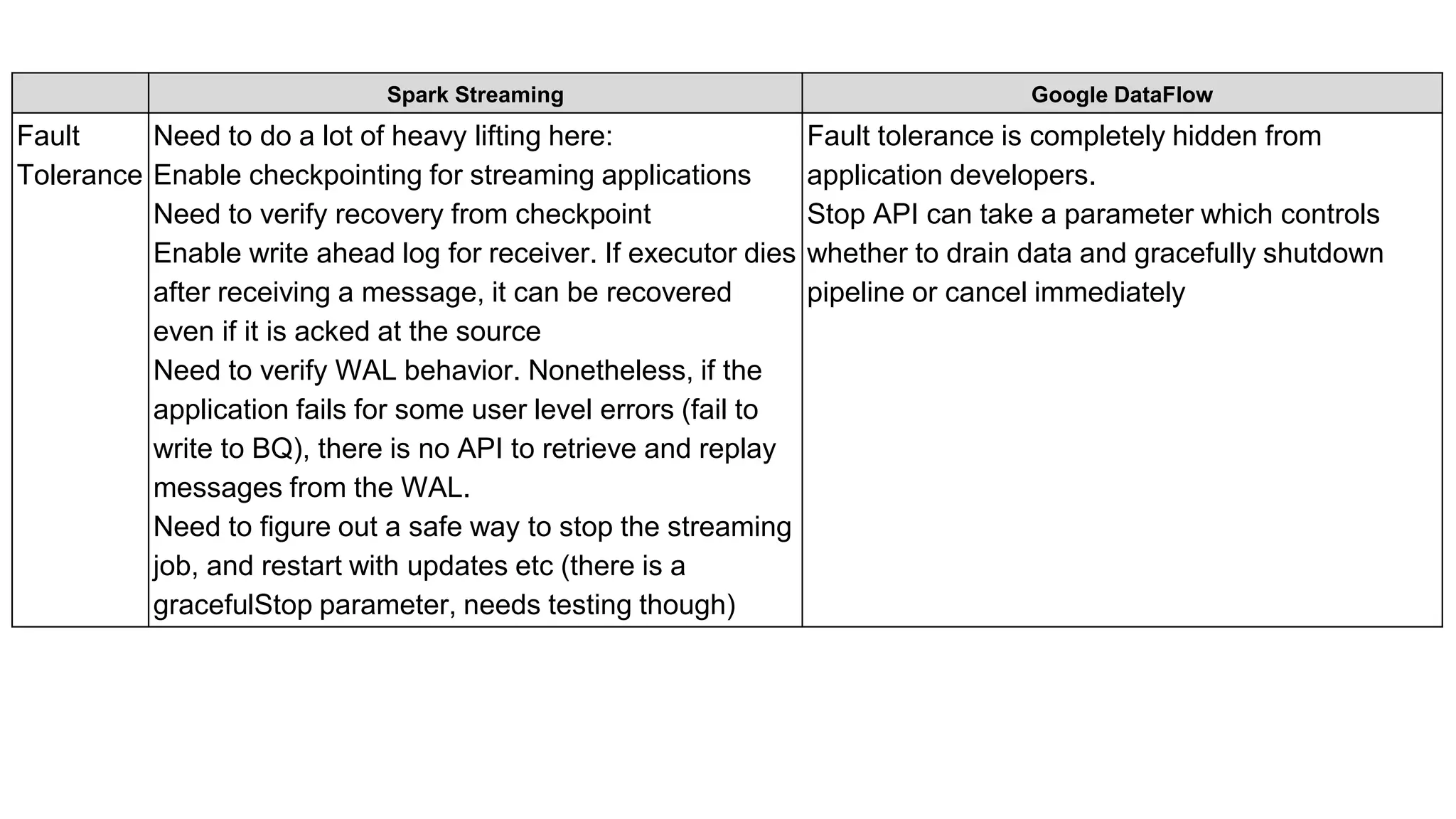

2. Spark Streaming Google DataFlow
Fault
Tolerance
Need to do a lot of heavy lifting here:
Enable checkpointing for streaming applications
Need to verify recovery from checkpoint
Enable write ahead log for receiver. If executor dies
after receiving a message, it can be recovered
even if it is acked at the source
Need to verify WAL behavior. Nonetheless, if the
application fails for some user level errors (fail to
write to BQ), there is no API to retrieve and replay
messages from the WAL.
Need to figure out a safe way to stop the streaming
job, and restart with updates etc (there is a
gracefulStop parameter, needs testing though)
Fault tolerance is completely hidden from
application developers.
Stop API can take a parameter which controls
whether to drain data and gracefully shutdown
pipeline or cancel immediately

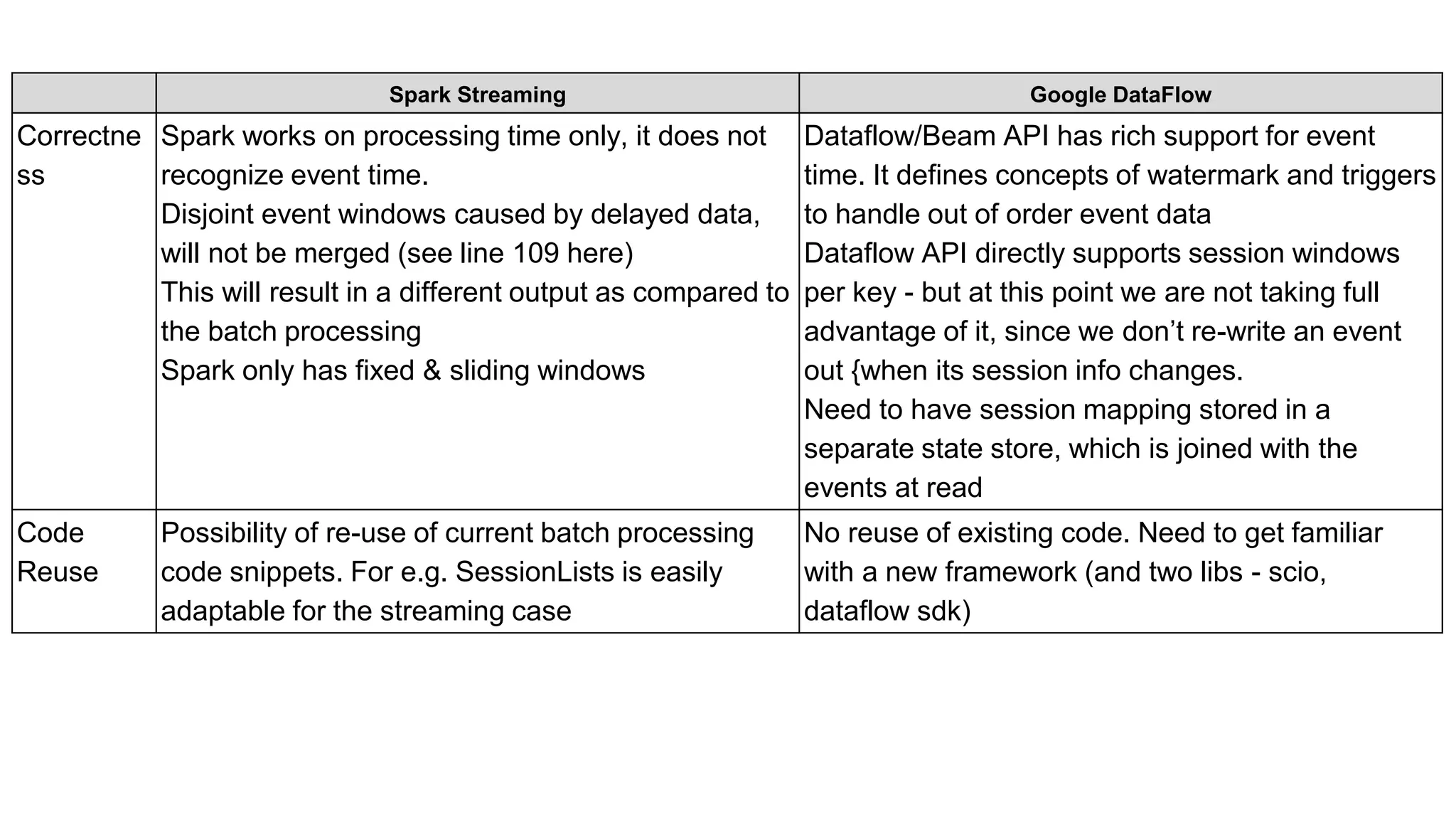

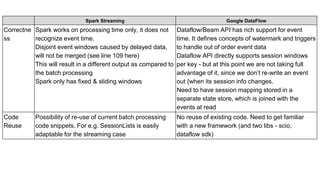

3. Spark Streaming Google DataFlow
Correctne
ss
Spark works on processing time only, it does not
recognize event time.
Disjoint event windows caused by delayed data,
will not be merged (see line 109 here)
This will result in a different output as compared to
the batch processing
Spark only has fixed & sliding windows
Dataflow/Beam API has rich support for event
time. It defines concepts of watermark and triggers
to handle out of order event data
Dataflow API directly supports session windows
per key - but at this point we are not taking full
advantage of it, since we don’t re-write an event
out {when its session info changes.
Need to have session mapping stored in a
separate state store, which is joined with the
events at read
Code
Reuse
Possibility of re-use of current batch processing
code snippets. For e.g. SessionLists is easily
adaptable for the streaming case
No reuse of existing code. Need to get familiar
with a new framework (and two libs - scio,
dataflow sdk)

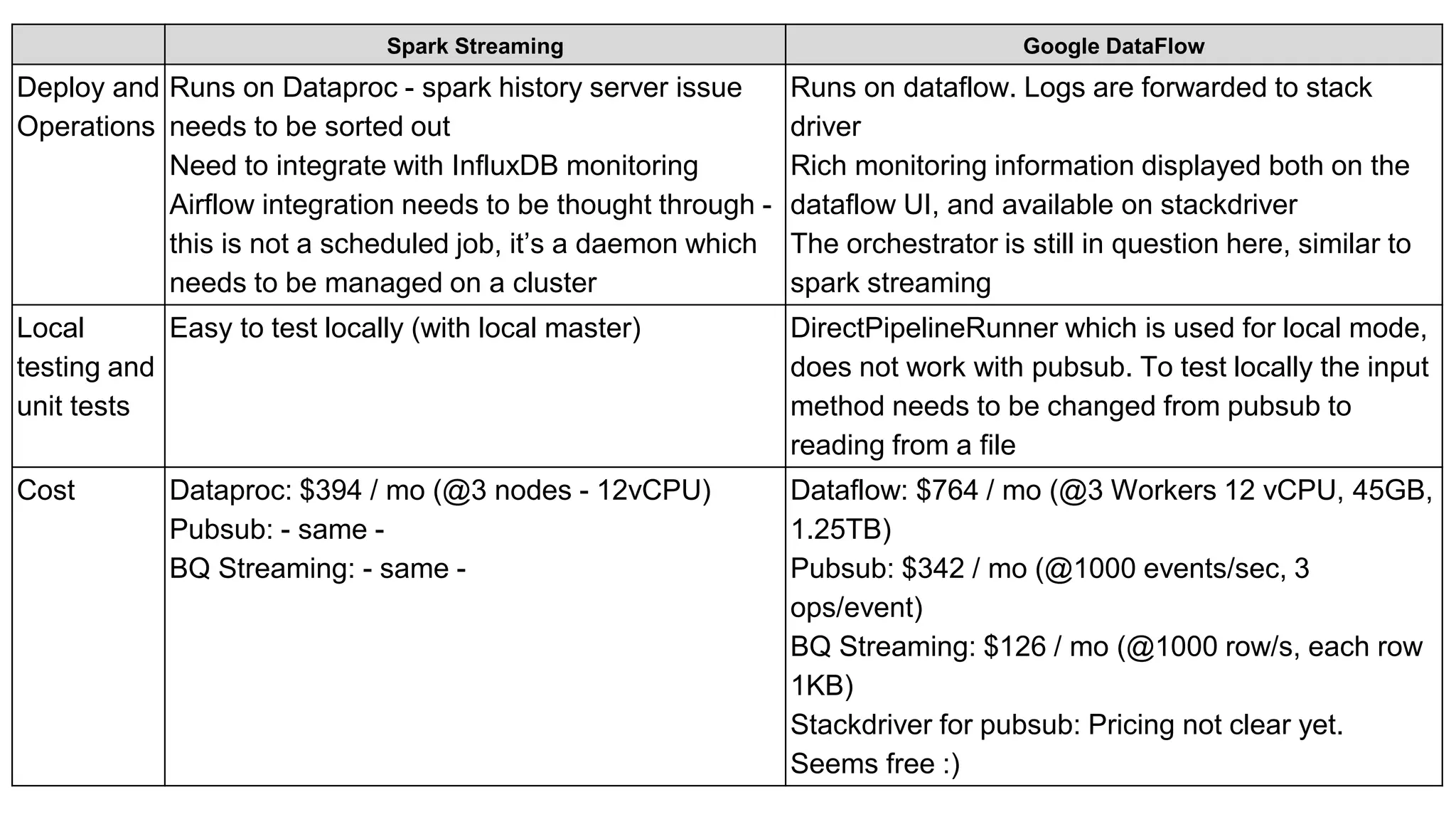

4. Spark Streaming Google DataFlow
Deploy and
Operations
Runs on Dataproc - spark history server issue
needs to be sorted out
Need to integrate with InfluxDB monitoring
Airflow integration needs to be thought through -
this is not a scheduled job, it’s a daemon which
needs to be managed on a cluster
Runs on dataflow. Logs are forwarded to stack
driver
Rich monitoring information displayed both on the
dataflow UI, and available on stackdriver
The orchestrator is still in question here, similar to
spark streaming
Local
testing and
unit tests
Easy to test locally (with local master) DirectPipelineRunner which is used for local mode,
does not work with pubsub. To test locally the input
method needs to be changed from pubsub to
reading from a file
Cost Dataproc: $394 / mo (@3 nodes - 12vCPU)
Pubsub: - same -
BQ Streaming: - same -
Dataflow: $764 / mo (@3 Workers 12 vCPU, 45GB,
1.25TB)
Pubsub: $342 / mo (@1000 events/sec, 3
ops/event)
BQ Streaming: $126 / mo (@1000 row/s, each row
1KB)
Stackdriver for pubsub: Pricing not clear yet.
Seems free :)
