This document discusses database sharding in Rails applications. It begins with an introduction and agenda, then discusses whether Rails can scale and what scaling means. It covers scaling a Rails application by adding web workers, background jobs, and sharding the database. It provides examples of sharding database tables in Rails and gems that can be used. Finally, it discusses how one company implemented database sharding step-by-step and offers pros and cons of sharding.

1. DATABASE SHARDING
IN RAILS APPLICATIONS
RUBY MEDITATION #23
September 2018

2. Work: @Talkable
Ruby: since 2012
Rails: since v3.2
Open Source: about 0 contributions
@justmacc
@vitalikdanchenko
ABOUT ME

3. ABOUT ME

4. Hobby: Running
Marathon Finisher: 4 times
Marathon PB: 3:05:10
ABOUT ME

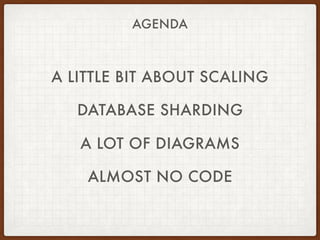

5. A LITTLE BIT ABOUT SCALING
DATABASE SHARDING
A LOT OF DIAGRAMS
ALMOST NO CODE
AGENDA

6. CAN RAILS SCALE?

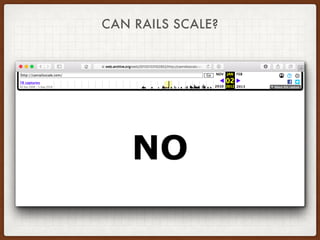

7. CAN RAILS SCALE?

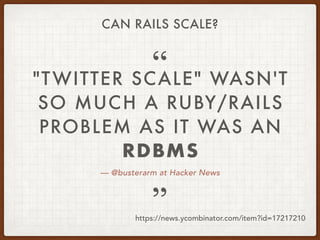

8. — @busterarm at Hacker News
"TWITTER SCALE" WASN'T
SO MUCH A RUBY/RAILS
PROBLEM AS IT WAS AN
RDBMS
”
“
https://news.ycombinator.com/item?id=17217210
CAN RAILS SCALE?

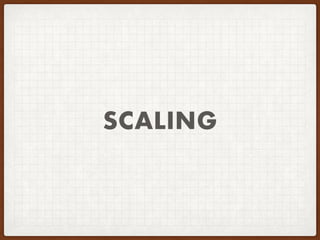

9. SCALING

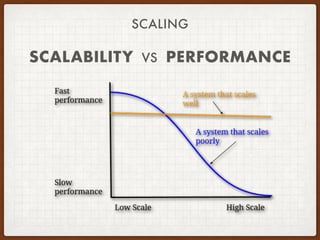

10. SCALABILITY VS PERFORMANCE
SCALING

11. SCALING

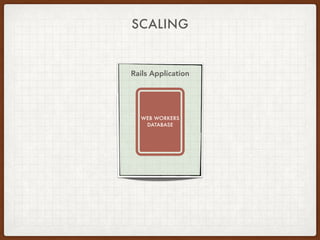

12. Rails Application
WEB WORKERS
DATABASE
SCALING

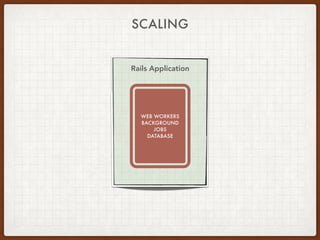

13. Rails Application
WEB WORKERS
BACKGROUND
JOBS
DATABASE
SCALING

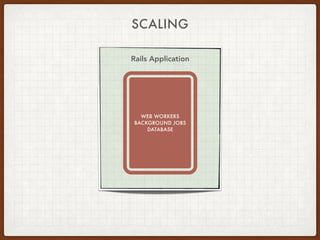

14. Rails Application
WEB WORKERS
BACKGROUND JOBS
DATABASE
SCALING

15. Rails Application
WEB WORKERS
BACKGROUND JOBS
DATABASE
SCALING

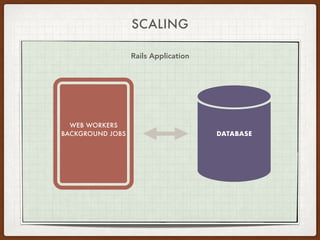

16. Rails Application
WEB WORKERS
BACKGROUND JOBS DATABASE
SCALING

17. Rails Application
WEB WORKERS
DATABASE
BACKGROUND JOBS
SCALING

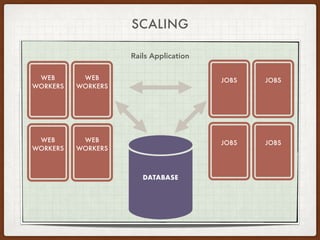

18. Rails Application
WEB
WORKERS
DATABASE
WEB
WORKERS
WEB
WORKERS
WEB
WORKERS
JOBS JOBS
JOBS JOBS
SCALING

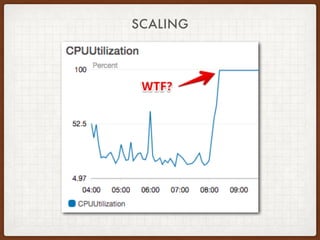

19. SCALING

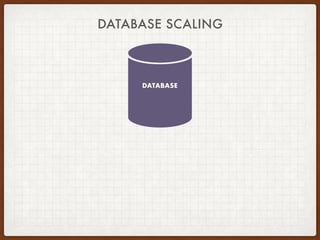

20. DATABASE
DATABASE SCALING

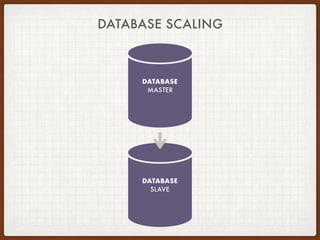

21. DATABASE
MASTER
DATABASE
SLAVE
DATABASE SCALING

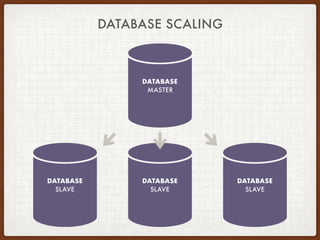

22. DATABASE
MASTER
DATABASE
SLAVE
DATABASE
SLAVE
DATABASE
SLAVE
DATABASE SCALING

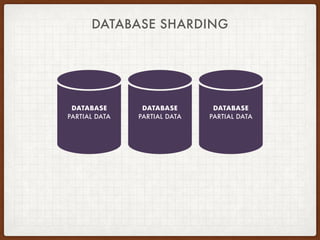

23. DATABASE
PARTIAL DATA
DATABASE
PARTIAL DATA
DATABASE
PARTIAL DATA
DATABASE SHARDING

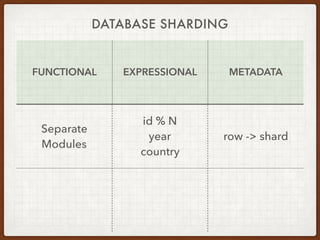

24. FUNCTIONAL EXPRESSIONAL METADATA
Separate
Modules
id % N
year
country
row -> shard
DATABASE SHARDING

25. THEORETICAL PART
PRACTICAL PART

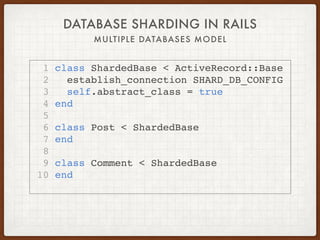

26. DATABASE SHARDING IN RAILS
MULTIPLE DATABASES MODEL
1 class ShardedBase < ActiveRecord::Base
2 establish_connection SHARD_DB_CONFIG
3 self.abstract_class = true
4 end
5
6 class Post < ShardedBase
7 end
8
9 class Comment < ShardedBase
10 end

27. DATABASE SHARDING IN RAILS
GEMS
• thiagopradi/octopus
• hsgubert/rails-sharding
• zendesk/active_record_shards
1 ActiveRecord::Base.on_shard(:number_two) do
2 Post.find_by(author: author)
3 end

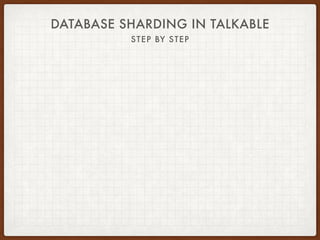

28. DATABASE SHARDING IN TALKABLE
STEP BY STEP

29. DATABASE SHARDING IN TALKABLE
STEP BY STEP
1. How to shard?

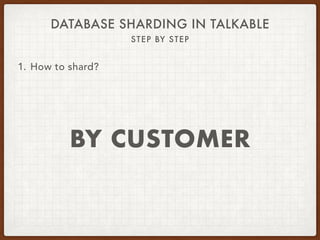

30. DATABASE SHARDING IN TALKABLE
STEP BY STEP
1. How to shard?
BY CUSTOMER

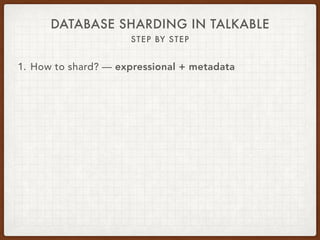

31. DATABASE SHARDING IN TALKABLE
STEP BY STEP
1. How to shard? — expressional + metadata

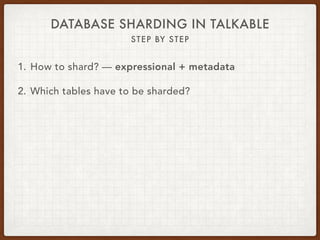

32. DATABASE SHARDING IN TALKABLE
STEP BY STEP
1. How to shard? — expressional + metadata
2. Which tables have to be sharded?

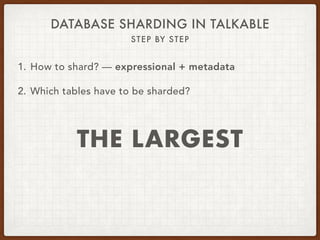

33. DATABASE SHARDING IN TALKABLE
STEP BY STEP
1. How to shard? — expressional + metadata
2. Which tables have to be sharded?
THE LARGEST

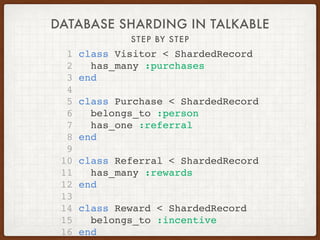

34. DATABASE SHARDING IN TALKABLE
STEP BY STEP
1 class Visitor < ShardedRecord
2 has_many :purchases
3 end
4
5 class Purchase < ShardedRecord
6 belongs_to :person
7 has_one :referral
8 end
9
10 class Referral < ShardedRecord
11 has_many :rewards
12 end
13
14 class Reward < ShardedRecord
15 belongs_to :incentive
16 end

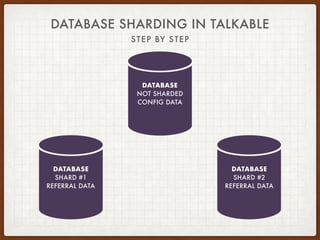

35. DATABASE SHARDING IN TALKABLE
STEP BY STEP
DATABASE
NOT SHARDED
CONFIG DATA
DATABASE
SHARD #1
REFERRAL DATA
DATABASE
SHARD #2
REFERRAL DATA

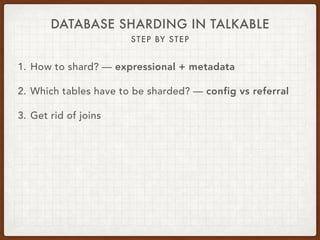

36. DATABASE SHARDING IN TALKABLE
STEP BY STEP
1. How to shard? — expressional + metadata
2. Which tables have to be sharded? — config vs referral
3. Get rid of joins

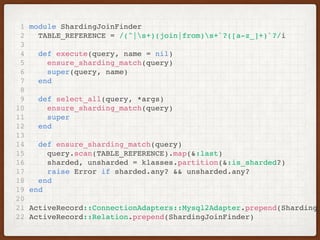

37. 1 module ShardingJoinFinder
2 TABLE_REFERENCE = /(^|s+)(join|from)s+`?([a-z_]+)`?/i
3
4 def execute(query, name = nil)
5 ensure_sharding_match(query)
6 super(query, name)
7 end
8
9 def select_all(query, *args)
10 ensure_sharding_match(query)
11 super
12 end
13
14 def ensure_sharding_match(query)
15 query.scan(TABLE_REFERENCE).map(&:last)
16 sharded, unsharded = klasses.partition(&:is_sharded?)
17 raise Error if sharded.any? && unsharded.any?
18 end
19 end
20
21 ActiveRecord::ConnectionAdapters::Mysql2Adapter.prepend(ShardingJ
22 ActiveRecord::Relation.prepend(ShardingJoinFinder)

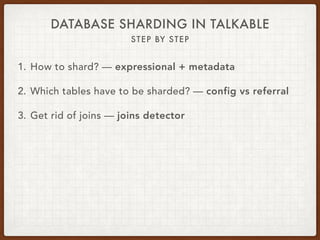

38. DATABASE SHARDING IN TALKABLE
STEP BY STEP
1. How to shard? — expressional + metadata
2. Which tables have to be sharded? — config vs referral
3. Get rid of joins — joins detector

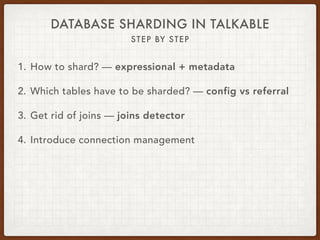

39. DATABASE SHARDING IN TALKABLE
STEP BY STEP
1. How to shard? — expressional + metadata
2. Which tables have to be sharded? — config vs referral
3. Get rid of joins — joins detector
4. Introduce connection management

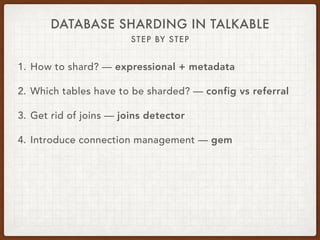

40. DATABASE SHARDING IN TALKABLE
STEP BY STEP
1. How to shard? — expressional + metadata
2. Which tables have to be sharded? — config vs referral
3. Get rid of joins — joins detector
4. Introduce connection management — gem

41. DATABASE SHARDING IN TALKABLE
STEP BY STEP
1. How to shard? — expressional + metadata
2. Which tables have to be sharded? — config vs referral
3. Get rid of joins — joins detector
4. Introduce connection management — gem
5. Add utility helpers

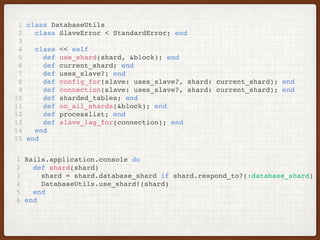

42. 1 class DatabaseUtils
2 class SlaveError < StandardError; end
3
4 class << self
5 def use_shard(shard, &block); end
6 def current_shard; end
7 def uses_slave?; end
8 def config_for(slave: uses_slave?, shard: current_shard); end
9 def connection(slave: uses_slave?, shard: current_shard); end
10 def sharded_tables; end
11 def on_all_shards(&block); end
12 def processlist; end
13 def slave_lag_for(connection); end
14 end
15 end
1 Rails.application.console do
2 def shard(shard)
3 shard = shard.database_shard if shard.respond_to?(:database_shard)
4 DatabaseUtils.use_shard!(shard)
5 end
6 end

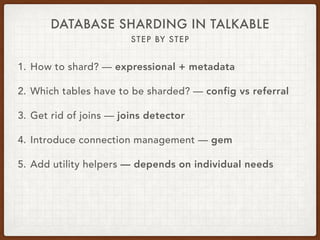

43. DATABASE SHARDING IN TALKABLE
STEP BY STEP
1. How to shard? — expressional + metadata
2. Which tables have to be sharded? — config vs referral
3. Get rid of joins — joins detector
4. Introduce connection management — gem
5. Add utility helpers — depends on individual needs

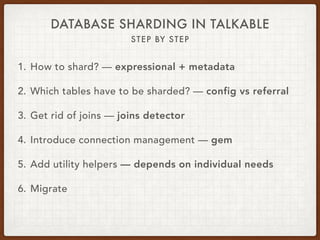

44. DATABASE SHARDING IN TALKABLE
STEP BY STEP
1. How to shard? — expressional + metadata
2. Which tables have to be sharded? — config vs referral
3. Get rid of joins — joins detector
4. Introduce connection management — gem
5. Add utility helpers — depends on individual needs
6. Migrate

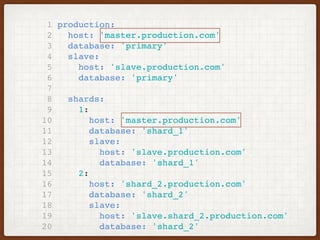

45. 1 production:
2 host: 'master.production.com'
3 database: 'primary'
4 slave:
5 host: 'slave.production.com'
6 database: 'primary'
7
8 shards:
9 1:
10 host: 'master.production.com'
11 database: 'shard_1'
12 slave:
13 host: 'slave.production.com'
14 database: 'shard_1'
15 2:
16 host: 'shard_2.production.com'
17 database: 'shard_2'
18 slave:
19 host: 'slave.shard_2.production.com'
20 database: 'shard_2'

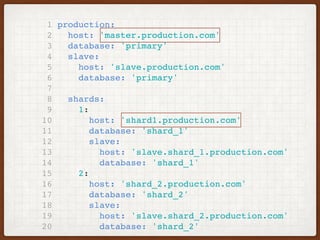

46. 1 production:
2 host: 'master.production.com'
3 database: 'primary'
4 slave:
5 host: 'slave.production.com'
6 database: 'primary'
7
8 shards:
9 1:
10 host: 'shard1.production.com'
11 database: 'shard_1'
12 slave:
13 host: 'slave.shard_1.production.com'
14 database: 'shard_1'
15 2:
16 host: 'shard_2.production.com'
17 database: 'shard_2'
18 slave:
19 host: 'slave.shard_2.production.com'
20 database: 'shard_2'

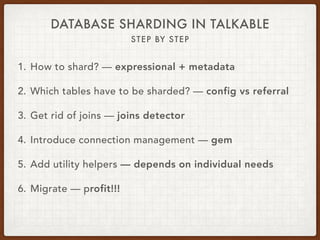

47. DATABASE SHARDING IN TALKABLE
STEP BY STEP
1. How to shard? — expressional + metadata
2. Which tables have to be sharded? — config vs referral
3. Get rid of joins — joins detector
4. Introduce connection management — gem
5. Add utility helpers — depends on individual needs
6. Migrate — profit!!!

48. MySQL PostgreSQL
Vites Citus
Jetpants ???
ScaleBase
DATABASE SHARDING SOLUTIONS

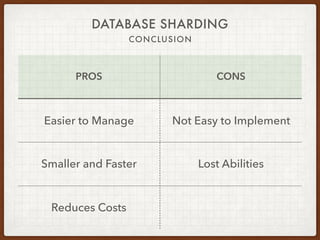

49. PROS CONS
Easier to Manage Not Easy to Implement
Smaller and Faster Lost Abilities
Reduces Costs
DATABASE SHARDING
CONCLUSION

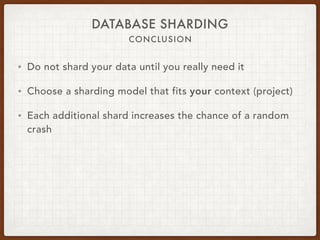

50. DATABASE SHARDING
CONCLUSION
• Do not shard your data until you really need it
• Choose a sharding model that fits your context (project)
• Each additional shard increases the chance of a random
crash

51. When: 08:00 am
Where: 46°28'44.5"N 30°45'41.0"E
How far: doesn’t matter
How fast: doesn’t matter
SUNDAY MORNING RUN

52. Q&A
