1. Data Structures and
Algorithms
Prof. Adriano Patrick Cunha

2. Prof. Adriano Patrick Cunha

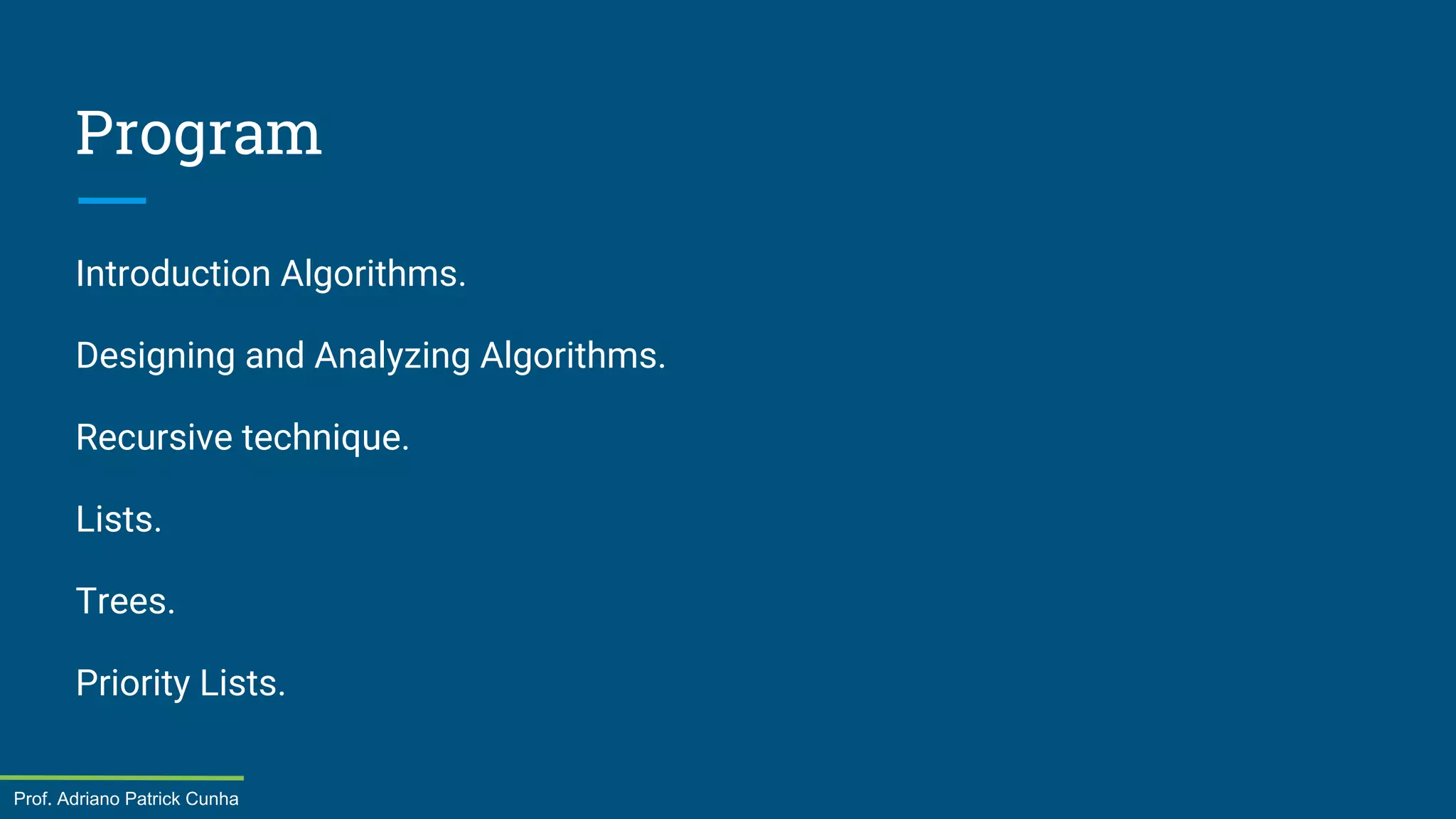

Program
Introduction Algorithms.
Designing and Analyzing Algorithms.
Recursive technique.
Lists.
Trees.
Priority Lists.

3. Prof. Adriano Patrick Cunha
Data Structures and Algorithms
“I will, in fact, claim that the difference between
a bad programmer and a good one is whether
he considers his code or his data structures
more important. Bad programmers worry about
the code. Good programmers worry about data
structures and their relationships.”
Linus Torvalds

4. Prof. Adriano Patrick Cunha
Data Structures and Algorithms
Problems solve by algorithms and data structures
The Human Genome Project
The Internet enables people all around the world to quickly access and retrieve large amounts of information.
Electronic commerce enables goods and services to be negotiated and exchanged electronically, and it depends on the privacy of
personal information such as credit card numbers, passwords, and bank statements.
Manufacturing and other commercial enterprises often need to allocate scarce resources in the most beneficial way.
We are given a road map on which the distance between each pair of adjacent intersections is marked, and we wish to determine the
shortest route from one intersection to another.
We are given two ordered sequences of symbols, X = (x1 ; x2 ;... ; xm) and Y = (y1 ; y2 ;... ; yn), and we wish to find a longest common
subsequence of X and Y
We are given a mechanical design in terms of a library of parts, where each part may include instances of other parts, and we need to list
the parts in order so that each part appears before any part that uses it.
We are given n points in the plane, and we wish to find the convex hull of these points. The convex hull is the smallest convex polygon
containing the points.

5. Prof. Adriano Patrick Cunha
Algorithms
Informally, an algorithm is any well-defined computational procedure that takes
some value, or set of values, as input and produces some value, or set of values,
as output. An algorithm is thus a sequence of computational steps that
transform the input into the output.
We can also view an algorithm as a tool for solving a well-specified
computational problem. The statement of the problem specifies in general terms
the desired input/output relationship. The algorithm describes a specific
computational procedure for achieving that input/output relationship.

6. Prof. Adriano Patrick Cunha
Problem:
Sorting
Input: sequence <a1, a2, ..., an) of numbers
Output: permutation <a'1, a'2, ..., a'n>
$(such that) -> $ a'1 <= a'2 <= ... <= a'n
E.g.
Input: 〈31, 41, 59, 26, 41, 58〉
Output: 〈26, 31, 41, 41, 58, 59〉

7. Prof. Adriano Patrick Cunha
Solve:
Insertion-Sort(A, n) //Sort A[1..n]
for j <- 2 to n do
key <- A[ j ];
i <- j - 1;
while(i > 0 and A[ i ] > key) do
A[ i + 1 ] <- A[ i ];
i <- j - 1;
A[ i + 1 ] <- key;
It works the way many people sort the cards by playing
cards
1. Letters initially on the table
2. One card at a time
3. Place it in the left hand, in the correct position
a. Find the right position from right to left
E.g. 〈5, 2, 4, 6, 1, 3〉

8. Prof. Adriano Patrick Cunha
Solve:
Insertion-Sort(A, n) //Sort A[1..n]
for j <- 2 to n do
key <- A[ j ];
i <- j - 1;
while(i > 0 and A[ i ] > key) do
A[ i + 1 ] <- A[ i ];
i <- j - 1;
A[ i + 1 ] <- key;
Is correct ?

9. Prof. Adriano Patrick Cunha
Solve:
Insertion-Sort(A, n) //Sort A[1..n]
for j <- 2 to n do
key <- A[ j ];
i <- j - 1;
while(i > 0 and A[ i ] > key) do
A[ i + 1 ] <- A[ i ];
i <- j - 1;
A[ i + 1 ] <- key;
Is correct ?
Is the best ?

10. Prof. Adriano Patrick Cunha
What is Correct?
An algorithm is said to be correct if, for every input instance, it halts with the
correct output. We say that a correct algorithm solves the given computational
problem.
An incorrect algorithm might not halt at all on some input instances, or it might
halt with an incorrect answer.
Contrary to what you might expect, incorrect algorithms can sometimes be
useful, if we can control their error rate.

11. Prof. Adriano Patrick Cunha
What is Correct?
Loop invariant
Property or statement that holds true for each loop iteration
Helps understand why an algorithm is correct

12. Prof. Adriano Patrick Cunha
Loop Invariant
Three details must be shown:
Initialization: the invariant is true before the first loop iteration
Maintenance: if the invariant is true before an iteration of the loop, it will
remain true before the next loop iteration
Termination: when the loop ends, the invariant gives us a useful property
that helps to show that the algorithm is correct

13. Prof. Adriano Patrick Cunha
What is being the best?
Insertion Sort
Number of statements executed c1
n2
Computer A: 1 billion (109
) instructions per second.
Great programmer: 2n2
instructions.
Intercalation Sort(Merge-Sort)
Number of statements executed c2
nlgn
Computer B: 10 millions (107
) instructions per second.
Regular programmer: 50nlgn instructions.
Time to sort 1 million (106
) elements of a set?

14. Prof. Adriano Patrick Cunha
Problem of the traveling salesman
A traveling salesman has to visit a certain number of cities and each move between two cities involves
a certain cost. What will be the most economic return, visiting each of the cities only once and
returning the one from where you left? The optimal solution for this type of problem is to find a
Hamilton circuit of minimum length.
Hamilton (or Hamiltonian) Circuit It is a path that begins and ends at the same vertex running through
all the vertices once (except the last which is also the first).

15. Prof. Adriano Patrick Cunha
Problem of the traveling salesman
4 15
10
9
16
20
8
14
127
A
B
CD
E
A -> E -> C -> D -> B -> A <56km>
B -> C -> E -> A -> D -> B <49km>
C -> E -> A -> D -> B -> C <49km>
D -> A -> E -> C -> B -> D <49km>
E -> A -> D -> C -> B -> E <44km>
N Alternativas (~n!) Tempo
5 120 0,00012 s
10 362880 3,62880 s
12 479001600 8 min
15 1307674368000 15 days
20 2432902008176640000 77.147 years
50 3,04 E+0064 ∞
100 9,33 E+0157 ∞

16. Prof. Adriano Patrick Cunha
What is being the best?
Running Time
- Depends on input (e.g. already sorted)
- Depends on input size (6 elements vs 6x10^9 elements)
- parametrize in input size
- Want upper bounds
- guarantee to user

17. Prof. Adriano Patrick Cunha
Analysis of Algorithms
Theoretical study of computer-program performance and resources usage.
What's more important than performance?
Why study algorithms and performance?
Determines something is feasible or infeasible
Performance enables the usability, security
Speed is fun!!

18. Prof. Adriano Patrick Cunha
Kinds of Analysis
- Woist-case(usually)
- T(n) = max time on any input of size n
- Average-case (sometimes)
- T(n) = expected time over all inputs of size n
- Need assumption of statistical distribution
- Best-case (bogus)
- Cheat

19. Prof. Adriano Patrick Cunha
Asympototic analysis
Ignore machine dependent constants
Look at GROWTH T(n) as n-> infinity
O Notation
- Drop low order terms
- Ignore leading constants
- E.g. 3n3
+ 90n2
- 5n + 6046 => O(n3
)
- As n -> infinity, O(n2
) algorithm always beats a O(n3
) algorithm.

20. Prof. Adriano Patrick Cunha
Insertion Sort - Asympototic analysis
Insertion-Sort(A, n) //Sort A[1..n]
for j <- 2 to n do
key <- A[ j ];
//Insert A[ j ] into the sorted sequence A[ 1 .. j -1]
i <- j - 1;
while(i > 0 and A[ i ] > key) do
A[ i + 1 ] <- A[ i ];
i <- j - 1;
A[ i + 1 ] <- key;
cost times
c1
c2
0
c3
c4
c5
c6
c7
n
n - 1
0
n - 1
∑n
j=2
Tj
∑n
j=2
(Tj
-1)
∑n
j=2
(Tj
-1)
n - 1
T(n) = c1n + c2(n-1) + c3(n-1) + c4∑n
j=2
Tj
+ c5∑n
j=2
(Tj
-1) + c6∑n
j=2
(Tj
-1) + c7(n-1)

21. Prof. Adriano Patrick Cunha
Insertion Sort - Asympototic analysis
Woist-case (Sequence in reverse order)
tj
= j, para j = 2, 3, ..., n
∑n
j=2
Tj
= ∑n
j=2
j = (∑n
k=1
k) - 1 = n(n + 1)/2 - 1
∑n
j=2
(Tj
-1) = ∑n
j=2
( j-1) = ∑n-1
k=1
k = n(n - 1)/2
T(n) = c1n + c2(n-1) + c3(n-1) + c4[n(n + 1)/2 - 1] + c5[n(n - 1)/2] + c6[n(n - 1)/2] + c7(n-1)
Logo, O(n2
)

22. Prof. Adriano Patrick Cunha
Recursive Technique
Continua ...
