1. Data Lake Analytics for the Admin
Tillmann Eitelberg & Oliver Engels
DBCC International – Friday 23.10.2020

2. WE CREATE
SMART AND CASUAL
DATADESIGN.
EVERY DAY.
2© ppt by OH22

3. ABOUT US
Tillmann Eitelberg | Oliver Engels
3© ppt by OH22

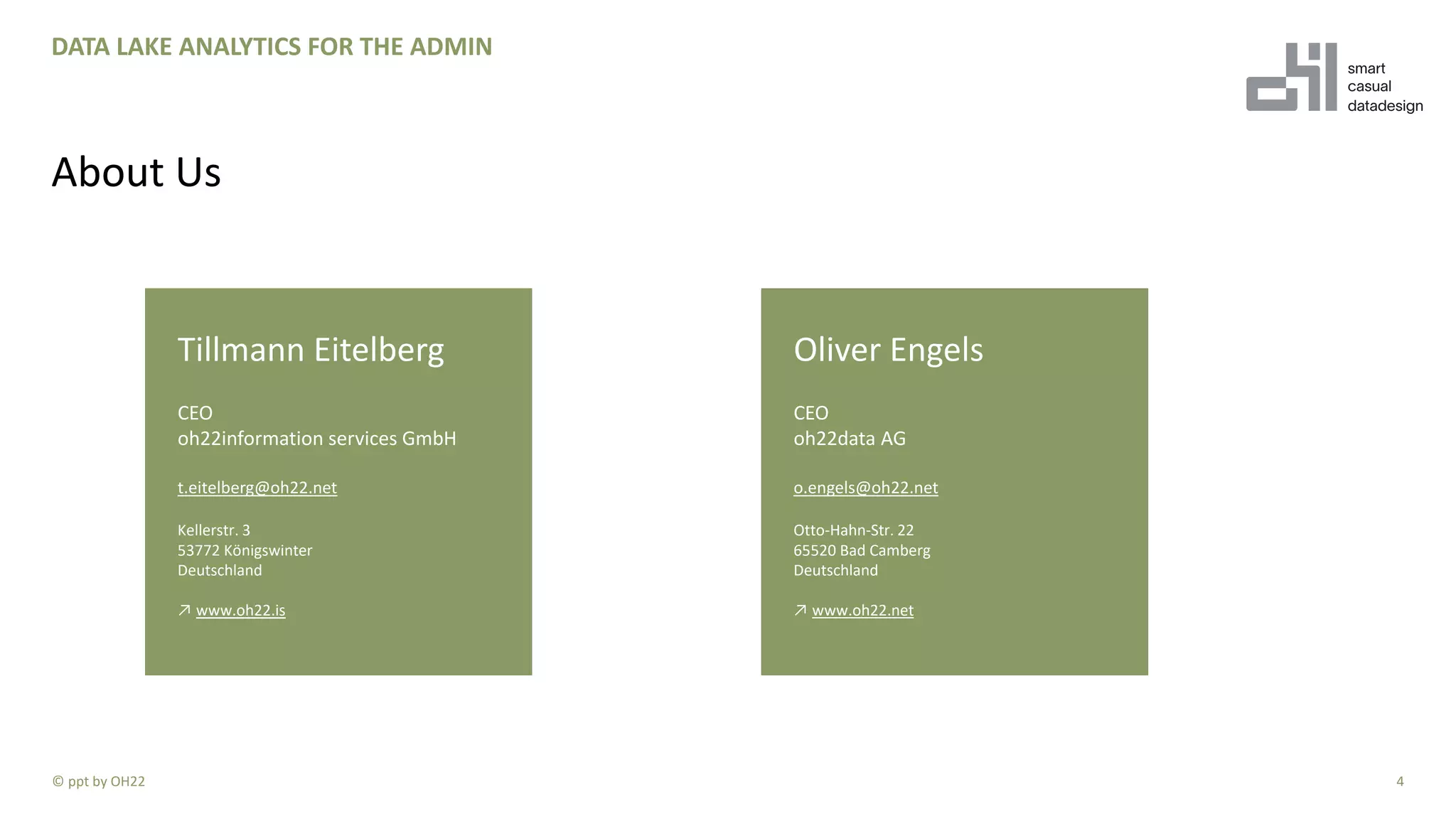

4. 4
DATA LAKE ANALYTICS FOR THE ADMIN
About Us
© ppt by OH22
Tillmann Eitelberg
CEO
oh22information services GmbH
t.eitelberg@oh22.net
Kellerstr. 3
53772 Königswinter
Deutschland
↗ www.oh22.is
Oliver Engels
CEO
oh22data AG
o.engels@oh22.net
Otto-Hahn-Str. 22
65520 Bad Camberg
Deutschland
↗ www.oh22.net

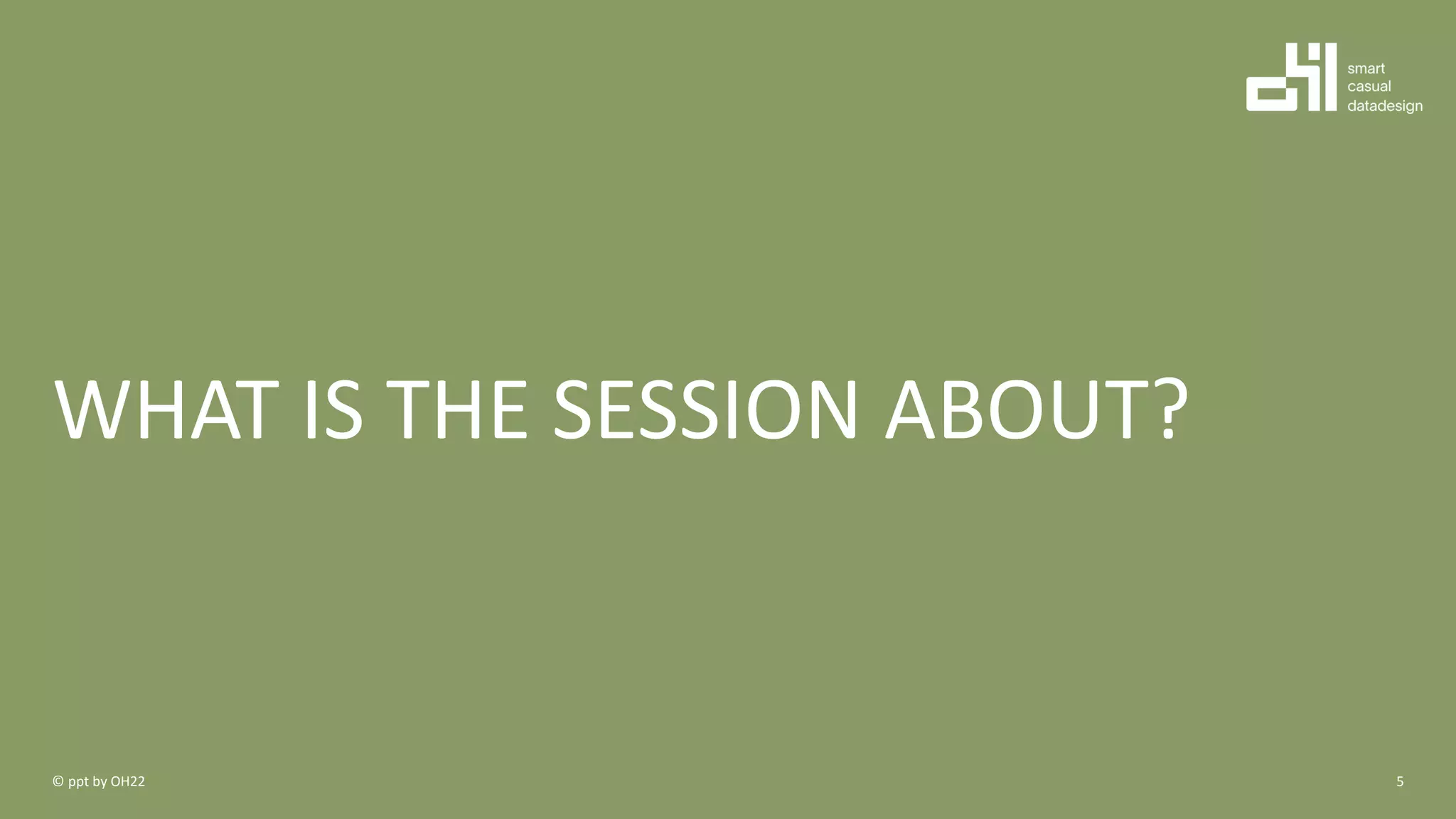

5. WHAT IS THE SESSION ABOUT?
5© ppt by OH22

6. DATA LAKE ANALYTICS FOR THE ADMIN
6© ppt by OH22
We moved our Analytics
workload to the cloud….
Now we have a
Data Lake!
But hey, how do I control
that beast?

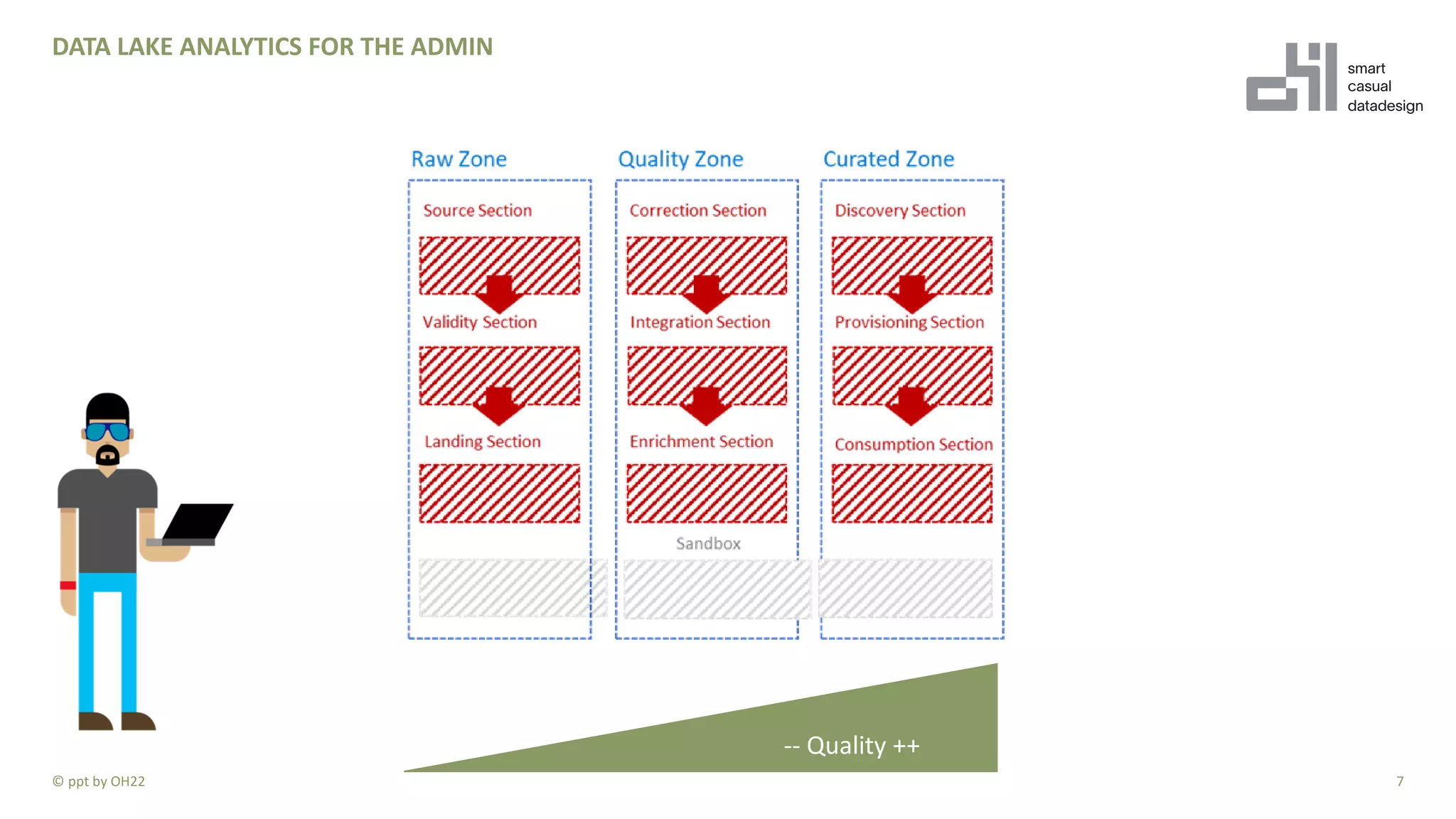

7. DATA LAKE ANALYTICS FOR THE ADMIN
7© ppt by OH22
-- Quality ++

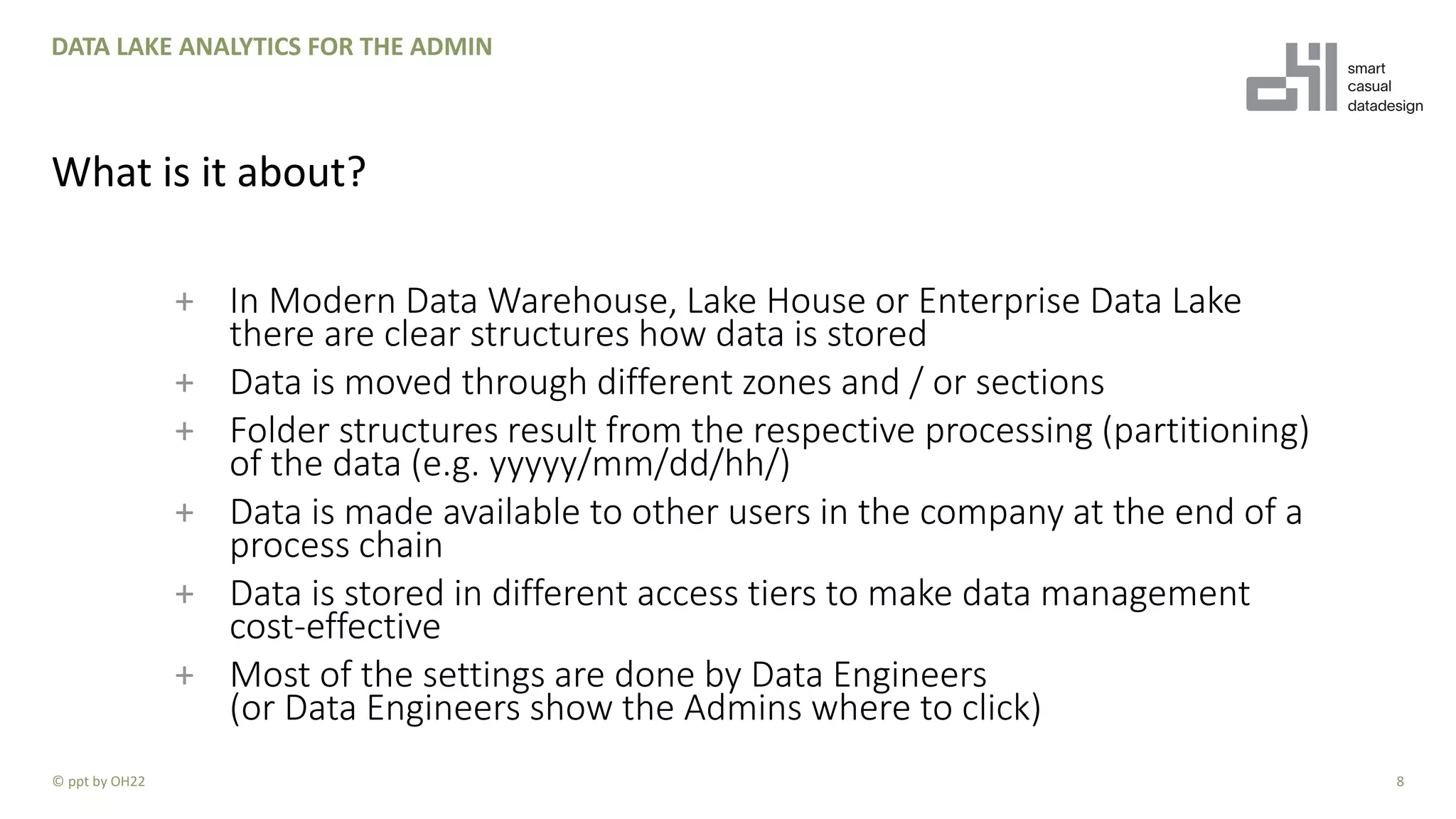

8. + In Modern Data Warehouse, Lake House or Enterprise Data Lake
there are clear structures how data is stored
+ Data is moved through different zones and / or sections
+ Folder structures result from the respective processing (partitioning)
of the data (e.g. yyyyy/mm/dd/hh/)
+ Data is made available to other users in the company at the end of a
process chain
+ Data is stored in different access tiers to make data management
cost-effective
+ Most of the settings are done by Data Engineers
(or Data Engineers show the Admins where to click)
8
DATA LAKE ANALYTICS FOR THE ADMIN
What is it about?
© ppt by OH22

9. DATA LAKE ANALYTICS FOR THE ADMIN
9© ppt by OH22
I want
Metadata!
I need
Performance
Monitoring!
I have to
create rules!
I must be
alerted!
I rely on Logs!

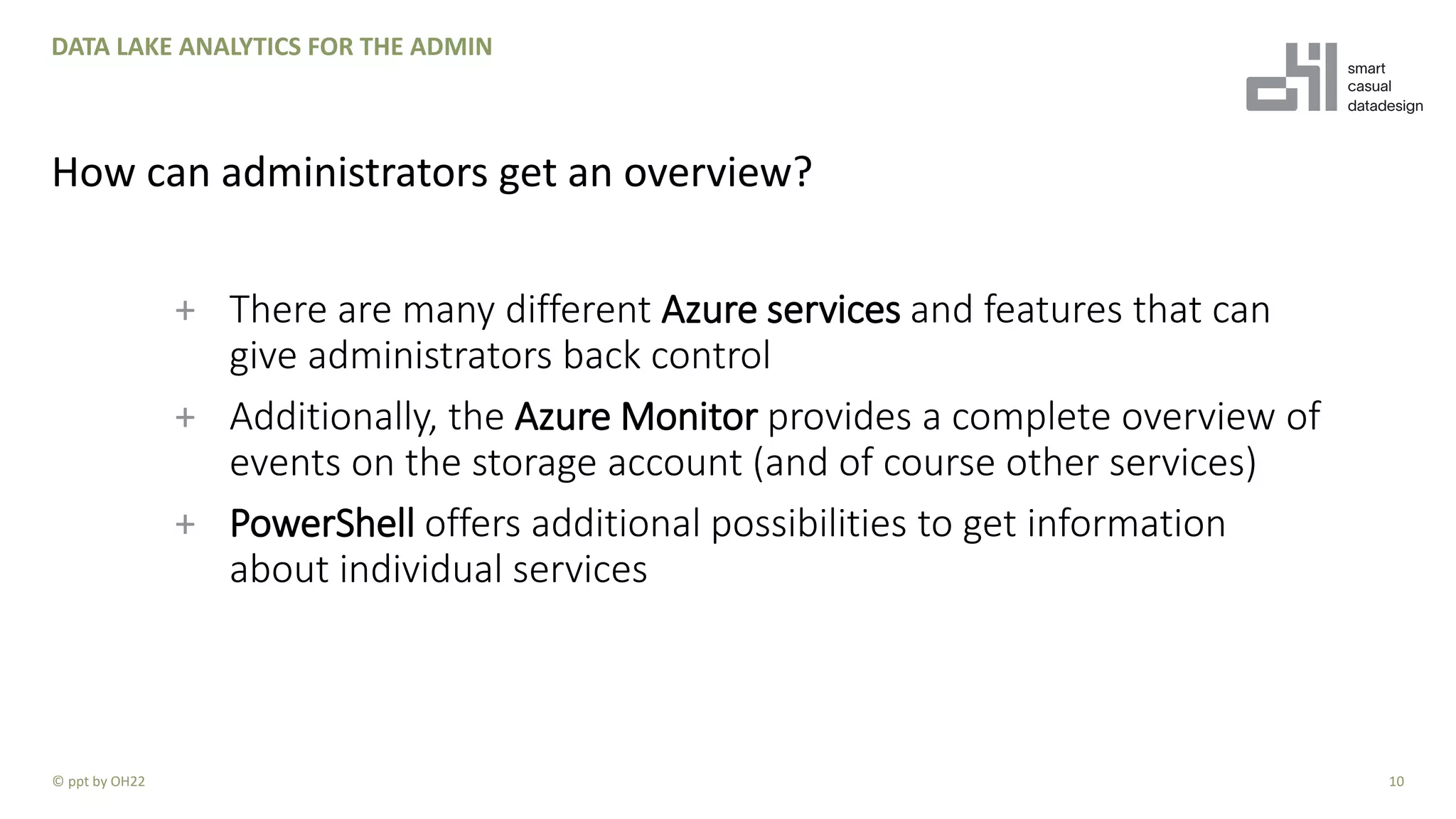

10. + There are many different Azure services and features that can
give administrators back control
+ Additionally, the Azure Monitor provides a complete overview of
events on the storage account (and of course other services)
+ PowerShell offers additional possibilities to get information
about individual services
10
DATA LAKE ANALYTICS FOR THE ADMIN
How can administrators get an overview?
© ppt by OH22

11. METADATA
The data about the data for the admin
11© ppt by OH22

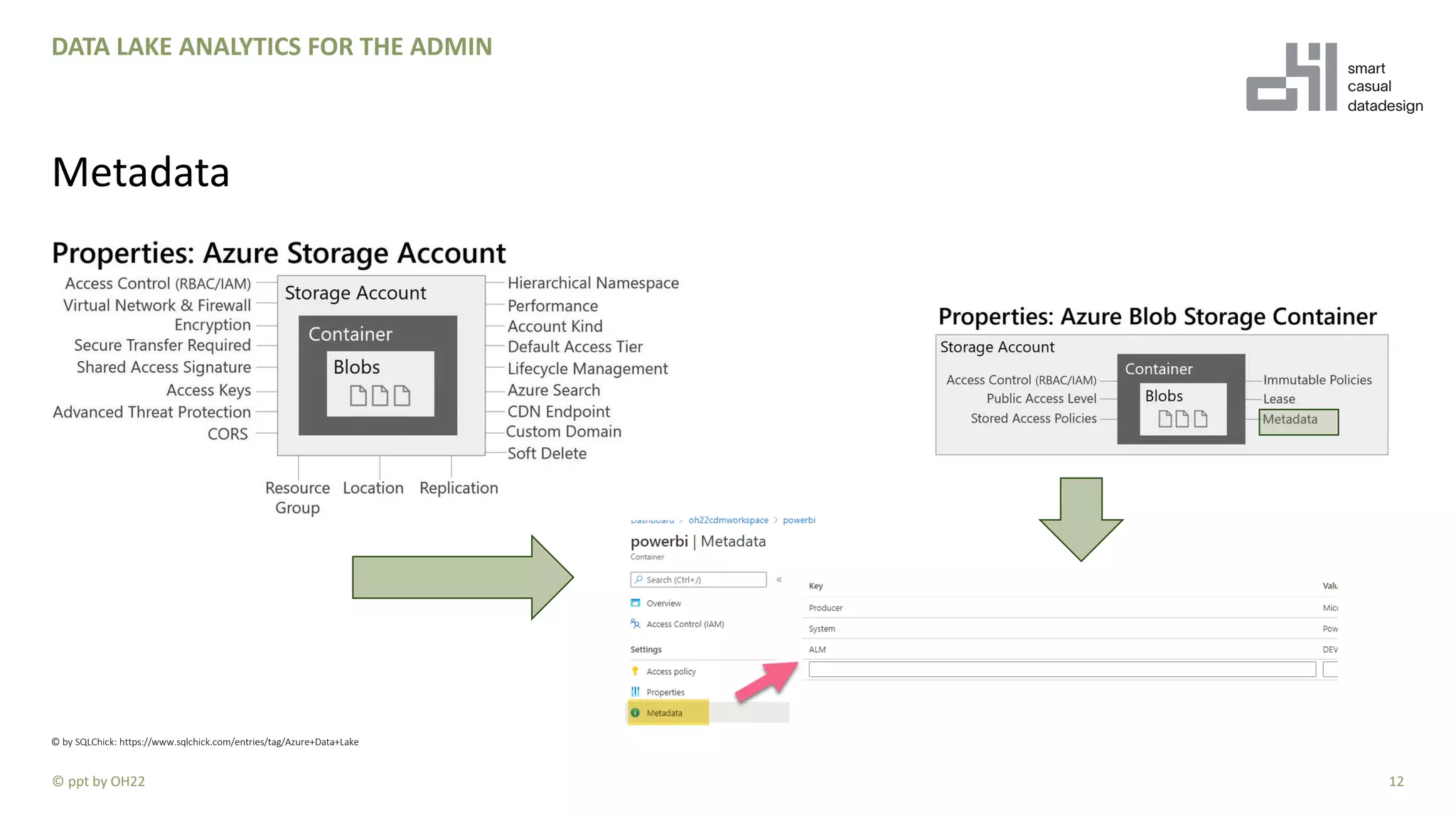

12. 12
Metadata
© ppt by OH22
DATA LAKE ANALYTICS FOR THE ADMIN
© by SQLChick: https://www.sqlchick.com/entries/tag/Azure+Data+Lake

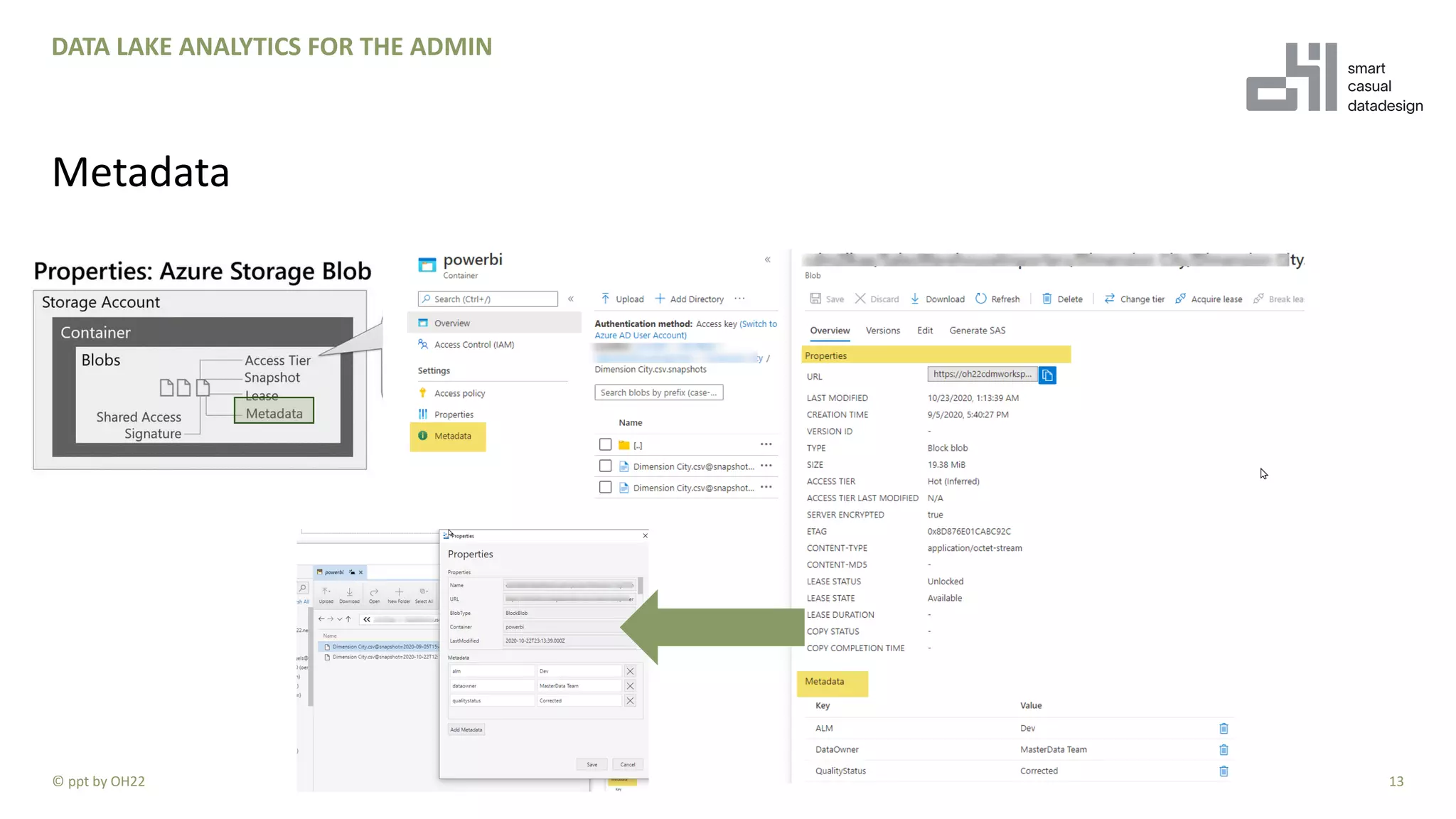

13. 13
DATA LAKE ANALYTICS FOR THE ADMIN
Metadata
© ppt by OH22

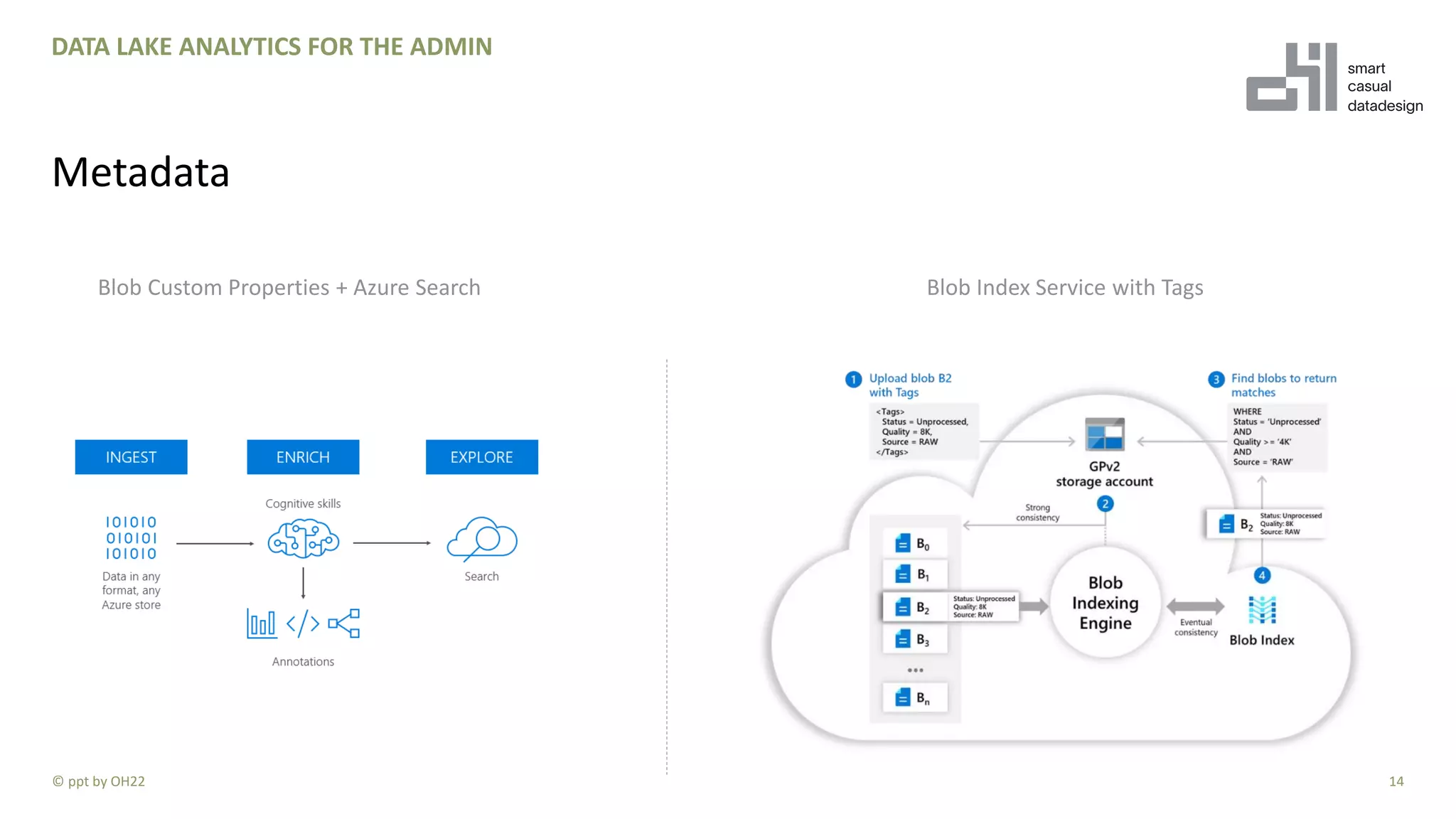

14. 14
DATA LAKE ANALYTICS FOR THE ADMIN
Metadata
© ppt by OH22

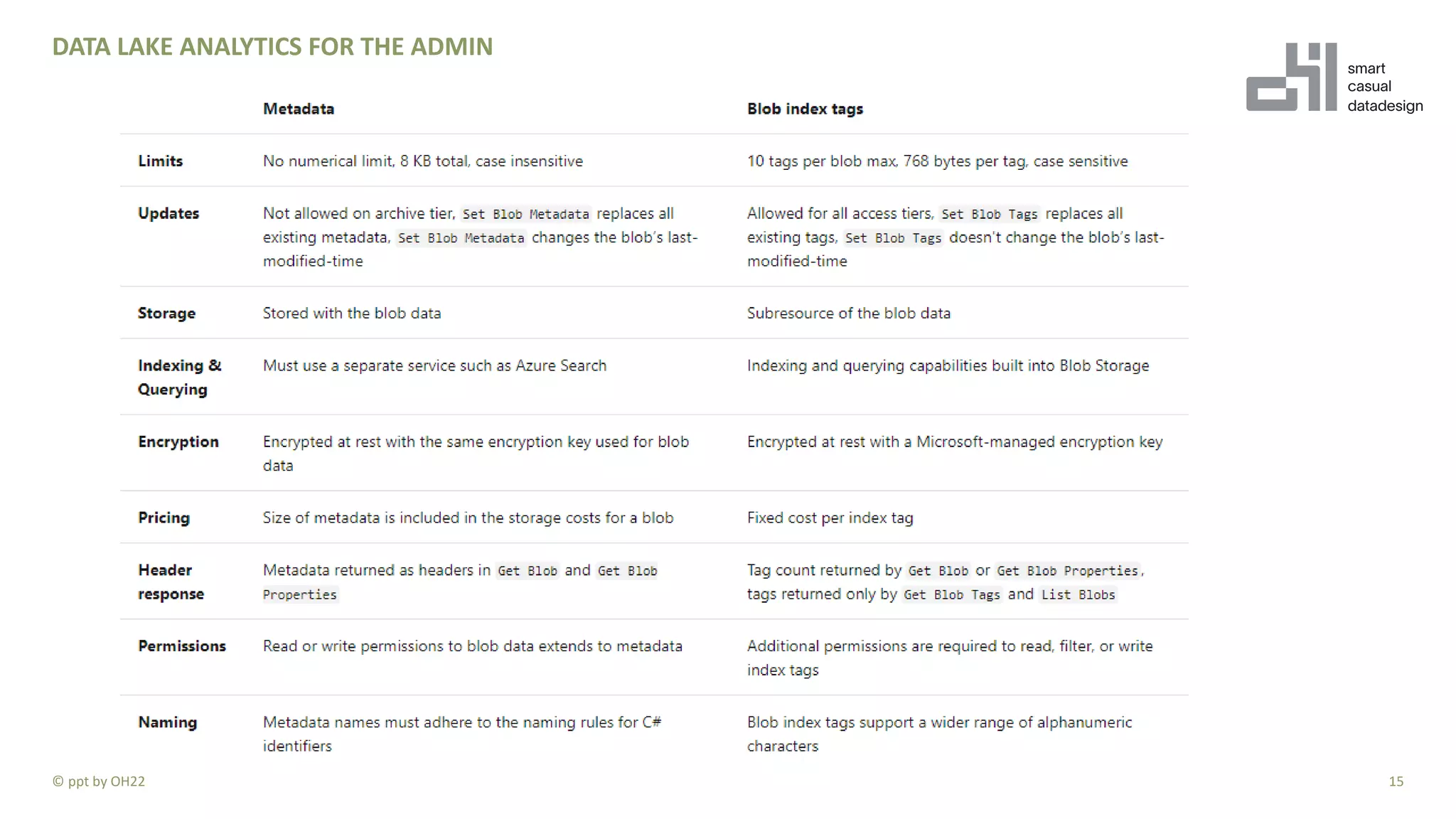

Blob Custom Properties + Azure Search Blob Index Service with Tags

15. DATA LAKE ANALYTICS FOR THE ADMIN
15© ppt by OH22

16. DEMO
Metadata with Powershell
16© ppt by OH22

17. ACTIVITY LOG
17© ppt by OH22

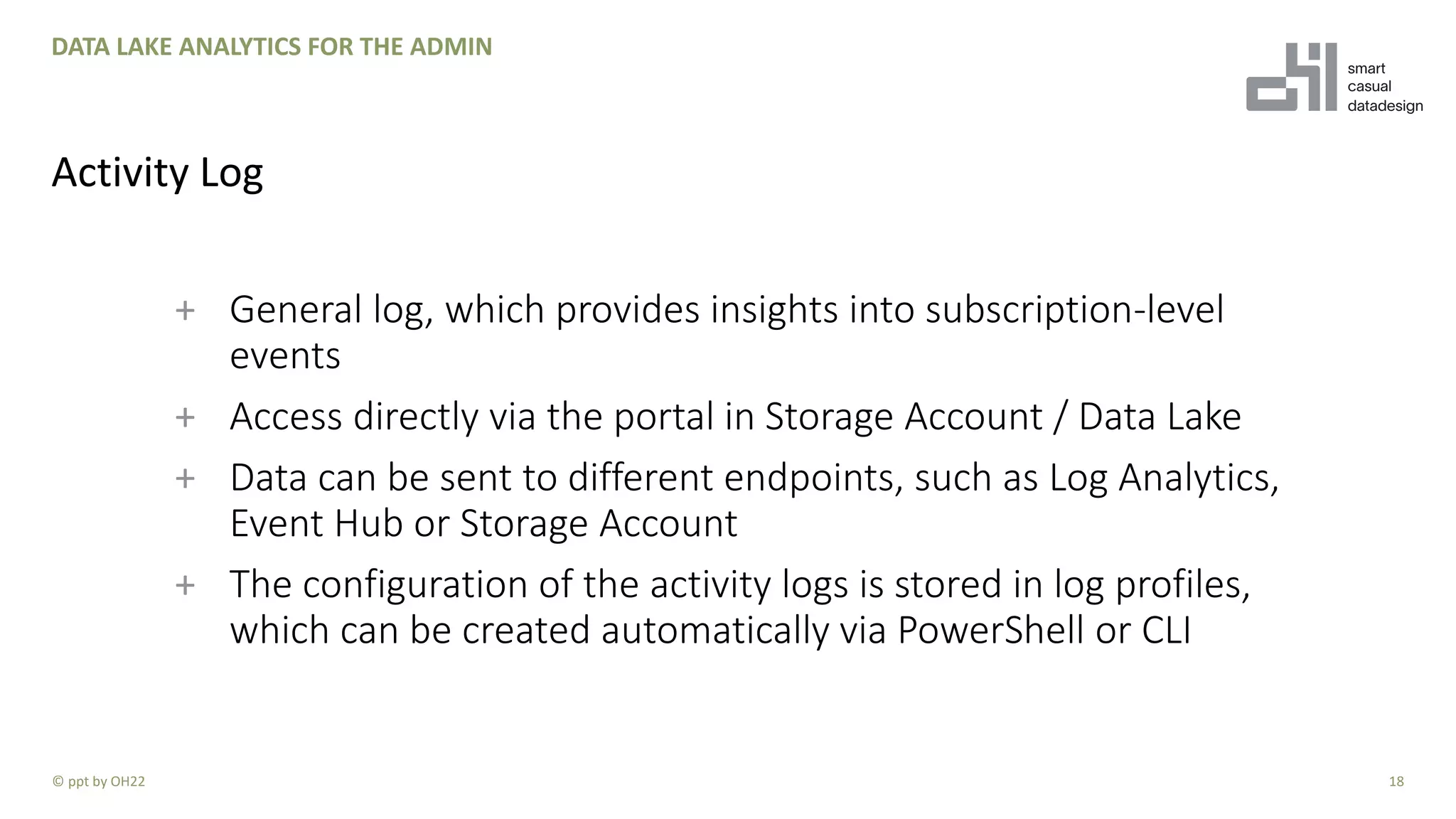

18. + General log, which provides insights into subscription-level
events
+ Access directly via the portal in Storage Account / Data Lake
+ Data can be sent to different endpoints, such as Log Analytics,
Event Hub or Storage Account
+ The configuration of the activity logs is stored in log profiles,
which can be created automatically via PowerShell or CLI
18
DATA LAKE ANALYTICS FOR THE ADMIN
Activity Log
© ppt by OH22

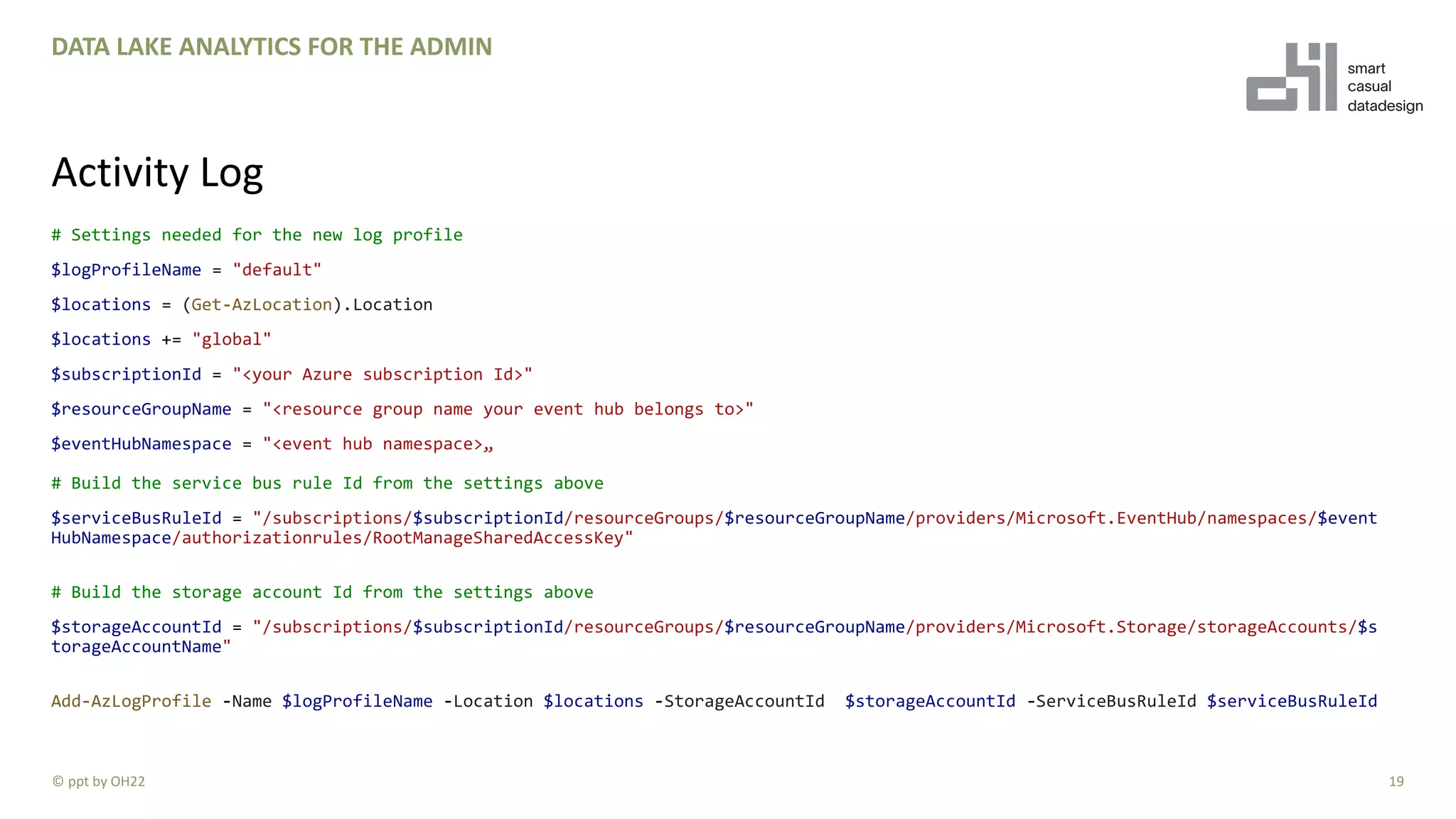

19. # Settings needed for the new log profile
$logProfileName = "default"
$locations = (Get-AzLocation).Location
$locations += "global"
$subscriptionId = "<your Azure subscription Id>"
$resourceGroupName = "<resource group name your event hub belongs to>"
$eventHubNamespace = "<event hub namespace>„
# Build the service bus rule Id from the settings above
$serviceBusRuleId = "/subscriptions/$subscriptionId/resourceGroups/$resourceGroupName/providers/Microsoft.EventHub/namespaces/$event
HubNamespace/authorizationrules/RootManageSharedAccessKey"
# Build the storage account Id from the settings above
$storageAccountId = "/subscriptions/$subscriptionId/resourceGroups/$resourceGroupName/providers/Microsoft.Storage/storageAccounts/$s
torageAccountName"
Add-AzLogProfile -Name $logProfileName -Location $locations -StorageAccountId $storageAccountId -ServiceBusRuleId $serviceBusRuleId
19
DATA LAKE ANALYTICS FOR THE ADMIN
Activity Log
© ppt by OH22

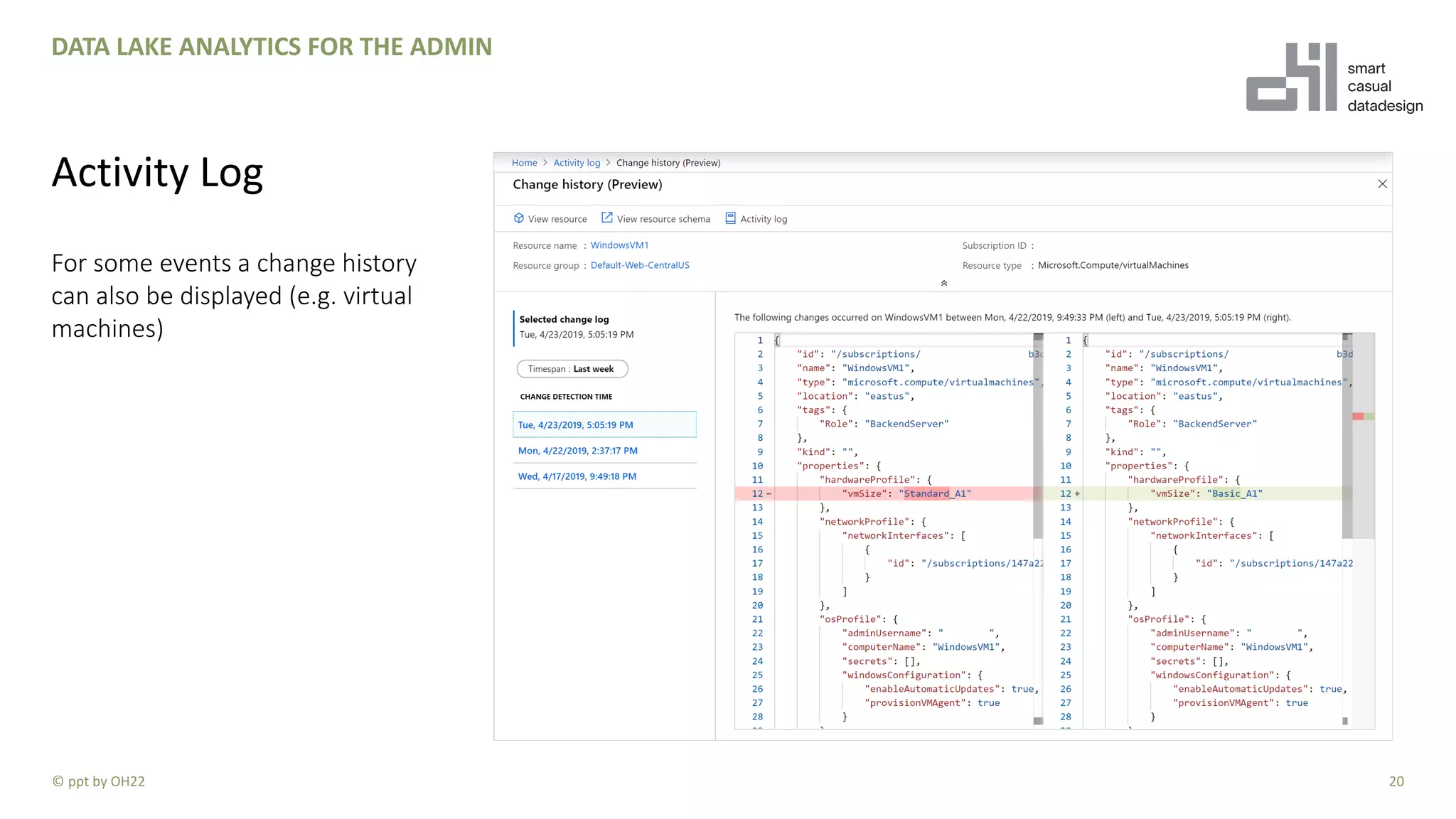

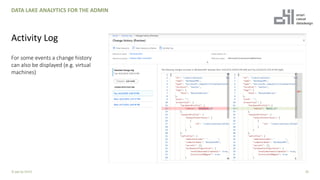

20. + For some events a change history
can also be displayed (e.g. virtual
machines)
20
DATA LAKE ANALYTICS FOR THE ADMIN
Activity Log
© ppt by OH22
For some events a change history
can also be displayed (e.g. virtual
machines)

21. AZURE POLICY
22© ppt by OH22

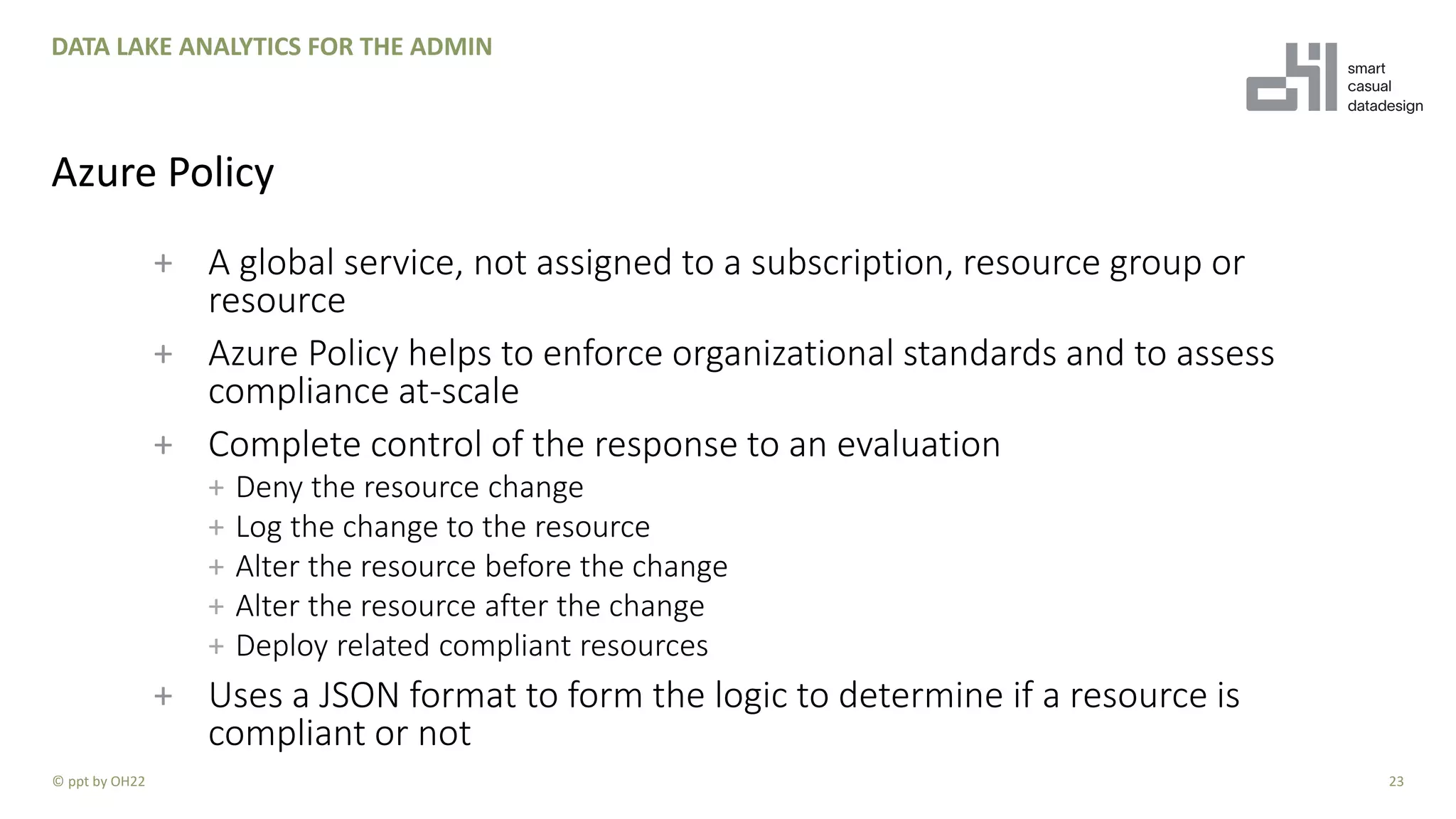

22. + A global service, not assigned to a subscription, resource group or
resource
+ Azure Policy helps to enforce organizational standards and to assess
compliance at-scale
+ Complete control of the response to an evaluation
+ Deny the resource change
+ Log the change to the resource
+ Alter the resource before the change
+ Alter the resource after the change
+ Deploy related compliant resources
+ Uses a JSON format to form the logic to determine if a resource is
compliant or not
23
DATA LAKE ANALYTICS FOR THE ADMIN
Azure Policy
© ppt by OH22

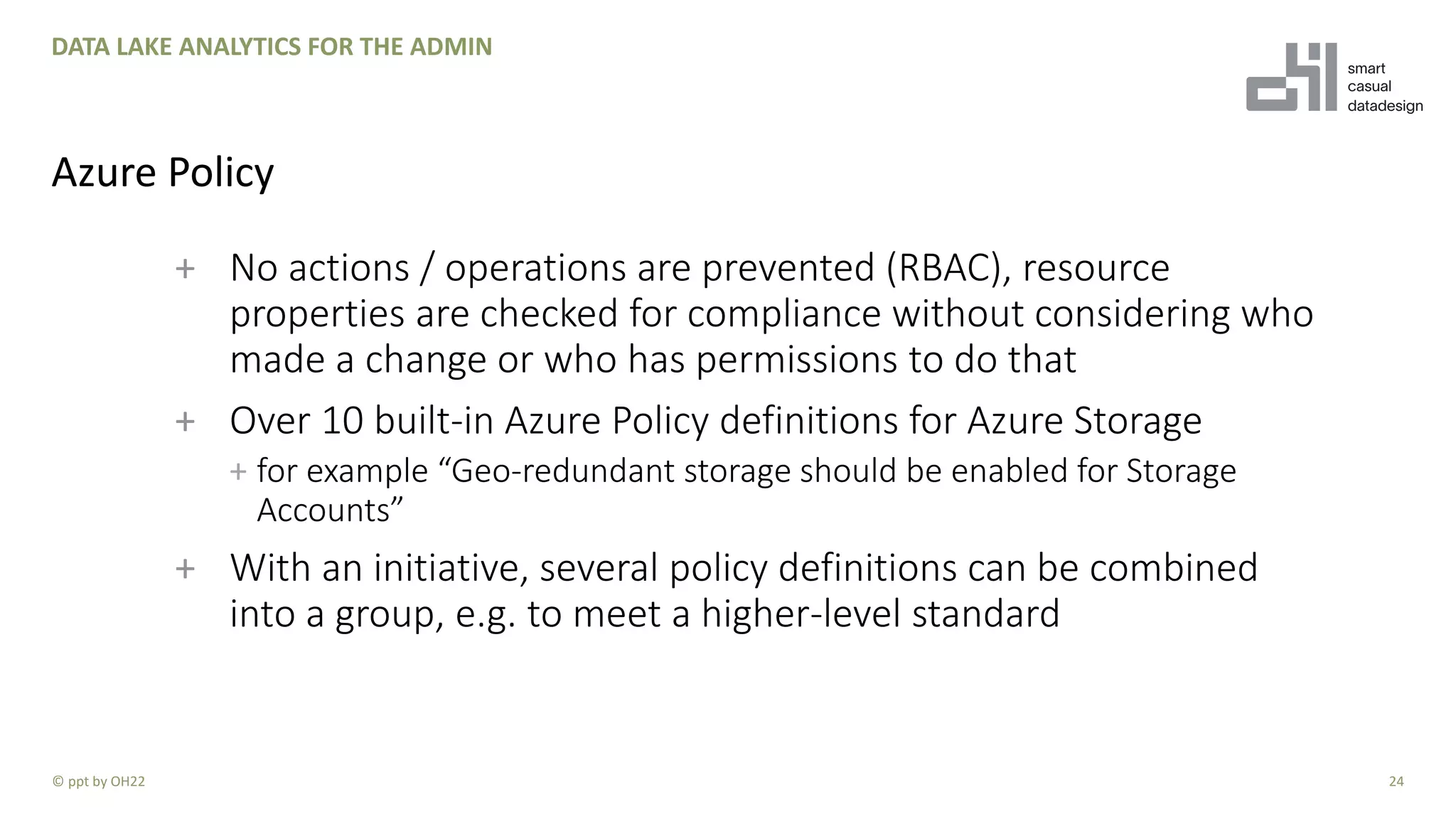

23. + No actions / operations are prevented (RBAC), resource
properties are checked for compliance without considering who
made a change or who has permissions to do that
+ Over 10 built-in Azure Policy definitions for Azure Storage
+ for example “Geo-redundant storage should be enabled for Storage
Accounts”
+ With an initiative, several policy definitions can be combined
into a group, e.g. to meet a higher-level standard
24
DATA LAKE ANALYTICS FOR THE ADMIN
Azure Policy
© ppt by OH22

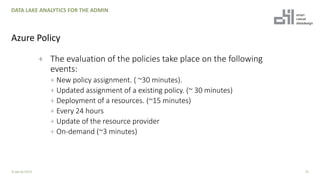

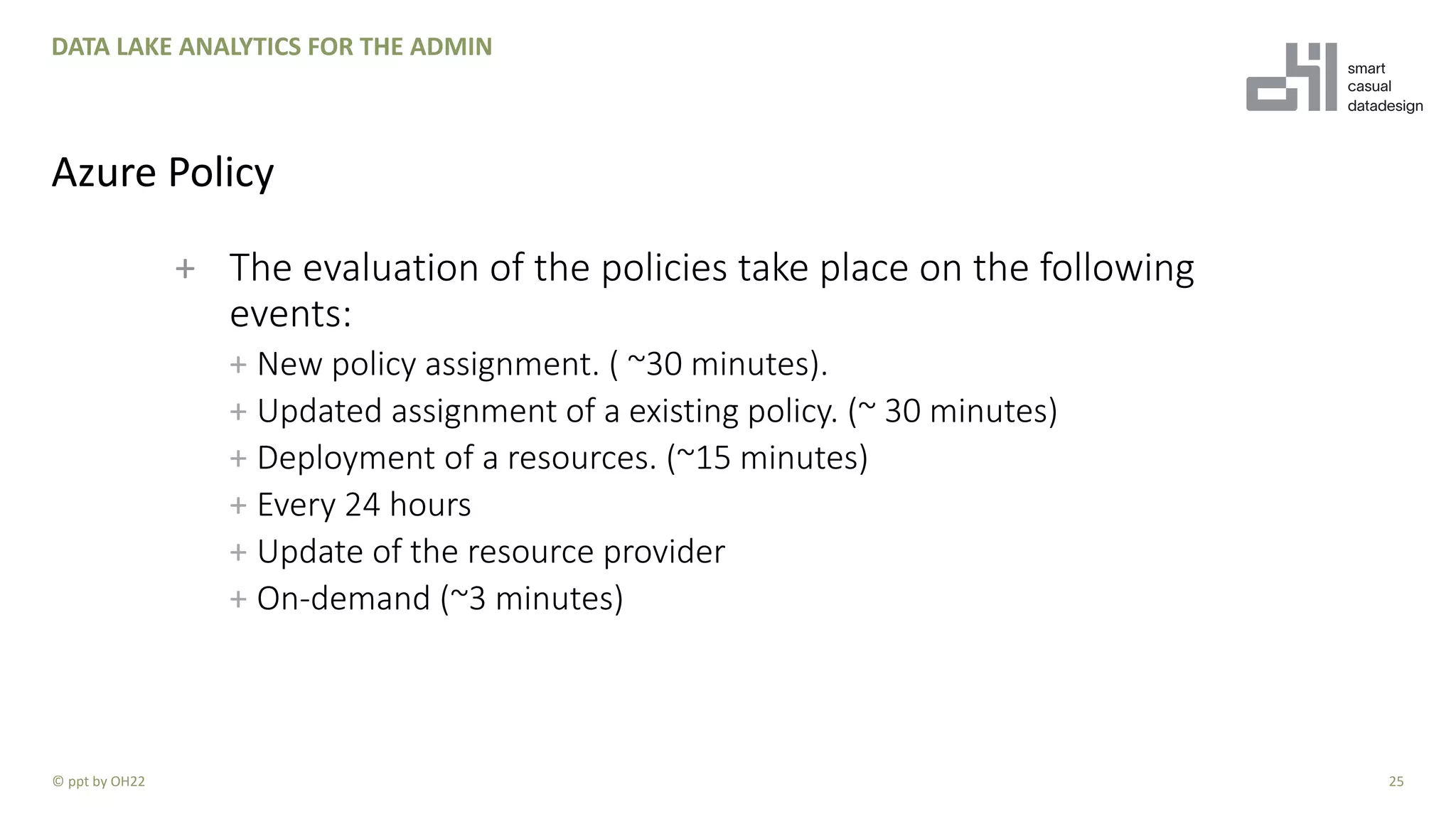

24. + The evaluation of the policies take place on the following
events:
+ New policy assignment. ( ~30 minutes).
+ Updated assignment of a existing policy. (~ 30 minutes)
+ Deployment of a resources. (~15 minutes)
+ Every 24 hours
+ Update of the resource provider
+ On-demand (~3 minutes)
25
DATA LAKE ANALYTICS FOR THE ADMIN
Azure Policy
© ppt by OH22

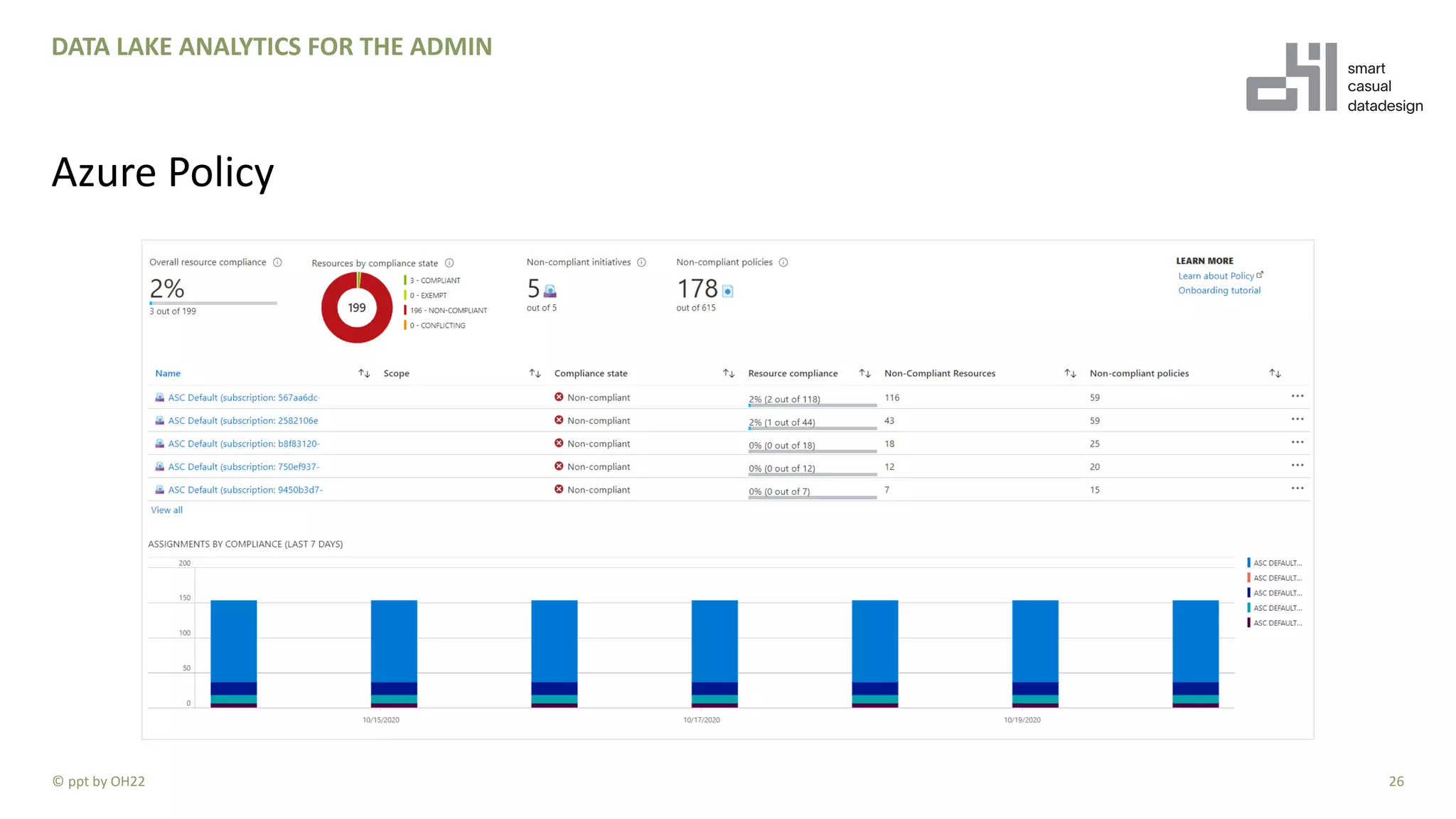

25. 26
DATA LAKE ANALYTICS FOR THE ADMIN
Azure Policy
© ppt by OH22

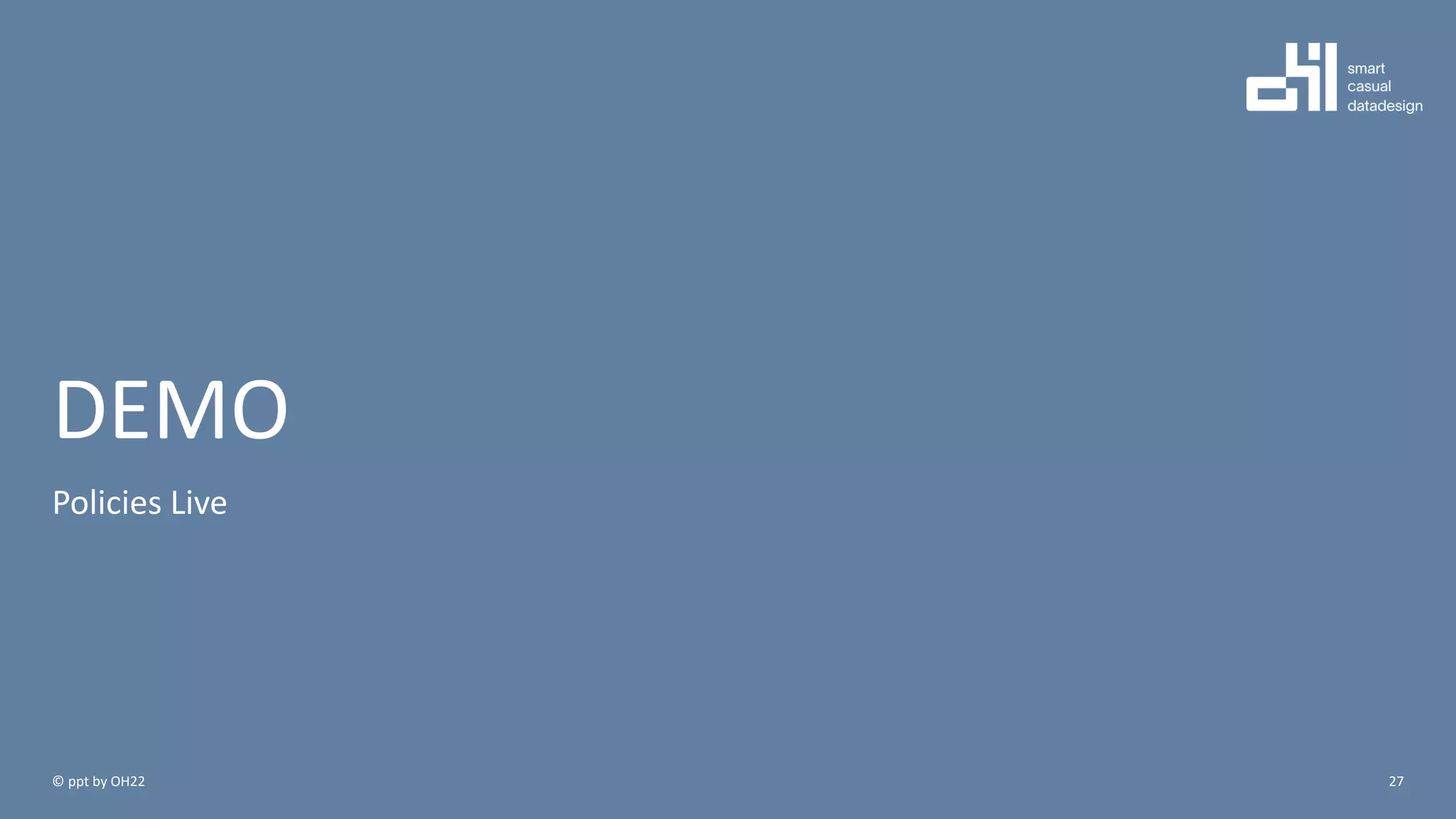

26. DEMO
Policies Live
27© ppt by OH22

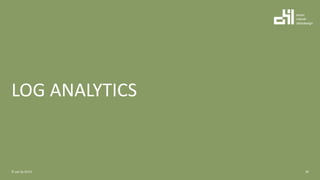

27. LOG ANALYTICS
28© ppt by OH22

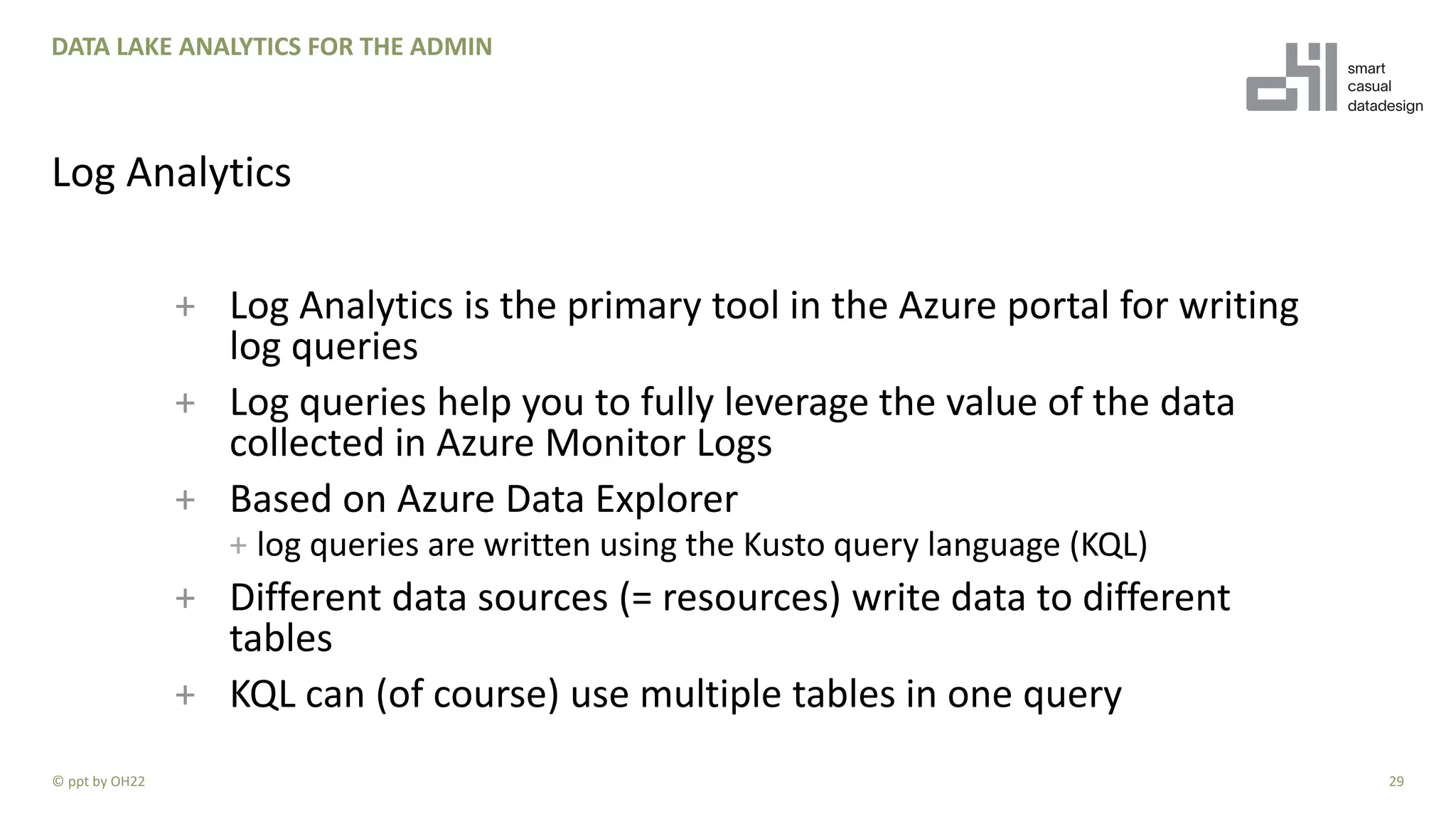

28. + Log Analytics is the primary tool in the Azure portal for writing
log queries
+ Log queries help you to fully leverage the value of the data
collected in Azure Monitor Logs
+ Based on Azure Data Explorer
+ log queries are written using the Kusto query language (KQL)
+ Different data sources (= resources) write data to different
tables
+ KQL can (of course) use multiple tables in one query
29
DATA LAKE ANALYTICS FOR THE ADMIN
Log Analytics
© ppt by OH22

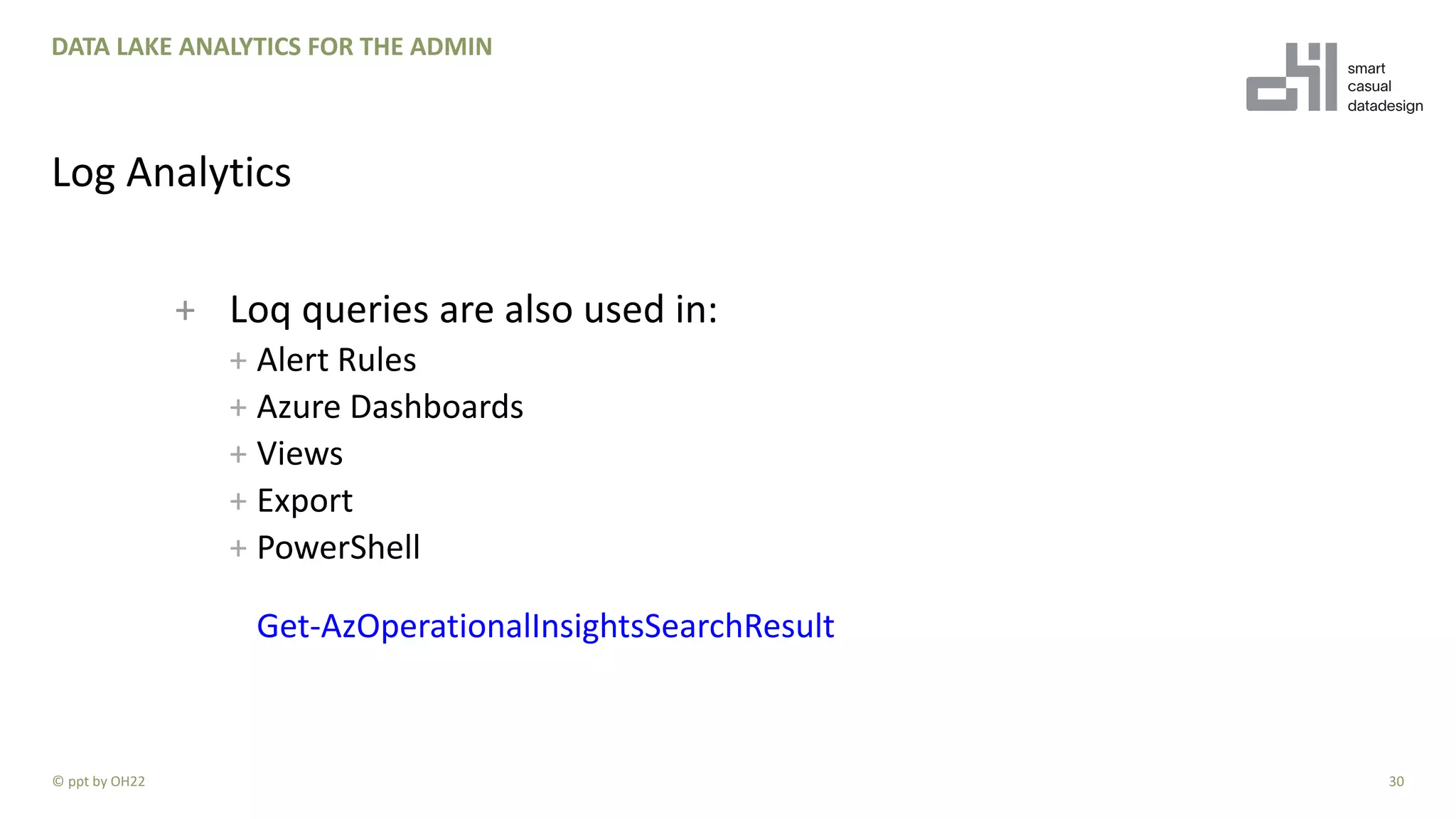

29. + Loq queries are also used in:
+ Alert Rules
+ Azure Dashboards
+ Views
+ Export
+ PowerShell
Get-AzOperationalInsightsSearchResult
30
DATA LAKE ANALYTICS FOR THE ADMIN
Log Analytics
© ppt by OH22

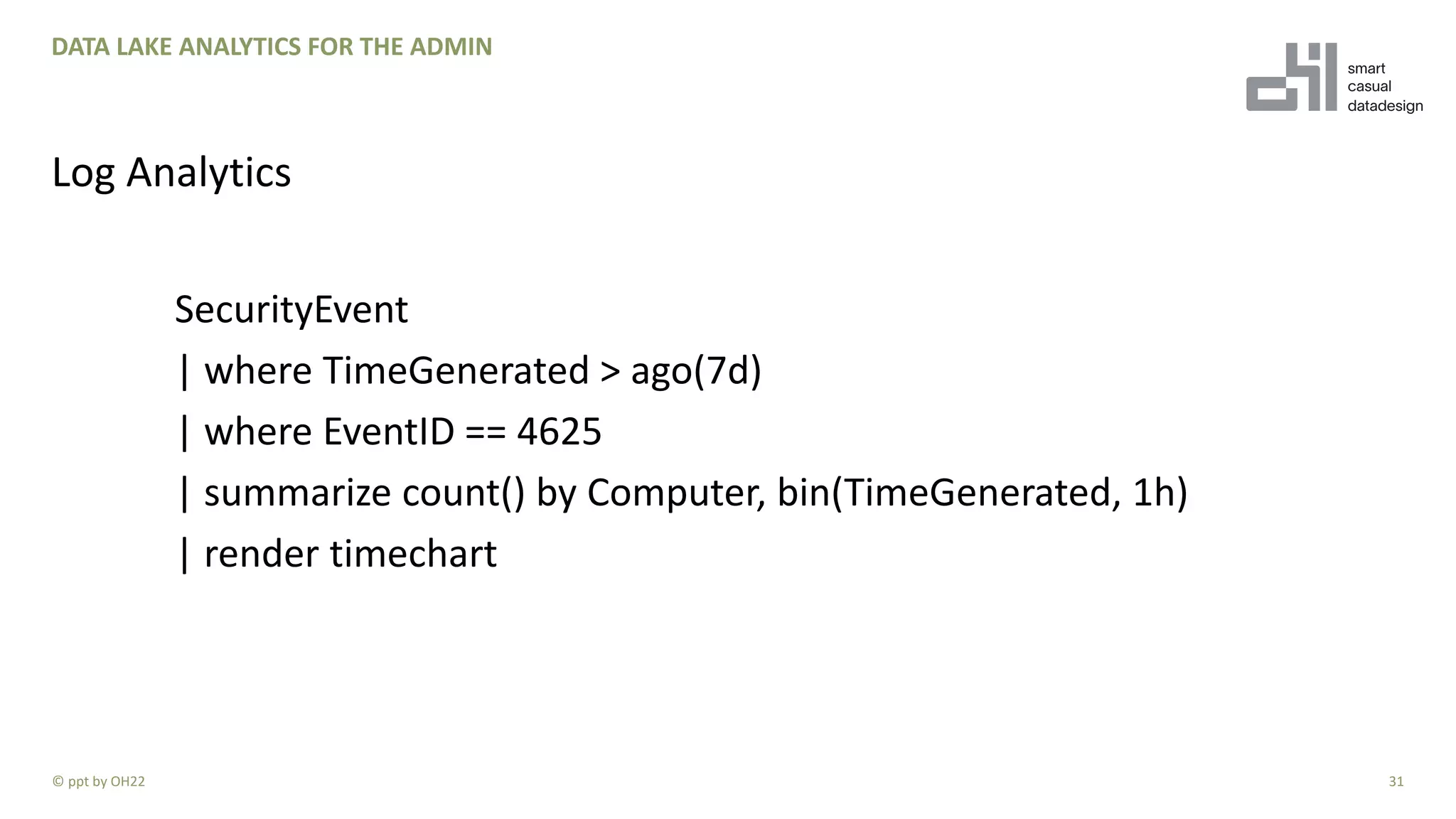

30. SecurityEvent
| where TimeGenerated > ago(7d)
| where EventID == 4625
| summarize count() by Computer, bin(TimeGenerated, 1h)
| render timechart
31
DATA LAKE ANALYTICS FOR THE ADMIN
Log Analytics
© ppt by OH22

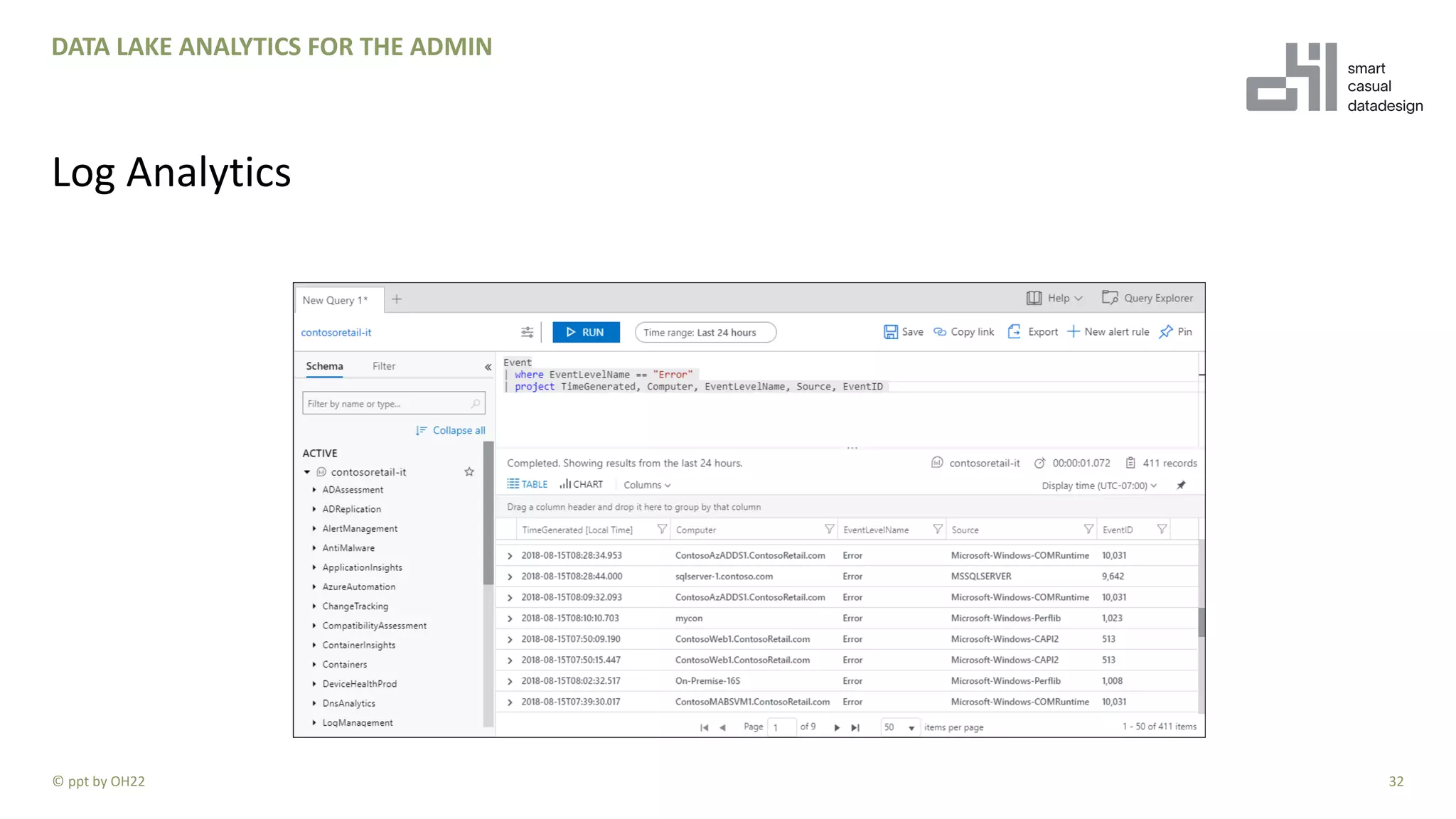

31. 32
DATA LAKE ANALYTICS FOR THE ADMIN
Log Analytics
© ppt by OH22

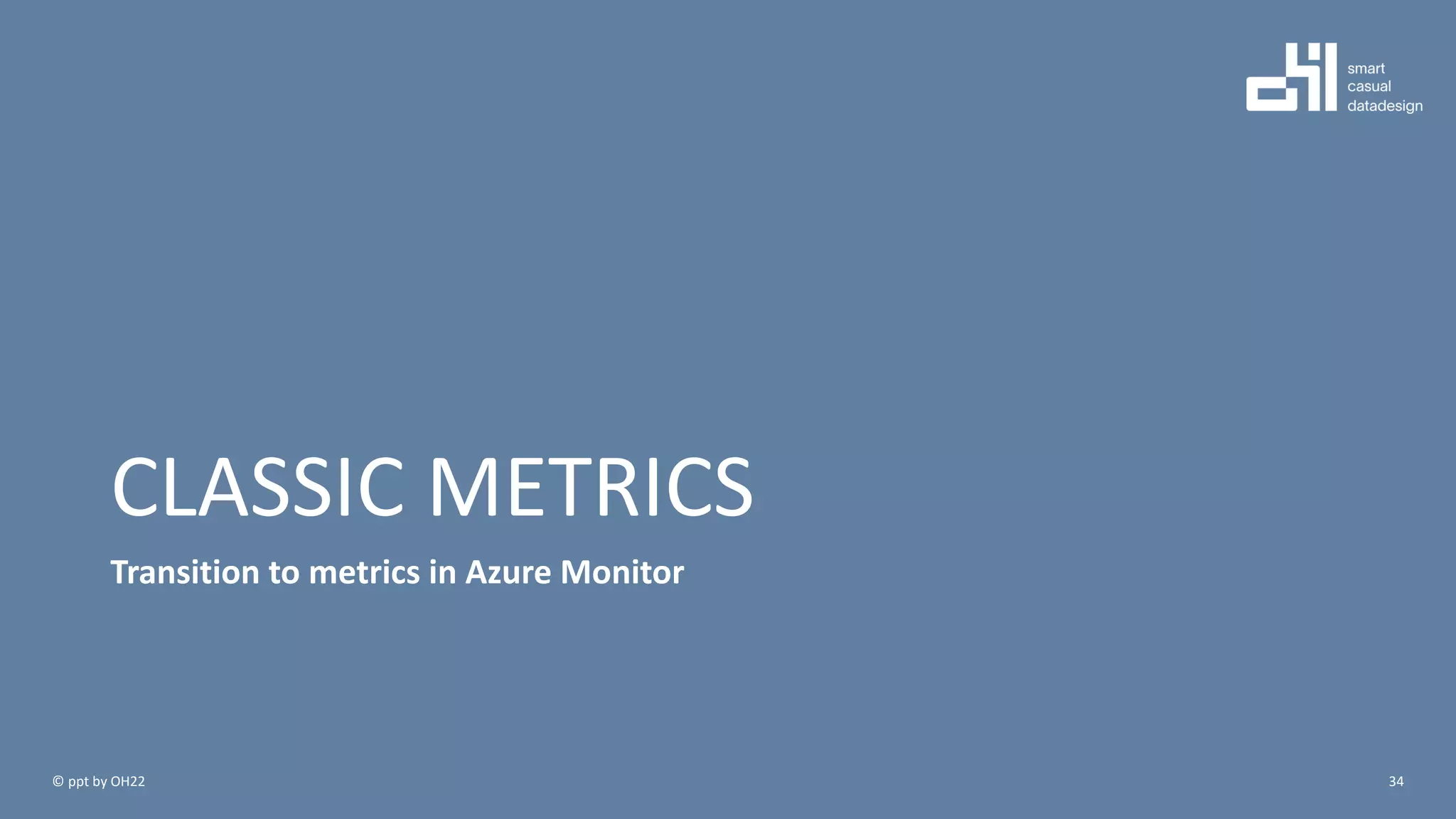

32. CLASSIC METRICS
Transition to metrics in Azure Monitor
34© ppt by OH22

33. + On August 31, 2023 Storage Analytics metrics, also referred to as classic
metrics will be retired
+ Classic metrics are sent and stored in an Azure storage account
+ Collection and aggregation through the Storage Account
+ Storage takes place in table storage on the storage account
+ With Azure Monitor, Azure Storage sends metric data to the Azure Monitor
back end
+ Azure Monitor metrics can be sent to multiple locations
+ Classic Metrics send 0 values for non-existent metrics to the log, in Azure
Monitor these values do not exist
+ Microsoft Docs: Transition to metrics in Azure Monitor
https://docs.microsoft.com/de-de/azure/storage/common/storage-metrics-migration?toc=/azure/storage/blobs/toc.json
35
DATA LAKE ANALYTICS FOR THE ADMIN
Classic Metrics
© ppt by OH22

34. ALERTS
When things happen, I need to be aware
36© ppt by OH22

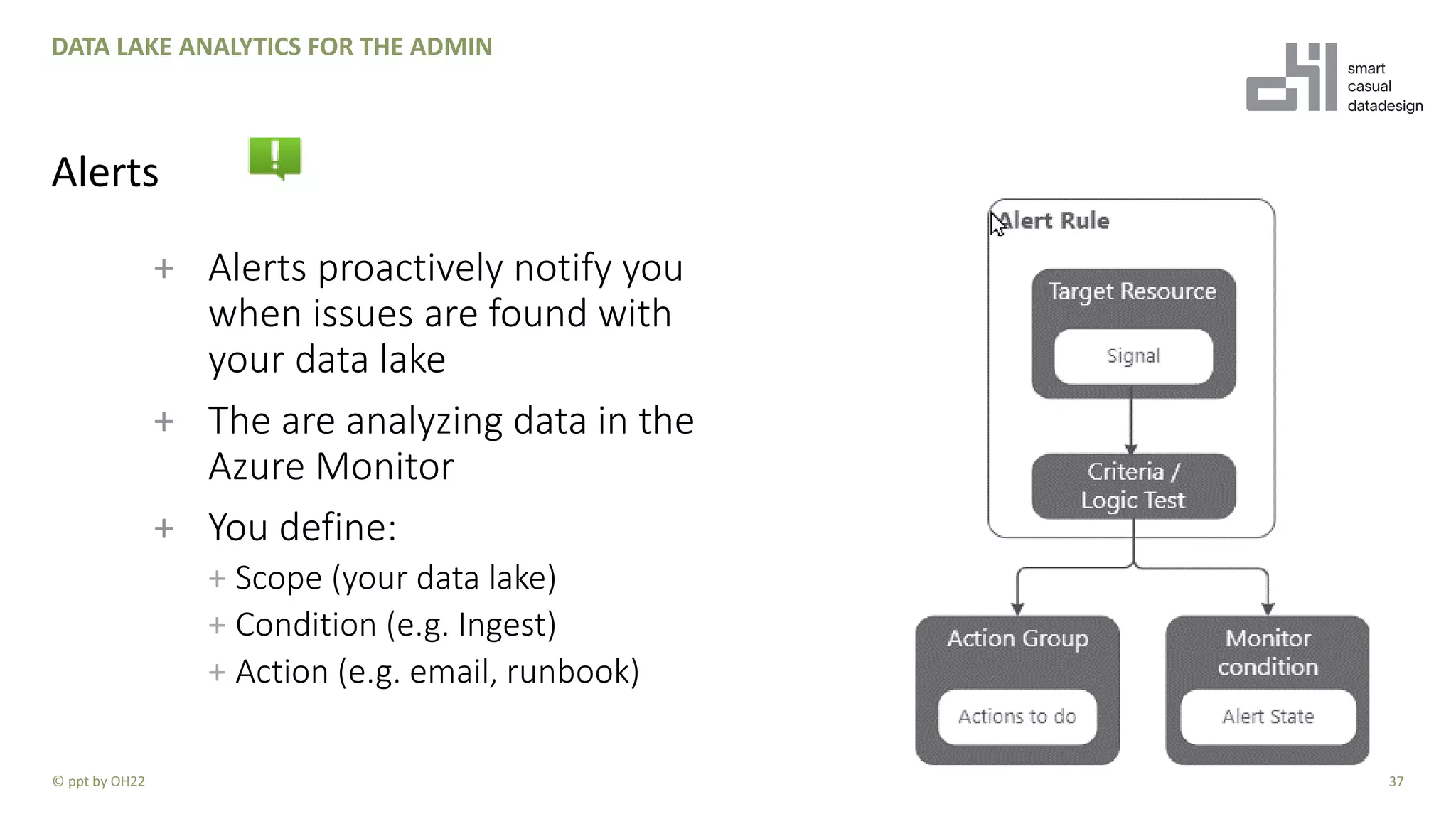

35. + Alerts proactively notify you
when issues are found with
your data lake
+ The are analyzing data in the
Azure Monitor
+ You define:
+ Scope (your data lake)
+ Condition (e.g. Ingest)
+ Action (e.g. email, runbook)
37
DATA LAKE ANALYTICS FOR THE ADMIN
Alerts
© ppt by OH22

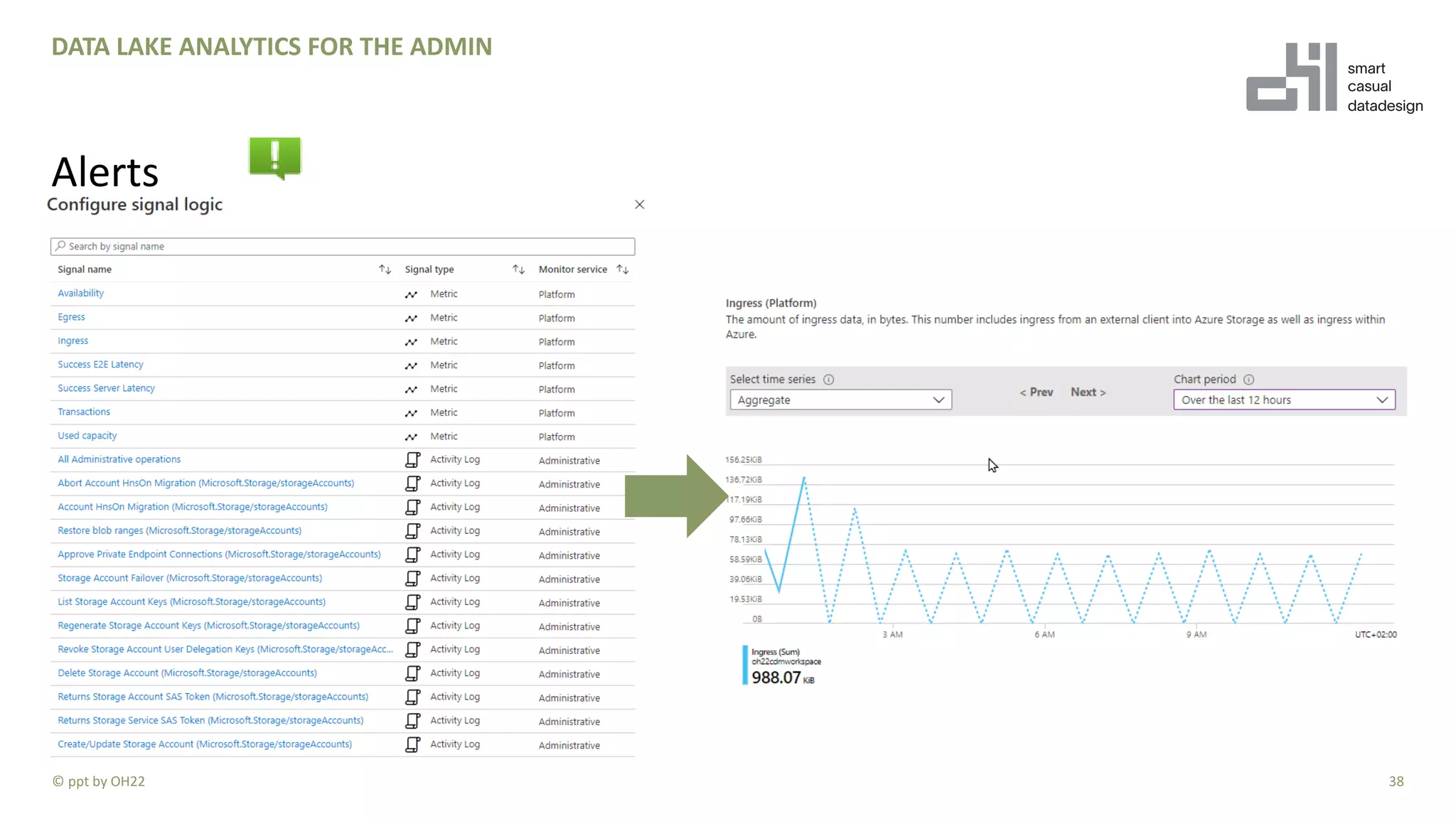

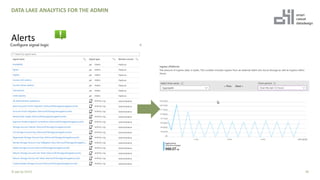

36. 38
DATA LAKE ANALYTICS FOR THE ADMIN
Alerts
© ppt by OH22

37. 39
DATA LAKE ANALYTICS FOR THE ADMIN
Alerts
© ppt by OH22

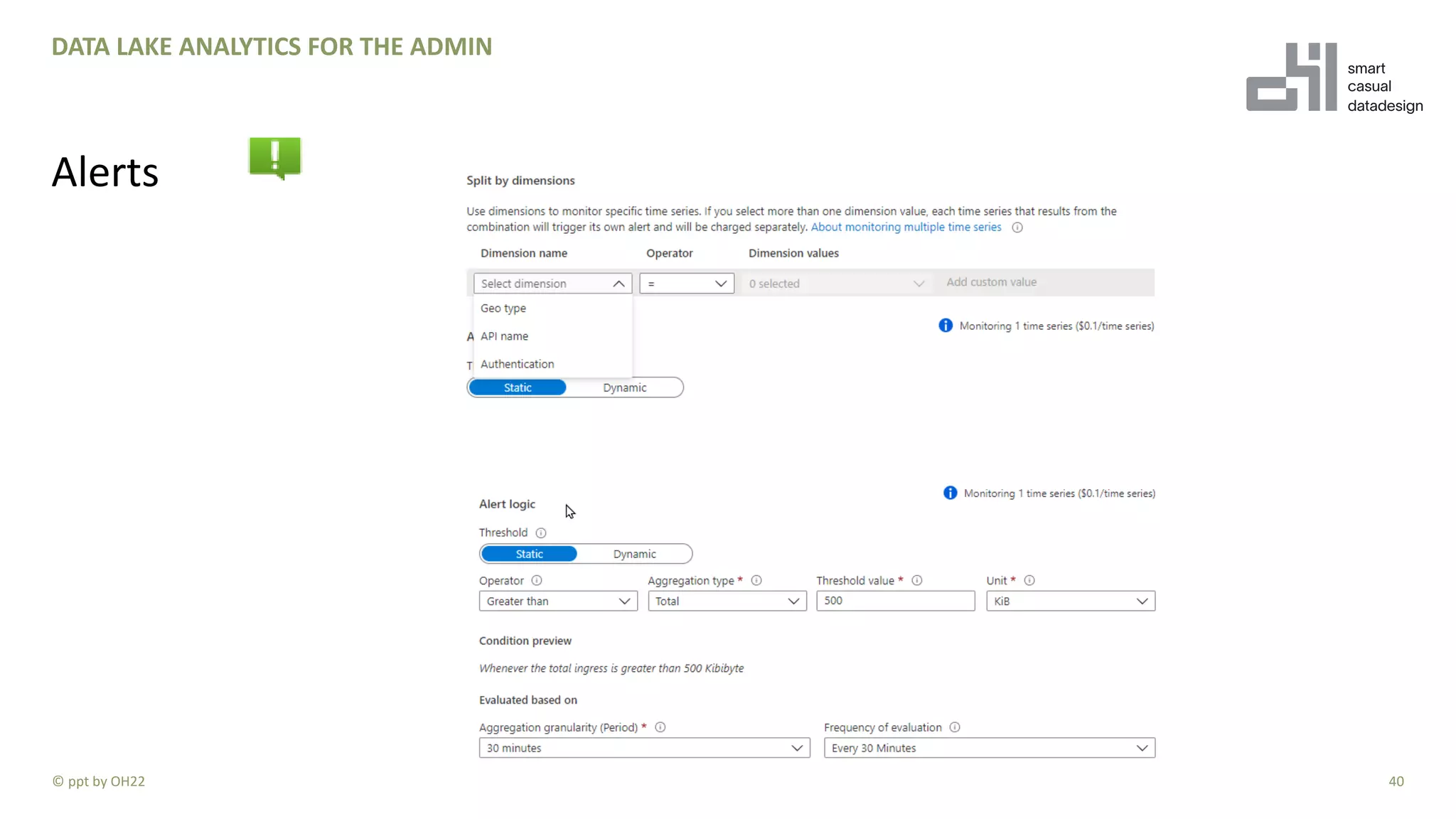

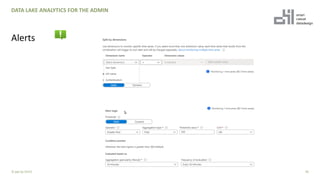

38. 40
DATA LAKE ANALYTICS FOR THE ADMIN
Alerts
© ppt by OH22

39. Thank you sponsors!!
