A Serverless Approach to Data
Processing using Apache Pulsar
Karthik Ramasamy
Cofounder and Chief Product Officer
karthik@streaml.io

2. 2

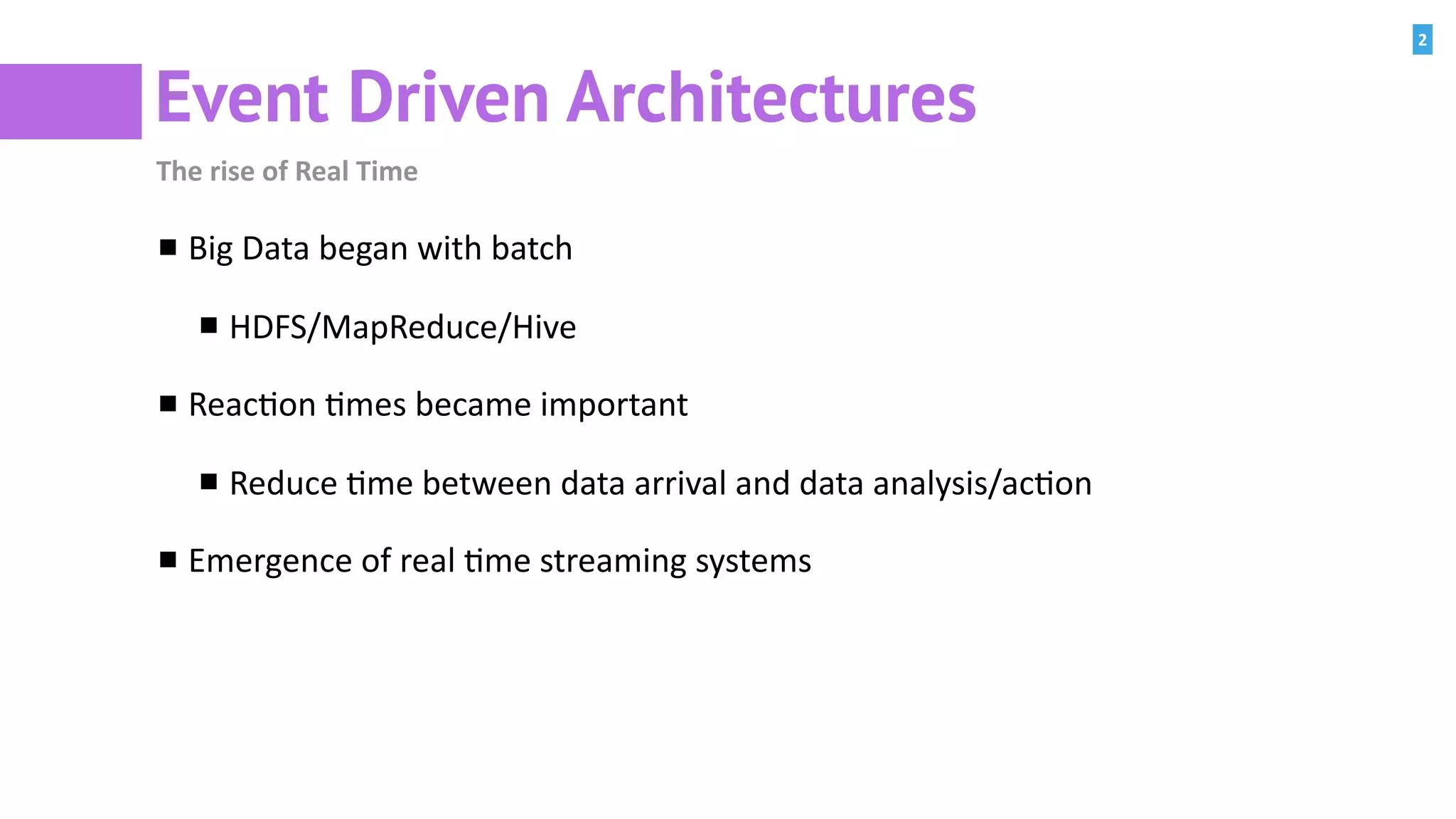

Event Driven Architectures
The rise of Real Time
Big Data began with batch
HDFS/MapReduce/Hive
Reac:on :mes became important
Reduce :me between data arrival and data analysis/ac:on
Emergence of real :me streaming systems

3. 3
What do we really mean by real time?
Aims
Aim is to react to events as they happen in real-:me
Where do events happen/arrive?
Message bus
What’s a reac:on?
An ac:on/transforma:on/func:on

4. 4
Compute Representation
Abstract View
f(x)
Incoming Messages Output Messages

5. 5
Traditional Compute representation
DAG
%
%
%
%
%
Source 1
Source 2
Action
Action
Action
Sink 1
Sink 2

6. 6
Traditional Compute API
S=tching all of this by programmers
public static class SplitSentence extends BaseBasicBolt {
@Override
public void declareOutputFields(OutputFieldsDeclarer declarer) {
declarer.declare(new Fields("word"));
}
@Override
public Map<String, Object> getComponentConfiguration() {
return null;
}
public void execute(Tuple tuple, BasicOutputCollector
basicOutputCollector) {
String sentence = tuple.getStringByField("sentence");
String words[] = sentence.split(" ");
for (String w : words) {
basicOutputCollector.emit(new Values(w));
}
}
}

7. 7
Traditional Compute API
S=tching all of this by programmers
public static class WordCount extends BaseBasicBolt {
Map<String, Integer> counts = new HashMap<String, Integer>();
@Override
public void execute(Tuple tuple, BasicOutputCollector collector) {
String word = tuple.getString(0);
Integer count = counts.get(word);
if (count == null)
count = 0;
count++;
counts.put(word, count);
collector.emit(new Values(word, count));
}
@Override
public void declareOutputFields(OutputFieldsDeclarer declarer) {
declarer.declare(new Fields("word", "count"));
}
}

8. 8
Compute API 2.0
Func=onal
Builder.newBuilder()
.newSource(() -> StreamletUtils.randomFromList(SENTENCES))
.flatMap(sentence -> Arrays.asList(sentence.toLowerCase().split("s+")))
.reduceByKeyAndWindow(word -> word, word -> 1,
WindowConfig.TumblingCountWindow(50),
(x, y) -> x + y);

9. 9
Compute API 2.0
Characteris=cs
Compact
Complicated
Map vs FlatMap

10. 10
Traditional Real-Time Systems
Separate
Messaging Compute

11. 11
Traditional Real-Time Systems
Developer Experience
Powerful API but complicated
Does everyone really need to learn func:onal programming?
Configurable/Scaleable but management overhead
Edge systems have resource/manageability constraints

12. 12
Traditional Real-Time Systems
Opera=onal Experience
Another system to operate is one too many
IOT deployment rou:nely have thousands of edge systems
Seman:c difference
Mismatch/Duplica:on between Systems
Creates Developer and Operator Fric:on

13. 13
Lessons learnt
Use Cases
A significant percentage of transforma:ons are simple
ETL
Reac:ve Services
Classifica:on
Real-:me Aggrega:on
Event Rou:ng
Microservices

14. 14
Meanwhile
The world of cloud
The emergence of Serverless
Simple func:on API
Func:ons are submiPed to the system
Runs per event
Composi:on APIs to do complex things
Wildly popular

15. 15
Serverless vs Streaming
What is the difference?
Both are event driven architectures
Both can be used for analy:cs/serving
Both have composi:on APIs
Configura:on based for Serverless vs DSL based for Streaming
Serverless typically don’t care for ordering
Really the func:on of the underlying source
Pay per ac:on
Really a product billing interfaces

16. 16
What’s needed? Stream-Native Compute
Insight gained from Serverless
Simplest possible API
Method/Procedure/Func:on
Mul: Language API
Scale developers
Message bus na:ve concepts
Input/Output/Log as topics
Flexible run:me
Simple standalone applica:ons vs system managed applica:ons

17. 17
Introducing Apache Pulsar Functions

18. 18
Apache Pulsar

19. 19
What is Apache Pulsar?
Hyper Converged Data Platform that includes
Messaging
Durable log storage
Light weight Processing
Open Source

20. 20
Ordering
Guaranteed ordering
Multi-tenancy
A single cluster can
support many tenants
and use cases
High throughput
Can reach 1.8 M
messages/s in a
single partition
Durability
Data replicated and
synced to disk
Geo-replication
Out of box support for
geographically
distributed
applications
Unified messaging
model
Support both
Streaming and
Queuing in a single
model
Delivery Guarantees
At least once, at most
once and effectively once
Low Latency
Low publish latency of
5ms at 99pct
Highly scalable
Can support millions of
topics
How different is Apache Pulsar?

21. 21
Pulsar Architecture
Pulsar Broker 1 Pulsar Broker 1 Pulsar Broker 1
Bookie 1 Bookie 2 Bookie 3 Bookie 4 Bookie 5
Apache BookKeeper
Apache Pulsar
Producer Consumer
Stateless Serving
BROKER
Clients interact only with brokers
No state is stored in brokers
BOOKIES
Apache BookKeeper as the storage
Storage is append only
Provides high performance, low latency
Durability
No data loss. fsync before acknowledgement

22. 22
Pulsar Architecture
Pulsar Broker 1 Pulsar Broker 1 Pulsar Broker 1
Bookie 1 Bookie 2 Bookie 3 Bookie 4 Bookie 5
Apache BookKeeper
Apache Pulsar
Producer Consumer
Separa=on of Storage and Serving
SERVING
Brokers can be added independently
Traffic can be shifted quickly across brokers
STORAGE
Bookies can be added independently
New bookies will ramp up traffic quickly

23. 23
Segment Centric Storage

24. 24
Flexible Messaging Model

25. 25
Multi Tenancy

26. 26
Topic (T1) Topic (T1)
Topic (T1)
Subscrip:on (S1) Subscrip:on (S1)
Producer
(P1)
Consumer
(C1)
Producer
(P3)
Producer
(P2)
Consumer
(C2)
Data Center A Data Center B
Data Center C
Multi Cluster Replication

27. 27
Back to Pulsar Functions

28. 28
Pulsar Functions
API
SDK less API
import java.util.function.Function;
public class ExclamationFunction implements Function<String, String> {
@Override
public String apply(String input) {
return input + "!";
}
}

29. 29
Pulsar Functions
API
SDK API
import org.apache.pulsar.functions.api.PulsarFunction;
import org.apache.pulsar.functions.api.Context;
public class ExclamationFunction implements PulsarFunction<String, String> {
@Override
public String process(String input, Context context) {
return input + "!";
}
}

30. 30
Pulsar Functions
Input and Output
Func:on executed for every message of input topic
Supports mul:ple topics as inputs
Func:on Output goes to the output topic
Func:on Output can be void/null
SerDe takes care of serializa:on/deserializa:on of messages
Custom SerDe can be provided by the users
Integrates with Schema Registry

31. 31
Pulsar Functions
Processing Guarantees
ATMOST_ONCE
Message is acked to Pulsar as soon as we receive it
ATLEAST_ONCE
Message acked to Pulsar a]er the func:on completes
Default behavior:- Not many ppl want to loose data
EFFECTIVELY_ONCE
Uses Pulsar’s inbuilt effec:vely once seman:cs
Controlled at run:me by user

32. 32
Pulsar Functions
Built in State
Func:ons can store state in StreamStore
Framework provides an simple library around this
Support server side opera:ons like counters
Simplified applica:on development
No need to standup an extra system

33. 33
Pulsar Functions
WordCount Topology
import org.apache.pulsar.functions.api.Context;
import org.apache.pulsar.functions.api.PulsarFunction;
public class CounterFunction implements PulsarFunction<String, Void> {
@Override
public Void process(String input, Context context) throws Exception {
for (String word : input.split(".")) {
context.incrCounter(word, 1);
}
return null;
}
}

34. 34
Built-in State Management
Pulsar uses BookKeeper as its stream storage
Func:ons can store State in BookKeeper
Framework provides the Context object for users to access State
Support server side opera:ons like Counters
Simplified applica:on development
No need to standup an extra system to develop/test/integrate/operate

35. 35
Pulsar Functions
Running as a standalone applica=on
bin/pulsar-admin functions localrun
--input persistent://sample/standalone/ns1/test_input
--output persistent://sample/standalone/ns1/test_result
--className org.mycompany.ExclamationFunction
--jar myjar.jar
Runs as a standalone process
Run as many instances as you want. Framework automa:cally balances data
Run and manage via Mesos/K8/Nomad/your favorite tool

36. 36
Pulsar Functions
Running inside Pulsar cluster
‘Create’ and ‘Delete’ Func:ons in a Pulsar Cluster
Pulsar brokers run func:ons as either threads/processes/docker containers
Unifies Messaging and Compute cluster into one, significantly improving
manageability
Ideal match for Edge or small startup environment
Serverless in a jar

37. 37
Pulsar Functions
Stepping back: Where Pulsar Func=ons belong
Powerful/Complicated systems have their place
Data Centers/Cloud
Complex analysis
A significant percentage of analy:cs/ac:ons are mundane
ETL/Coun:ng/Rou:ng
Use simple tools for simple things

38. 38
Pulsar Functions: Use Cases
Edge Compu=ng
Sensor devices generate tons of data
We need local ac:ons
Simple filtering, threshold detec:on, regex matching, etc
Manageability is a big concern
The less moving parts, the bePer
Resource Constrained
Limited scope for Full blown schedulers/Job Managers

39. 39
Pulsar Functions: Use Cases
Model Serving
Models computed via offline analysis
Incoming requests should be classified using the model
Func:on is a natural representa:on for the classifica:on ac:on
Model itself can be stored in Bookkeeper

40. 40
Roadmap
More language supports - Go, Javascript, C++
Cross Func:ons : Func:on Composi:on API
More State opera:ons exposed to Func:ons

41. 41
Apache Pulsar in Production
3+ years
Serves 2.3 million topics
100 billion messages/day
Average latency < 5 ms
99% 15 ms (strong durability guarantees)
Zero data loss
80+ applica:ons
Self served provisioning
Full-mesh cross-datacenter replica:on - 8+ data centers

42. 42
Companies Using Apache Pulsar and BookKeeper

43. 43
Conclusion
Stream-Na:ve Compute (aka Func:ons) is the new paradigm in Messaging Systems
Stream-Na:ve Storage (aka States) is the new paradigm in Storage Systems
Pulsar Func:ons bridges lightweight compu:ng capability into messaging and
storage system, which is the trends that streaming applica:ons need
hPps://pulsar.incubator.apache.org/docs/latest/func:ons/quickstart/

44. 44
Questions and Thank You!
karthik@streaml.io

45. 45
State Storage w/ BookKeeper
The built-in state management is powered by Table Service in BookKeeper
BP-30: Table Service
Originated for a built-in metadata management within BookKeeper
Expose for general usage. e.g. State management for Pulsar Func:ons
Developer Preview
Pulsar Func:ons at Pulsar 2.0
Direct usage at BookKeeper 4.7

46. 46
State Storage w/ BookKeeper
Updates are wriPen in the log streams in BookKeeper
Materialized into a key/value table view
The key/value table is indexed with rocksdb for fast lookup
The source-of-truth is the log streams in BookKeeper
Rocksdb are transient key/value indexes
Rocksdb instances are incrementally checkpointed and stored into BookKeeper for
fast recovery
