Introducing the FLiPN stack which
combines Apache Flink, Apache NiFi,
Apache Pulsar and other Apache
tools to build fast applications for IoT,
AI, rapid ingest. FLiPN provides a
quick set of tools to build applications
at any scale for any streaming and
IoT use cases. Tools Apache Flink,
Apache Pulsar, Apache NiFi, MiNiFi,
Apache MXNet, DJL.AI References

5. 5
● Learn how to build an end-to-end streaming edge app
● How to pull messages from Pulsar topics
● Building a data stream for IoT with NiFi
● Using Apache Flink + Apache Pulsar
● Using Apache Spark / Delta Lake / + Apache Pulsar
AGENDA

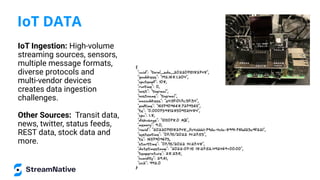

6. IoT DATA
IoT Ingestion: High-volume
streaming sources, sensors,
multiple message formats,
diverse protocols and
multi-vendor devices
creates data ingestion
challenges.
Other Sources: Transit data,
news, twitter, status feeds,
REST data, stock data and
more.

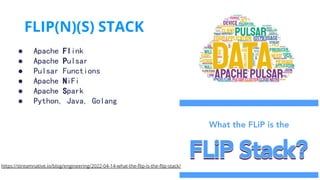

7. ● Apache Flink
● Apache Pulsar
● Pulsar Functions
● Apache NiFi
● Apache Spark
● Python, Java, Golang
FLIP(N)(S) STACK
https://streamnative.io/blog/engineering/2022-04-14-what-the-flip-is-the-flip-stack/

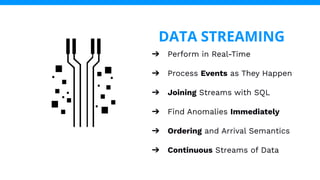

9. ➔ Perform in Real-Time
➔ Process Events as They Happen
➔ Joining Streams with SQL
➔ Find Anomalies Immediately
➔ Ordering and Arrival Semantics
➔ Continuous Streams of Data
DATA STREAMING

10. Sensors <->
STREAMING EDGE APPS
StreamNative Hub
StreamNative Cloud
Unified Batch and Stream COMPUTING
Batch
(Batch + Stream)
Unified Batch and Stream
STORAGE
Offload
(Queuing + Streaming)
Tiered Storage
Pulsar
---
KoP
---
MoP
---
Websocket
Pulsar
Sink
Streaming
Edge Gateway
Protocols
<-> Sensors <->
Apps

11. WHAT IS APACHE PULSAR?

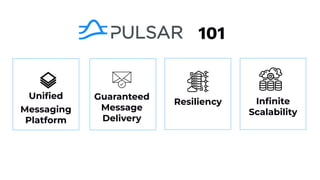

12. 101
Unified
Messaging
Platform
Guaranteed
Message
Delivery
Resiliency Infinite
Scalability

13. Messaging
Ideal for work queues that do not
require tasks to be performed in a
particular order—for example,
sending one email message to many
recipients.
RabbitMQ and Amazon SQS are
examples of popular queue-based
message systems.
PULSAR: UNIFIED MESSAGING + DATA
STREAMING

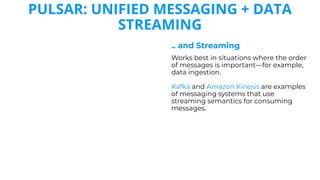

14. PULSAR: UNIFIED MESSAGING + DATA
STREAMING
.. and Streaming
Works best in situations where the order
of messages is important—for example,
data ingestion.
Kafka and Amazon Kinesis are examples
of messaging systems that use
streaming semantics for consuming
messages.

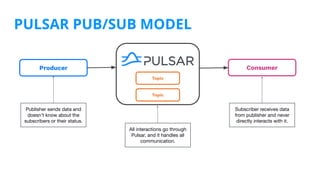

15. PULSAR PUB/SUB MODEL
Producer Consumer
Publisher sends data and
doesn't know about the
subscribers or their status.
All interactions go through
Pulsar, and it handles all
communication.
Subscriber receives data
from publisher and never
directly interacts with it.
Topic
Topic

16. Streaming
Consumer
Consumer
Consumer
Subscription
Shared
Failover
Consumer
Consumer
Subscription
In case of failure in
Consumer B-0
Consumer
Consumer
Subscription
Exclusive
X
Consumer
Consumer
Key-Shared
Subscription
Pulsar
Topic/Partition
Messaging

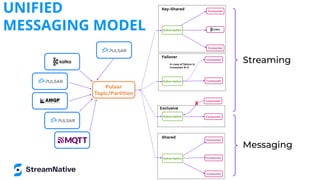

UNIFIED
MESSAGING MODEL

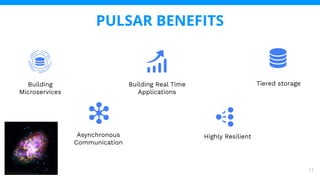

17. Building
Microservices
Asynchronous
Communication
Building Real Time
Applications
Highly Resilient
Tiered storage
17
PULSAR BENEFITS

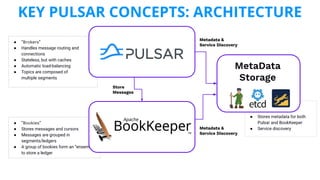

18. ● “Bookies”
● Stores messages and cursors
● Messages are grouped in
segments/ledgers
● A group of bookies form an “ensemble”
to store a ledger
● “Brokers”
● Handles message routing and
connections
● Stateless, but with caches
● Automatic load-balancing
● Topics are composed of
multiple segments
●
● Stores metadata for both
Pulsar and BookKeeper
● Service discovery
Store
Messages
Metadata &
Service Discovery
Metadata &
Service Discovery
KEY PULSAR CONCEPTS: ARCHITECTURE
MetaData
Storage

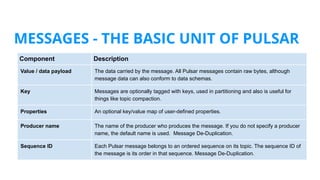

19. Component Description
Value / data payload The data carried by the message. All Pulsar messages contain raw bytes, although
message data can also conform to data schemas.
Key Messages are optionally tagged with keys, used in partitioning and also is useful for
things like topic compaction.
Properties An optional key/value map of user-defined properties.
Producer name The name of the producer who produces the message. If you do not specify a producer
name, the default name is used. Message De-Duplication.
Sequence ID Each Pulsar message belongs to an ordered sequence on its topic. The sequence ID of
the message is its order in that sequence. Message De-Duplication.
MESSAGES - THE BASIC UNIT OF PULSAR

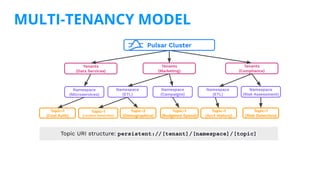

20. MULTI-TENANCY MODEL
Tenants
(Compliance)
Tenants
(Data Services)
Namespace
(Microservices)
Topic-1
(Cust Auth)
Topic-1
(Location Resolution)
Topic-2
(Demographics)
Topic-1
(Budgeted Spend)
Topic-1
(Acct History)
Topic-1
(Risk Detection)
Namespace
(ETL)
Namespace
(Campaigns)
Namespace
(ETL)
Tenants
(Marketing)
Namespace
(Risk Assessment)
Pulsar Cluster
Topic URI structure: persistent://[tenant]/[namespace]/[topic]

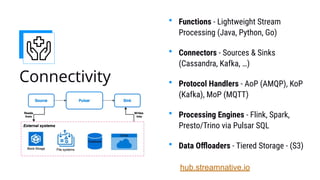

21. Connectivity
• Functions - Lightweight Stream
Processing (Java, Python, Go)
• Connectors - Sources & Sinks
(Cassandra, Kafka, …)
• Protocol Handlers - AoP (AMQP), KoP
(Kafka), MoP (MQTT)
• Processing Engines - Flink, Spark,
Presto/Trino via Pulsar SQL
• Data Offloaders - Tiered Storage - (S3)
hub.streamnative.io

22. Kafka
On Pulsar
(KoP)

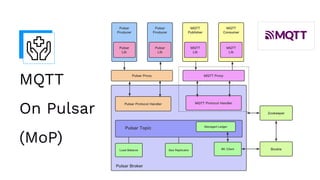

23. MQTT
On Pulsar
(MoP)

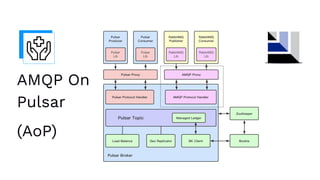

24. AMQP On
Pulsar
(AoP)

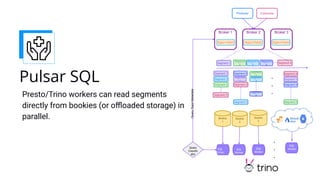

25. Presto/Trino workers can read segments
directly from bookies (or offloaded storage) in
parallel. Bookie
1
Segment 1
Producer Consumer
Broker 1
Topic1-Part1
Broker 2
Topic1-Part2
Broker 3
Topic1-Part3
Segment
2
Segment
3
Segment
4
Segment X
Segment 1
Segment
1 Segment 1
Segment 3
Segment
3
Segment 3
Segment 2
Segment
2
Segment 2
Segment 4
Segment 4
Segment
4
Segment X
Segment X
Segment X
Bookie
2
Bookie
3
Query
Coordin
ator
.
.
.
.
.
.
SQL
Worker
SQL
Worker
SQL
Worker
SQL
Worker
Query
Topic
Metadata
Pulsar SQL

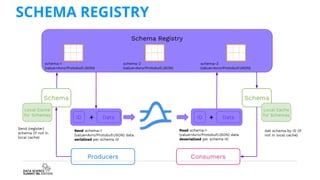

26. SCHEMA REGISTRY
Schema Registry
schema-1
(value=Avro/Protobuf/JSON)
schema-2
(value=Avro/Protobuf/JSON)
schema-3
(value=Avro/Protobuf/JSON)
Schema
Data
ID
Local Cache
for Schemas
+
Schema
Data
ID +
Local Cache
for Schemas
Send schema-1
(value=Avro/Protobuf/JSON) data
serialized per schema ID
Send (register)
schema (if not in
local cache)
Read schema-1
(value=Avro/Protobuf/JSON) data
deserialized per schema ID
Get schema by ID (if
not in local cache)
Producers Consumers

27. APACHE PULSAR TO IO SINK
https://pulsar.apache.org/docs/en/io-overview/

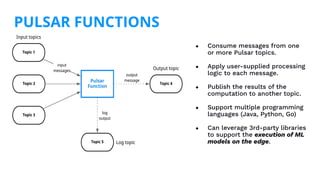

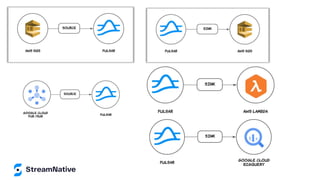

29. ● Consume messages from one
or more Pulsar topics.
● Apply user-supplied processing
logic to each message.
● Publish the results of the
computation to another topic.
● Support multiple programming
languages (Java, Python, Go)
● Can leverage 3rd-party libraries
to support the execution of ML
models on the edge.
PULSAR FUNCTIONS

30. PULSAR IO FUNCTIONS IN PYTHON
https://github.com/tspannhw/pulsar-pychat-function

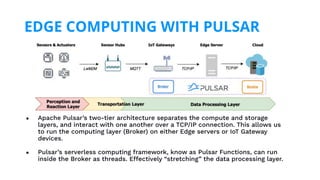

31. ● Apache Pulsar’s two-tier architecture separates the compute and storage
layers, and interact with one another over a TCP/IP connection. This allows us
to run the computing layer (Broker) on either Edge servers or IoT Gateway
devices.
● Pulsar’s serverless computing framework, know as Pulsar Functions, can run
inside the Broker as threads. Effectively “stretching” the data processing layer.
EDGE COMPUTING WITH PULSAR

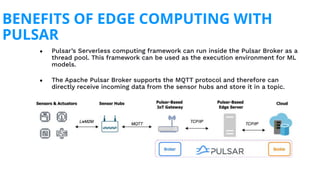

32. ● Pulsar’s Serverless computing framework can run inside the Pulsar Broker as a
thread pool. This framework can be used as the execution environment for ML
models.
● The Apache Pulsar Broker supports the MQTT protocol and therefore can
directly receive incoming data from the sensor hubs and store it in a topic.
BENEFITS OF EDGE COMPUTING WITH
PULSAR

33. PULSAR FUNCTION – 3RD PARTY LIBRARIES
● You can leverage 3rd
party
libraries within Pulsar Functions
● DeepLearning4J
● JPMML
● DJL.AI
● Keras
● Pulsar Functions are able to
support:
● A variety of ML model types.
● Models developed with
different languages and
toolkits

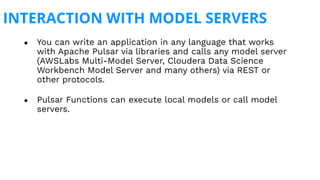

34. INTERACTION WITH MODEL SERVERS
● You can write an application in any language that works
with Apache Pulsar via libraries and calls any model server
(AWSLabs Multi-Model Server, Cloudera Data Science
Workbench Model Server and many others) via REST or
other protocols.
● Pulsar Functions can execute local models or call model
servers.

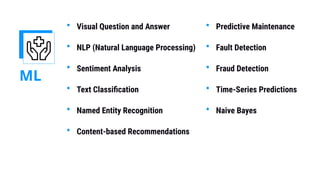

35. ML
• Visual Question and Answer
• NLP (Natural Language Processing)
• Sentiment Analysis
• Text Classification
• Named Entity Recognition
• Content-based Recommendations
• Predictive Maintenance
• Fault Detection
• Fraud Detection
• Time-Series Predictions
• Naive Bayes

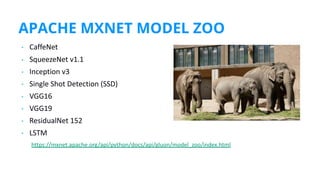

36. APACHE MXNET MODEL ZOO
• CaffeNet
• SqueezeNet v1.1
• Inception v3
• Single Shot Detection (SSD)
• VGG16
• VGG19
• ResidualNet 152
• LSTM
https://mxnet.apache.org/api/python/docs/api/gluon/model_zoo/index.html

37. WHAT IS APACHE NiFi?

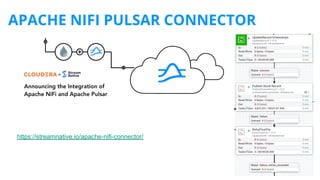

38. APACHE NIFI PULSAR CONNECTOR
https://streamnative.io/apache-nifi-connector/

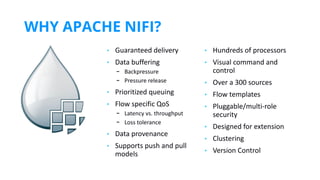

39. WHY APACHE NIFI?
https://www.influxdata.com/integration/mqtt-monitoring/
https://www.influxdata.com/integration/mqtt-monitoring/
• Guaranteed delivery
• Data buffering
- Backpressure
- Pressure release
• Prioritized queuing
• Flow specific QoS
- Latency vs. throughput
- Loss tolerance
• Data provenance
• Supports push and pull
models
• Hundreds of processors
• Visual command and
control
• Over a 300 sources
• Flow templates
• Pluggable/multi-role
security
• Designed for extension
• Clustering
• Version Control

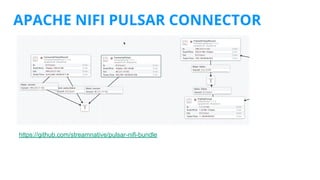

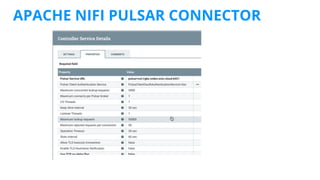

40. APACHE NIFI PULSAR CONNECTOR
https://github.com/streamnative/pulsar-nifi-bundle

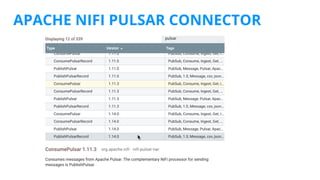

41. APACHE NIFI PULSAR CONNECTOR

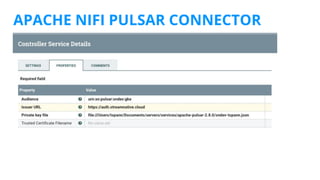

42. APACHE NIFI PULSAR CONNECTOR

43. APACHE NIFI PULSAR CONNECTOR

44. WHAT IS APACHE FLINK?

45. ● Unified computing engine
● Batch processing is a special case of stream processing
● Stateful processing
● Massive Scalability
● Flink SQL for queries, inserts against Pulsar Topics
● Streaming Analytics
● Continuous SQL
● Continuous ETL
● Complex Event Processing
● Standard SQL Powered by Apache Calcite
APACHE FLINK

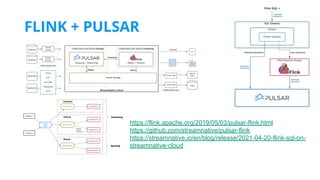

46. https://flink.apache.org/2019/05/03/pulsar-flink.html
https://github.com/streamnative/pulsar-flink
https://streamnative.io/en/blog/release/2021-04-20-flink-sql-on-
streamnative-cloud
FLINK + PULSAR

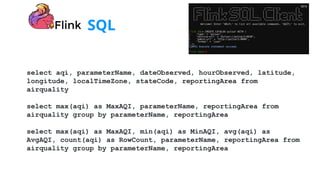

47. SQL
select aqi, parameterName, dateObserved, hourObserved, latitude,
longitude, localTimeZone, stateCode, reportingArea from
airquality
select max(aqi) as MaxAQI, parameterName, reportingArea from
airquality group by parameterName, reportingArea
select max(aqi) as MaxAQI, min(aqi) as MinAQI, avg(aqi) as
AvgAQI, count(aqi) as RowCount, parameterName, reportingArea from
airquality group by parameterName, reportingArea

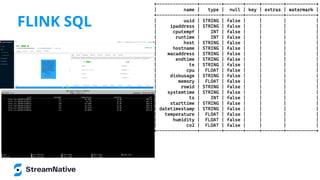

48. FLINK SQL

49. WHAT IS APACHE SPARK?

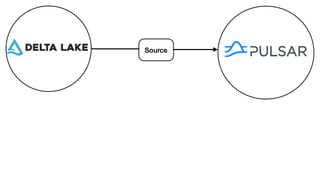

50. SPARK + PULSAR

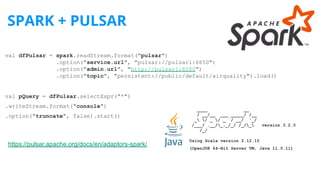

https://pulsar.apache.org/docs/en/adaptors-spark/
val dfPulsar = spark.readStream.format("pulsar")
.option("service.url", "pulsar://pulsar1:6650")
.option("admin.url", "http://pulsar1:8080")
.option("topic", "persistent://public/default/airquality").load()
val pQuery = dfPulsar.selectExpr("*")
.writeStream.format("console")
.option("truncate", false).start()
____ __
/ __/__ ___ _____/ /__
_ / _ / _ `/ __/ '_/
/___/ .__/_,_/_/ /_/_ version 3.2.0
/_/
Using Scala version 2.12.15
(OpenJDK 64-Bit Server VM, Java 11.0.11)

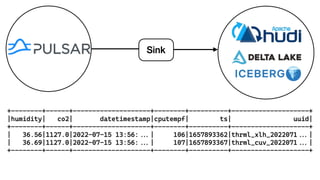

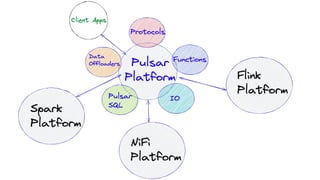

54. DEMO TIME

55. EDGE FLOW

56. EDGE FLOW EXAMPLE 2

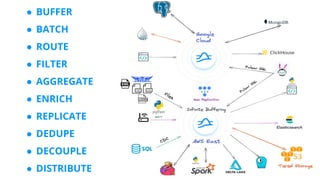

57. ● BUFFER
● BATCH
● ROUTE
● FILTER
● AGGREGATE
● ENRICH
● REPLICATE
● DEDUPE
● DECOUPLE
● DISTRIBUTE

58. MODEL CLASSIFICATION

59. https://medium.com/@tspann/building-a-simple-streaming-real-time-chat-app-7f3b2cf1561d
https://streamnative.io/blog/engineering/2022-03-17-streaming-real-time-chat-messages-into-scylla-with-apache-pulsar/

60. MORE RESOURCES

61. https://streamnative.io/blog/engineering/2021-11-17-building-edge-applications-with-apache-pulsar/

62. DEPLOYING AI WITH
AN EVENT-DRIVEN
PLATFORM
https://dzone.com/articles/deploying-ai-with-an-
event-driven-platform

63. FLIP STACK WEEKLY
This week in Apache Flink, Apache Pulsar, Apache
NiFi, Apache Spark and open source friends.
https://bit.ly/32dAJft

64. FREE BOOK!
https://streamnative.io/download/manning
-ebook-apache-pulsar-in-action

65. Passionate and dedicated team.
Founded by the original developers of
Apache Pulsar.
StreamNative helps teams to capture,
manage, and leverage data using
Pulsar’s unified messaging and
streaming platform.

66. Apache Pulsar Training
• Instructor-led courses
• Pulsar Fundamentals
• Pulsar Developers
• Pulsar Operations
• On-demand learning with labs
• 300+ engineers, admins and architects trained!
STREAMNATIVE ACADEMY
Now Available
On-Demand
Pulsar Training
Academy.StreamNative.i
o

67. Hosted by
Save Your Spot Now
Use code SUMMIT20
to get 20% off.
Pulsar Summit
San Francisco
Hotel Nikko
August 18 2022
Summit Highlights:
● 5 Keynotes
● 12 Breakout Sessions
● 1 Amazing Happy Hour
Speakers from:

68. Pulsar Summit
San Francisco
Sponsorship
Prospectus
Community Sponsorships Available
Help engage and connect the Apache Pulsar
community by becoming an official sponsor
for Pulsar Summit San Francisco 2022! Learn
more about the requirements and benefits of
becoming a community sponsor.
Hosted by

69. [Webinar]
Building Microservices
Watch Now Learn More
[Blog post]
Event-Driven Microservices

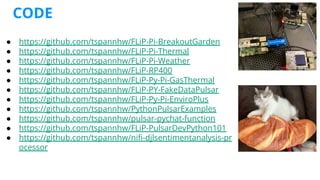

70. CODE
● https://github.com/tspannhw/FLiP-Pi-BreakoutGarden
● https://github.com/tspannhw/FLiP-Pi-Thermal
● https://github.com/tspannhw/FLiP-Pi-Weather
● https://github.com/tspannhw/FLiP-RP400
● https://github.com/tspannhw/FLiP-Py-Pi-GasThermal
● https://github.com/tspannhw/FLiP-PY-FakeDataPulsar
● https://github.com/tspannhw/FLiP-Py-Pi-EnviroPlus
● https://github.com/tspannhw/PythonPulsarExamples
● https://github.com/tspannhw/pulsar-pychat-function
● https://github.com/tspannhw/FLiP-PulsarDevPython101
● https://github.com/tspannhw/nifi-djlsentimentanalysis-pr
ocessor

71. Let’s Keep
in Touch!
Tim Spann
Developer Advocate
PaaSDev
https://www.linkedin.com/in/timothyspann
https://github.com/tspannhw
