Data Center Virtualization
- 1. Data Center Virtualization Skip Farmer Distinguished Systems Engineer
- 2. Agenda 1 V-Ray Technology 2 Application Protection 3 VM Intelligent Policy (VIP) 4 Reporting 5 Summary and Q&A Symantec Government Technology Summit 2
- 3. Imagine having to do your job without being able to see your tools. Working in virtual darkness. Symantec Government Technology Summit 3
- 4. No visibility. Symantec Government Technology Summit 4
- 5. With a lot of money at stake. Symantec Government Technology Summit 5
- 6. It’s what IT departments are forced to do when they virtualize business-critical applications without production quality data protection technology. Symantec Government Technology Summit
- 7. Introducing V-Ray technology from Symantec. An entirely new dimension in virtualization. Symantec Government Technology Summit 7
- 8. Don’t Let Poor Visibility and Silos Slow You Down and Cost You More Time, Resources, and Storage • V-Ray – a group of Symantec technologies with: – Patented visibility into virtual machines and applications – Transparent backup and recovery across physical and virtual environments – Third-generation granular recovery Unified Protection, File & Application Recovery, Deduplication, & Automated Protection Symantec Government Technology Summit 8
- 9. VMware? Hyper V? Both? Symantec Government Technology Summit 9
- 10. VMware? Hyper V? Both? Disk Tape VM2 VM1 x86 OS Symantec Government Technology Summit 10
- 11. VMware? Hyper V? Both? Disk Tape VM2 VM1 x86 OS Symantec Government Technology Summit 11
- 12. V-Ray Visibility into the VM Image for Fast and Efficient Backup & Recovery NetBackup Seamlessly Integrates with VMware vStorage APIs NetBackup Server SAN/ ESX LAN ESX Datastore • VM image (vmdk) moves directly to the backup destination (disk or tape) in a single step Backup • Snapshot and deduplication process done off-host Destination • Change nothing! Use existing HW and procedures Symantec Government Technology Summit 12
- 13. Why Is Our Single File Restore Different? Backup Server Single File VCB Framework Discovery ESX SAN ESX Datastore • NetBackup discovers single files before vmdk data is written to backup target • This allows us to: • Backup to any storage technology Backup Dest • Restore from any storage technology Symantec Government Technology Summit 13
- 14. V-Ray Visibility to Protect VMs “On the Fly” Wherever They May Reside • Automatically discover and protect VMs as they move, change or come online − Filter VMs by physical and logical attributes − Balance the backup load across ESX servers − No editing of the backup policy required − vMotion, Storage vMotion and DRS aware VM Intelligent Policy (VIP) Available with VMs VMs NetBackup 7.1 Symantec Government Technology Summit 14
- 15. ESX Server Load – Client Backups vs. Off-host w/VADP Std Client Backups NetBackup 7 for VMware Off-host Backup Std Client Backups Symantec Government Technology Summit 15
- 16. New Virtualization Policy Types Symantec Government Technology Summit 16
- 17. New VMware & Hyper-V Policy Types • 3 separate policies for 3 different uses – no more overloading – FlashBackup-Windows – VMware – Hyper-V • Can now create, manage, and report on “real” policy types Symantec Government Technology Summit 17
- 18. VMware Policy Type • New VMware policy type – not FlashBackup-Windows • New VMware tab Symantec Government Technology Summit 18
- 19. VMware Tab • All VMware settings consolidated on new tab Symantec Government Technology Summit 19
- 20. Fewer VMware Advanced Settings Symantec Government Technology Summit 20
- 21. Hyper-V Policy Type • New Hyper-V policy type – not FlashBackup-Windows • New Hyper-V tab Symantec Government Technology Summit 21
- 22. Hyper-V Tab • All Hyper-V settings consolidated on new tab Symantec Government Technology Summit 22
- 23. Fewer Hyper-V Advanced Settings Symantec Government Technology Summit 23

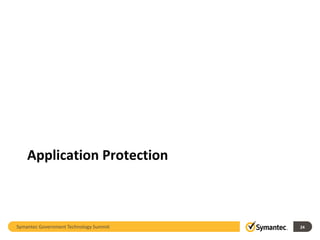

- 24. Application Protection Symantec Government Technology Summit 24
- 25. Application Protection in VMs • Easy checkbox setup • Automatic application discovery via VM intelligent policy • Application-consistent VM backup • Optional database transaction log truncation • Any-level Recovery: VM, Files, Databases, Items Symantec Government Technology Summit 25
- 26. Application Protection - Details • Supported VMs: Windows Exchange, SharePoint, SQL Server • SYMC VSS Provider required for log-truncation (optional) • NetBackup Windows Client in VM provides – Application cataloging and optional log-truncation – Application granular recovery (same NFS client GRT requirement) • NetBackup for VMware provides VM backup • Types of recovery from VM backup Recovery Exchange SharePoint SQL Server Media VM Any File Any Database Not Tape Item n/a Not Tape • Available for VMware (Hyper-V support in a TBD future release) Symantec Government Technology Summit 26
- 27. VM Intelligent Policy Improvements Symantec Government Technology Summit 28
- 28. New vCenter Fields • New query builder variables, including: – Datastore Cluster: part of Storage Dynamic Resource Scheduling (SDRS) – Custom VM Attributes: user-defined vCenter variables Symantec Government Technology Summit 29
- 29. Resource Limits • New limits related to Datastores, DS Clusters, and NAS DS Symantec Government Technology Summit 30
- 30. VIP Customer Requested Enhancements You asked, We listened Symantec Government Technology Summit 31
- 31. Media Server Load-Balancing • VMware policy now leverages media server load-balancing • Adds redundancy; eliminates backup host single-point-of-failure Symantec Government Technology Summit 32

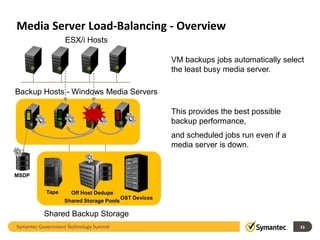

- 32. Media Server Load-Balancing - Overview ESX/i Hosts VM backups jobs automatically select the least busy media server. Backup Hosts - Windows Media Servers This provides the best possible backup performance, and scheduled jobs run even if a media server is down. MSDP Tape Off Host Dedupe OST Devices Shared Storage Pools Shared Backup Storage Symantec Government Technology Summit 33

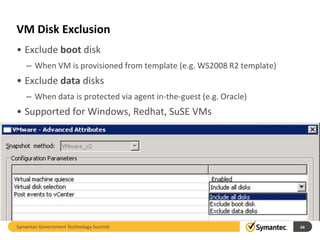

- 33. VM Disk Exclusion • Exclude boot disk – When VM is provisioned from template (e.g. WS2008 R2 template) • Exclude data disks – When data is protected via agent in-the-guest (e.g. Oracle) • Supported for Windows, Redhat, SuSE VMs Symantec Government Technology Summit 34
- 34. Post Backup Events into vCenter Server • NetBackup option to log events into vCenter – Backup Success – Backup Failed – Snapshot Delete Failed Symantec Government Technology Summit 35
- 35. vCenter UI - Backup Failed Event Symantec Government Technology Summit 36
- 36. OpsCenter Reporting for Your Backup Environment Symantec Government Technology Summit 37
- 37. OpsCenter Makes Backup Better Monitor Report Alert Search & Hold Restore Symantec Government Technology Summit 38
- 38. File Restore Using OpsCenter Operational Restore Quickly find files across multiple clients and multiple domains Built into NetBackup 7.5 - no additional infrastructure or license key required Ability to restore from multiple sources and to alternate locations without leaving OpsCenter • Disaster Recovery Drills • Restore from Snapshots Restore cart allows user to batch up restore job for future processing Symantec Government Technology Summit 39
- 39. Virtual Client Summary Report Symantec Government Technology Summit 40
- 40. Summary Symantec Government Technology Summit 41
- 41. NetBackup & Backup Exec Powered By V-Ray Industry 1st “End-to-End” VMware & Deduplication Solutions NetBackup Backup Exec Physical Infrastructure Virtualized Infrastructure Unified Data Protection NBU 5200 Series 16TB – 192TB NBU 5000 Series VMs BE Appliance Series VMs VMs VMs Built-In Client Dedupe Built-In Media Server Dedupe Scalable Global Dedupe Across Virtual/Physical On your equipment or Symantec Appliances Symantec Dedupe Appliance “End-to-End” Scalable Global Deduplication Symantec Government Technology Summit 42

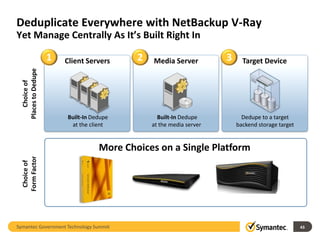

- 42. Deduplicate Everywhere with NetBackup V-Ray Yet Manage Centrally As It’s Built Right In 1 Client Servers 2 Media Server 3 Target Device Places to Dedupe Choice of Built-In Dedupe Built-In Dedupe Dedupe to a target at the client at the media server backend storage target More Choices on a Single Platform Form Factor Choice of Symantec Government Technology Summit 43

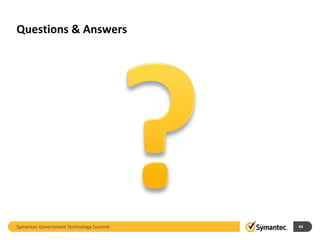

- 43. Questions & Answers Symantec Government Technology Summit 44
- 44. Thank you! Copyright © 2011 Symantec Corporation. All rights reserved. Symantec and the Symantec Logo are trademarks or registered trademarks of Symantec Corporation or its affiliates in the U.S. and other countries. Other names may be trademarks of their respective owners. This document is provided for informational purposes only and is not intended as advertising. All warranties relating to the information in this document, either express or implied, are disclaimed to the maximum extent allowed by law. The information in this document is subject to change without notice. Symantec Government Technology Summit 45
