burner.danfoss.com Service manual Danfoss Burner Components Service manual Danfoss Burner Components Scan the QR code to access our online toolbox. Keep customers happy

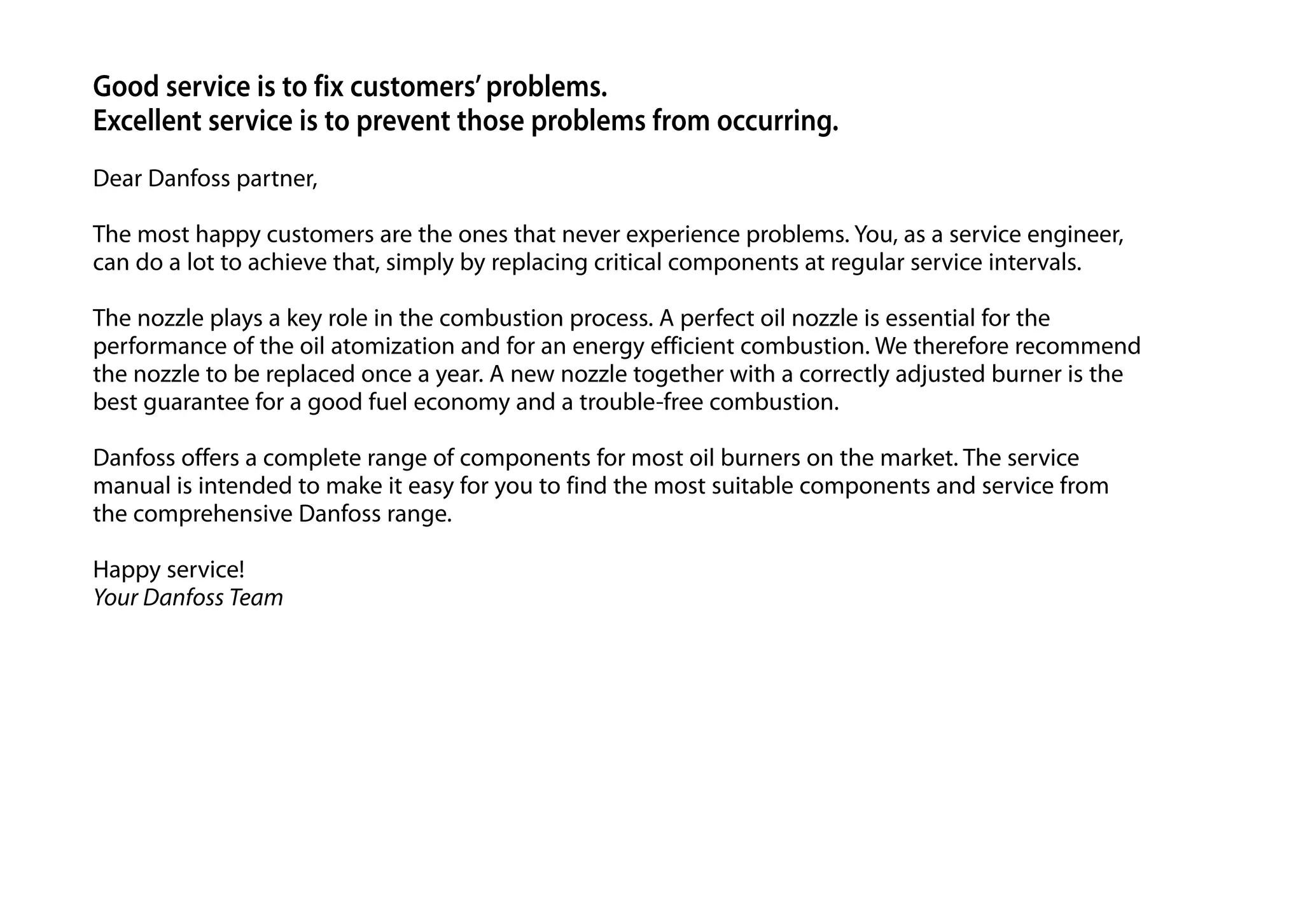

Good service is to fix customers’problems. Excellent service is to prevent those problems from occurring. Dear Danfoss partner, The most happy customers are the ones that never experience problems. You, as a service engineer, can do a lot to achieve that, simply by replacing critical components at regular service intervals. The nozzle plays a key role in the combustion process. A perfect oil nozzle is essential for the performance of the oil atomization and for an energy efficient combustion. We therefore recommend the nozzle to be replaced once a year. A new nozzle together with a correctly adjusted burner is the best guarantee for a good fuel economy and a trouble-free combustion. Danfoss offers a complete range of components for most oil burners on the market. The service manual is intended to make it easy for you to find the most suitable components and service from the comprehensive Danfoss range. Happy service! Your Danfoss Team

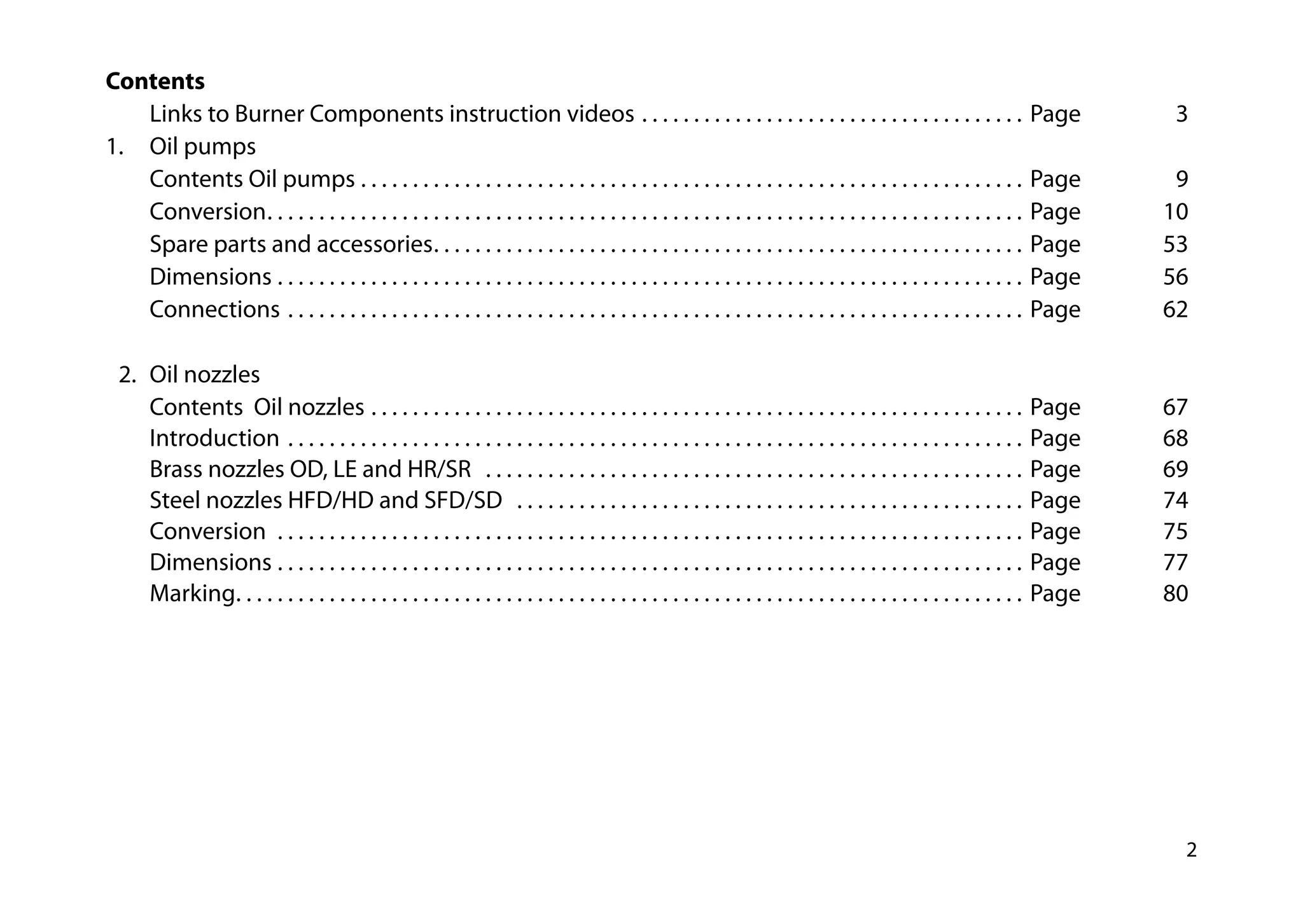

2 Contents Links to Burner Components instruction videos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 3 1. Oil pumps Contents Oil pumps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 9 Conversion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 10 Spare parts and accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 53 Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 56 Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 62 2. Oil nozzles Contents Oil nozzles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 67 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 68 Brass nozzles OD, LE and HR/SR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 69 Steel nozzles HFD/HD and SFD/SD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 74 Conversion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 75 Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 77 Marking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 80

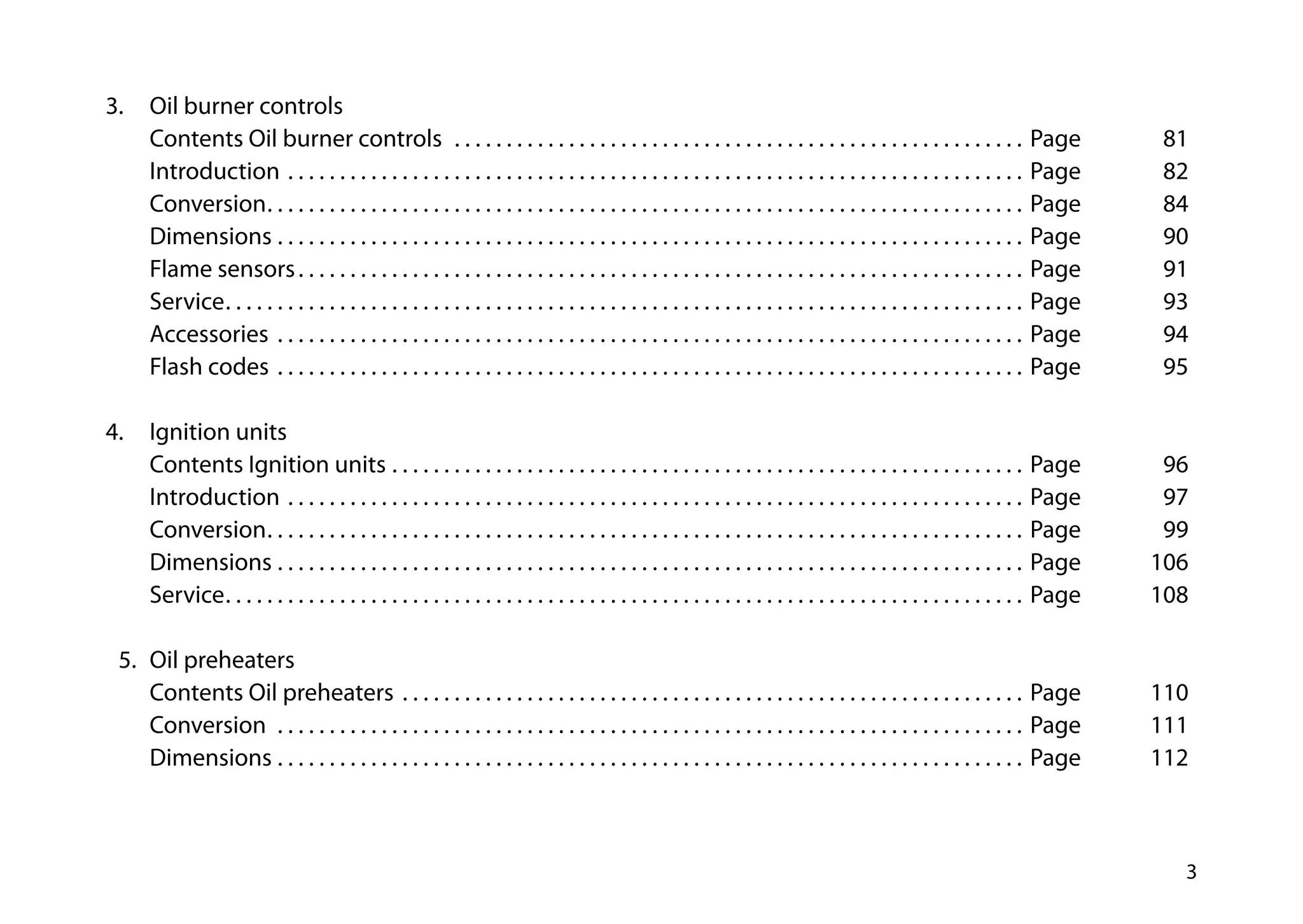

3 3. Oil burner controls Contents Oil burner controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 81 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 82 Conversion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 84 Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 90 Flame sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 91 Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 93 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 94 Flash codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 95 4. Ignition units Contents Ignition units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 96 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 97 Conversion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 99 Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 106 Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 108 5. Oil preheaters Contents Oil preheaters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 110 Conversion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 111 Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 112

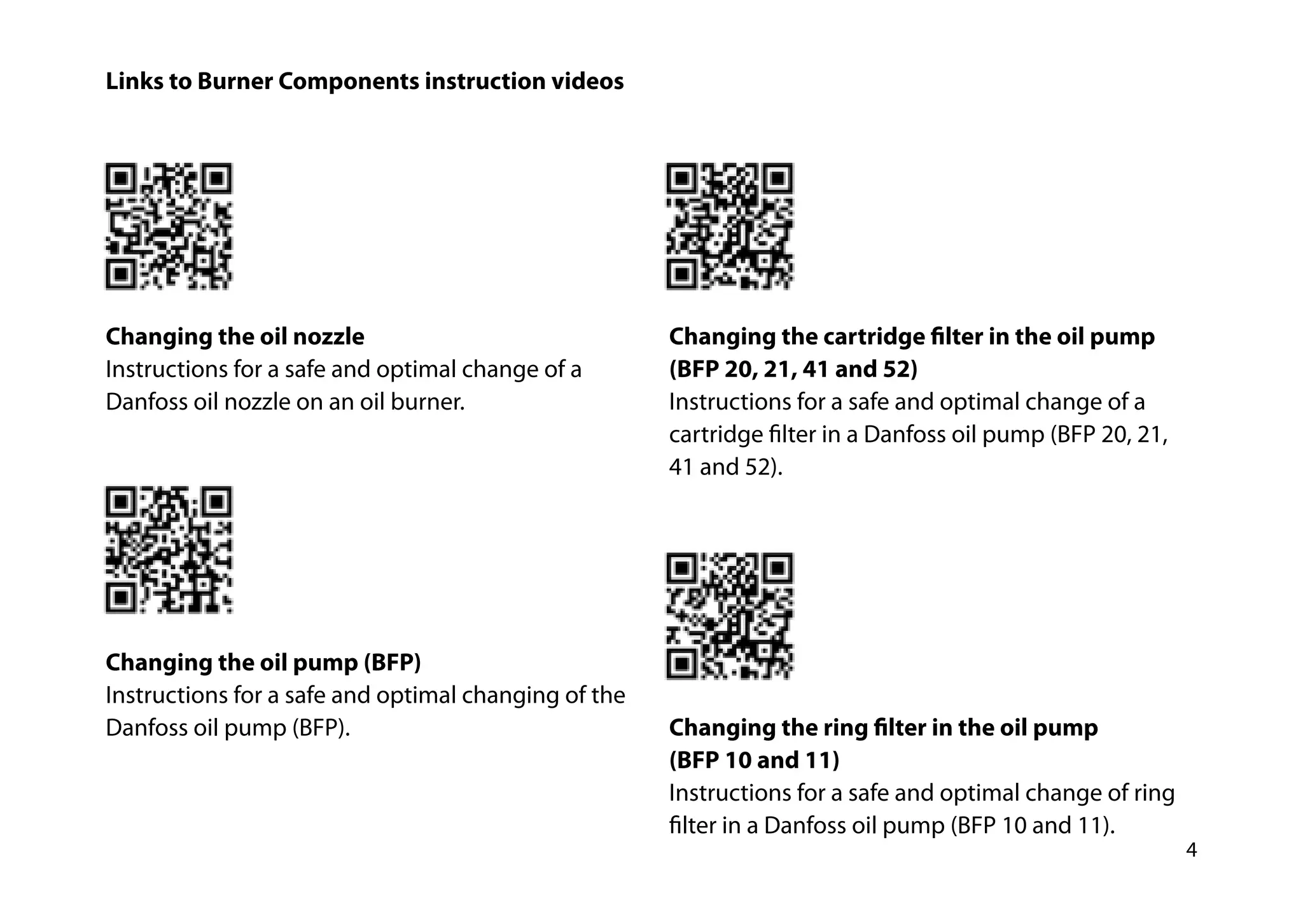

4 Links to Burner Components instruction videos ­Changing the oil nozzle Instructions for a safe and optimal change of a Danfoss oil nozzle on an oil burner. Changing the oil pump (BFP) Instructions for a safe and optimal changing of the Danfoss oil pump (BFP). Changing the cartridge filter in the oil pump (BFP 20, 21, 41 and 52) Instructions for a safe and optimal change of a cartridge filter in a ­Danfoss oil pump (BFP 20, 21, 41 and 52). Changing the ring filter in the oil pump (BFP 10 and 11) Instructions for a safe and optimal change of ring filter in a Danfoss oil pump (BFP 10 and 11).

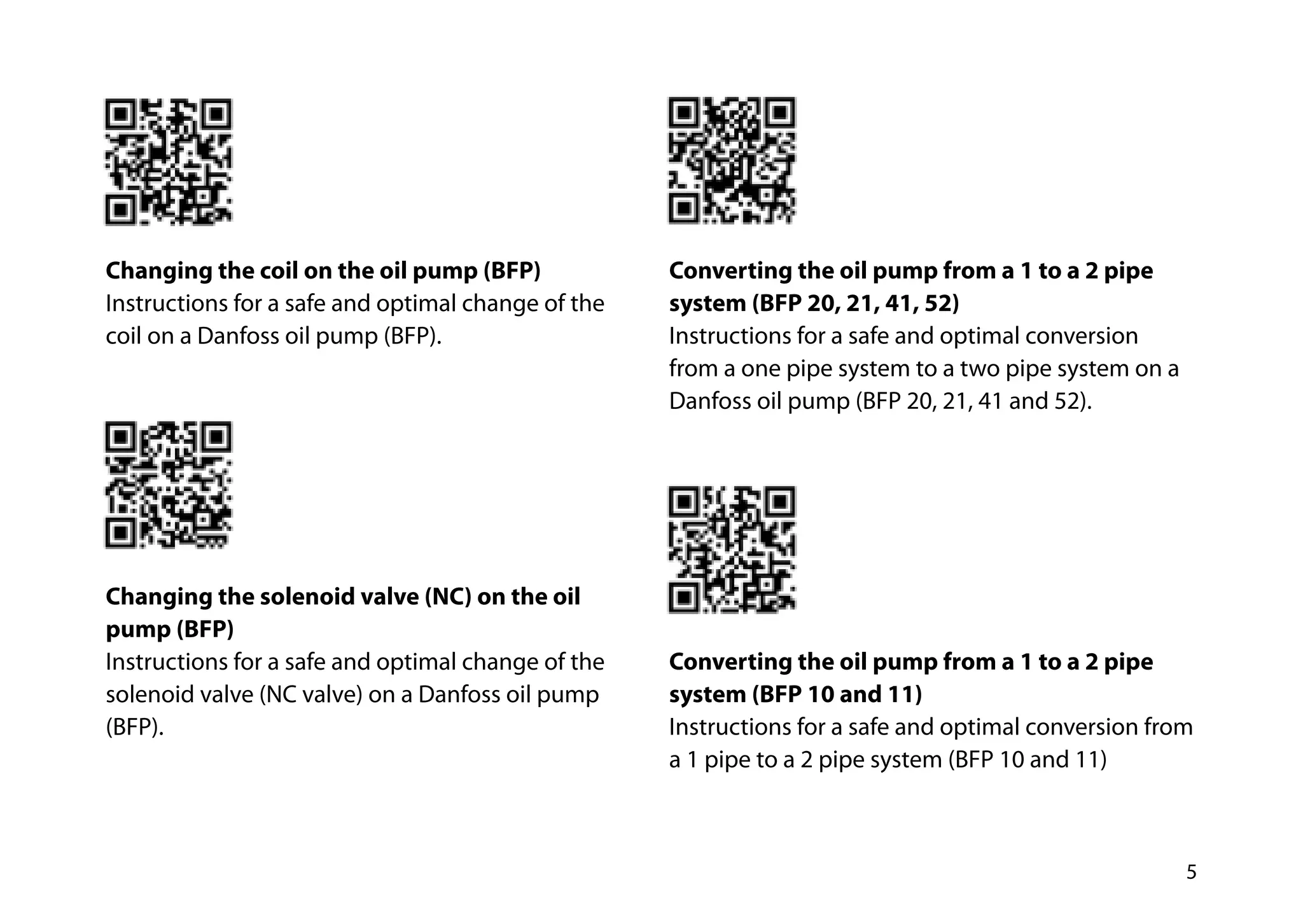

5 Changing the coil on the oil pump (BFP) Instructions for a safe and optimal change of the coil on a Danfoss oil pump (BFP). Changing the solenoid valve (NC) on the oil pump (BFP) Instructions for a safe and optimal change of the solenoid valve (NC valve) on a Danfoss oil pump (BFP). Converting the oil pump from a 1 to a 2 pipe system (BFP 20, 21, 41, 52) Instructions for a safe and optimal conversion from a one pipe system to a two pipe system on a Danfoss oil pump (BFP 20, 21, 41 and 52). Converting the oil pump from a 1 to a 2 pipe system (BFP 10 and 11) Instructions for a safe and optimal conversion from a 1 pipe to a 2 pipe system (BFP 10 and 11)

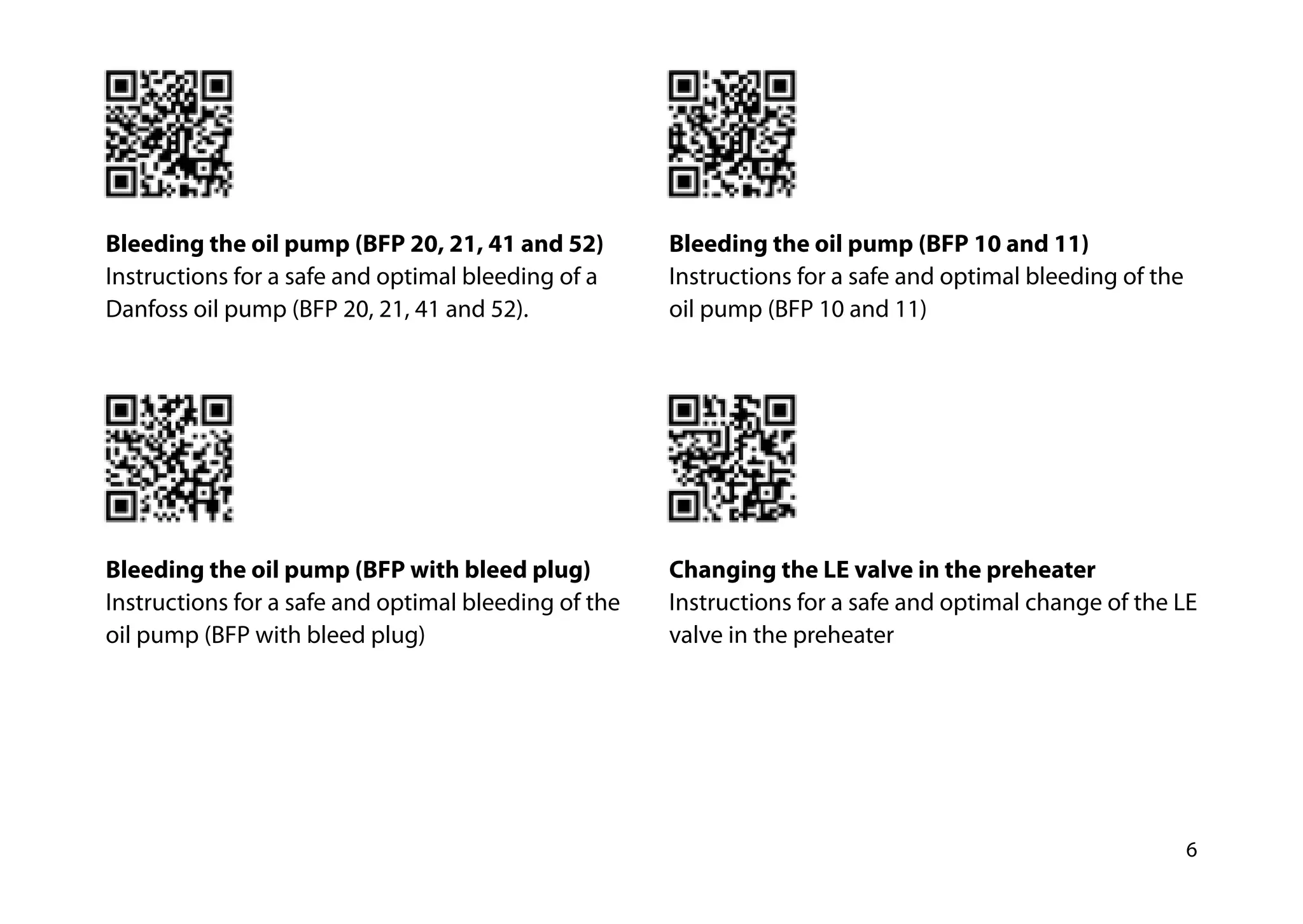

6 Bleeding the oil pump (BFP 20, 21, 41 and 52) Instructions for a safe and optimal bleeding of a Danfoss oil pump (BFP 20, 21, 41 and 52). Bleeding the oil pump (BFP with bleed plug) Instructions for a safe and optimal bleeding of the oil pump (BFP with bleed plug) Bleeding the oil pump (BFP 10 and 11) Instructions for a safe and optimal bleeding of the oil pump (BFP 10 and 11) Changing the LE valve in the preheater Instructions for a safe and optimal change of the LE valve in the preheater

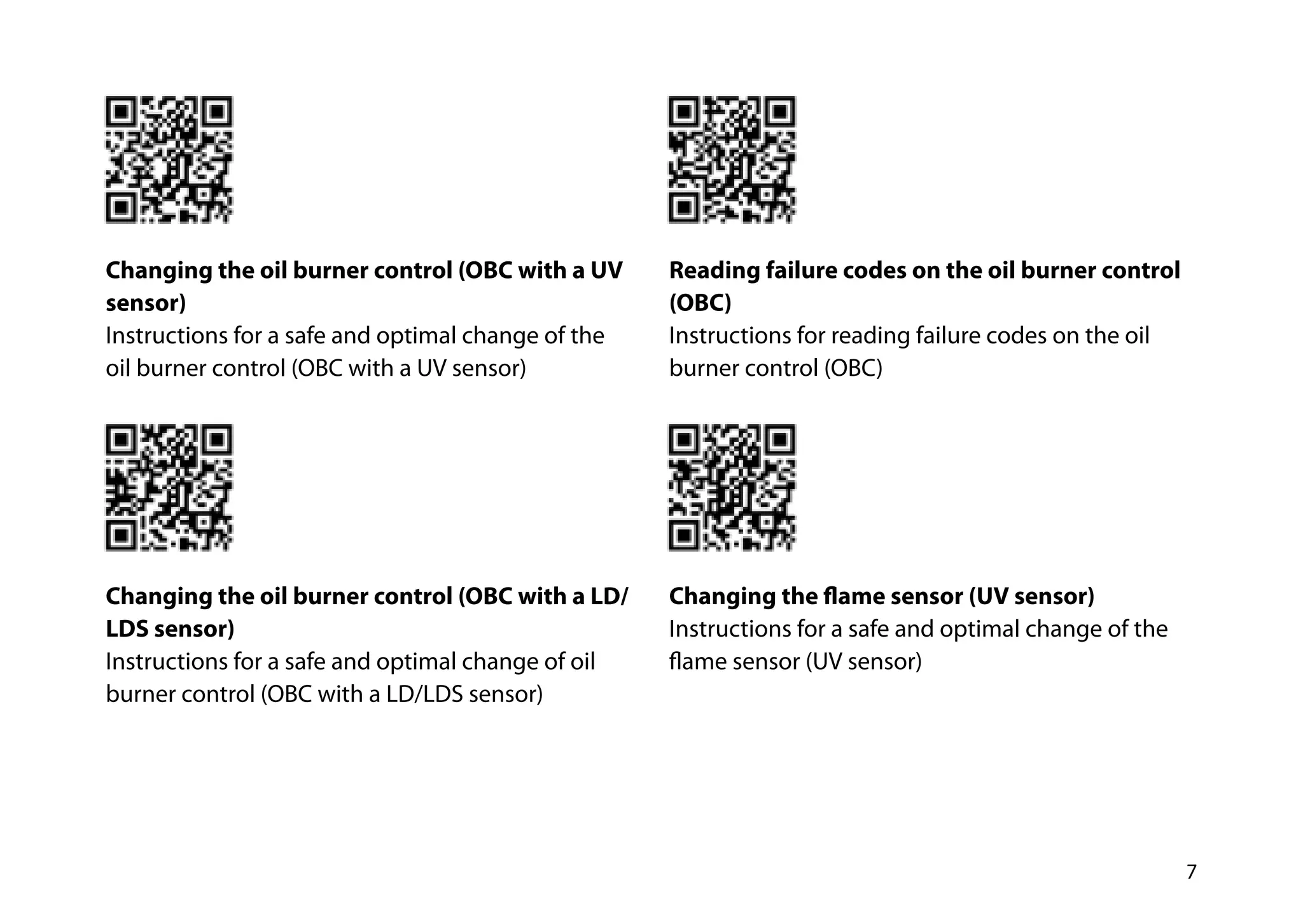

7 Changing the oil burner control (OBC with a UV sensor) Instructions for a safe and optimal change of the oil burner control (OBC with a UV sensor) Changing the oil burner control (OBC with a LD/ LDS sensor) Instructions for a safe and optimal change of oil burner control (OBC with a LD/LDS sensor) Reading ­failure codes on the oil burner control (OBC) Instructions for reading failure codes on the oil burner control (OBC) Changing the flame sensor (UV sensor) Instructions for a safe and optimal change of the flame sensor (UV sensor)

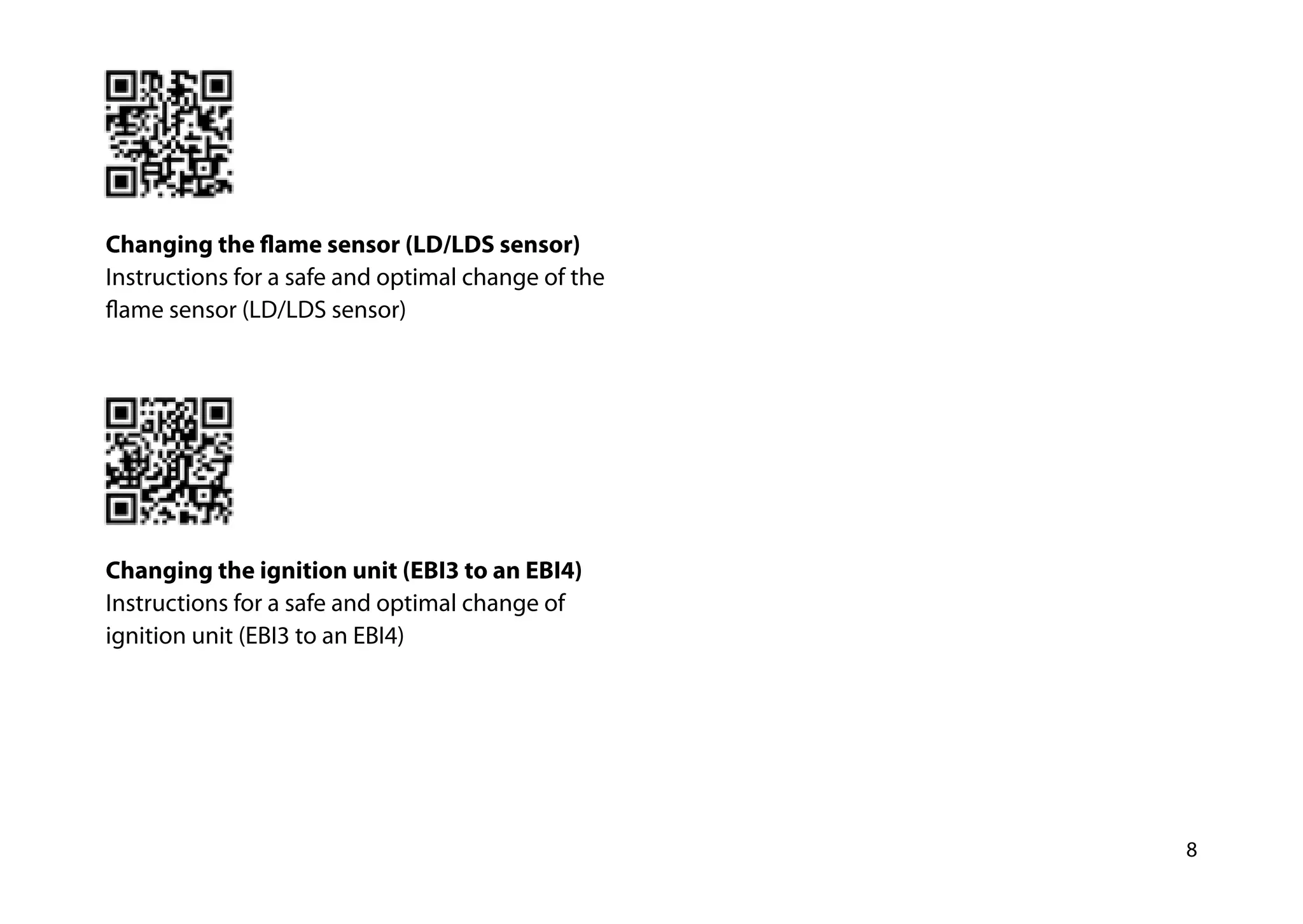

8 Changing the flame sensor (LD/LDS sensor) Instructions for a safe and optimal change of the flame sensor (LD/LDS sensor) Changing the ignition unit (EBI3 to an EBI4) Instructions for a safe and optimal change of ignition unit (EBI3 to an EBI4)
9

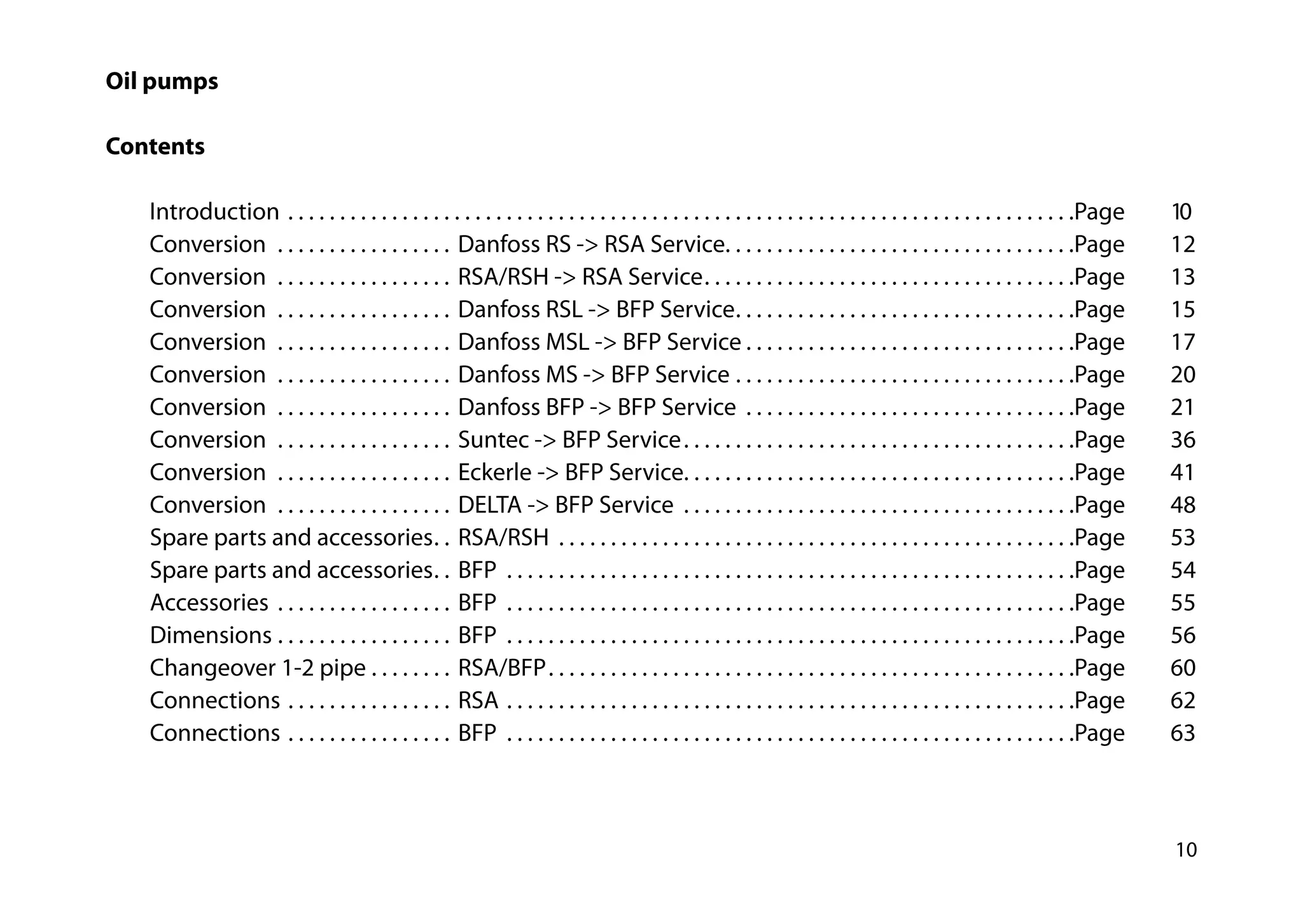

10 Oil pumps Contents Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 10 Conversion . . . . . . . . . . . . . . . . . . Danfoss RS -> RSA Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 12 Conversion . . . . . . . . . . . . . . . . . . RSA/RSH -> RSA Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 13 Conversion . . . . . . . . . . . . . . . . . . Danfoss RSL -> BFP Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 15 Conversion . . . . . . . . . . . . . . . . . . Danfoss MSL -> BFP Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 17 Conversion . . . . . . . . . . . . . . . . . . Danfoss MS -> BFP Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 20 Conversion . . . . . . . . . . . . . . . . . . Danfoss BFP -> BFP Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 21 Conversion . . . . . . . . . . . . . . . . . . Suntec -> BFP Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 36 Conversion . . . . . . . . . . . . . . . . . . Eckerle -> BFP Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 41 Conversion . . . . . . . . . . . . . . . . . . DELTA -> BFP Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 48 Spare parts and accessories . . RSA/RSH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 53 Spare parts and accessories . . BFP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 54 Accessories . . . . . . . . . . . . . . . . . . BFP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 55 Dimensions . . . . . . . . . . . . . . . . . . BFP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 56 Changeover 1-2 pipe . . . . . . . . . RSA/BFP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 60 Connections . . . . . . . . . . . . . . . . . RSA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 62 Connections . . . . . . . . . . . . . . . . . BFP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 63

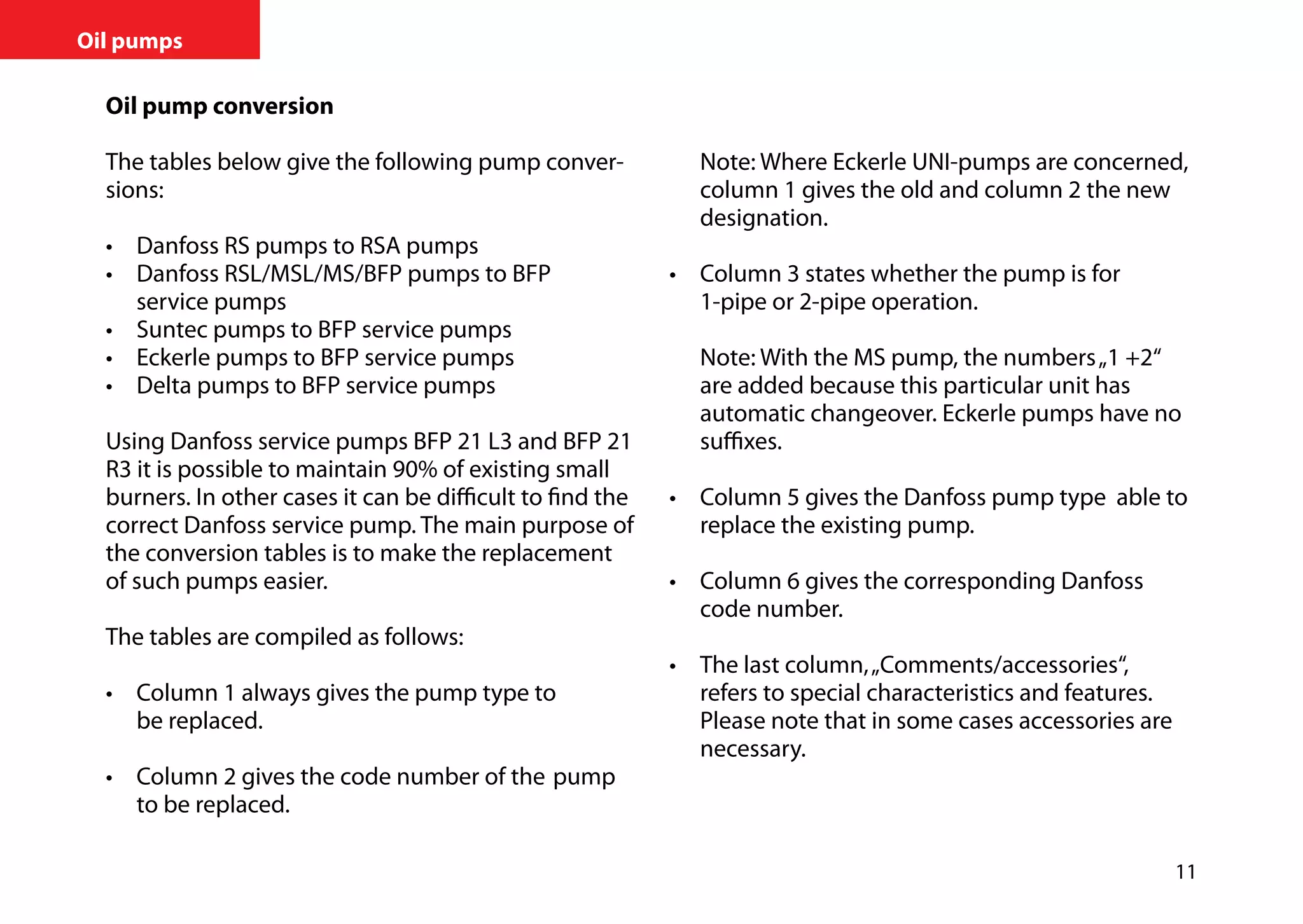

11 Oil pumps Oil pump conversion The tables below give the following pump conver- sions: • Danfoss RS pumps to RSA pumps • Danfoss RSL/MSL/MS/BFP pumps to BFP service pumps • Suntec pumps to BFP service pumps • Eckerle pumps to BFP service pumps • Delta pumps to BFP service pumps Using Danfoss service pumps BFP 21 L3 and BFP 21 R3 it is possible to maintain 90% of existing small burners. In other cases it can be difficult to find the correct Danfoss service pump. The main purpose of the conversion tables is to make the replacement of such pumps easier. The tables are compiled as follows: • Column 1 always gives the pump type to be replaced. • Column 2 gives the code number of the pump to be replaced. Note: Where Eckerle UNI-pumps are concerned, column 1 gives the old and column 2 the new designation. • Column 3 states whether the pump is for 1-pipe or 2-pipe operation. Note: With the MS pump, the numbers„1 +2“ are added because this particular unit has automatic changeover. Eckerle pumps have no suffixes. • Column 5 gives the Danfoss pump type able to replace the existing pump. • Column 6 gives the corresponding Danfoss code number. • The last column,„Comments/accessories“, refers to special characteristics and features. Please note that in some cases accessories are necessary.

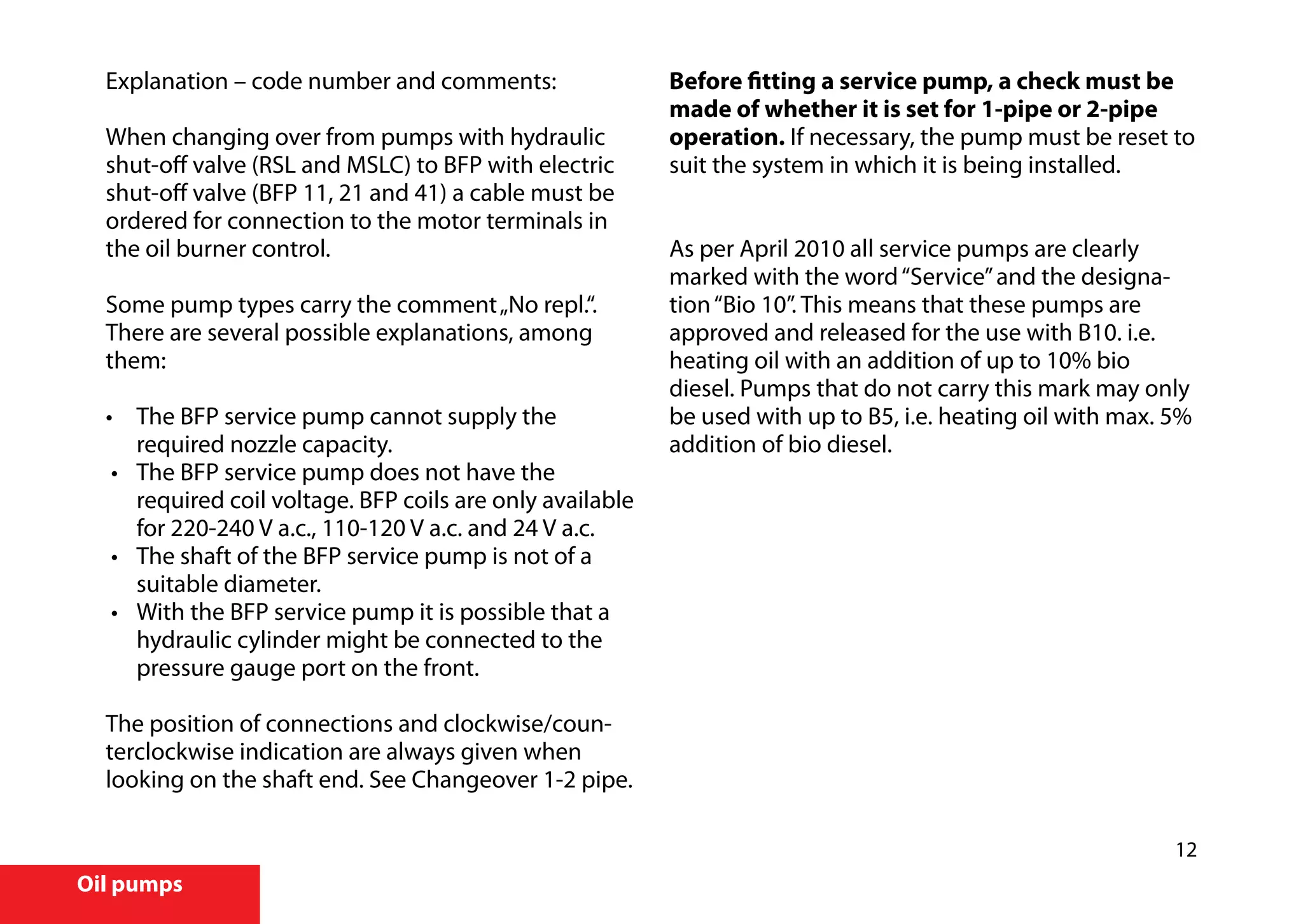

12 Oil pumps Explanation – code number and comments: When changing over from pumps with hydraulic shut-off valve (RSL and MSLC) to BFP with electric shut-off valve (BFP 11, 21 and 41) a cable must be ordered for connection to the motor terminals in the oil burner control. Some pump types carry the comment„No repl.“. There are several possible explanations, among them: • The BFP service pump cannot supply the required nozzle capacity. • The BFP service pump does not have the required coil voltage. BFP coils are only available for 220-240 V a.c., 110-120 V a.c. and 24 V a.c. • The shaft of the BFP service pump is not of a suitable diameter. • With the BFP service pump it is possible that a hydraulic cylinder might be connected to the pressure gauge port on the front. The position of connections and clockwise/coun- terclockwise indication are always given when looking on the shaft end. See Changeover 1-2 pipe. Before fitting a service pump, a check must be made of whether it is set for 1-pipe or 2-pipe operation. If necessary, the pump must be reset to suit the system in which it is being installed. As per April 2010 all service pumps are clearly marked with the word“Service”and the designa- tion“Bio 10”. This means that these pumps are approved and released for the use with B10. i.e. heating oil with an addition of up to 10% bio diesel. Pumps that do not carry this mark may only be used with up to B5, i.e. heating oil with max. 5% addition of bio diesel.

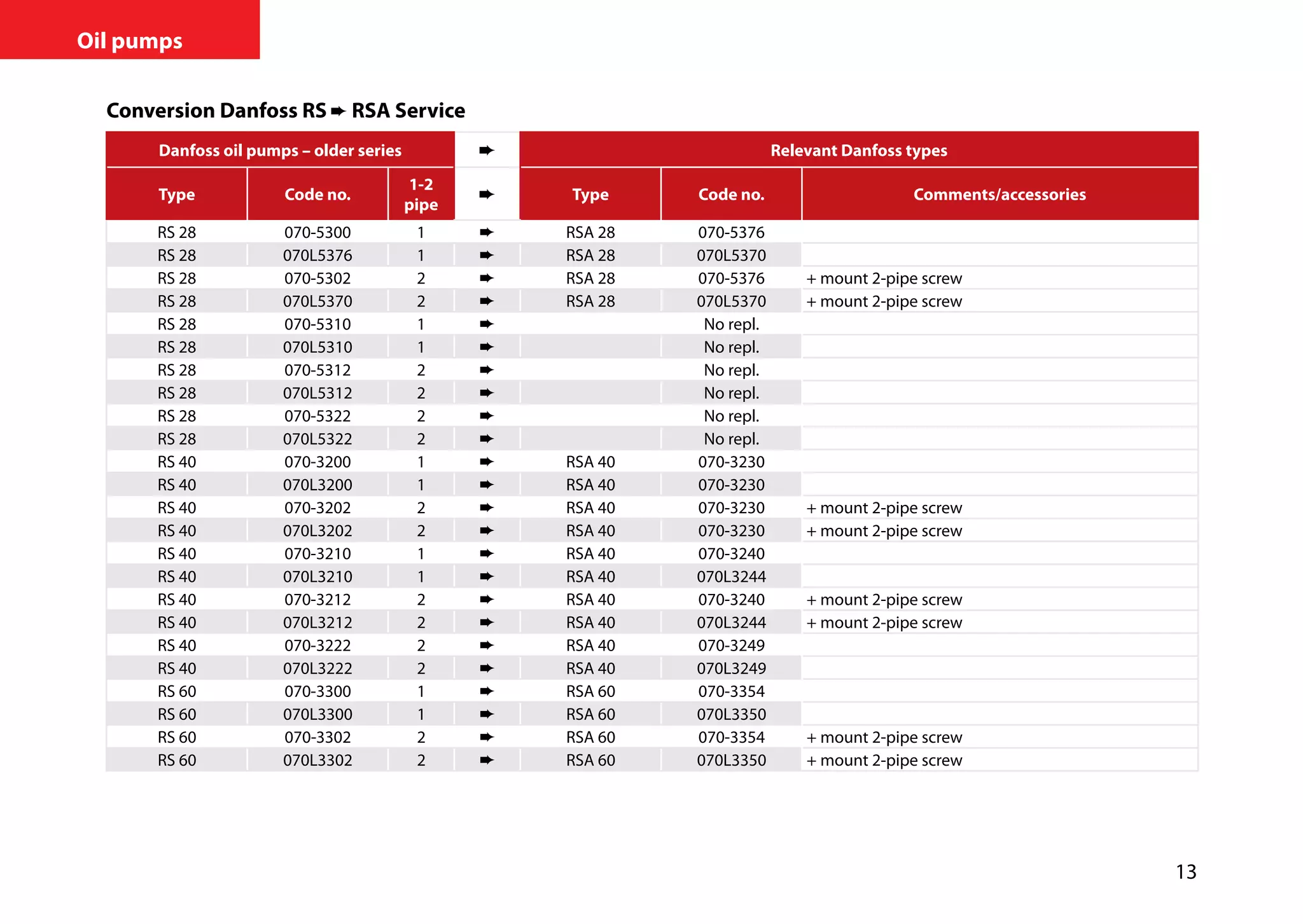

13 Oil pumps Conversion Danfoss RS RSA Service Danfoss oil pumps – older series Relevant Danfoss types Type Code no. 1-2 pipe Type Code no. Comments/accessories RS 28 070-5300 1 ➨ RSA 28 070-5376 RS 28 070L5376 1 ➨ RSA 28 070L5370 RS 28 070-5302 2 ➨ RSA 28 070-5376 + mount 2-pipe screw RS 28 070L5370 2 ➨ RSA 28 070L5370 + mount 2-pipe screw RS 28 070-5310 1 ➨ No repl. RS 28 070L5310 1 ➨ No repl. RS 28 070-5312 2 ➨ No repl. RS 28 070L5312 2 ➨ No repl. RS 28 070-5322 2 ➨ No repl. RS 28 070L5322 2 ➨ No repl. RS 40 070-3200 1 ➨ RSA 40 070-3230 RS 40 070L3200 1 ➨ RSA 40 070-3230 RS 40 070-3202 2 ➨ RSA 40 070-3230 + mount 2-pipe screw RS 40 070L3202 2 ➨ RSA 40 070-3230 + mount 2-pipe screw RS 40 070-3210 1 ➨ RSA 40 070-3240 RS 40 070L3210 1 ➨ RSA 40 070L3244 RS 40 070-3212 2 ➨ RSA 40 070-3240 + mount 2-pipe screw RS 40 070L3212 2 ➨ RSA 40 070L3244 + mount 2-pipe screw RS 40 070-3222 2 ➨ RSA 40 070-3249 RS 40 070L3222 2 ➨ RSA 40 070L3249 RS 60 070-3300 1 ➨ RSA 60 070-3354 RS 60 070L3300 1 ➨ RSA 60 070L3350 RS 60 070-3302 2 ➨ RSA 60 070-3354 + mount 2-pipe screw RS 60 070L3302 2 ➨ RSA 60 070L3350 + mount 2-pipe screw

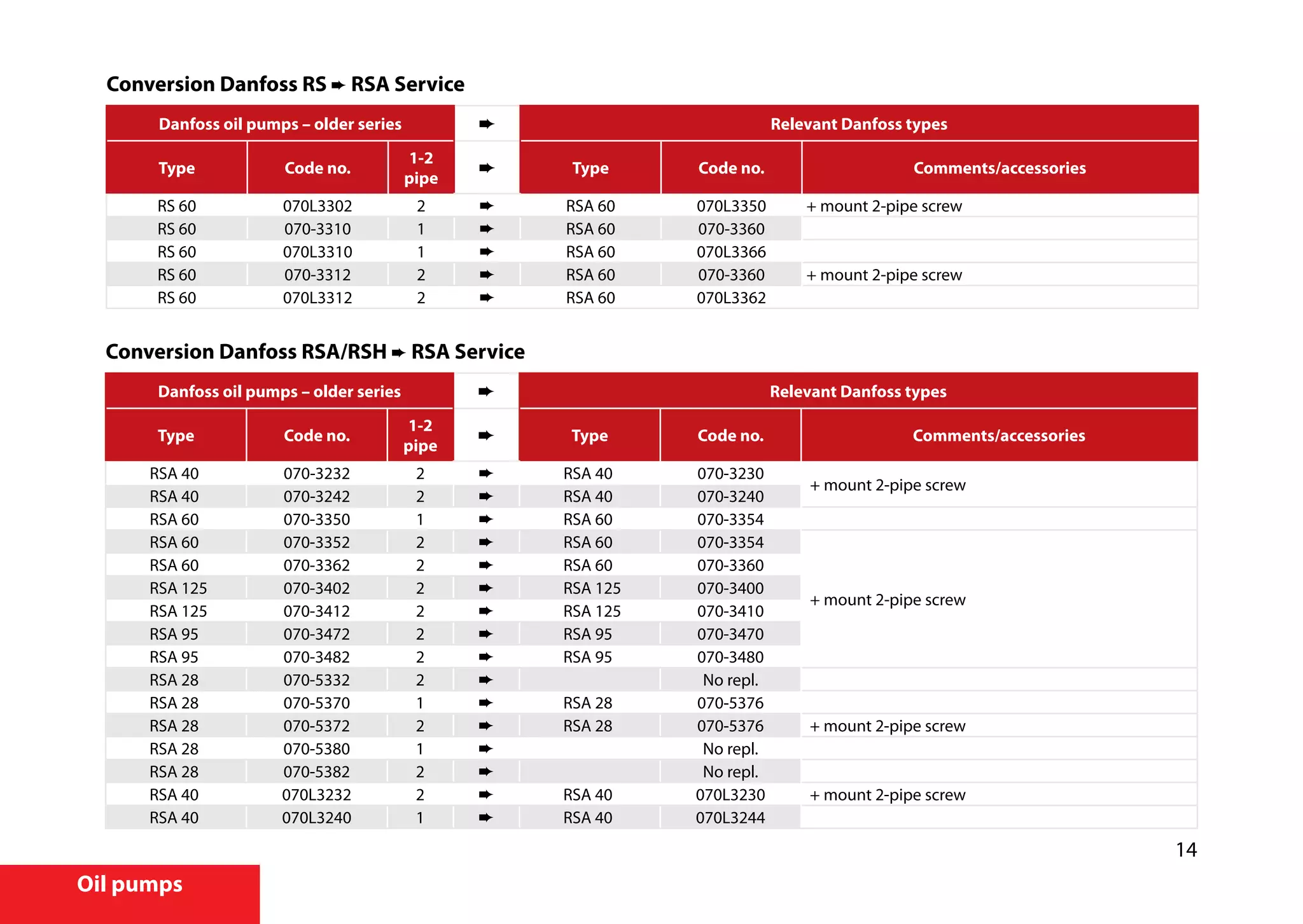

14 Oil pumps Conversion Danfoss RS ➨ RSA Service Danfoss oil pumps – older series Relevant Danfoss types Type Code no. 1-2 pipe Type Code no. Comments/accessories RS 60 070L3302 2 ➨ RSA 60 070L3350 + mount 2-pipe screw RS 60 070-3310 1 ➨ RSA 60 070-3360 RS 60 070L3310 1 ➨ RSA 60 070L3366 RS 60 070-3312 2 ➨ RSA 60 070-3360 + mount 2-pipe screw RS 60 070L3312 2 ➨ RSA 60 070L3362 Conversion Danfoss RSA/RSH ➨ RSA Service Danfoss oil pumps – older series Relevant Danfoss types Type Code no. 1-2 pipe Type Code no. Comments/accessories RSA 40 070-3232 2 ➨ RSA 40 070-3230 + mount 2-pipe screw RSA 40 070-3242 2 ➨ RSA 40 070-3240 RSA 60 070-3350 1 ➨ RSA 60 070-3354 RSA 60 070-3352 2 ➨ RSA 60 070-3354 + mount 2-pipe screw RSA 60 070-3362 2 ➨ RSA 60 070-3360 RSA 125 070-3402 2 ➨ RSA 125 070-3400 RSA 125 070-3412 2 ➨ RSA 125 070-3410 RSA 95 070-3472 2 ➨ RSA 95 070-3470 RSA 95 070-3482 2 ➨ RSA 95 070-3480 RSA 28 070-5332 2 ➨ No repl. RSA 28 070-5370 1 ➨ RSA 28 070-5376 RSA 28 070-5372 2 ➨ RSA 28 070-5376 + mount 2-pipe screw RSA 28 070-5380 1 ➨ No repl. RSA 28 070-5382 2 ➨ No repl. RSA 40 070L3232 2 ➨ RSA 40 070L3230 + mount 2-pipe screw RSA 40 070L3240 1 ➨ RSA 40 070L3244

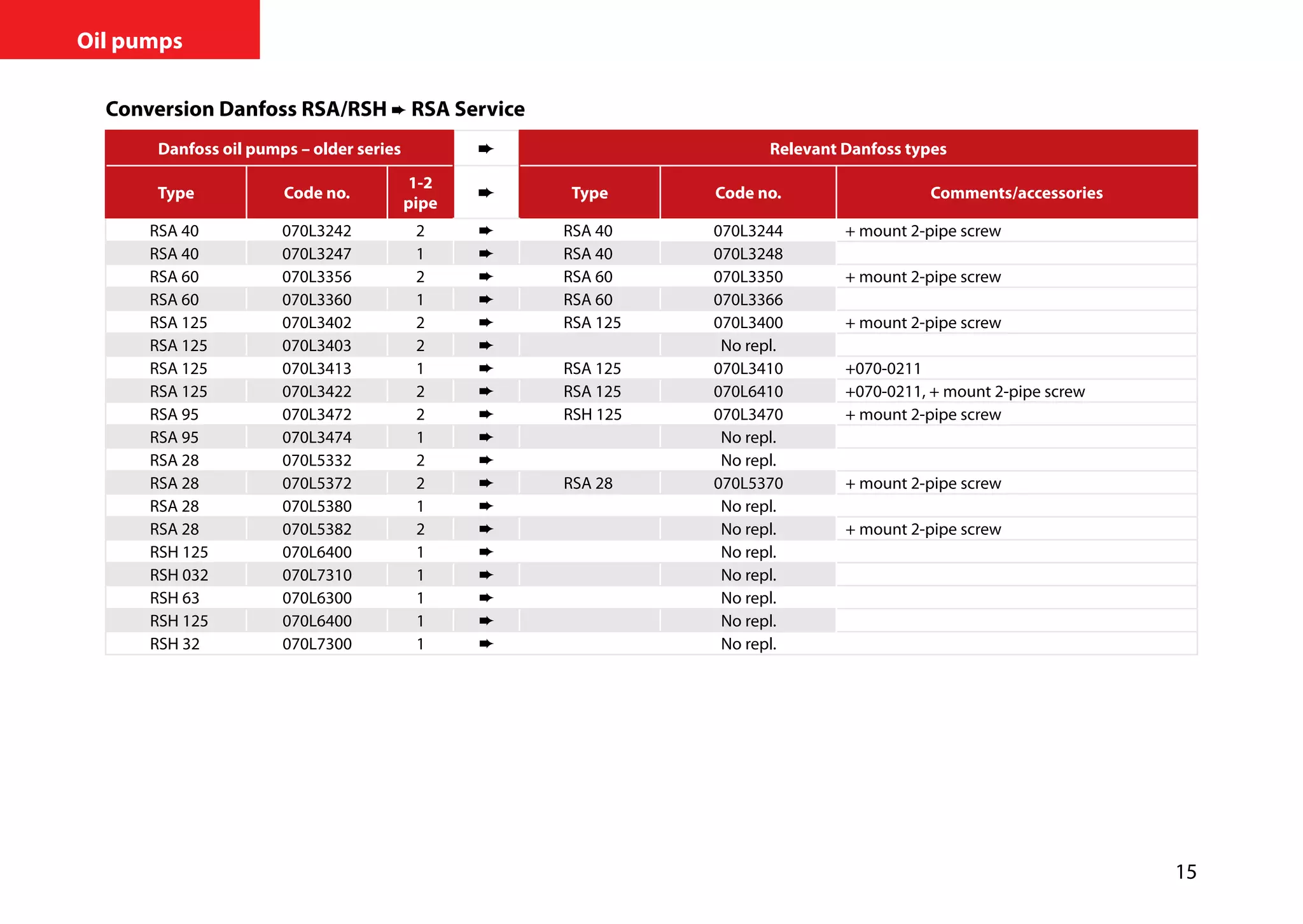

15 Oil pumps Conversion Danfoss RSA/RSH ➨ RSA Service Danfoss oil pumps – older series Relevant Danfoss types Type Code no. 1-2 pipe Type Code no. Comments/accessories RSA 40 070L3242 2 ➨ RSA 40 070L3244 + mount 2-pipe screw RSA 40 070L3247 1 ➨ RSA 40 070L3248 RSA 60 070L3356 2 ➨ RSA 60 070L3350 + mount 2-pipe screw RSA 60 070L3360 1 ➨ RSA 60 070L3366 RSA 125 070L3402 2 ➨ RSA 125 070L3400 + mount 2-pipe screw RSA 125 070L3403 2 ➨ No repl. RSA 125 070L3413 1 ➨ RSA 125 070L3410 +070-0211 RSA 125 070L3422 2 ➨ RSA 125 070L6410 +070-0211, + mount 2-pipe screw RSA 95 070L3472 2 ➨ RSH 125 070L3470 + mount 2-pipe screw RSA 95 070L3474 1 ➨ No repl. RSA 28 070L5332 2 ➨ No repl. RSA 28 070L5372 2 ➨ RSA 28 070L5370 + mount 2-pipe screw RSA 28 070L5380 1 ➨ No repl. RSA 28 070L5382 2 ➨ No repl. + mount 2-pipe screw RSH 125 070L6400 1 ➨ No repl. RSH 032 070L7310 1 ➨ No repl. RSH 63 070L6300 1 ➨ No repl. RSH 125 070L6400 1 ➨ No repl. RSH 32 070L7300 1 ➨ No repl.

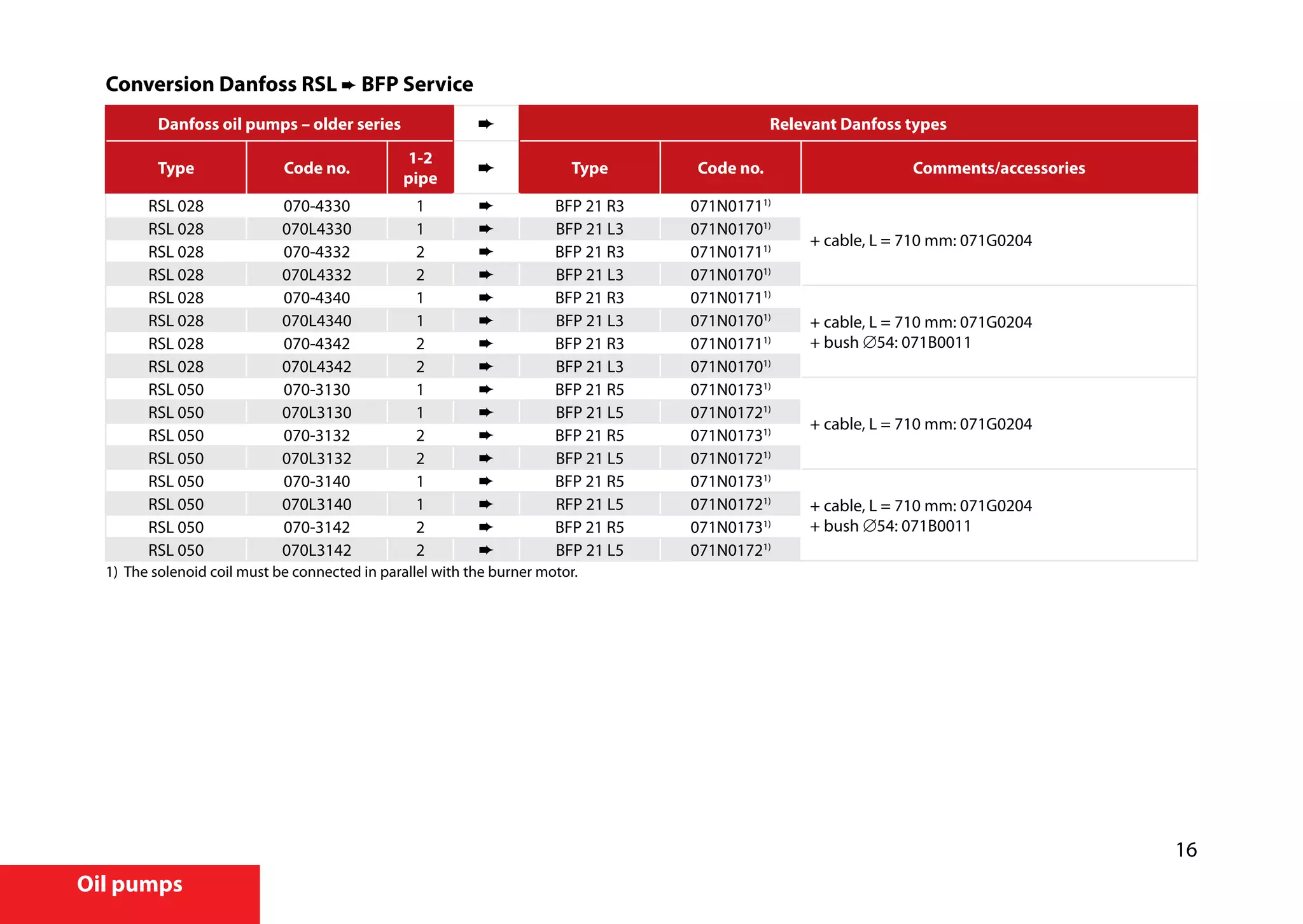

16 Oil pumps Conversion Danfoss RSL ➨ BFP Service Danfoss oil pumps – older series Relevant Danfoss types Type Code no. 1-2 pipe Type Code no. Comments/accessories RSL 028 070-4330 1 ➨ BFP 21 R3 071N01711) + cable, L = 710 mm: 071G0204 RSL 028 070L4330 1 ➨ BFP 21 L3 071N01701) RSL 028 070-4332 2 ➨ BFP 21 R3 071N01711) RSL 028 070L4332 2 ➨ BFP 21 L3 071N01701) RSL 028 070-4340 1 ➨ BFP 21 R3 071N01711) + cable, L = 710 mm: 071G0204 + bush ∅54: 071B0011 RSL 028 070L4340 1 ➨ BFP 21 L3 071N01701) RSL 028 070-4342 2 ➨ BFP 21 R3 071N01711) RSL 028 070L4342 2 ➨ BFP 21 L3 071N01701) RSL 050 070-3130 1 ➨ BFP 21 R5 071N01731) + cable, L = 710 mm: 071G0204 RSL 050 070L3130 1 ➨ BFP 21 L5 071N01721) RSL 050 070-3132 2 ➨ BFP 21 R5 071N01731) RSL 050 070L3132 2 ➨ BFP 21 L5 071N01721) RSL 050 070-3140 1 ➨ BFP 21 R5 071N01731) + cable, L = 710 mm: 071G0204 + bush ∅54: 071B0011 RSL 050 070L3140 1 ➨ RFP 21 L5 071N01721) RSL 050 070-3142 2 ➨ BFP 21 R5 071N01731) RSL 050 070L3142 2 ➨ BFP 21 L5 071N01721) 1) The solenoid coil must be connected in parallel with the burner motor.

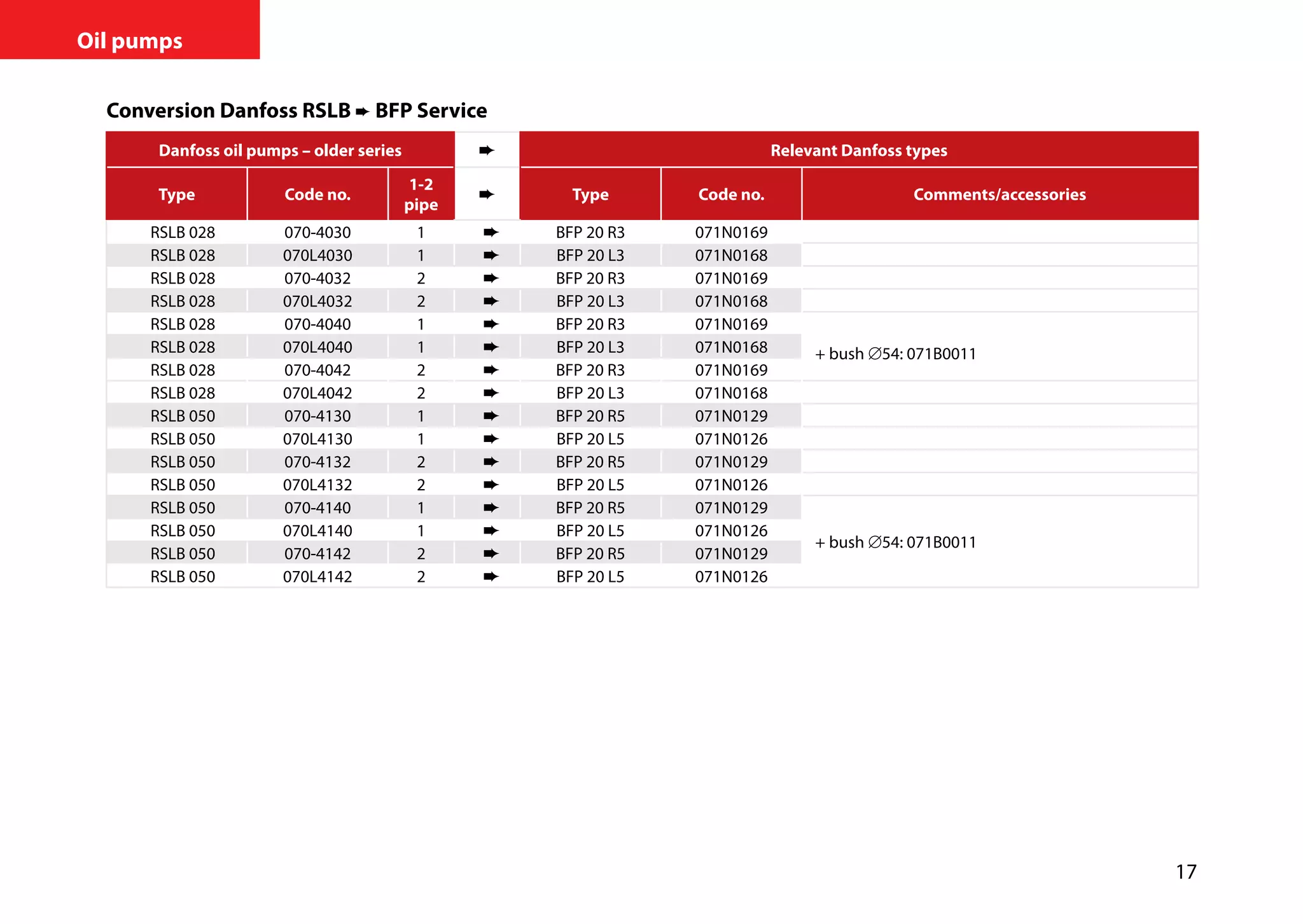

17 Oil pumps Conversion Danfoss RSLB ➨ BFP Service Danfoss oil pumps – older series Relevant Danfoss types Type Code no. 1-2 pipe Type Code no. Comments/accessories RSLB 028 070-4030 1 BFP 20 R3 071N0169 RSLB 028 070L4030 1 BFP 20 L3 071N0168 RSLB 028 070-4032 2 BFP 20 R3 071N0169 RSLB 028 070L4032 2 BFP 20 L3 071N0168 RSLB 028 070-4040 1 BFP 20 R3 071N0169 + bush ∅54: 071B0011RSLB 028 070L4040 1 BFP 20 L3 071N0168 RSLB 028 070-4042 2 BFP 20 R3 071N0169 RSLB 028 070L4042 2 BFP 20 L3 071N0168 RSLB 050 070-4130 1 BFP 20 R5 071N0129 RSLB 050 070L4130 1 BFP 20 L5 071N0126 RSLB 050 070-4132 2 BFP 20 R5 071N0129 RSLB 050 070L4132 2 BFP 20 L5 071N0126 RSLB 050 070-4140 1 BFP 20 R5 071N0129 + bush ∅54: 071B0011 RSLB 050 070L4140 1 BFP 20 L5 071N0126 RSLB 050 070-4142 2 BFP 20 R5 071N0129 RSLB 050 070L4142 2 BFP 20 L5 071N0126

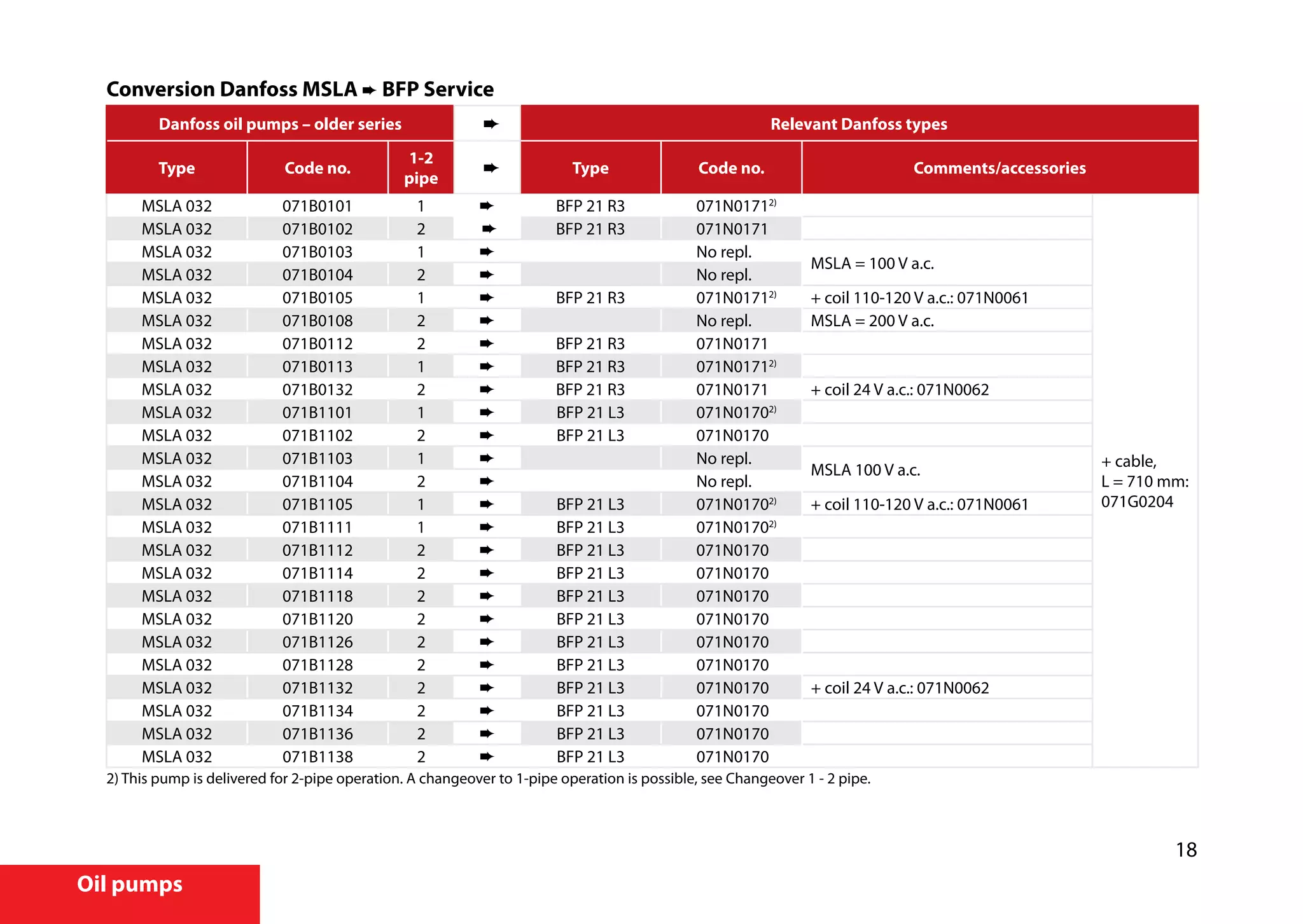

18 Oil pumps Conversion Danfoss MSLA ➨ BFP Service Danfoss oil pumps – older series Relevant Danfoss types Type Code no. 1-2 pipe Type Code no. Comments/accessories MSLA 032 071B0101 1 ➨ BFP 21 R3 071N01712) + cable, L = 710 mm: 071G0204 MSLA 032 071B0102 2 ➨ BFP 21 R3 071N0171 MSLA 032 071B0103 1 ➨ No repl. MSLA = 100 V a.c. MSLA 032 071B0104 2 ➨ No repl. MSLA 032 071B0105 1 ➨ BFP 21 R3 071N01712) + coil 110-120 V a.c.: 071N0061 MSLA 032 071B0108 2 ➨ No repl. MSLA = 200 V a.c. MSLA 032 071B0112 2 ➨ BFP 21 R3 071N0171 MSLA 032 071B0113 1 ➨ BFP 21 R3 071N01712) MSLA 032 071B0132 2 ➨ BFP 21 R3 071N0171 + coil 24 V a.c.: 071N0062 MSLA 032 071B1101 1 ➨ BFP 21 L3 071N01702) MSLA 032 071B1102 2 ➨ BFP 21 L3 071N0170 MSLA 032 071B1103 1 ➨ No repl. MSLA 100 V a.c. MSLA 032 071B1104 2 ➨ No repl. MSLA 032 071B1105 1 ➨ BFP 21 L3 071N01702) + coil 110-120 V a.c.: 071N0061 MSLA 032 071B1111 1 ➨ BFP 21 L3 071N01702) MSLA 032 071B1112 2 ➨ BFP 21 L3 071N0170 MSLA 032 071B1114 2 ➨ BFP 21 L3 071N0170 MSLA 032 071B1118 2 ➨ BFP 21 L3 071N0170 MSLA 032 071B1120 2 ➨ BFP 21 L3 071N0170 MSLA 032 071B1126 2 ➨ BFP 21 L3 071N0170 MSLA 032 071B1128 2 ➨ BFP 21 L3 071N0170 MSLA 032 071B1132 2 ➨ BFP 21 L3 071N0170 + coil 24 V a.c.: 071N0062 MSLA 032 071B1134 2 ➨ BFP 21 L3 071N0170 MSLA 032 071B1136 2 ➨ BFP 21 L3 071N0170 MSLA 032 071B1138 2 ➨ BFP 21 L3 071N0170 2) This pump is delivered for 2-pipe operation. A changeover to 1-pipe operation is possible, see Changeover 1 - 2 pipe.

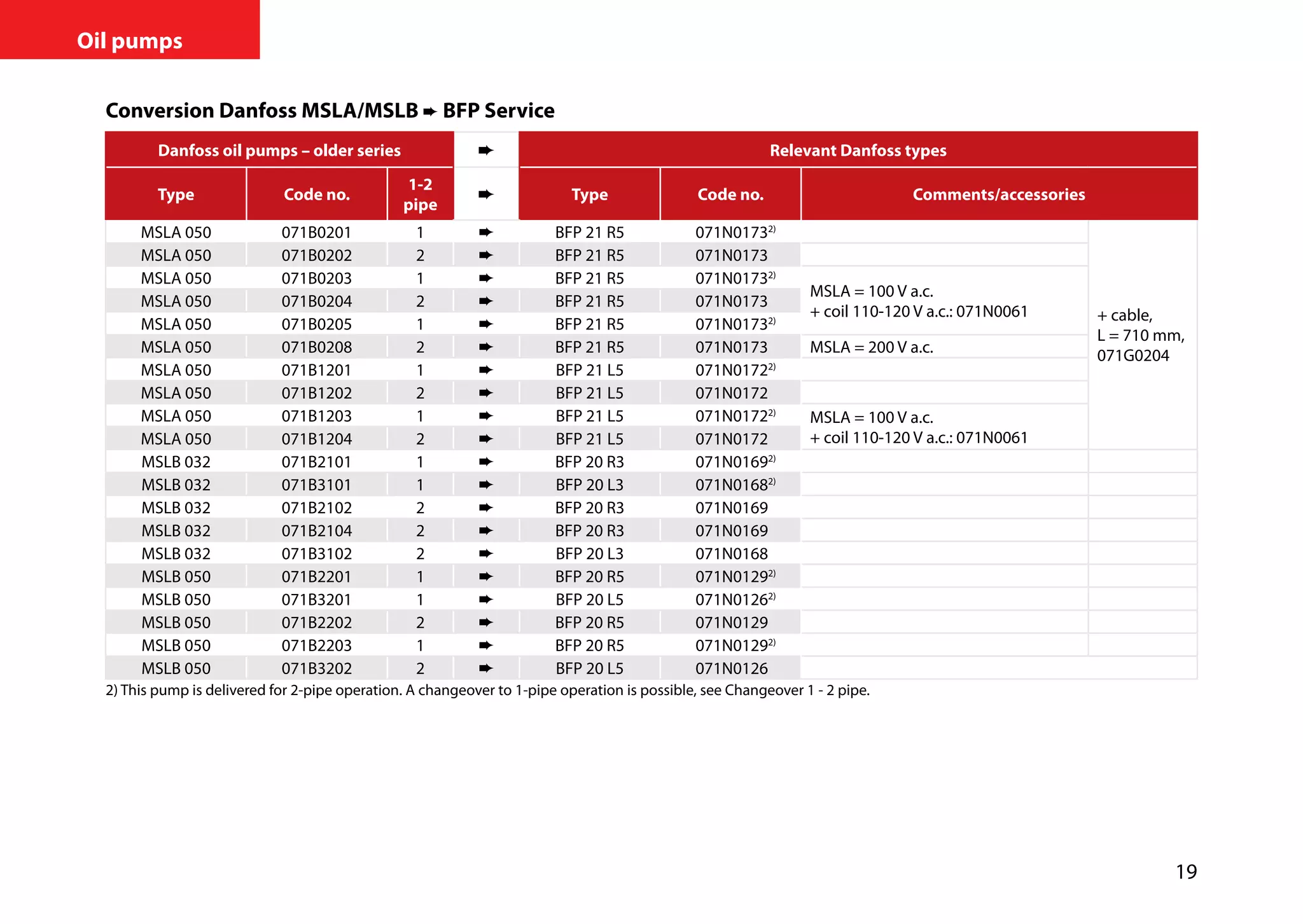

19 Oil pumps Conversion Danfoss MSLA/MSLB ➨ BFP Service Danfoss oil pumps – older series Relevant Danfoss types Type Code no. 1-2 pipe Type Code no. Comments/accessories MSLA 050 071B0201 1 ➨ BFP 21 R5 071N01732) + cable, L = 710 mm, 071G0204 MSLA 050 071B0202 2 ➨ BFP 21 R5 071N0173 MSLA 050 071B0203 1 ➨ BFP 21 R5 071N01732) MSLA = 100 V a.c. + coil 110-120 V a.c.: 071N0061 MSLA 050 071B0204 2 ➨ BFP 21 R5 071N0173 MSLA 050 071B0205 1 ➨ BFP 21 R5 071N01732) MSLA 050 071B0208 2 ➨ BFP 21 R5 071N0173 MSLA = 200 V a.c. MSLA 050 071B1201 1 ➨ BFP 21 L5 071N01722) MSLA 050 071B1202 2 ➨ BFP 21 L5 071N0172 MSLA 050 071B1203 1 ➨ BFP 21 L5 071N01722) MSLA = 100 V a.c. + coil 110-120 V a.c.: 071N0061MSLA 050 071B1204 2 ➨ BFP 21 L5 071N0172 MSLB 032 071B2101 1 ➨ BFP 20 R3 071N01692) MSLB 032 071B3101 1 ➨ BFP 20 L3 071N01682) MSLB 032 071B2102 2 ➨ BFP 20 R3 071N0169 MSLB 032 071B2104 2 ➨ BFP 20 R3 071N0169 MSLB 032 071B3102 2 ➨ BFP 20 L3 071N0168 MSLB 050 071B2201 1 ➨ BFP 20 R5 071N01292) MSLB 050 071B3201 1 ➨ BFP 20 L5 071N01262) MSLB 050 071B2202 2 ➨ BFP 20 R5 071N0129 MSLB 050 071B2203 1 ➨ BFP 20 R5 071N01292) MSLB 050 071B3202 2 ➨ BFP 20 L5 071N0126 2) This pump is delivered for 2-pipe operation. A changeover to 1-pipe operation is possible, see Changeover 1 - 2 pipe.

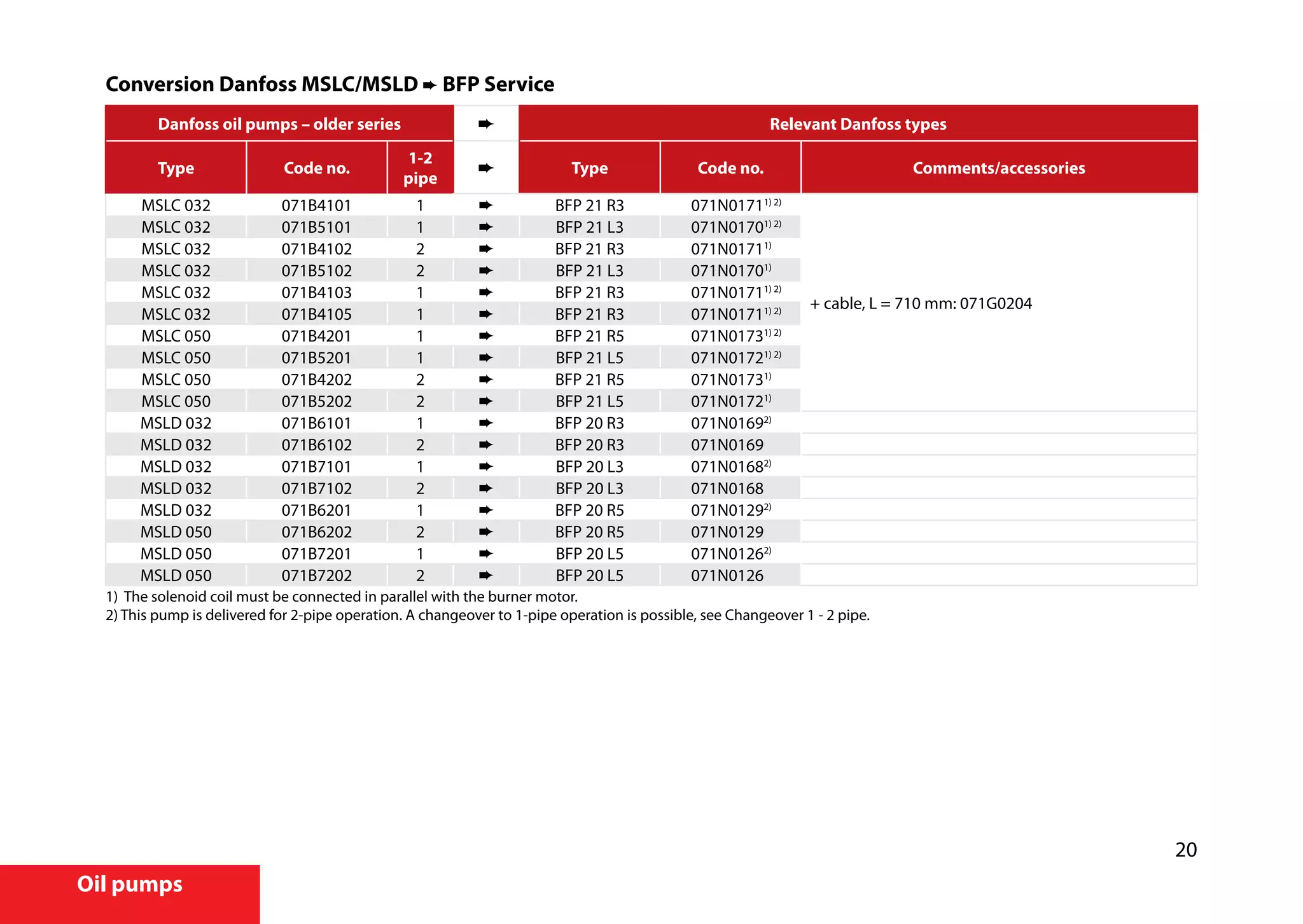

20 Oil pumps Conversion Danfoss MSLC/MSLD ➨ BFP Service Danfoss oil pumps – older series Relevant Danfoss types Type Code no. 1-2 pipe Type Code no. Comments/accessories MSLC 032 071B4101 1 ➨ BFP 21 R3 071N01711) 2) + cable, L = 710 mm: 071G0204 MSLC 032 071B5101 1 ➨ BFP 21 L3 071N01701) 2) MSLC 032 071B4102 2 ➨ BFP 21 R3 071N01711) MSLC 032 071B5102 2 ➨ BFP 21 L3 071N01701) MSLC 032 071B4103 1 ➨ BFP 21 R3 071N01711) 2) MSLC 032 071B4105 1 ➨ BFP 21 R3 071N01711) 2) MSLC 050 071B4201 1 ➨ BFP 21 R5 071N01731) 2) MSLC 050 071B5201 1 ➨ BFP 21 L5 071N01721) 2) MSLC 050 071B4202 2 ➨ BFP 21 R5 071N01731) MSLC 050 071B5202 2 ➨ BFP 21 L5 071N01721) MSLD 032 071B6101 1 ➨ BFP 20 R3 071N01692) MSLD 032 071B6102 2 ➨ BFP 20 R3 071N0169 MSLD 032 071B7101 1 ➨ BFP 20 L3 071N01682) MSLD 032 071B7102 2 ➨ BFP 20 L3 071N0168 MSLD 032 071B6201 1 ➨ BFP 20 R5 071N01292) MSLD 050 071B6202 2 ➨ BFP 20 R5 071N0129 MSLD 050 071B7201 1 ➨ BFP 20 L5 071N01262) MSLD 050 071B7202 2 ➨ BFP 20 L5 071N0126 1) The solenoid coil must be connected in parallel with the burner motor. 2) This pump is delivered for 2-pipe operation. A changeover to 1-pipe operation is possible, see Changeover 1 - 2 pipe.

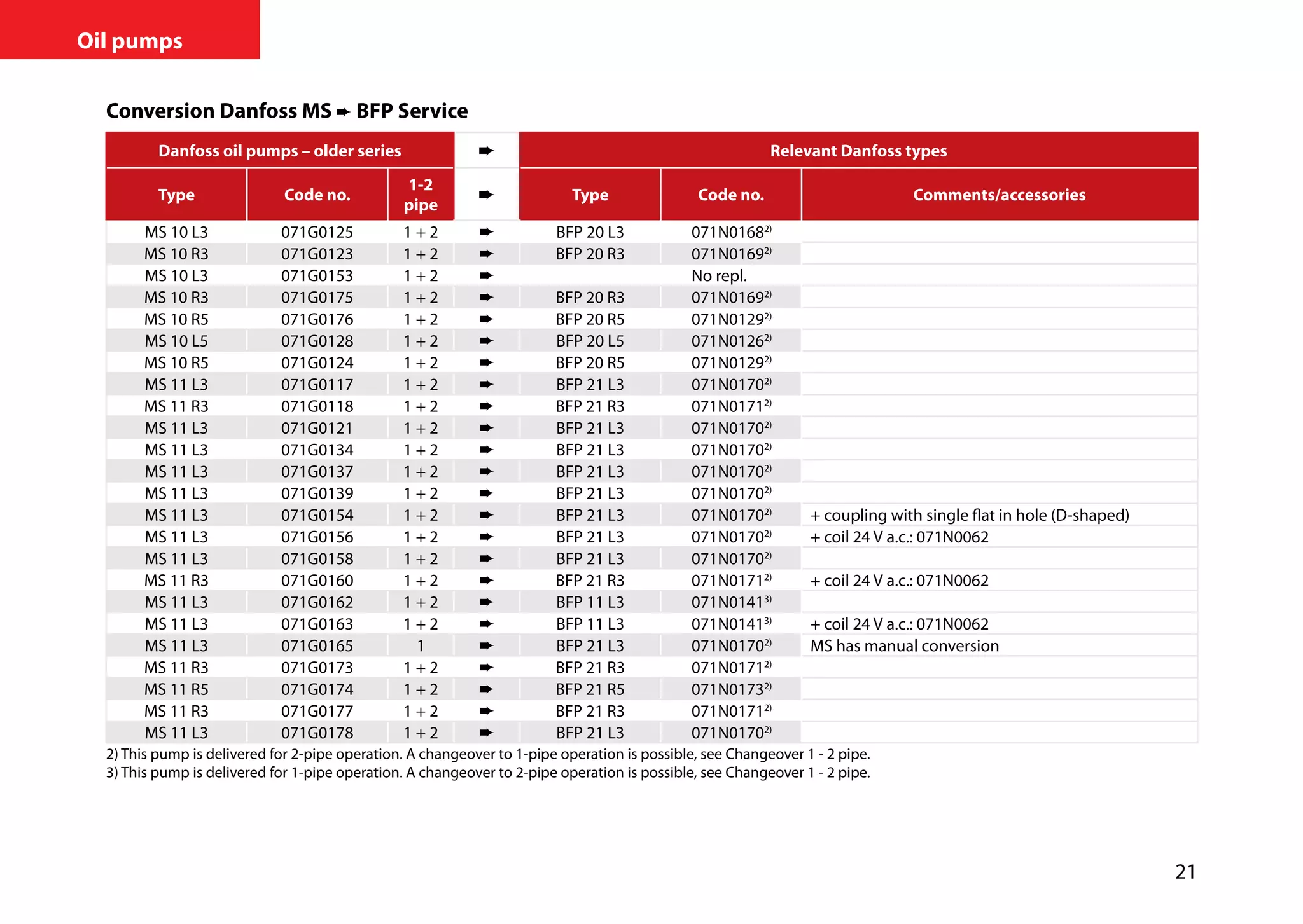

21 Oil pumps Conversion Danfoss MS ➨ BFP Service Danfoss oil pumps – older series Relevant Danfoss types Type Code no. 1-2 pipe Type Code no. Comments/accessories MS 10 L3 071G0125 1 + 2 ➨ BFP 20 L3 071N01682) MS 10 R3 071G0123 1 + 2 ➨ BFP 20 R3 071N01692) MS 10 L3 071G0153 1 + 2 ➨ No repl. MS 10 R3 071G0175 1 + 2 ➨ BFP 20 R3 071N01692) MS 10 R5 071G0176 1 + 2 ➨ BFP 20 R5 071N01292) MS 10 L5 071G0128 1 + 2 ➨ BFP 20 L5 071N01262) MS 10 R5 071G0124 1 + 2 ➨ BFP 20 R5 071N01292) MS 11 L3 071G0117 1 + 2 ➨ BFP 21 L3 071N01702) MS 11 R3 071G0118 1 + 2 ➨ BFP 21 R3 071N01712) MS 11 L3 071G0121 1 + 2 ➨ BFP 21 L3 071N01702) MS 11 L3 071G0134 1 + 2 ➨ BFP 21 L3 071N01702) MS 11 L3 071G0137 1 + 2 ➨ BFP 21 L3 071N01702) MS 11 L3 071G0139 1 + 2 ➨ BFP 21 L3 071N01702) MS 11 L3 071G0154 1 + 2 ➨ BFP 21 L3 071N01702) + coupling with single flat in hole (D-shaped) MS 11 L3 071G0156 1 + 2 ➨ BFP 21 L3 071N01702) + coil 24 V a.c.: 071N0062 MS 11 L3 071G0158 1 + 2 ➨ BFP 21 L3 071N01702) MS 11 R3 071G0160 1 + 2 ➨ BFP 21 R3 071N01712) + coil 24 V a.c.: 071N0062 MS 11 L3 071G0162 1 + 2 ➨ BFP 11 L3 071N01413) MS 11 L3 071G0163 1 + 2 ➨ BFP 11 L3 071N01413) + coil 24 V a.c.: 071N0062 MS 11 L3 071G0165 1 ➨ BFP 21 L3 071N01702) MS has manual conversion MS 11 R3 071G0173 1 + 2 ➨ BFP 21 R3 071N01712) MS 11 R5 071G0174 1 + 2 ➨ BFP 21 R5 071N01732) MS 11 R3 071G0177 1 + 2 ➨ BFP 21 R3 071N01712) MS 11 L3 071G0178 1 + 2 ➨ BFP 21 L3 071N01702) 2) This pump is delivered for 2-pipe operation. A changeover to 1-pipe operation is possible, see Changeover 1 - 2 pipe. 3) This pump is delivered for 1-pipe operation. A changeover to 2-pipe operation is possible, see Changeover 1 - 2 pipe.

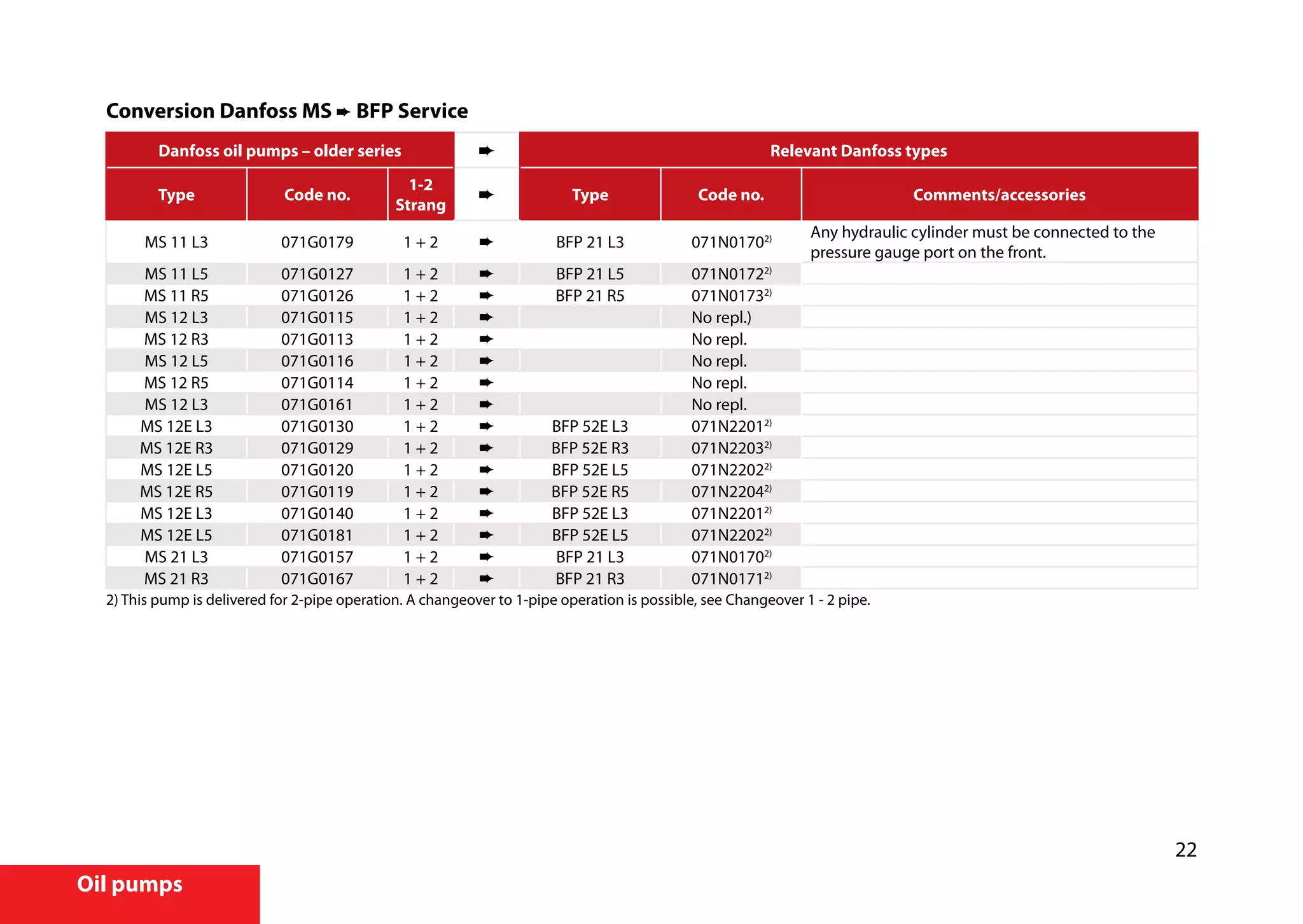

22 Oil pumps Conversion Danfoss MS ➨ BFP Service Danfoss oil pumps – older series Relevant Danfoss types Type Code no. 1-2 Strang Type Code no. Comments/accessories MS 11 L3 071G0179 1 + 2 ➨ BFP 21 L3 071N01702) Any hydraulic cylinder must be connected to the pressure gauge port on the front. MS 11 L5 071G0127 1 + 2 ➨ BFP 21 L5 071N01722) MS 11 R5 071G0126 1 + 2 ➨ BFP 21 R5 071N01732) MS 12 L3 071G0115 1 + 2 ➨ No repl.) MS 12 R3 071G0113 1 + 2 ➨ No repl. MS 12 L5 071G0116 1 + 2 ➨ No repl. MS 12 R5 071G0114 1 + 2 ➨ No repl. MS 12 L3 071G0161 1 + 2 ➨ No repl. MS 12E L3 071G0130 1 + 2 ➨ BFP 52E L3 071N22012) MS 12E R3 071G0129 1 + 2 ➨ BFP 52E R3 071N22032) MS 12E L5 071G0120 1 + 2 ➨ BFP 52E L5 071N22022) MS 12E R5 071G0119 1 + 2 ➨ BFP 52E R5 071N22042) MS 12E L3 071G0140 1 + 2 ➨ BFP 52E L3 071N22012) MS 12E L5 071G0181 1 + 2 ➨ BFP 52E L5 071N22022) MS 21 L3 071G0157 1 + 2 ➨ BFP 21 L3 071N01702) MS 21 R3 071G0167 1 + 2 ➨ BFP 21 R3 071N01712) 2) This pump is delivered for 2-pipe operation. A changeover to 1-pipe operation is possible, see Changeover 1 - 2 pipe.

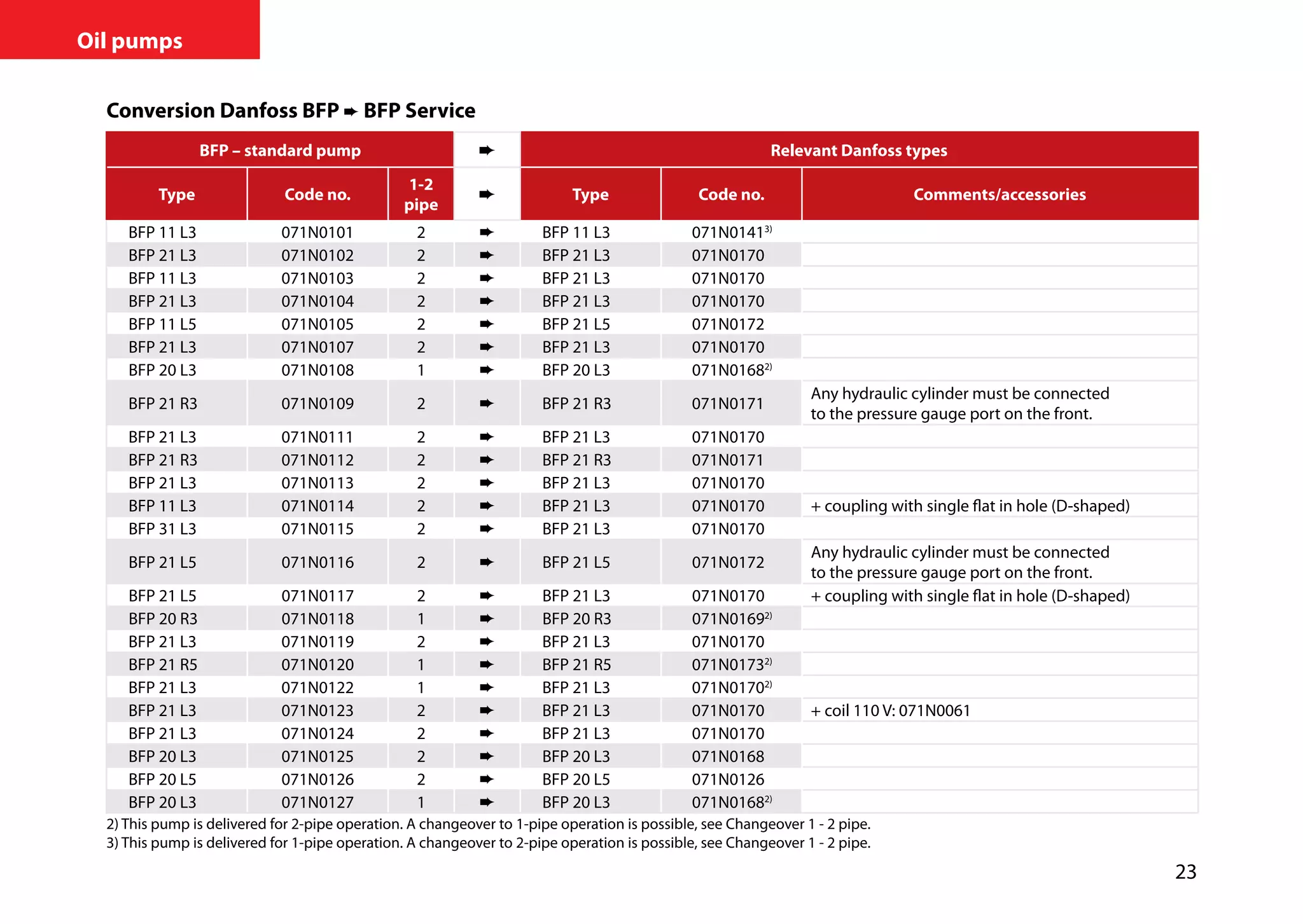

23 Oil pumps Conversion Danfoss BFP ➨ BFP Service BFP – standard pump Relevant Danfoss types Type Code no. 1-2 pipe Type Code no. Comments/accessories BFP 11 L3 071N0101 2 ➨ BFP 11 L3 071N01413) BFP 21 L3 071N0102 2 ➨ BFP 21 L3 071N0170 BFP 11 L3 071N0103 2 ➨ BFP 21 L3 071N0170 BFP 21 L3 071N0104 2 ➨ BFP 21 L3 071N0170 BFP 11 L5 071N0105 2 ➨ BFP 21 L5 071N0172 BFP 21 L3 071N0107 2 ➨ BFP 21 L3 071N0170 BFP 20 L3 071N0108 1 ➨ BFP 20 L3 071N01682) BFP 21 R3 071N0109 2 ➨ BFP 21 R3 071N0171 Any hydraulic cylinder must be connected to the pressure gauge port on the front. BFP 21 L3 071N0111 2 ➨ BFP 21 L3 071N0170 BFP 21 R3 071N0112 2 ➨ BFP 21 R3 071N0171 BFP 21 L3 071N0113 2 ➨ BFP 21 L3 071N0170 BFP 11 L3 071N0114 2 ➨ BFP 21 L3 071N0170 + coupling with single flat in hole (D-shaped) BFP 31 L3 071N0115 2 ➨ BFP 21 L3 071N0170 BFP 21 L5 071N0116 2 ➨ BFP 21 L5 071N0172 Any hydraulic cylinder must be connected to the pressure gauge port on the front. BFP 21 L5 071N0117 2 ➨ BFP 21 L3 071N0170 + coupling with single flat in hole (D-shaped) BFP 20 R3 071N0118 1 ➨ BFP 20 R3 071N01692) BFP 21 L3 071N0119 2 ➨ BFP 21 L3 071N0170 BFP 21 R5 071N0120 1 ➨ BFP 21 R5 071N01732) BFP 21 L3 071N0122 1 ➨ BFP 21 L3 071N01702) BFP 21 L3 071N0123 2 ➨ BFP 21 L3 071N0170 + coil 110 V: 071N0061 BFP 21 L3 071N0124 2 ➨ BFP 21 L3 071N0170 BFP 20 L3 071N0125 2 ➨ BFP 20 L3 071N0168 BFP 20 L5 071N0126 2 ➨ BFP 20 L5 071N0126 BFP 20 L3 071N0127 1 ➨ BFP 20 L3 071N01682) 2) This pump is delivered for 2-pipe operation. A changeover to 1-pipe operation is possible, see Changeover 1 - 2 pipe. 3) This pump is delivered for 1-pipe operation. A changeover to 2-pipe operation is possible, see Changeover 1 - 2 pipe.

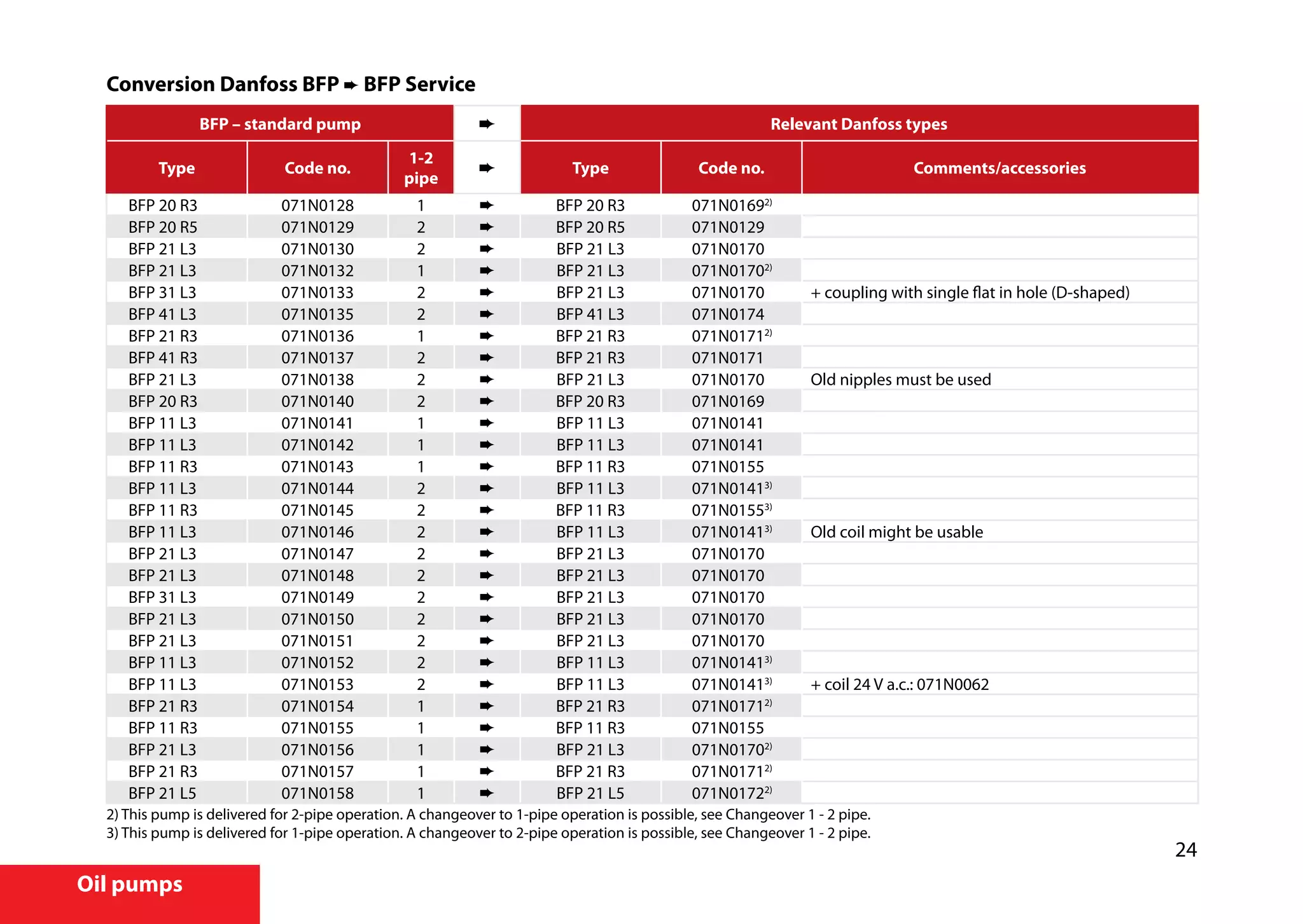

24 Oil pumps Conversion Danfoss BFP ➨ BFP Service BFP – standard pump Relevant Danfoss types Type Code no. 1-2 pipe Type Code no. Comments/accessories BFP 20 R3 071N0128 1 ➨ BFP 20 R3 071N01692) BFP 20 R5 071N0129 2 ➨ BFP 20 R5 071N0129 BFP 21 L3 071N0130 2 ➨ BFP 21 L3 071N0170 BFP 21 L3 071N0132 1 ➨ BFP 21 L3 071N01702) BFP 31 L3 071N0133 2 ➨ BFP 21 L3 071N0170 + coupling with single flat in hole (D-shaped) BFP 41 L3 071N0135 2 ➨ BFP 41 L3 071N0174 BFP 21 R3 071N0136 1 ➨ BFP 21 R3 071N01712) BFP 41 R3 071N0137 2 ➨ BFP 21 R3 071N0171 BFP 21 L3 071N0138 2 ➨ BFP 21 L3 071N0170 Old nipples must be used BFP 20 R3 071N0140 2 ➨ BFP 20 R3 071N0169 BFP 11 L3 071N0141 1 ➨ BFP 11 L3 071N0141 BFP 11 L3 071N0142 1 ➨ BFP 11 L3 071N0141 BFP 11 R3 071N0143 1 ➨ BFP 11 R3 071N0155 BFP 11 L3 071N0144 2 ➨ BFP 11 L3 071N01413) BFP 11 R3 071N0145 2 ➨ BFP 11 R3 071N01553) BFP 11 L3 071N0146 2 ➨ BFP 11 L3 071N01413) Old coil might be usable BFP 21 L3 071N0147 2 ➨ BFP 21 L3 071N0170 BFP 21 L3 071N0148 2 ➨ BFP 21 L3 071N0170 BFP 31 L3 071N0149 2 ➨ BFP 21 L3 071N0170 BFP 21 L3 071N0150 2 ➨ BFP 21 L3 071N0170 BFP 21 L3 071N0151 2 ➨ BFP 21 L3 071N0170 BFP 11 L3 071N0152 2 ➨ BFP 11 L3 071N01413) BFP 11 L3 071N0153 2 ➨ BFP 11 L3 071N01413) + coil 24 V a.c.: 071N0062 BFP 21 R3 071N0154 1 ➨ BFP 21 R3 071N01712) BFP 11 R3 071N0155 1 ➨ BFP 11 R3 071N0155 BFP 21 L3 071N0156 1 ➨ BFP 21 L3 071N01702) BFP 21 R3 071N0157 1 ➨ BFP 21 R3 071N01712) BFP 21 L5 071N0158 1 ➨ BFP 21 L5 071N01722) 2) This pump is delivered for 2-pipe operation. A changeover to 1-pipe operation is possible, see Changeover 1 - 2 pipe. 3) This pump is delivered for 1-pipe operation. A changeover to 2-pipe operation is possible, see Changeover 1 - 2 pipe.
25 Oil pumps Conversion Danfoss BFP ➨ BFP Service BFP – standard pump Relevant Danfoss types Type Code no. 1-2 pipe Type Code no. Comments/accessories BFP 21 R5 071N0159 1 ➨ BFP 21 R5 071N01732) BFP 41 L3 071N0160 1 ➨ BFP 41 L3 071N01742) BFP 20 L3 071N0161 1 ➨ BFP 20 L3 071N01682) BFP 20 R3 071N0162 1 ➨ BFP 20 R3 071N01692) BFP 11 R5 071N0163 2 ➨ BFP 21 R5 071N0173 BFP 21 L3 071N0164 2 ➨ BFP 21 L3 071N0170 BFP 11 R5 071N0165 2 ➨ BFP 21 R5 071N0173 BFP 10 R5 071N0166 2 ➨ BFP 20 R5 071N0129 BFP 21 R3 071N0167 2 ➨ BFP 21 R3 071N0171 BFP 20 L3 071N0168 2 ➨ BFP 20 L3 071N0168 BFP 20 R3 071N0169 2 ➨ BFP 20 R3 071N0169 BFP 21 L3 071N0170 2 ➨ BFP 21 L3 071N0170 BFP 21 R3 071N0171 2 ➨ BFP 21 R3 071N0171 BFP 21 L5 071N0172 2 ➨ BFP 21 L5 071N0172 BFP 21 R5 071N0173 2 ➨ BFP 21 R5 071N0173 BFP 41 L3 071N0174 2 ➨ BFP 41 L3 071N0174 BFP 21 L3 071N0175 1 ➨ BFP 21 L3 071N01702) BFP 21 L3 071N0176 1 ➨ BFP 21 L3 071N01702) + coil: 071N0061 BFP 10 R3 071N0177 2 ➨ BFP 20 R3 071N0169 BFP 11 L5 071N0178 2 ➨ BFP 21 L5 071N0172 BFP 21 L3 071N0179 2 ➨ BFP 21 L3 071N0170 BFP 20 R5 071N0180 2 ➨ BFP 20 R5 071N0129 BFP 11 R3 071N0181 2 ➨ BFP 11 R3 071N01553) BFP 21 L3 071N0182 2 ➨ BFP 21 L3 071N0170 BFP 11 R3 071N0183 2 ➨ BFP 11 R3 071N01553) BFP 11 L3 071N0184 2 ➨ BFP 21 L3 071N0170 BFP 21 L3 071N0185 2 ➨ BFP 21 L3 071N0170 2) This pump is delivered for 2-pipe operation. A changeover to 1-pipe operation is possible, see Changeover 1 - 2 pipe. 3) This pump is delivered for 1-pipe operation. A changeover to 2-pipe operation is possible, see Changeover 1 - 2 pipe.

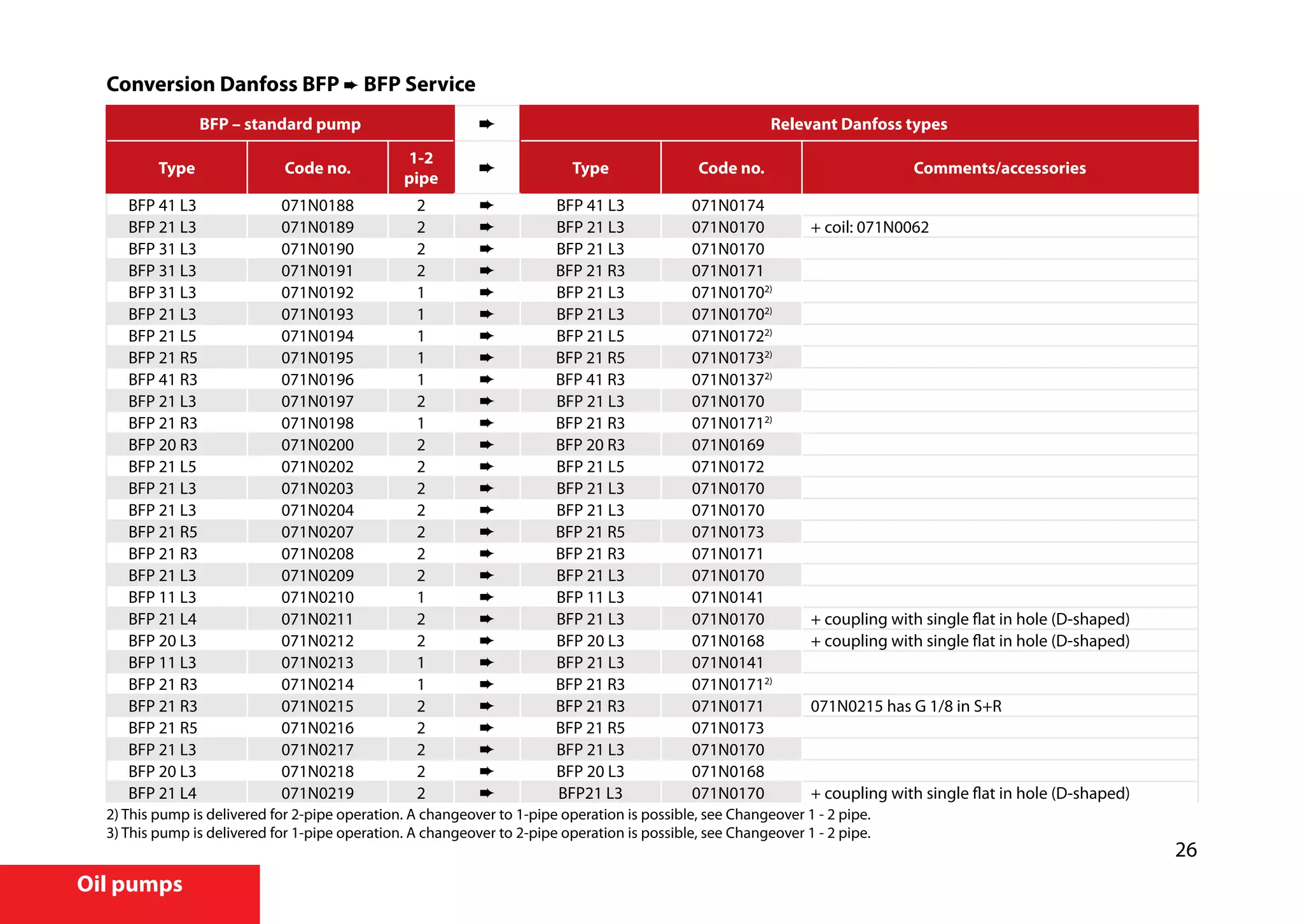

26 Oil pumps Conversion Danfoss BFP ➨ BFP Service BFP – standard pump Relevant Danfoss types Type Code no. 1-2 pipe Type Code no. Comments/accessories BFP 41 L3 071N0188 2 ➨ BFP 41 L3 071N0174 BFP 21 L3 071N0189 2 ➨ BFP 21 L3 071N0170 + coil: 071N0062 BFP 31 L3 071N0190 2 ➨ BFP 21 L3 071N0170 BFP 31 L3 071N0191 2 ➨ BFP 21 R3 071N0171 BFP 31 L3 071N0192 1 ➨ BFP 21 L3 071N01702) BFP 21 L3 071N0193 1 ➨ BFP 21 L3 071N01702) BFP 21 L5 071N0194 1 ➨ BFP 21 L5 071N01722) BFP 21 R5 071N0195 1 ➨ BFP 21 R5 071N01732) BFP 41 R3 071N0196 1 ➨ BFP 41 R3 071N01372) BFP 21 L3 071N0197 2 ➨ BFP 21 L3 071N0170 BFP 21 R3 071N0198 1 ➨ BFP 21 R3 071N01712) BFP 20 R3 071N0200 2 ➨ BFP 20 R3 071N0169 BFP 21 L5 071N0202 2 ➨ BFP 21 L5 071N0172 BFP 21 L3 071N0203 2 ➨ BFP 21 L3 071N0170 BFP 21 L3 071N0204 2 ➨ BFP 21 L3 071N0170 BFP 21 R5 071N0207 2 ➨ BFP 21 R5 071N0173 BFP 21 R3 071N0208 2 ➨ BFP 21 R3 071N0171 BFP 21 L3 071N0209 2 ➨ BFP 21 L3 071N0170 BFP 11 L3 071N0210 1 ➨ BFP 11 L3 071N0141 BFP 21 L4 071N0211 2 ➨ BFP 21 L3 071N0170 + coupling with single flat in hole (D-shaped) BFP 20 L3 071N0212 2 ➨ BFP 20 L3 071N0168 + coupling with single flat in hole (D-shaped) BFP 11 L3 071N0213 1 ➨ BFP 21 L3 071N0141 BFP 21 R3 071N0214 1 ➨ BFP 21 R3 071N01712) BFP 21 R3 071N0215 2 ➨ BFP 21 R3 071N0171 071N0215 has G 1/8 in S+R BFP 21 R5 071N0216 2 ➨ BFP 21 R5 071N0173 BFP 21 L3 071N0217 2 ➨ BFP 21 L3 071N0170 BFP 20 L3 071N0218 2 ➨ BFP 20 L3 071N0168 BFP 21 L4 071N0219 2 ➨ BFP21 L3 071N0170 + coupling with single flat in hole (D-shaped) 2) This pump is delivered for 2-pipe operation. A changeover to 1-pipe operation is possible, see Changeover 1 - 2 pipe. 3) This pump is delivered for 1-pipe operation. A changeover to 2-pipe operation is possible, see Changeover 1 - 2 pipe.

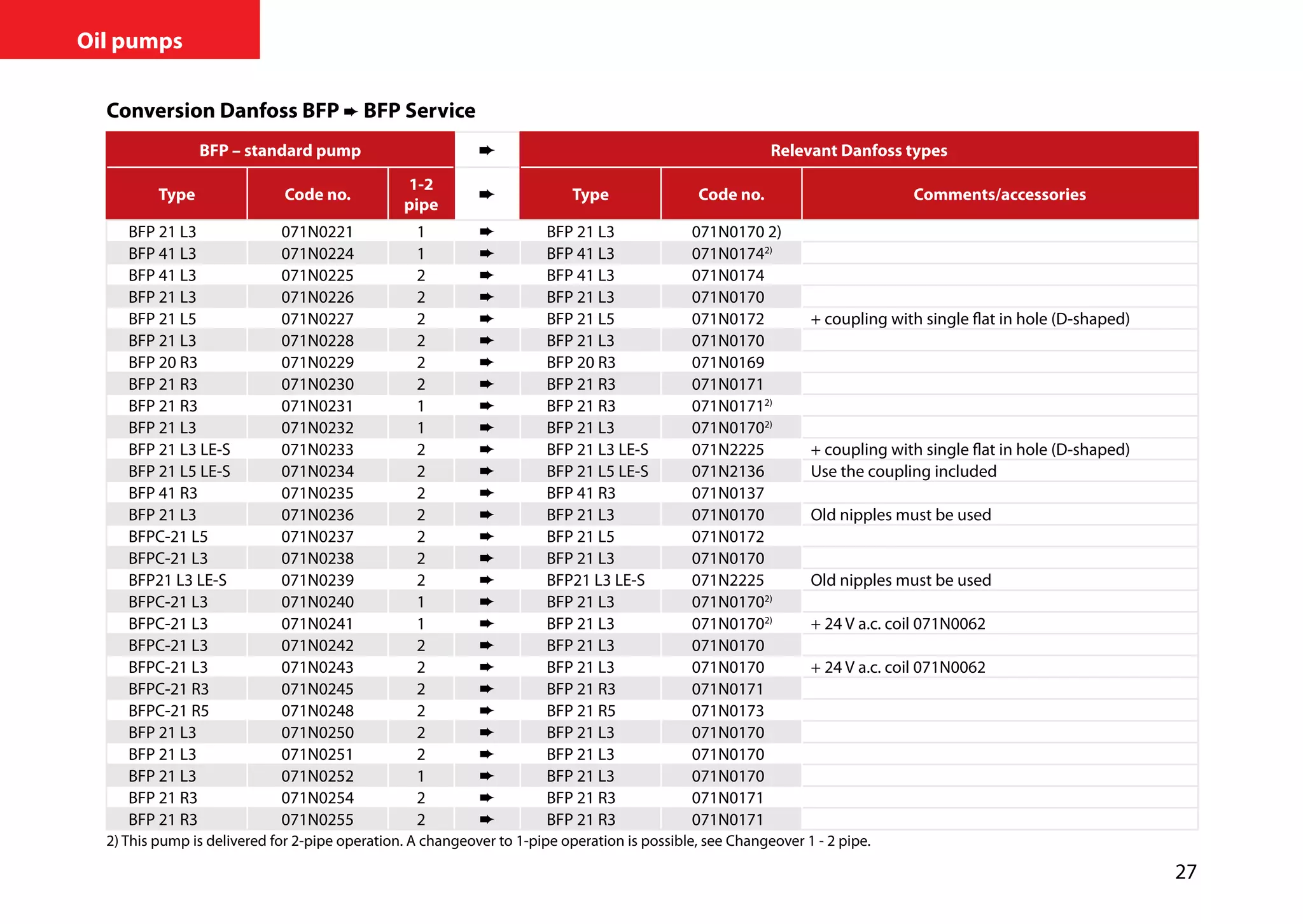

27 Oil pumps Conversion Danfoss BFP ➨ BFP Service BFP – standard pump Relevant Danfoss types Type Code no. 1-2 pipe Type Code no. Comments/accessories BFP 21 L3 071N0221 1 ➨ BFP 21 L3 071N0170 2) BFP 41 L3 071N0224 1 ➨ BFP 41 L3 071N01742) BFP 41 L3 071N0225 2 ➨ BFP 41 L3 071N0174 BFP 21 L3 071N0226 2 ➨ BFP 21 L3 071N0170 BFP 21 L5 071N0227 2 ➨ BFP 21 L5 071N0172 + coupling with single flat in hole (D-shaped) BFP 21 L3 071N0228 2 ➨ BFP 21 L3 071N0170 BFP 20 R3 071N0229 2 ➨ BFP 20 R3 071N0169 BFP 21 R3 071N0230 2 ➨ BFP 21 R3 071N0171 BFP 21 R3 071N0231 1 ➨ BFP 21 R3 071N01712) BFP 21 L3 071N0232 1 ➨ BFP 21 L3 071N01702) BFP 21 L3 LE-S 071N0233 2 ➨ BFP 21 L3 LE-S 071N2225 + coupling with single flat in hole (D-shaped) BFP 21 L5 LE-S 071N0234 2 ➨ BFP 21 L5 LE-S 071N2136 Use the coupling included BFP 41 R3 071N0235 2 ➨ BFP 41 R3 071N0137 BFP 21 L3 071N0236 2 ➨ BFP 21 L3 071N0170 Old nipples must be used BFPC-21 L5 071N0237 2 ➨ BFP 21 L5 071N0172 BFPC-21 L3 071N0238 2 ➨ BFP 21 L3 071N0170 BFP21 L3 LE-S 071N0239 2 ➨ BFP21 L3 LE-S 071N2225 Old nipples must be used BFPC-21 L3 071N0240 1 ➨ BFP 21 L3 071N01702) BFPC-21 L3 071N0241 1 ➨ BFP 21 L3 071N01702) + 24 V a.c. coil 071N0062 BFPC-21 L3 071N0242 2 ➨ BFP 21 L3 071N0170 BFPC-21 L3 071N0243 2 ➨ BFP 21 L3 071N0170 + 24 V a.c. coil 071N0062 BFPC-21 R3 071N0245 2 ➨ BFP 21 R3 071N0171 BFPC-21 R5 071N0248 2 ➨ BFP 21 R5 071N0173 BFP 21 L3 071N0250 2 ➨ BFP 21 L3 071N0170 BFP 21 L3 071N0251 2 ➨ BFP 21 L3 071N0170 BFP 21 L3 071N0252 1 ➨ BFP 21 L3 071N0170 BFP 21 R3 071N0254 2 ➨ BFP 21 R3 071N0171 BFP 21 R3 071N0255 2 ➨ BFP 21 R3 071N0171 2) This pump is delivered for 2-pipe operation. A changeover to 1-pipe operation is possible, see Changeover 1 - 2 pipe.

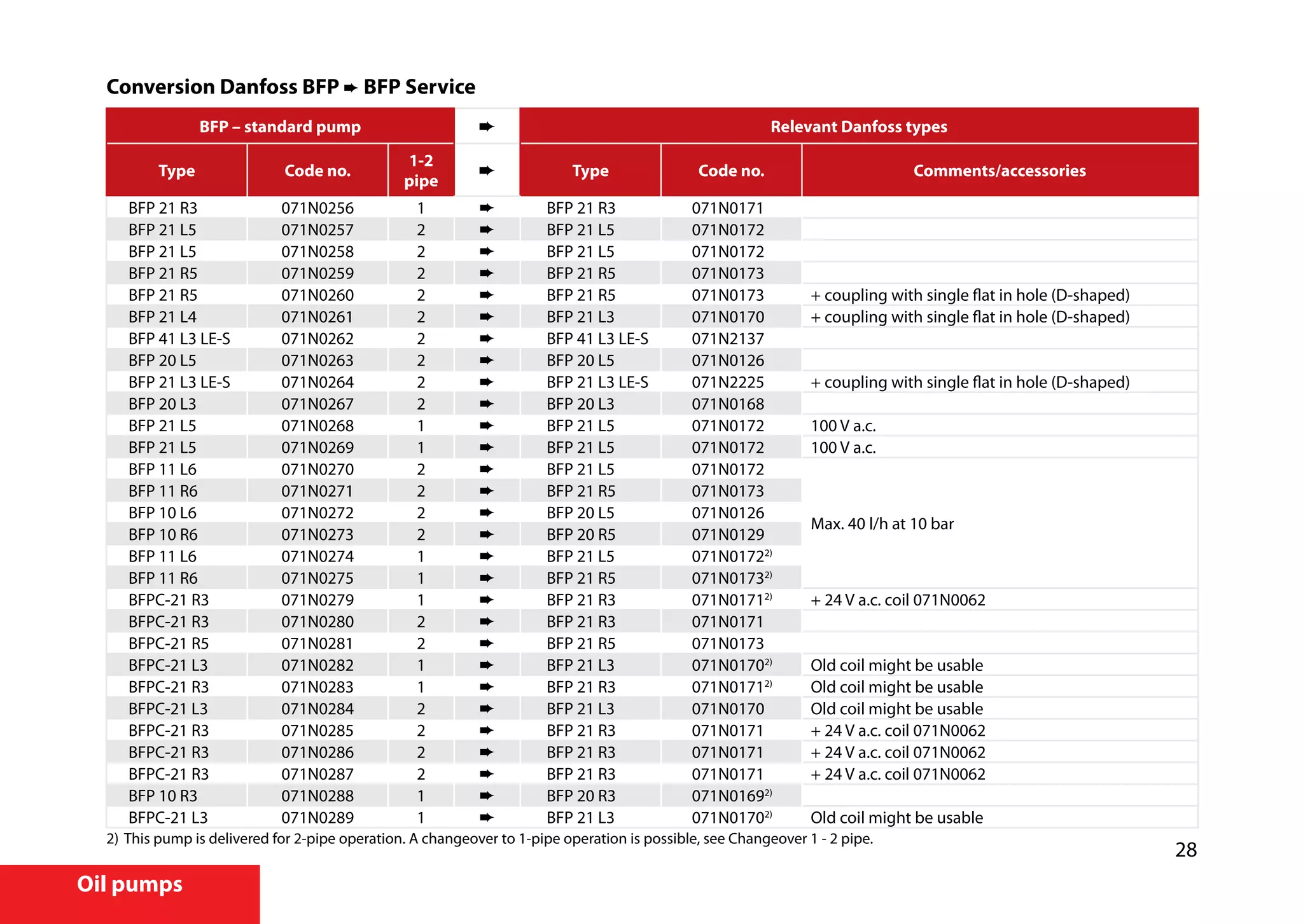

28 Oil pumps Conversion Danfoss BFP ➨ BFP Service BFP – standard pump Relevant Danfoss types Type Code no. 1-2 pipe Type Code no. Comments/accessories BFP 21 R3 071N0256 1 ➨ BFP 21 R3 071N0171 BFP 21 L5 071N0257 2 ➨ BFP 21 L5 071N0172 BFP 21 L5 071N0258 2 ➨ BFP 21 L5 071N0172 BFP 21 R5 071N0259 2 ➨ BFP 21 R5 071N0173 BFP 21 R5 071N0260 2 ➨ BFP 21 R5 071N0173 + coupling with single flat in hole (D-shaped) BFP 21 L4 071N0261 2 ➨ BFP 21 L3 071N0170 + coupling with single flat in hole (D-shaped) BFP 41 L3 LE-S 071N0262 2 ➨ BFP 41 L3 LE-S 071N2137 BFP 20 L5 071N0263 2 ➨ BFP 20 L5 071N0126 BFP 21 L3 LE-S 071N0264 2 ➨ BFP 21 L3 LE-S 071N2225 + coupling with single flat in hole (D-shaped) BFP 20 L3 071N0267 2 ➨ BFP 20 L3 071N0168 BFP 21 L5 071N0268 1 ➨ BFP 21 L5 071N0172 100 V a.c. BFP 21 L5 071N0269 1 ➨ BFP 21 L5 071N0172 100 V a.c. BFP 11 L6 071N0270 2 ➨ BFP 21 L5 071N0172 Max. 40 l/h at 10 bar BFP 11 R6 071N0271 2 ➨ BFP 21 R5 071N0173 BFP 10 L6 071N0272 2 ➨ BFP 20 L5 071N0126 BFP 10 R6 071N0273 2 ➨ BFP 20 R5 071N0129 BFP 11 L6 071N0274 1 ➨ BFP 21 L5 071N01722) BFP 11 R6 071N0275 1 ➨ BFP 21 R5 071N01732) BFPC-21 R3 071N0279 1 ➨ BFP 21 R3 071N01712) + 24 V a.c. coil 071N0062 BFPC-21 R3 071N0280 2 ➨ BFP 21 R3 071N0171 BFPC-21 R5 071N0281 2 ➨ BFP 21 R5 071N0173 BFPC-21 L3 071N0282 1 ➨ BFP 21 L3 071N01702) Old coil might be usable BFPC-21 R3 071N0283 1 ➨ BFP 21 R3 071N01712) Old coil might be usable BFPC-21 L3 071N0284 2 ➨ BFP 21 L3 071N0170 Old coil might be usable BFPC-21 R3 071N0285 2 ➨ BFP 21 R3 071N0171 + 24 V a.c. coil 071N0062 BFPC-21 R3 071N0286 2 ➨ BFP 21 R3 071N0171 + 24 V a.c. coil 071N0062 BFPC-21 R3 071N0287 2 ➨ BFP 21 R3 071N0171 + 24 V a.c. coil 071N0062 BFP 10 R3 071N0288 1 ➨ BFP 20 R3 071N01692) BFPC-21 L3 071N0289 1 ➨ BFP 21 L3 071N01702) Old coil might be usable 2) This pump is delivered for 2-pipe operation. A changeover to 1-pipe operation is possible, see Changeover 1 - 2 pipe.

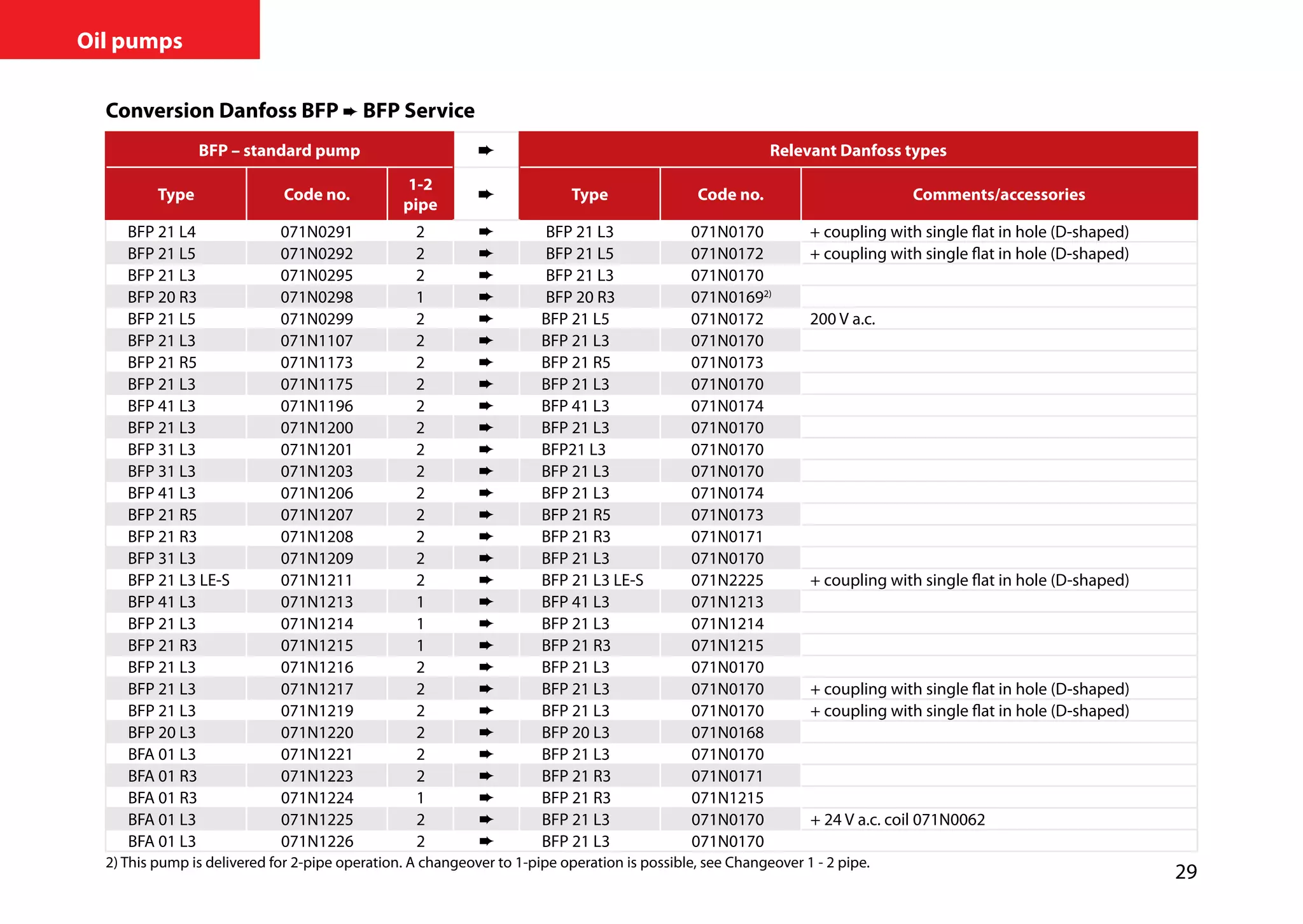

29 Oil pumps Conversion Danfoss BFP ➨ BFP Service BFP – standard pump Relevant Danfoss types Type Code no. 1-2 pipe Type Code no. Comments/accessories BFP 21 L4 071N0291 2 ➨ BFP 21 L3 071N0170 + coupling with single flat in hole (D-shaped) BFP 21 L5 071N0292 2 ➨ BFP 21 L5 071N0172 + coupling with single flat in hole (D-shaped) BFP 21 L3 071N0295 2 ➨ BFP 21 L3 071N0170 BFP 20 R3 071N0298 1 ➨ BFP 20 R3 071N01692) BFP 21 L5 071N0299 2 ➨ BFP 21 L5 071N0172 200 V a.c. BFP 21 L3 071N1107 2 ➨ BFP 21 L3 071N0170 BFP 21 R5 071N1173 2 ➨ BFP 21 R5 071N0173 BFP 21 L3 071N1175 2 ➨ BFP 21 L3 071N0170 BFP 41 L3 071N1196 2 ➨ BFP 41 L3 071N0174 BFP 21 L3 071N1200 2 ➨ BFP 21 L3 071N0170 BFP 31 L3 071N1201 2 ➨ BFP21 L3 071N0170 BFP 31 L3 071N1203 2 ➨ BFP 21 L3 071N0170 BFP 41 L3 071N1206 2 ➨ BFP 21 L3 071N0174 BFP 21 R5 071N1207 2 ➨ BFP 21 R5 071N0173 BFP 21 R3 071N1208 2 ➨ BFP 21 R3 071N0171 BFP 31 L3 071N1209 2 ➨ BFP 21 L3 071N0170 BFP 21 L3 LE-S 071N1211 2 ➨ BFP 21 L3 LE-S 071N2225 + coupling with single flat in hole (D-shaped) BFP 41 L3 071N1213 1 ➨ BFP 41 L3 071N1213 BFP 21 L3 071N1214 1 ➨ BFP 21 L3 071N1214 BFP 21 R3 071N1215 1 ➨ BFP 21 R3 071N1215 BFP 21 L3 071N1216 2 ➨ BFP 21 L3 071N0170 BFP 21 L3 071N1217 2 ➨ BFP 21 L3 071N0170 + coupling with single flat in hole (D-shaped) BFP 21 L3 071N1219 2 ➨ BFP 21 L3 071N0170 + coupling with single flat in hole (D-shaped) BFP 20 L3 071N1220 2 ➨ BFP 20 L3 071N0168 BFA 01 L3 071N1221 2 ➨ BFP 21 L3 071N0170 BFA 01 R3 071N1223 2 ➨ BFP 21 R3 071N0171 BFA 01 R3 071N1224 1 ➨ BFP 21 R3 071N1215 BFA 01 L3 071N1225 2 ➨ BFP 21 L3 071N0170 + 24 V a.c. coil 071N0062 BFA 01 L3 071N1226 2 ➨ BFP 21 L3 071N0170 2) This pump is delivered for 2-pipe operation. A changeover to 1-pipe operation is possible, see Changeover 1 - 2 pipe.
30 Oil pumps Conversion Danfoss BFP ➨ BFP Service BFP – standard pump Relevant Danfoss types Type Code no. 1-2 pipe Type Code no. Comments/accessories BFA 00 L3 071N1227 2 ➨ BFP 20 L3 071N0168 BFA 01 L3 071N1228 1 ➨ BFP 21 L3 071N12142) BFA 01 L3 071N1229 2 ➨ BFP 21 L3 071N0170 + 110 V a.c. coil 071N0061 BFA 01 R3 071N1230 1 ➨ BFP 21 R3 071N0157 + 24 V a.c. coil 071N0062 BFA 01 R3 071N1231 2 ➨ BFP 21 R3 071N0171 + 24 V a.c. coil 071N0062 BFA 01 R5 071N1232 2 ➨ BFP 21 R5 071N0173 BFA 01 R5 071N1233 2 ➨ BFP 21 R5 071N0173 + 110 V a.c. coil 071N0061 BFA 00 R5 071N1234 2 ➨ BFP 20 R5 071N0129 BFA 01 R3 071N1235 1 ➨ BFP 21 R3 071N1215 BFA 01 L3 071N1236 2 ➨ BFP 21 L3 071N0170 + 24 V a.c. coil 071N0062 BFP 20 L3 071N1237 2 ➨ BFP 20 L3 071N0168 BFPC 21 L3 071N1238 1 ➨ BFP 21 L3 071N0170 Old coil might be usable BFPC 21 L3 071N1239 2 ➨ BFP 21 L3 071N0170 Old coil might be usable BFA 01 R3 071N1240 2 ➨ BFP 21 R3 071N0171 + 110 V a.c. coil 071N0061 BFA 01 L3 071N1241 2 ➨ BFP 21 L3 071N0170 + 24 V a.c. coil 071N0008 and valve 071N0007 BFP 52E L3 LE-S 071N1244 2 ➨ BFP 52E L3 LE-S 071N2214 BFPC 21 R3 071N1245 1 ➨ BFP 21 R3 071N0171 BFP 21 R5 071N1247 1 ➨ BFP 21 R5 071N0173 200 V a.c. BFP 21 L3 071N1249 2 ➨ BFP 21 L3 071N0170 + 110 V a.c. coil 071N0061 BFP 21 L3 071N1250 2 ➨ BFP 21 L3 071N0170 + 24 V a.c. coil 071N0062 BFP 21 L3 071N1251 2 ➨ BFP 21 L3 071N0170 + 24 V a.c. coil 071N0062 BFP 21 R3 071N1254 2 ➨ BFP 21 R3 071N0171 + 24 V a.c. coil 071N0062 BFP 52E L3 LE-S 071N1259 2 ➨ BFP 52E L3 LE-S 071N2214 BFP 21 L5 071N1260 2 ➨ BFP 21 L5 071N0172 + coupling with single flat in hole (D-shaped) BFA 01 R3 071N1262 2 ➨ BFP 21 R3 071N0171 + 24 V a.c. coil 071N0062 BFA 01 R3 071N1263 2 ➨ BFP 21 R3 071N0171 BFA 01 R3 071N1264 2 ➨ BFP 21 R3 071N0171 + 110 V a.c. coil 071N0061 BFA 01 R3 071N1265 2 ➨ BFP 21 R3 071N0171 BFP 21 L5 071N1266 2 ➨ BFP 21 L5 071N0172 2) This pump is delivered for 2-pipe operation. A changeover to 1-pipe operation is possible, see Changeover 1 - 2 pipe.

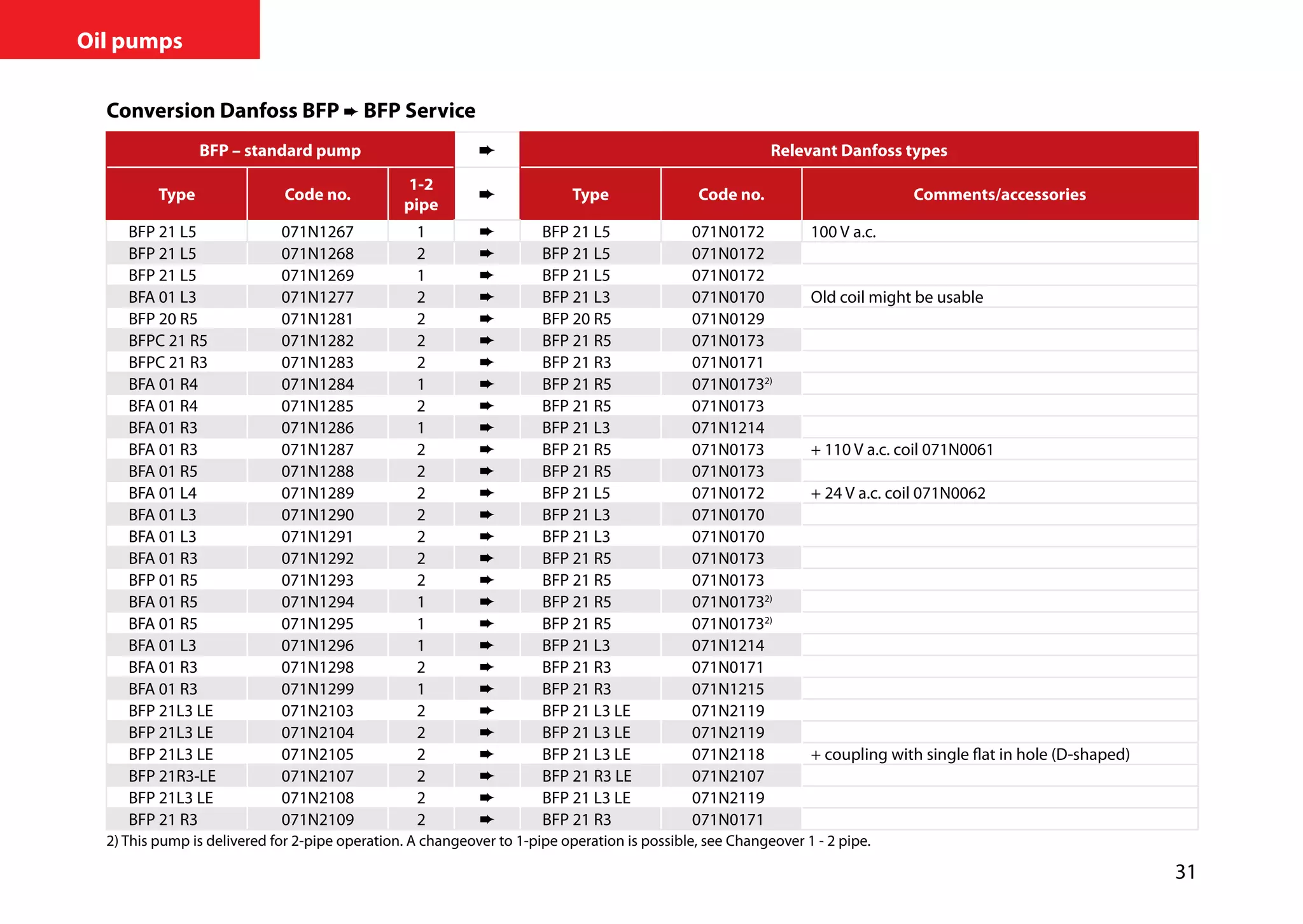

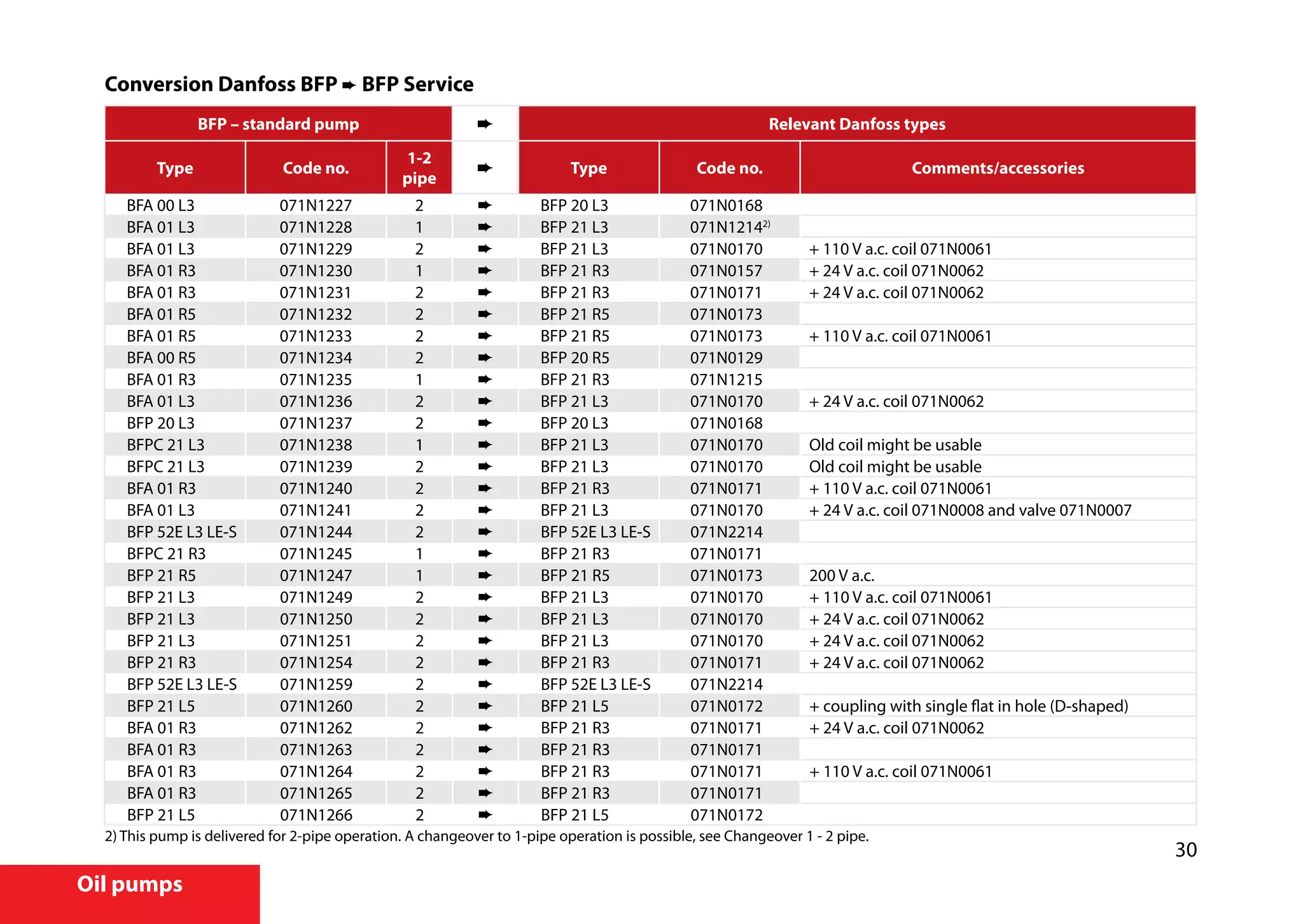

31 Oil pumps Conversion Danfoss BFP ➨ BFP Service BFP – standard pump Relevant Danfoss types Type Code no. 1-2 pipe Type Code no. Comments/accessories BFP 21 L5 071N1267 1 ➨ BFP 21 L5 071N0172 100 V a.c. BFP 21 L5 071N1268 2 ➨ BFP 21 L5 071N0172 BFP 21 L5 071N1269 1 ➨ BFP 21 L5 071N0172 BFA 01 L3 071N1277 2 ➨ BFP 21 L3 071N0170 Old coil might be usable BFP 20 R5 071N1281 2 ➨ BFP 20 R5 071N0129 BFPC 21 R5 071N1282 2 ➨ BFP 21 R5 071N0173 BFPC 21 R3 071N1283 2 ➨ BFP 21 R3 071N0171 BFA 01 R4 071N1284 1 ➨ BFP 21 R5 071N01732) BFA 01 R4 071N1285 2 ➨ BFP 21 R5 071N0173 BFA 01 R3 071N1286 1 ➨ BFP 21 L3 071N1214 BFA 01 R3 071N1287 2 ➨ BFP 21 R5 071N0173 + 110 V a.c. coil 071N0061 BFA 01 R5 071N1288 2 ➨ BFP 21 R5 071N0173 BFA 01 L4 071N1289 2 ➨ BFP 21 L5 071N0172 + 24 V a.c. coil 071N0062 BFA 01 L3 071N1290 2 ➨ BFP 21 L3 071N0170 BFA 01 L3 071N1291 2 ➨ BFP 21 L3 071N0170 BFA 01 R3 071N1292 2 ➨ BFP 21 R5 071N0173 BFP 01 R5 071N1293 2 ➨ BFP 21 R5 071N0173 BFA 01 R5 071N1294 1 ➨ BFP 21 R5 071N01732) BFA 01 R5 071N1295 1 ➨ BFP 21 R5 071N01732) BFA 01 L3 071N1296 1 ➨ BFP 21 L3 071N1214 BFA 01 R3 071N1298 2 ➨ BFP 21 R3 071N0171 BFA 01 R3 071N1299 1 ➨ BFP 21 R3 071N1215 BFP 21L3 LE 071N2103 2 ➨ BFP 21 L3 LE 071N2119 BFP 21L3 LE 071N2104 2 ➨ BFP 21 L3 LE 071N2119 BFP 21L3 LE 071N2105 2 ➨ BFP 21 L3 LE 071N2118 + coupling with single flat in hole (D-shaped) BFP 21R3-LE 071N2107 2 ➨ BFP 21 R3 LE 071N2107 BFP 21L3 LE 071N2108 2 ➨ BFP 21 L3 LE 071N2119 BFP 21 R3 071N2109 2 ➨ BFP 21 R3 071N0171 2) This pump is delivered for 2-pipe operation. A changeover to 1-pipe operation is possible, see Changeover 1 - 2 pipe.
32 Oil pumps Conversion Danfoss BFP ➨ BFP Service BFP – standard pump Relevant Danfoss types Type Code no. 1-2 pipe Type Code no. Comments/accessories BFP 21L3 LE 071N2110 2 ➨ BFP 21 L3 LE 071N2118 BFP 21L4 071N2111 2 ➨ BFP 21 L3 071N0170 + coupling with single flat in hole (D-shaped) BFP 21L3 LE 071N2112 2 ➨ BFP 21 L3 LE 071N2119 + coupling with single flat in hole (D-shaped) BFP 21L3 LE 071N2113 2 ➨ BFP 21 L3 LE 071N2119 BFP 21L3 LE 071N2114 2 ➨ BFP 21 L3 LE 071N2119 BFP 21L3 LE-S 071N2115 2 ➨ BFP 21L3 LE-S 071N2225 BFP 21L3 LE-S 071N2116 2 ➨ BFP 21 L3 LE-S 071N2225 BFP 21 R3 071N2117 2 ➨ BFP 21 R3 071N0171 BFP 21 L3 LE 071N2118 2 ➨ BFP 21 L3 LE 071N2118 BFP 21 L3 LE 071N2119 2 ➨ BFP 21 L3 LE 071N2119 BFP 21 R5 071N2121 1 ➨ BFP 21 R5 071N0173 Old coil might be usable BFP 21 L3 LE-S 071N2122 2 ➨ BFP 21 L3 LE-S 071N2225 BFP 21 L2 071N2123 2 ➨ BFP 21 L3 071N0170 BFP 21 L3 LE 071N2124 2 ➨ BFP 21 L3 LE 071N2118 BFP 21 L3 LE-S 071N2125 2 ➨ BFP 21 L3 LE-S 071N2225 + coupling with single flat in hole (D-shaped) BFP 21 L3 LE-S 071N2128 2 ➨ BFP 21 L3 LE-S 071N2225 BFP 21 L3 L2 071N2130 2 ➨ BFP 21 L3 071N0170 BFP 21 L5 LE-S 071N2131 2 ➨ BFP 21 L5 LE-S 071N2136 Don't use the coupling included BFP 21 L3 L2 071N2132 2 ➨ BFP 21 L3 071N0170 BFP 21 L5 LE-S 071N2136 2 ➨ BFP 21 L5 LE-S 071N2136 Don't use the coupling included BFP 41 L3 LE-S 071N2137 2 ➨ BFP 41 L3 LE-S 071N2137 BFPC 21 L5 071N2151 2 ➨ BFP 21 L5 071N0172 BFP 21 L5 071N2172 2 ➨ BFP 21 L5 071N0172 BFP 31 L5 071N2173 2 ➨ BFP 21 L5 071N0172 BFP 52E L3 071N2201 2 ➨ BFP 52E L3 071N2201 BFP 52E L5 071N2202 2 ➨ BFP 52E L5 071N2202 BFP 52E R3 071N2203 2 ➨ BFP 52E R3 071N2203 BFP 52E R5 071N2204 2 ➨ BFP 52E R5 071N2204 BFP 52E L5 071N2205 2 ➨ BFP 52E L5 071N2202

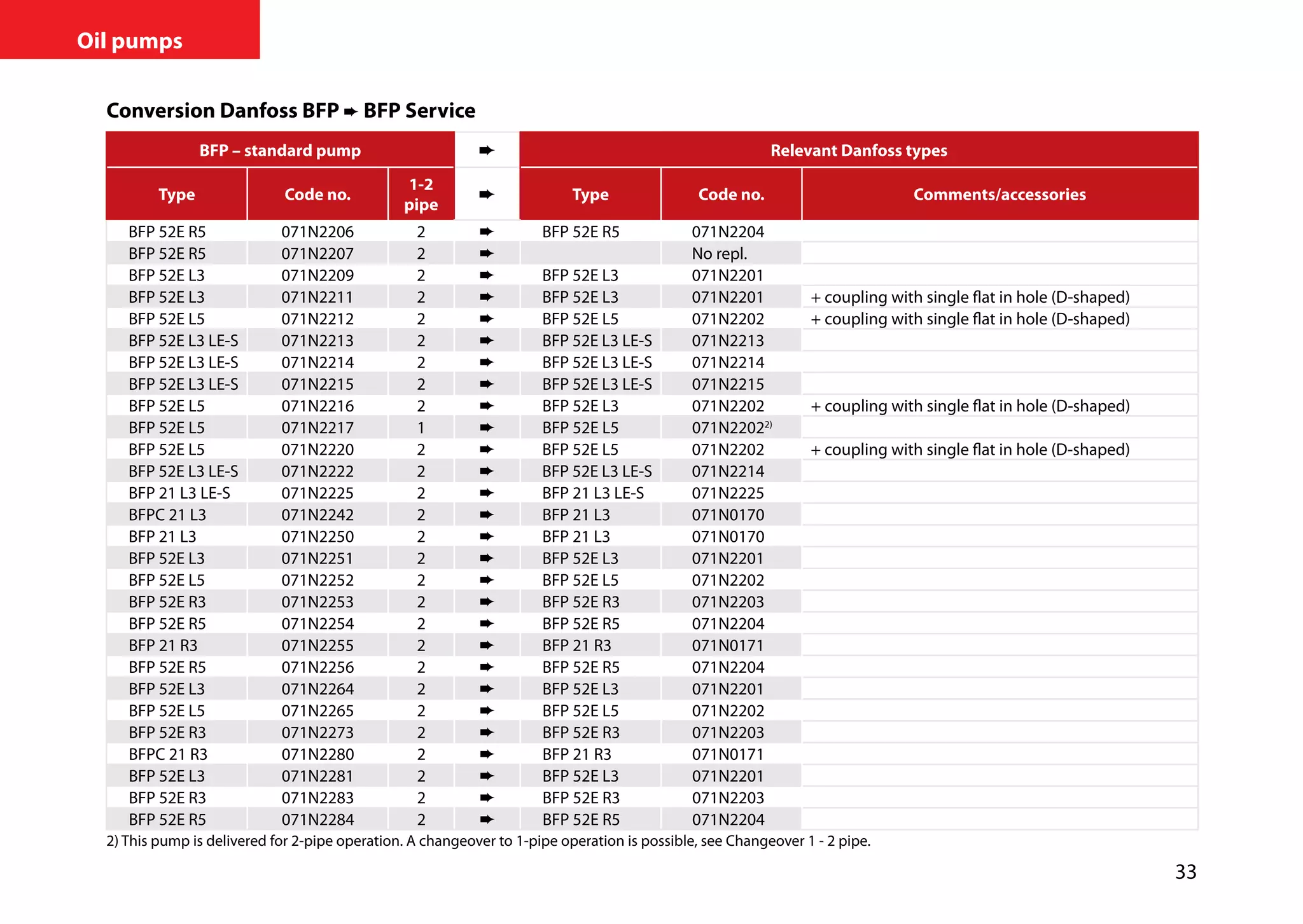

33 Oil pumps Conversion Danfoss BFP ➨ BFP Service BFP – standard pump Relevant Danfoss types Type Code no. 1-2 pipe Type Code no. Comments/accessories BFP 52E R5 071N2206 2 ➨ BFP 52E R5 071N2204 BFP 52E R5 071N2207 2 ➨ No repl. BFP 52E L3 071N2209 2 ➨ BFP 52E L3 071N2201 BFP 52E L3 071N2211 2 ➨ BFP 52E L3 071N2201 + coupling with single flat in hole (D-shaped) BFP 52E L5 071N2212 2 ➨ BFP 52E L5 071N2202 + coupling with single flat in hole (D-shaped) BFP 52E L3 LE-S 071N2213 2 ➨ BFP 52E L3 LE-S 071N2213 BFP 52E L3 LE-S 071N2214 2 ➨ BFP 52E L3 LE-S 071N2214 BFP 52E L3 LE-S 071N2215 2 ➨ BFP 52E L3 LE-S 071N2215 BFP 52E L5 071N2216 2 ➨ BFP 52E L3 071N2202 + coupling with single flat in hole (D-shaped) BFP 52E L5 071N2217 1 ➨ BFP 52E L5 071N22022) BFP 52E L5 071N2220 2 ➨ BFP 52E L5 071N2202 + coupling with single flat in hole (D-shaped) BFP 52E L3 LE-S 071N2222 2 ➨ BFP 52E L3 LE-S 071N2214 BFP 21 L3 LE-S 071N2225 2 ➨ BFP 21 L3 LE-S 071N2225 BFPC 21 L3 071N2242 2 ➨ BFP 21 L3 071N0170 BFP 21 L3 071N2250 2 ➨ BFP 21 L3 071N0170 BFP 52E L3 071N2251 2 ➨ BFP 52E L3 071N2201 BFP 52E L5 071N2252 2 ➨ BFP 52E L5 071N2202 BFP 52E R3 071N2253 2 ➨ BFP 52E R3 071N2203 BFP 52E R5 071N2254 2 ➨ BFP 52E R5 071N2204 BFP 21 R3 071N2255 2 ➨ BFP 21 R3 071N0171 BFP 52E R5 071N2256 2 ➨ BFP 52E R5 071N2204 BFP 52E L3 071N2264 2 ➨ BFP 52E L3 071N2201 BFP 52E L5 071N2265 2 ➨ BFP 52E L5 071N2202 BFP 52E R3 071N2273 2 ➨ BFP 52E R3 071N2203 BFPC 21 R3 071N2280 2 ➨ BFP 21 R3 071N0171 BFP 52E L3 071N2281 2 ➨ BFP 52E L3 071N2201 BFP 52E R3 071N2283 2 ➨ BFP 52E R3 071N2203 BFP 52E R5 071N2284 2 ➨ BFP 52E R5 071N2204 2) This pump is delivered for 2-pipe operation. A changeover to 1-pipe operation is possible, see Changeover 1 - 2 pipe.

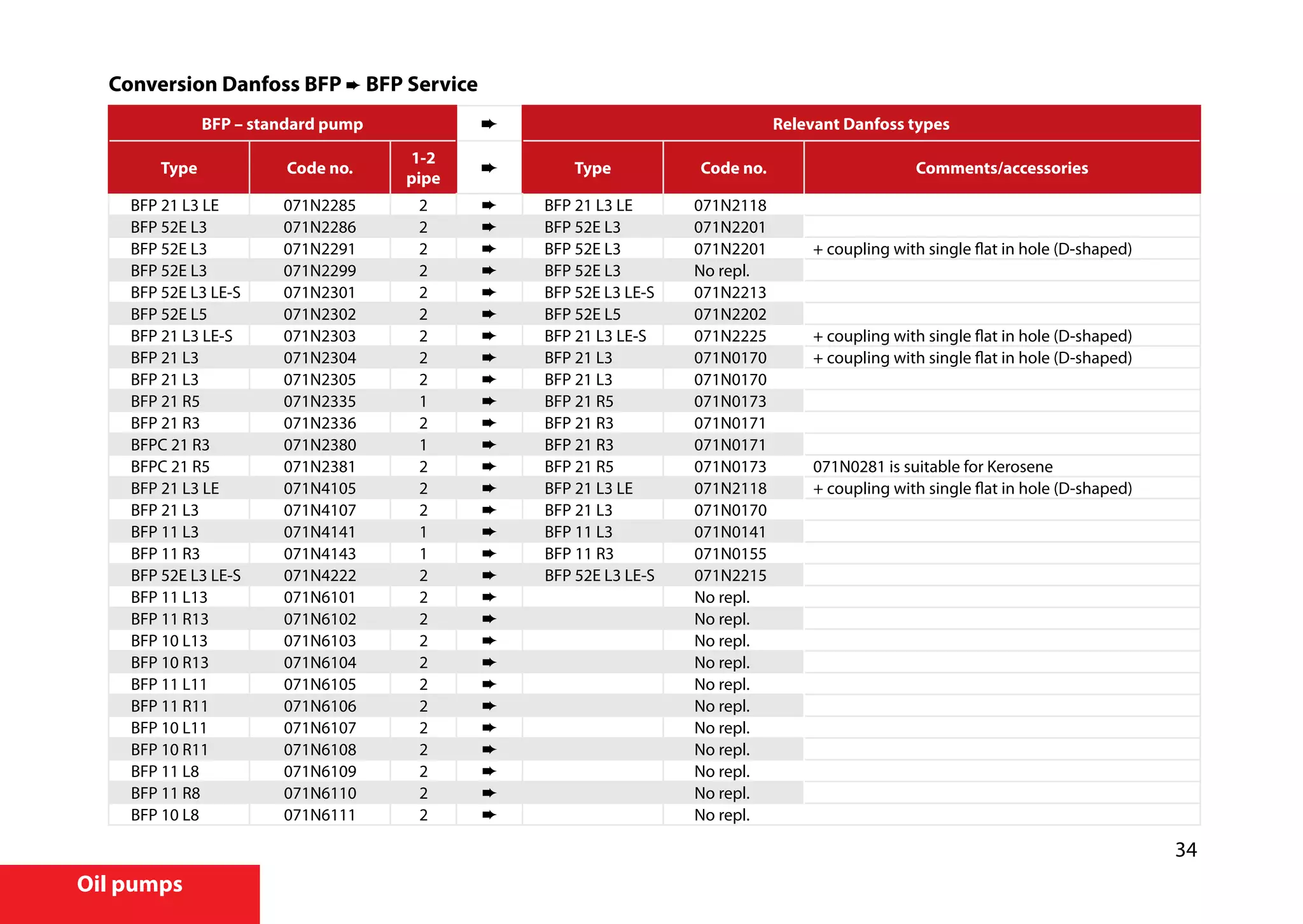

34 Oil pumps Conversion Danfoss BFP ➨ BFP Service BFP – standard pump Relevant Danfoss types Type Code no. 1-2 pipe Type Code no. Comments/accessories BFP 21 L3 LE 071N2285 2 ➨ BFP 21 L3 LE 071N2118 BFP 52E L3 071N2286 2 ➨ BFP 52E L3 071N2201 BFP 52E L3 071N2291 2 ➨ BFP 52E L3 071N2201 + coupling with single flat in hole (D-shaped) BFP 52E L3 071N2299 2 ➨ BFP 52E L3 No repl. BFP 52E L3 LE-S 071N2301 2 ➨ BFP 52E L3 LE-S 071N2213 BFP 52E L5 071N2302 2 ➨ BFP 52E L5 071N2202 BFP 21 L3 LE-S 071N2303 2 ➨ BFP 21 L3 LE-S 071N2225 + coupling with single flat in hole (D-shaped) BFP 21 L3 071N2304 2 ➨ BFP 21 L3 071N0170 + coupling with single flat in hole (D-shaped) BFP 21 L3 071N2305 2 ➨ BFP 21 L3 071N0170 BFP 21 R5 071N2335 1 ➨ BFP 21 R5 071N0173 BFP 21 R3 071N2336 2 ➨ BFP 21 R3 071N0171 BFPC 21 R3 071N2380 1 ➨ BFP 21 R3 071N0171 BFPC 21 R5 071N2381 2 ➨ BFP 21 R5 071N0173 071N0281 is suitable for Kerosene BFP 21 L3 LE 071N4105 2 ➨ BFP 21 L3 LE 071N2118 + coupling with single flat in hole (D-shaped) BFP 21 L3 071N4107 2 ➨ BFP 21 L3 071N0170 BFP 11 L3 071N4141 1 ➨ BFP 11 L3 071N0141 BFP 11 R3 071N4143 1 ➨ BFP 11 R3 071N0155 BFP 52E L3 LE-S 071N4222 2 ➨ BFP 52E L3 LE-S 071N2215 BFP 11 L13 071N6101 2 ➨ No repl. BFP 11 R13 071N6102 2 ➨ No repl. BFP 10 L13 071N6103 2 ➨ No repl. BFP 10 R13 071N6104 2 ➨ No repl. BFP 11 L11 071N6105 2 ➨ No repl. BFP 11 R11 071N6106 2 ➨ No repl. BFP 10 L11 071N6107 2 ➨ No repl. BFP 10 R11 071N6108 2 ➨ No repl. BFP 11 L8 071N6109 2 ➨ No repl. BFP 11 R8 071N6110 2 ➨ No repl. BFP 10 L8 071N6111 2 ➨ No repl.

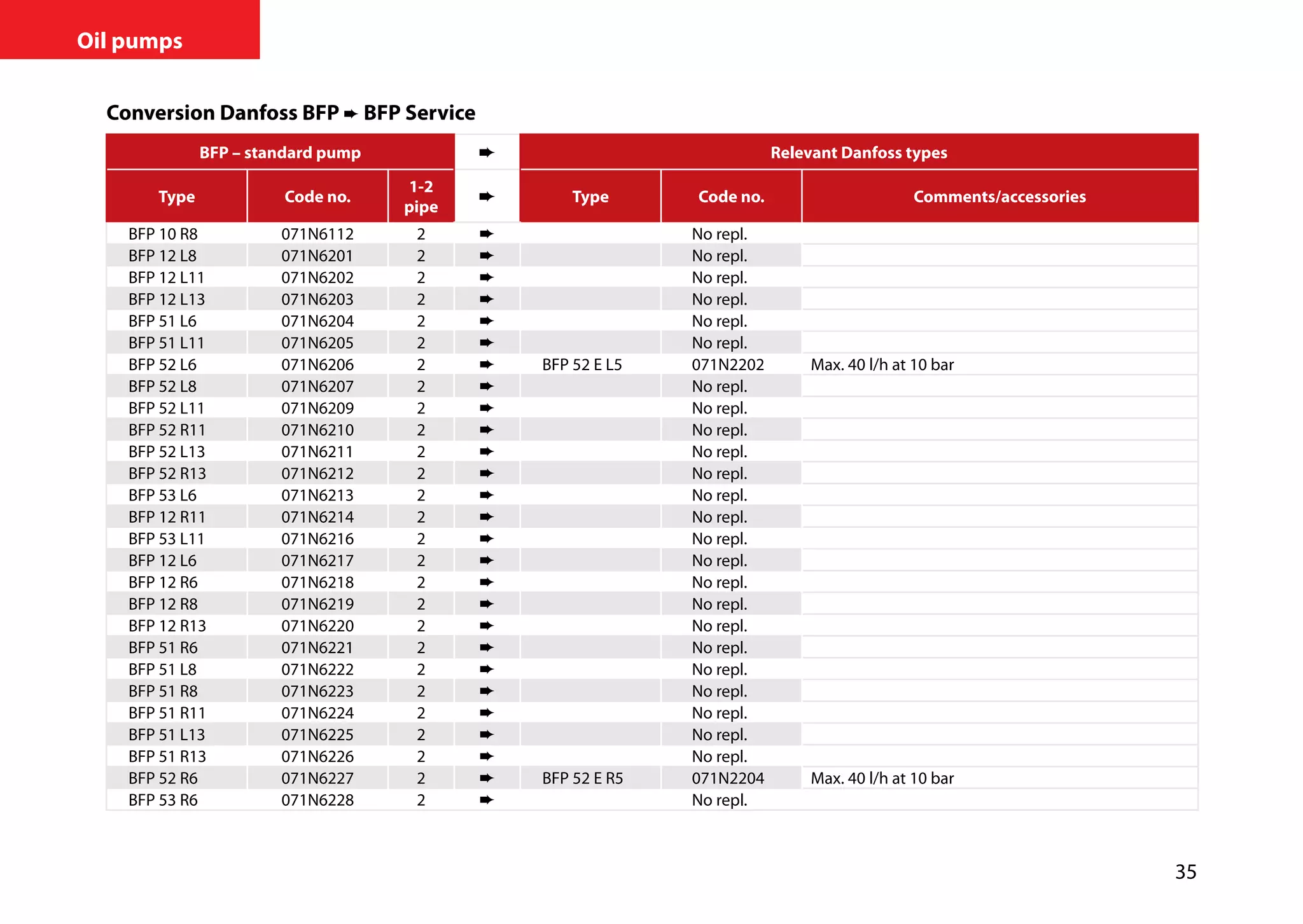

35 Oil pumps Conversion Danfoss BFP ➨ BFP Service BFP – standard pump Relevant Danfoss types Type Code no. 1-2 pipe Type Code no. Comments/accessories BFP 10 R8 071N6112 2 ➨ No repl. BFP 12 L8 071N6201 2 ➨ No repl. BFP 12 L11 071N6202 2 ➨ No repl. BFP 12 L13 071N6203 2 ➨ No repl. BFP 51 L6 071N6204 2 ➨ No repl. BFP 51 L11 071N6205 2 ➨ No repl. BFP 52 L6 071N6206 2 ➨ BFP 52 E L5 071N2202 Max. 40 l/h at 10 bar BFP 52 L8 071N6207 2 ➨ No repl. BFP 52 L11 071N6209 2 ➨ No repl. BFP 52 R11 071N6210 2 ➨ No repl. BFP 52 L13 071N6211 2 ➨ No repl. BFP 52 R13 071N6212 2 ➨ No repl. BFP 53 L6 071N6213 2 ➨ No repl. BFP 12 R11 071N6214 2 ➨ No repl. BFP 53 L11 071N6216 2 ➨ No repl. BFP 12 L6 071N6217 2 ➨ No repl. BFP 12 R6 071N6218 2 ➨ No repl. BFP 12 R8 071N6219 2 ➨ No repl. BFP 12 R13 071N6220 2 ➨ No repl. BFP 51 R6 071N6221 2 ➨ No repl. BFP 51 L8 071N6222 2 ➨ No repl. BFP 51 R8 071N6223 2 ➨ No repl. BFP 51 R11 071N6224 2 ➨ No repl. BFP 51 L13 071N6225 2 ➨ No repl. BFP 51 R13 071N6226 2 ➨ No repl. BFP 52 R6 071N6227 2 ➨ BFP 52 E R5 071N2204 Max. 40 l/h at 10 bar BFP 53 R6 071N6228 2 ➨ No repl.

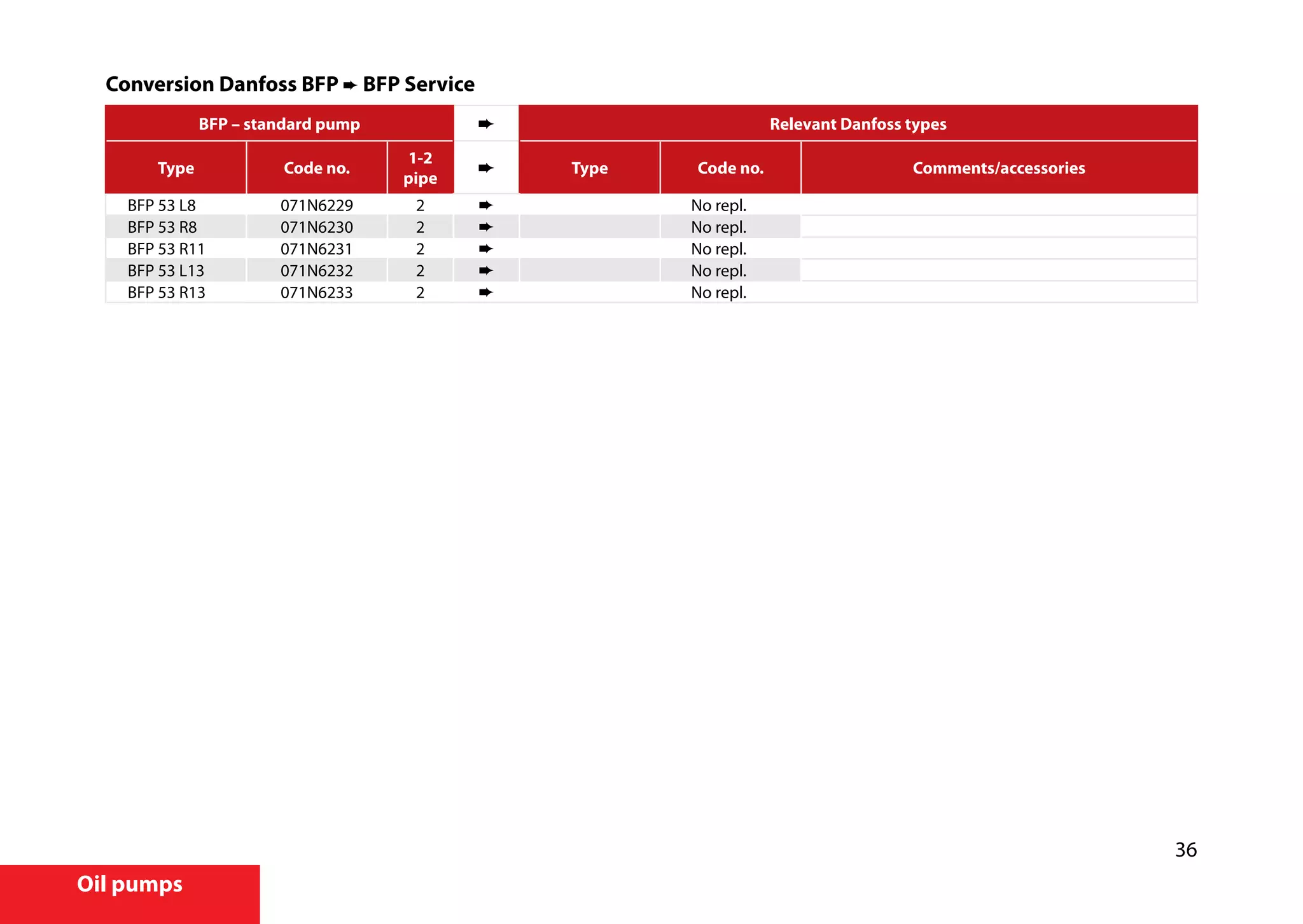

36 Oil pumps Conversion Danfoss BFP ➨ BFP Service BFP – standard pump Relevant Danfoss types Type Code no. 1-2 pipe Type Code no. Comments/accessories BFP 53 L8 071N6229 2 ➨ No repl. BFP 53 R8 071N6230 2 ➨ No repl. BFP 53 R11 071N6231 2 ➨ No repl. BFP 53 L13 071N6232 2 ➨ No repl. BFP 53 R13 071N6233 2 ➨ No repl.

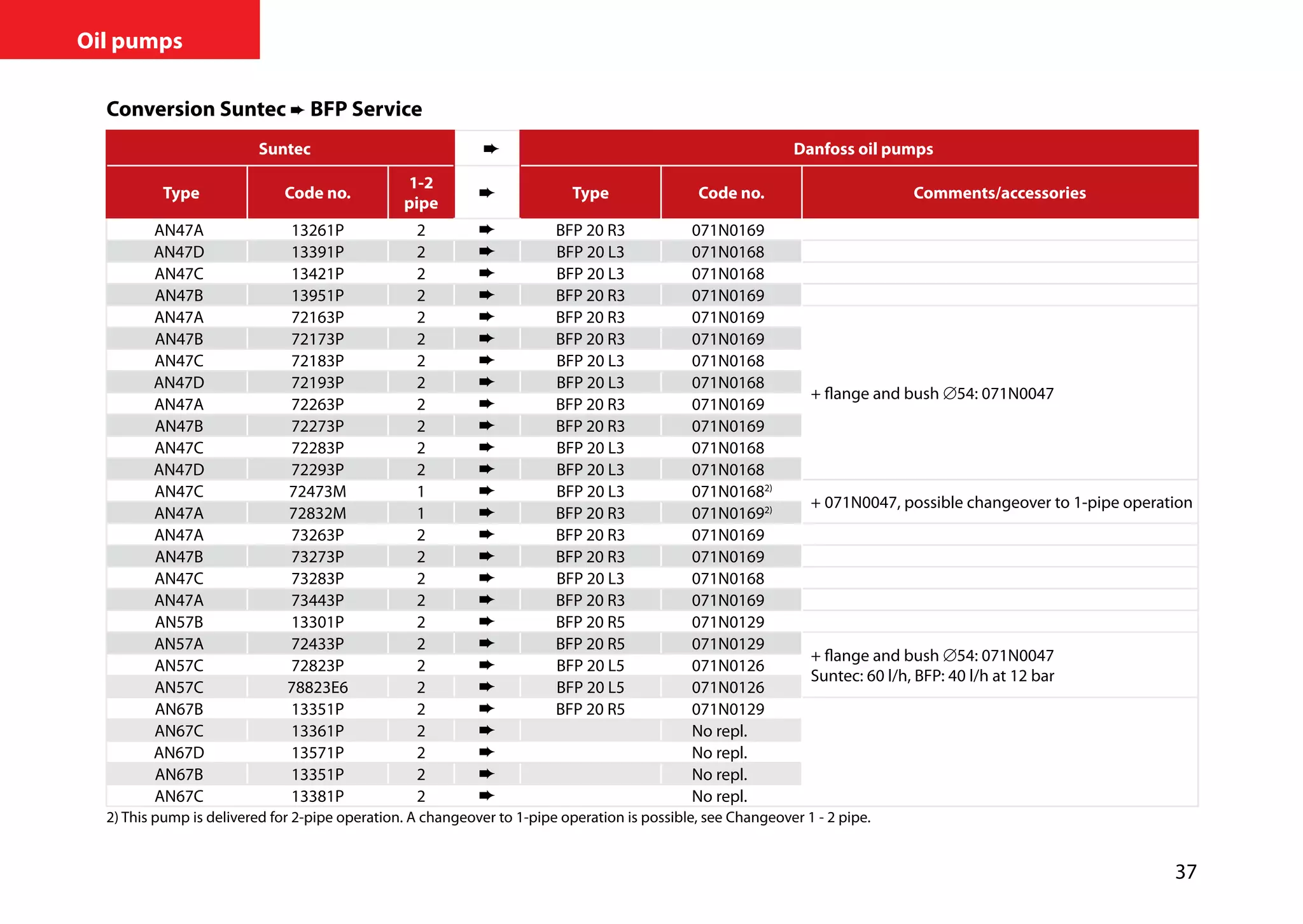

37 Oil pumps Conversion Suntec ➨ BFP Service Suntec Danfoss oil pumps Type Code no. 1-2 pipe Type Code no. Comments/accessories AN47A 13261P 2 BFP 20 R3 071N0169 AN47D 13391P 2 BFP 20 L3 071N0168 AN47C 13421P 2 BFP 20 L3 071N0168 AN47B 13951P 2 BFP 20 R3 071N0169 AN47A 72163P 2 BFP 20 R3 071N0169 + flange and bush ∅54: 071N0047 AN47B 72173P 2 BFP 20 R3 071N0169 AN47C 72183P 2 BFP 20 L3 071N0168 AN47D 72193P 2 BFP 20 L3 071N0168 AN47A 72263P 2 BFP 20 R3 071N0169 AN47B 72273P 2 BFP 20 R3 071N0169 AN47C 72283P 2 BFP 20 L3 071N0168 AN47D 72293P 2 BFP 20 L3 071N0168 AN47C 72473M 1 BFP 20 L3 071N01682) + 071N0047, possible changeover to 1-pipe operation AN47A 72832M 1 BFP 20 R3 071N01692) AN47A 73263P 2 BFP 20 R3 071N0169 AN47B 73273P 2 BFP 20 R3 071N0169 AN47C 73283P 2 BFP 20 L3 071N0168 AN47A 73443P 2 BFP 20 R3 071N0169 AN57B 13301P 2 BFP 20 R5 071N0129 AN57A 72433P 2 BFP 20 R5 071N0129 + flange and bush ∅54: 071N0047 Suntec: 60 l/h, BFP: 40 l/h at 12 bar AN57C 72823P 2 BFP 20 L5 071N0126 AN57C 78823E6 2 BFP 20 L5 071N0126 AN67B 13351P 2 BFP 20 R5 071N0129 AN67C 13361P 2 No repl. AN67D 13571P 2 No repl. AN67B 13351P 2 No repl. AN67C 13381P 2 No repl. 2) This pump is delivered for 2-pipe operation. A changeover to 1-pipe operation is possible, see Changeover 1 - 2 pipe.

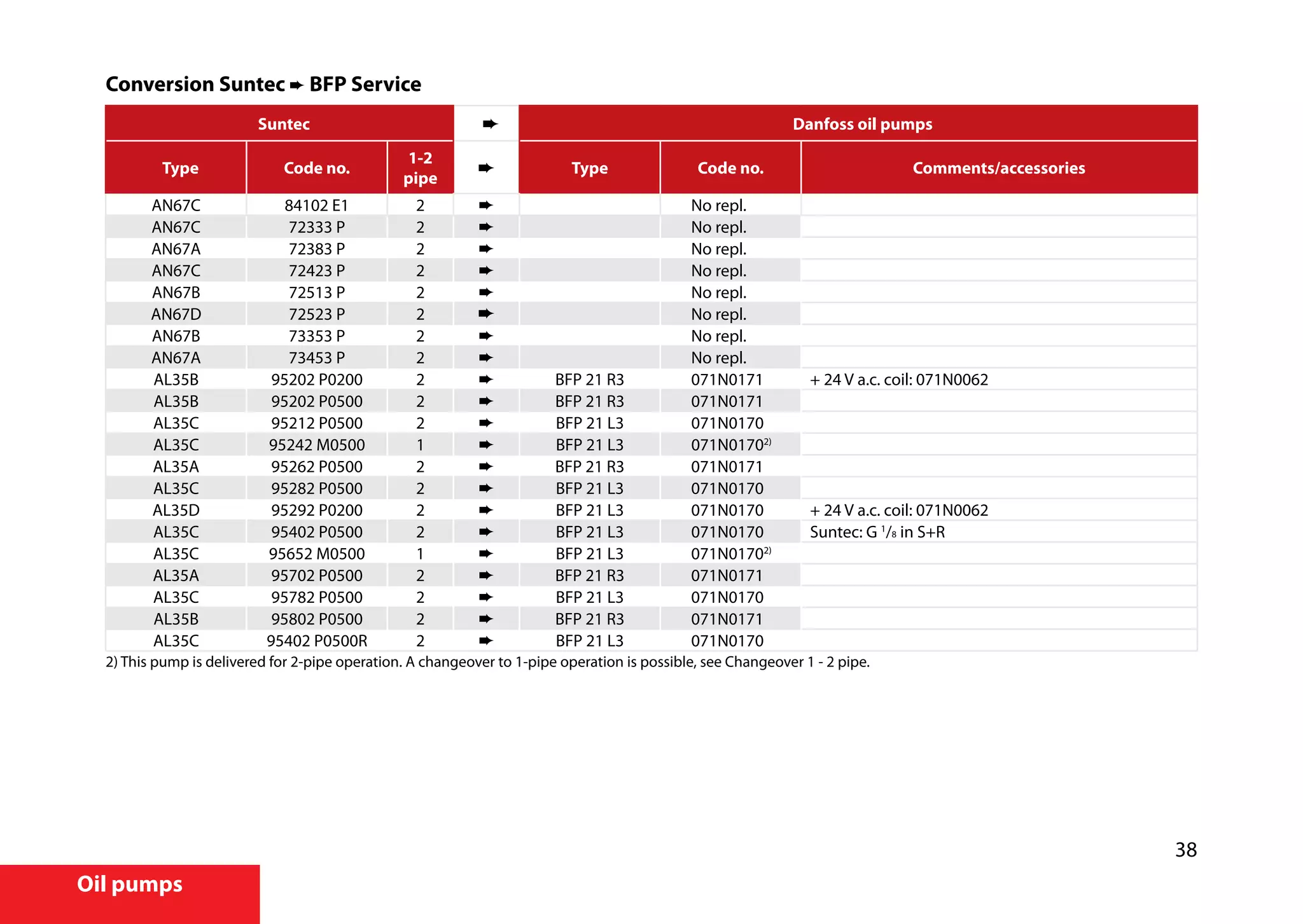

38 Oil pumps Conversion Suntec ➨ BFP Service Suntec Danfoss oil pumps Type Code no. 1-2 pipe Type Code no. Comments/accessories AN67C 84102 E1 2 ➨ No repl. AN67C 72333 P 2 ➨ No repl. AN67A 72383 P 2 ➨ No repl. AN67C 72423 P 2 ➨ No repl. AN67B 72513 P 2 ➨ No repl. AN67D 72523 P 2 No repl. AN67B 73353 P 2 ➨ No repl. AN67A 73453 P 2 ➨ No repl. AL35B 95202 P0200 2 ➨ BFP 21 R3 071N0171 + 24 V a.c. coil: 071N0062 AL35B 95202 P0500 2 ➨ BFP 21 R3 071N0171 AL35C 95212 P0500 2 ➨ BFP 21 L3 071N0170 AL35C 95242 M0500 1 ➨ BFP 21 L3 071N01702) AL35A 95262 P0500 2 ➨ BFP 21 R3 071N0171 AL35C 95282 P0500 2 ➨ BFP 21 L3 071N0170 AL35D 95292 P0200 2 ➨ BFP 21 L3 071N0170 + 24 V a.c. coil: 071N0062 AL35C 95402 P0500 2 ➨ BFP 21 L3 071N0170 Suntec: G 1 /8 in S+R AL35C 95652 M0500 1 ➨ BFP 21 L3 071N01702) AL35A 95702 P0500 2 ➨ BFP 21 R3 071N0171 AL35C 95782 P0500 2 ➨ BFP 21 L3 071N0170 AL35B 95802 P0500 2 ➨ BFP 21 R3 071N0171 AL35C 95402 P0500R 2 ➨ BFP 21 L3 071N0170 2) This pump is delivered for 2-pipe operation. A changeover to 1-pipe operation is possible, see Changeover 1 - 2 pipe.

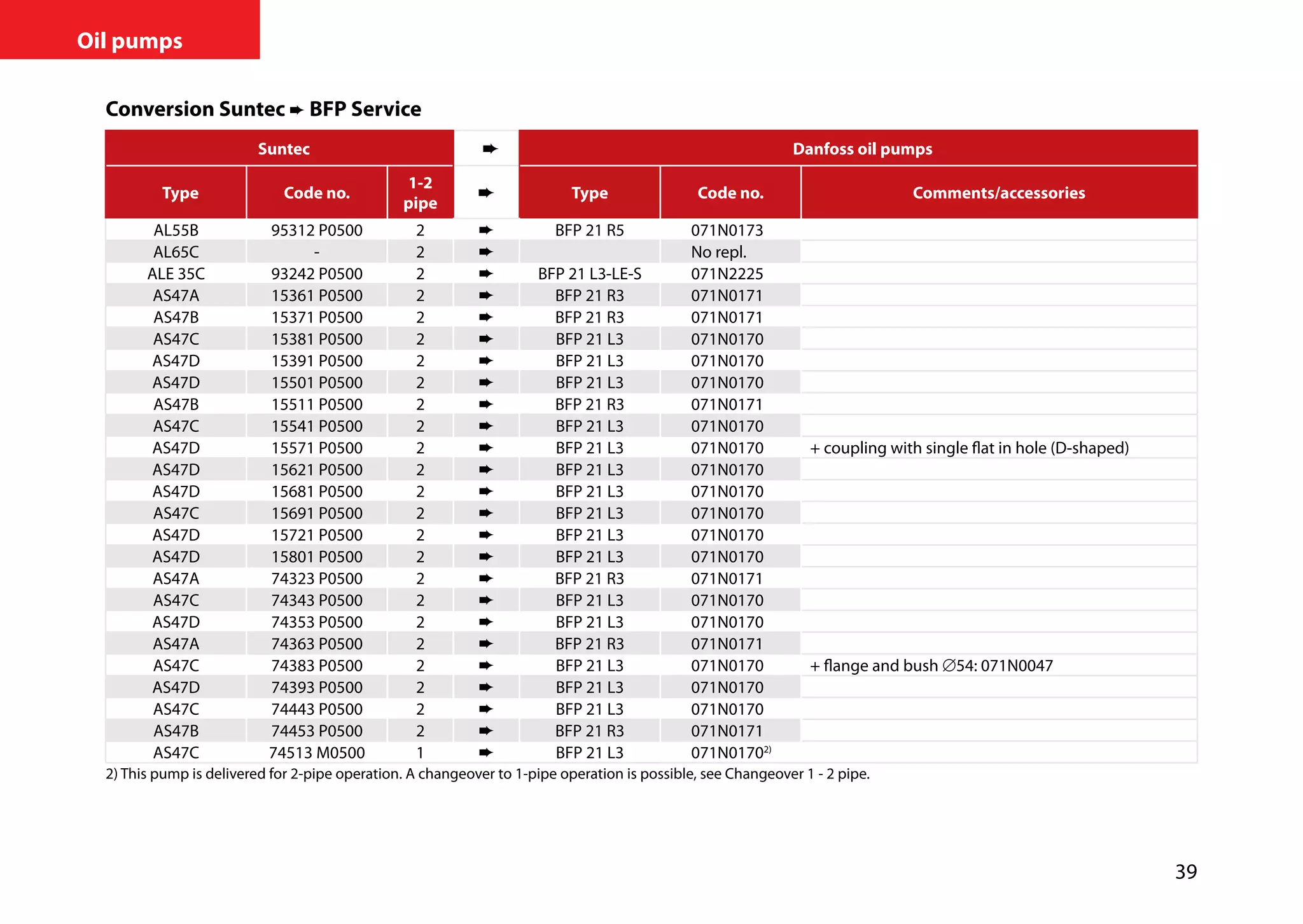

39 Oil pumps Conversion Suntec ➨ BFP Service Suntec Danfoss oil pumps Type Code no. 1-2 pipe Type Code no. Comments/accessories AL55B 95312 P0500 2 ➨ BFP 21 R5 071N0173 AL65C - 2 ➨ No repl. ALE 35C 93242 P0500 2 ➨ BFP 21 L3-LE-S 071N2225 AS47A 15361 P0500 2 ➨ BFP 21 R3 071N0171 AS47B 15371 P0500 2 ➨ BFP 21 R3 071N0171 AS47C 15381 P0500 2 ➨ BFP 21 L3 071N0170 AS47D 15391 P0500 2 ➨ BFP 21 L3 071N0170 AS47D 15501 P0500 2 ➨ BFP 21 L3 071N0170 AS47B 15511 P0500 2 ➨ BFP 21 R3 071N0171 AS47C 15541 P0500 2 ➨ BFP 21 L3 071N0170 AS47D 15571 P0500 2 ➨ BFP 21 L3 071N0170 + coupling with single flat in hole (D-shaped) AS47D 15621 P0500 2 ➨ BFP 21 L3 071N0170 AS47D 15681 P0500 2 ➨ BFP 21 L3 071N0170 AS47C 15691 P0500 2 ➨ BFP 21 L3 071N0170 AS47D 15721 P0500 2 ➨ BFP 21 L3 071N0170 AS47D 15801 P0500 2 ➨ BFP 21 L3 071N0170 AS47A 74323 P0500 2 ➨ BFP 21 R3 071N0171 AS47C 74343 P0500 2 ➨ BFP 21 L3 071N0170 AS47D 74353 P0500 2 ➨ BFP 21 L3 071N0170 AS47A 74363 P0500 2 ➨ BFP 21 R3 071N0171 AS47C 74383 P0500 2 ➨ BFP 21 L3 071N0170 + flange and bush ∅54: 071N0047 AS47D 74393 P0500 2 ➨ BFP 21 L3 071N0170 AS47C 74443 P0500 2 ➨ BFP 21 L3 071N0170 AS47B 74453 P0500 2 ➨ BFP 21 R3 071N0171 AS47C 74513 M0500 1 ➨ BFP 21 L3 071N01702) 2) This pump is delivered for 2-pipe operation. A changeover to 1-pipe operation is possible, see Changeover 1 - 2 pipe.

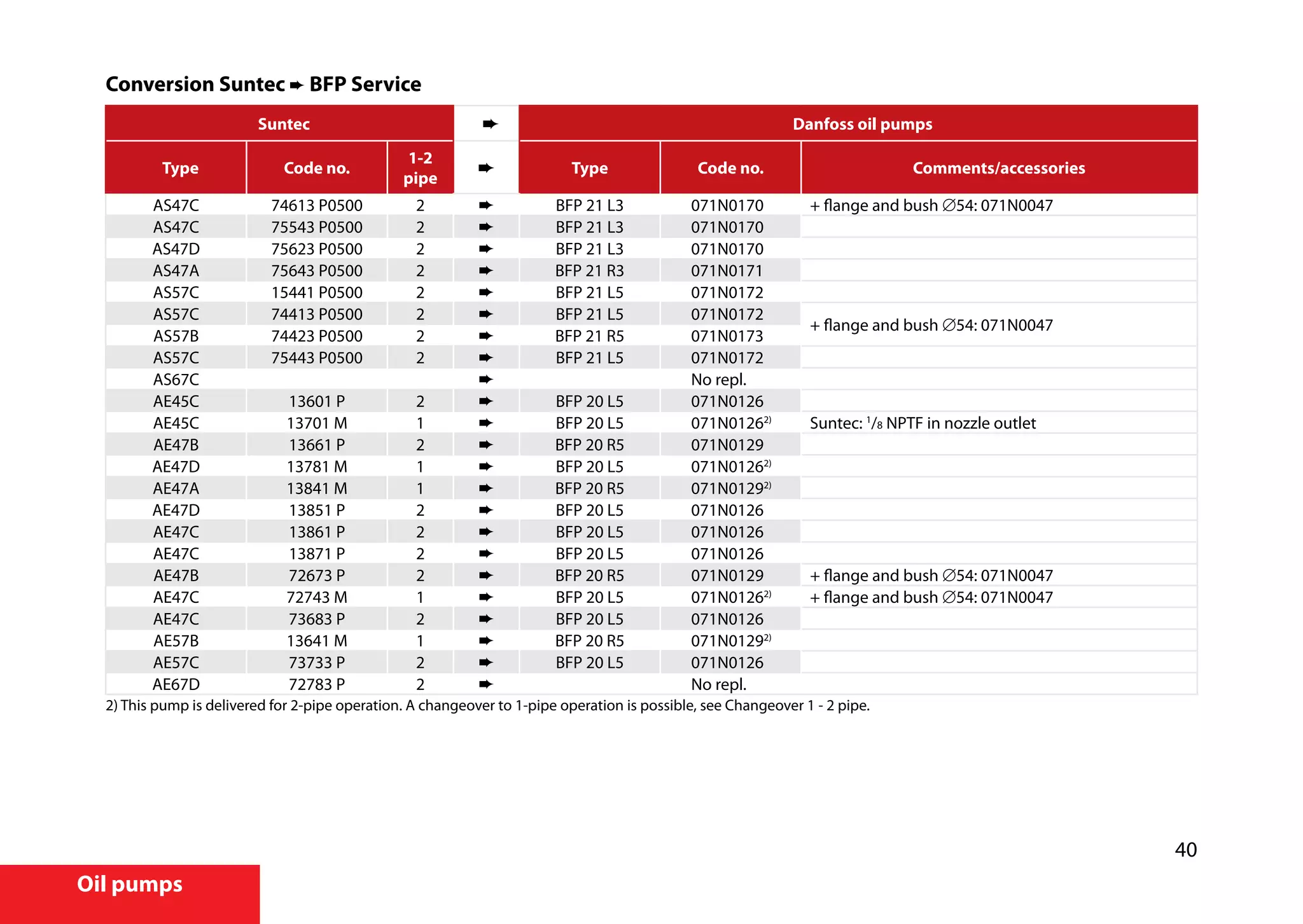

40 Oil pumps Conversion Suntec ➨ BFP Service Suntec Danfoss oil pumps Type Code no. 1-2 pipe Type Code no. Comments/accessories AS47C 74613 P0500 2 ➨ BFP 21 L3 071N0170 + flange and bush ∅54: 071N0047 AS47C 75543 P0500 2 ➨ BFP 21 L3 071N0170 AS47D 75623 P0500 2 ➨ BFP 21 L3 071N0170 AS47A 75643 P0500 2 ➨ BFP 21 R3 071N0171 AS57C 15441 P0500 2 ➨ BFP 21 L5 071N0172 AS57C 74413 P0500 2 ➨ BFP 21 L5 071N0172 + flange and bush ∅54: 071N0047 AS57B 74423 P0500 2 ➨ BFP 21 R5 071N0173 AS57C 75443 P0500 2 ➨ BFP 21 L5 071N0172 AS67C ➨ No repl. AE45C 13601 P 2 ➨ BFP 20 L5 071N0126 AE45C 13701 M 1 ➨ BFP 20 L5 071N01262) Suntec: 1 /8 NPTF in nozzle outlet AE47B 13661 P 2 ➨ BFP 20 R5 071N0129 AE47D 13781 M 1 ➨ BFP 20 L5 071N01262) AE47A 13841 M 1 ➨ BFP 20 R5 071N01292) AE47D 13851 P 2 ➨ BFP 20 L5 071N0126 AE47C 13861 P 2 ➨ BFP 20 L5 071N0126 AE47C 13871 P 2 ➨ BFP 20 L5 071N0126 AE47B 72673 P 2 ➨ BFP 20 R5 071N0129 + flange and bush ∅54: 071N0047 AE47C 72743 M 1 ➨ BFP 20 L5 071N01262) + flange and bush ∅54: 071N0047 AE47C 73683 P 2 ➨ BFP 20 L5 071N0126 AE57B 13641 M 1 ➨ BFP 20 R5 071N01292) AE57C 73733 P 2 ➨ BFP 20 L5 071N0126 AE67D 72783 P 2 ➨ No repl. 2) This pump is delivered for 2-pipe operation. A changeover to 1-pipe operation is possible, see Changeover 1 - 2 pipe.

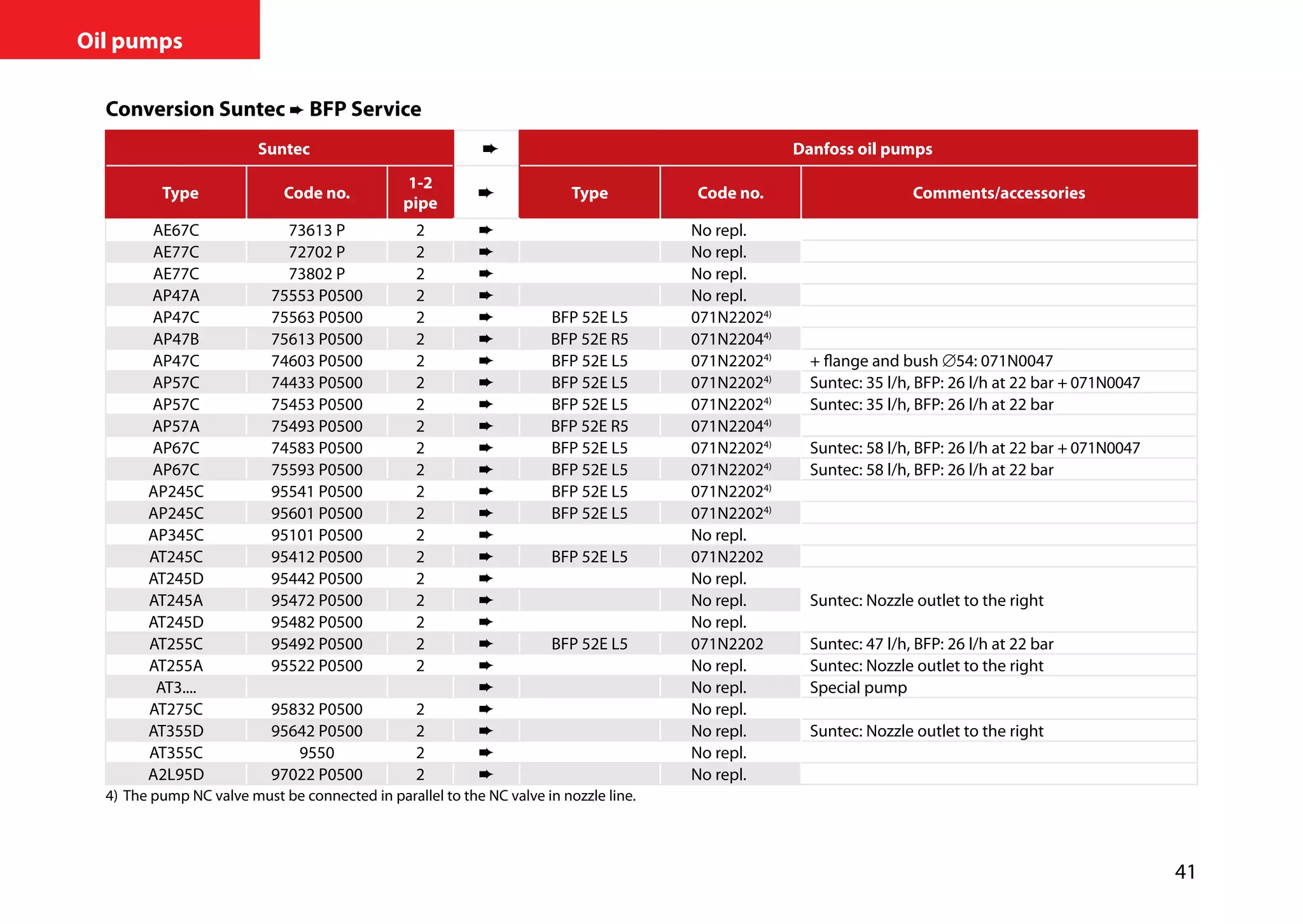

41 Oil pumps Conversion Suntec ➨ BFP Service Suntec Danfoss oil pumps Type Code no. 1-2 pipe Type Code no. Comments/accessories AE67C 73613 P 2 ➨ No repl. AE77C 72702 P 2 ➨ No repl. AE77C 73802 P 2 ➨ No repl. AP47A 75553 P0500 2 ➨ No repl. AP47C 75563 P0500 2 ➨ BFP 52E L5 071N22024) AP47B 75613 P0500 2 ➨ BFP 52E R5 071N22044) AP47C 74603 P0500 2 ➨ BFP 52E L5 071N22024) + flange and bush ∅54: 071N0047 AP57C 74433 P0500 2 ➨ BFP 52E L5 071N22024) Suntec: 35 l/h, BFP: 26 l/h at 22 bar + 071N0047 AP57C 75453 P0500 2 ➨ BFP 52E L5 071N22024) Suntec: 35 l/h, BFP: 26 l/h at 22 bar AP57A 75493 P0500 2 ➨ BFP 52E R5 071N22044) AP67C 74583 P0500 2 ➨ BFP 52E L5 071N22024) Suntec: 58 l/h, BFP: 26 l/h at 22 bar + 071N0047 AP67C 75593 P0500 2 ➨ BFP 52E L5 071N22024) Suntec: 58 l/h, BFP: 26 l/h at 22 bar AP245C 95541 P0500 2 ➨ BFP 52E L5 071N22024) AP245C 95601 P0500 2 ➨ BFP 52E L5 071N22024) AP345C 95101 P0500 2 ➨ No repl. AT245C 95412 P0500 2 ➨ BFP 52E L5 071N2202 AT245D 95442 P0500 2 ➨ No repl. Suntec: Nozzle outlet to the rightAT245A 95472 P0500 2 ➨ No repl. AT245D 95482 P0500 2 ➨ No repl. AT255C 95492 P0500 2 ➨ BFP 52E L5 071N2202 Suntec: 47 l/h, BFP: 26 l/h at 22 bar AT255A 95522 P0500 2 ➨ No repl. Suntec: Nozzle outlet to the right AT3.... ➨ No repl. Special pump AT275C 95832 P0500 2 ➨ No repl. AT355D 95642 P0500 2 ➨ No repl. Suntec: Nozzle outlet to the right AT355C 9550 2 ➨ No repl. A2L95D 97022 P0500 2 ➨ No repl. 4) The pump NC valve must be connected in parallel to the NC valve in nozzle line.

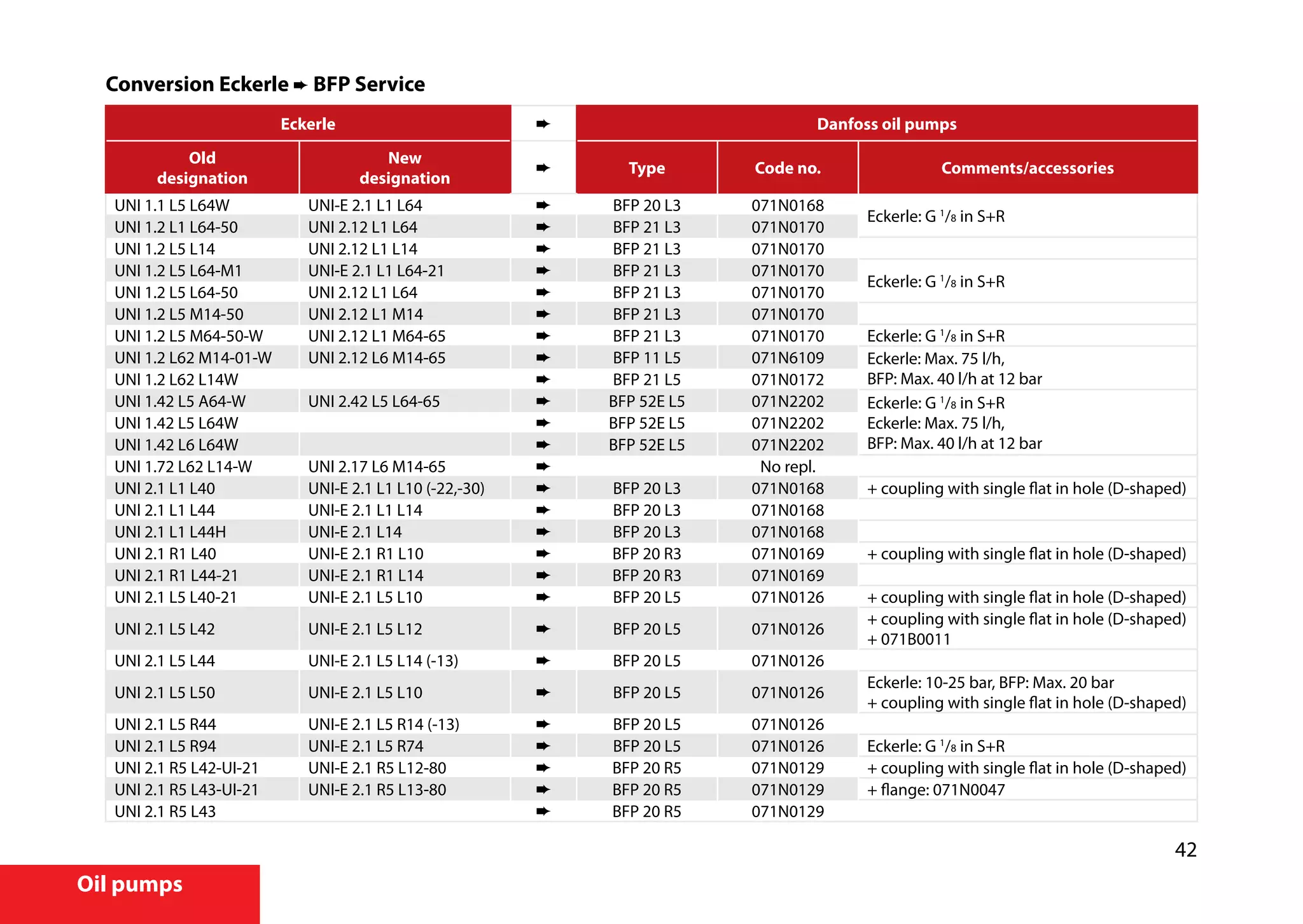

42 Oil pumps Conversion Eckerle ➨ BFP Service Eckerle ➨ Danfoss oil pumps Old designation New designation ➨ Type Code no. Comments/accessories UNI 1.1 L5 L64W UNI-E 2.1 L1 L64 ➨ BFP 20 L3 071N0168 Eckerle: G 1 /8 in S+R UNI 1.2 L1 L64-50 UNI 2.12 L1 L64 ➨ BFP 21 L3 071N0170 UNI 1.2 L5 L14 UNI 2.12 L1 L14 ➨ BFP 21 L3 071N0170 UNI 1.2 L5 L64-M1 UNI-E 2.1 L1 L64-21 ➨ BFP 21 L3 071N0170 Eckerle: G 1 /8 in S+R UNI 1.2 L5 L64-50 UNI 2.12 L1 L64 ➨ BFP 21 L3 071N0170 UNI 1.2 L5 M14-50 UNI 2.12 L1 M14 ➨ BFP 21 L3 071N0170 UNI 1.2 L5 M64-50-W UNI 2.12 L1 M64-65 ➨ BFP 21 L3 071N0170 Eckerle: G 1 /8 in S+R UNI 1.2 L62 M14-01-W UNI 2.12 L6 M14-65 ➨ BFP 11 L5 071N6109 Eckerle: Max. 75 l/h, BFP: Max. 40 l/h at 12 barUNI 1.2 L62 L14W ➨ BFP 21 L5 071N0172 UNI 1.42 L5 A64-W UNI 2.42 L5 L64-65 ➨ BFP 52E L5 071N2202 Eckerle: G 1 /8 in S+R Eckerle: Max. 75 l/h, BFP: Max. 40 l/h at 12 bar UNI 1.42 L5 L64W ➨ BFP 52E L5 071N2202 UNI 1.42 L6 L64W ➨ BFP 52E L5 071N2202 UNI 1.72 L62 L14-W UNI 2.17 L6 M14-65 ➨ No repl. UNI 2.1 L1 L40 UNI-E 2.1 L1 L10 (-22,-30) ➨ BFP 20 L3 071N0168 + coupling with single flat in hole (D-shaped) UNI 2.1 L1 L44 UNI-E 2.1 L1 L14 ➨ BFP 20 L3 071N0168 UNI 2.1 L1 L44H UNI-E 2.1 L14 ➨ BFP 20 L3 071N0168 UNI 2.1 R1 L40 UNI-E 2.1 R1 L10 ➨ BFP 20 R3 071N0169 + coupling with single flat in hole (D-shaped) UNI 2.1 R1 L44-21 UNI-E 2.1 R1 L14 ➨ BFP 20 R3 071N0169 UNI 2.1 L5 L40-21 UNI-E 2.1 L5 L10 ➨ BFP 20 L5 071N0126 + coupling with single flat in hole (D-shaped) UNI 2.1 L5 L42 UNI-E 2.1 L5 L12 ➨ BFP 20 L5 071N0126 + coupling with single flat in hole (D-shaped) + 071B0011 UNI 2.1 L5 L44 UNI-E 2.1 L5 L14 (-13) ➨ BFP 20 L5 071N0126 UNI 2.1 L5 L50 UNI-E 2.1 L5 L10 ➨ BFP 20 L5 071N0126 Eckerle: 10-25 bar, BFP: Max. 20 bar + coupling with single flat in hole (D-shaped) UNI 2.1 L5 R44 UNI-E 2.1 L5 R14 (-13) ➨ BFP 20 L5 071N0126 UNI 2.1 L5 R94 UNI-E 2.1 L5 R74 ➨ BFP 20 L5 071N0126 Eckerle: G 1 /8 in S+R UNI 2.1 R5 L42-UI-21 UNI-E 2.1 R5 L12-80 ➨ BFP 20 R5 071N0129 + coupling with single flat in hole (D-shaped) UNI 2.1 R5 L43-UI-21 UNI-E 2.1 R5 L13-80 ➨ BFP 20 R5 071N0129 + flange: 071N0047 UNI 2.1 R5 L43 ➨ BFP 20 R5 071N0129

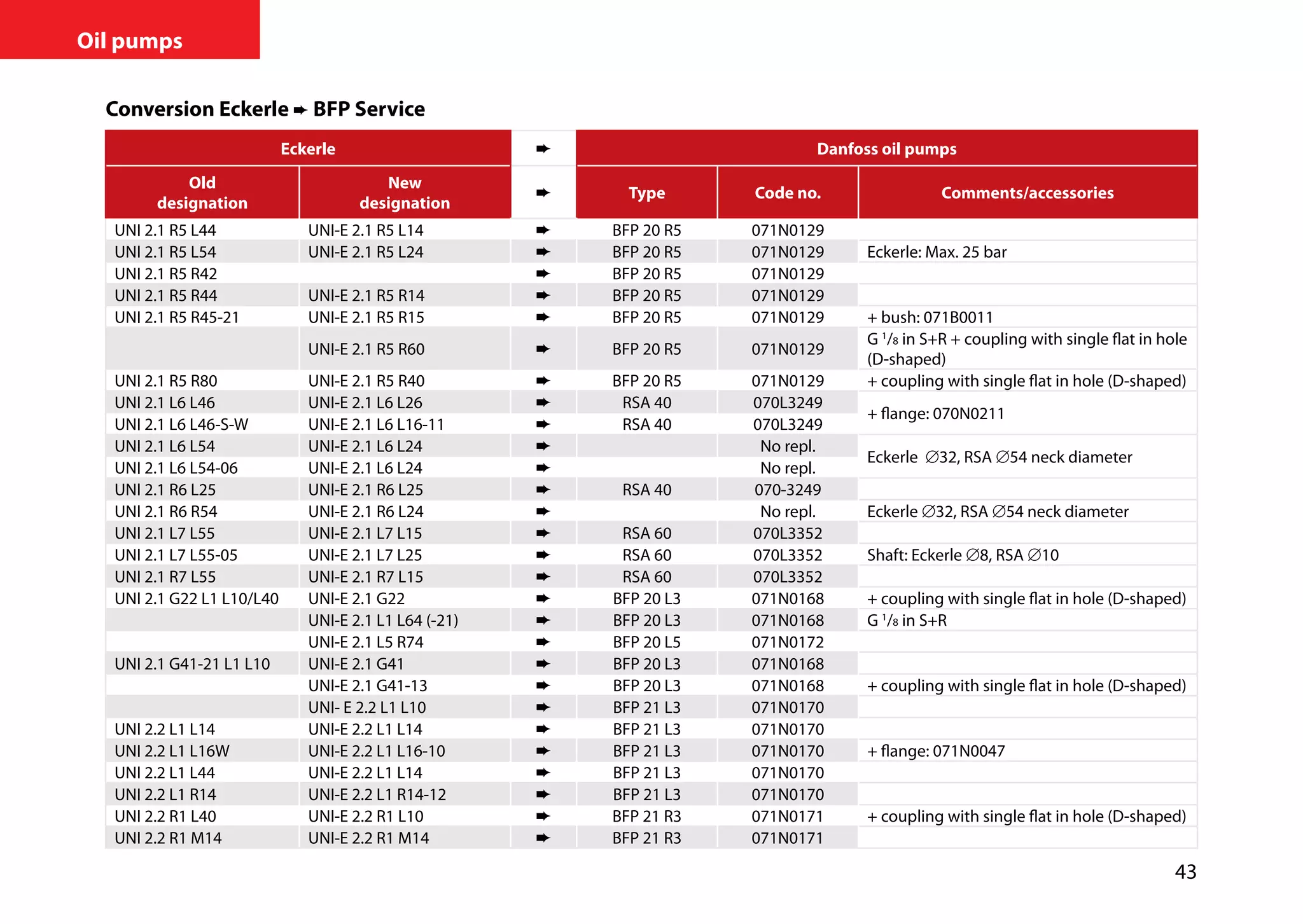

43 Oil pumps Conversion Eckerle ➨ BFP Service Eckerle ➨ Danfoss oil pumps Old designation New designation ➨ Type Code no. Comments/accessories UNI 2.1 R5 L44 UNI-E 2.1 R5 L14 ➨ BFP 20 R5 071N0129 UNI 2.1 R5 L54 UNI-E 2.1 R5 L24 ➨ BFP 20 R5 071N0129 Eckerle: Max. 25 bar UNI 2.1 R5 R42 ➨ BFP 20 R5 071N0129 UNI 2.1 R5 R44 UNI-E 2.1 R5 R14 ➨ BFP 20 R5 071N0129 UNI 2.1 R5 R45-21 UNI-E 2.1 R5 R15 ➨ BFP 20 R5 071N0129 + bush: 071B0011 UNI-E 2.1 R5 R60 ➨ BFP 20 R5 071N0129 G 1 /8 in S+R + coupling with single flat in hole (D-shaped) UNI 2.1 R5 R80 UNI-E 2.1 R5 R40 ➨ BFP 20 R5 071N0129 + coupling with single flat in hole (D-shaped) UNI 2.1 L6 L46 UNI-E 2.1 L6 L26 ➨ RSA 40 070L3249 + flange: 070N0211 UNI 2.1 L6 L46-S-W UNI-E 2.1 L6 L16-11 ➨ RSA 40 070L3249 UNI 2.1 L6 L54 UNI-E 2.1 L6 L24 ➨ No repl. Eckerle ∅32, RSA ∅54 neck diameter UNI 2.1 L6 L54-06 UNI-E 2.1 L6 L24 ➨ No repl. UNI 2.1 R6 L25 UNI-E 2.1 R6 L25 ➨ RSA 40 070-3249 UNI 2.1 R6 R54 UNI-E 2.1 R6 L24 ➨ No repl. Eckerle ∅32, RSA ∅54 neck diameter UNI 2.1 L7 L55 UNI-E 2.1 L7 L15 ➨ RSA 60 070L3352 UNI 2.1 L7 L55-05 UNI-E 2.1 L7 L25 ➨ RSA 60 070L3352 Shaft: Eckerle ∅8, RSA ∅10 UNI 2.1 R7 L55 UNI-E 2.1 R7 L15 ➨ RSA 60 070L3352 UNI 2.1 G22 L1 L10/L40 UNI-E 2.1 G22 ➨ BFP 20 L3 071N0168 + coupling with single flat in hole (D-shaped) UNI-E 2.1 L1 L64 (-21) ➨ BFP 20 L3 071N0168 G 1 /8 in S+R UNI-E 2.1 L5 R74 ➨ BFP 20 L5 071N0172 UNI 2.1 G41-21 L1 L10 UNI-E 2.1 G41 ➨ BFP 20 L3 071N0168 UNI-E 2.1 G41-13 ➨ BFP 20 L3 071N0168 + coupling with single flat in hole (D-shaped) UNI- E 2.2 L1 L10 ➨ BFP 21 L3 071N0170 UNI 2.2 L1 L14 UNI-E 2.2 L1 L14 ➨ BFP 21 L3 071N0170 UNI 2.2 L1 L16W UNI-E 2.2 L1 L16-10 ➨ BFP 21 L3 071N0170 + flange: 071N0047 UNI 2.2 L1 L44 UNI-E 2.2 L1 L14 ➨ BFP 21 L3 071N0170 UNI 2.2 L1 R14 UNI-E 2.2 L1 R14-12 ➨ BFP 21 L3 071N0170 UNI 2.2 R1 L40 UNI-E 2.2 R1 L10 ➨ BFP 21 R3 071N0171 + coupling with single flat in hole (D-shaped) UNI 2.2 R1 M14 UNI-E 2.2 R1 M14 ➨ BFP 21 R3 071N0171
44 Oil pumps Conversion Eckerle ➨ BFP Service Eckerle ➨ Danfoss oil pumps Old designation New designation ➨ Type Code no. Comments/accessories UNI 2.2 R1 R24 UNI-E 2.2 R1 R24 ➨ BFP 21 R3 071N0171 Eckerle: Max. 25 bar UNI-E 2.2 R1 S14 ➨ BFP 21 R3 071N0171 UNI 2.2 L5 L14 UNI-E 2.2 L5 L14-92 ➨ BFP 21 L5 071N0172 Eckerle: G 1 /8 in S+R Eckerle: 10-25 bar, BFP: Max. 20 bar UNI 2.2 L5 L15-21-05 UNI-E 2.2 L5 L15 ➨ BFP 21 L5 071N0172 + bush: 071B0011 UNI 2.2 L5 L40-X UNI-E 2.2 L5 L10-50 ➨ BFP 21 L5 071N0172 + coupling with single flat in hole (D-shaped) UNI 2.2 L5 L42 UNI-E 2.2 L5 L12 ➨ BFP 21 L5 071N0172 + bush: 071B0011 + coupling with single flat in hole (D-shaped) UNI 2.2 L5 L60 ➨ BFP 21 L5 071N0172 + coupling with single flat in hole (D-shaped) UNI-E 2.2 L5 L60 ➨ BFP 21 L5 071N0172 Eckerle: G 1 /8 in S+R + coupling with single flat in hole (D-shaped) UNI 2.2 L5 L62 ➨ BFP 21 L5 071N0172 UNI 2.2 L5 M14-C1 UNI.E 2.2 L5 M14-12 ➨ BFP 21 L5 071N0172 UNI 2.2 L5 S20 UNI-E 2.2 L5 S20 ➨ BFP 21 L5 071N0172 Eckerle: 10-25 bar, BFP: Max. 20 bar + coupling with single flat in hole (D-shaped) UNI 2.2 L5 S20-21-BUD UNI-E 2.2 L5 S20 BUD ➨ BFP 21 L5 071N0172 Eckerle: Max. 25 bar, BFP: Max. 20 bar + coupling with single flat in hole (D-shaped) UNI 2.2 L5 S74 UNI-E 2.2 L5 L14 ➨ BFP 21 L5 071N0172 Eckerle: 10-25 bar, BFP: Max. 20 bar + coupling with single flat in hole (D-shaped) UNI-E 2.2 L5 S74 ➨ BFP 21 L5 071N0172 G 1 /8 in S+R. Eckerle: Max. 25 bar UNI 2.2 R5 L14 UNI-E 2.2 R5 L14 ➨ BFP 21 R5 071N0173 UNI-E 22 R5 M14 ➨ BFP 21 R5 071N0173 UNI 2.2 R5 M45 UNI-E 2.2 R5 M15 ➨ BFP 21 R5 071N0173 + bush: 071B0011 UNI 2.2 R5 R14 UNI-E 2.2 R5 R14 ➨ BFP 21 R5 071N0173 UNI 2.2 R5 R60-21 UNI-E 2.2 R5 R60 ➨ BFP 21 R5 071N0173 Eckerle: G 1 /8 in S+R + coupling with single flat in hole (D-shaped) UNI 2.2 R5 R80B UNI-E 2.2 R5 R60 ➨ BFP 21 R5 071N0173 UNI-E 2.2 R5 S14 ➨ BFP 21 R5 071N0173 UNI 2.2 R5 S60 UNI-E 2.2 R5 S60 ➨ BFP 21 R5 071N0173

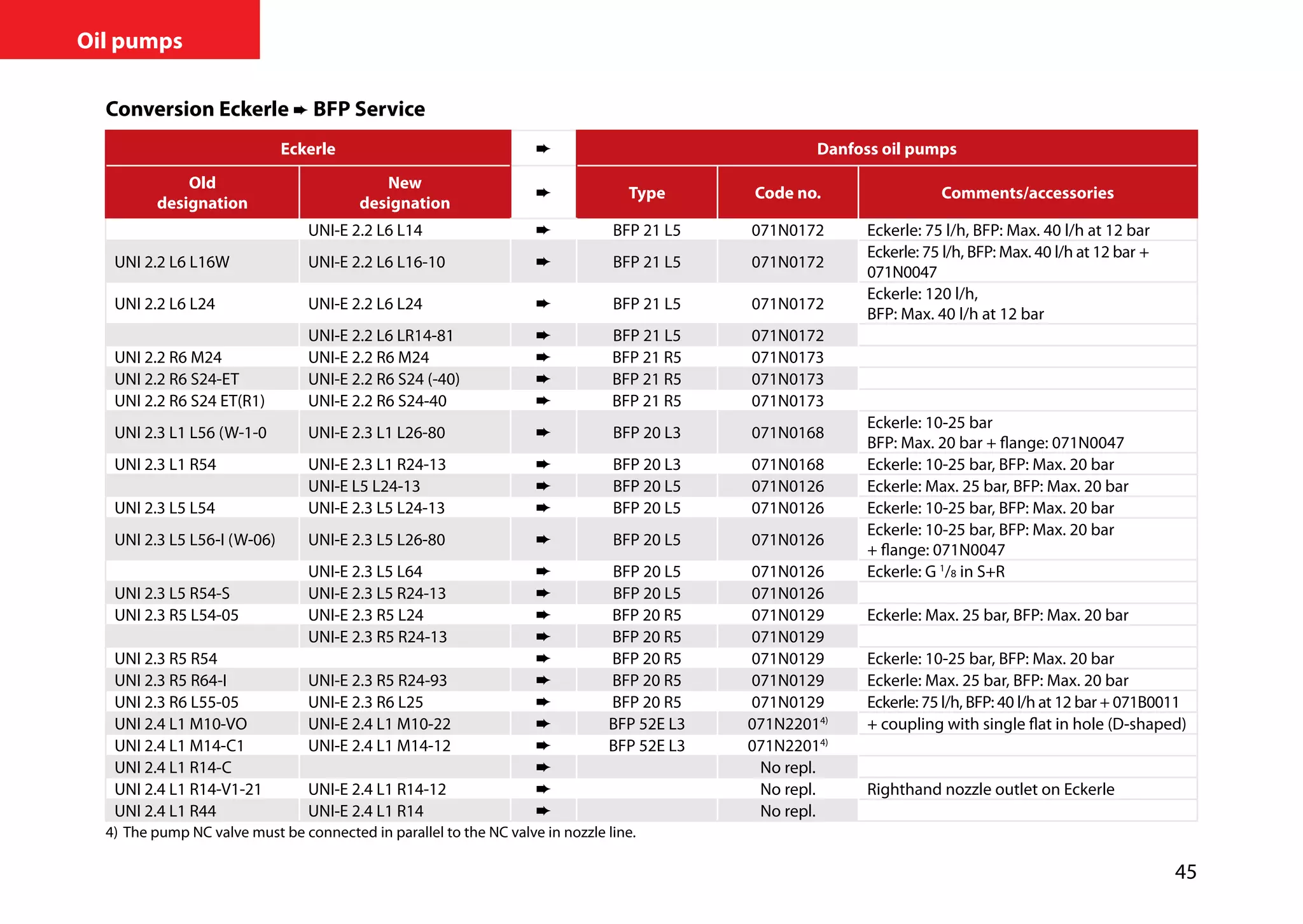

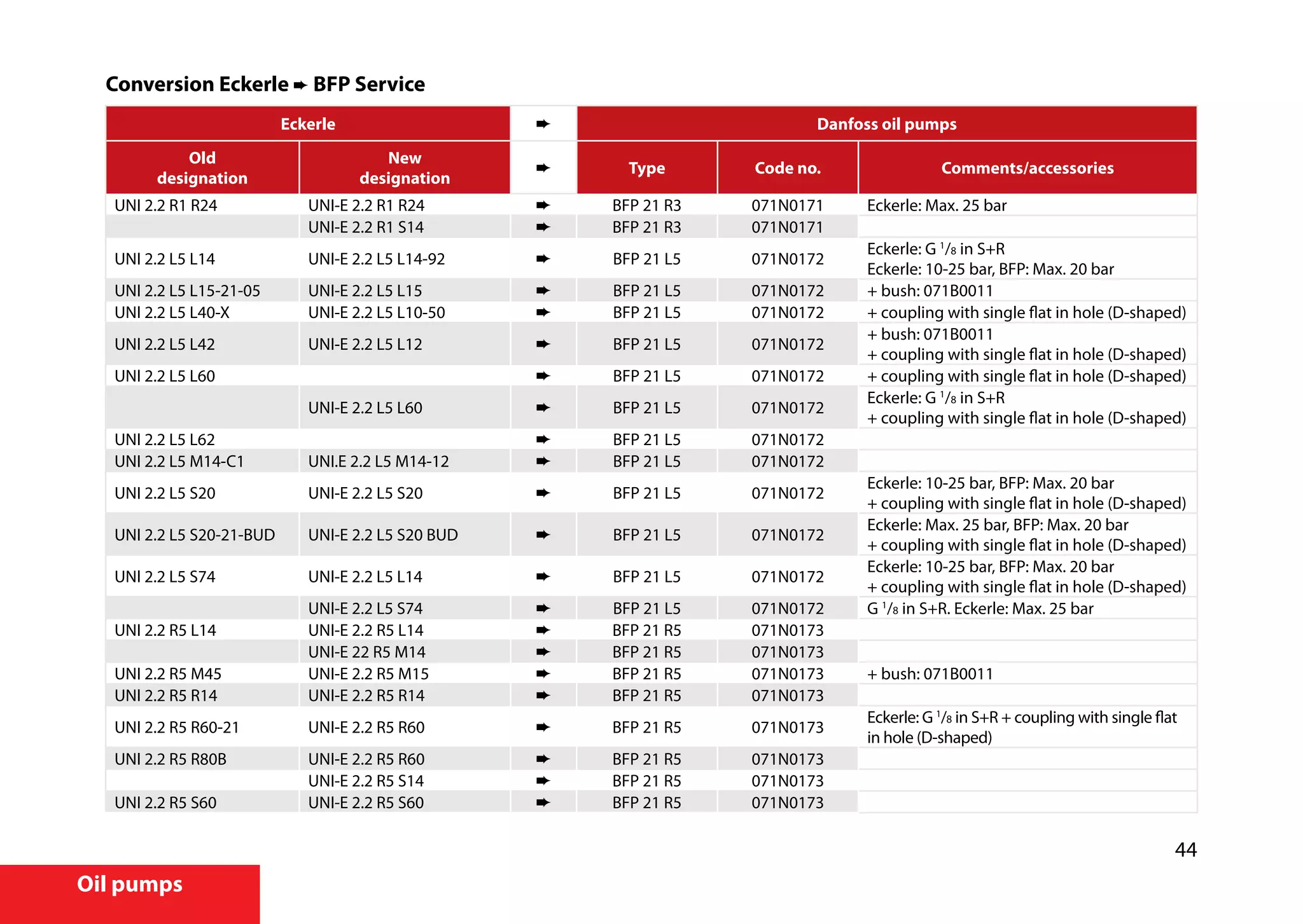

45 Oil pumps Conversion Eckerle ➨ BFP Service Eckerle ➨ Danfoss oil pumps Old designation New designation ➨ Type Code no. Comments/accessories UNI-E 2.2 L6 L14 ➨ BFP 21 L5 071N0172 Eckerle: 75 l/h, BFP: Max. 40 l/h at 12 bar UNI 2.2 L6 L16W UNI-E 2.2 L6 L16-10 ➨ BFP 21 L5 071N0172 Eckerle: 75 l/h, BFP: Max. 40 l/h at 12 bar + 071N0047 UNI 2.2 L6 L24 UNI-E 2.2 L6 L24 ➨ BFP 21 L5 071N0172 Eckerle: 120 l/h, BFP: Max. 40 l/h at 12 bar UNI-E 2.2 L6 LR14-81 ➨ BFP 21 L5 071N0172 UNI 2.2 R6 M24 UNI-E 2.2 R6 M24 ➨ BFP 21 R5 071N0173 UNI 2.2 R6 S24-ET UNI-E 2.2 R6 S24 (-40) ➨ BFP 21 R5 071N0173 UNI 2.2 R6 S24 ET(R1) UNI-E 2.2 R6 S24-40 ➨ BFP 21 R5 071N0173 UNI 2.3 L1 L56 (W-1-0 UNI-E 2.3 L1 L26-80 ➨ BFP 20 L3 071N0168 Eckerle: 10-25 bar BFP: Max. 20 bar + flange: 071N0047 UNI 2.3 L1 R54 UNI-E 2.3 L1 R24-13 ➨ BFP 20 L3 071N0168 Eckerle: 10-25 bar, BFP: Max. 20 bar UNI-E L5 L24-13 ➨ BFP 20 L5 071N0126 Eckerle: Max. 25 bar, BFP: Max. 20 bar UNI 2.3 L5 L54 UNI-E 2.3 L5 L24-13 ➨ BFP 20 L5 071N0126 Eckerle: 10-25 bar, BFP: Max. 20 bar UNI 2.3 L5 L56-I (W-06) UNI-E 2.3 L5 L26-80 ➨ BFP 20 L5 071N0126 Eckerle: 10-25 bar, BFP: Max. 20 bar + flange: 071N0047 UNI-E 2.3 L5 L64 ➨ BFP 20 L5 071N0126 Eckerle: G 1 /8 in S+R UNI 2.3 L5 R54-S UNI-E 2.3 L5 R24-13 ➨ BFP 20 L5 071N0126 UNI 2.3 R5 L54-05 UNI-E 2.3 R5 L24 ➨ BFP 20 R5 071N0129 Eckerle: Max. 25 bar, BFP: Max. 20 bar UNI-E 2.3 R5 R24-13 ➨ BFP 20 R5 071N0129 UNI 2.3 R5 R54 ➨ BFP 20 R5 071N0129 Eckerle: 10-25 bar, BFP: Max. 20 bar UNI 2.3 R5 R64-I UNI-E 2.3 R5 R24-93 ➨ BFP 20 R5 071N0129 Eckerle: Max. 25 bar, BFP: Max. 20 bar UNI 2.3 R6 L55-05 UNI-E 2.3 R6 L25 ➨ BFP 20 R5 071N0129 Eckerle: 75 l/h, BFP: 40 l/h at 12 bar + 071B0011 UNI 2.4 L1 M10-VO UNI-E 2.4 L1 M10-22 ➨ BFP 52E L3 071N22014) + coupling with single flat in hole (D-shaped) UNI 2.4 L1 M14-C1 UNI-E 2.4 L1 M14-12 ➨ BFP 52E L3 071N22014) UNI 2.4 L1 R14-C ➨ No repl. UNI 2.4 L1 R14-V1-21 UNI-E 2.4 L1 R14-12 ➨ No repl. Righthand nozzle outlet on Eckerle UNI 2.4 L1 R44 UNI-E 2.4 L1 R14 ➨ No repl. 4) The pump NC valve must be connected in parallel to the NC valve in nozzle line.

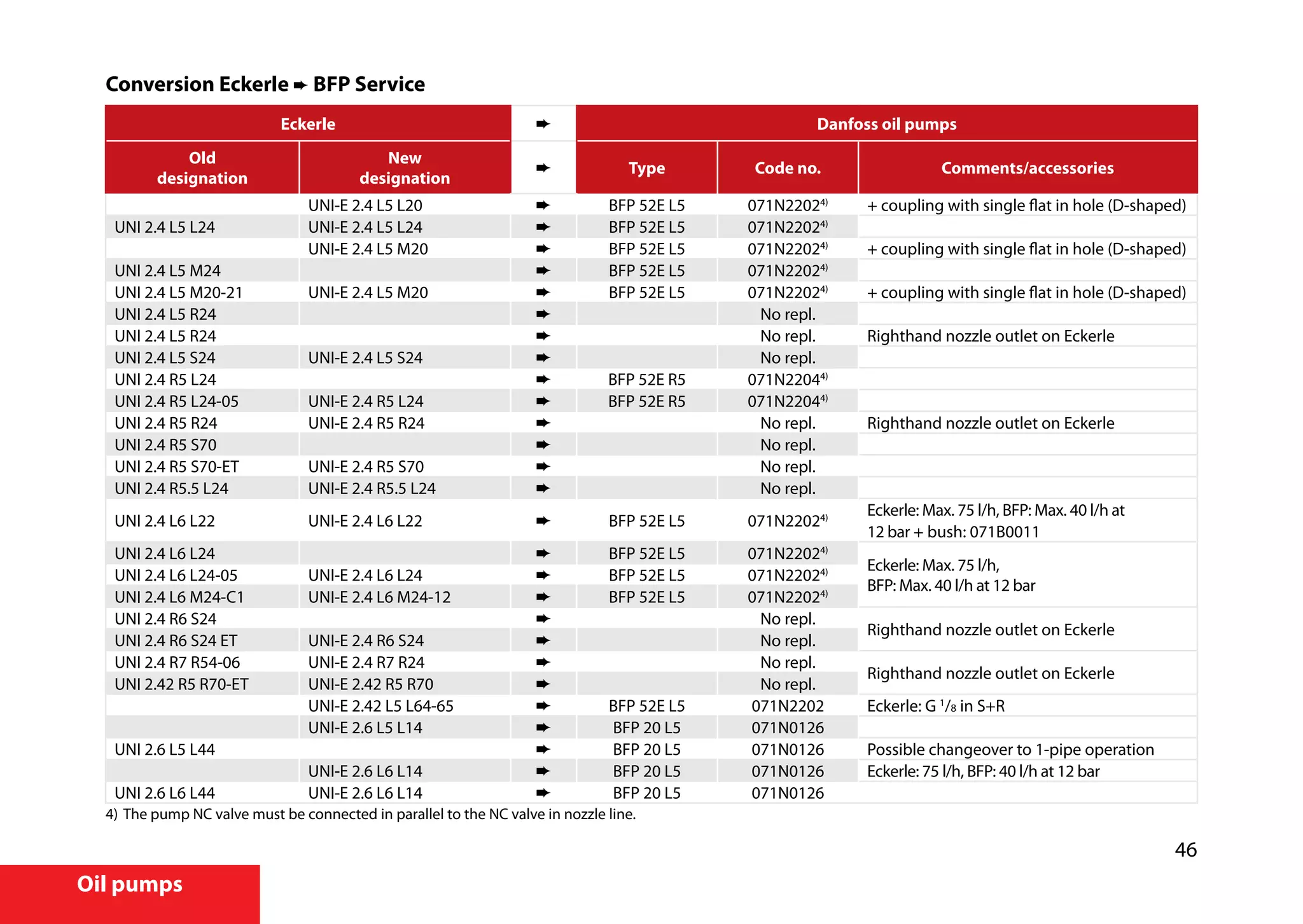

46 Oil pumps Conversion Eckerle ➨ BFP Service Eckerle ➨ Danfoss oil pumps Old designation New designation ➨ Type Code no. Comments/accessories UNI-E 2.4 L5 L20 ➨ BFP 52E L5 071N22024) + coupling with single flat in hole (D-shaped) UNI 2.4 L5 L24 UNI-E 2.4 L5 L24 ➨ BFP 52E L5 071N22024) UNI-E 2.4 L5 M20 ➨ BFP 52E L5 071N22024) + coupling with single flat in hole (D-shaped) UNI 2.4 L5 M24 ➨ BFP 52E L5 071N22024) UNI 2.4 L5 M20-21 UNI-E 2.4 L5 M20 ➨ BFP 52E L5 071N22024) + coupling with single flat in hole (D-shaped) UNI 2.4 L5 R24 ➨ No repl. UNI 2.4 L5 R24 ➨ No repl. Righthand nozzle outlet on Eckerle UNI 2.4 L5 S24 UNI-E 2.4 L5 S24 ➨ No repl. UNI 2.4 R5 L24 ➨ BFP 52E R5 071N22044) UNI 2.4 R5 L24-05 UNI-E 2.4 R5 L24 ➨ BFP 52E R5 071N22044) UNI 2.4 R5 R24 UNI-E 2.4 R5 R24 ➨ No repl. Righthand nozzle outlet on Eckerle UNI 2.4 R5 S70 ➨ No repl. UNI 2.4 R5 S70-ET UNI-E 2.4 R5 S70 ➨ No repl. UNI 2.4 R5.5 L24 UNI-E 2.4 R5.5 L24 ➨ No repl. UNI 2.4 L6 L22 UNI-E 2.4 L6 L22 ➨ BFP 52E L5 071N22024) Eckerle: Max. 75 l/h, BFP: Max. 40 l/h at 12 bar + bush: 071B0011 UNI 2.4 L6 L24 ➨ BFP 52E L5 071N22024) Eckerle: Max. 75 l/h, BFP: Max. 40 l/h at 12 bar UNI 2.4 L6 L24-05 UNI-E 2.4 L6 L24 ➨ BFP 52E L5 071N22024) UNI 2.4 L6 M24-C1 UNI-E 2.4 L6 M24-12 ➨ BFP 52E L5 071N22024) UNI 2.4 R6 S24 ➨ No repl. Righthand nozzle outlet on Eckerle UNI 2.4 R6 S24 ET UNI-E 2.4 R6 S24 ➨ No repl. UNI 2.4 R7 R54-06 UNI-E 2.4 R7 R24 ➨ No repl. Righthand nozzle outlet on Eckerle UNI 2.42 R5 R70-ET UNI-E 2.42 R5 R70 ➨ No repl. UNI-E 2.42 L5 L64-65 ➨ BFP 52E L5 071N2202 Eckerle: G 1 /8 in S+R UNI-E 2.6 L5 L14 ➨ BFP 20 L5 071N0126 UNI 2.6 L5 L44 ➨ BFP 20 L5 071N0126 Possible changeover to 1-pipe operation UNI-E 2.6 L6 L14 ➨ BFP 20 L5 071N0126 Eckerle: 75 l/h, BFP: 40 l/h at 12 bar UNI 2.6 L6 L44 UNI-E 2.6 L6 L14 ➨ BFP 20 L5 071N0126 4) The pump NC valve must be connected in parallel to the NC valve in nozzle line.

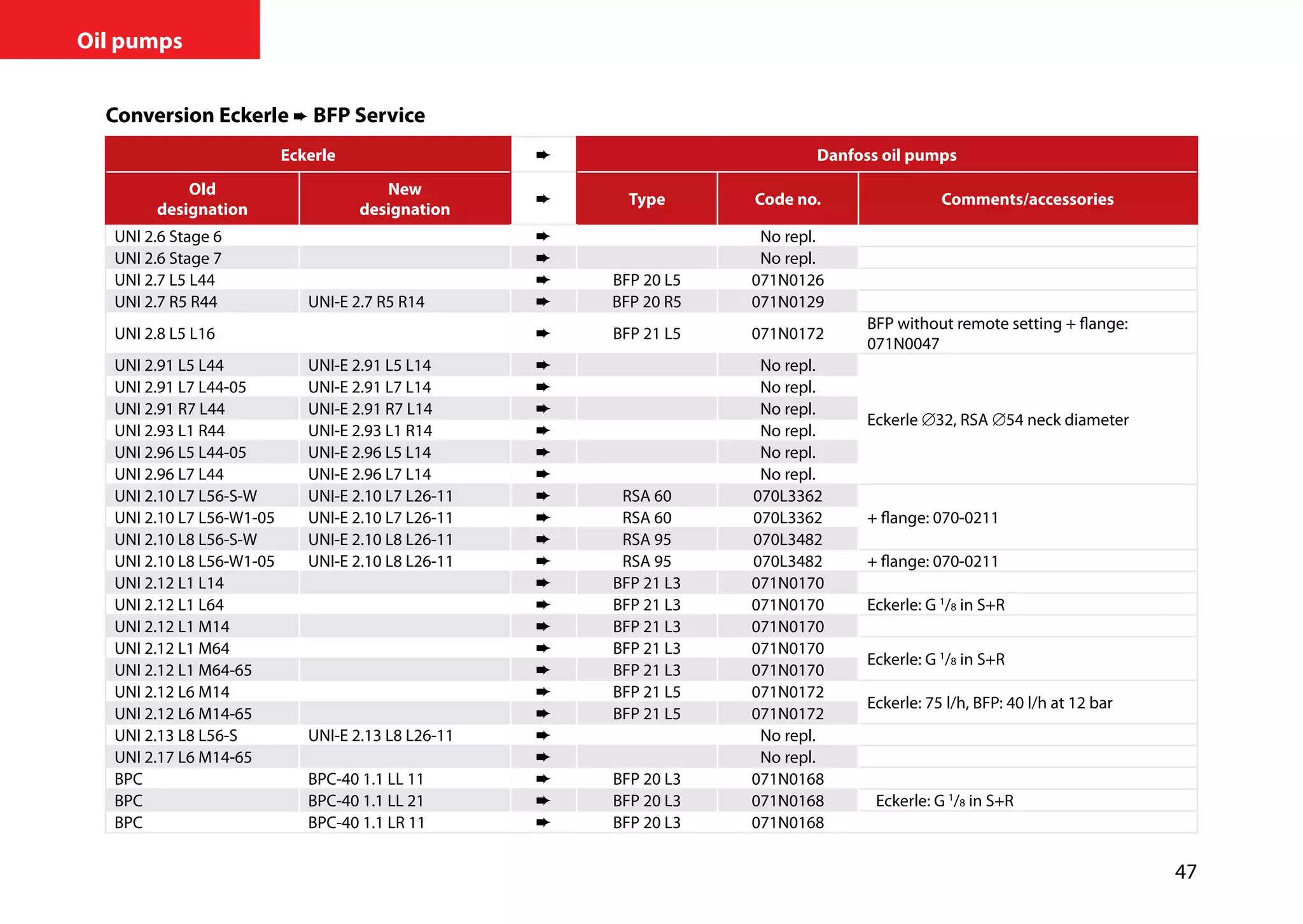

47 Oil pumps Conversion Eckerle ➨ BFP Service Eckerle ➨ Danfoss oil pumps Old designation New designation ➨ Type Code no. Comments/accessories UNI 2.6 Stage 6 ➨ No repl. UNI 2.6 Stage 7 ➨ No repl. UNI 2.7 L5 L44 ➨ BFP 20 L5 071N0126 UNI 2.7 R5 R44 UNI-E 2.7 R5 R14 ➨ BFP 20 R5 071N0129 UNI 2.8 L5 L16 ➨ BFP 21 L5 071N0172 BFP without remote setting + flange: 071N0047 UNI 2.91 L5 L44 UNI-E 2.91 L5 L14 ➨ No repl. Eckerle ∅32, RSA ∅54 neck diameter UNI 2.91 L7 L44-05 UNI-E 2.91 L7 L14 ➨ No repl. UNI 2.91 R7 L44 UNI-E 2.91 R7 L14 ➨ No repl. UNI 2.93 L1 R44 UNI-E 2.93 L1 R14 ➨ No repl. UNI 2.96 L5 L44-05 UNI-E 2.96 L5 L14 ➨ No repl. UNI 2.96 L7 L44 UNI-E 2.96 L7 L14 ➨ No repl. UNI 2.10 L7 L56-S-W UNI-E 2.10 L7 L26-11 ➨ RSA 60 070L3362 + flange: 070-0211UNI 2.10 L7 L56-W1-05 UNI-E 2.10 L7 L26-11 ➨ RSA 60 070L3362 UNI 2.10 L8 L56-S-W UNI-E 2.10 L8 L26-11 ➨ RSA 95 070L3482 UNI 2.10 L8 L56-W1-05 UNI-E 2.10 L8 L26-11 ➨ RSA 95 070L3482 + flange: 070-0211 UNI 2.12 L1 L14 ➨ BFP 21 L3 071N0170 UNI 2.12 L1 L64 ➨ BFP 21 L3 071N0170 Eckerle: G 1 /8 in S+R UNI 2.12 L1 M14 ➨ BFP 21 L3 071N0170 UNI 2.12 L1 M64 ➨ BFP 21 L3 071N0170 Eckerle: G 1 /8 in S+R UNI 2.12 L1 M64-65 ➨ BFP 21 L3 071N0170 UNI 2.12 L6 M14 ➨ BFP 21 L5 071N0172 Eckerle: 75 l/h, BFP: 40 l/h at 12 bar UNI 2.12 L6 M14-65 ➨ BFP 21 L5 071N0172 UNI 2.13 L8 L56-S UNI-E 2.13 L8 L26-11 ➨ No repl. UNI 2.17 L6 M14-65 ➨ No repl. BPC BPC-40 1.1 LL 11 ➨ BFP 20 L3 071N0168 BPC BPC-40 1.1 LL 21 ➨ BFP 20 L3 071N0168 Eckerle: G 1 /8 in S+R BPC BPC-40 1.1 LR 11 ➨ BFP 20 L3 071N0168

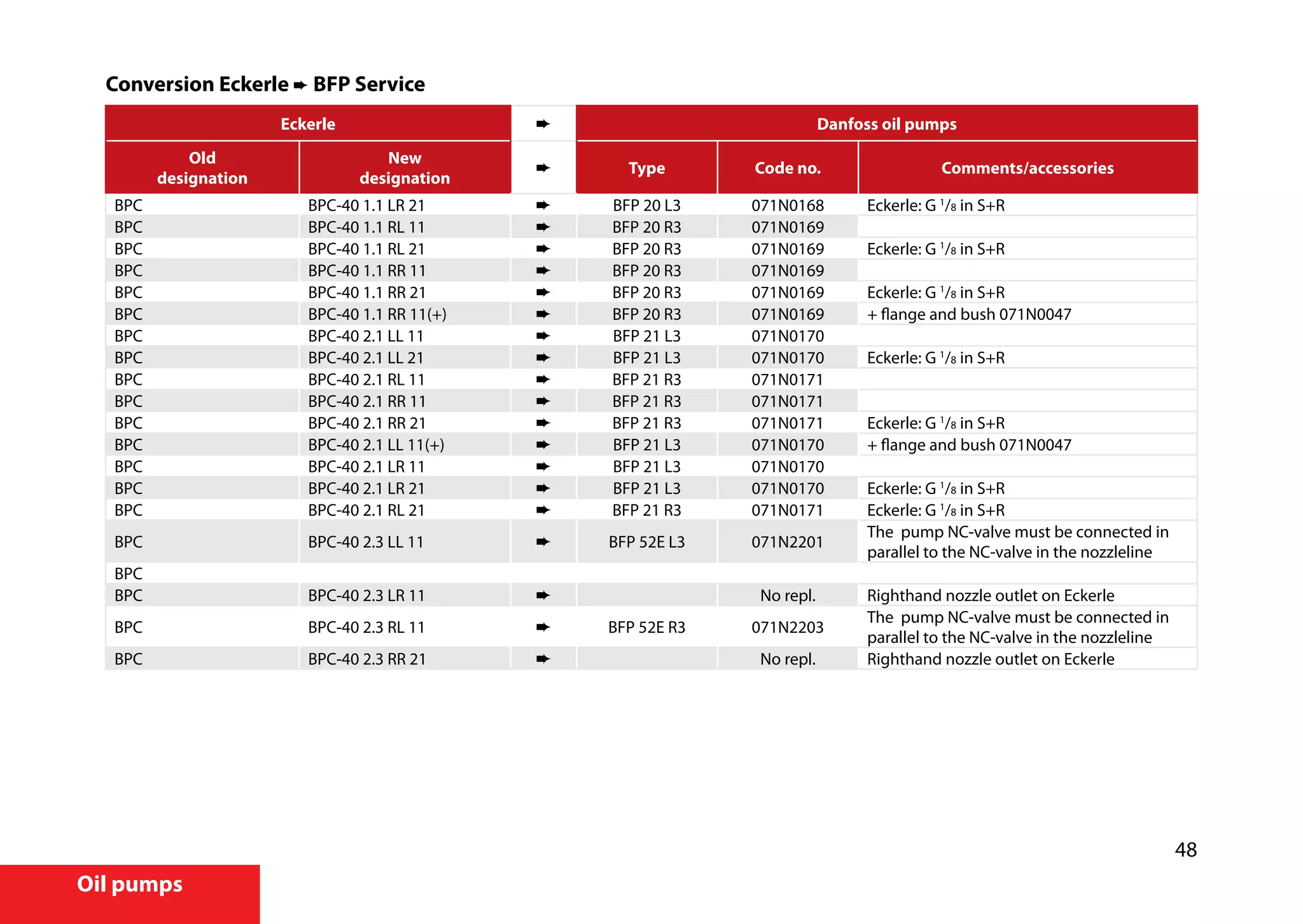

48 Oil pumps Conversion Eckerle ➨ BFP Service Eckerle ➨ Danfoss oil pumps Old designation New designation ➨ Type Code no. Comments/accessories BPC BPC-40 1.1 LR 21 ➨ BFP 20 L3 071N0168 Eckerle: G 1 /8 in S+R BPC BPC-40 1.1 RL 11 ➨ BFP 20 R3 071N0169 BPC BPC-40 1.1 RL 21 ➨ BFP 20 R3 071N0169 Eckerle: G 1 /8 in S+R BPC BPC-40 1.1 RR 11 ➨ BFP 20 R3 071N0169 BPC BPC-40 1.1 RR 21 ➨ BFP 20 R3 071N0169 Eckerle: G 1 /8 in S+R BPC BPC-40 1.1 RR 11(+) ➨ BFP 20 R3 071N0169 + flange and bush 071N0047 BPC BPC-40 2.1 LL 11 ➨ BFP 21 L3 071N0170 BPC BPC-40 2.1 LL 21 ➨ BFP 21 L3 071N0170 Eckerle: G 1 /8 in S+R BPC BPC-40 2.1 RL 11 ➨ BFP 21 R3 071N0171 BPC BPC-40 2.1 RR 11 ➨ BFP 21 R3 071N0171 BPC BPC-40 2.1 RR 21 ➨ BFP 21 R3 071N0171 Eckerle: G 1 /8 in S+R BPC BPC-40 2.1 LL 11(+) ➨ BFP 21 L3 071N0170 + flange and bush 071N0047 BPC BPC-40 2.1 LR 11 ➨ BFP 21 L3 071N0170 BPC BPC-40 2.1 LR 21 ➨ BFP 21 L3 071N0170 Eckerle: G 1 /8 in S+R BPC BPC-40 2.1 RL 21 ➨ BFP 21 R3 071N0171 Eckerle: G 1 /8 in S+R BPC BPC-40 2.3 LL 11 ➨ BFP 52E L3 071N2201 The pump NC-valve must be connected in parallel to the NC-valve in the nozzleline BPC BPC BPC-40 2.3 LR 11 ➨ No repl. Righthand nozzle outlet on Eckerle BPC BPC-40 2.3 RL 11 ➨ BFP 52E R3 071N2203 The pump NC-valve must be connected in parallel to the NC-valve in the nozzleline BPC BPC-40 2.3 RR 21 ➨ No repl. Righthand nozzle outlet on Eckerle
49 Oil pumps Conversion Delta ➨ BFP Service Delta Relevant Danfoss types Type Code no. 1-2 pipe Type Code no. Comments/accessories V V1LR2 4 (or 5) 2 ➨ BFP 20 L3 071N0168 V V1LR1 4 (or 5) 1 ➨ BFP 20 L3 071N01682) V V1LL2 4 (or 5) 2 ➨ BFP 20 L3 071N0168 V V1LL1 4 (or 5) 1 ➨ BFP 20 L3 071N01682) V V1RL2 4 (or 5) 2 ➨ BFP 20 R3 071N0169 V V1RL1 4 (or 5) 1 ➨ BFP 20 R3 071N01692) V V1RR2 4 (or 5) 2 ➨ BFP 20 R3 071N0169 V V1RR1 4 (or 5) 1 ➨ BFP 20 R3 071N01692) V V2LR2 4 (or 5) 2 ➨ BFP 20 L5 071N0126 Delta: 57 l/h: BFP: 40 l/h at 10 bar V V2LR1 4 (or 5) 1 ➨ BFP 20 L5 071N01262) V V2LL2 4 (or 5) 2 ➨ BFP 20 L5 071N0126 V 2LL1 4 (or 5) 1 ➨ BFP 20 L5 071N01262) V V2RL2 4 (or 5) 2 ➨ BFP 20 R5 071N0129 V V2RL1 4 (or 5) 1 ➨ BFP 20 R5 071N01292) V V2RR2 4 (or 5) 2 ➨ BFP 20 R5 071N0129 V V2RR1 4 (or 5) 1 ➨ BFP 20 R5 071N01292) VU VU3LR 1 4 (or 5) 1 ➨ BFP 20 L5 071N01262) Delta: 80 l/h: BFP: 40 l/h at 10 bar VU VU3LR 2 4 (or 5) 2 ➨ BFP 20 L5 071N0126 VU VU3RL 1 4 (or 5) 1 ➨ BFP 20 R5 071N01292) VU VU3RL 2 4 (or 5) 2 ➨ BFP 20 R5 071N0129 VD VD1LR 2 4 (or 5) 2 ➨ BFP 20 L3 071N0168 VD VD1LR 1 4 (or 5) 1 ➨ BFP 20 L3 071N01682) VD VD1LL 2 4 (or 5) 2 ➨ BFP 20 L3 071N0168 VD VD1LL 1 4 (or 5) 1 ➨ BFP 20 L3 071N01682) VD VD1RL 2 4 (or 5) 2 ➨ BFP 20 R3 071N0169 VD VD1RL 1 4 (or 5) 1 ➨ BFP 20 R3 071N01692) VD VD1RR 2 4 (or 5) 2 ➨ BFP 20 R3 071N0169 VD VD1RR 1 4 (or 5) 1 ➨ BFP 20 R3 071N01692) 2) This pump is delivered for 2-pipe operation. A changeover to 1-pipe operation is possible, see Changeover 1 - 2 pipe.

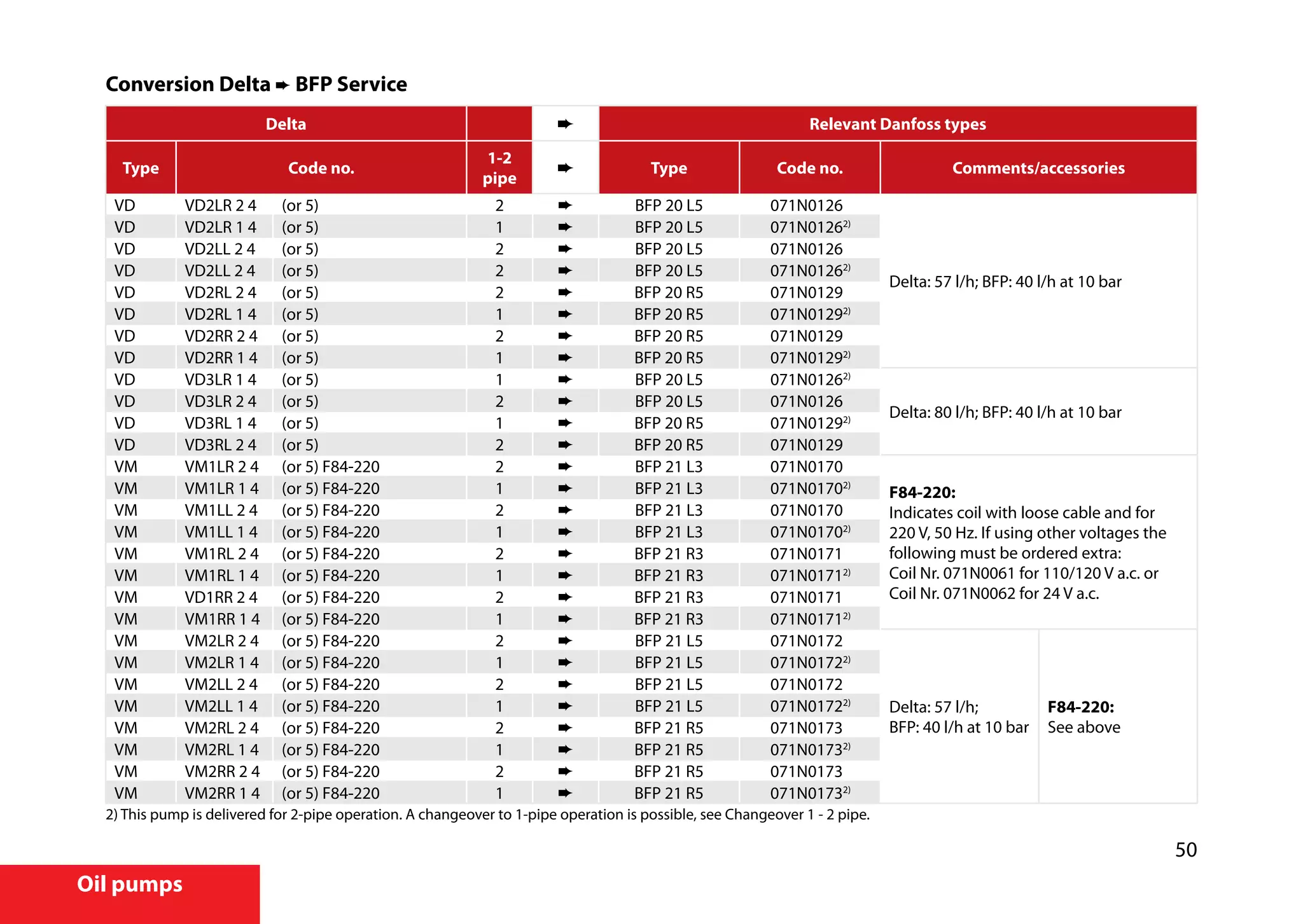

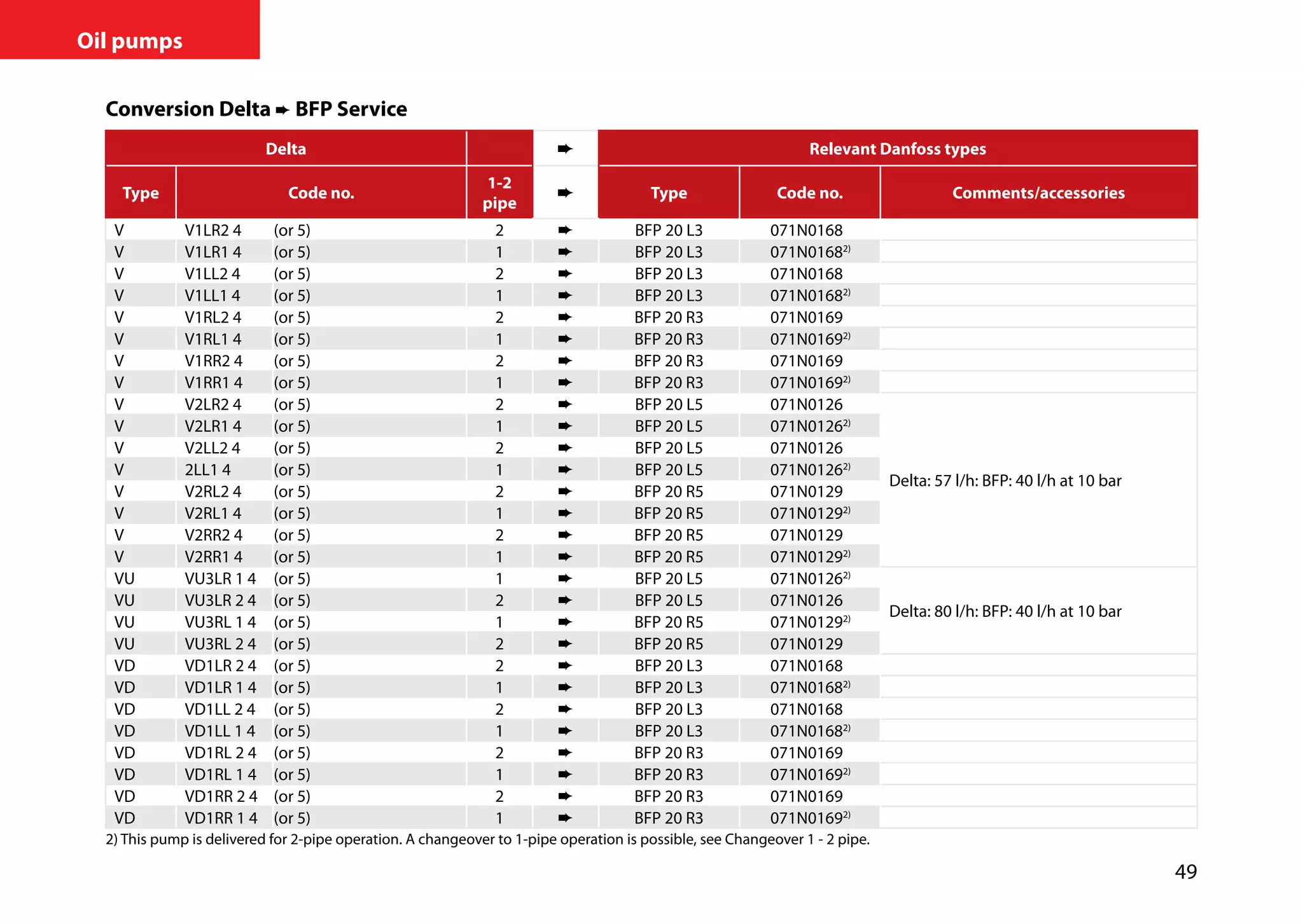

50 Oil pumps Conversion Delta ➨ BFP Service Delta Relevant Danfoss types Type Code no. 1-2 pipe Type Code no. Comments/accessories VD VD2LR 2 4 (or 5) 2 ➨ BFP 20 L5 071N0126 Delta: 57 l/h; BFP: 40 l/h at 10 bar VD VD2LR 1 4 (or 5) 1 ➨ BFP 20 L5 071N01262) VD VD2LL 2 4 (or 5) 2 ➨ BFP 20 L5 071N0126 VD VD2LL 2 4 (or 5) 2 ➨ BFP 20 L5 071N01262) VD VD2RL 2 4 (or 5) 2 ➨ BFP 20 R5 071N0129 VD VD2RL 1 4 (or 5) 1 ➨ BFP 20 R5 071N01292) VD VD2RR 2 4 (or 5) 2 ➨ BFP 20 R5 071N0129 VD VD2RR 1 4 (or 5) 1 ➨ BFP 20 R5 071N01292) VD VD3LR 1 4 (or 5) 1 ➨ BFP 20 L5 071N01262) Delta: 80 l/h; BFP: 40 l/h at 10 bar VD VD3LR 2 4 (or 5) 2 ➨ BFP 20 L5 071N0126 VD VD3RL 1 4 (or 5) 1 ➨ BFP 20 R5 071N01292) VD VD3RL 2 4 (or 5) 2 ➨ BFP 20 R5 071N0129 VM VM1LR 2 4 (or 5) F84-220 2 ➨ BFP 21 L3 071N0170 F84-220: Indicates coil with loose cable and for 220 V, 50 Hz. If using other voltages the following must be ordered extra: Coil Nr. 071N0061 for 110/120 V a.c. or Coil Nr. 071N0062 for 24 V a.c. VM VM1LR 1 4 (or 5) F84-220 1 ➨ BFP 21 L3 071N01702) VM VM1LL 2 4 (or 5) F84-220 2 ➨ BFP 21 L3 071N0170 VM VM1LL 1 4 (or 5) F84-220 1 ➨ BFP 21 L3 071N01702) VM VM1RL 2 4 (or 5) F84-220 2 ➨ BFP 21 R3 071N0171 VM VM1RL 1 4 (or 5) F84-220 1 ➨ BFP 21 R3 071N01712) VM VD1RR 2 4 (or 5) F84-220 2 ➨ BFP 21 R3 071N0171 VM VM1RR 1 4 (or 5) F84-220 1 ➨ BFP 21 R3 071N01712) VM VM2LR 2 4 (or 5) F84-220 2 ➨ BFP 21 L5 071N0172 Delta: 57 l/h; BFP: 40 l/h at 10 bar F84-220: See above VM VM2LR 1 4 (or 5) F84-220 1 ➨ BFP 21 L5 071N01722) VM VM2LL 2 4 (or 5) F84-220 2 ➨ BFP 21 L5 071N0172 VM VM2LL 1 4 (or 5) F84-220 1 ➨ BFP 21 L5 071N01722) VM VM2RL 2 4 (or 5) F84-220 2 ➨ BFP 21 R5 071N0173 VM VM2RL 1 4 (or 5) F84-220 1 ➨ BFP 21 R5 071N01732) VM VM2RR 2 4 (or 5) F84-220 2 ➨ BFP 21 R5 071N0173 VM VM2RR 1 4 (or 5) F84-220 1 ➨ BFP 21 R5 071N01732) 2) This pump is delivered for 2-pipe operation. A changeover to 1-pipe operation is possible, see Changeover 1 - 2 pipe.

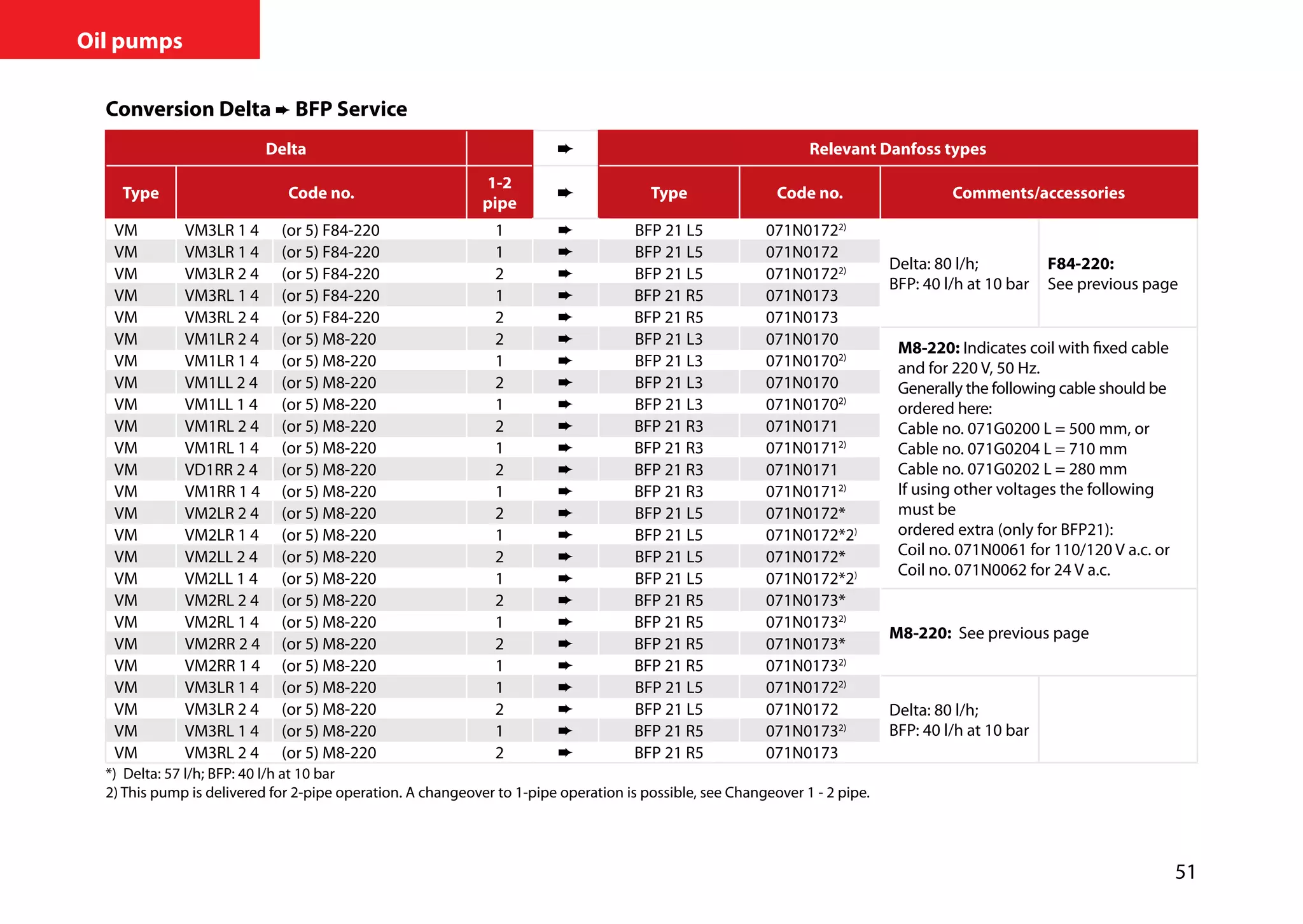

51 Oil pumps Conversion Delta ➨ BFP Service Delta Relevant Danfoss types Type Code no. 1-2 pipe Type Code no. Comments/accessories VM VM3LR 1 4 (or 5) F84-220 1 ➨ BFP 21 L5 071N01722) Delta: 80 l/h; BFP: 40 l/h at 10 bar F84-220: See previous page VM VM3LR 1 4 (or 5) F84-220 1 ➨ BFP 21 L5 071N0172 VM VM3LR 2 4 (or 5) F84-220 2 ➨ BFP 21 L5 071N01722) VM VM3RL 1 4 (or 5) F84-220 1 ➨ BFP 21 R5 071N0173 VM VM3RL 2 4 (or 5) F84-220 2 ➨ BFP 21 R5 071N0173 VM VM1LR 2 4 (or 5) M8-220 2 ➨ BFP 21 L3 071N0170 M8-220: Indicates coil with fixed cable and for 220 V, 50 Hz. Generally the following cable should be ordered here: Cable no. 071G0200 L = 500 mm, or Cable no. 071G0204 L = 710 mm Cable no. 071G0202 L = 280 mm If using other voltages the following must be ordered extra (only for BFP21): Coil no. 071N0061 for 110/120 V a.c. or Coil no. 071N0062 for 24 V a.c. VM VM1LR 1 4 (or 5) M8-220 1 ➨ BFP 21 L3 071N01702) VM VM1LL 2 4 (or 5) M8-220 2 ➨ BFP 21 L3 071N0170 VM VM1LL 1 4 (or 5) M8-220 1 ➨ BFP 21 L3 071N01702) VM VM1RL 2 4 (or 5) M8-220 2 ➨ BFP 21 R3 071N0171 VM VM1RL 1 4 (or 5) M8-220 1 ➨ BFP 21 R3 071N01712) VM VD1RR 2 4 (or 5) M8-220 2 ➨ BFP 21 R3 071N0171 VM VM1RR 1 4 (or 5) M8-220 1 ➨ BFP 21 R3 071N01712) VM VM2LR 2 4 (or 5) M8-220 2 ➨ BFP 21 L5 071N0172* VM VM2LR 1 4 (or 5) M8-220 1 ➨ BFP 21 L5 071N0172*2) VM VM2LL 2 4 (or 5) M8-220 2 ➨ BFP 21 L5 071N0172* VM VM2LL 1 4 (or 5) M8-220 1 ➨ BFP 21 L5 071N0172*2) VM VM2RL 2 4 (or 5) M8-220 2 ➨ BFP 21 R5 071N0173* M8-220: See previous page VM VM2RL 1 4 (or 5) M8-220 1 ➨ BFP 21 R5 071N01732) VM VM2RR 2 4 (or 5) M8-220 2 ➨ BFP 21 R5 071N0173* VM VM2RR 1 4 (or 5) M8-220 1 ➨ BFP 21 R5 071N01732) VM VM3LR 1 4 (or 5) M8-220 1 ➨ BFP 21 L5 071N01722) Delta: 80 l/h; BFP: 40 l/h at 10 bar VM VM3LR 2 4 (or 5) M8-220 2 ➨ BFP 21 L5 071N0172 VM VM3RL 1 4 (or 5) M8-220 1 ➨ BFP 21 R5 071N01732) VM VM3RL 2 4 (or 5) M8-220 2 ➨ BFP 21 R5 071N0173 *) Delta: 57 l/h; BFP: 40 l/h at 10 bar 2) This pump is delivered for 2-pipe operation. A changeover to 1-pipe operation is possible, see Changeover 1 - 2 pipe.

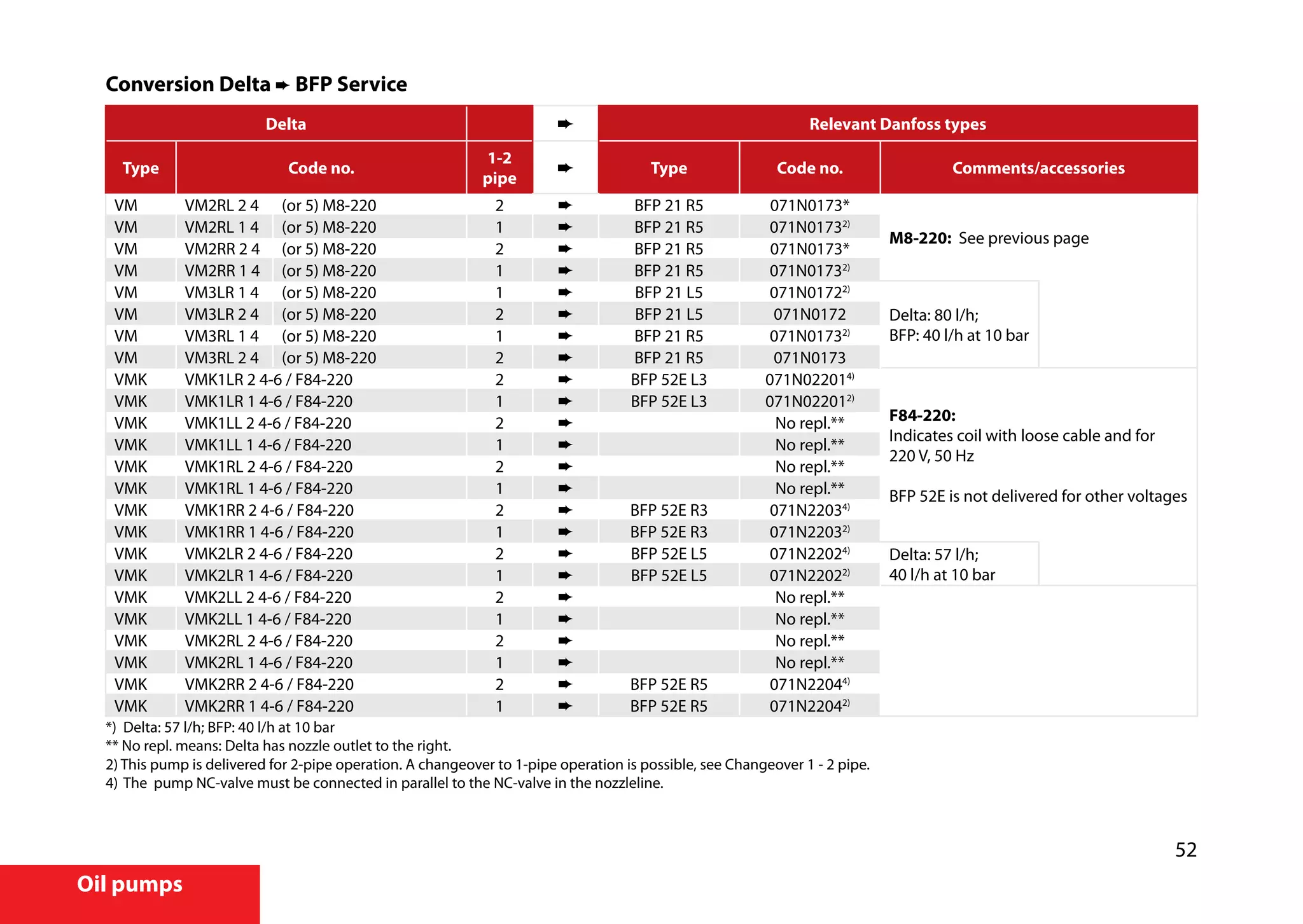

52 Oil pumps Conversion Delta ➨ BFP Service Delta Relevant Danfoss types Type Code no. 1-2 pipe Type Code no. Comments/accessories VM VM2RL 2 4 (or 5) M8-220 2 ➨ BFP 21 R5 071N0173* M8-220: See previous page VM VM2RL 1 4 (or 5) M8-220 1 ➨ BFP 21 R5 071N01732) VM VM2RR 2 4 (or 5) M8-220 2 ➨ BFP 21 R5 071N0173* VM VM2RR 1 4 (or 5) M8-220 1 ➨ BFP 21 R5 071N01732) VM VM3LR 1 4 (or 5) M8-220 1 ➨ BFP 21 L5 071N01722) Delta: 80 l/h; BFP: 40 l/h at 10 bar VM VM3LR 2 4 (or 5) M8-220 2 ➨ BFP 21 L5 071N0172 VM VM3RL 1 4 (or 5) M8-220 1 ➨ BFP 21 R5 071N01732) VM VM3RL 2 4 (or 5) M8-220 2 ➨ BFP 21 R5 071N0173 VMK VMK1LR 2 4-6 / F84-220 2 ➨ BFP 52E L3 071N022014) F84-220: Indicates coil with loose cable and for 220 V, 50 Hz BFP 52E is not delivered for other voltages VMK VMK1LR 1 4-6 / F84-220 1 ➨ BFP 52E L3 071N022012) VMK VMK1LL 2 4-6 / F84-220 2 ➨ No repl.** VMK VMK1LL 1 4-6 / F84-220 1 ➨ No repl.** VMK VMK1RL 2 4-6 / F84-220 2 ➨ No repl.** VMK VMK1RL 1 4-6 / F84-220 1 ➨ No repl.** VMK VMK1RR 2 4-6 / F84-220 2 ➨ BFP 52E R3 071N22034) VMK VMK1RR 1 4-6 / F84-220 1 ➨ BFP 52E R3 071N22032) VMK VMK2LR 2 4-6 / F84-220 2 ➨ BFP 52E L5 071N22024) Delta: 57 l/h; 40 l/h at 10 barVMK VMK2LR 1 4-6 / F84-220 1 ➨ BFP 52E L5 071N22022) VMK VMK2LL 2 4-6 / F84-220 2 ➨ No repl.** VMK VMK2LL 1 4-6 / F84-220 1 ➨ No repl.** VMK VMK2RL 2 4-6 / F84-220 2 ➨ No repl.** VMK VMK2RL 1 4-6 / F84-220 1 ➨ No repl.** VMK VMK2RR 2 4-6 / F84-220 2 ➨ BFP 52E R5 071N22044) VMK VMK2RR 1 4-6 / F84-220 1 ➨ BFP 52E R5 071N22042) *) Delta: 57 l/h; BFP: 40 l/h at 10 bar ** No repl. means: Delta has nozzle outlet to the right. 2) This pump is delivered for 2-pipe operation. A changeover to 1-pipe operation is possible, see Changeover 1 - 2 pipe. 4) The pump NC-valve must be connected in parallel to the NC-valve in the nozzleline.

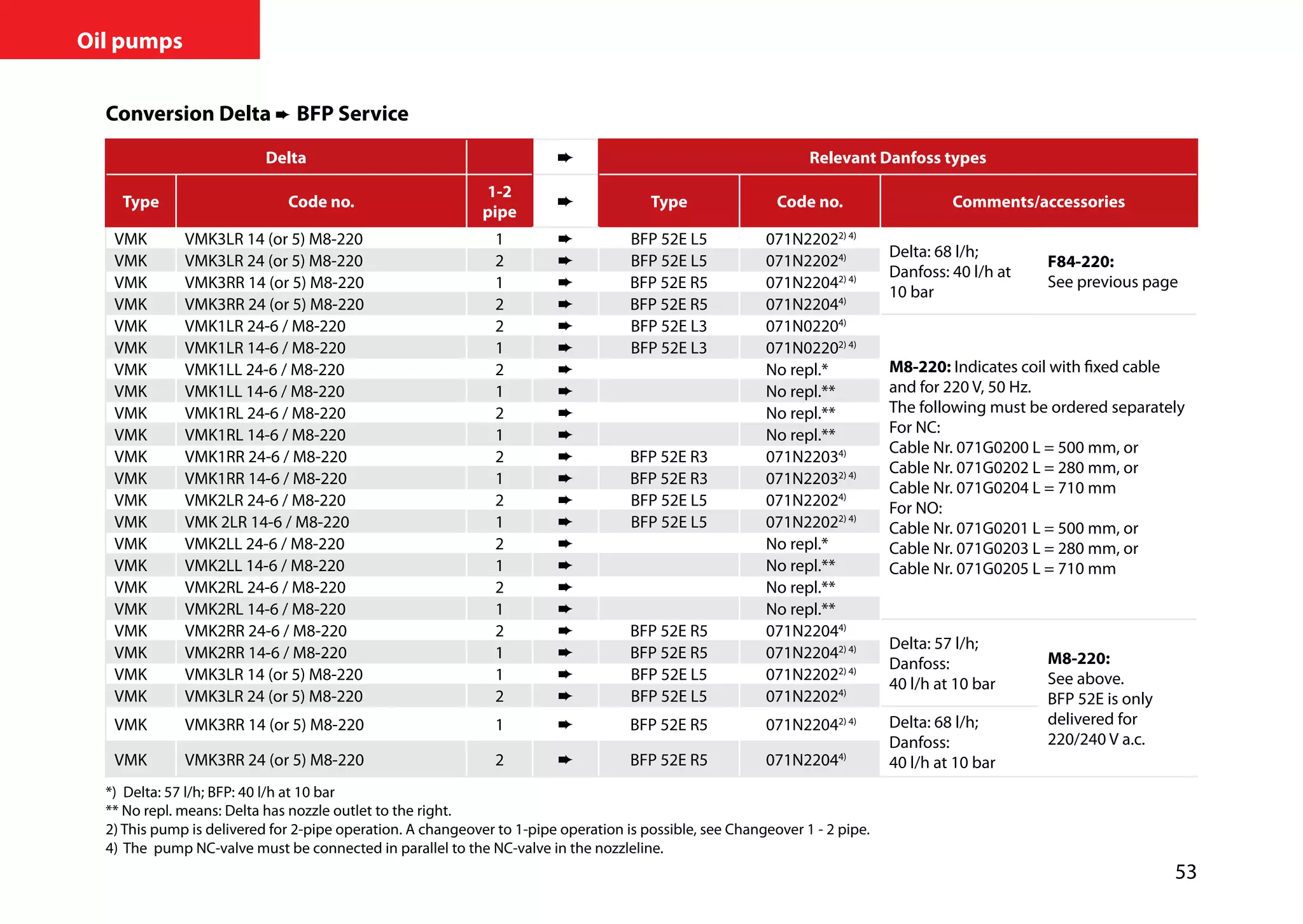

53 Oil pumps Conversion Delta ➨ BFP Service Delta Relevant Danfoss types Type Code no. 1-2 pipe Type Code no. Comments/accessories VMK VMK3LR 14 (or 5) M8-220 1 ➨ BFP 52E L5 071N22022) 4) Delta: 68 l/h; Danfoss: 40 l/h at 10 bar F84-220: See previous page VMK VMK3LR 24 (or 5) M8-220 2 ➨ BFP 52E L5 071N22024) VMK VMK3RR 14 (or 5) M8-220 1 ➨ BFP 52E R5 071N22042) 4) VMK VMK3RR 24 (or 5) M8-220 2 ➨ BFP 52E R5 071N22044) VMK VMK1LR 24-6 / M8-220 2 ➨ BFP 52E L3 071N02204) M8-220: Indicates coil with fixed cable and for 220 V, 50 Hz. The following must be ordered separately For NC: Cable Nr. 071G0200 L = 500 mm, or Cable Nr. 071G0202 L = 280 mm, or Cable Nr. 071G0204 L = 710 mm For NO: Cable Nr. 071G0201 L = 500 mm, or Cable Nr. 071G0203 L = 280 mm, or Cable Nr. 071G0205 L = 710 mm VMK VMK1LR 14-6 / M8-220 1 ➨ BFP 52E L3 071N02202) 4) VMK VMK1LL 24-6 / M8-220 2 ➨ No repl.* VMK VMK1LL 14-6 / M8-220 1 ➨ No repl.** VMK VMK1RL 24-6 / M8-220 2 ➨ No repl.** VMK VMK1RL 14-6 / M8-220 1 ➨ No repl.** VMK VMK1RR 24-6 / M8-220 2 ➨ BFP 52E R3 071N22034) VMK VMK1RR 14-6 / M8-220 1 ➨ BFP 52E R3 071N22032) 4) VMK VMK2LR 24-6 / M8-220 2 ➨ BFP 52E L5 071N22024) VMK VMK 2LR 14-6 / M8-220 1 ➨ BFP 52E L5 071N22022) 4) VMK VMK2LL 24-6 / M8-220 2 ➨ No repl.* VMK VMK2LL 14-6 / M8-220 1 ➨ No repl.** VMK VMK2RL 24-6 / M8-220 2 ➨ No repl.** VMK VMK2RL 14-6 / M8-220 1 ➨ No repl.** VMK VMK2RR 24-6 / M8-220 2 ➨ BFP 52E R5 071N22044) Delta: 57 l/h; Danfoss: 40 l/h at 10 bar M8-220: See above. BFP 52E is only delivered for 220/240 V a.c. VMK VMK2RR 14-6 / M8-220 1 ➨ BFP 52E R5 071N22042) 4) VMK VMK3LR 14 (or 5) M8-220 1 ➨ BFP 52E L5 071N22022) 4) VMK VMK3LR 24 (or 5) M8-220 2 ➨ BFP 52E L5 071N22024) VMK VMK3RR 14 (or 5) M8-220 1 ➨ BFP 52E R5 071N22042) 4) Delta: 68 l/h; Danfoss: 40 l/h at 10 barVMK VMK3RR 24 (or 5) M8-220 2 ➨ BFP 52E R5 071N22044) *) Delta: 57 l/h; BFP: 40 l/h at 10 bar ** No repl. means: Delta has nozzle outlet to the right. 2) This pump is delivered for 2-pipe operation. A changeover to 1-pipe operation is possible, see Changeover 1 - 2 pipe. 4) The pump NC-valve must be connected in parallel to the NC-valve in the nozzleline.

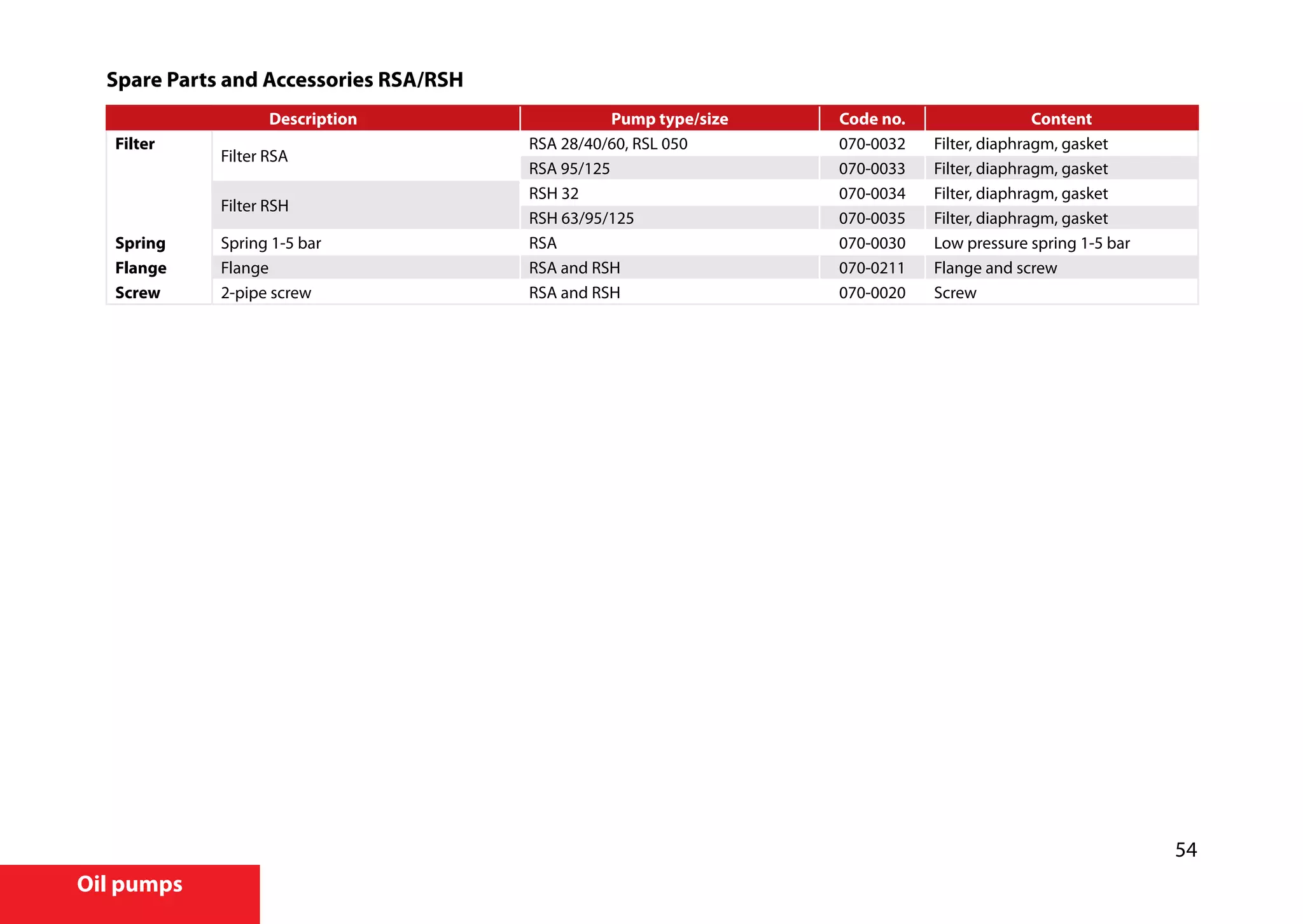

54 Oil pumps Spare Parts and Accessories RSA/RSH Description Pump type/size Code no. Content Filter Filter RSA RSA 28/40/60, RSL 050 070-0032 Filter, diaphragm, gasket RSA 95/125 070-0033 Filter, diaphragm, gasket Filter RSH RSH 32 070-0034 Filter, diaphragm, gasket RSH 63/95/125 070-0035 Filter, diaphragm, gasket Spring Spring 1-5 bar RSA 070-0030 Low pressure spring 1-5 bar Flange Flange RSA and RSH 070-0211 Flange and screw Screw 2-pipe screw RSA and RSH 070-0020 Screw

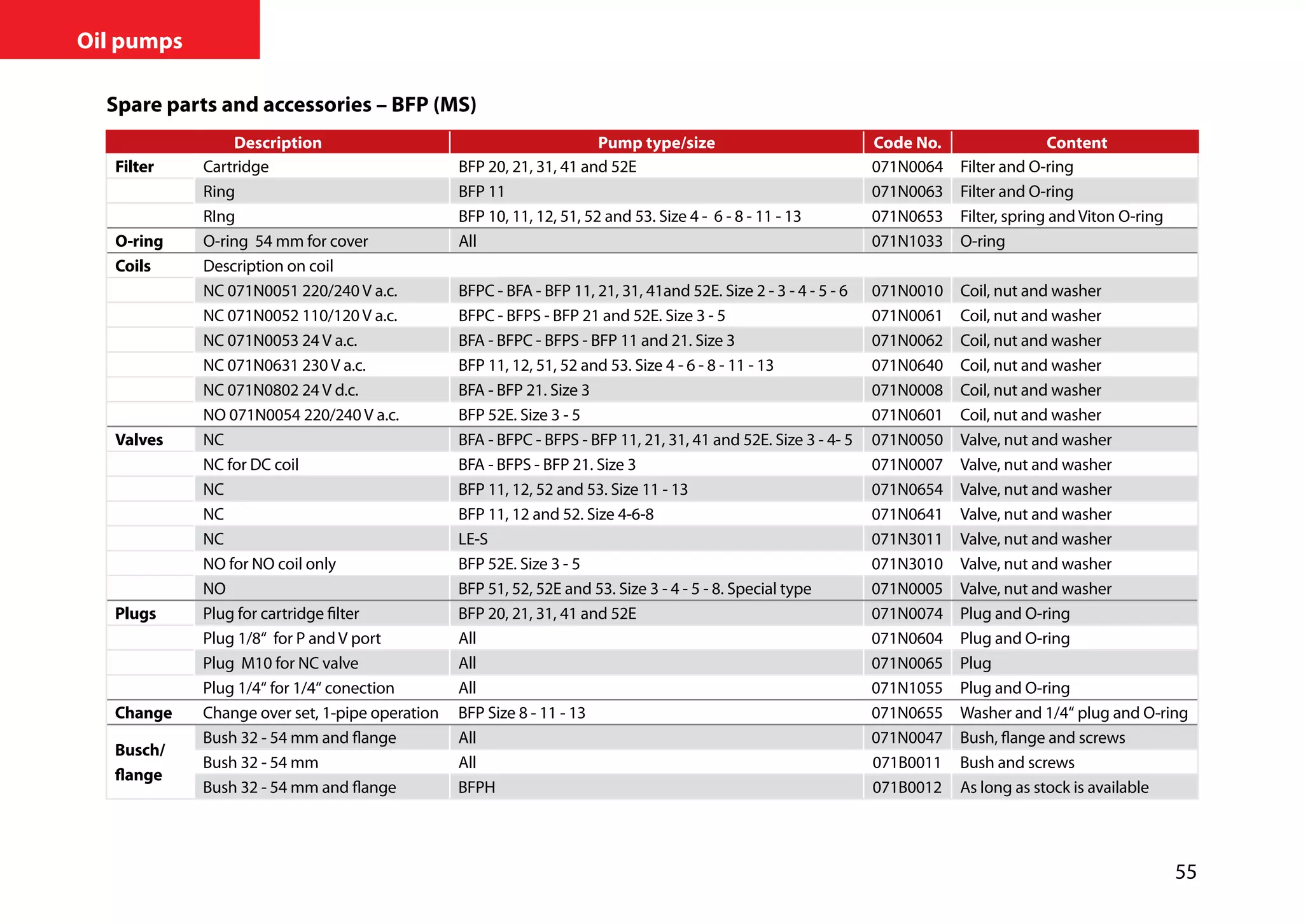

55 Oil pumps Spare parts and accessories – BFP (MS) Description Pump type/size Code No. Content Filter Cartridge BFP 20, 21, 31, 41 and 52E 071N0064 Filter and O-ring Ring BFP 11 071N0063 Filter and O-ring RIng BFP 10, 11, 12, 51, 52 and 53. Size 4 - 6 - 8 - 11 - 13 071N0653 Filter, spring and Viton O-ring O-ring O-ring 54 mm for cover All 071N1033 O-ring Coils Description on coil NC 071N0051 220/240 V a.c. BFPC - BFA - BFP 11, 21, 31, 41and 52E. Size 2 - 3 - 4 - 5 - 6 071N0010 Coil, nut and washer NC 071N0052 110/120 V a.c. BFPC - BFPS - BFP 21 and 52E. Size 3 - 5 071N0061 Coil, nut and washer NC 071N0053 24 V a.c. BFA - BFPC - BFPS - BFP 11 and 21. Size 3 071N0062 Coil, nut and washer NC 071N0631 230 V a.c. BFP 11, 12, 51, 52 and 53. Size 4 - 6 - 8 - 11 - 13 071N0640 Coil, nut and washer NC 071N0802 24 V d.c. BFA - BFP 21. Size 3 071N0008 Coil, nut and washer NO 071N0054 220/240 V a.c. BFP 52E. Size 3 - 5 071N0601 Coil, nut and washer Valves NC BFA - BFPC - BFPS - BFP 11, 21, 31, 41 and 52E. Size 3 - 4- 5 071N0050 Valve, nut and washer NC for DC coil BFA - BFPS - BFP 21. Size 3 071N0007 Valve, nut and washer NC BFP 11, 12, 52 and 53. Size 11 - 13 071N0654 Valve, nut and washer NC BFP 11, 12 and 52. Size 4-6-8 071N0641 Valve, nut and washer NC LE-S 071N3011 Valve, nut and washer NO for NO coil only BFP 52E. Size 3 - 5 071N3010 Valve, nut and washer NO BFP 51, 52, 52E and 53. Size 3 - 4 - 5 - 8. Special type 071N0005 Valve, nut and washer Plugs Plug for cartridge filter BFP 20, 21, 31, 41 and 52E 071N0074 Plug and O-ring Plug 1/8“ for P and V port All 071N0604 Plug and O-ring Plug M10 for NC valve All 071N0065 Plug Plug 1/4“ for 1/4“ conection All 071N1055 Plug and O-ring Change Change over set, 1-pipe operation BFP Size 8 - 11 - 13 071N0655 Washer and 1/4“ plug and O-ring Busch/ flange Bush 32 - 54 mm and flange All 071N0047 Bush, flange and screws Bush 32 - 54 mm All 071B0011 Bush and screws Bush 32 - 54 mm and flange BFPH 071B0012 As long as stock is available

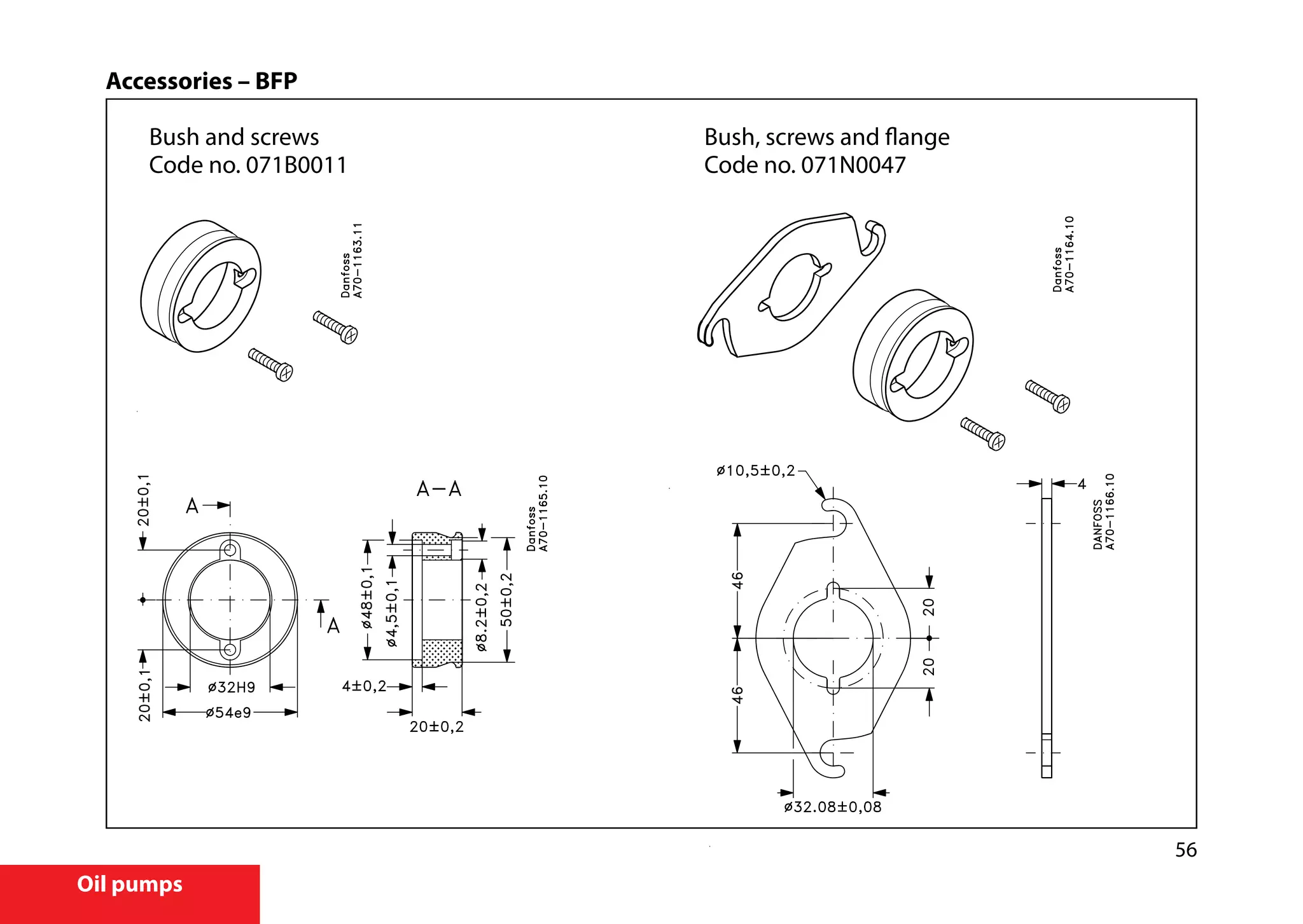

56 Oil pumps Accessories – BFP Bush and screws Bush, screws and flange Code no. 071B0011 Code no. 071N0047

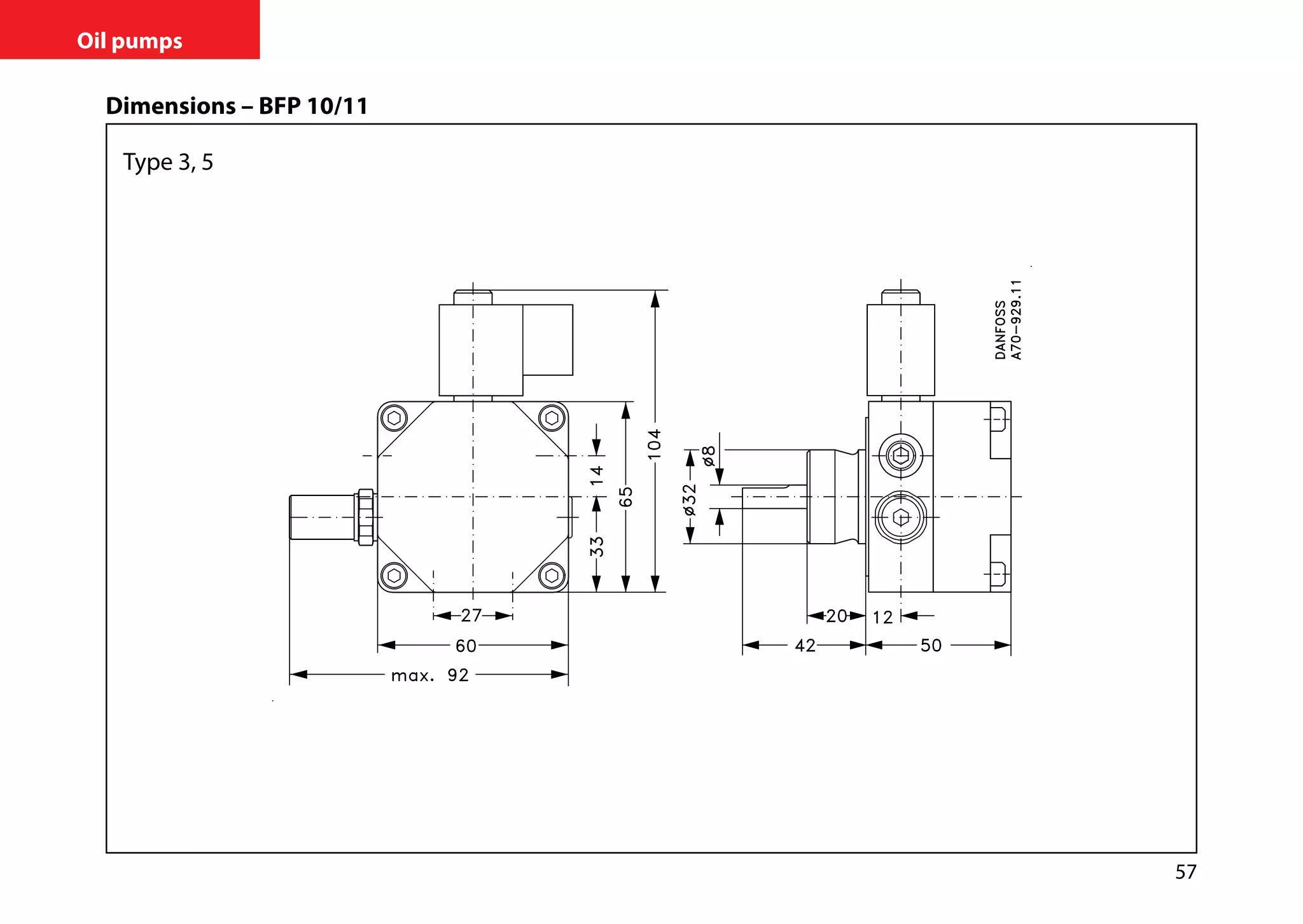

57 Oil pumps Dimensions – BFP 10/11 Type 3, 5

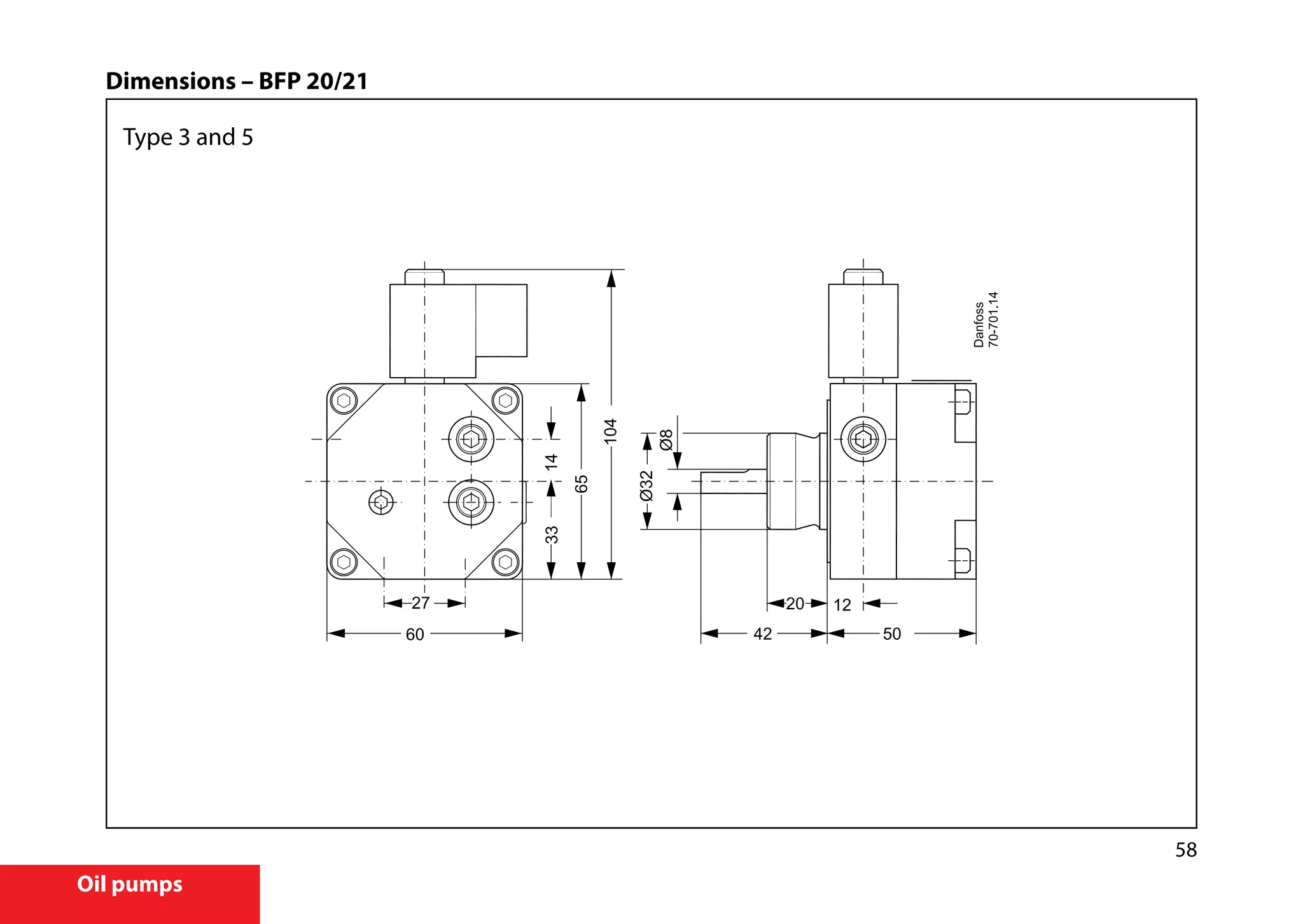

58 Oil pumps Dimensions – BFP 20/21 Type 3 and 5

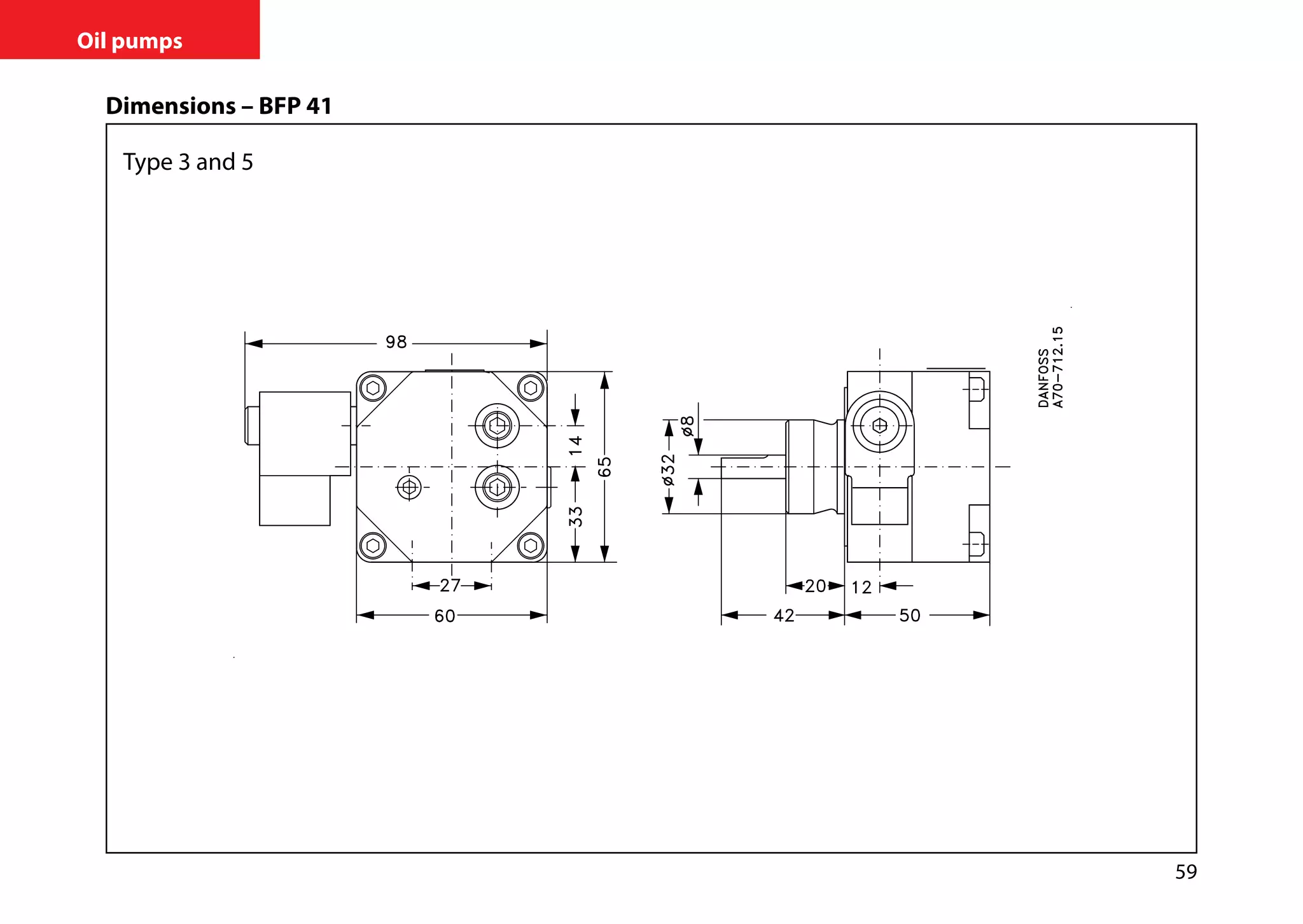

59 Oil pumps Dimensions – BFP 41 Type 3 and 5

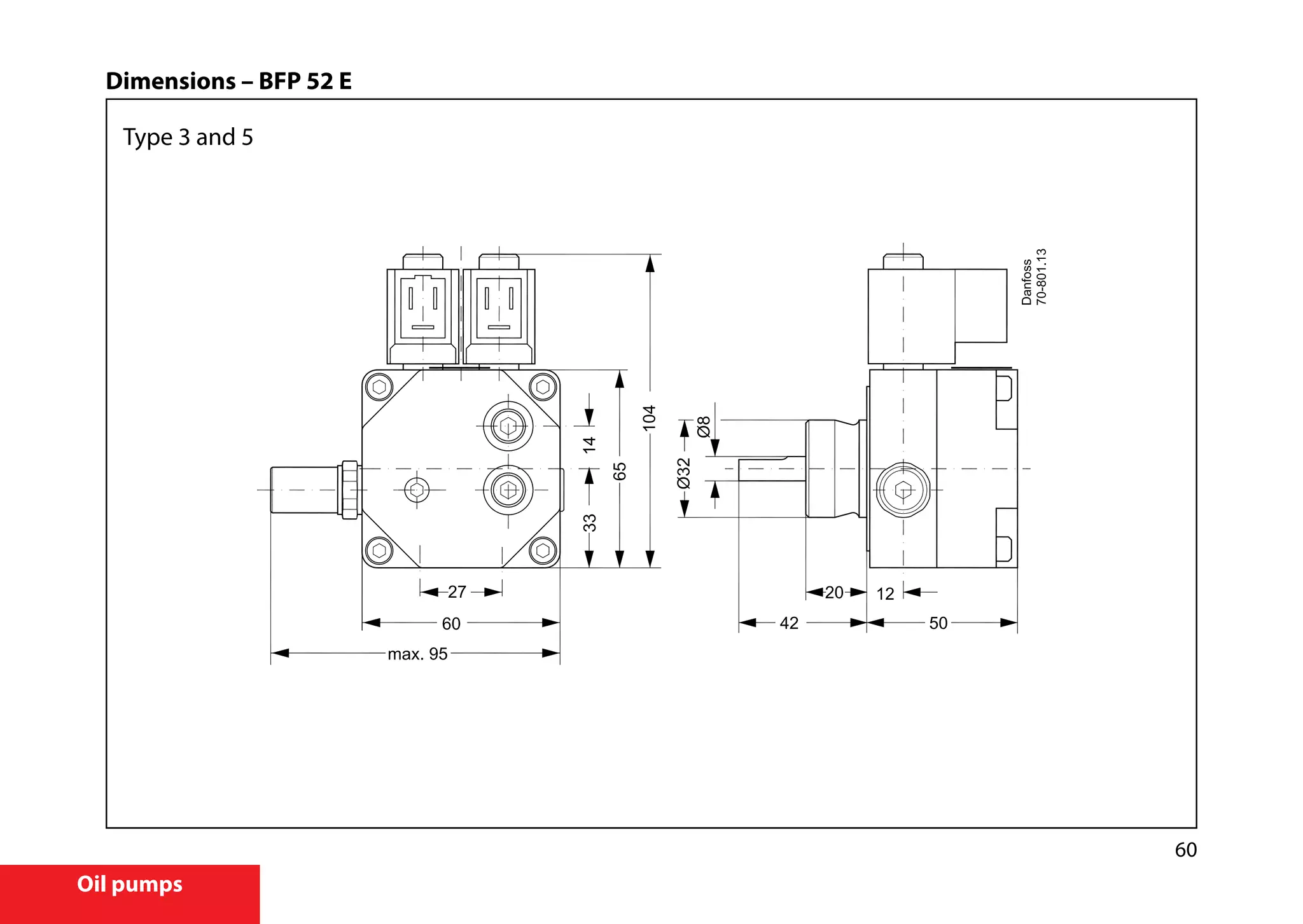

60 Oil pumps Dimensions – BFP 52 E Type 3 and 5

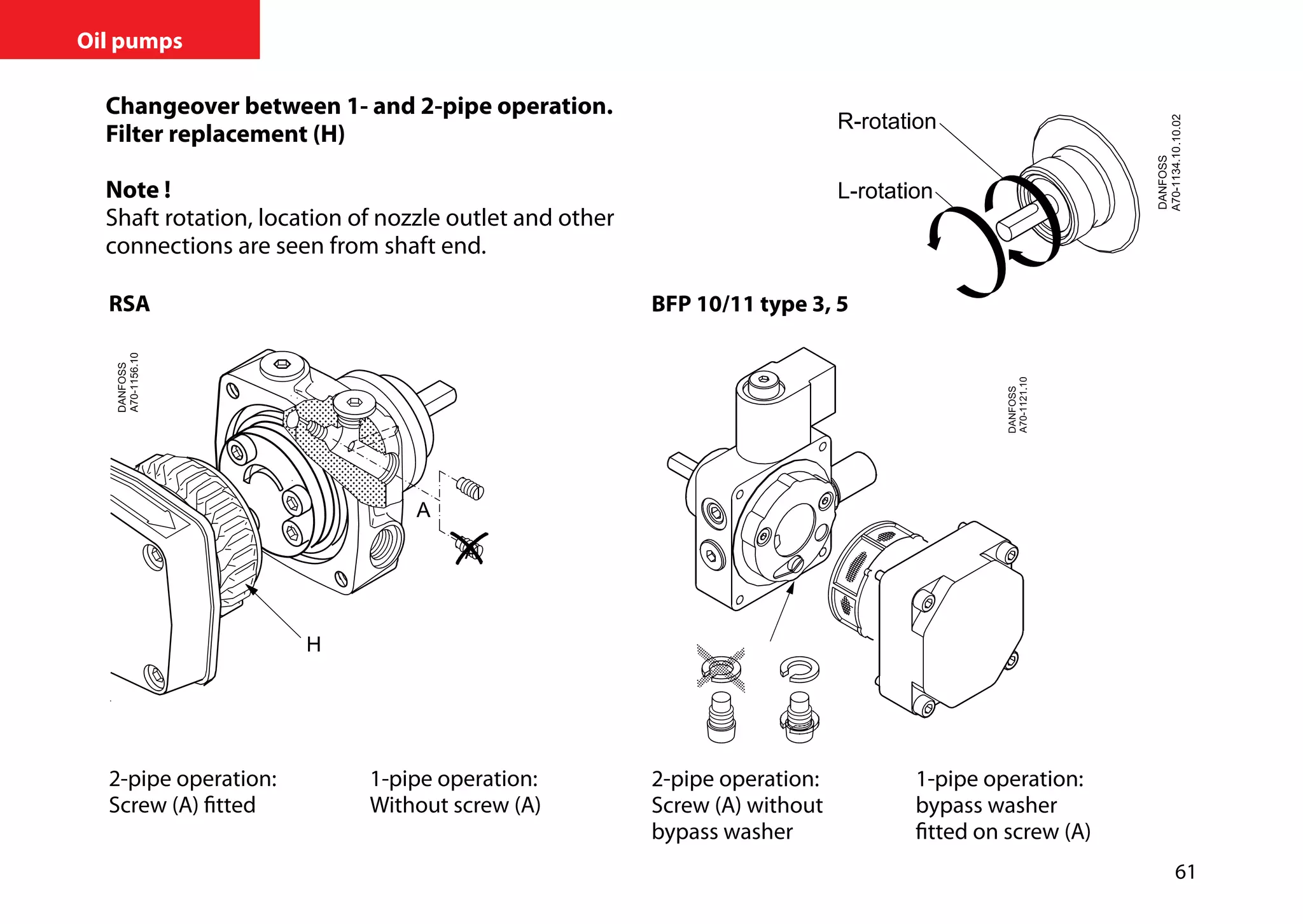

61 Oil pumps Changeover between 1- and 2-pipe operation. Filter replacement (H) Note ! Shaft rotation, location of nozzle outlet and other connections are seen from shaft end. BFP 10/11 type 3, 5 2-pipe operation: 1-pipe operation: Screw (A) without bypass washer bypass washer fitted on screw (A) RSA 2-pipe operation: 1-pipe operation: Screw (A) fitted Without screw (A)

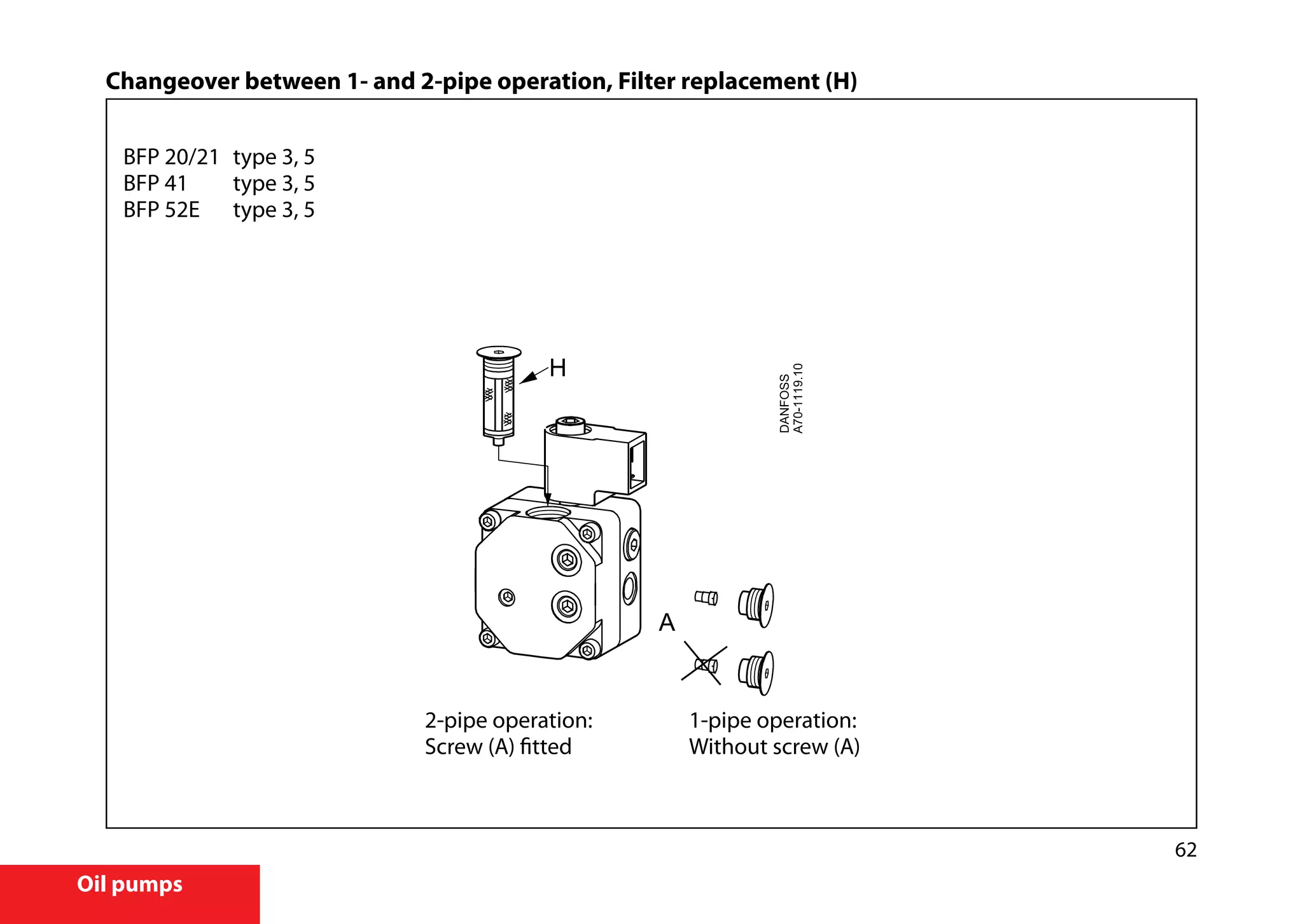

62 Oil pumps Changeover between 1- and 2-pipe operation, Filter replacement (H) 2-pipe operation: 1-pipe operation: Screw (A) fitted Without screw (A) BFP 20/21 type 3, 5 BFP 41 type 3, 5 BFP 52E type 3, 5

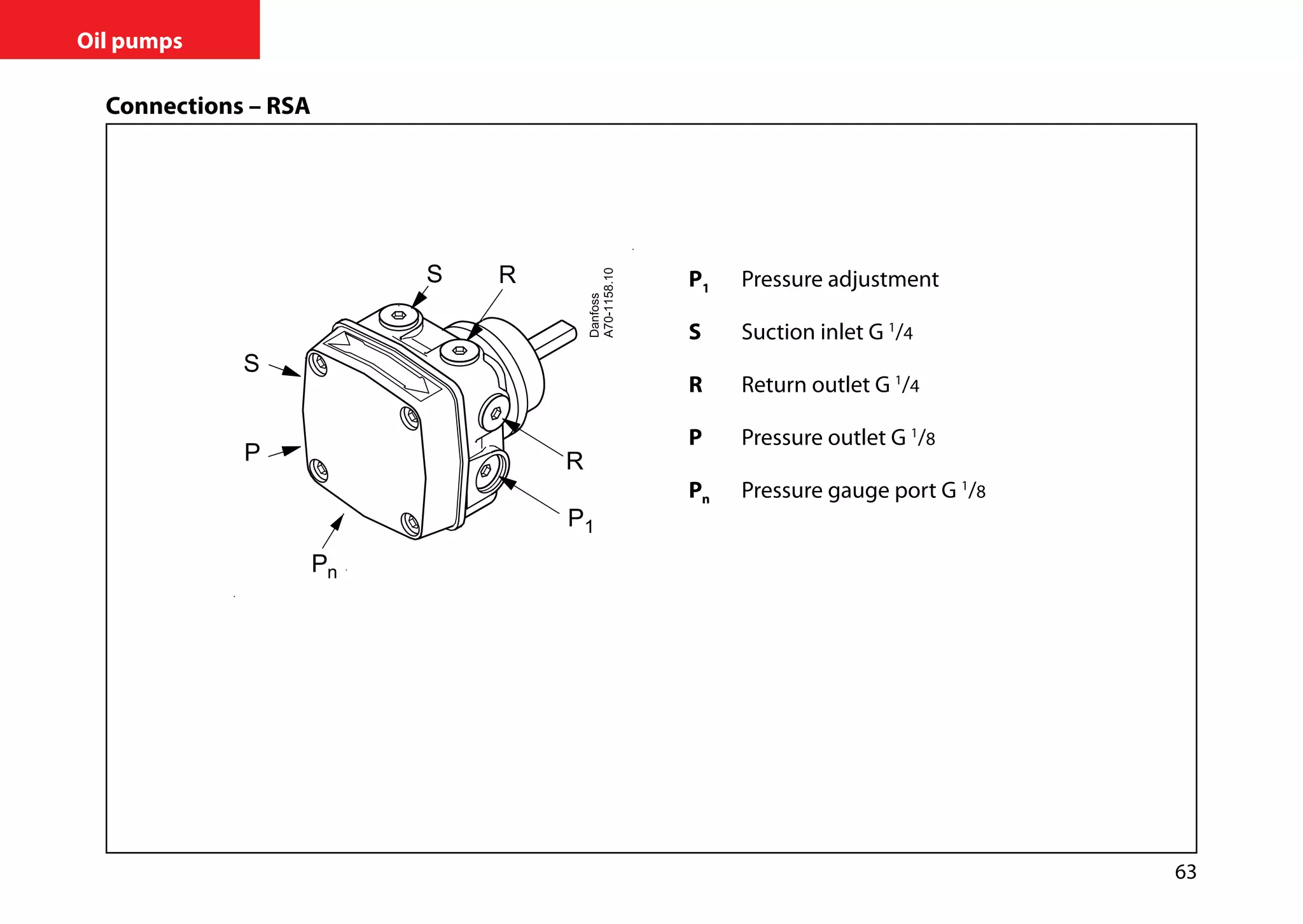

63 Oil pumps P1 Pressure adjustment S Suction inlet G 1 /4 R Return outlet G 1 /4 P Pressure outlet G 1 /8 Pn Pressure gauge port G 1 /8 Connections – RSA

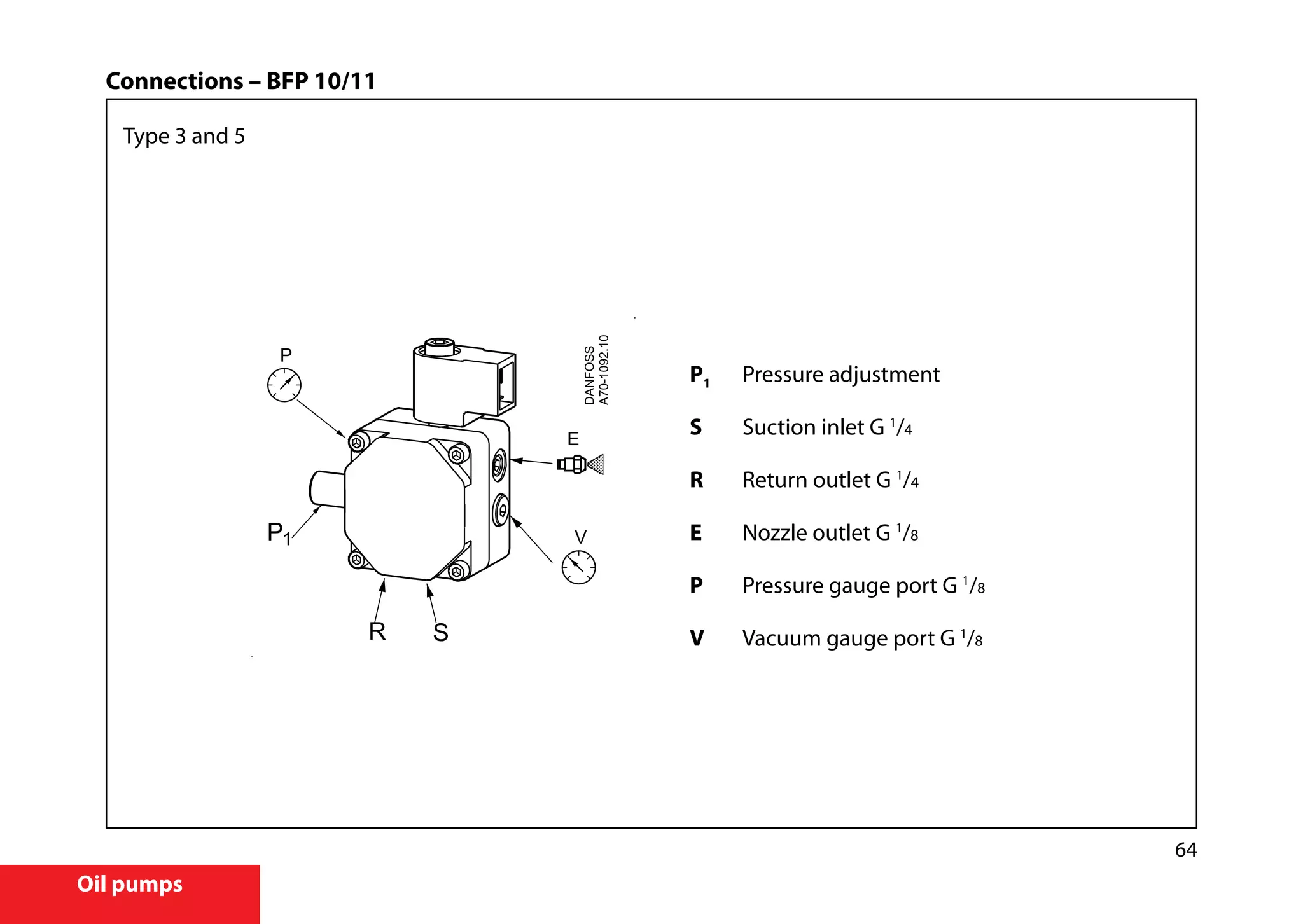

64 Oil pumps P1 Pressure adjustment S Suction inlet G 1 /4 R Return outlet G 1 /4 E Nozzle outlet G 1 /8 P Pressure gauge port G 1 /8 V Vacuum gauge port G 1 /8 Connections – BFP 10/11 Type 3 and 5

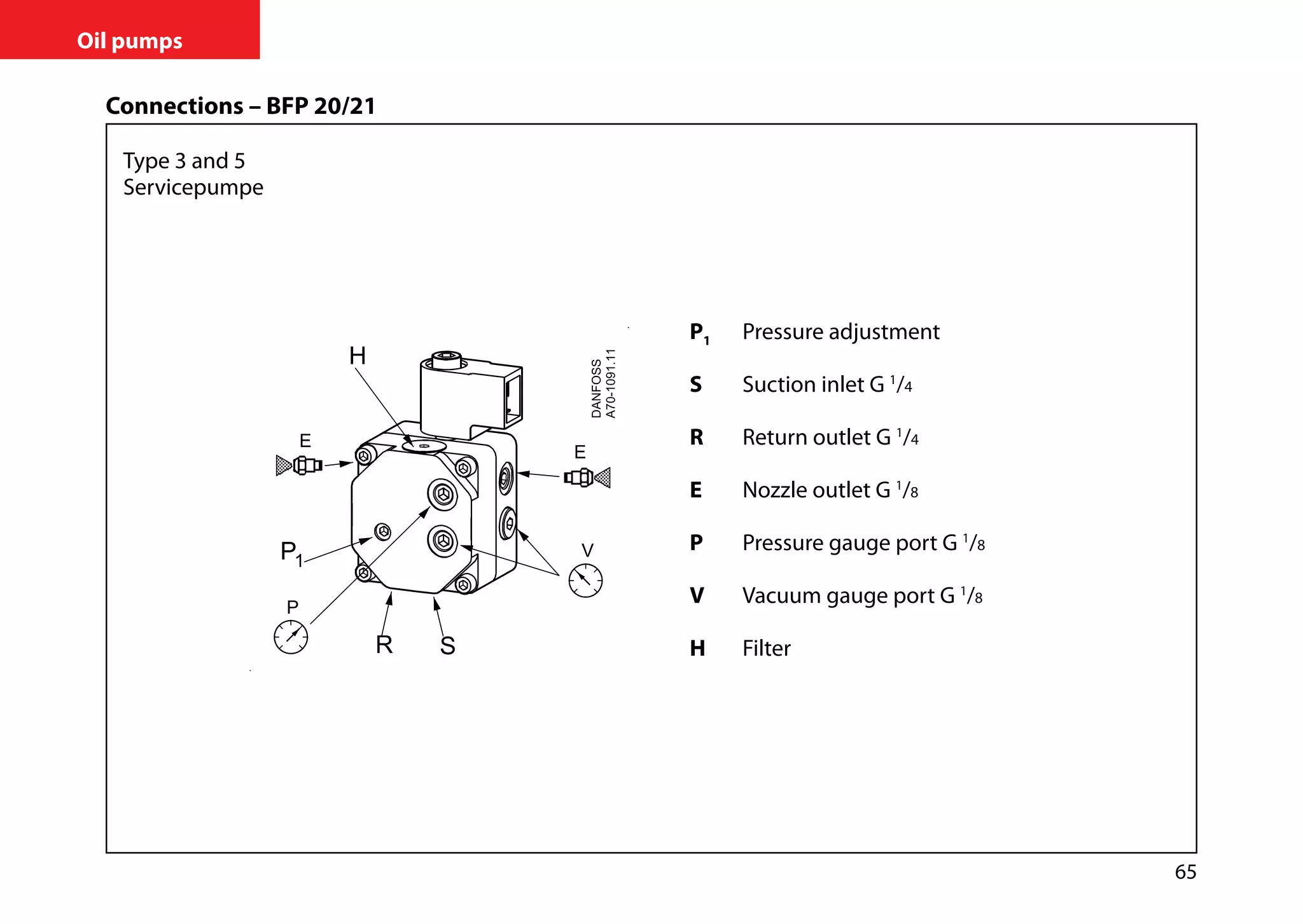

65 Oil pumps P1 Pressure adjustment S Suction inlet G 1 /4 R Return outlet G 1 /4 E Nozzle outlet G 1 /8 P Pressure gauge port G 1 /8 V Vacuum gauge port G 1 /8 H Filter Connections – BFP 20/21 Type 3 and 5 Servicepumpe

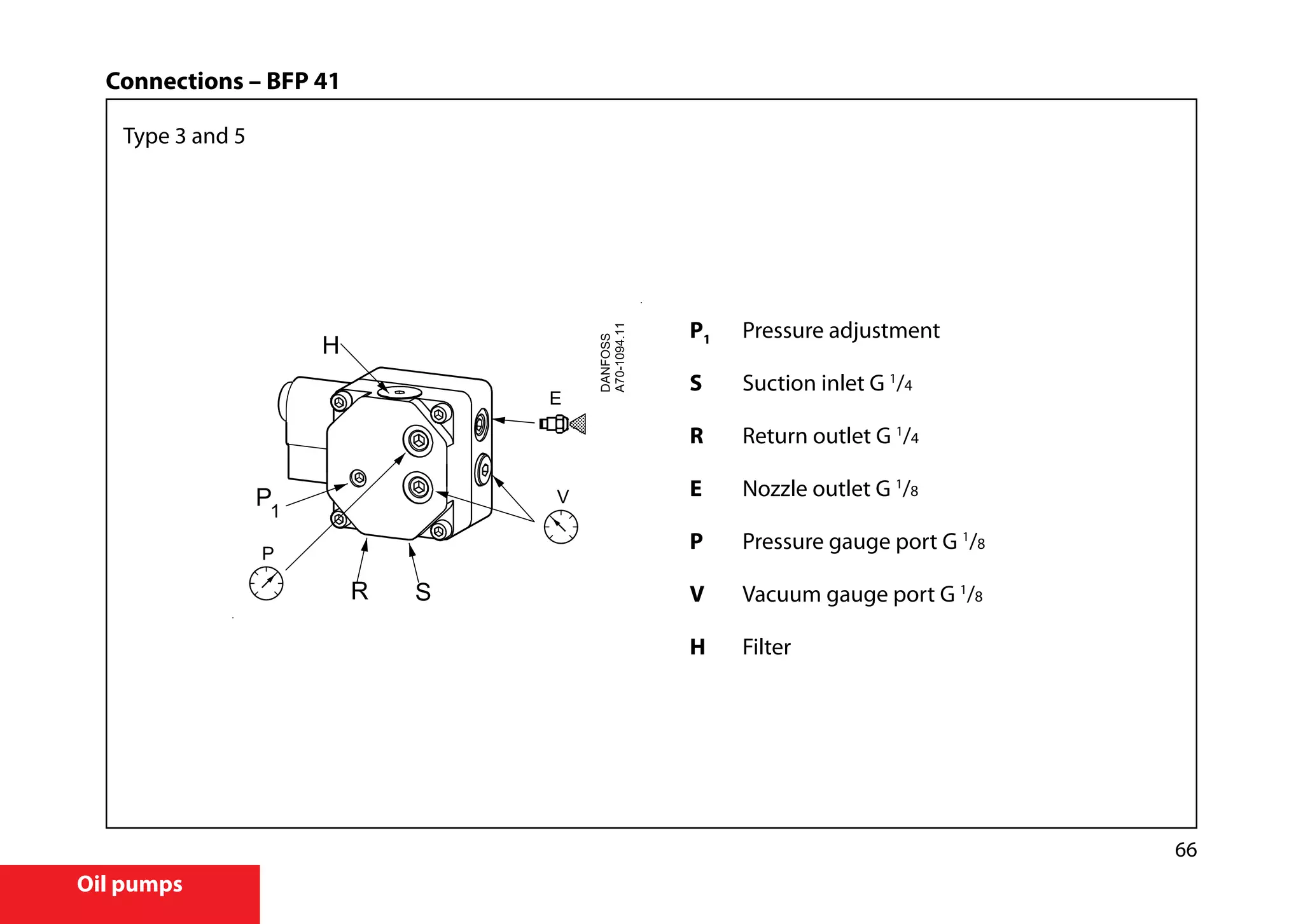

66 Oil pumps P1 Pressure adjustment S Suction inlet G 1 /4 R Return outlet G 1 /4 E Nozzle outlet G 1 /8 P Pressure gauge port G 1 /8 V Vacuum gauge port G 1 /8 H Filter Connections – BFP 41 Type 3 and 5

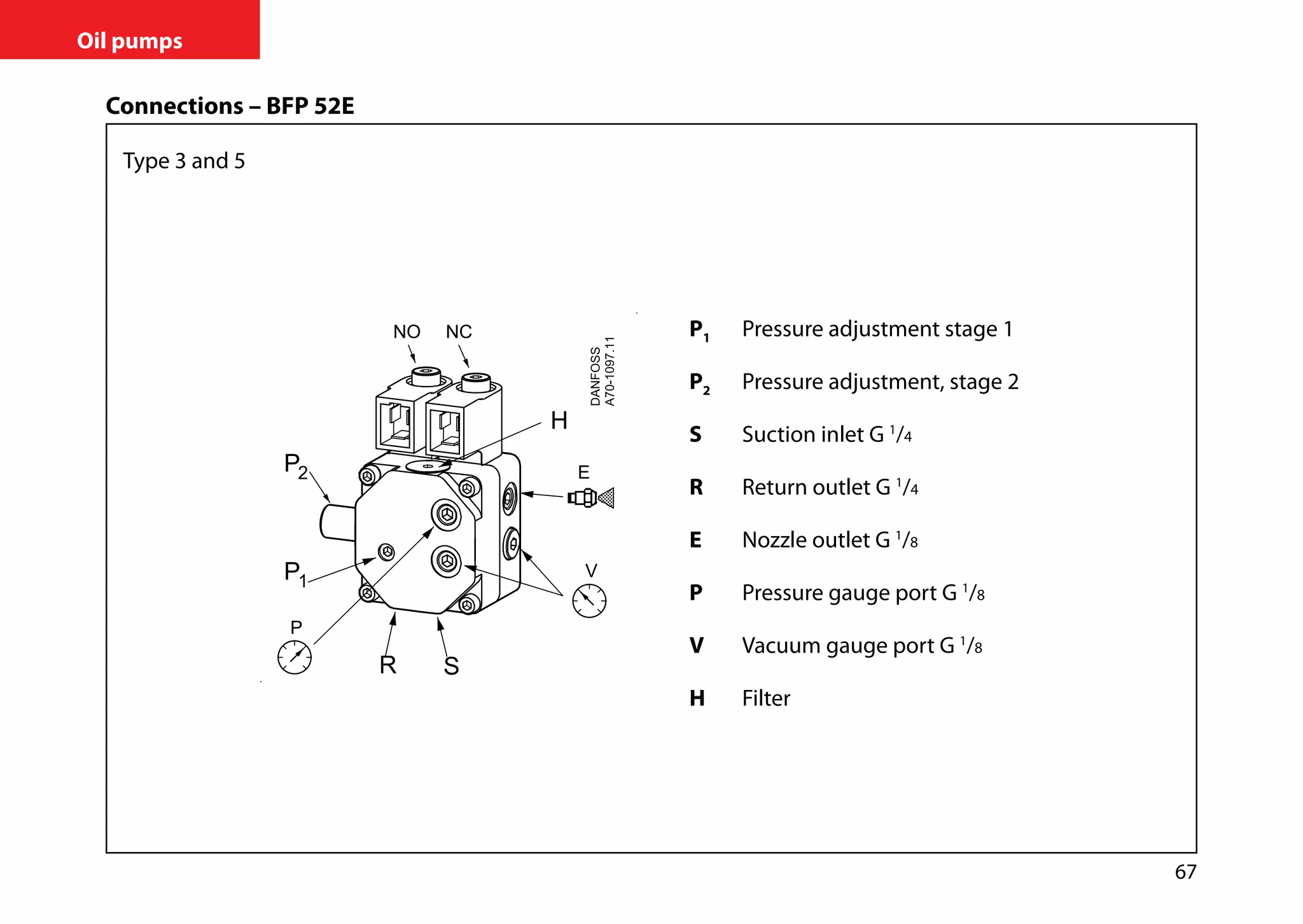

67 Oil pumps Connections – BFP 52E Type 3 and 5 P1 Pressure adjustment stage 1 P2 Pressure adjustment, stage 2 S Suction inlet G 1 /4 R Return outlet G 1 /4 E Nozzle outlet G 1 /8 P Pressure gauge port G 1 /8 V Vacuum gauge port G 1 /8 H Filter

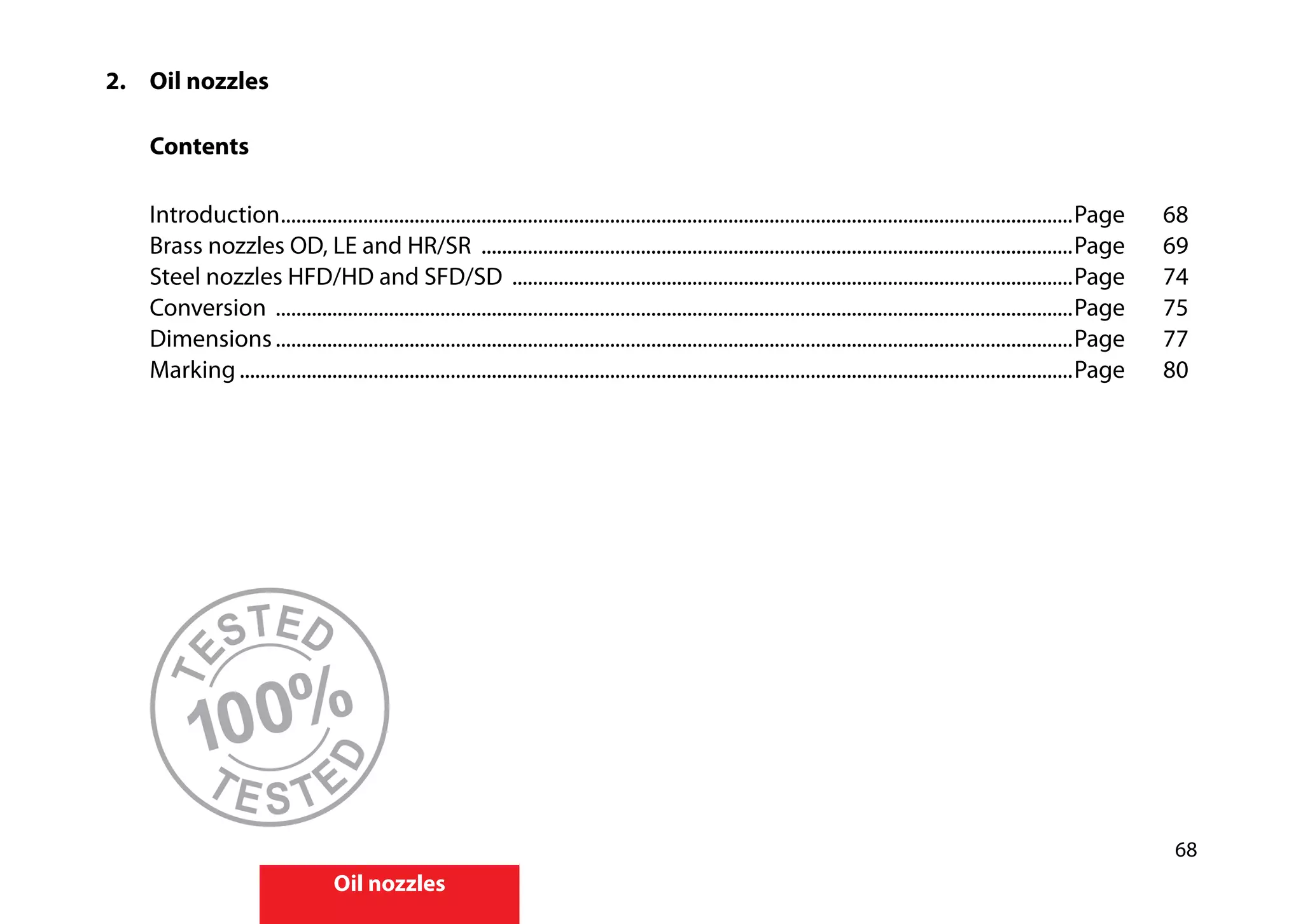

68 Oil nozzles 2. Oil nozzles Contents Introduction...........................................................................................................................................................Page 68 Brass nozzles OD, LE and HR/SR ....................................................................................................................Page 69 Steel nozzles HFD/HD and SFD/SD ..............................................................................................................Page 74 Conversion ............................................................................................................................................................Page 75 Dimensions............................................................................................................................................................Page 77 Marking...................................................................................................................................................................Page 80 100% TE STED T E S T E D

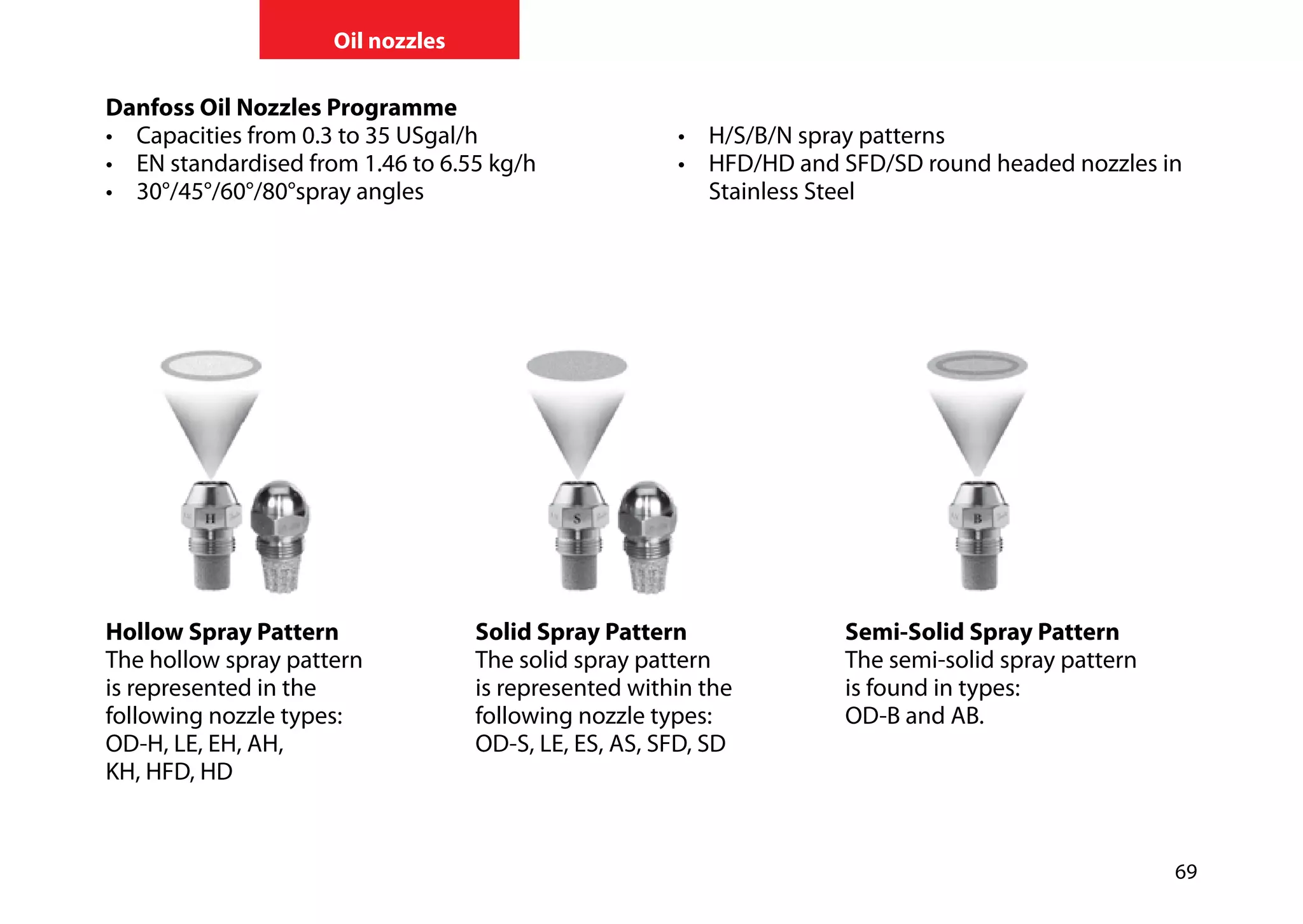

69 Oil nozzles Danfoss Oil Nozzles Programme • Capacities from 0.3 to 35 USgal/h • EN standardised from 1.46 to 6.55 kg/h • 30°/45°/60°/80°spray angles • H/S/B/N spray patterns • HFD/HD and SFD/SD round headed nozzles in Stainless Steel Hollow Spray Pattern The hollow spray pattern is represented in the following nozzle types: OD-H, LE, EH, AH, KH, HFD, HD Solid Spray Pattern The solid spray pattern is represented within the following nozzle types: OD-S, LE, ES, AS, SFD, SD Semi-Solid Spray Pattern The semi-solid spray pattern is found in types: OD-B and AB.

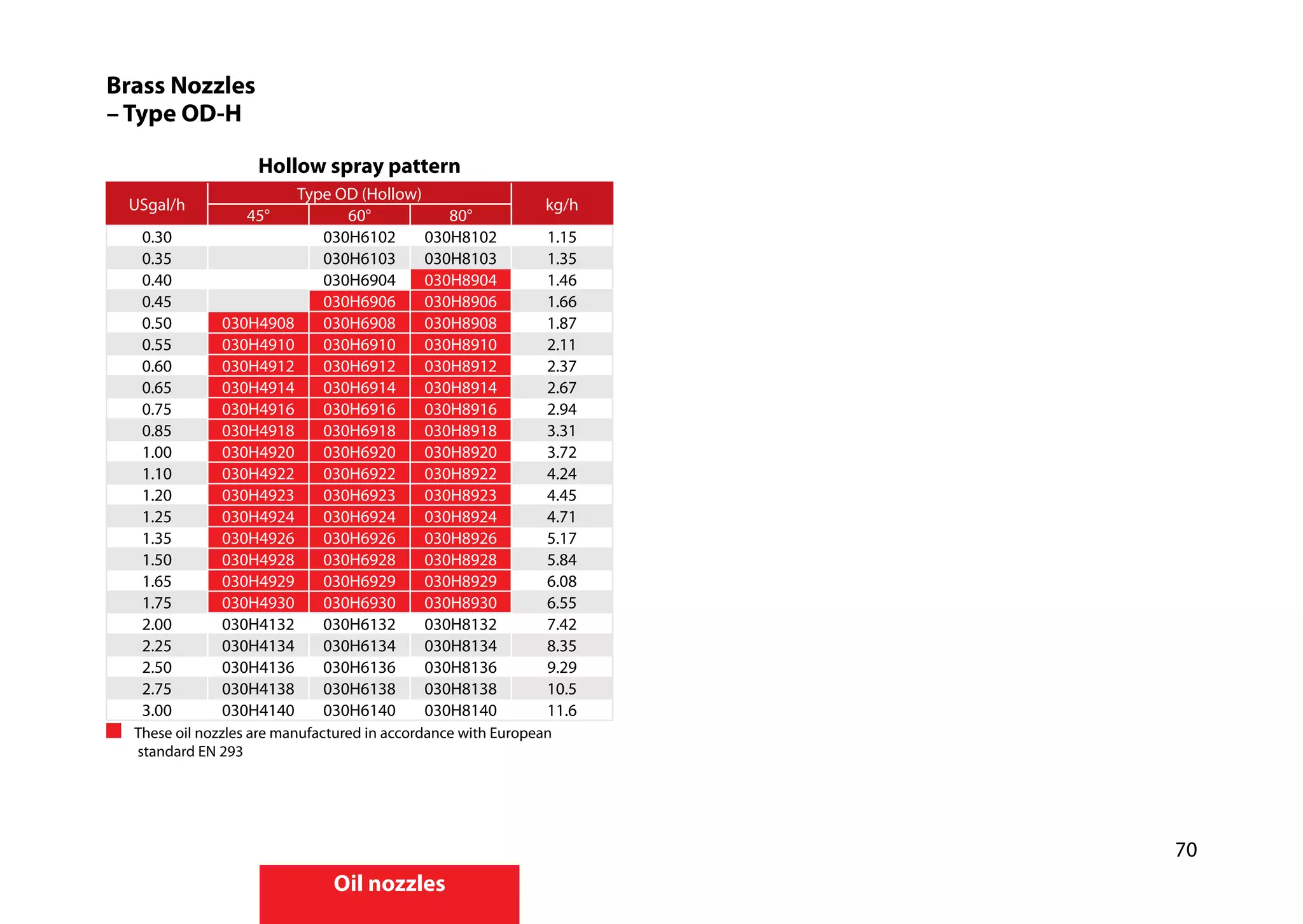

70 Oil nozzles Brass Nozzles – Type OD-H Hollow spray pattern USgal/h Type OD (Hollow) kg/h 45° 60° 80° 0.30 030H6102 030H8102 1.15 0.35 030H6103 030H8103 1.35 0.40 030H6904 030H8904 1.46 0.45 030H6906 030H8906 1.66 0.50 030H4908 030H6908 030H8908 1.87 0.55 030H4910 030H6910 030H8910 2.11 0.60 030H4912 030H6912 030H8912 2.37 0.65 030H4914 030H6914 030H8914 2.67 0.75 030H4916 030H6916 030H8916 2.94 0.85 030H4918 030H6918 030H8918 3.31 1.00 030H4920 030H6920 030H8920 3.72 1.10 030H4922 030H6922 030H8922 4.24 1.20 030H4923 030H6923 030H8923 4.45 1.25 030H4924 030H6924 030H8924 4.71 1.35 030H4926 030H6926 030H8926 5.17 1.50 030H4928 030H6928 030H8928 5.84 1.65 030H4929 030H6929 030H8929 6.08 1.75 030H4930 030H6930 030H8930 6.55 2.00 030H4132 030H6132 030H8132 7.42 2.25 030H4134 030H6134 030H8134 8.35 2.50 030H4136 030H6136 030H8136 9.29 2.75 030H4138 030H6138 030H8138 10.5 3.00 030H4140 030H6140 030H8140 11.6 These oil nozzles are manufactured in accordance with European standard EN 293

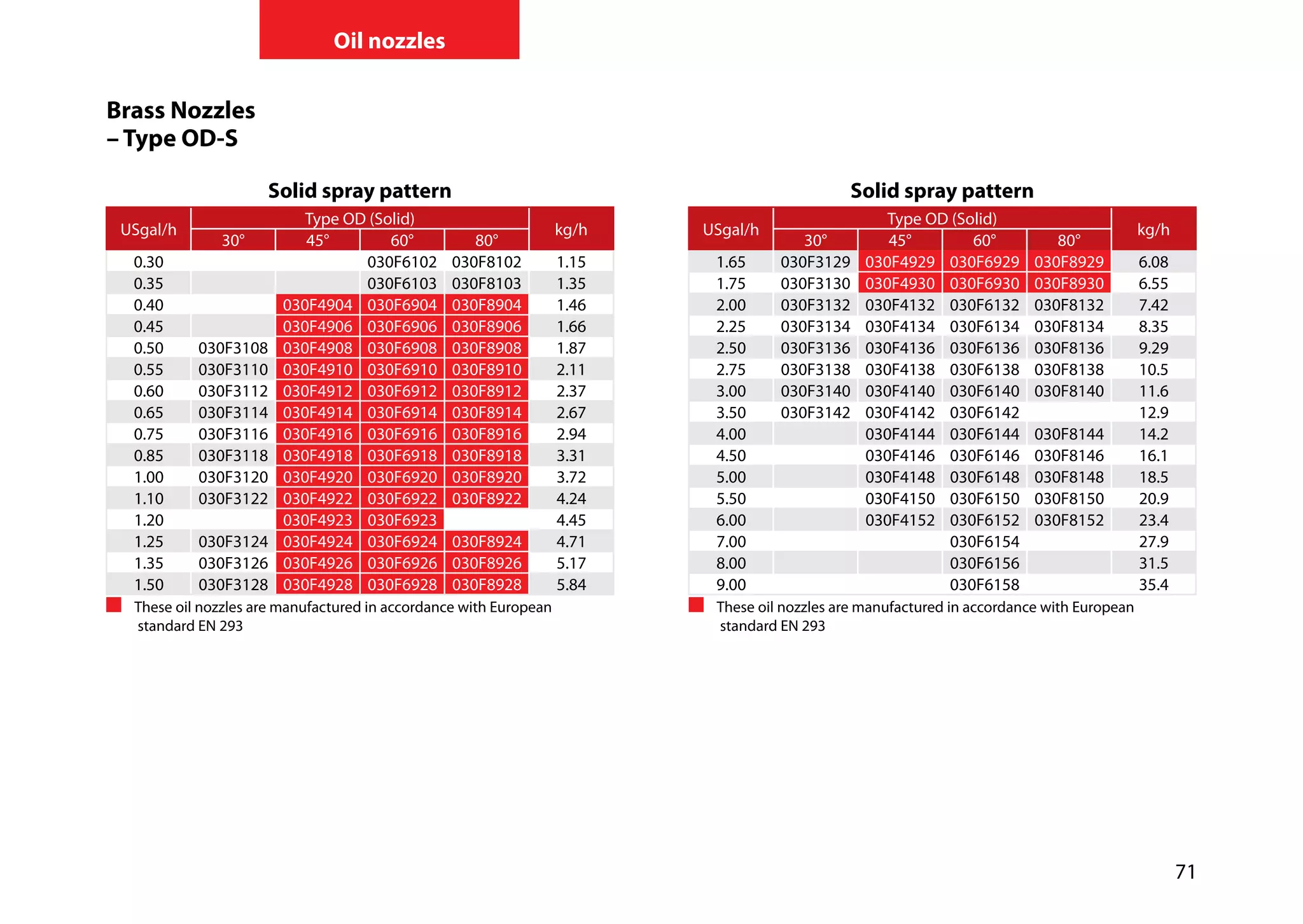

71 Oil nozzles Brass Nozzles – Type OD-S Solid spray pattern USgal/h Type OD (Solid) kg/h 30° 45° 60° 80° 0.30 030F6102 030F8102 1.15 0.35 030F6103 030F8103 1.35 0.40 030F4904 030F6904 030F8904 1.46 0.45 030F4906 030F6906 030F8906 1.66 0.50 030F3108 030F4908 030F6908 030F8908 1.87 0.55 030F3110 030F4910 030F6910 030F8910 2.11 0.60 030F3112 030F4912 030F6912 030F8912 2.37 0.65 030F3114 030F4914 030F6914 030F8914 2.67 0.75 030F3116 030F4916 030F6916 030F8916 2.94 0.85 030F3118 030F4918 030F6918 030F8918 3.31 1.00 030F3120 030F4920 030F6920 030F8920 3.72 1.10 030F3122 030F4922 030F6922 030F8922 4.24 1.20 030F4923 030F6923 4.45 1.25 030F3124 030F4924 030F6924 030F8924 4.71 1.35 030F3126 030F4926 030F6926 030F8926 5.17 1.50 030F3128 030F4928 030F6928 030F8928 5.84 These oil nozzles are manufactured in accordance with European standard EN 293 Solid spray pattern USgal/h Type OD (Solid) kg/h 30° 45° 60° 80° 1.65 030F3129 030F4929 030F6929 030F8929 6.08 1.75 030F3130 030F4930 030F6930 030F8930 6.55 2.00 030F3132 030F4132 030F6132 030F8132 7.42 2.25 030F3134 030F4134 030F6134 030F8134 8.35 2.50 030F3136 030F4136 030F6136 030F8136 9.29 2.75 030F3138 030F4138 030F6138 030F8138 10.5 3.00 030F3140 030F4140 030F6140 030F8140 11.6 3.50 030F3142 030F4142 030F6142 12.9 4.00 030F4144 030F6144 030F8144 14.2 4.50 030F4146 030F6146 030F8146 16.1 5.00 030F4148 030F6148 030F8148 18.5 5.50 030F4150 030F6150 030F8150 20.9 6.00 030F4152 030F6152 030F8152 23.4 7.00 030F6154 27.9 8.00 030F6156 31.5 9.00 030F6158 35.4 These oil nozzles are manufactured in accordance with European standard EN 293

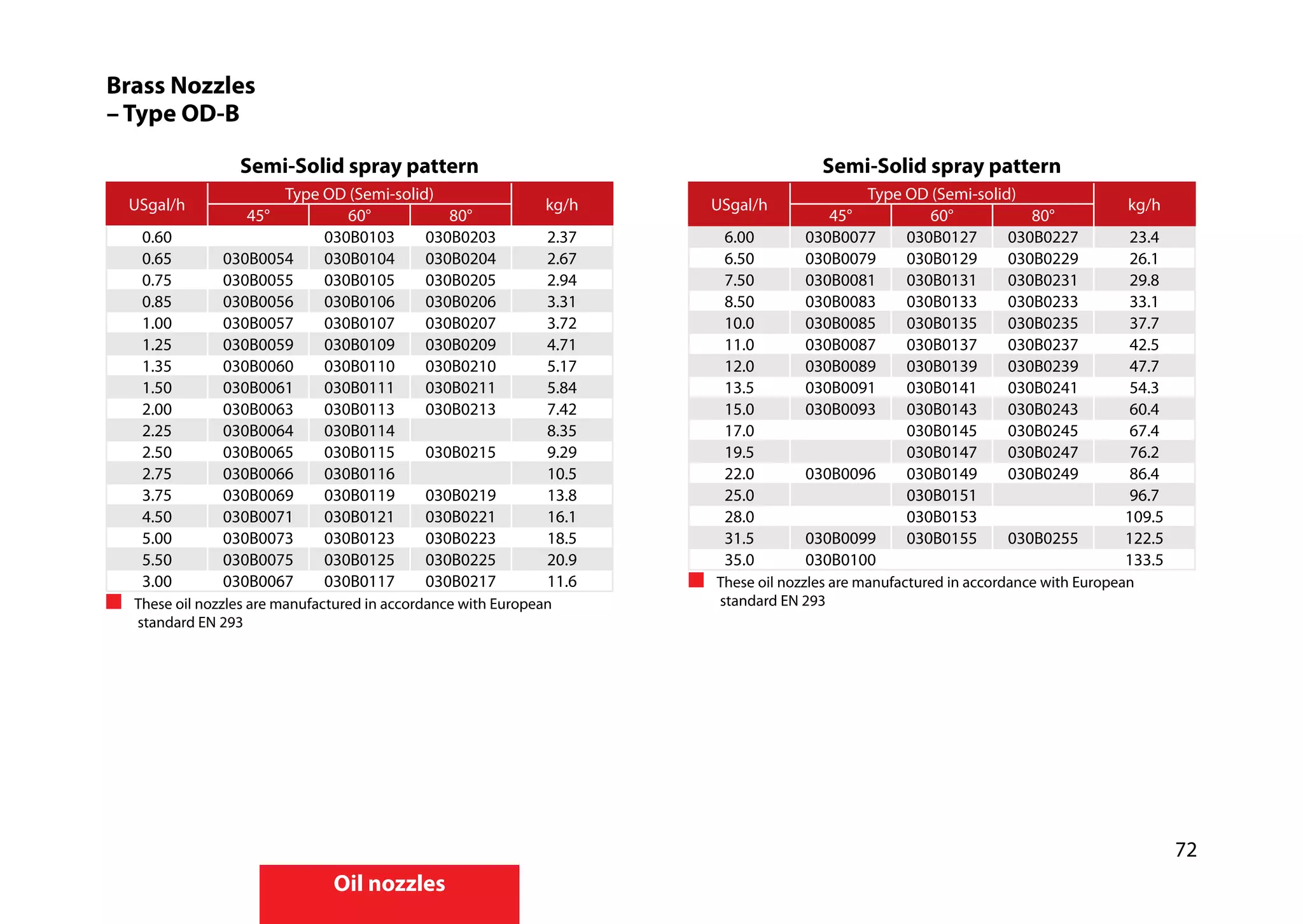

72 Oil nozzles Brass Nozzles – Type OD-B Semi-Solid spray pattern USgal/h Type OD (Semi-solid) kg/h 45° 60° 80° 0.60 030B0103 030B0203 2.37 0.65 030B0054 030B0104 030B0204 2.67 0.75 030B0055 030B0105 030B0205 2.94 0.85 030B0056 030B0106 030B0206 3.31 1.00 030B0057 030B0107 030B0207 3.72 1.25 030B0059 030B0109 030B0209 4.71 1.35 030B0060 030B0110 030B0210 5.17 1.50 030B0061 030B0111 030B0211 5.84 2.00 030B0063 030B0113 030B0213 7.42 2.25 030B0064 030B0114 8.35 2.50 030B0065 030B0115 030B0215 9.29 2.75 030B0066 030B0116 10.5 3.75 030B0069 030B0119 030B0219 13.8 4.50 030B0071 030B0121 030B0221 16.1 5.00 030B0073 030B0123 030B0223 18.5 5.50 030B0075 030B0125 030B0225 20.9 3.00 030B0067 030B0117 030B0217 11.6 These oil nozzles are manufactured in accordance with European standard EN 293 Semi-Solid spray pattern USgal/h Type OD (Semi-solid) kg/h 45° 60° 80° 6.00 030B0077 030B0127 030B0227 23.4 6.50 030B0079 030B0129 030B0229 26.1 7.50 030B0081 030B0131 030B0231 29.8 8.50 030B0083 030B0133 030B0233 33.1 10.0 030B0085 030B0135 030B0235 37.7 11.0 030B0087 030B0137 030B0237 42.5 12.0 030B0089 030B0139 030B0239 47.7 13.5 030B0091 030B0141 030B0241 54.3 15.0 030B0093 030B0143 030B0243 60.4 17.0 030B0145 030B0245 67.4 19.5 030B0147 030B0247 76.2 22.0 030B0096 030B0149 030B0249 86.4 25.0 030B0151 96.7 28.0 030B0153 109.5 31.5 030B0099 030B0155 030B0255 122.5 35.0 030B0100 133.5 These oil nozzles are manufactured in accordance with European standard EN 293

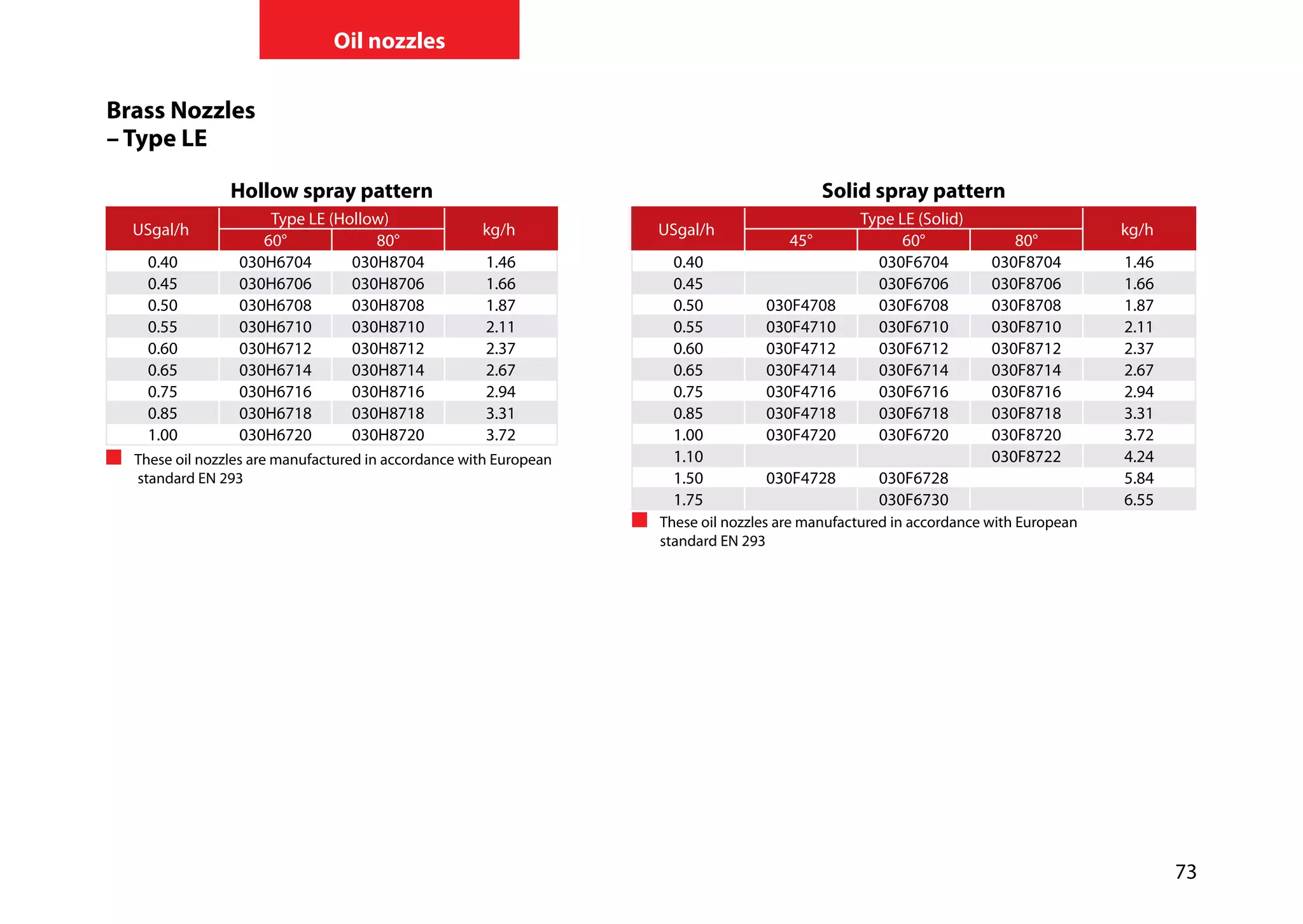

73 Oil nozzles Brass Nozzles – Type LE Hollow spray pattern Solid spray pattern USgal/h Type LE (Hollow) kg/h USgal/h Type LE (Solid) kg/h 60° 80° 45° 60° 80° 0.40 030H6704 030H8704 1.46 0.40 030F6704 030F8704 1.46 0.45 030H6706 030H8706 1.66 0.45 030F6706 030F8706 1.66 0.50 030H6708 030H8708 1.87 0.50 030F4708 030F6708 030F8708 1.87 0.55 030H6710 030H8710 2.11 0.55 030F4710 030F6710 030F8710 2.11 0.60 030H6712 030H8712 2.37 0.60 030F4712 030F6712 030F8712 2.37 0.65 030H6714 030H8714 2.67 0.65 030F4714 030F6714 030F8714 2.67 0.75 030H6716 030H8716 2.94 0.75 030F4716 030F6716 030F8716 2.94 0.85 030H6718 030H8718 3.31 0.85 030F4718 030F6718 030F8718 3.31 1.00 030H6720 030H8720 3.72 1.00 030F4720 030F6720 030F8720 3.72 These oil nozzles are manufactured in accordance with European standard EN 293 1.10 030F8722 4.24 1.50 030F4728 030F6728 5.84 1.75 030F6730 6.55 These oil nozzles are manufactured in accordance with European standard EN 293

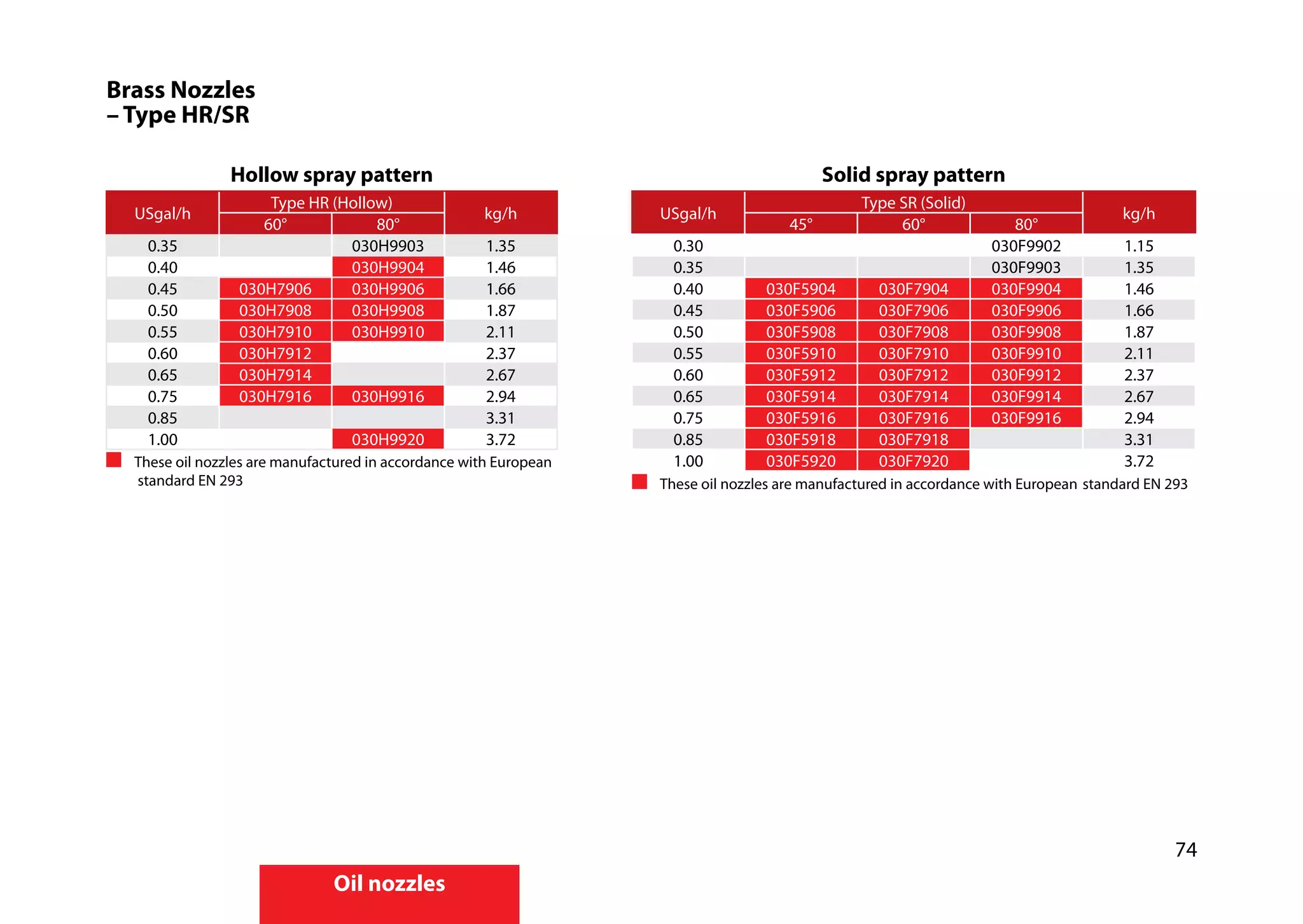

74 Oil nozzles Brass Nozzles – Type HR/SR Hollow spray pattern Solid spray pattern USgal/h Type HR (Hollow) kg/h USgal/h Type SR (Solid) kg/h 60° 80° 45° 60° 80° 0.35 030H9903 1.35 0.30 030F9902 1.15 0.40 030H9904 1.46 0.35 030F9903 1.35 0.45 030H7906 030H9906 1.66 0.40 030F5904 030F7904 030F9904 1.46 0.50 030H7908 030H9908 1.87 0.45 030F5906 030F7906 030F9906 1.66 0.55 030H7910 030H9910 2.11 0.50 030F5908 030F7908 030F9908 1.87 0.60 030H7912 2.37 0.55 030F5910 030F7910 030F9910 2.11 0.65 030H7914 2.67 0.60 030F5912 030F7912 030F9912 2.37 0.75 030H7916 030H9916 2.94 0.65 030F5914 030F7914 030F9914 2.67 0.85 3.31 0.75 030F5916 030F7916 030F9916 2.94 1.00 030H9920 3.72 0.85 030F5918 030F7918 3.31 These oil nozzles are manufactured in accordance with European standard EN 293 1.00 030F5920 030F7920 3.72 These oil nozzles are manufactured in accordance with European standard EN 293

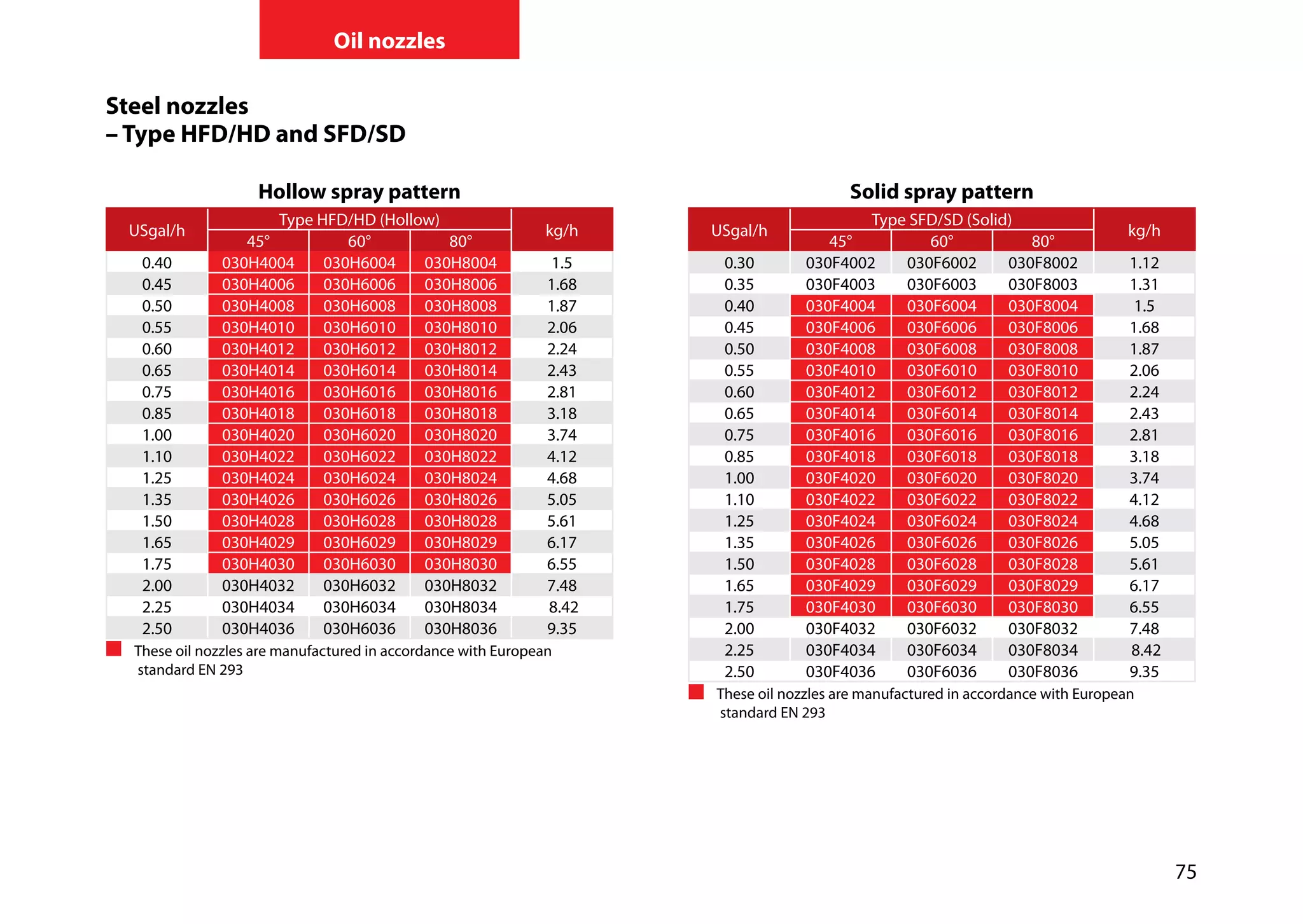

75 Oil nozzles Hollow spray pattern USgal/h Type HFD/HD (Hollow) kg/h 45° 60° 80° 0.40 030H4004 030H6004 030H8004 1.5 0.45 030H4006 030H6006 030H8006 1.68 0.50 030H4008 030H6008 030H8008 1.87 0.55 030H4010 030H6010 030H8010 2.06 0.60 030H4012 030H6012 030H8012 2.24 0.65 030H4014 030H6014 030H8014 2.43 0.75 030H4016 030H6016 030H8016 2.81 0.85 030H4018 030H6018 030H8018 3.18 1.00 030H4020 030H6020 030H8020 3.74 1.10 030H4022 030H6022 030H8022 4.12 1.25 030H4024 030H6024 030H8024 4.68 1.35 030H4026 030H6026 030H8026 5.05 1.50 030H4028 030H6028 030H8028 5.61 1.65 030H4029 030H6029 030H8029 6.17 1.75 030H4030 030H6030 030H8030 6.55 2.00 030H4032 030H6032 030H8032 7.48 2.25 030H4034 030H6034 030H8034 8.42 2.50 030H4036 030H6036 030H8036 9.35 These oil nozzles are manufactured in accordance with European standard EN 293 Solid spray pattern USgal/h Type SFD/SD (Solid) kg/h 45° 60° 80° 0.30 030F4002 030F6002 030F8002 1.12 0.35 030F4003 030F6003 030F8003 1.31 0.40 030F4004 030F6004 030F8004 1.5 0.45 030F4006 030F6006 030F8006 1.68 0.50 030F4008 030F6008 030F8008 1.87 0.55 030F4010 030F6010 030F8010 2.06 0.60 030F4012 030F6012 030F8012 2.24 0.65 030F4014 030F6014 030F8014 2.43 0.75 030F4016 030F6016 030F8016 2.81 0.85 030F4018 030F6018 030F8018 3.18 1.00 030F4020 030F6020 030F8020 3.74 1.10 030F4022 030F6022 030F8022 4.12 1.25 030F4024 030F6024 030F8024 4.68 1.35 030F4026 030F6026 030F8026 5.05 1.50 030F4028 030F6028 030F8028 5.61 1.65 030F4029 030F6029 030F8029 6.17 1.75 030F4030 030F6030 030F8030 6.55 2.00 030F4032 030F6032 030F8032 7.48 2.25 030F4034 030F6034 030F8034 8.42 2.50 030F4036 030F6036 030F8036 9.35 These oil nozzles are manufactured in accordance with European standard EN 293 Steel nozzles – Type HFD/HD and SFD/SD
76 Oil nozzles Conversion oil burner nozzles of other makes -> Danfoss oil burner nozzles – European Market Delavan Relevant Danfoss types Type 1. choice 2. choice Comments/accessories A ➨ Danfoss H Danfoss HFD/HD B ➨ Danfoss S Danfoss SFD/SD W ➨ Danfoss B – Steinen Relevant Danfoss types Type 1. choice 2. choice Comments/accessories Steinen PH ➨ Danfoss H/B – Steinen H, HT ➨ Danfoss HFD/HD Danfoss H Steinen SS ➨ Danfoss B – Steinen Q ➨ Danfoss SFD/SD Danfoss B/S Steinen S, ST ➨ Danfoss SFD/SD Danfoss S Fluidics Relevant Danfoss types Type 1. choice 2. choice Comments/accessories SF ➨ Danfoss SFD Danfoss S HF ➨ Danfoss HFD Danfoss H S ➨ Danfoss SD Danfoss S H ➨ Danfoss HD Danfoss H Monarch Relevant Danfoss types Type 1. choice 2. choice Comments/accessories PL ➨ Danfoss H/B – NS ➨ Danfoss HFD Danfoss H PLP ➨ Danfoss B – AR ➨ Danfoss SFD/SD Danfoss S R ➨ Danfoss SFD/SD Danfoss S This interchange is based on experience and should therefore only be considered as a guide

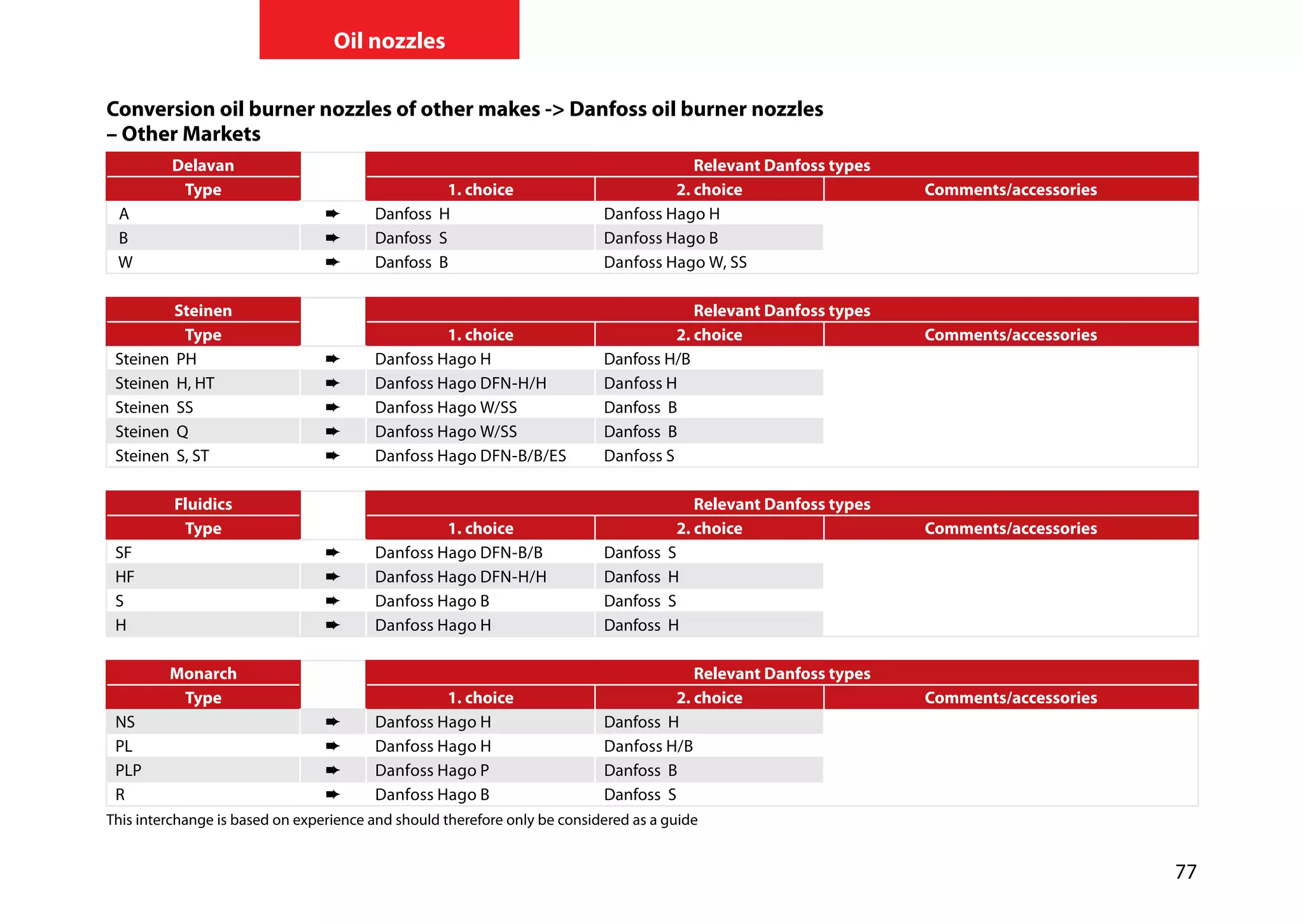

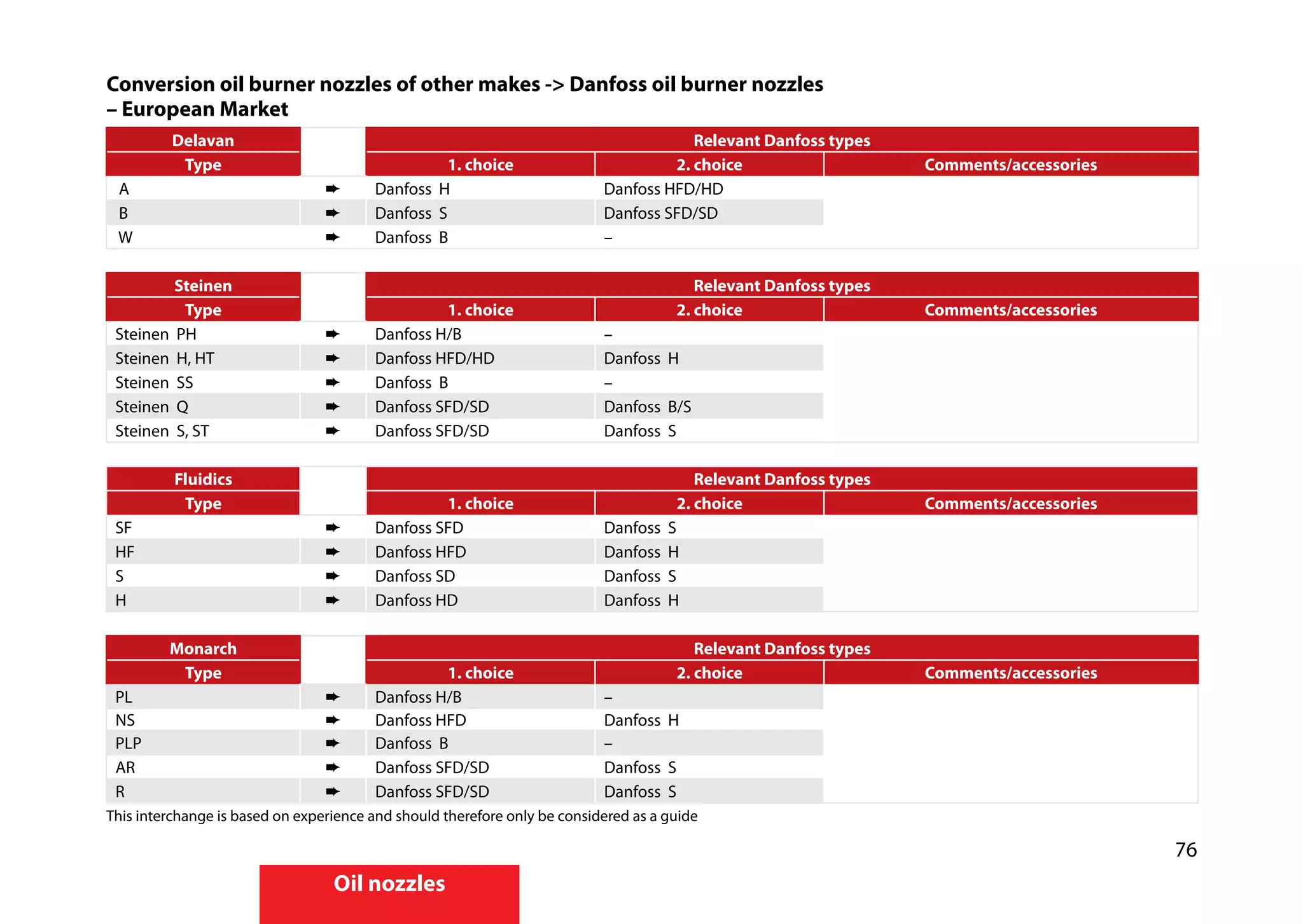

77 Oil nozzles Conversion oil burner nozzles of other makes -> Danfoss oil burner nozzles – Other Markets Delavan Relevant Danfoss types Type 1. choice 2. choice Comments/accessories A ➨ Danfoss H Danfoss Hago H B ➨ Danfoss S Danfoss Hago B W ➨ Danfoss B Danfoss Hago W, SS Steinen Relevant Danfoss types Type 1. choice 2. choice Comments/accessories Steinen PH ➨ Danfoss Hago H Danfoss H/B Steinen H, HT ➨ Danfoss Hago DFN-H/H Danfoss H Steinen SS ➨ Danfoss Hago W/SS Danfoss B Steinen Q ➨ Danfoss Hago W/SS Danfoss B Steinen S, ST ➨ Danfoss Hago DFN-B/B/ES Danfoss S Fluidics Relevant Danfoss types Type 1. choice 2. choice Comments/accessories SF ➨ Danfoss Hago DFN-B/B Danfoss S HF ➨ Danfoss Hago DFN-H/H Danfoss H S ➨ Danfoss Hago B Danfoss S H ➨ Danfoss Hago H Danfoss H Monarch Relevant Danfoss types Type 1. choice 2. choice Comments/accessories NS ➨ Danfoss Hago H Danfoss H PL ➨ Danfoss Hago H Danfoss H/B PLP ➨ Danfoss Hago P Danfoss B R ➨ Danfoss Hago B Danfoss S This interchange is based on experience and should therefore only be considered as a guide

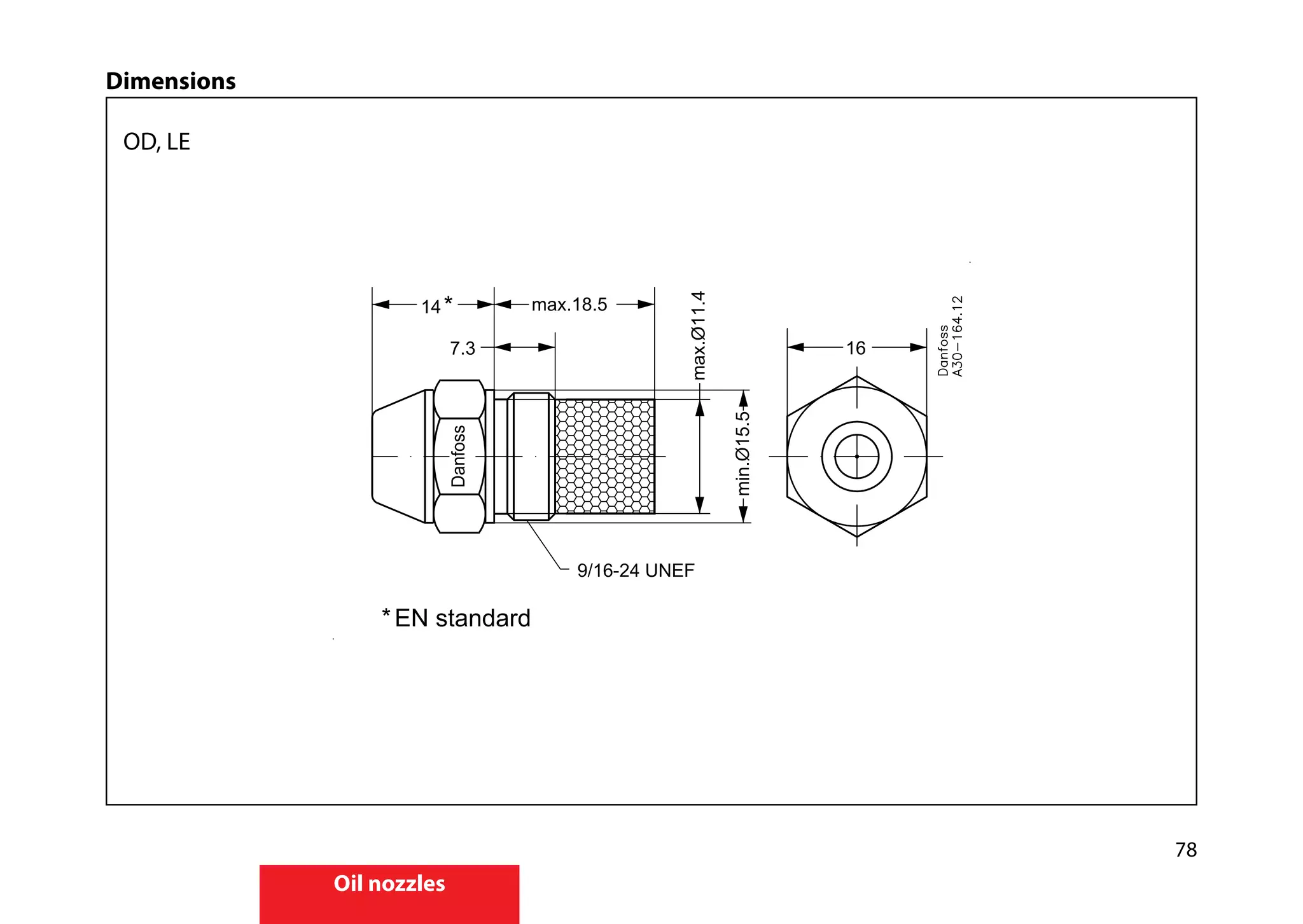

78 Oil nozzles Dimensions OD, LE

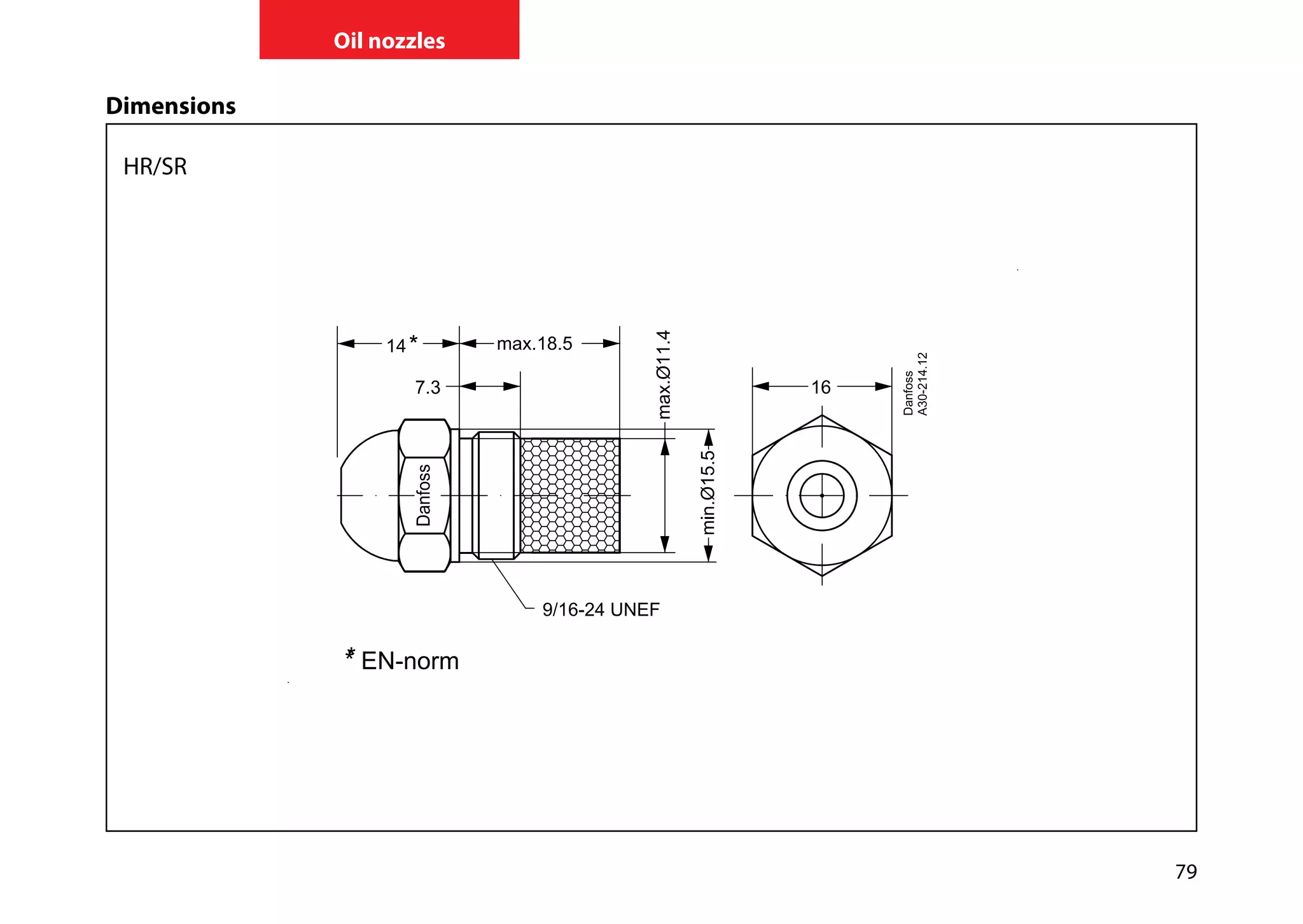

79 Oil nozzles Dimensions HR/SR

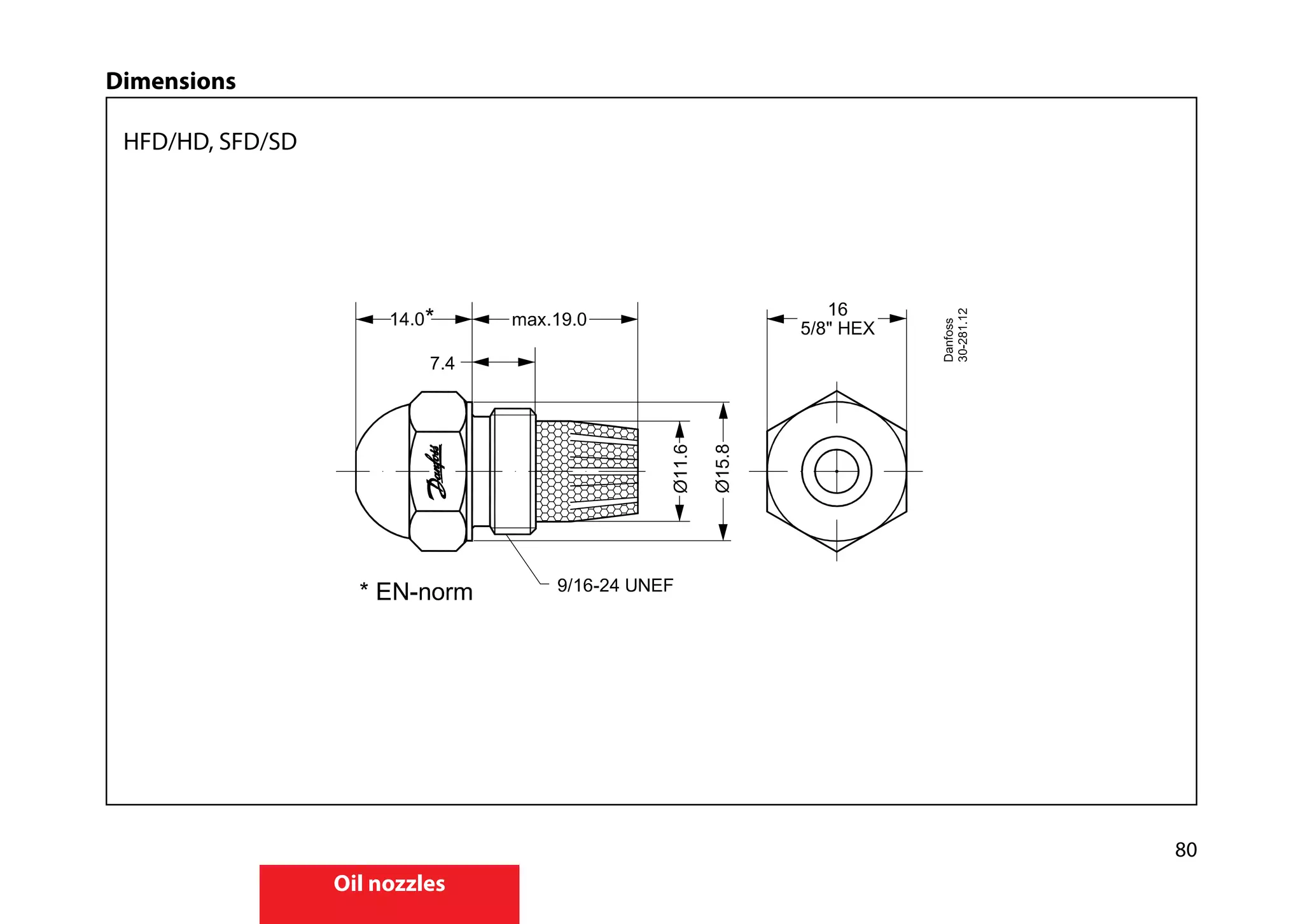

80 Oil nozzles Dimensions HFD/HD, SFD/SD

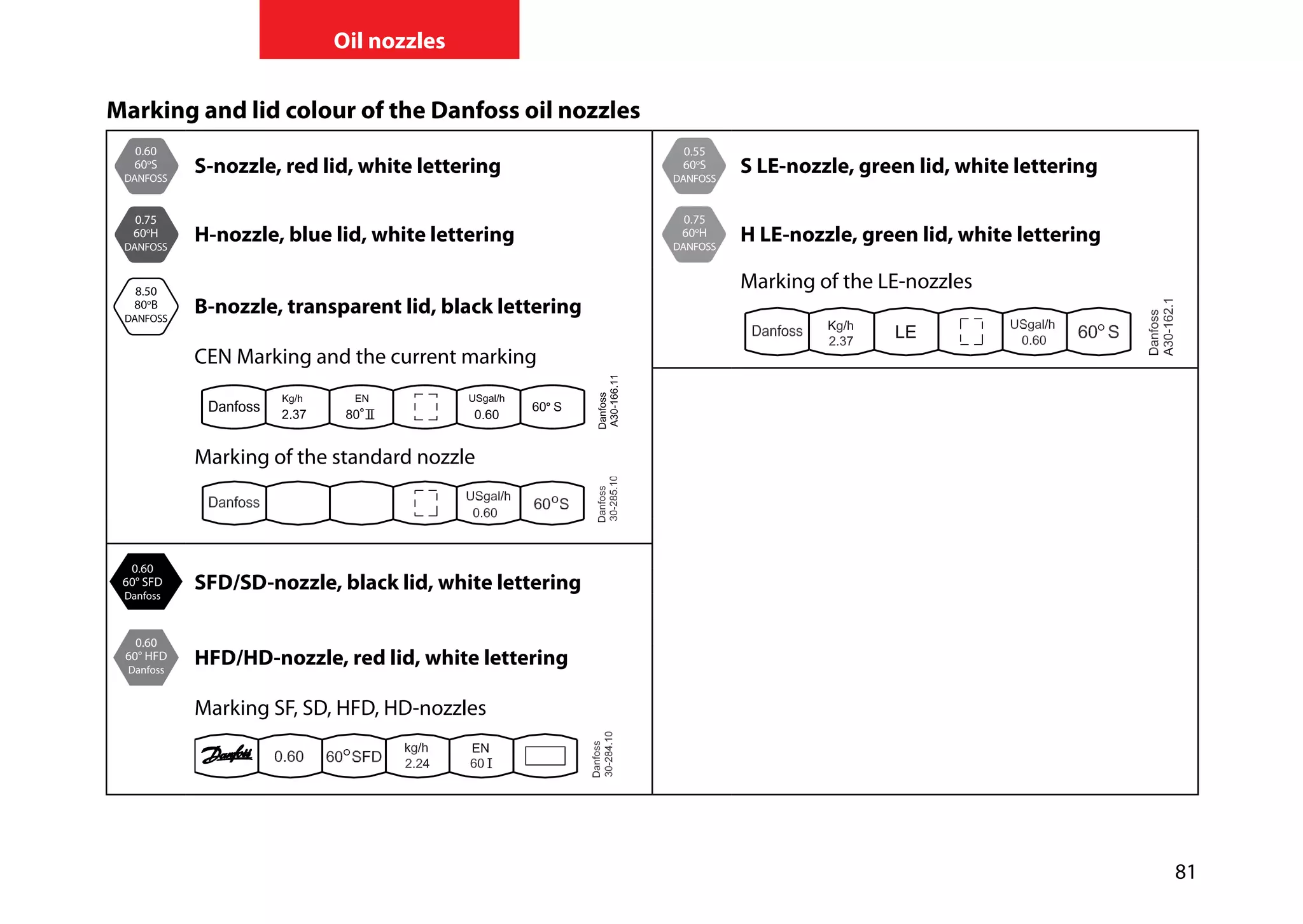

81 Oil nozzles Marking and lid colour of the Danfoss oil nozzles 0.60 60o S DANFOSS S-nozzle, red lid, white lettering 0.55 60o S DANFOSS S LE-nozzle, green lid, white lettering 0.75 60o H DANFOSS H-nozzle, blue lid, white lettering 0.75 60o H DANFOSS H LE-nozzle, green lid, white lettering 8.50 80o B DANFOSS B-nozzle, transparent lid, black lettering Marking of the LE-nozzles CEN Marking and the current marking Marking of the standard nozzle 0.60 60° SFD Danfoss SFD/SD-nozzle, black lid, white lettering 0.60 60° HFD Danfoss HFD/HD-nozzle, red lid, white lettering Marking SF, SD, HFD, HD-nozzles

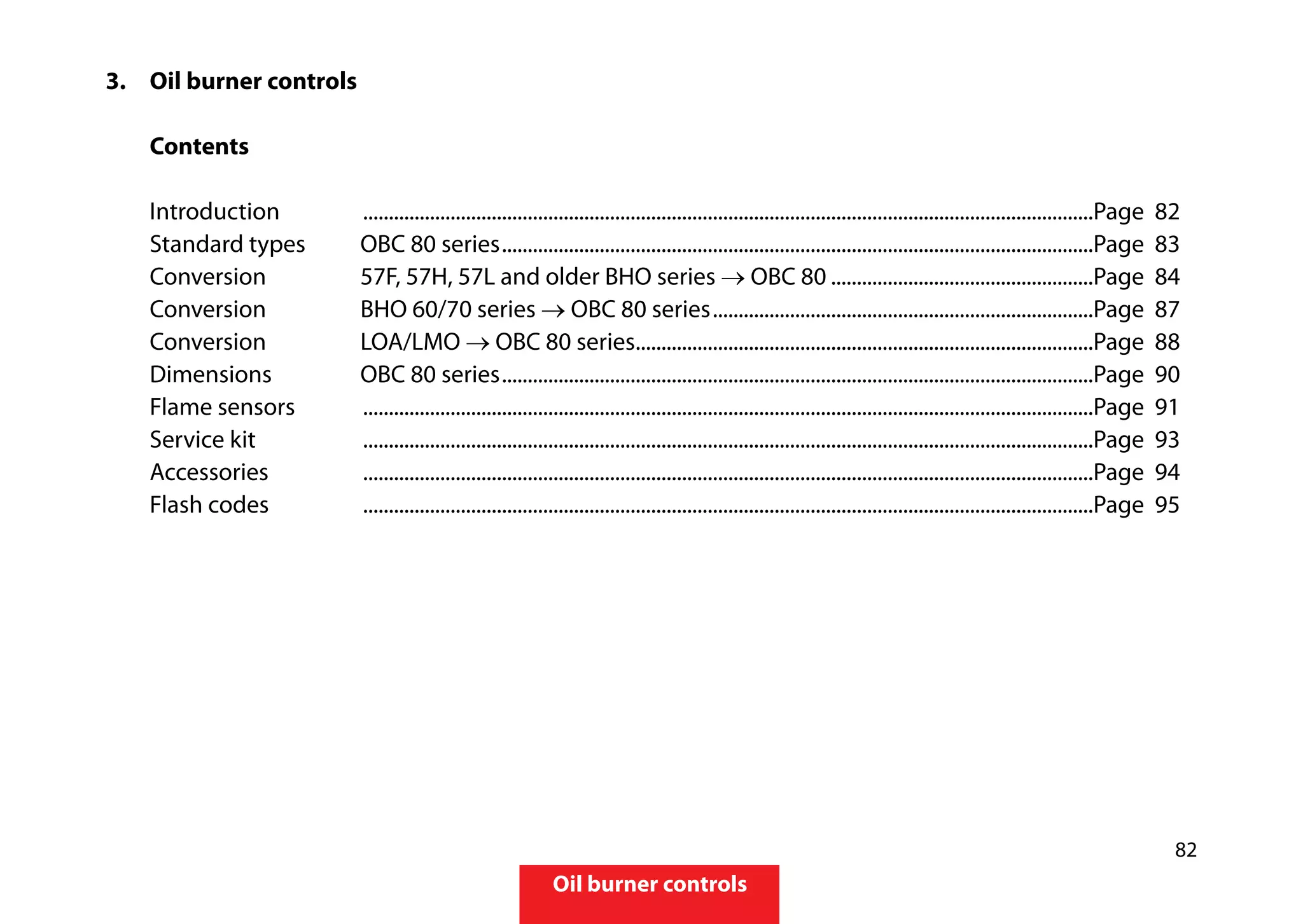

82 Oil burner controls 3. Oil burner controls Contents Introduction ...............................................................................................................................................Page 82 Standard types OBC 80 series....................................................................................................................Page 83 Conversion 57F, 57H, 57L and older BHO series → OBC 80....................................................Page 84 Conversion BHO 60/70 series → OBC 80 series...........................................................................Page 87 Conversion LOA/LMO → OBC 80 series..........................................................................................Page 88 Dimensions OBC 80 series....................................................................................................................Page 90 Flame sensors ...............................................................................................................................................Page 91 Service kit ...............................................................................................................................................Page 93 Accessories ...............................................................................................................................................Page 94 Flash codes ...............................................................................................................................................Page 95

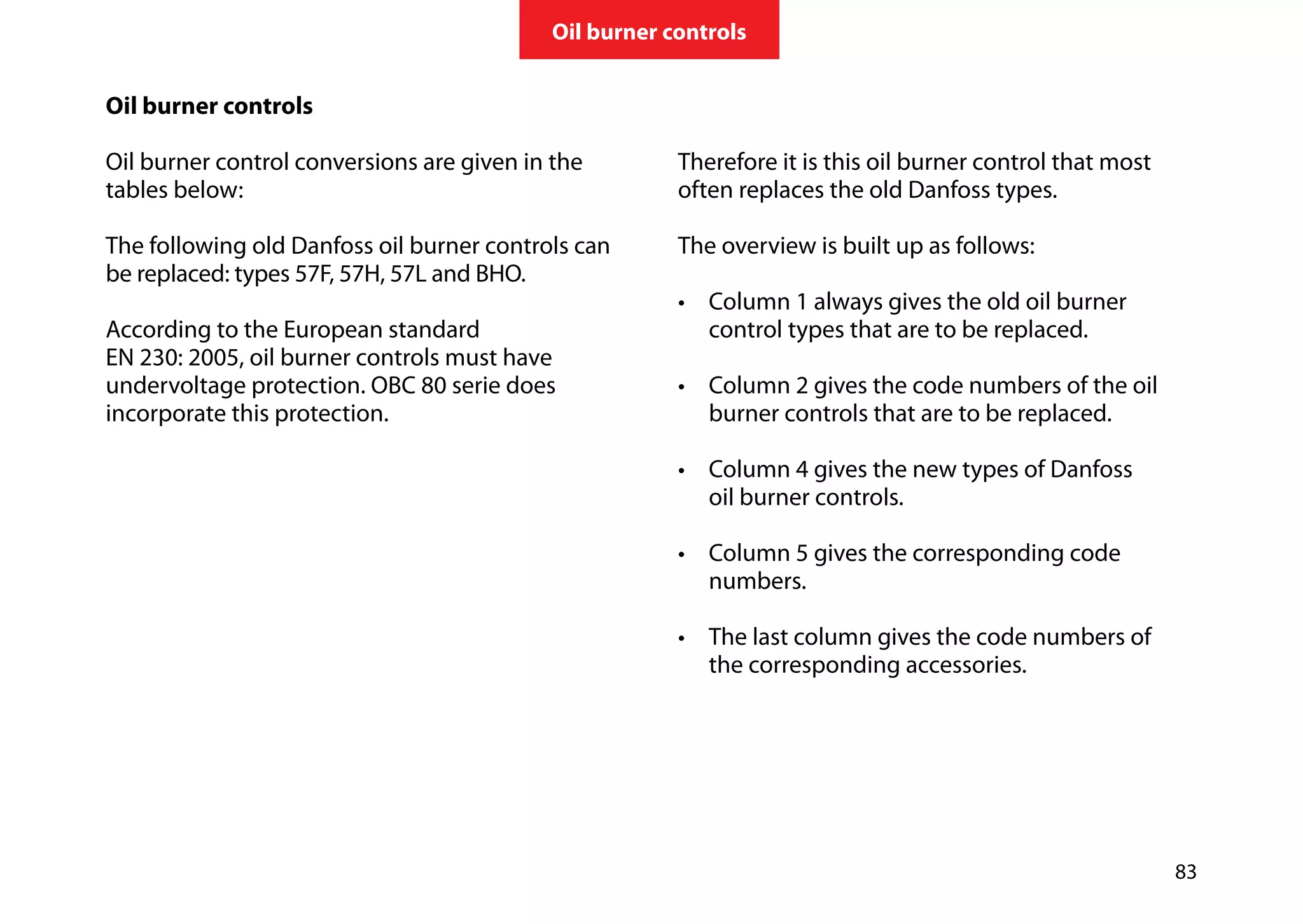

83 Oil burner controls Oil burner controls Oil burner control conversions are given in the tables below: The following old Danfoss oil burner controls can be replaced: types 57F, 57H, 57L and BHO. According to the European standard EN 230: 2005, oil burner controls must have undervoltage protection. OBC 80 serie does incorporate this protection. Therefore it is this oil burner control that most often replaces the old Danfoss types. The overview is built up as follows: • Column 1 always gives the old oil burner control types that are to be replaced. • Column 2 gives the code numbers of the oil burner controls that are to be replaced. • Column 4 gives the new types of Danfoss oil burner controls. • Column 5 gives the corresponding code numbers. • The last column gives the code numbers of the corresponding accessories.

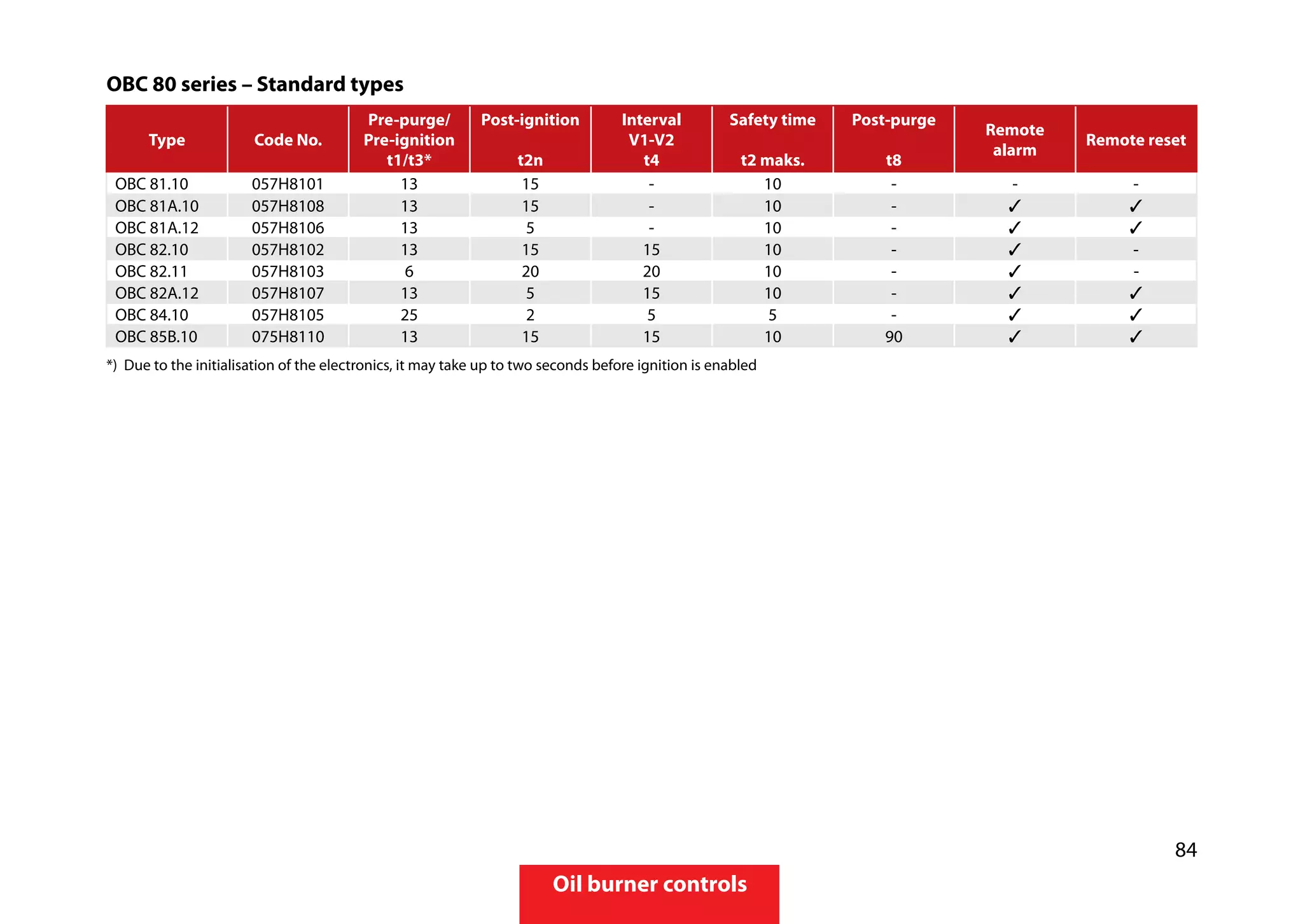

84 Oil burner controls OBC 80 series – Standard types Type Code No. Pre-purge/ Pre-ignition t1/t3* Post-ignition t2n Interval V1-V2 t4 Safety time t2 maks. Post-purge t8 Remote alarm Remote reset OBC 81.10 057H8101 13 15 - 10 - - - OBC 81A.10 057H8108 13 15 - 10 - ✓ ✓ OBC 81A.12 057H8106 13 5 - 10 - ✓ ✓ OBC 82.10 057H8102 13 15 15 10 - ✓ - OBC 82.11 057H8103 6 20 20 10 - ✓ - OBC 82A.12 057H8107 13 5 15 10 - ✓ ✓ OBC 84.10 057H8105 25 2 5 5 - ✓ ✓ OBC 85B.10 075H8110 13 15 15 10 90 ✓ ✓ *) Due to the initialisation of the electronics, it may take up to two seconds before ignition is enabled
85 Oil burner controls Conversion Danfoss 057F/H/L/BHO ➨ OBC 80 series Older Danfoss series Relevant Danfoss types Type Code no. Type Code no. Comments/accessories 57F1 057F0001 ➨ OBC 82.10 057H8102 + 057H7224 57F3 057F0003 ➨ OBC 82.10 057H8102 57H1 057H0062 ➨ OBC 82.10 057H8102 57H1 057H0072 ➨ OBC 82.10 057H8102 57H1 057H1002 ➨ OBC 82.10 057H8102 57H3 057H1003 ➨ OBC 82.10 057H8102 57H1 WLE 057H0042 ➨ OBC 84.10 057H8105 57H1 057H0052 ➨ OBC 82.10 057H8102 57H2 057H0053 ➨ OBC 82.10 057H8102 57H2 057H0063 ➨ OBC 82.10 057H8102 57H3 057H1005 ➨ No repl. 57H3 057H0054 ➨ OBC 82.10 057H8102 + 057H7224 57H3 057H0064 ➨ OBC 82.10 057H8102 57H5 057H0045 ➨ OBC 84.10 057H8105 57H5 057H0055 ➨ OBC 82.10 057H8102 57H5 057H0065 ➨ OBC 82.10 057H8102 57H6 057H0032 ➨ No repl. 57L 1 057L0001 ➨ OBC 82.10 057H8102 + 057H7224 Use motor starter on 380 V 57L 1d 057L0002 ➨ OBC 82.10 057H8102 57L 3 057L0003 ➨ OBC 82.10 057H8102 57L 3d 057L0004 ➨ OBC 82.10 057H8102 BCG 1d 057L1001 ➨ No repl. BCG 1d 057L1002 ➨ No repl. BCG 1d 057L1003 ➨ No repl. BCG 3,3d 057L1004 ➨ No repl. BCG 3.5d 057L1005 ➨ No repl.

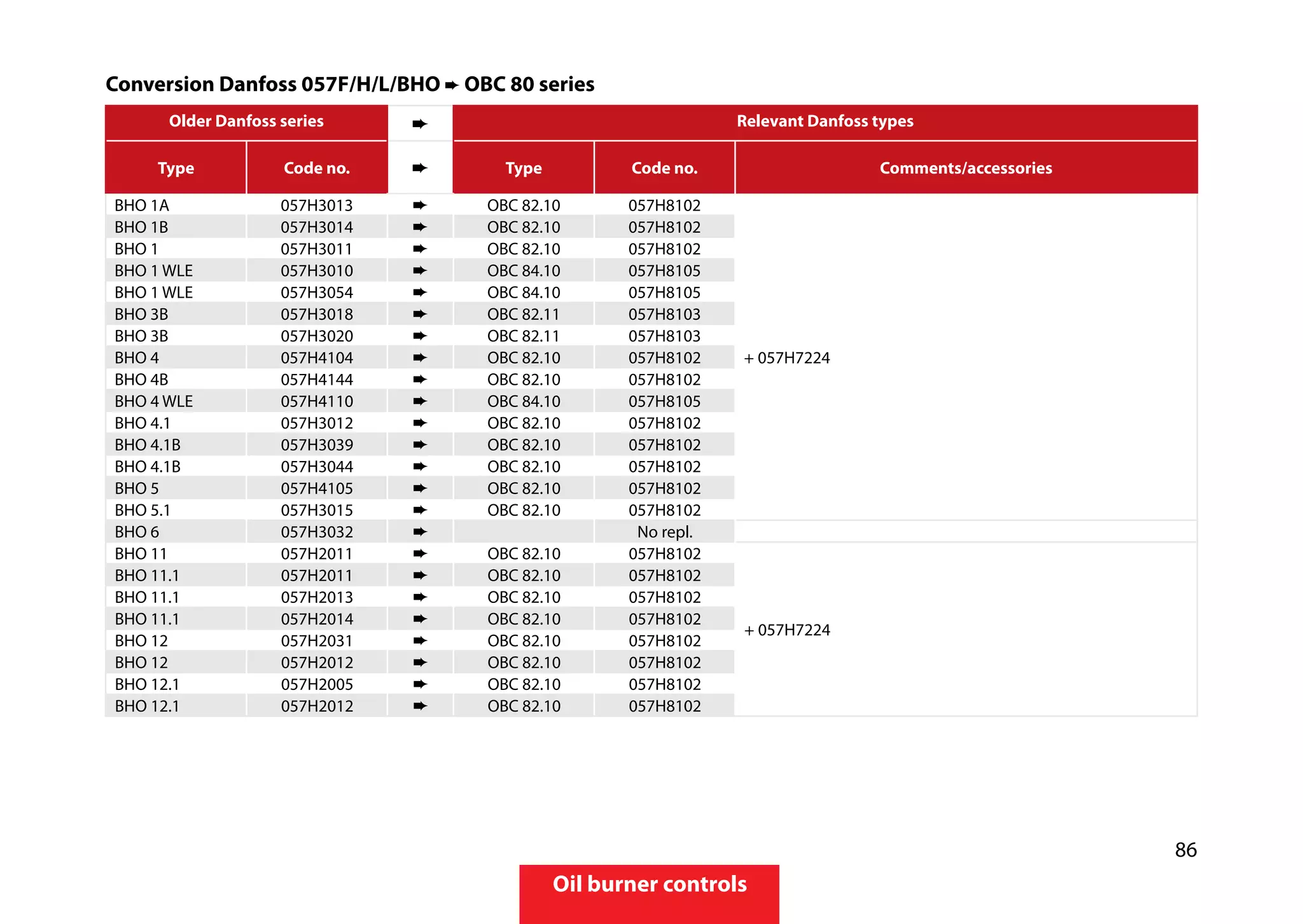

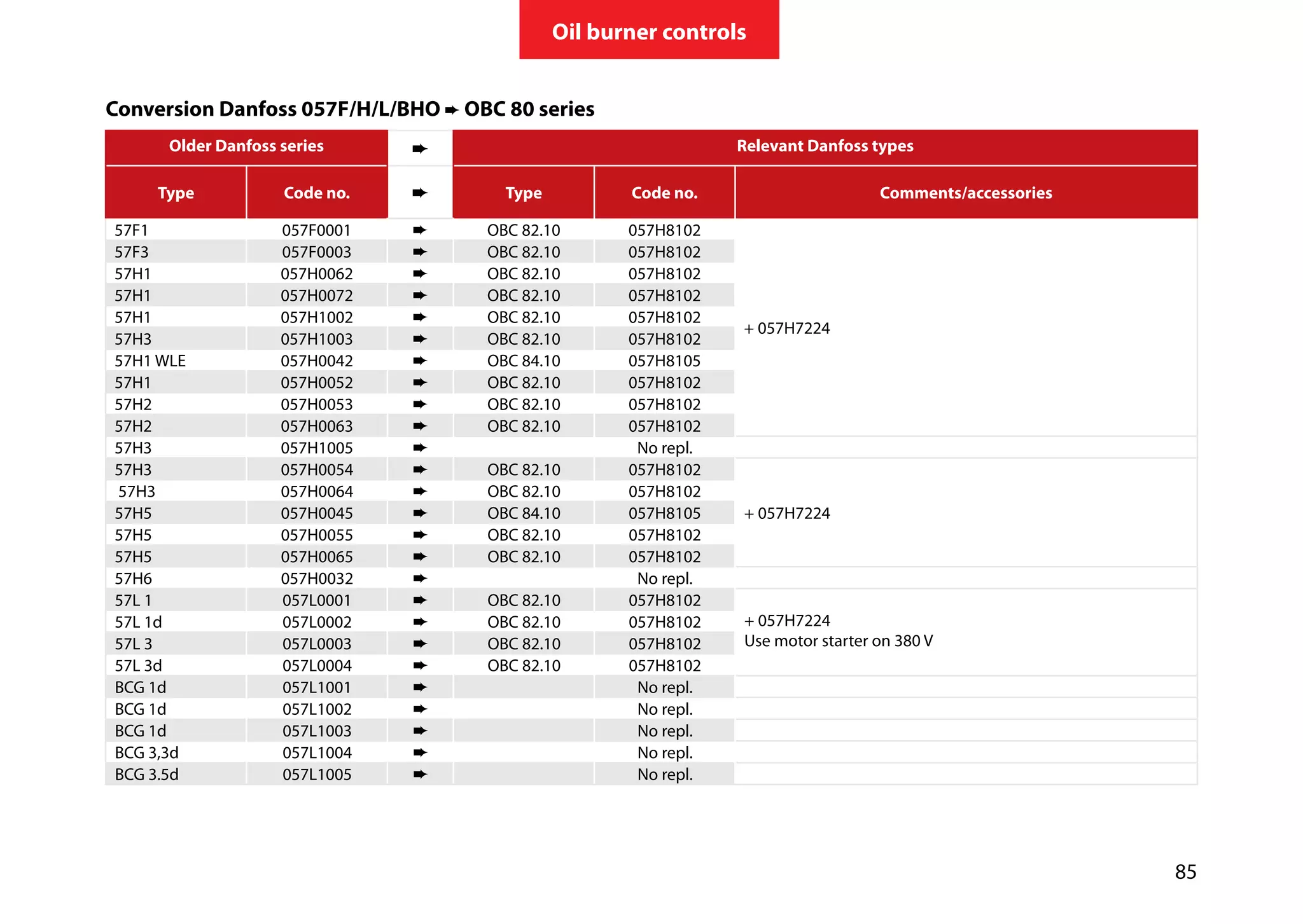

86 Oil burner controls Conversion Danfoss 057F/H/L/BHO ➨ OBC 80 series Older Danfoss series Relevant Danfoss types Type Code no. Type Code no. Comments/accessories BHO 1A 057H3013 ➨ OBC 82.10 057H8102 + 057H7224 BHO 1B 057H3014 ➨ OBC 82.10 057H8102 BHO 1 057H3011 ➨ OBC 82.10 057H8102 BHO 1 WLE 057H3010 ➨ OBC 84.10 057H8105 BHO 1 WLE 057H3054 ➨ OBC 84.10 057H8105 BHO 3B 057H3018 ➨ OBC 82.11 057H8103 BHO 3B 057H3020 ➨ OBC 82.11 057H8103 BHO 4 057H4104 ➨ OBC 82.10 057H8102 BHO 4B 057H4144 ➨ OBC 82.10 057H8102 BHO 4 WLE 057H4110 ➨ OBC 84.10 057H8105 BHO 4.1 057H3012 ➨ OBC 82.10 057H8102 BHO 4.1B 057H3039 ➨ OBC 82.10 057H8102 BHO 4.1B 057H3044 ➨ OBC 82.10 057H8102 BHO 5 057H4105 ➨ OBC 82.10 057H8102 BHO 5.1 057H3015 ➨ OBC 82.10 057H8102 BHO 6 057H3032 ➨ No repl. BHO 11 057H2011 ➨ OBC 82.10 057H8102 + 057H7224 BHO 11.1 057H2011 ➨ OBC 82.10 057H8102 BHO 11.1 057H2013 ➨ OBC 82.10 057H8102 BHO 11.1 057H2014 ➨ OBC 82.10 057H8102 BHO 12 057H2031 ➨ OBC 82.10 057H8102 BHO 12 057H2012 ➨ OBC 82.10 057H8102 BHO 12.1 057H2005 ➨ OBC 82.10 057H8102 BHO 12.1 057H2012 ➨ OBC 82.10 057H8102

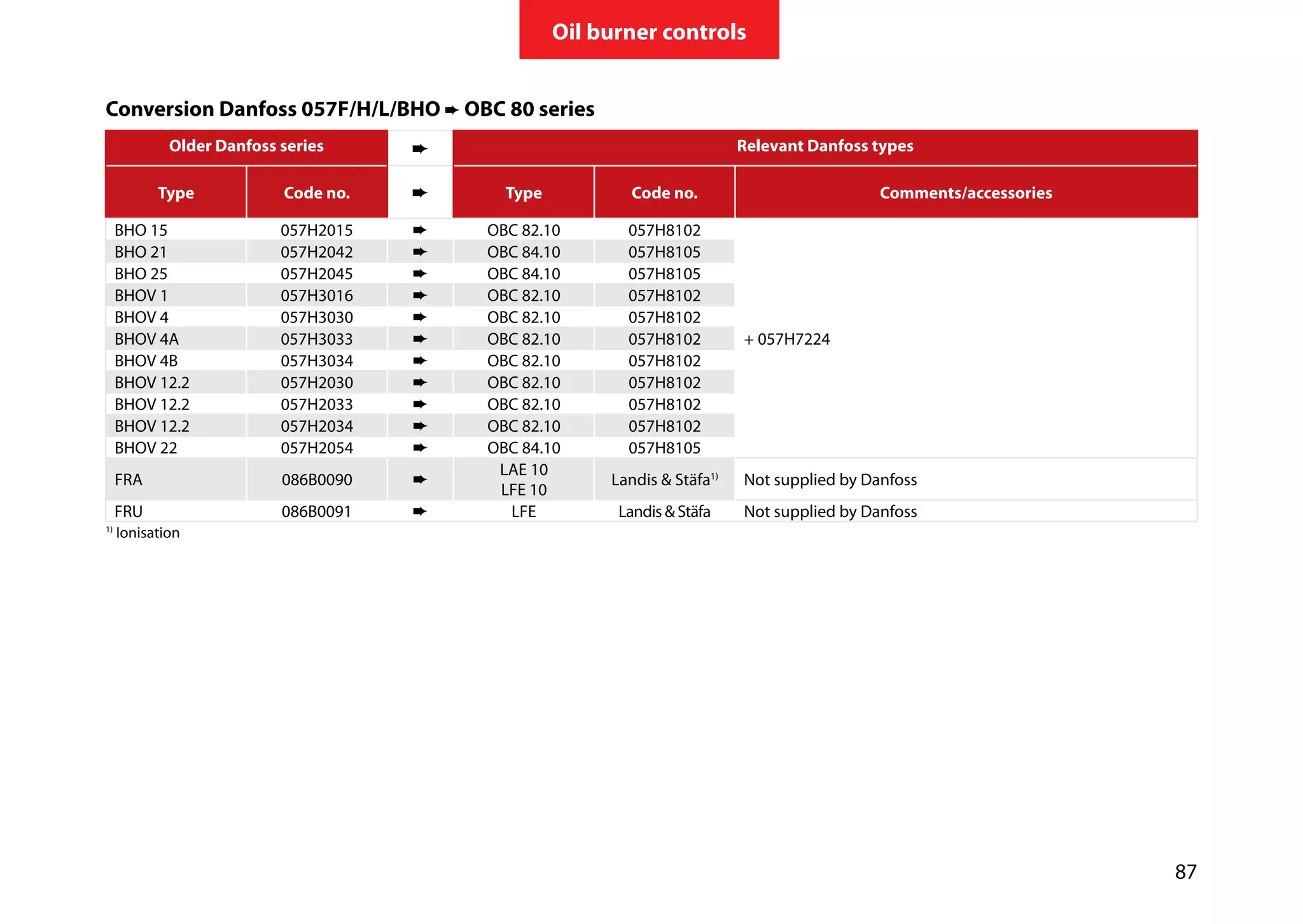

87 Oil burner controls Conversion Danfoss 057F/H/L/BHO ➨ OBC 80 series Older Danfoss series Relevant Danfoss types Type Code no. Type Code no. Comments/accessories BHO 15 057H2015 ➨ OBC 82.10 057H8102 + 057H7224 BHO 21 057H2042 ➨ OBC 84.10 057H8105 BHO 25 057H2045 ➨ OBC 84.10 057H8105 BHOV 1 057H3016 ➨ OBC 82.10 057H8102 BHOV 4 057H3030 ➨ OBC 82.10 057H8102 BHOV 4A 057H3033 ➨ OBC 82.10 057H8102 BHOV 4B 057H3034 ➨ OBC 82.10 057H8102 BHOV 12.2 057H2030 ➨ OBC 82.10 057H8102 BHOV 12.2 057H2033 ➨ OBC 82.10 057H8102 BHOV 12.2 057H2034 ➨ OBC 82.10 057H8102 BHOV 22 057H2054 ➨ OBC 84.10 057H8105 FRA 086B0090 ➨ LAE 10 LFE 10 Landis & Stäfa1) Not supplied by Danfoss FRU 086B0091 ➨ LFE Landis & Stäfa Not supplied by Danfoss 1) Ionisation

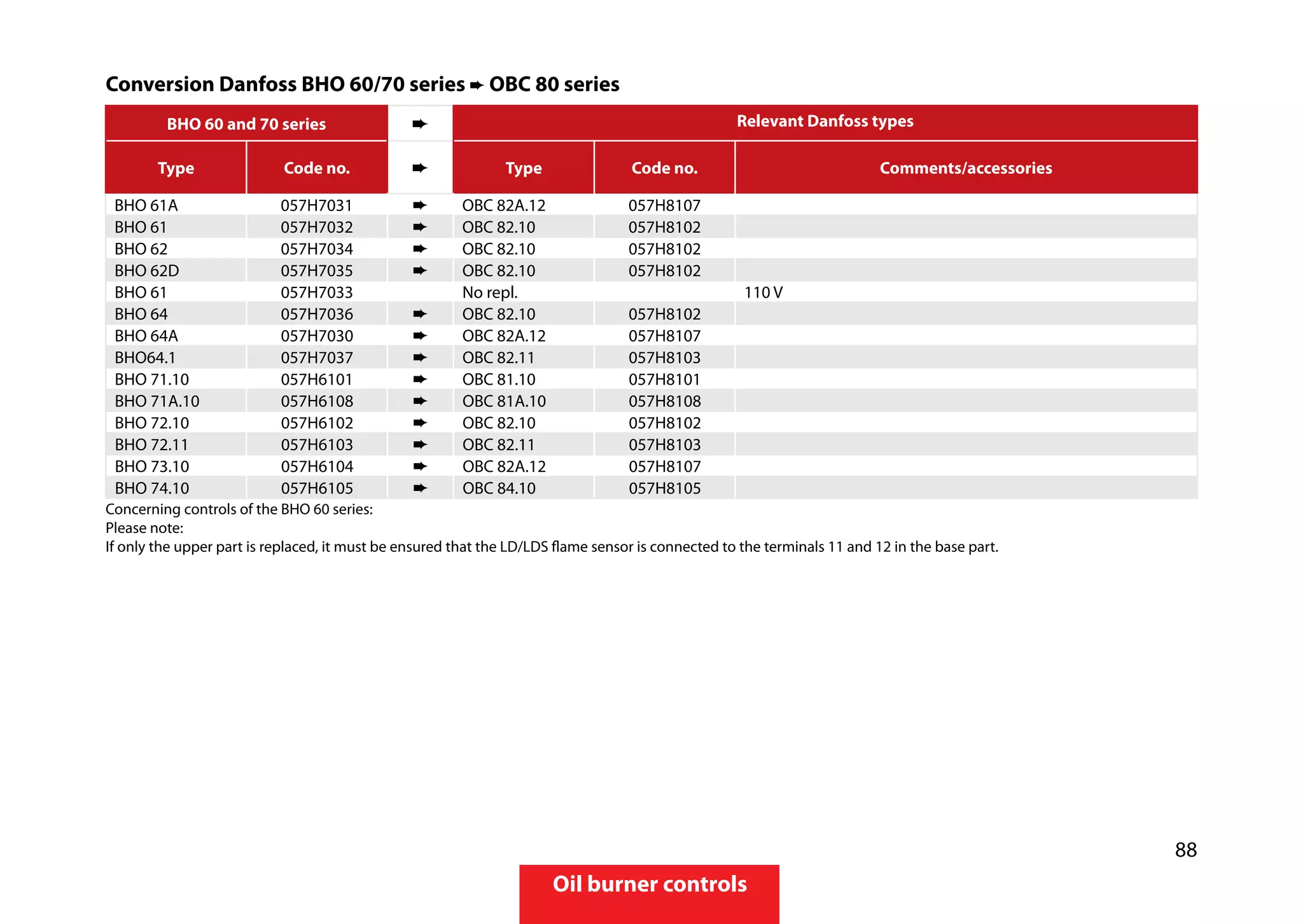

88 Oil burner controls Conversion Danfoss BHO 60/70 series ➨ OBC 80 series BHO 60 and 70 series Relevant Danfoss types Type Code no. Type Code no. Comments/accessories BHO 61A 057H7031 ➨ OBC 82A.12 057H8107 BHO 61 057H7032 ➨ OBC 82.10 057H8102 BHO 62 057H7034 ➨ OBC 82.10 057H8102 BHO 62D 057H7035 ➨ OBC 82.10 057H8102 BHO 61 057H7033 No repl. 110 V BHO 64 057H7036 ➨ OBC 82.10 057H8102 BHO 64A 057H7030 ➨ OBC 82A.12 057H8107 BHO64.1 057H7037 ➨ OBC 82.11 057H8103 BHO 71.10 057H6101 ➨ OBC 81.10 057H8101 BHO 71A.10 057H6108 ➨ OBC 81A.10 057H8108 BHO 72.10 057H6102 ➨ OBC 82.10 057H8102 BHO 72.11 057H6103 ➨ OBC 82.11 057H8103 BHO 73.10 057H6104 ➨ OBC 82A.12 057H8107 BHO 74.10 057H6105 ➨ OBC 84.10 057H8105 Concerning controls of the BHO 60 series: Please note: If only the upper part is replaced, it must be ensured that the LD/LDS flame sensor is connected to the terminals 11 and 12 in the base part.

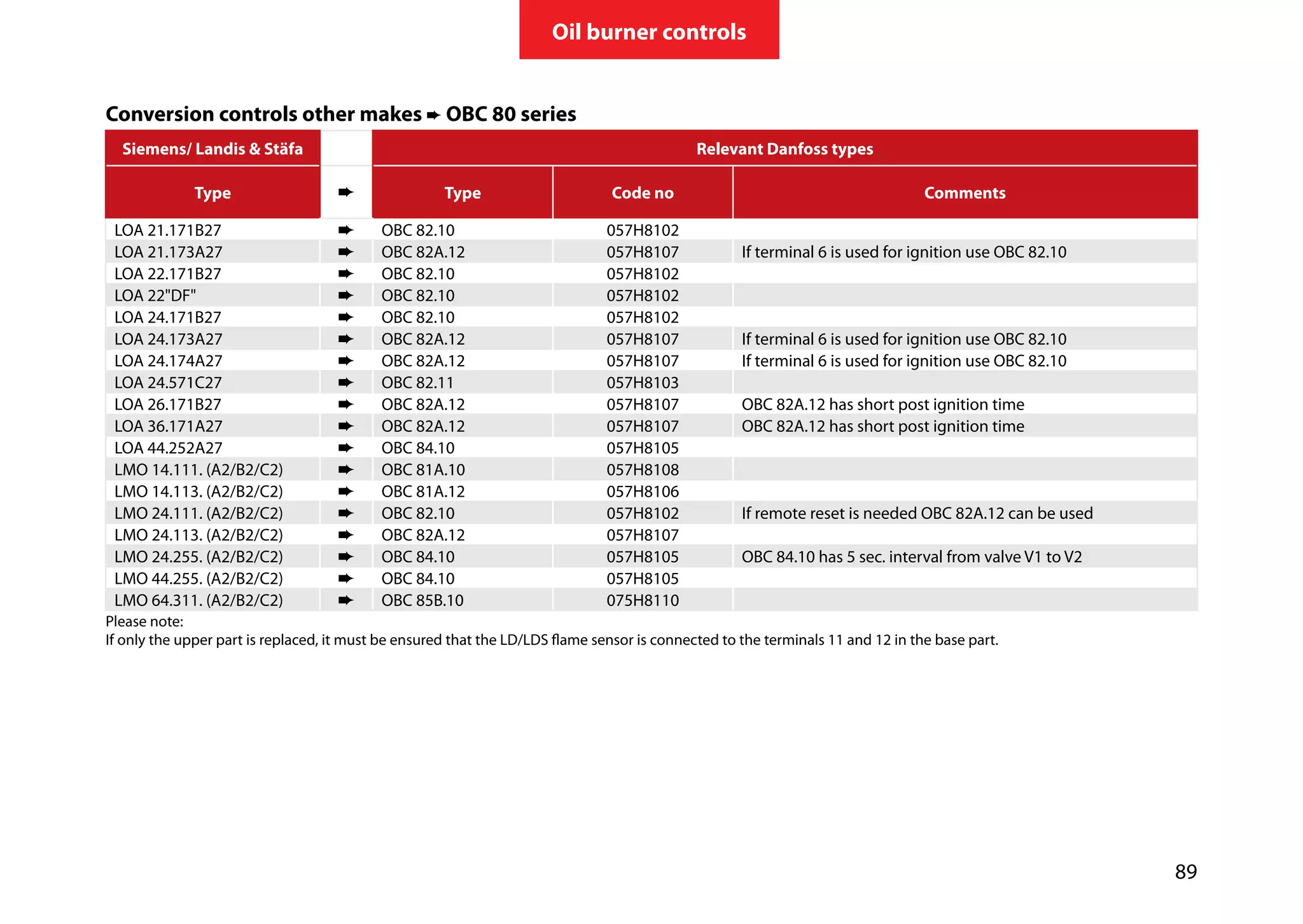

89 Oil burner controls Conversion controls other makes ➨ OBC 80 series Siemens/ Landis & Stäfa Relevant Danfoss types Type Type Code no Comments LOA 21.171B27 OBC 82.10 057H8102 LOA 21.173A27 OBC 82A.12 057H8107 If terminal 6 is used for ignition use OBC 82.10 LOA 22.171B27 OBC 82.10 057H8102 LOA 22"DF" OBC 82.10 057H8102 LOA 24.171B27 OBC 82.10 057H8102 LOA 24.173A27 OBC 82A.12 057H8107 If terminal 6 is used for ignition use OBC 82.10 LOA 24.174A27 OBC 82A.12 057H8107 If terminal 6 is used for ignition use OBC 82.10 LOA 24.571C27 OBC 82.11 057H8103 LOA 26.171B27 OBC 82A.12 057H8107 OBC 82A.12 has short post ignition time LOA 36.171A27 OBC 82A.12 057H8107 OBC 82A.12 has short post ignition time LOA 44.252A27 OBC 84.10 057H8105 LMO 14.111. (A2/B2/C2) OBC 81A.10 057H8108 LMO 14.113. (A2/B2/C2) OBC 81A.12 057H8106 LMO 24.111. (A2/B2/C2) OBC 82.10 057H8102 If remote reset is needed OBC 82A.12 can be used LMO 24.113. (A2/B2/C2) OBC 82A.12 057H8107 LMO 24.255. (A2/B2/C2) OBC 84.10 057H8105 OBC 84.10 has 5 sec. interval from valve V1 to V2 LMO 44.255. (A2/B2/C2) OBC 84.10 057H8105 LMO 64.311. (A2/B2/C2) OBC 85B.10 075H8110 Please note: If only the upper part is replaced, it must be ensured that the LD/LDS flame sensor is connected to the terminals 11 and 12 in the base part.

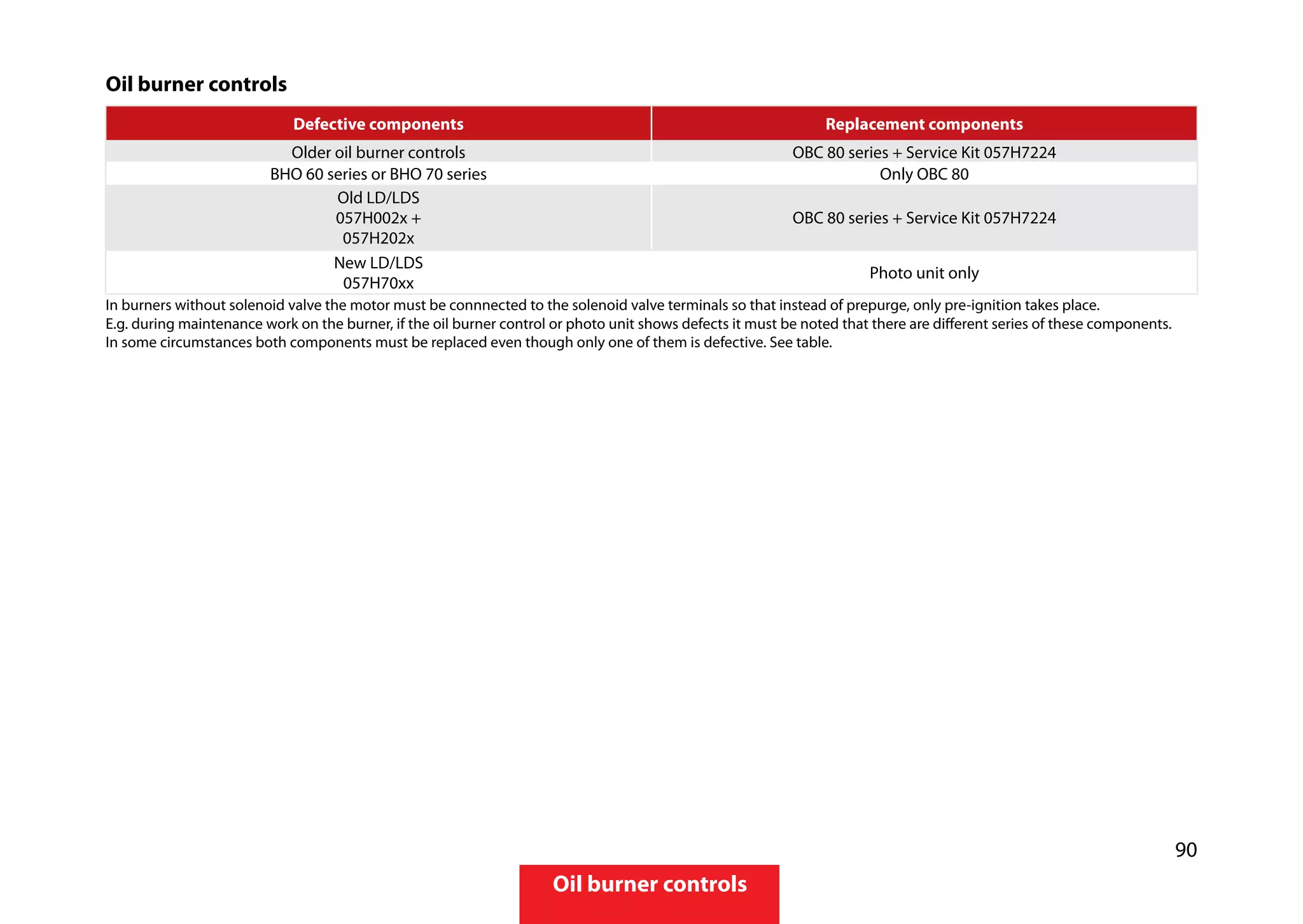

90 Oil burner controls Oil burner controls Defective components Replacement components Older oil burner controls OBC 80 series + Service Kit 057H7224 BHO 60 series or BHO 70 series Only OBC 80 Old LD/LDS 057H002x + 057H202x OBC 80 series + Service Kit 057H7224 New LD/LDS 057H70xx Photo unit only In burners without solenoid valve the motor must be connnected to the solenoid valve terminals so that instead of prepurge, only pre-ignition takes place. E.g. during maintenance work on the burner, if the oil burner control or photo unit shows defects it must be noted that there are different series of these components. In some circumstances both components must be replaced even though only one of them is defective. See table.

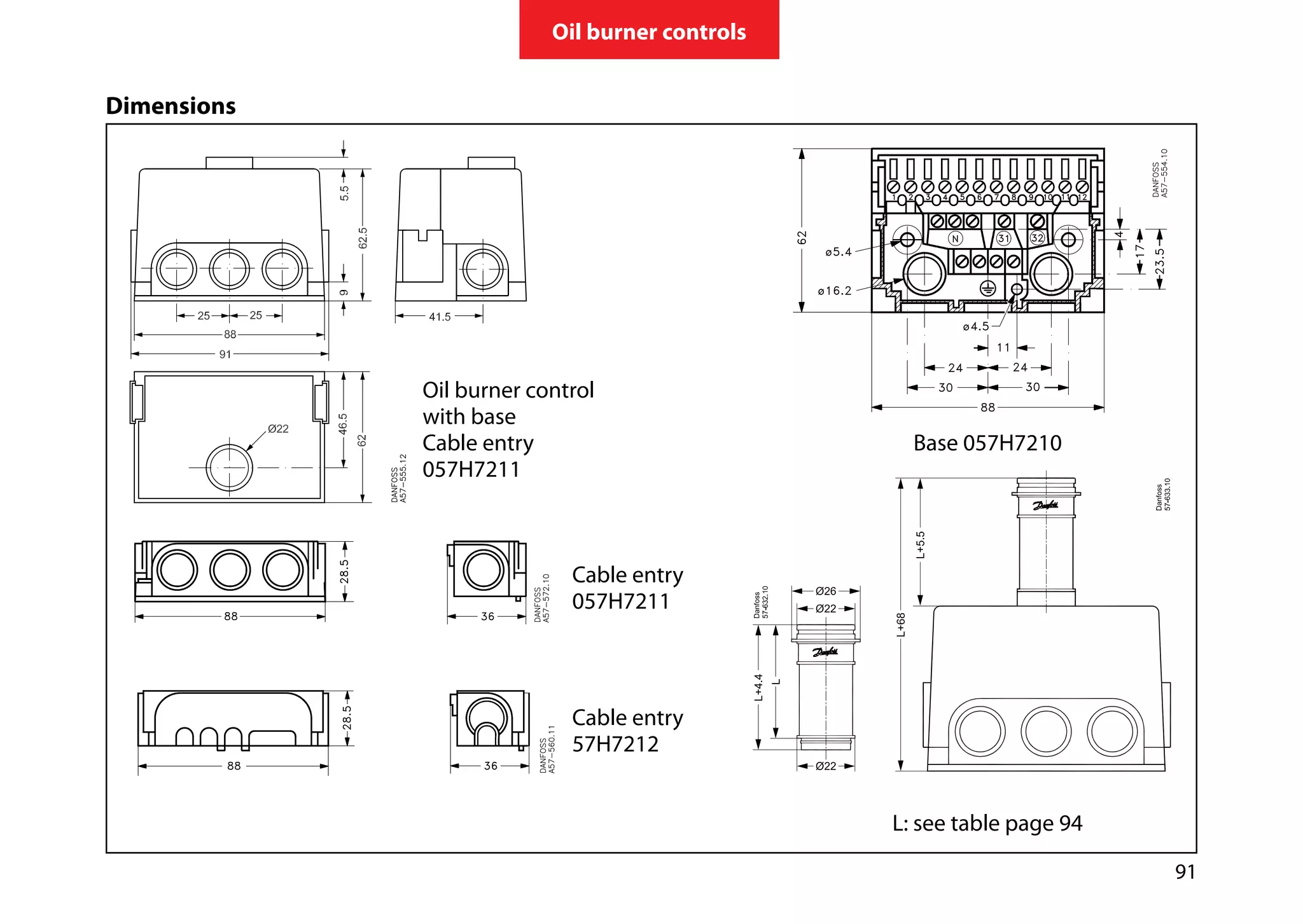

91 Oil burner controls Dimensions Oil burner control with base Cable entry Base 057H7210 057H7211 Cable entry 057H7211 Cable entry 57H7212 L: see table page 94

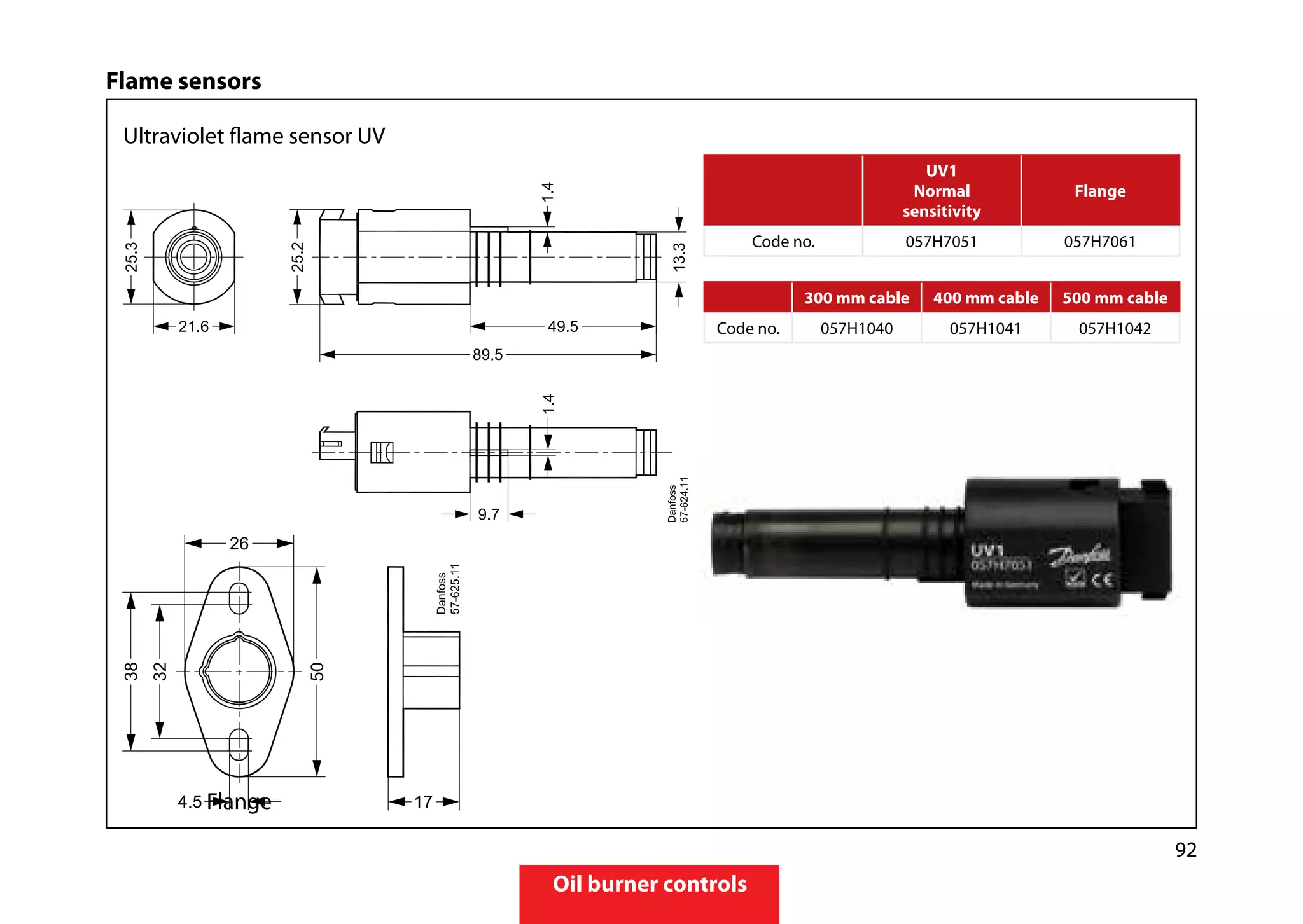

92 Oil burner controls Flame sensors Ultraviolet flame sensor UV Flange 300 mm cable 400 mm cable 500 mm cable Code no. 057H1040 057H1041 057H1042 UV1 Normal sensitivity Flange Code no. 057H7051 057H7061

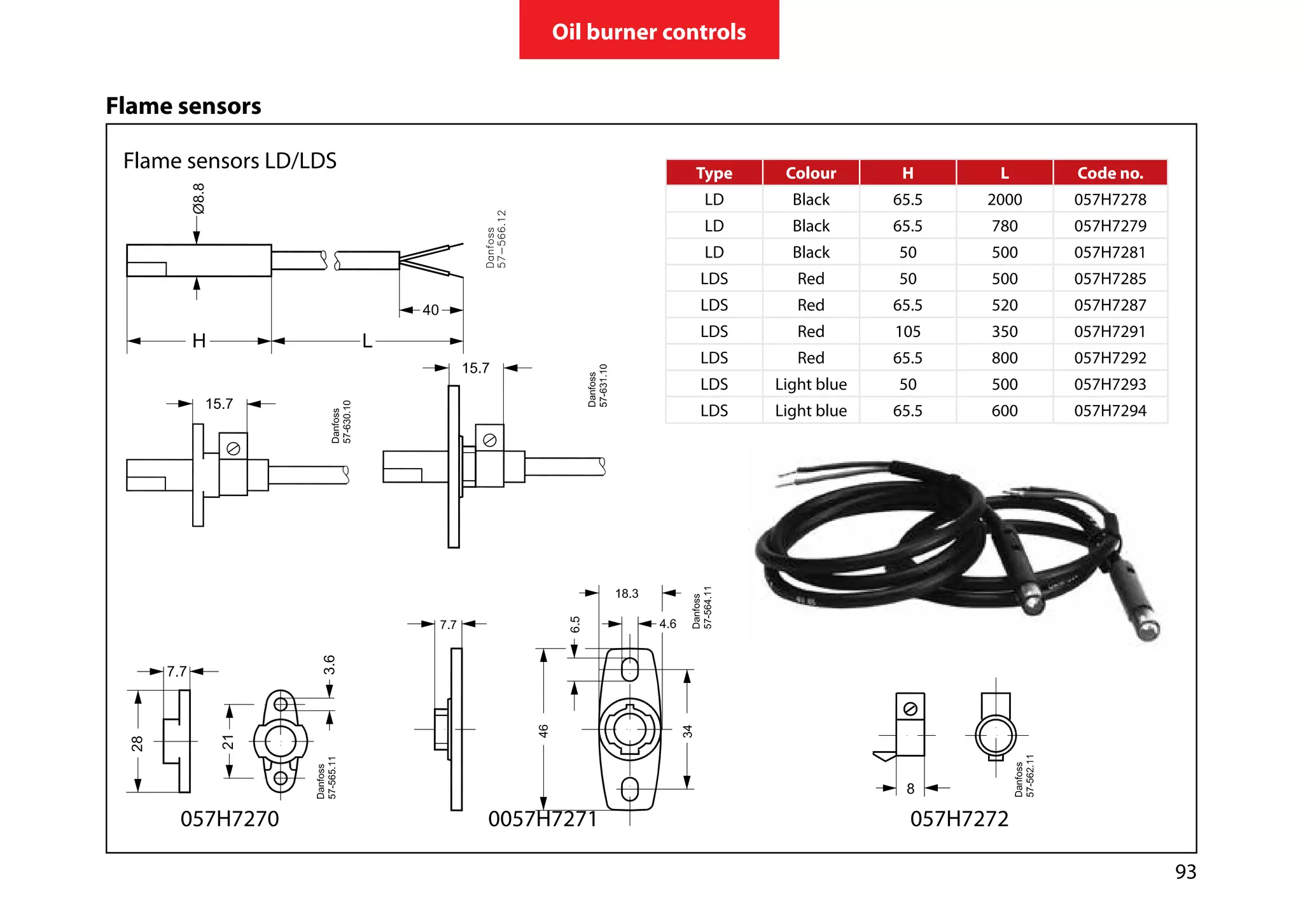

93 Oil burner controls Flame sensors Flame sensors LD/LDS Type Colour H L Code no. LD Black 65.5 2000 057H7278 LD Black 65.5 780 057H7279 LD Black 50 500 057H7281 LDS Red 50 500 057H7285 LDS Red 65.5 520 057H7287 LDS Red 105 350 057H7291 LDS Red 65.5 800 057H7292 LDS Light blue 50 500 057H7293 LDS Light blue 65.5 600 057H7294 057H7270 0057H7271 057H7272

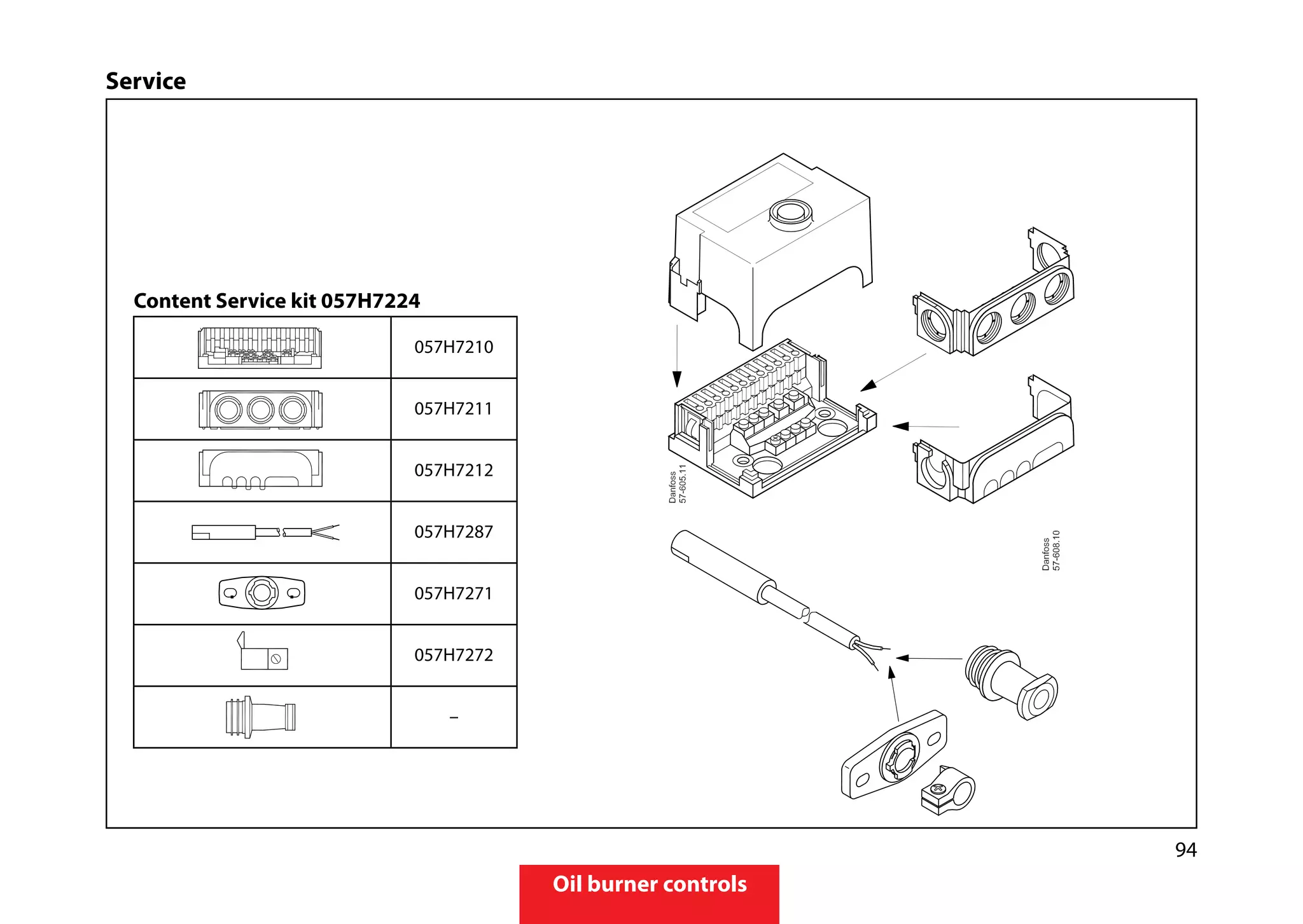

94 Oil burner controls Service Content Service kit 057H7224 057H7210 057H7211 057H7212 057H7287 057H7271 057H7272 –

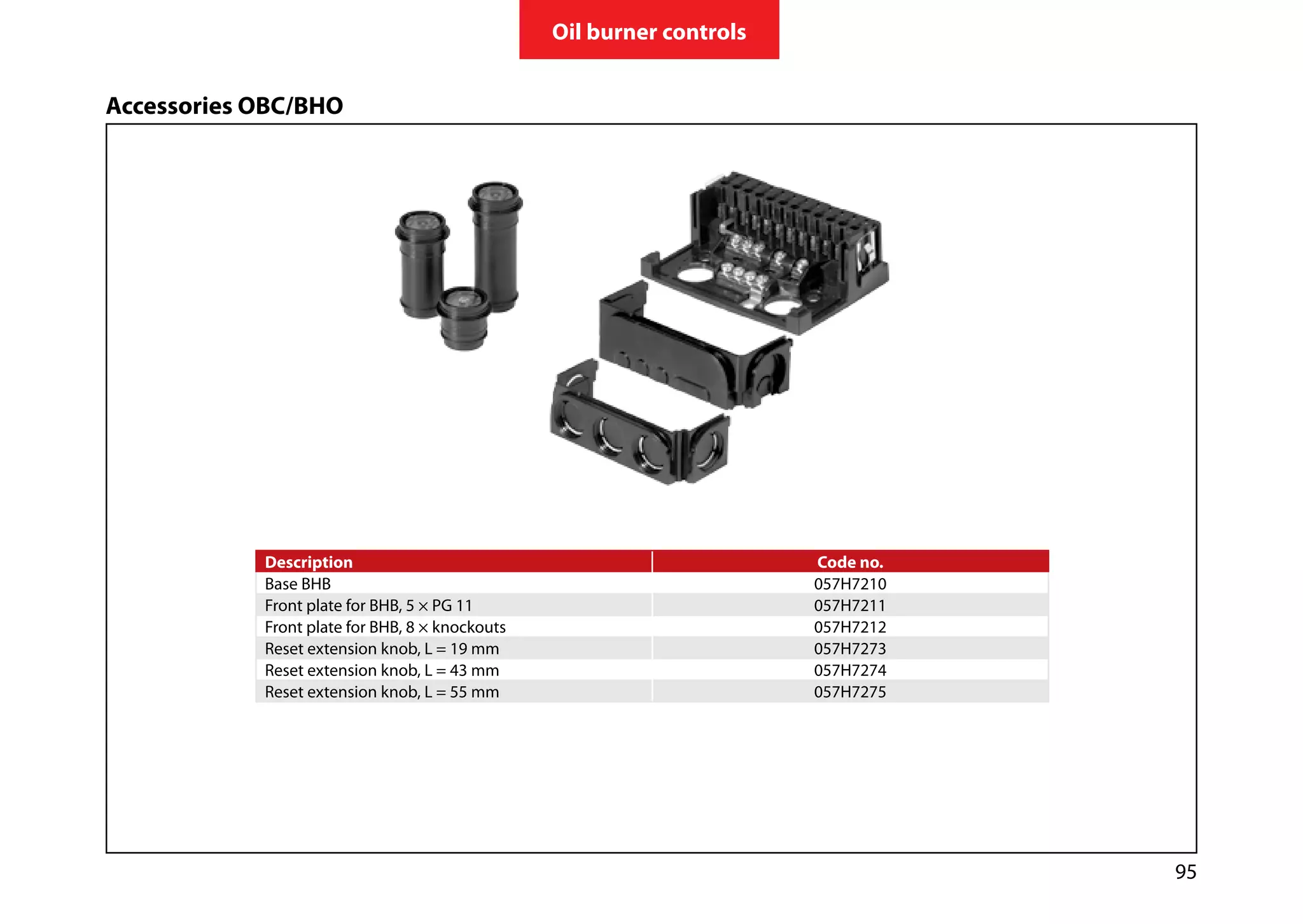

95 Oil burner controls Description Code no. Base BHB 057H7210 Front plate for BHB, 5 × PG 11 057H7211 Front plate for BHB, 8 × knockouts 057H7212 Reset extension knob, L = 19 mm 057H7273 Reset extension knob, L = 43 mm 057H7274 Reset extension knob, L = 55 mm 057H7275 Accessories OBC/BHO

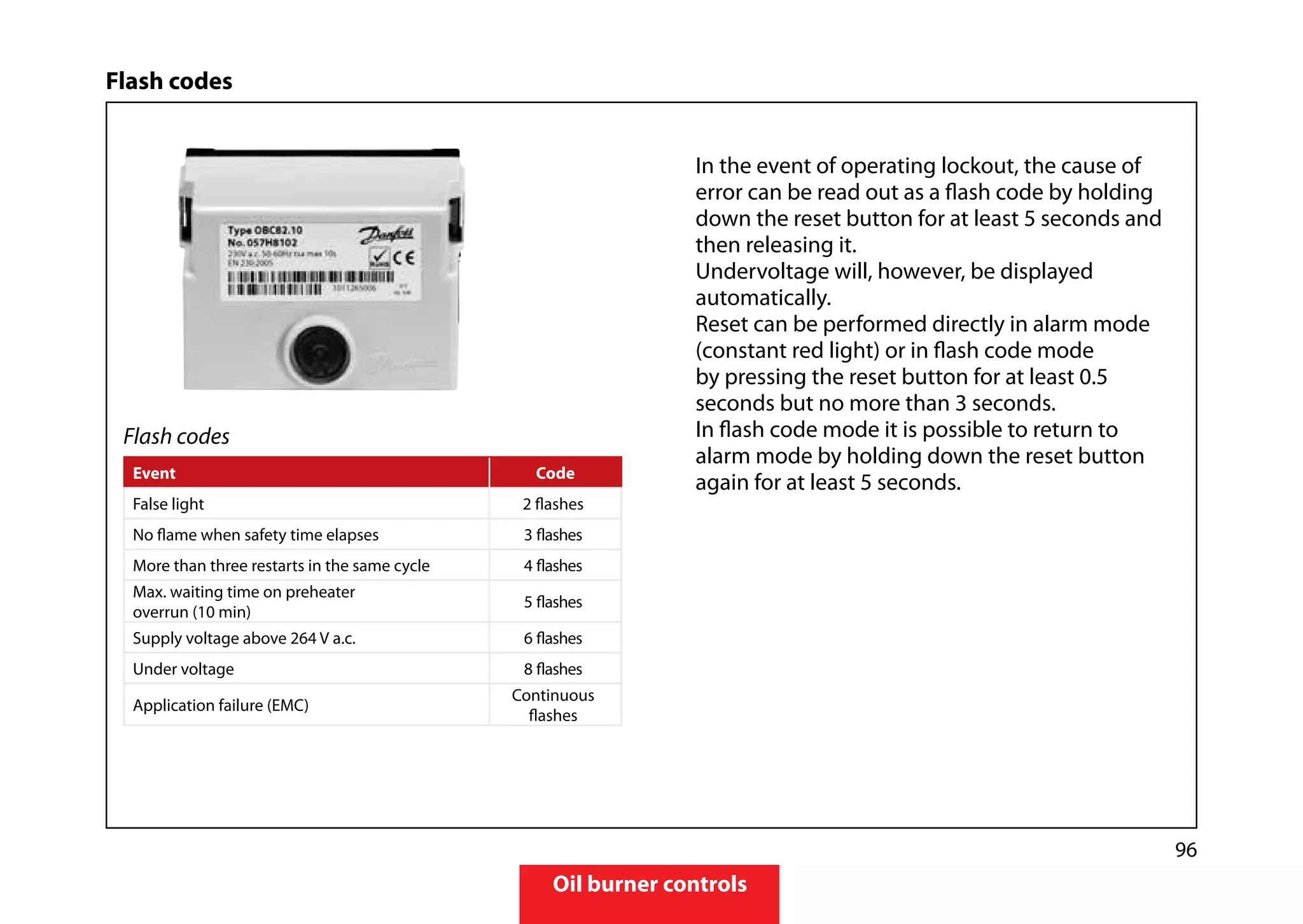

96 Oil burner controls Flash codes Event Code False light 2 flashes No flame when safety time elapses 3 flashes More than three restarts in the same cycle 4 flashes Max. waiting time on preheater overrun (10 min) 5 flashes Supply voltage above 264 V a.c. 6 flashes Under voltage 8 flashes Application failure (EMC) Continuous flashes In the event of operating lockout, the cause of error can be read out as a flash code by holding down the reset button for at least 5 seconds and then releasing it. Undervoltage will, however, be displayed automatically. Reset can be performed directly in alarm mode (constant red light) or in flash code mode by pressing the reset button for at least 0.5 seconds but no more than 3 seconds. In flash code mode it is possible to return to alarm mode by holding down the reset button again for at least 5 seconds. Flash codes

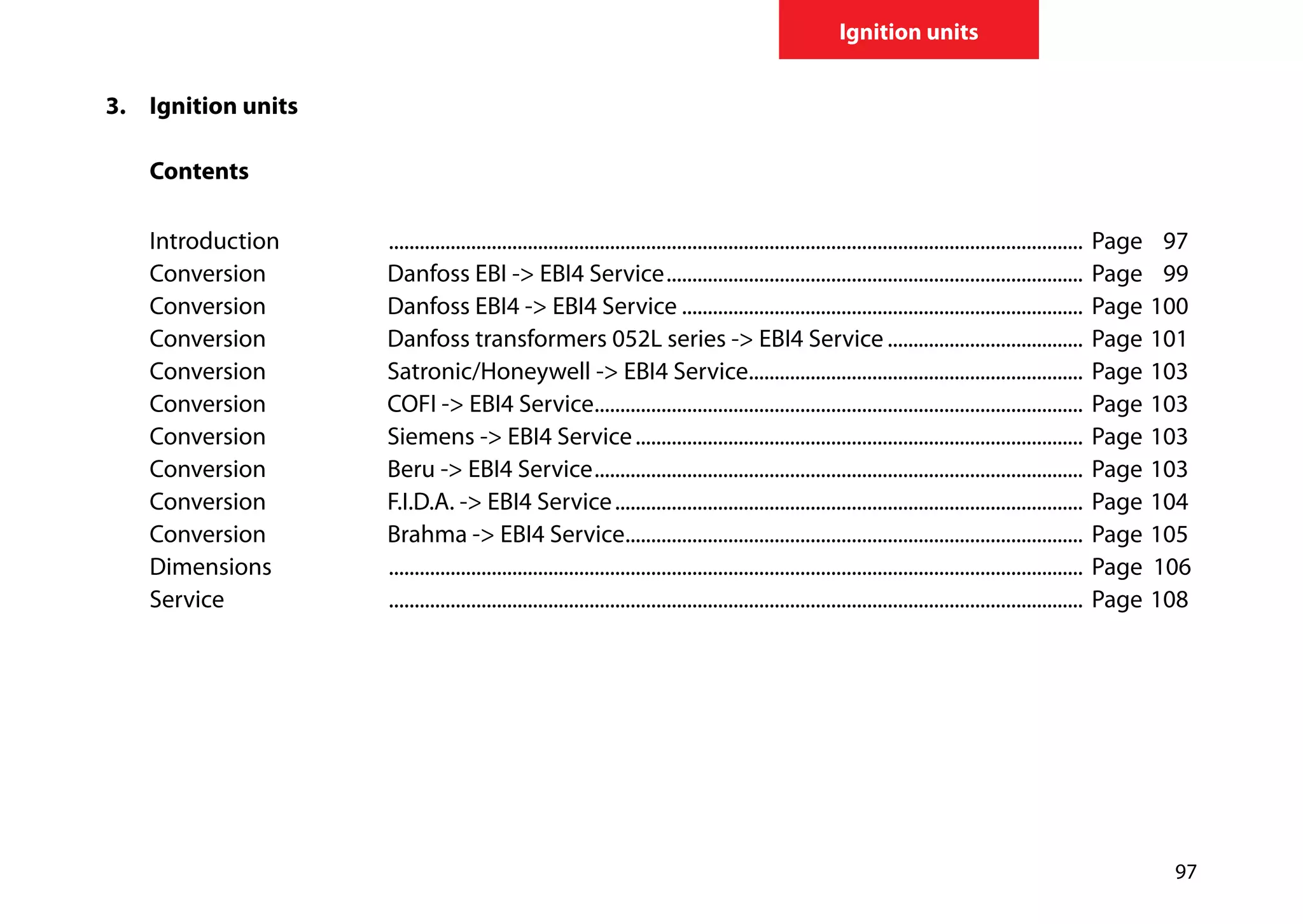

97 Ignition units 3. Ignition units Contents Introduction ........................................................................................................................................ Page 97 Conversion Danfoss EBI -> EBI4 Service.................................................................................. Page 99 Conversion Danfoss EBI4 -> EBI4 Service............................................................................... Page 100 Conversion Danfoss transformers 052L series -> EBI4 Service....................................... Page 101 Conversion Satronic/Honeywell -> EBI4 Service.................................................................. Page 103 Conversion COFI -> EBI4 Service................................................................................................ Page 103 Conversion Siemens -> EBI4 Service........................................................................................ Page 103 Conversion Beru -> EBI4 Service................................................................................................ Page 103 Conversion F.I.D.A. -> EBI4 Service............................................................................................ Page 104 Conversion Brahma -> EBI4 Service.......................................................................................... Page 105 Dimensions ........................................................................................................................................ Page 106 Service ........................................................................................................................................ Page 108

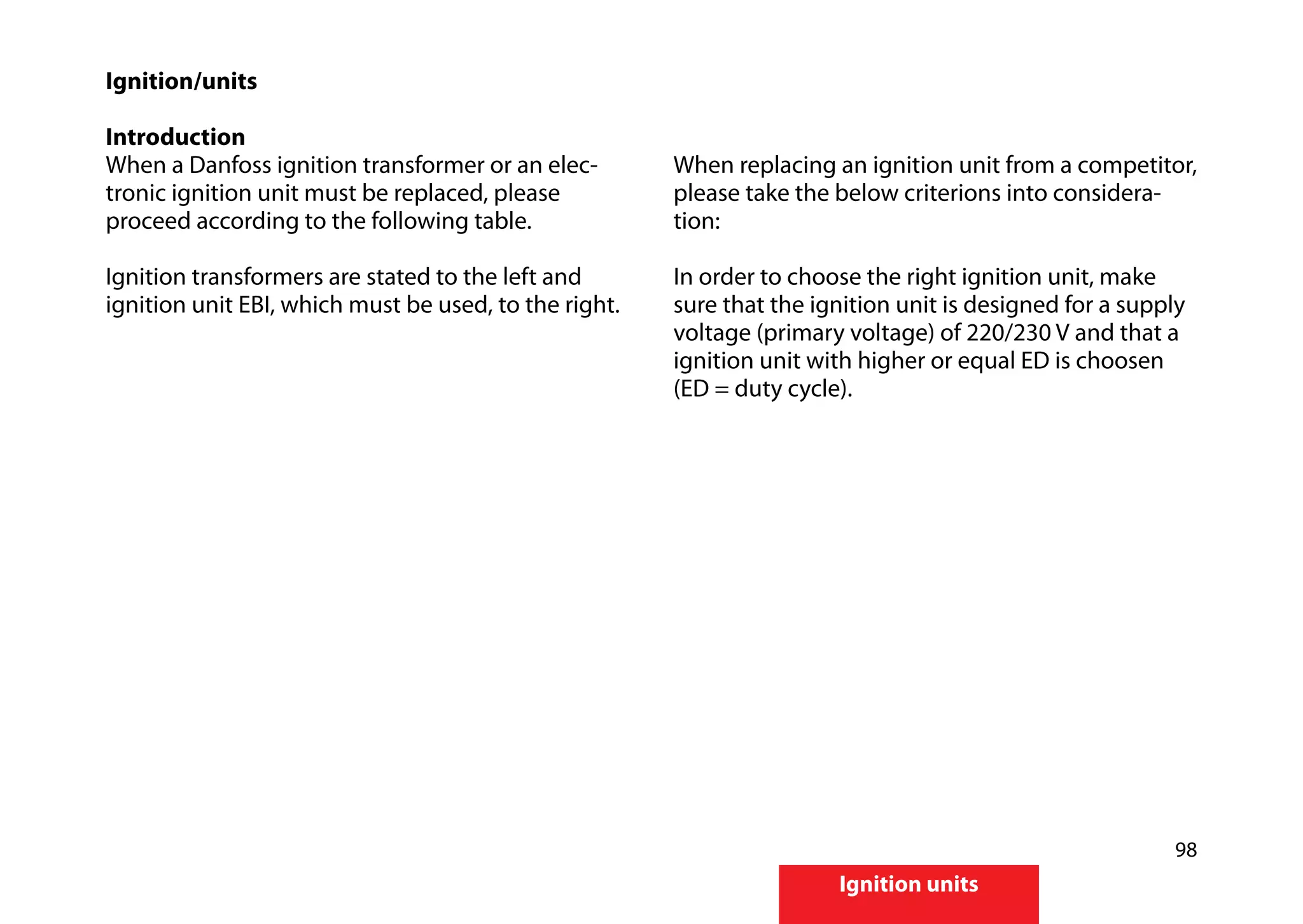

98 Ignition units Ignition/units Introduction When a Danfoss ignition transformer or an elec- tronic ignition unit must be replaced, please proceed according to the following table. Ignition transformers are stated to the left and ignition unit EBI, which must be used, to the right. When replacing an ignition unit from a competitor, please take the below criterions into considera- tion: In order to choose the right ignition unit, make sure that the ignition unit is designed for a supply voltage (primary voltage) of 220/230 V and that a ignition unit with higher or equal ED is choosen (ED = duty cycle).
99 Ignition units Danfoss' electronic ignition units EBI4 Series Electronic ignition units for oil burners • ED 33% at 60°C • 1or 2 pole ignition • Complies with the RoHs and WEEE directives • 230 V or 120 V EBI4 C Series Electronic ignition units for constant ignition • ED 100% at 35°C • 1 or 2 pole ignition • Complies with the RoHs and WEEE directives EBI4 HP Series Electronic ignition units for large oil burners • 50% stronger spark compared to other ignition units • ED 33% at 60°C • 1 or 2 pole ignition • Complies with the RoHs and WEEE directives

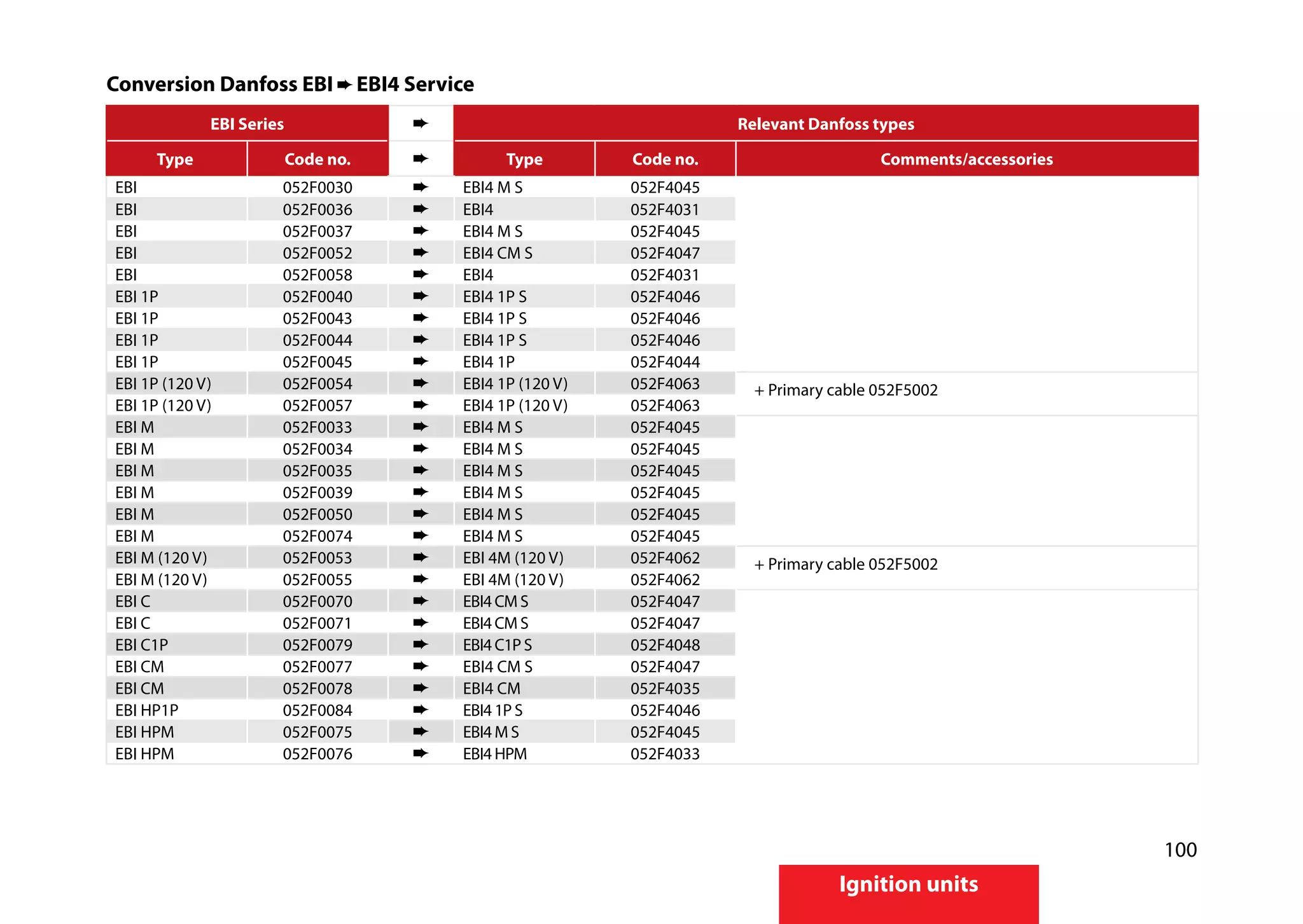

100 Ignition units Conversion Danfoss EBI EBI4 Service EBI Series Relevant Danfoss types Type Code no. Type Code no. Comments/accessories EBI 052F0030 EBI4 M S 052F4045 EBI 052F0036 EBI4 052F4031 EBI 052F0037 EBI4 M S 052F4045 EBI 052F0052 EBI4 CM S 052F4047 EBI 052F0058 EBI4 052F4031 EBI 1P 052F0040 EBI4 1P S 052F4046 EBI 1P 052F0043 EBI4 1P S 052F4046 EBI 1P 052F0044 EBI4 1P S 052F4046 EBI 1P 052F0045 EBI4 1P 052F4044 EBI 1P (120 V) 052F0054 EBI4 1P (120 V) 052F4063 + Primary cable 052F5002 EBI 1P (120 V) 052F0057 EBI4 1P (120 V) 052F4063 EBI M 052F0033 EBI4 M S 052F4045 EBI M 052F0034 EBI4 M S 052F4045 EBI M 052F0035 EBI4 M S 052F4045 EBI M 052F0039 EBI4 M S 052F4045 EBI M 052F0050 EBI4 M S 052F4045 EBI M 052F0074 EBI4 M S 052F4045 EBI M (120 V) 052F0053 EBI 4M (120 V) 052F4062 + Primary cable 052F5002 EBI M (120 V) 052F0055 EBI 4M (120 V) 052F4062 EBI C 052F0070 EBI4 CM S 052F4047 EBI C 052F0071 EBI4 CM S 052F4047 EBI C1P 052F0079 EBI4 C1P S 052F4048 EBI CM 052F0077 EBI4 CM S 052F4047 EBI CM 052F0078 EBI4 CM 052F4035 EBI HP1P 052F0084 EBI4 1P S 052F4046 EBI HPM 052F0075 EBI4 M S 052F4045 EBI HPM 052F0076 EBI4 HPM 052F4033

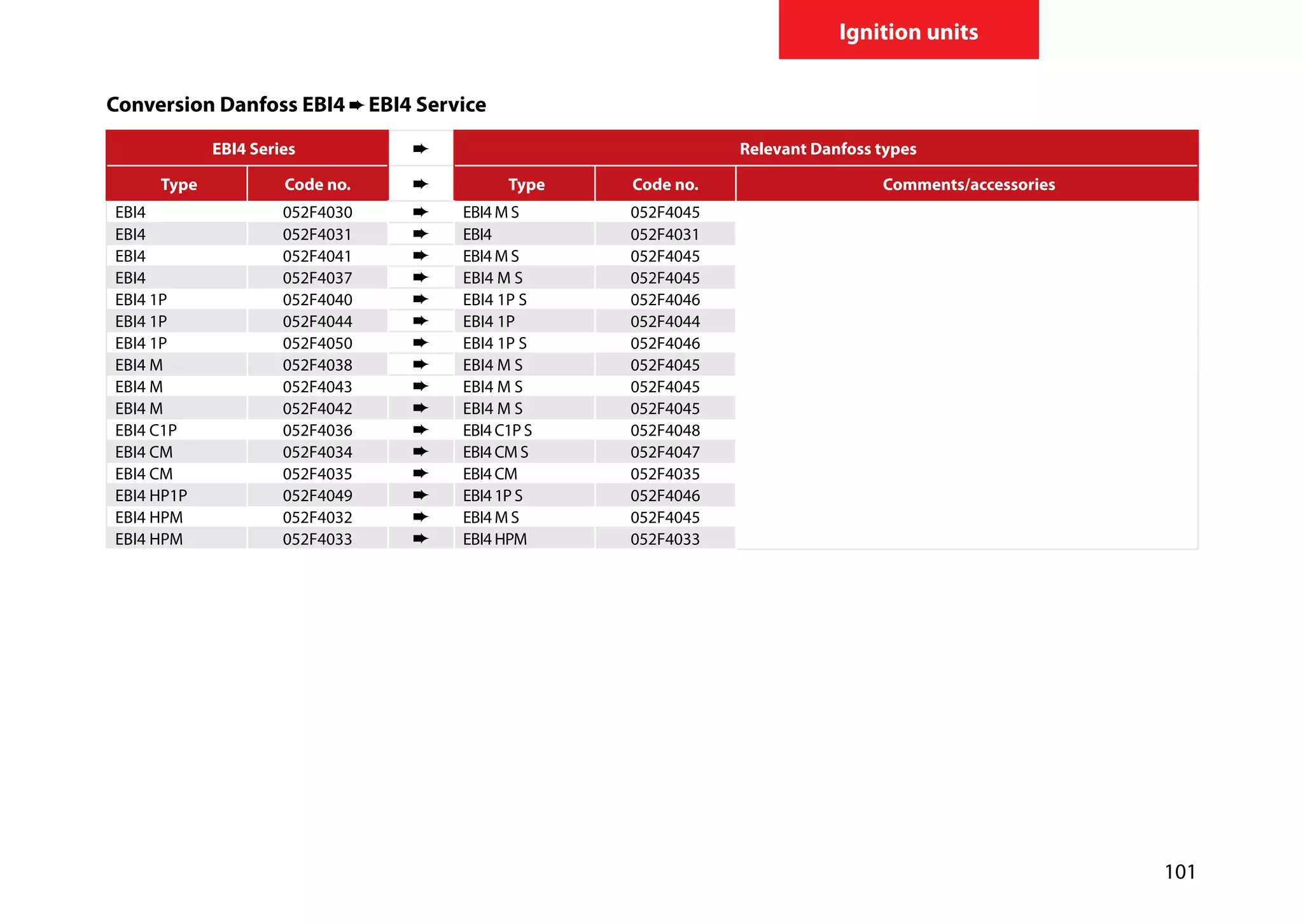

101 Ignition units Conversion Danfoss EBI4 EBI4 Service EBI4 Series Relevant Danfoss types Type Code no. Type Code no. Comments/accessories EBI4 052F4030 EBI4 M S 052F4045 EBI4 052F4031 EBI4 052F4031 EBI4 052F4041 EBI4 M S 052F4045 EBI4 052F4037 EBI4 M S 052F4045 EBI4 1P 052F4040 EBI4 1P S 052F4046 EBI4 1P 052F4044 EBI4 1P 052F4044 EBI4 1P 052F4050 EBI4 1P S 052F4046 EBI4 M 052F4038 EBI4 M S 052F4045 EBI4 M 052F4043 EBI4 M S 052F4045 EBI4 M 052F4042 EBI4 M S 052F4045 EBI4 C1P 052F4036 EBI4 C1P S 052F4048 EBI4 CM 052F4034 EBI4 CM S 052F4047 EBI4 CM 052F4035 EBI4 CM 052F4035 EBI4 HP1P 052F4049 EBI4 1P S 052F4046 EBI4 HPM 052F4032 EBI4 M S 052F4045 EBI4 HPM 052F4033 EBI4 HPM 052F4033
102 Ignition units Conversion Danfoss transformers 052L series EBI4 Service 52L Relevant Danfoss types Type Code no. Type Code no. Comments/accessories 52L 052L0000-03 EBI4 052F0063 52L 052L0005 EBI4 052F0063 52L 052L0007-09 EBI4 052F0063 52L 052L0014-15 EBI4 052F0063 52L 052L0017 EBI4 052F0063 52L 052L0019-20 EBI4 052F0063 52L 052L0023 EBI4 052F0063 52L 052L0028 EBI4 052F0063 52L 052L0034 EBI4 052F0063 52L 052L0036-39 EBI4 052F0063 52L 052L0041-42 EBI4 052F0063 52L 052L0045-48 EBI4 052F0063 52L 052L0050-56 EBI4 052F0063 52L 052L0058-61 EBI4 052F0063 52L 052L0063-64 EBI4 052F0063 52L 052L0066-79 EBI4 052F0063 52L 052L0082 EBI4 052F0063 52L 052L0086-87 EBI4 052F0063 52L 052L0089-93 EBI4 052F0063 52L 052L0095-98 EBI4 052F0063 52L 052L1011 EBI4 052F0063 52L 052L1033 EBI4 052F0063 52L 052L1050-51 EBI4 052F0063 52L 052L1054-57 EBI4 052F0063 52L 052L1075-76 EBI4 052F0063 52L 052L1080 EBI4 052F0063 52L 052L1085 EBI4 052F0063

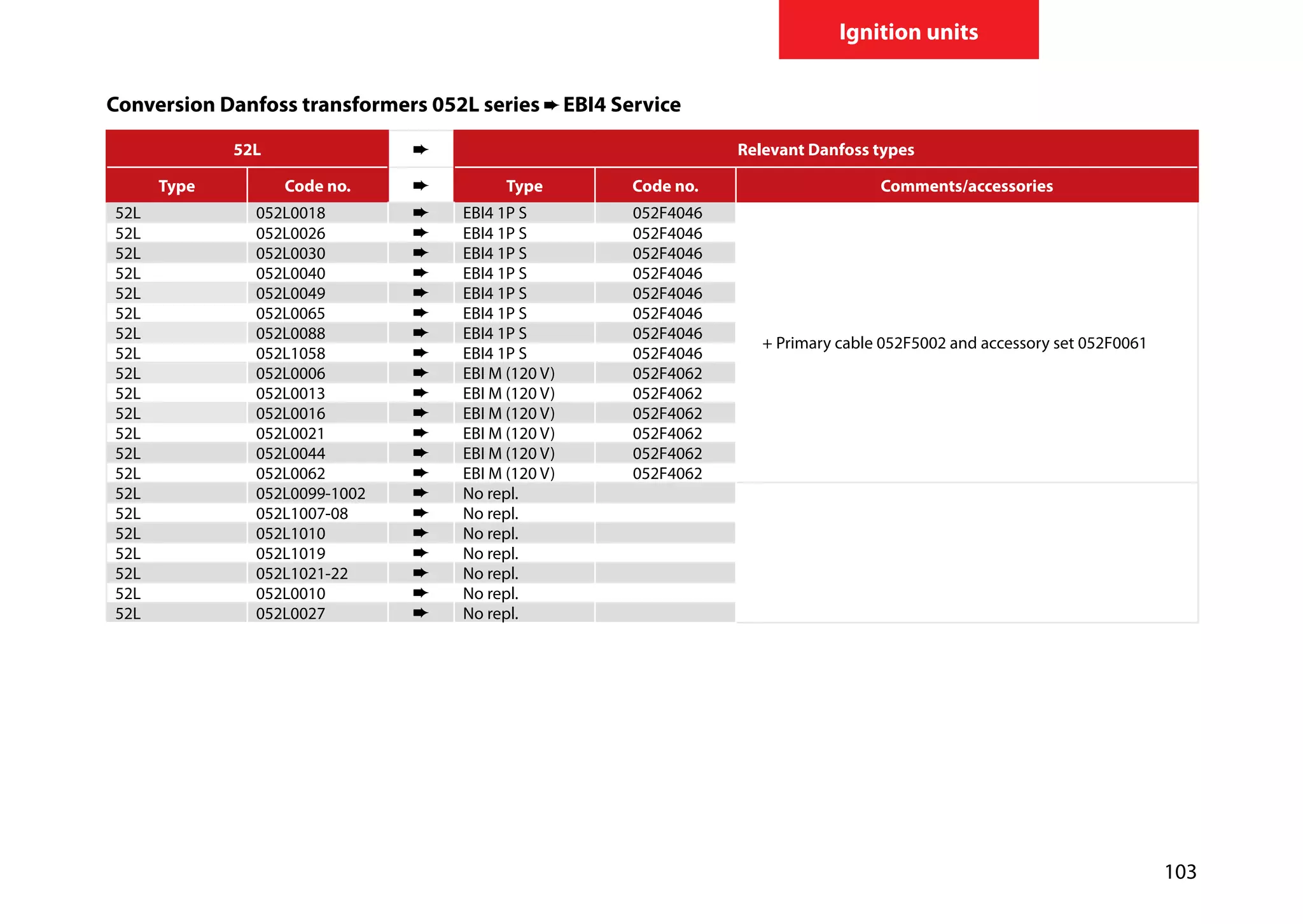

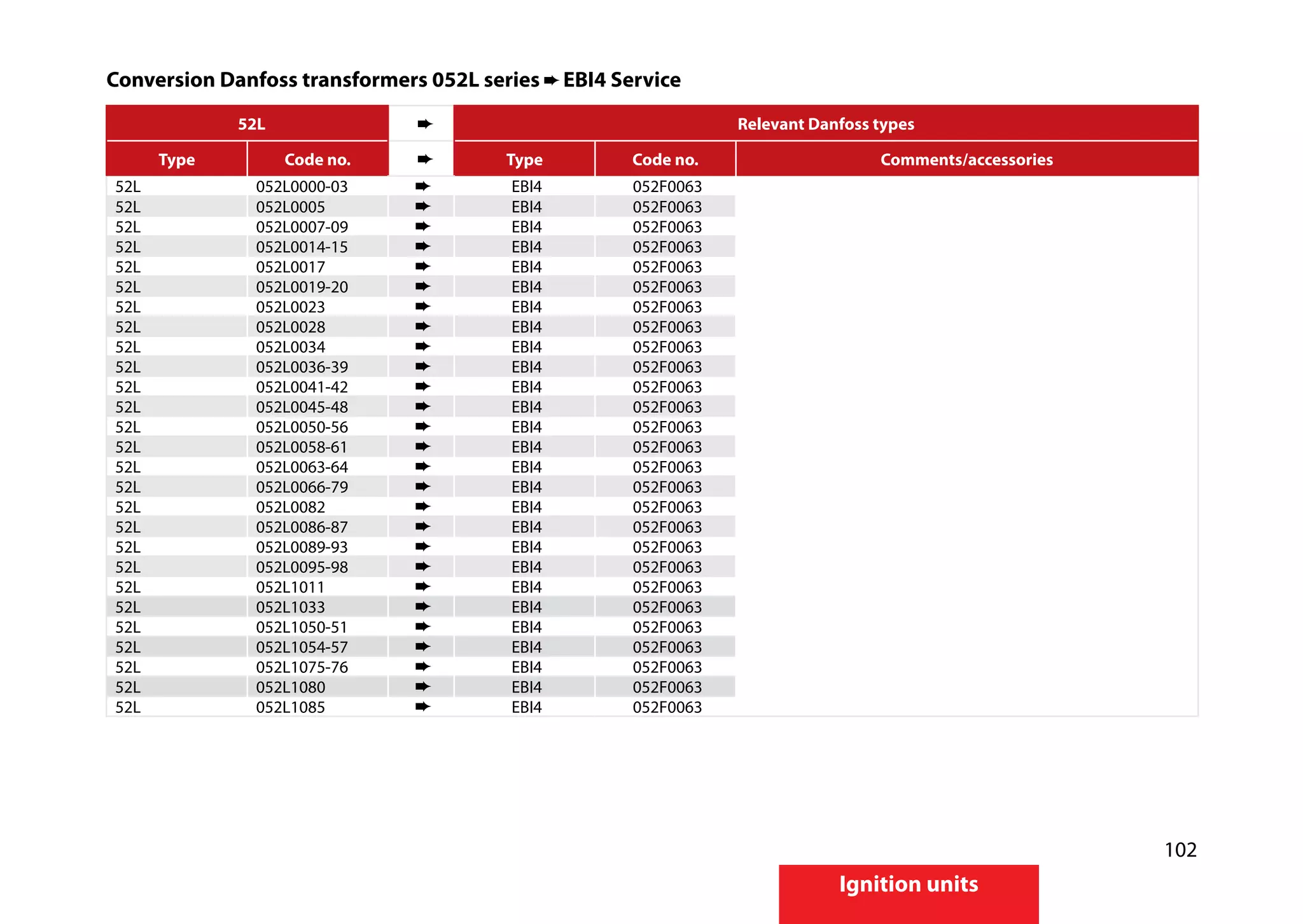

103 Ignition units Conversion Danfoss transformers 052L series EBI4 Service 52L Relevant Danfoss types Type Code no. Type Code no. Comments/accessories 52L 052L0018 EBI4 1P S 052F4046 + Primary cable 052F5002 and accessory set 052F0061 52L 052L0026 EBI4 1P S 052F4046 52L 052L0030 EBI4 1P S 052F4046 52L 052L0040 EBI4 1P S 052F4046 52L 052L0049 EBI4 1P S 052F4046 52L 052L0065 EBI4 1P S 052F4046 52L 052L0088 EBI4 1P S 052F4046 52L 052L1058 EBI4 1P S 052F4046 52L 052L0006 EBI M (120 V) 052F4062 52L 052L0013 EBI M (120 V) 052F4062 52L 052L0016 EBI M (120 V) 052F4062 52L 052L0021 EBI M (120 V) 052F4062 52L 052L0044 EBI M (120 V) 052F4062 52L 052L0062 EBI M (120 V) 052F4062 52L 052L0099-1002 No repl. 52L 052L1007-08 No repl. 52L 052L1010 No repl. 52L 052L1019 No repl. 52L 052L1021-22 No repl. 52L 052L0010 No repl. 52L 052L0027 No repl.
104 Ignition units Conversion ignition units other makes EBI4 service Satronic/Honeywell Relevant Danfoss types Type Type Code no. Comments/accessories ZT 930, 2-pole EBI4 052F4031 ZT 801, 2-pole EBI4 052F4031 ZT 900, 2-pole EBI4 052F4031 ZT 931, 1-pole EBI4 1P 052F4044 ZT 812, 1-pole EBI4 1P 052F4044 ZT 812B, 1-pole EBI4 1P 052F4044 COFI Relevant Danfoss types Type Type Code no. Comments/accessories TRK 1, 2-pole EBI4 CM 052F4035 TRK 2, 2-pole EBI4 052F4031 TRK 2P, 1-pole EBI4 1P 052F4044 TRK 1P, 1-pole EBI4 C1PS* 052F4048 + primary cable 052F5002 (* Do have secondary front connection) TRAF 1, 2-pole EBI4 CM S 052F4047 TRAF 2, 2-pole EBI4 M S 052F0063 TRAF 1P, 1-pole EBI4 C1P S* 052F4048 + primary cable 052F5002 (* Do have secondary front connection) Siemens Relevant Danfoss types Type Type Code no. Comments/accessories TQO 31 A 27 EBI4 M S 052F4045 BERU Relevant Danfoss types Type Type Code no. Comments/accessories 0 096 600 017 EBI4 CM S 052F4047 P 001 820 000 EBI4 052F4031 0 096 600 009 EBI4 CM S 052F4047

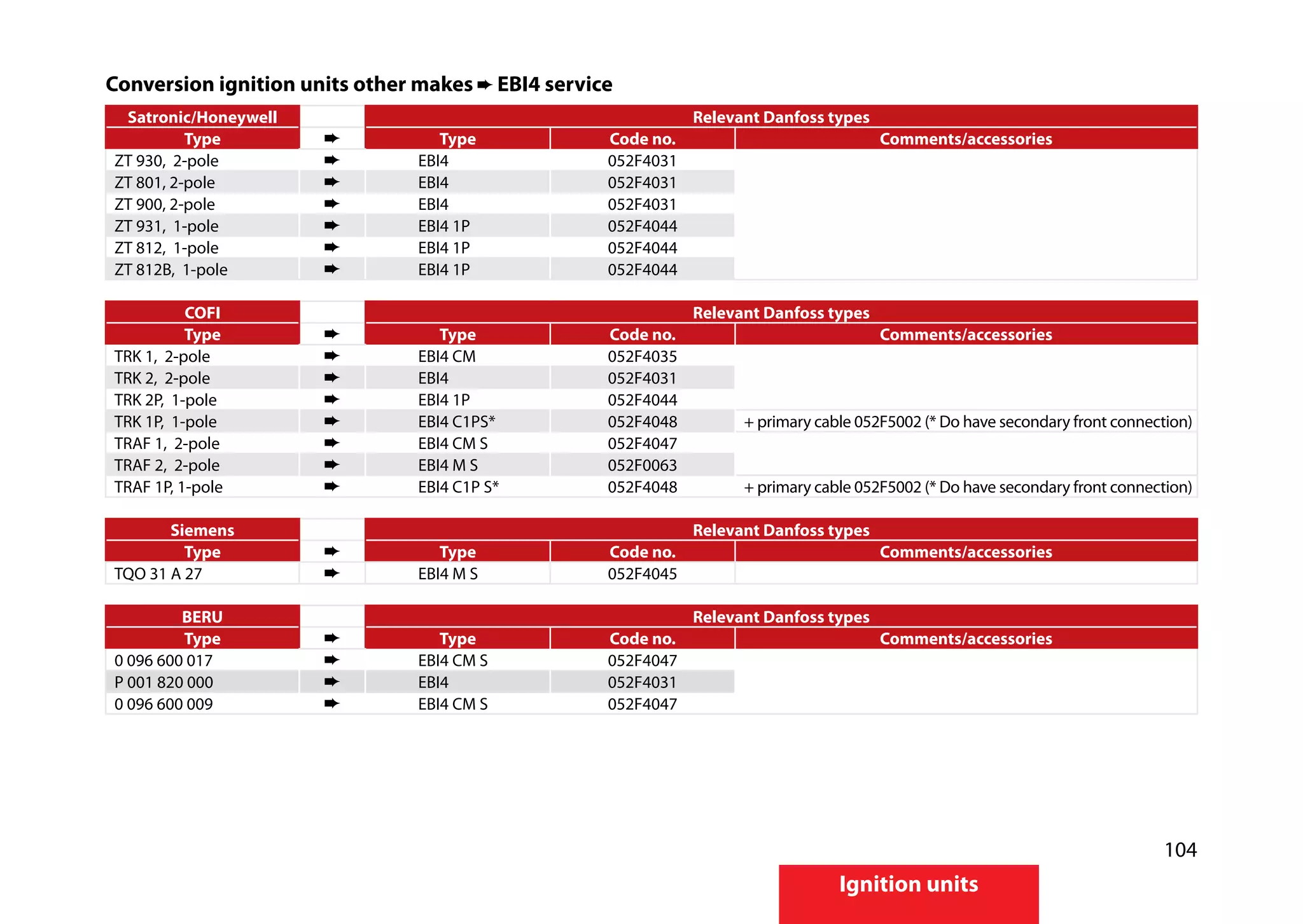

105 Ignition units Conversion ignition units other makes EBI4 service F.I.D.A. Relevant Danfoss types Type Type Code no. Comments/accessories 26/30 IS EBI4 CM S 052F4047 + primary cable 052F5002 26/30 CM EBI4 CM S 052F4047 26/30 PM EBI4 C1P S 052F4048 26/35 IS EBI4 CM S 052F4047 26/40 PM EBI4 C1P S 052F4048

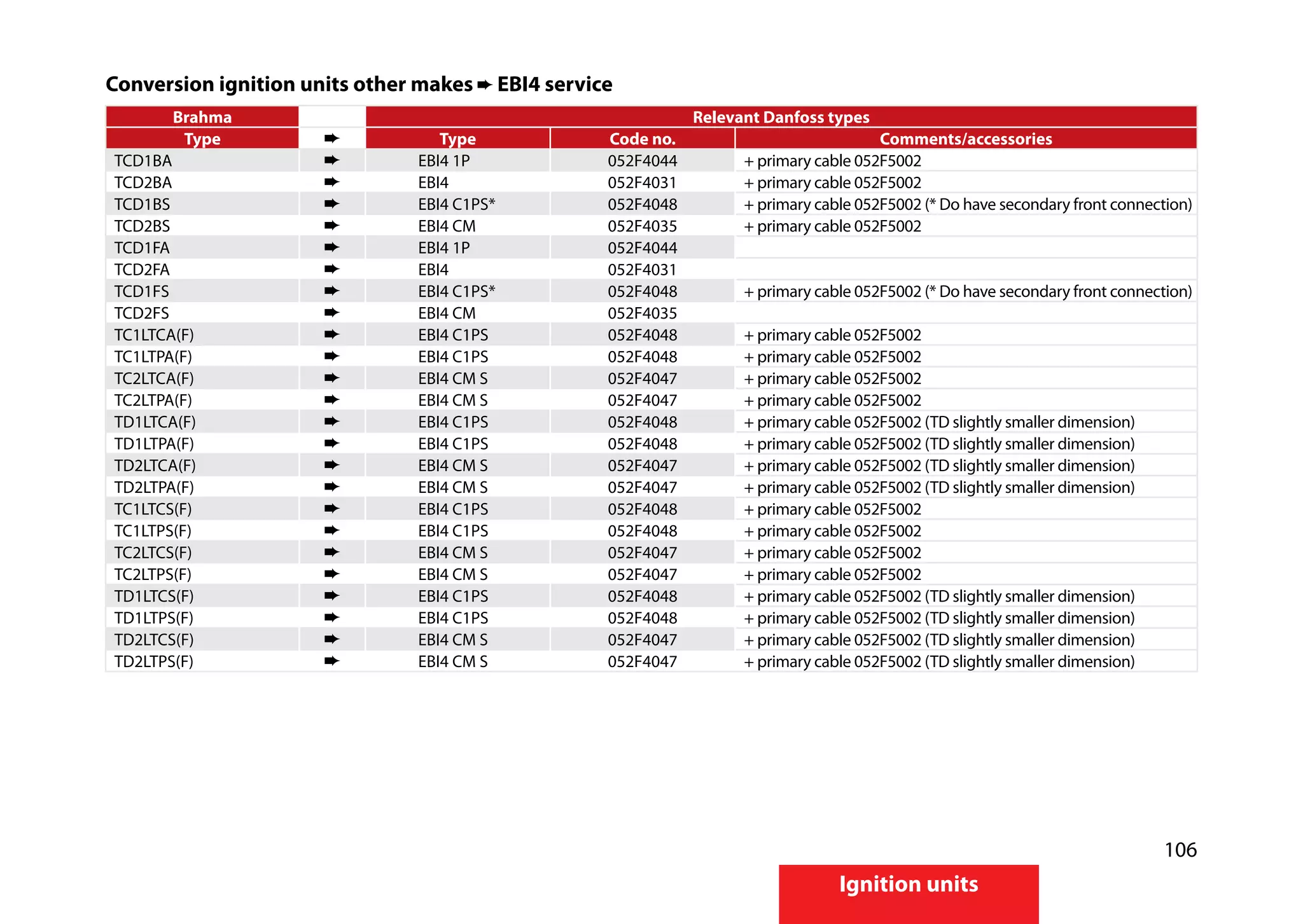

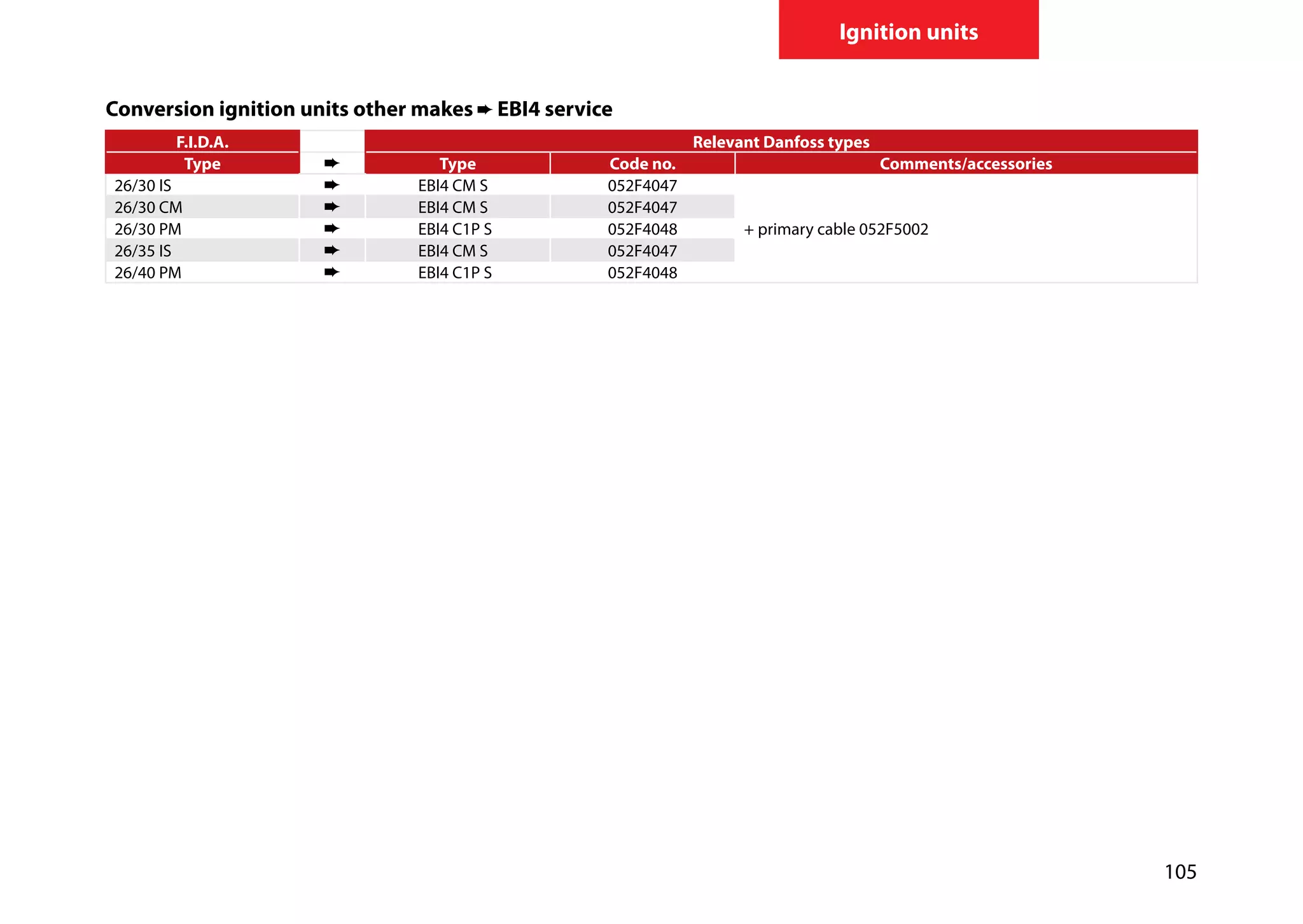

106 Ignition units Conversion ignition units other makes EBI4 service Brahma Relevant Danfoss types Type Type Code no. Comments/accessories TCD1BA EBI4 1P 052F4044 + primary cable 052F5002 TCD2BA EBI4 052F4031 + primary cable 052F5002 TCD1BS EBI4 C1PS* 052F4048 + primary cable 052F5002 (* Do have secondary front connection) TCD2BS EBI4 CM 052F4035 + primary cable 052F5002 TCD1FA EBI4 1P 052F4044 TCD2FA EBI4 052F4031 TCD1FS EBI4 C1PS* 052F4048 + primary cable 052F5002 (* Do have secondary front connection) TCD2FS EBI4 CM 052F4035 TC1LTCA(F) EBI4 C1PS 052F4048 + primary cable 052F5002 TC1LTPA(F) EBI4 C1PS 052F4048 + primary cable 052F5002 TC2LTCA(F) EBI4 CM S 052F4047 + primary cable 052F5002 TC2LTPA(F) EBI4 CM S 052F4047 + primary cable 052F5002 TD1LTCA(F) EBI4 C1PS 052F4048 + primary cable 052F5002 (TD slightly smaller dimension) TD1LTPA(F) EBI4 C1PS 052F4048 + primary cable 052F5002 (TD slightly smaller dimension) TD2LTCA(F) EBI4 CM S 052F4047 + primary cable 052F5002 (TD slightly smaller dimension) TD2LTPA(F) EBI4 CM S 052F4047 + primary cable 052F5002 (TD slightly smaller dimension) TC1LTCS(F) EBI4 C1PS 052F4048 + primary cable 052F5002 TC1LTPS(F) EBI4 C1PS 052F4048 + primary cable 052F5002 TC2LTCS(F) EBI4 CM S 052F4047 + primary cable 052F5002 TC2LTPS(F) EBI4 CM S 052F4047 + primary cable 052F5002 TD1LTCS(F) EBI4 C1PS 052F4048 + primary cable 052F5002 (TD slightly smaller dimension) TD1LTPS(F) EBI4 C1PS 052F4048 + primary cable 052F5002 (TD slightly smaller dimension) TD2LTCS(F) EBI4 CM S 052F4047 + primary cable 052F5002 (TD slightly smaller dimension) TD2LTPS(F) EBI4 CM S 052F4047 + primary cable 052F5002 (TD slightly smaller dimension)

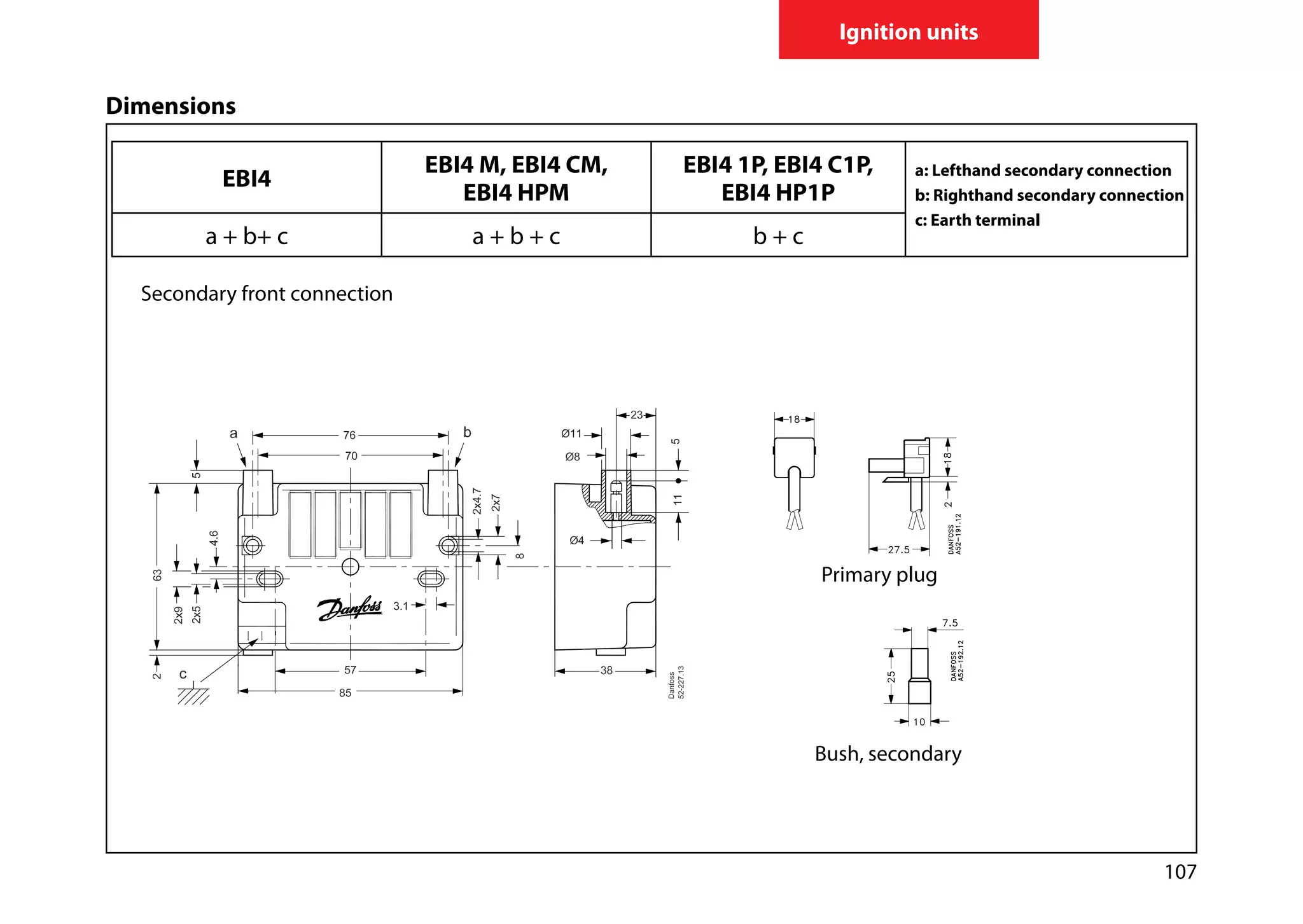

107 Ignition units Dimensions EBI4 EBI4 M, EBI4 CM, EBI4 HPM EBI4 1P, EBI4 C1P, EBI4 HP1P a: Lefthand secondary connection b: Righthand secondary connection c: Earth terminal a + b+ c a + b + c b + c Secondary front connection Bush, secondary Primary plug

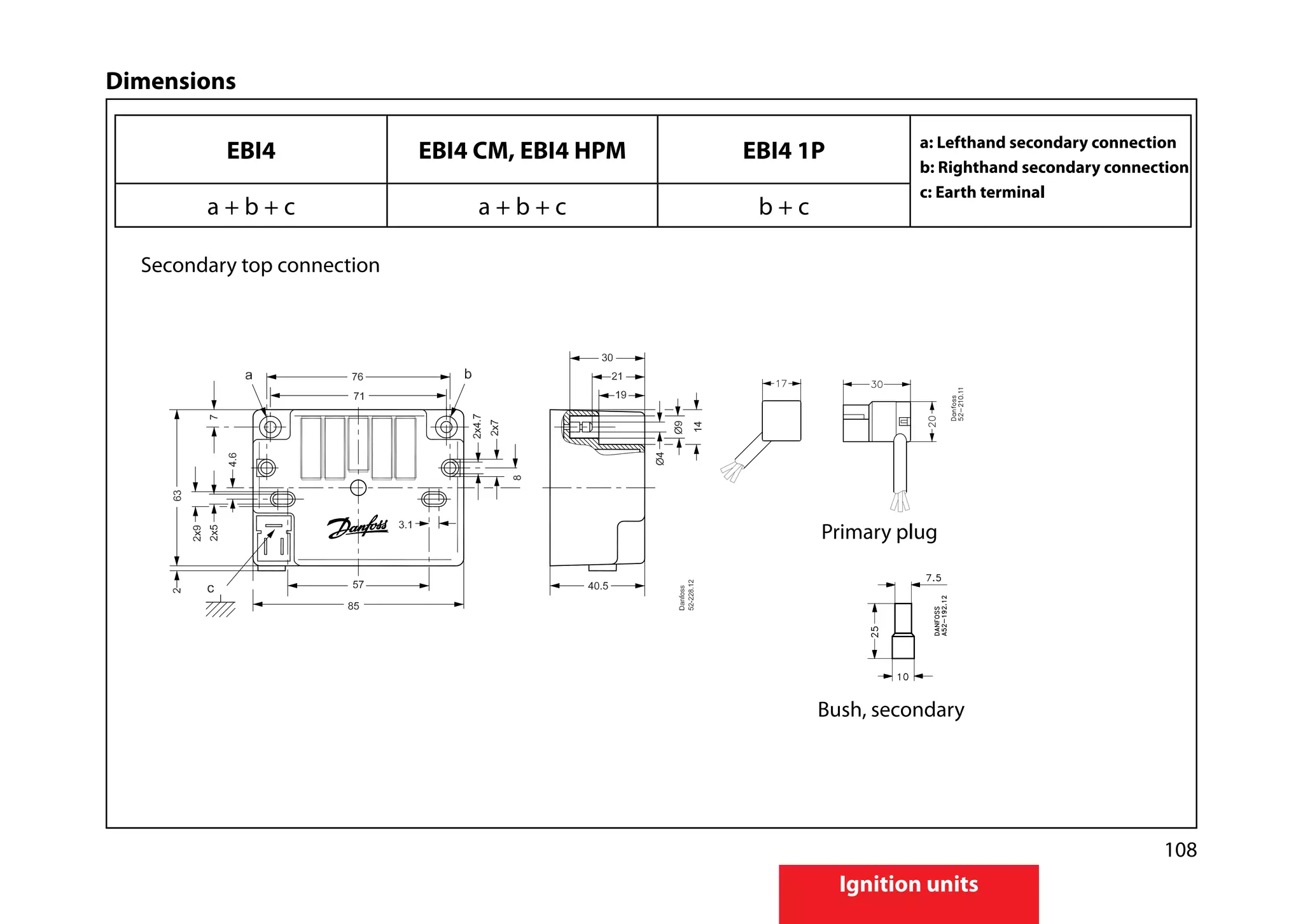

108 Ignition units Dimensions EBI4 EBI4 CM, EBI4 HPM EBI4 1P a: Lefthand secondary connection b: Righthand secondary connection c: Earth terminal a + b + c a + b + c b + c Secondary top connection Bush, secondary Primary plug

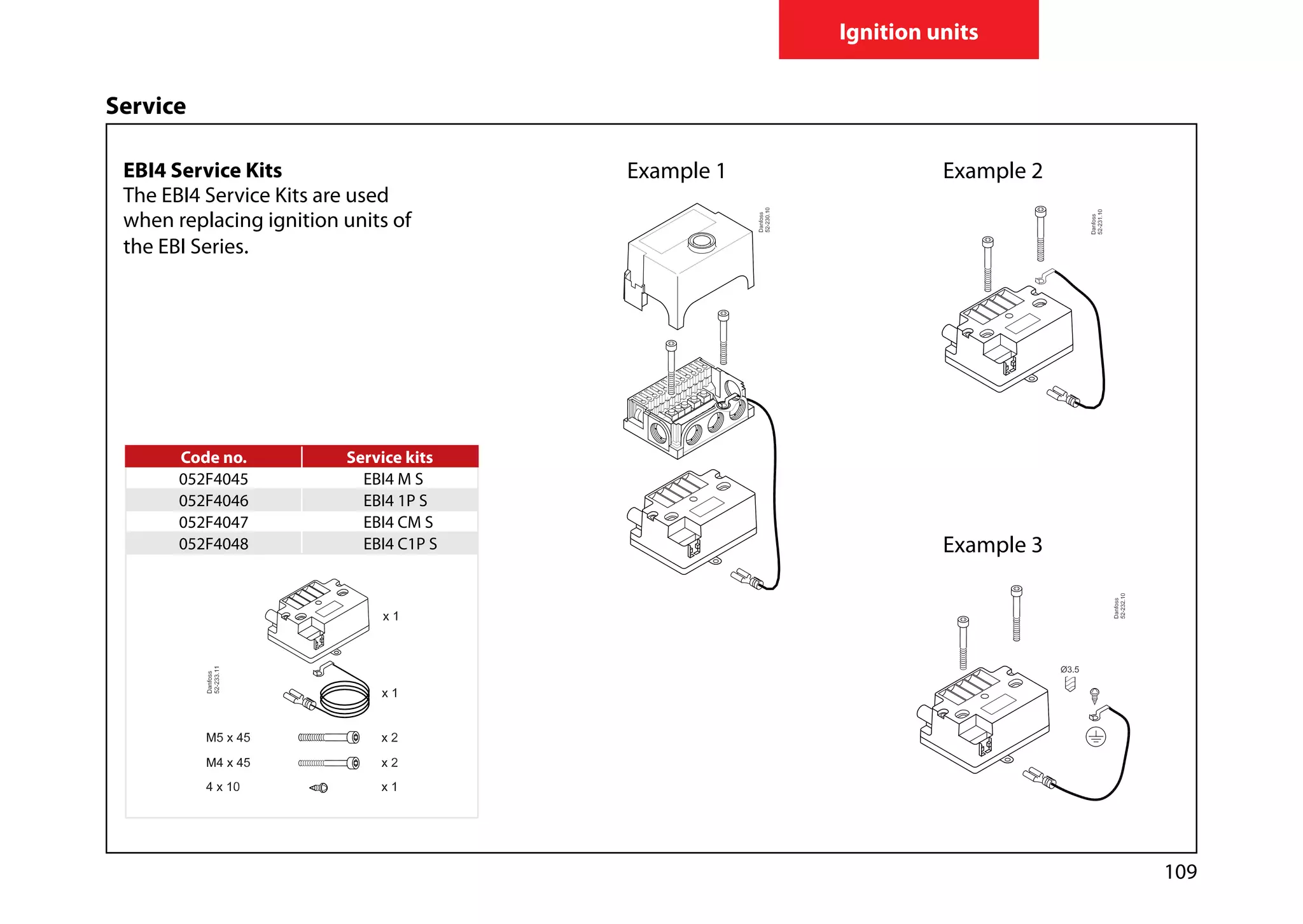

109 Ignition units EBI4 Service Kits The EBI4 Service Kits are used when replacing ignition units of the EBI Series. Example 1 Example 2 Example 3 Service Code no. Service kits 052F4045 EBI4 M S 052F4046 EBI4 1P S 052F4047 EBI4 CM S 052F4048 EBI4 C1P S

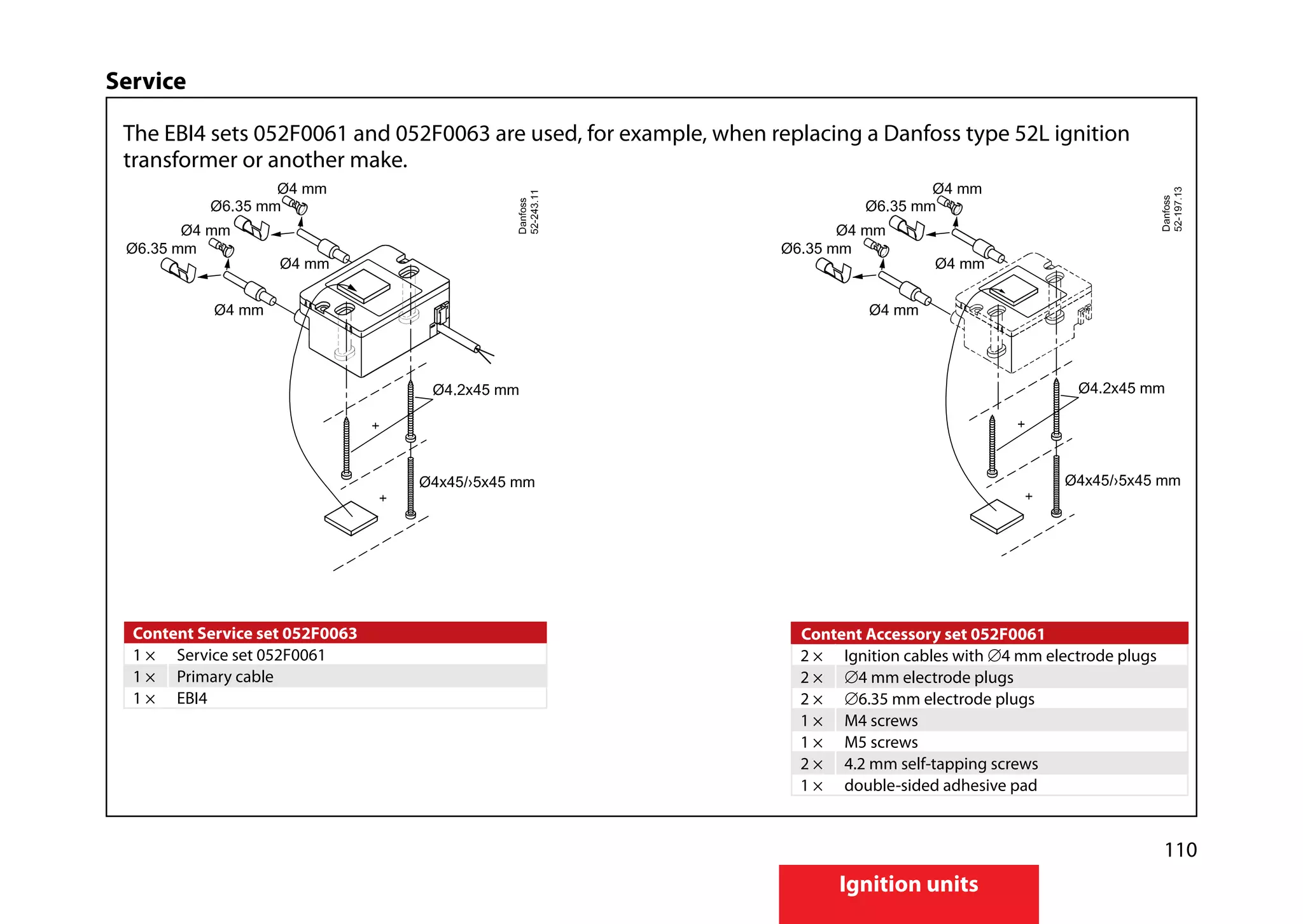

110 Ignition units Service The EBI4 sets 052F0061 and 052F0063 are used, for example, when replacing a Danfoss type 52L ignition transformer or another make. Content Service set 052F0063 1 × Service set 052F0061 1 × Primary cable 1 × EBI4 Content Accessory set 052F0061 2 × Ignition cables with ∅4 mm electrode plugs 2 × ∅4 mm electrode plugs 2 × ∅6.35 mm electrode plugs 1 × M4 screws 1 × M5 screws 2 × 4.2 mm self-tapping screws 1 × double-sided adhesive pad

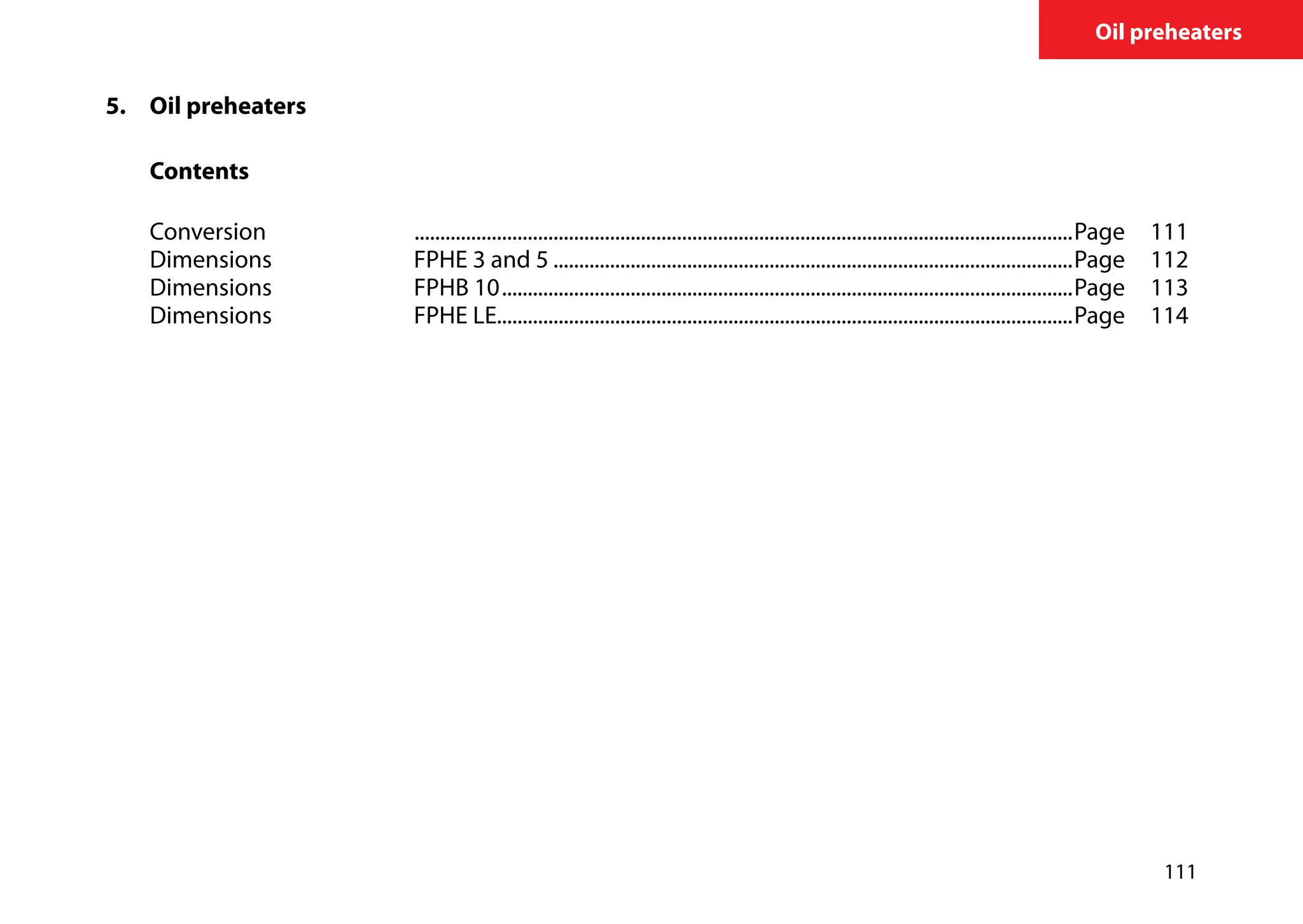

111 Oil preheaters 5. Oil preheaters Contents Conversion .................................................................................................................................Page 111 Dimensions FPHE 3 and 5......................................................................................................Page 112 Dimensions FPHB 10................................................................................................................Page 113 Dimensions FPHE LE................................................................................................................Page 114

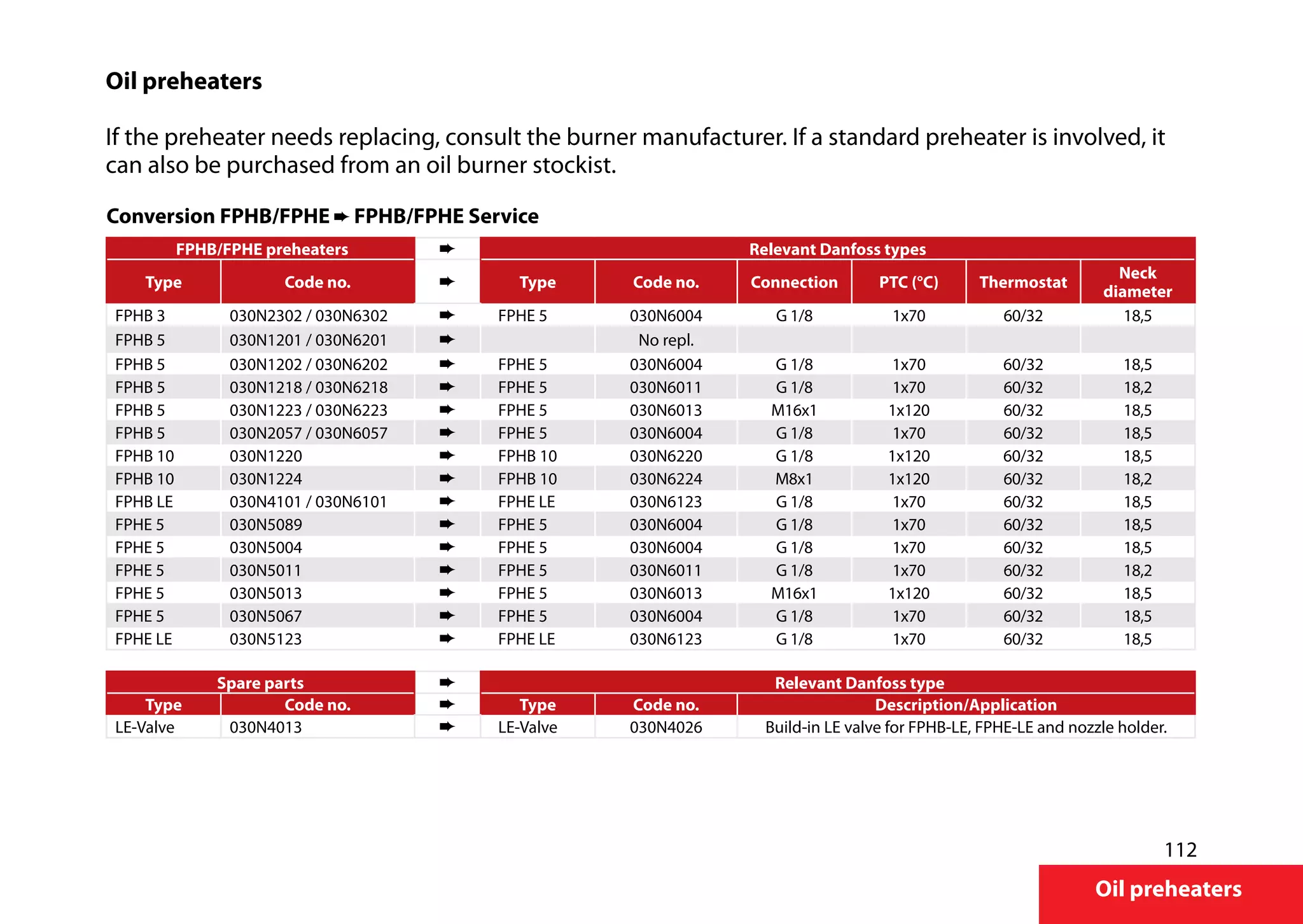

112 Oil preheaters Oil preheaters If the preheater needs replacing, consult the burner manufacturer. If a standard preheater is involved, it can also be purchased from an oil burner stockist. Conversion FPHB/FPHE FPHB/FPHE Service FPHB/FPHE preheaters Relevant Danfoss types Type Code no. Type Code no. Connection PTC (°C) Thermostat Neck ­diameter FPHB 3 030N2302 / 030N6302 FPHE 5 030N6004 G 1/8 1x70 60/32 18,5 FPHB 5 030N1201 / 030N6201 No repl. FPHB 5 030N1202 / 030N6202 FPHE 5 030N6004 G 1/8 1x70 60/32 18,5 FPHB 5 030N1218 / 030N6218 FPHE 5 030N6011 G 1/8 1x70 60/32 18,2 FPHB 5 030N1223 / 030N6223 FPHE 5 030N6013 M16x1 1x120 60/32 18,5 FPHB 5 030N2057 / 030N6057 FPHE 5 030N6004 G 1/8 1x70 60/32 18,5 FPHB 10 030N1220 FPHB 10 030N6220 G 1/8 1x120 60/32 18,5 FPHB 10 030N1224 FPHB 10 030N6224 M8x1 1x120 60/32 18,2 FPHB LE 030N4101 / 030N6101 FPHE LE 030N6123 G 1/8 1x70 60/32 18,5 FPHE 5 030N5089 FPHE 5 030N6004 G 1/8 1x70 60/32 18,5 FPHE 5 030N5004 FPHE 5 030N6004 G 1/8 1x70 60/32 18,5 FPHE 5 030N5011 FPHE 5 030N6011 G 1/8 1x70 60/32 18,2 FPHE 5 030N5013 FPHE 5 030N6013 M16x1 1x120 60/32 18,5 FPHE 5 030N5067 FPHE 5 030N6004 G 1/8 1x70 60/32 18,5 FPHE LE 030N5123 FPHE LE 030N6123 G 1/8 1x70 60/32 18,5 Spare parts Relevant Danfoss type Type Code no. Type Code no. Description/Application LE-Valve 030N4013 LE-Valve 030N4026 Build-in LE valve for FPHB-LE, FPHE-LE and nozzle holder.

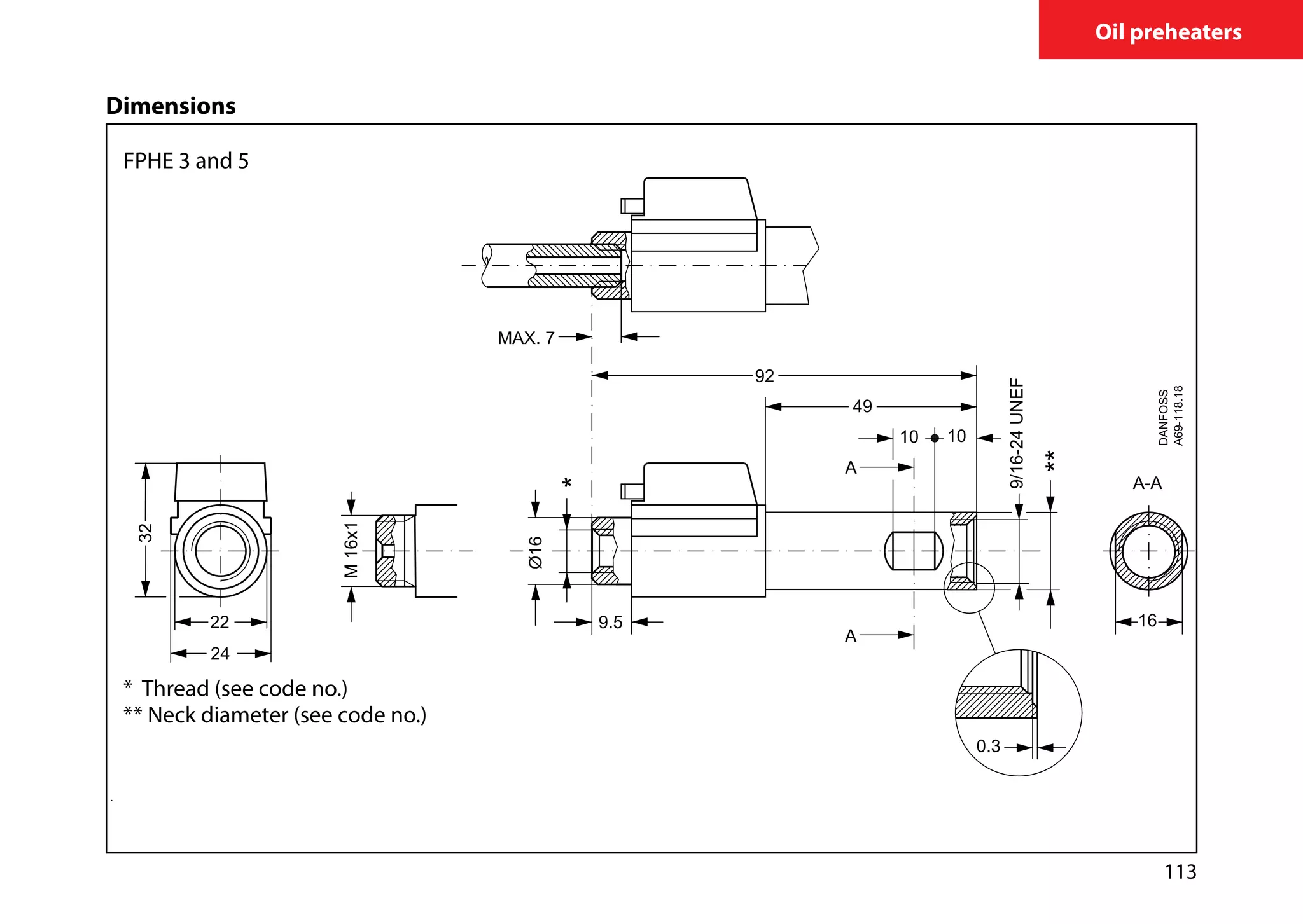

113 Oil preheaters Dimensions FPHE 3 and 5 * Thread (see code no.) ** Neck diameter (see code no.)

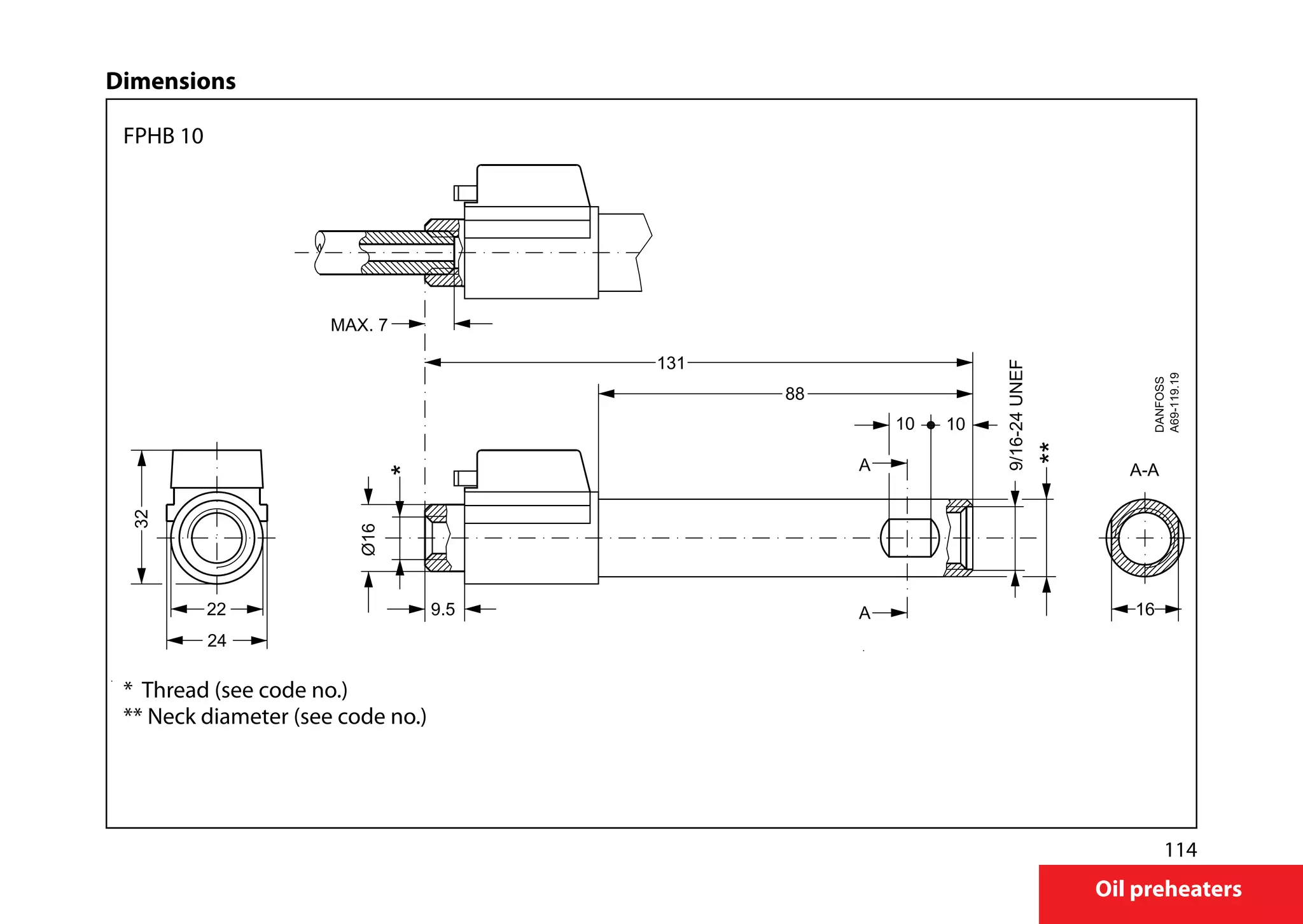

114 Oil preheaters Dimensions FPHB 10 * Thread (see code no.) ** Neck diameter (see code no.)

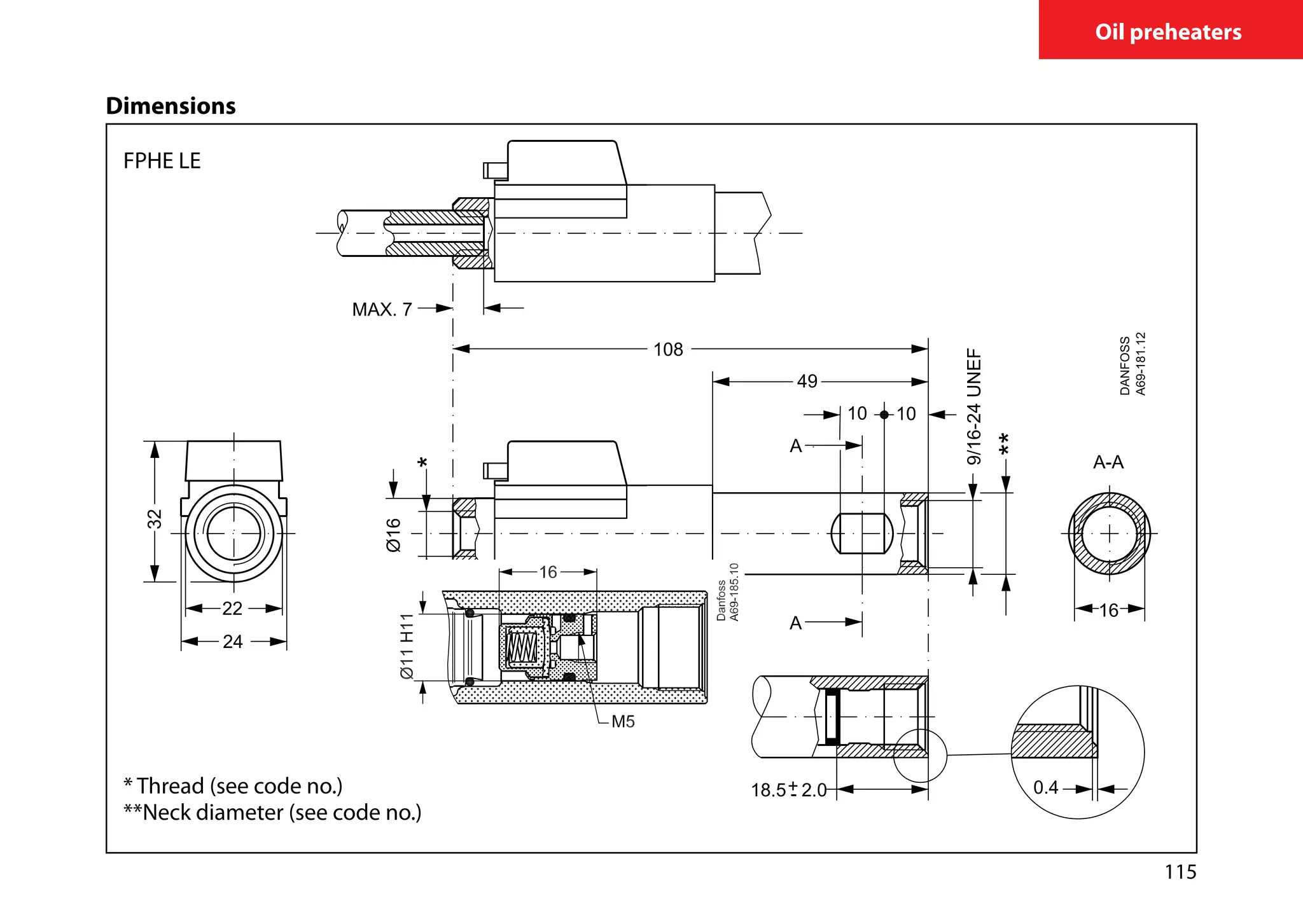

115 Oil preheaters Dimensions FPHE LE * Thread (see code no.) **Neck diameter (see code no.)
Easy access to information On burner.danfoss.com you can find all relevant tools, instructions, datasheets and brochures to keep you up to date. Our Service Manual is intended as an aid in your daily work. We therefore hope that the manual will make your work with Danfoss Burner Components easier. Sign up for our newsletter for regular news and updates at newsletter.burner.danfoss.com VG.GI.A8.02_Sep2014 burner.danfoss.com
