The document outlines an archwire sequence for treatment using Damon brackets. It describes 4 phases of treatment with recommended wire sizes for each phase. Phase 1 uses light round wires up to .016 copper nickel titanium (CuNiTi) to initiate alignment. Phase 2 uses rectangular wires up to .018x.025 CuNiTi for continued alignment and torque control. Phase 3 introduces stainless steel wires for finishing mechanics. Phase 4 uses tapered edgewise wires for detailing prior to completion.

1. ARCHWIRE
SEQUENCE
RAFAEL GARCIA ESPEJO
CORDOBA (SPAIN)
EUROPEAN
DAMON MASTER
DAMON SYSTEM

2. PHASE 1: INITIAL LIGHT ROUND WIRE
Never anything larger than an .014 or .013 CuNiTi.
Goal: to initiate alignment, leveling, bite opening,
arch development, and to resolve 90% of the
rotations.
Duration: 10-20 weeks
Appointment Intervals: 10 weeks
RAFAEL GARCIA ESPEJO
CORDOBA (SPAIN)
EUROPEAN
DAMON MASTER
ARCHWIRE SEQUENCE

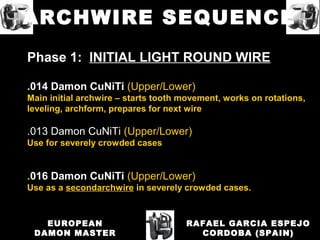

3. Phase 1: INITIAL LIGHT ROUND WIRE
.014 Damon CuNiTi (Upper/Lower)
Main initial archwire – starts tooth movement, works on rotations,
leveling, archform, prepares for next wire
.013 Damon CuNiTi (Upper/Lower)
Use for severely crowded cases
.016 Damon CuNiTi (Upper/Lower)
Use as a secondarchwire in severely crowded cases.
RAFAEL GARCIA ESPEJO
CORDOBA (SPAIN)
EUROPEAN
DAMON MASTER
ARCHWIRE SEQUENCE

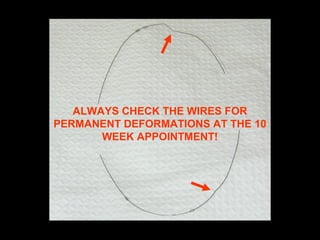

4. ALWAYS CHECK THE WIRES FOR
PERMANENT DEFORMATIONS AT THE 10
WEEK APPOINTMENT!

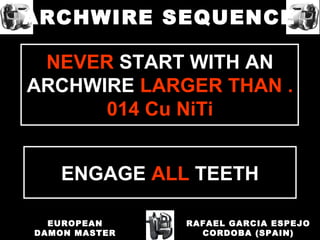

5. ENGAGE ALL TEETH
NEVER START WITH AN
ARCHWIRE LARGER THAN .
014 Cu NiTi
RAFAEL GARCIA ESPEJO
CORDOBA (SPAIN)
EUROPEAN
DAMON MASTER
ARCHWIRE SEQUENCE

6. PHASE 2: HIGH-TECH EDGEWISE
Goal: Resolve remaining rotations, begin torque
control and anterior space consolidation, and
continue/finish arch development
Average time: 20-30 weeks
Appointment interval: 8-10 weeks for first wire, 4-
6 weeks for second
RAFAEL GARCIA ESPEJO
CORDOBA (SPAIN)
EUROPEAN
DAMON MASTER
ARCHWIRE SEQUENCE

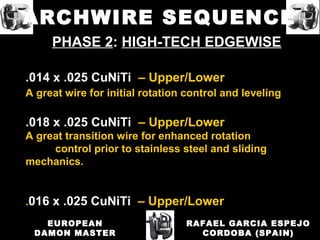

7. PHASE 2: HIGH-TECH EDGEWISE
.014 x .025 CuNiTi – Upper/Lower
A great wire for initial rotation control and leveling
.018 x .025 CuNiTi – Upper/Lower
A great transition wire for enhanced rotation
control prior to stainless steel and sliding
mechanics.
.016 x .025 CuNiTi – Upper/Lower
RAFAEL GARCIA ESPEJO
CORDOBA (SPAIN)
EUROPEAN
DAMON MASTER
ARCHWIRE SEQUENCE

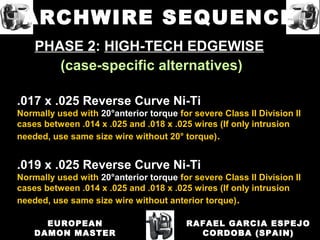

8. PHASE 2: HIGH-TECH EDGEWISE
(case-specific alternatives)
.017 x .025 Reverse Curve Ni-Ti
Normally used with 20°anterior torque for severe Class II Division II
cases between .014 x .025 and .018 x .025 wires (If only intrusion
needed, use same size wire without 20° torque).
.019 x .025 Reverse Curve Ni-Ti
Normally used with 20°anterior torque for severe Class II Division II
cases between .014 x .025 and .018 x .025 wires (If only intrusion
needed, use same size wire without anterior torque).
RAFAEL GARCIA ESPEJO
CORDOBA (SPAIN)
EUROPEAN
DAMON MASTER
ARCHWIRE SEQUENCE

9. PHASE 2: HIGH-TECH EDGEWISE
(CLASS II/2)
.017 x .025 Reverse Curve Ni-Ti
with 20°anterior (+) torque
.019 x .025 Reverse Curve Ni-Ti
with 20°anterior (+) torque
RAFAEL GARCIA ESPEJO
CORDOBA (SPAIN)
EUROPEAN
DAMON MASTER
ARCHWIRE SEQUENCE
ONLY
IN
UPPER
ARCH
ONLY
IN
UPPER
ARCH

10. PHASE 2: HIGH-TECH EDGEWISE
(DEEP BITES)
.017 x .025 Reverse Curve Ni-Ti
with 20°anterior (-) torque
.019 x .025 Reverse Curve Ni-Ti
with 20°anterior (-) torque
RAFAEL GARCIA ESPEJO
CORDOBA (SPAIN)
EUROPEAN
DAMON MASTER
ARCHWIRE SEQUENCE
ONLY
IN
LOW
ER
ARCH
ONLY
IN
LOW
ER
ARCH
G&
H

11. PHASE 2: HIGH-TECH EDGEWISE
(case-specific alternatives)
.017 x .025 NiTi
.019 x .025 NiTi
Used when torque desired in the anterior without the intrusive forces of
the reverse curve or for uprighting lower incisors.
with 20° anterior torque
RAFAEL GARCIA ESPEJO
CORDOBA (SPAIN)
EUROPEAN
DAMON MASTER
ARCHWIRE SEQUENCE

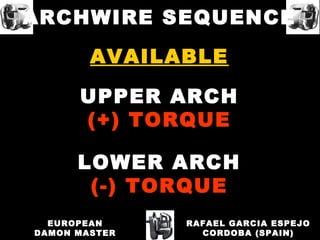

12. AVAILABLE
UPPER ARCH
(+) TORQUE
LOWER ARCH
(-) TORQUE
RAFAEL GARCIA ESPEJO
CORDOBA (SPAIN)
EUROPEAN
DAMON MASTER
ARCHWIRE SEQUENCE

13. TAKE A PANOREX BEFORE
TRANSITIONING BETWEEN LAST
HIGH TECH EDGEWISE (CU NITI)
AND STAINLESS STEEL
ARCHWIRE AND CHECK
BRACKET POSITIONING .
IMPORTANT!!!!
REBONDING APPOINTMENTREBONDING APPOINTMENT

14. ARCHWIRE SEQUENCE
PANOREX AND REBONDING APPOINTMENT
RAFAEL GARCIA ESPEJO
CORDOBA (SPAIN)
EUROPEAN
DAMON MASTER
After working
last rectangular Cu
NiTi
stainless
steel

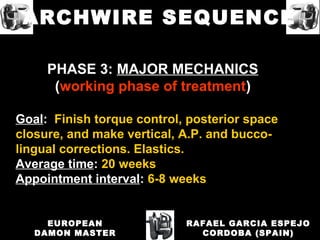

15. PHASE 3: MAJOR MECHANICS
(working phase of treatment)
Goal: Finish torque control, posterior space
closure, and make vertical, A.P. and bucco-
lingual corrections. Elastics.
Average time: 20 weeks
Appointment interval: 6-8 weeks
RAFAEL GARCIA ESPEJO
CORDOBA (SPAIN)
EUROPEAN
DAMON MASTER
ARCHWIRE SEQUENCE

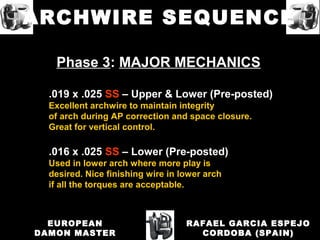

16. Phase 3: MAJOR MECHANICS
.019 x .025 SS – Upper & Lower (Pre-posted)
Excellent archwire to maintain integrity
of arch during AP correction and space closure.
Great for vertical control.
.016 x .025 SS – Lower (Pre-posted)
Used in lower arch where more play is
desired. Nice finishing wire in lower arch
if all the torques are acceptable.
RAFAEL GARCIA ESPEJO
CORDOBA (SPAIN)
EUROPEAN
DAMON MASTER
ARCHWIRE SEQUENCE

17. PHASE 4: FINISHING
Goal: Make any remaining detailed
archwire bends to complete the case.
Elastics.
Average time: 10-20 weeks
Appointment interval: 4-6 weeks
RAFAEL GARCIA ESPEJO
CORDOBA (SPAIN)
EUROPEAN
DAMON MASTER
ARCHWIRE SEQUENCE

18. PHASE 4: FINISHING
.019 x .025 SS Upper (pre-posted)
.016 x .025 SS Lower (pre-posted)
Most cases finished with the working archwires.
If more than minor bends and torque are required to finish, use
edgewise TMA:
.019 x .025 TMA Upper
.017 x .025 TMA Lower
Regular TMA – 3X friction SS
Honey Dew TMA – 11/2 X friction SS
Purple TMA – Same friction as SS
RAFAEL GARCIA ESPEJO
CORDOBA (SPAIN)
EUROPEAN
DAMON MASTER
ARCHWIRE SEQUENCE

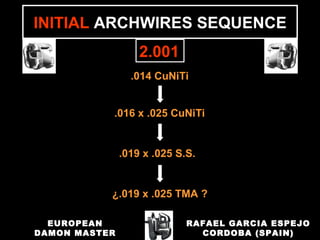

19. .014 CuNiTi
.016 x .025 CuNiTi
.019 x .025 S.S.
¿.019 x .025 TMA ?
INITIAL ARCHWIRES SEQUENCE
2.001
RAFAEL GARCIA ESPEJO
CORDOBA (SPAIN)
EUROPEAN
DAMON MASTER

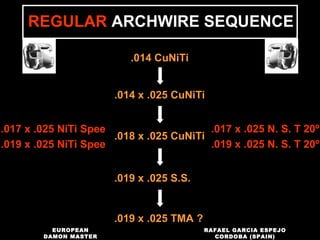

20. .014 CuNiTi
.014 x .025 CuNiTi
.018 x .025 CuNiTi
.019 x .025 S.S.
.019 x .025 TMA ?
REGULAR ARCHWIRE SEQUENCE
.017 x .025 NiTi Spee
.019 x .025 NiTi Spee
.017 x .025 N. S. T 20º
.019 x .025 N. S. T 20º
RAFAEL GARCIA ESPEJO
CORDOBA (SPAIN)
EUROPEAN
DAMON MASTER

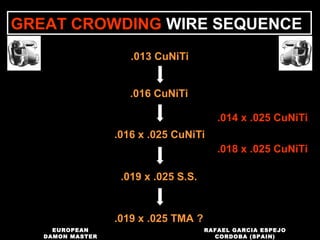

21. .013 CuNiTi
.016 CuNiTi
.016 x .025 CuNiTi
.019 x .025 S.S.
.019 x .025 TMA ?
GREAT CROWDING WIRE SEQUENCE
.014 x .025 CuNiTi
.018 x .025 CuNiTi
RAFAEL GARCIA ESPEJO
CORDOBA (SPAIN)
EUROPEAN
DAMON MASTER

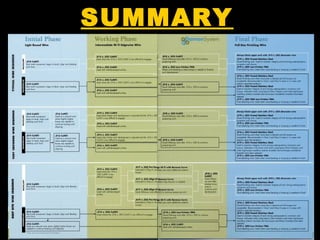

22. SUMMARY
