Cytokines are small soluble proteins that are important mediators of the inflammatory response. They are produced by immune cells like lymphocytes and monocytes and act as signaling molecules between cells. The document defines cytokines and provides classifications of cytokines. It describes the roles of key cytokines like IL-1 and IL-2 in innate immunity and leukocyte recruitment during the early immune response. Cytokines function through binding to specific cell surface receptors and activating intracellular signaling pathways.

1. CYTOKINES
INTRODUCTION
Periodontitis is a chronic inflammatory disease characterized by
infiltration of leukocytes, loss of connective tissue, resorption of alveolar bone
and formation of periodontal pockets.
Periodontal diseases are caused by accumulation of bacteria and their
products on the tooth surface and under the gingiva; recent efforts have focused
on the contribution of the host cell response to these bacteria in the
pathogenesis of the lesions.
Bacteria are known to induce recruitment and activation of leukocytes,
which, inturn, release inflammatory mediators and cytokines
DEFINITIONS OF CYTOKINES:
Steve offenbacher 1996 defined cytokines as mediator molecules, which
direct and regulate inflammation and wound healing. The term cytokine meaning
the cell protein is reserved for molecules, which transmit information or signals
from one cell to another. It is part of a fundamental cell-to-cell communication
network.
Okada and S. Murakami 1998 cytokines are small soluble proteins
produced by a cell that alters the behavior or properties of another cell, locally
or systemically.
Cytokines previously called as Lymphokines (cytokines produced by
lymphocytes) or Monokines (cytokines produced by Monocytes). However it is
now known that there is considerable overlap, e.g. TNF- a, IL-6 are made by both
cell types and so this nomenclature is not in wide use.
 Interleukins describes molecular messengers acting between leukocytes.
The term dates from 1979.
1

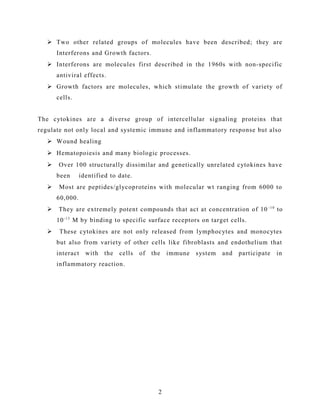

2.  Two other related groups of molecules have been described; they are
Interferons and Growth factors.
 Interferons are molecules first described in the 1960s with non-specific
antiviral effects.
 Growth factors are molecules, which stimulate the growth of variety of
cells.
The cytokines are a diverse group of intercellular signaling proteins that
regulate not only local and systemic immune and inflammatory response but also
 Wound healing
 Hematopoiesis and many biologic processes.
 Over 100 structurally dissimilar and genetically unrelated cytokines have
been identified to date.
 Most are peptides/glycoproteins with molecular wt ranging from 6000 to
60,000.
 They are extremely potent compounds that act at concentration of 10 -10
to
10-15
M by binding to specific surface receptors on target cells.
 These cytokines are not only released from lymphocytes and monocytes
but also from variety of other cells like fibroblasts and endothelium that
interact with the cells of the immune system and participate in
inflammatory reaction.
2

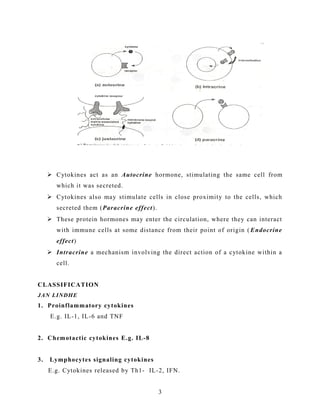

3.  Cytokines act as an Autocrine hormone, stimulating the same cell from
which it was secreted.
 Cytokines also may stimulate cells in close proximity to the cells, which
secreted them (Paracrine effect).
 These protein hormones may enter the circulation, where they can interact
with immune cells at some distance from their point of origin ( Endocrine
effect)
 Intracrine a mechanism involving the direct action of a cytokine within a
cell.
CLASSIFICATION
JAN LINDHE
1. Proinflammatory cytokines
E.g. IL-1, IL-6 and TNF
2. Chemotactic cytokines E.g. IL-8
3. Lymphocytes signaling cytokines
E.g. Cytokines released by Th1- IL-2, IFN.
3

4. Cytokines released by Th2- IL-4,IL-5,IL-10 and IL-13.
NIESENGARD AND NEWMAN
First group: Cytokines, which serve as mediators of innate immunity.
E.g. Interferon a and b, TNF and IL-6.
Second group: Cytokines that regulate the growth and differentiation of
lymphocytes.
E.g. IL-2, IL-4 AND TGF-BETA
Third group: These cytokines regulate the hematopoietic activity in the bone
marrow and collectively referred to as Colony Stimulating Factors or CSF’s
produced by stromal cells or antigen stimulated T- lymphocytes.
E.g. GM-CSF, G-CSF, M-CSF, MULTI- CSF, IL-3, IL-7.
Fourth group:
Cytokines which share the common property of being activators of inflammatory
cell function.
E.g. Interferon α
CYTOKINE RECEPTORS AND RELATED MOLECULES:
4

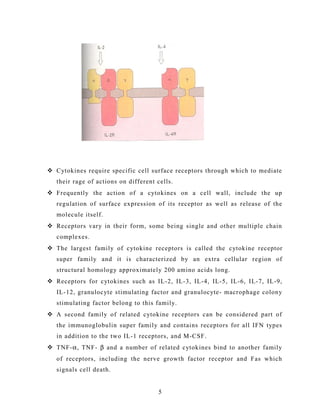

5.  Cytokines require specific cell surface receptors through which to mediate
their rage of actions on different cells.
 Frequently the action of a cytokines on a cell wall, include the up
regulation of surface expression of its receptor as well as release of the
molecule itself.
 Receptors vary in their form, some being single and other multiple chain
complexes.
 The largest family of cytokine receptors is called the cytokine receptor
super family and it is characterized by an extra cellular region of
structural homology approximately 200 amino acids long.
 Receptors for cytokines such as IL-2, IL-3, IL-4, IL-5, IL-6, IL-7, IL-9,
IL-12, granulocyte stimulating factor and granulocyte- macrophage colony
stimulating factor belong to this family.
 A second family of related cytokine receptors can be considered part of
the immunoglobulin super family and contains receptors for all IFN types
in addition to the two IL-1 receptors, and M-CSF.
 TNF-α, TNF- β and a number of related cytokines bind to another family
of receptors, including the nerve growth factor receptor and Fas which
signals cell death.
5

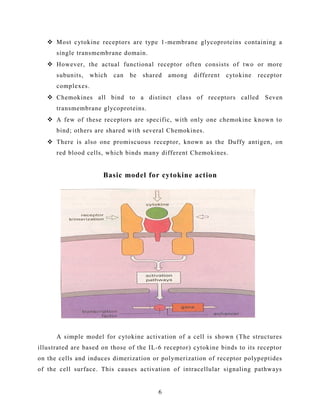

6.  Most cytokine receptors are type 1-membrane glycoproteins containing a
single transmembrane domain.
 However, the actual functional receptor often consists of two or more
subunits, which can be shared among different cytokine receptor
complexes.
 Chemokines all bind to a distinct class of receptors called Seven
transmembrane glycoproteins.
 A few of these receptors are specific, with only one chemokine known to
bind; others are shared with several Chemokines.
 There is also one promiscuous receptor, known as the Duffy antigen, on
red blood cells, which binds many different Chemokines.
Basic model for cytokine action
A simple model for cytokine activation of a cell is shown (The structures
illustrated are based on those of the IL-6 receptor) cytokine binds to its receptor
on the cells and induces dimerization or polymerization of receptor polypeptides
of the cell surface. This causes activation of intracellular signaling pathways
6

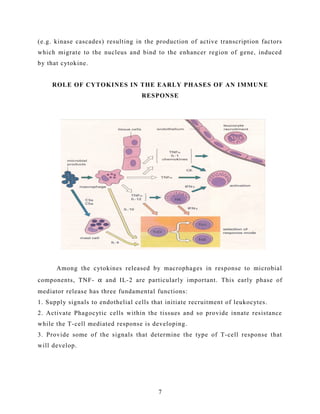

7. (e.g. kinase cascades) resulting in the production of active transcription factors
which migrate to the nucleus and bind to the enhancer region of gene, induced
by that cytokine.
ROLE OF CYTOKINES IN THE EARLY PHASES OF AN IMMUNE
RESPONSE
Among the cytokines released by macrophages in response to microbial
components, TNF- α and IL-2 are particularly important. This early phase of
mediator release has three fundamental functions:
1. Supply signals to endothelial cells that initiate recruitment of leukocytes.
2. Activate Phagocytic cells within the tissues and so provide innate resistance
while the T-cell mediated response is developing.
3. Provide some of the signals that determine the type of T-cell response that
will develop.
7

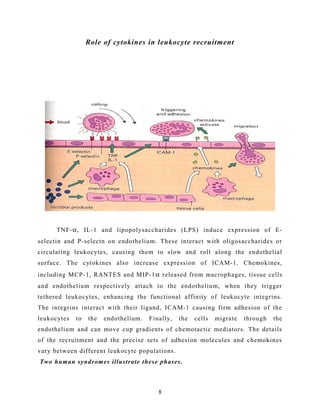

8. Role of cytokines in leukocyte recruitment
TNF-α, IL-1 and lipopolysaccharides (LPS) induce expression of E-
selectin and P-selectn on endothelium. These interact with oligosaccharides or
circulating leukocytes, causing them to slow and roll along the endothelial
surface. The cytokines also increase expression of ICAM-1. Chemokines,
including MCP-1, RANTES and MIP-1α released from macrophages, tissue cells
and endothelium respectively attach to the endothelium, when they trigger
tethered leukocytes, enhancing the functional affinity of leukocyte integrins.
The integrins interact with their ligand, ICAM-1 causing firm adhesion of the
leukocytes to the endothelium. Finally, the cells migrate through the
endothelium and can move cup gradients of chemotactic mediators. The details
of the recruitment and the precise sets of adhesion molecules and chemokines
vary between different leukocyte populations.
Two human syndromes illustrate these phases.
8

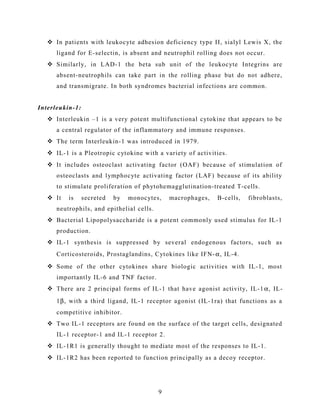

9.  In patients with leukocyte adhesion deficiency type II, sialyl Lewis X, the
ligand for E-selectin, is absent and neutrophil rolling does not occur.
 Similarly, in LAD-1 the beta sub unit of the leukocyte Integrins are
absent-neutrophils can take part in the rolling phase but do not adhere,
and transmigrate. In both syndromes bacterial infections are common.
Interleukin-1:
 Interleukin –1 is a very potent multifunctional cytokine that appears to be
a central regulator of the inflammatory and immune responses.
 The term Interleukin-1 was introduced in 1979.
 IL-1 is a Pleotropic cytokine with a variety of activities.
 It includes osteoclast activating factor (OAF) because of stimulation of
osteoclasts and lymphocyte activating factor (LAF) because of its ability
to stimulate proliferation of phytohemagglutination-treated T-cells.
 It is secreted by monocytes, macrophages, B-cells, fibroblasts,
neutrophils, and epithelial cells.
 Bacterial Lipopolysaccharide is a potent commonly used stimulus for IL-1
production.
 IL-1 synthesis is suppressed by several endogenous factors, such as
Corticosteroids, Prostaglandins, Cytokines like IFN-α, IL-4.
 Some of the other cytokines share biologic activities with IL-1, most
importantly IL-6 and TNF factor.
 There are 2 principal forms of IL-1 that have agonist activity, IL-1 α, IL-
1β, with a third ligand, IL-1 receptor agonist (IL-1ra) that functions as a
competitive inhibitor.
 Two IL-1 receptors are found on the surface of the target cells, designated
IL-1 receptor-1 and IL-1 receptor 2.
 IL-1R1 is generally thought to mediate most of the responses to IL-1.
 IL-1R2 has been reported to function principally as a decoy receptor.
9

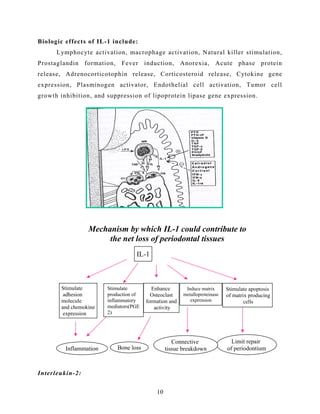

10. Biologic effects of IL-1 include:
Lymphocyte activation, macrophage activation, Natural killer stimulation,
Prostaglandin formation, Fever induction, Anorexia, Acute phase protein
release, Adrenocorticotophin release, Corticosteroid release, Cytokine gene
expression, Plasminogen activator, Endothelial cell activation, Tumor cell
growth inhibition, and suppression of lipoprotein lipase gene expression.
Interleukin-2:
IL-1
Induce matrix
metalloproteinase
expression
Enhance
Osteoclast
formation and
activity
Stimulate
adhesion
molecule
and chemokine
expression
Stimulate apoptosis
of matrix producing
cells
Inflammation Bone loss
Limit repair
of periodontium
Mechanism by which IL-1 could contribute to
the net loss of periodontal tissues
Connective
tissue breakdown
Stimulate
production of
inflammatory
mediators(PGE
2)
10

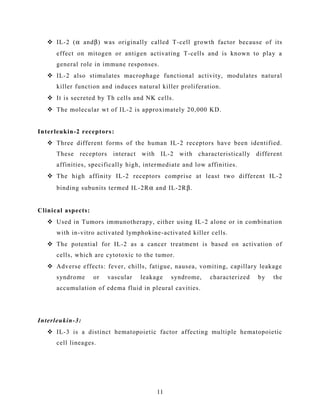

11.  IL-2 (α andβ) was originally called T-cell growth factor because of its
effect on mitogen or antigen activating T-cells and is known to play a
general role in immune responses.
 IL-2 also stimulates macrophage functional activity, modulates natural
killer function and induces natural killer proliferation.
 It is secreted by Th cells and NK cells.
 The molecular wt of IL-2 is approximately 20,000 KD.
Interleukin-2 receptors:
 Three different forms of the human IL-2 receptors have been identified.
These receptors interact with IL-2 with characteristically different
affinities, specifically high, intermediate and low affinities.
 The high affinity IL-2 receptors comprise at least two different IL-2
binding subunits termed IL-2Rα and IL-2Rβ.
Clinical aspects:
 Used in Tumors immunotherapy, either using IL-2 alone or in combination
with in-vitro activated lymphokine-activated killer cells.
 The potential for IL-2 as a cancer treatment is based on activation of
cells, which are cytotoxic to the tumor.
 Adverse effects: fever, chills, fatigue, nausea, vomiting, capillary leakage
syndrome or vascular leakage syndrome, characterized by the
accumulation of edema fluid in pleural cavities.
Interleukin-3:
 IL-3 is a distinct hematopoietic factor affecting multiple hematopoietic
cell lineages.
11

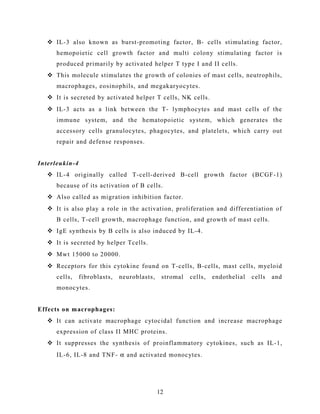

12.  IL-3 also known as burst-promoting factor, B- cells stimulating factor,
hemopoietic cell growth factor and multi colony stimulating factor is
produced primarily by activated helper T type I and II cells.
 This molecule stimulates the growth of colonies of mast cells, neutrophils,
macrophages, eosinophils, and megakaryocytes.
 It is secreted by activated helper T cells, NK cells.
 IL-3 acts as a link between the T- lymphocytes and mast cells of the
immune system, and the hematopoietic system, which generates the
accessory cells granulocytes, phagocytes, and platelets, which carry out
repair and defense responses.
Interleukin-4
 IL-4 originally called T-cell-derived B-cell growth factor (BCGF-1)
because of its activation of B cells.
 Also called as migration inhibition factor.
 It is also play a role in the activation, proliferation and differentiation of
B cells, T-cell growth, macrophage function, and growth of mast cells.
 IgE synthesis by B cells is also induced by IL-4.
 It is secreted by helper Tcells.
 Mwt 15000 to 20000.
 Receptors for this cytokine found on T-cells, B-cells, mast cells, myeloid
cells, fibroblasts, neuroblasts, stromal cells, endothelial cells and
monocytes.
Effects on macrophages:
 It can activate macrophage cytocidal function and increase macrophage
expression of class II MHC proteins.
 It suppresses the synthesis of proinflammatory cytokines, such as IL-1,
IL-6, IL-8 and TNF- α and activated monocytes.
12

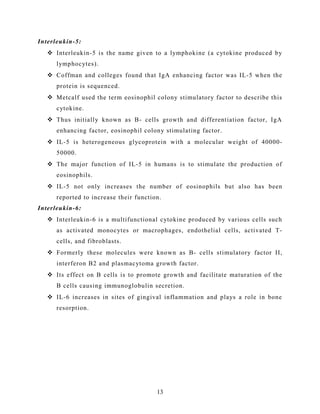

13. Interleukin-5:
 Interleukin-5 is the name given to a lymphokine (a cytokine produced by
lymphocytes).
 Coffman and colleges found that IgA enhancing factor was IL-5 when the
protein is sequenced.
 Metcalf used the term eosinophil colony stimulatory factor to describe this
cytokine.
 Thus initially known as B- cells growth and differentiation factor, IgA
enhancing factor, eosinophil colony stimulating factor.
 IL-5 is heterogeneous glycoprotein with a molecular weight of 40000-
50000.
 The major function of IL-5 in humans is to stimulate the production of
eosinophils.
 IL-5 not only increases the number of eosinophils but also has been
reported to increase their function.
Interleukin-6:
 Interleukin-6 is a multifunctional cytokine produced by various cells such
as activated monocytes or macrophages, endothelial cells, activated T-
cells, and fibroblasts.
 Formerly these molecules were known as B- cells stimulatory factor II,
interferon B2 and plasmacytoma growth factor.
 Its effect on B cells is to promote growth and facilitate maturation of the
B cells causing immunoglobulin secretion.
 IL-6 increases in sites of gingival inflammation and plays a role in bone
resorption.
13

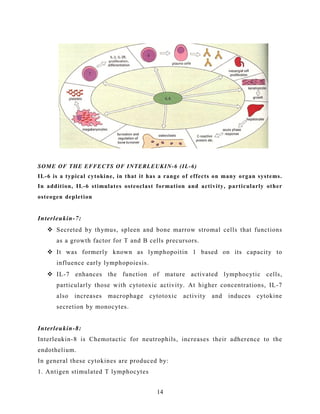

14. SOME OF THE EFFECTS OF INTERLEUKIN-6 (IL-6)
IL-6 is a typical cytokine, in that it has a range of effects on many organ systems.
In addition, IL-6 stimulates osteoclast formation and activity, particularly other
osteogen depletion
Interleukin-7:
 Secreted by thymus, spleen and bone marrow stromal cells that functions
as a growth factor for T and B cells precursors.
 It was formerly known as lymphopoitin 1 based on its capacity to
influence early lymphopoiesis.
 IL-7 enhances the function of mature activated lymphocytic cells,
particularly those with cytotoxic activity. At higher concentrations, IL-7
also increases macrophage cytotoxic activity and induces cytokine
secretion by monocytes.
Interleukin-8:
Interleukin-8 is Chemotactic for neutrophils, increases their adherence to the
endothelium.
In general these cytokines are produced by:
1. Antigen stimulated T lymphocytes
14

15. 2. Mononuclear phagocytes, endothelial and epithelial cells, and fibroblasts that
have been activated by other cytokines or LPS.
3. Platelets.
All members of this family stimulate leukocytes and contribute to inflammatory
responses.
Interleukin-9:
 Interleukin-9 is a heavily glycosylated polypeptide lymphokine with an
apparent MW of 30000 to 40000.
 It is secreted by IL-2 activated T-cells and Hodgkin's lymphoma cells.
 It is a T cell growth factor, which acts in synergy with other cytokines.
Interleukin-10:
 IL-10 is an 18000 MW protein that is produced late in the activation
process by Th2 cells, CD8 T cells, monocytes, keratinocytes and activated
B cells.
 It was originally called cytokine synthesis inhibitory factor because of its
ability to inhibit cytokine production by activated T-lymphocytes i.e., Th1
cells and NK cells.
 IL-10 inhibits the antigen presenting capacity of monocytes.
 IL-10 also synergies with other cytokines to stimulate proliferation of B
cells and mucosal mast cells.
 Together with TGF beta it causes IgA production by B cells.
Interleukin-11:
Biologic activities of IL-11:
Growth promotion of a plasmacytoma cell line:
15

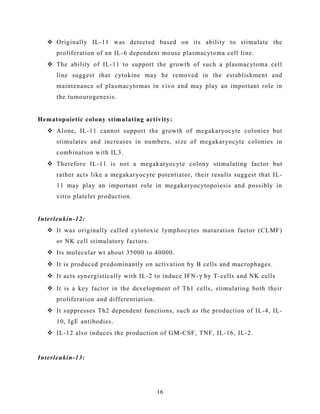

16.  Originally IL-11 was detected based on its ability to stimulate the
proliferation of an IL-6 dependent mouse plasmacytoma cell line.
 The ability of IL-11 to support the growth of such a plasmacytoma cell
line suggest that cytokine may be removed in the establishment and
maintenance of plasmacytomas in vivo and may play an important role in
the tumourogenesis.
Hematopoietic colony stimulating activity:
 Alone, IL-11 cannot support the growth of megakaryocyte colonies but
stimulates and increases in numbers, size of megakaryocyte colonies in
combination with IL3.
 Therefore IL-11 is not a megakaryocyte colony stimulating factor but
rather acts like a megakaryocyte potentiator, their results suggest that IL-
11 may play an important role in megakaryocytopoiesis and possibly in
vitro platelet production.
Interleukin-12:
 It was originally called cytotoxic lymphocytes maturation factor (CLMF)
or NK cell stimulatory factors.
 Its molecular wt about 35000 to 40000.
 It is produced predominantly on activation by B cells and macrophages.
 It acts synergistically with IL-2 to induce IFN-γ by T-cells and NK cells
 It is a key factor in the development of Th1 cells, stimulating both their
proliferation and differentiation.
 It suppresses Th2 dependent functions, such as the production of IL-4, IL-
10, IgE antibodies.
 IL-12 also induces the production of GM-CSF, TNF, IL-16, IL-2.
Interleukin-13:
16

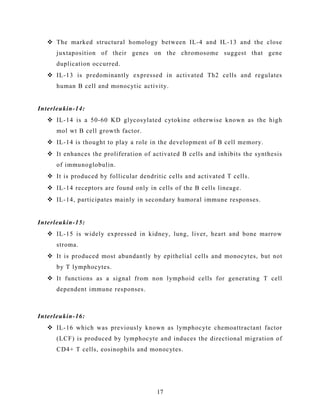

17.  The marked structural homology between IL-4 and IL-13 and the close
juxtaposition of their genes on the chromosome suggest that gene
duplication occurred.
 IL-13 is predominantly expressed in activated Th2 cells and regulates
human B cell and monocytic activity.
Interleukin-14:
 IL-14 is a 50-60 KD glycosylated cytokine otherwise known as the high
mol wt B cell growth factor.
 IL-14 is thought to play a role in the development of B cell memory.
 It enhances the proliferation of activated B cells and inhibits the synthesis
of immunoglobulin.
 It is produced by follicular dendritic cells and activated T cells.
 IL-14 receptors are found only in cells of the B cells lineage.
 IL-14, participates mainly in secondary humoral immune responses.
Interleukin-15:
 IL-15 is widely expressed in kidney, lung, liver, heart and bone marrow
stroma.
 It is produced most abundantly by epithelial cells and monocytes, but not
by T lymphocytes.
 It functions as a signal from non lymphoid cells for generating T cell
dependent immune responses.
Interleukin-16:
 IL-16 which was previously known as lymphocyte chemoattractant factor
(LCF) is produced by lymphocyte and induces the directional migration of
CD4+ T cells, eosinophils and monocytes.
17

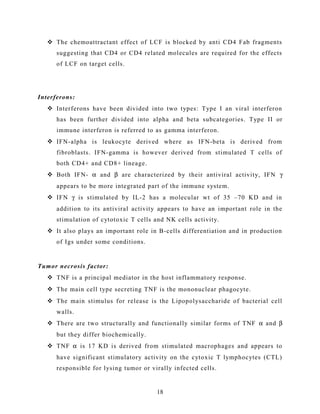

18.  The chemoattractant effect of LCF is blocked by anti CD4 Fab fragments
suggesting that CD4 or CD4 related molecules are required for the effects
of LCF on target cells.
Interferons:
 Interferons have been divided into two types: Type I an viral interferon
has been further divided into alpha and beta subcategories. Type II or
immune interferon is referred to as gamma interferon.
 IFN-alpha is leukocyte derived where as IFN-beta is derived from
fibroblasts. IFN-gamma is however derived from stimulated T cells of
both CD4+ and CD8+ lineage.
 Both IFN- α and β are characterized by their antiviral activity, IFN γ
appears to be more integrated part of the immune system.
 IFN γ is stimulated by IL-2 has a molecular wt of 35 –70 KD and in
addition to its antiviral activity appears to have an important role in the
stimulation of cytotoxic T cells and NK cells activity.
 It also plays an important role in B-cells differentiation and in production
of Igs under some conditions.
Tumor necrosis factor:
 TNF is a principal mediator in the host inflammatory response.
 The main cell type secreting TNF is the mononuclear phagocyte.
 The main stimulus for release is the Lipopolysaccharide of bacterial cell
walls.
 There are two structurally and functionally similar forms of TNF α and β
but they differ biochemically.
 TNF α is 17 KD is derived from stimulated macrophages and appears to
have significant stimulatory activity on the cytoxic T lymphocytes (CTL)
responsible for lysing tumor or virally infected cells.
18

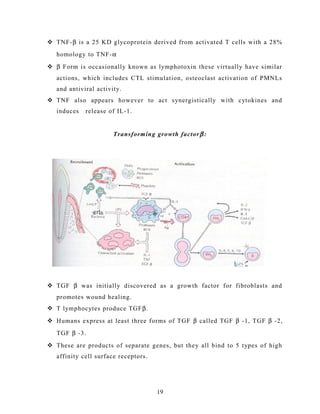

19.  TNF-β is a 25 KD glycoprotein derived from activated T cells with a 28%
homology to TNF-α
 β Form is occasionally known as lymphotoxin these virtually have similar
actions, which includes CTL stimulation, osteoclast activation of PMNLs
and antiviral activity.
 TNF also appears however to act synergistically with cytokines and
induces release of IL-1.
Transforming growth factorβ :
 TGF β was initially discovered as a growth factor for fibroblasts and
promotes wound healing.
 T lymphocytes produce TGFβ.
 Humans express at least three forms of TGF β called TGF β -1, TGF β -2,
TGF β -3.
 These are products of separate genes, but they all bind to 5 types of high
affinity cell surface receptors.
19

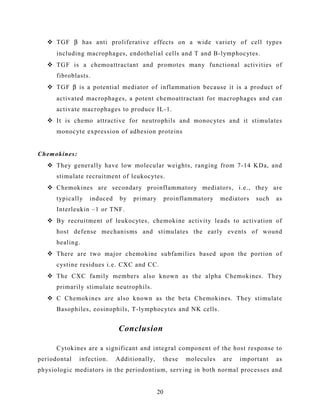

20.  TGF β has anti proliferative effects on a wide variety of cell types
including macrophages, endothelial cells and T and B-lymphocytes.
 TGF is a chemoattractant and promotes many functional activities of
fibroblasts.
 TGF β is a potential mediator of inflammation because it is a product of
activated macrophages, a potent chemoattractant for macrophages and can
activate macrophages to produce IL-1.
 It is chemo attractive for neutrophils and monocytes and it stimulates
monocyte expression of adhesion proteins
Chemokines:
 They generally have low molecular weights, ranging from 7-14 KDa, and
stimulate recruitment of leukocytes.
 Chemokines are secondary proinflammatory mediators, i.e., they are
typically induced by primary proinflammatory mediators such as
Interleukin –1 or TNF.
 By recruitment of leukocytes, chemokine activity leads to activation of
host defense mechanisms and stimulates the early events of wound
healing.
 There are two major chemokine subfamilies based upon the portion of
cystine residues i.e. CXC and CC.
 The CXC family members also known as the alpha Chemokines. They
primarily stimulate neutrophils.
 C Chemokines are also known as the beta Chemokines. They stimulate
Basophiles, eosinophils, T-lymphocytes and NK cells.
Conclusion
Cytokines are a significant and integral component of the host response to
periodontal infection. Additionally, these molecules are important as
physiologic mediators in the periodontium, serving in both normal processes and
20

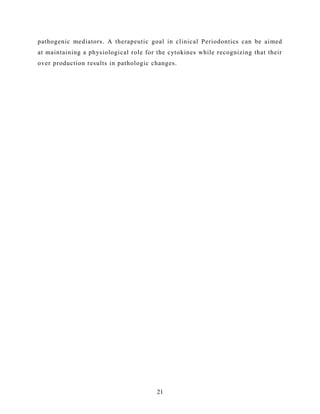

21. pathogenic mediators. A therapeutic goal in clinical Periodontics can be aimed
at maintaining a physiological role for the cytokines while recognizing that their
over production results in pathologic changes.
21
