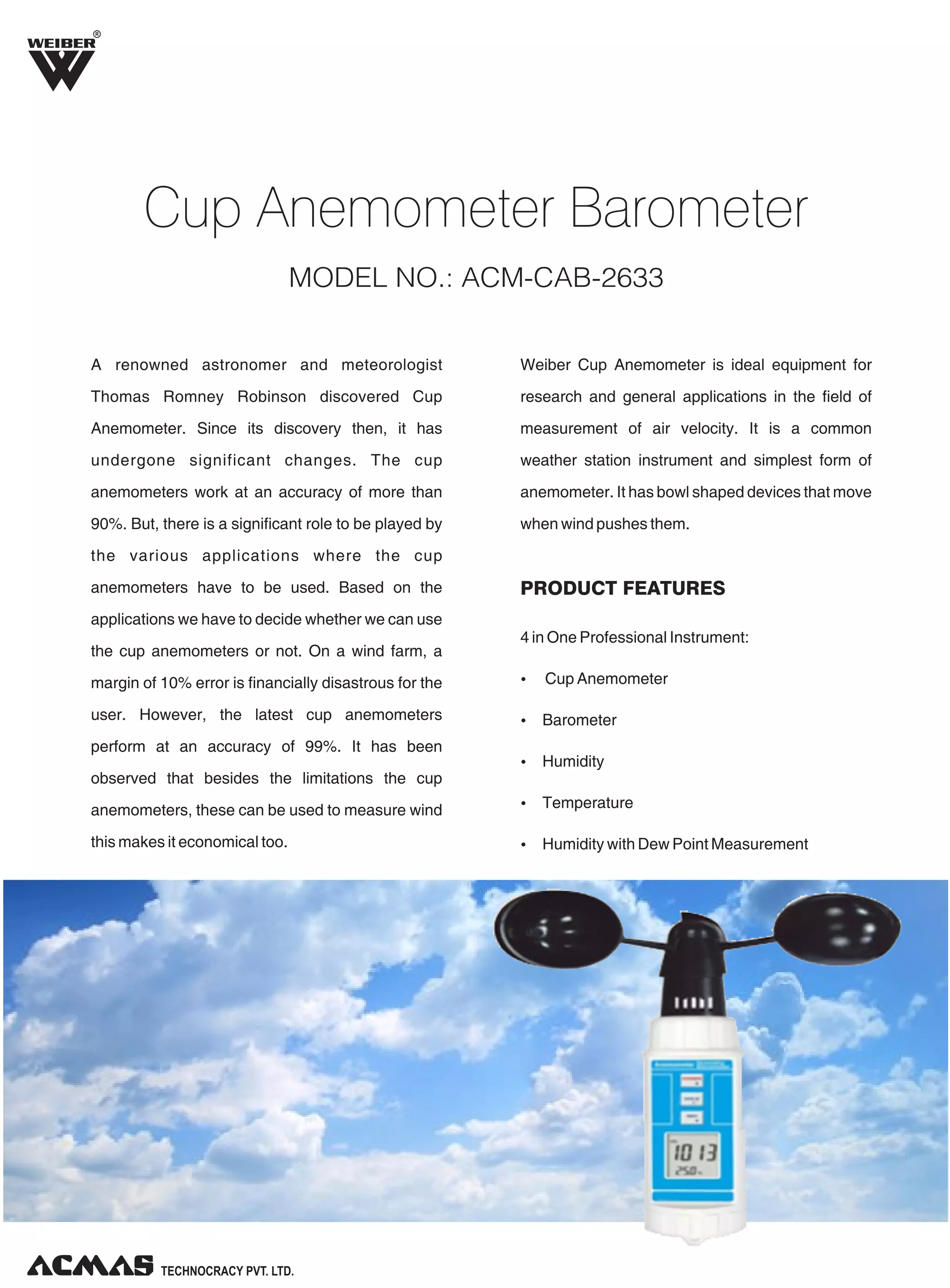

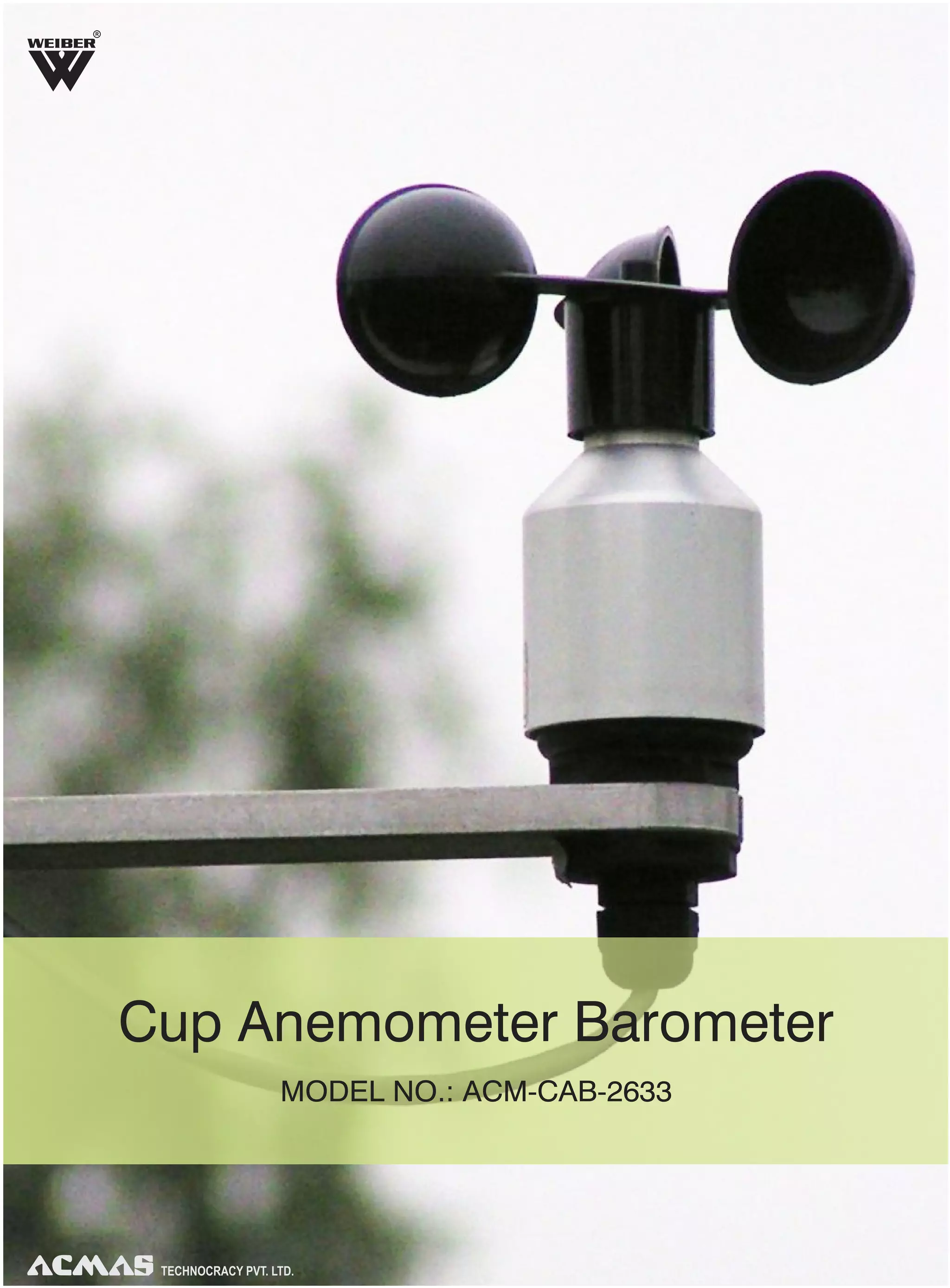

1. R
Cup Anemometer Barometer
MODEL NO.: ACM-CAB-2633

2. A renowned astronomer and meteorologist
Thomas Romney Robinson discovered Cup
Anemometer. Since its discovery then, it has
undergone significant changes. The cup
anemometers work at an accuracy of more than
90%. But, there is a significant role to be played by
the various applications where the cup
anemometers have to be used. Based on the
applications we have to decide whether we can use
the cup anemometers or not. On a wind farm, a
margin of 10% error is financially disastrous for the
user. However, the latest cup anemometers
perform at an accuracy of 99%. It has been
observed that besides the limitations the cup
anemometers, these can be used to measure wind
this makes it economical too.
Weiber Cup Anemometer is ideal equipment for
research and general applications in the field of
measurement of air velocity. It is a common
weather station instrument and simplest form of
anemometer. It has bowl shaped devices that move
when wind pushes them.
4 in One Professional Instrument:
Ÿ Cup Anemometer
Ÿ Barometer
Ÿ Humidity
Ÿ Temperature
Ÿ Humidity with Dew Point Measurement
R
Cup Anemometer Barometer
MODEL NO.: ACM-CAB-2633
PRODUCT FEATURES

3. R

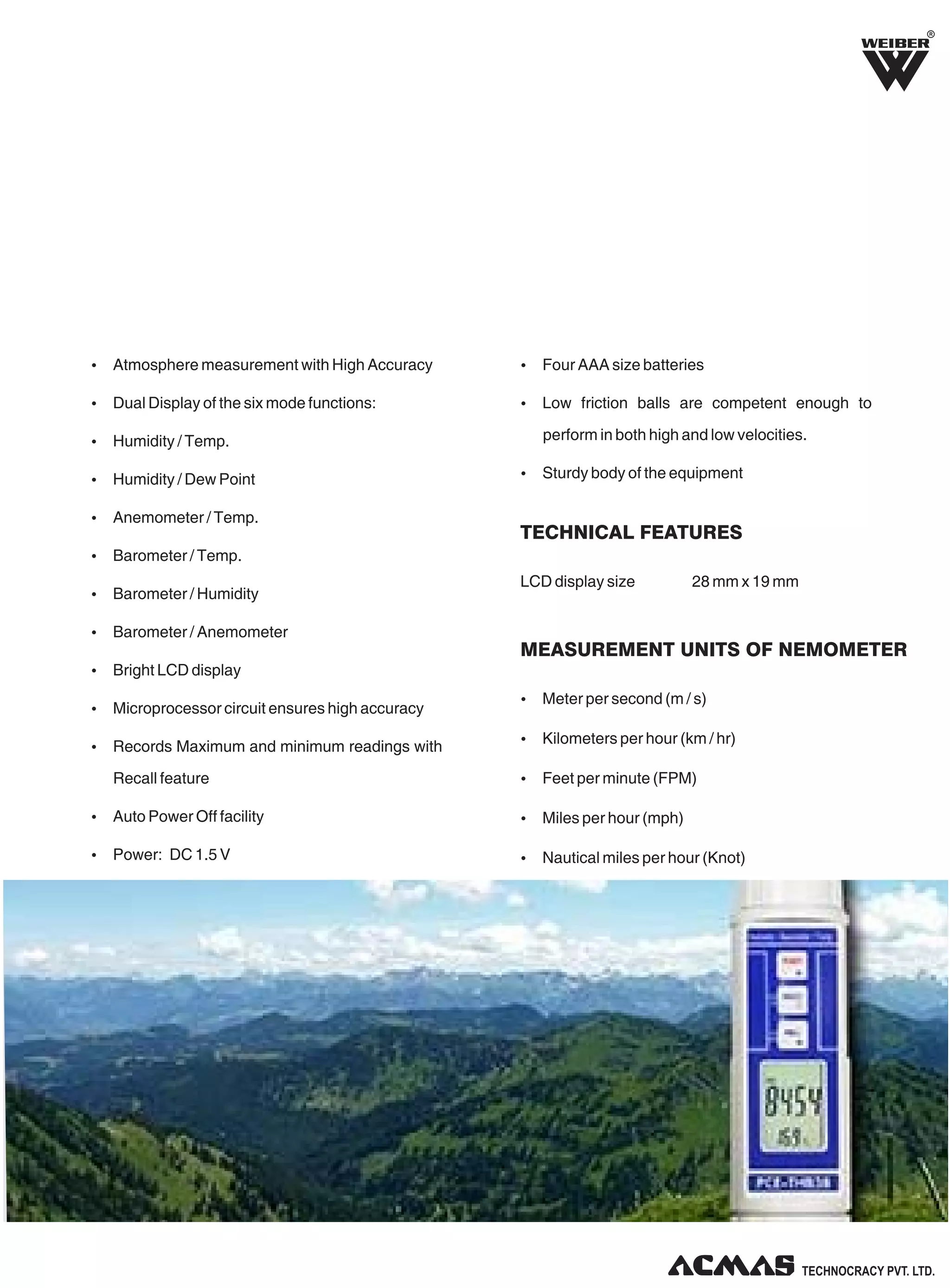

Ÿ Atmosphere measurement with High Accuracy
Ÿ Dual Display of the six mode functions:
Ÿ Humidity / Temp.
Ÿ Humidity / Dew Point
Ÿ Anemometer / Temp.
Ÿ Barometer / Temp.
Ÿ Barometer / Humidity
Ÿ Barometer / Anemometer
Ÿ Bright LCD display
Ÿ Microprocessor circuit ensures high accuracy
Ÿ Records Maximum and minimum readings with
Recall feature
Ÿ Auto Power Off facility
Ÿ Power: DC 1.5 V
Ÿ Four AAA size batteries
Ÿ Low friction balls are competent enough to
perform in both high and low velocities.
Ÿ Sturdy body of the equipment
LCD display size 28 mm x 19 mm
Ÿ Meter per second (m / s)
Ÿ Kilometers per hour (km / hr)
Ÿ Feet per minute (FPM)
Ÿ Miles per hour (mph)
Ÿ Nautical miles per hour (Knot)
TECHNICAL FEATURES
MEASUREMENT UNITS OF NEMOMETER

4. R
Cup Anemometer Barometer
MODEL NO.: ACM-CAB-2633

5. R

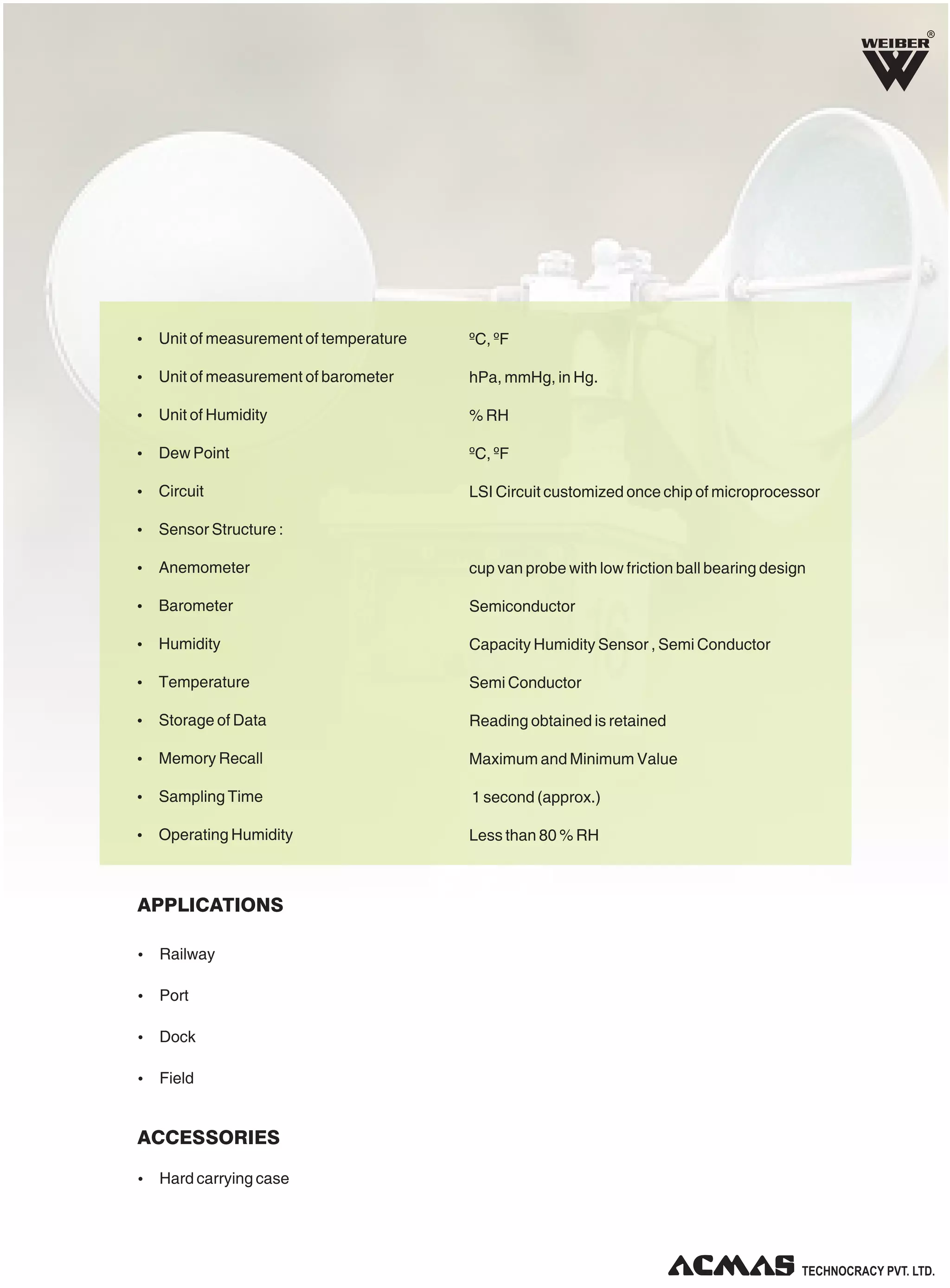

Ÿ Unit of measurement of temperature
Ÿ Unit of measurement of barometer
Ÿ Unit of Humidity
Ÿ Dew Point
Ÿ Circuit
Ÿ Sensor Structure :
Ÿ Anemometer
Ÿ Barometer
Ÿ Humidity
Ÿ Temperature
Ÿ Storage of Data
Ÿ Memory Recall
Ÿ Sampling Time
Ÿ Operating Humidity
ºC, ºF
hPa, mmHg, in Hg.
% RH
ºC, ºF
LSI Circuit customized once chip of microprocessor
cup van probe with low friction ball bearing design
Semiconductor
Capacity Humidity Sensor , Semi Conductor
Semi Conductor
Reading obtained is retained
Maximum and Minimum Value
1 second (approx.)
Less than 80 % RH
Ÿ Railway
Ÿ Port
Ÿ Dock
Ÿ Field
Ÿ Hard carrying case
APPLICATIONS
ACCESSORIES
