This document discusses how Puppet and Cumulus Networks can help with network automation. It provides an overview of Puppet's capabilities in defining and enforcing infrastructure configurations. Cumulus Networks offers an open network operating system that can work with Puppet for zero-touch provisioning and standardization. The document includes demos and next steps for learning more about the Puppet and Cumulus Networks integration.

1. v
Network Operations
for the
Modern Cloud Era
Oct 1st 2014

2. Introduction
Puppet Labs
Jose Palafox, Business Development
Kris Amundson, Sr. Operations Engineer
Cumulus Networks
Meena Sankaran
Ecosystem & Solutions
August 6, 2014 2

3. Poll Question #1
October 7, 2014 3

4. The IT Automation Leader
Founded in 2005
Over 10 million nodes managed
Deep partnerships with datacenter titans
18000 customers worldwide
Over 2,000 community-contributed modules
EXPERIENCE
SCALE
ECOSYSTEM
CUSTOMERS
COMMUNITY
October 7, 2014 4

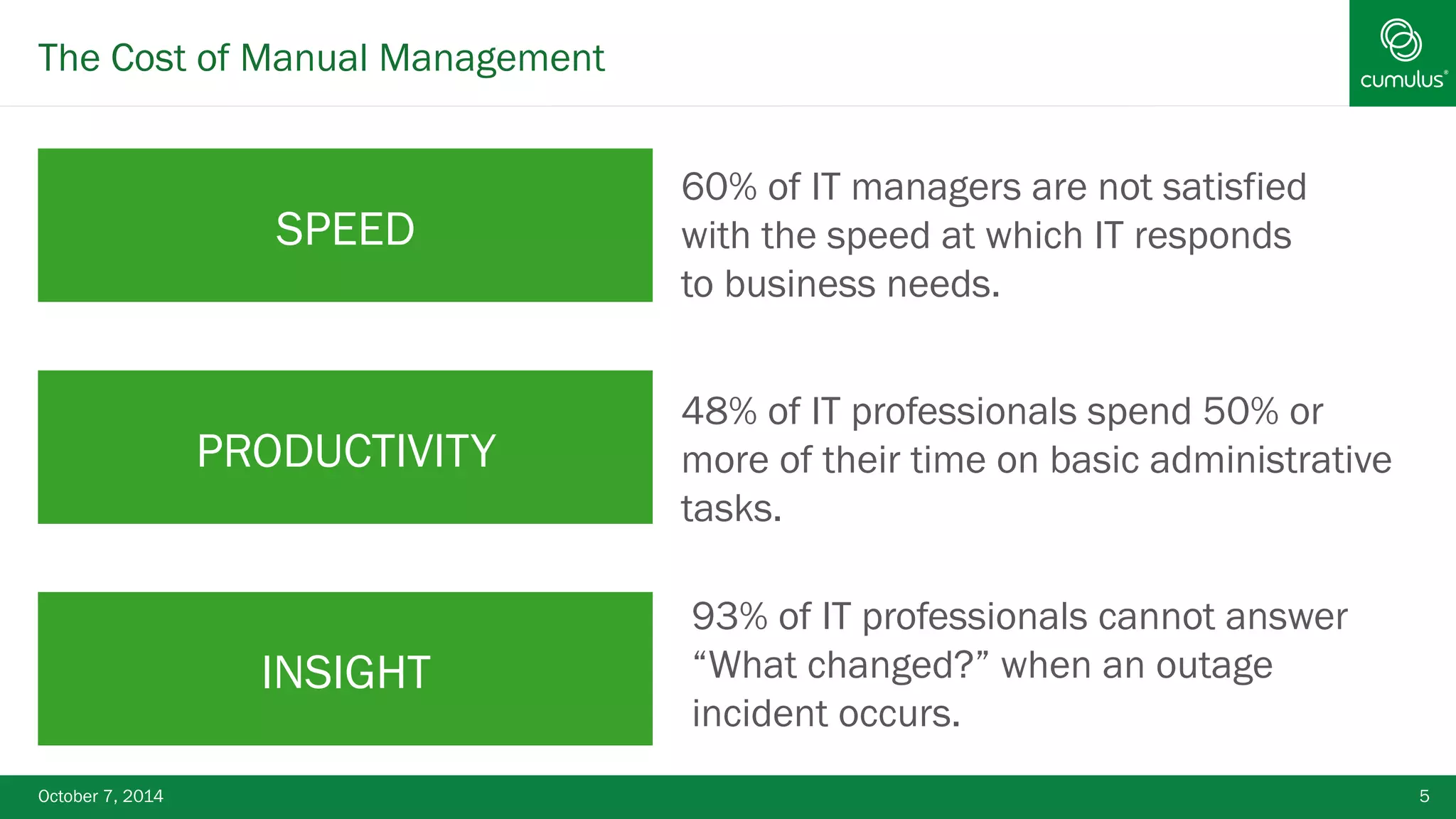

5. The Cost of Manual Management
60% of IT managers are not satisfied
with the speed at which IT responds
to business needs.
SPEED
PRODUCTIVITY
48% of IT professionals spend 50% or
more of their time on basic administrative
tasks.
93% of IT professionals cannot answer
“What changed?” when an outage
incident occurs.
INSIGHT
October 7, 2014 5

6. THE PUPPET ENTERPRISE APPROACH
DEFINE AUTOMATE
operating system resources · virtual machines · clouds · network devices · storage
devices · applications

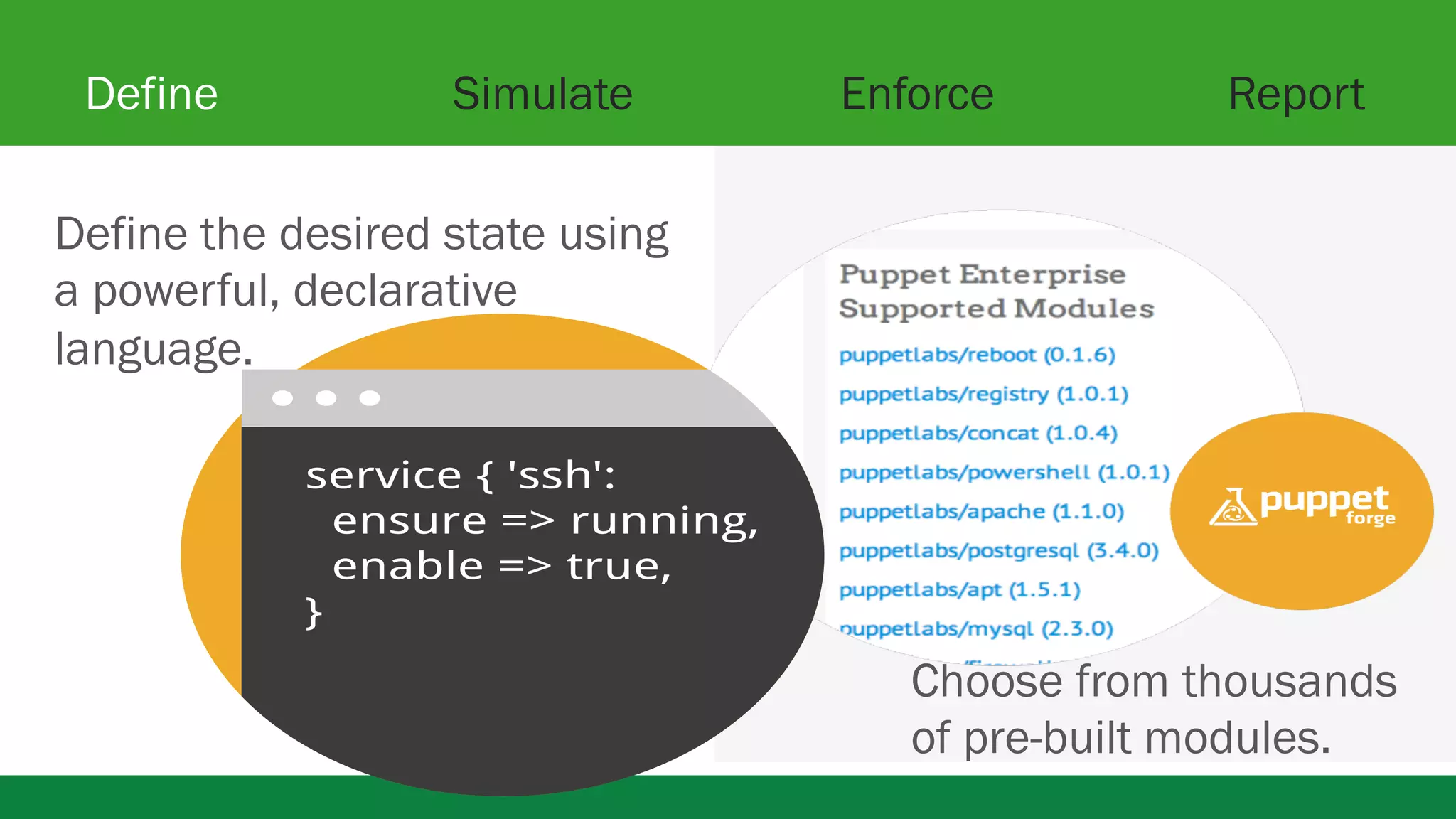

7. Simulate Enforce Report
Choose from thousands
of pre-built modules.
Define
Define the desired state using
a powerful, declarative
language.
service { 'ssh':
ensure => running,
enable => true,
}

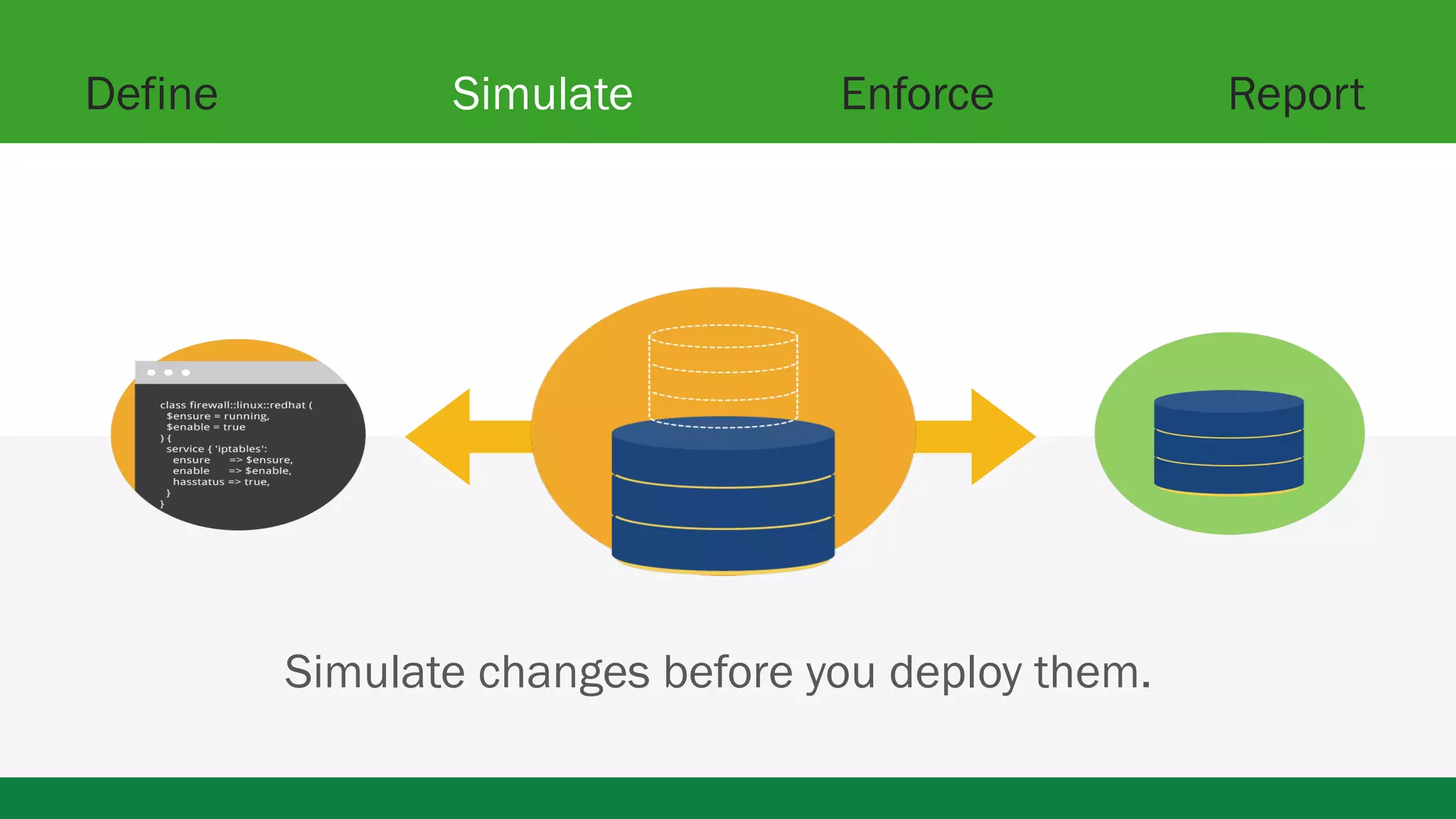

8. Define Simulate Enforce Report
Simulate changes before you deploy them.

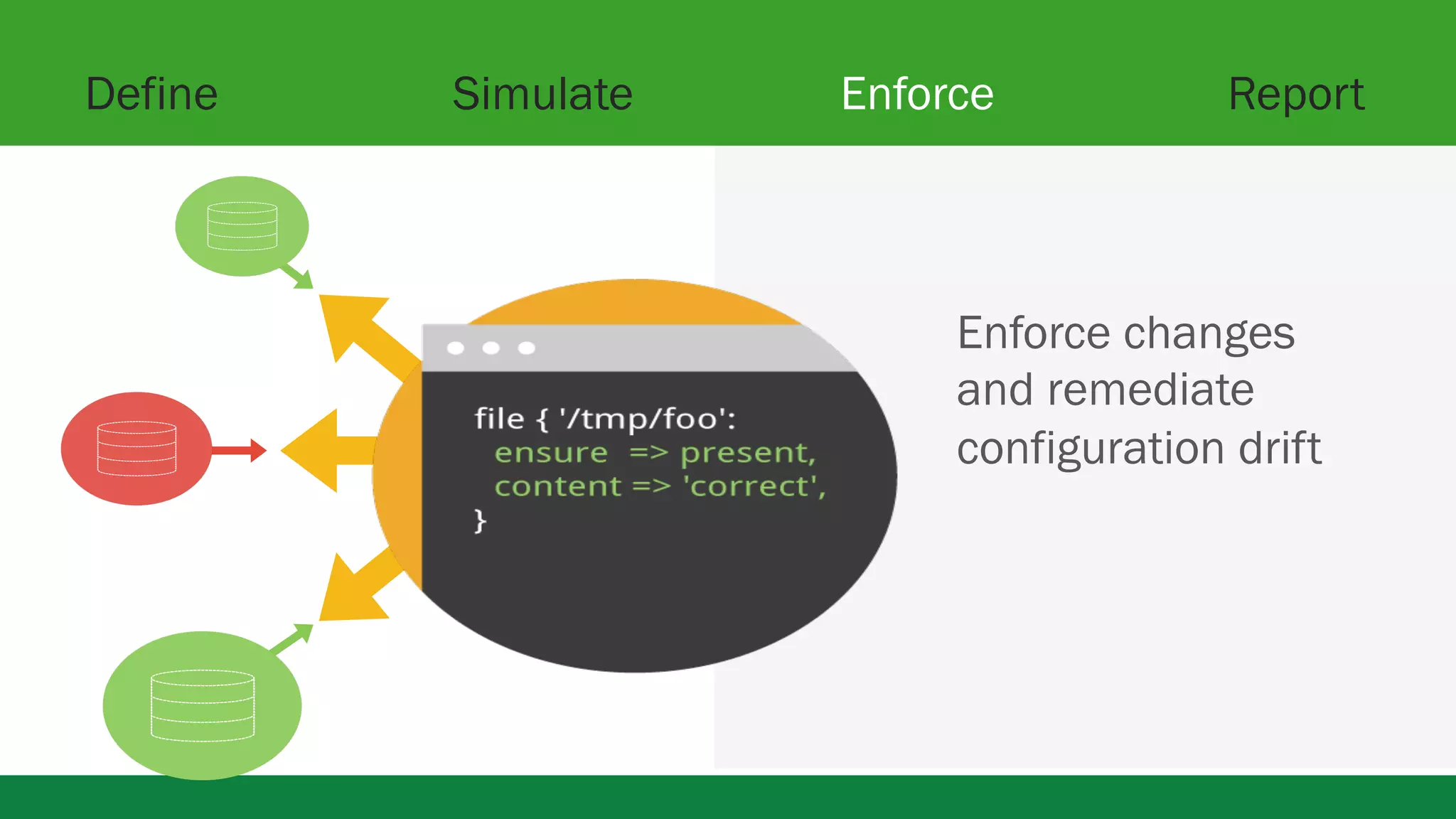

9. Define Simulate Enforce Report
Enforce changes
and remediate
configuration drift

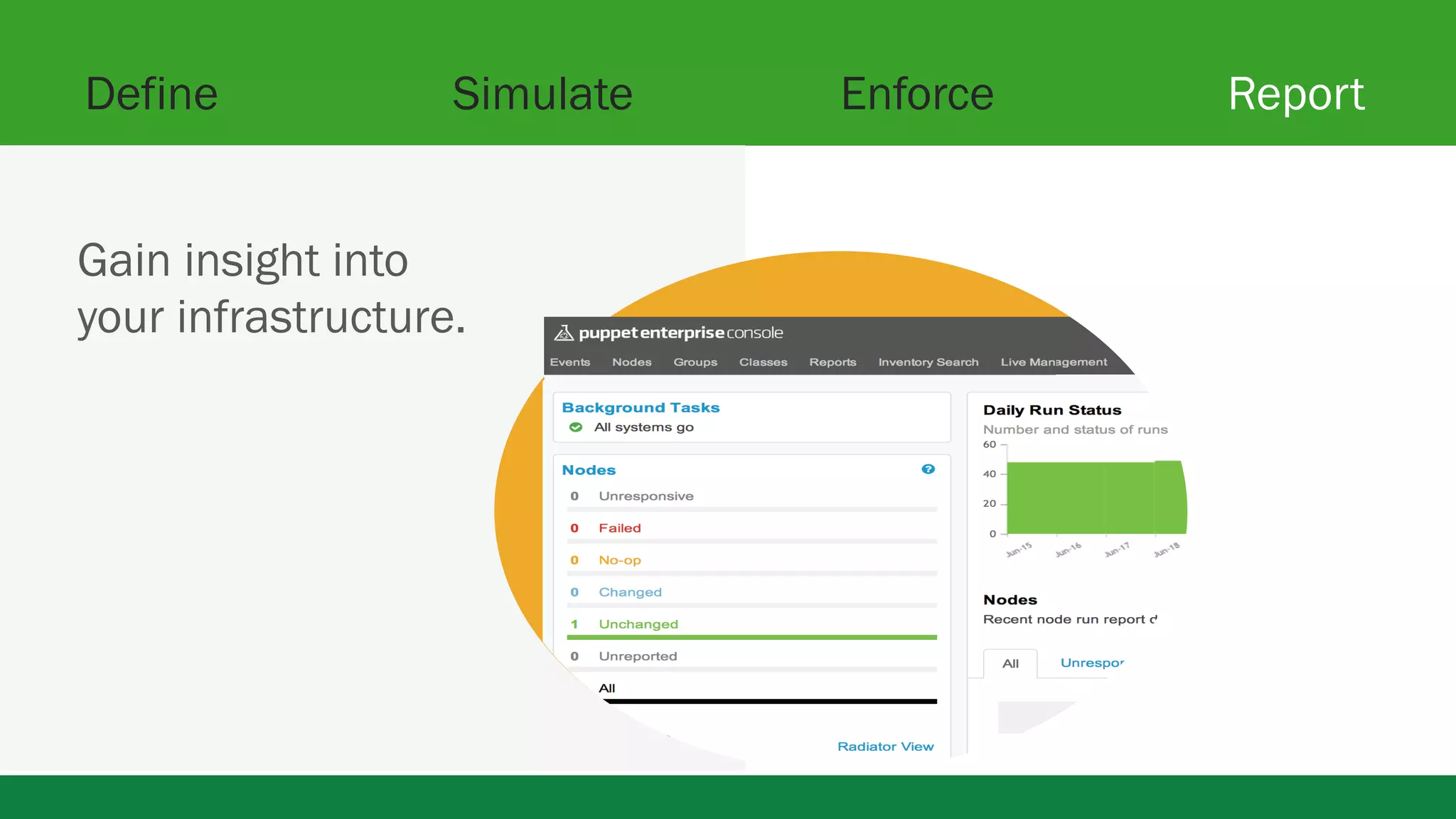

10. Define Simulate Enforce Report
Gain insight into
your infrastructure.

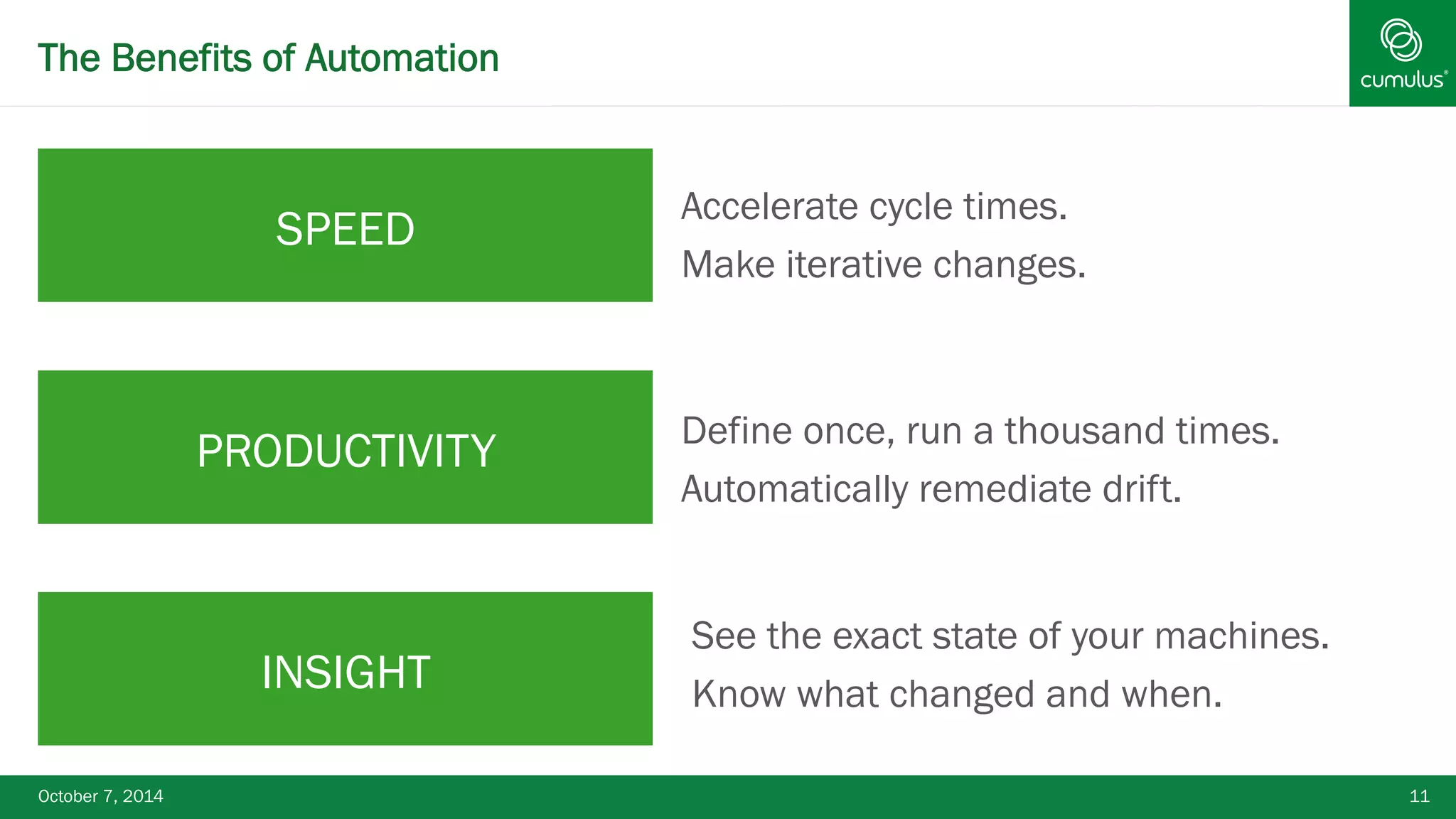

11. The Benefits of Automation
Accelerate cycle times.
Make iterative changes.
Define once, run a thousand times.
Automatically remediate drift.
See the exact state of your machines.
Know what changed and when.
SPEED
PRODUCTIVITY
INSIGHT
October 7, 2014 11

12. SUCCESS IN EVERY VERTICAL
Financial Telco/SP
Internet Tech
Gov. Defense
Education Mfg.
Retail Media

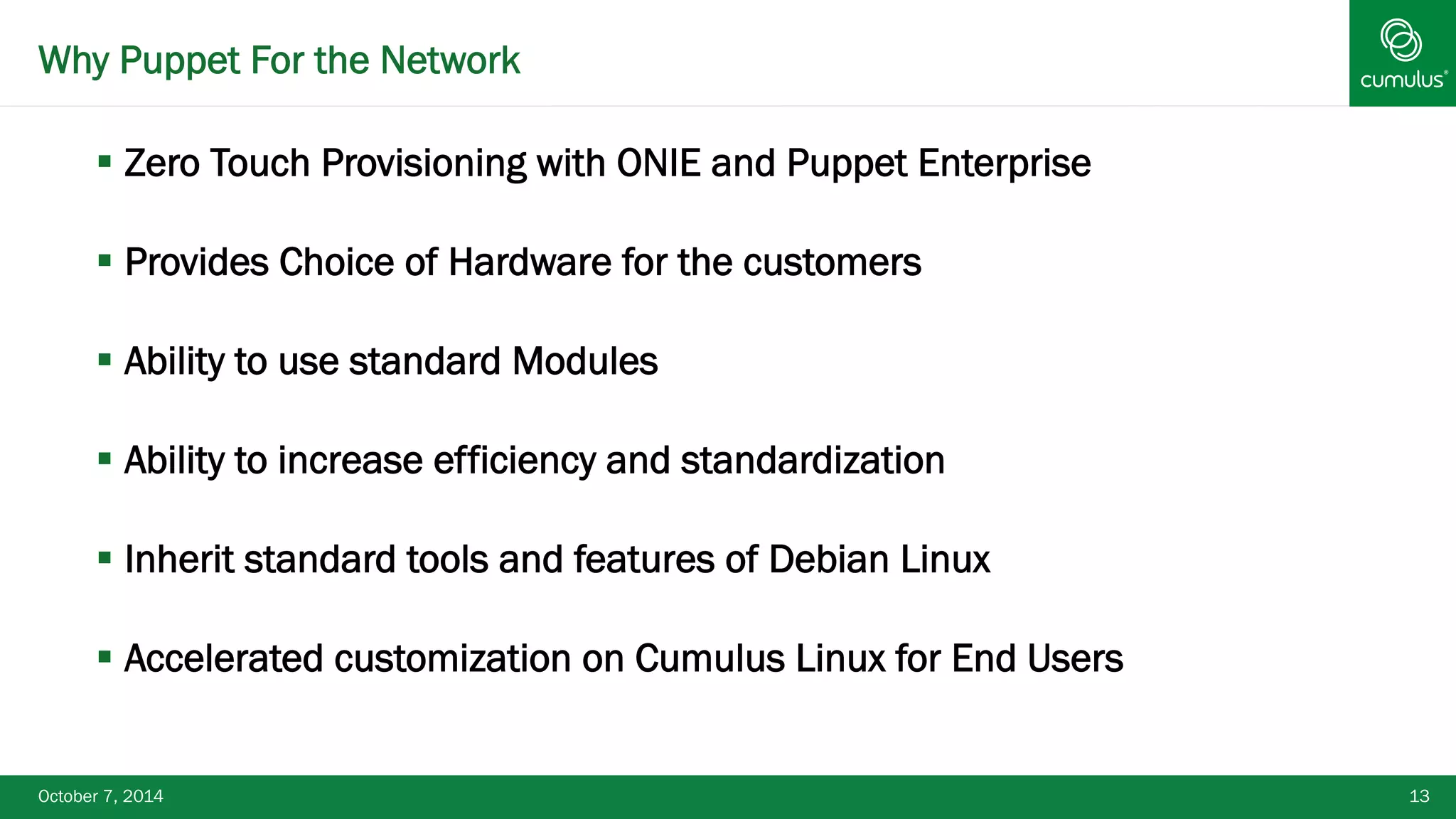

13. Why Puppet For the Network
§ Zero Touch Provisioning with ONIE and Puppet Enterprise
§ Provides Choice of Hardware for the customers
§ Ability to use standard Modules
§ Ability to increase efficiency and standardization
§ Inherit standard tools and features of Debian Linux
§ Accelerated customization on Cumulus Linux for End Users
October 7, 2014 13

14. Poll Question #2
October 7, 2014 14

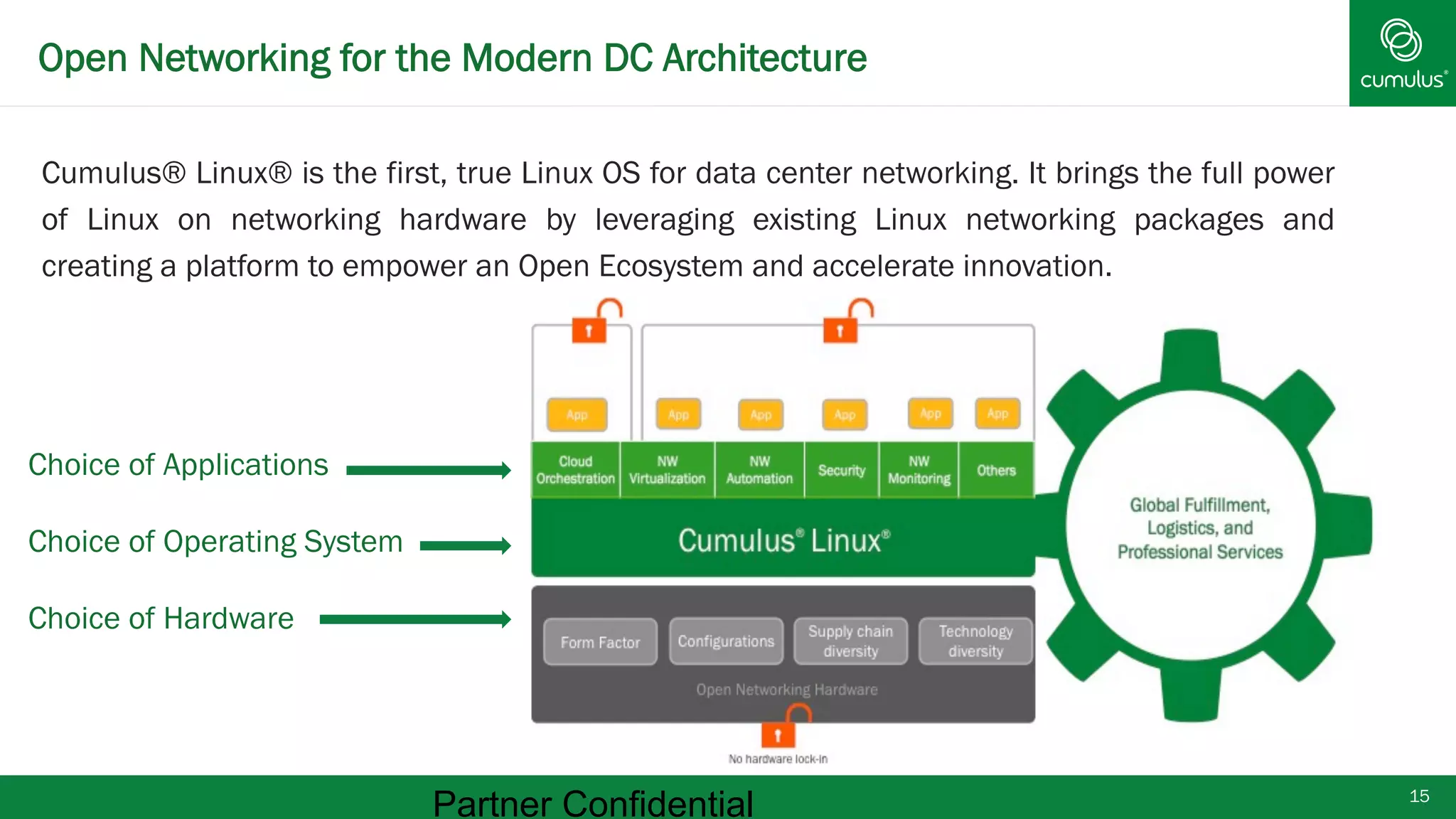

15. Open Networking for the Modern DC Architecture
Cumulus® Linux® is the first, true Linux OS for data center networking. It brings the full power
of Linux on networking hardware by leveraging existing Linux networking packages and
creating a platform to empower an Open Ecosystem and accelerate innovation.
Choice of Applications
Choice of Operating System
Choice of Hardware
Partner Confidential 15

16. Network OS installer discovery and execution
§ Like a pre-installed BIOS, PXE, and kickstarter in one
§ Implemented through Linux kernel with BusyBox
Donated to the Open Compute Project (OCP)
http://www.onie.org
ONIE

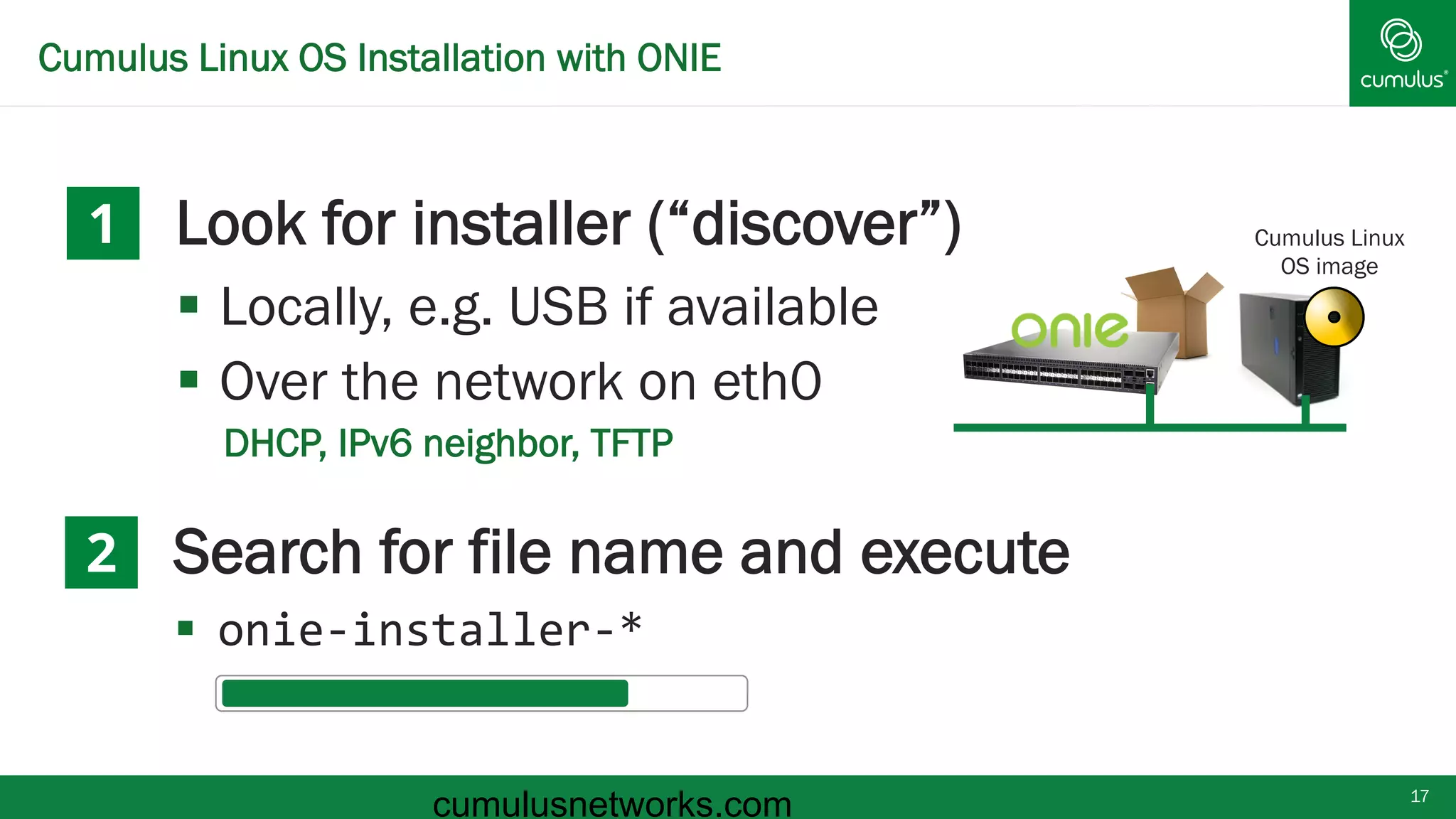

17. Cumulus Linux OS Installation with ONIE
§ Look for installer (“discover”)
§ Locally, e.g. USB if available
§ Over the network on eth0
• DHCP, IPv6 neighbor, TFTP
§ Search for file name and execute
§ onie-­‐installer-­‐*
cumulusnetworks.com 17
1
2
Cumulus Linux
OS image

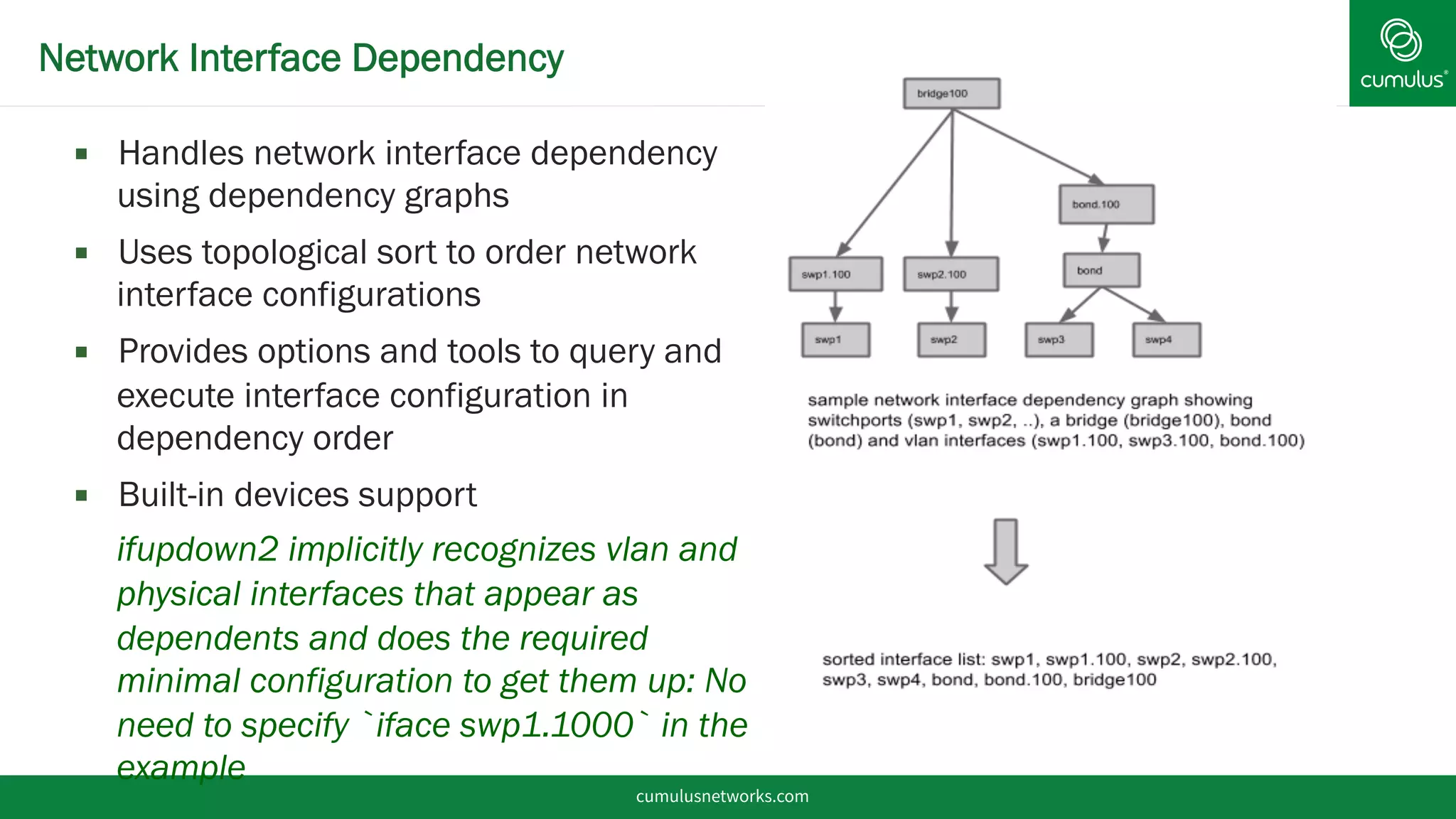

18. ▪ Handles network interface dependency
using dependency graphs
▪ Uses topological sort to order network
interface configurations
▪ Provides options and tools to query and
execute interface configuration in
dependency order
▪ Built-in devices support
ifupdown2 implicitly recognizes vlan and
physical interfaces that appear as
dependents and does the required
minimal configuration to get them up: No
need to specify `iface swp1.1000` in the
example
cumulusnetworks.com
Network Interface Dependency

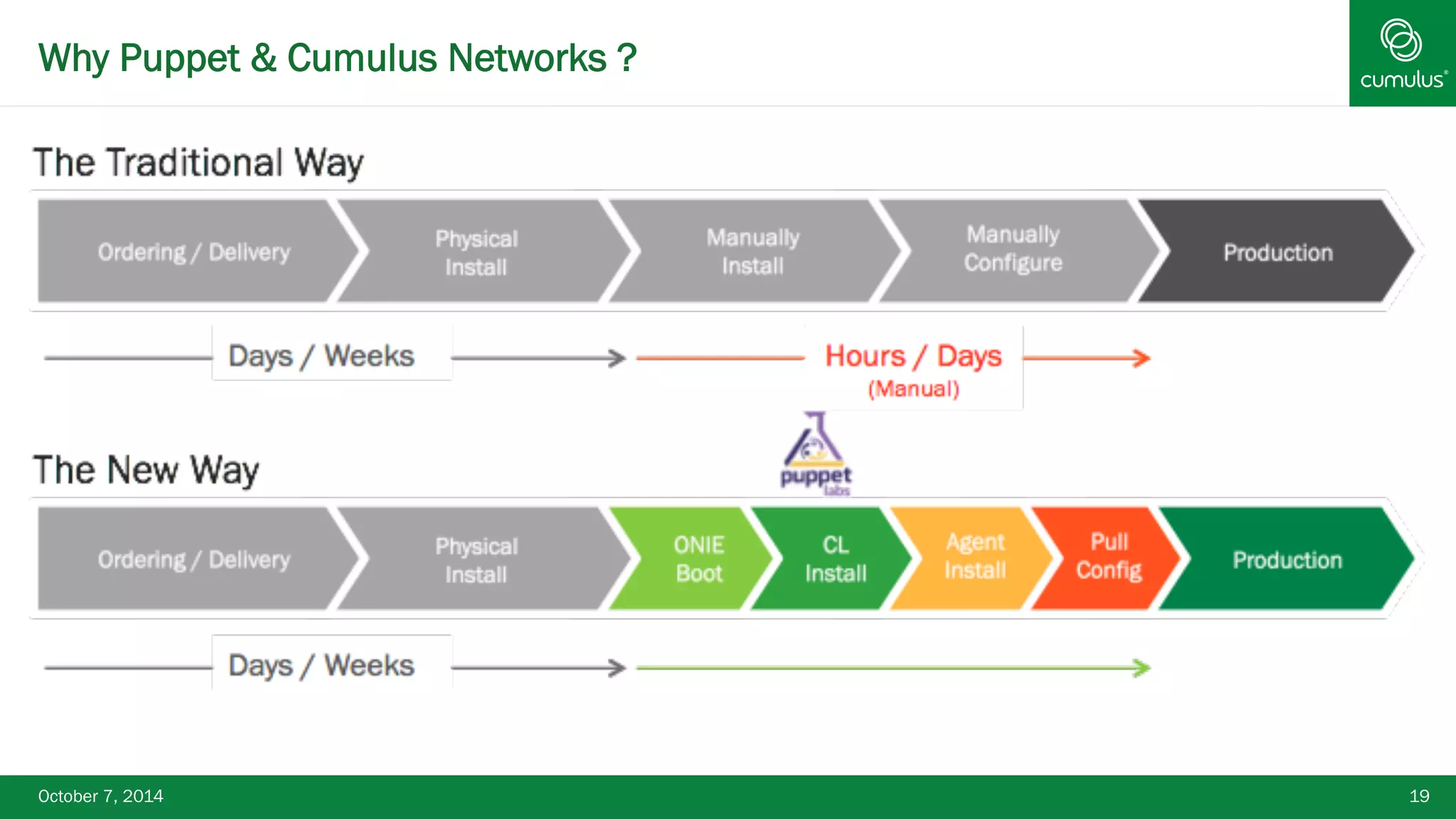

19. Why Puppet & Cumulus Networks ?
October 7, 2014 19

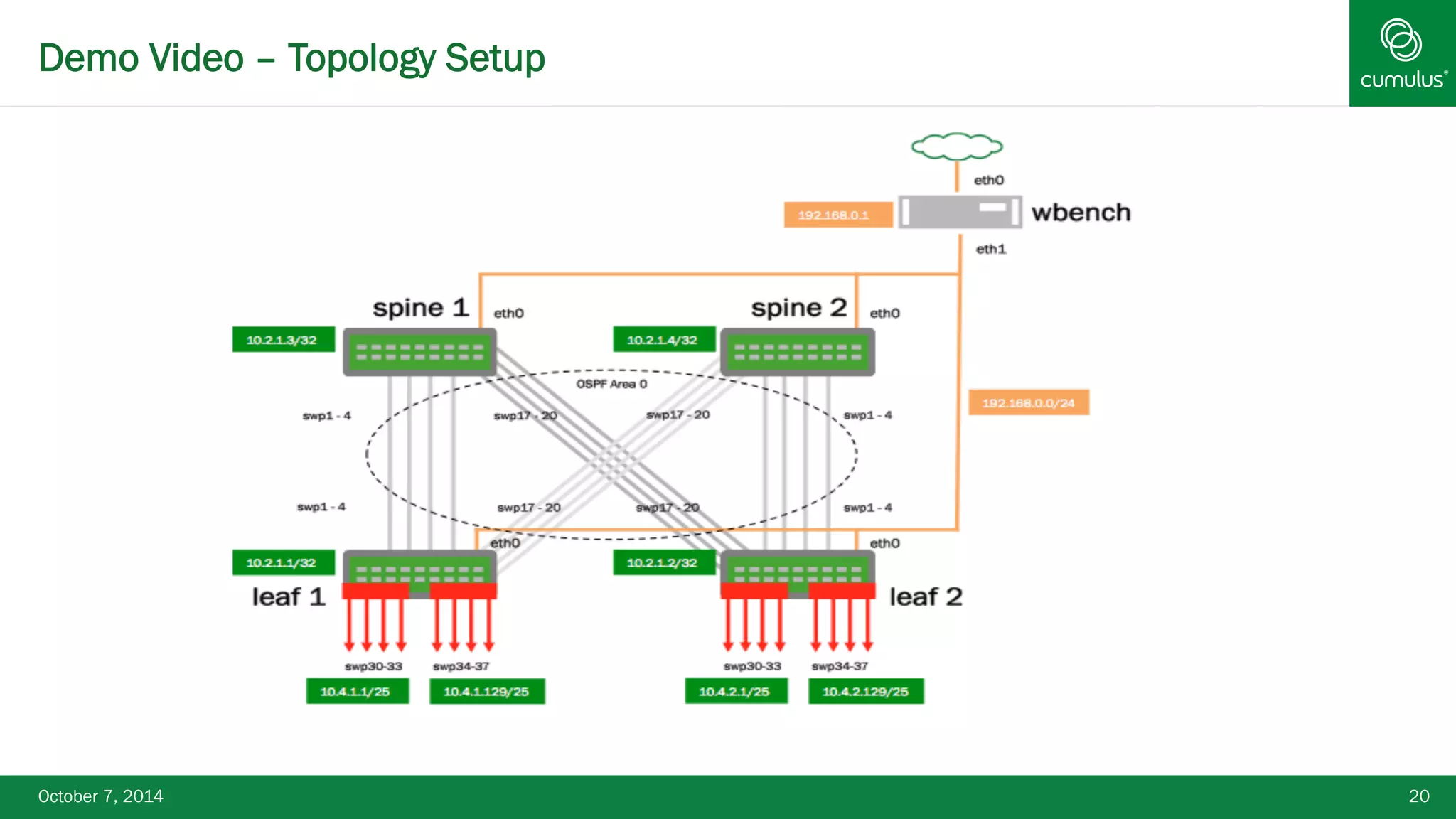

20. Demo Video – Topology Setup
October 7, 2014 20

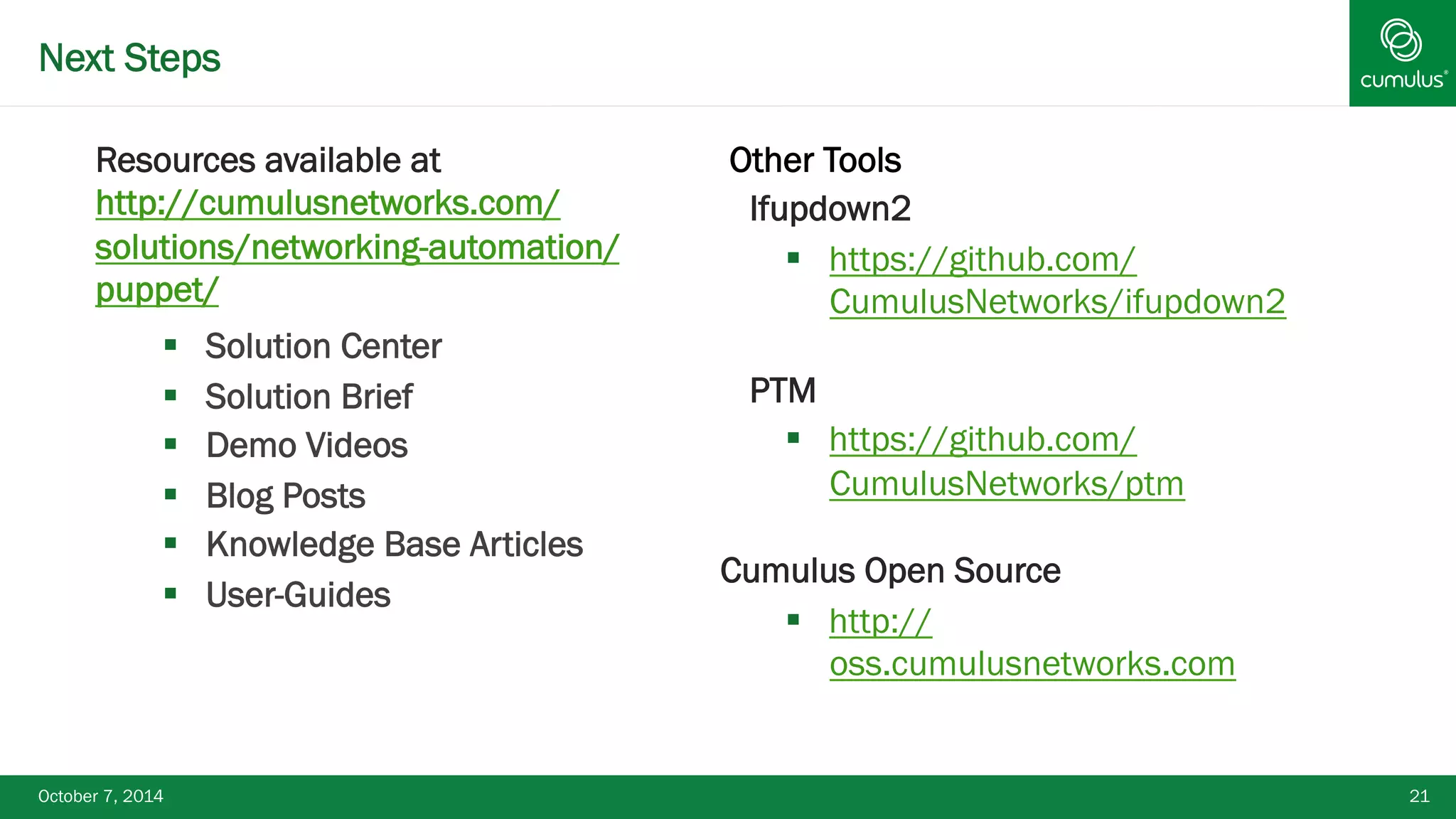

21. Next Steps
Resources available at
http://cumulusnetworks.com/
solutions/networking-automation/
puppet/
§ Solution Center
§ Solution Brief
§ Demo Videos
§ Blog Posts
§ Knowledge Base Articles
§ User-Guides
Other Tools
§ Ifupdown2
§ https://github.com/
CumulusNetworks/ifupdown2
§ PTM
§ https://github.com/
CumulusNetworks/ptm
Cumulus Open Source
§ http://
oss.cumulusnetworks.com
October 7, 2014 21

22. § Thank You!
© 2014 Cumulus Networks. Cumulus Networks, the Cumulus Networks Logo, and Cumulus Linux are trademarks or registered trademarks of Cumulus Networks, Inc. or its affiliates
in the U.S. and other countries. Other names may be trademarks of their respective owners. The registered trademark Linux® is used pursuant to a sublicense from LMI, the
exclusive licensee of Linus Torvalds, owner of the mark on a world-wide basis.
October 7, 2014 22

23. v
Appendix
June 19th 2014

24. v
Case Studies
June 19th 2014

25. v
Additional Details
June 19th 2014
