HVDC VSC (High Voltage Direct Current Voltage Source Conversion) technology is well-suited for integrating renewable energy resources due to its fast response time, ability to transmit power over long distances with low losses, provide reactive power support to weak grids, and allow power to flow in both directions. HVDC connections can help address intermittency of renewable resources by connecting geographically diverse projects, which have imperfect resource correlation and thus can help provide more reliable combined output. HVDC is also environmentally friendly as it uses direct buried cables that produce no audible noise, visual impacts or electromagnetic fields on land.

1. HVDC - Voltage Source Conversion
Transmission Technology for the Age of Renewables
Washington State Ocean Energy Conference
November 9th , 2011
Paul B. Manson
President & CEO – Sea Breeze Power Corp.

2. HVDC Voltage Source Conversion (HVDC VSC)
Technology
HVDC VSC
Smart Grid - Friendly
 Fast - Responsive - Controllable
 Suited for Automated Use
Regional Applications
 Offshore and Remote Sites
 Distant Weak Connections
 ‘Ride Through’ Capability
 Seams Issues
Technical Attributes
 VARs – Versatile Reactive Power
 Black Start Capability
 1500MW Potential Capacity

3. HVDC – Proven Technology
Technology
High Voltage Direct Current
 One of the
World’s Leading
Engineering Companies
 Applications of HVDC and
HVDC Light® in Europe

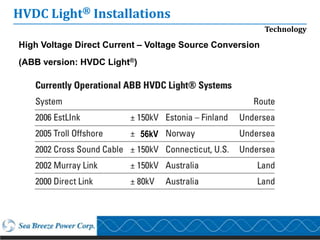

4. HVDC Light® Installations
Technology
High Voltage Direct Current – Voltage Source Conversion
(ABB version: HVDC Light®)
56kV

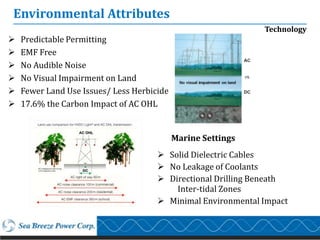

5. Environmental Attributes
Technology
 Predictable Permitting
 EMF Free
 No Audible Noise
 No Visual Impairment on Land
 Fewer Land Use Issues/ Less Herbicide
 17.6% the Carbon Impact of AC OHL
Marine Settings
 Solid Dielectric Cables
 No Leakage of Coolants
 Directional Drilling Beneath
Inter-tidal Zones
 Minimal Environmental Impact

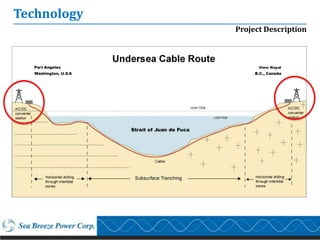

6. Technology
Project Description

7. How HVDC supports integration of Renewables
• Capable of long distance interconnections for remotely
located resources
• Low line losses for remotely located resources
• Best available technology for interconnection to weak
grid interconnection points
• Digital, fast control over the direction of flow –
for a grid increasingly used for shifting available
intermittent resources
• "Ride-through" capability

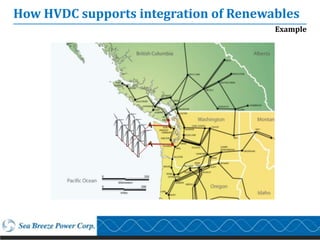

8. How HVDC supports integration of Renewables
Example

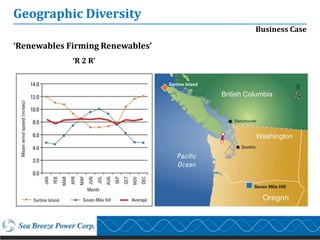

9. Geographic Diversity
Business Case
‘Renewables Firming Renewables’
‘R 2 R’

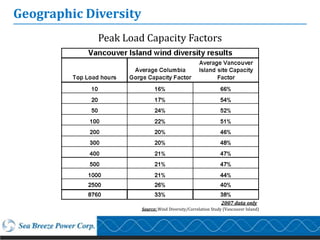

10. Geographic Diversity
Peak Load Capacity Factors
2007 data only
Source: Wind Diversity/Correlation Study (Vancouver Island)

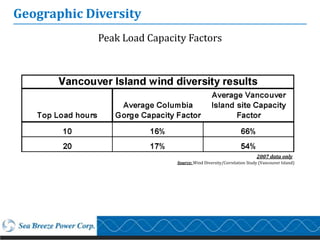

11. Geographic Diversity
Peak Load Capacity Factors
2007 data only
Source: Wind Diversity/Correlation Study (Vancouver Island)
