CSS-Cascading Style Sheets - Introduction

CSS
CASCADING STYLE SHEETS

Mukesh N. Tekwani
Computer Science & Physics
mukeshtekwani@hotmail.com
I. Y. College, Mumbai, India

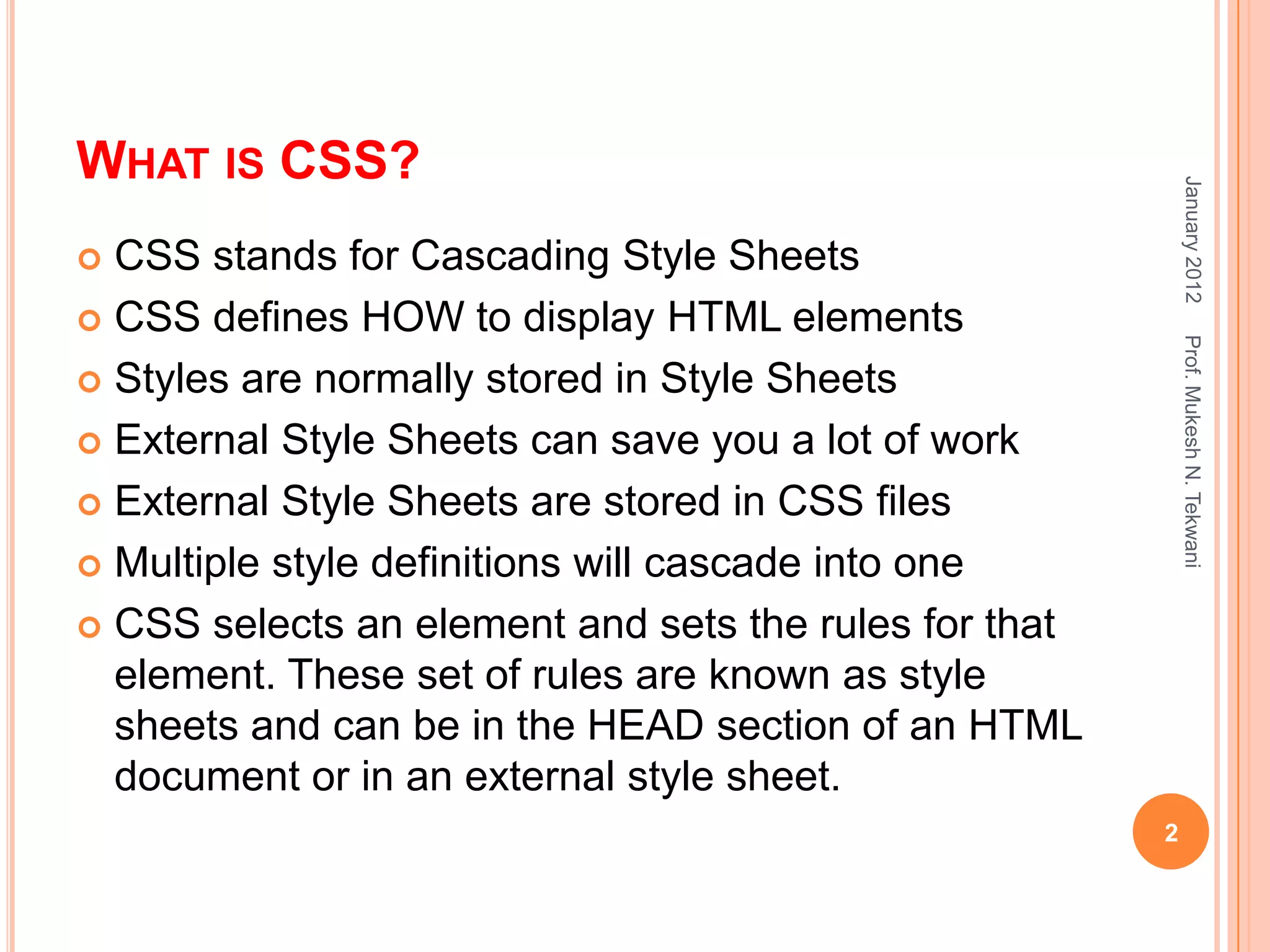

WHAT IS CSS?

January 2012
 CSS stands for Cascading Style Sheets
 CSS defines HOW to display HTML elements

Prof. Mukesh N. Tekwani
 Styles are normally stored in Style Sheets

 External Style Sheets can save you a lot of work

 External Style Sheets are stored in CSS files

 Multiple style definitions will cascade into one

 CSS selects an element and sets the rules for that
element. These set of rules are known as style
sheets and can be in the HEAD section of an HTML
document or in an external style sheet.
2

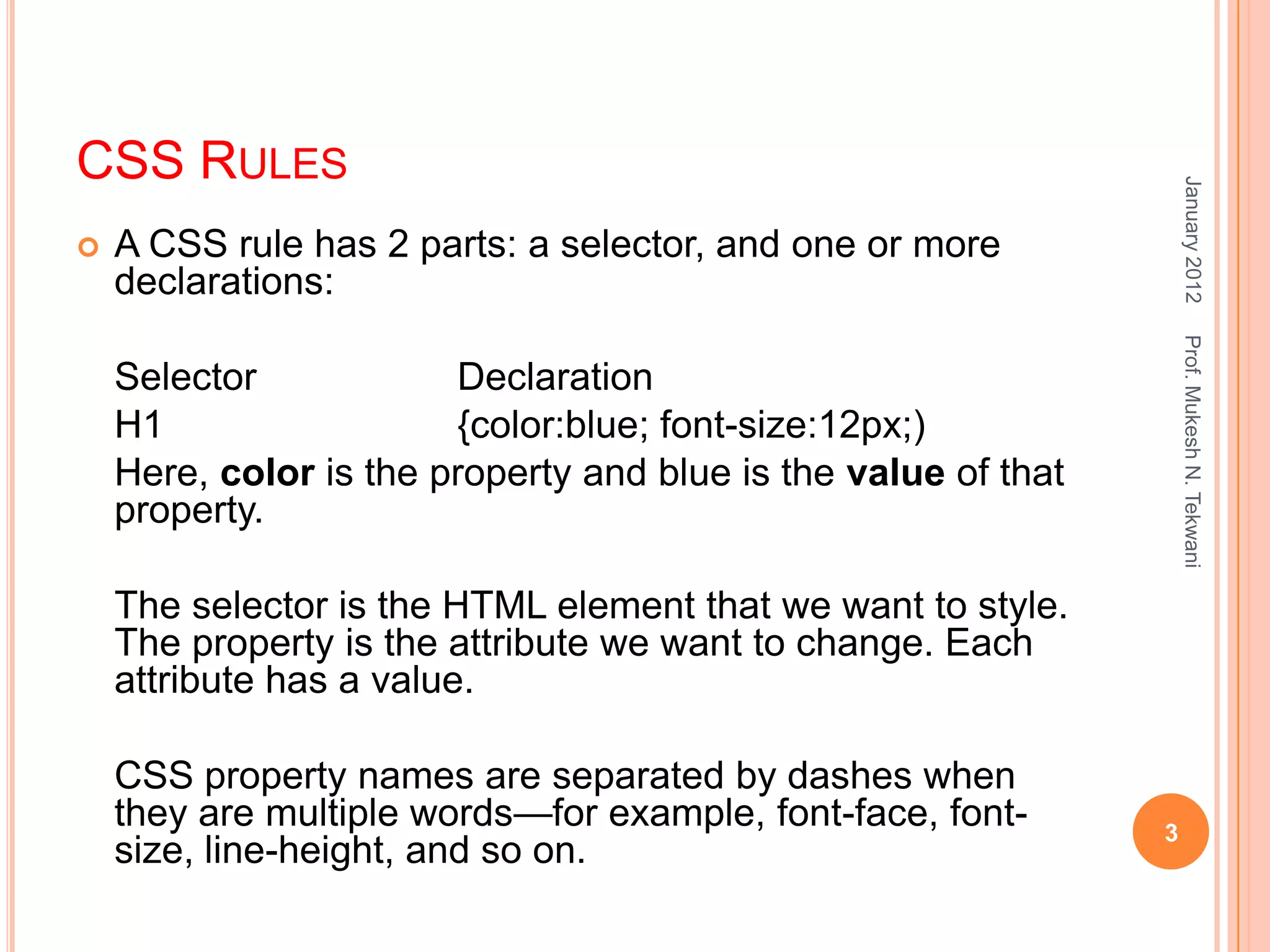

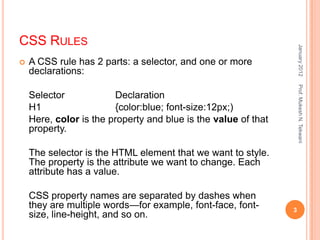

CSS RULES

January 2012
 A CSS rule has 2 parts: a selector, and one or more
declarations:

Selector Declaration
H1 {color:blue; font-size:12px;)
Here, color is the property and blue is the value of that
property.

The selector is the HTML element that we want to style.
The property is the attribute we want to change. Each
attribute has a value.

CSS property names are separated by dashes when
they are multiple words—for example, font-face, font- 3
size, line-height, and so on.

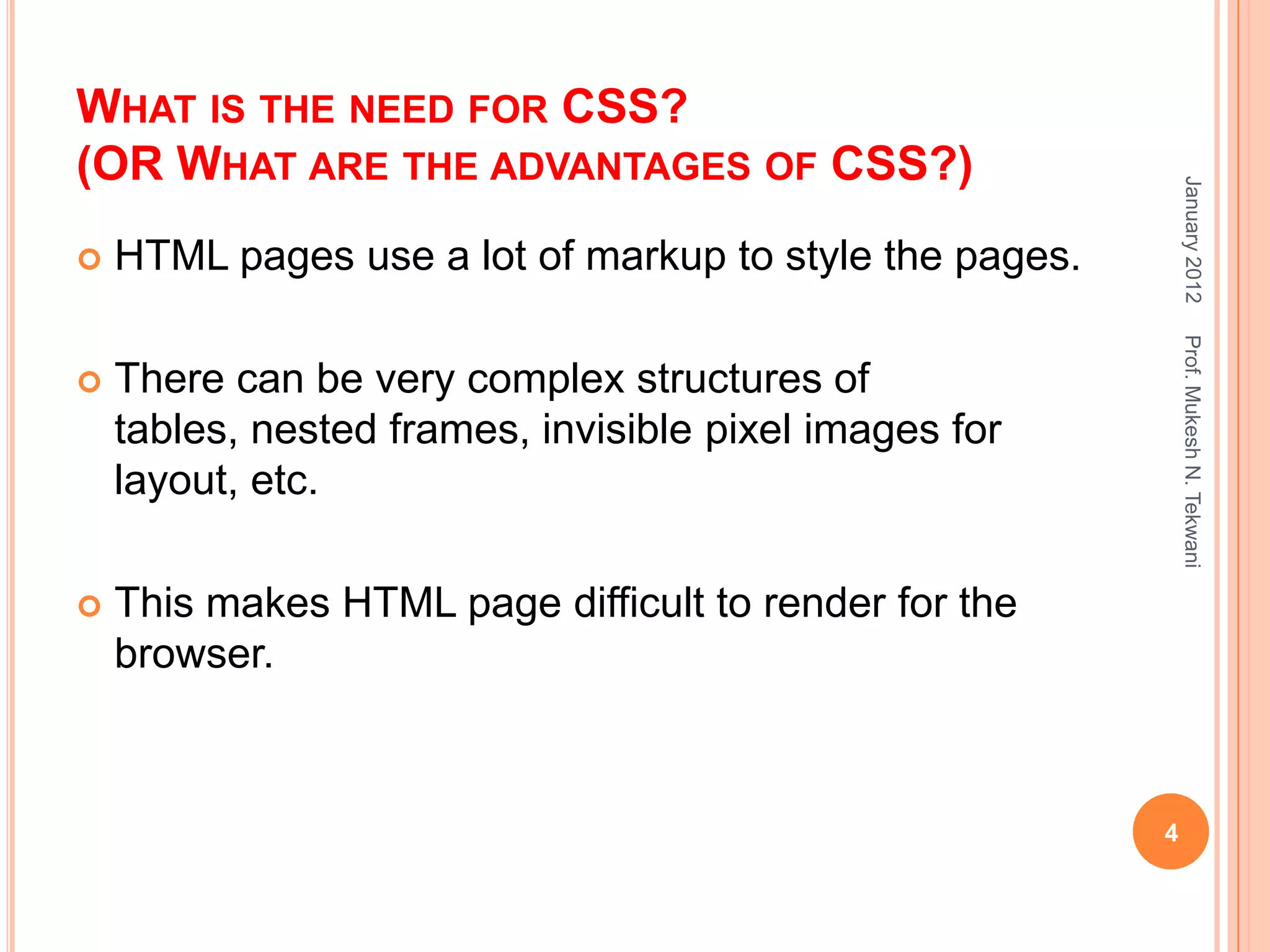

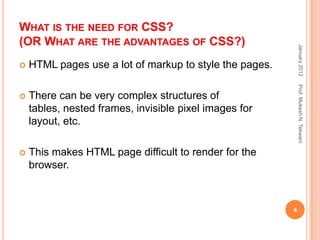

WHAT IS THE NEED FOR CSS?
(OR WHAT ARE THE ADVANTAGES OF CSS?)

January 2012
 HTML pages use a lot of markup to style the pages.

 There can be very complex structures of
tables, nested frames, invisible pixel images for
layout, etc.

 This makes HTML page difficult to render for the
browser.

4

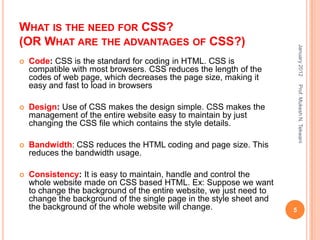

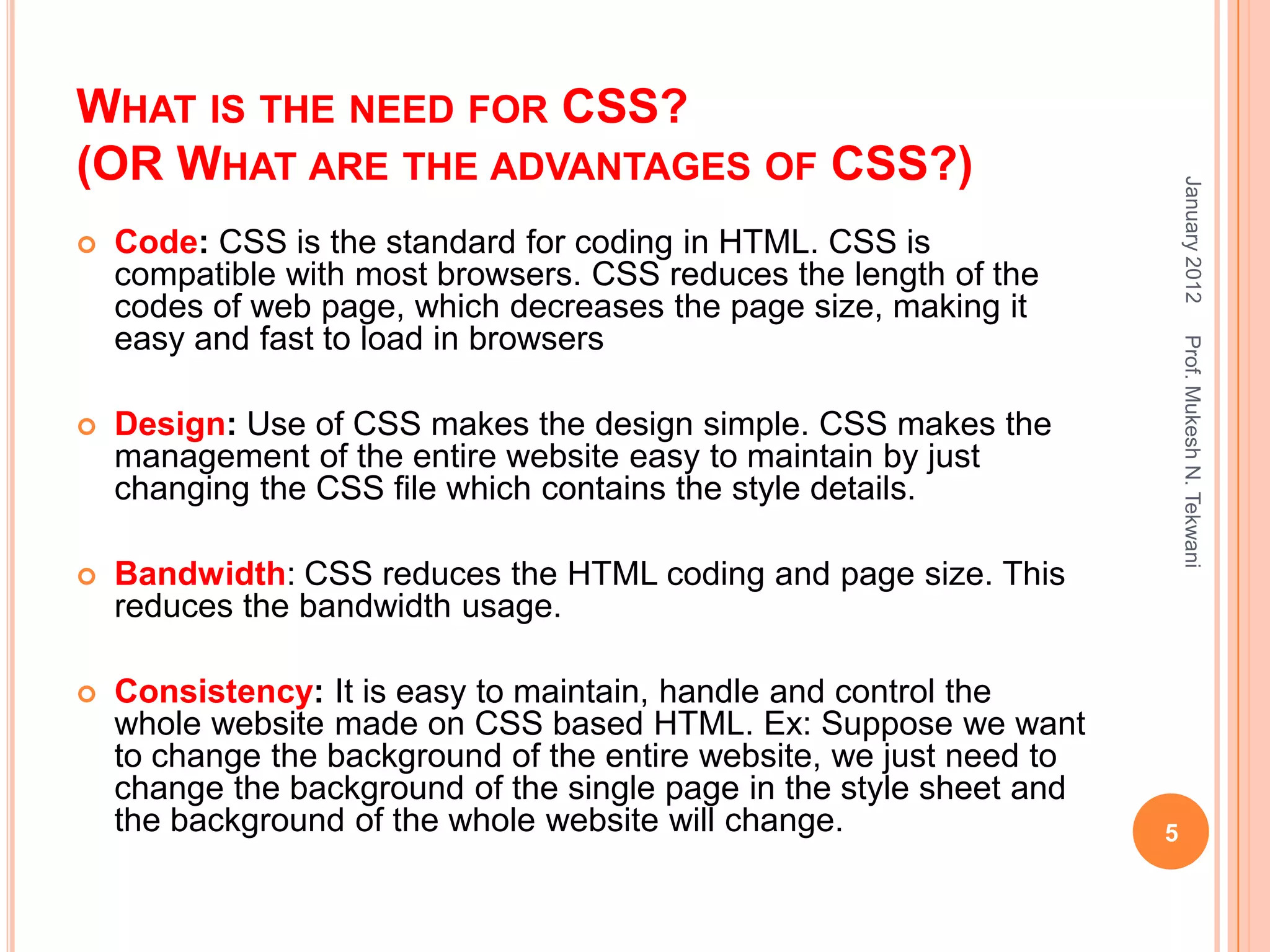

WHAT IS THE NEED FOR CSS?
(OR WHAT ARE THE ADVANTAGES OF CSS?)

January 2012
 Code: CSS is the standard for coding in HTML. CSS is
compatible with most browsers. CSS reduces the length of the
codes of web page, which decreases the page size, making it
easy and fast to load in browsers

 Design: Use of CSS makes the design simple. CSS makes the
management of the entire website easy to maintain by just
changing the CSS file which contains the style details.

 Bandwidth: CSS reduces the HTML coding and page size. This
reduces the bandwidth usage.

 Consistency: It is easy to maintain, handle and control the
whole website made on CSS based HTML. Ex: Suppose we want
to change the background of the entire website, we just need to
change the background of the single page in the style sheet and
the background of the whole website will change. 5

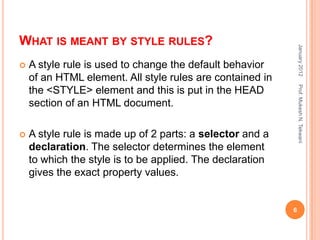

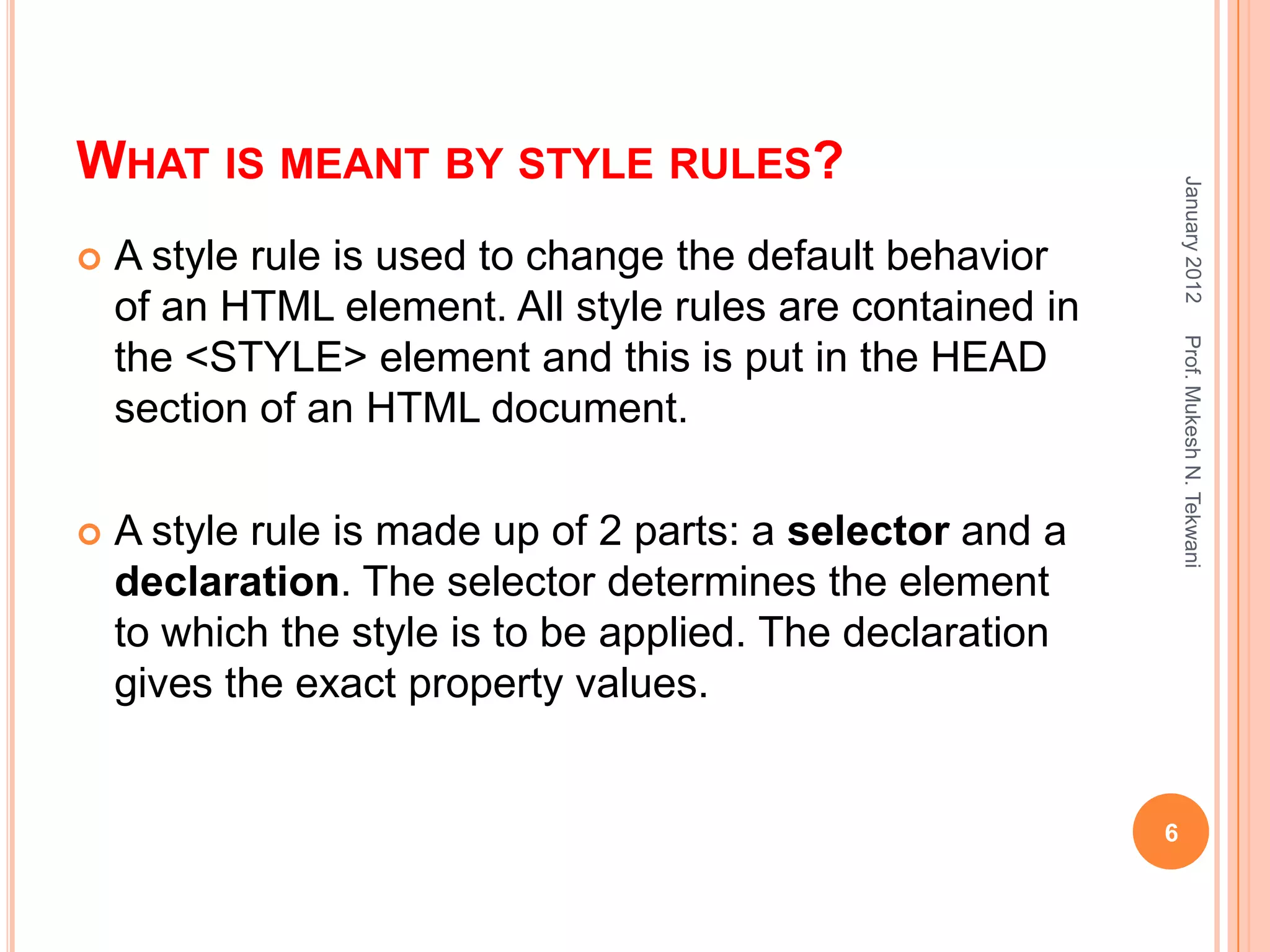

WHAT IS MEANT BY STYLE RULES?

January 2012
 A style rule is used to change the default behavior
of an HTML element. All style rules are contained in

the <STYLE> element and this is put in the HEAD
section of an HTML document.

 A style rule is made up of 2 parts: a selector and a
declaration. The selector determines the element
to which the style is to be applied. The declaration
gives the exact property values.

6

WHAT IS MEANT BY STYLE RULES?

January 2012
 Consider the <P> element. We can create a style rule for this
<P> element so that all paragraphs are in blue color and have
a font size of 24px. The style rule is as follows:

<STYLE>
P {COLOR:BLUE; FONT-SIZE:24px}
</STYLE>

 Consider the <H1> element. We can create a style for this
element so that all H1 headings are in red color.

<STYLE TYPE = “TEXT/CSS”>
H1 {COLOR:RED}
7
</STYLE>

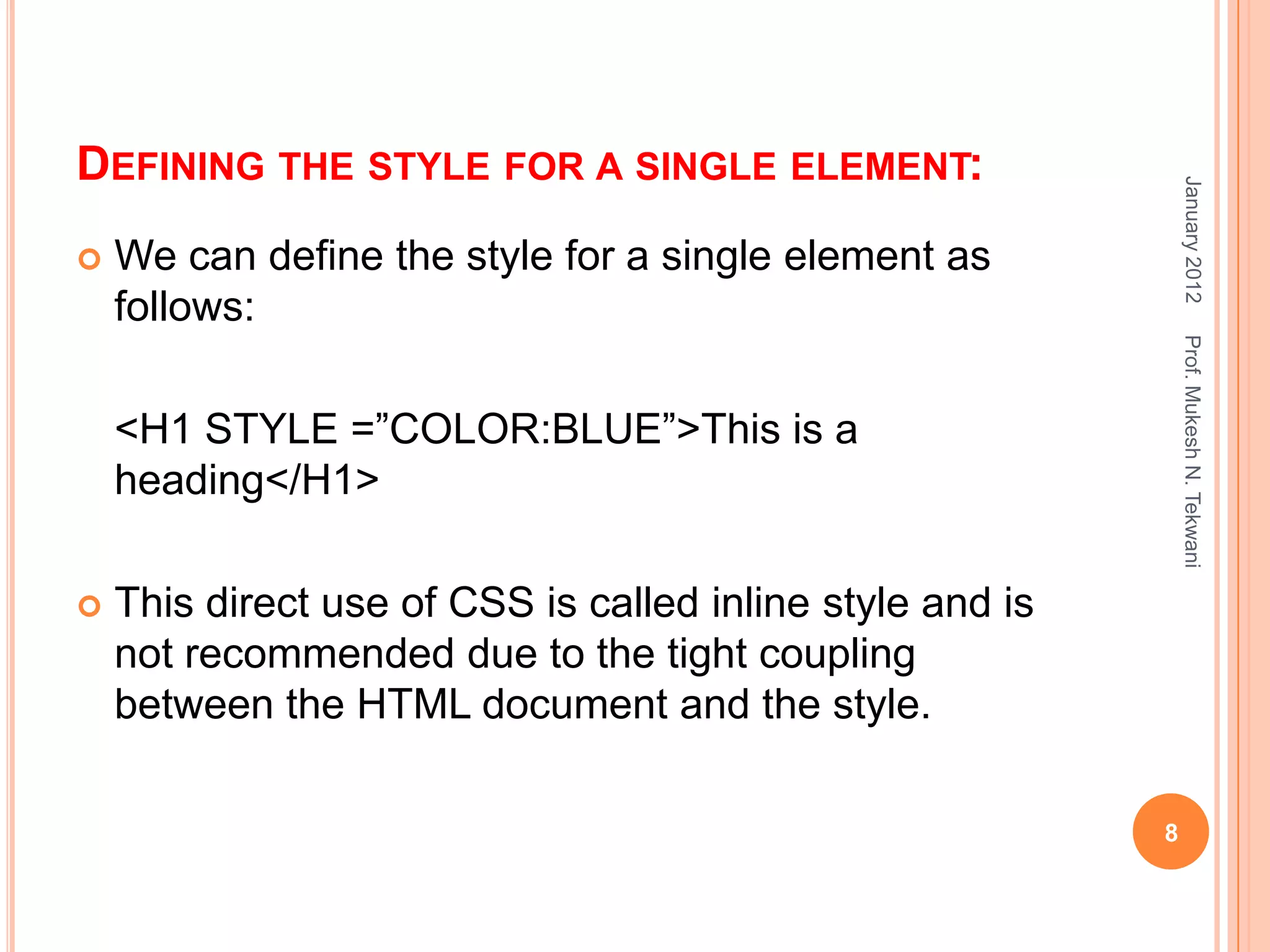

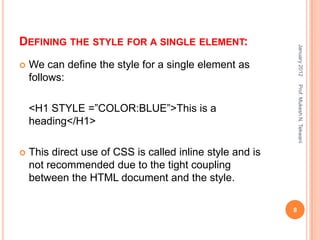

DEFINING THE STYLE FOR A SINGLE ELEMENT:

January 2012
 We can define the style for a single element as
follows:

<H1 STYLE =”COLOR:BLUE”>This is a
heading</H1>

 This direct use of CSS is called inline style and is
not recommended due to the tight coupling
between the HTML document and the style.

8

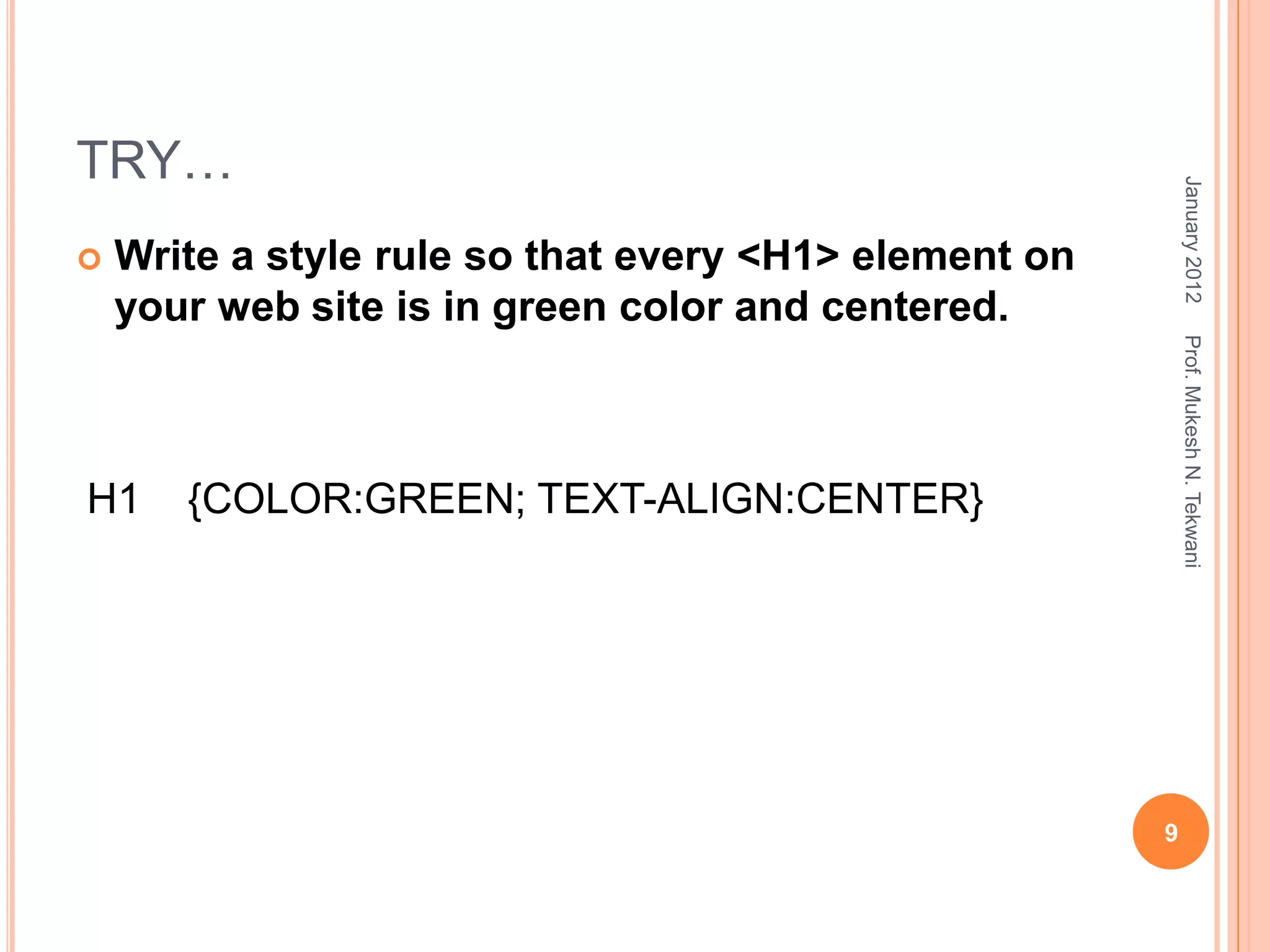

TRY…

January 2012
 Write a style rule so that every <H1> element on
your web site is in green color and centered.

H1 {COLOR:GREEN; TEXT-ALIGN:CENTER}

9

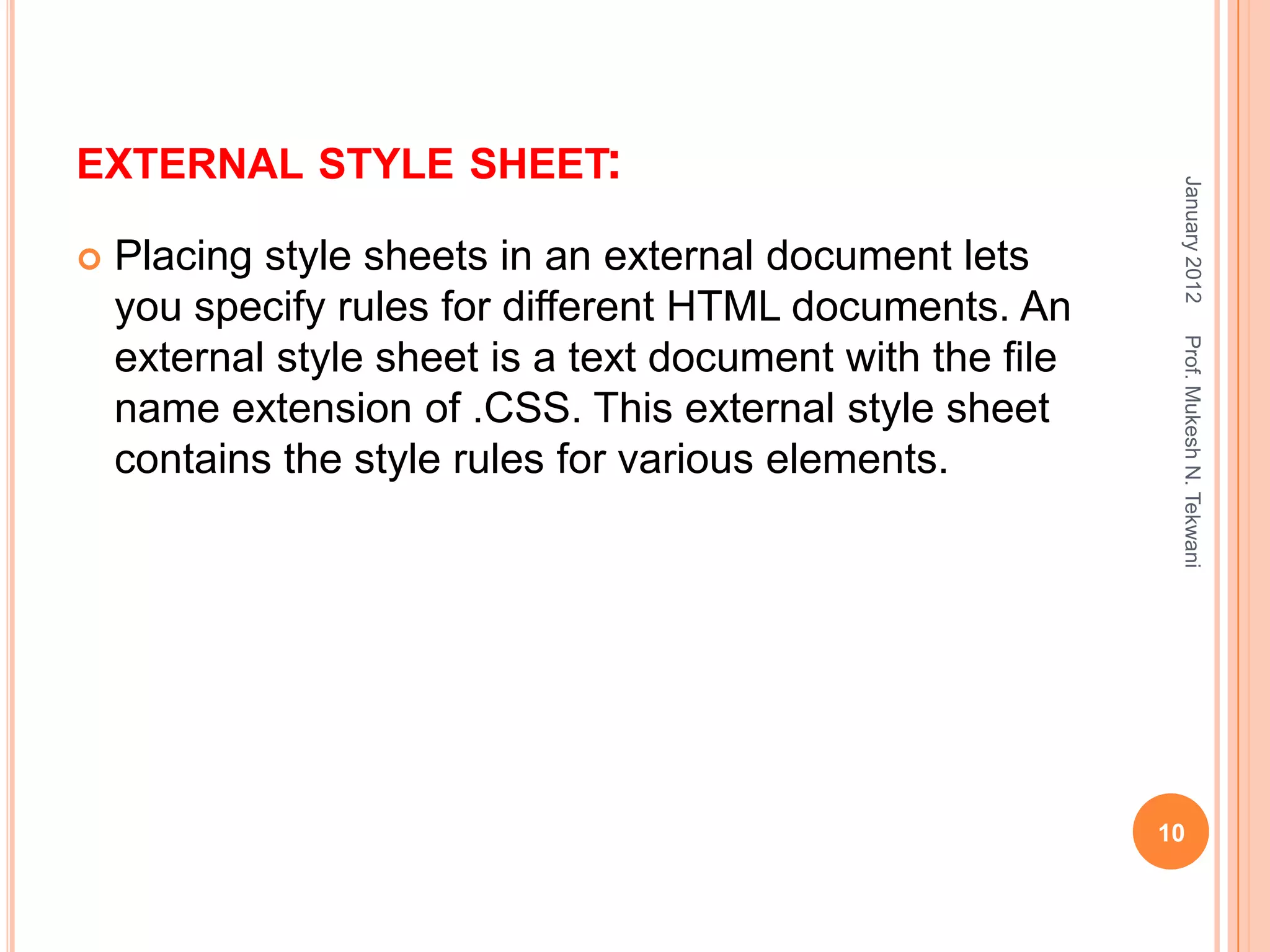

EXTERNAL STYLE SHEET:

January 2012
 Placing style sheets in an external document lets
you specify rules for different HTML documents. An

external style sheet is a text document with the file
name extension of .CSS. This external style sheet
contains the style rules for various elements.

10

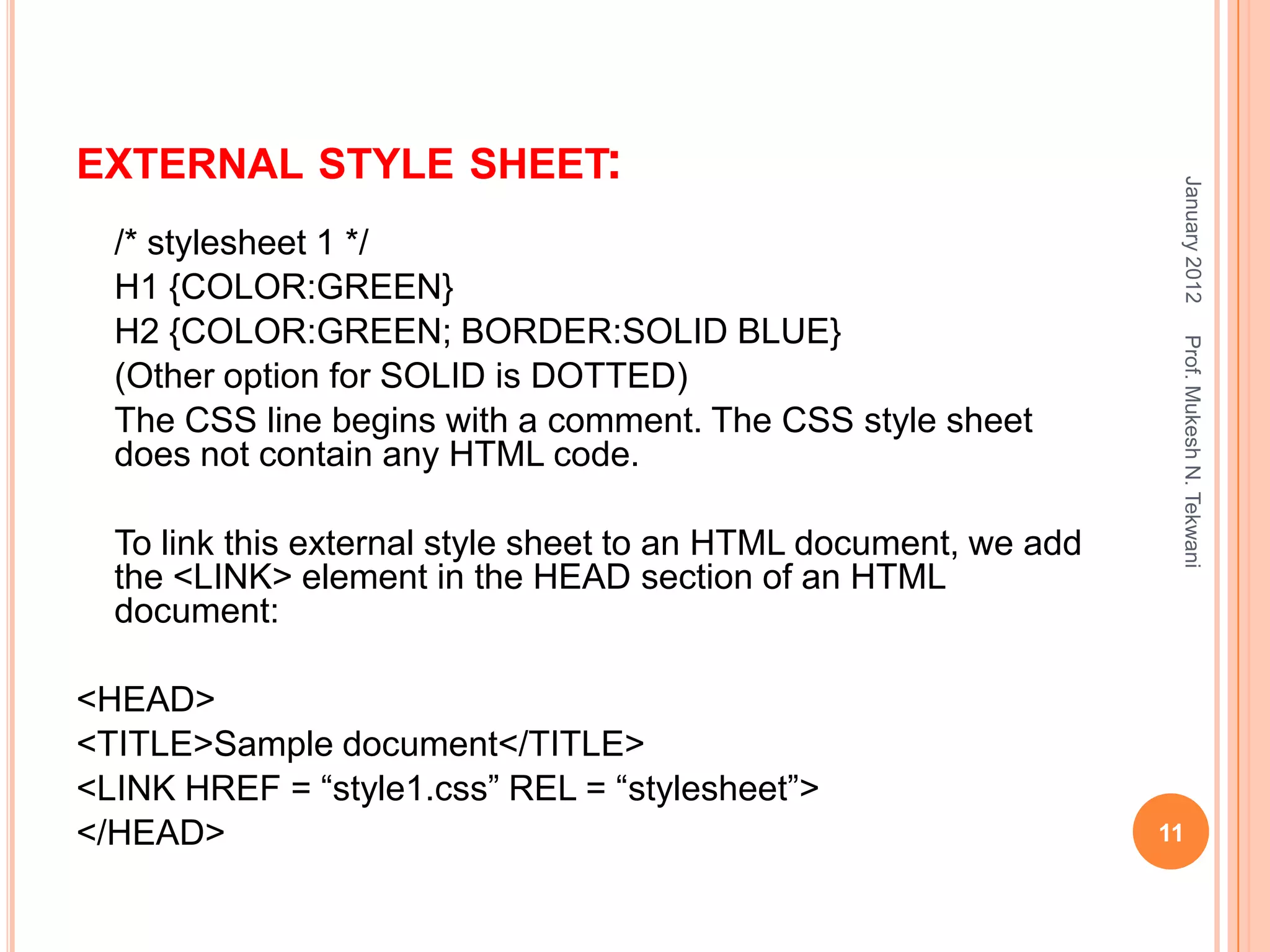

January 2012
/* stylesheet 1 */
H1 {COLOR:GREEN}
H2 {COLOR:GREEN; BORDER:SOLID BLUE}

(Other option for SOLID is DOTTED)
The CSS line begins with a comment. The CSS style sheet
does not contain any HTML code.

To link this external style sheet to an HTML document, we add
the <LINK> element in the HEAD section of an HTML
document:

<HEAD>
<TITLE>Sample document</TITLE>
<LINK HREF = “style1.css” REL = “stylesheet”>
</HEAD> 11


January 2012
 The HTML file containing this code displays with the
characteristics given in the style sheet.

 The HREF attribute gives the URL of the stylesheet.
The REL attribute specifies the relationship
between the linked and the current document.

 The major advantage of external style sheets is
that the styles can apply to all the web pages on a
site. In order to make global changes, we just have
to modify the external style sheet.
12

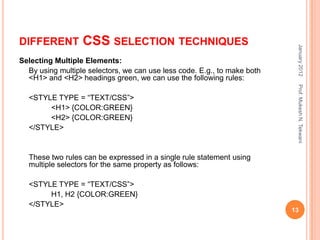

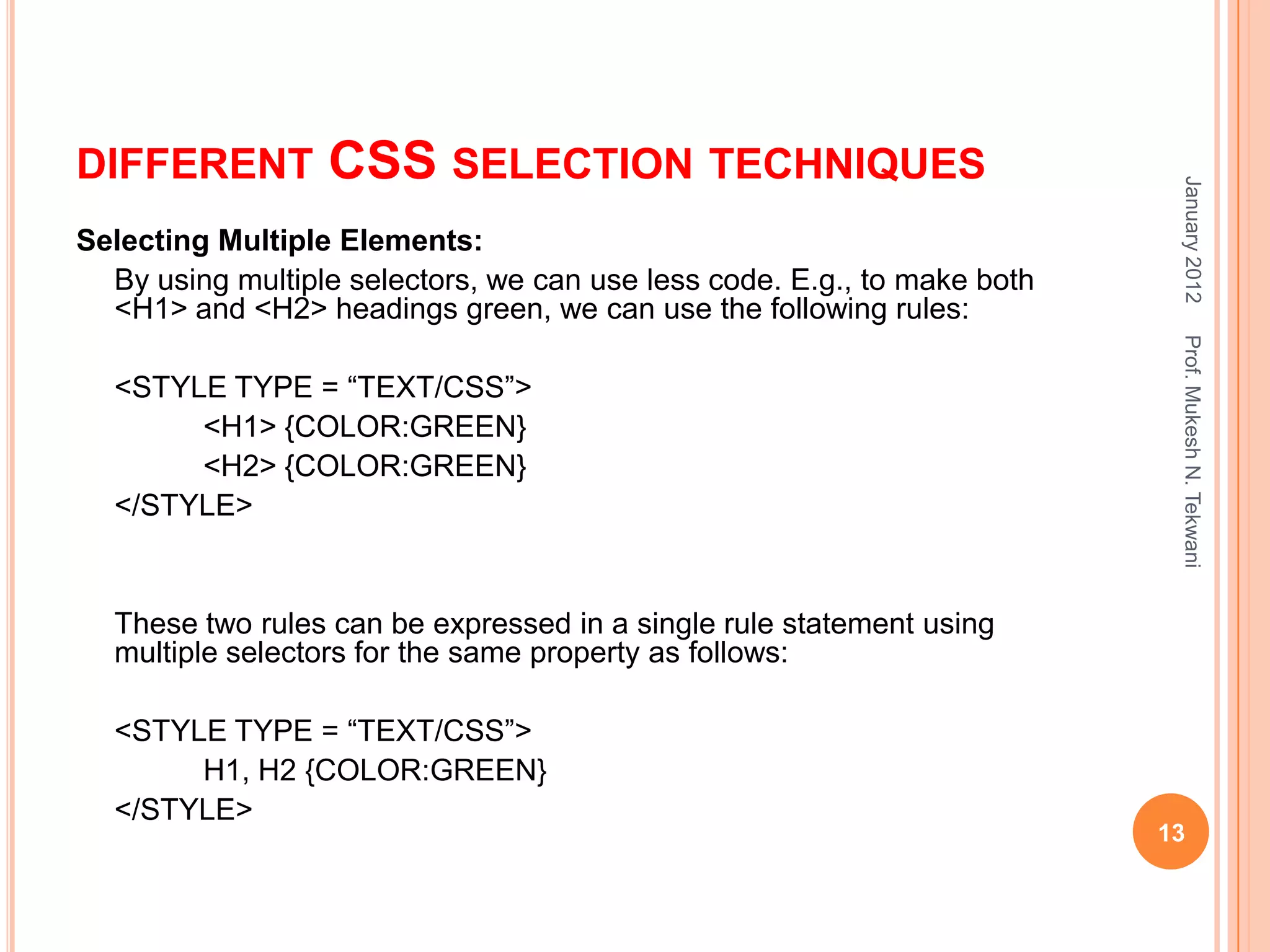

DIFFERENT CSS SELECTION TECHNIQUES

January 2012
Selecting Multiple Elements:
By using multiple selectors, we can use less code. E.g., to make both
<H1> and <H2> headings green, we can use the following rules:

<H1> {COLOR:GREEN}
<H2> {COLOR:GREEN}
</STYLE>

These two rules can be expressed in a single rule statement using
multiple selectors for the same property as follows:

H1, H2 {COLOR:GREEN}
</STYLE>
13


January 2012

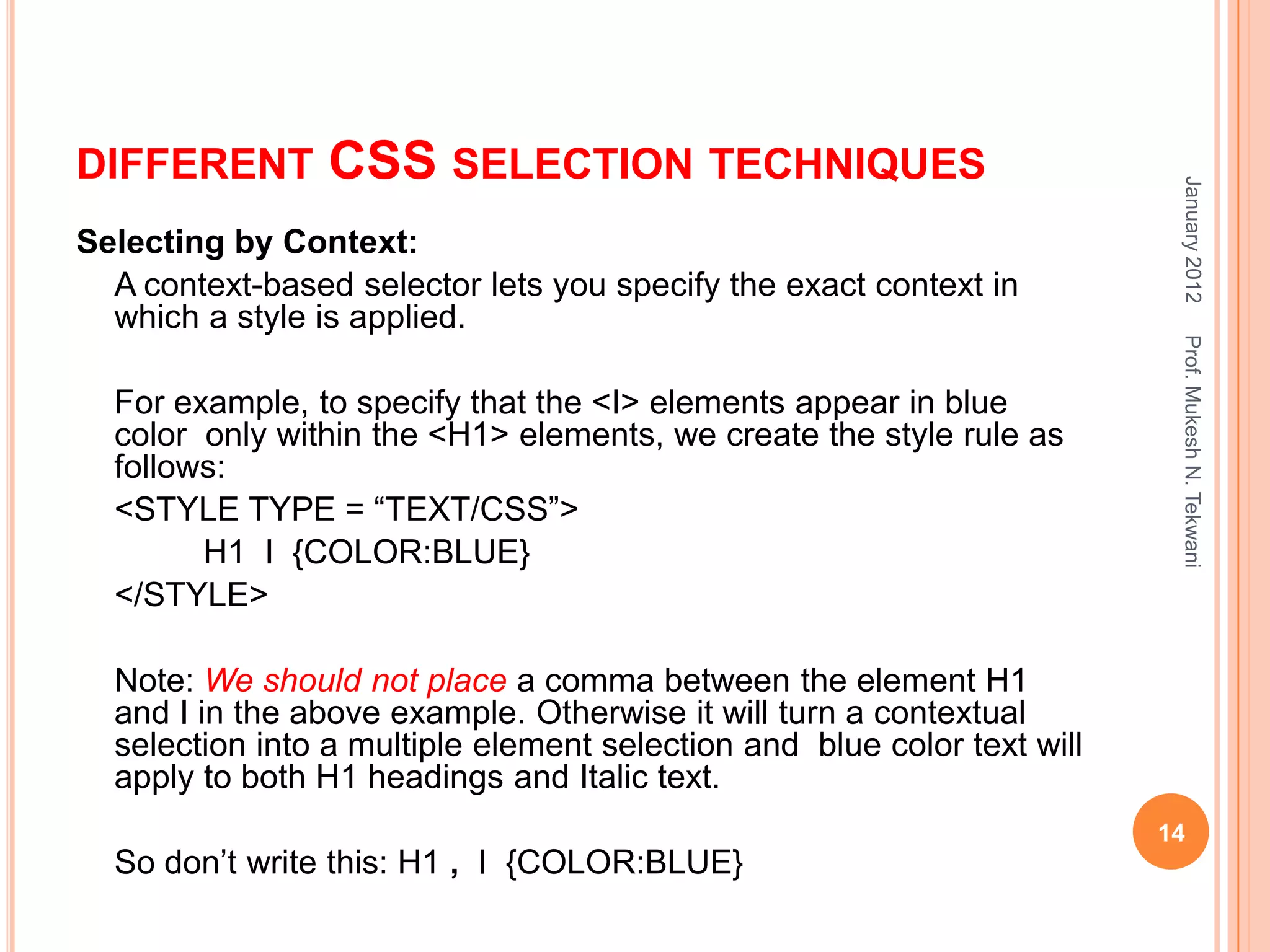

Selecting by Context:
A context-based selector lets you specify the exact context in
which a style is applied.

For example, to specify that the <I> elements appear in blue
color only within the <H1> elements, we create the style rule as
follows:
H1 I {COLOR:BLUE}
</STYLE>

Note: We should not place a comma between the element H1
and I in the above example. Otherwise it will turn a contextual
selection into a multiple element selection and blue color text will
apply to both H1 headings and Italic text.
14
So don’t write this: H1 , I {COLOR:BLUE}


January 2012

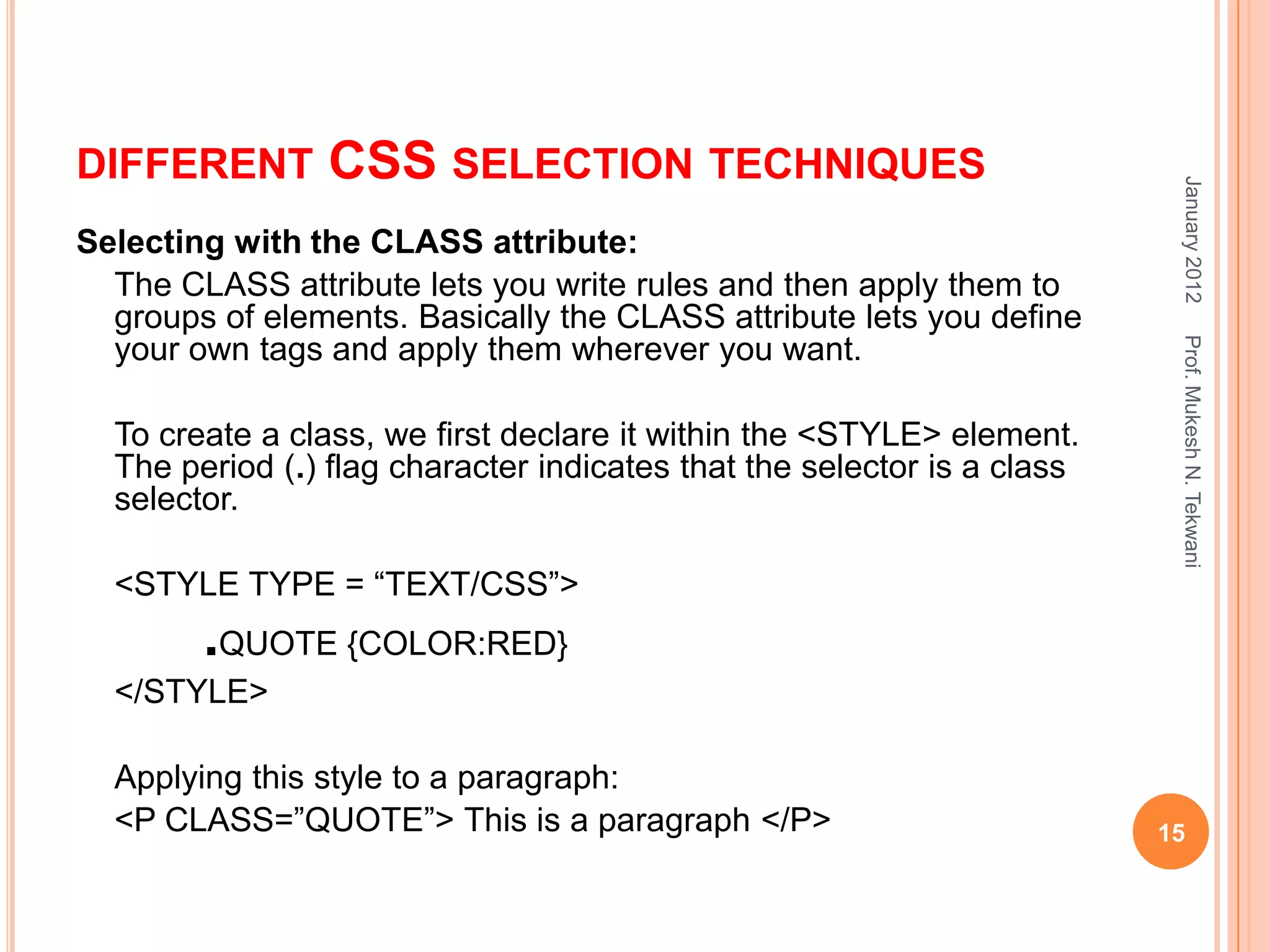

Selecting with the CLASS attribute:
The CLASS attribute lets you write rules and then apply them to
groups of elements. Basically the CLASS attribute lets you define

your own tags and apply them wherever you want.

To create a class, we first declare it within the <STYLE> element.
The period (.) flag character indicates that the selector is a class
selector.

.QUOTE {COLOR:RED}
</STYLE>

Applying this style to a paragraph:
<P CLASS=”QUOTE”> This is a paragraph </P> 15

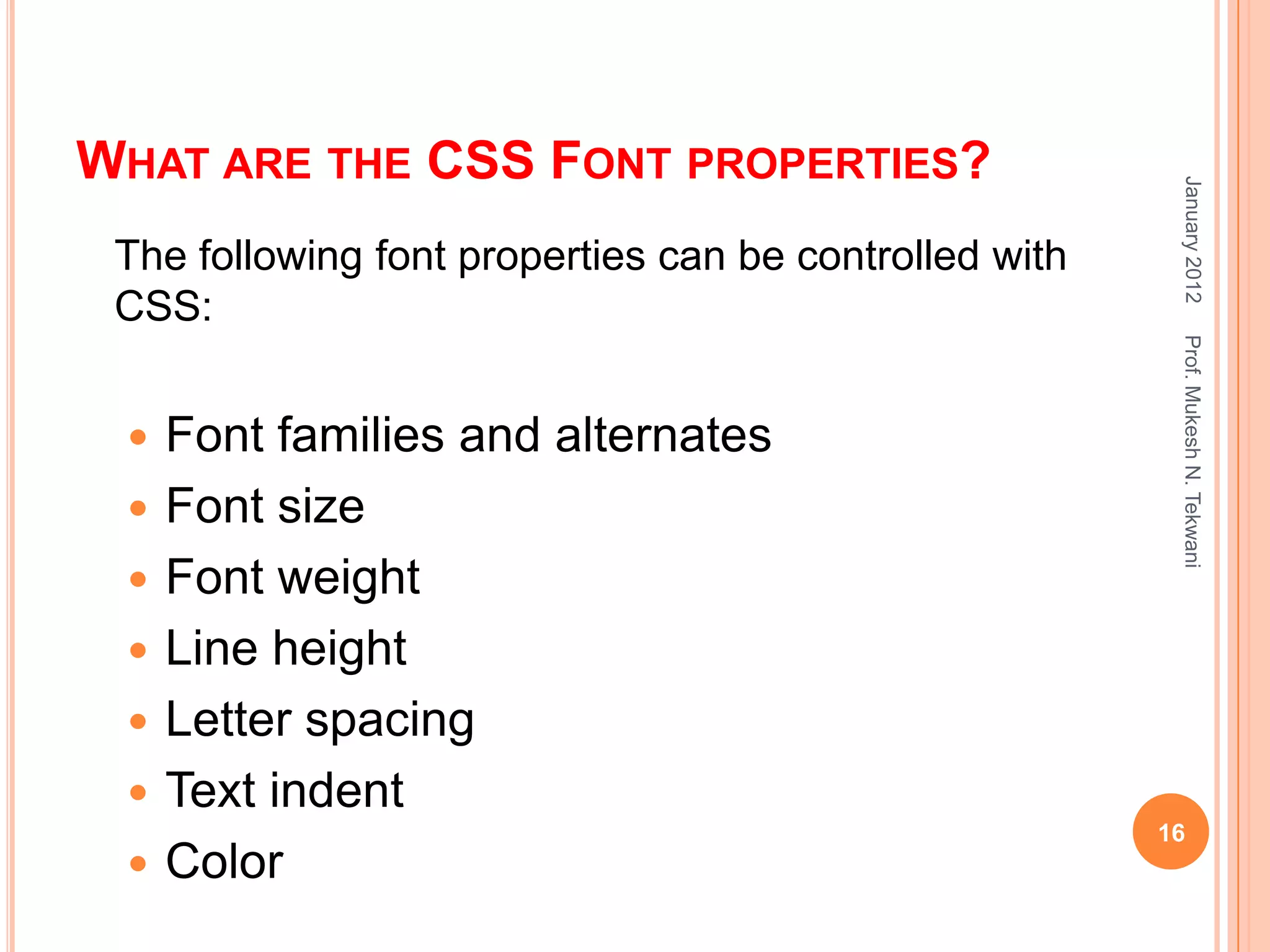

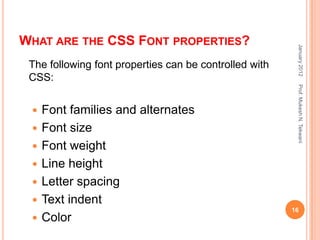

WHAT ARE THE CSS FONT PROPERTIES?

January 2012
The following font properties can be controlled with
CSS:

 Font families and alternates
 Font size
 Font weight
 Line height
 Letter spacing
 Text indent
16
 Color


January 2012

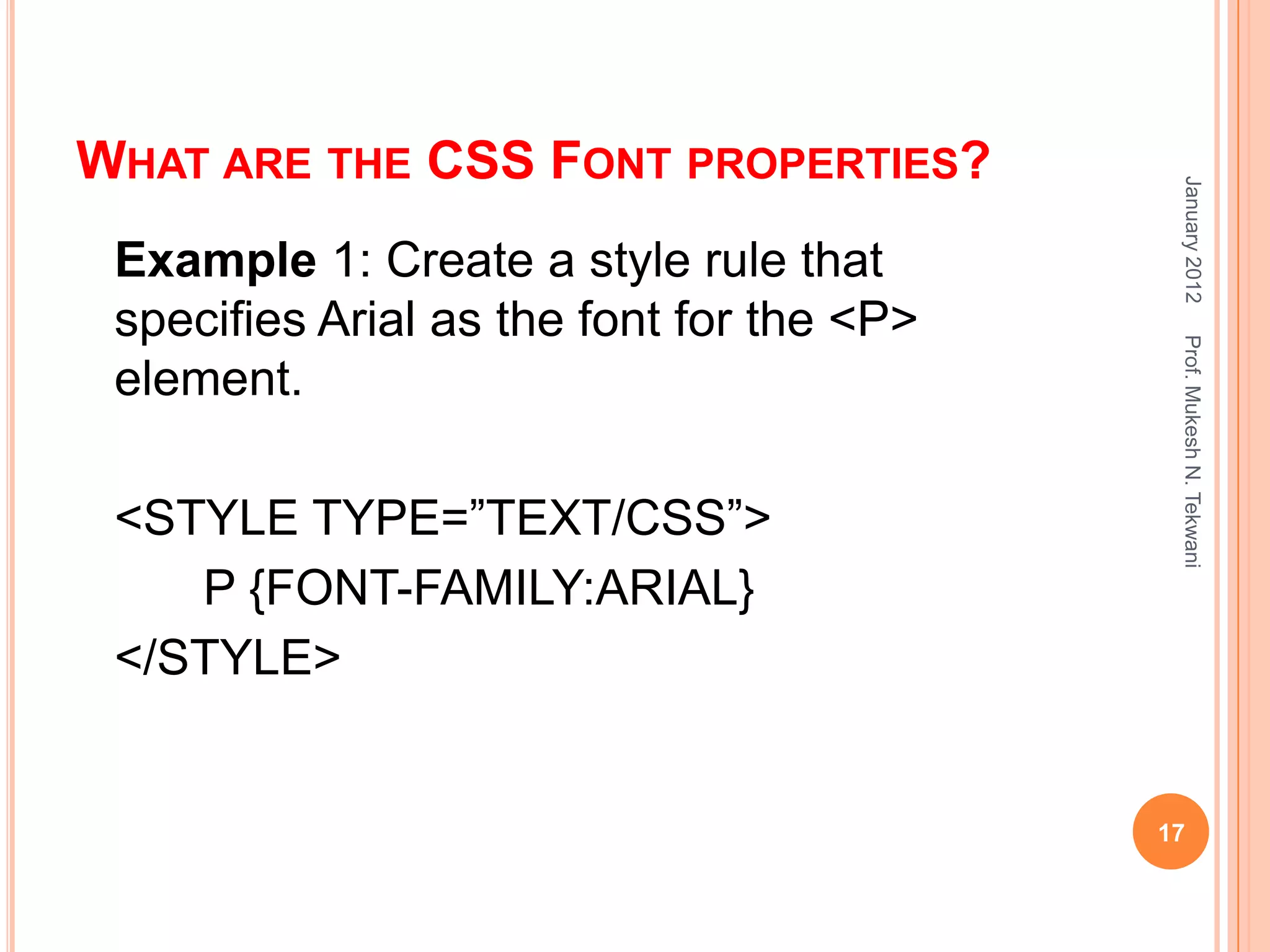

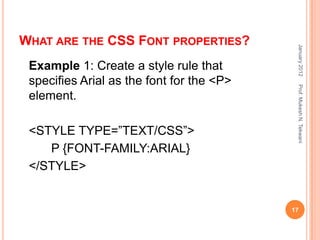

Example 1: Create a style rule that
specifies Arial as the font for the <P>

element.

<STYLE TYPE=”TEXT/CSS”>
P {FONT-FAMILY:ARIAL}
</STYLE>

17


January 2012

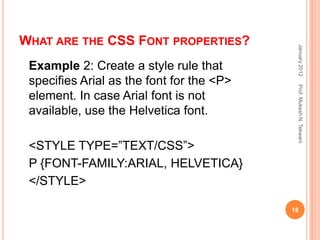

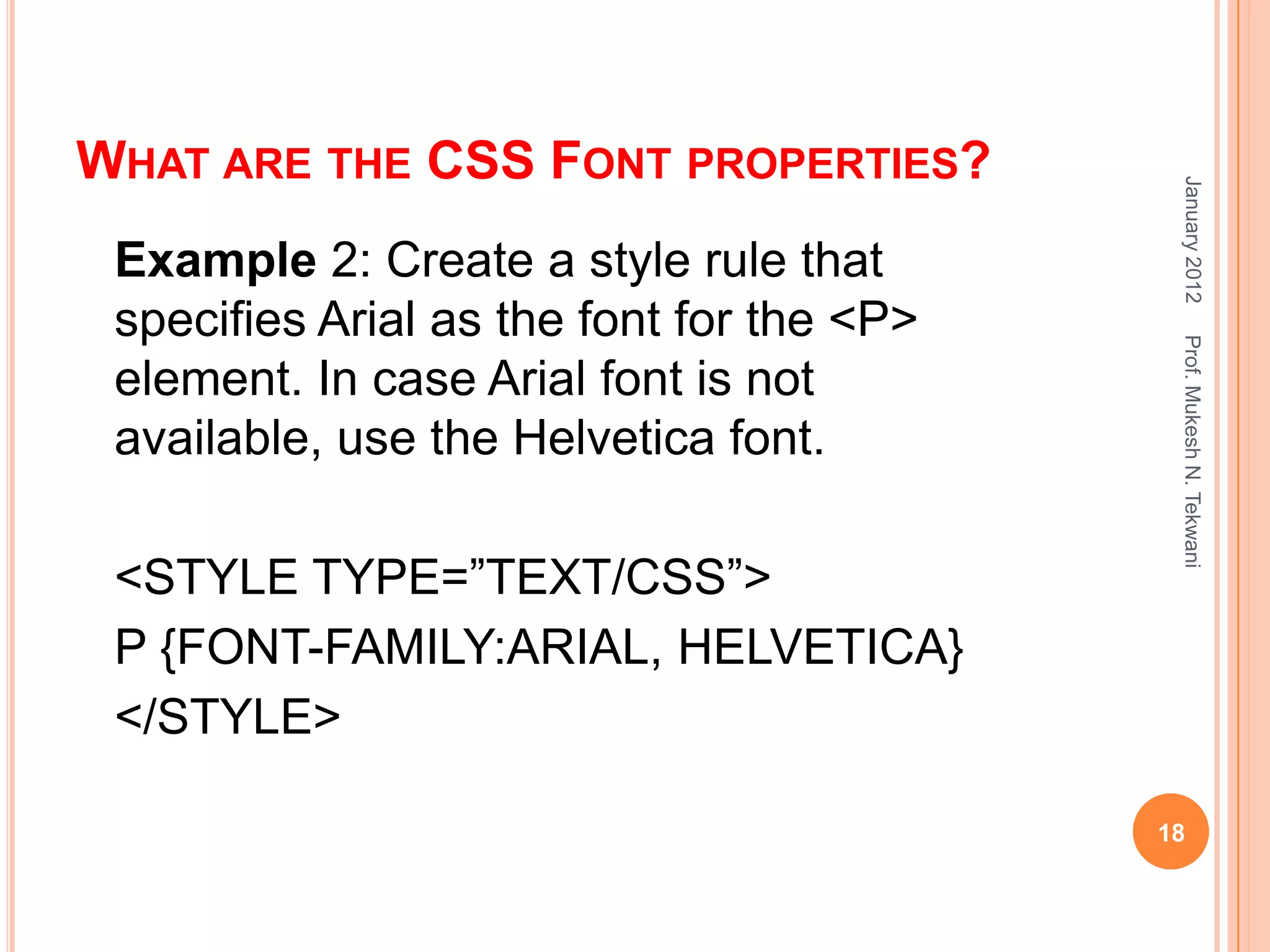

Example 2: Create a style rule that
specifies Arial as the font for the <P>

element. In case Arial font is not
available, use the Helvetica font.

P {FONT-FAMILY:ARIAL, HELVETICA}
</STYLE>

18


January 2012

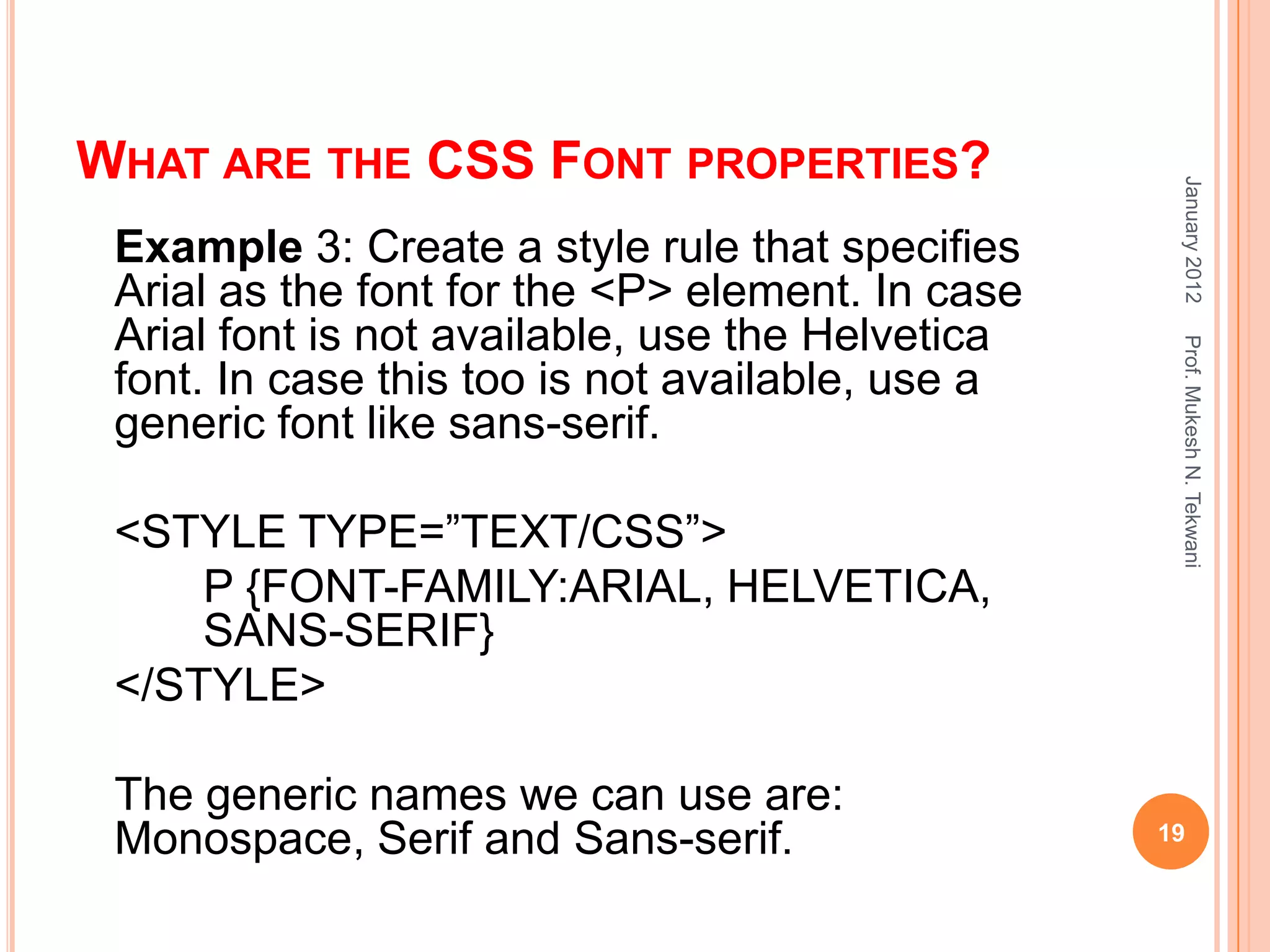

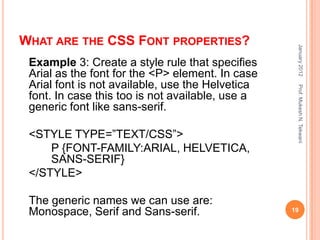

Example 3: Create a style rule that specifies
Arial as the font for the <P> element. In case
Arial font is not available, use the Helvetica

font. In case this too is not available, use a
generic font like sans-serif.

P {FONT-FAMILY:ARIAL, HELVETICA,
SANS-SERIF}
</STYLE>

The generic names we can use are:
Monospace, Serif and Sans-serif. 19

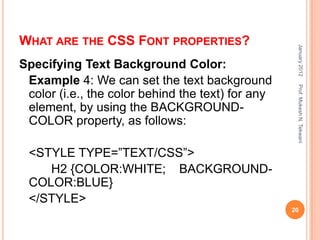

January 2012

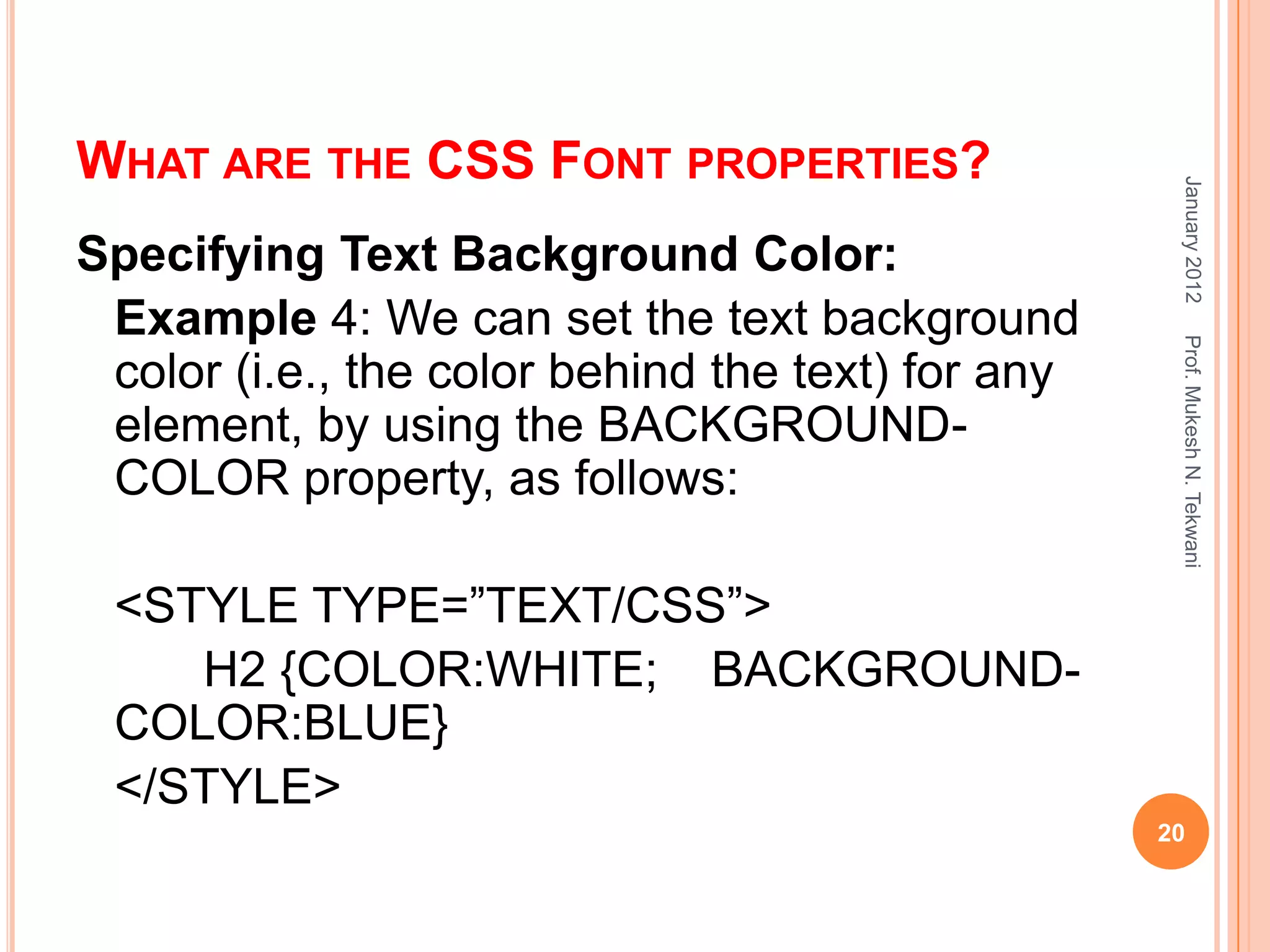

Specifying Text Background Color:
Example 4: We can set the text background

color (i.e., the color behind the text) for any
element, by using the BACKGROUND-
COLOR property, as follows:

H2 {COLOR:WHITE; BACKGROUND-
COLOR:BLUE}
</STYLE>
20

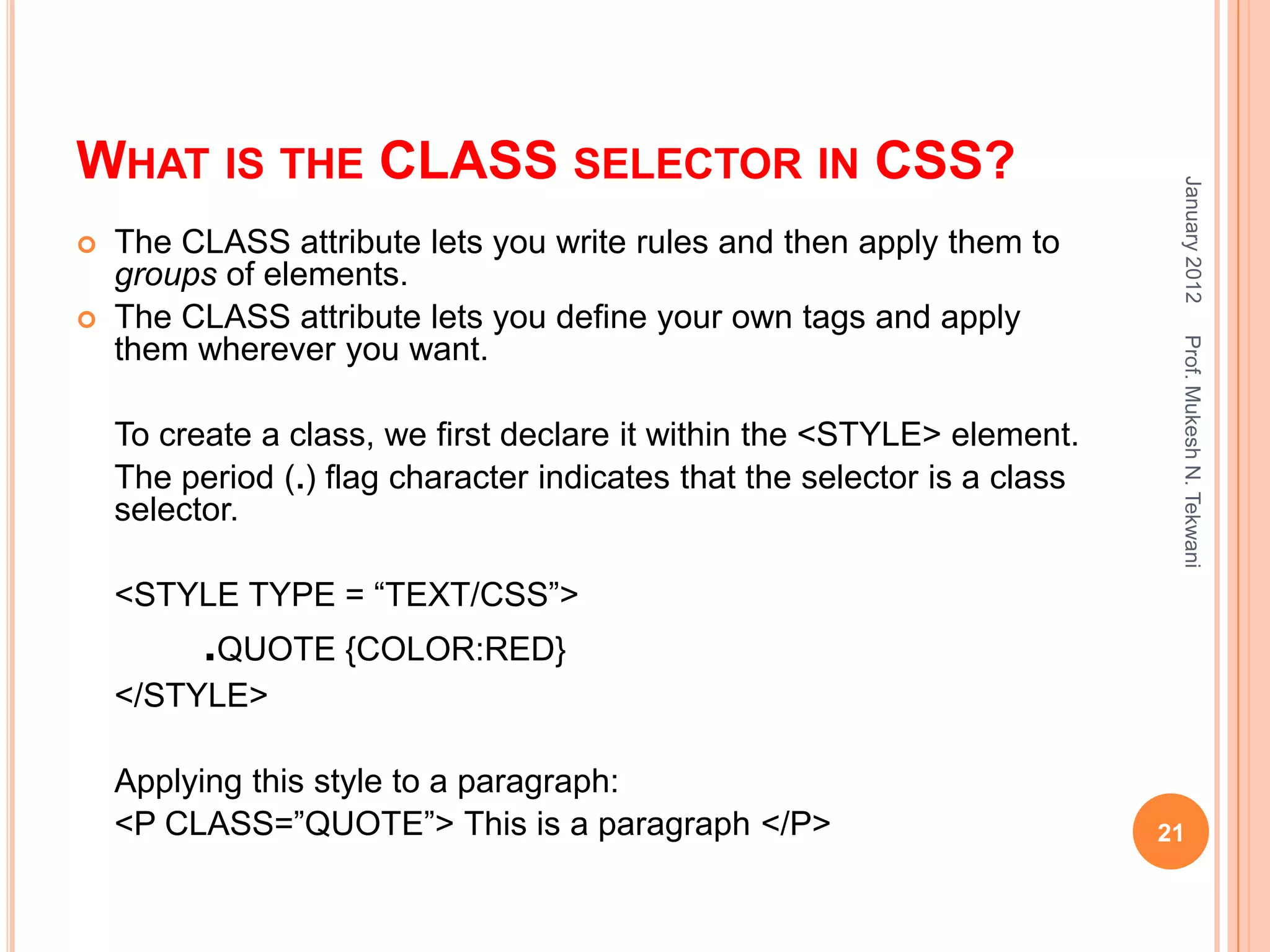

WHAT IS THE CLASS SELECTOR IN CSS?

January 2012
 The CLASS attribute lets you write rules and then apply them to
groups of elements.
 The CLASS attribute lets you define your own tags and apply

them wherever you want.

To create a class, we first declare it within the <STYLE> element.
The period (.) flag character indicates that the selector is a class
selector.

.QUOTE {COLOR:RED}
</STYLE>

Applying this style to a paragraph:
<P CLASS=”QUOTE”> This is a paragraph </P> 21

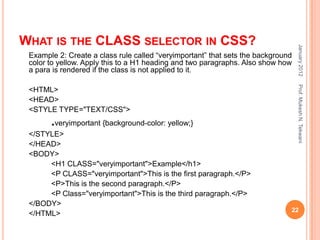

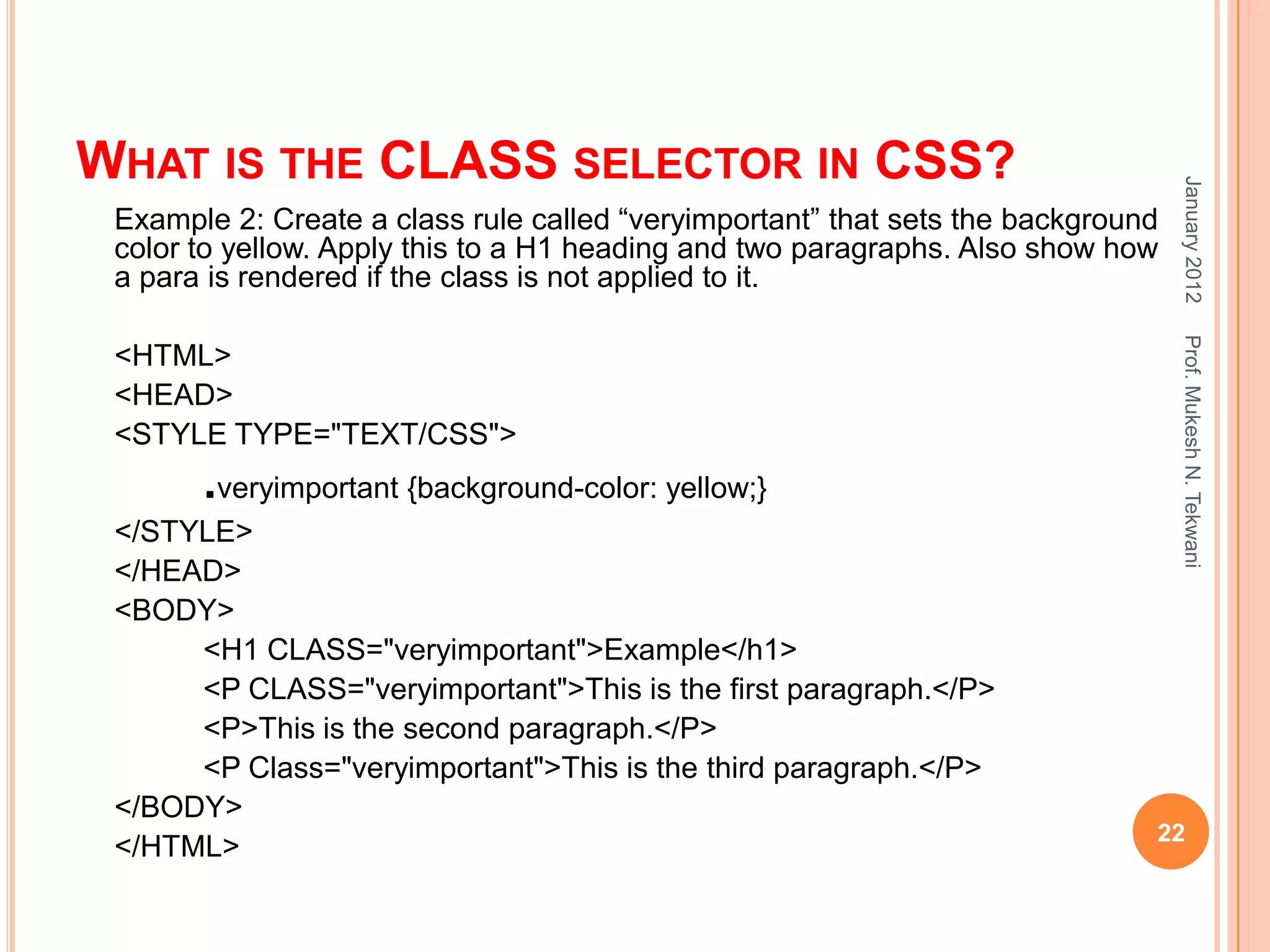

WHAT IS THE CLASS SELECTOR IN CSS?

January 2012
Example 2: Create a class rule called “veryimportant” that sets the background
color to yellow. Apply this to a H1 heading and two paragraphs. Also show how
a para is rendered if the class is not applied to it.

<HTML>
<HEAD>
<STYLE TYPE="TEXT/CSS">
.veryimportant {background-color: yellow;}
</STYLE>
</HEAD>
<BODY>
<H1 CLASS="veryimportant">Example</h1>
<P CLASS="veryimportant">This is the first paragraph.</P>
<P>This is the second paragraph.</P>
<P Class="veryimportant">This is the third paragraph.</P>
</BODY>
22
</HTML>

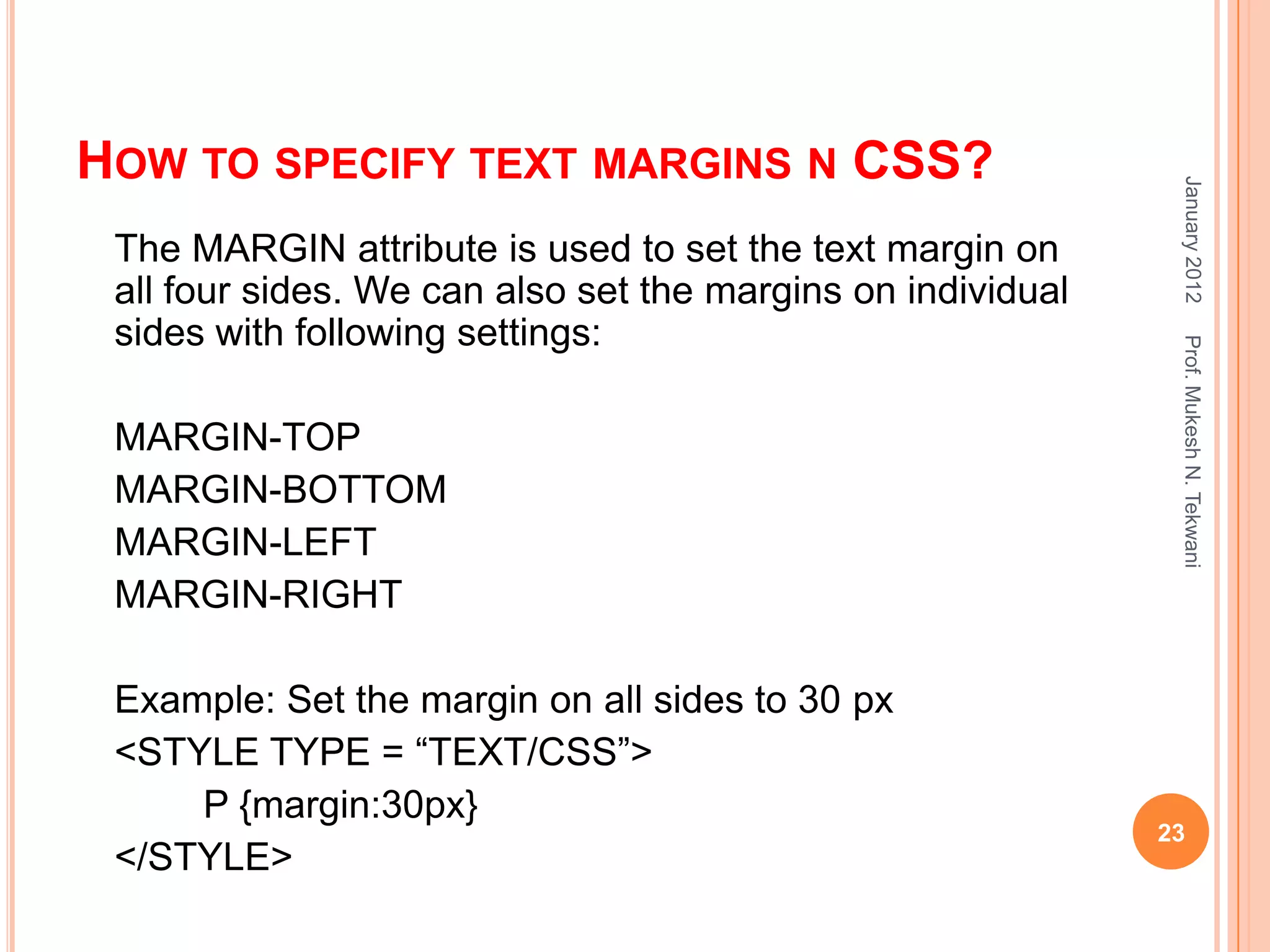

HOW TO SPECIFY TEXT MARGINS N CSS?

January 2012
The MARGIN attribute is used to set the text margin on
all four sides. We can also set the margins on individual
sides with following settings:

MARGIN-TOP
MARGIN-BOTTOM
MARGIN-LEFT
MARGIN-RIGHT

Example: Set the margin on all sides to 30 px
P {margin:30px}
23
</STYLE>

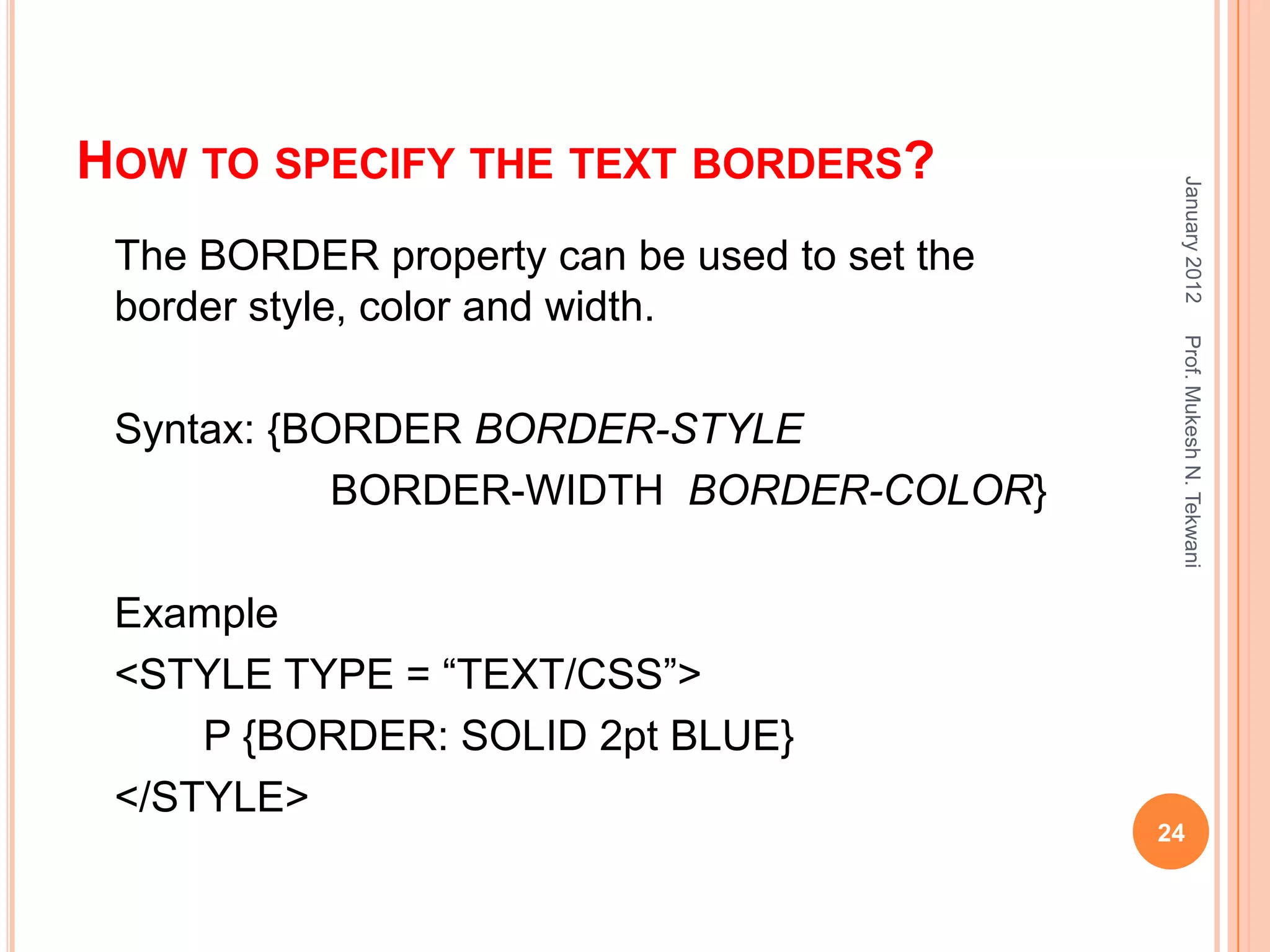

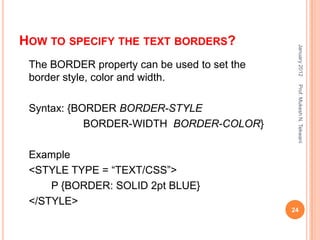

HOW TO SPECIFY THE TEXT BORDERS?

January 2012
The BORDER property can be used to set the
border style, color and width.

Syntax: {BORDER BORDER-STYLE
BORDER-WIDTH BORDER-COLOR}

Example
P {BORDER: SOLID 2pt BLUE}
</STYLE>
24

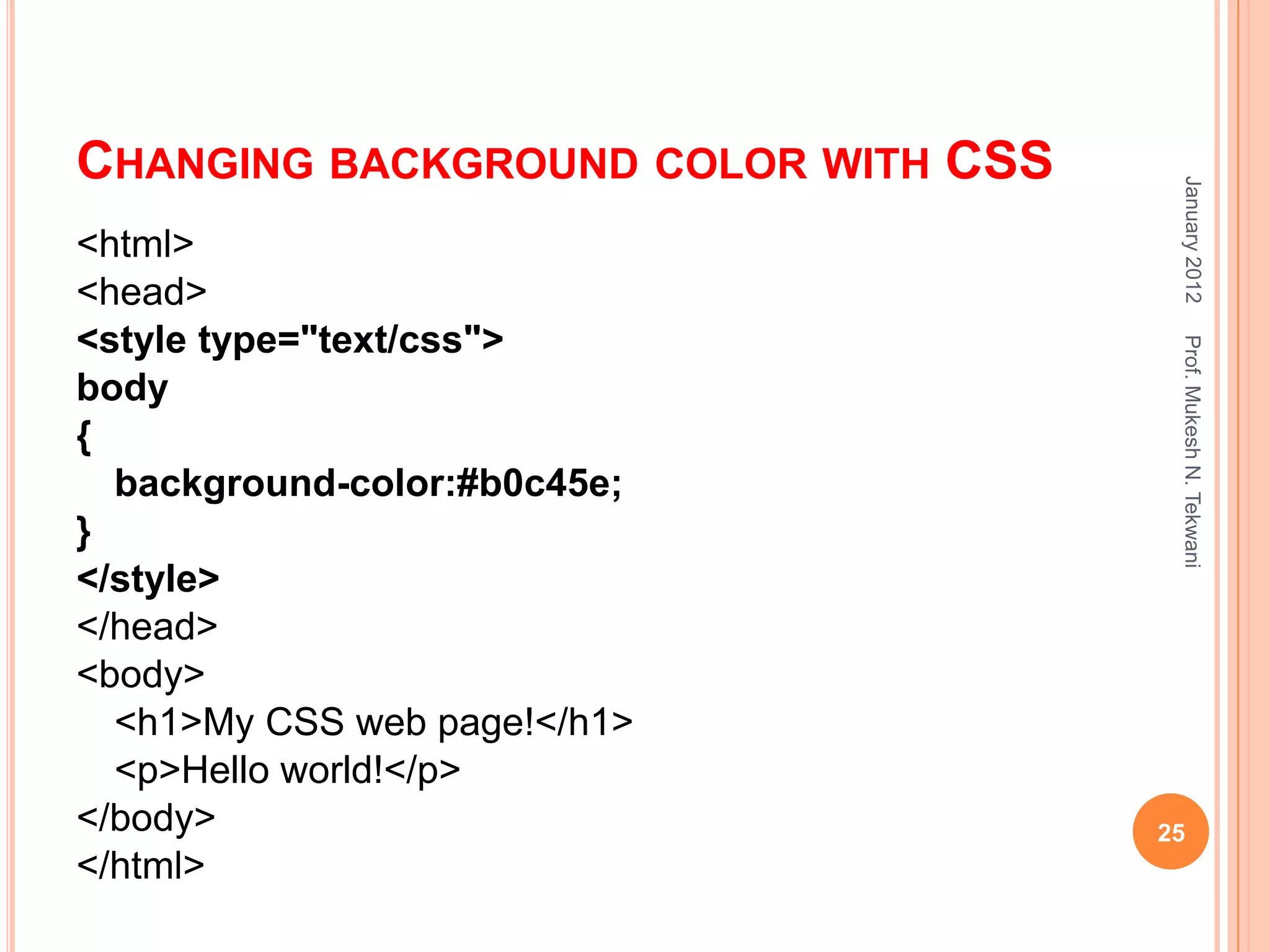

CHANGING BACKGROUND COLOR WITH CSS

January 2012
<html>
<head>
<style type="text/css">

body
{
background-color:#b0c45e;
}
</style>
</head>
<body>
<h1>My CSS web page!</h1>
<p>Hello world!</p>
</body> 25
</html>

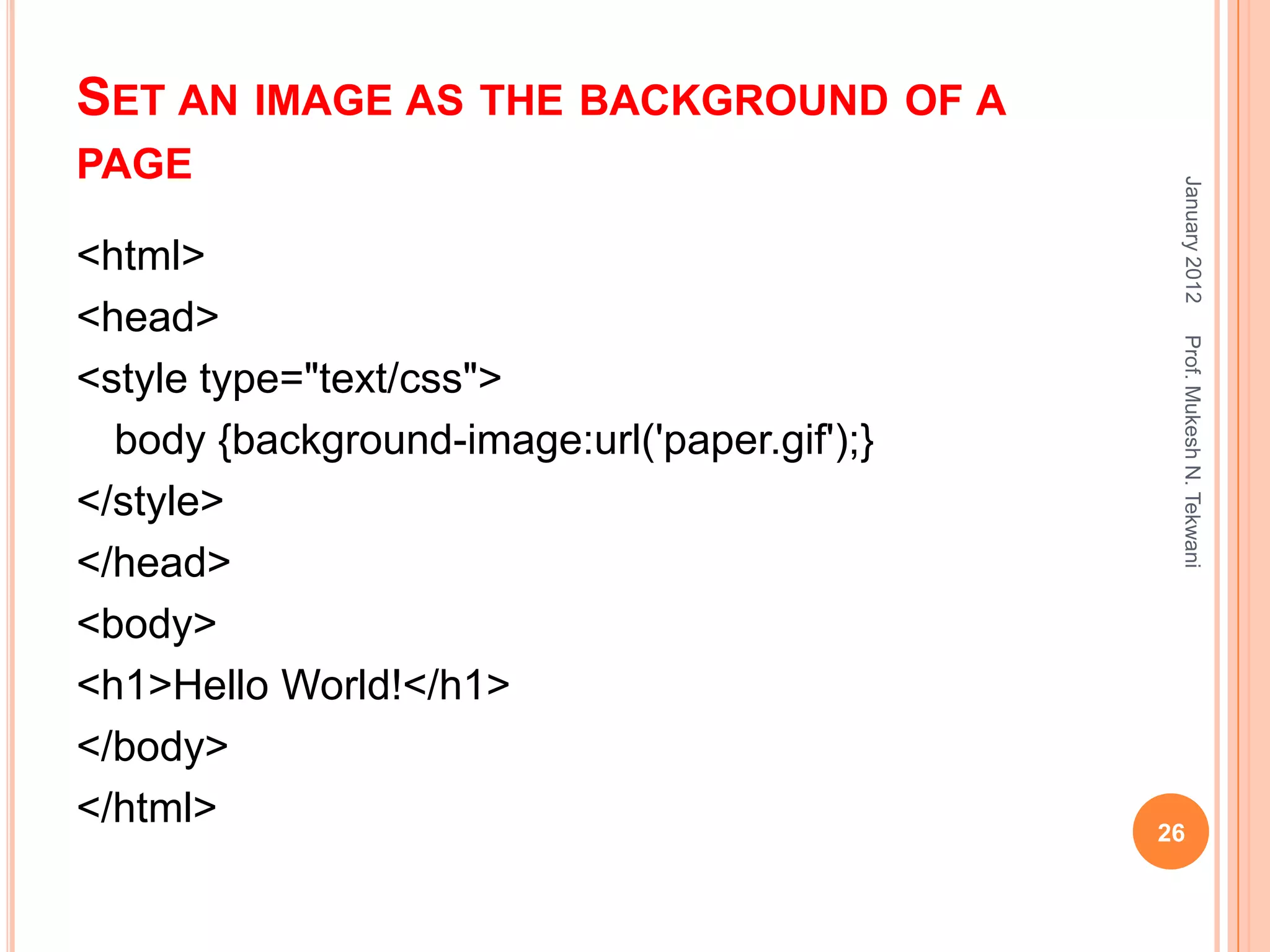

SET AN IMAGE AS THE BACKGROUND OF A
PAGE

January 2012
<html>
<head>

body {background-image:url('paper.gif');}
</style>
</head>
<body>
<h1>Hello World!</h1>
</body>
</html> 26

EXAMPLE

January 2012

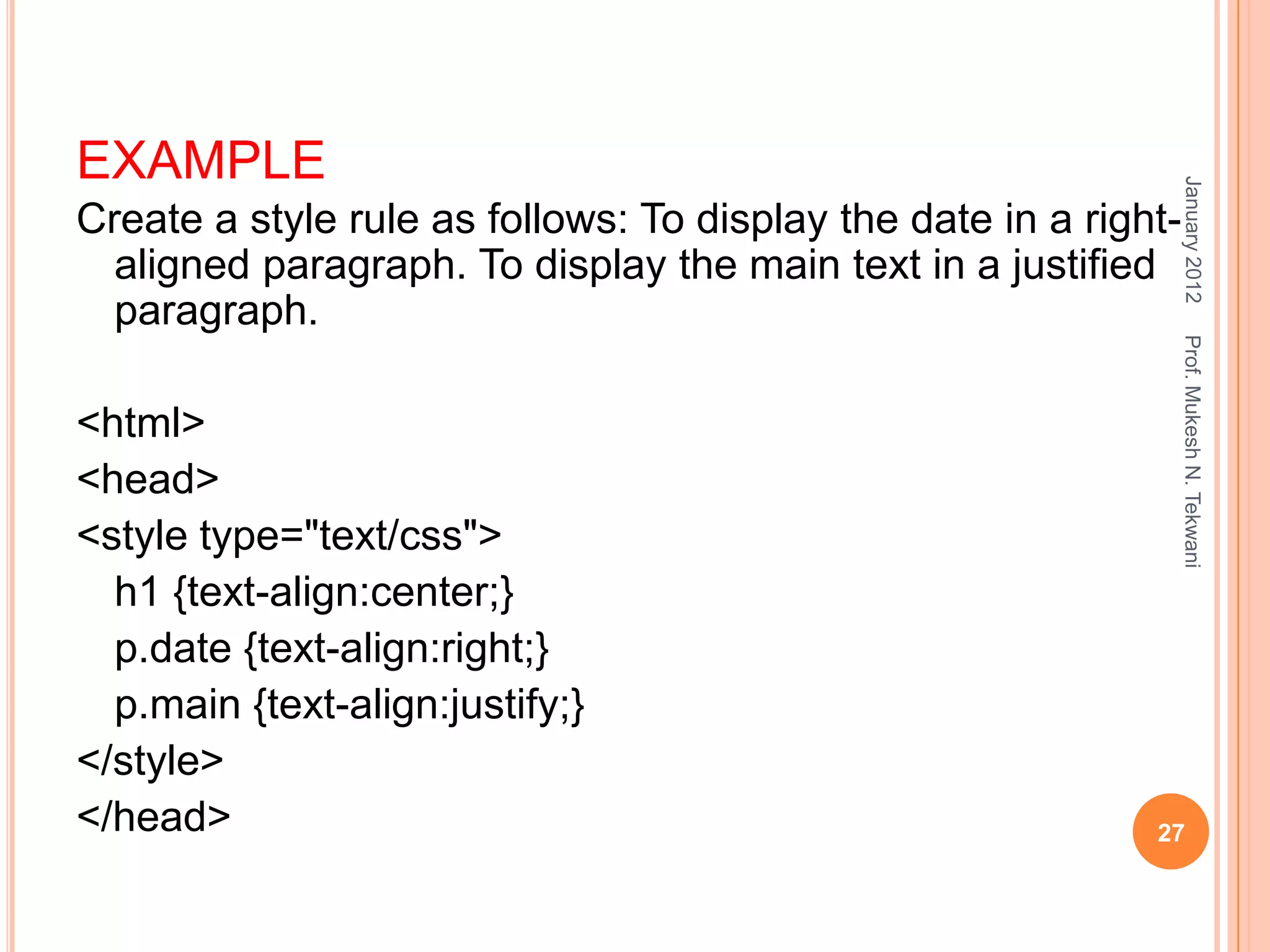

Create a style rule as follows: To display the date in a right-
aligned paragraph. To display the main text in a justified
paragraph.

<html>
<head>
h1 {text-align:center;}
p.date {text-align:right;}
p.main {text-align:justify;}
</style>
</head> 27

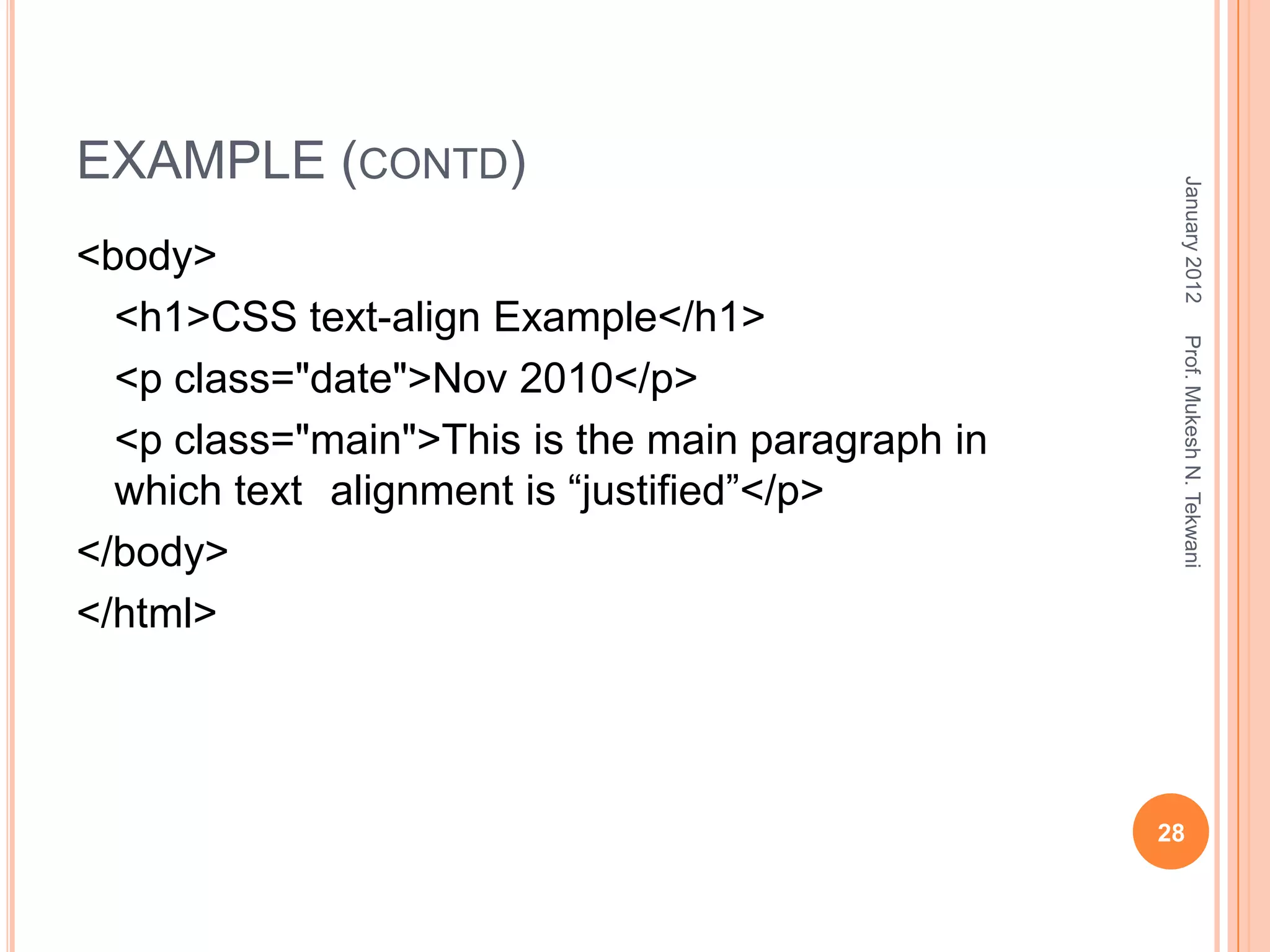

EXAMPLE (CONTD)

January 2012
<body>
<h1>CSS text-align Example</h1>

<p class="date">Nov 2010</p>
<p class="main">This is the main paragraph in
which text alignment is “justified”</p>
</body>
</html>

28

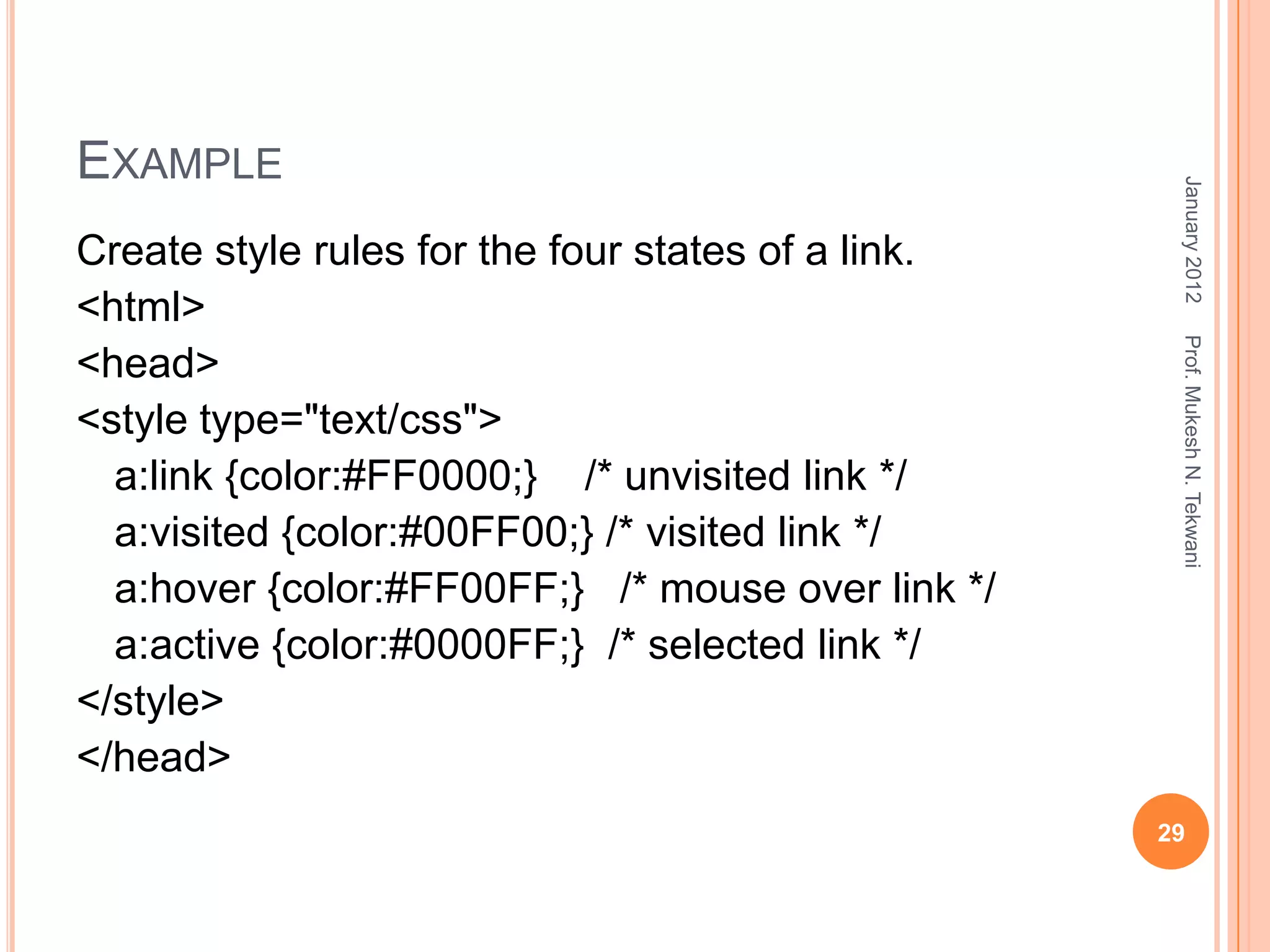

EXAMPLE

January 2012
Create style rules for the four states of a link.
<html>

<head>
a:link {color:#FF0000;} /* unvisited link */
a:visited {color:#00FF00;} /* visited link */
a:hover {color:#FF00FF;} /* mouse over link */
a:active {color:#0000FF;} /* selected link */
</style>
</head>
29

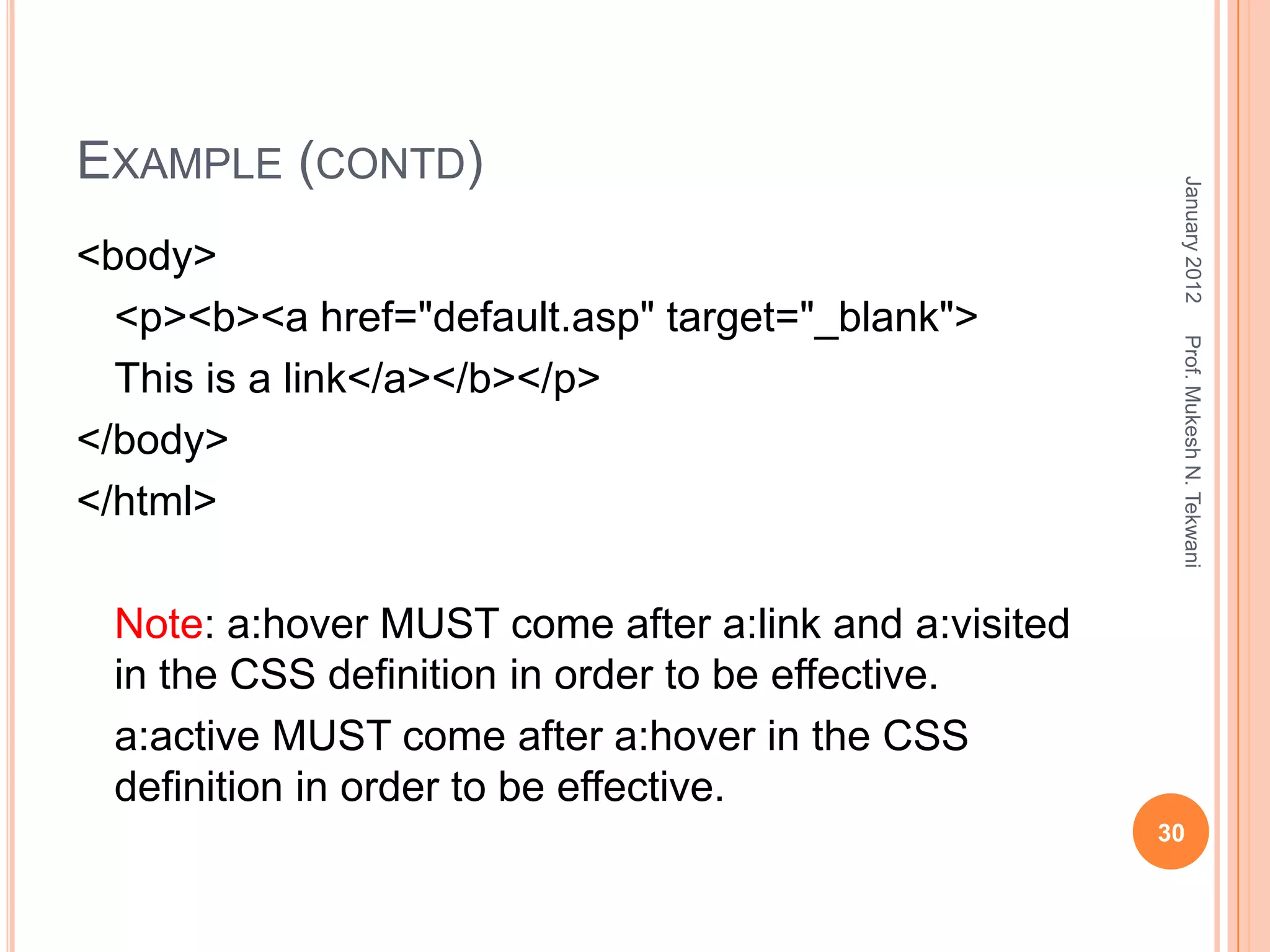

EXAMPLE (CONTD)

January 2012
<body>
<p><b><a href="default.asp" target="_blank">

This is a link</a></b></p>
</body>
</html>

Note: a:hover MUST come after a:link and a:visited
in the CSS definition in order to be effective.
a:active MUST come after a:hover in the CSS
definition in order to be effective.
30

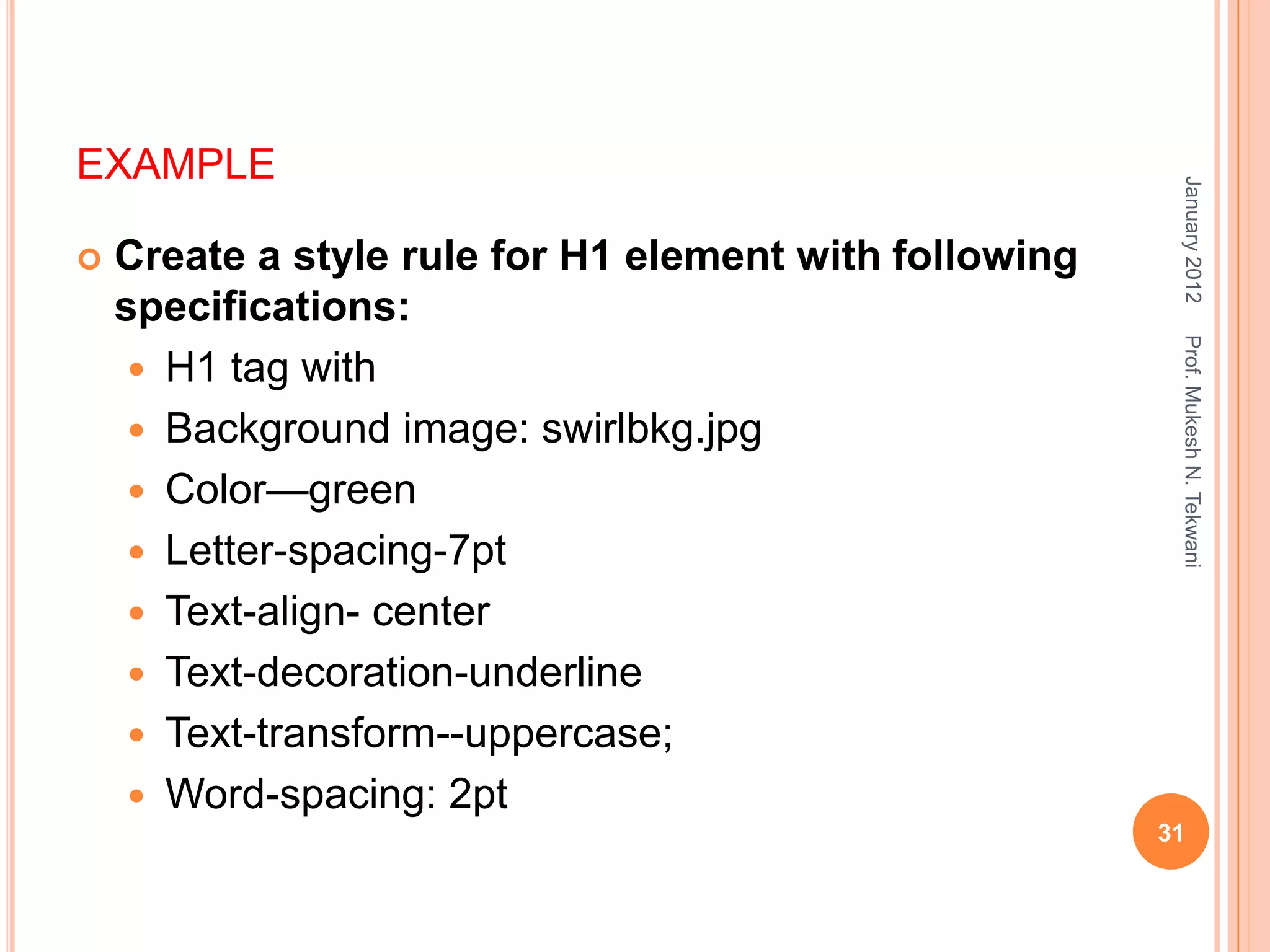

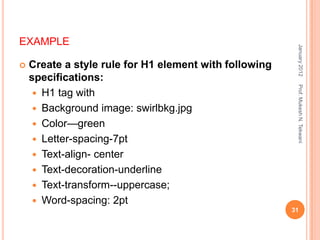

EXAMPLE

January 2012
 Create a style rule for H1 element with following
specifications:

 H1 tag with
 Background image: swirlbkg.jpg
 Color—green
 Letter-spacing-7pt
 Text-align- center
 Text-decoration-underline
 Text-transform--uppercase;
 Word-spacing: 2pt
31

EXAMPLE(CONTD)

January 2012
H1
{

color:green;
letter-spacing:7pt;
text-align: center;
text-decoration:underline;
text-transform:uppercase;
word-spacing: 2pt
}
32

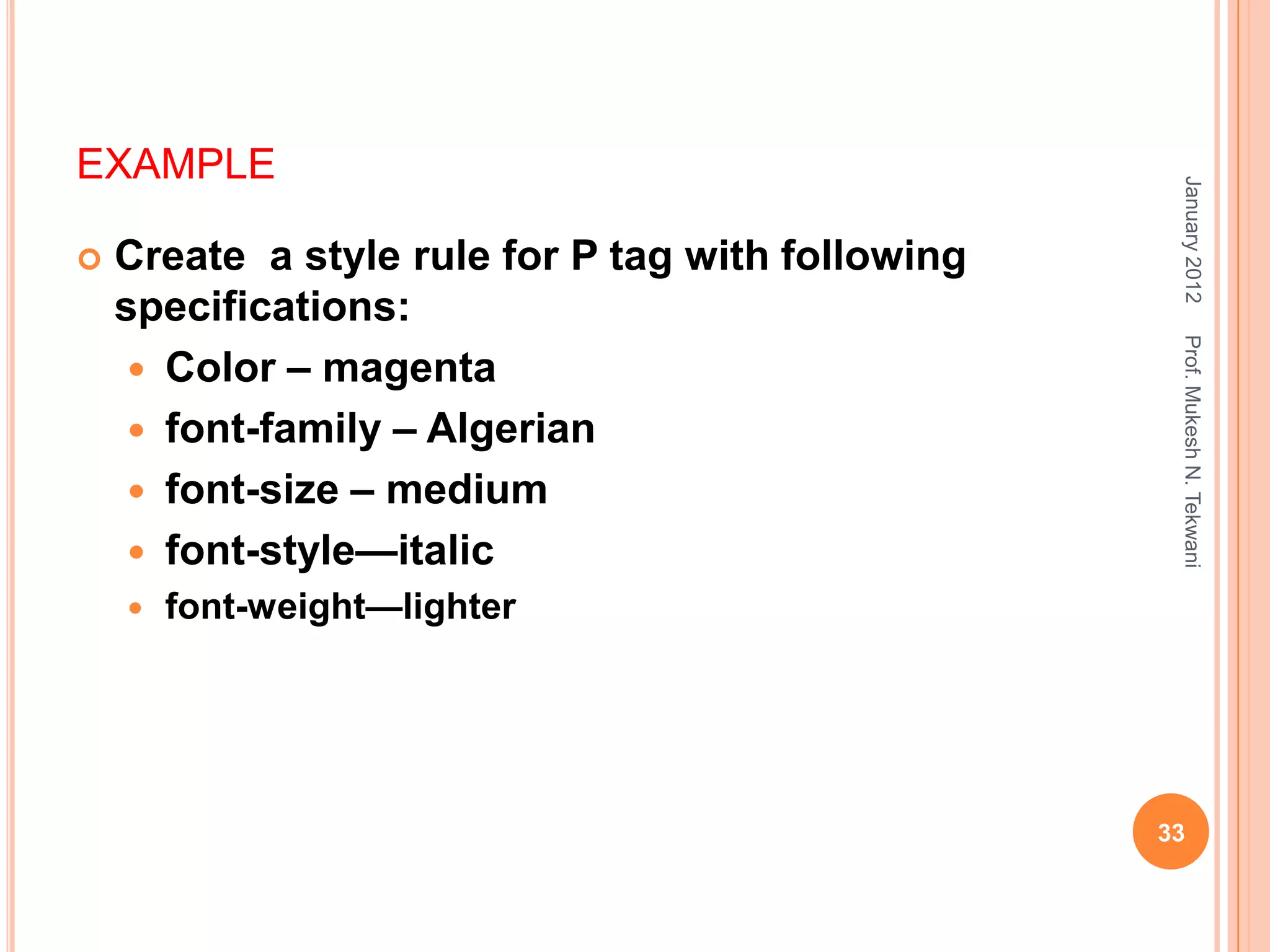

EXAMPLE

January 2012
 Create a style rule for P tag with following
specifications:

 Color – magenta
 font-family – Algerian
 font-size – medium
 font-style—italic
 font-weight—lighter

33

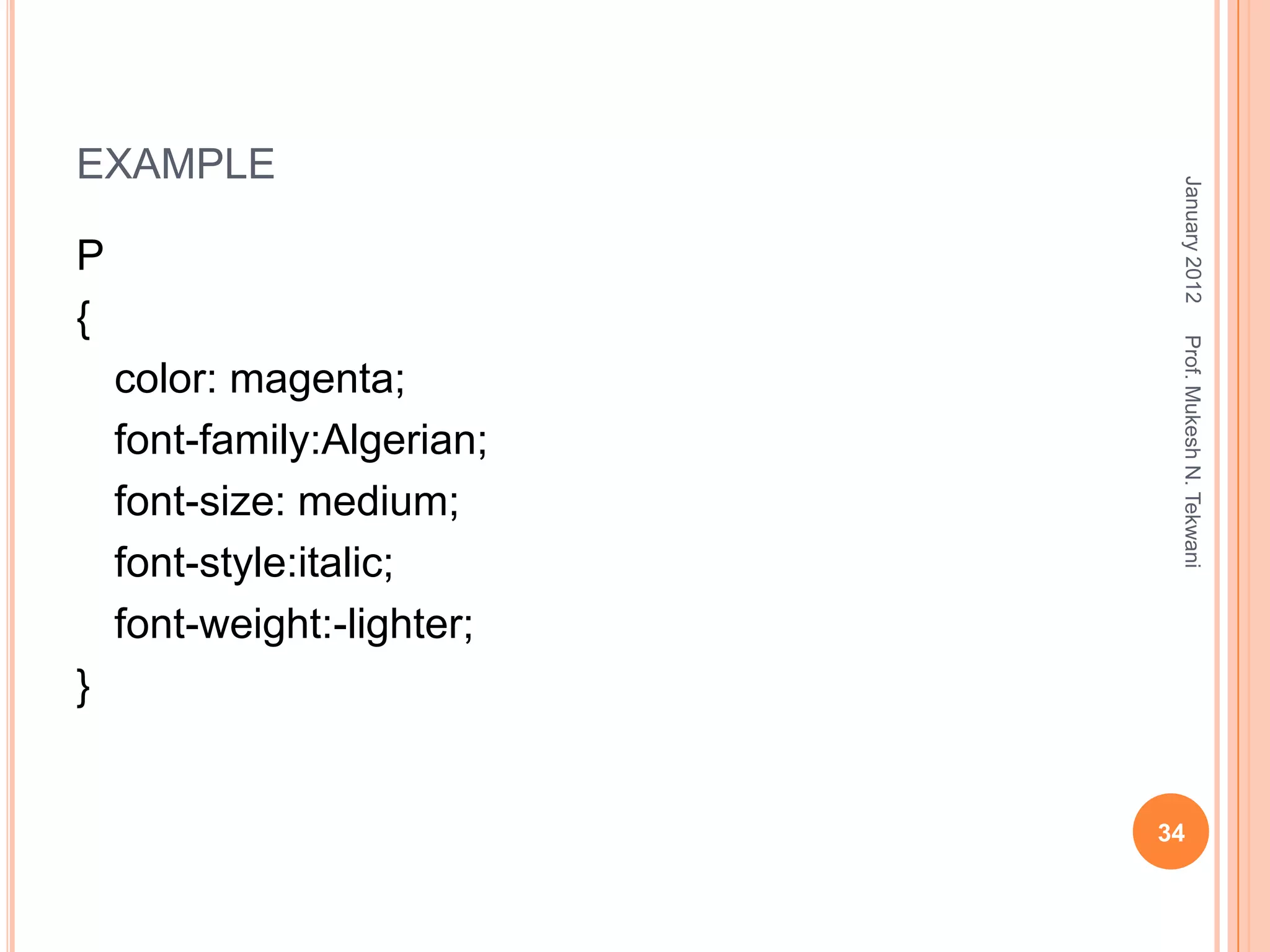

EXAMPLE

January 2012
P
{

color: magenta;
font-family:Algerian;
font-size: medium;
font-style:italic;
font-weight:-lighter;
}

34

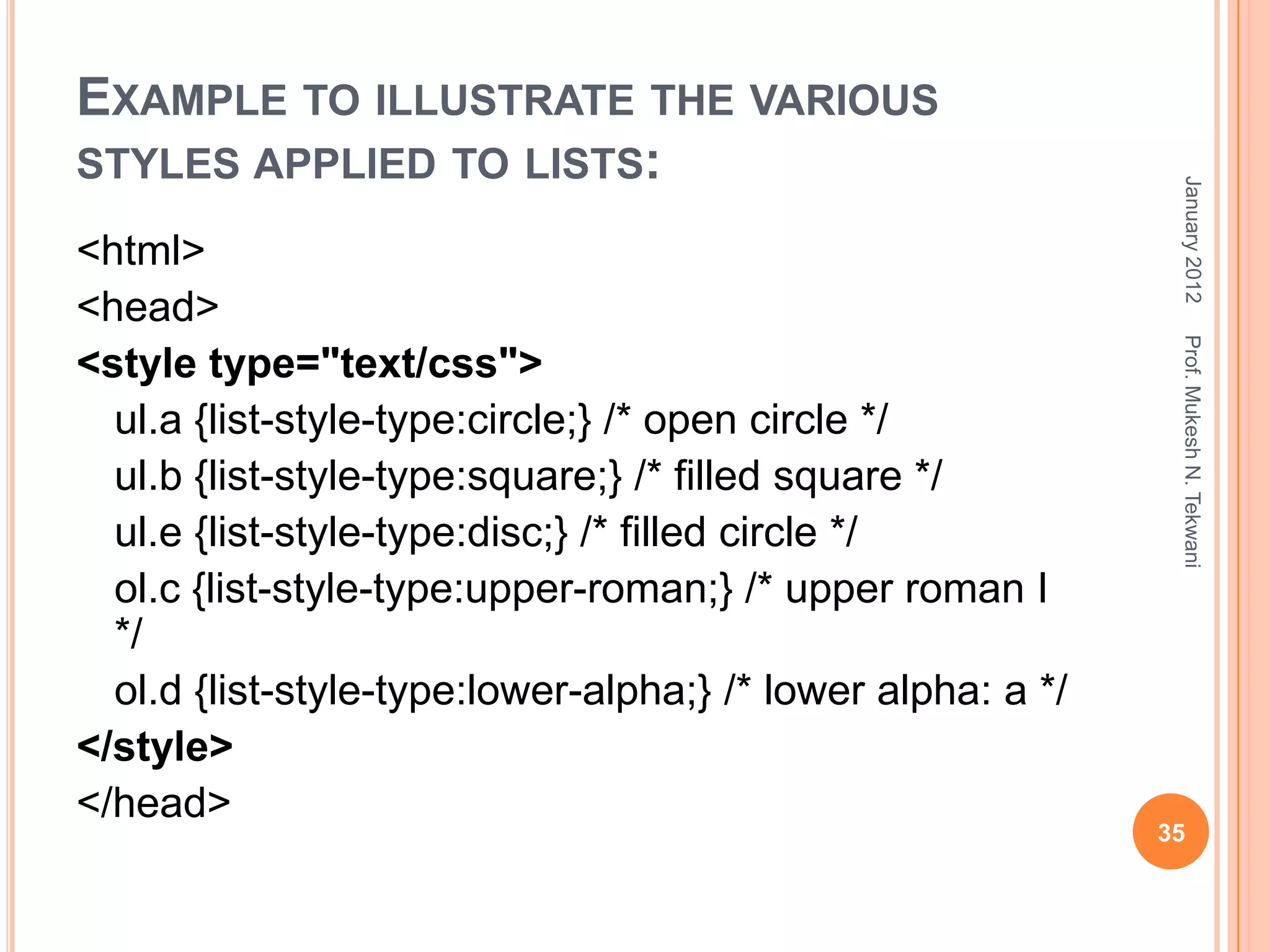

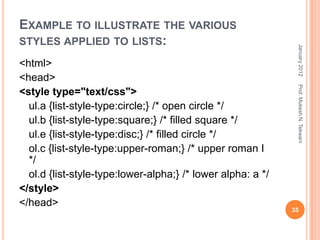

EXAMPLE TO ILLUSTRATE THE VARIOUS
STYLES APPLIED TO LISTS:

January 2012
<html>
<head>

ul.a {list-style-type:circle;} /* open circle */
ul.b {list-style-type:square;} /* filled square */
ul.e {list-style-type:disc;} /* filled circle */
ol.c {list-style-type:upper-roman;} /* upper roman I
*/
ol.d {list-style-type:lower-alpha;} /* lower alpha: a */
</style>
</head>
35

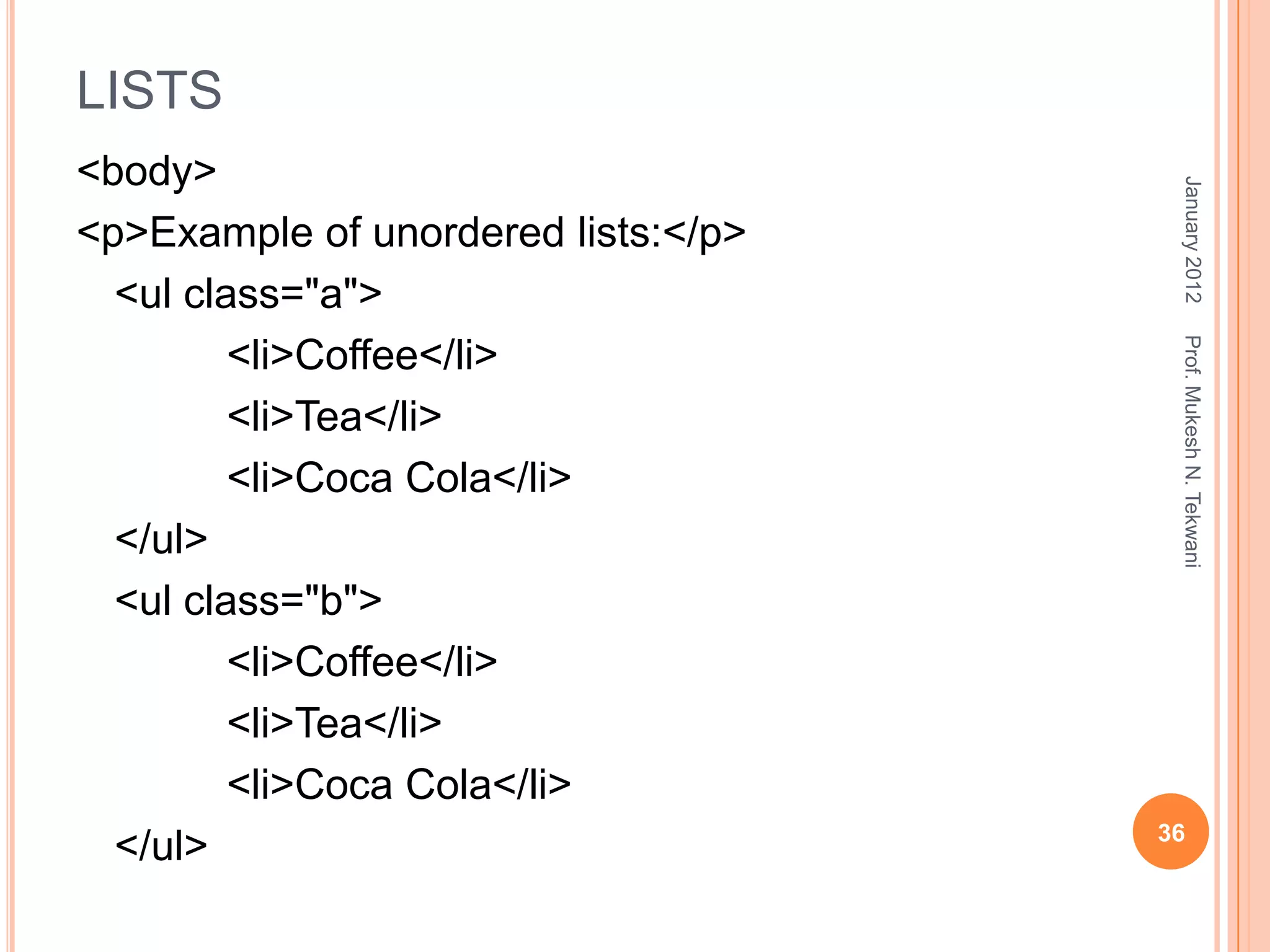

LISTS
<body>

January 2012
<p>Example of unordered lists:</p>
<ul class="a">

<li>Coffee</li>
<li>Tea</li>
<li>Coca Cola</li>
</ul>
<ul class="b">
<li>Coffee</li>
<li>Tea</li>
<li>Coca Cola</li>
36
</ul>

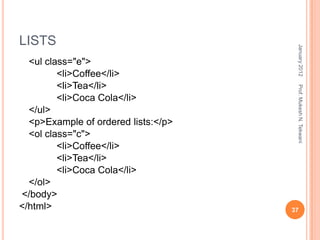

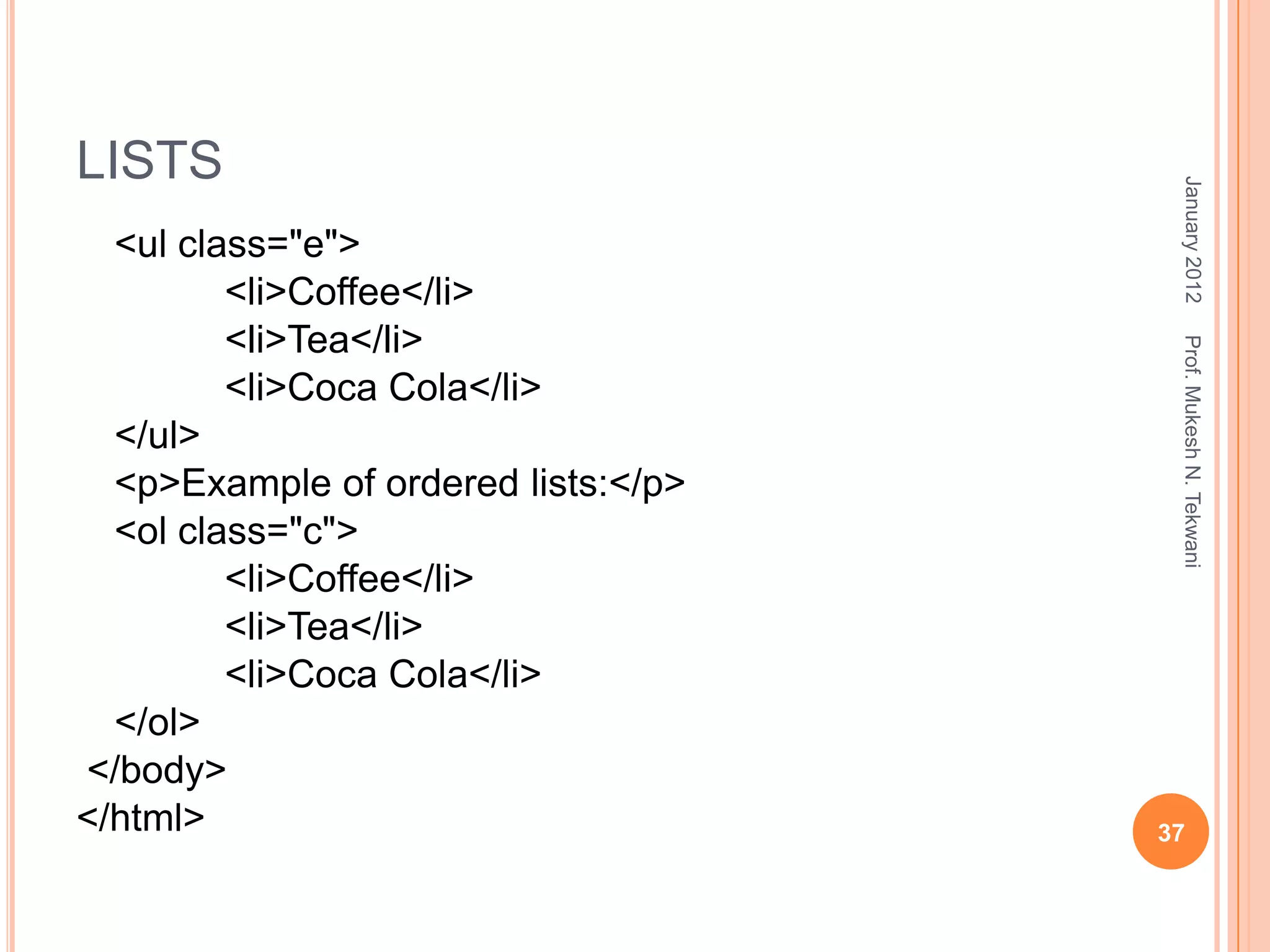

LISTS

January 2012
<ul class="e">
<li>Coffee</li>
<li>Tea</li>

<li>Coca Cola</li>
</ul>
<p>Example of ordered lists:</p>
<ol class="c">
<li>Coffee</li>
<li>Tea</li>
<li>Coca Cola</li>
</ol>
</body>
</html> 37

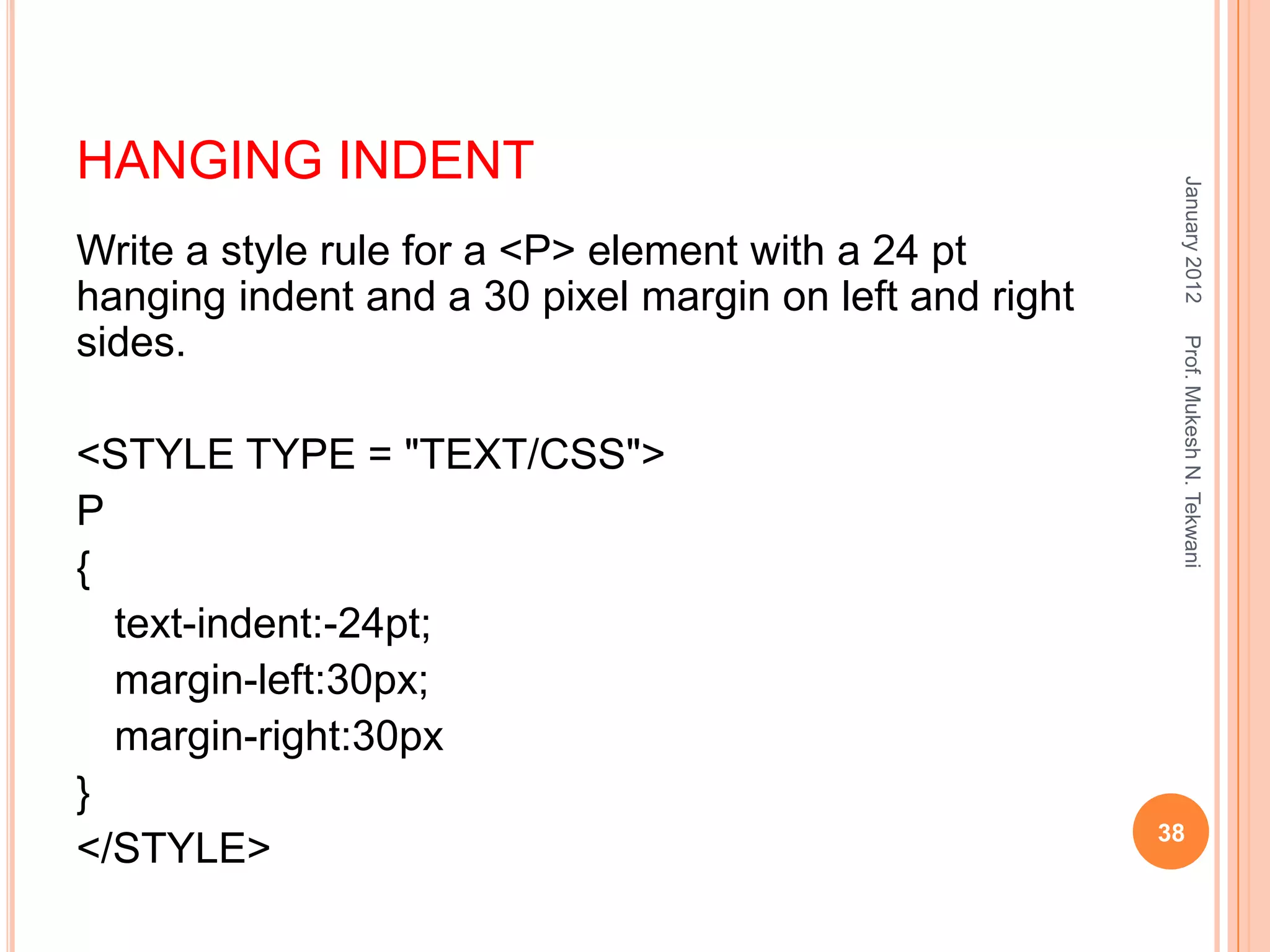

HANGING INDENT

January 2012
Write a style rule for a <P> element with a 24 pt
hanging indent and a 30 pixel margin on left and right
sides.

<STYLE TYPE = "TEXT/CSS">
P
{
text-indent:-24pt;
margin-left:30px;
margin-right:30px
}
38
</STYLE>

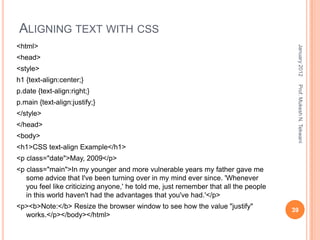

ALIGNING TEXT WITH CSS
<html>

January 2012
<head>
<style>
h1 {text-align:center;}

p.date {text-align:right;}
p.main {text-align:justify;}
</style>
</head>
<body>
<h1>CSS text-align Example</h1>
<p class="date">May, 2009</p>
<p class="main">In my younger and more vulnerable years my father gave me
some advice that I've been turning over in my mind ever since. 'Whenever
you feel like criticizing anyone,' he told me, just remember that all the people
in this world haven't had the advantages that you've had.'</p>
<p><b>Note:</b> Resize the browser window to see how the value "justify" 39
works.</p></body></html>

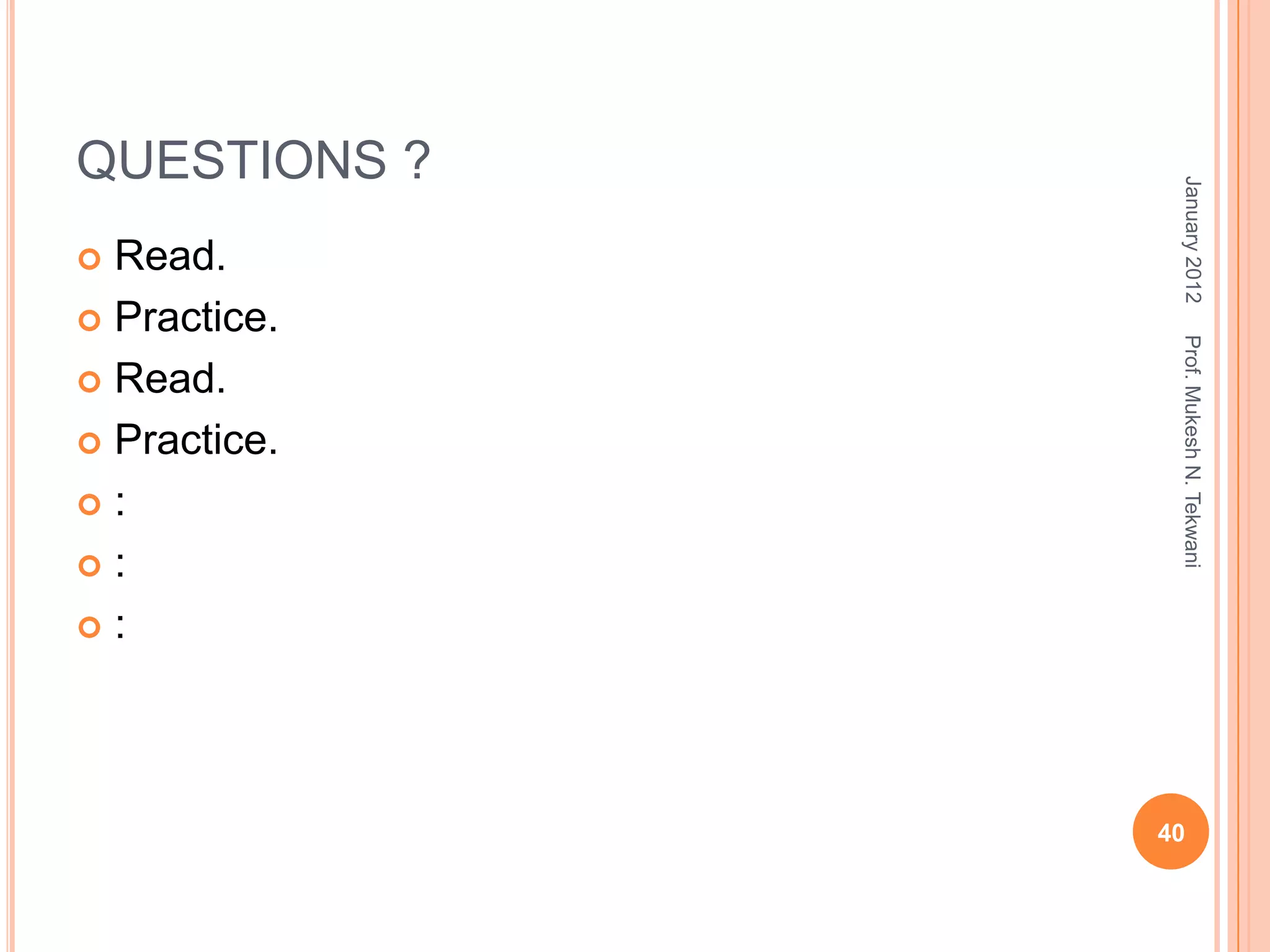

QUESTIONS ?

January 2012
 Read.
 Practice.

 Read.

 Practice.

:

:

:

40

CSS-Cascading Style Sheets - Introduction

Recommended

Recommended

More Related Content

Viewers also liked

Viewers also liked (20)

Similar to CSS-Cascading Style Sheets - Introduction

Similar to CSS-Cascading Style Sheets - Introduction (20)

More from Mukesh Tekwani

More from Mukesh Tekwani (20)

Recently uploaded

Recently uploaded (20)

CSS-Cascading Style Sheets - Introduction
