Communication
Layered Protocols
Layers, interfaces, and protocols in the OSI model.
2-1
Layered Protocols
International Standards Organization (ISO)
Developed a reference model that clearly identifies the
various levels involved, gives them standard names, and
points out which level should do which job.
Open systems Interconnection Reference Model
Protocols: rules determining how an open system
can communicate with another open system.
Connection-oriented protocols: Before exchanging
data the sender and receiver first explicitly
establish a connection, and possibly negotiate the
protocol they will use
Connectionless protocols: No setup in advance is
needed.
Dropping a letter in a mailbox
Layered Protocols

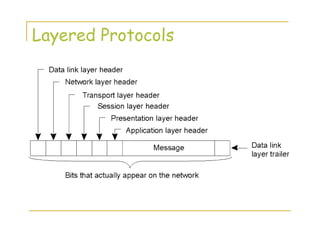

A typical message as it appears on the network.
2-2
Layered Protocols

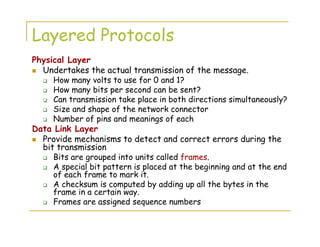

Physical Layer
Undertakes the actual transmission of the message.
How many volts to use for 0 and 1?
How many bits per second can be sent?
Can transmission take place in both directions simultaneously?
Size and shape of the network connector
Number of pins and meanings of each
Data Link Layer
Provide mechanisms to detect and correct errors during the
bit transmission
Bits are grouped into units called frames.
A special bit pattern is placed at the beginning and at the end
of each frame to mark it.
A checksum is computed by adding up all the bytes in the
frame in a certain way.
Frames are assigned sequence numbers
Data Link Layer

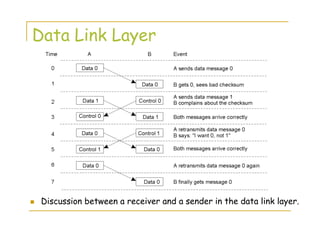

Discussion between a receiver and a sender in the data link layer.
2-3
Layered Protocols

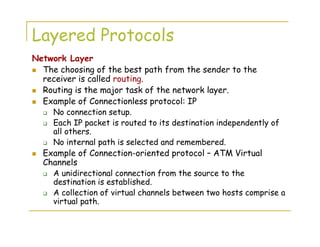

Network Layer
The choosing of the best path from the sender to the
receiver is called routing.
Routing is the major task of the network layer.
Example of Connectionless protocol: IP
No connection setup.
Each IP packet is routed to its destination independently of
all others.
No internal path is selected and remembered.
Example of Connection-oriented protocol – ATM Virtual
Channels
A unidirectional connection from the source to the
destination is established.
A collection of virtual channels between two hosts comprise a
virtual path.
Transport Protocols
Delivers messages without loss.
Each message is broken into pieces called
packets
A sequence number is assigned to each
packet
Transport Layer Header
Which packets have been sent
Which have been received
How many more the receiver has room to
accept
Which should be retransmitted
TCP & Client-Server TCP (TCP for
Transactions, T/TCP)
a) Normal operation of TCP.
b) Transactional TCP.
2-4

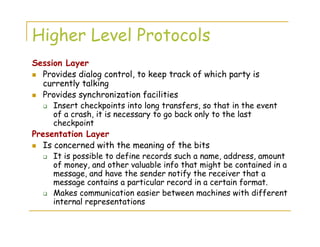

Higher Level Protocols
Session Layer
Provides dialog control, to keep track of which party is
currently talking
Provides synchronization facilities
Insert checkpoints into long transfers, so that in the event
of a crash, it is necessary to go back only to the last
checkpoint
Presentation Layer
Is concerned with the meaning of the bits
It is possible to define records such a name, address, amount
of money, and other valuable info that might be contained in a
message, and have the sender notify the receiver that a
message contains a particular record in a certain format.
Makes communication easier between machines with different
internal representations

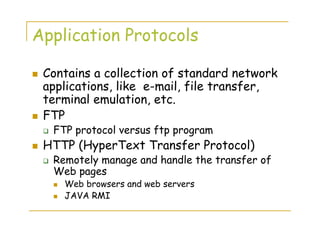

Application Protocols
Contains a collection of standard network
applications, like e-mail, file transfer,
terminal emulation, etc.
FTP
FTP protocol versus ftp program
HTTP (HyperText Transfer Protocol)
Remotely manage and handle the transfer of
Web pages
Web browsers and web servers

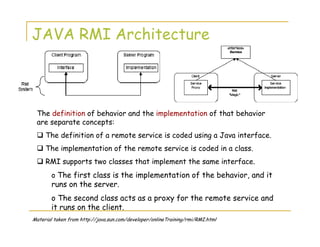

JAVA RMI

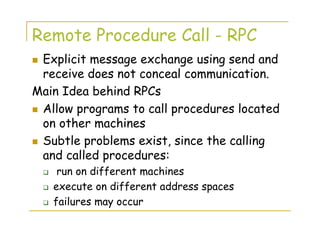

Remote Procedure Call - RPC
Explicit message exchange using send and
receive does not conceal communication.
Main Idea behind RPCs
Allow programs to call procedures located
on other machines
Subtle problems exist, since the calling
and called procedures:
run on different machines
execute on different address spaces
failures may occur
Conventional Procedure Call

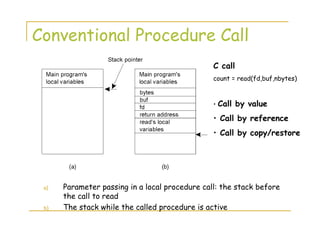

a) Parameter passing in a local procedure call: the stack before
the call to read
b) The stack while the called procedure is active
C call
count = read(fd,buf,nbytes)
• Call by value
• Call by reference
• Call by copy/restore

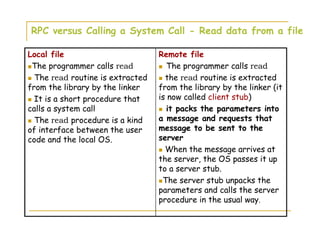

RPC versus Calling a System Call - Read data from a file
Remote file
The programmer calls read
the read routine is extracted
from the library by the linker (it
is now called client stub)
it packs the parameters into
a message and requests that
message to be sent to the
server
When the message arrives at
the server, the OS passes it up
to a server stub.
The server stub unpacks the
parameters and calls the server
procedure in the usual way.
Local file
The programmer calls read
The read routine is extracted
from the library by the linker
It is a short procedure that
calls a system call
The read procedure is a kind
of interface between the user
code and the local OS.
Client and Server Stubs
Principle of RPC between a client and server program.
Client and Server Stubs

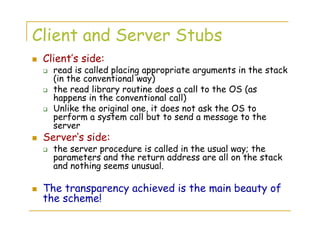

Client’s side:
read is called placing appropriate arguments in the stack
(in the conventional way)
the read library routine does a call to the OS (as
happens in the conventional call)
Unlike the original one, it does not ask the OS to
perform a system call but to send a message to the
server
Server’s side:
the server procedure is called in the usual way; the
parameters and the return address are all on the stack
and nothing seems unusual.
The transparency achieved is the main beauty of
the scheme!
Steps of a Remote Procedure Call
1. Client procedure calls client stub in normal way
2. Client stub builds message, calls local OS
3. Client's OS sends message to remote OS
4. Remote OS gives message to server stub
5. Server stub unpacks parameters, calls server
6. Server does work, returns result to the stub
7. Server stub packs it in message, calls local OS
8. Server's OS sends message to client's OS
9. Client's OS gives message to client stub
10. Stub unpacks result, returns to client

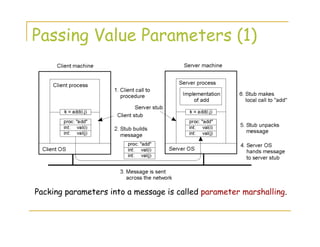

Passing Value Parameters (1)
Steps involved in doing remote computation through RPC
2-8
Packing parameters into a message is called parameter marshalling.
Passing Value Parameters (2)

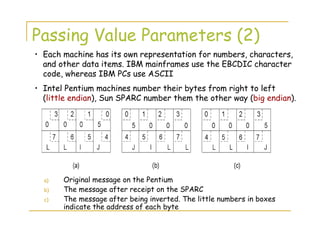

a) Original message on the Pentium
b) The message after receipt on the SPARC
c) The message after being inverted. The little numbers in boxes
indicate the address of each byte
• Each machine has its own representation for numbers, characters,
and other data items. IBM mainframes use the EBCDIC character
code, whereas IBM PCs use ASCII
• Intel Pentium machines number their bytes from right to left
(little endian), Sun SPARC number them the other way (big endian).

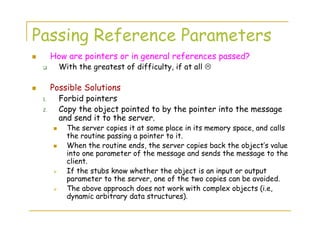

Passing Reference Parameters
How are pointers or in general references passed?
With the greatest of difficulty, if at all
Possible Solutions
1. Forbid pointers
2. Copy the object pointed to by the pointer into the message
and send it to the server.
The server copies it at some place in its memory space, and calls
the routine passing a pointer to it.
When the routine ends, the server copies back the object’s value
into one parameter of the message and sends the message to the
client.
If the stubs know whether the object is an input or output
parameter to the server, one of the two copies can be avoided.
The above approach does not work with complex objects (i.e,
dynamic arbitrary data structures).
Parameter Specification and Stub Generation
a) A procedure
b) The corresponding message:
• A character is placed in the rightmost
byte of a word
• A float is transmitted as a whole word
• An array as a group of words
equal to the array length, preceded
by a word giving the length.

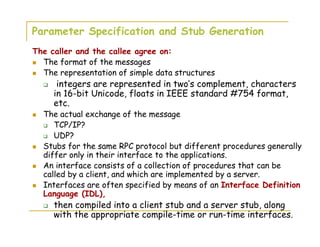

Parameter Specification and Stub Generation
The caller and the callee agree on:
The format of the messages
The representation of simple data structures
integers are represented in two’s complement, characters
in 16-bit Unicode, floats in IEEE standard #754 format,
etc.
The actual exchange of the message
TCP/IP?
UDP?
Stubs for the same RPC protocol but different procedures generally
differ only in their interface to the applications.
An interface consists of a collection of procedures that can be
called by a client, and which are implemented by a server.
Interfaces are often specified by means of an Interface Definition
Language (IDL),
then compiled into a client stub and a server stub, along
with the appropriate compile-time or run-time interfaces.
Asynchronous RPC
Examples where blocking is not necessary
Transferring money from one account to
another
Adding entries into a database
Starting remote services
Batch processing
Asynchronous RPCs
A client immediately continues after
issuing the RPC request.
Asynchronous RPC (1)

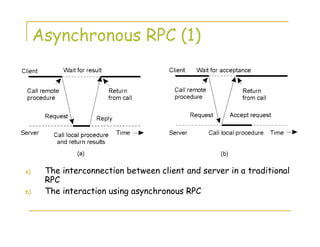

a) The interconnection between client and server in a traditional
RPC
b) The interaction using asynchronous RPC
2-12
Asynchronous RPC (2)
A client and server interacting through two asynchronous RPCs
Combining two asynchronous RPCs is referred as a deferred
synchronous RPC.
Completely Asynchronous RPCs
2-13
Deferred Synchronous RPCs
• A client may want to pre-fetch the network addresses of a set of
hosts that it expects to contact soon.
Distributed Objects
The key feature of an object is that it encapsulates data,
called state, and the operations on those data, called
methods.
Methods are made available through an interface.
When a client binds to a distributed object, an
implementation of the object’s interface, called proxy, is
loaded into the client’s address space.
It marshals method invocations into messages and unmarshals
reply messages to return the result to the client
Proxy = client stub
Skeleton = server stub
Simple remote object: its state is not distributed, but its
interface might be.
Persistent Objects: continues to exist even if it is currently
not contained in the address space of a server process
Transient Objects: exists only as long as the server that
manages it is active.

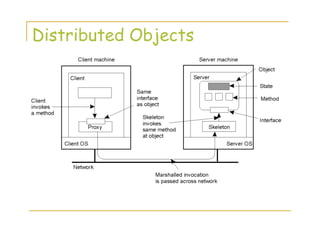

Distributed Objects
Common organization of a remote object with client-side
proxy.
2-16

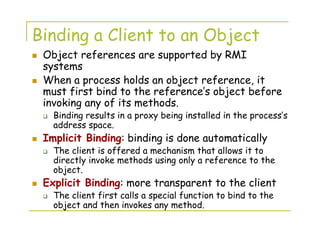

Binding a Client to an Object
Object references are supported by RMI
systems
When a process holds an object reference, it
must first bind to the reference’s object before
invoking any of its methods.
Binding results in a proxy being installed in the process’s
address space.
Implicit Binding: binding is done automatically
The client is offered a mechanism that allows it to
directly invoke methods using only a reference to the
object.
Explicit Binding: more transparent to the client
The client first calls a special function to bind to the
object and then invokes any method.

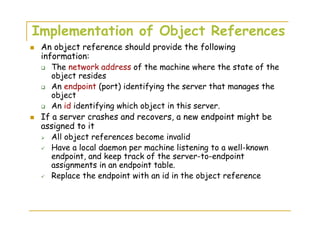

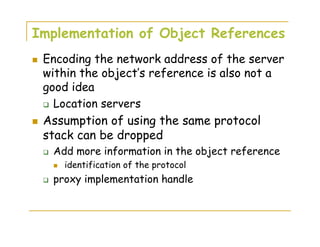

Implementation of Object References
An object reference should provide the following
information:
The network address of the machine where the state of the
object resides
An endpoint (port) identifying the server that manages the
object
An id identifying which object in this server.
If a server crashes and recovers, a new endpoint might be
assigned to it
All object references become invalid
Have a local daemon per machine listening to a well-known
endpoint, and keep track of the server-to-endpoint
assignments in an endpoint table.
Replace the endpoint with an id in the object reference
Implementation of Object References
Encoding the network address of the server
within the object’s reference is also not a
good idea
Location servers
Assumption of using the same protocol
stack can be dropped
Add more information in the object reference
identification of the protocol
proxy implementation handle

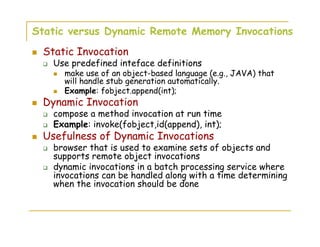

Static versus Dynamic Remote Memory Invocations
Static Invocation
Use predefined inteface definitions
make use of an object-based language (e.g., JAVA) that
will handle stub generation automatically.
Example: fobject.append(int);
Dynamic Invocation
compose a method invocation at run time
Example: invoke(fobject,id(append), int);
Usefulness of Dynamic Invocations
browser that is used to examine sets of objects and
supports remote object invocations
dynamic invocations in a batch processing service where
invocations can be handled along with a time determining
when the invocation should be done
Parameter Passing
Object references can be used as
parameters to method invocations
References are passed by value
They are copied from one machine to another
References to local objects are treated
differently for efficiency
The referenced local object may be copied as
a whole and passed along with the invocation

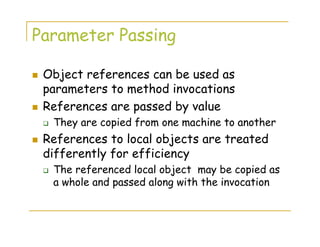

Parameter Passing

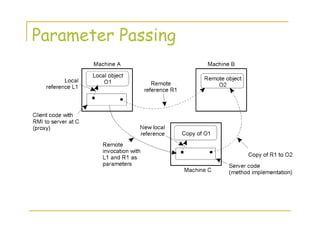

The situation when passing an object by reference or by
value.
2-18
JAVA RMI Architecture
The definition of behavior and the implementation of that behavior
are separate concepts:
The definition of a remote service is coded using a Java interface.
The implementation of the remote service is coded in a class.
RMI supports two classes that implement the same interface.
o The first class is the implementation of the behavior, and it
runs on the server.
o The second class acts as a proxy for the remote service and
it runs on the client.
Material taken from http://java.sun.com/developer/onlineTraining/rmi/RMI.html

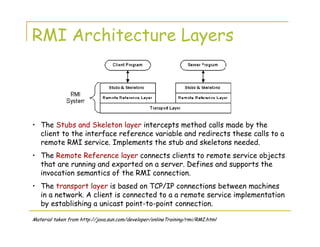

RMI Architecture Layers
• The Stubs and Skeleton layer intercepts method calls made by the
client to the interface reference variable and redirects these calls to a
remote RMI service. Implements the stub and skeletons needed.
• The Remote Reference layer connects clients to remote service objects
that are running and exported on a server. Defines and supports the
invocation semantics of the RMI connection.
• The transport layer is based on TCP/IP connections between machines
in a network. A client is connected to a a remote service implementation
by establishing a unicast point-to-point connection.
Material taken from http://java.sun.com/developer/onlineTraining/rmi/RMI.html
Naming Remote Objects
How does a client find an RMI remote service?
A naming or directory service is run on a well-known
host and port number.
How does a client obtains a reference to a
service object?
RMI includes a simple service called the RMI registry,
which runs on each machine that hosts remote service
objects and accepts queries for services by default on
port 1099.
Each object should be exported and registered.
The registry provides a remote reference to a service
object (a URL is used to describe the service object).
Using RMI - Example
Parts composing a working RMI
Interface definitions for the remote services
Implementations of the remote services
Stub and Skeleton files
A server to host the remote services
An RMI Naming service that allows clients to
find the remote services
A class file provider (an HTTP or FTP
server)
A client program that needs the remote
services
Material taken from http://java.sun.com/developer/onlineTraining/rmi/RMI.html

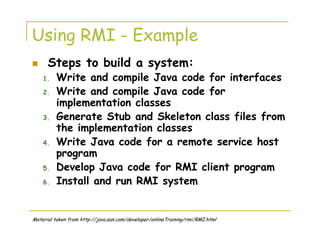

Using RMI - Example
Steps to build a system:
1. Write and compile Java code for interfaces
2. Write and compile Java code for
implementation classes
3. Generate Stub and Skeleton class files from
the implementation classes
4. Write Java code for a remote service host
program
5. Develop Java code for RMI client program
6. Install and run RMI system
Material taken from http://java.sun.com/developer/onlineTraining/rmi/RMI.html

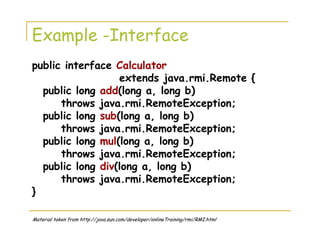

Example -Interface
public interface Calculator
extends java.rmi.Remote {
public long add(long a, long b)
throws java.rmi.RemoteException;
public long sub(long a, long b)
throws java.rmi.RemoteException;
public long mul(long a, long b)
throws java.rmi.RemoteException;
public long div(long a, long b)
throws java.rmi.RemoteException;
}
Material taken from http://java.sun.com/developer/onlineTraining/rmi/RMI.html
Example - Implementation
public class CalculatorImpl
extends java.rmi.server.UnicastRemoteObject implements Calculator {
// Implementations must have an explicit constructor in order to declare the
// RemoteException exception
public CalculatorImpl() throws java.rmi.RemoteException
{
super();
}
public long add(long a, long b) throws java.rmi.RemoteException {
return a + b;
}
public long sub(long a, long b) throws java.rmi.RemoteException {
return a - b;
}
public long mul(long a, long b) throws java.rmi.RemoteException {
return a * b;
}
public long div(long a, long b) throws java.rmi.RemoteException {
return a / b;
}
}
When the constructor calls
super(), it activates code
that performs the RMI
linking and remote object
initialization.
Material taken from http://java.sun.com/developer/onlineTraining/rmi/RMI.html

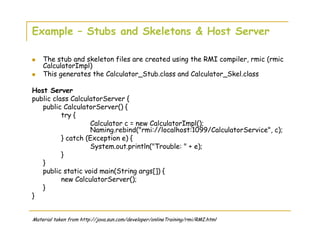

Example – Stubs and Skeletons & Host Server
The stub and skeleton files are created using the RMI compiler, rmic (rmic
CalculatorImpl)
This generates the Calculator_Stub.class and Calculator_Skel.class
Host Server
public class CalculatorServer {
public CalculatorServer() {
try {
Calculator c = new CalculatorImpl();
Naming.rebind("rmi://localhost:1099/CalculatorService", c);
} catch (Exception e) {
System.out.println("Trouble: " + e);
}
}
public static void main(String args[]) {
new CalculatorServer();
}
}
Material taken from http://java.sun.com/developer/onlineTraining/rmi/RMI.html
Example - Client
import java.rmi.Naming;
import java.rmi.RemoteException;
import java.net.MalformedURLException;
import java.rmi.NotBoundException;
public class CalculatorClient {
public static void main(String[] args) {
try {
Calculator c = (Calculator) Naming.lookup( "rmi://localhost/CalculatorService");
System.out.println( c.sub(4, 3) );
System.out.println( c.add(4, 5) );
System.out.println( c.mul(3, 6) );
System.out.println( c.div(9, 3) );
} catch (MalformedURLException murle) {
System.out.println(); System.out.println( "MalformedURLException");
System.out.println(murle);
} catch (RemoteException re) {
System.out.println(); System.out.println( "RemoteException");
System.out.println(re);
} catch (NotBoundException nbe) {
System.out.println(); System.out.println( "NotBoundException");
System.out.println(nbe);
} catch ( java.lang.ArithmeticException ae) {
System.out.println(); System.out.println( "java.lang.ArithmeticException");
System.out.println(ae);
}
}
}
Material taken from http://java.sun.com/developer/onlineTraining/rmi/RMI.html

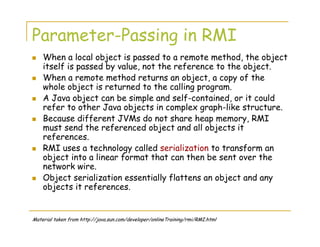

Parameter-Passing in RMI
When a local object is passed to a remote method, the object
itself is passed by value, not the reference to the object.
When a remote method returns an object, a copy of the
whole object is returned to the calling program.
A Java object can be simple and self-contained, or it could
refer to other Java objects in complex graph-like structure.
Because different JVMs do not share heap memory, RMI
must send the referenced object and all objects it
references.
RMI uses a technology called serialization to transform an
object into a linear format that can then be sent over the
network wire.
Object serialization essentially flattens an object and any
objects it references.
Material taken from http://java.sun.com/developer/onlineTraining/rmi/RMI.html

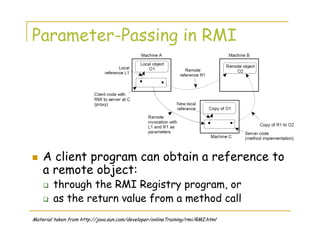

Parameter-Passing in RMI
A client program can obtain a reference to
a remote object:
through the RMI Registry program, or
as the return value from a method call
Material taken from http://java.sun.com/developer/onlineTraining/rmi/RMI.html

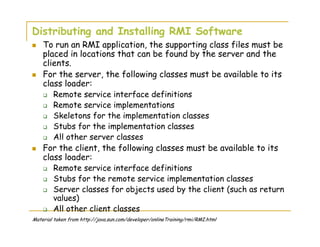

Distributing and Installing RMI Software
To run an RMI application, the supporting class files must be
placed in locations that can be found by the server and the
clients.
For the server, the following classes must be available to its
class loader:
Remote service interface definitions
Remote service implementations
Skeletons for the implementation classes
Stubs for the implementation classes
All other server classes
For the client, the following classes must be available to its
class loader:
Remote service interface definitions
Stubs for the remote service implementation classes
Server classes for objects used by the client (such as return
values)
All other client classes
Material taken from http://java.sun.com/developer/onlineTraining/rmi/RMI.html
Distributing and Installing RMI Software
The RMI supports loading of classes from FTP and
HTTP servers (class RMIClassLoader).
classes can be deployed in one, or only a few places,
all nodes in a RMI system will be able to get the
proper class files to operate.
If the remote JVM needs to load a class file for an
object, it looks for the embedded URL and
contacts the server at that location for the file.
When the property
java.rmi.server.useCodebaseOnly is set to true,
then the JVM will load classes from either a
location specified by the CLASSPATH environment
variable or the URL specified in this property.
Material taken from http://java.sun.com/developer/onlineTraining/rmi/RMI.html

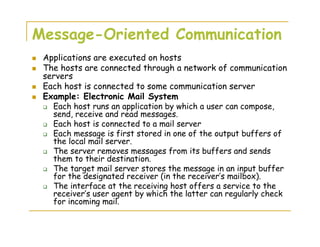

Message-Oriented Communication
Applications are executed on hosts
The hosts are connected through a network of communication
servers
Each host is connected to some communication server
Example: Electronic Mail System
Each host runs an application by which a user can compose,
send, receive and read messages.
Each host is connected to a mail server
Each message is first stored in one of the output buffers of
the local mail server.
The server removes messages from its buffers and sends
them to their destination.
The target mail server stores the message in an input buffer
for the designated receiver (in the receiver’s mailbox).
The interface at the receiving host offers a service to the
receiver’s user agent by which the latter can regularly check
for incoming mail.

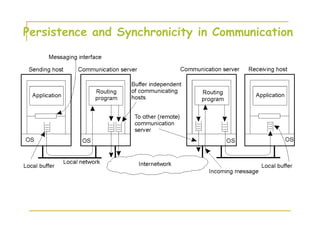

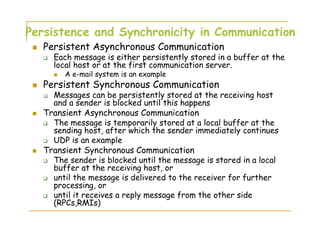

Persistence and Synchronicity in Communication

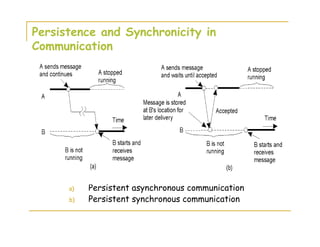

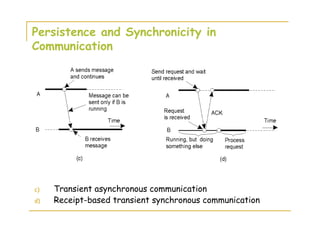

General organization of a communication system in which
hosts are connected through a network
2-20

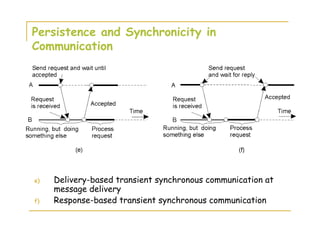

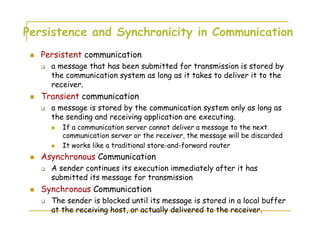

Persistence and Synchronicity in Communication
Persistent communication
a message that has been submitted for transmission is stored by
the communication system as long as it takes to deliver it to the
receiver.
Transient communication
a message is stored by the communication system only as long as
the sending and receiving application are executing.
If a communication server cannot deliver a message to the next
communication server or the receiver, the message will be discarded
It works like a traditional store-and-forward router
Asynchronous Communication
A sender continues its execution immediately after it has
submitted its message for transmission
Synchronous Communication
The sender is blocked until its message is stored in a local buffer
at the receiving host, or actually delivered to the receiver.
Persistence and Synchronicity in Communication
Persistent Asynchronous Communication
Each message is either persistently stored in a buffer at the
local host or at the first communication server.
A e-mail system is an example
Persistent Synchronous Communication
Messages can be persistently stored at the receiving host
and a sender is blocked until this happens
Transient Asynchronous Communication
The message is temporarily stored at a local buffer at the
sending host, after which the sender immediately continues
UDP is an example
Transient Synchronous Communication
The sender is blocked until the message is stored in a local
buffer at the receiving host, or
until the message is delivered to the receiver for further
processing, or
until it receives a reply message from the other side
(RPCs,RMIs)
Persistence and Synchronicity in
Communication
a) Persistent asynchronous communication
b) Persistent synchronous communication
Persistence and Synchronicity in
Communication
c) Transient asynchronous communication
d) Receipt-based transient synchronous communication
2-22.2
Persistence and Synchronicity in
Communication
e) Delivery-based transient synchronous communication at
message delivery
f) Response-based transient synchronous communication

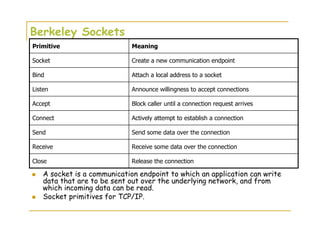

Berkeley Sockets
A socket is a communication endpoint to which an application can write
data that are to be sent out over the underlying network, and from
which incoming data can be read.
Socket primitives for TCP/IP.
Release the connectionClose
Receive some data over the connectionReceive
Send some data over the connectionSend
Actively attempt to establish a connectionConnect
Block caller until a connection request arrivesAccept
Announce willingness to accept connectionsListen
Attach a local address to a socketBind
Create a new communication endpointSocket
MeaningPrimitive

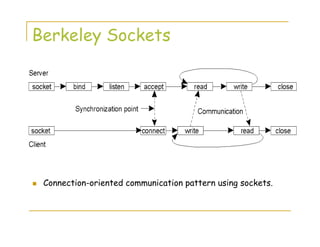

Berkeley Sockets
Connection-oriented communication pattern using sockets.

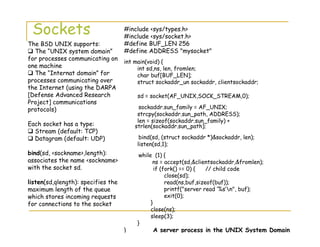

Sockets #include <sys/types.h>
#include <sys/socket.h>
#define BUF_LEN 256
#define ADDRESS "mysocket"
int main(void) {
int sd,ns, len, fromlen;
char buf[BUF_LEN];
struct sockaddr_un sockaddr, clientsockaddr;
sd = socket(AF_UNIX,SOCK_STREAM,0);
sockaddr.sun_family = AF_UNIX;
strcpy(sockaddr.sun_path, ADDRESS);
len = sizeof(sockaddr.sun_family) +
strlen(sockaddr.sun_path);
bind(sd, (struct sockaddr *)&sockaddr, len);
listen(sd,1);
while (1) {
ns = accept(sd,&clientsockaddr,&fromlen);
if (fork() == 0) { // child code
close(sd);
read(ns,buf,sizeof(buf));
printf("server read ‘%s’n", buf);
exit(0);
}
close(ns);
sleep(3);
}
} A server process in the UNIX System Domain
The BSD UNIX supports:
The “UNIX system domain”
for processes communicating on
one machine
The “Internat domain” for
processes communicating over
the Internet (using the DARPA
[Defense Advanced Research
Project] communications
protocols)
Each socket has a type:
Stream (default: TCP)
Datagram (default: UDP)
bind(sd, <sockname>,length):
associates the name <sockname>
with the socket sd.
listen(sd,qlength): specifies the
maximum length of the queue
which stores incoming requests
for connections to the socket
Sockets
#include <sys/types.h>
#include <sys/socket.h>
#define BUF_LEN 256
#define ADDRESS "mysocket"
int main(void) {
int sd, len;
struct sockaddr_un sockaddr;
sd = socket(AF_UNIX,SOCK_STREAM,0);
sockaddr.sun_family = AF_UNIX;
strcpy(sockaddr.sun_path, ADDRESS);
len = sizeof(sockaddr.sun_family) + strlen(sockaddr.sun_path);
if (connect(sd,&sockaddr, len) == -1)
exit(1);
write(sd,"hi guy",6);
close(sd);
}
A client process in the UNIX System Domain

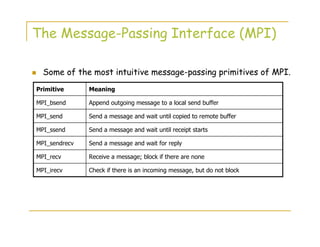

The Message-Passing Interface (MPI)
Some of the most intuitive message-passing primitives of MPI.
Check if there is an incoming message, but do not blockMPI_irecv
Receive a message; block if there are noneMPI_recv
Send a message and wait for replyMPI_sendrecv
Send a message and wait until receipt startsMPI_ssend
Send a message and wait until copied to remote bufferMPI_send
Append outgoing message to a local send bufferMPI_bsend
MeaningPrimitive
MPI – A Simple Example
/*The Parallel Hello World Program*/
#include <stdio.h>
#include <mpi.h>
int main(int argc, char **argv) {
int node;
char buf[64];
FILE *fp;
MPI_Init(&argc,&argv);
MPI_Comm_rank(MPI_COMM_WORLD, &node);
sprintf(buf,”file%d”,node);
fp = fopen(buf,”r”);
fprintf(fp, "Hello World from Node %dn",node);
fclose(fp);
MPI_Finalize();
}

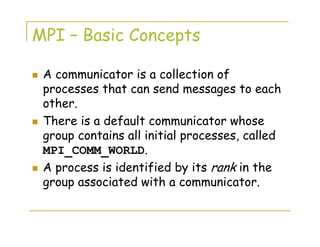

MPI – Basic Concepts
A communicator is a collection of
processes that can send messages to each
other.
There is a default communicator whose
group contains all initial processes, called
MPI_COMM_WORLD.
A process is identified by its rank in the
group associated with a communicator.

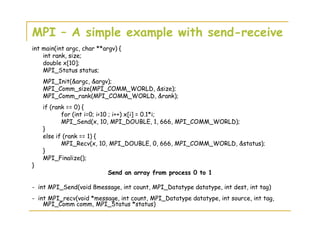

MPI – A simple example with send-receive
int main(int argc, char **argv) {
int rank, size;
double x[10];
MPI_Status status;
MPI_Init(&argc, &argv);
MPI_Comm_size(MPI_COMM_WORLD, &size);
MPI_Comm_rank(MPI_COMM_WORLD, &rank);
if (rank == 0) {
for (int i=0; i<10 ; i++) x[i] = 0.1*i;
MPI_Send(x, 10, MPI_DOUBLE, 1, 666, MPI_COMM_WORLD);
}
else if (rank == 1) {
MPI_Recv(x, 10, MPI_DOUBLE, 0, 666, MPI_COMM_WORLD, &status);
}
MPI_Finalize();
}
Send an array from process 0 to 1
- int MPI_Send(void 8message, int count, MPI_Datatype datatype, int dest, int tag)
- int MPI_recv(void *message, int count, MPI_Datatype datatype, int source, int tag,
MPI_Comm comm, MPI_Status *status)

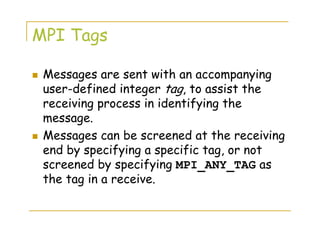

MPI Tags
Messages are sent with an accompanying
user-defined integer tag, to assist the
receiving process in identifying the
message.
Messages can be screened at the receiving
end by specifying a specific tag, or not
screened by specifying MPI_ANY_TAG as
the tag in a receive.

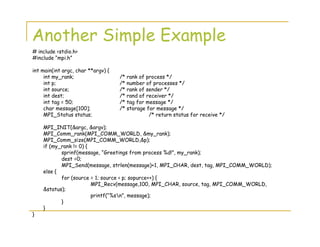

Another Simple Example
# include <stdio.h>
#include “mpi.h”
int main(int argc, char **argv) {
int my_rank; /* rank of process */
int p; /* number of processes */
int source; /* rank of sender */
int dest; /* rand of receiver */
int tag = 50; /* tag for message */
char message[100]; /* storage for message */
MPI_Status status; /* return status for receive */
MPI_INIT(&argc, &argv);
MPI_Comm_rank(MPI_COMM_WORLD, &my_rank);
MPI_Comm_size(MPI_COMM_WORLD,&p);
if (my_rank != 0) {
sprinf(message, “Greetings from process %d!”, my_rank);
dest =0;
MPI_Send(message, strlen(message)+1, MPI_CHAR, dest, tag, MPI_COMM_WORLD);
else {
for (source = 1; source < p; sopurce++) {
MPI_Recv(message,100, MPI_CHAR, source, tag, MPI_COMM_WORLD,
&status);
printf(“%sn”, message);
}
}
}

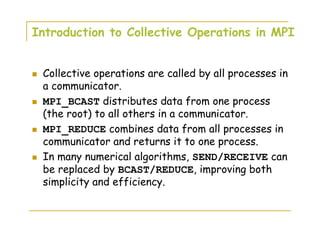

Introduction to Collective Operations in MPI
Collective operations are called by all processes in
a communicator.
MPI_BCAST distributes data from one process
(the root) to all others in a communicator.
MPI_REDUCE combines data from all processes in
communicator and returns it to one process.
In many numerical algorithms, SEND/RECEIVE can
be replaced by BCAST/REDUCE, improving both
simplicity and efficiency.

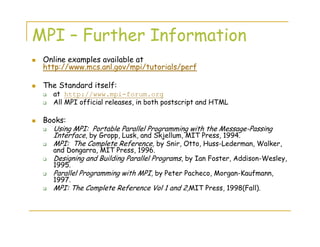

MPI – Further Information
Online examples available at
http://www.mcs.anl.gov/mpi/tutorials/perf
The Standard itself:
at http://www.mpi-forum.org
All MPI official releases, in both postscript and HTML
Books:
Using MPI: Portable Parallel Programming with the Message-Passing
Interface, by Gropp, Lusk, and Skjellum, MIT Press, 1994.
MPI: The Complete Reference, by Snir, Otto, Huss-Lederman, Walker,
and Dongarra, MIT Press, 1996.
Designing and Building Parallel Programs, by Ian Foster, Addison-Wesley,
1995.
Parallel Programming with MPI, by Peter Pacheco, Morgan-Kaufmann,
1997.
MPI: The Complete Reference Vol 1 and 2,MIT Press, 1998(Fall).

More Related Content

What's hot

Transport services
Transport servicesTransport services
Transport services
Navin Kumar

Introduction to Application layer
Introduction to Application layerIntroduction to Application layer
Introduction to Application layer
Dr. C.V. Suresh Babu

TCP- Transmission Control Protocol
TCP-  Transmission Control Protocol TCP-  Transmission Control Protocol
TCP- Transmission Control Protocol
Akhil .B

Application Layer and Protocols
Application Layer and ProtocolsApplication Layer and Protocols
Application Layer and Protocols
Rubal Sagwal

Chapter 4 communication2
Chapter 4 communication2Chapter 4 communication2
Chapter 4 communication2
DBU

Lecture9
Lecture9Lecture9
Application layer
Application layerApplication layer
Application layer
Mukesh Chinta

Application layer protocols
Application layer protocolsApplication layer protocols
Application layer protocols
JUW Jinnah University for Women

Tcp ip
Tcp ipTcp ip
Tcp ip
Dhani Ahmad

Application Layer
Application LayerApplication Layer
Application Layer
Tutun Juhana

Transport layer
Transport layerTransport layer
Transport layer
Sisir Ghosh

RPC: Remote procedure call
RPC: Remote procedure callRPC: Remote procedure call
RPC: Remote procedure call
Sunita Sahu

Transport Layer Services : Multiplexing And Demultiplexing
Transport Layer Services : Multiplexing And DemultiplexingTransport Layer Services : Multiplexing And Demultiplexing
Transport Layer Services : Multiplexing And Demultiplexing
Keyur Vadodariya

TCP/ IP
TCP/ IP TCP/ IP
Tcpip services and applications
Tcpip services and applicationsTcpip services and applications
Tcpip services and applications
Online

TCP/IP
TCP/IPTCP/IP
TCP - IP Presentation
TCP - IP PresentationTCP - IP Presentation
TCP - IP Presentation
Harish Chand

Chapter 5 : Link Layer
Chapter 5 : Link LayerChapter 5 : Link Layer
Chapter 5 : Link Layer
Amin Omi

TCP Vs UDP
TCP Vs UDP TCP Vs UDP
TCP Vs UDP
Ahmed Elnaggar

TCP Theory
TCP TheoryTCP Theory
TCP Theory
soohyunc


What's hot (20)

Transport services
Transport servicesTransport services
Transport services

Introduction to Application layer
Introduction to Application layerIntroduction to Application layer
Introduction to Application layer

TCP- Transmission Control Protocol
TCP-  Transmission Control Protocol TCP-  Transmission Control Protocol
TCP- Transmission Control Protocol

Application Layer and Protocols
Application Layer and ProtocolsApplication Layer and Protocols
Application Layer and Protocols

Chapter 4 communication2
Chapter 4 communication2Chapter 4 communication2
Chapter 4 communication2

Lecture9
Lecture9Lecture9
Lecture9

Application layer
Application layerApplication layer
Application layer

Application layer protocols
Application layer protocolsApplication layer protocols
Application layer protocols

Tcp ip
Tcp ipTcp ip
Tcp ip

Application Layer
Application LayerApplication Layer
Application Layer

Transport layer
Transport layerTransport layer
Transport layer

RPC: Remote procedure call
RPC: Remote procedure callRPC: Remote procedure call
RPC: Remote procedure call

Transport Layer Services : Multiplexing And Demultiplexing
Transport Layer Services : Multiplexing And DemultiplexingTransport Layer Services : Multiplexing And Demultiplexing
Transport Layer Services : Multiplexing And Demultiplexing

TCP/ IP
TCP/ IP TCP/ IP
TCP/ IP

Tcpip services and applications
Tcpip services and applicationsTcpip services and applications
Tcpip services and applications

TCP/IP
TCP/IPTCP/IP
TCP/IP

TCP - IP Presentation
TCP - IP PresentationTCP - IP Presentation
TCP - IP Presentation

Chapter 5 : Link Layer
Chapter 5 : Link LayerChapter 5 : Link Layer
Chapter 5 : Link Layer

TCP Vs UDP
TCP Vs UDP TCP Vs UDP
TCP Vs UDP

TCP Theory
TCP TheoryTCP Theory
TCP Theory


Similar to Cs556 section3

CHP-4.pptx
CHP-4.pptxCHP-4.pptx
CHP-4.pptx
FamiDan

Chapter 2B-Communication.ppt
Chapter 2B-Communication.pptChapter 2B-Communication.ppt
Chapter 2B-Communication.ppt
sirajmohammed35

DS-Chapter DDEFR2-Communication_105220.ppt
DS-Chapter DDEFR2-Communication_105220.pptDS-Chapter DDEFR2-Communication_105220.ppt
DS-Chapter DDEFR2-Communication_105220.ppt
menoralemu03

Middleware in Distributed System-RPC,RMI
Middleware in Distributed System-RPC,RMIMiddleware in Distributed System-RPC,RMI
Middleware in Distributed System-RPC,RMI
Prajakta Rane

Distributed System by Pratik Tambekar
Distributed System by Pratik TambekarDistributed System by Pratik Tambekar
Distributed System by Pratik Tambekar
Pratik Tambekar

2.communcation in distributed system
2.communcation in distributed system2.communcation in distributed system
2.communcation in distributed system
Gd Goenka University

Distributed Systems Distributed Systems- COMMUNICATION.pptx
Distributed Systems Distributed Systems- COMMUNICATION.pptxDistributed Systems Distributed Systems- COMMUNICATION.pptx
Distributed Systems Distributed Systems- COMMUNICATION.pptx
ssuser376193

Distributed Systems Distributed Systems- COMMUNICATION.pptx
Distributed Systems Distributed Systems- COMMUNICATION.pptxDistributed Systems Distributed Systems- COMMUNICATION.pptx
Distributed Systems Distributed Systems- COMMUNICATION.pptx
ssuser376193

Communication in Distributed System.ppt
Communication in Distributed System.pptCommunication in Distributed System.ppt
Communication in Distributed System.ppt
SELVAVINAYAGAMG

lecture-2-tcp-ip.ppt
lecture-2-tcp-ip.pptlecture-2-tcp-ip.ppt
lecture-2-tcp-ip.ppt
KrishnaGupta717939

MSB-Remote procedure call
MSB-Remote procedure callMSB-Remote procedure call
MSB-Remote procedure call
MOHD. SHAHRUKH BHATI

group11_DNAA:protocol stack and addressing
group11_DNAA:protocol stack and addressinggroup11_DNAA:protocol stack and addressing
group11_DNAA:protocol stack and addressing
Anitha Selvan

Rpc
RpcRpc
remote procedure calls
  remote procedure calls  remote procedure calls
remote procedure calls
Ashish Kumar

NP-lab-manual.docx
NP-lab-manual.docxNP-lab-manual.docx
NP-lab-manual.docx
RaviRajput416403

TCP/IP Basics
TCP/IP BasicsTCP/IP Basics
TCP/IP Basics
sanjoysanyal

Byte Ordering - Unit 2.pptx
Byte Ordering - Unit 2.pptxByte Ordering - Unit 2.pptx
Byte Ordering - Unit 2.pptx
RockyBhai46825

NP-lab-manual (1).pdf
NP-lab-manual (1).pdfNP-lab-manual (1).pdf
NP-lab-manual (1).pdf
RaviRajput416403

NP-lab-manual.pdf
NP-lab-manual.pdfNP-lab-manual.pdf
NP-lab-manual.pdf
RaviRajput416403

layering.pdf
layering.pdflayering.pdf
layering.pdf
BoostHub


Similar to Cs556 section3 (20)

CHP-4.pptx
CHP-4.pptxCHP-4.pptx
CHP-4.pptx

Chapter 2B-Communication.ppt
Chapter 2B-Communication.pptChapter 2B-Communication.ppt
Chapter 2B-Communication.ppt

DS-Chapter DDEFR2-Communication_105220.ppt
DS-Chapter DDEFR2-Communication_105220.pptDS-Chapter DDEFR2-Communication_105220.ppt
DS-Chapter DDEFR2-Communication_105220.ppt

Middleware in Distributed System-RPC,RMI
Middleware in Distributed System-RPC,RMIMiddleware in Distributed System-RPC,RMI
Middleware in Distributed System-RPC,RMI

Distributed System by Pratik Tambekar
Distributed System by Pratik TambekarDistributed System by Pratik Tambekar
Distributed System by Pratik Tambekar

2.communcation in distributed system
2.communcation in distributed system2.communcation in distributed system
2.communcation in distributed system

Distributed Systems Distributed Systems- COMMUNICATION.pptx
Distributed Systems Distributed Systems- COMMUNICATION.pptxDistributed Systems Distributed Systems- COMMUNICATION.pptx
Distributed Systems Distributed Systems- COMMUNICATION.pptx

Distributed Systems Distributed Systems- COMMUNICATION.pptx
Distributed Systems Distributed Systems- COMMUNICATION.pptxDistributed Systems Distributed Systems- COMMUNICATION.pptx
Distributed Systems Distributed Systems- COMMUNICATION.pptx

Communication in Distributed System.ppt
Communication in Distributed System.pptCommunication in Distributed System.ppt
Communication in Distributed System.ppt

lecture-2-tcp-ip.ppt
lecture-2-tcp-ip.pptlecture-2-tcp-ip.ppt
lecture-2-tcp-ip.ppt

MSB-Remote procedure call
MSB-Remote procedure callMSB-Remote procedure call
MSB-Remote procedure call

group11_DNAA:protocol stack and addressing
group11_DNAA:protocol stack and addressinggroup11_DNAA:protocol stack and addressing
group11_DNAA:protocol stack and addressing

Rpc
RpcRpc
Rpc

remote procedure calls
  remote procedure calls  remote procedure calls
remote procedure calls

NP-lab-manual.docx
NP-lab-manual.docxNP-lab-manual.docx
NP-lab-manual.docx

TCP/IP Basics
TCP/IP BasicsTCP/IP Basics
TCP/IP Basics

Byte Ordering - Unit 2.pptx
Byte Ordering - Unit 2.pptxByte Ordering - Unit 2.pptx
Byte Ordering - Unit 2.pptx

NP-lab-manual (1).pdf
NP-lab-manual (1).pdfNP-lab-manual (1).pdf
NP-lab-manual (1).pdf

NP-lab-manual.pdf
NP-lab-manual.pdfNP-lab-manual.pdf
NP-lab-manual.pdf

layering.pdf
layering.pdflayering.pdf
layering.pdf


More from farshad33

Topic 4 -software architecture viewpoint-multi-agent systems-a software archi...
Topic 4 -software architecture viewpoint-multi-agent systems-a software archi...Topic 4 -software architecture viewpoint-multi-agent systems-a software archi...
Topic 4 -software architecture viewpoint-multi-agent systems-a software archi...
farshad33

Topic 1 lecture 3-application imapct of mas&t
Topic 1 lecture 3-application imapct of mas&tTopic 1 lecture 3-application imapct of mas&t
Topic 1 lecture 3-application imapct of mas&t
farshad33

Topic 1 lecture 2
Topic 1 lecture 2Topic 1 lecture 2
Topic 1 lecture 2
farshad33

Topic 1 lecture 1
Topic 1 lecture 1Topic 1 lecture 1
Topic 1 lecture 1
farshad33

Chapter 8 agent-oriented software engineering ch8-prometheus research methodo...
Chapter 8 agent-oriented software engineering ch8-prometheus research methodo...Chapter 8 agent-oriented software engineering ch8-prometheus research methodo...
Chapter 8 agent-oriented software engineering ch8-prometheus research methodo...
farshad33

Chapter 7 agent-oriented software engineering ch7-agent methodology-agent met...
Chapter 7 agent-oriented software engineering ch7-agent methodology-agent met...Chapter 7 agent-oriented software engineering ch7-agent methodology-agent met...
Chapter 7 agent-oriented software engineering ch7-agent methodology-agent met...
farshad33

Chapter 6 agent communications--agent communications
Chapter 6 agent communications--agent communicationsChapter 6 agent communications--agent communications
Chapter 6 agent communications--agent communications
farshad33

Chapter 5 design patterns for mas
Chapter 5 design patterns for masChapter 5 design patterns for mas
Chapter 5 design patterns for mas
farshad33

Cs556 section2
Cs556 section2Cs556 section2
Cs556 section2
farshad33

Cs556 section1
Cs556 section1Cs556 section1
Cs556 section1
farshad33


More from farshad33 (10)

Topic 4 -software architecture viewpoint-multi-agent systems-a software archi...
Topic 4 -software architecture viewpoint-multi-agent systems-a software archi...Topic 4 -software architecture viewpoint-multi-agent systems-a software archi...
Topic 4 -software architecture viewpoint-multi-agent systems-a software archi...

Topic 1 lecture 3-application imapct of mas&t
Topic 1 lecture 3-application imapct of mas&tTopic 1 lecture 3-application imapct of mas&t
Topic 1 lecture 3-application imapct of mas&t

Topic 1 lecture 2
Topic 1 lecture 2Topic 1 lecture 2
Topic 1 lecture 2

Topic 1 lecture 1
Topic 1 lecture 1Topic 1 lecture 1
Topic 1 lecture 1

Chapter 8 agent-oriented software engineering ch8-prometheus research methodo...
Chapter 8 agent-oriented software engineering ch8-prometheus research methodo...Chapter 8 agent-oriented software engineering ch8-prometheus research methodo...
Chapter 8 agent-oriented software engineering ch8-prometheus research methodo...

Chapter 7 agent-oriented software engineering ch7-agent methodology-agent met...
Chapter 7 agent-oriented software engineering ch7-agent methodology-agent met...Chapter 7 agent-oriented software engineering ch7-agent methodology-agent met...
Chapter 7 agent-oriented software engineering ch7-agent methodology-agent met...

Chapter 6 agent communications--agent communications
Chapter 6 agent communications--agent communicationsChapter 6 agent communications--agent communications
Chapter 6 agent communications--agent communications

Chapter 5 design patterns for mas
Chapter 5 design patterns for masChapter 5 design patterns for mas
Chapter 5 design patterns for mas

Cs556 section2
Cs556 section2Cs556 section2
Cs556 section2

Cs556 section1
Cs556 section1Cs556 section1
Cs556 section1


Recently uploaded

Traditional Musical Instruments of Arunachal Pradesh and Uttar Pradesh - RAYH...
Traditional Musical Instruments of Arunachal Pradesh and Uttar Pradesh - RAYH...Traditional Musical Instruments of Arunachal Pradesh and Uttar Pradesh - RAYH...
Traditional Musical Instruments of Arunachal Pradesh and Uttar Pradesh - RAYH...
imrankhan141184

NEWSPAPERS - QUESTION 1 - REVISION POWERPOINT.pptx
NEWSPAPERS - QUESTION 1 - REVISION POWERPOINT.pptxNEWSPAPERS - QUESTION 1 - REVISION POWERPOINT.pptx
NEWSPAPERS - QUESTION 1 - REVISION POWERPOINT.pptx
iammrhaywood

writing about opinions about Australia the movie
writing about opinions about Australia the moviewriting about opinions about Australia the movie
writing about opinions about Australia the movie
Nicholas Montgomery

Jemison, MacLaughlin, and Majumder "Broadening Pathways for Editors and Authors"
Jemison, MacLaughlin, and Majumder "Broadening Pathways for Editors and Authors"Jemison, MacLaughlin, and Majumder "Broadening Pathways for Editors and Authors"
Jemison, MacLaughlin, and Majumder "Broadening Pathways for Editors and Authors"
National Information Standards Organization (NISO)

How to deliver Powerpoint Presentations.pptx
How to deliver Powerpoint  Presentations.pptxHow to deliver Powerpoint  Presentations.pptx
How to deliver Powerpoint Presentations.pptx
HajraNaeem15

BÀI TẬP BỔ TRỢ TIẾNG ANH LỚP 9 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2024-2025 - ...
BÀI TẬP BỔ TRỢ TIẾNG ANH LỚP 9 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2024-2025 - ...BÀI TẬP BỔ TRỢ TIẾNG ANH LỚP 9 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2024-2025 - ...
BÀI TẬP BỔ TRỢ TIẾNG ANH LỚP 9 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2024-2025 - ...
Nguyen Thanh Tu Collection

Film vocab for eal 3 students: Australia the movie
Film vocab for eal 3 students: Australia the movieFilm vocab for eal 3 students: Australia the movie
Film vocab for eal 3 students: Australia the movie
Nicholas Montgomery

BÀI TẬP BỔ TRỢ TIẾNG ANH 8 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2023-2024 (CÓ FI...
BÀI TẬP BỔ TRỢ TIẾNG ANH 8 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2023-2024 (CÓ FI...BÀI TẬP BỔ TRỢ TIẾNG ANH 8 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2023-2024 (CÓ FI...
BÀI TẬP BỔ TRỢ TIẾNG ANH 8 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2023-2024 (CÓ FI...
Nguyen Thanh Tu Collection

Pengantar Penggunaan Flutter - Dart programming language1.pptx
Pengantar Penggunaan Flutter - Dart programming language1.pptxPengantar Penggunaan Flutter - Dart programming language1.pptx
Pengantar Penggunaan Flutter - Dart programming language1.pptx
Fajar Baskoro

Walmart Business+ and Spark Good for Nonprofits.pdf
Walmart Business+ and Spark Good for Nonprofits.pdfWalmart Business+ and Spark Good for Nonprofits.pdf
Walmart Business+ and Spark Good for Nonprofits.pdf
TechSoup

LAND USE LAND COVER AND NDVI OF MIRZAPUR DISTRICT, UP
LAND USE LAND COVER AND NDVI OF MIRZAPUR DISTRICT, UPLAND USE LAND COVER AND NDVI OF MIRZAPUR DISTRICT, UP
LAND USE LAND COVER AND NDVI OF MIRZAPUR DISTRICT, UP
RAHUL

A Visual Guide to 1 Samuel | A Tale of Two Hearts
A Visual Guide to 1 Samuel | A Tale of Two HeartsA Visual Guide to 1 Samuel | A Tale of Two Hearts
A Visual Guide to 1 Samuel | A Tale of Two Hearts
Steve Thomason

Standardized tool for Intelligence test.
Standardized tool for Intelligence test.Standardized tool for Intelligence test.
Standardized tool for Intelligence test.
deepaannamalai16

What is Digital Literacy? A guest blog from Andy McLaughlin, University of Ab...
What is Digital Literacy? A guest blog from Andy McLaughlin, University of Ab...What is Digital Literacy? A guest blog from Andy McLaughlin, University of Ab...
What is Digital Literacy? A guest blog from Andy McLaughlin, University of Ab...
GeorgeMilliken2

Wound healing PPT
Wound healing PPTWound healing PPT
Wound healing PPT
Jyoti Chand

BBR 2024 Summer Sessions Interview Training
BBR  2024 Summer Sessions Interview TrainingBBR  2024 Summer Sessions Interview Training
BBR 2024 Summer Sessions Interview Training
Katrina Pritchard

Bonku-Babus-Friend by Sathyajith Ray (9)
Bonku-Babus-Friend by Sathyajith Ray  (9)Bonku-Babus-Friend by Sathyajith Ray  (9)
Bonku-Babus-Friend by Sathyajith Ray (9)
nitinpv4ai

Stack Memory Organization of 8086 Microprocessor
Stack Memory Organization of 8086 MicroprocessorStack Memory Organization of 8086 Microprocessor
Stack Memory Organization of 8086 Microprocessor
JomonJoseph58

Beyond Degrees - Empowering the Workforce in the Context of Skills-First.pptx
Beyond Degrees - Empowering the Workforce in the Context of Skills-First.pptxBeyond Degrees - Empowering the Workforce in the Context of Skills-First.pptx
Beyond Degrees - Empowering the Workforce in the Context of Skills-First.pptx
EduSkills OECD

spot a liar (Haiqa 146).pptx Technical writhing and presentation skills
spot a liar (Haiqa 146).pptx Technical writhing and presentation skillsspot a liar (Haiqa 146).pptx Technical writhing and presentation skills
spot a liar (Haiqa 146).pptx Technical writhing and presentation skills
haiqairshad


Recently uploaded (20)

Traditional Musical Instruments of Arunachal Pradesh and Uttar Pradesh - RAYH...
Traditional Musical Instruments of Arunachal Pradesh and Uttar Pradesh - RAYH...Traditional Musical Instruments of Arunachal Pradesh and Uttar Pradesh - RAYH...
Traditional Musical Instruments of Arunachal Pradesh and Uttar Pradesh - RAYH...

NEWSPAPERS - QUESTION 1 - REVISION POWERPOINT.pptx
NEWSPAPERS - QUESTION 1 - REVISION POWERPOINT.pptxNEWSPAPERS - QUESTION 1 - REVISION POWERPOINT.pptx
NEWSPAPERS - QUESTION 1 - REVISION POWERPOINT.pptx

writing about opinions about Australia the movie
writing about opinions about Australia the moviewriting about opinions about Australia the movie
writing about opinions about Australia the movie

Jemison, MacLaughlin, and Majumder "Broadening Pathways for Editors and Authors"
Jemison, MacLaughlin, and Majumder "Broadening Pathways for Editors and Authors"Jemison, MacLaughlin, and Majumder "Broadening Pathways for Editors and Authors"
Jemison, MacLaughlin, and Majumder "Broadening Pathways for Editors and Authors"

How to deliver Powerpoint Presentations.pptx
How to deliver Powerpoint  Presentations.pptxHow to deliver Powerpoint  Presentations.pptx
How to deliver Powerpoint Presentations.pptx

BÀI TẬP BỔ TRỢ TIẾNG ANH LỚP 9 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2024-2025 - ...
BÀI TẬP BỔ TRỢ TIẾNG ANH LỚP 9 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2024-2025 - ...BÀI TẬP BỔ TRỢ TIẾNG ANH LỚP 9 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2024-2025 - ...
BÀI TẬP BỔ TRỢ TIẾNG ANH LỚP 9 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2024-2025 - ...

Film vocab for eal 3 students: Australia the movie
Film vocab for eal 3 students: Australia the movieFilm vocab for eal 3 students: Australia the movie
Film vocab for eal 3 students: Australia the movie

BÀI TẬP BỔ TRỢ TIẾNG ANH 8 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2023-2024 (CÓ FI...
BÀI TẬP BỔ TRỢ TIẾNG ANH 8 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2023-2024 (CÓ FI...BÀI TẬP BỔ TRỢ TIẾNG ANH 8 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2023-2024 (CÓ FI...
BÀI TẬP BỔ TRỢ TIẾNG ANH 8 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2023-2024 (CÓ FI...

Pengantar Penggunaan Flutter - Dart programming language1.pptx
Pengantar Penggunaan Flutter - Dart programming language1.pptxPengantar Penggunaan Flutter - Dart programming language1.pptx
Pengantar Penggunaan Flutter - Dart programming language1.pptx

Walmart Business+ and Spark Good for Nonprofits.pdf
Walmart Business+ and Spark Good for Nonprofits.pdfWalmart Business+ and Spark Good for Nonprofits.pdf
Walmart Business+ and Spark Good for Nonprofits.pdf

LAND USE LAND COVER AND NDVI OF MIRZAPUR DISTRICT, UP
LAND USE LAND COVER AND NDVI OF MIRZAPUR DISTRICT, UPLAND USE LAND COVER AND NDVI OF MIRZAPUR DISTRICT, UP
LAND USE LAND COVER AND NDVI OF MIRZAPUR DISTRICT, UP

A Visual Guide to 1 Samuel | A Tale of Two Hearts
A Visual Guide to 1 Samuel | A Tale of Two HeartsA Visual Guide to 1 Samuel | A Tale of Two Hearts
A Visual Guide to 1 Samuel | A Tale of Two Hearts

Standardized tool for Intelligence test.
Standardized tool for Intelligence test.Standardized tool for Intelligence test.
Standardized tool for Intelligence test.

What is Digital Literacy? A guest blog from Andy McLaughlin, University of Ab...
What is Digital Literacy? A guest blog from Andy McLaughlin, University of Ab...What is Digital Literacy? A guest blog from Andy McLaughlin, University of Ab...
What is Digital Literacy? A guest blog from Andy McLaughlin, University of Ab...

Wound healing PPT
Wound healing PPTWound healing PPT
Wound healing PPT

BBR 2024 Summer Sessions Interview Training
BBR  2024 Summer Sessions Interview TrainingBBR  2024 Summer Sessions Interview Training
BBR 2024 Summer Sessions Interview Training

Bonku-Babus-Friend by Sathyajith Ray (9)
Bonku-Babus-Friend by Sathyajith Ray  (9)Bonku-Babus-Friend by Sathyajith Ray  (9)
Bonku-Babus-Friend by Sathyajith Ray (9)

Stack Memory Organization of 8086 Microprocessor
Stack Memory Organization of 8086 MicroprocessorStack Memory Organization of 8086 Microprocessor
Stack Memory Organization of 8086 Microprocessor

Beyond Degrees - Empowering the Workforce in the Context of Skills-First.pptx
Beyond Degrees - Empowering the Workforce in the Context of Skills-First.pptxBeyond Degrees - Empowering the Workforce in the Context of Skills-First.pptx
Beyond Degrees - Empowering the Workforce in the Context of Skills-First.pptx

spot a liar (Haiqa 146).pptx Technical writhing and presentation skills
spot a liar (Haiqa 146).pptx Technical writhing and presentation skillsspot a liar (Haiqa 146).pptx Technical writhing and presentation skills
spot a liar (Haiqa 146).pptx Technical writhing and presentation skills


Cs556 section3

  • 2. Layered Protocols Layers, interfaces, and protocols in the OSI model. 2-1
  • 3. Layered Protocols International Standards Organization (ISO) Developed a reference model that clearly identifies the various levels involved, gives them standard names, and points out which level should do which job. Open systems Interconnection Reference Model Protocols: rules determining how an open system can communicate with another open system. Connection-oriented protocols: Before exchanging data the sender and receiver first explicitly establish a connection, and possibly negotiate the protocol they will use Connectionless protocols: No setup in advance is needed. Dropping a letter in a mailbox
  • 4. Layered Protocols A typical message as it appears on the network. 2-2
  • 5. Layered Protocols Physical Layer Undertakes the actual transmission of the message. How many volts to use for 0 and 1? How many bits per second can be sent? Can transmission take place in both directions simultaneously? Size and shape of the network connector Number of pins and meanings of each Data Link Layer Provide mechanisms to detect and correct errors during the bit transmission Bits are grouped into units called frames. A special bit pattern is placed at the beginning and at the end of each frame to mark it. A checksum is computed by adding up all the bytes in the frame in a certain way. Frames are assigned sequence numbers
  • 6. Data Link Layer Discussion between a receiver and a sender in the data link layer. 2-3
  • 7. Layered Protocols Network Layer The choosing of the best path from the sender to the receiver is called routing. Routing is the major task of the network layer. Example of Connectionless protocol: IP No connection setup. Each IP packet is routed to its destination independently of all others. No internal path is selected and remembered. Example of Connection-oriented protocol – ATM Virtual Channels A unidirectional connection from the source to the destination is established. A collection of virtual channels between two hosts comprise a virtual path.
  • 8. Transport Protocols Delivers messages without loss. Each message is broken into pieces called packets A sequence number is assigned to each packet Transport Layer Header Which packets have been sent Which have been received How many more the receiver has room to accept Which should be retransmitted
  • 9. TCP & Client-Server TCP (TCP for Transactions, T/TCP) a) Normal operation of TCP. b) Transactional TCP. 2-4
  • 10. Higher Level Protocols Session Layer Provides dialog control, to keep track of which party is currently talking Provides synchronization facilities Insert checkpoints into long transfers, so that in the event of a crash, it is necessary to go back only to the last checkpoint Presentation Layer Is concerned with the meaning of the bits It is possible to define records such a name, address, amount of money, and other valuable info that might be contained in a message, and have the sender notify the receiver that a message contains a particular record in a certain format. Makes communication easier between machines with different internal representations
  • 11. Application Protocols Contains a collection of standard network applications, like e-mail, file transfer, terminal emulation, etc. FTP FTP protocol versus ftp program HTTP (HyperText Transfer Protocol) Remotely manage and handle the transfer of Web pages Web browsers and web servers JAVA RMI
  • 12. Remote Procedure Call - RPC Explicit message exchange using send and receive does not conceal communication. Main Idea behind RPCs Allow programs to call procedures located on other machines Subtle problems exist, since the calling and called procedures: run on different machines execute on different address spaces failures may occur
  • 13. Conventional Procedure Call a) Parameter passing in a local procedure call: the stack before the call to read b) The stack while the called procedure is active C call count = read(fd,buf,nbytes) • Call by value • Call by reference • Call by copy/restore
  • 14. RPC versus Calling a System Call - Read data from a file Remote file The programmer calls read the read routine is extracted from the library by the linker (it is now called client stub) it packs the parameters into a message and requests that message to be sent to the server When the message arrives at the server, the OS passes it up to a server stub. The server stub unpacks the parameters and calls the server procedure in the usual way. Local file The programmer calls read The read routine is extracted from the library by the linker It is a short procedure that calls a system call The read procedure is a kind of interface between the user code and the local OS.
  • 15. Client and Server Stubs Principle of RPC between a client and server program.
  • 16. Client and Server Stubs Client’s side: read is called placing appropriate arguments in the stack (in the conventional way) the read library routine does a call to the OS (as happens in the conventional call) Unlike the original one, it does not ask the OS to perform a system call but to send a message to the server Server’s side: the server procedure is called in the usual way; the parameters and the return address are all on the stack and nothing seems unusual. The transparency achieved is the main beauty of the scheme!
  • 17. Steps of a Remote Procedure Call 1. Client procedure calls client stub in normal way 2. Client stub builds message, calls local OS 3. Client's OS sends message to remote OS 4. Remote OS gives message to server stub 5. Server stub unpacks parameters, calls server 6. Server does work, returns result to the stub 7. Server stub packs it in message, calls local OS 8. Server's OS sends message to client's OS 9. Client's OS gives message to client stub 10. Stub unpacks result, returns to client
  • 18. Passing Value Parameters (1) Steps involved in doing remote computation through RPC 2-8 Packing parameters into a message is called parameter marshalling.
  • 19. Passing Value Parameters (2) a) Original message on the Pentium b) The message after receipt on the SPARC c) The message after being inverted. The little numbers in boxes indicate the address of each byte • Each machine has its own representation for numbers, characters, and other data items. IBM mainframes use the EBCDIC character code, whereas IBM PCs use ASCII • Intel Pentium machines number their bytes from right to left (little endian), Sun SPARC number them the other way (big endian).
  • 20. Passing Reference Parameters How are pointers or in general references passed? With the greatest of difficulty, if at all Possible Solutions 1. Forbid pointers 2. Copy the object pointed to by the pointer into the message and send it to the server. The server copies it at some place in its memory space, and calls the routine passing a pointer to it. When the routine ends, the server copies back the object’s value into one parameter of the message and sends the message to the client. If the stubs know whether the object is an input or output parameter to the server, one of the two copies can be avoided. The above approach does not work with complex objects (i.e, dynamic arbitrary data structures).
  • 21. Parameter Specification and Stub Generation a) A procedure b) The corresponding message: • A character is placed in the rightmost byte of a word • A float is transmitted as a whole word • An array as a group of words equal to the array length, preceded by a word giving the length.
  • 22. Parameter Specification and Stub Generation The caller and the callee agree on: The format of the messages The representation of simple data structures integers are represented in two’s complement, characters in 16-bit Unicode, floats in IEEE standard #754 format, etc. The actual exchange of the message TCP/IP? UDP? Stubs for the same RPC protocol but different procedures generally differ only in their interface to the applications. An interface consists of a collection of procedures that can be called by a client, and which are implemented by a server. Interfaces are often specified by means of an Interface Definition Language (IDL), then compiled into a client stub and a server stub, along with the appropriate compile-time or run-time interfaces.
  • 23. Asynchronous RPC Examples where blocking is not necessary Transferring money from one account to another Adding entries into a database Starting remote services Batch processing Asynchronous RPCs A client immediately continues after issuing the RPC request.
  • 24. Asynchronous RPC (1) a) The interconnection between client and server in a traditional RPC b) The interaction using asynchronous RPC 2-12
  • 25. Asynchronous RPC (2) A client and server interacting through two asynchronous RPCs Combining two asynchronous RPCs is referred as a deferred synchronous RPC. Completely Asynchronous RPCs 2-13 Deferred Synchronous RPCs • A client may want to pre-fetch the network addresses of a set of hosts that it expects to contact soon.
  • 26. Distributed Objects The key feature of an object is that it encapsulates data, called state, and the operations on those data, called methods. Methods are made available through an interface. When a client binds to a distributed object, an implementation of the object’s interface, called proxy, is loaded into the client’s address space. It marshals method invocations into messages and unmarshals reply messages to return the result to the client Proxy = client stub Skeleton = server stub Simple remote object: its state is not distributed, but its interface might be. Persistent Objects: continues to exist even if it is currently not contained in the address space of a server process Transient Objects: exists only as long as the server that manages it is active.
  • 27. Distributed Objects Common organization of a remote object with client-side proxy. 2-16
  • 28. Binding a Client to an Object Object references are supported by RMI systems When a process holds an object reference, it must first bind to the reference’s object before invoking any of its methods. Binding results in a proxy being installed in the process’s address space. Implicit Binding: binding is done automatically The client is offered a mechanism that allows it to directly invoke methods using only a reference to the object. Explicit Binding: more transparent to the client The client first calls a special function to bind to the object and then invokes any method.
  • 29. Implementation of Object References An object reference should provide the following information: The network address of the machine where the state of the object resides An endpoint (port) identifying the server that manages the object An id identifying which object in this server. If a server crashes and recovers, a new endpoint might be assigned to it All object references become invalid Have a local daemon per machine listening to a well-known endpoint, and keep track of the server-to-endpoint assignments in an endpoint table. Replace the endpoint with an id in the object reference
  • 30. Implementation of Object References Encoding the network address of the server within the object’s reference is also not a good idea Location servers Assumption of using the same protocol stack can be dropped Add more information in the object reference identification of the protocol proxy implementation handle
  • 31. Static versus Dynamic Remote Memory Invocations Static Invocation Use predefined inteface definitions make use of an object-based language (e.g., JAVA) that will handle stub generation automatically. Example: fobject.append(int); Dynamic Invocation compose a method invocation at run time Example: invoke(fobject,id(append), int); Usefulness of Dynamic Invocations browser that is used to examine sets of objects and supports remote object invocations dynamic invocations in a batch processing service where invocations can be handled along with a time determining when the invocation should be done
  • 32. Parameter Passing Object references can be used as parameters to method invocations References are passed by value They are copied from one machine to another References to local objects are treated differently for efficiency The referenced local object may be copied as a whole and passed along with the invocation
  • 33. Parameter Passing The situation when passing an object by reference or by value. 2-18
  • 34. JAVA RMI Architecture The definition of behavior and the implementation of that behavior are separate concepts: The definition of a remote service is coded using a Java interface. The implementation of the remote service is coded in a class. RMI supports two classes that implement the same interface. o The first class is the implementation of the behavior, and it runs on the server. o The second class acts as a proxy for the remote service and it runs on the client. Material taken from http://java.sun.com/developer/onlineTraining/rmi/RMI.html
  • 35. RMI Architecture Layers • The Stubs and Skeleton layer intercepts method calls made by the client to the interface reference variable and redirects these calls to a remote RMI service. Implements the stub and skeletons needed. • The Remote Reference layer connects clients to remote service objects that are running and exported on a server. Defines and supports the invocation semantics of the RMI connection. • The transport layer is based on TCP/IP connections between machines in a network. A client is connected to a a remote service implementation by establishing a unicast point-to-point connection. Material taken from http://java.sun.com/developer/onlineTraining/rmi/RMI.html
  • 36. Naming Remote Objects How does a client find an RMI remote service? A naming or directory service is run on a well-known host and port number. How does a client obtains a reference to a service object? RMI includes a simple service called the RMI registry, which runs on each machine that hosts remote service objects and accepts queries for services by default on port 1099. Each object should be exported and registered. The registry provides a remote reference to a service object (a URL is used to describe the service object).
  • 37. Using RMI - Example Parts composing a working RMI Interface definitions for the remote services Implementations of the remote services Stub and Skeleton files A server to host the remote services An RMI Naming service that allows clients to find the remote services A class file provider (an HTTP or FTP server) A client program that needs the remote services Material taken from http://java.sun.com/developer/onlineTraining/rmi/RMI.html
  • 38. Using RMI - Example Steps to build a system: 1. Write and compile Java code for interfaces 2. Write and compile Java code for implementation classes 3. Generate Stub and Skeleton class files from the implementation classes 4. Write Java code for a remote service host program 5. Develop Java code for RMI client program 6. Install and run RMI system Material taken from http://java.sun.com/developer/onlineTraining/rmi/RMI.html
  • 39. Example -Interface public interface Calculator extends java.rmi.Remote { public long add(long a, long b) throws java.rmi.RemoteException; public long sub(long a, long b) throws java.rmi.RemoteException; public long mul(long a, long b) throws java.rmi.RemoteException; public long div(long a, long b) throws java.rmi.RemoteException; } Material taken from http://java.sun.com/developer/onlineTraining/rmi/RMI.html
  • 40. Example - Implementation public class CalculatorImpl extends java.rmi.server.UnicastRemoteObject implements Calculator { // Implementations must have an explicit constructor in order to declare the // RemoteException exception public CalculatorImpl() throws java.rmi.RemoteException { super(); } public long add(long a, long b) throws java.rmi.RemoteException { return a + b; } public long sub(long a, long b) throws java.rmi.RemoteException { return a - b; } public long mul(long a, long b) throws java.rmi.RemoteException { return a * b; } public long div(long a, long b) throws java.rmi.RemoteException { return a / b; } } When the constructor calls super(), it activates code that performs the RMI linking and remote object initialization. Material taken from http://java.sun.com/developer/onlineTraining/rmi/RMI.html
  • 41. Example – Stubs and Skeletons & Host Server The stub and skeleton files are created using the RMI compiler, rmic (rmic CalculatorImpl) This generates the Calculator_Stub.class and Calculator_Skel.class Host Server public class CalculatorServer { public CalculatorServer() { try { Calculator c = new CalculatorImpl(); Naming.rebind("rmi://localhost:1099/CalculatorService", c); } catch (Exception e) { System.out.println("Trouble: " + e); } } public static void main(String args[]) { new CalculatorServer(); } } Material taken from http://java.sun.com/developer/onlineTraining/rmi/RMI.html
  • 42. Example - Client import java.rmi.Naming; import java.rmi.RemoteException; import java.net.MalformedURLException; import java.rmi.NotBoundException; public class CalculatorClient { public static void main(String[] args) { try { Calculator c = (Calculator) Naming.lookup( "rmi://localhost/CalculatorService"); System.out.println( c.sub(4, 3) ); System.out.println( c.add(4, 5) ); System.out.println( c.mul(3, 6) ); System.out.println( c.div(9, 3) ); } catch (MalformedURLException murle) { System.out.println(); System.out.println( "MalformedURLException"); System.out.println(murle); } catch (RemoteException re) { System.out.println(); System.out.println( "RemoteException"); System.out.println(re); } catch (NotBoundException nbe) { System.out.println(); System.out.println( "NotBoundException"); System.out.println(nbe); } catch ( java.lang.ArithmeticException ae) { System.out.println(); System.out.println( "java.lang.ArithmeticException"); System.out.println(ae); } } } Material taken from http://java.sun.com/developer/onlineTraining/rmi/RMI.html
  • 43. Parameter-Passing in RMI When a local object is passed to a remote method, the object itself is passed by value, not the reference to the object. When a remote method returns an object, a copy of the whole object is returned to the calling program. A Java object can be simple and self-contained, or it could refer to other Java objects in complex graph-like structure. Because different JVMs do not share heap memory, RMI must send the referenced object and all objects it references. RMI uses a technology called serialization to transform an object into a linear format that can then be sent over the network wire. Object serialization essentially flattens an object and any objects it references. Material taken from http://java.sun.com/developer/onlineTraining/rmi/RMI.html
  • 44. Parameter-Passing in RMI A client program can obtain a reference to a remote object: through the RMI Registry program, or as the return value from a method call Material taken from http://java.sun.com/developer/onlineTraining/rmi/RMI.html
  • 45. Distributing and Installing RMI Software To run an RMI application, the supporting class files must be placed in locations that can be found by the server and the clients. For the server, the following classes must be available to its class loader: Remote service interface definitions Remote service implementations Skeletons for the implementation classes Stubs for the implementation classes All other server classes For the client, the following classes must be available to its class loader: Remote service interface definitions Stubs for the remote service implementation classes Server classes for objects used by the client (such as return values) All other client classes Material taken from http://java.sun.com/developer/onlineTraining/rmi/RMI.html
  • 46. Distributing and Installing RMI Software The RMI supports loading of classes from FTP and HTTP servers (class RMIClassLoader). classes can be deployed in one, or only a few places, all nodes in a RMI system will be able to get the proper class files to operate. If the remote JVM needs to load a class file for an object, it looks for the embedded URL and contacts the server at that location for the file. When the property java.rmi.server.useCodebaseOnly is set to true, then the JVM will load classes from either a location specified by the CLASSPATH environment variable or the URL specified in this property. Material taken from http://java.sun.com/developer/onlineTraining/rmi/RMI.html
  • 47. Message-Oriented Communication Applications are executed on hosts The hosts are connected through a network of communication servers Each host is connected to some communication server Example: Electronic Mail System Each host runs an application by which a user can compose, send, receive and read messages. Each host is connected to a mail server Each message is first stored in one of the output buffers of the local mail server. The server removes messages from its buffers and sends them to their destination. The target mail server stores the message in an input buffer for the designated receiver (in the receiver’s mailbox). The interface at the receiving host offers a service to the receiver’s user agent by which the latter can regularly check for incoming mail.
  • 48. Persistence and Synchronicity in Communication General organization of a communication system in which hosts are connected through a network 2-20
  • 49. Persistence and Synchronicity in Communication Persistent communication a message that has been submitted for transmission is stored by the communication system as long as it takes to deliver it to the receiver. Transient communication a message is stored by the communication system only as long as the sending and receiving application are executing. If a communication server cannot deliver a message to the next communication server or the receiver, the message will be discarded It works like a traditional store-and-forward router Asynchronous Communication A sender continues its execution immediately after it has submitted its message for transmission Synchronous Communication The sender is blocked until its message is stored in a local buffer at the receiving host, or actually delivered to the receiver.
  • 50. Persistence and Synchronicity in Communication Persistent Asynchronous Communication Each message is either persistently stored in a buffer at the local host or at the first communication server. A e-mail system is an example Persistent Synchronous Communication Messages can be persistently stored at the receiving host and a sender is blocked until this happens Transient Asynchronous Communication The message is temporarily stored at a local buffer at the sending host, after which the sender immediately continues UDP is an example Transient Synchronous Communication The sender is blocked until the message is stored in a local buffer at the receiving host, or until the message is delivered to the receiver for further processing, or until it receives a reply message from the other side (RPCs,RMIs)
  • 51. Persistence and Synchronicity in Communication a) Persistent asynchronous communication b) Persistent synchronous communication
  • 52. Persistence and Synchronicity in Communication c) Transient asynchronous communication d) Receipt-based transient synchronous communication 2-22.2
  • 53. Persistence and Synchronicity in Communication e) Delivery-based transient synchronous communication at message delivery f) Response-based transient synchronous communication
  • 54. Berkeley Sockets A socket is a communication endpoint to which an application can write data that are to be sent out over the underlying network, and from which incoming data can be read. Socket primitives for TCP/IP. Release the connectionClose Receive some data over the connectionReceive Send some data over the connectionSend Actively attempt to establish a connectionConnect Block caller until a connection request arrivesAccept Announce willingness to accept connectionsListen Attach a local address to a socketBind Create a new communication endpointSocket MeaningPrimitive
  • 56. Sockets #include <sys/types.h> #include <sys/socket.h> #define BUF_LEN 256 #define ADDRESS "mysocket" int main(void) { int sd,ns, len, fromlen; char buf[BUF_LEN]; struct sockaddr_un sockaddr, clientsockaddr; sd = socket(AF_UNIX,SOCK_STREAM,0); sockaddr.sun_family = AF_UNIX; strcpy(sockaddr.sun_path, ADDRESS); len = sizeof(sockaddr.sun_family) + strlen(sockaddr.sun_path); bind(sd, (struct sockaddr *)&sockaddr, len); listen(sd,1); while (1) { ns = accept(sd,&clientsockaddr,&fromlen); if (fork() == 0) { // child code close(sd); read(ns,buf,sizeof(buf)); printf("server read ‘%s’n", buf); exit(0); } close(ns); sleep(3); } } A server process in the UNIX System Domain The BSD UNIX supports: The “UNIX system domain” for processes communicating on one machine The “Internat domain” for processes communicating over the Internet (using the DARPA [Defense Advanced Research Project] communications protocols) Each socket has a type: Stream (default: TCP) Datagram (default: UDP) bind(sd, <sockname>,length): associates the name <sockname> with the socket sd. listen(sd,qlength): specifies the maximum length of the queue which stores incoming requests for connections to the socket
  • 57. Sockets #include <sys/types.h> #include <sys/socket.h> #define BUF_LEN 256 #define ADDRESS "mysocket" int main(void) { int sd, len; struct sockaddr_un sockaddr; sd = socket(AF_UNIX,SOCK_STREAM,0); sockaddr.sun_family = AF_UNIX; strcpy(sockaddr.sun_path, ADDRESS); len = sizeof(sockaddr.sun_family) + strlen(sockaddr.sun_path); if (connect(sd,&sockaddr, len) == -1) exit(1); write(sd,"hi guy",6); close(sd); } A client process in the UNIX System Domain
  • 58. The Message-Passing Interface (MPI) Some of the most intuitive message-passing primitives of MPI. Check if there is an incoming message, but do not blockMPI_irecv Receive a message; block if there are noneMPI_recv Send a message and wait for replyMPI_sendrecv Send a message and wait until receipt startsMPI_ssend Send a message and wait until copied to remote bufferMPI_send Append outgoing message to a local send bufferMPI_bsend MeaningPrimitive
  • 59. MPI – A Simple Example /*The Parallel Hello World Program*/ #include <stdio.h> #include <mpi.h> int main(int argc, char **argv) { int node; char buf[64]; FILE *fp; MPI_Init(&argc,&argv); MPI_Comm_rank(MPI_COMM_WORLD, &node); sprintf(buf,”file%d”,node); fp = fopen(buf,”r”); fprintf(fp, "Hello World from Node %dn",node); fclose(fp); MPI_Finalize(); }
  • 60. MPI – Basic Concepts A communicator is a collection of processes that can send messages to each other. There is a default communicator whose group contains all initial processes, called MPI_COMM_WORLD. A process is identified by its rank in the group associated with a communicator.
  • 61. MPI – A simple example with send-receive int main(int argc, char **argv) { int rank, size; double x[10]; MPI_Status status; MPI_Init(&argc, &argv); MPI_Comm_size(MPI_COMM_WORLD, &size); MPI_Comm_rank(MPI_COMM_WORLD, &rank); if (rank == 0) { for (int i=0; i<10 ; i++) x[i] = 0.1*i; MPI_Send(x, 10, MPI_DOUBLE, 1, 666, MPI_COMM_WORLD); } else if (rank == 1) { MPI_Recv(x, 10, MPI_DOUBLE, 0, 666, MPI_COMM_WORLD, &status); } MPI_Finalize(); } Send an array from process 0 to 1 - int MPI_Send(void 8message, int count, MPI_Datatype datatype, int dest, int tag) - int MPI_recv(void *message, int count, MPI_Datatype datatype, int source, int tag, MPI_Comm comm, MPI_Status *status)
  • 62. MPI Tags Messages are sent with an accompanying user-defined integer tag, to assist the receiving process in identifying the message. Messages can be screened at the receiving end by specifying a specific tag, or not screened by specifying MPI_ANY_TAG as the tag in a receive.
  • 63. Another Simple Example # include <stdio.h> #include “mpi.h” int main(int argc, char **argv) { int my_rank; /* rank of process */ int p; /* number of processes */ int source; /* rank of sender */ int dest; /* rand of receiver */ int tag = 50; /* tag for message */ char message[100]; /* storage for message */ MPI_Status status; /* return status for receive */ MPI_INIT(&argc, &argv); MPI_Comm_rank(MPI_COMM_WORLD, &my_rank); MPI_Comm_size(MPI_COMM_WORLD,&p); if (my_rank != 0) { sprinf(message, “Greetings from process %d!”, my_rank); dest =0; MPI_Send(message, strlen(message)+1, MPI_CHAR, dest, tag, MPI_COMM_WORLD); else { for (source = 1; source < p; sopurce++) { MPI_Recv(message,100, MPI_CHAR, source, tag, MPI_COMM_WORLD, &status); printf(“%sn”, message); } } }
  • 64. Introduction to Collective Operations in MPI Collective operations are called by all processes in a communicator. MPI_BCAST distributes data from one process (the root) to all others in a communicator. MPI_REDUCE combines data from all processes in communicator and returns it to one process. In many numerical algorithms, SEND/RECEIVE can be replaced by BCAST/REDUCE, improving both simplicity and efficiency.
  • 65. MPI – Further Information Online examples available at http://www.mcs.anl.gov/mpi/tutorials/perf The Standard itself: at http://www.mpi-forum.org All MPI official releases, in both postscript and HTML Books: Using MPI: Portable Parallel Programming with the Message-Passing Interface, by Gropp, Lusk, and Skjellum, MIT Press, 1994. MPI: The Complete Reference, by Snir, Otto, Huss-Lederman, Walker, and Dongarra, MIT Press, 1996. Designing and Building Parallel Programs, by Ian Foster, Addison-Wesley, 1995. Parallel Programming with MPI, by Peter Pacheco, Morgan-Kaufmann, 1997. MPI: The Complete Reference Vol 1 and 2,MIT Press, 1998(Fall).
